3 1/2 inch gauge GWR 4-6-0 "Shugborough Hall"

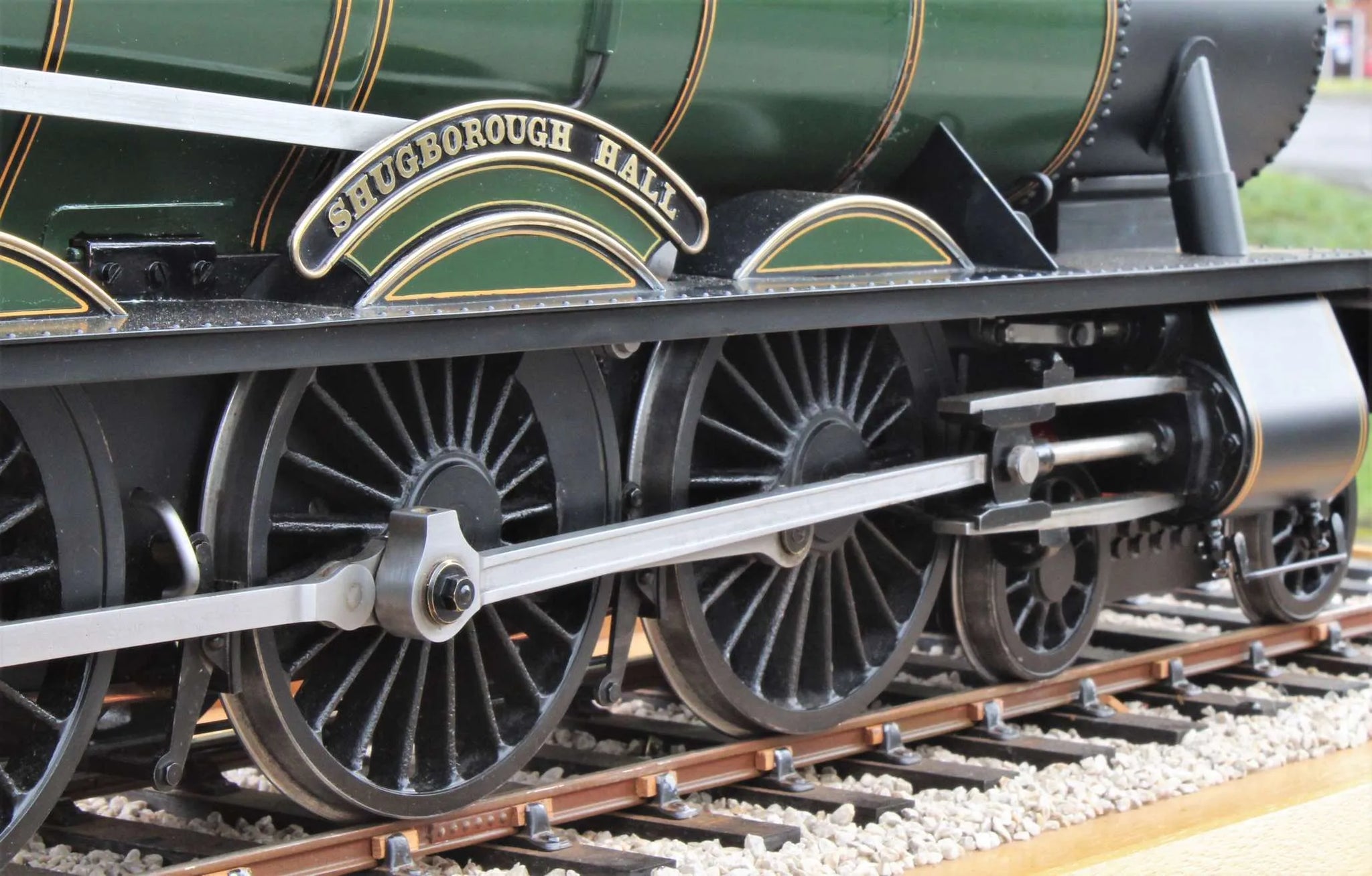

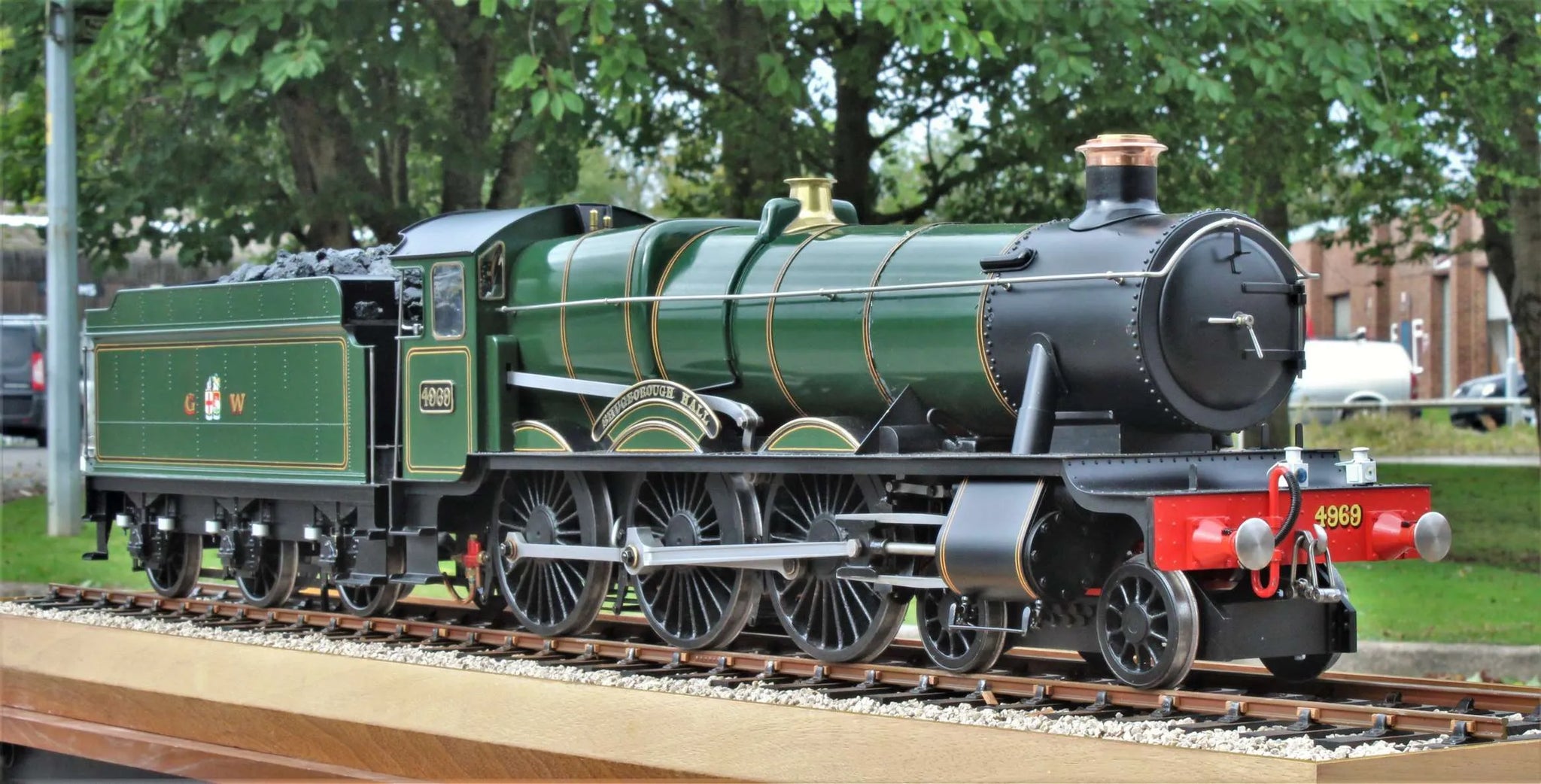

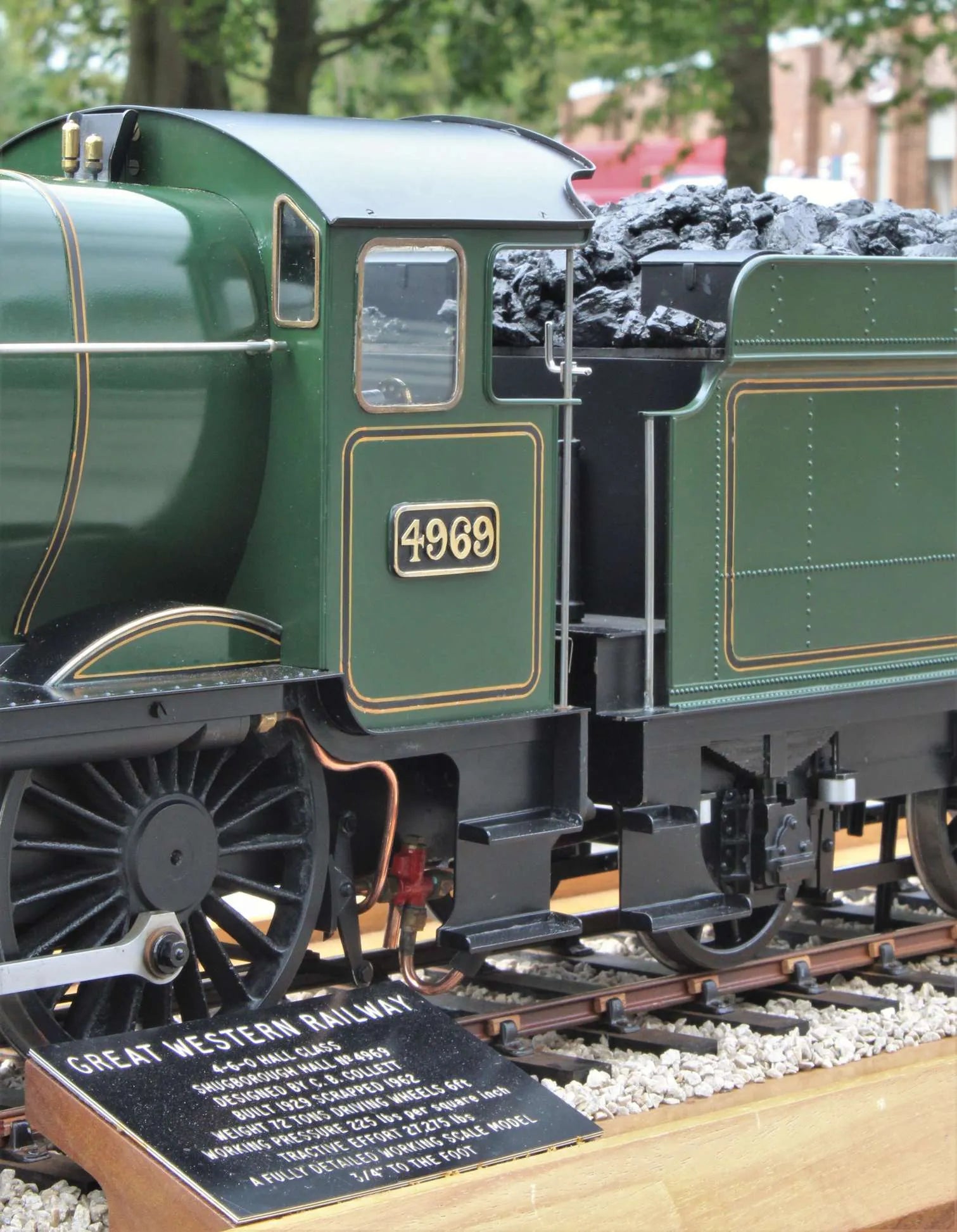

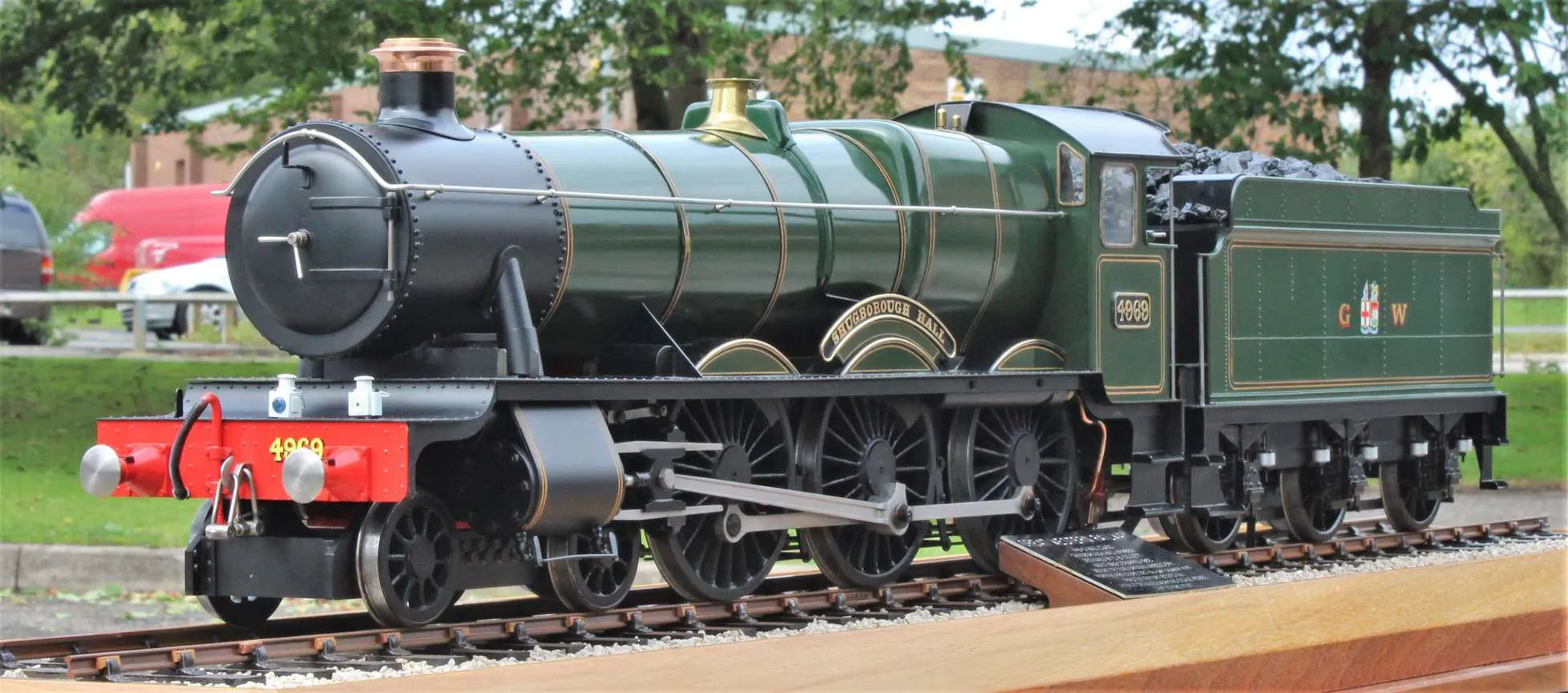

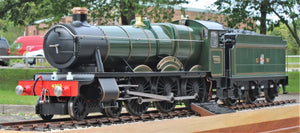

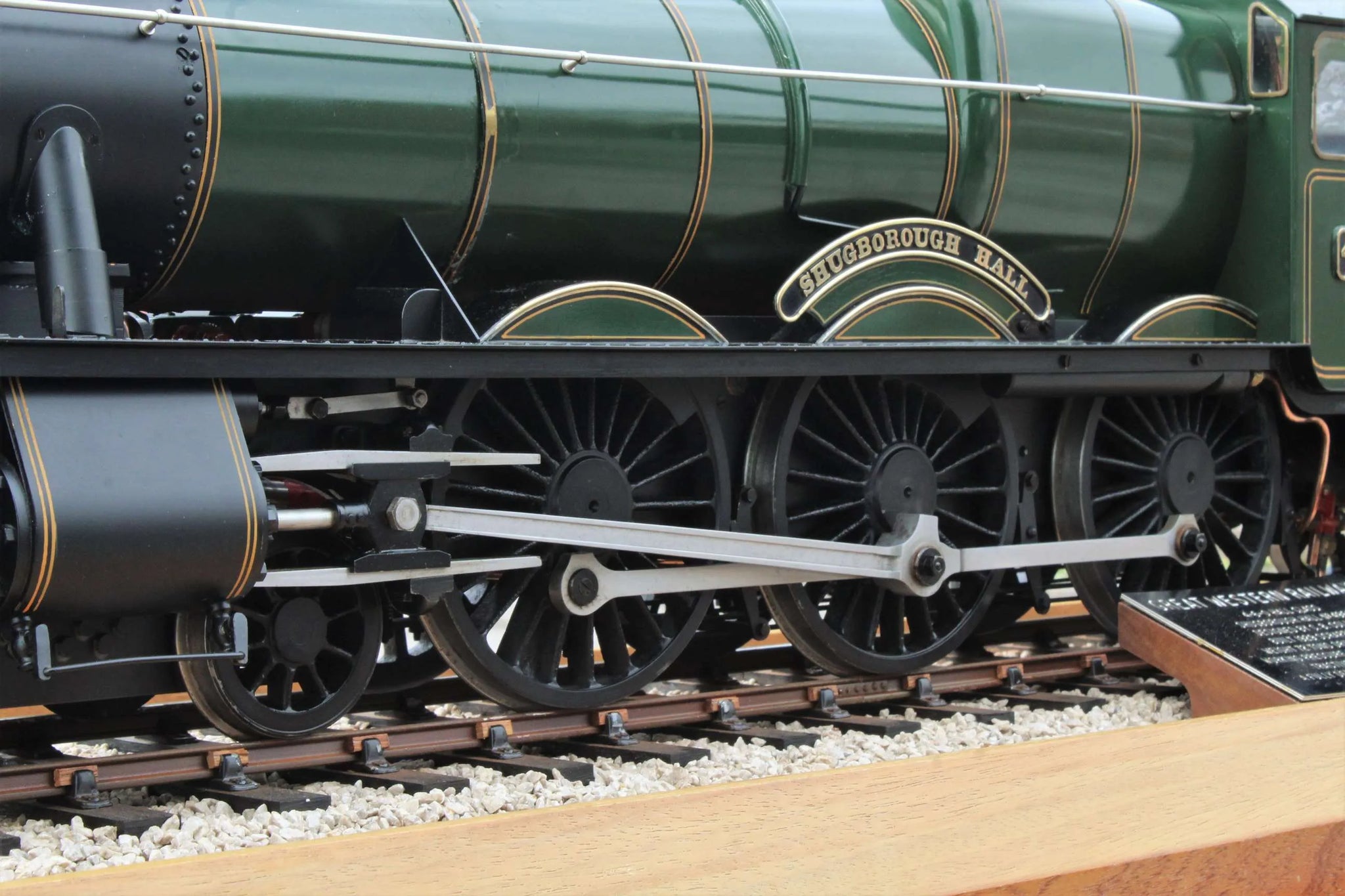

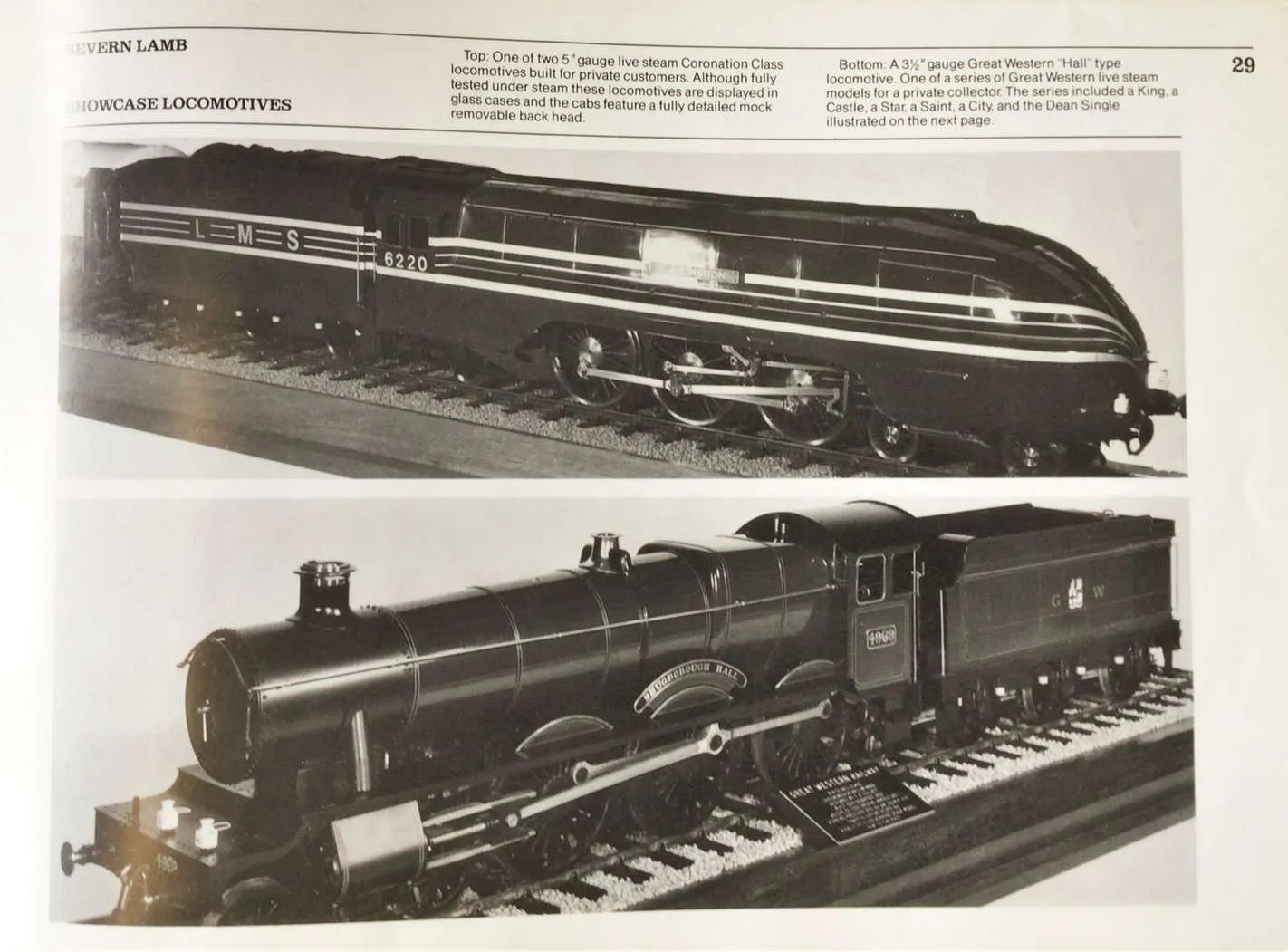

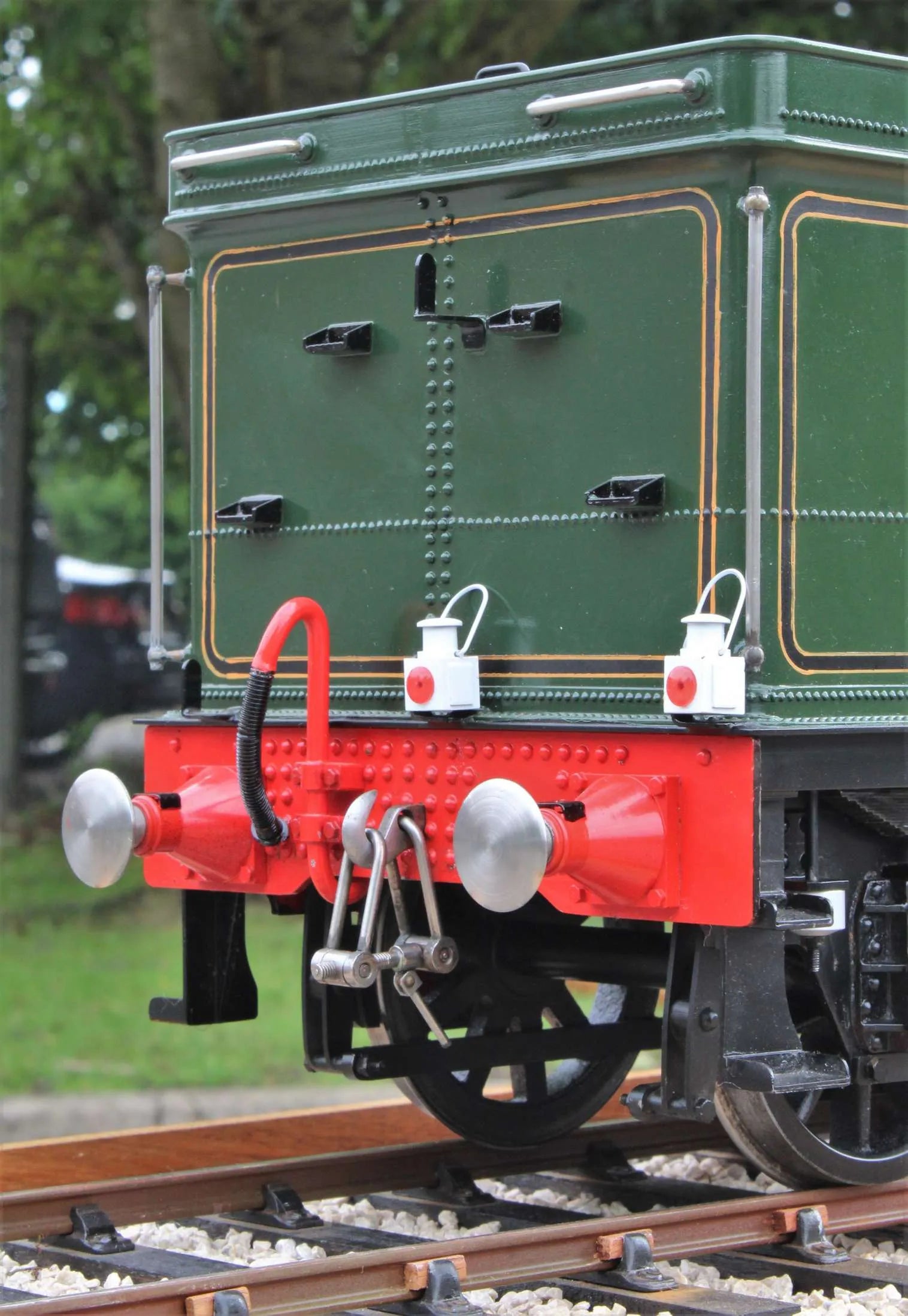

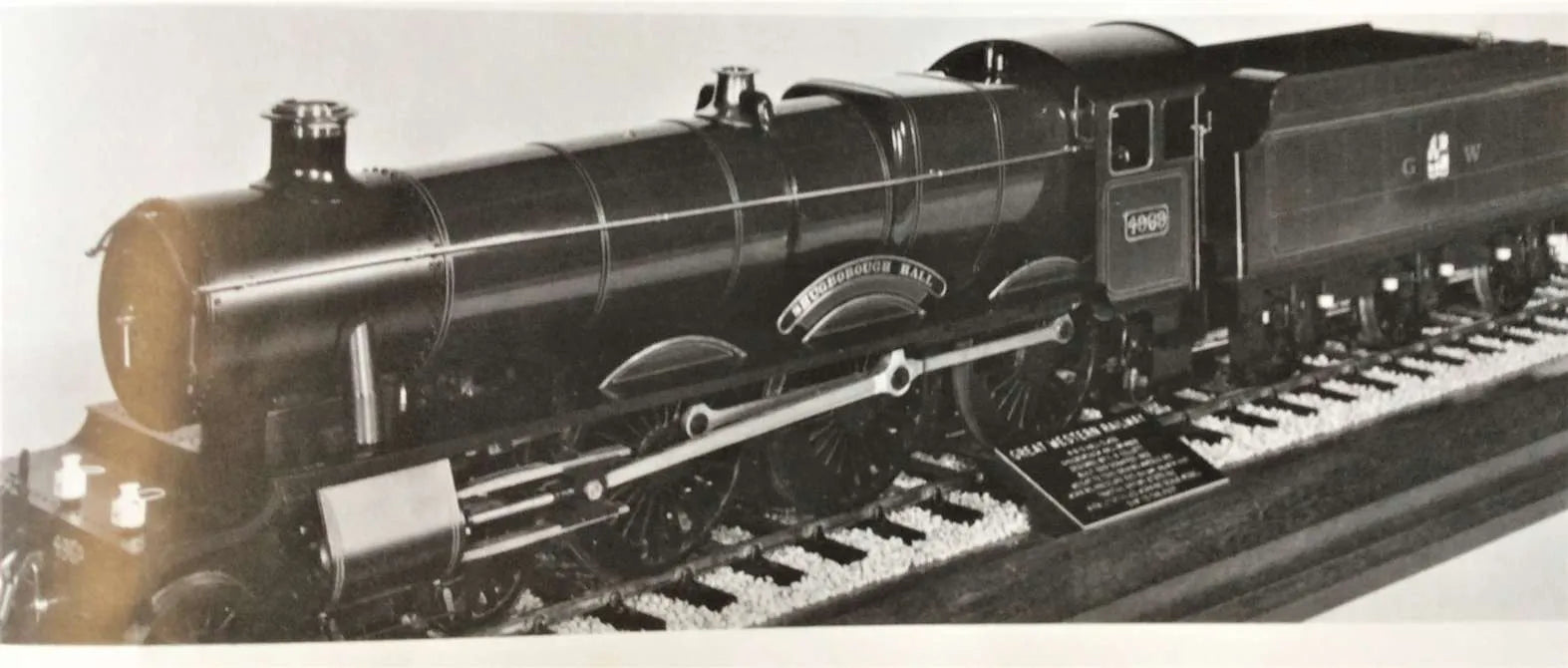

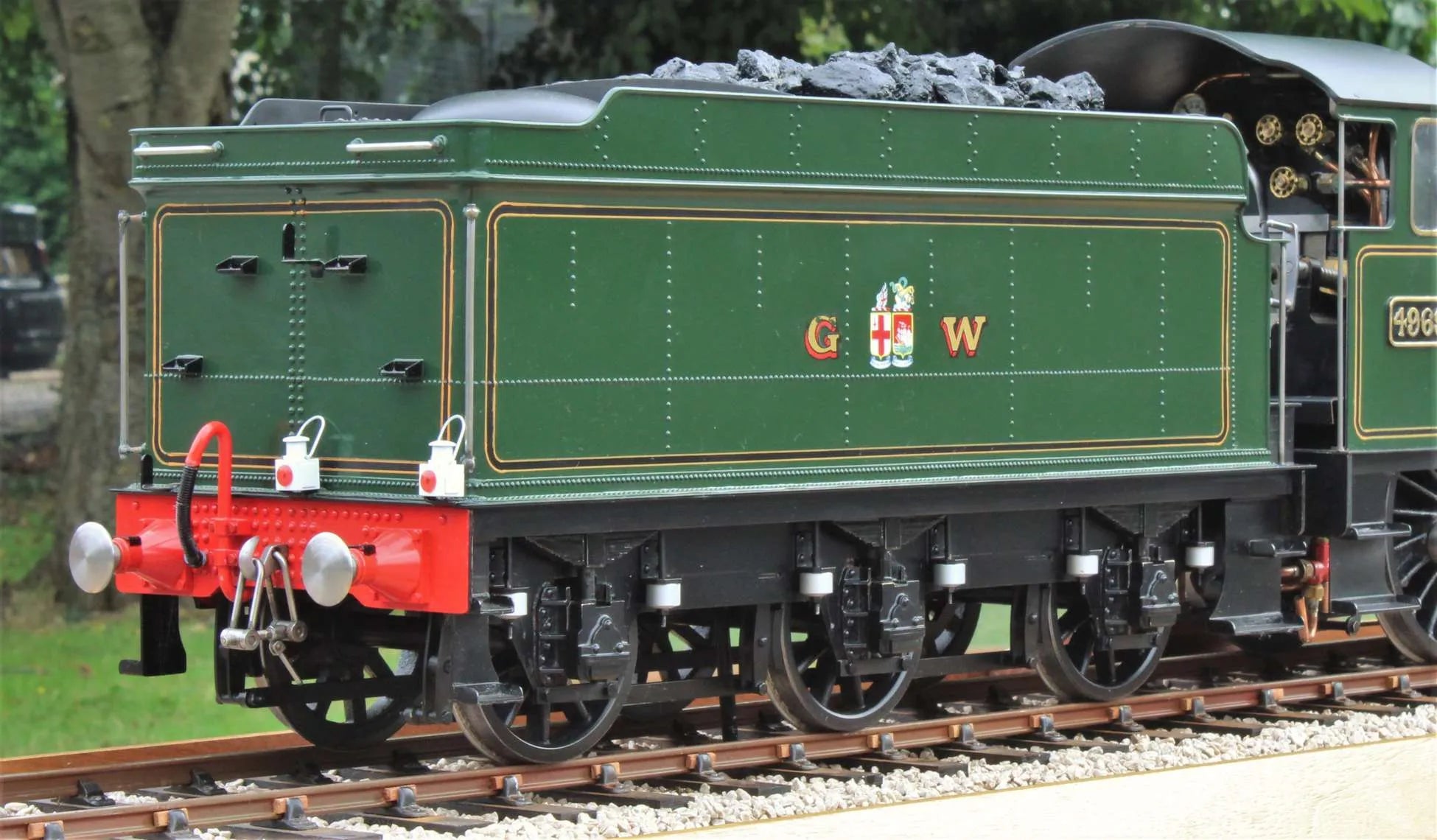

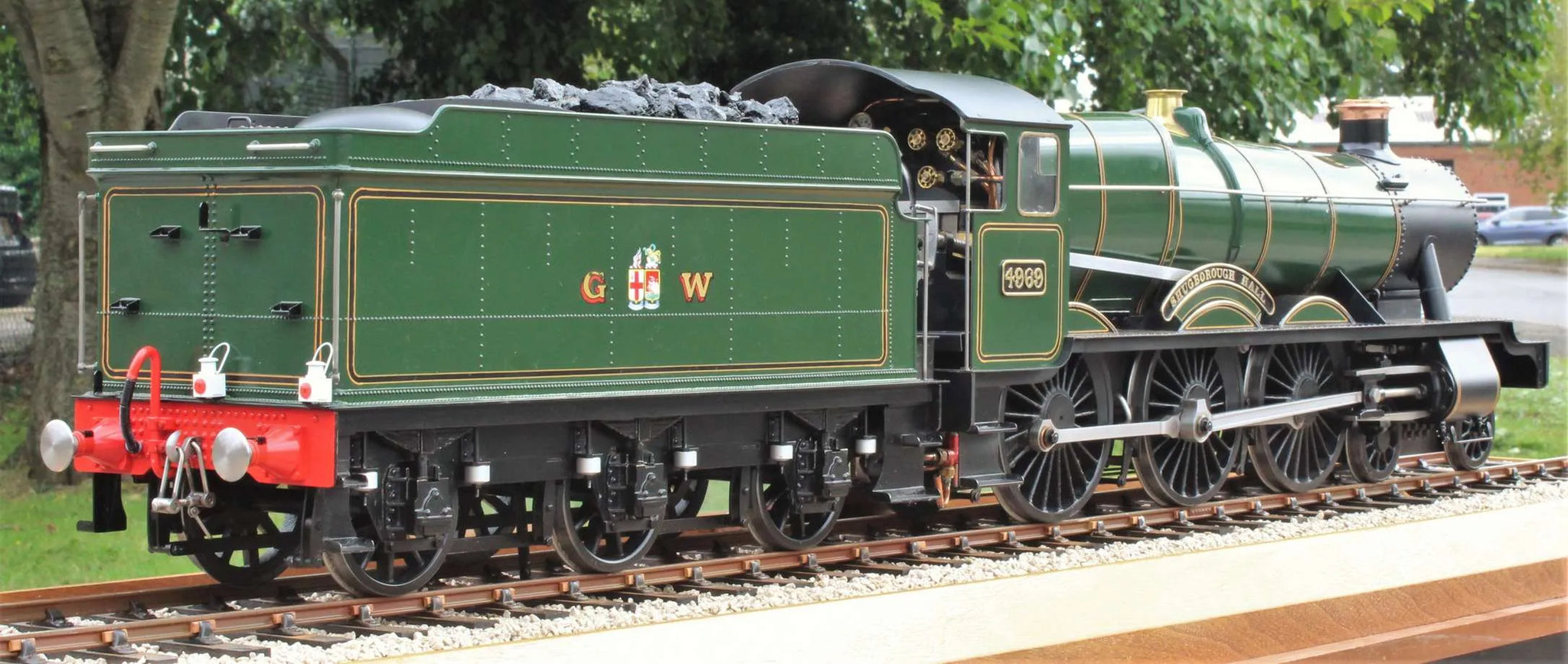

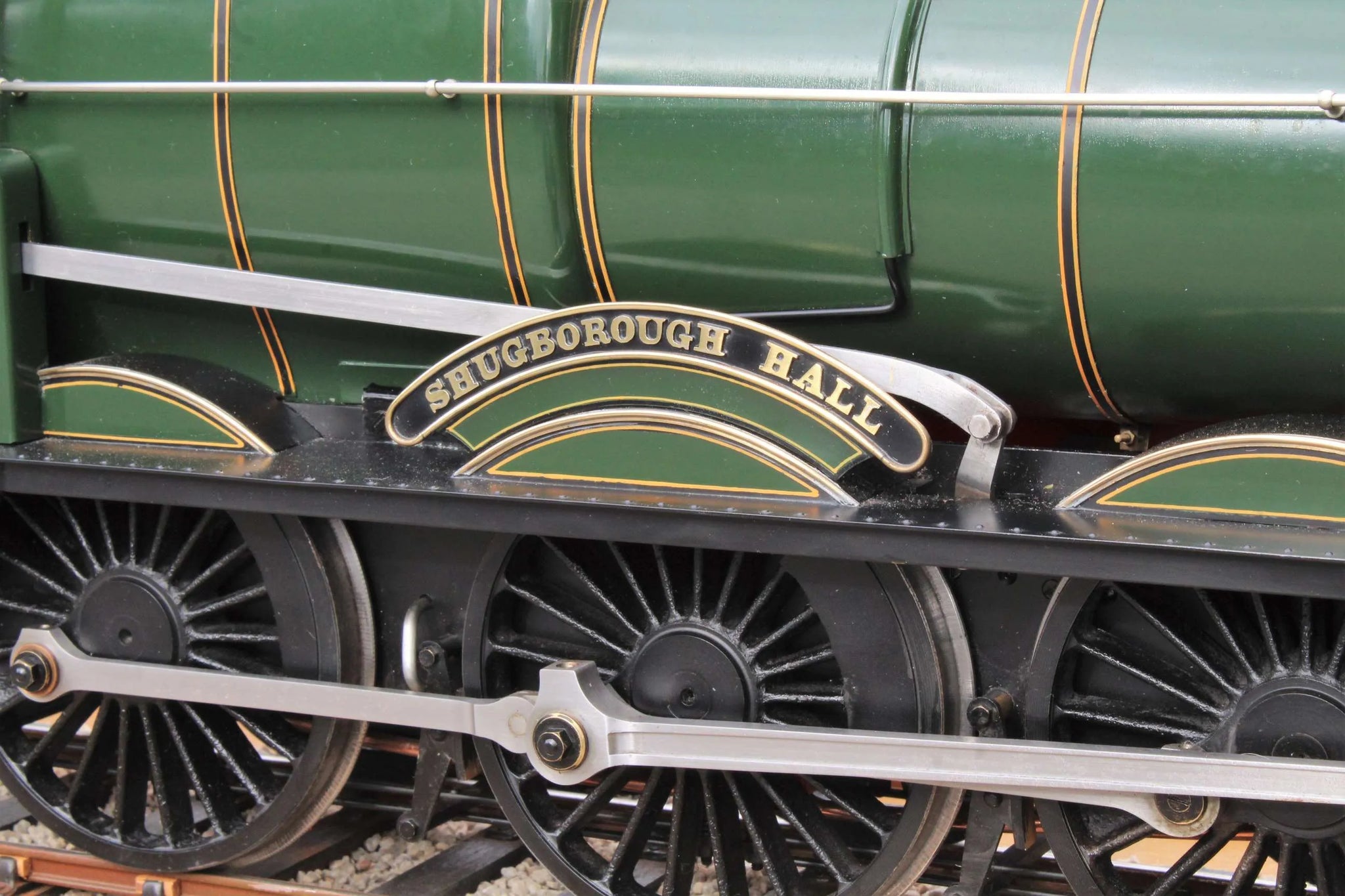

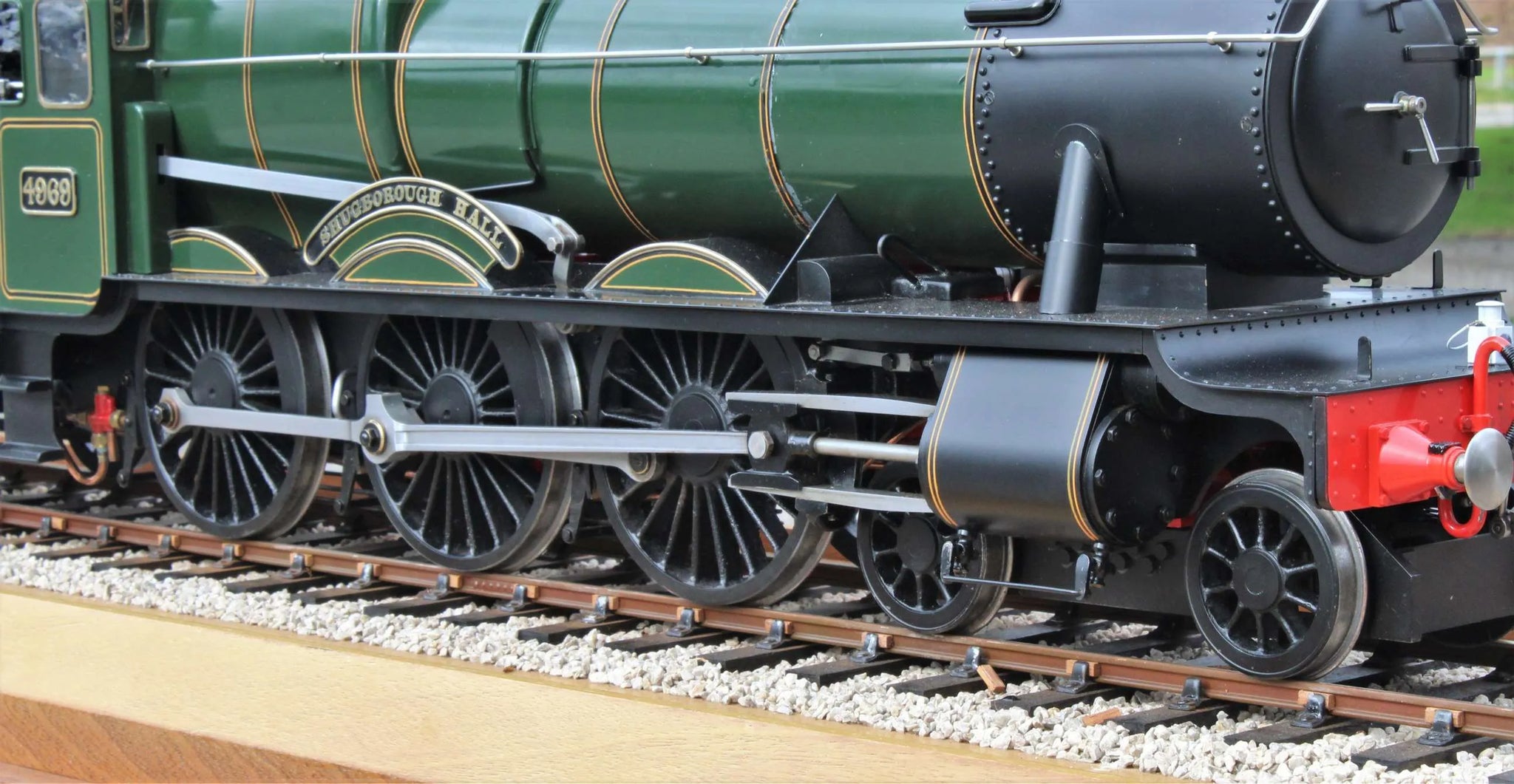

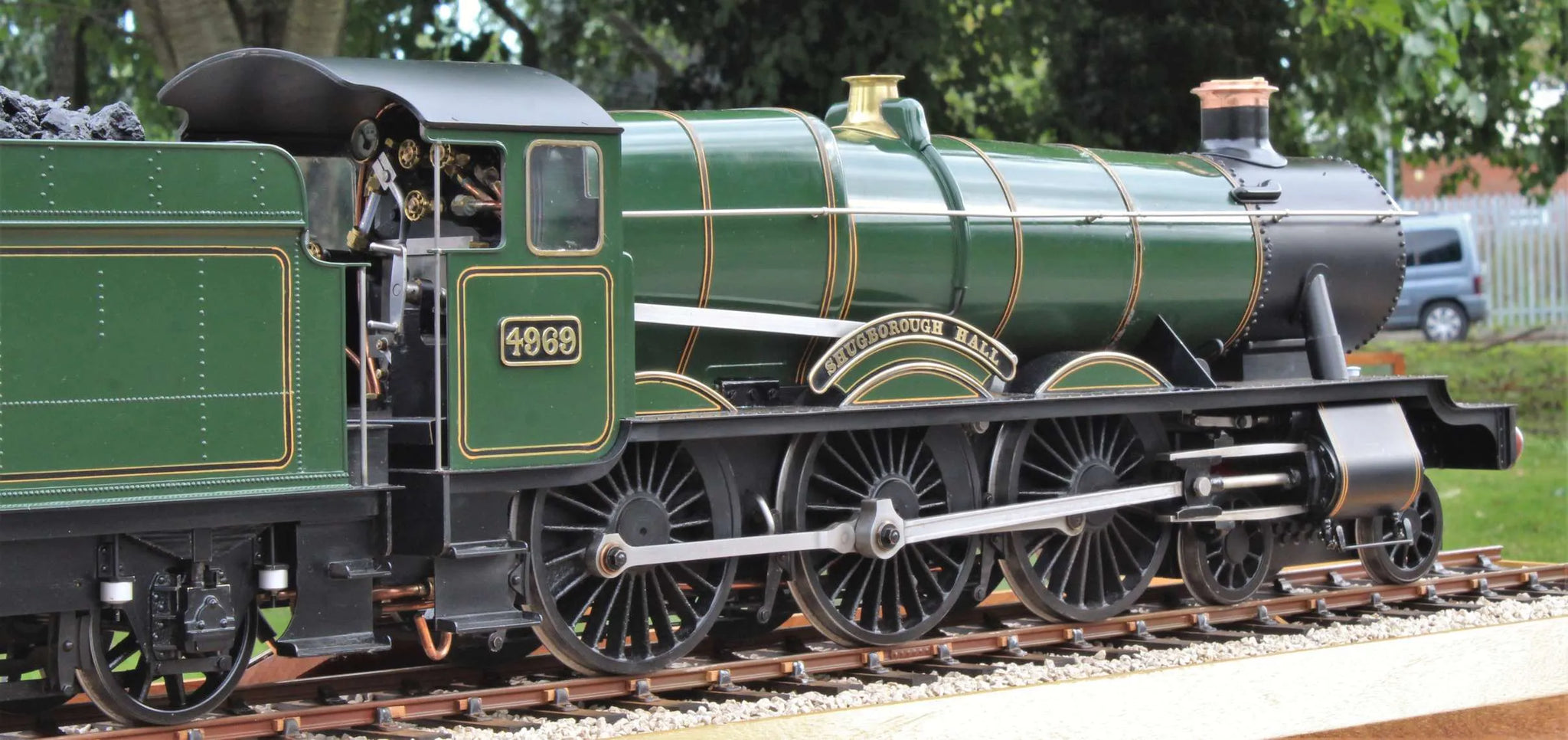

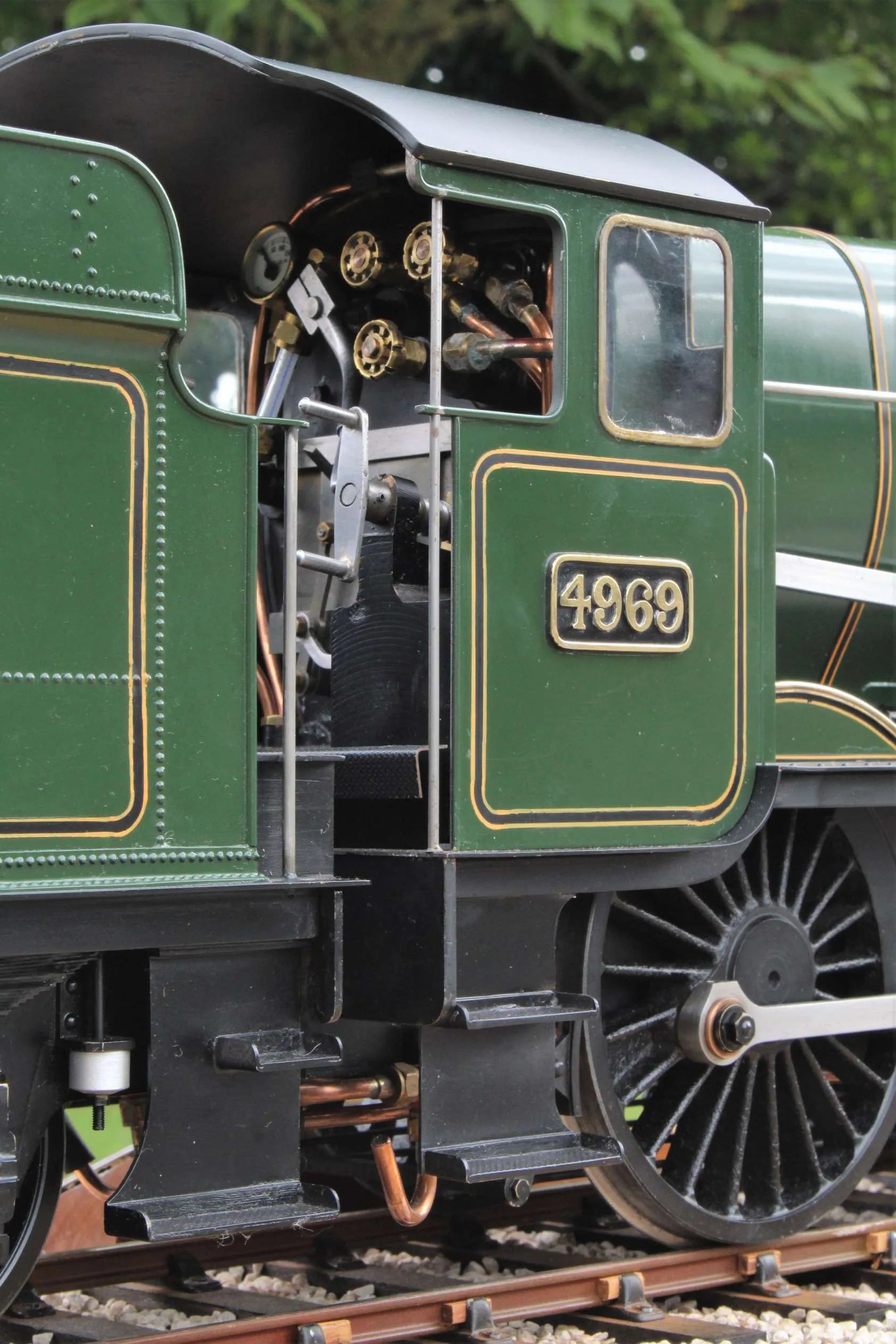

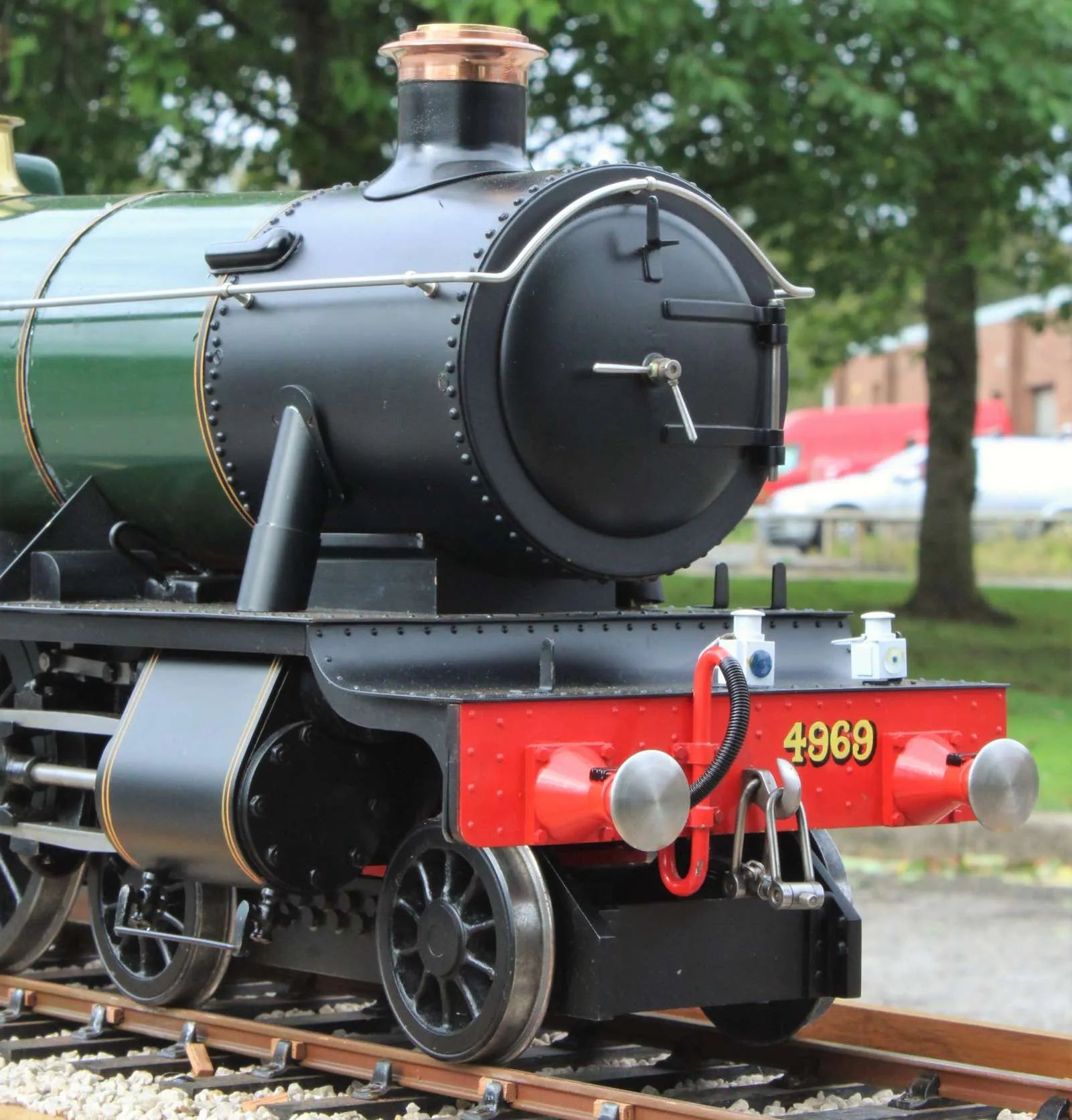

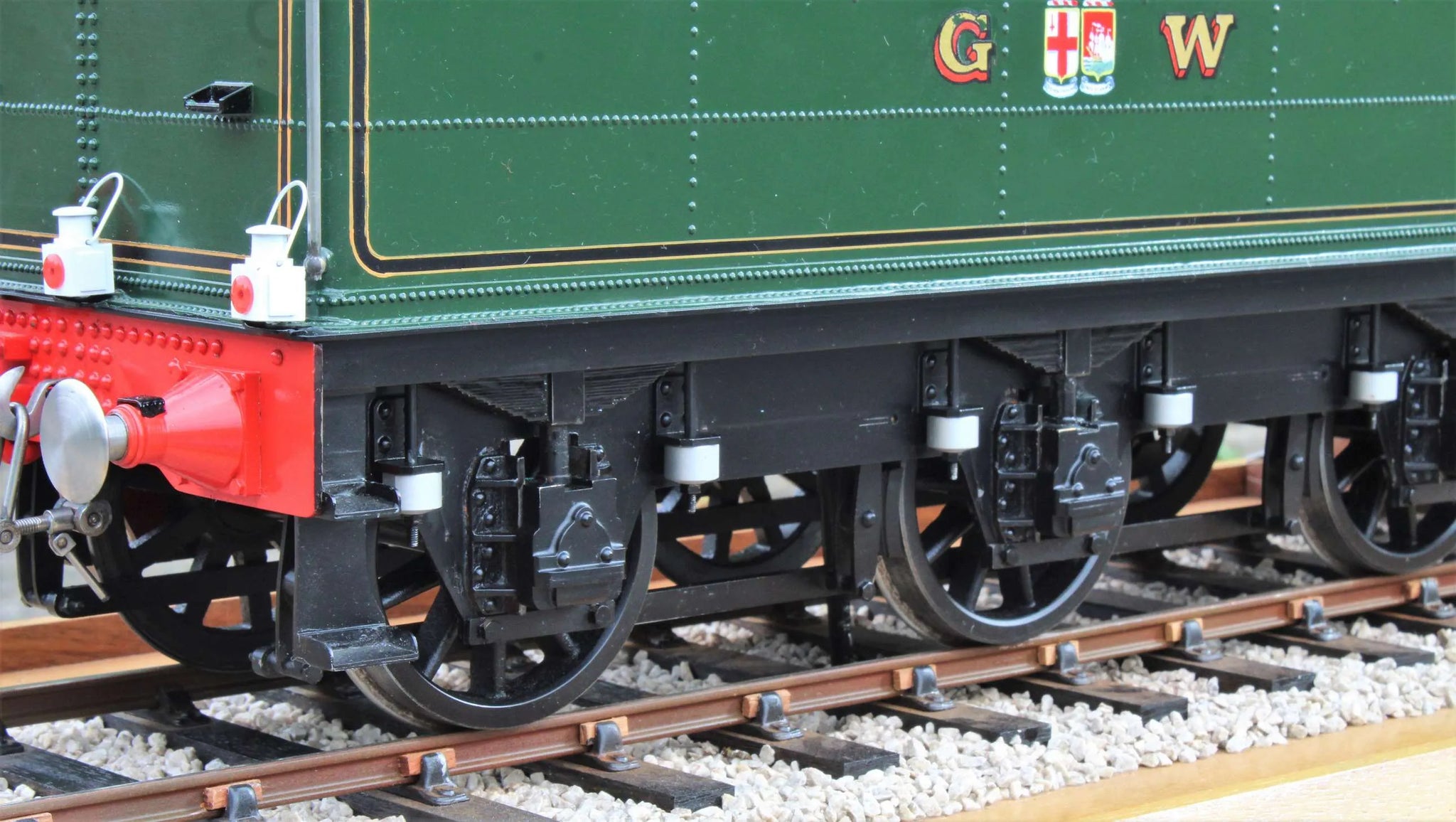

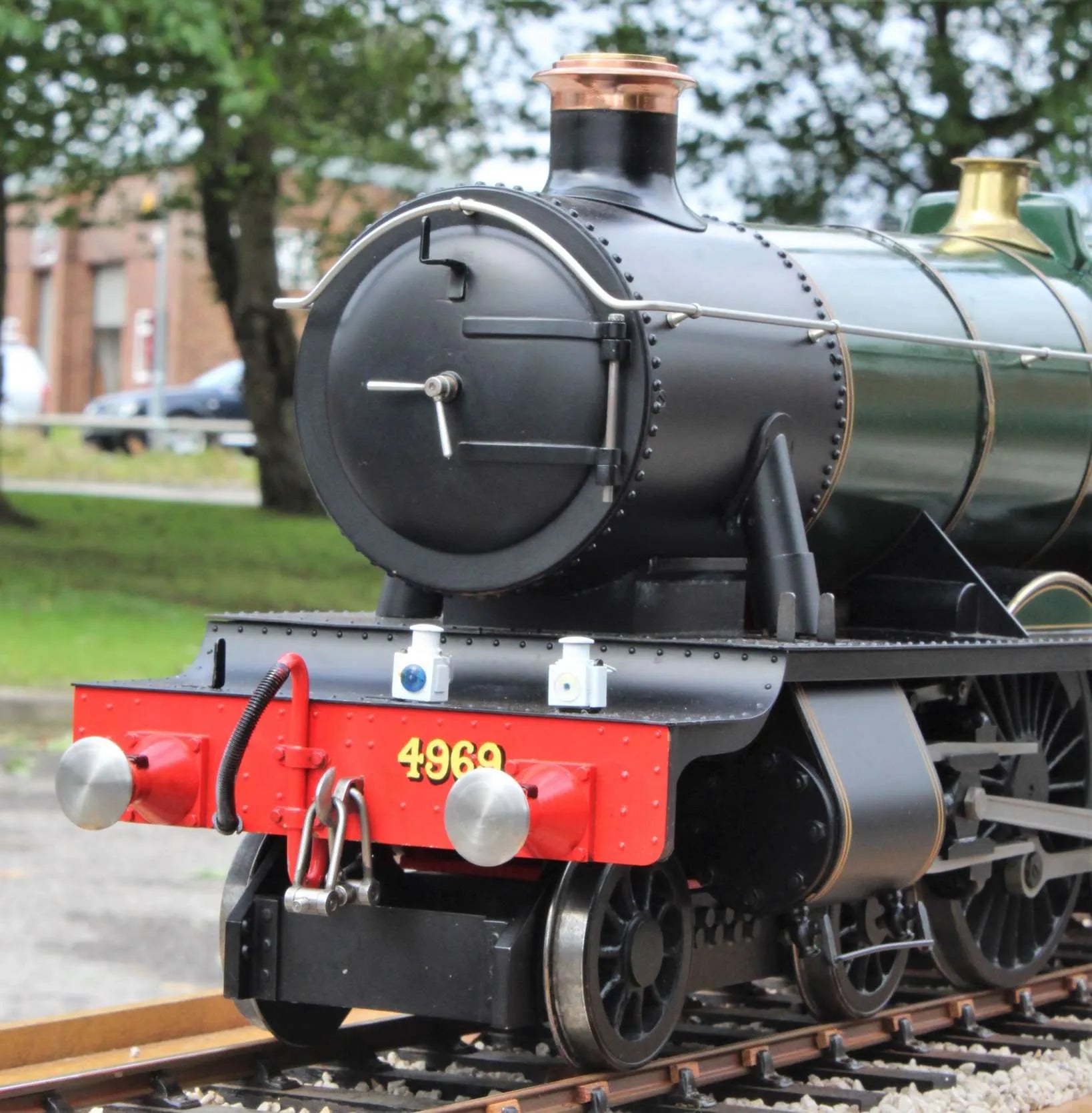

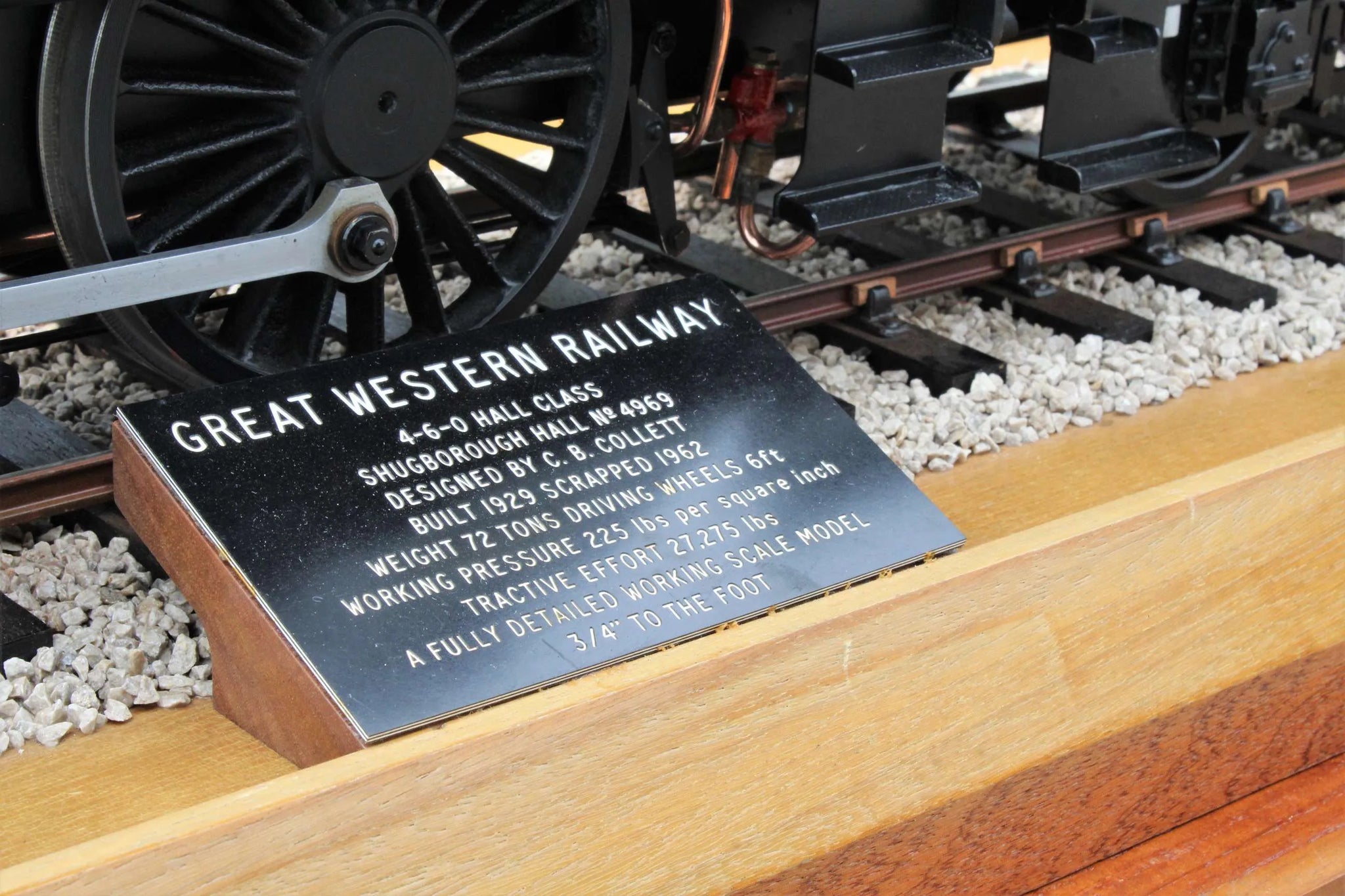

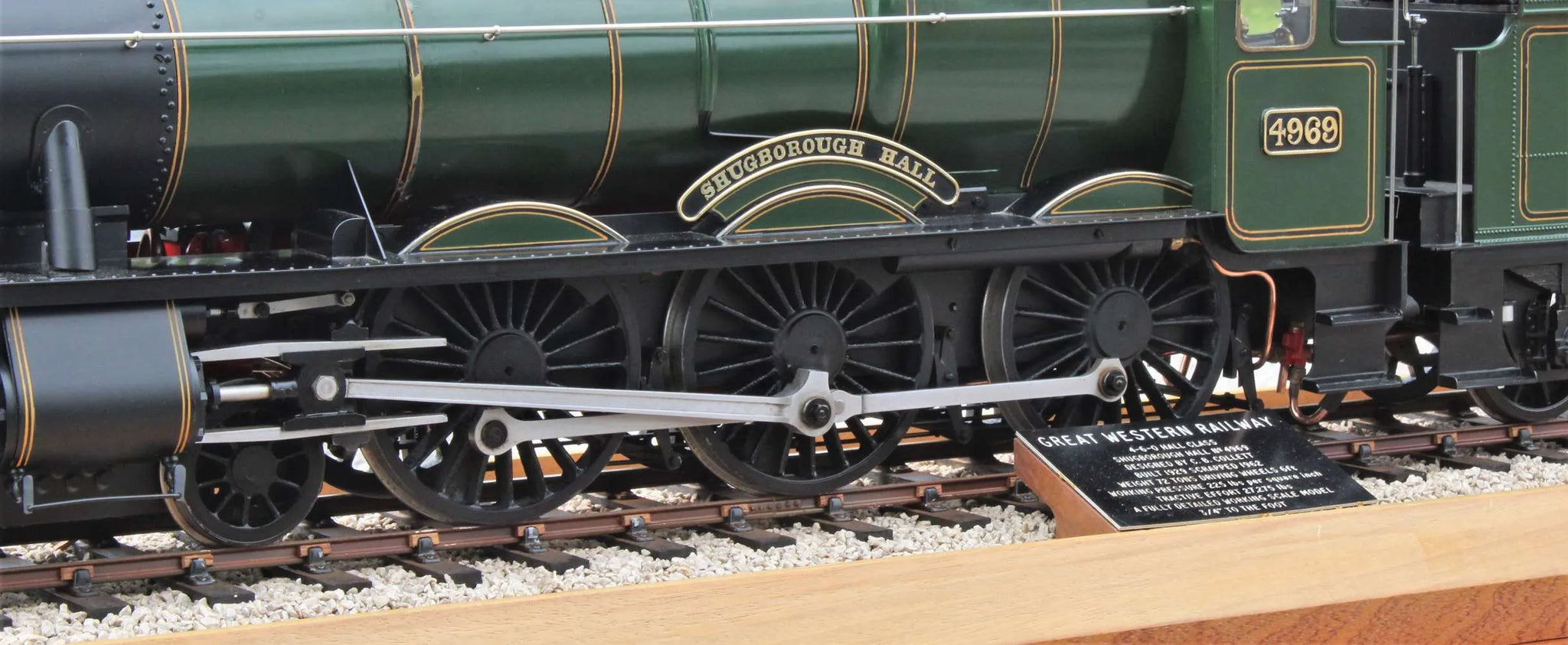

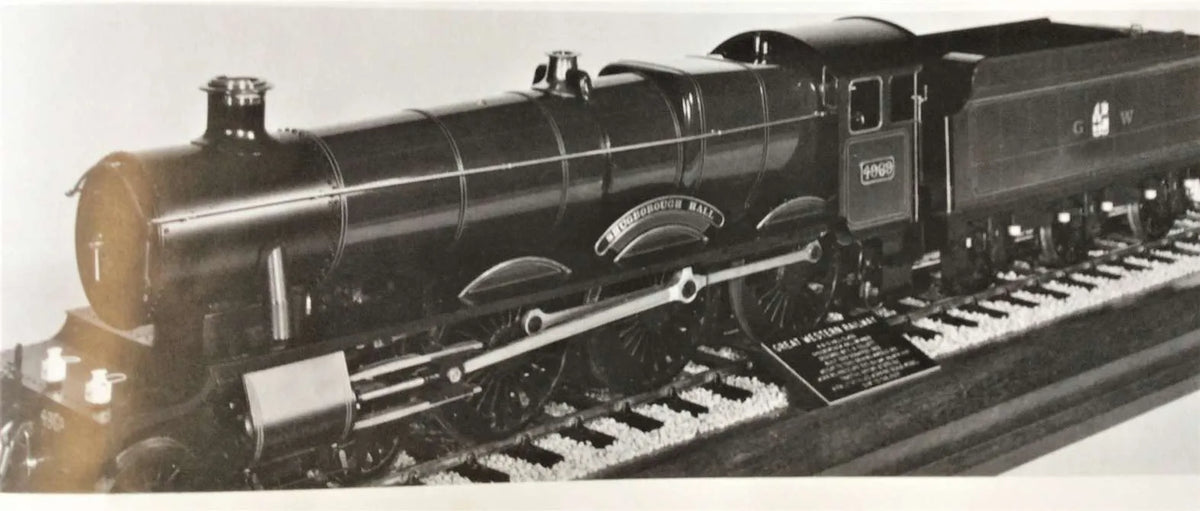

A 3 1/2 inch gauge GWR 4-6-0 No.4969 "Shugborough Hall". One of four Great Western locomotives commercially built by Severn Lamb for a collector in the 1970s, this engine features in the book "Severn Lamb - Model Makers to the World".

The company built locomotives and traction engines in a wide range of gauges and scales, including work for David Curwen and Dobwalls, for which they built the Union Pacific 4-8-8-4 "William Jeffers" and 4-8-4s "Queen of Nebraska" and "Queen of Wyoming".

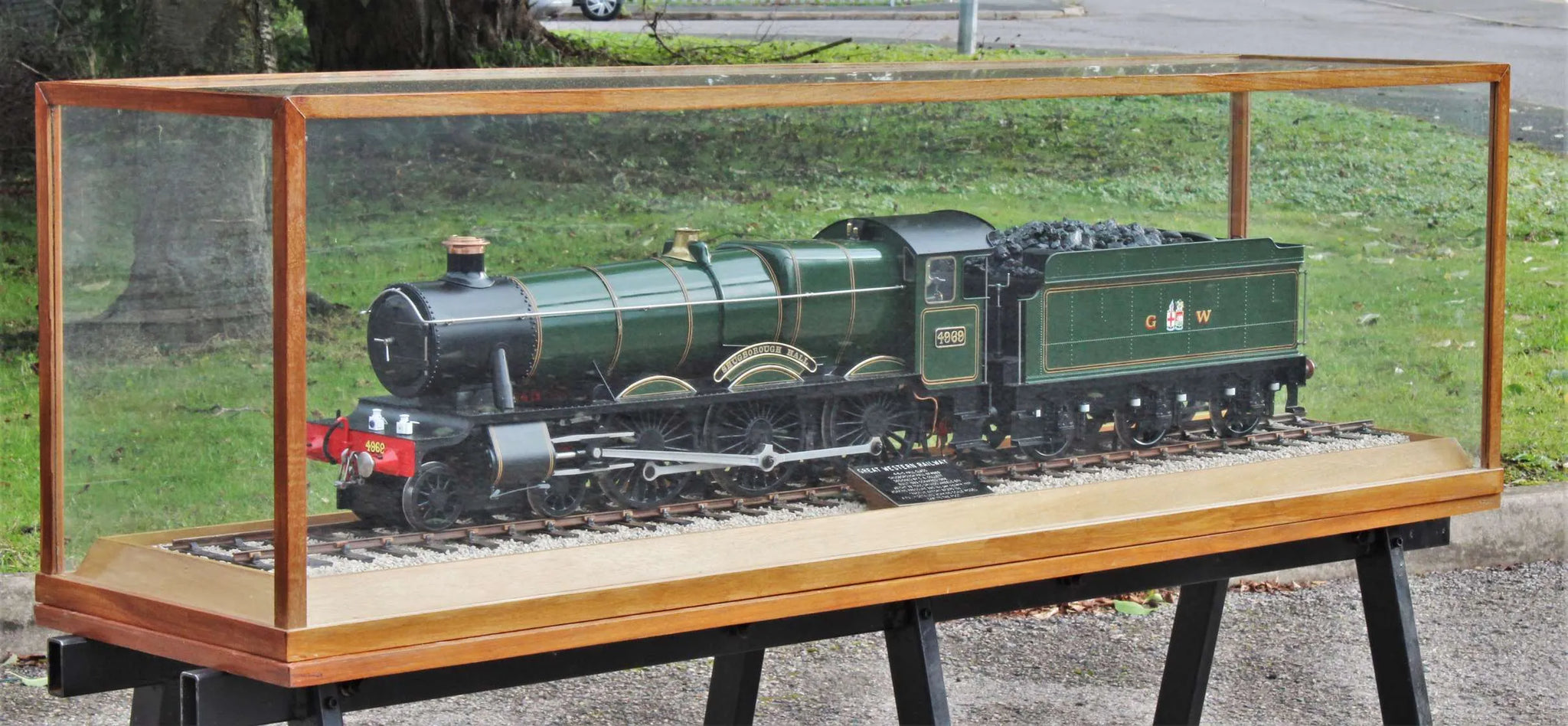

The engine appears to have been test steamed - possible once at the factory when new - since when it's been kept for display in its case. We've tested the boiler at twice working pressure - it's sound throughout, the only thing noted was a leaking regulator - but made no attempt to steam it given the locomotive's provenance and condition.

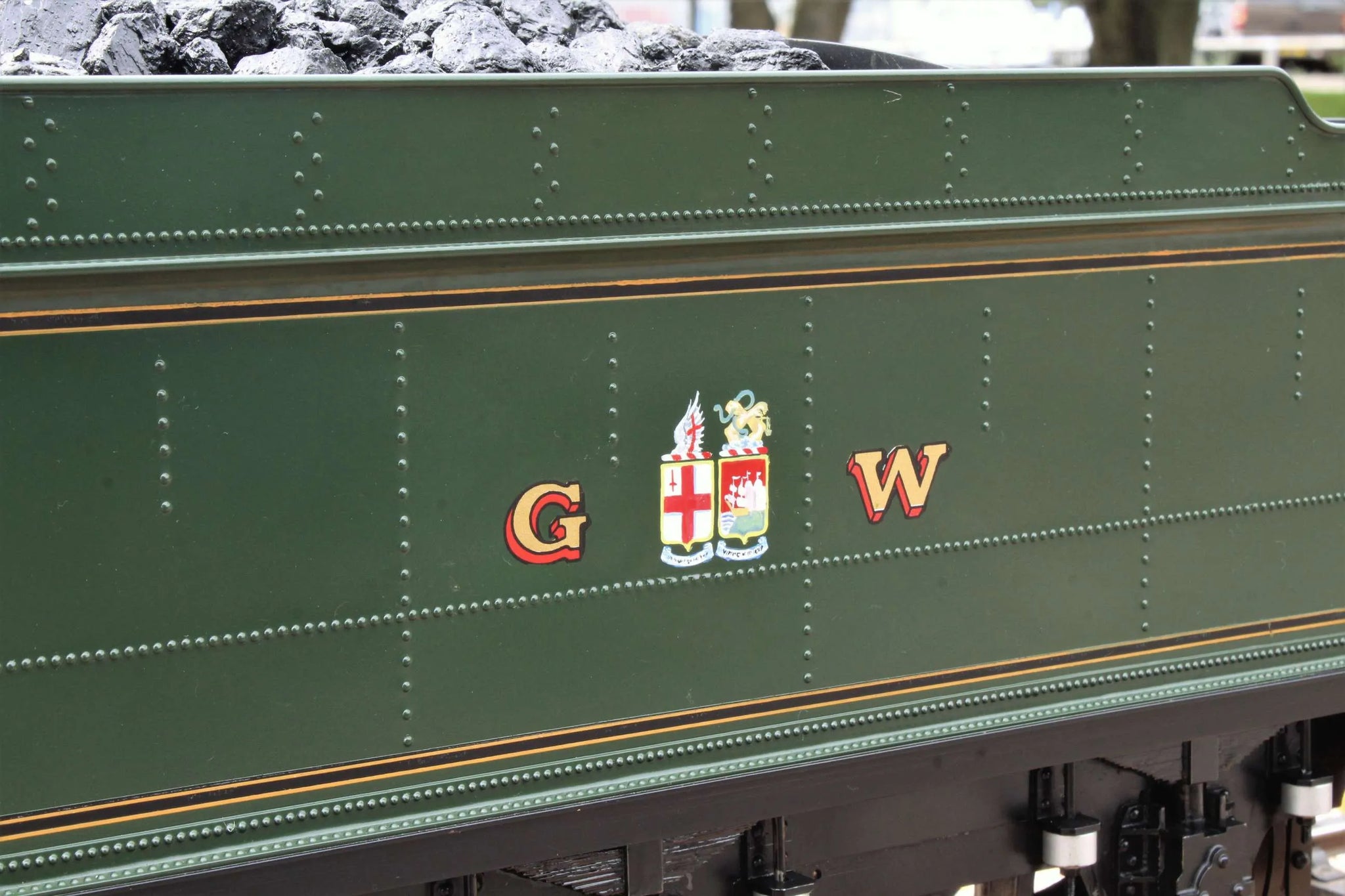

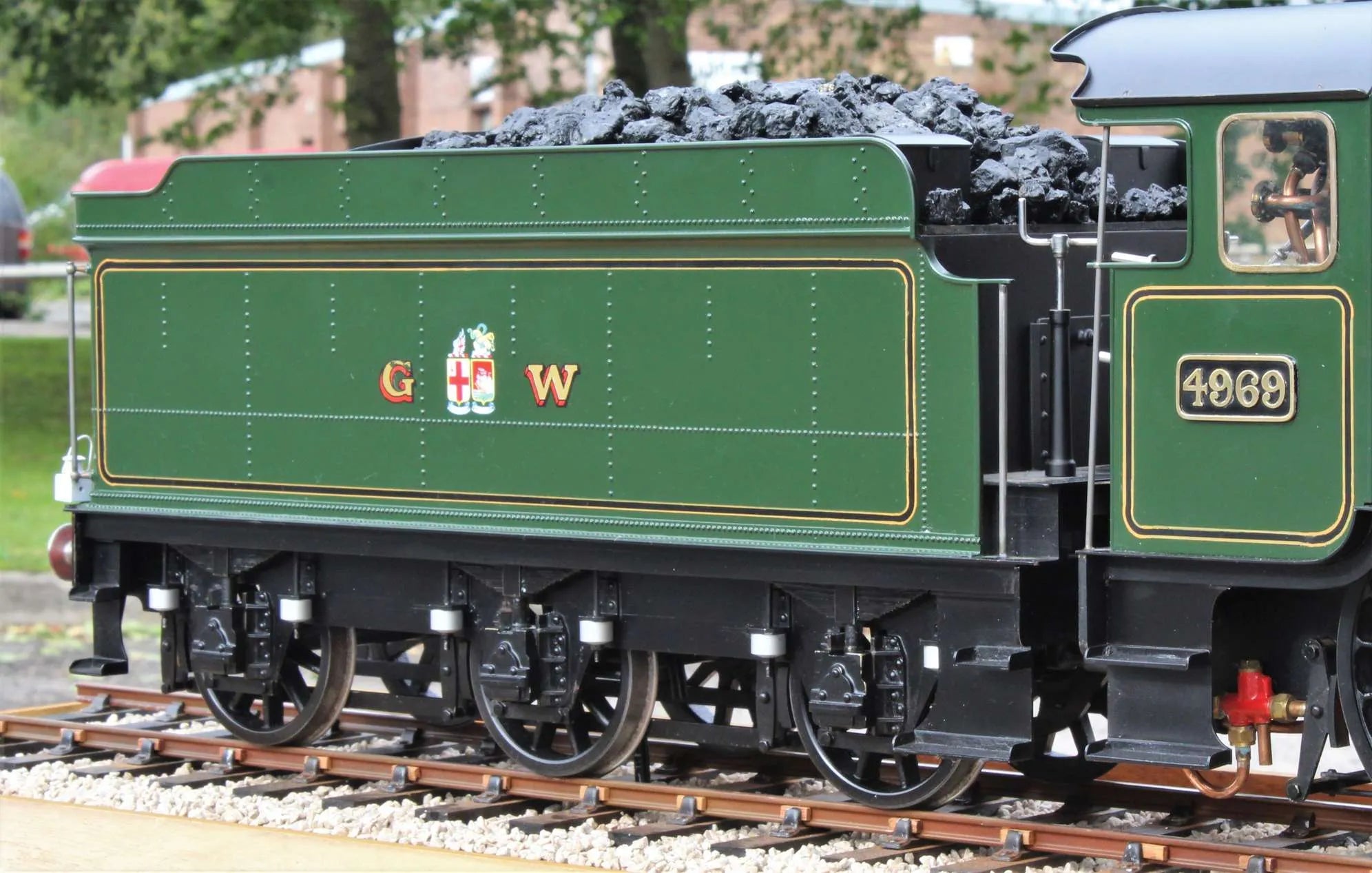

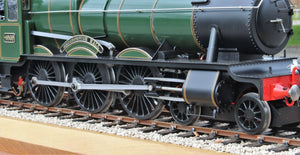

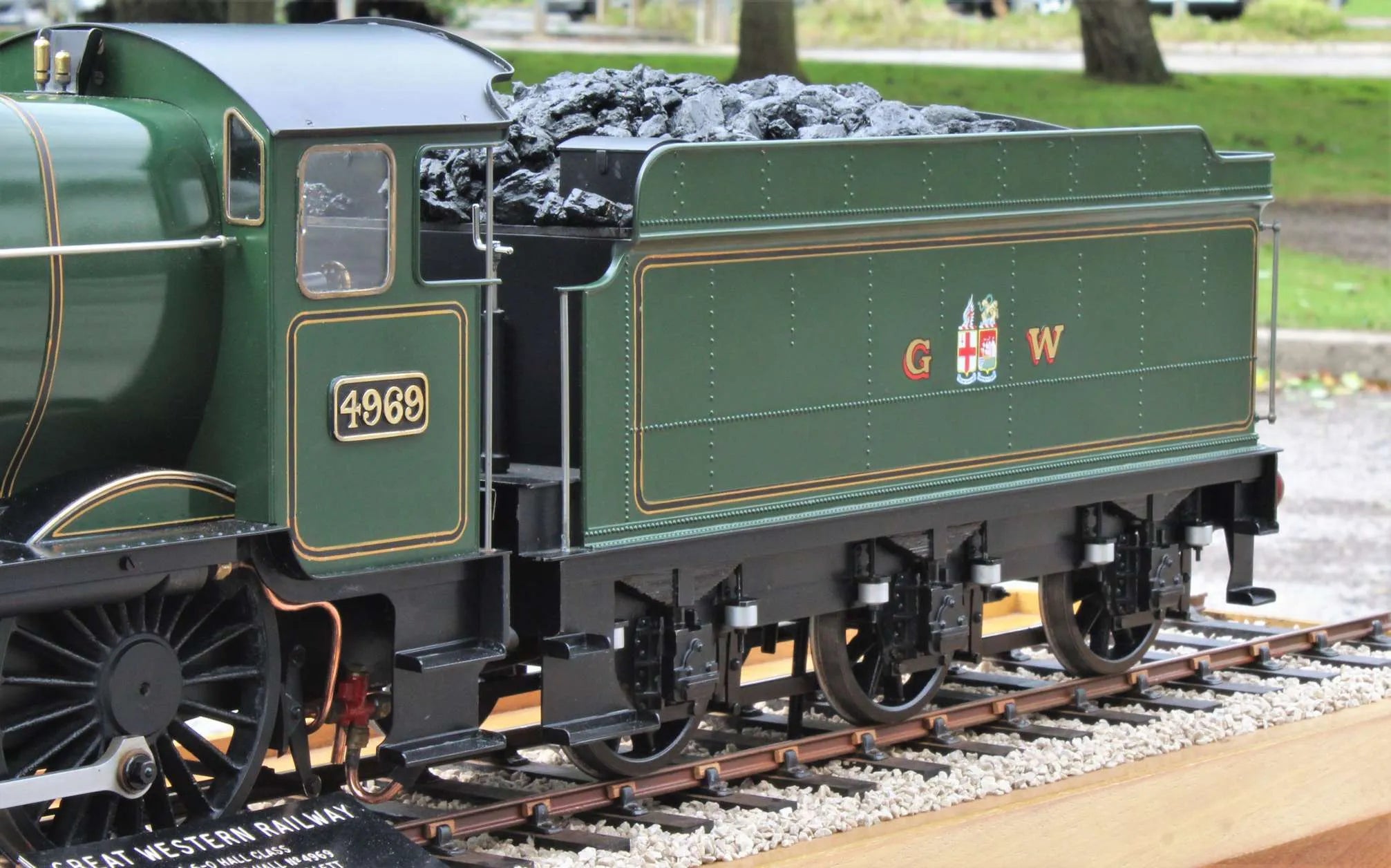

Mechanically as-new, the paintwork and lining remain in very good order, with some minor chips and flaking.

Technical information

Stock code

9823

Gauge

3 1/2 inch

Length/inches

29+18

Width/inches

9

Height/inches

11

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

piston

Valve gear

Stephensons

Reverser type

screw

Lubricator type

mechanical

Boiler maker

Severn Lamb

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a pre-2002

Year built

c1975

Boiler number

9823

Safety valve type

spring

Safety valve

1

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

2

Superheater type

flue tube

Superheater

2

Date out

May-22

Hydraulic test valid to

08-Jul-25
