9927

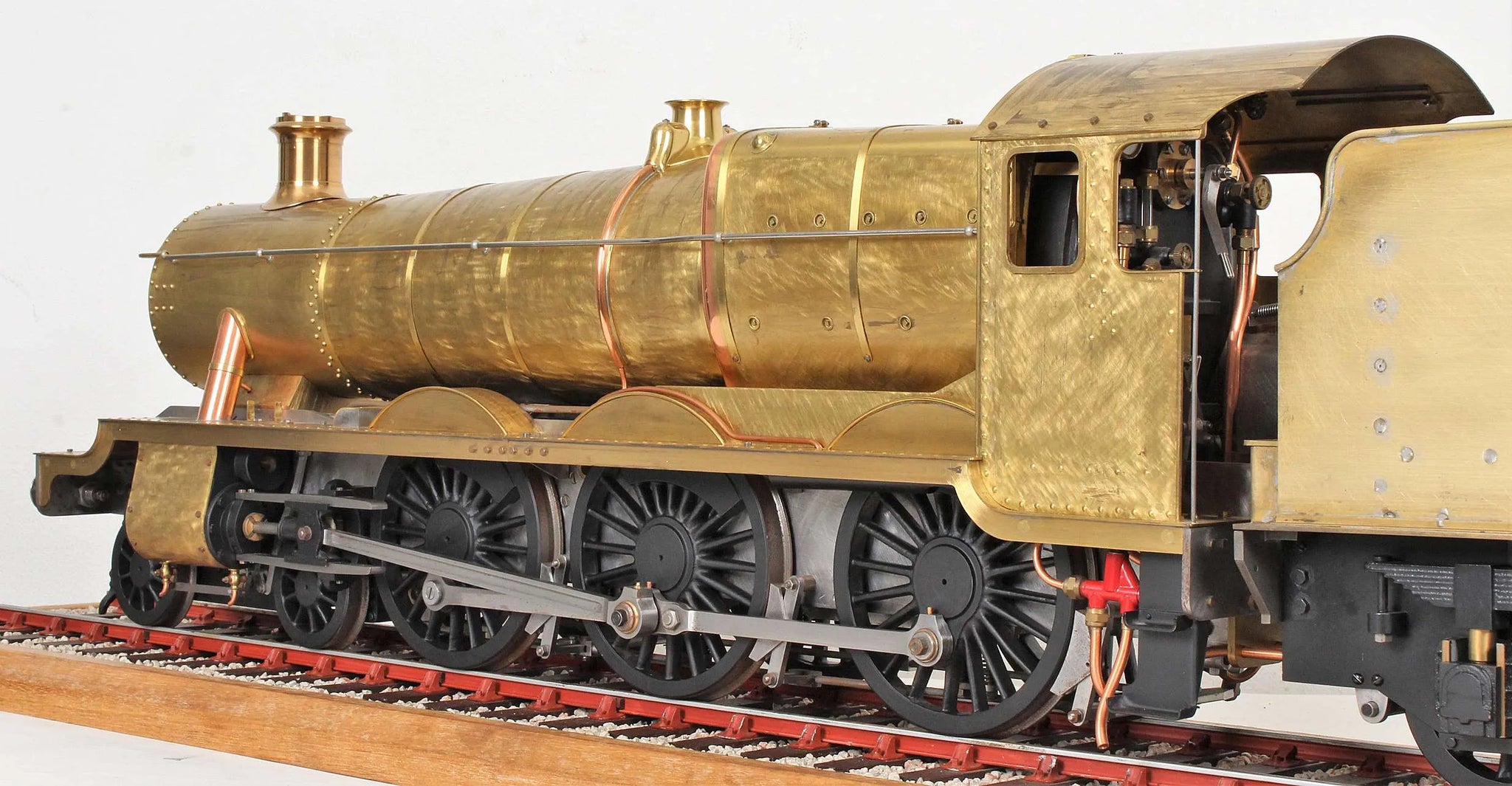

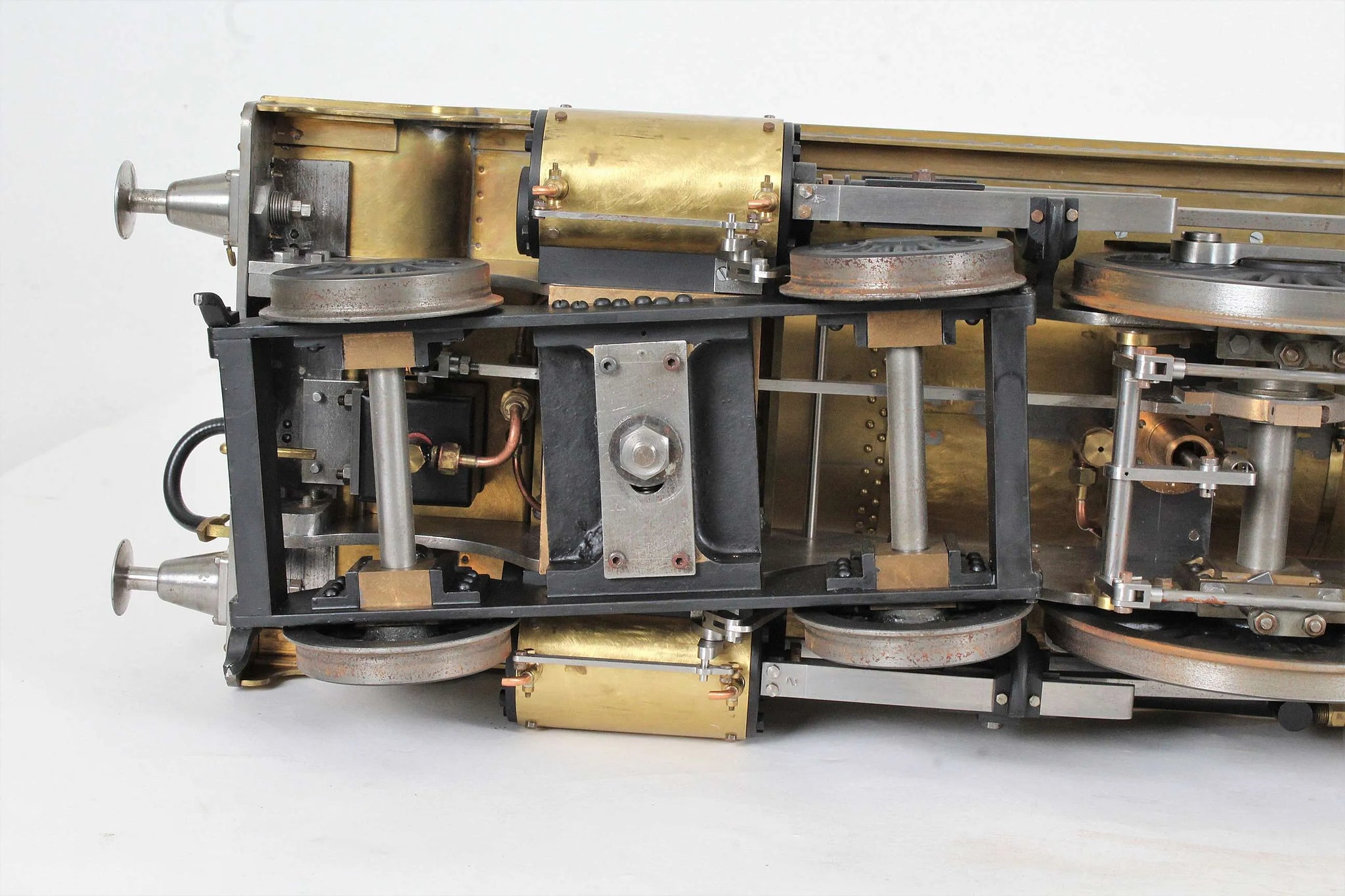

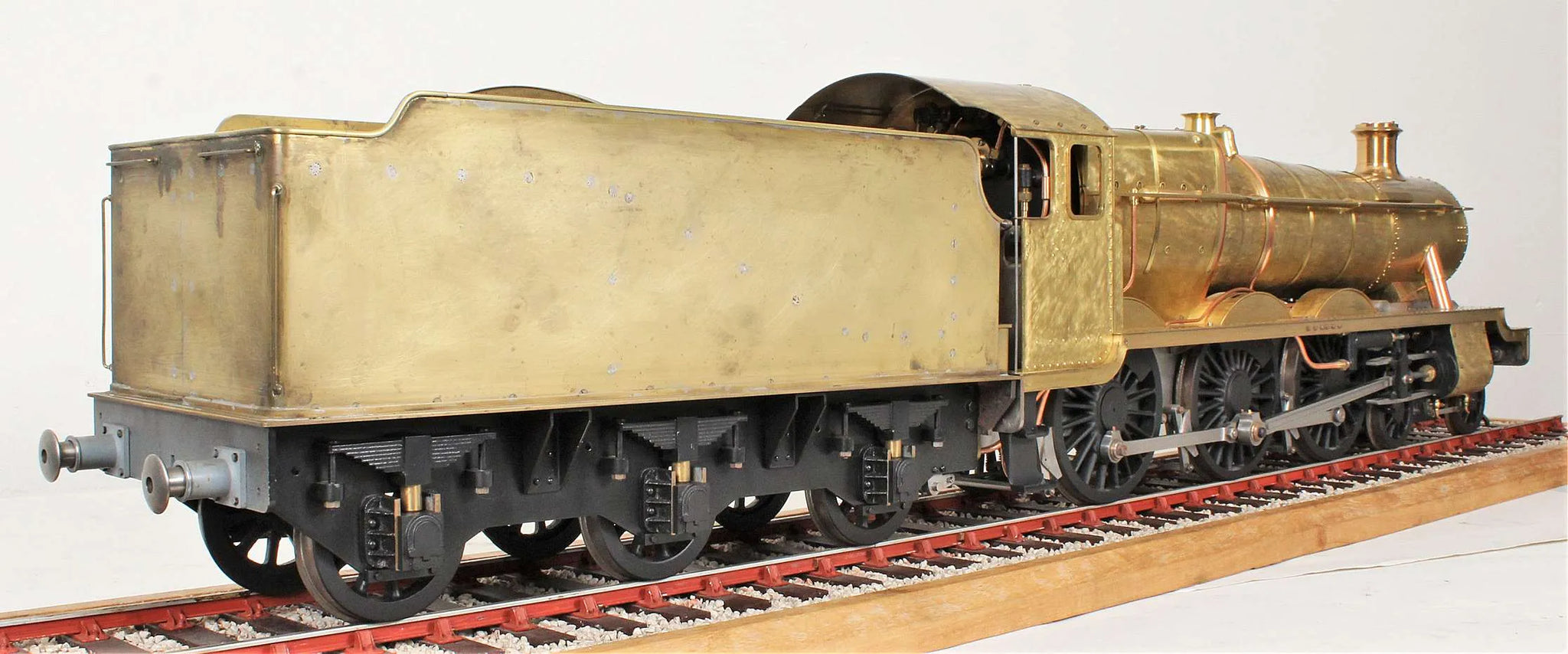

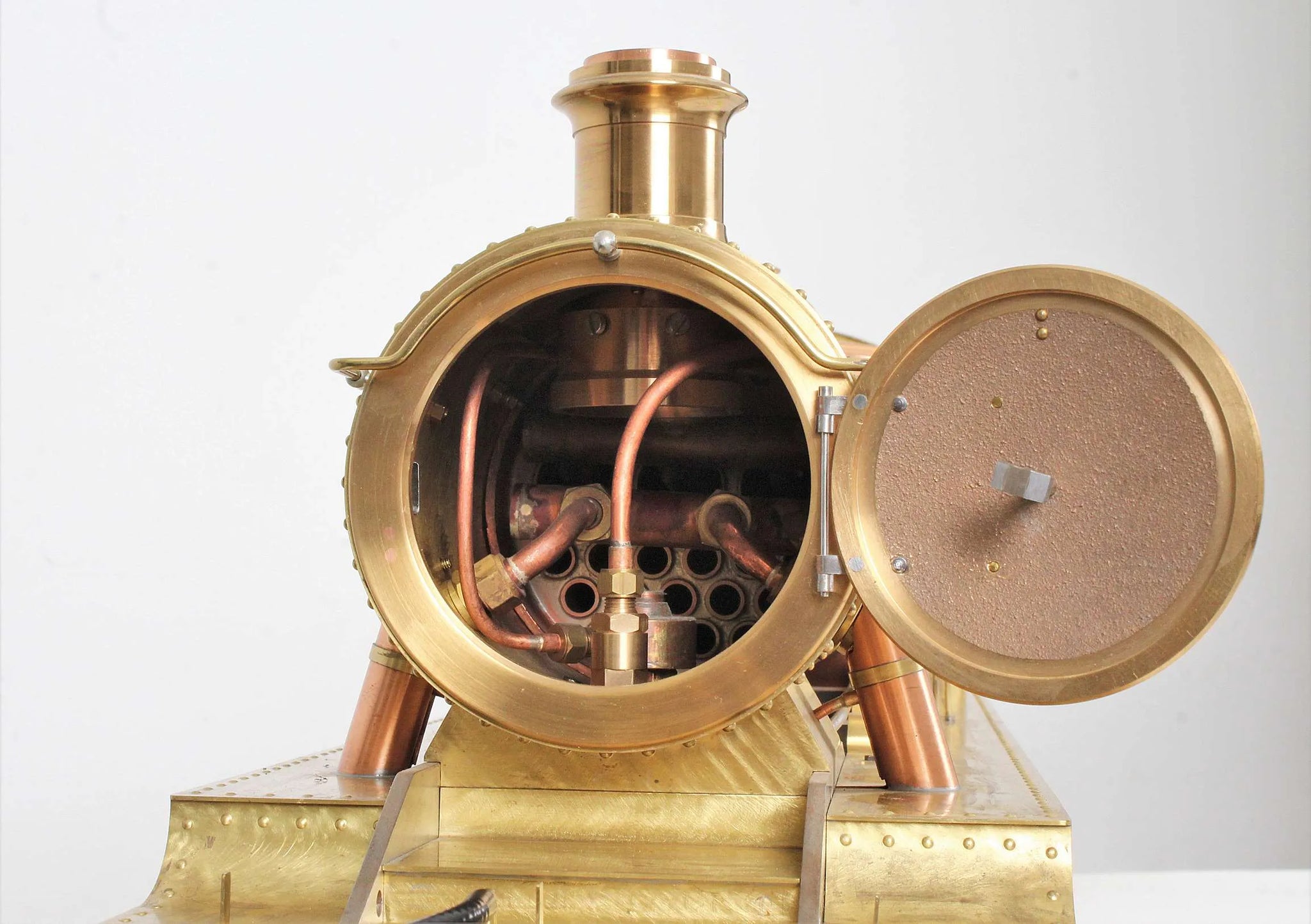

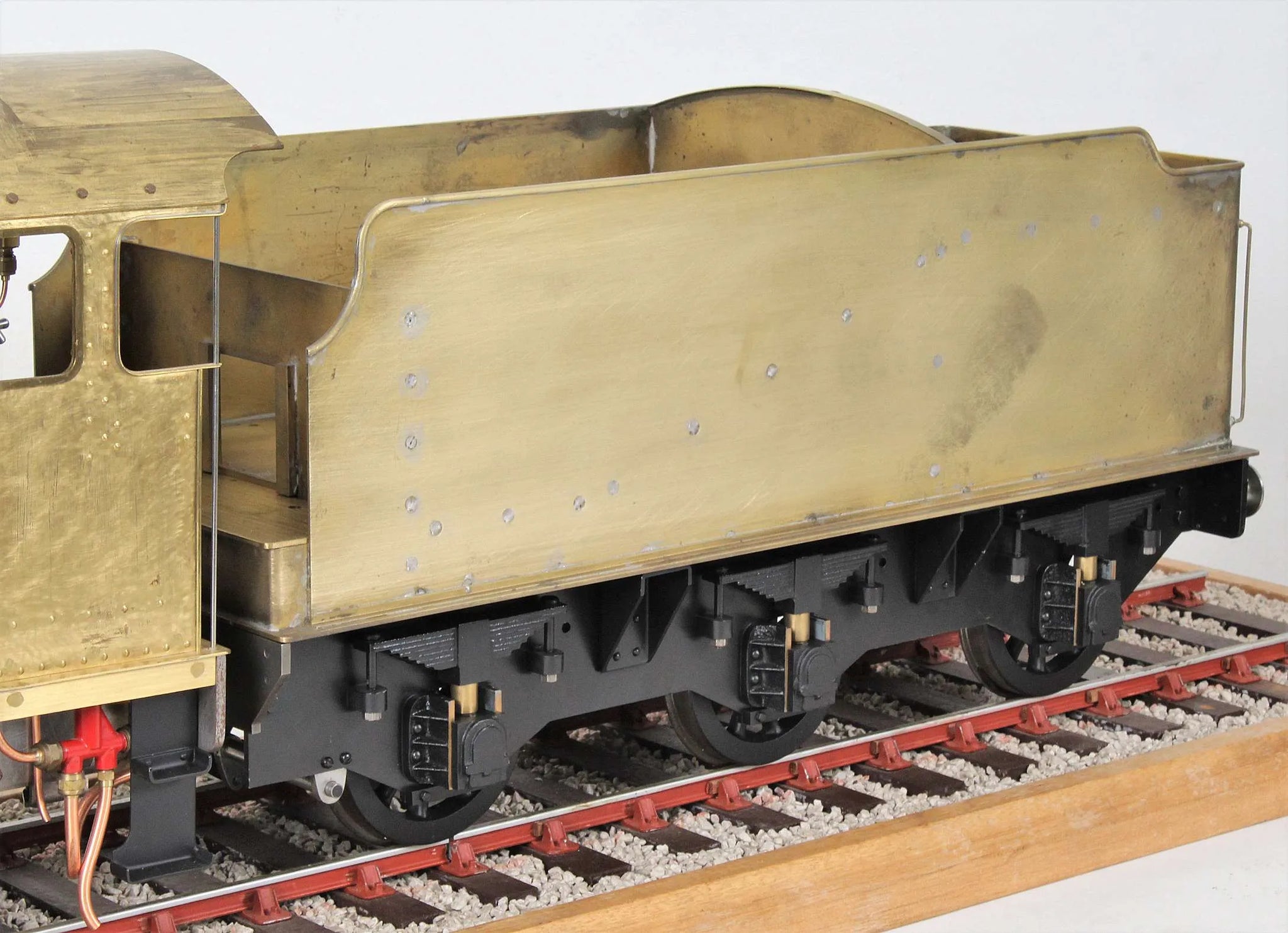

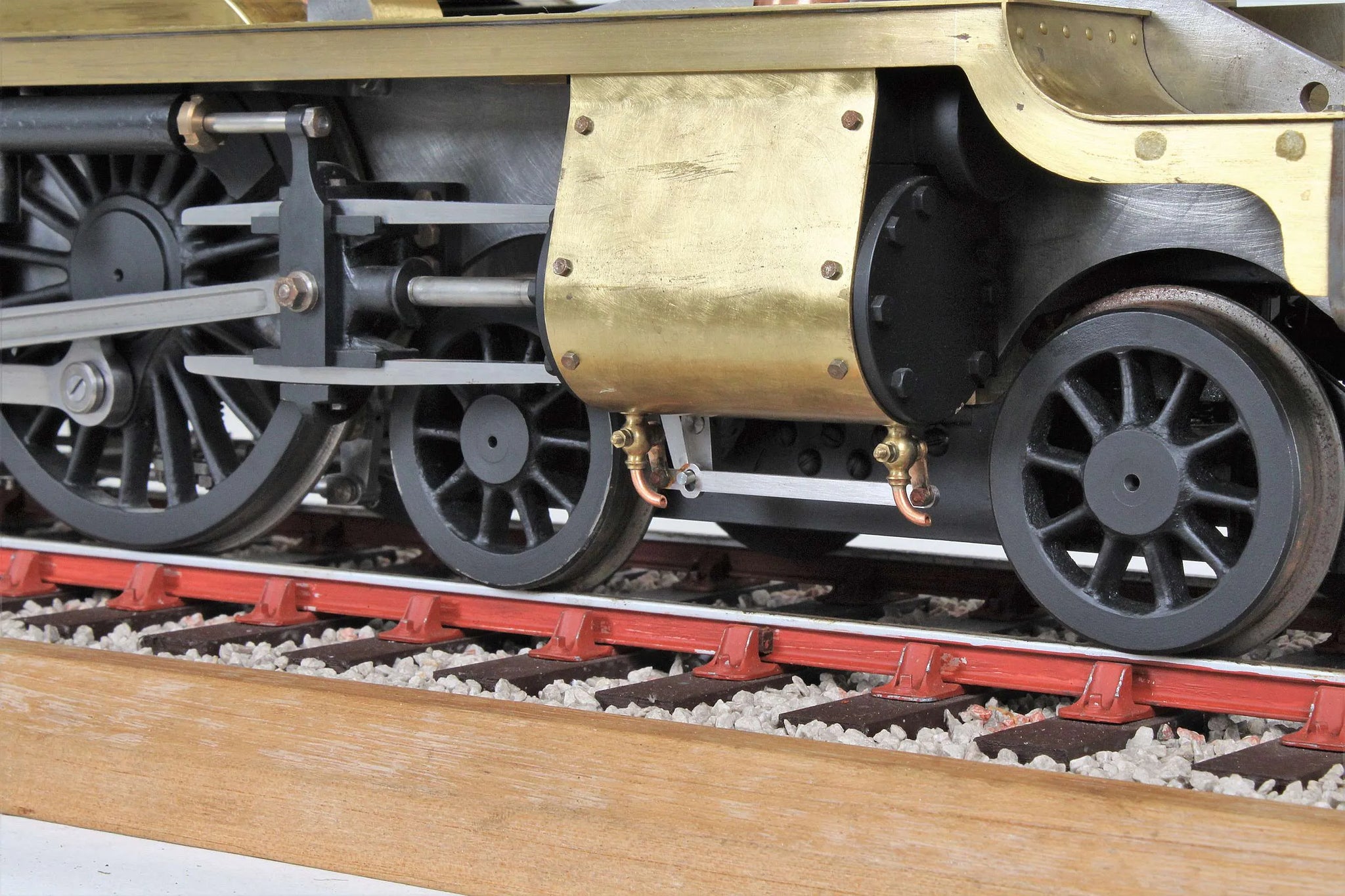

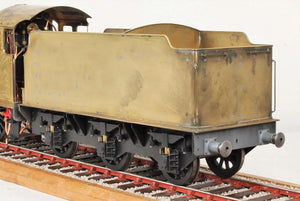

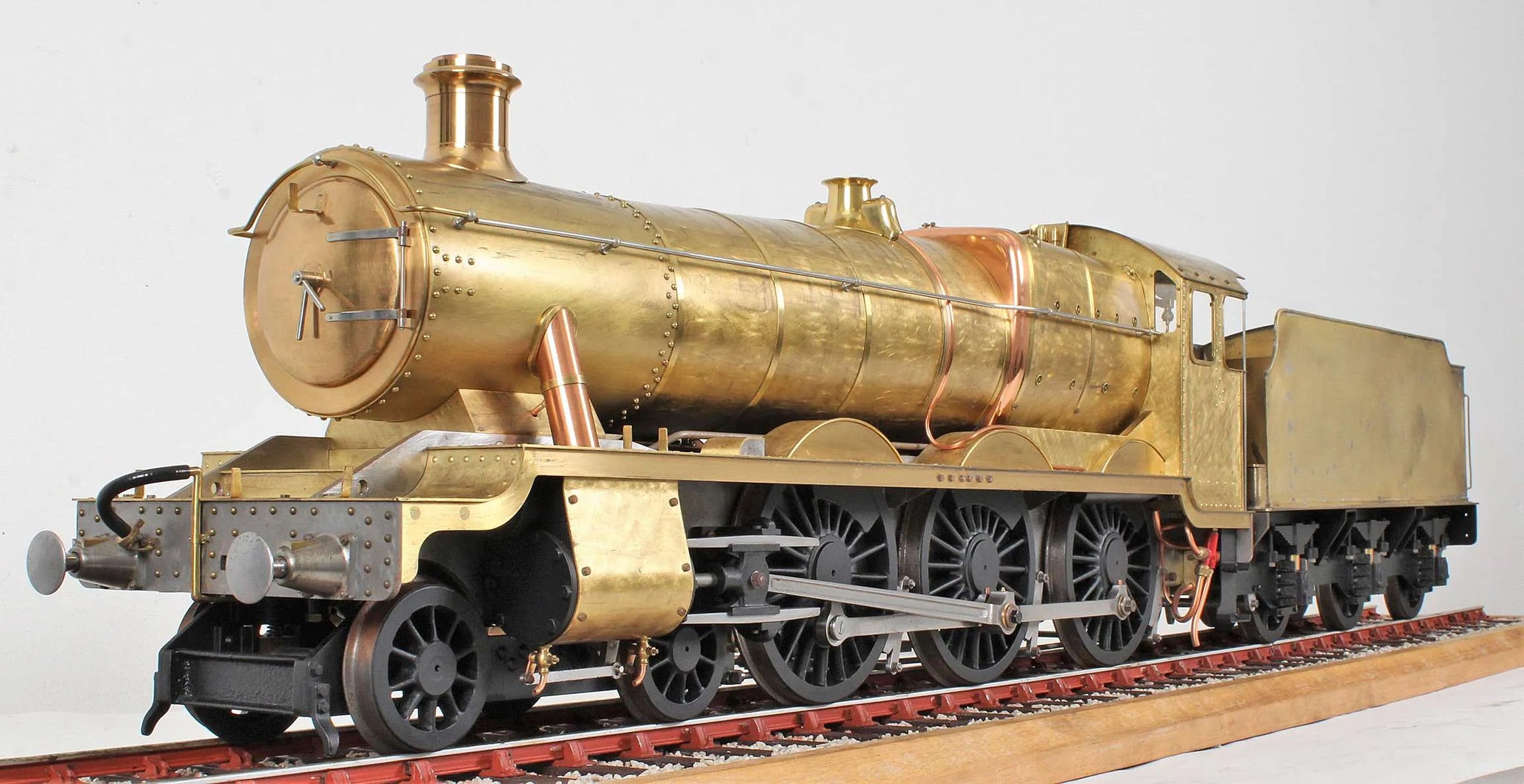

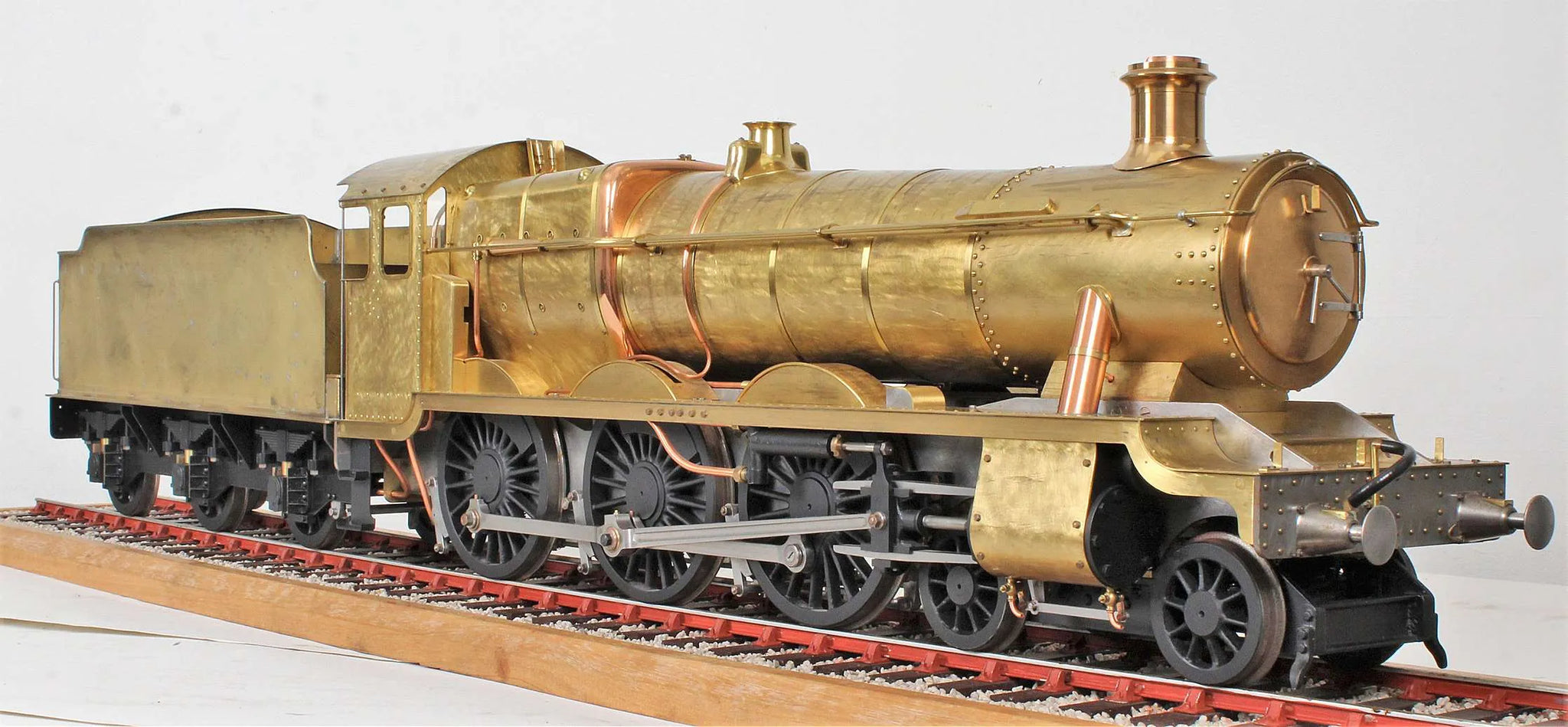

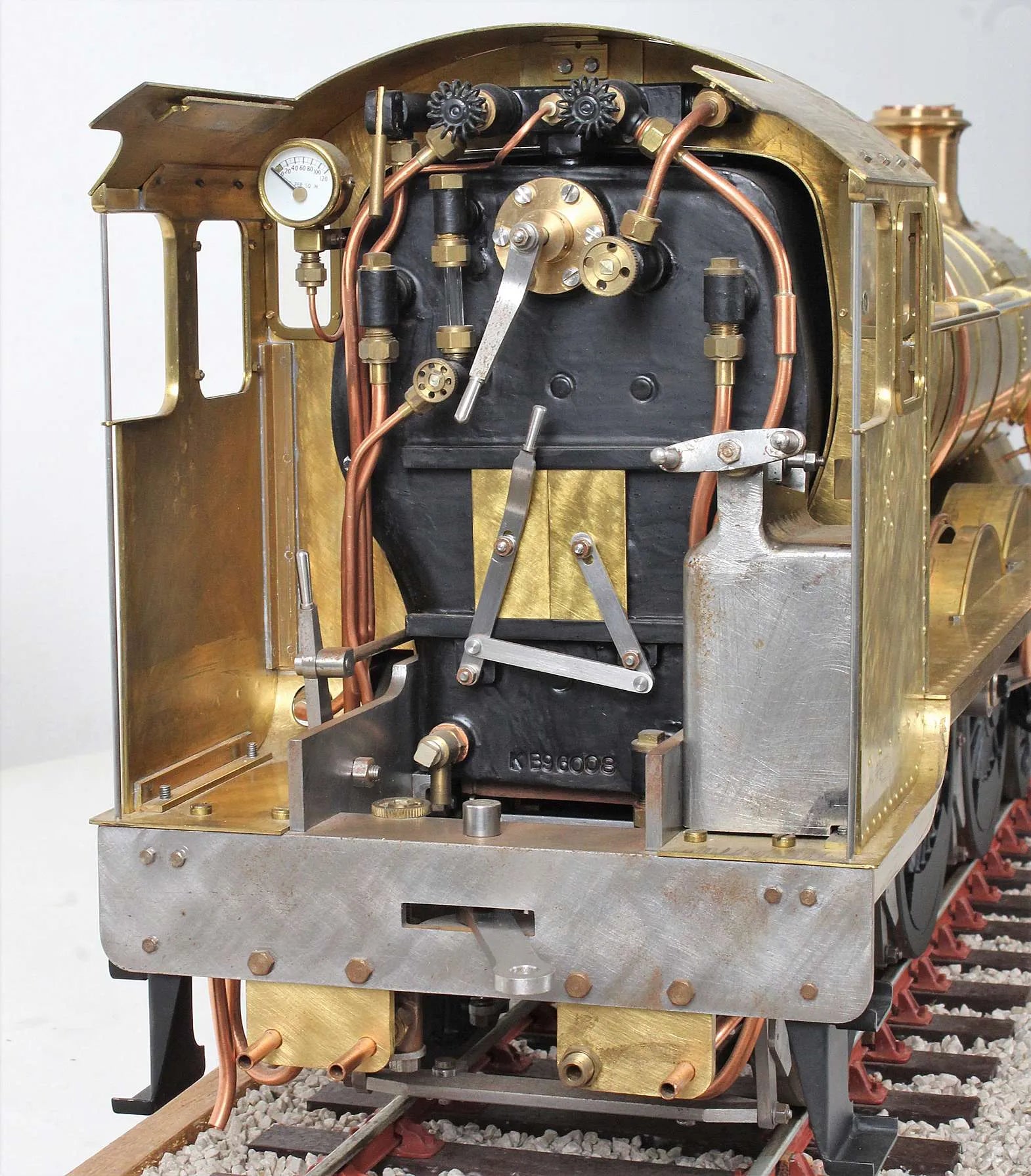

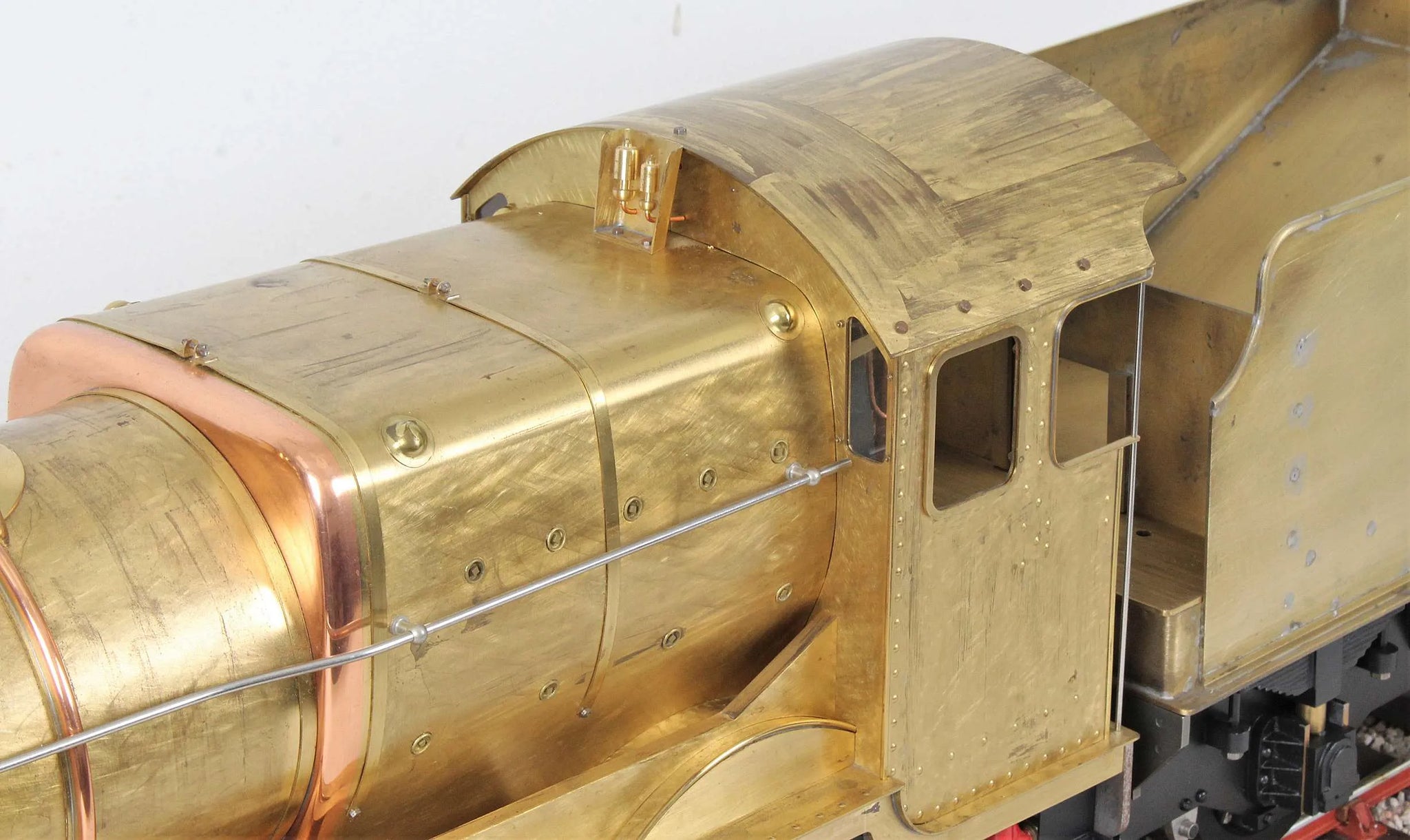

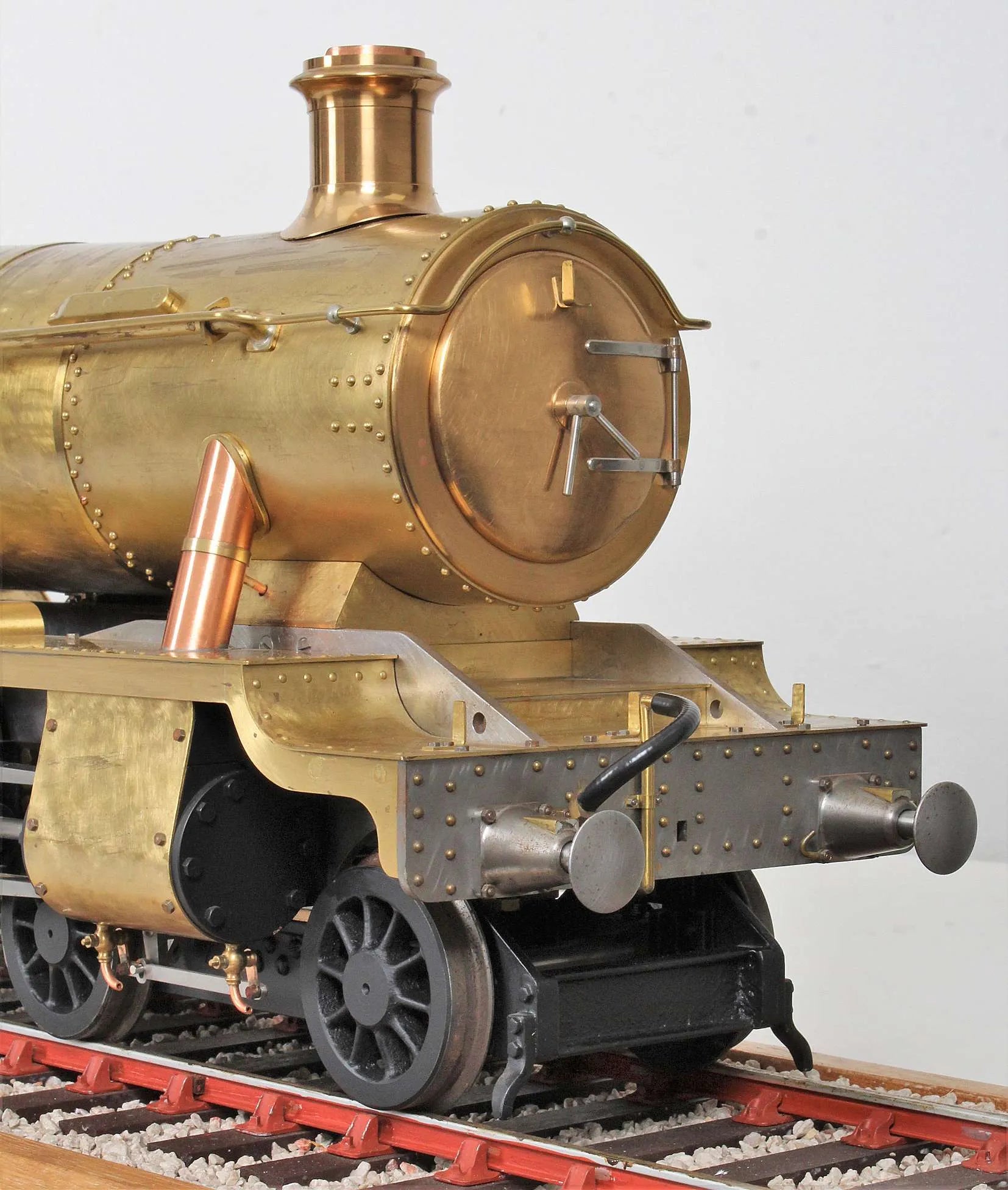

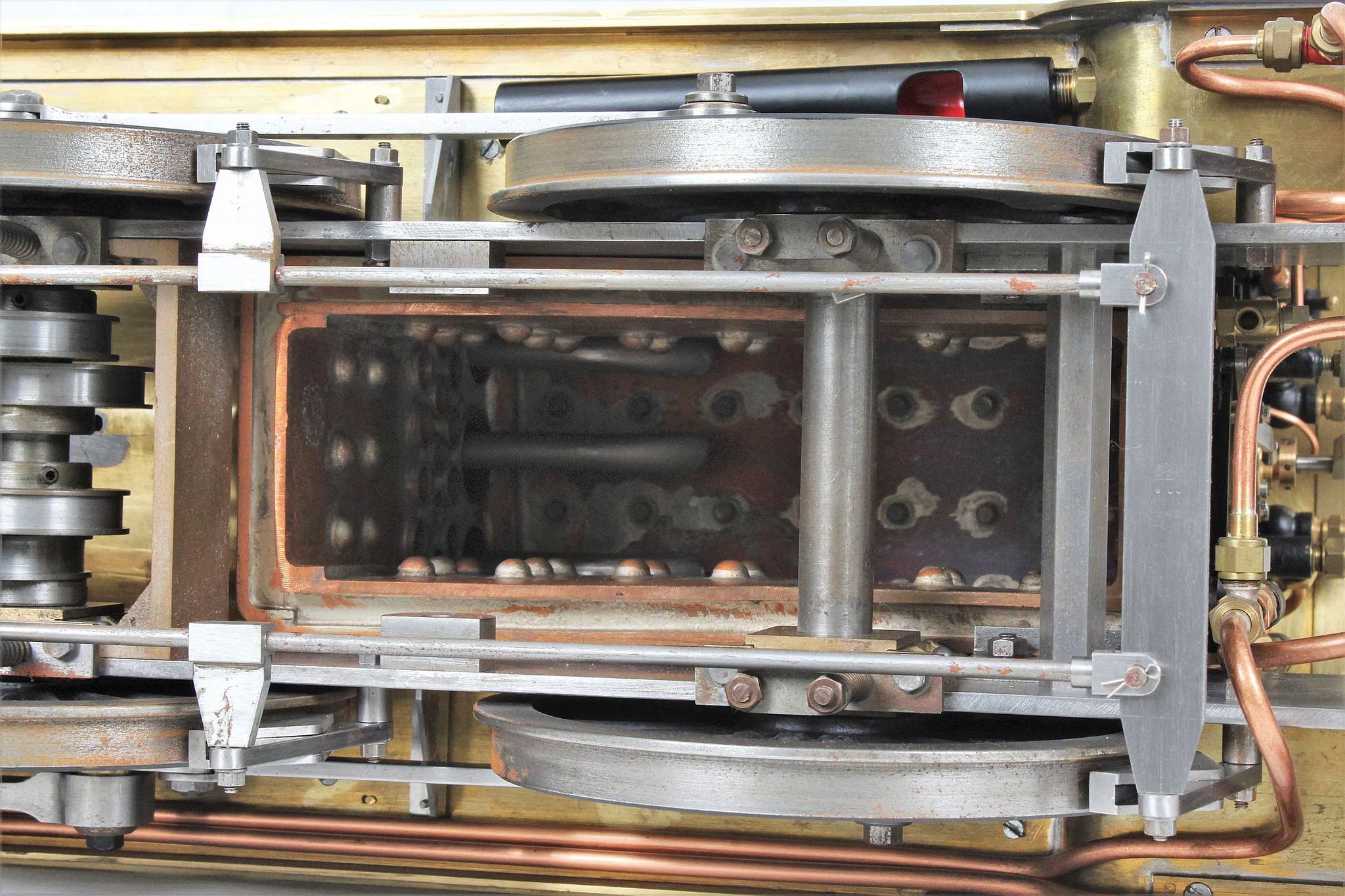

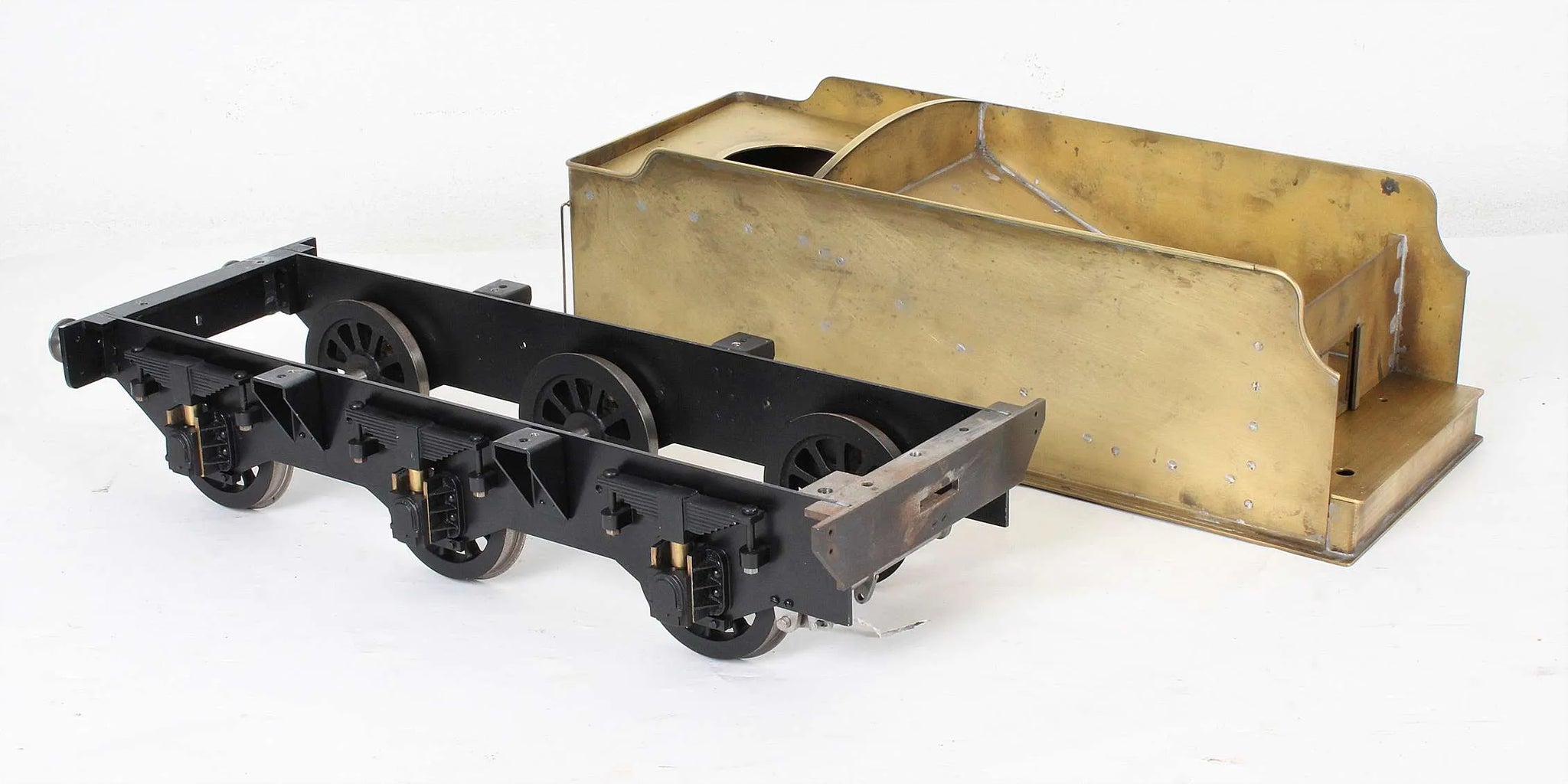

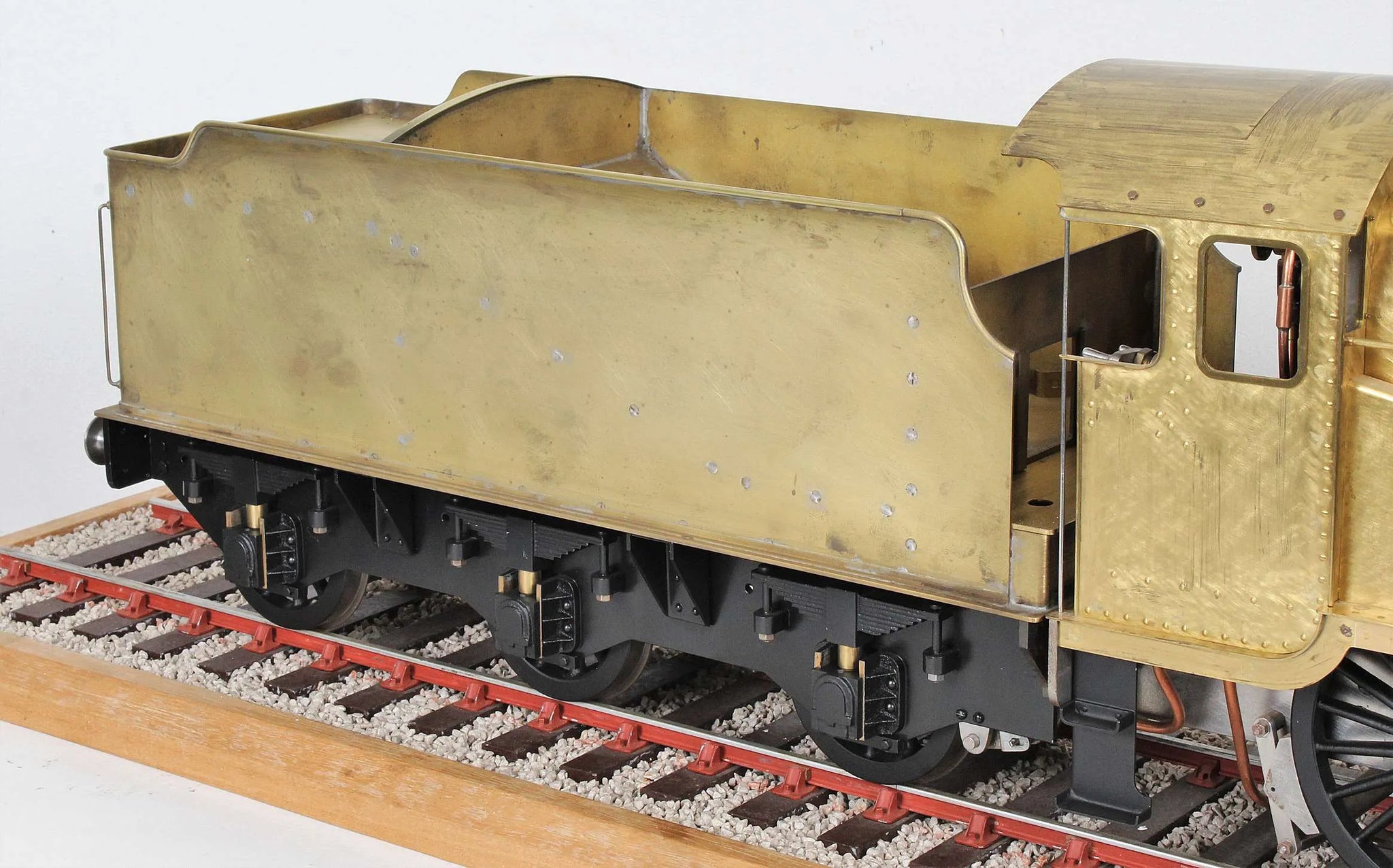

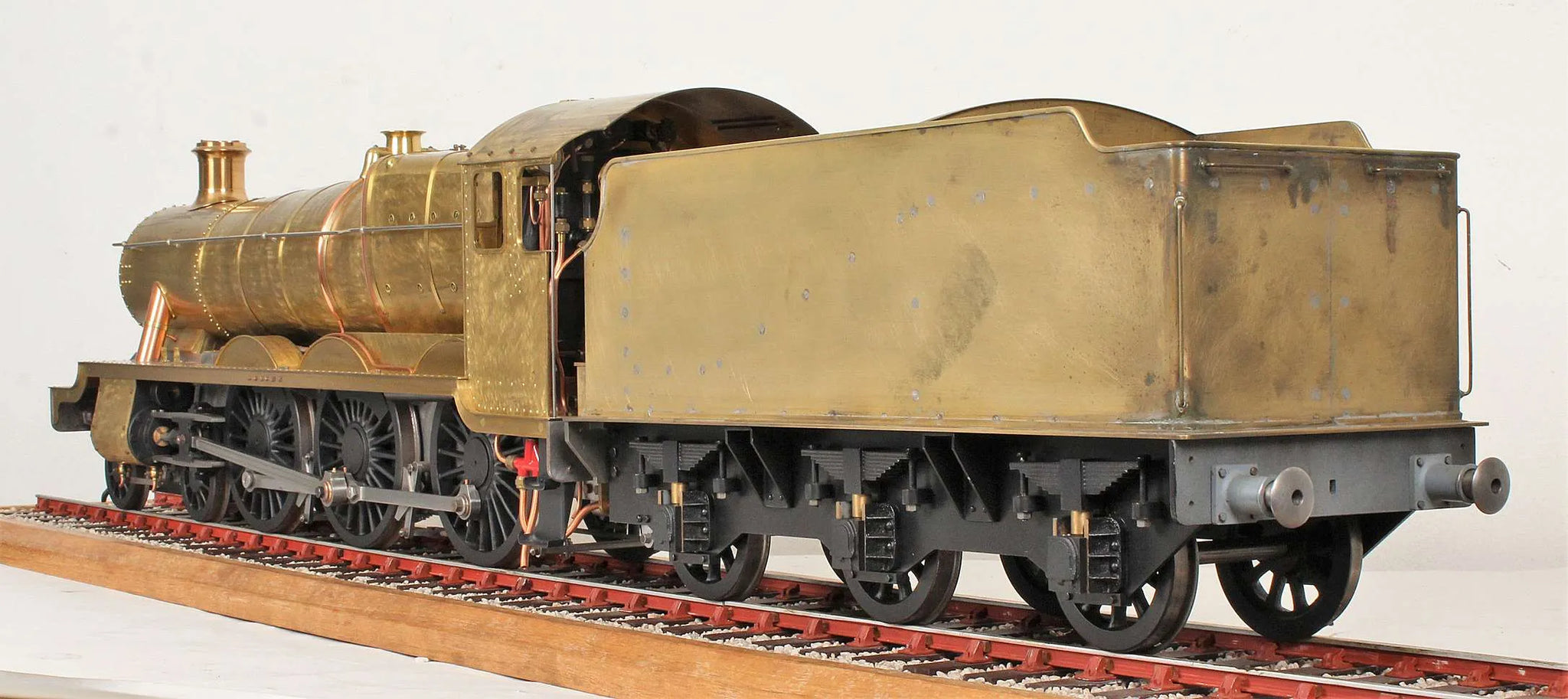

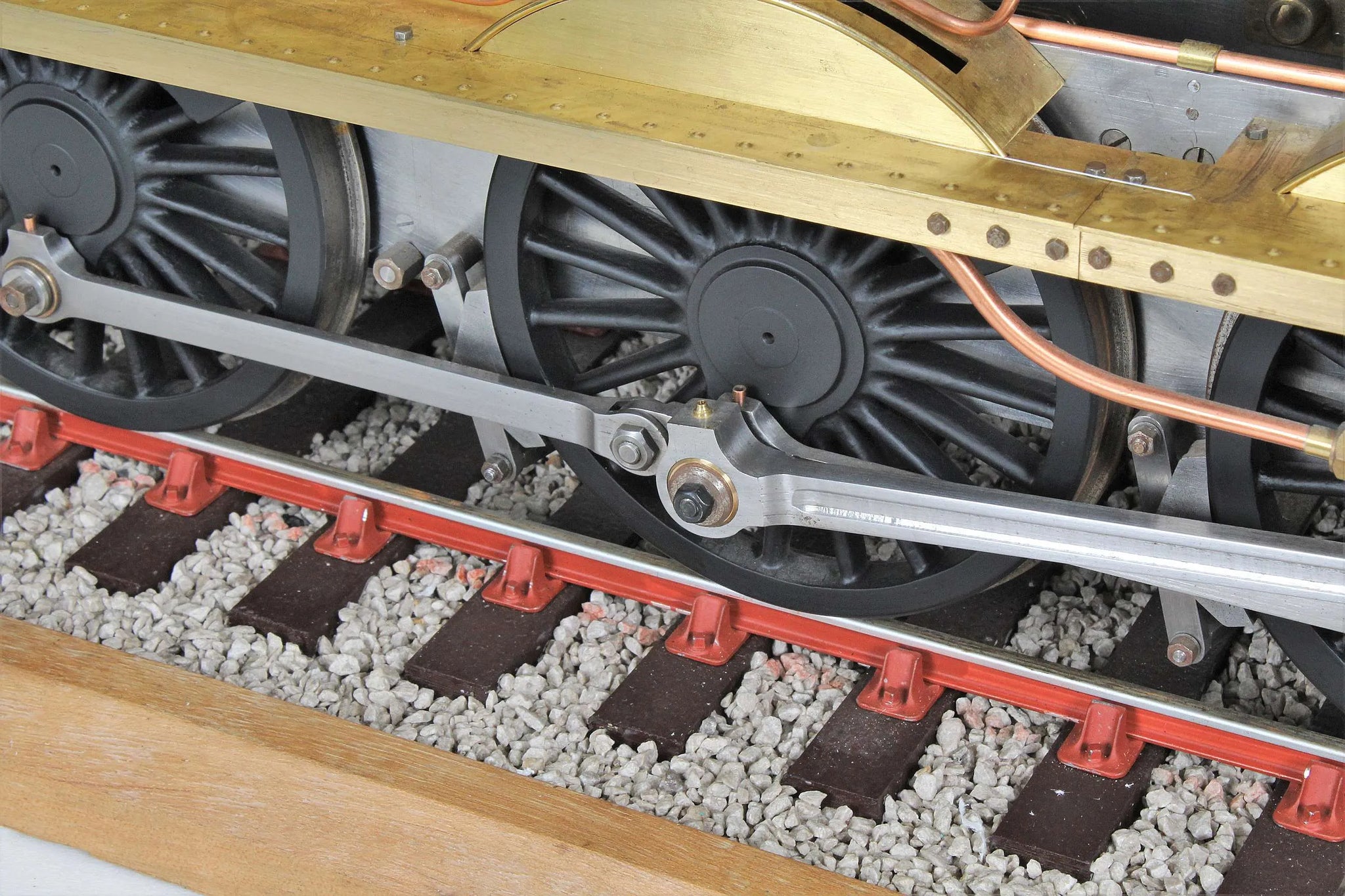

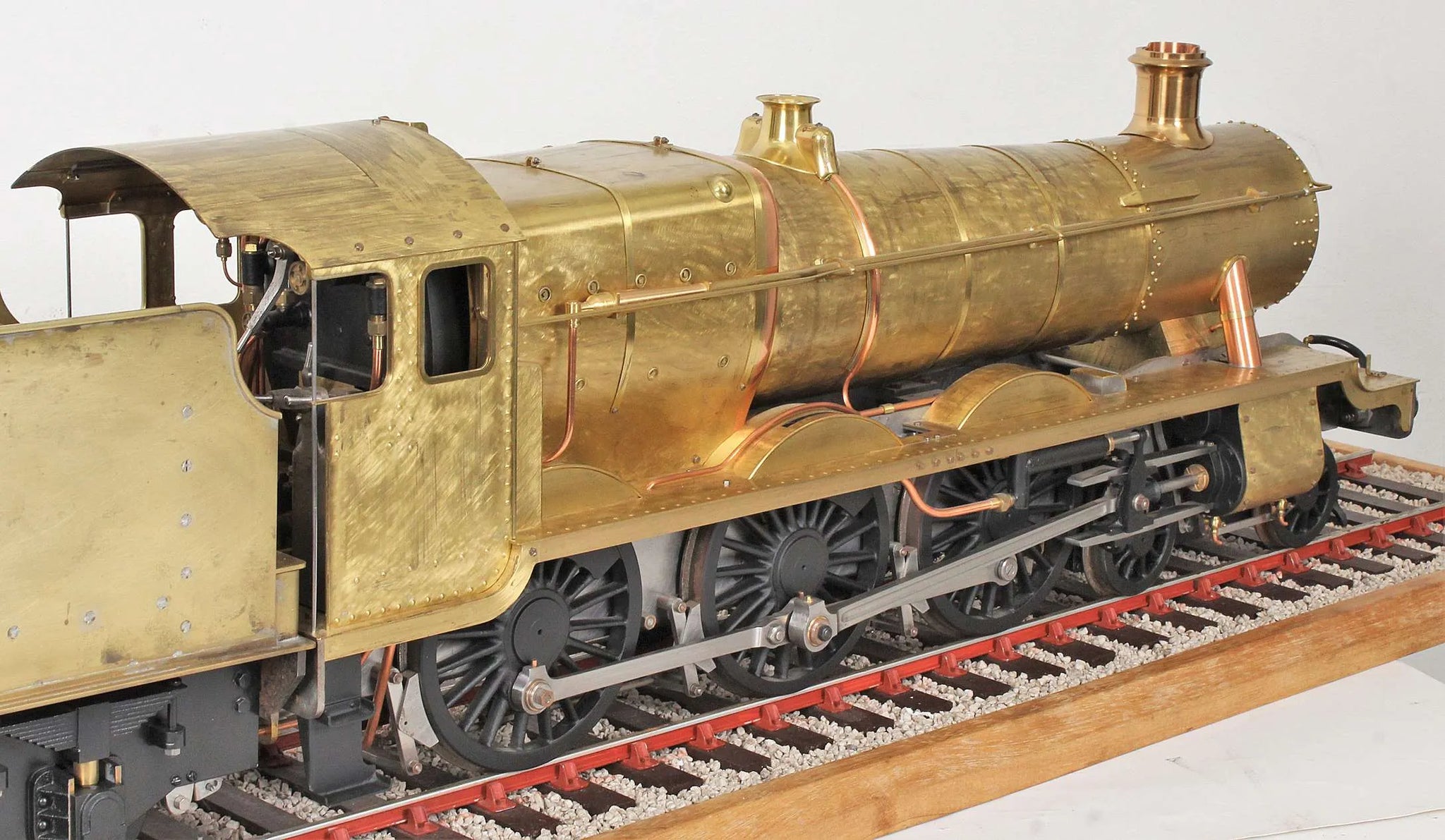

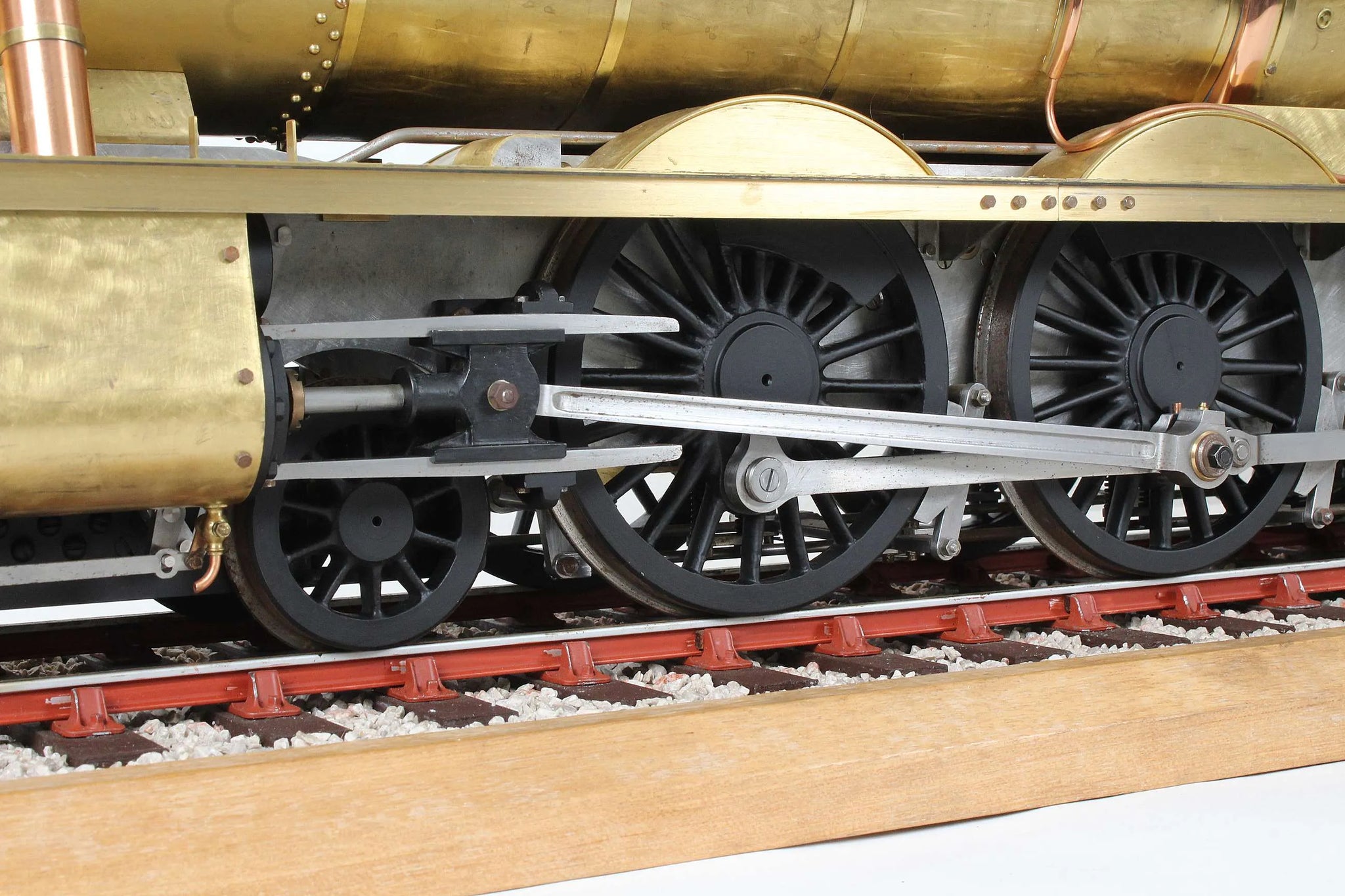

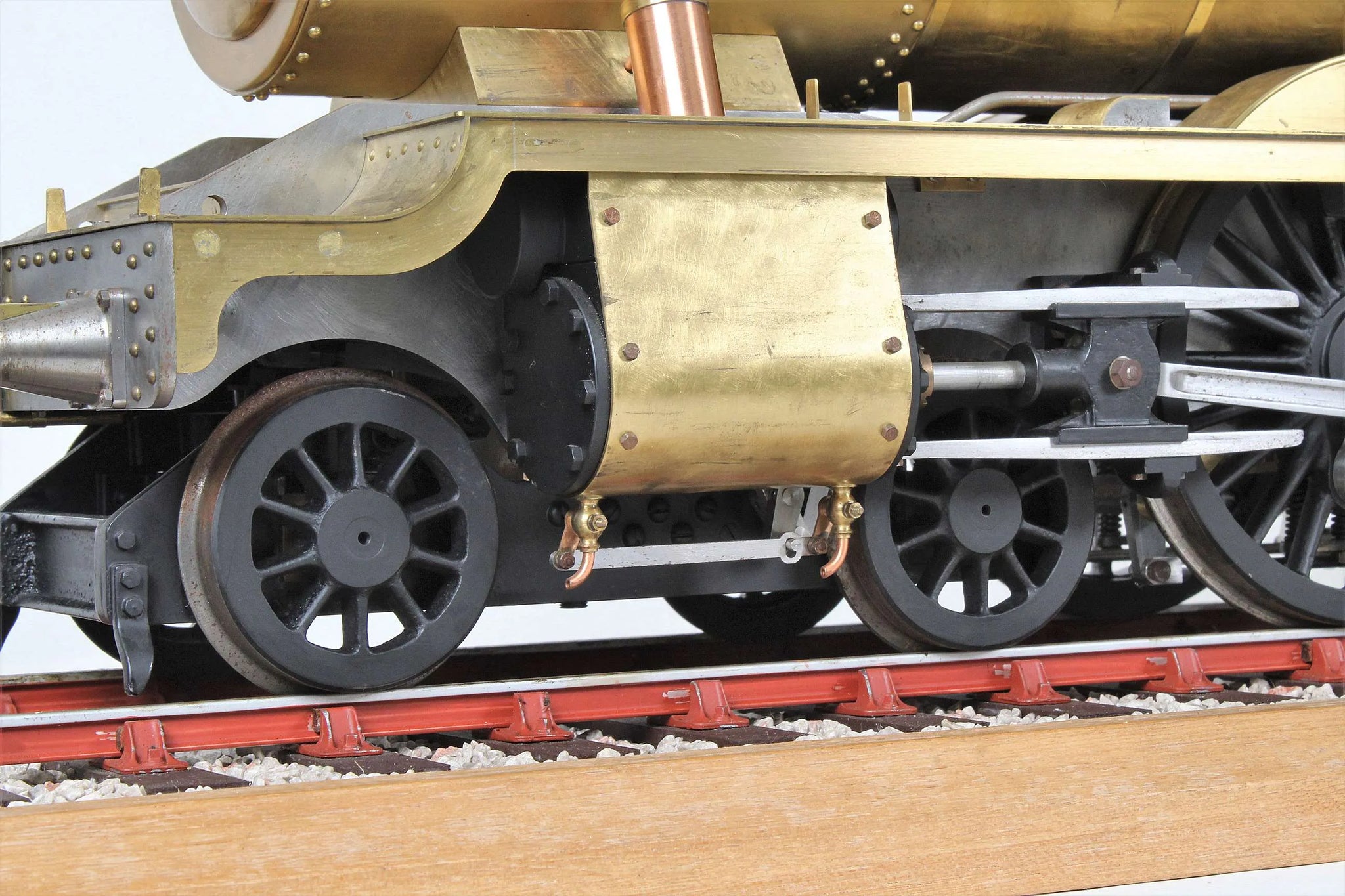

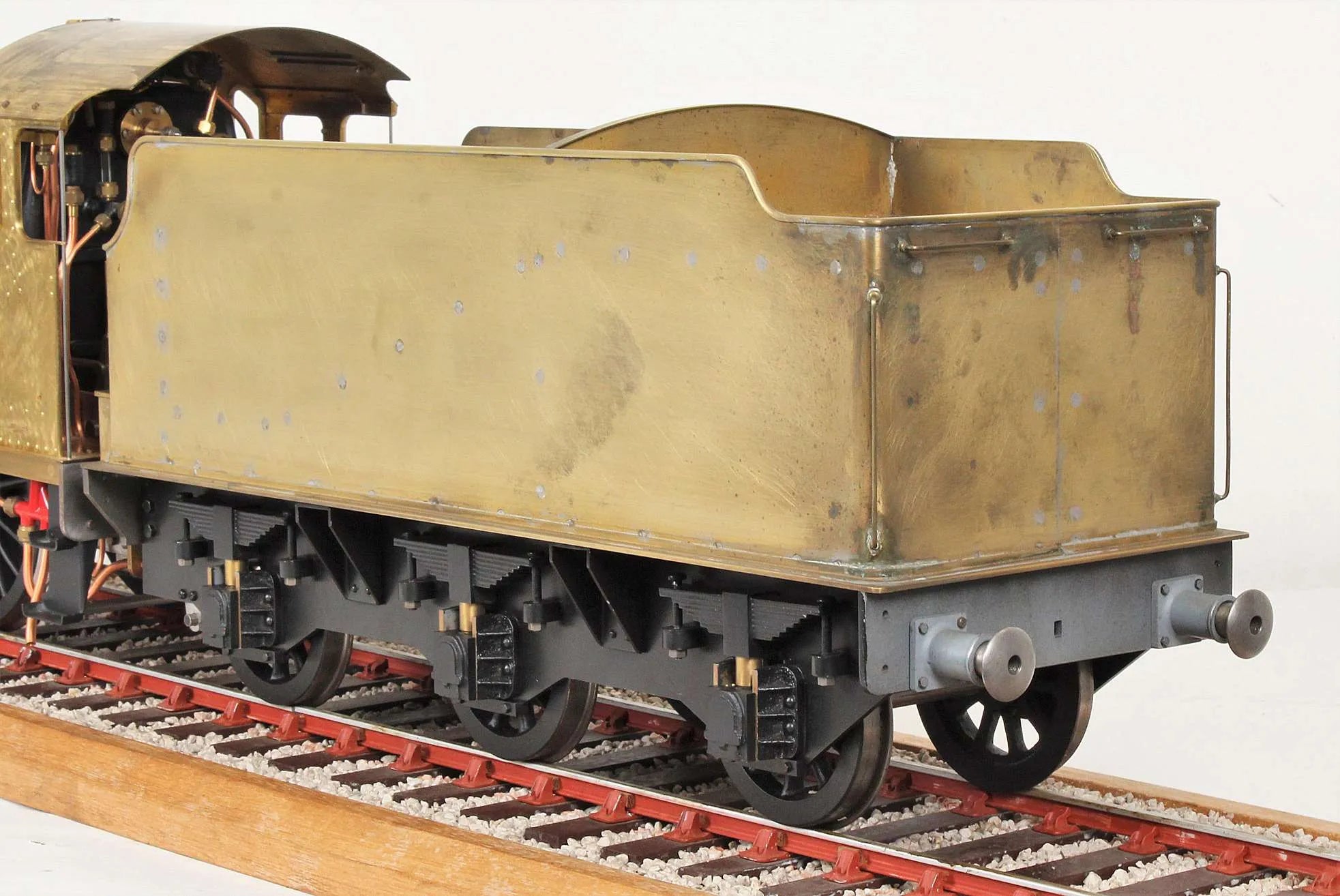

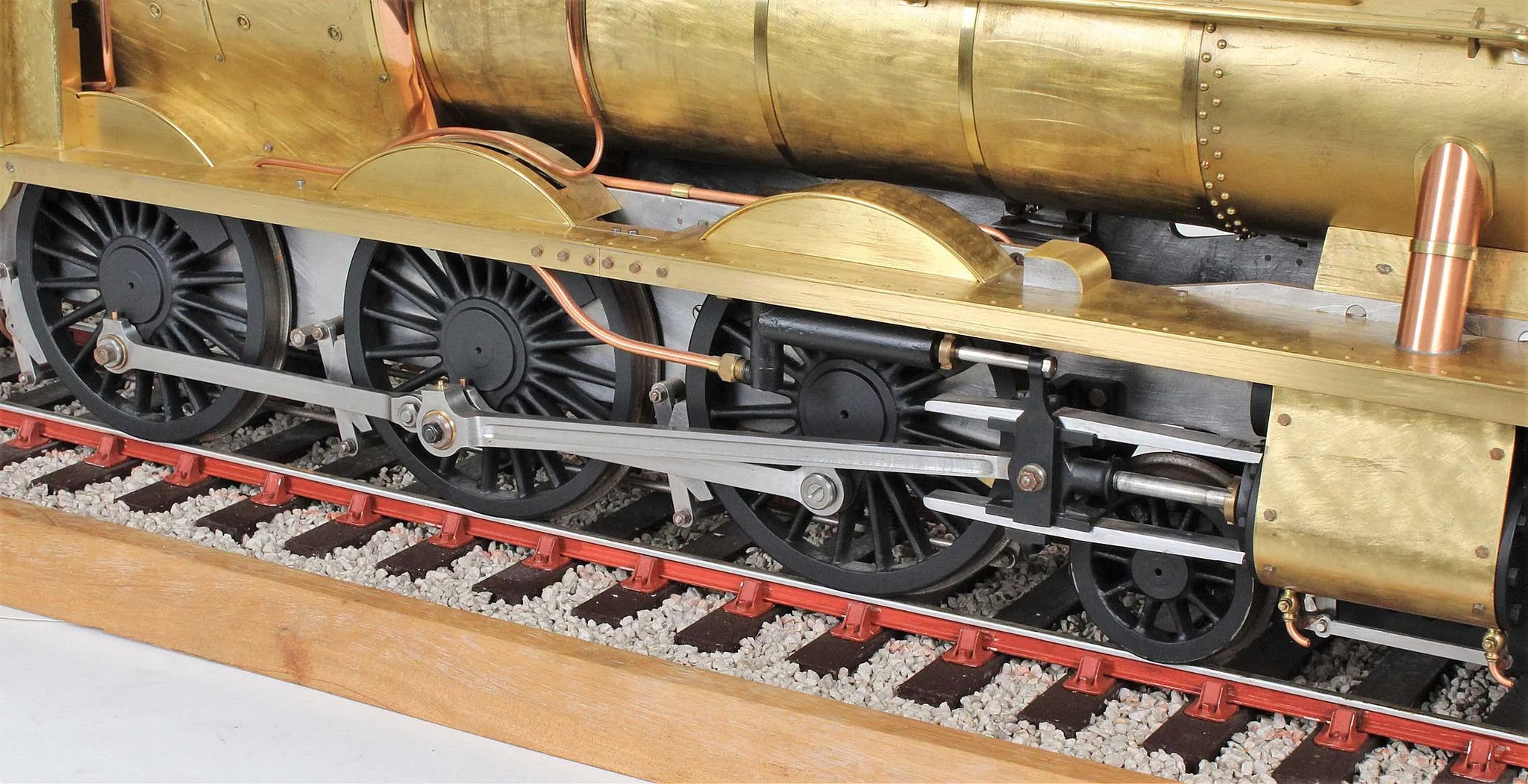

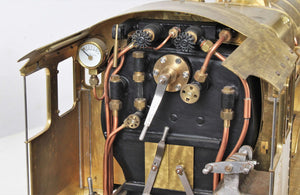

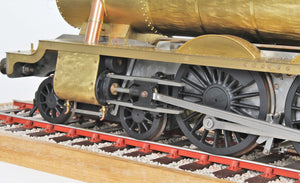

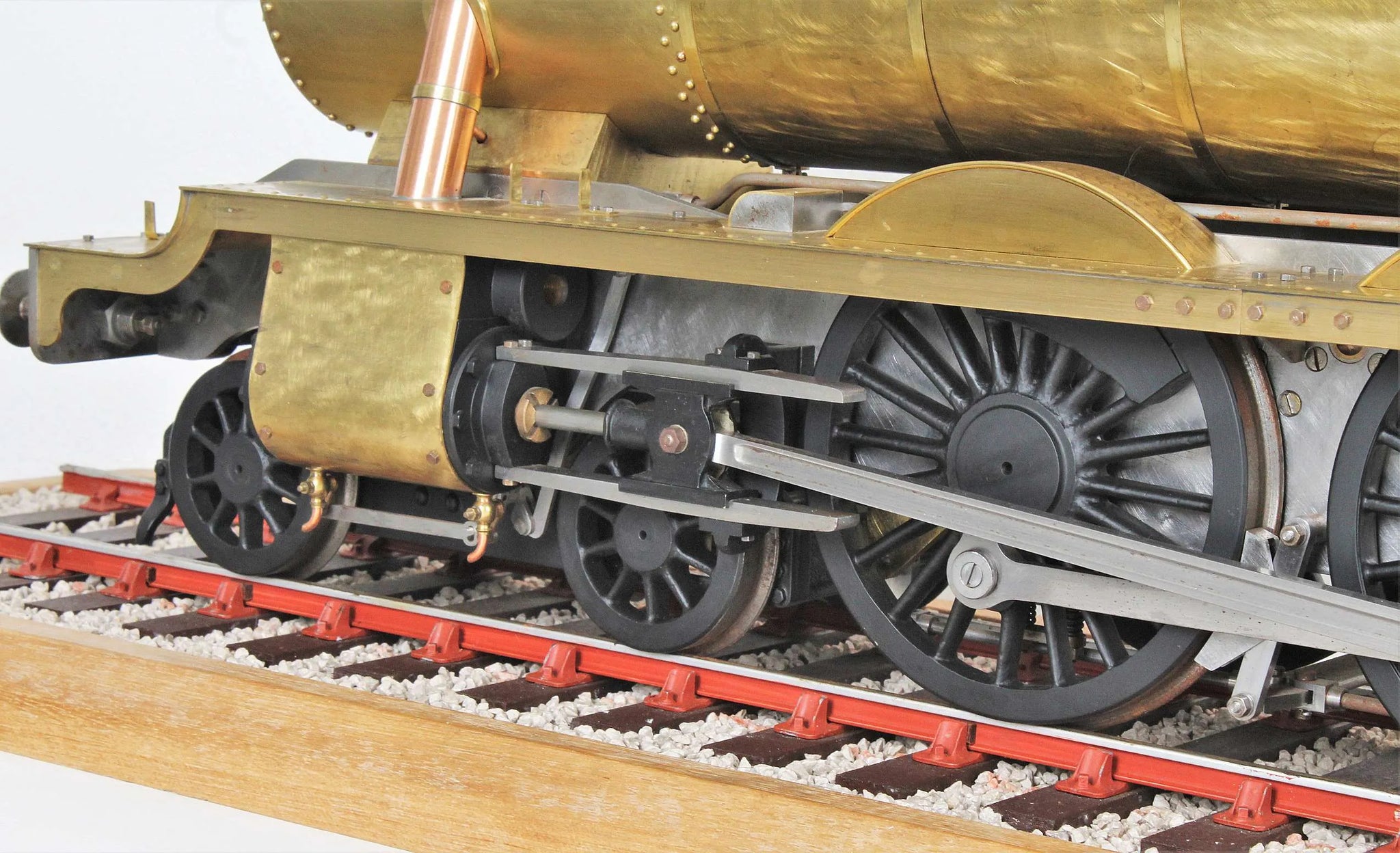

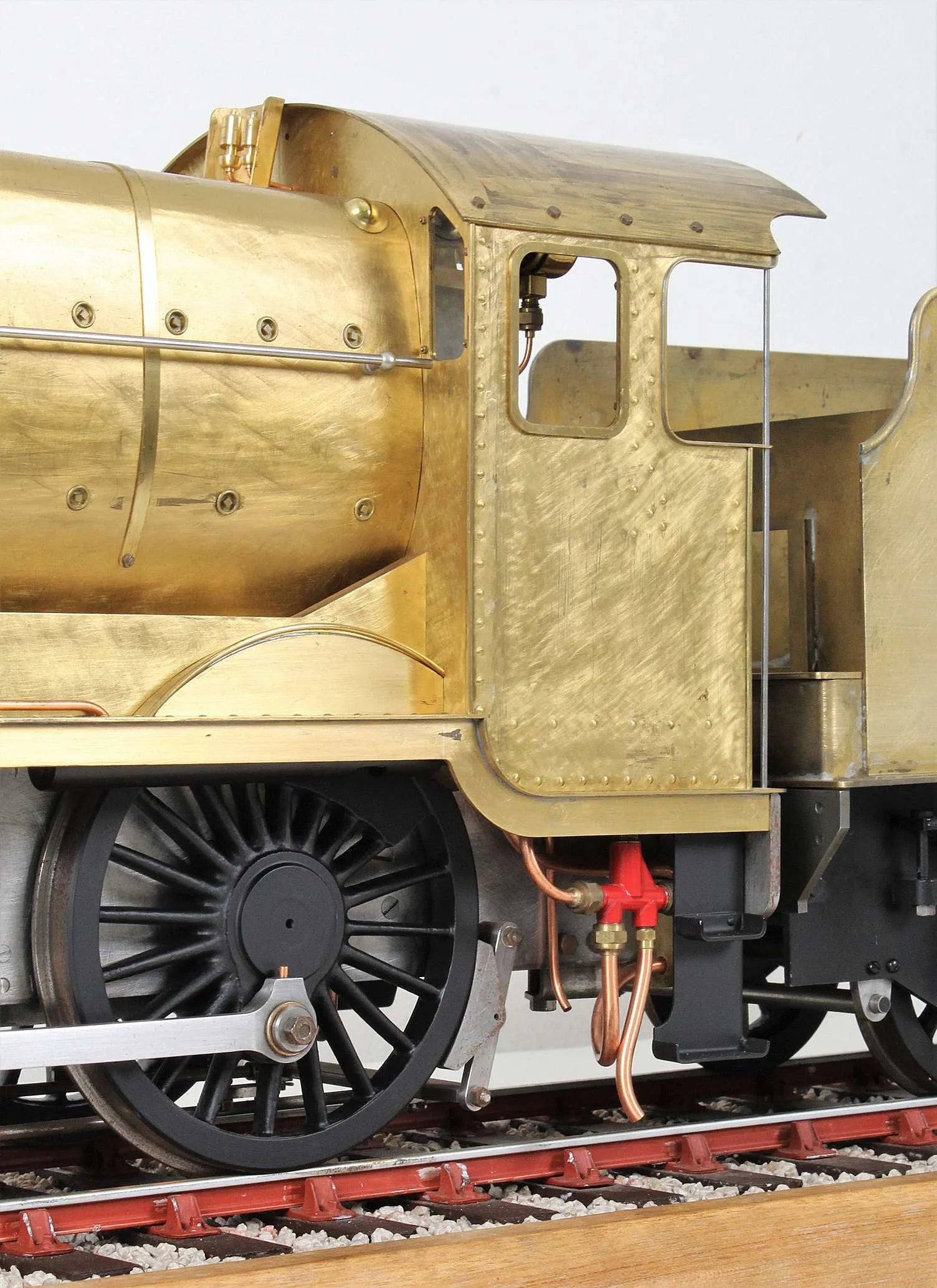

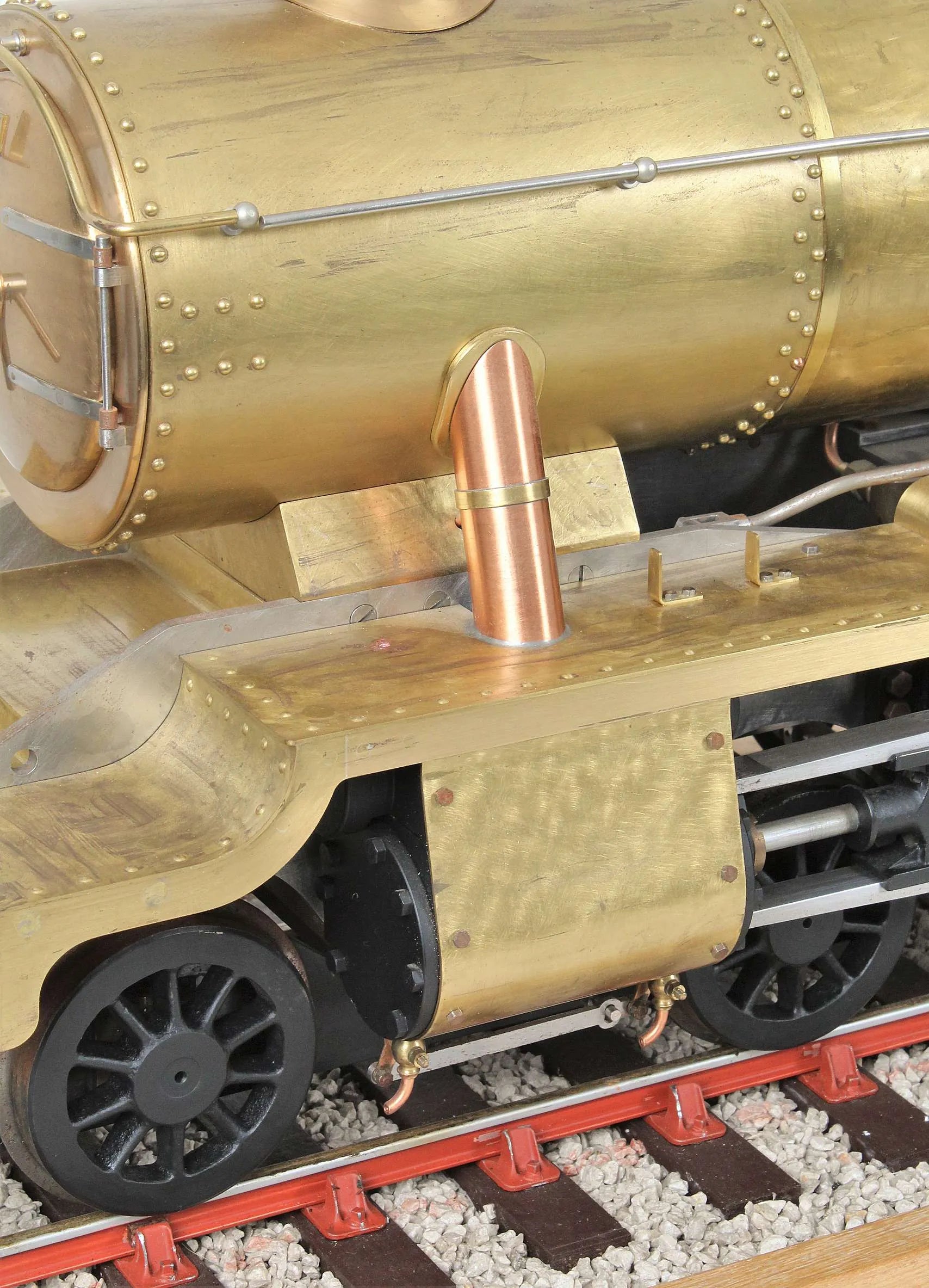

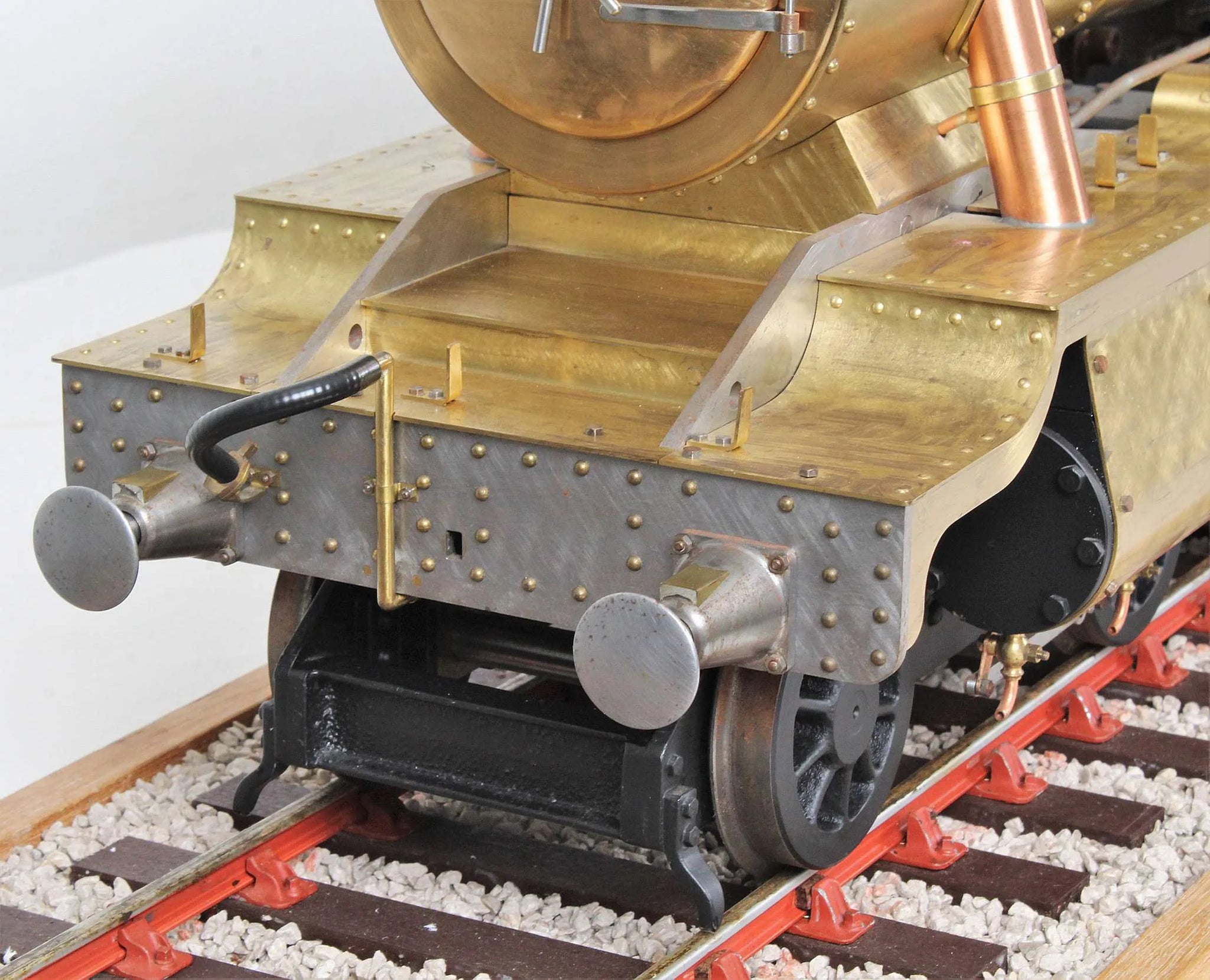

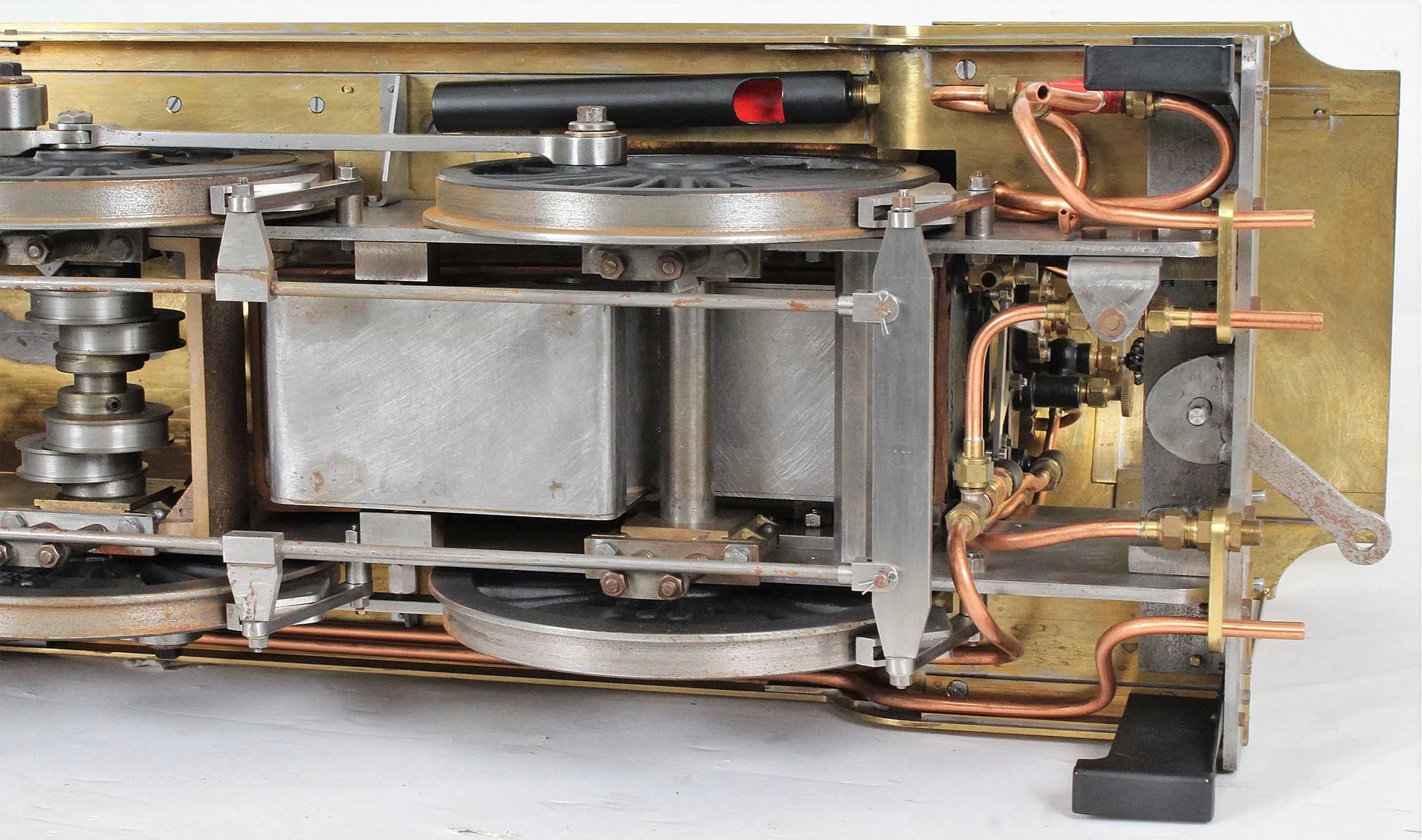

One of those engines where the pictures speak more eloquently than words - suffice to say standard of construction is first rate throughout; machining is crisp, fit and finish of parts excellent, the platework beautifully formed and fitted.
Stock code |
9927 |
Gauge |
3 1/2 inch |
Length/inches |
29 + 19 |
Width/inches |
7 |
Height/inches |
11 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |

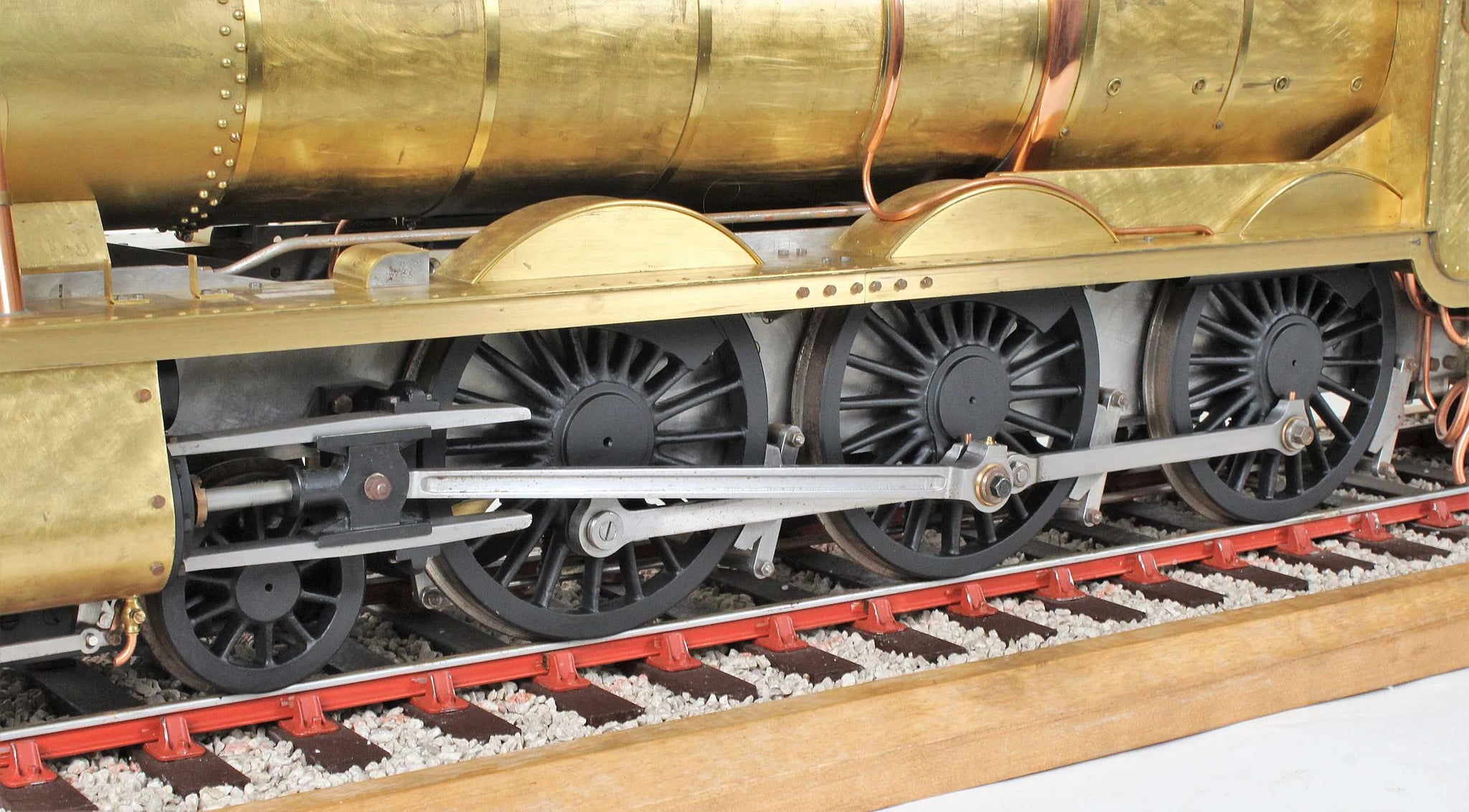

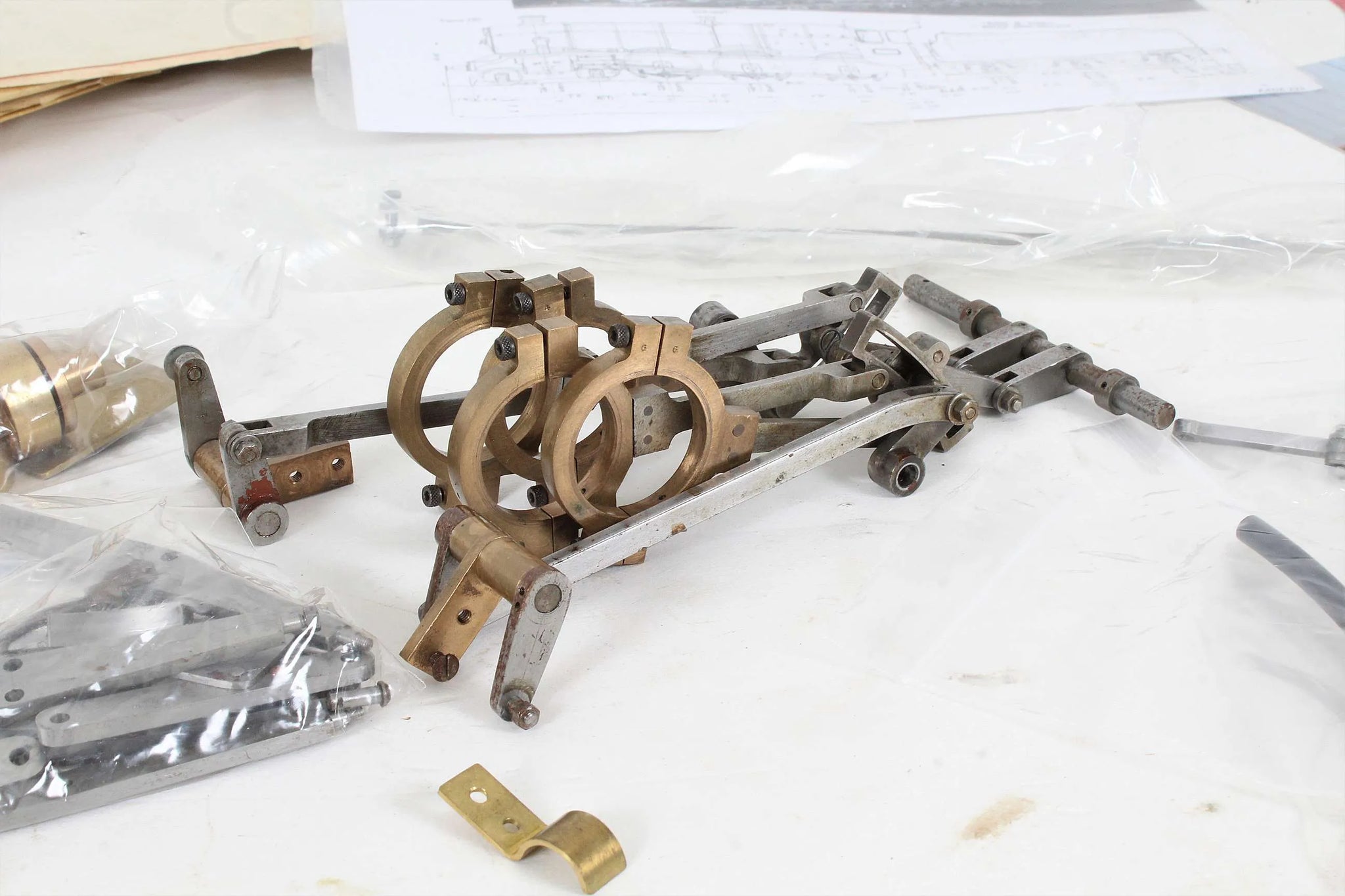

Valve gear |
Stephensons |
Reverser type |
screw |
Lubricator type |
mechanical |
Boiler maker |
Kingswood Boilers |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
CE/UKCA mark |
n/a pre-2002 |
Year built |
1996 |
Boiler number |
KB96008 |
Safety valve type |
spring |
Safety valve |
1 |
Whistle |
yes |
Injector |
1 |
Superheater type |
radiant |
Superheater |
3 |
Date out |
Oct-21 |
