8451

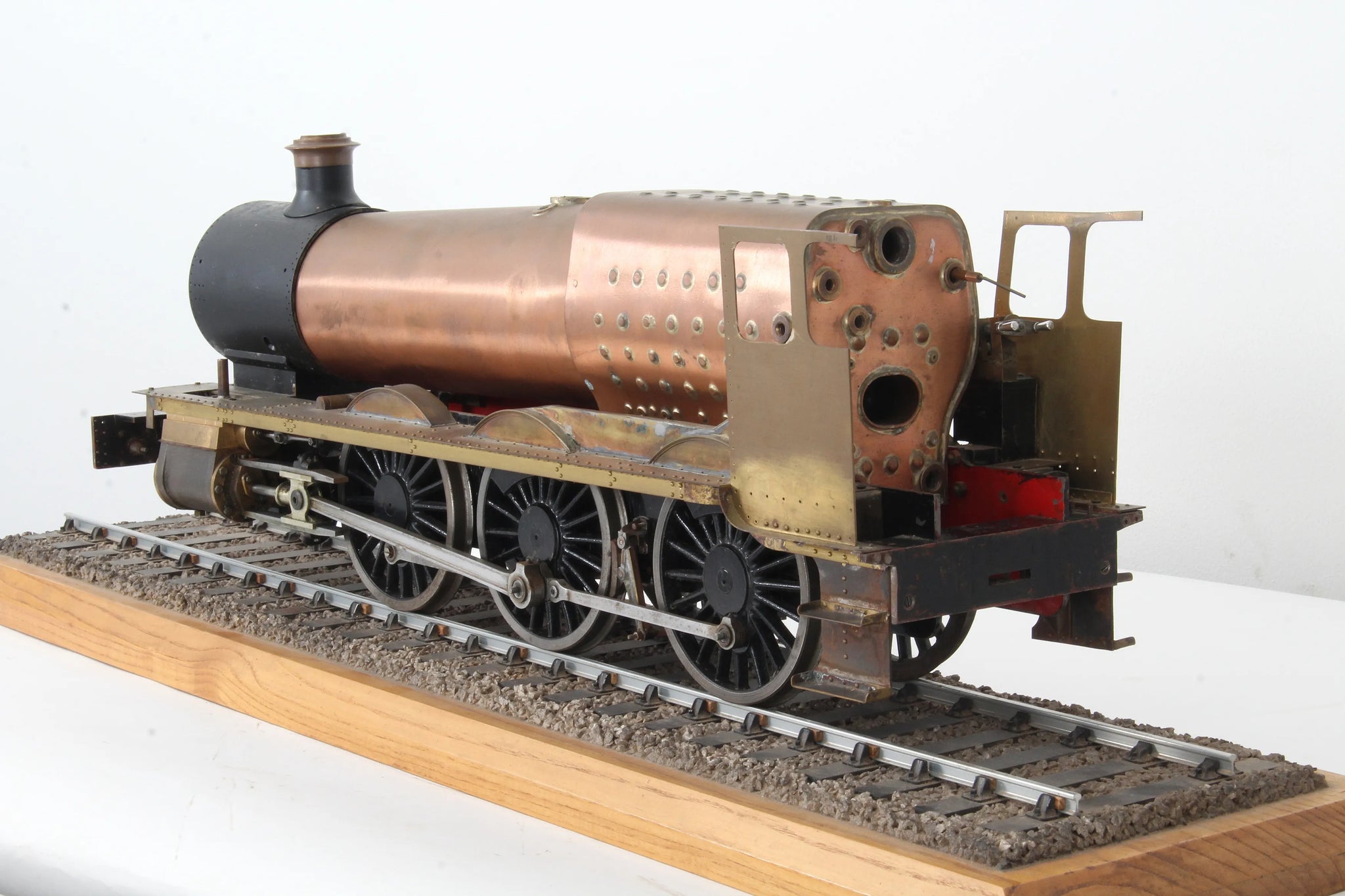

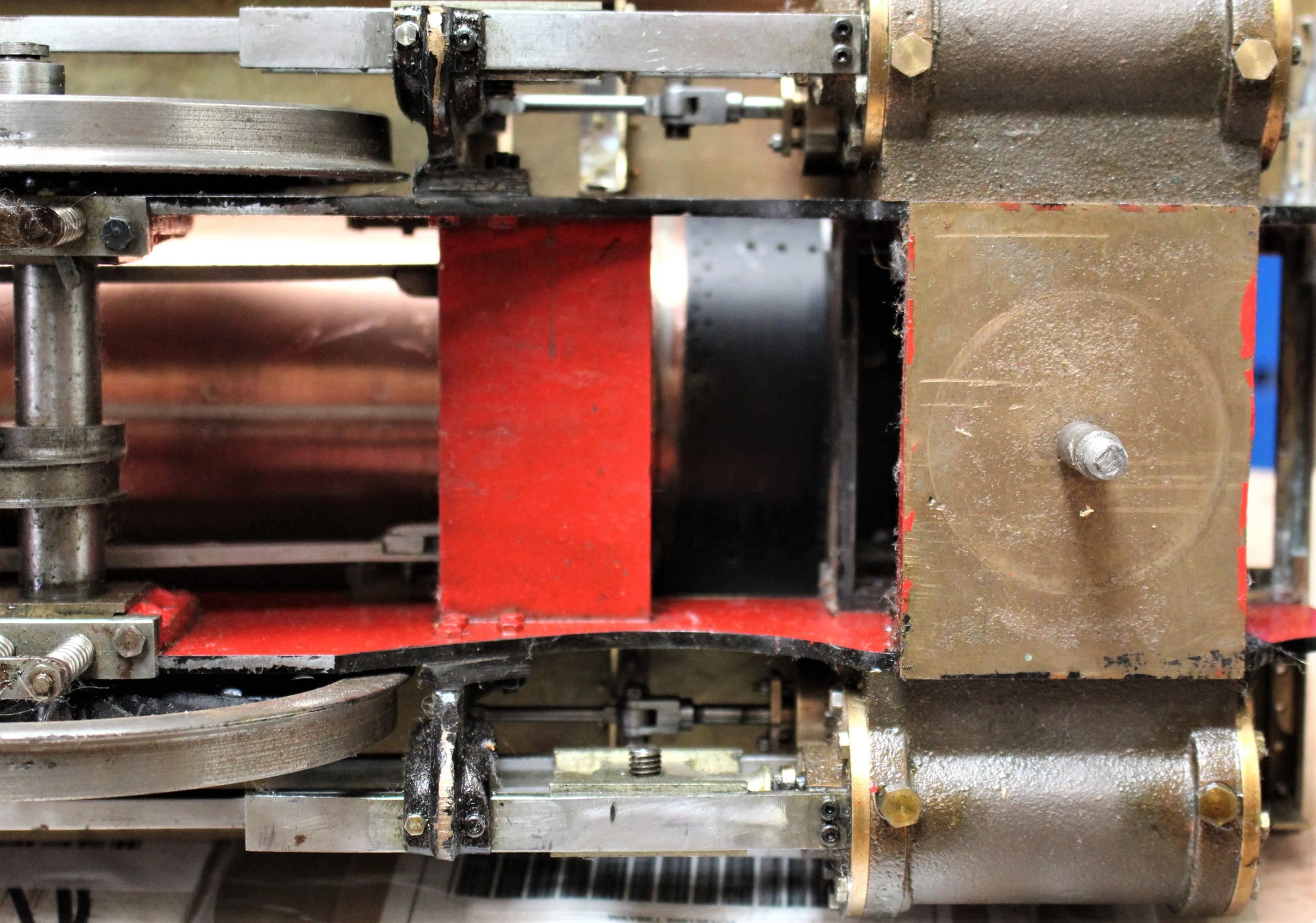

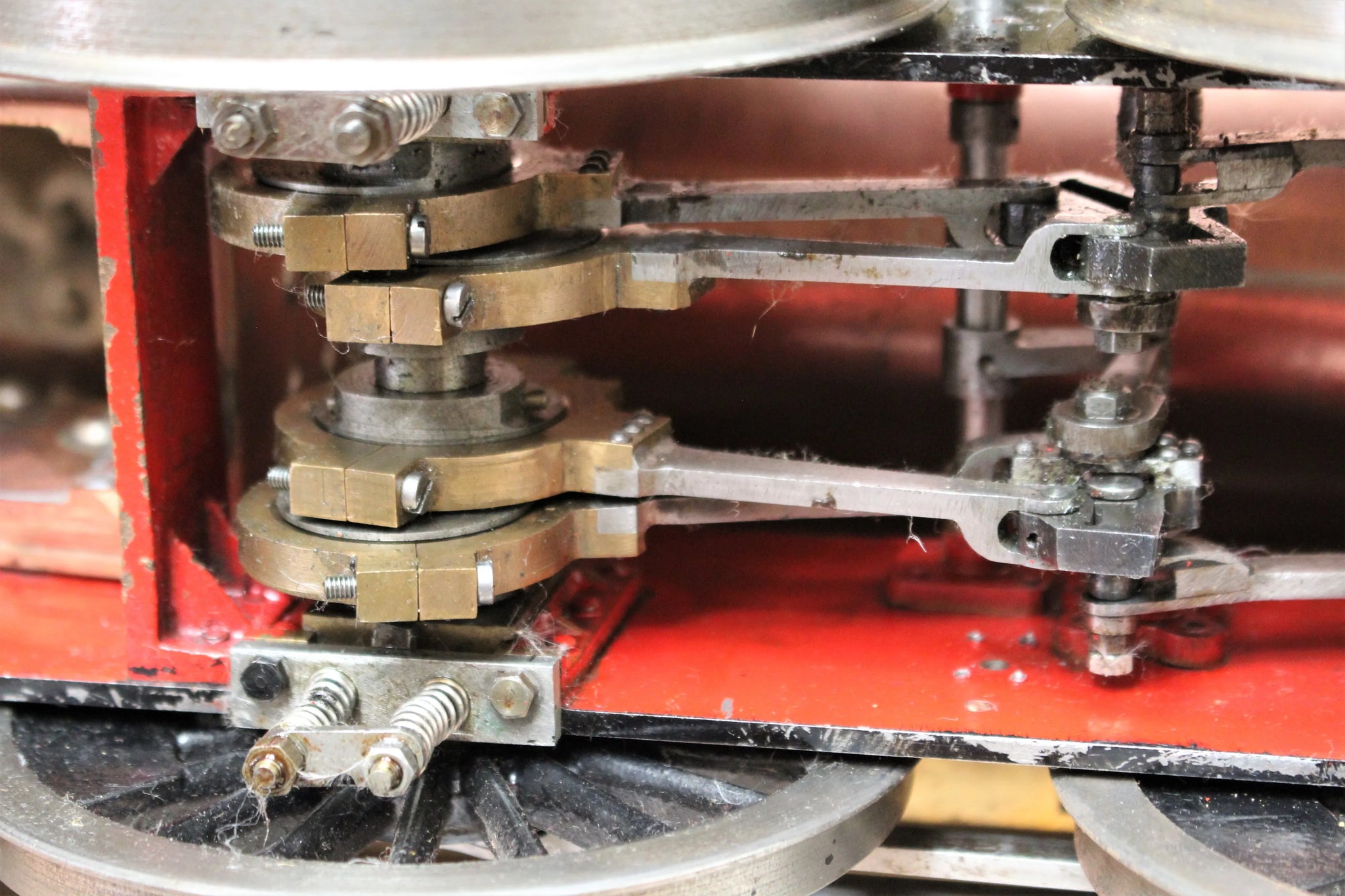

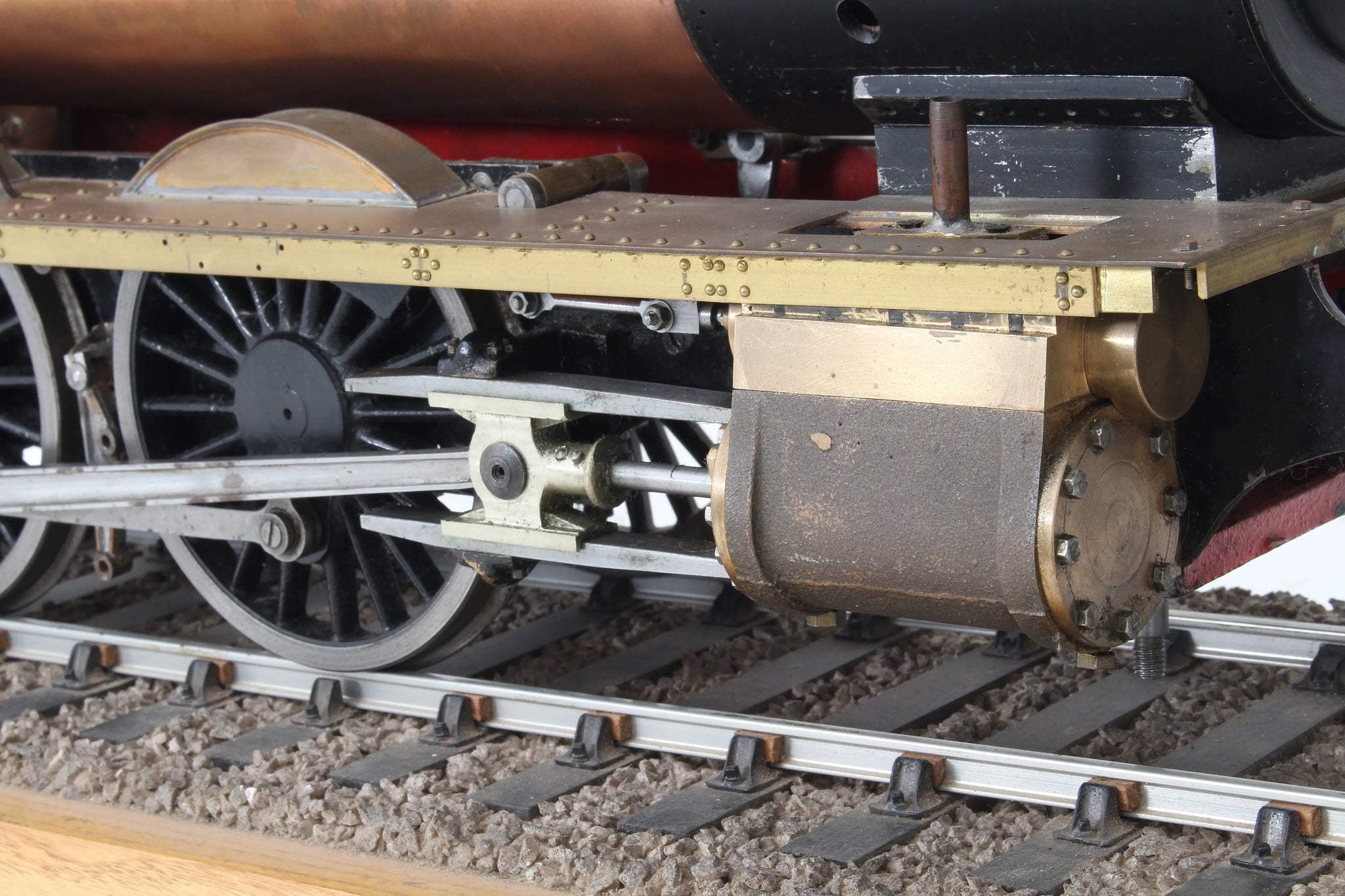

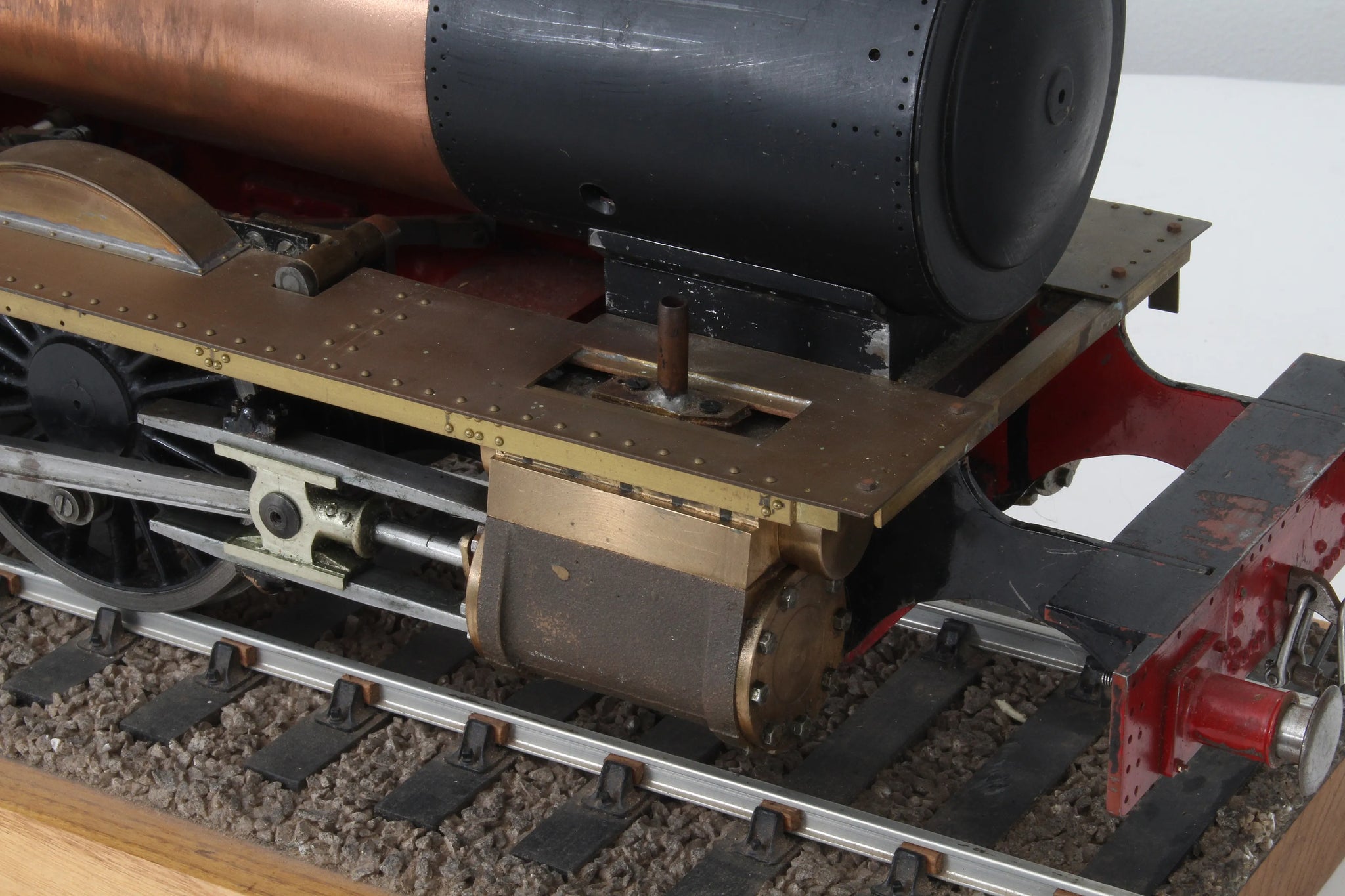

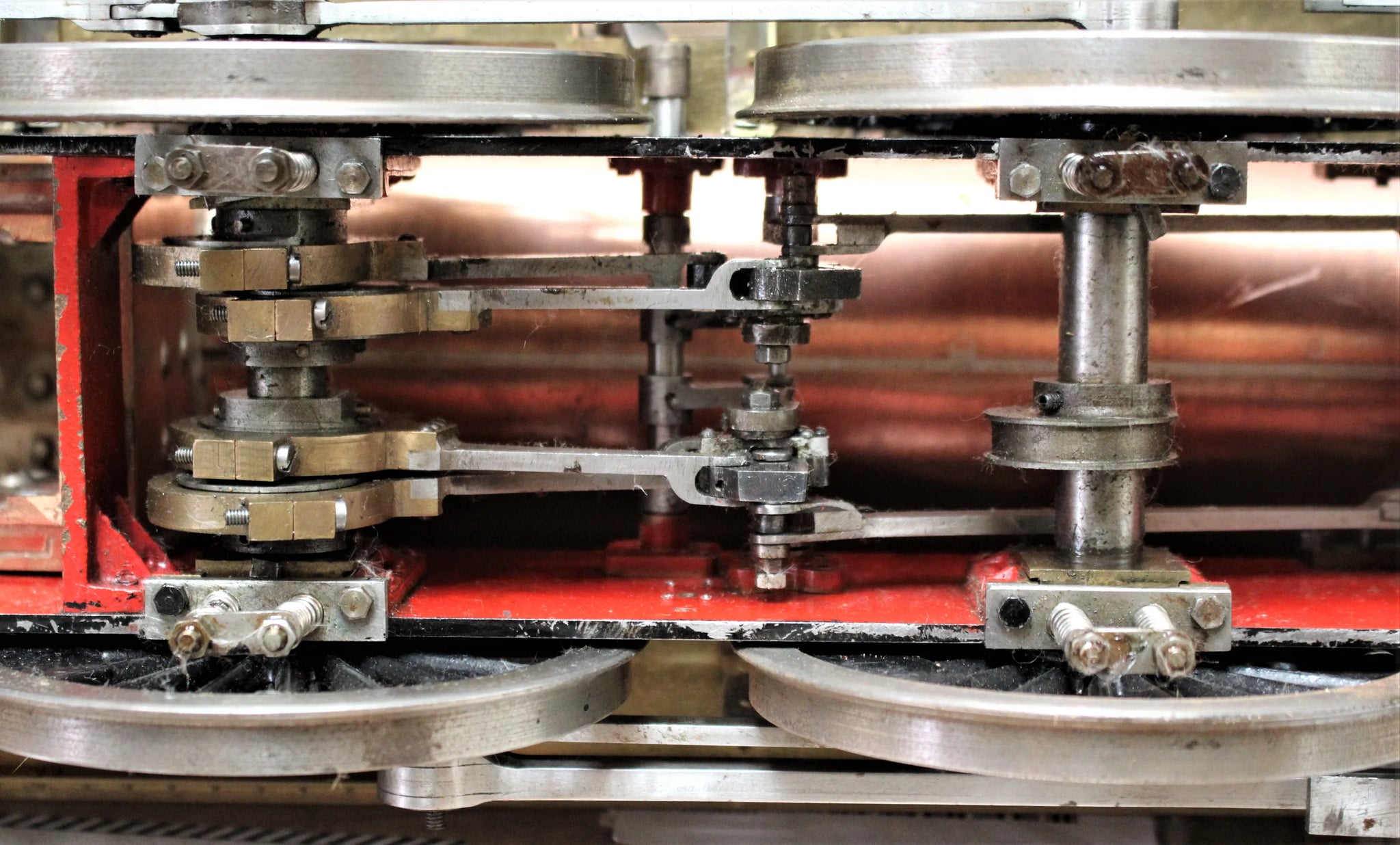

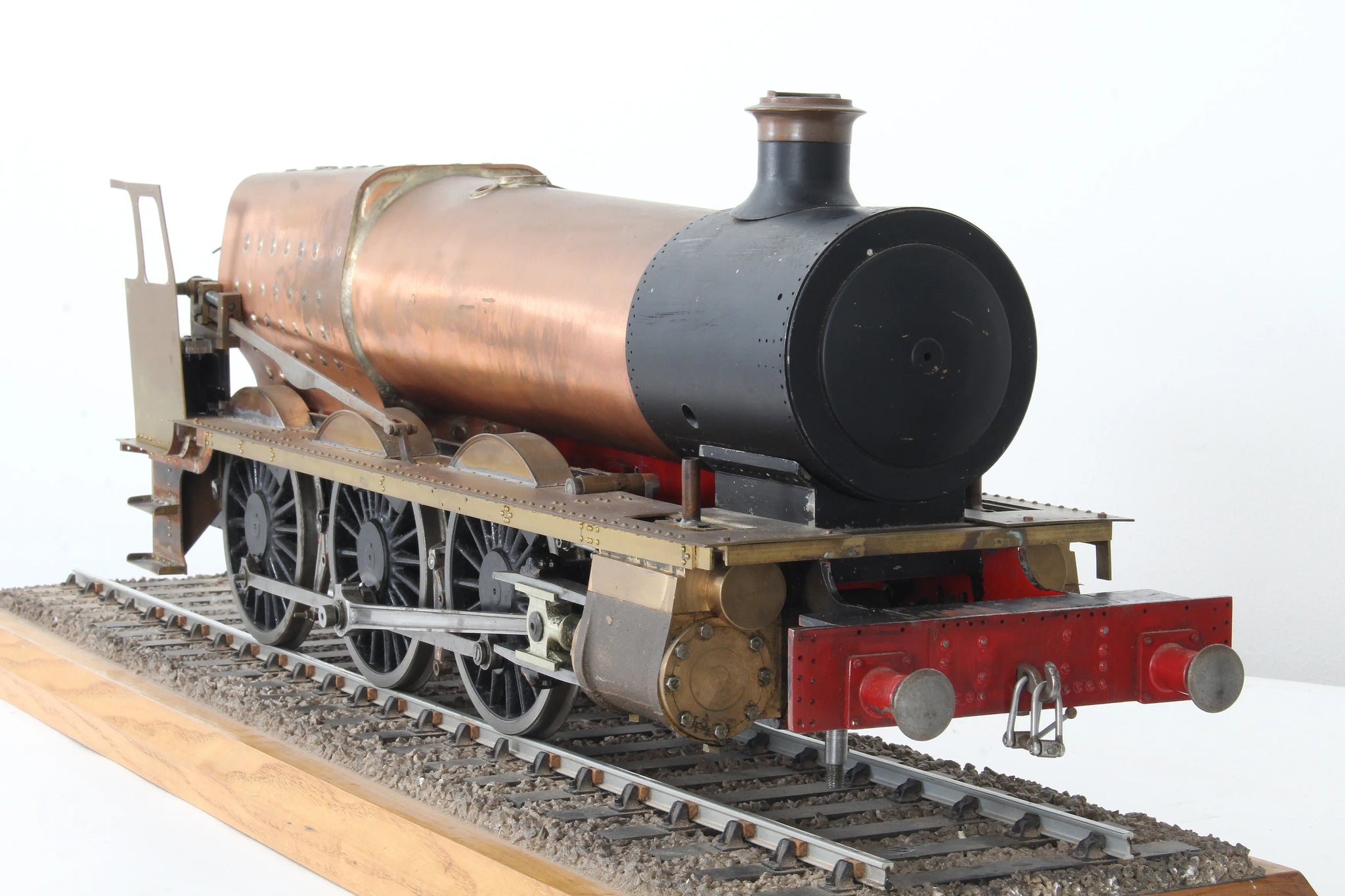

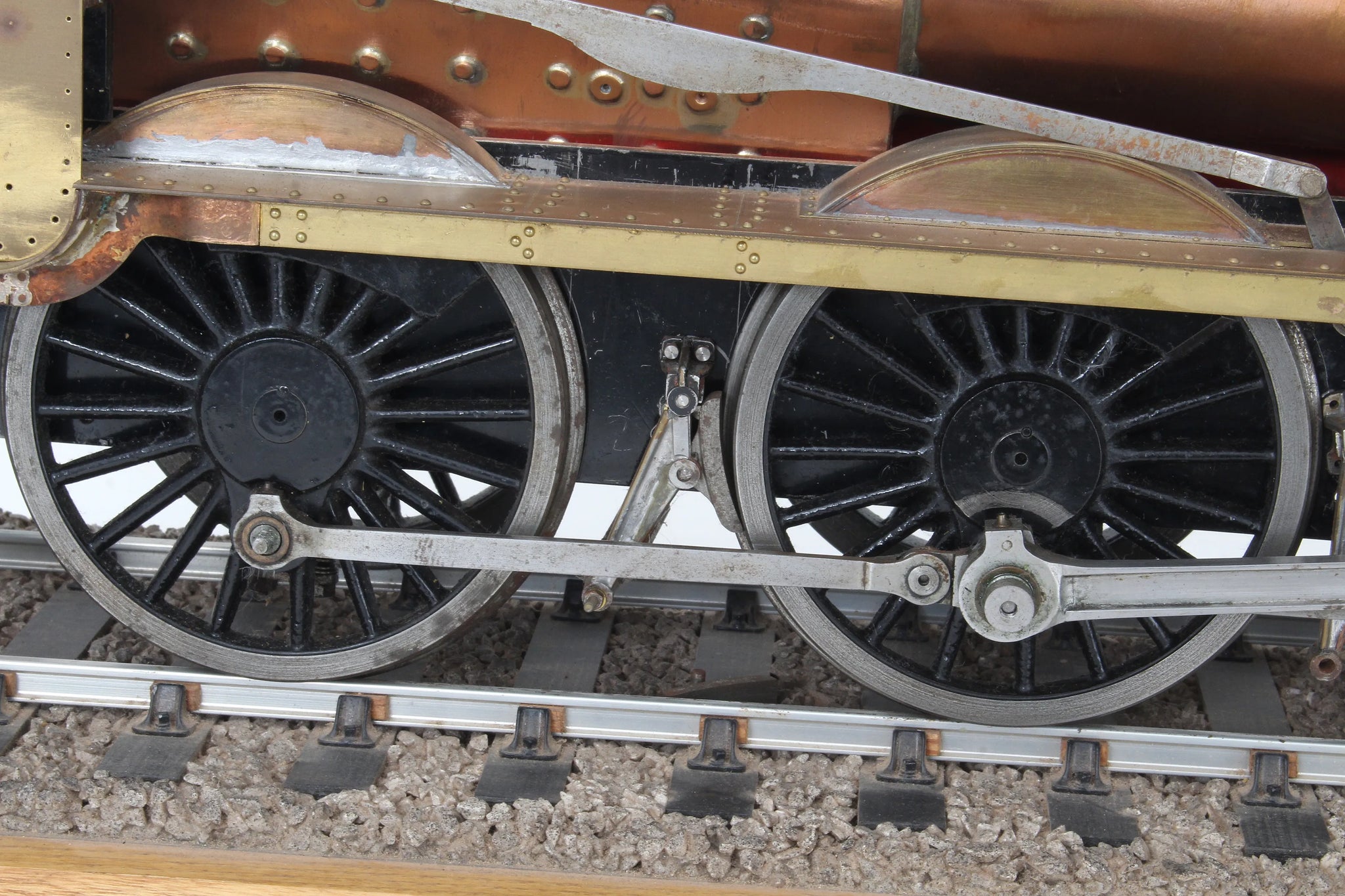

Work to date comprises a largely complete chassis, including brake gear, motionwork and valve gear including weighshaft, reach rod and reverser.

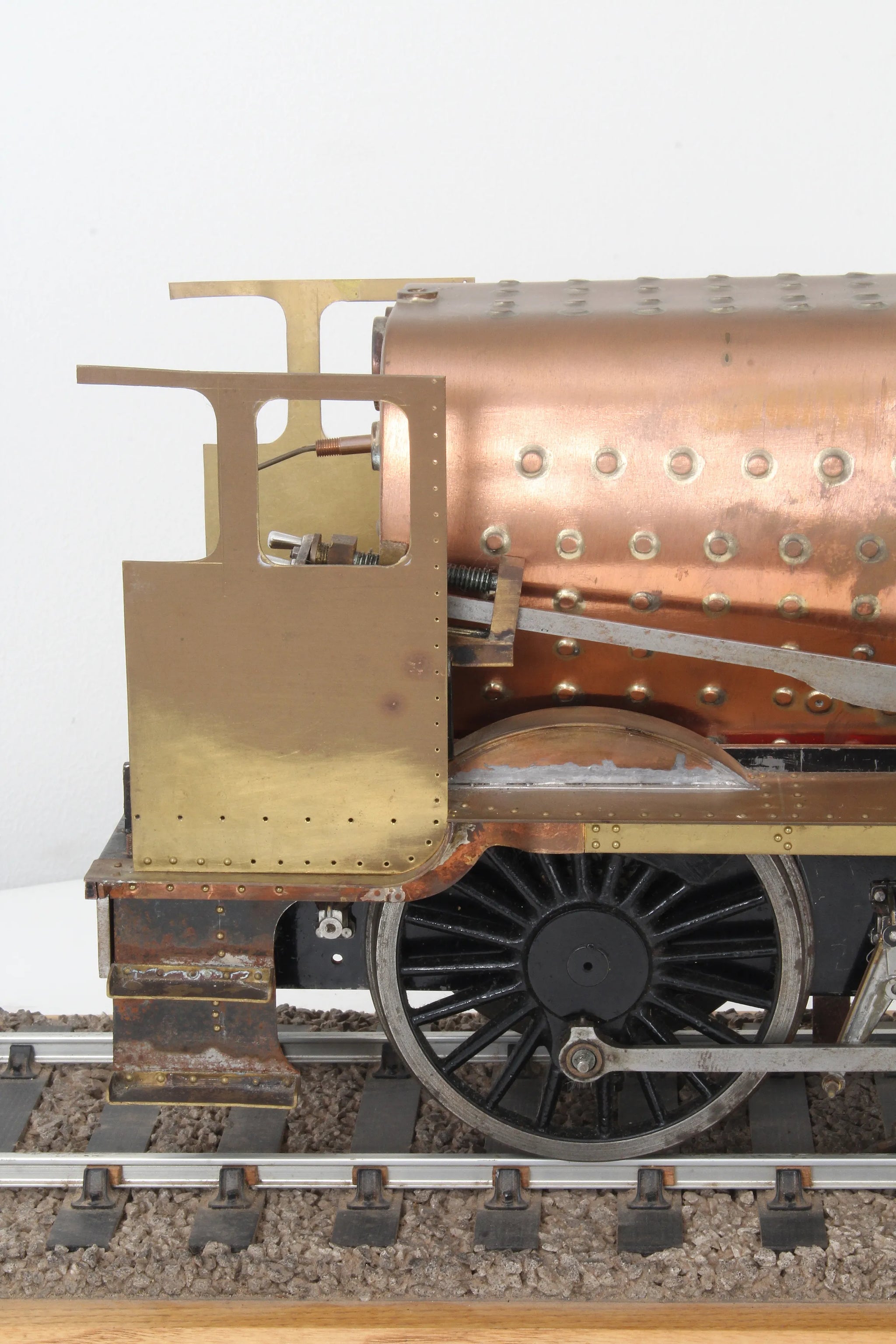

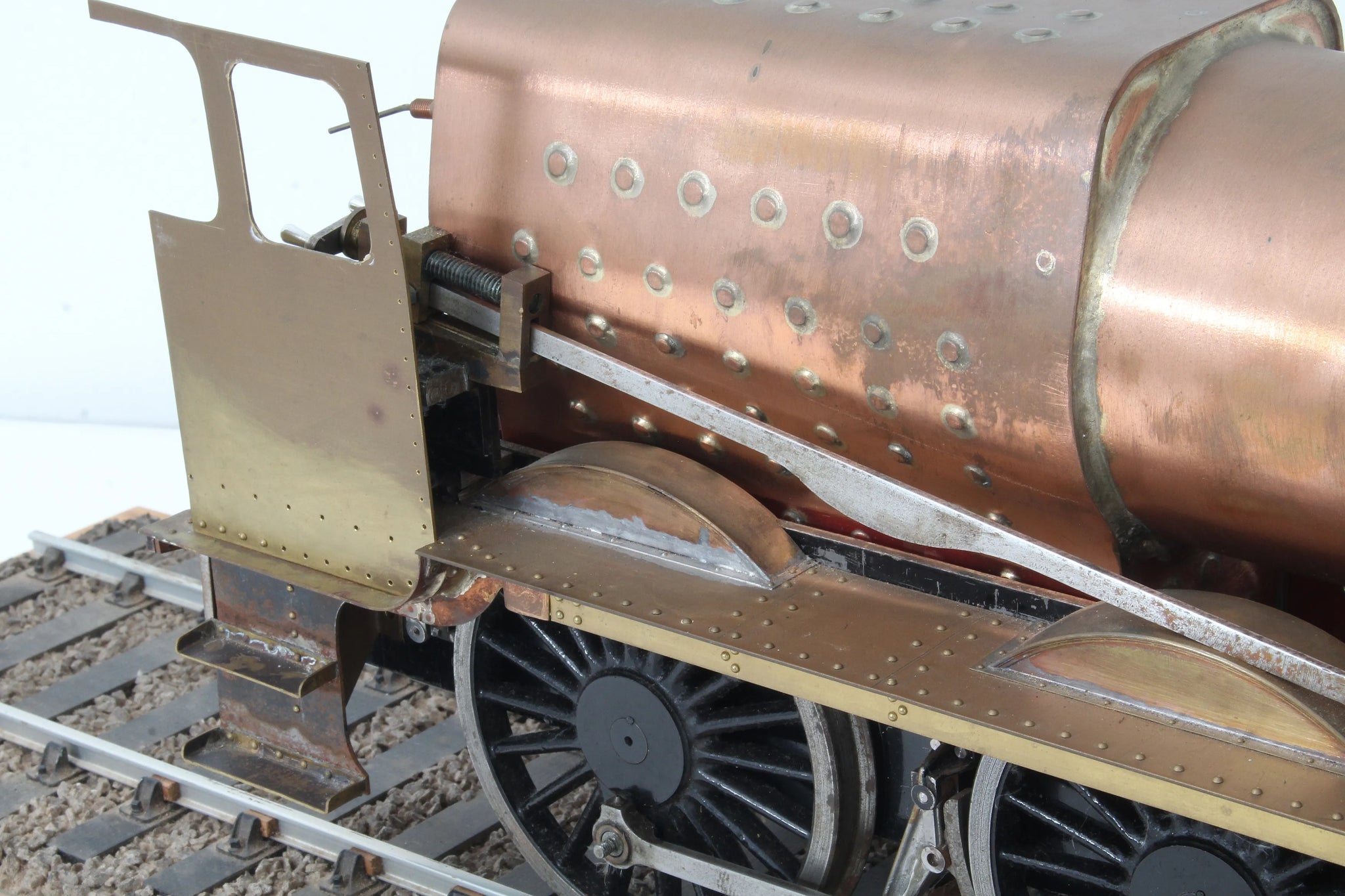

There is some brass platework, including running boards, splashers and cab sides.

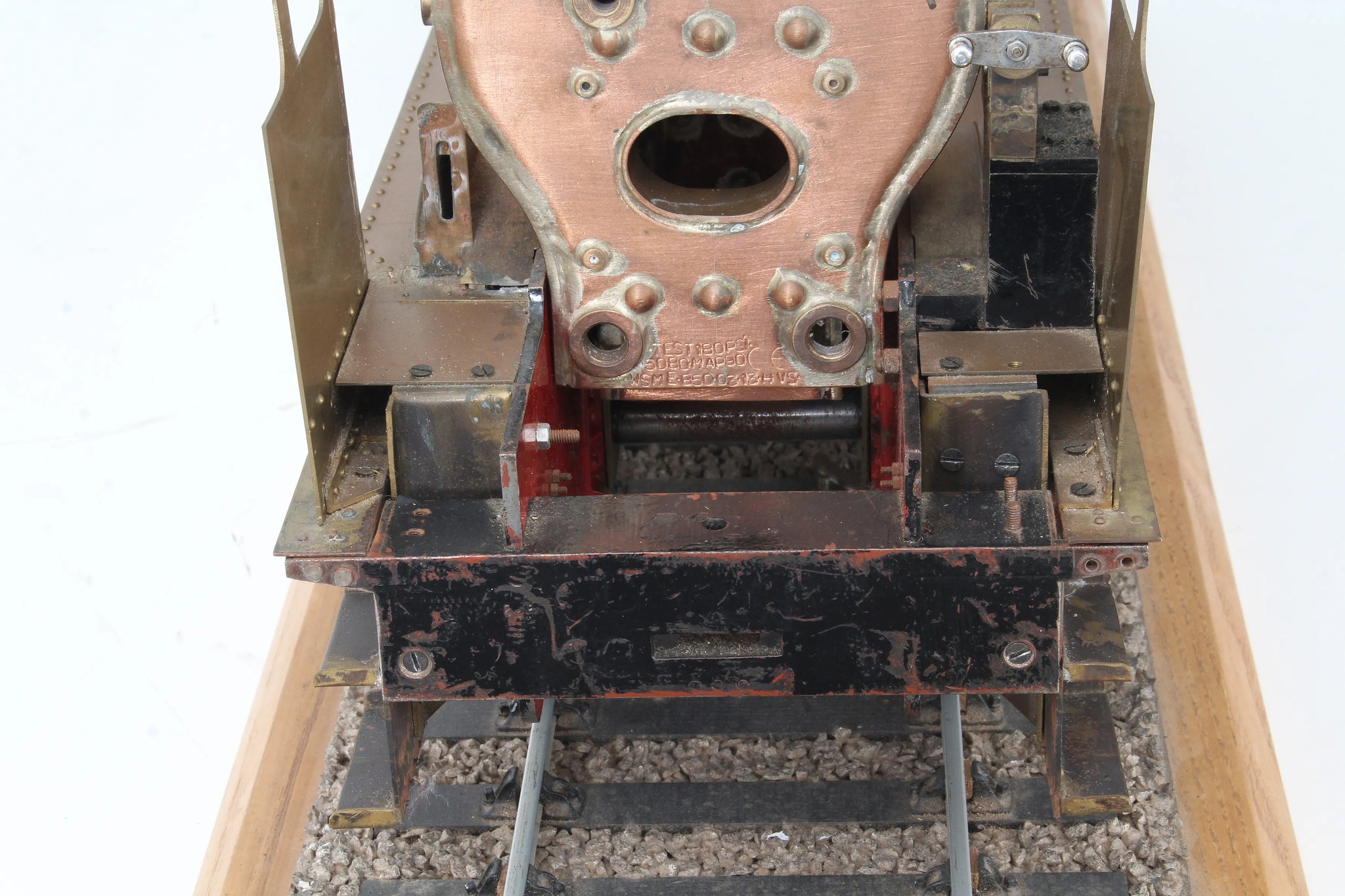

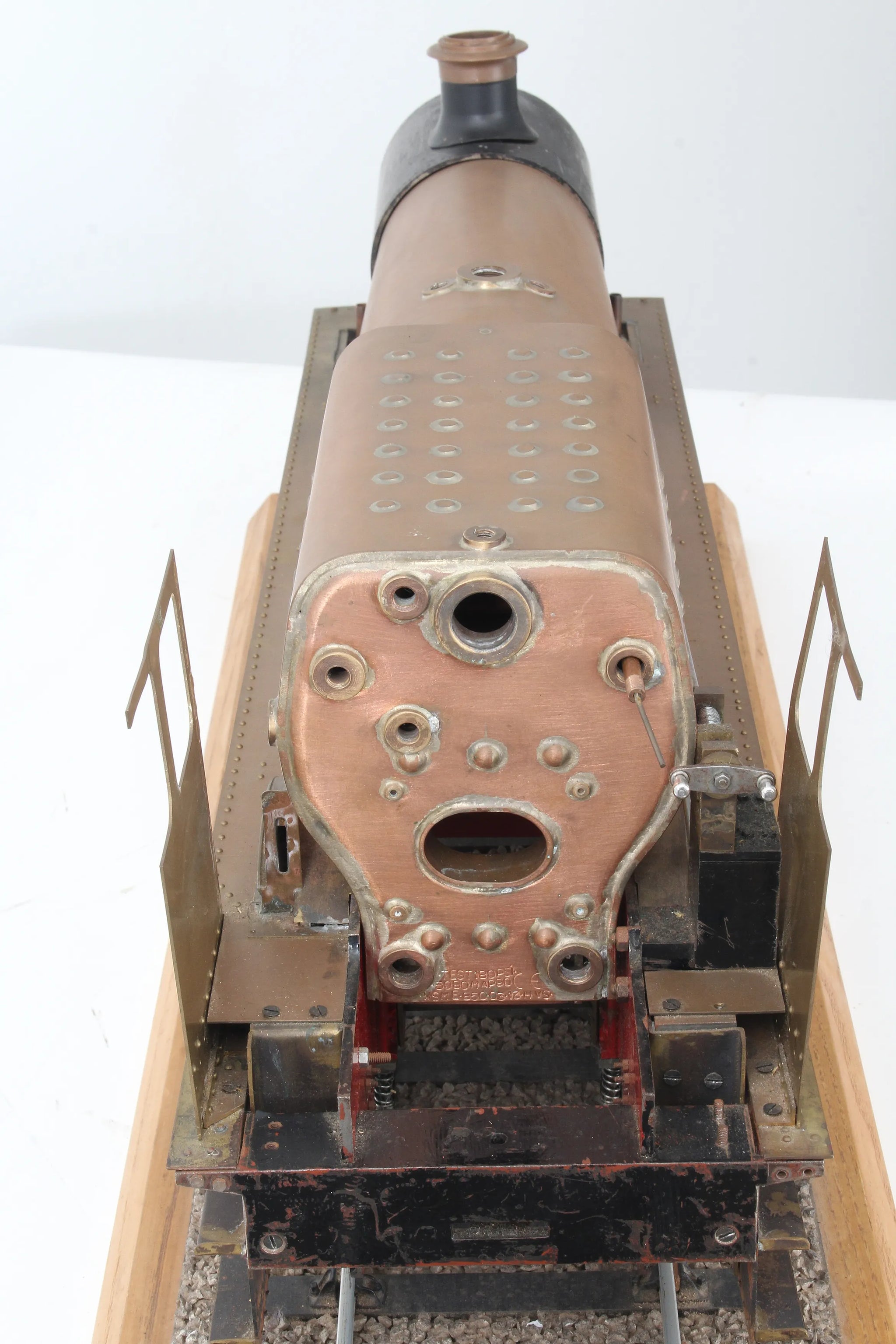

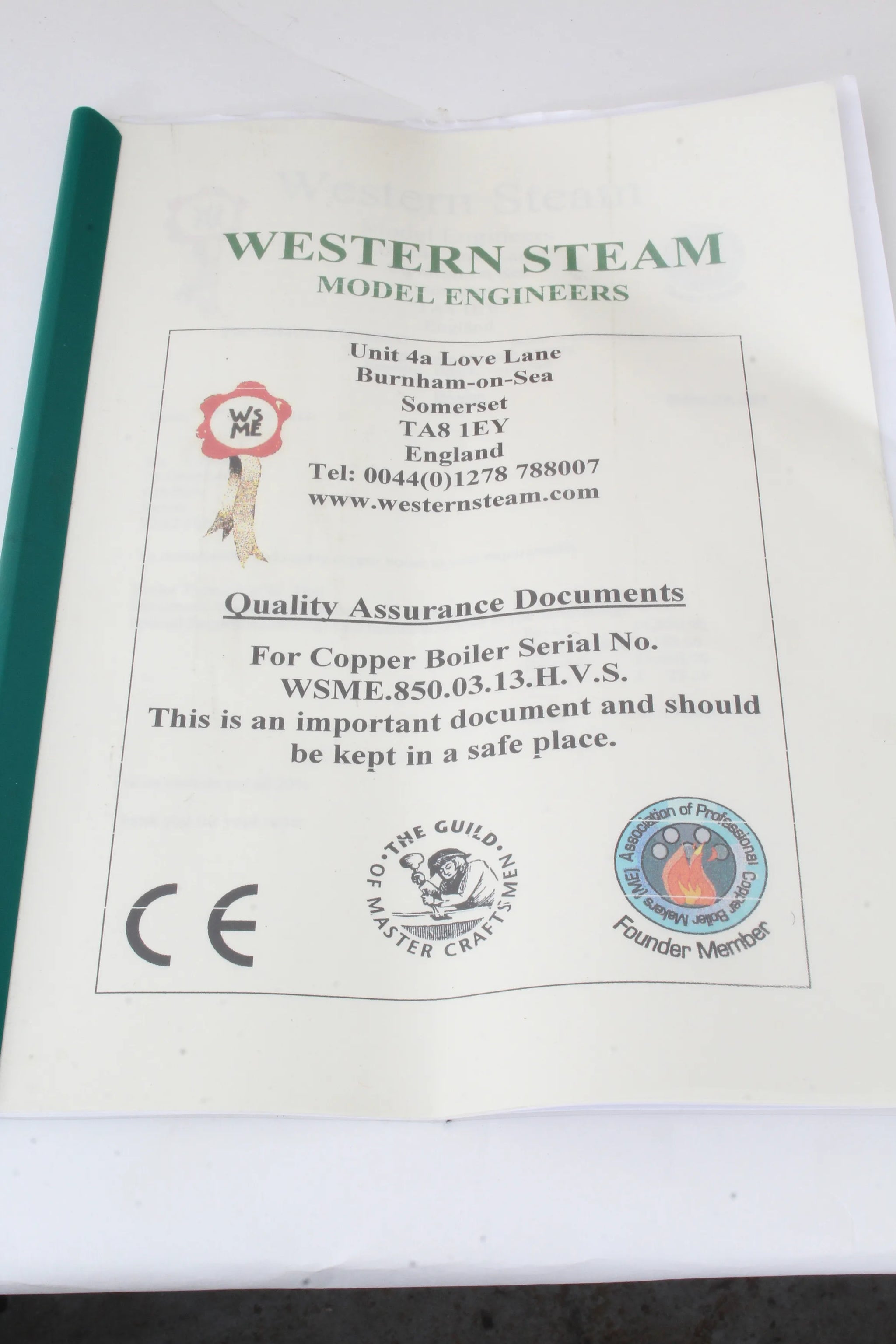

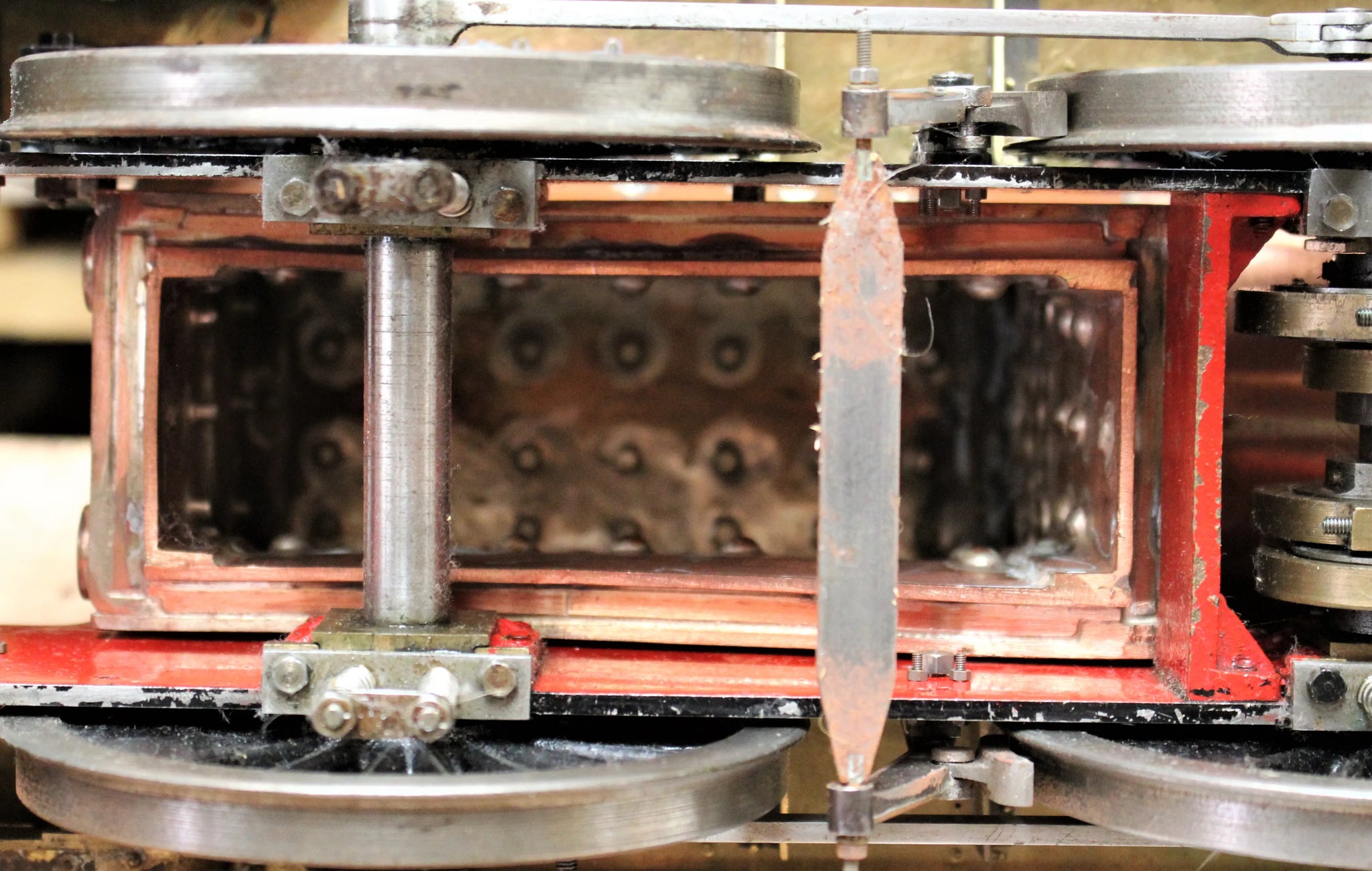

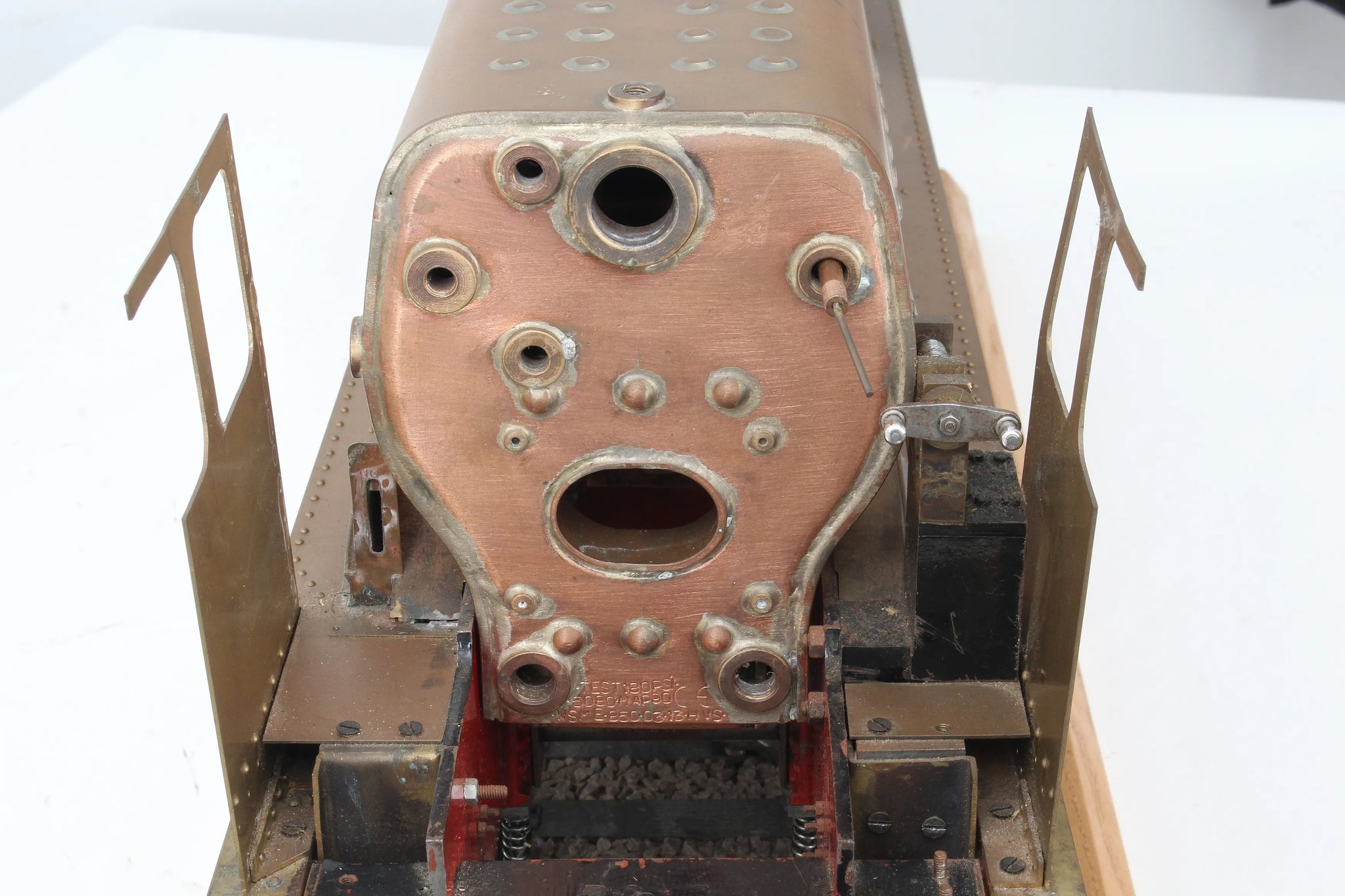

The CE-marked silver-soldered copper boiler was supplied new by Western Steam and is complete with manufacturer's documentation.
Work to complete includes front bogie, reminder of platework including boiler cladding, pipework, boiler fittings and a tender.
Stock code |
8451 |
Gauge |
3 1/2 inch |
Length/inches |
28.5 |
Width/inches |
6.5 |
Height/inches |
10 |
Wheel material |
cast iron |
Axlebox type |
plain |
Cylinder material |
gunmetal |
Valve type |
slide |
Valve gear |
Stephensons |
Reverser type |
screw |
Boiler maker |
Western Steam |
Boiler type |
locomotive |
Boiler construction |
silver-soldered |
Boiler material |
copper |
CE/UKCA mark |
yes |
Boiler number |

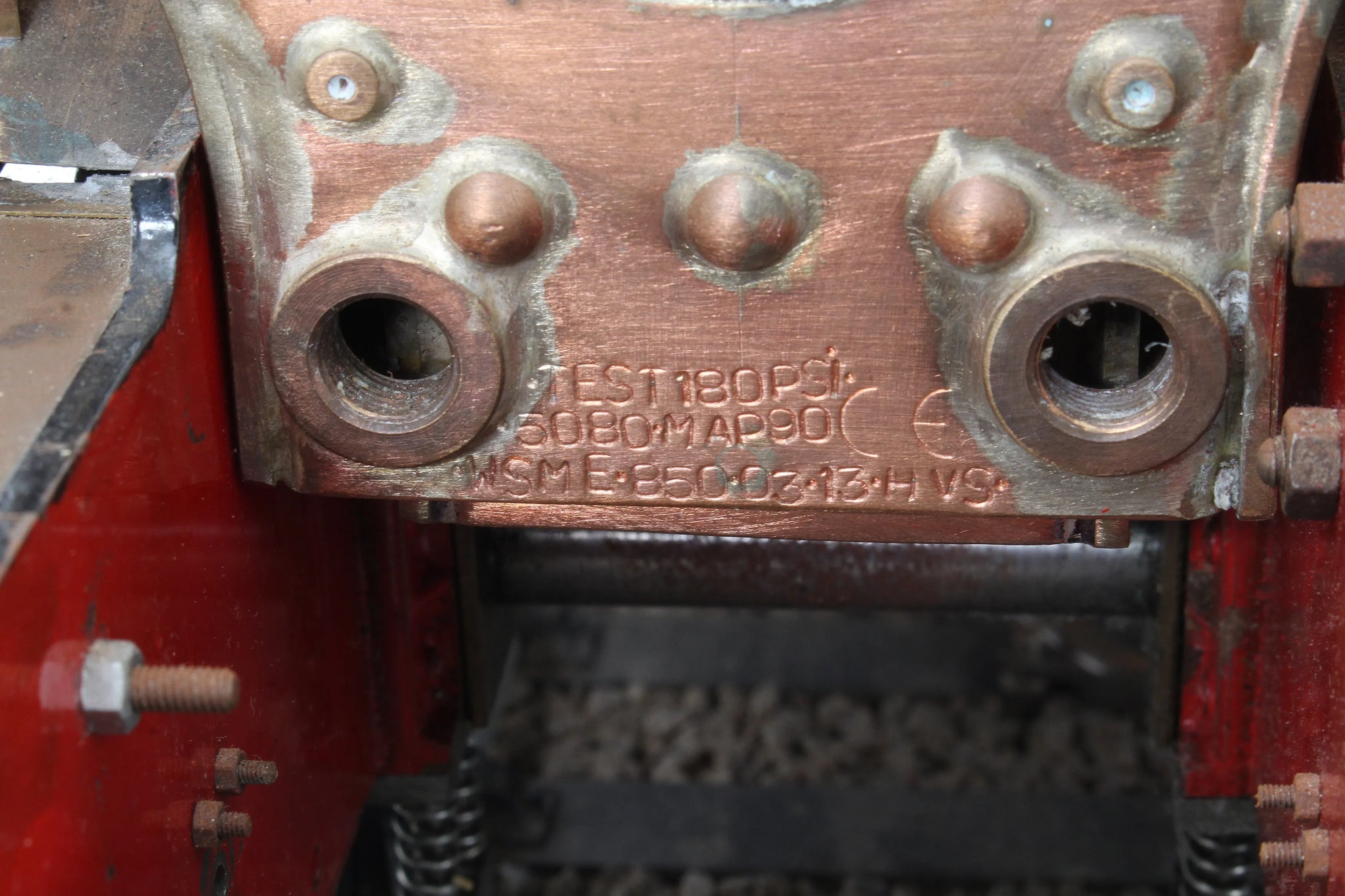

WSME.850.03.13.HVS |
Date out |
Aug-19 |
