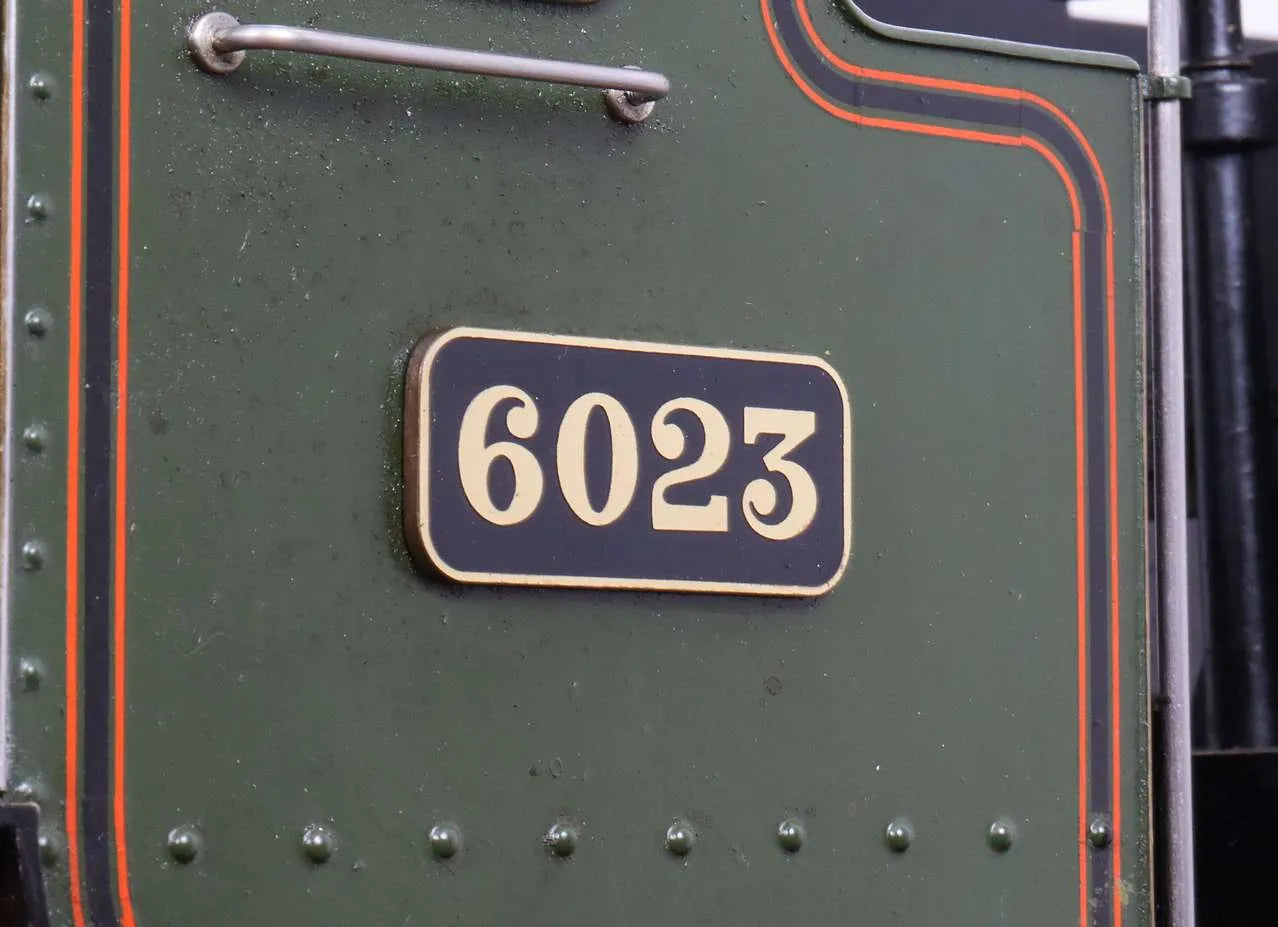

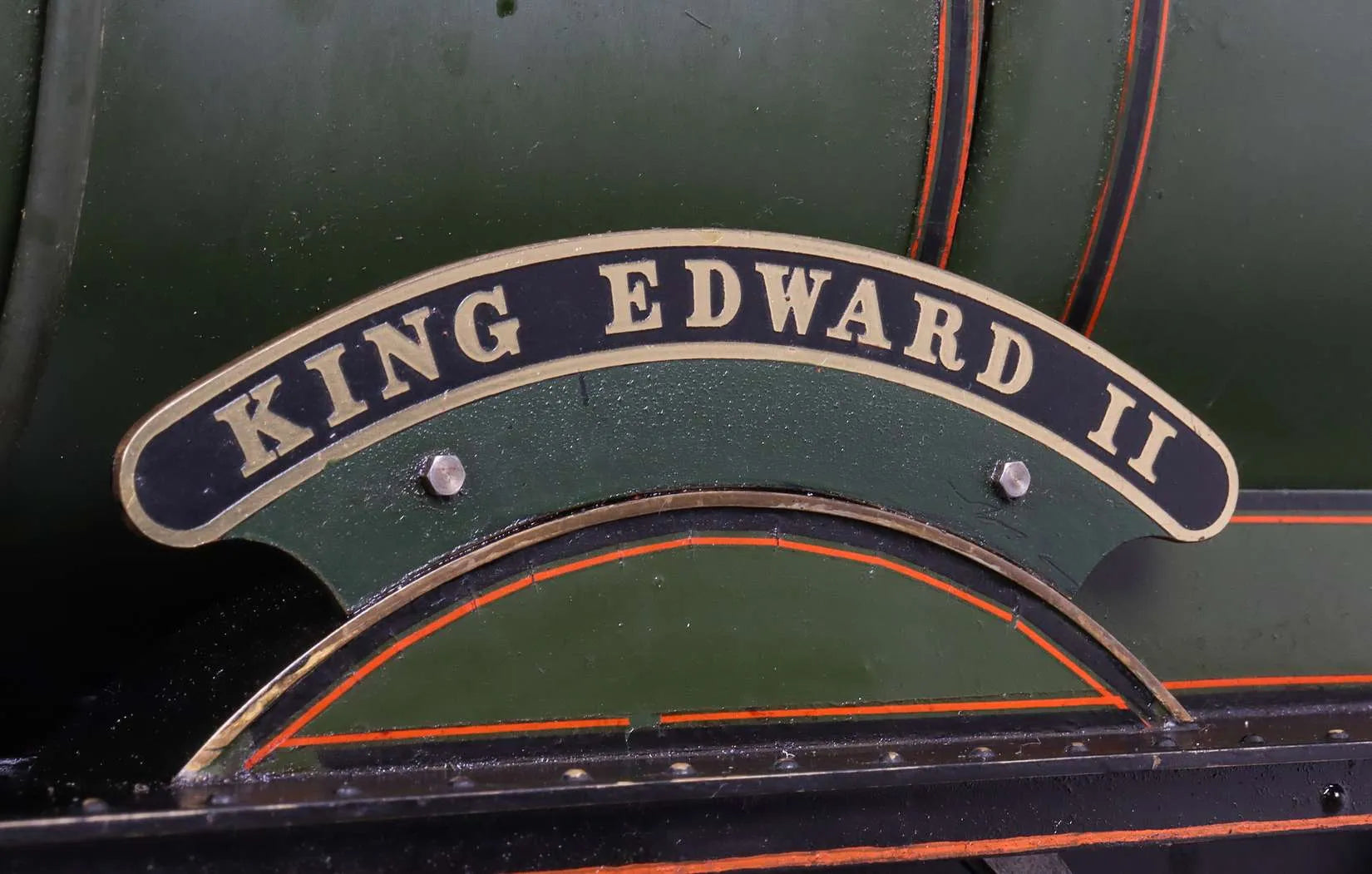

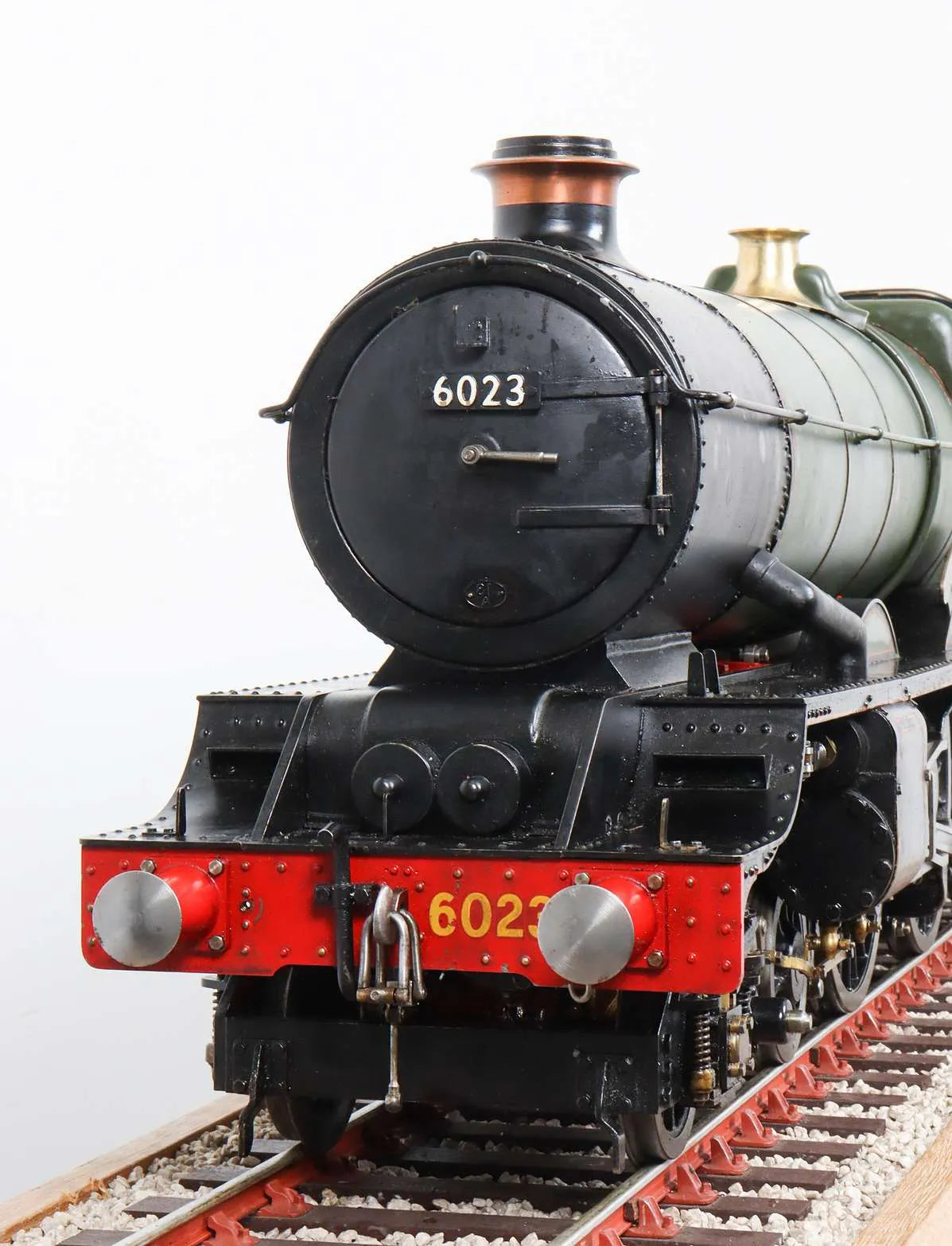

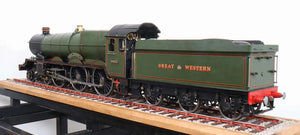

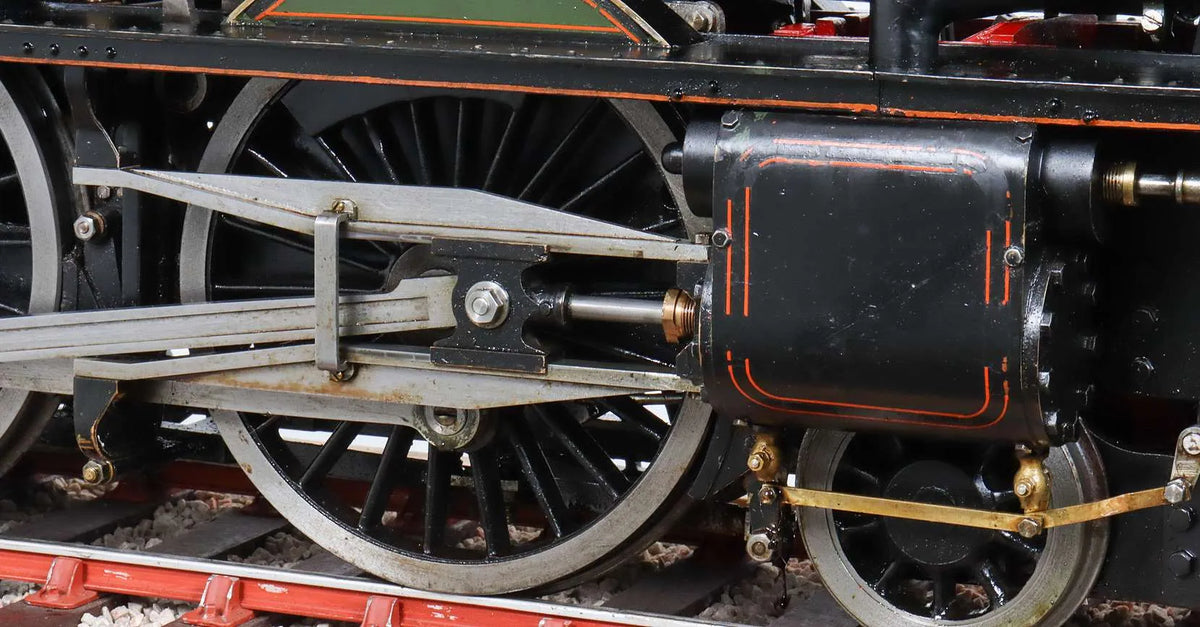

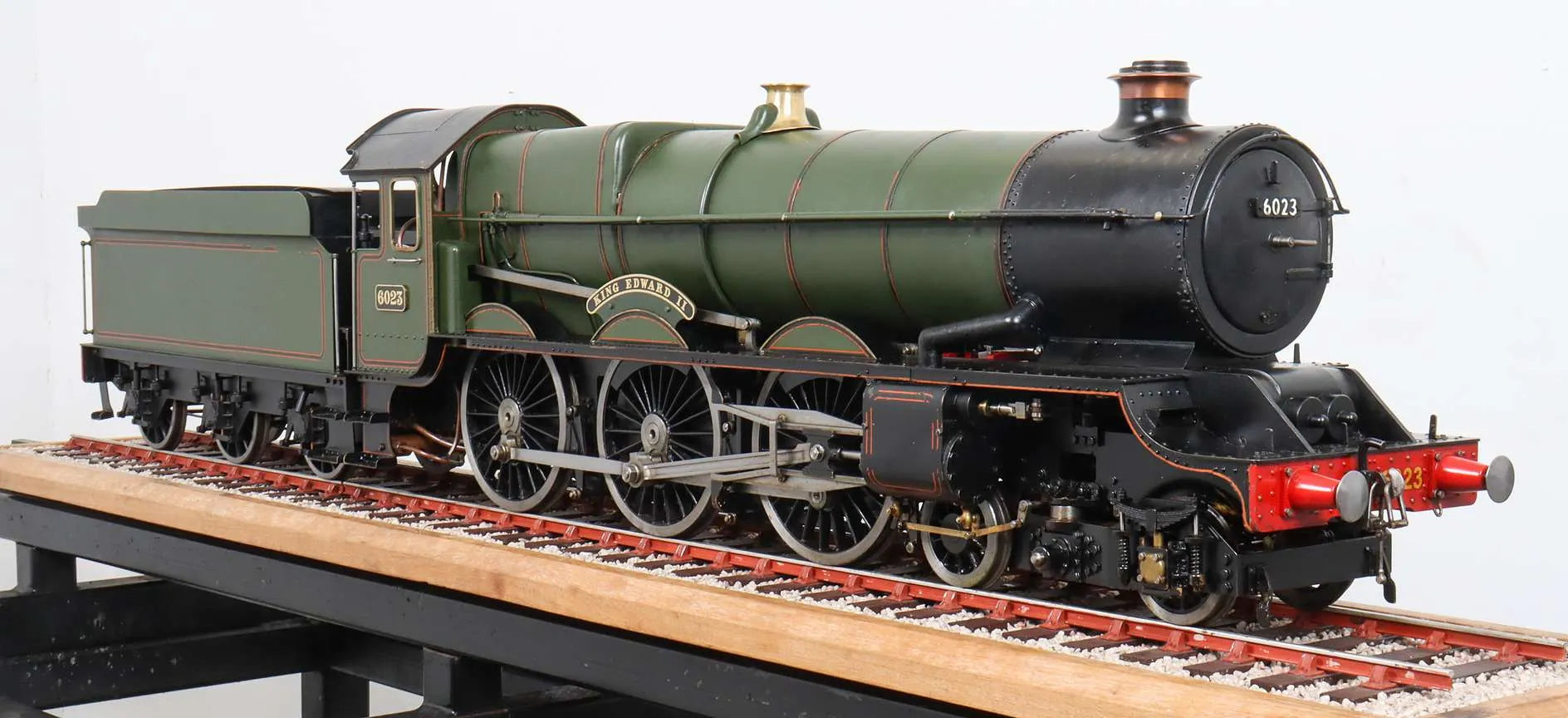

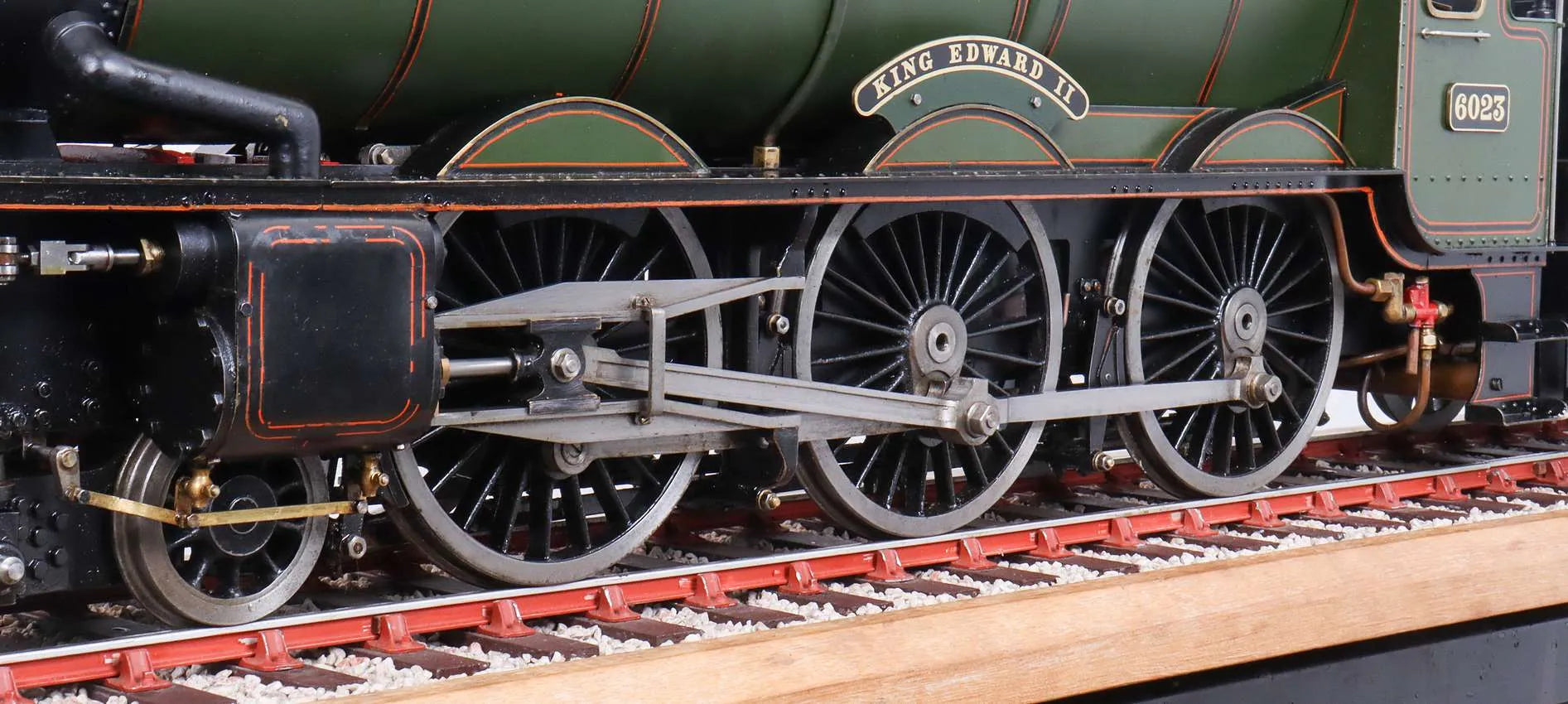

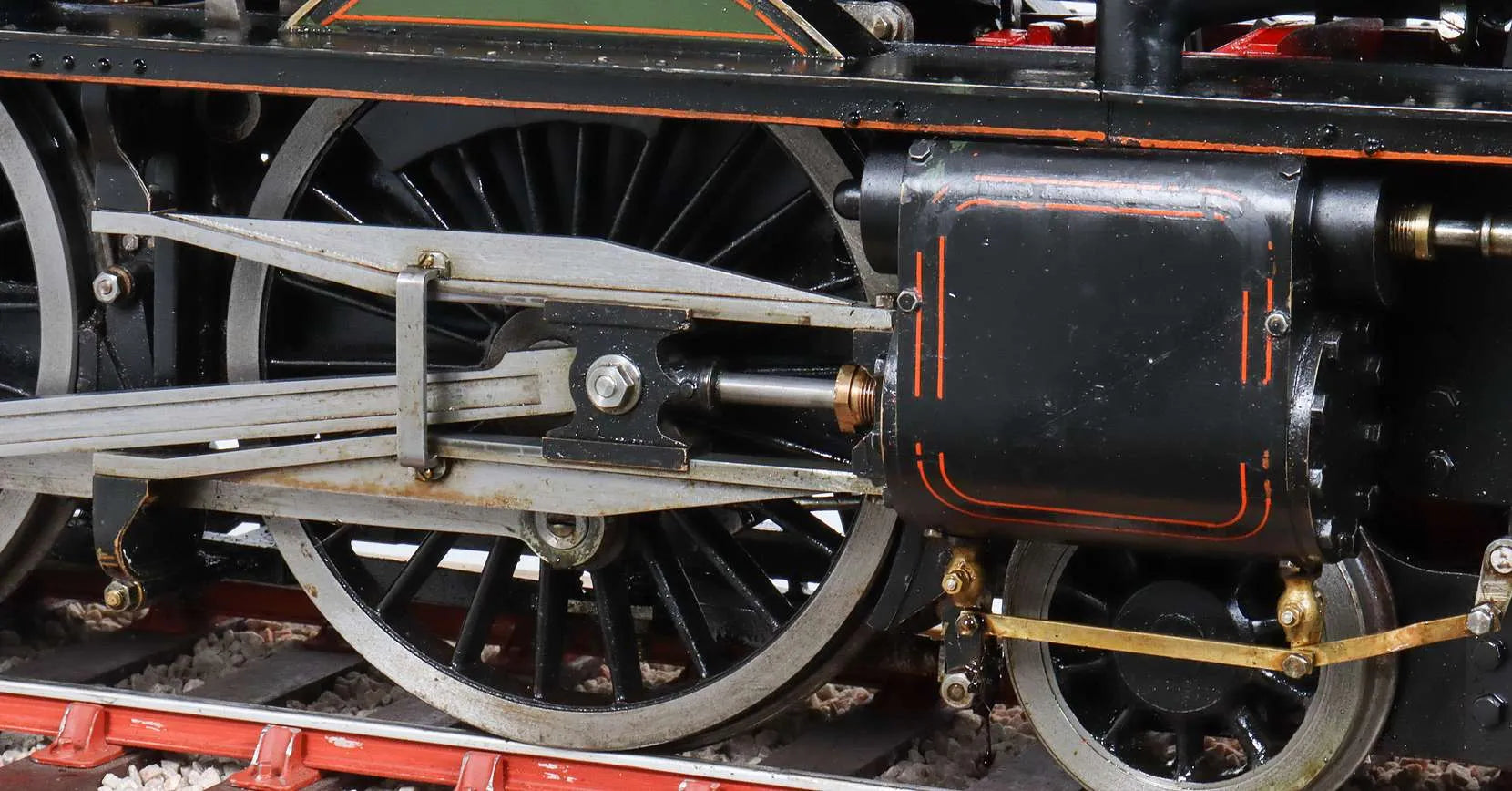

3 1/2 inch gauge GWR 4-6-0 No.6023 "King Edward II"

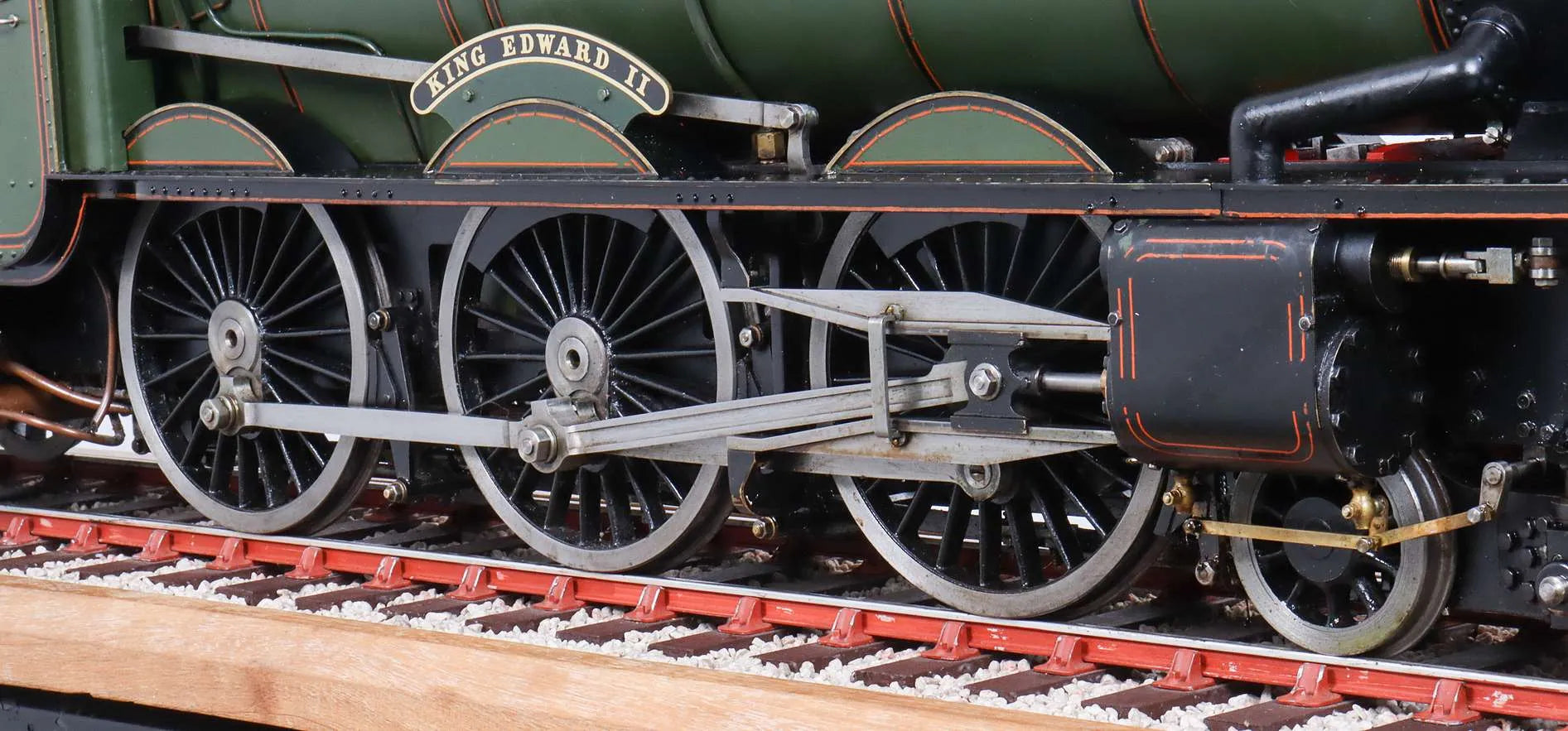

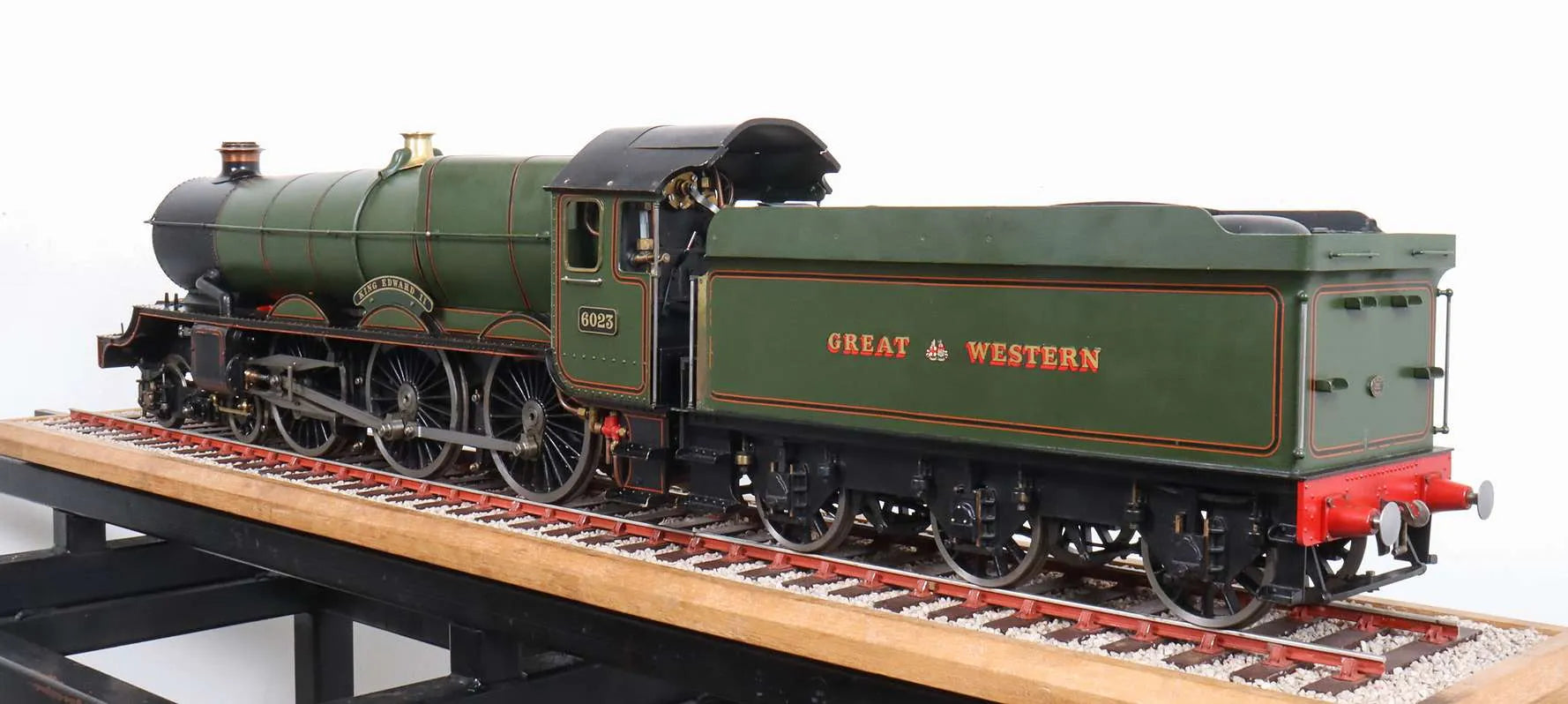

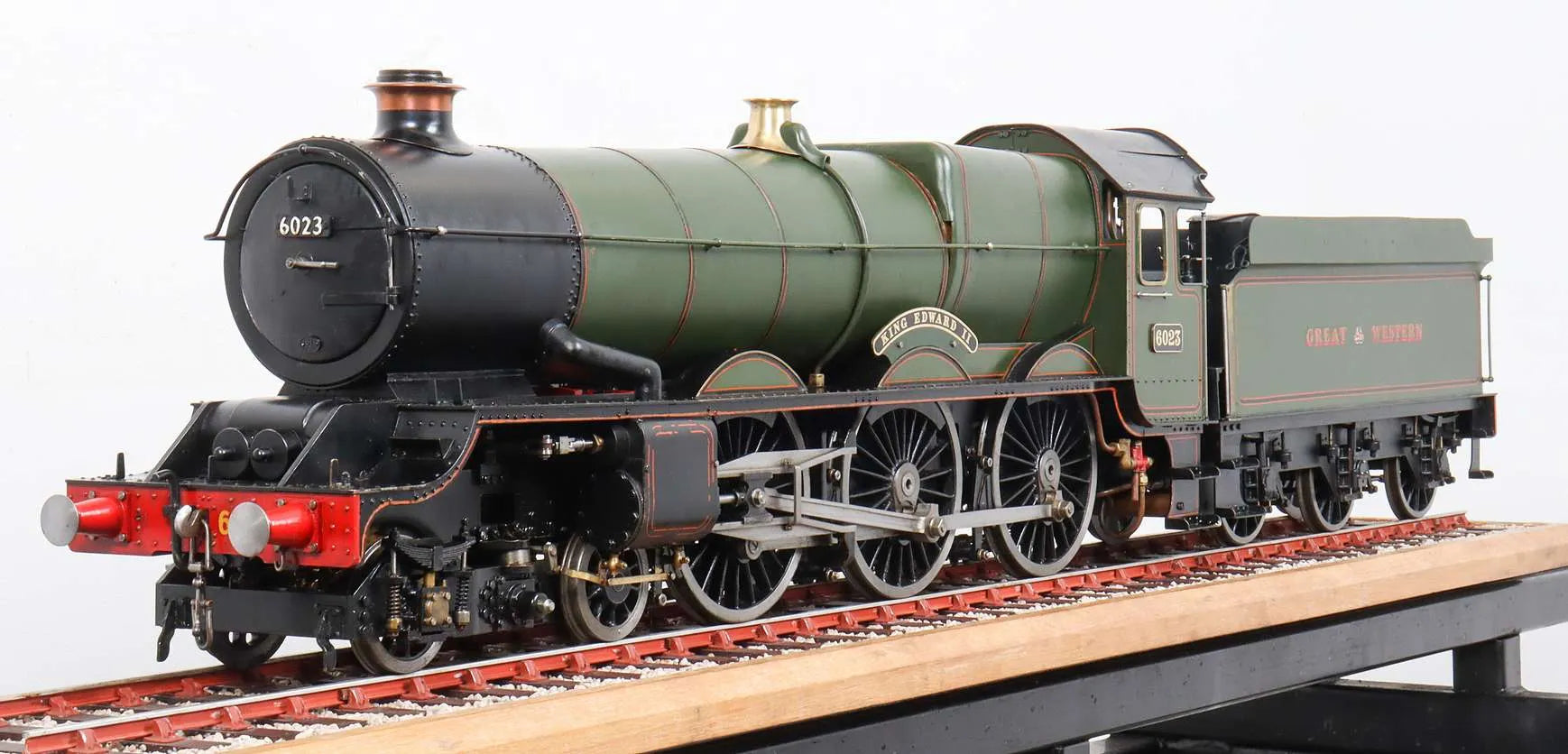

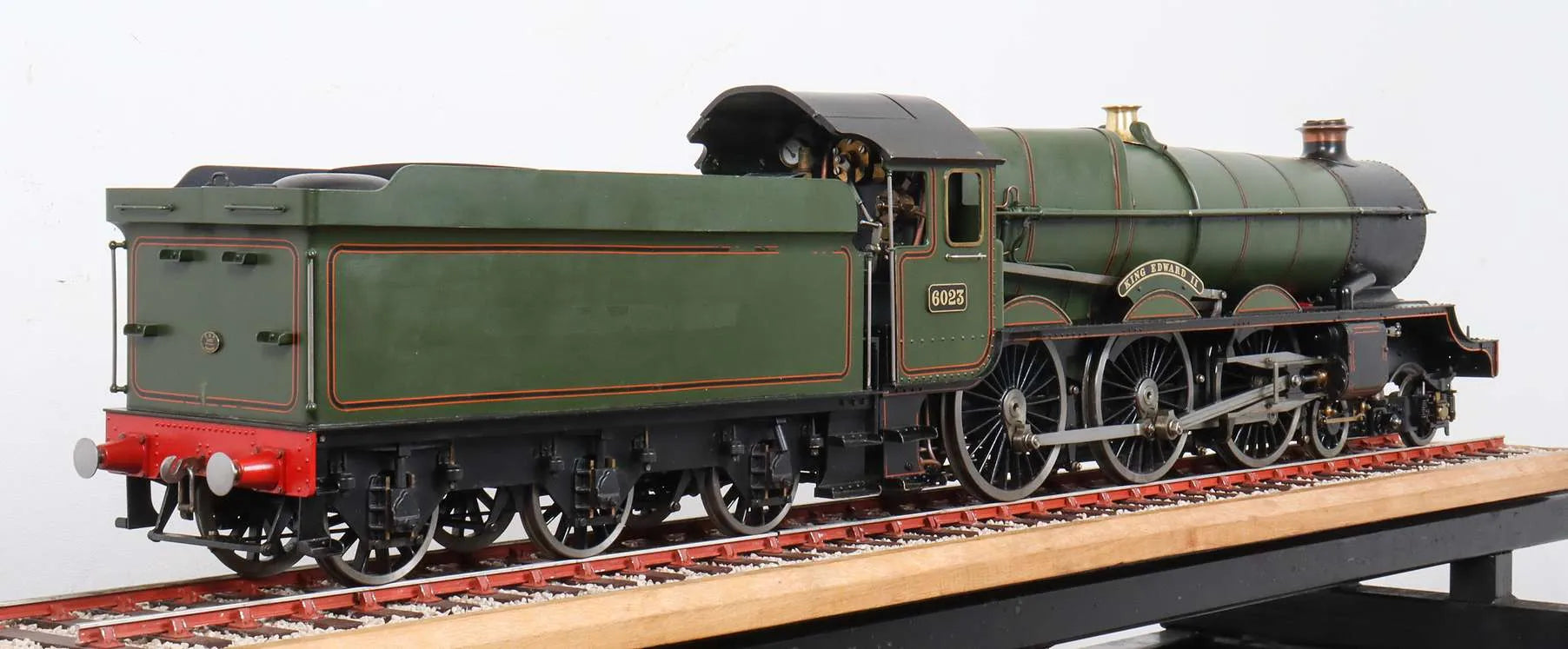

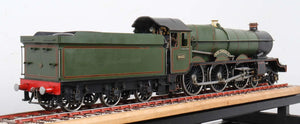

A 3 1/2 inch gauge Great Western 4-6-0, No.6023 "King Edward II"; well built it's come to us part-way through rebuild of the tender onto a more detailed chassis. Anno domini having caught up with the owner, he decided it's time to move it on to a younger man for the work required to complete it.

The locomotive itself is in good condition; the boiler - which has previous club history - has had a hydraulic test with new certification issued in recent days.

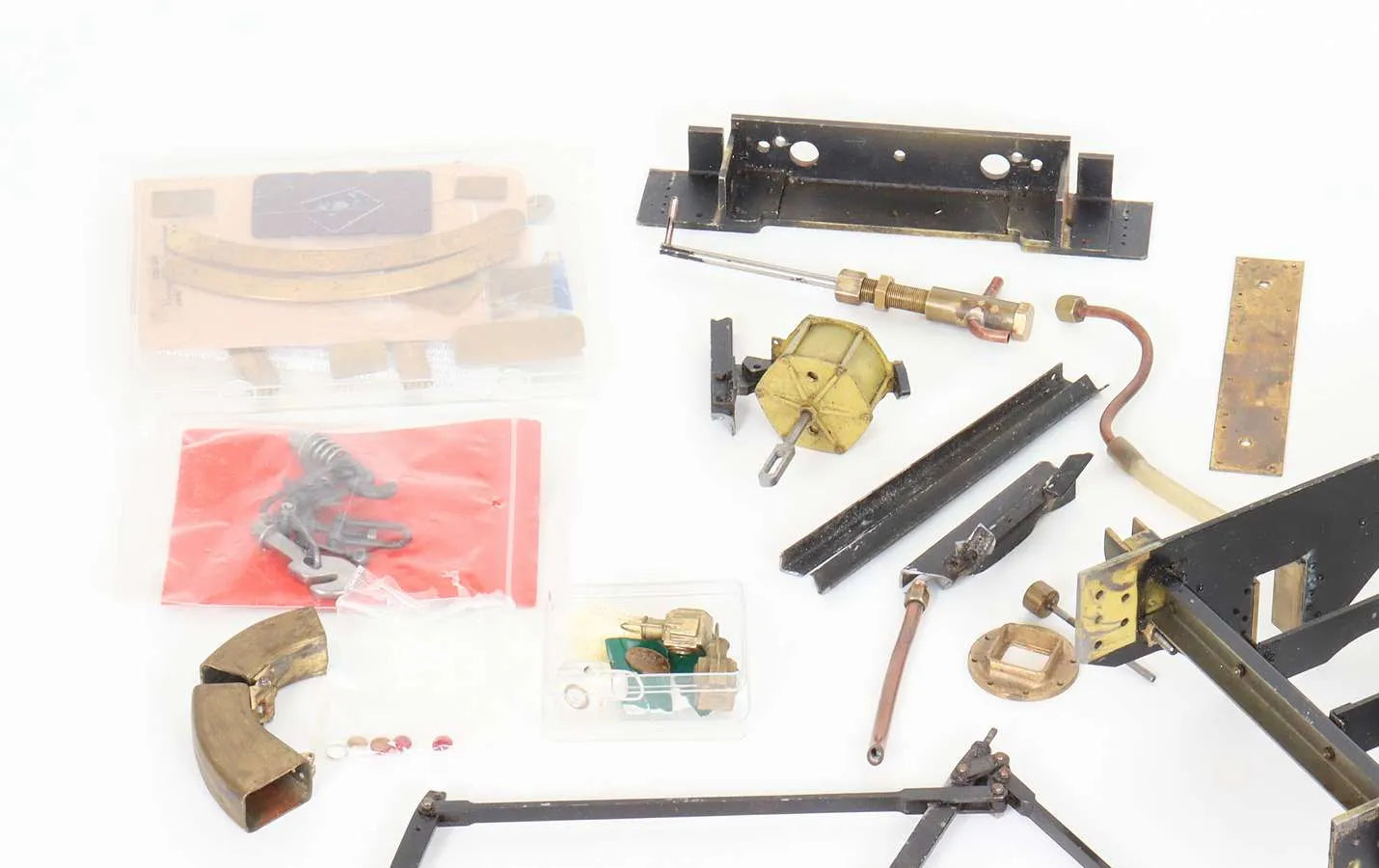

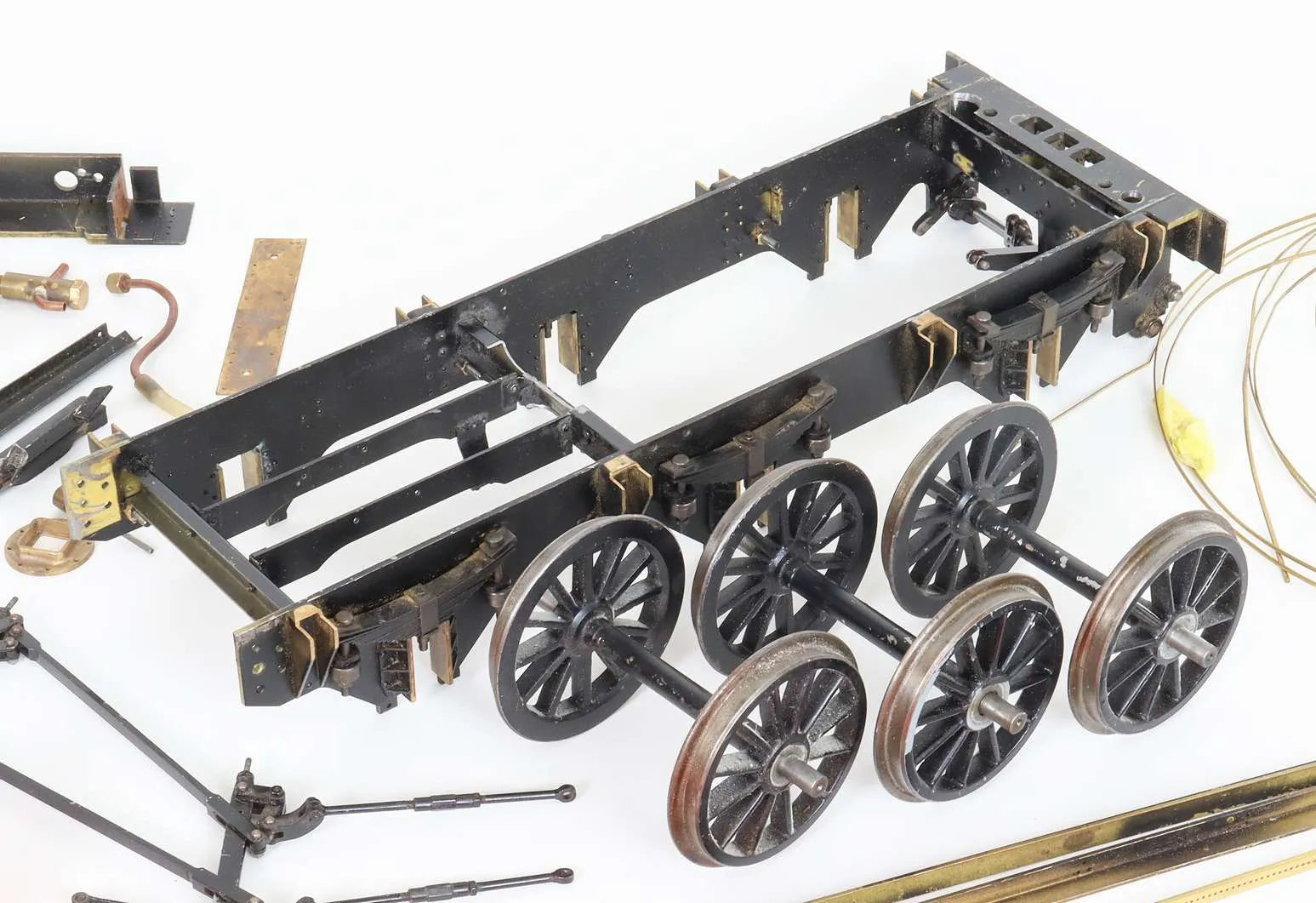

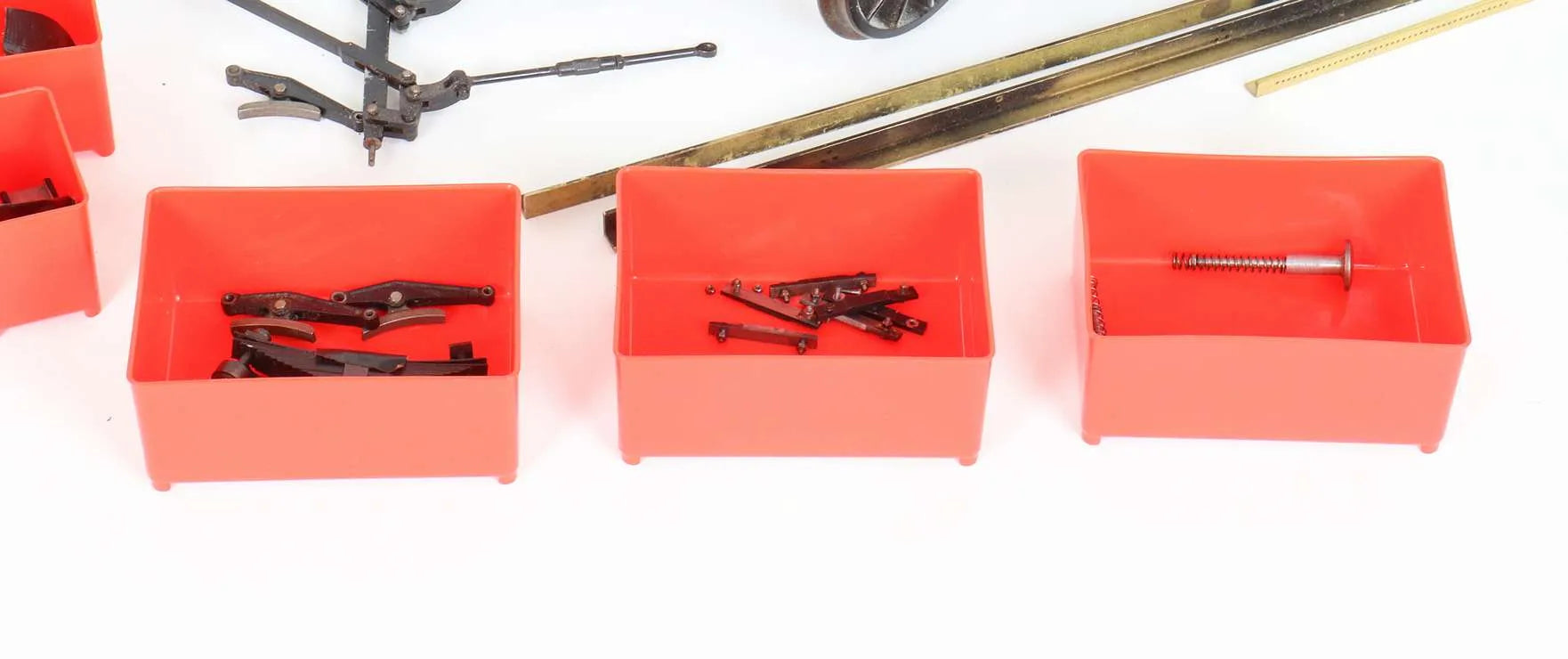

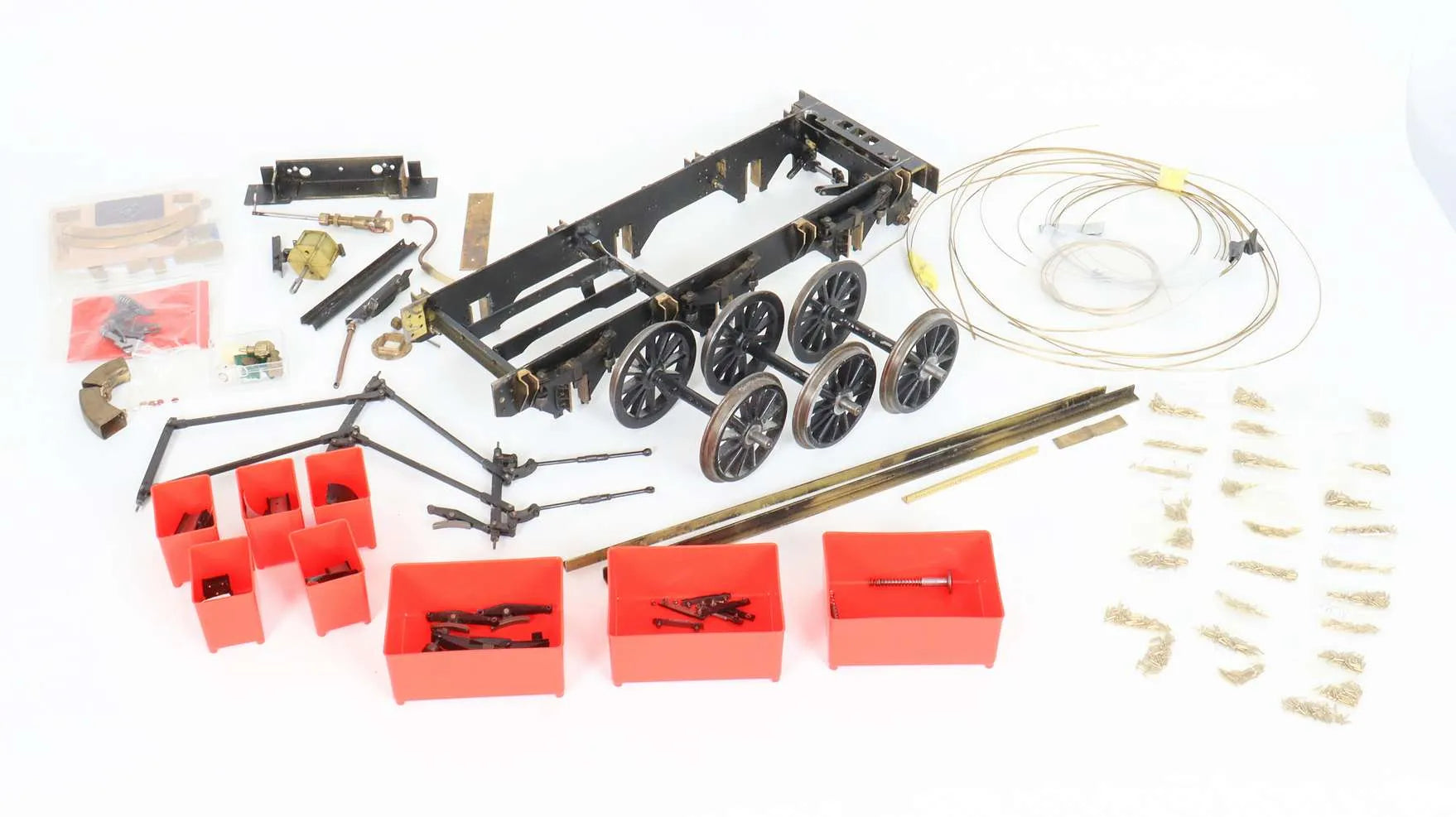

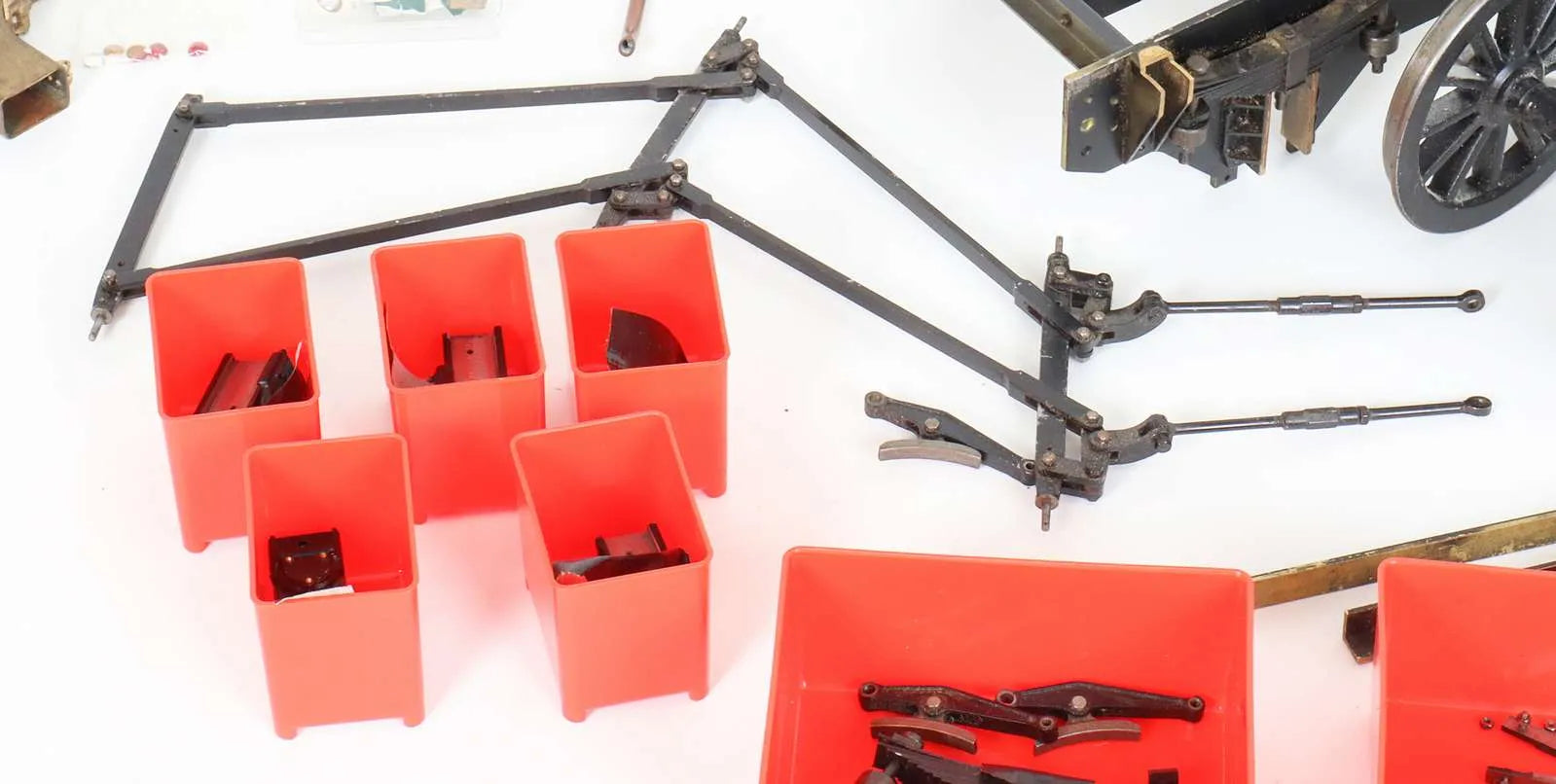

The tender is only loosely assembled - the previous owner had acquired another chassis which he intended to detail and use, which is included.

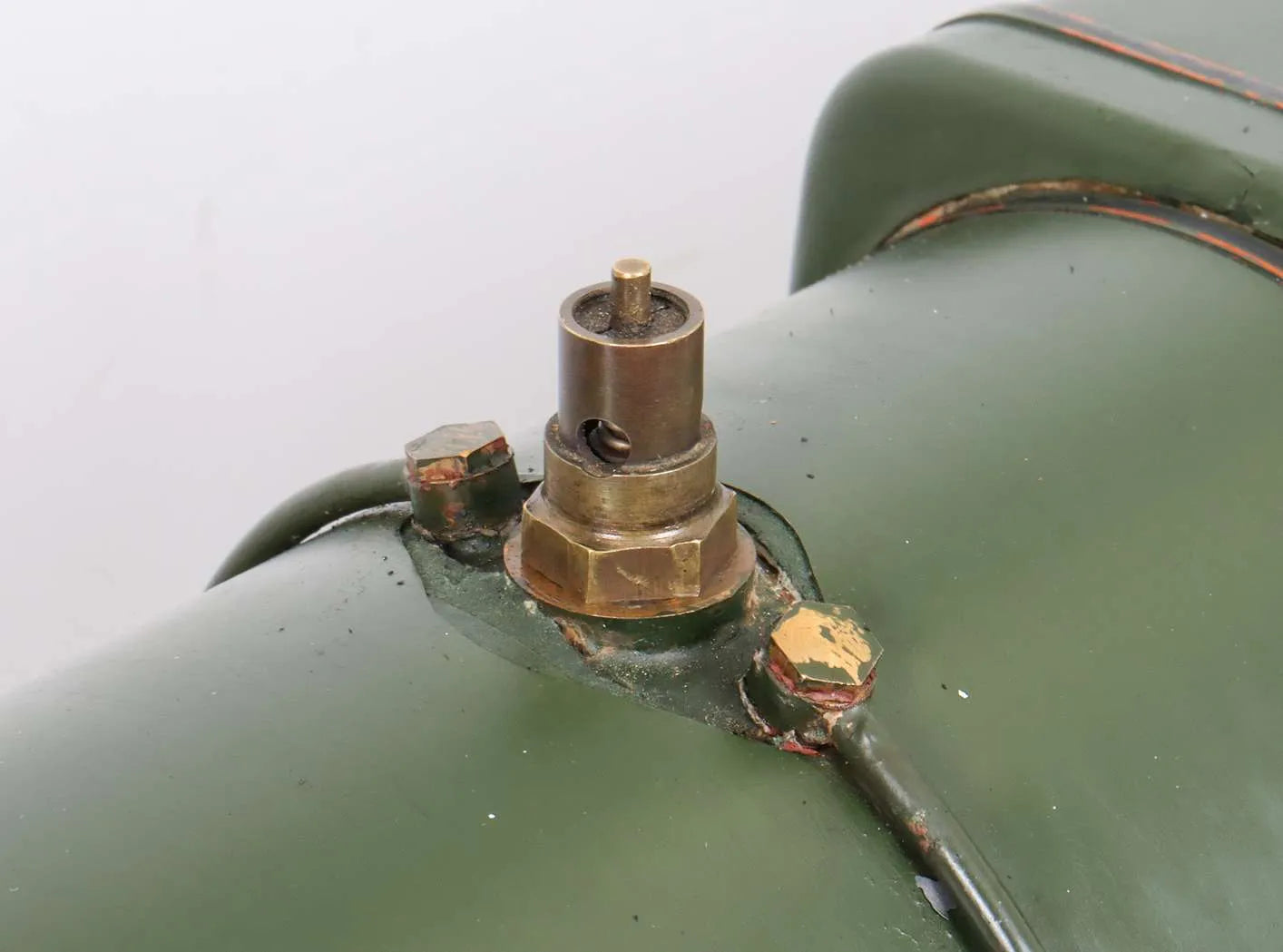

The engine steams freely and runs well although requires some work, including servicing/replacment of the safety valve which accumulates, ditto injector which is unreliable, and piping up water feeds from the tender.

Technical information

Stock code

11055

Length/inches

33 + 19

Width/inches

7

Height/inches

11

Weight/Kg

44

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Stephensons

Reverser type

screw

Lubricator type

mechanical

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a - non-commercial

Year built

1986

Boiler number

1R1

Safety valve type

spring

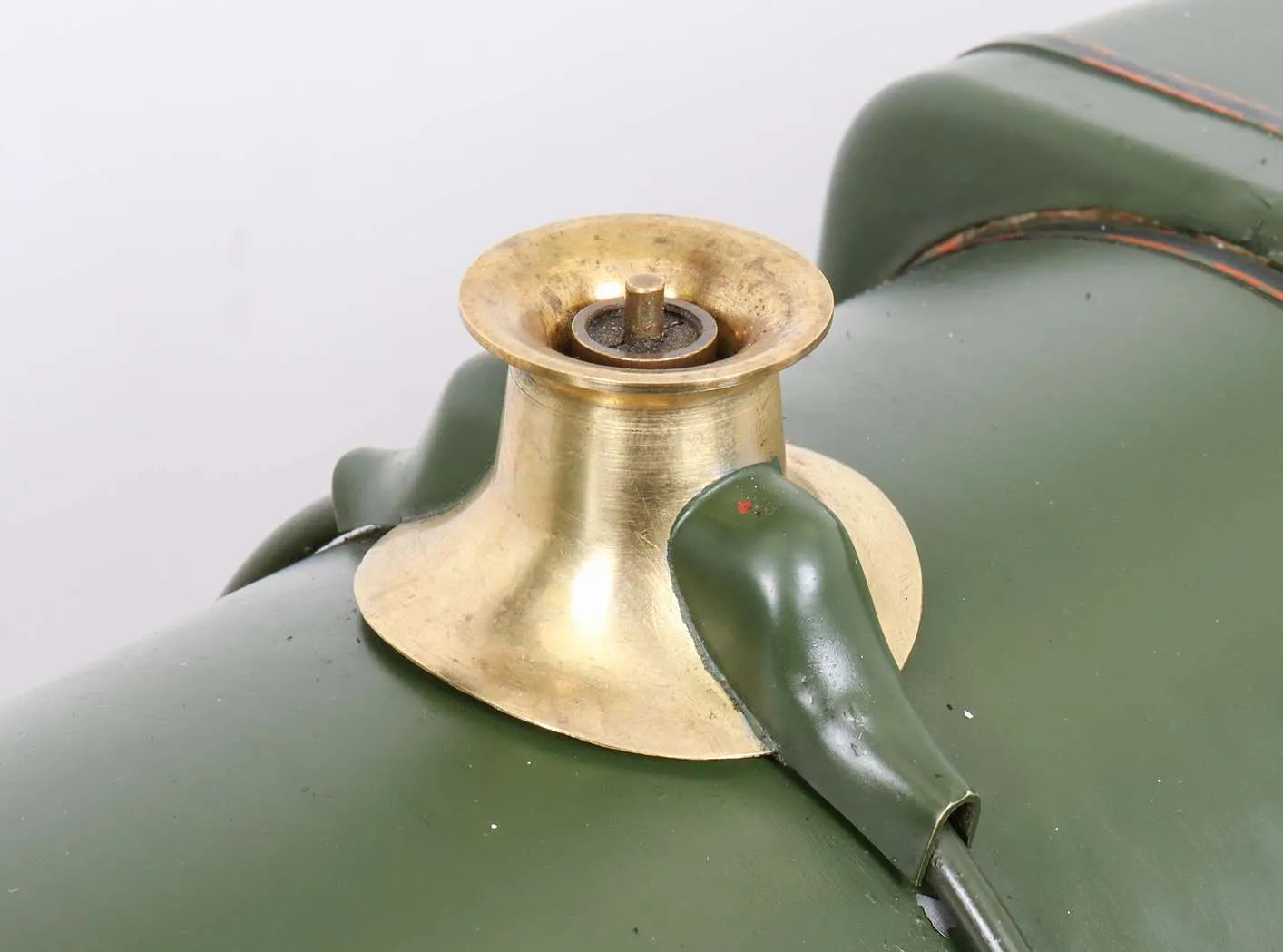

Safety valve

1

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

3

Date out

Aug-23

Hydraulic test valid to

15-Dec-26
