3 1/2 inch gauge "Heilan Lassie"

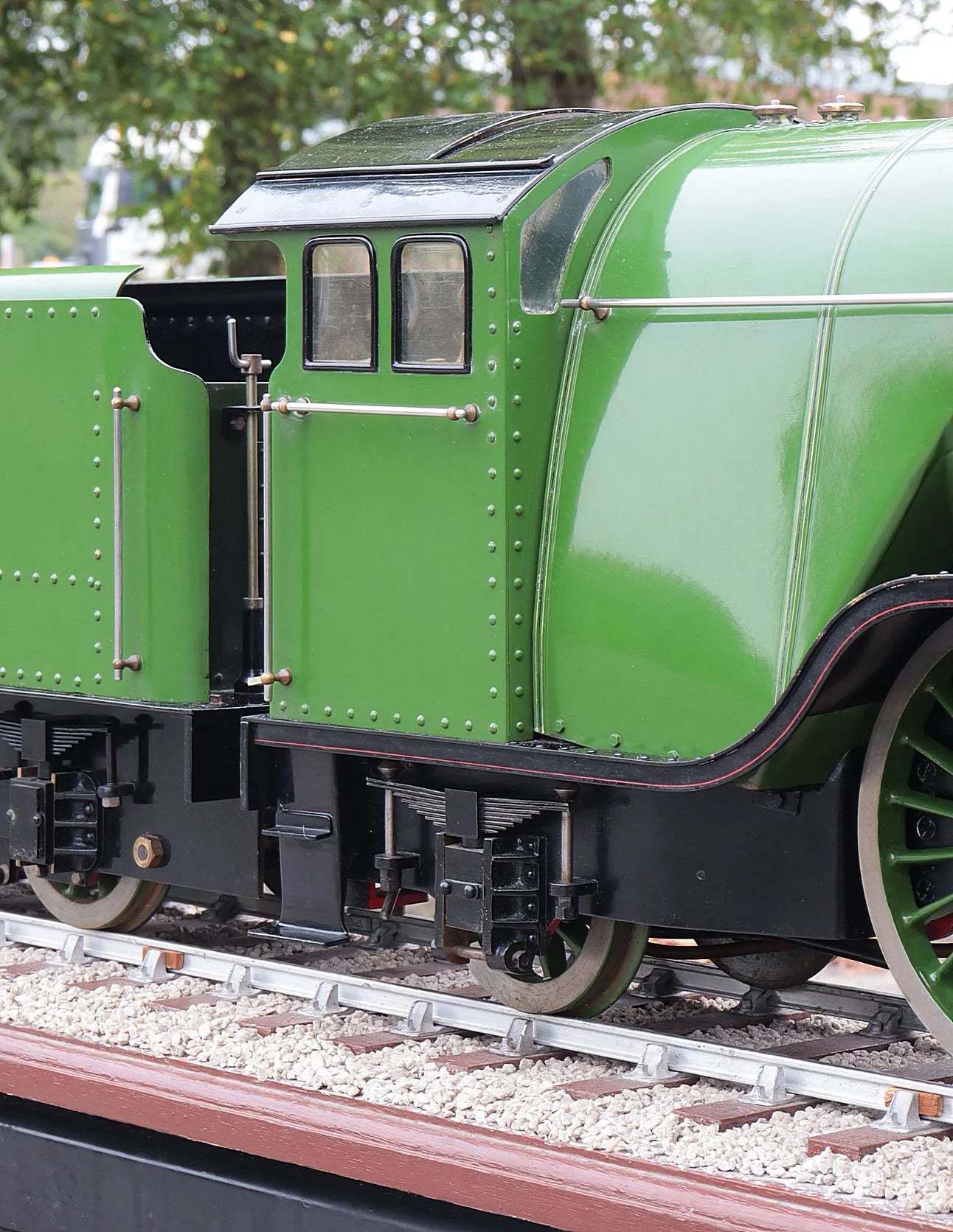

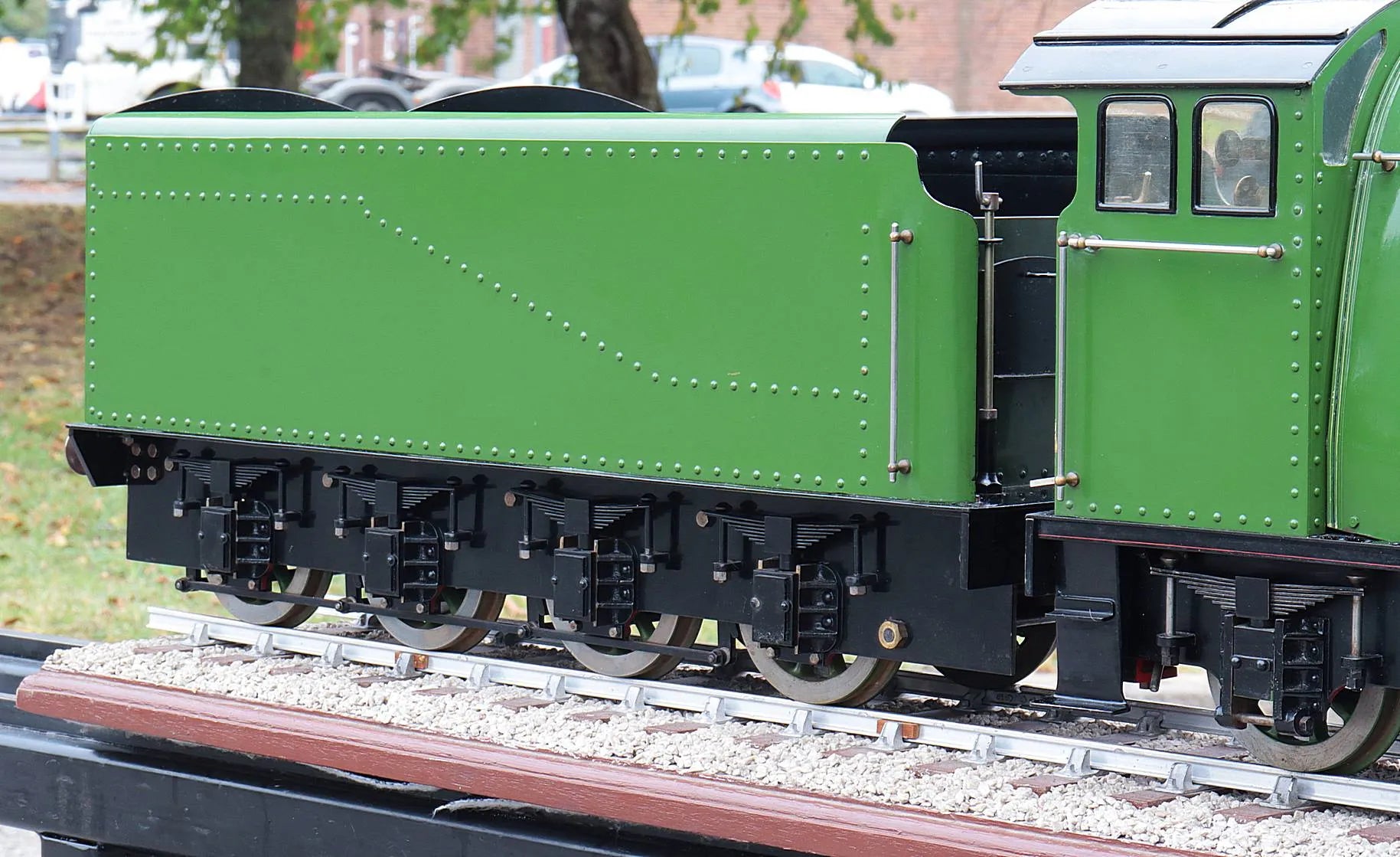

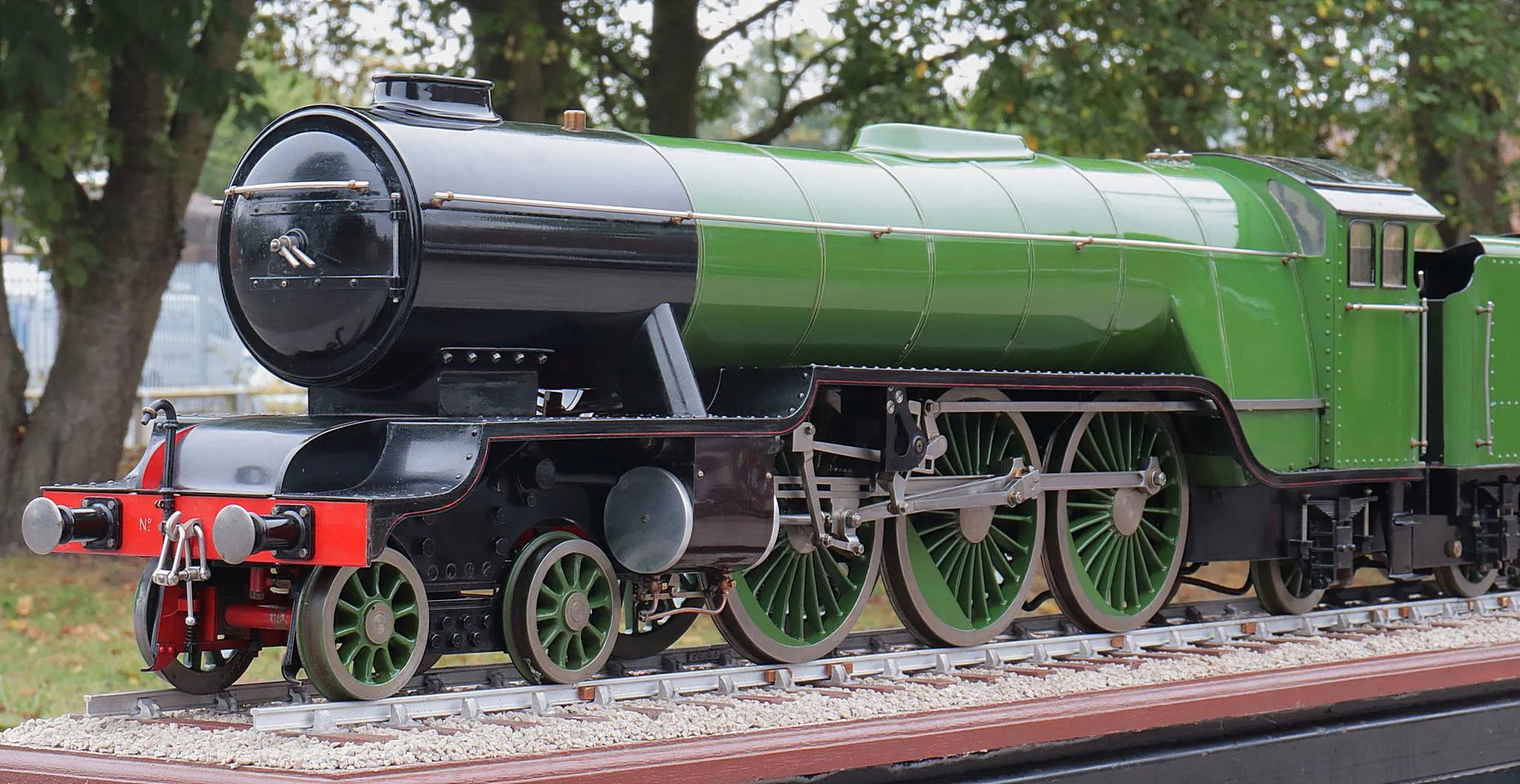

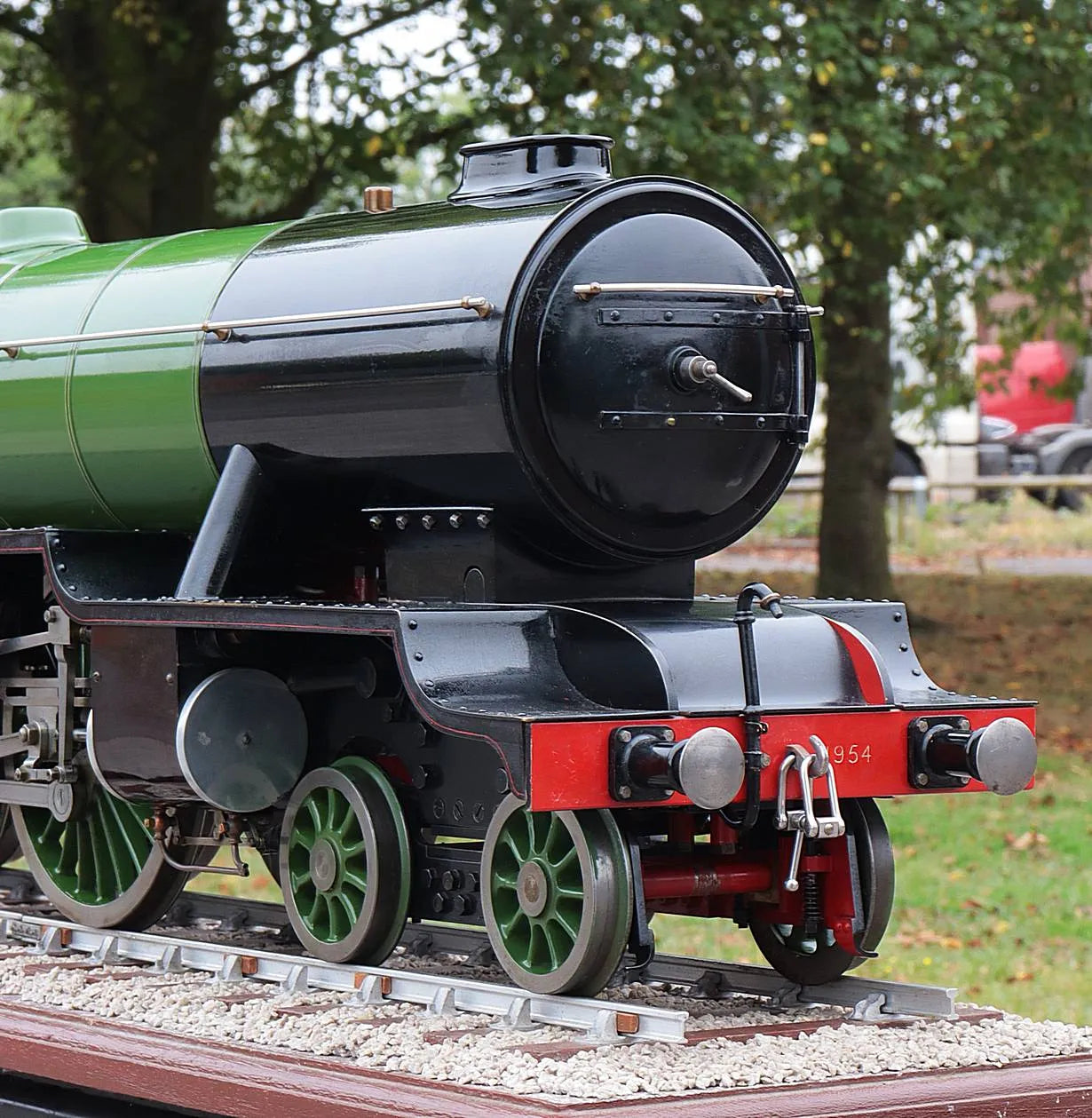

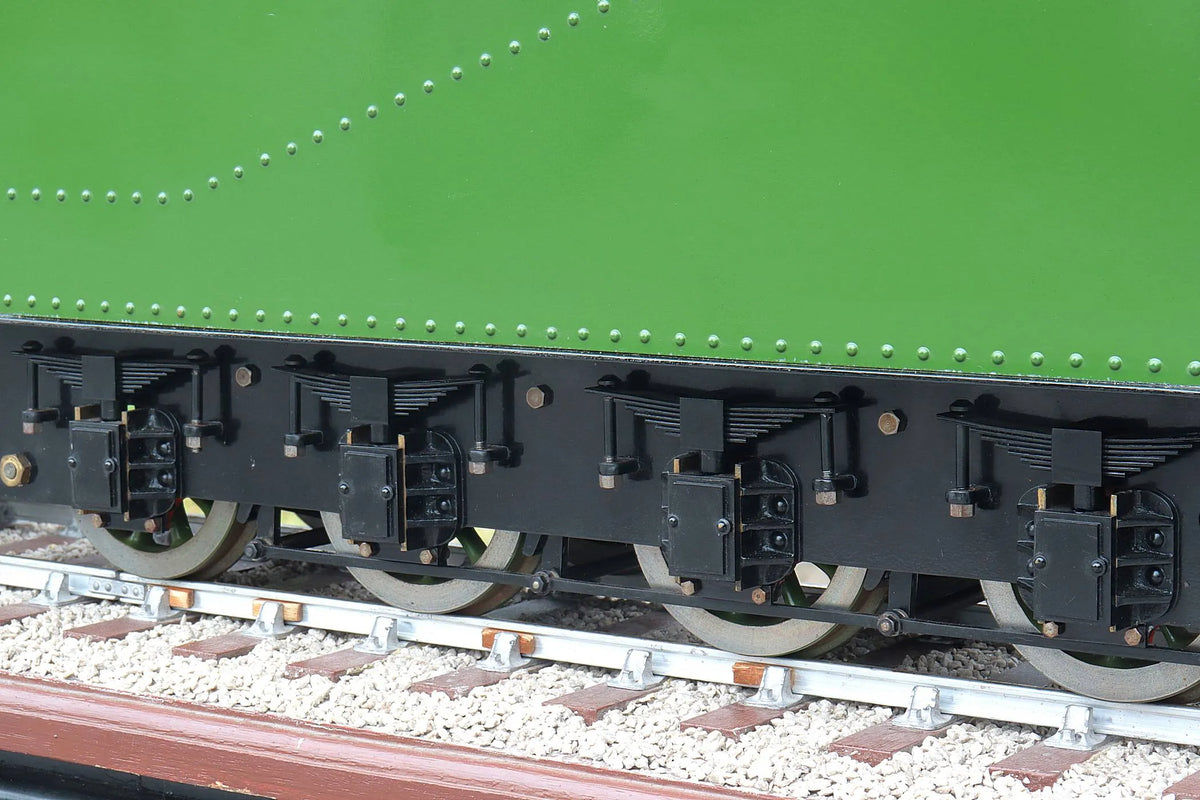

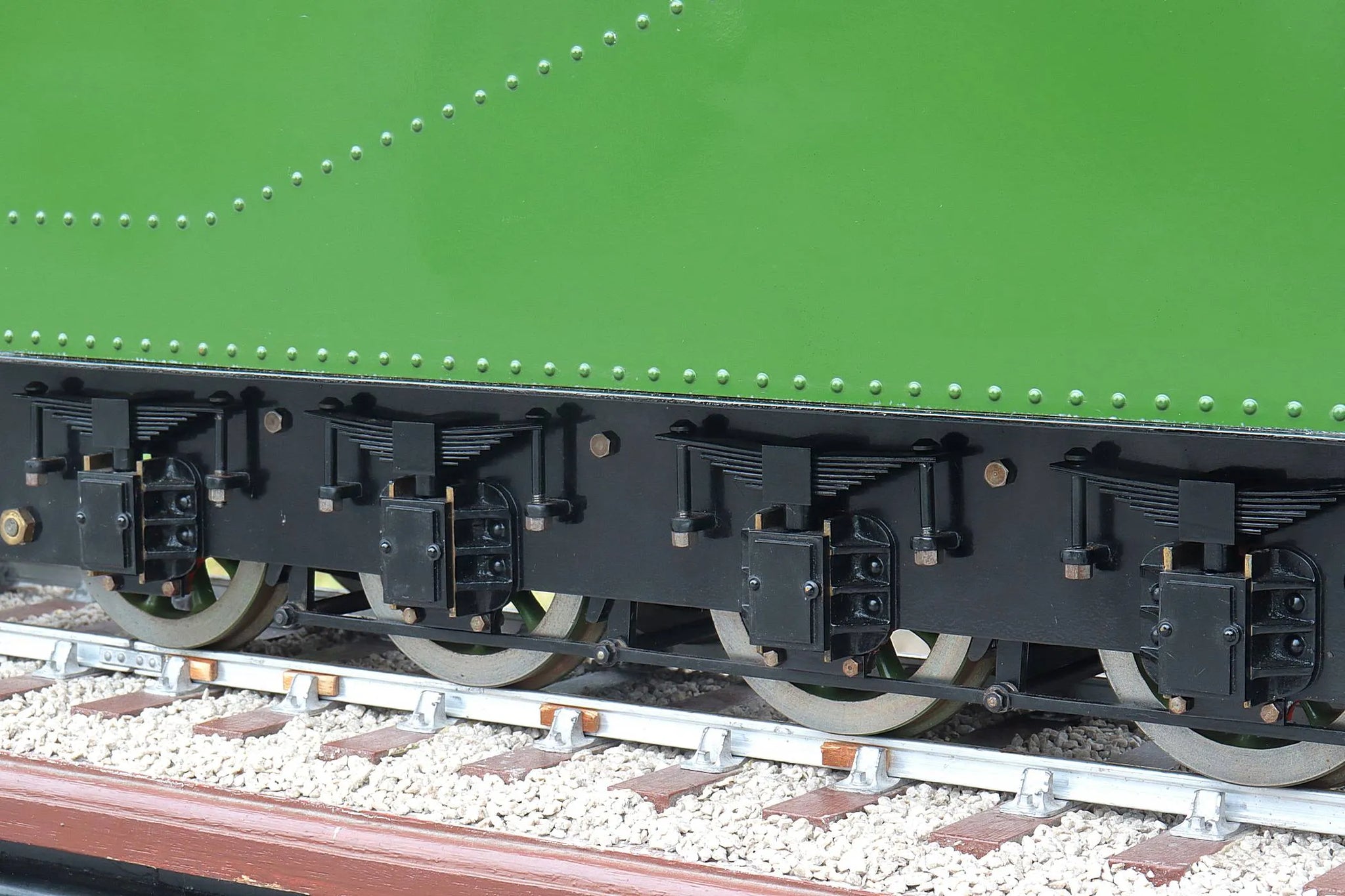

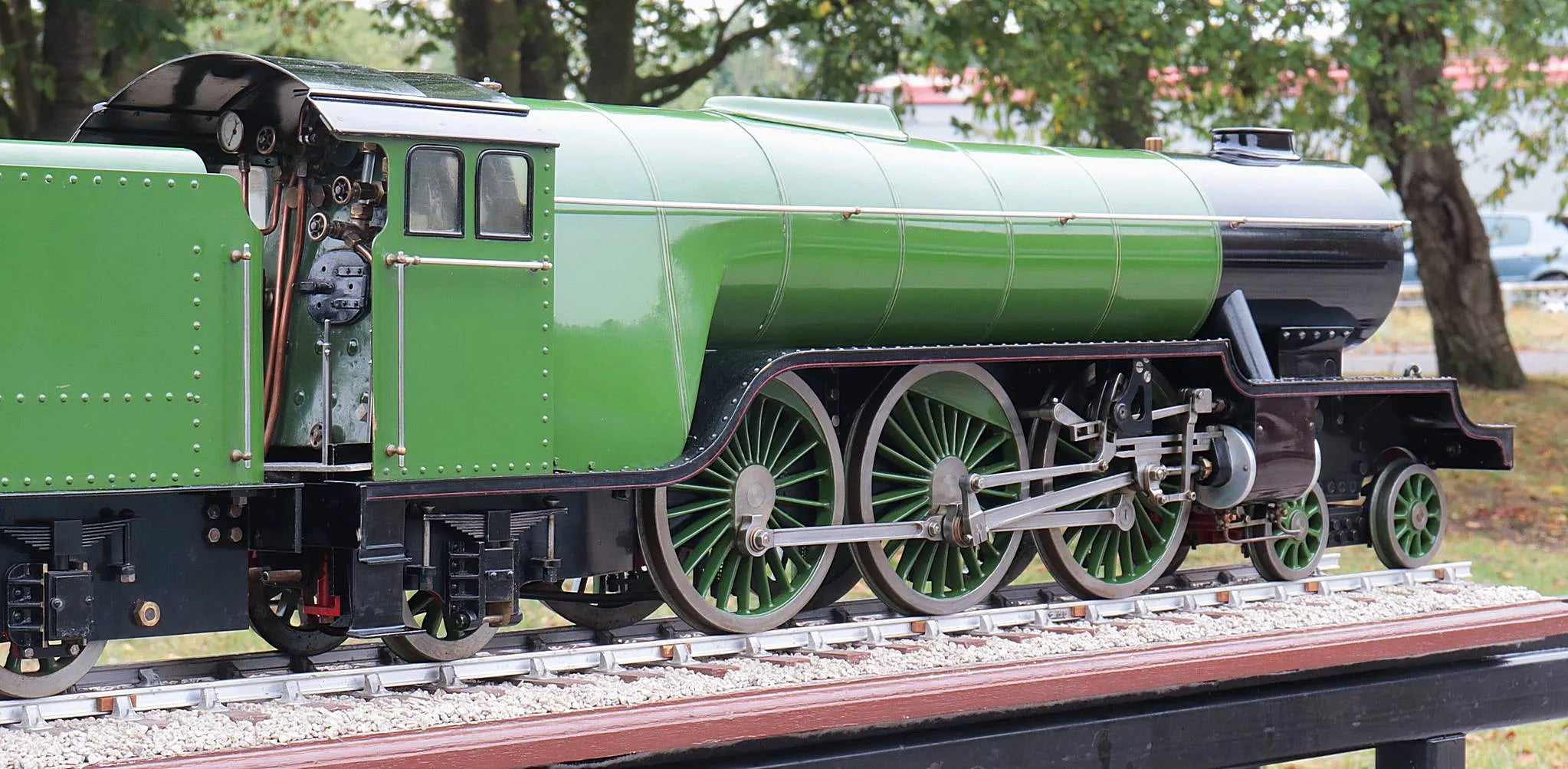

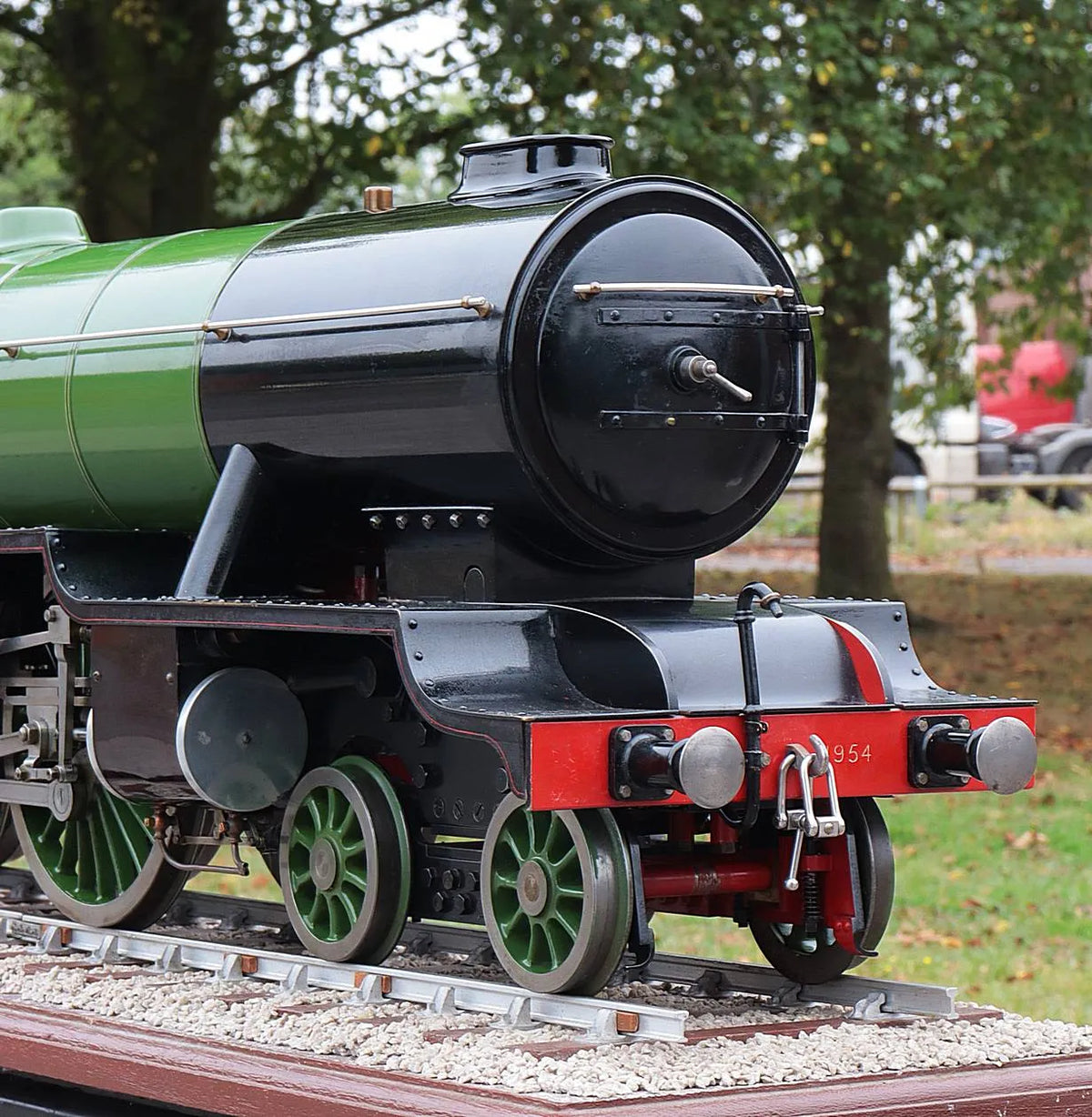

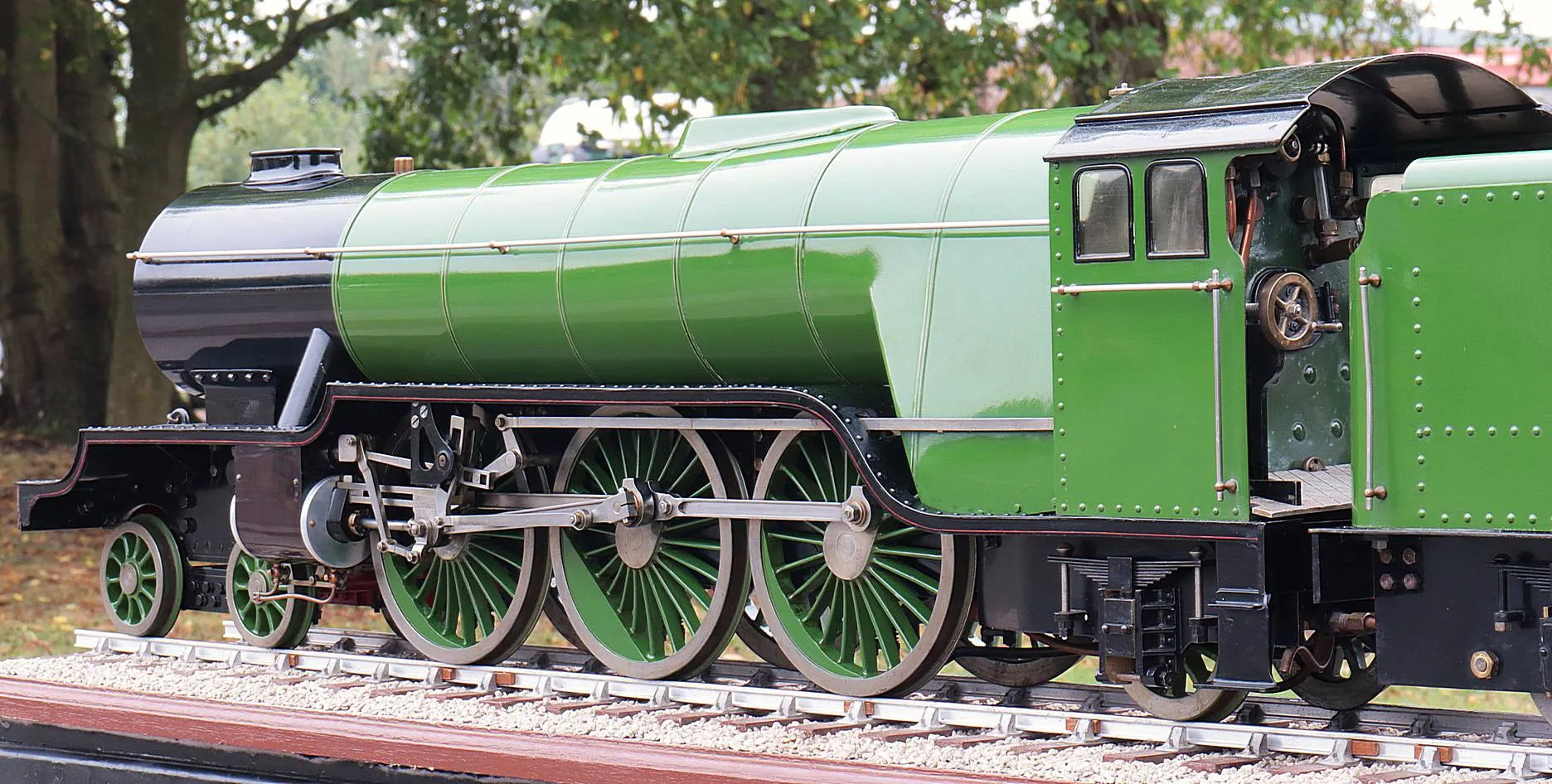

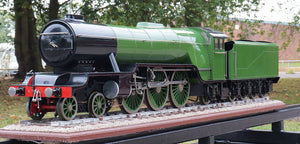

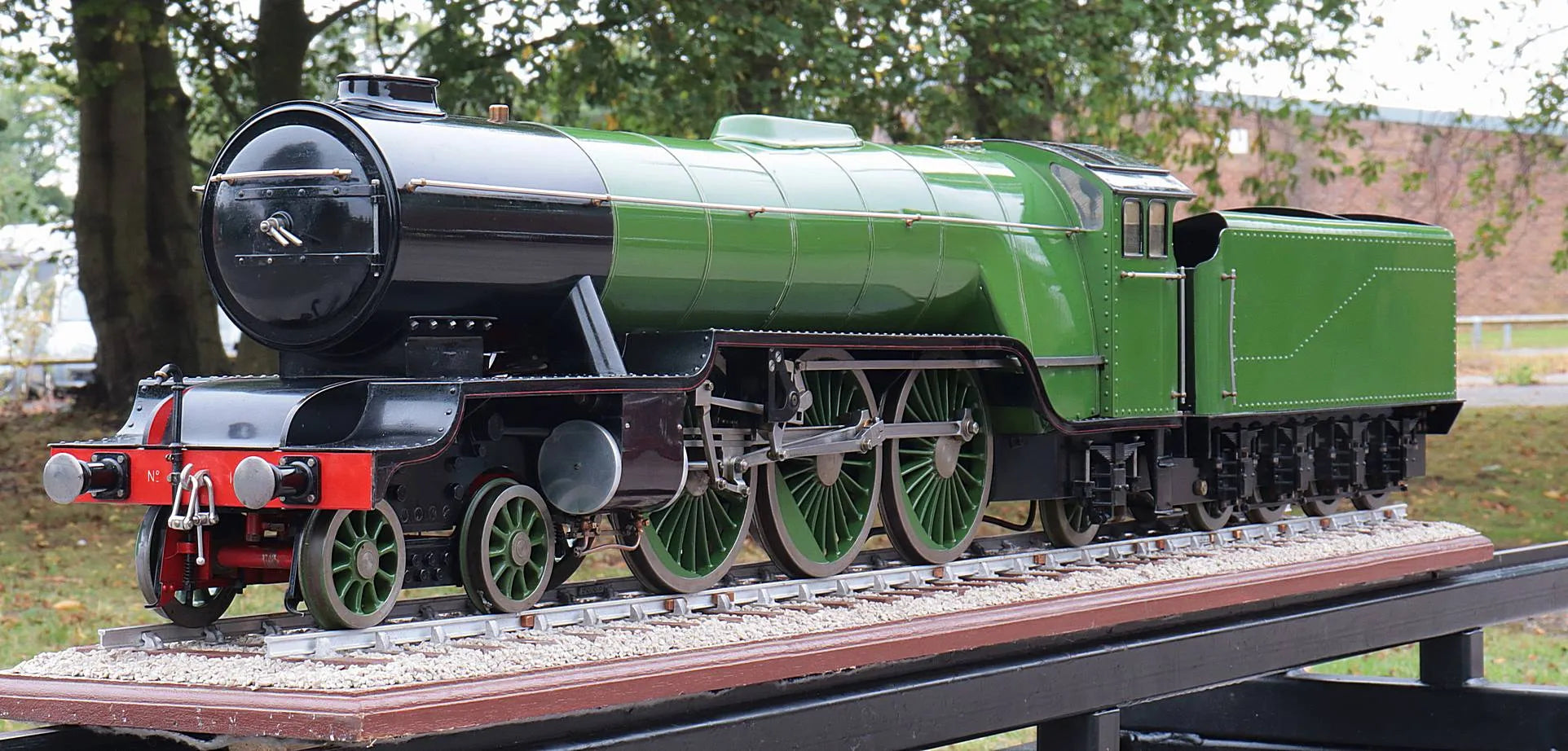

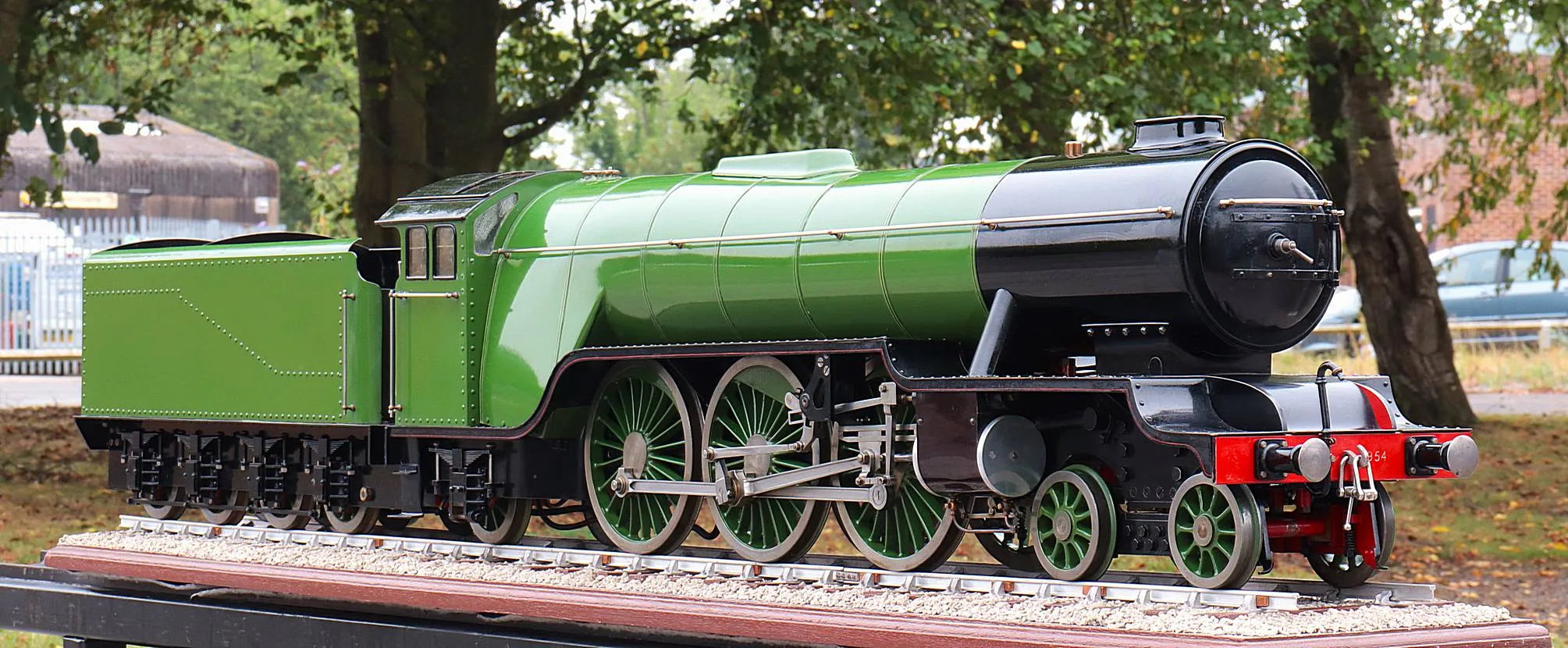

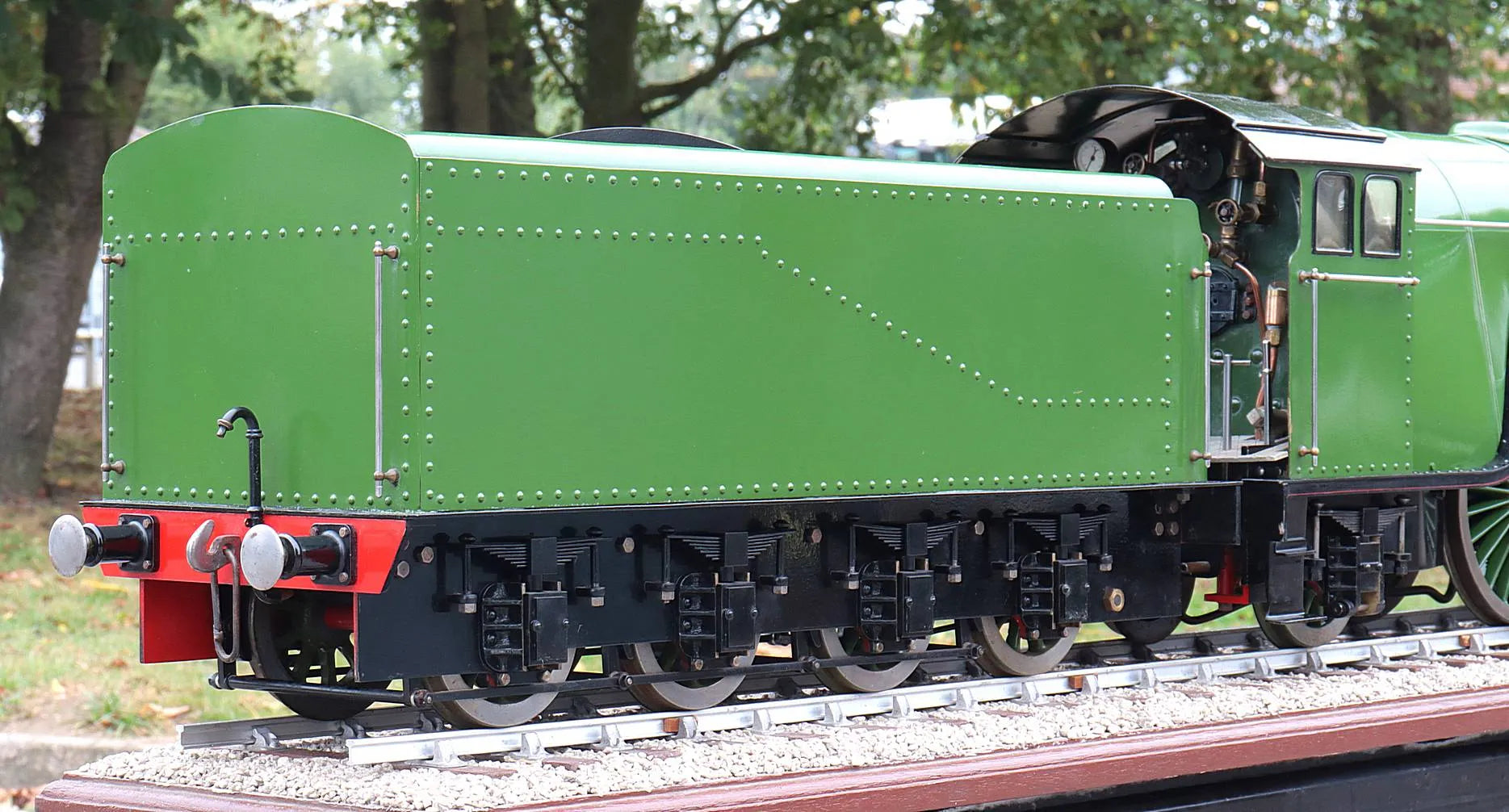

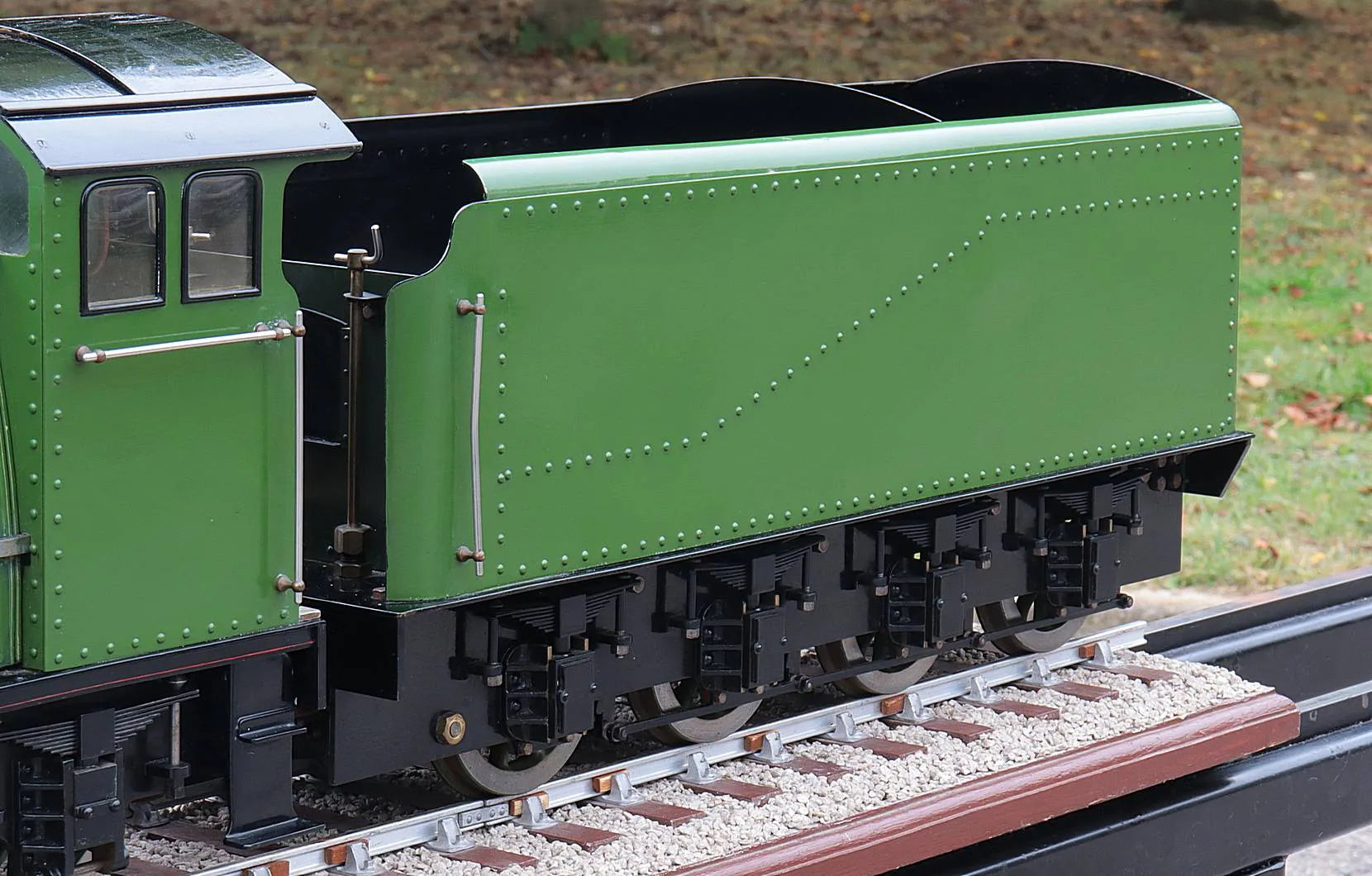

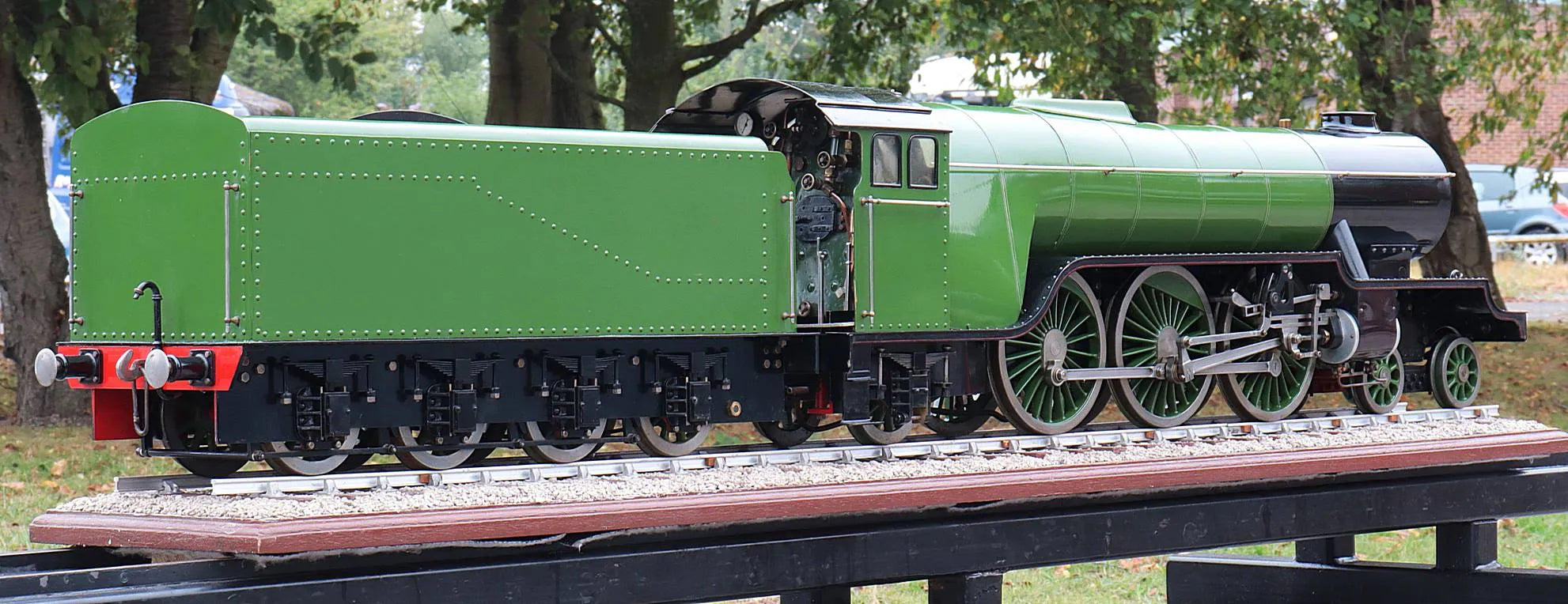

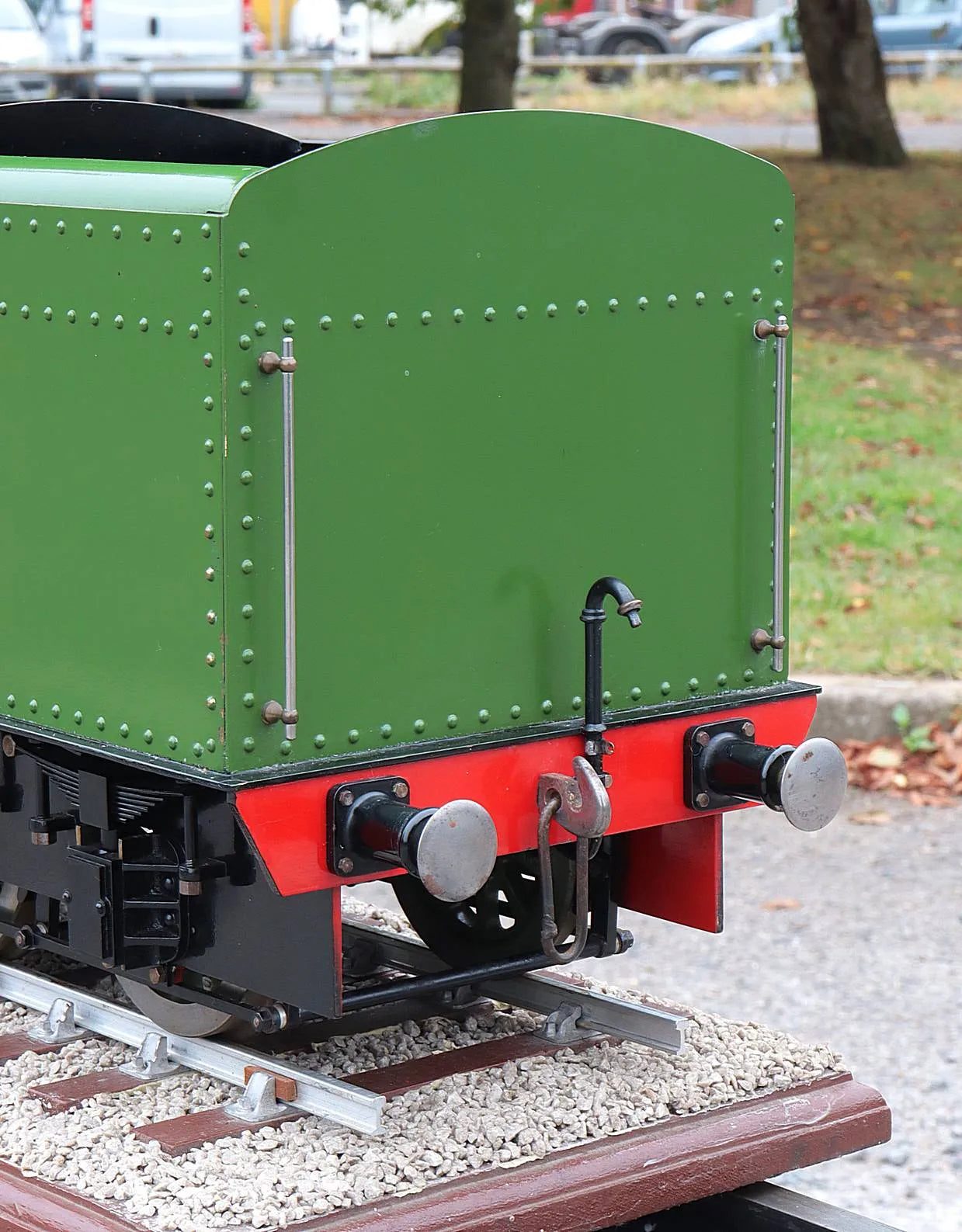

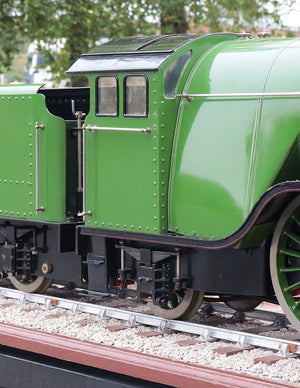

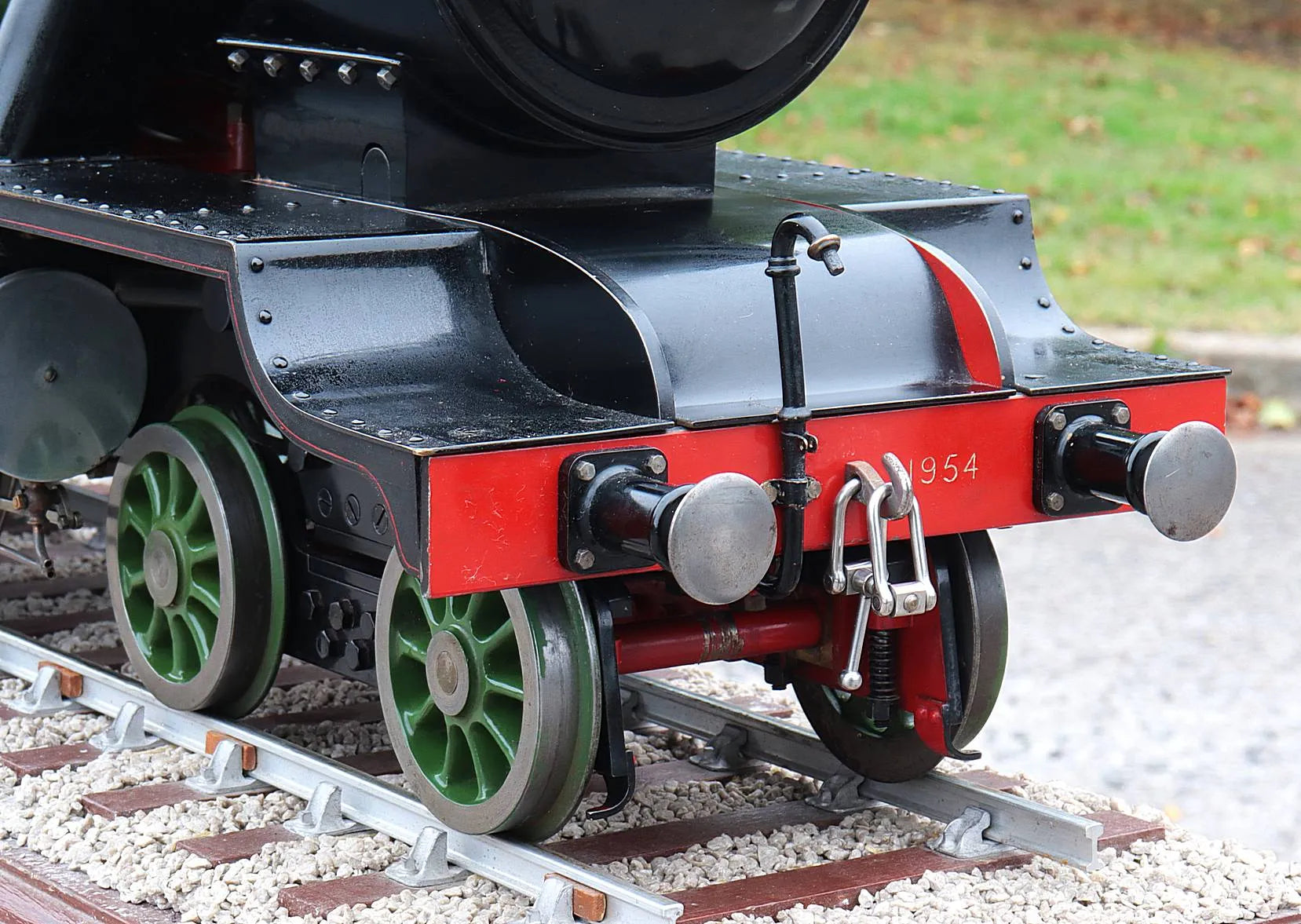

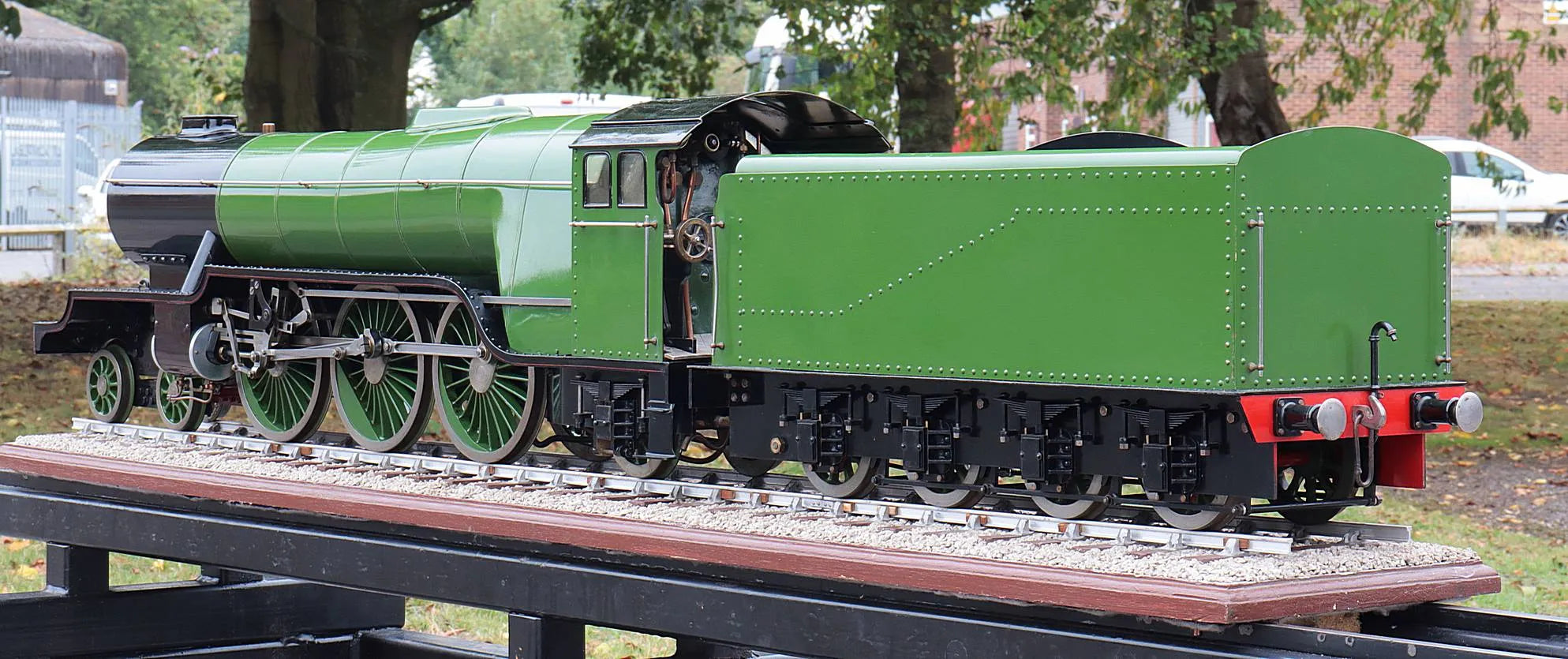

A 3 1/2 inch gauge LNER Pacific to LBSC's "Hielan Lassie" design, a well-built and nicely painted engine that appears to have had little use.

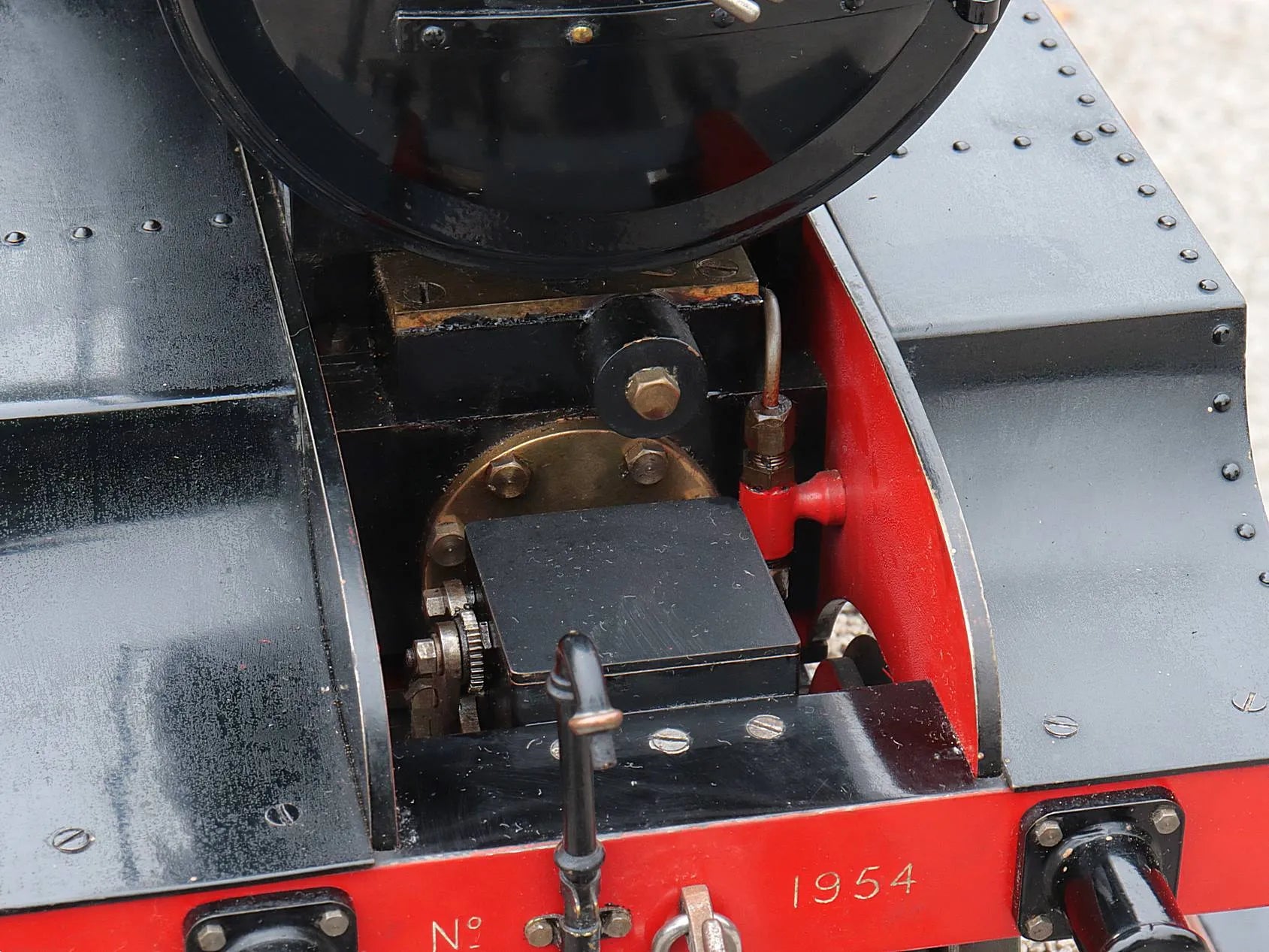

This one has come to us seized, apparently from lack of use. It looks to be the centre cylinder affected, which will require some dismantling and freeing off - a job requiring a few hours in the workshop rather than further expenditure.

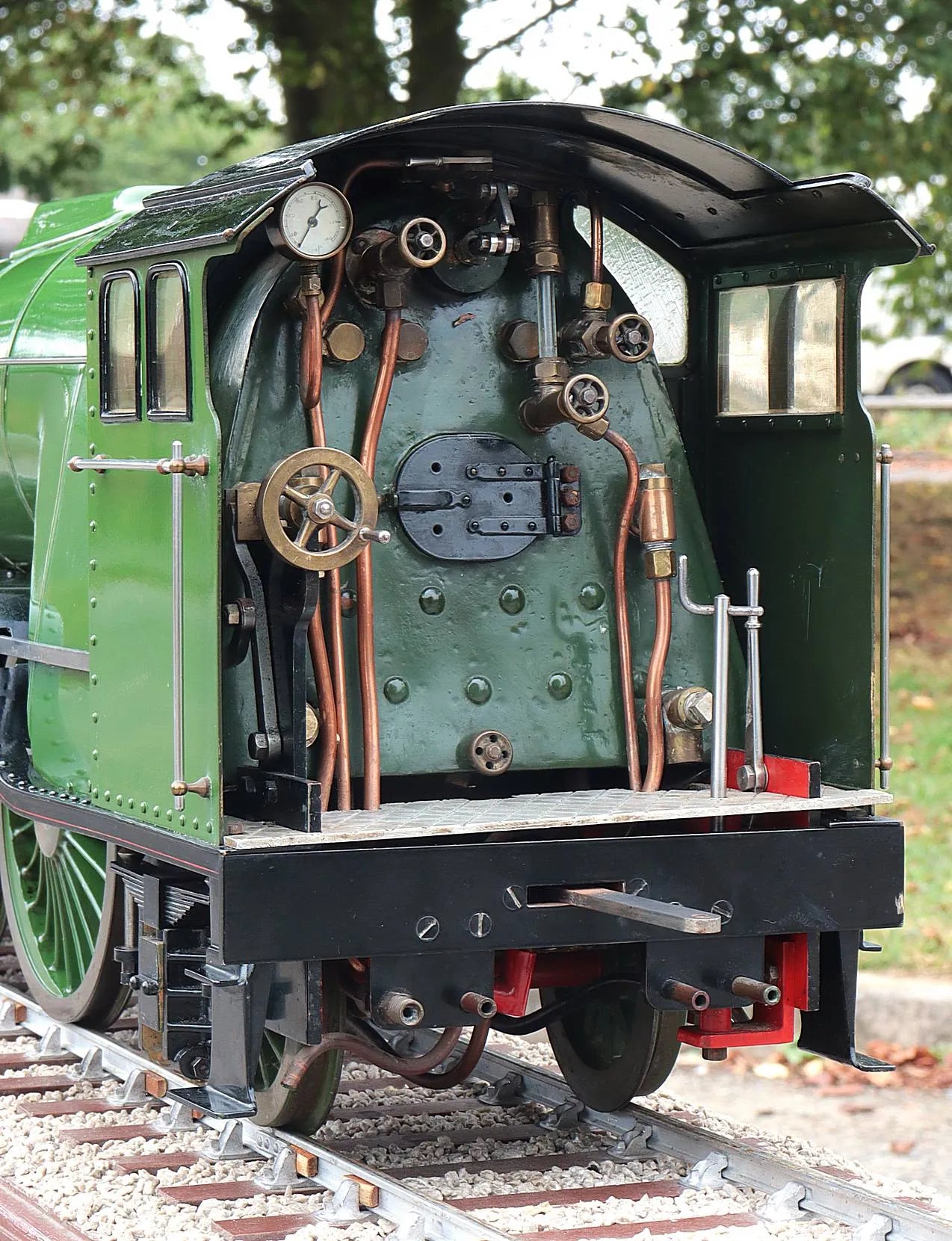

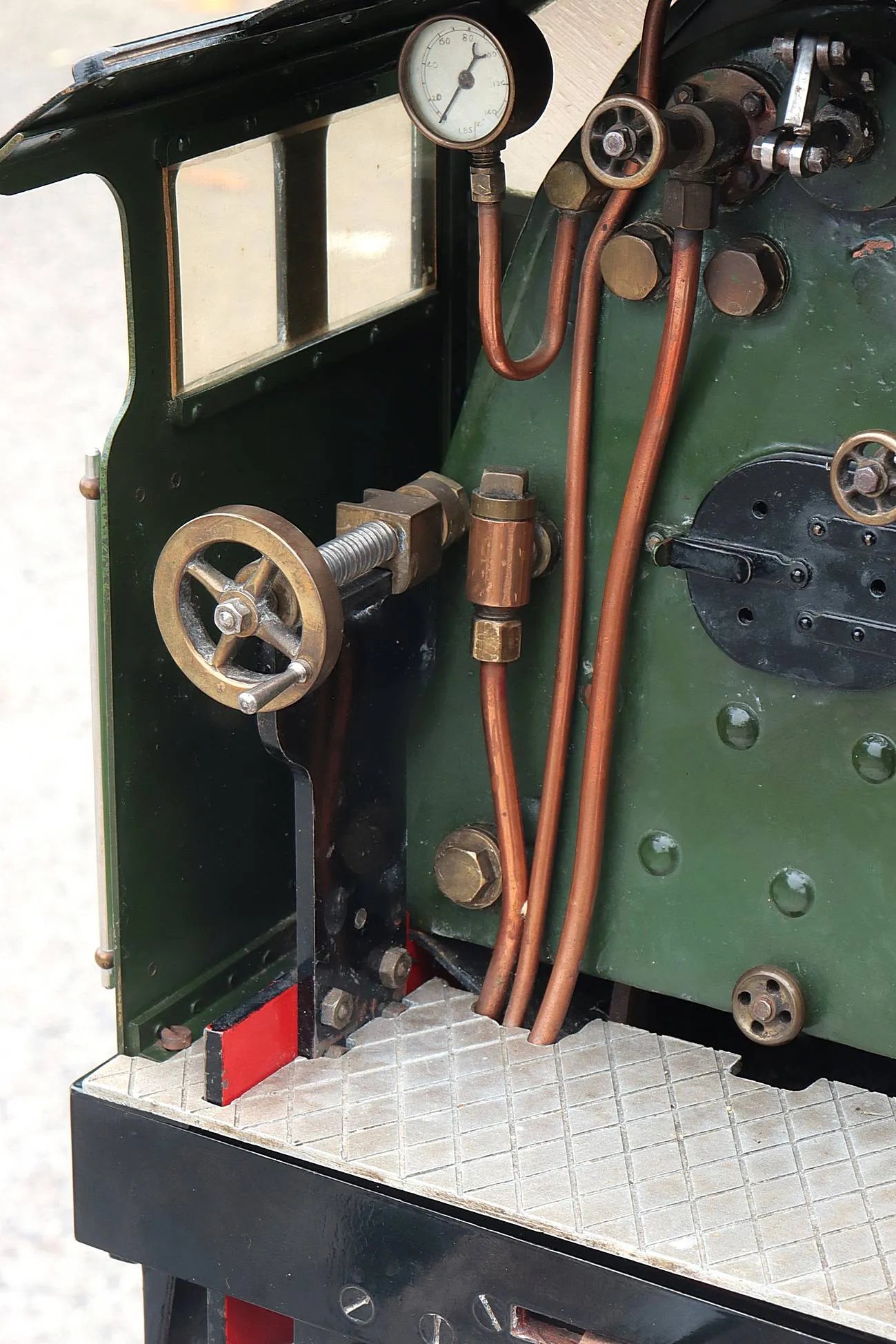

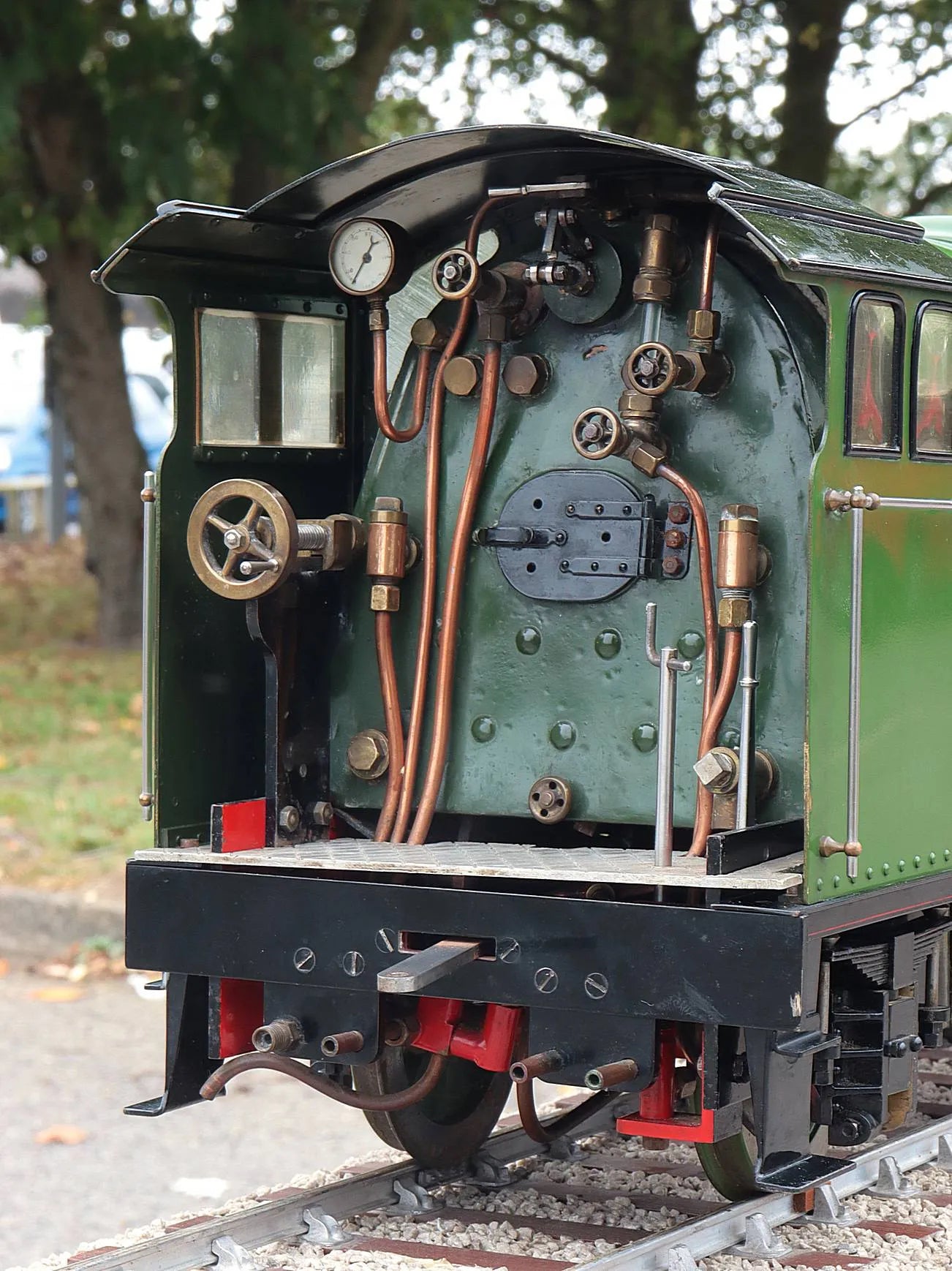

The regulator handle has been broken off and lost in the past and will require replacement. A common problem, often caused when somebody tries to force open a seized regulator. Nine times out of ten, putting a fire in an engine and putting it in light steam will cause a regulator to free off of its own accord, which saves a great deal of work!

We have hydraulic tested the boiler at twice working pressure and issued new certification - it is warrantied as sound.

Technical information

Stock code

11799

Gauge

3 1/2 inch

Length/inches

38.5 + 21

Width/inches

7.5

Height/inches

11

Weight/Kg

44.5

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

slide

Valve gear

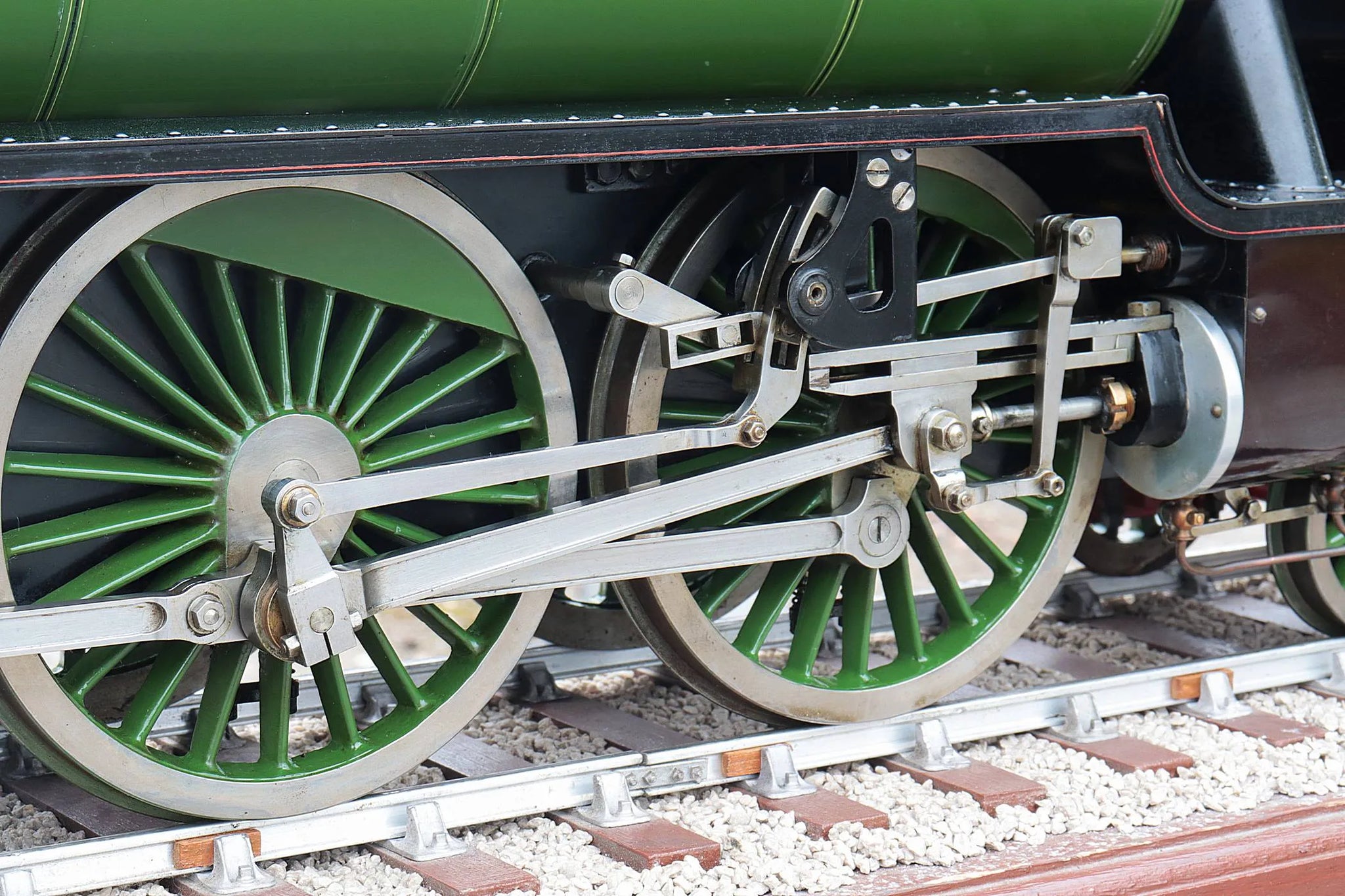

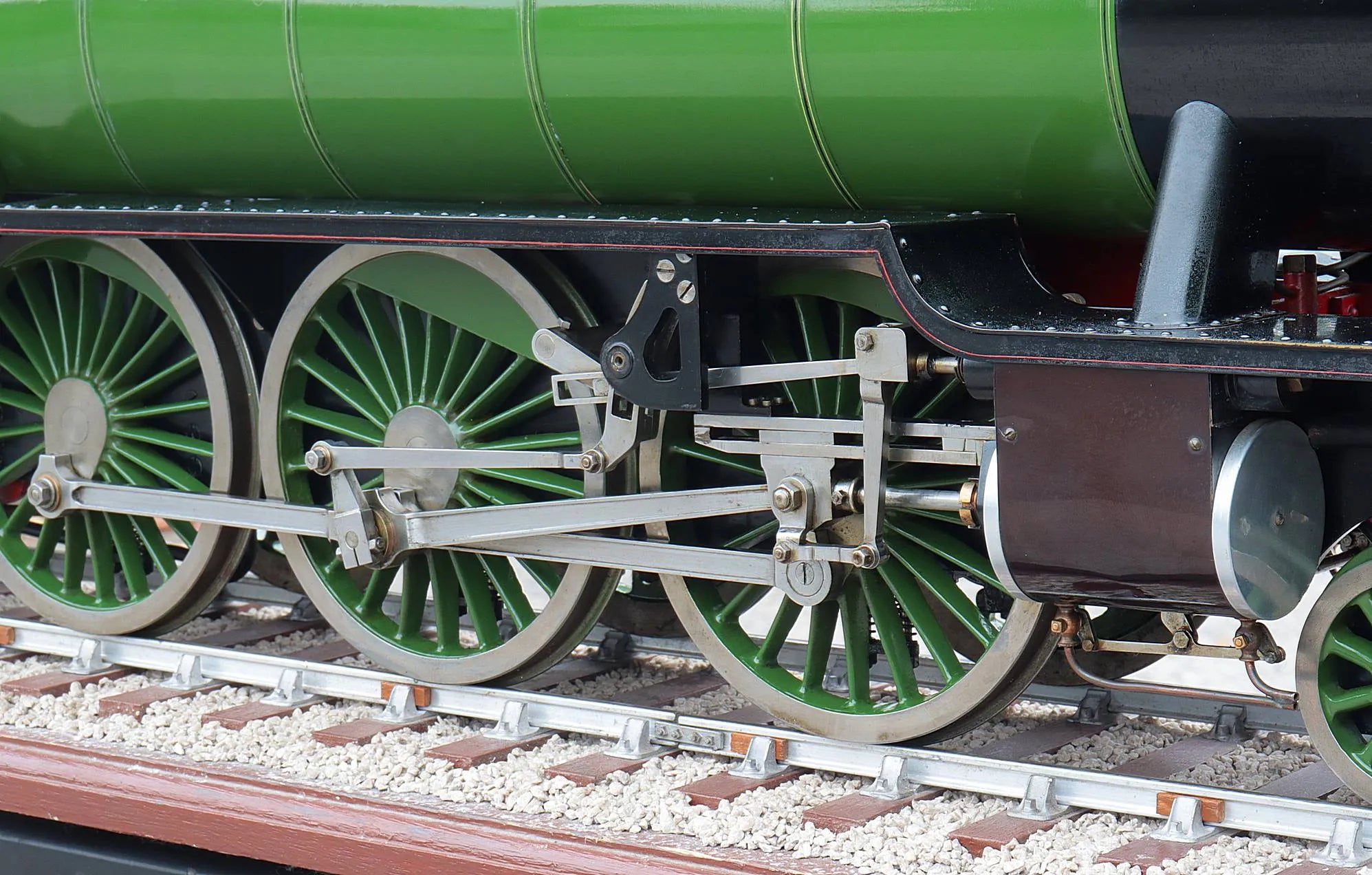

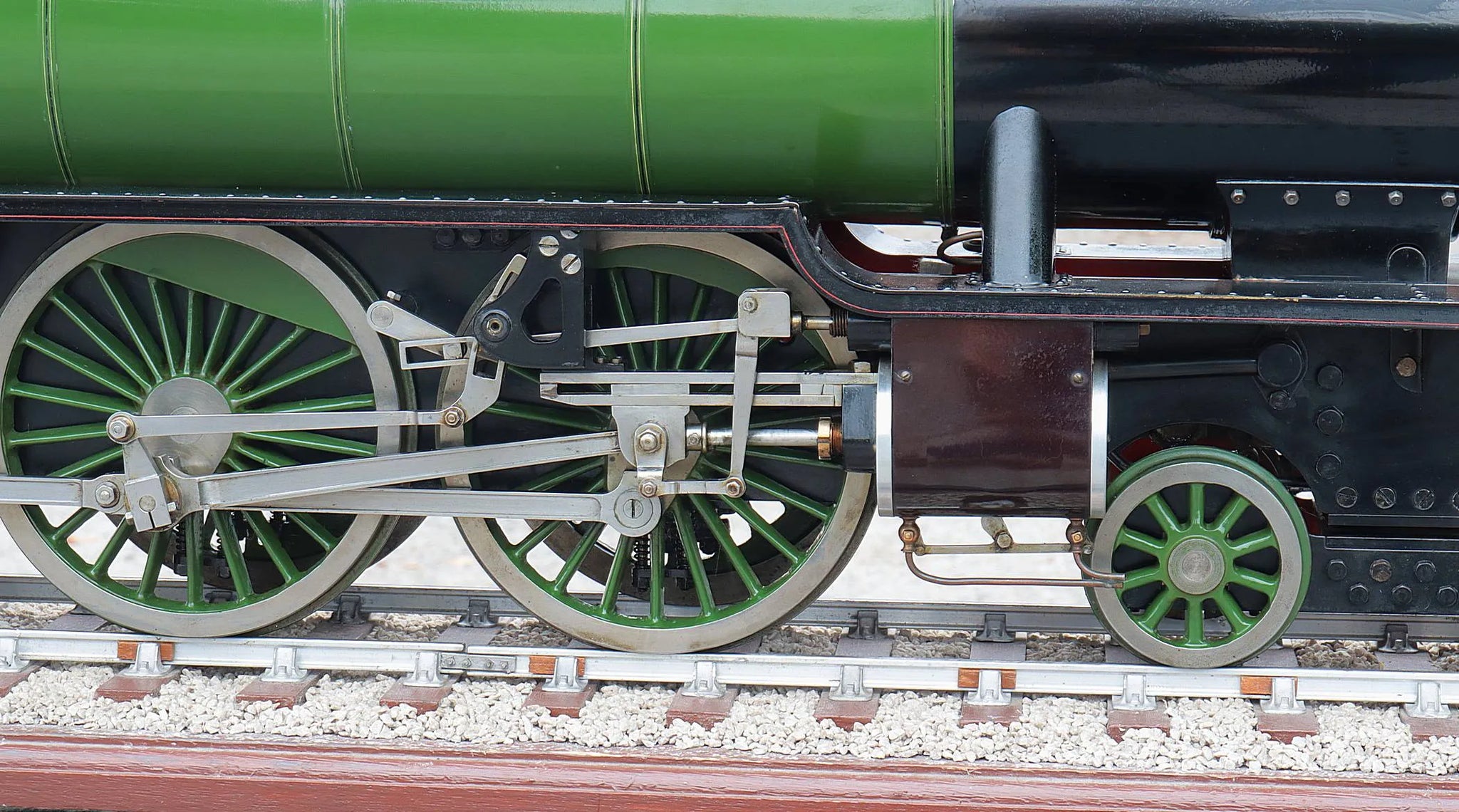

Walschaerts

Reverser type

screw

Boiler type

locomotive with combustion chamber

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a non-commercial

Boiler number

11799

Safety valve type

spring

Safety valve

2

Fusible plug

yes

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

4

Date out

Sep-24

Hydraulic test valid to

06-Feb-28
