10838

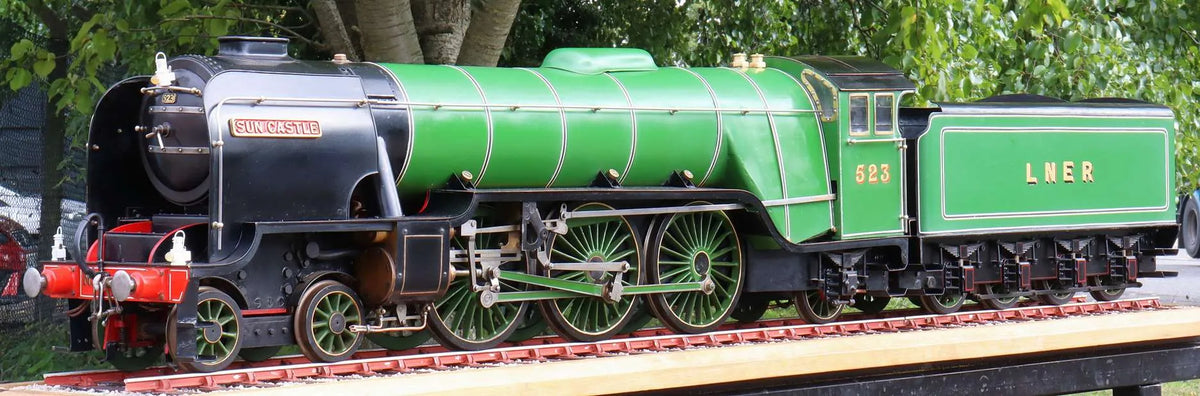

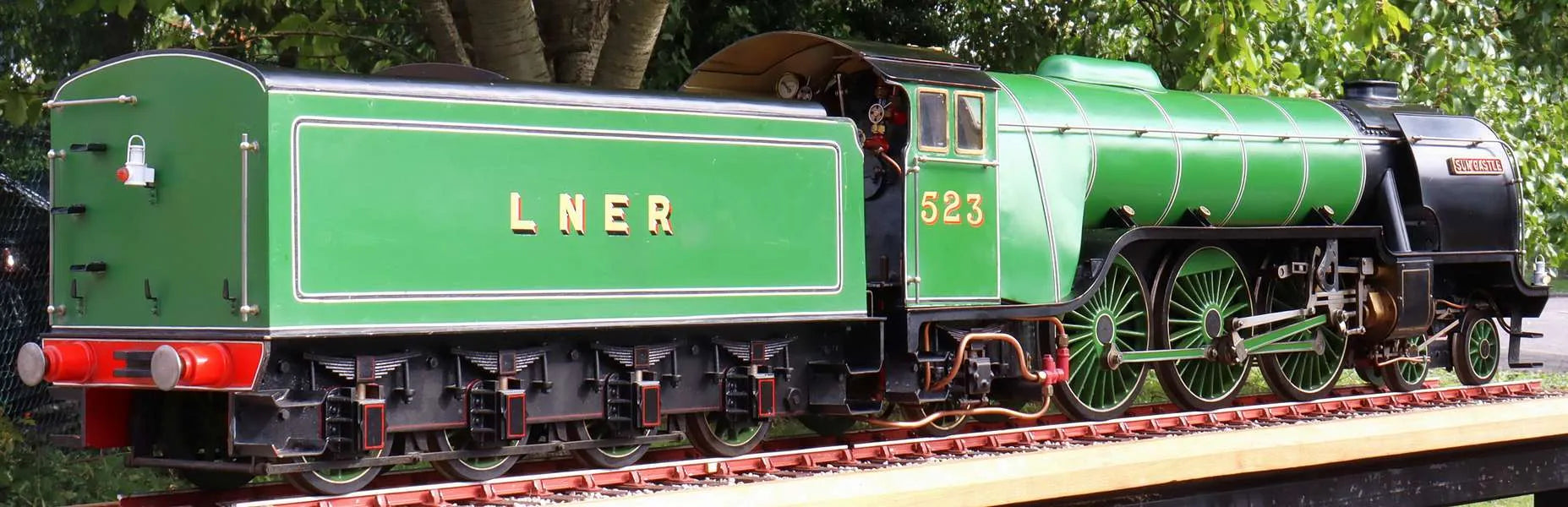

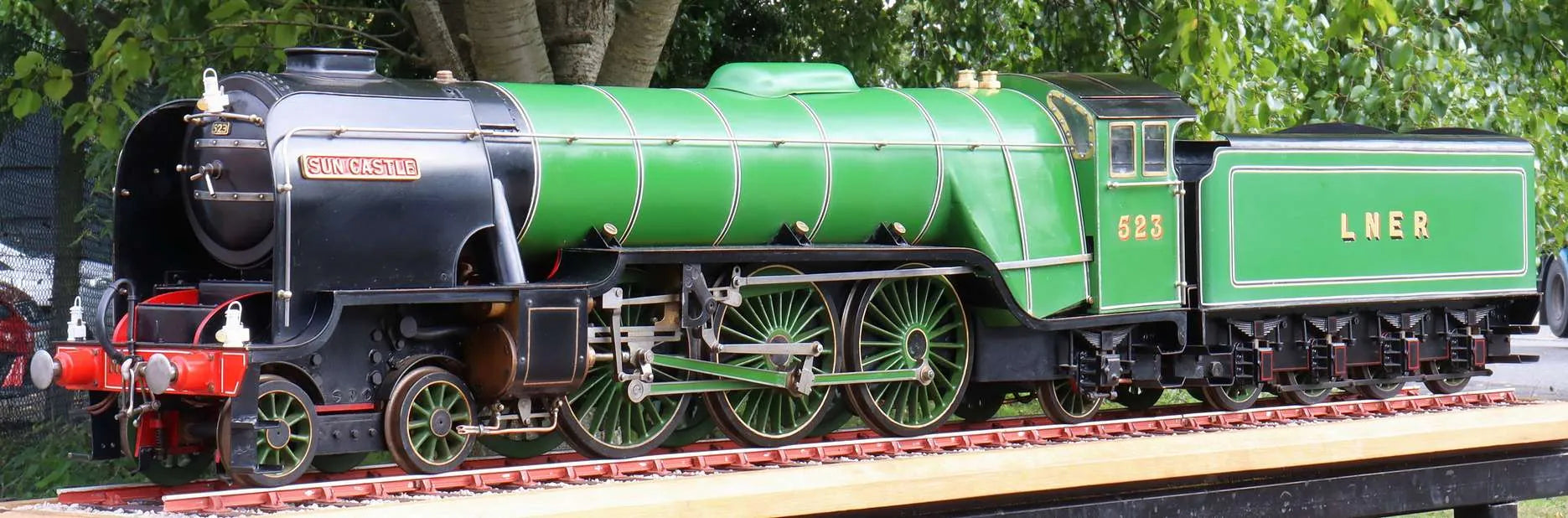

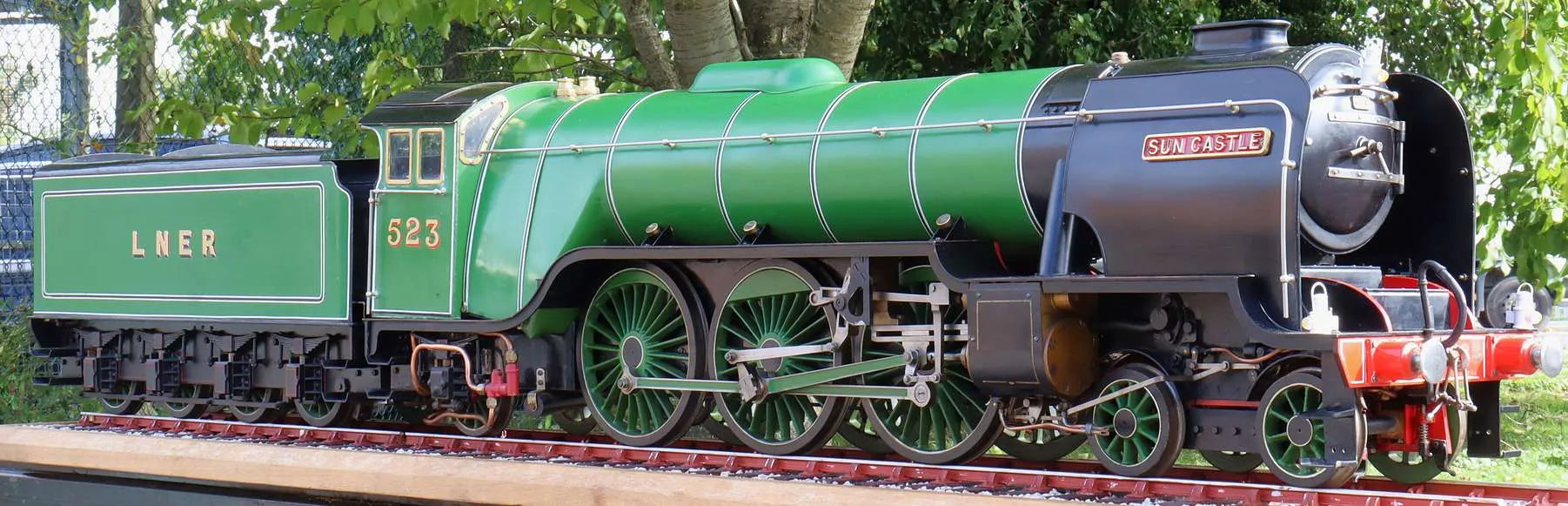

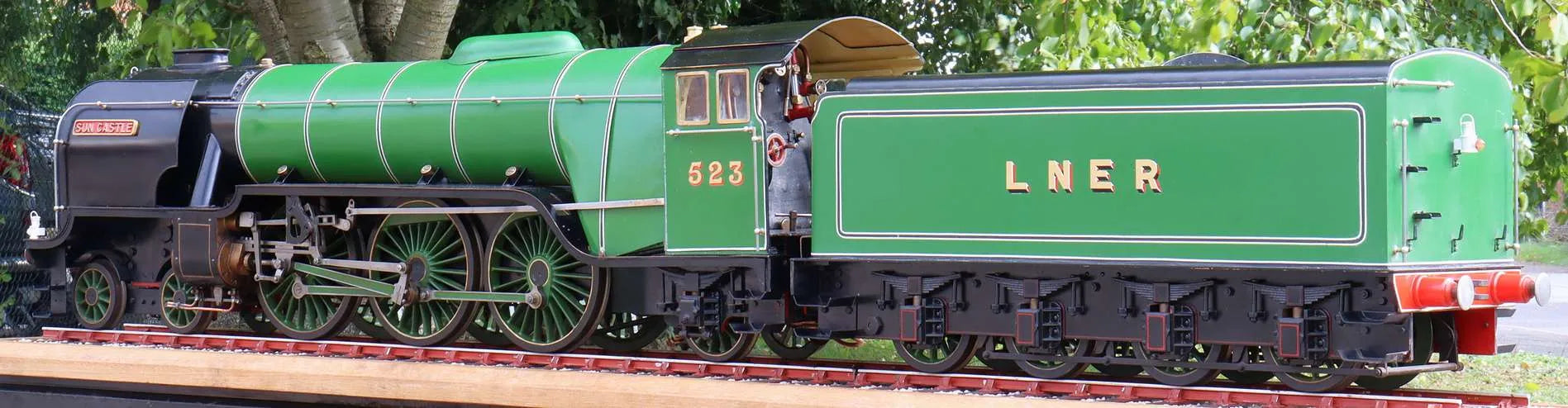

An older engine, it rolls freely and runs well in either direction on air, with slight leakage past pistons.
The combustion chamber boiler has had a twice working pressure hydraulic test - although appearing structurally sound, there is one firebox stay with a persistent weep that requires attention, with a handful of others that would take up under steam.
Stock code |
10838 |
Length/inches |
36 + 21 |
Width/inches |
8 |
Height/inches |
11 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |

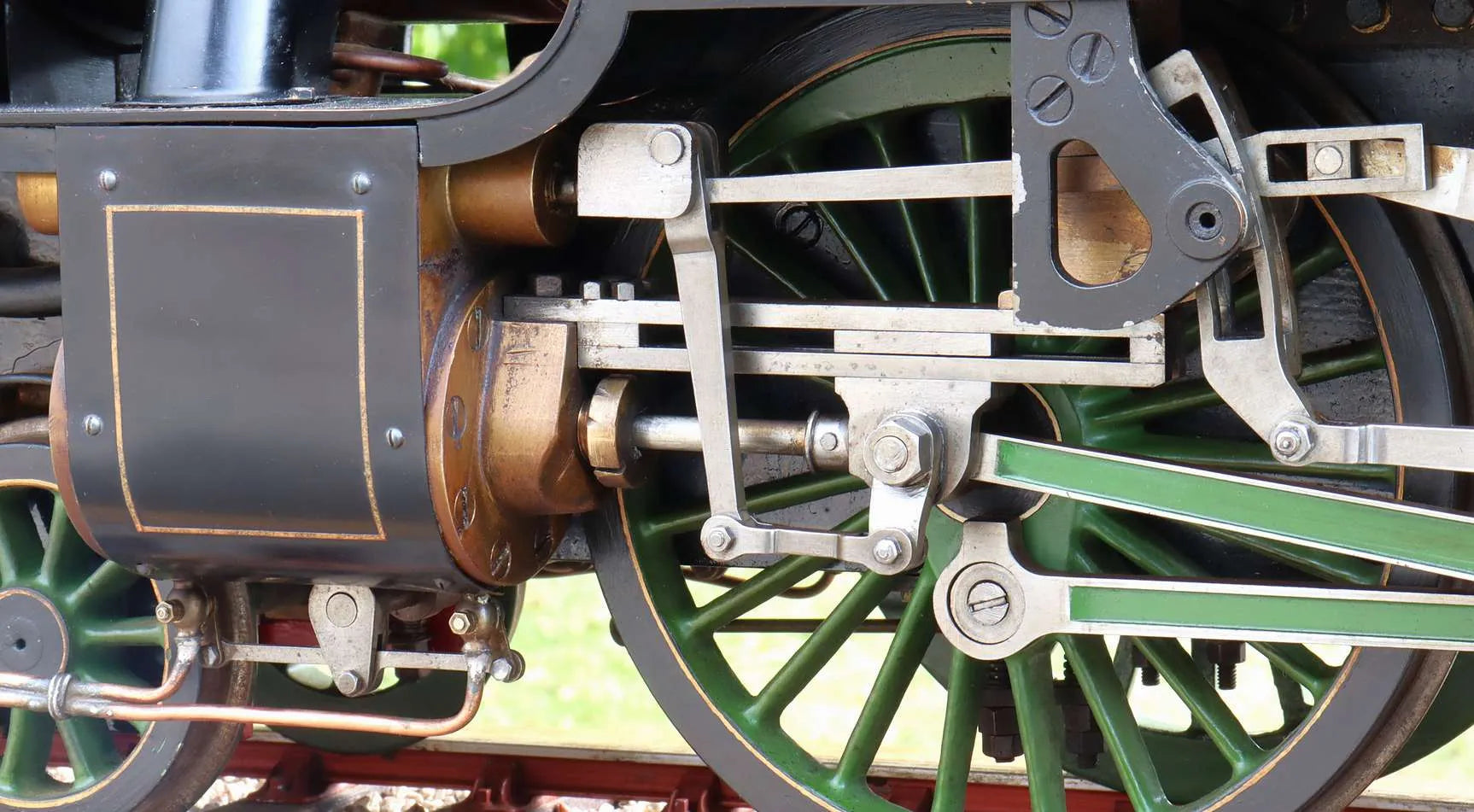

Cylinder material |
gunmetal |
Valve type |
slide |

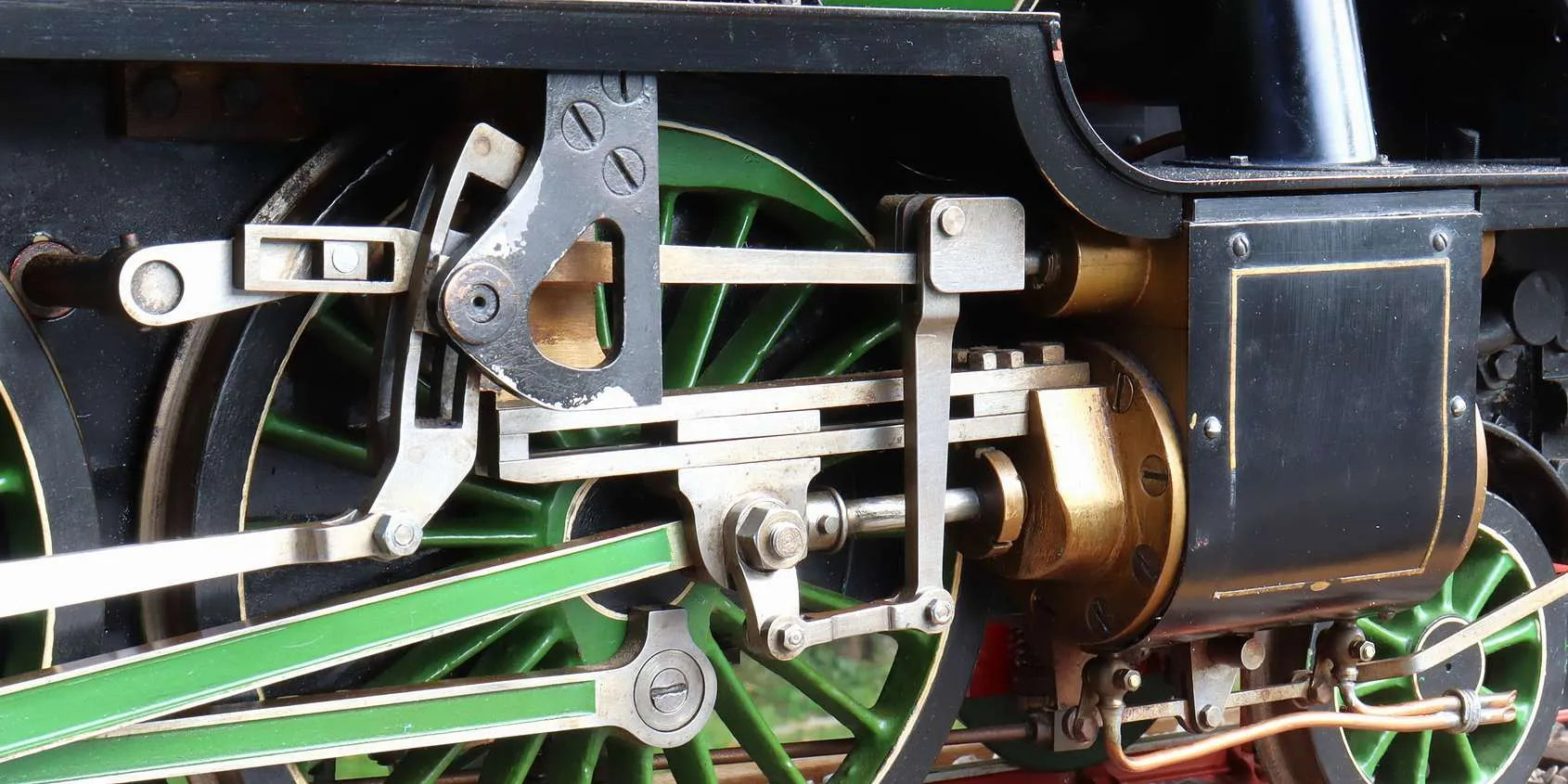

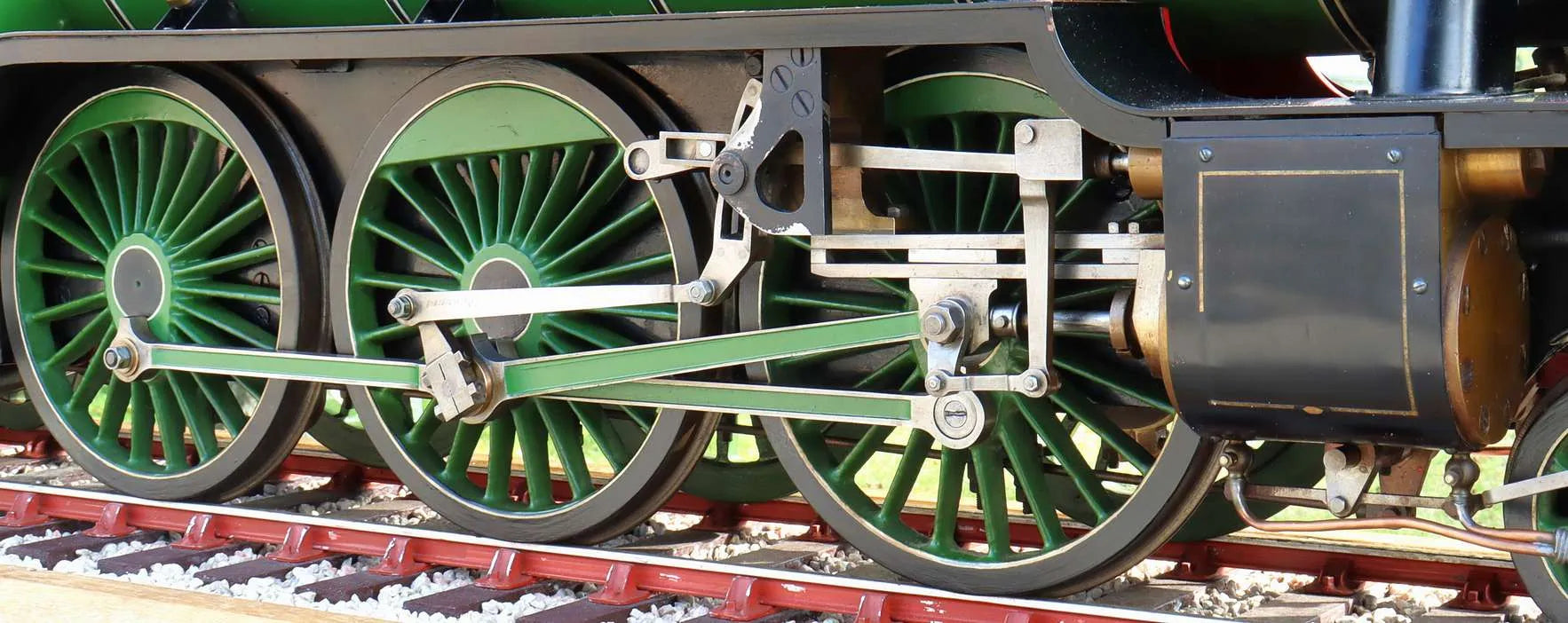

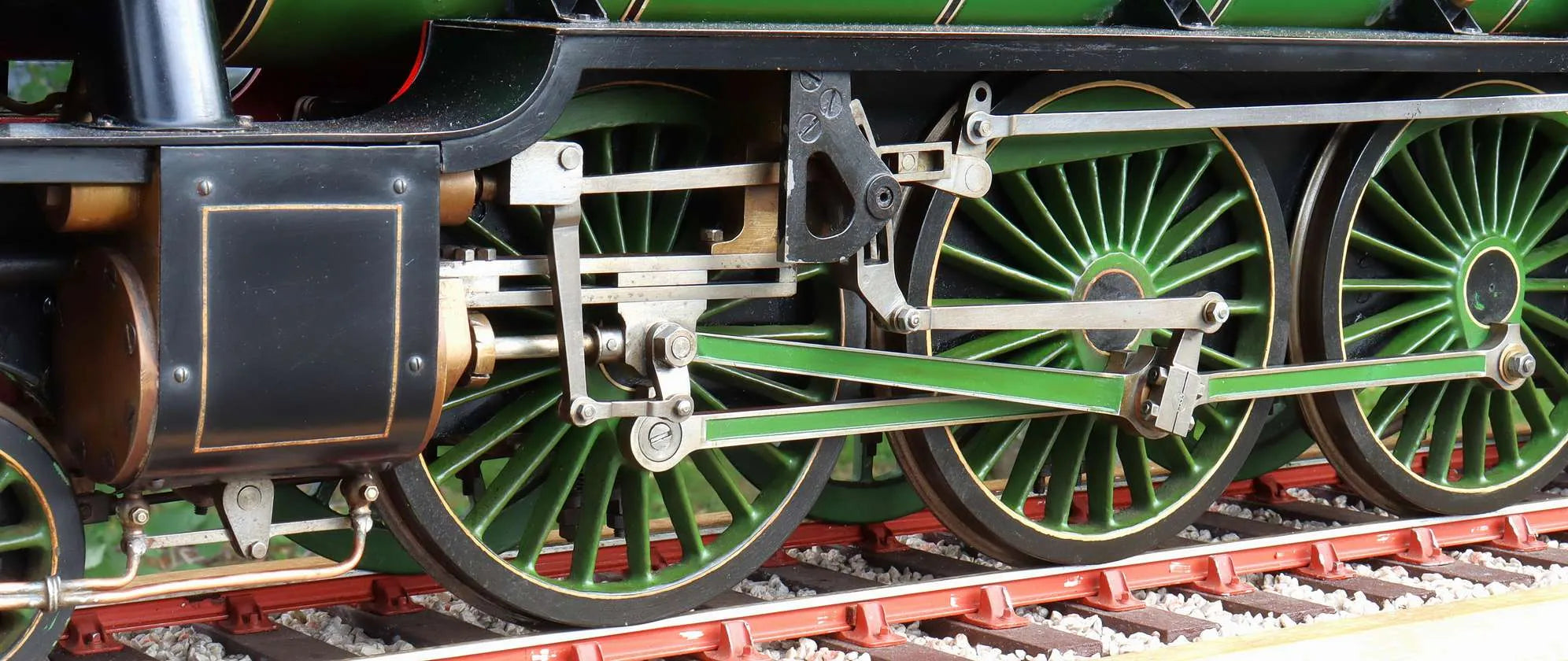

Valve gear |
Walschaerts |
Reverser type |
screw |
Lubricator type |
mechanical |
Boiler type |
locomotive with combustion chamber |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a - non-commercial |
Boiler number |
N30/100/010 |
Safety valve type |
spring |
Safety valve |
2 |
Fusible plug |
no |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Superheater type |
flue tube |
Date out |
Dec-22 |
