13198

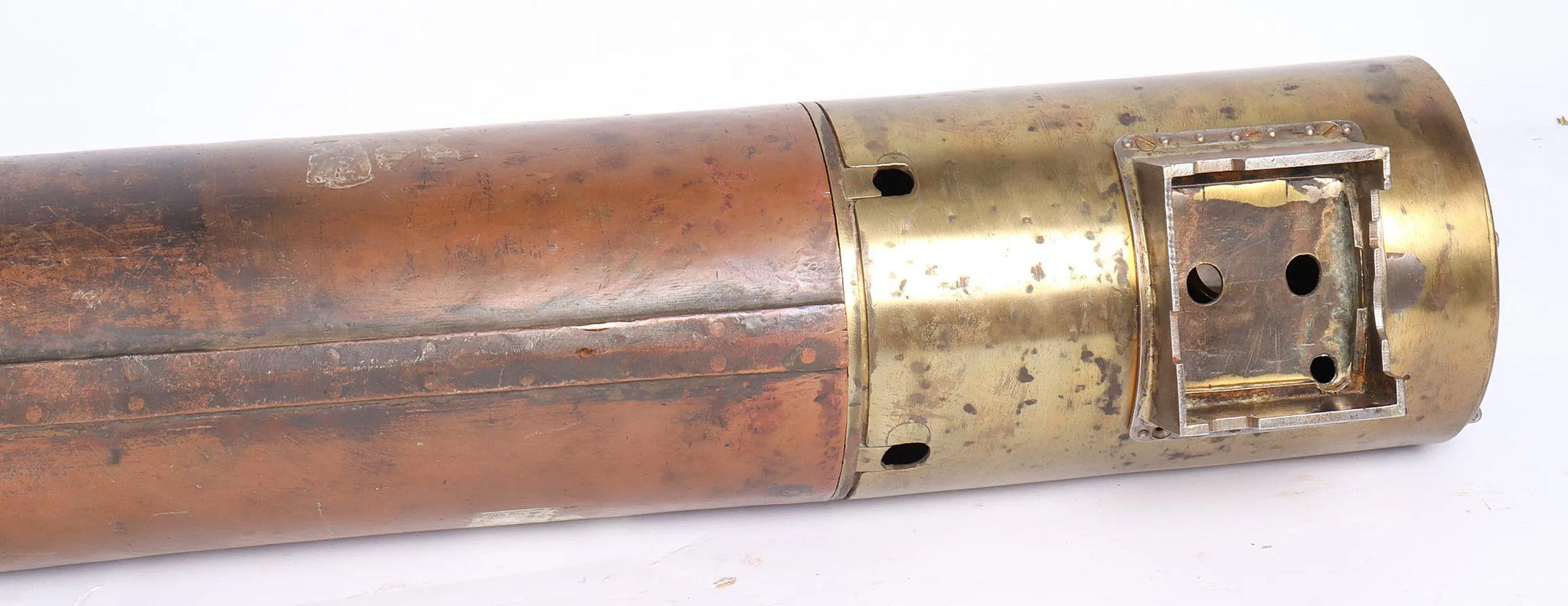

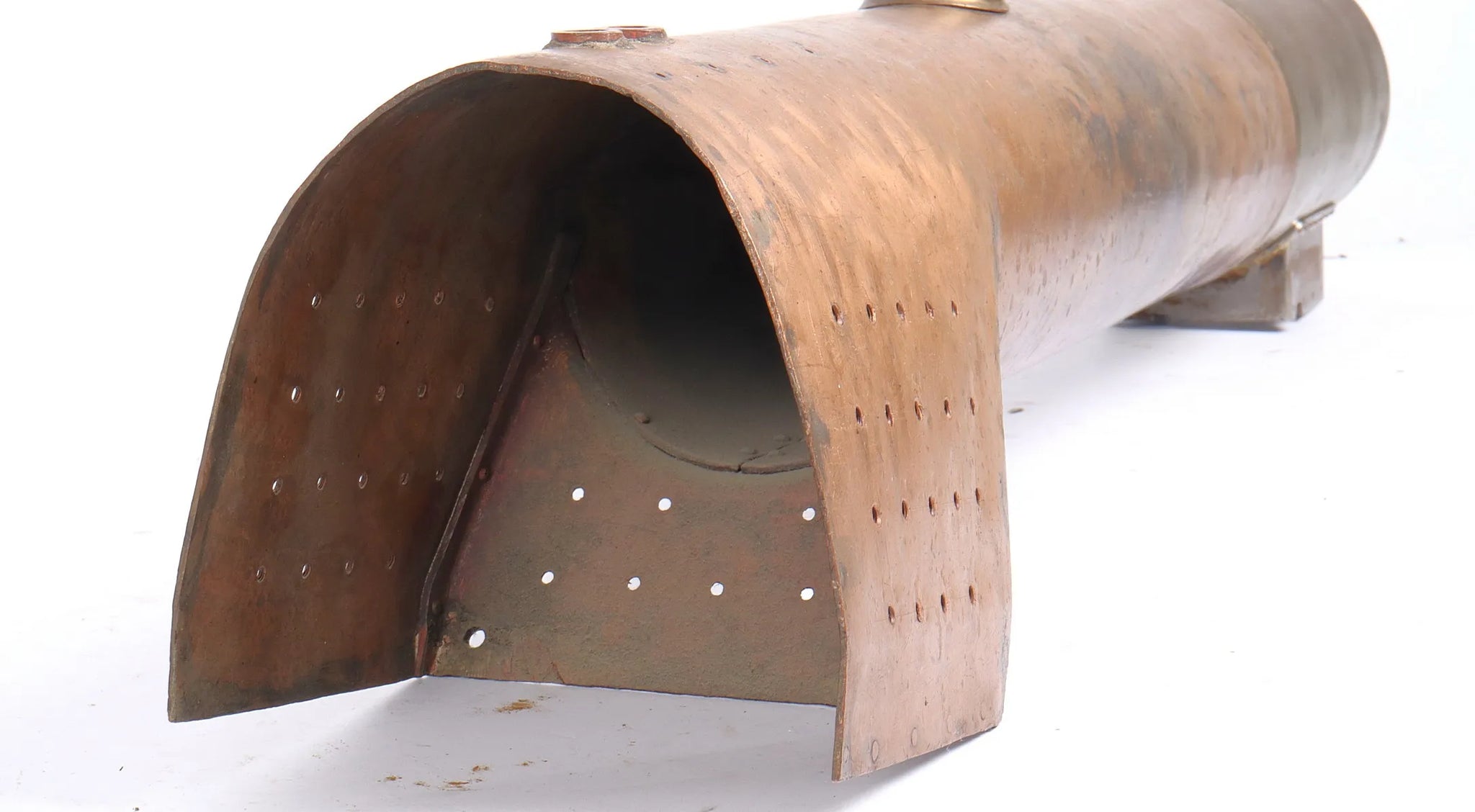

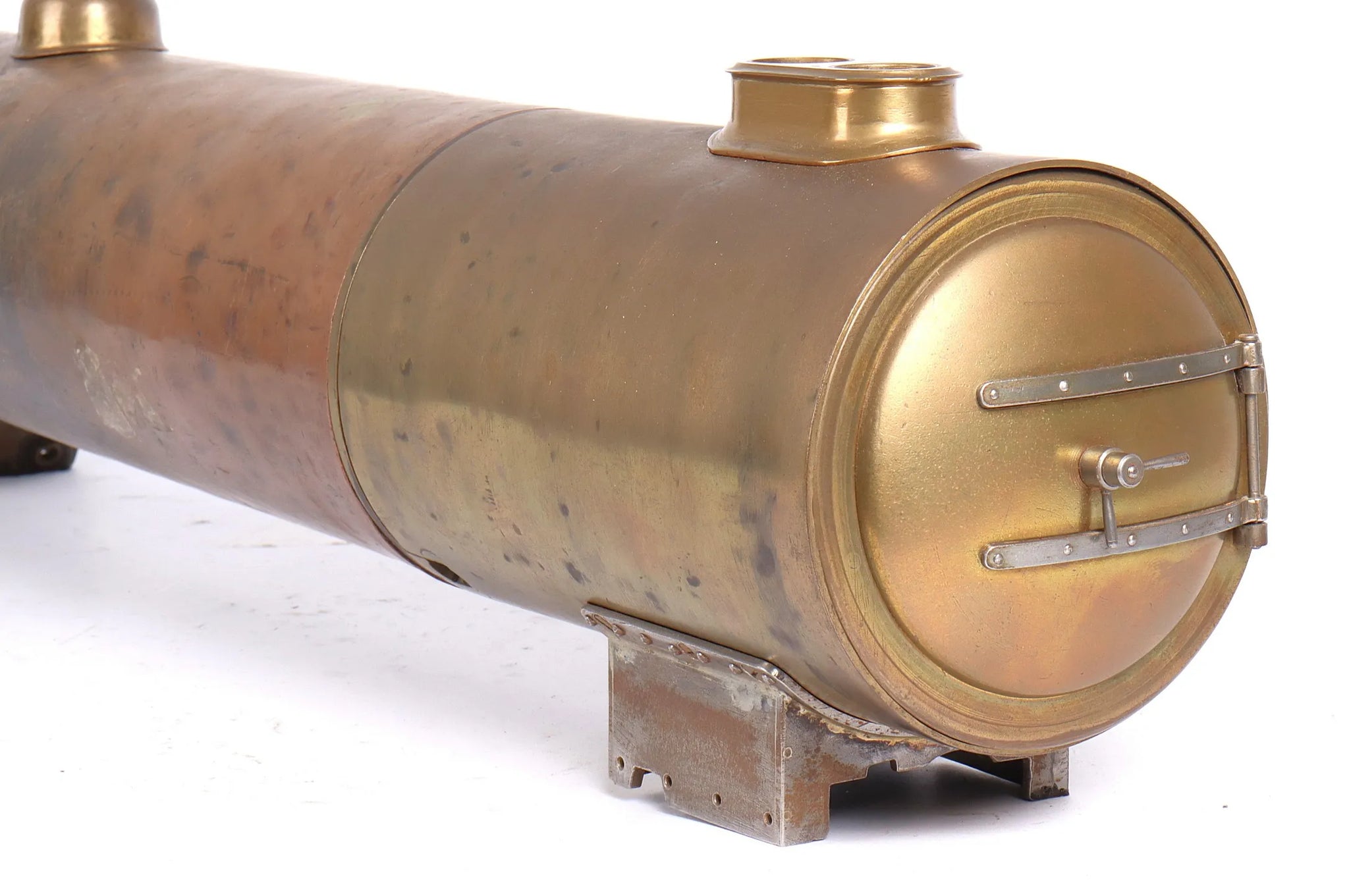

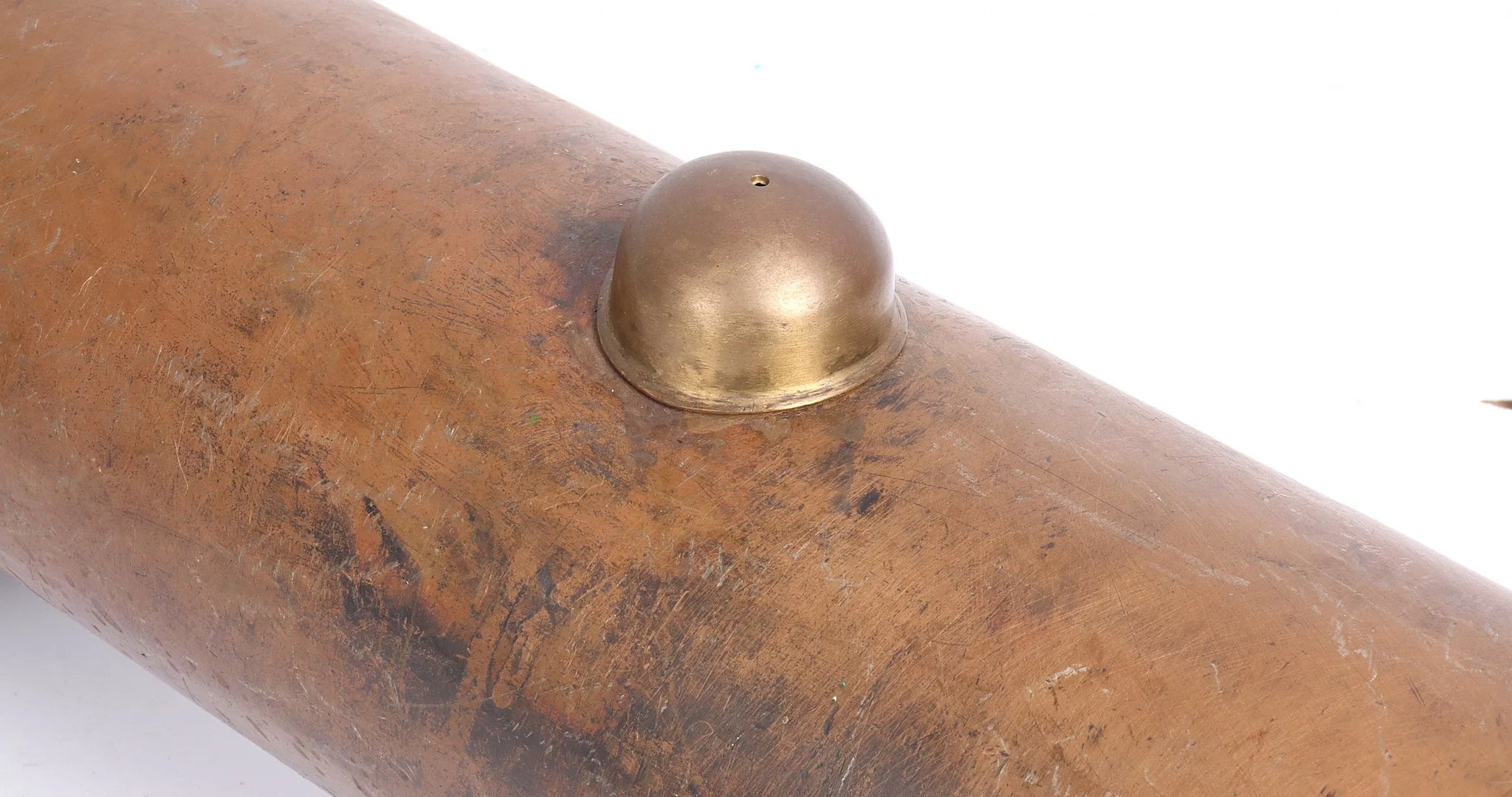

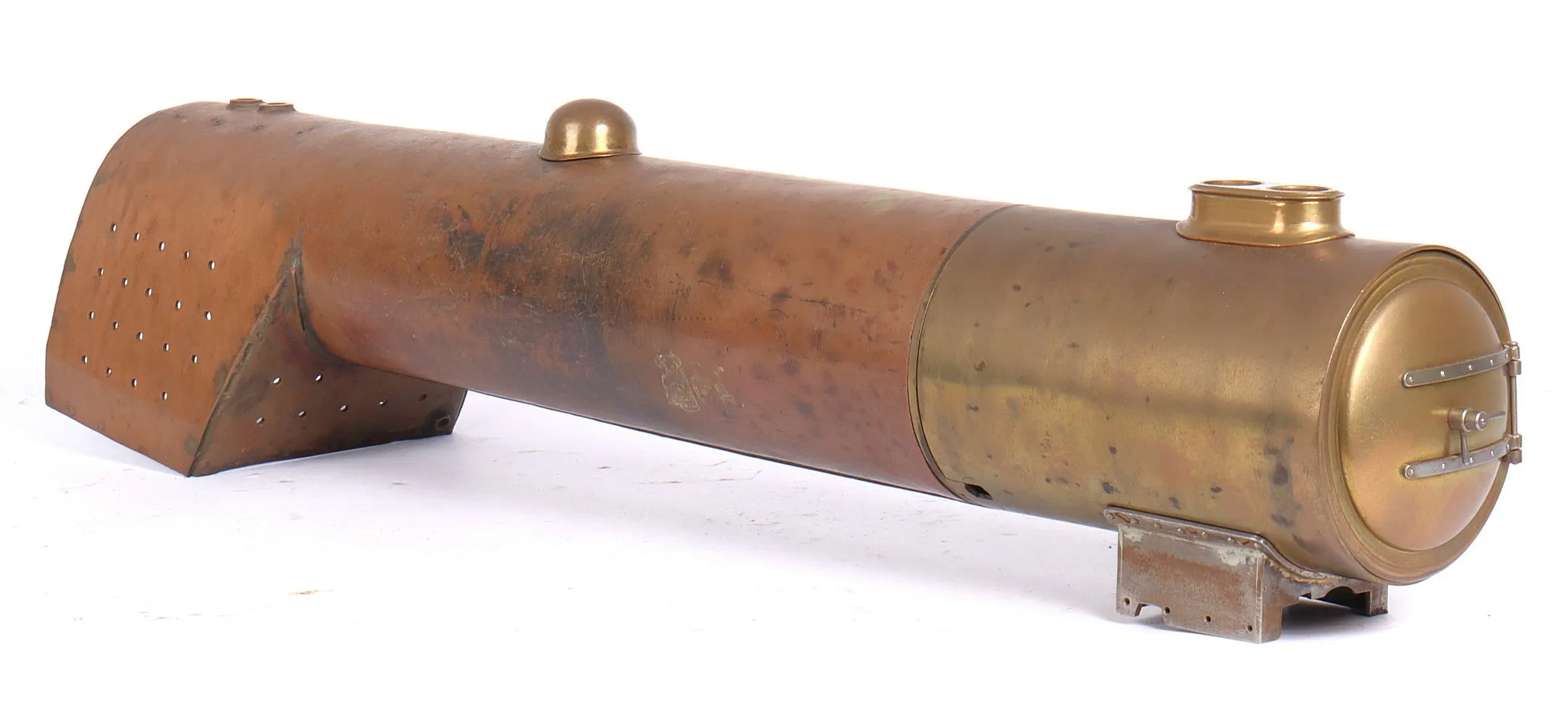

Work to date is to a good standard, the project apparently having stalled at an early stage of making the boiler, which currently comprises a barrel and outer wrapper.

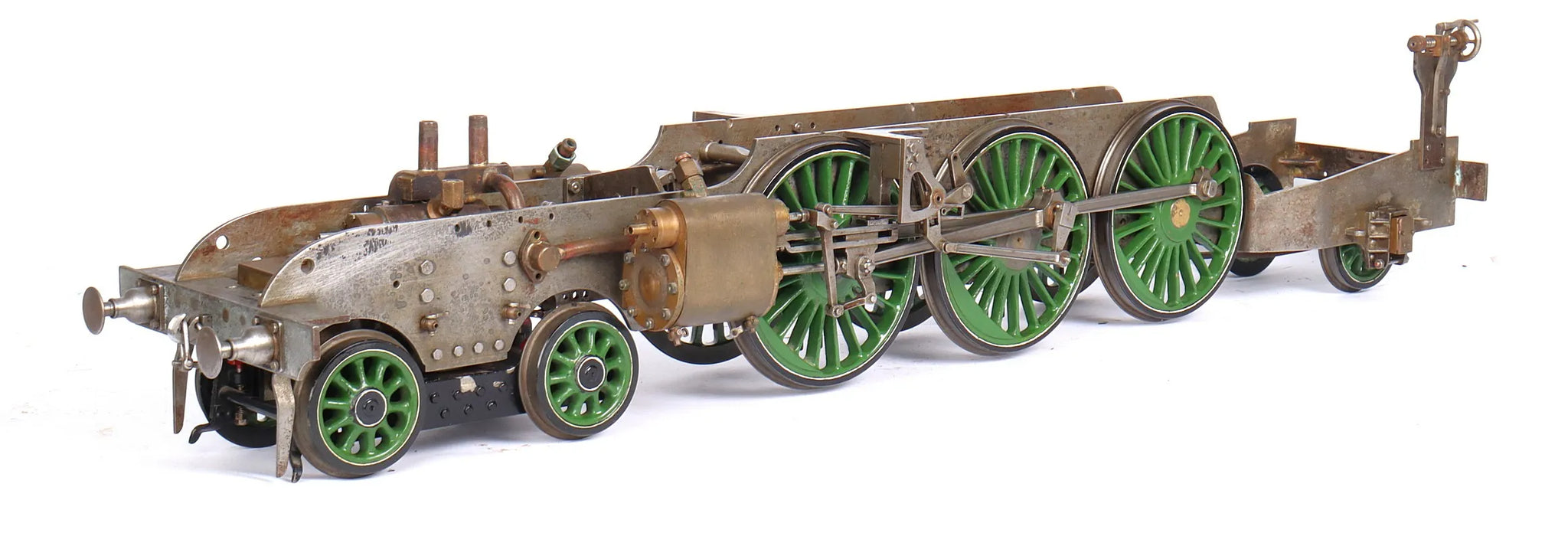

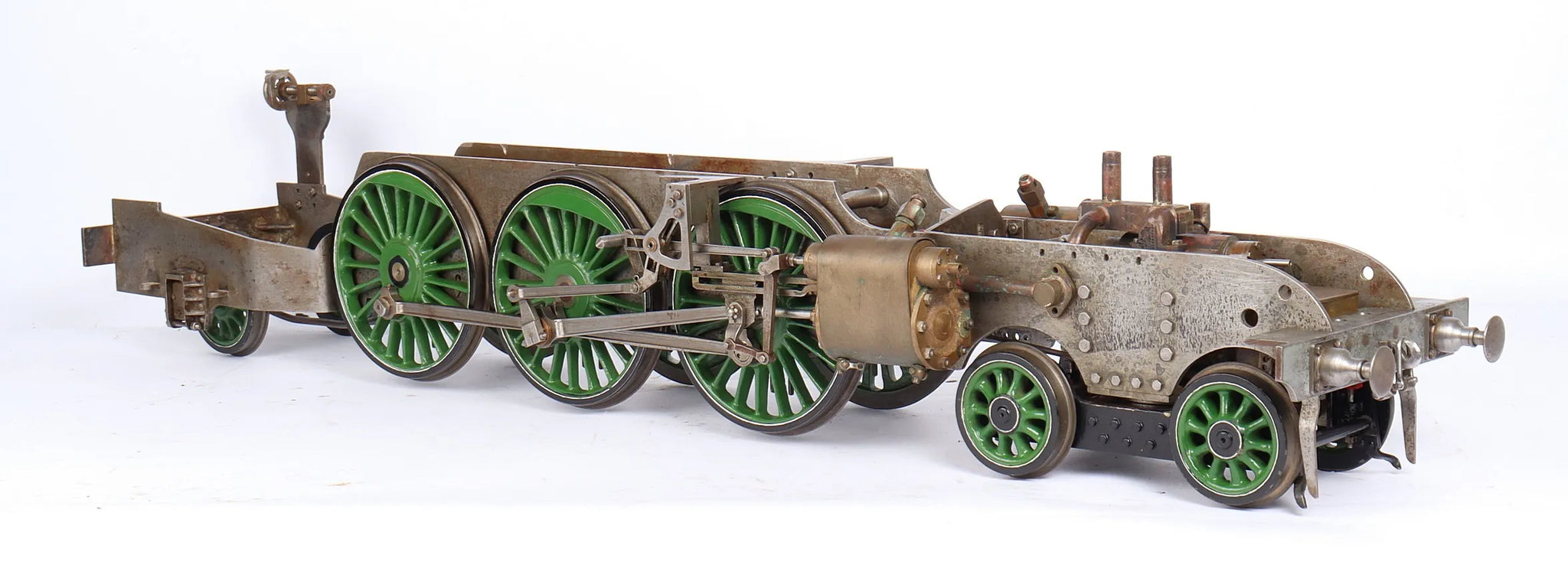

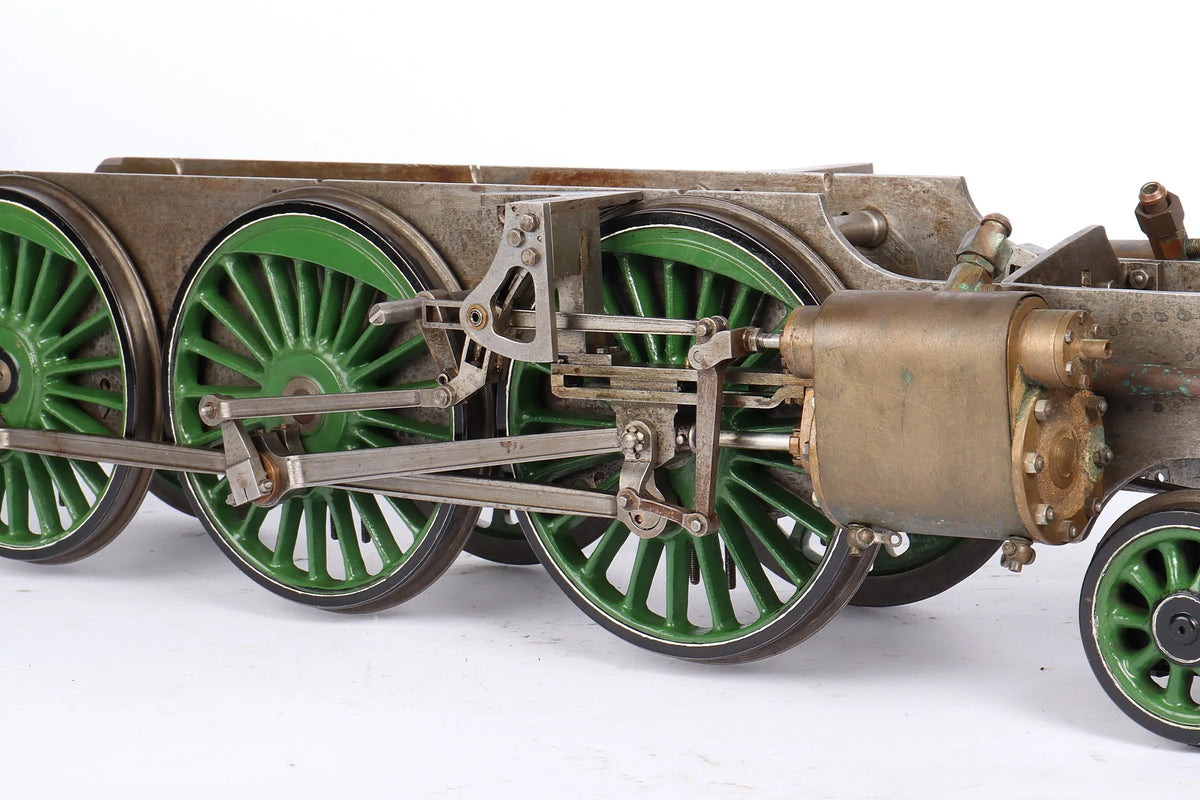

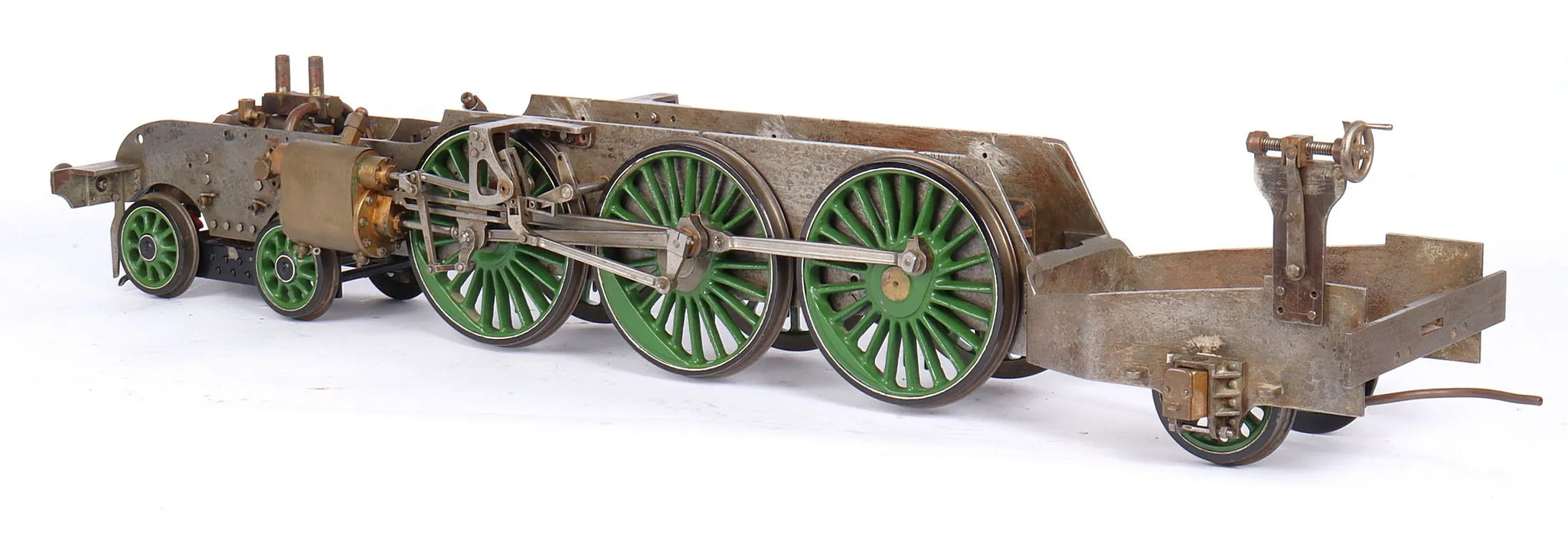

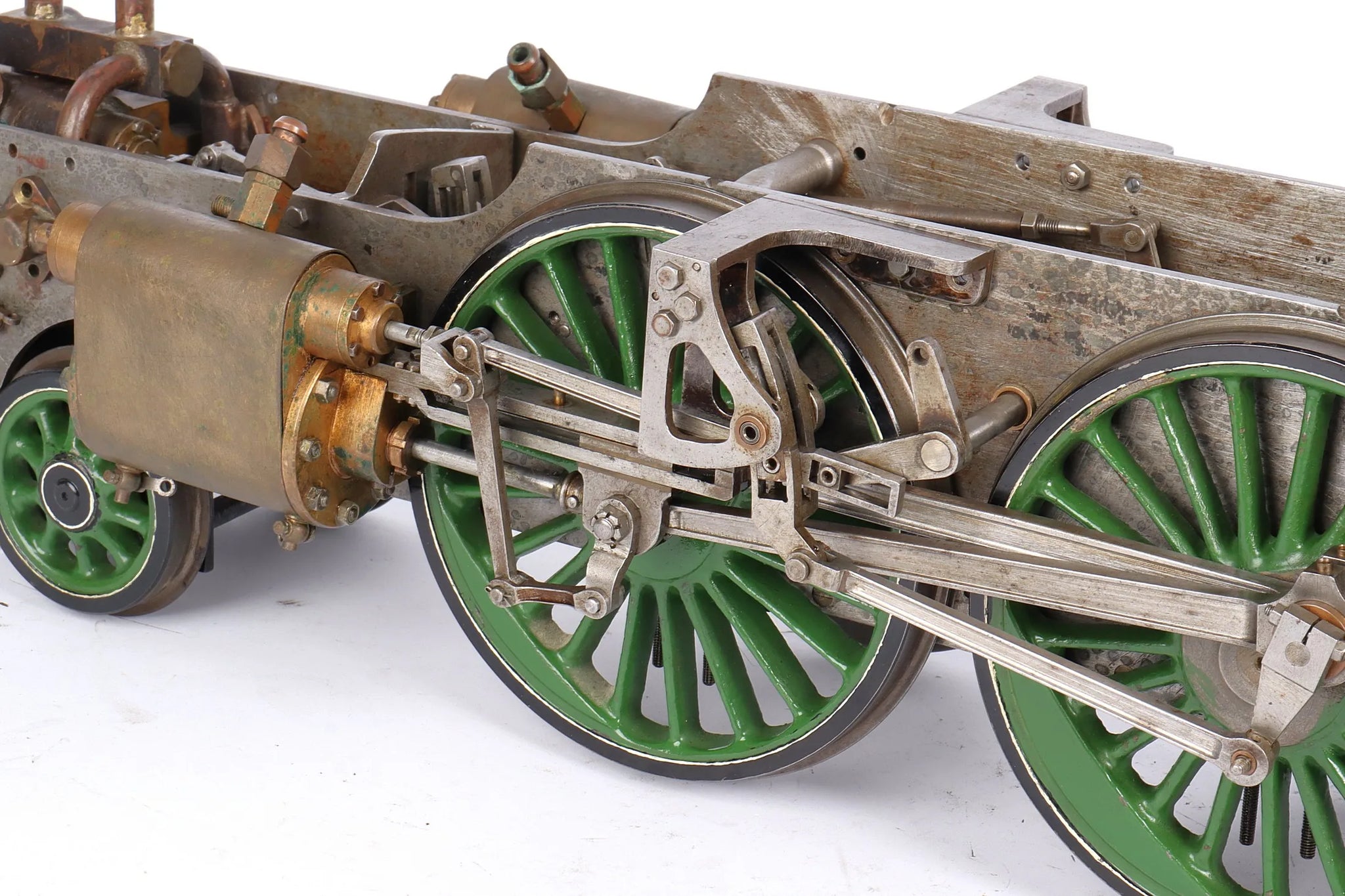

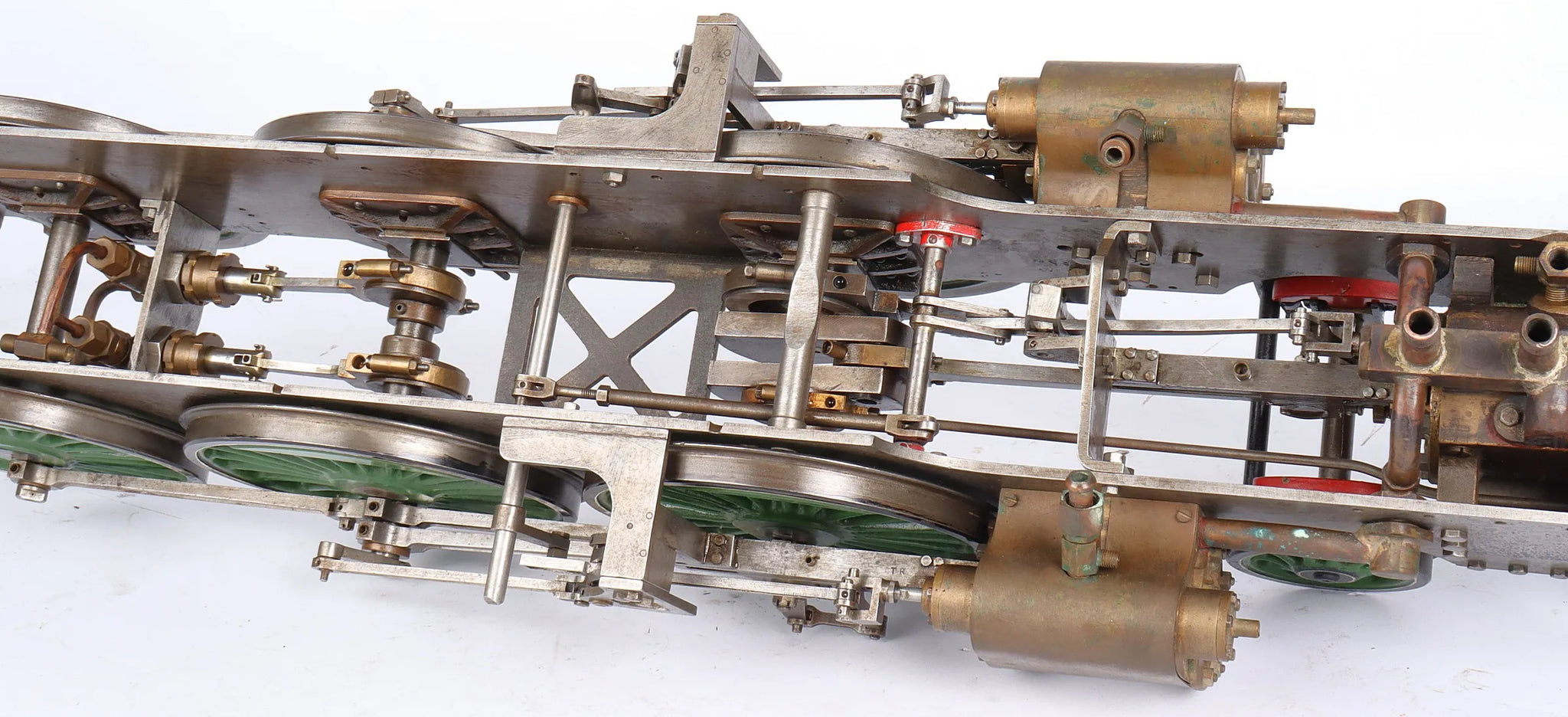

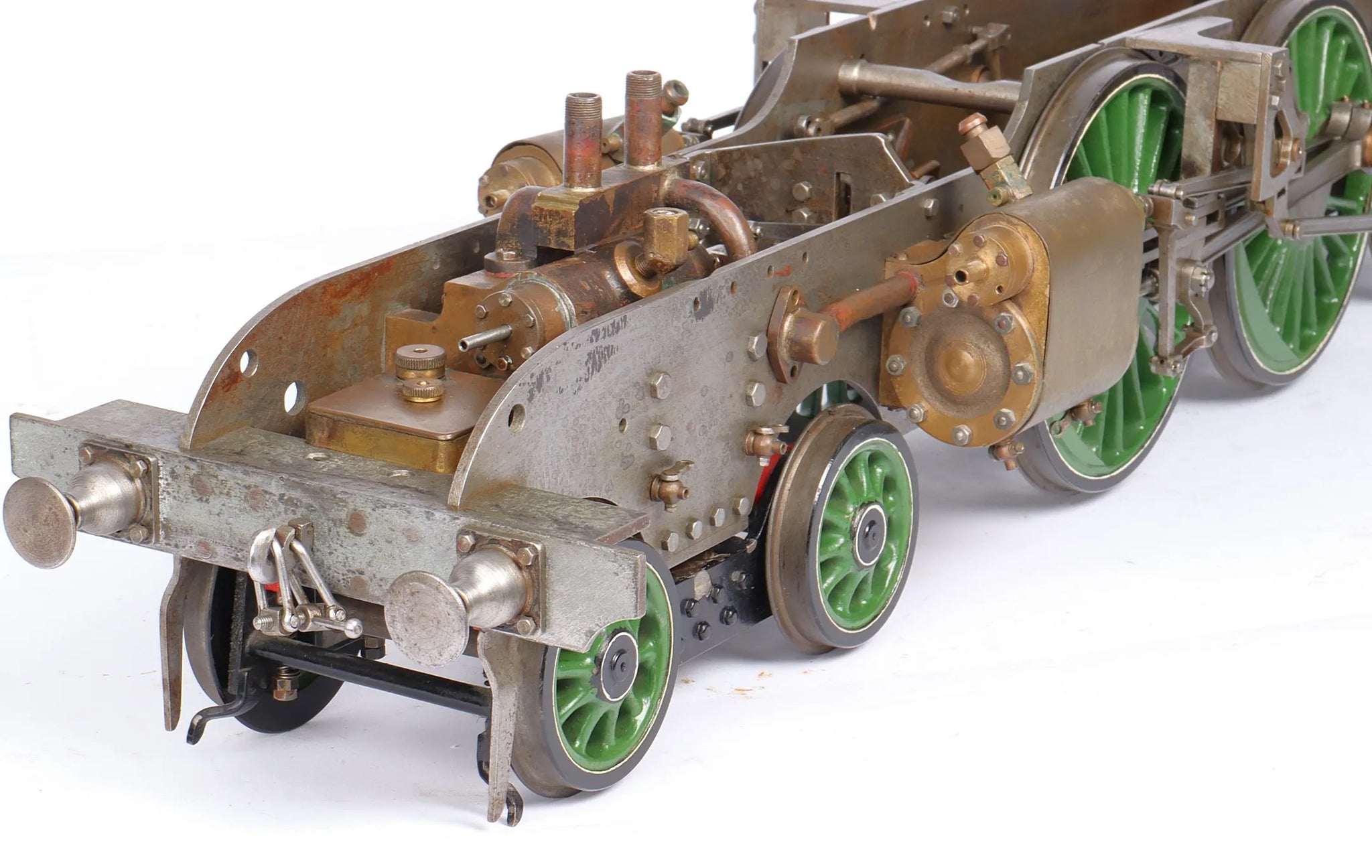

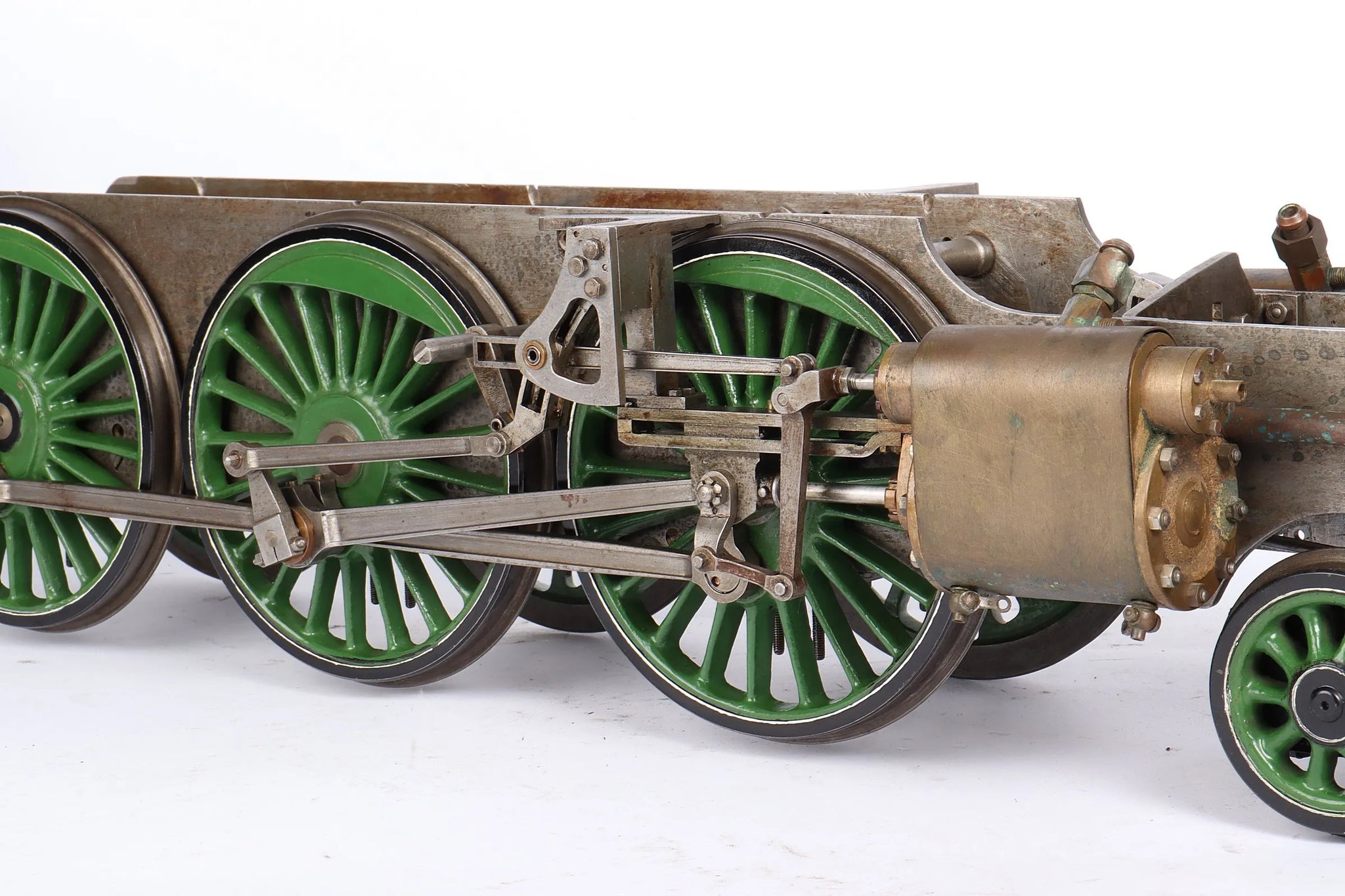

Missing its axlebox springs, the chassis turns over freely when upside down - with new springs fitted we suspect it would run on air.

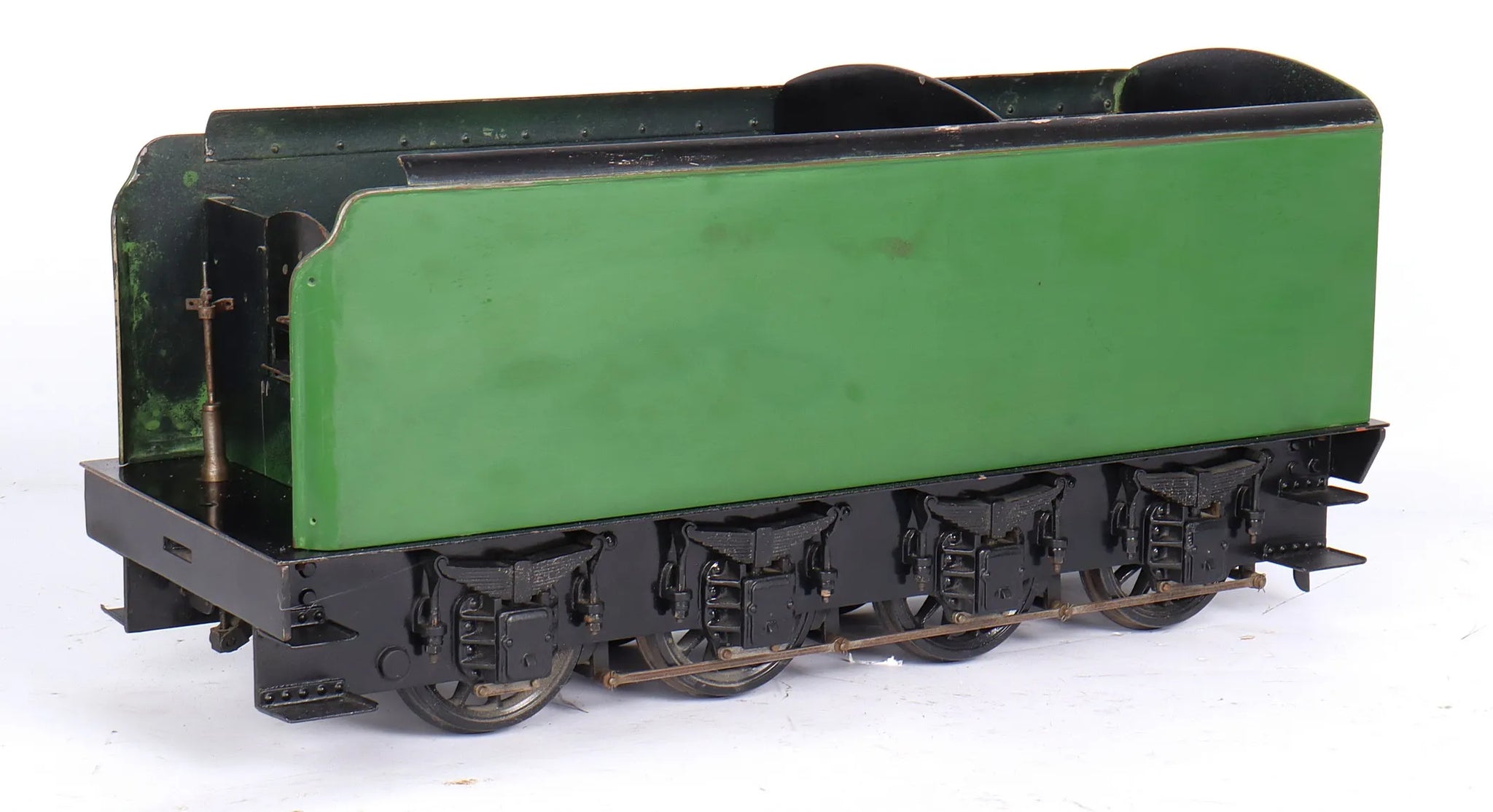

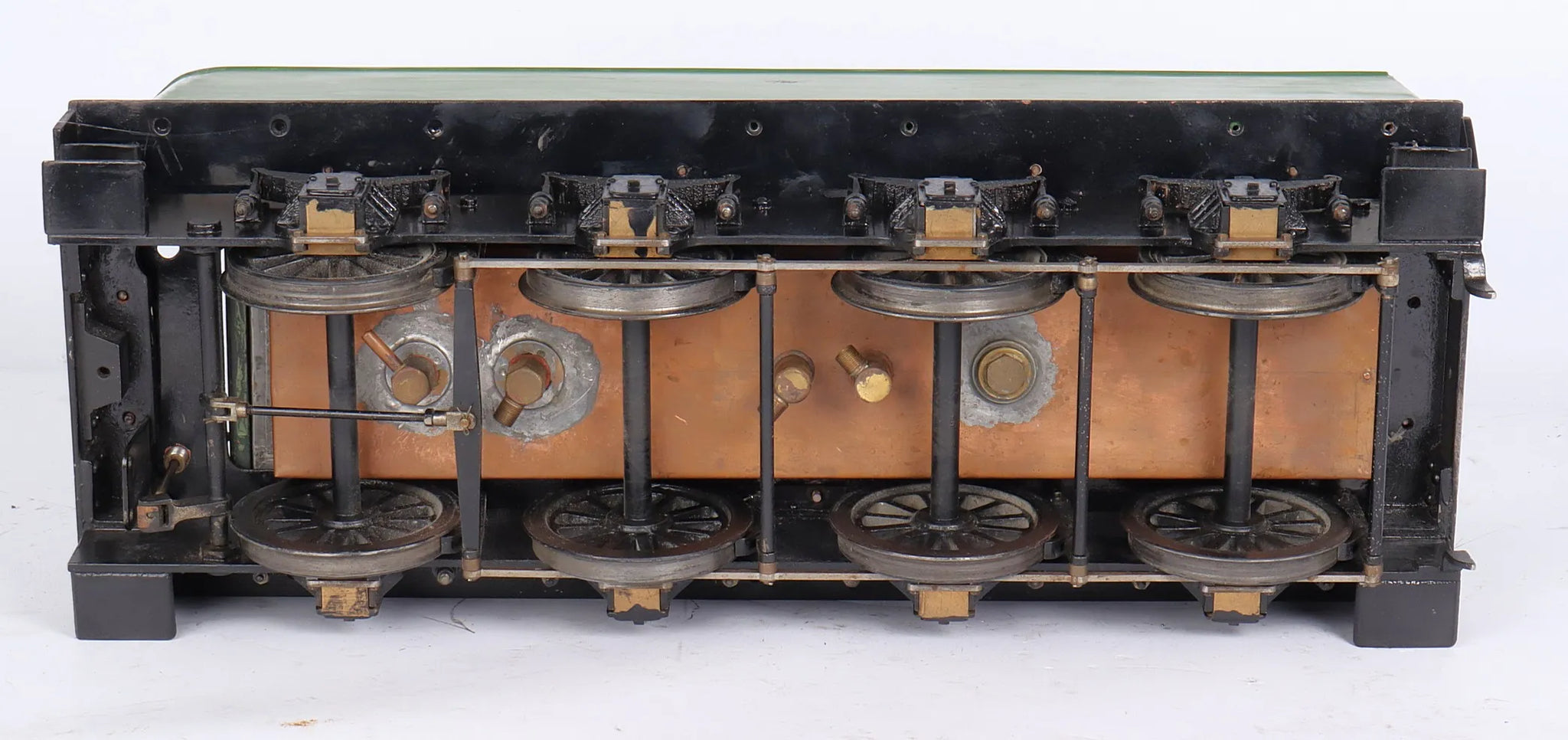

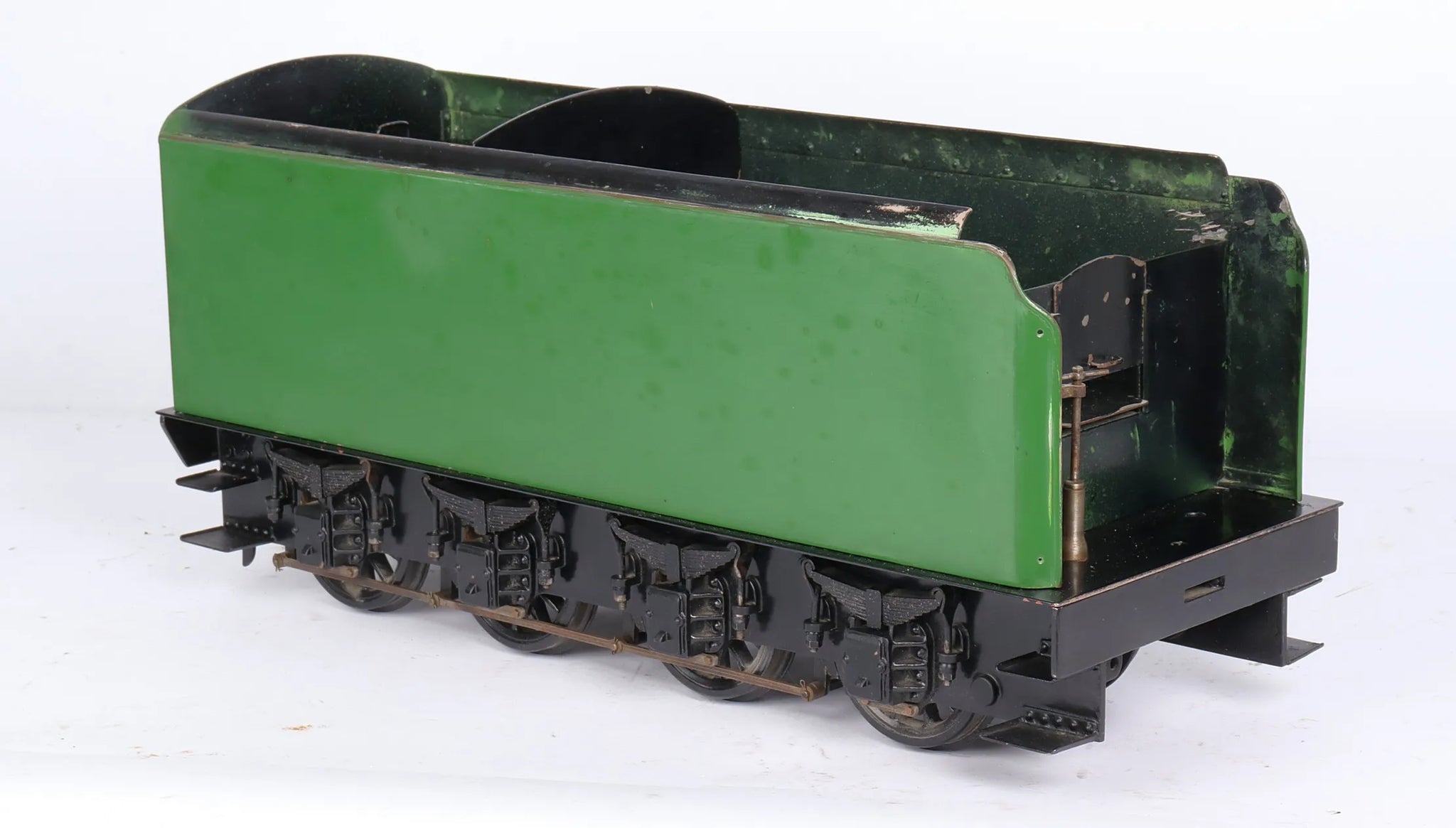

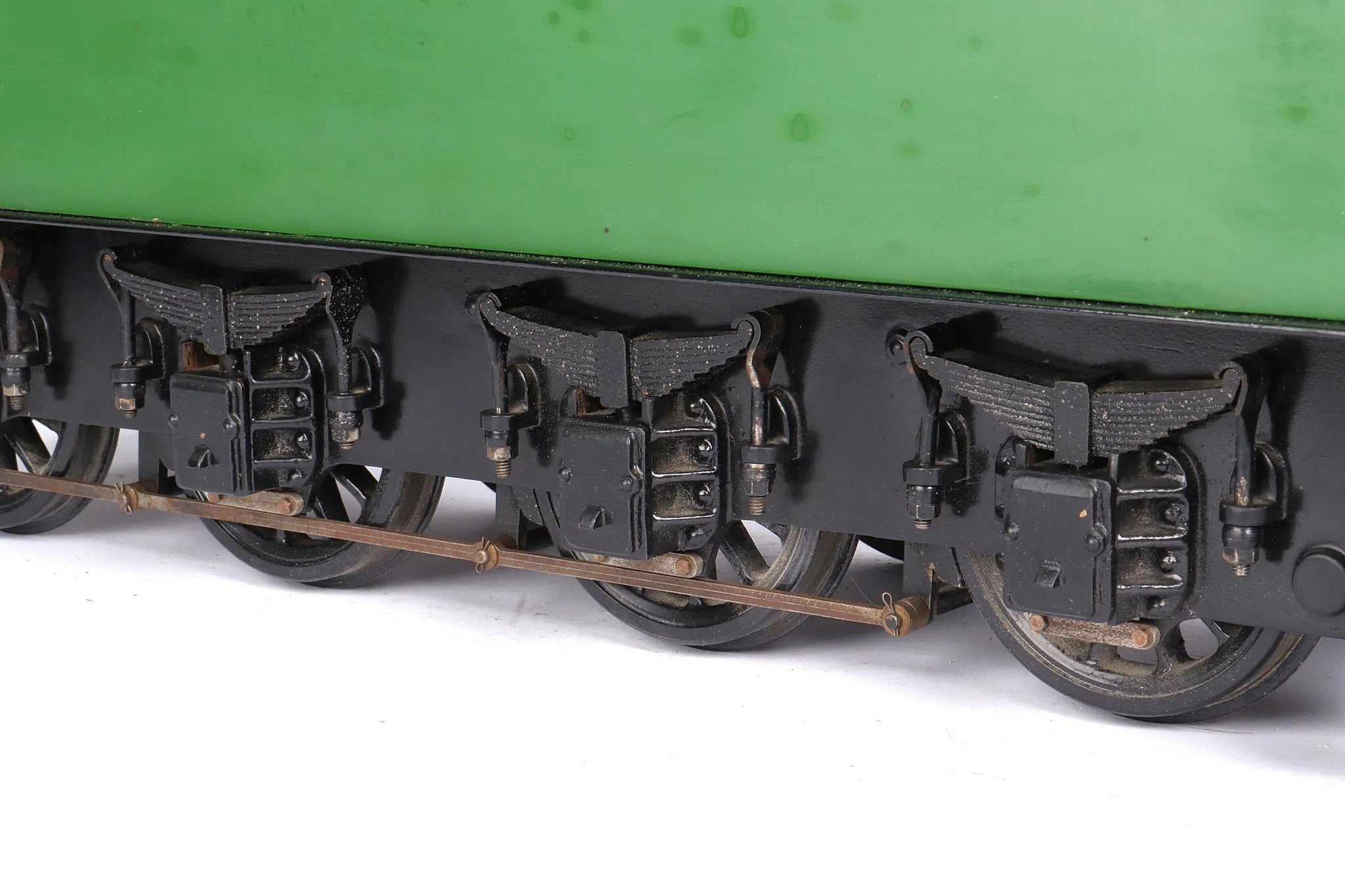

The tender is largely complete, the body loosely fitted to the chassis.
Stock code |
13198 |
Gauge |
3 1/2 inch |
Length/inches |
38 + 19 |
Width/inches |
7 |
Height/inches |
10 |
Weight/Kg |
23 + 13 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
3 x gunmetal |
Valve type |
slide |
Valve gear |
Walschaerts |
Reverser type |
screw |
Boiler material |
copper |
Mechanical pump |
2 |
Date out |
Dec-25 |
