8347

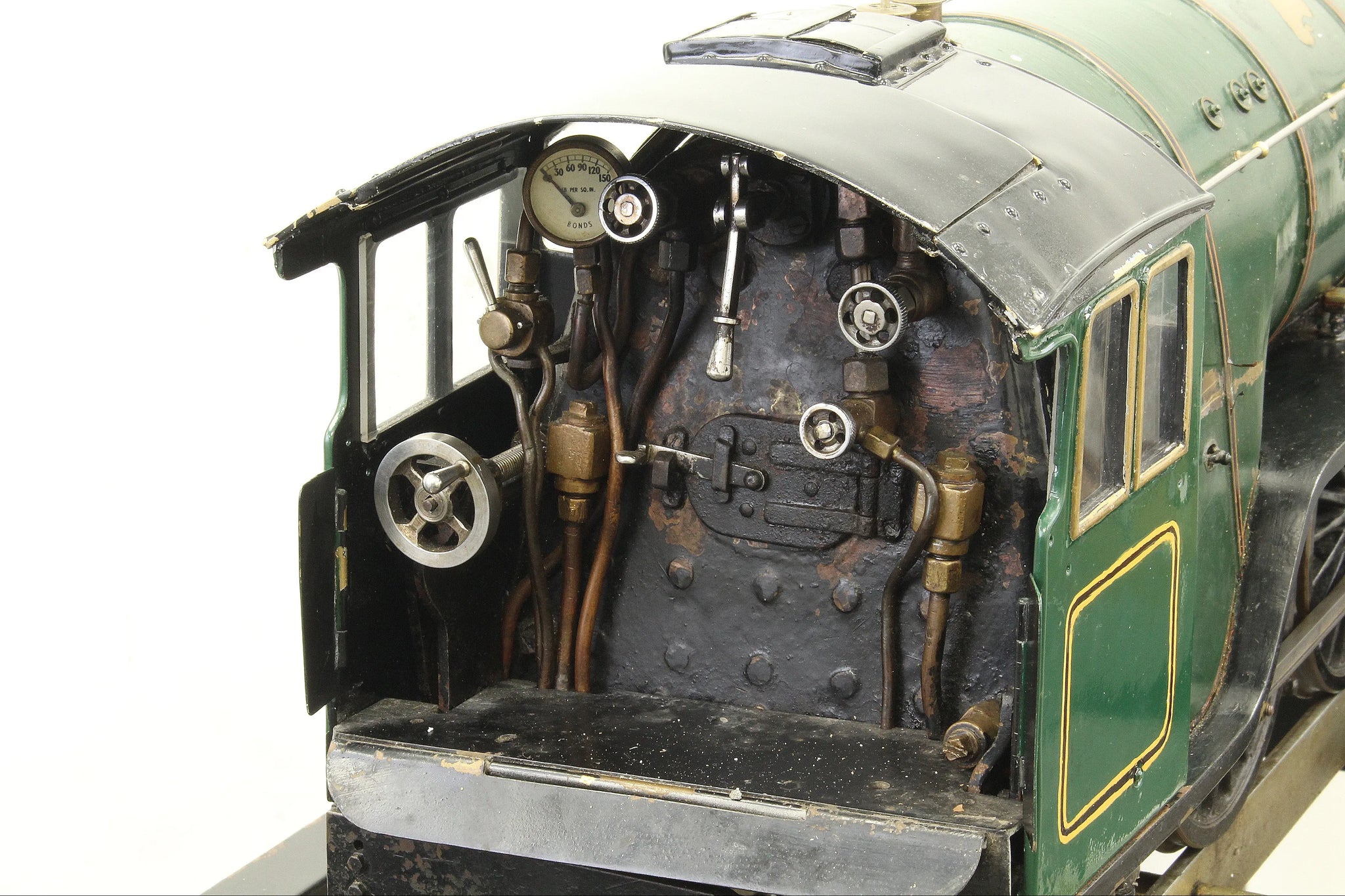

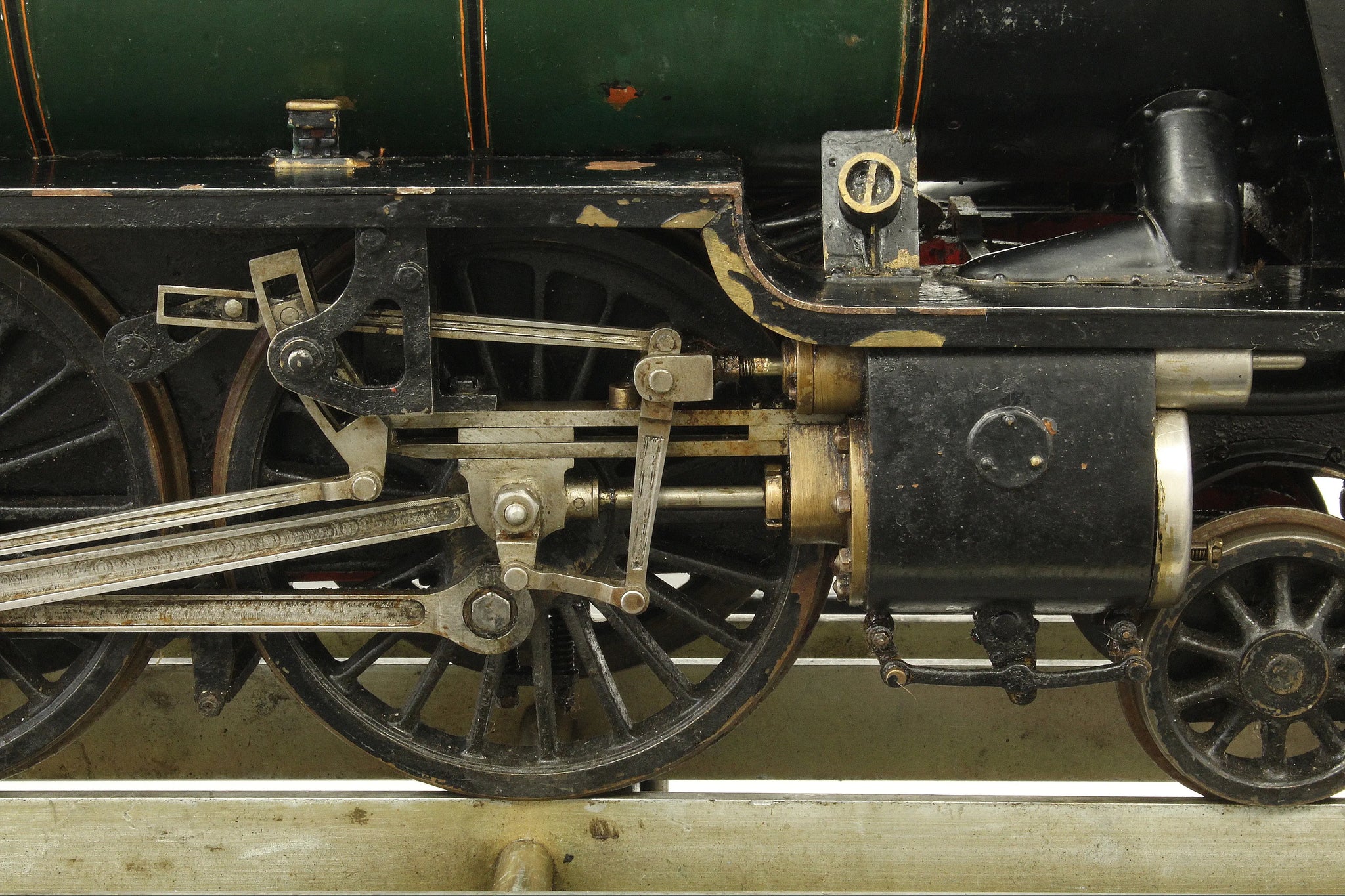

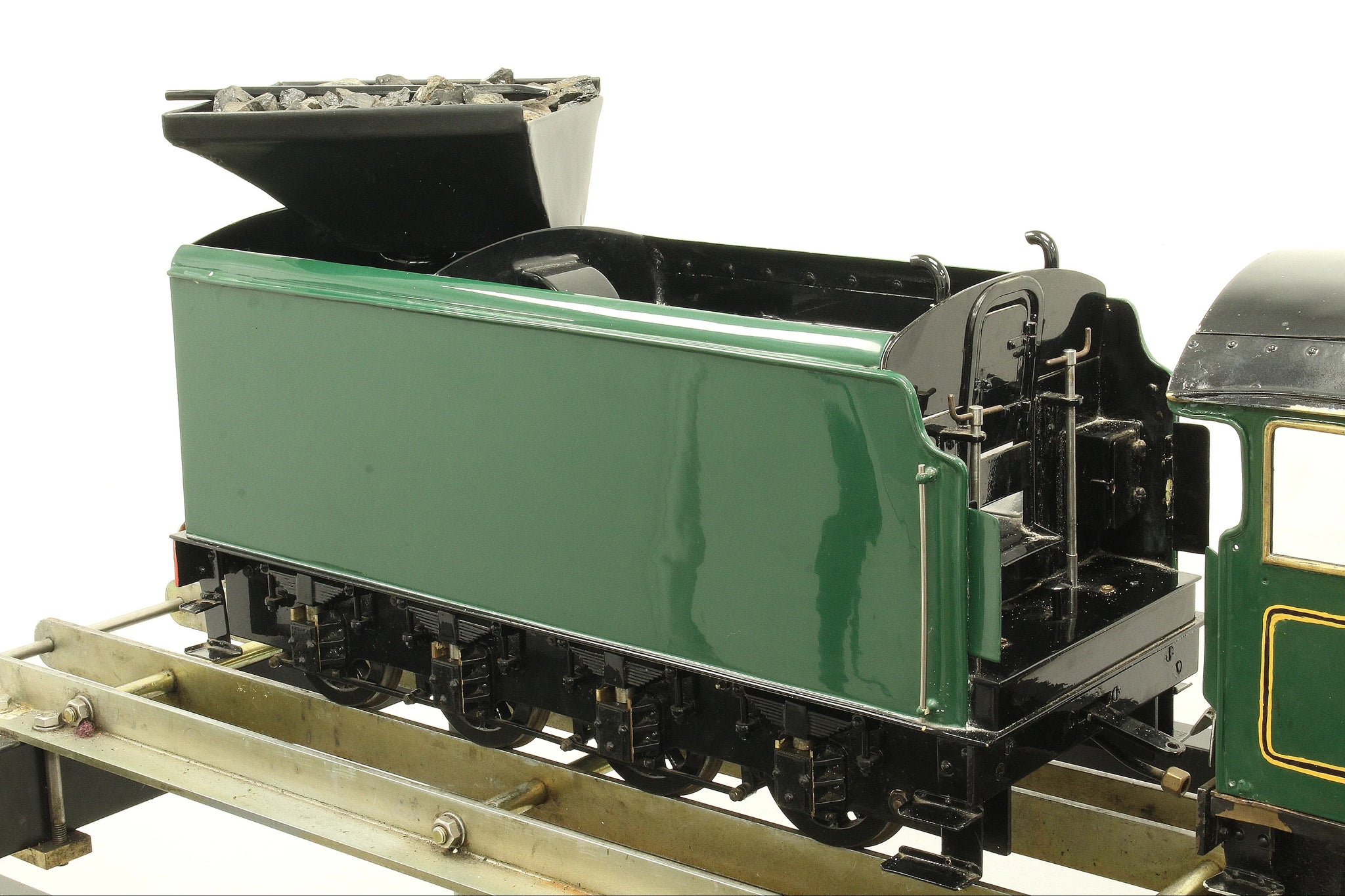

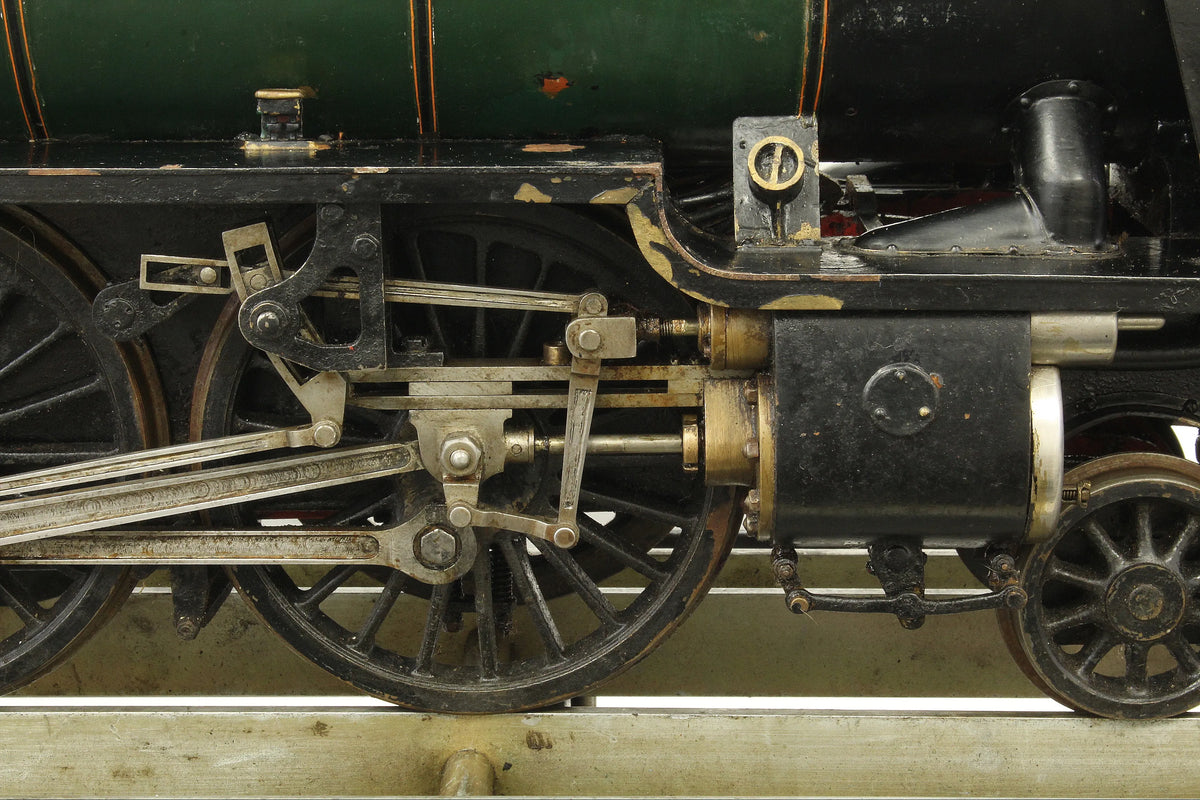

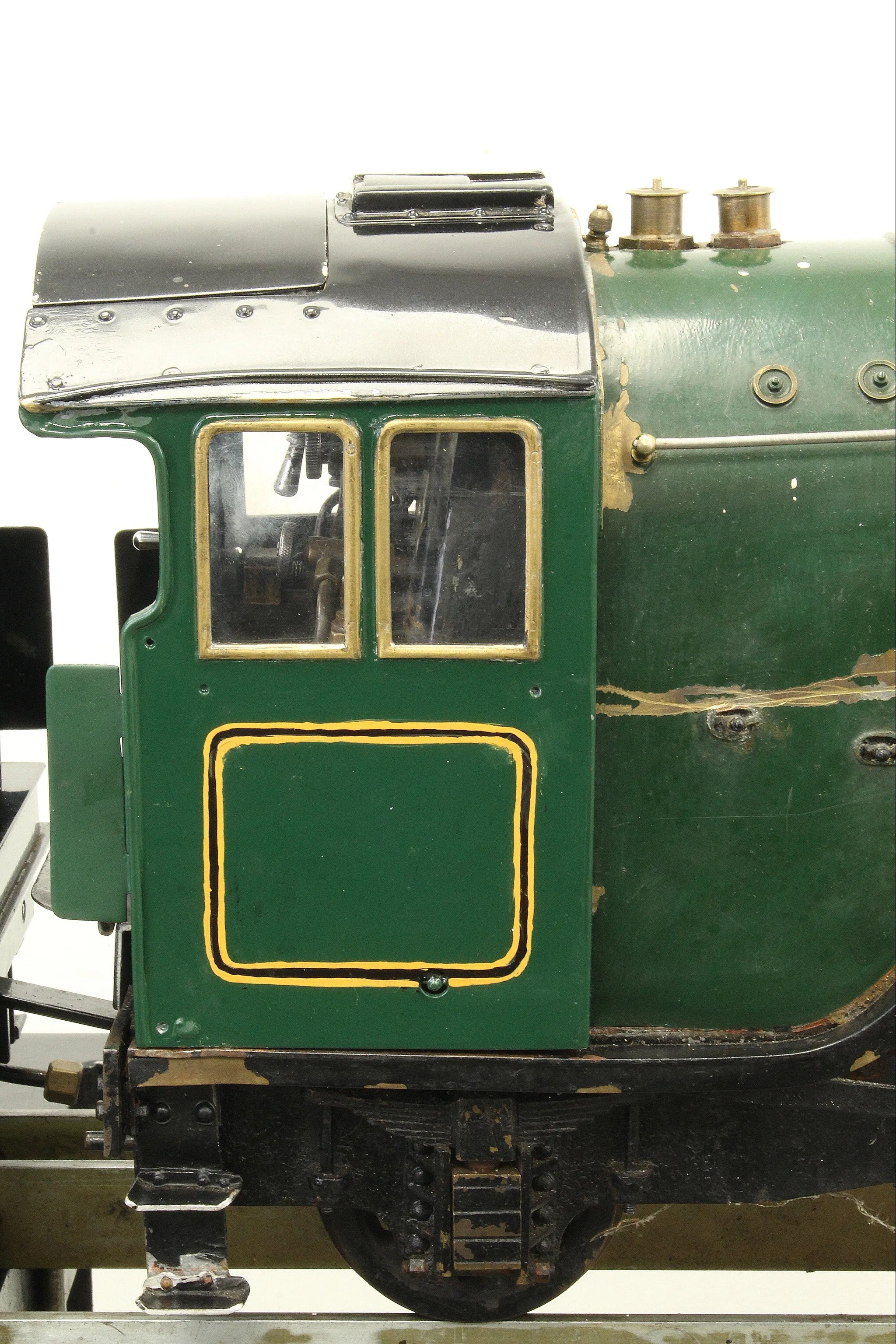

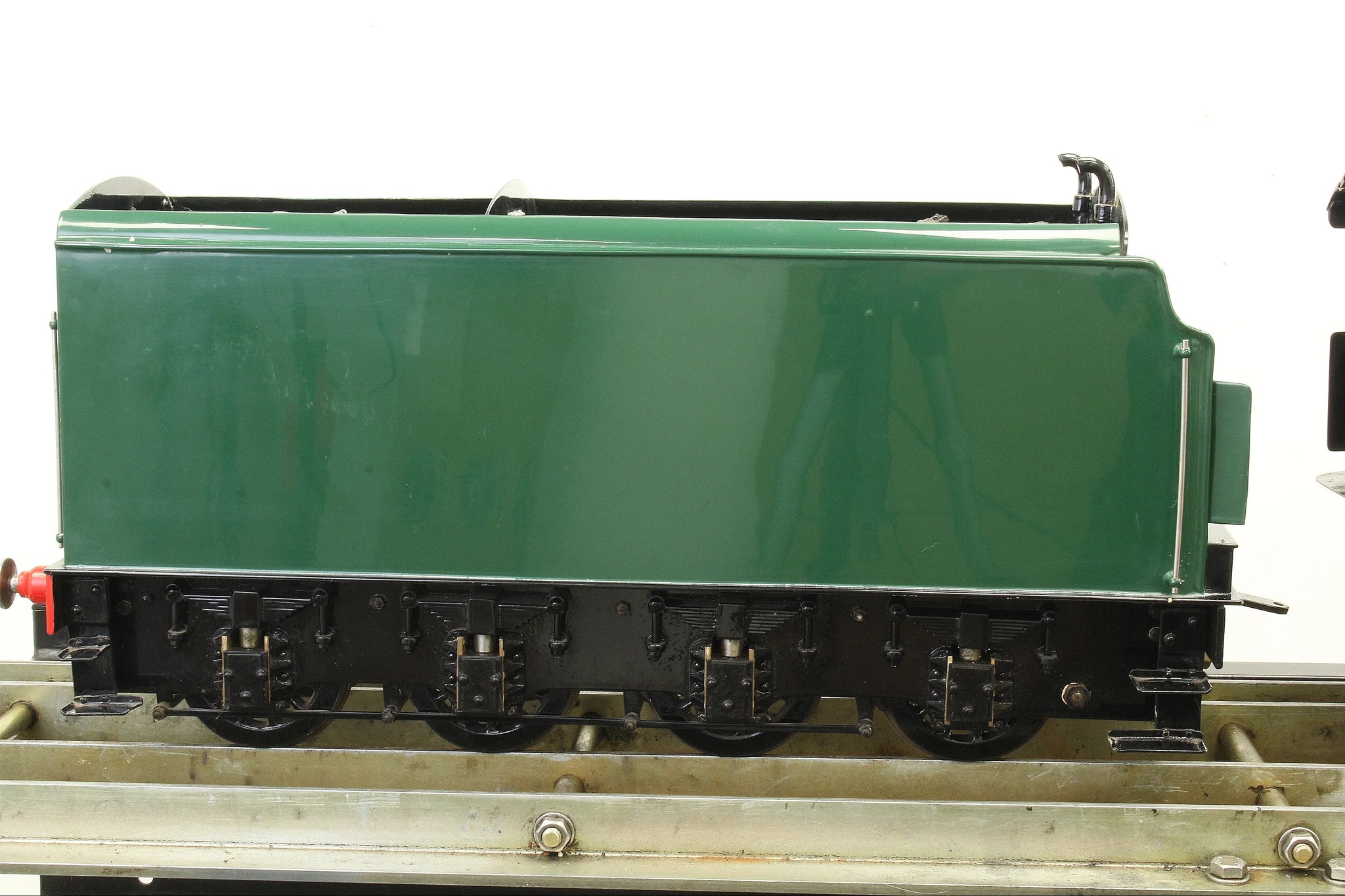

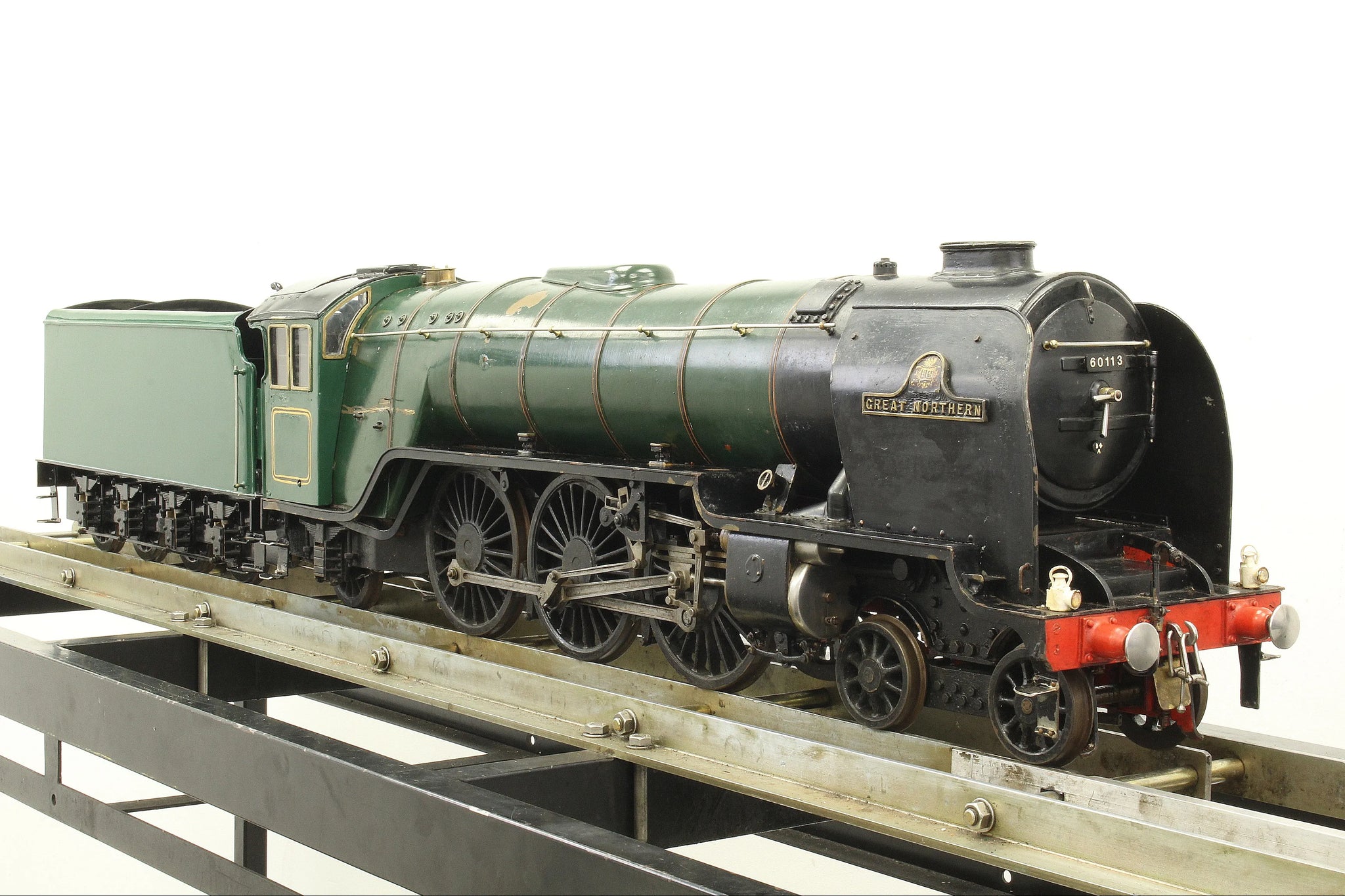

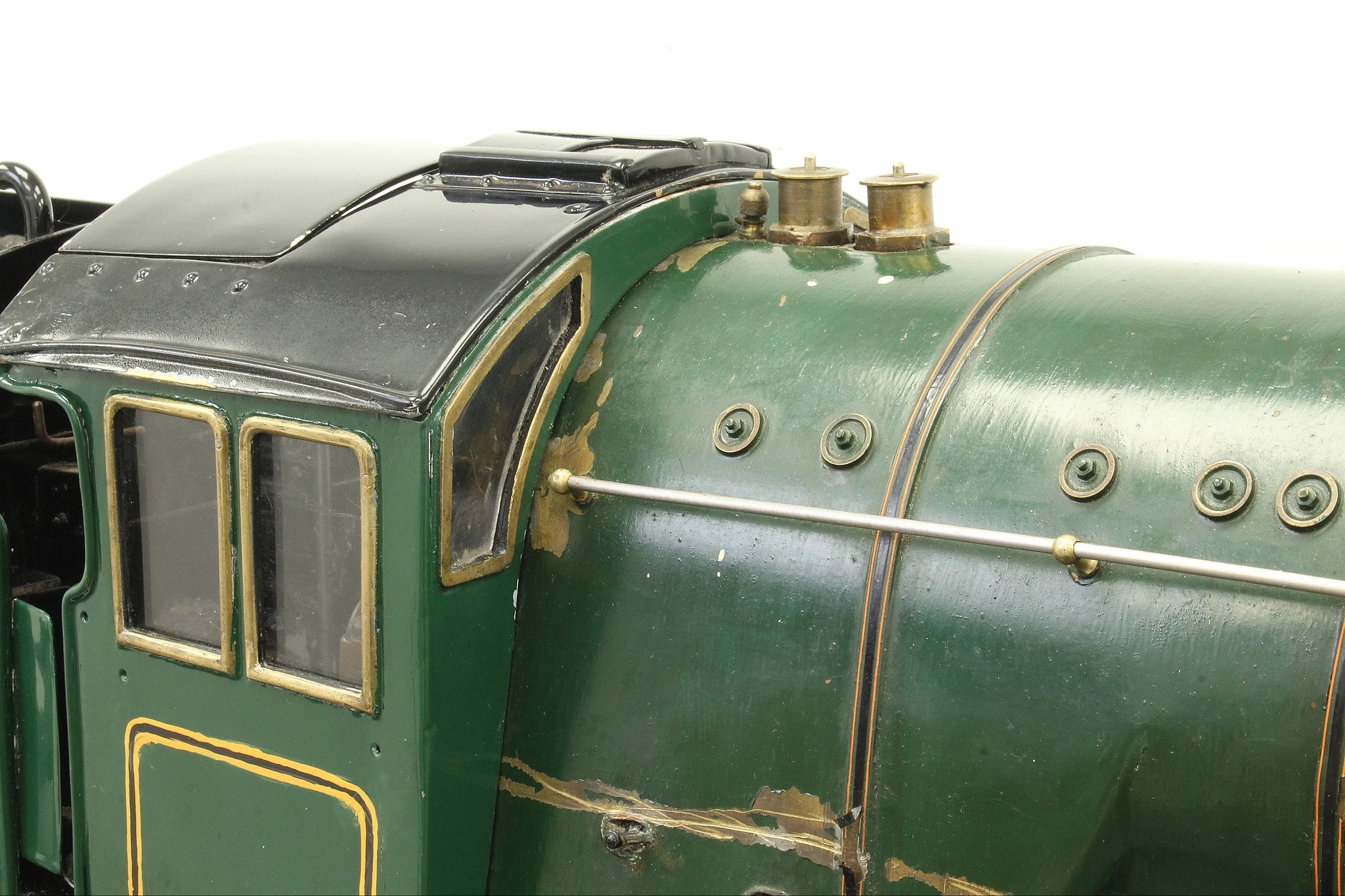

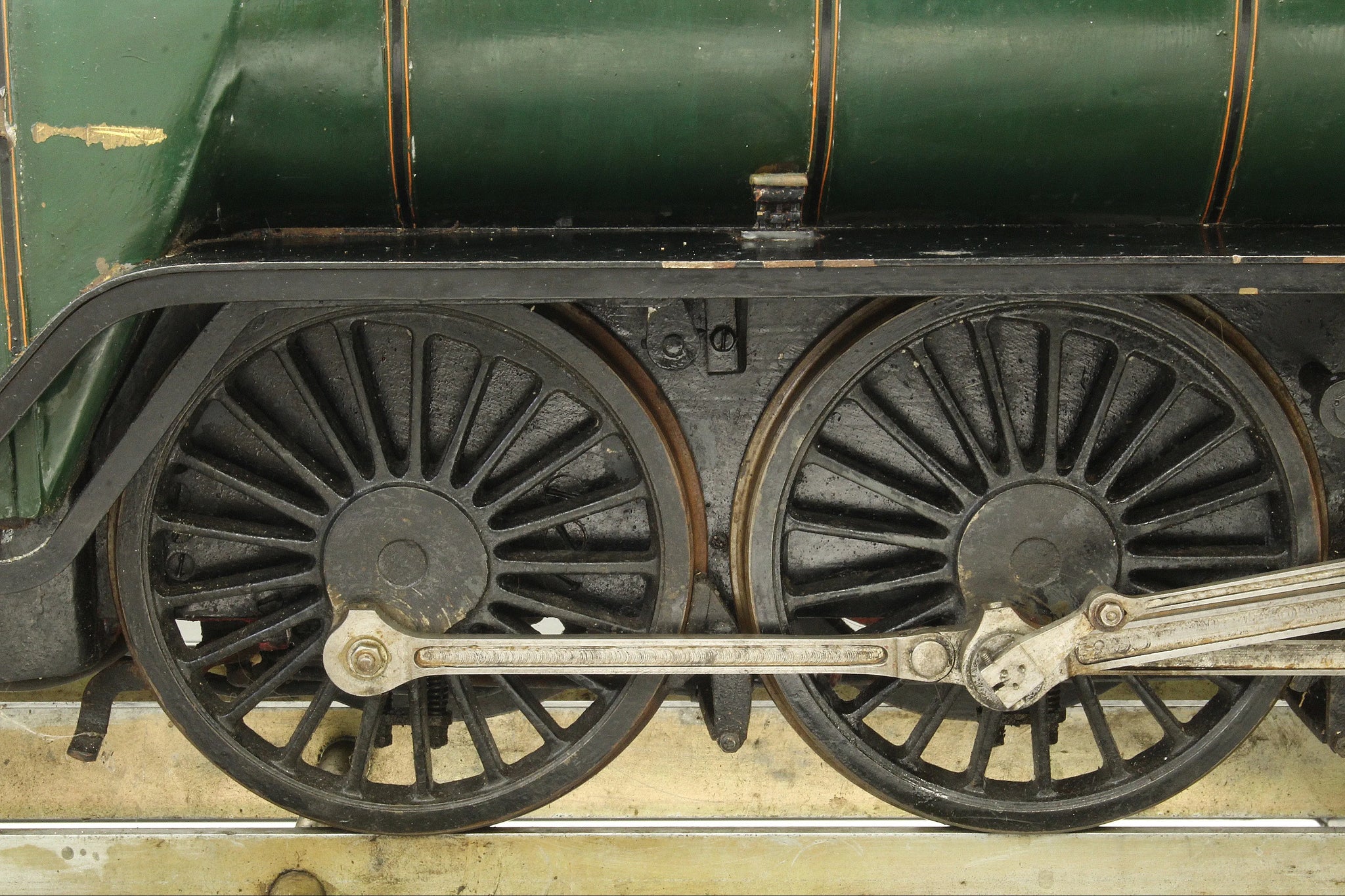

A stalled restoration project, the tender has been finely repainted (and provided with a plastic coal hopper to protect the paintwork), the locomotive cab as well, although pretty hopelessly lined. The rest of the paintwork is shabby, there is wear to the motionwork which will require some rebushing.
Boiler has had a twice working pressure hydraulic test and is warrantied as sound, the chassis runs on air.
Stock code |
8347 |
Length/inches |
35+21 |
Width/inches |
8 |
Height/inches |
11 |
Wheel material |
cast iron |
Axlebox type |
plain |
Cylinder material |
gunmetal, three cylinder |
Valve type |
piston |
Valve gear |
Walschaerts |
Reverser type |
screw |
Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver-soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a - non-commercial |
Boiler number |
8347 |
Safety valve type |
spring |
Safety valve |
2 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 x axle |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
4 |
Pack |
Single half pallet |
Date out |
Jan-19 |
Hydraulic test valid to |
13-Jan-23 |
