10948

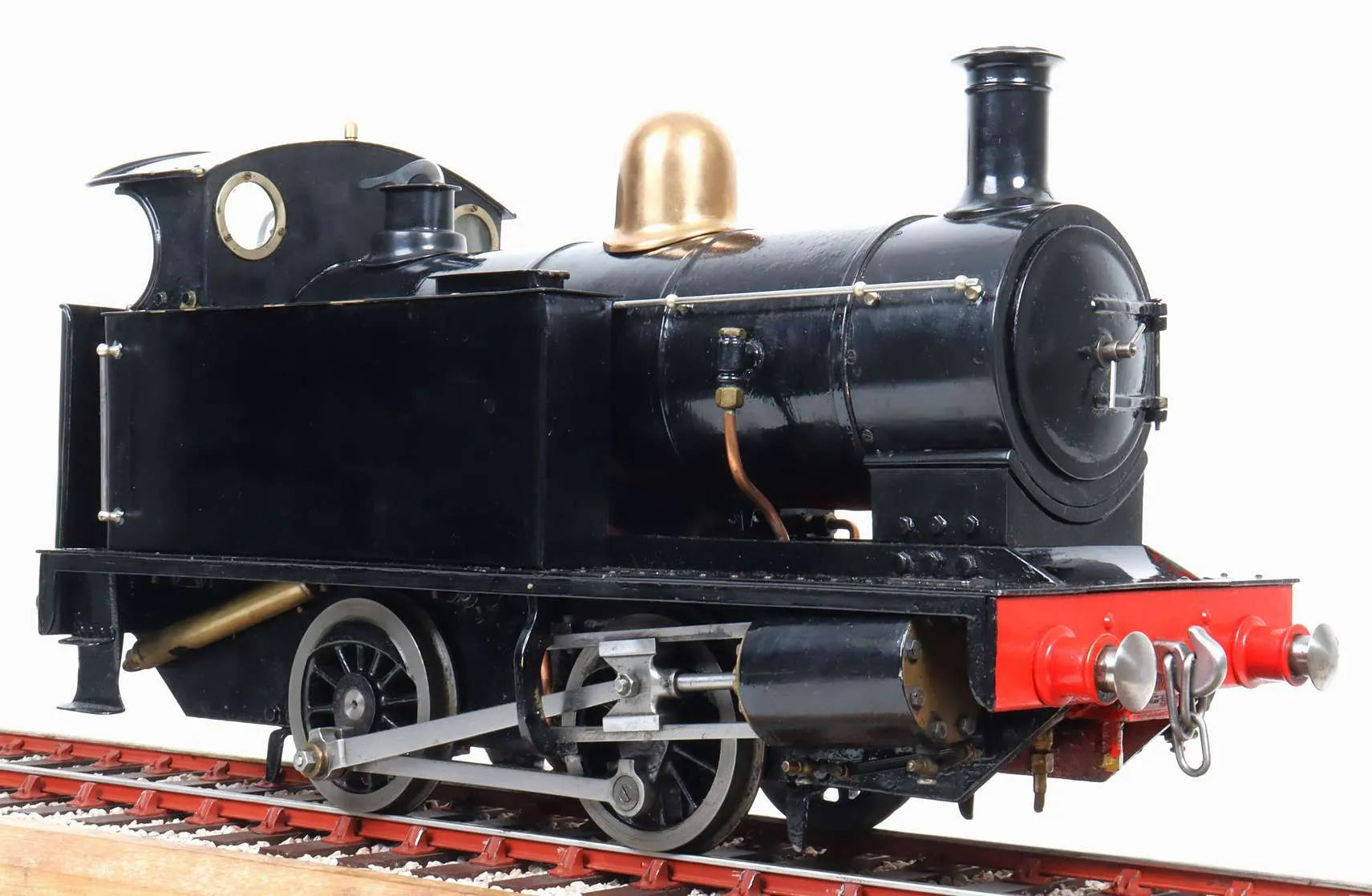

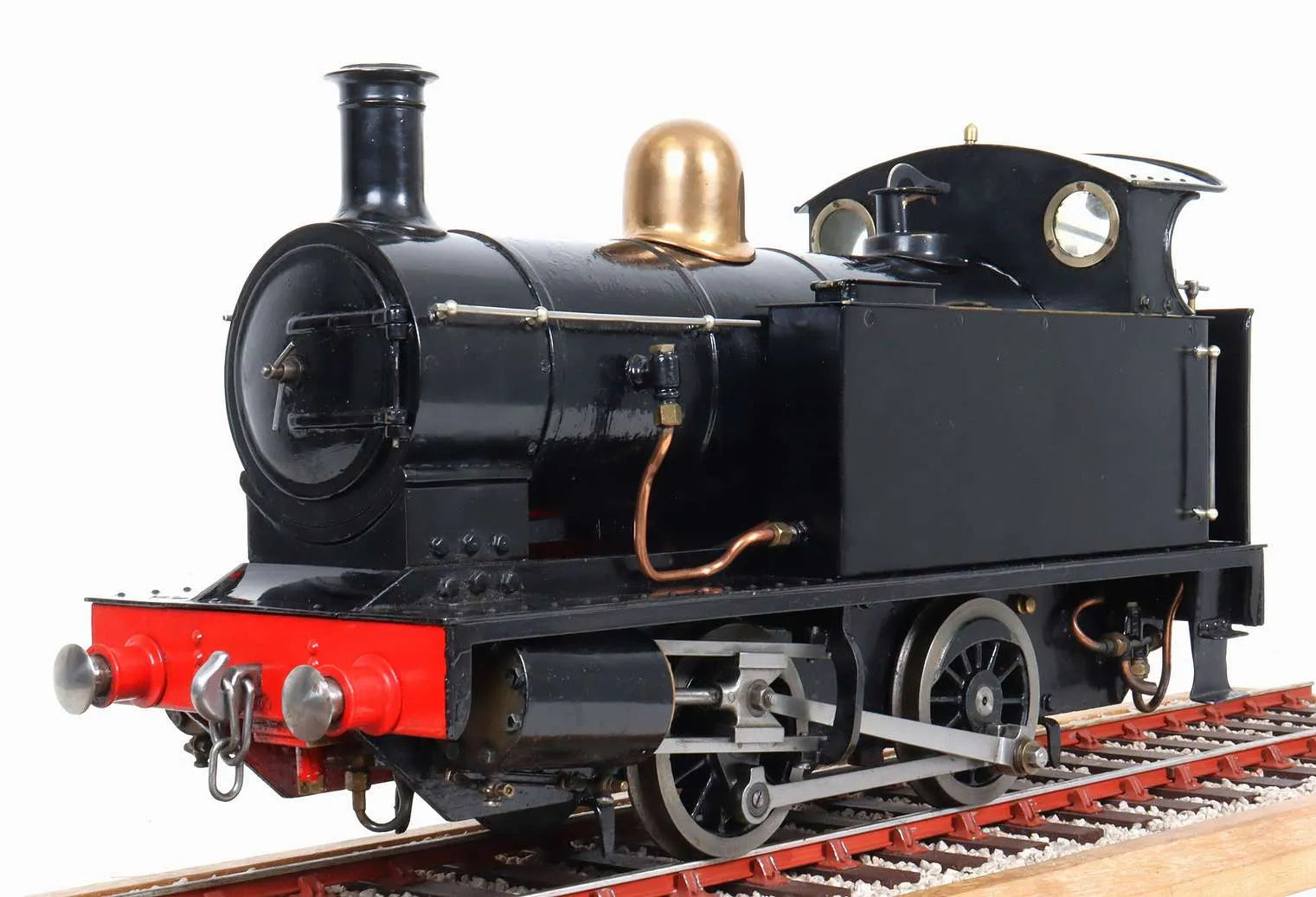

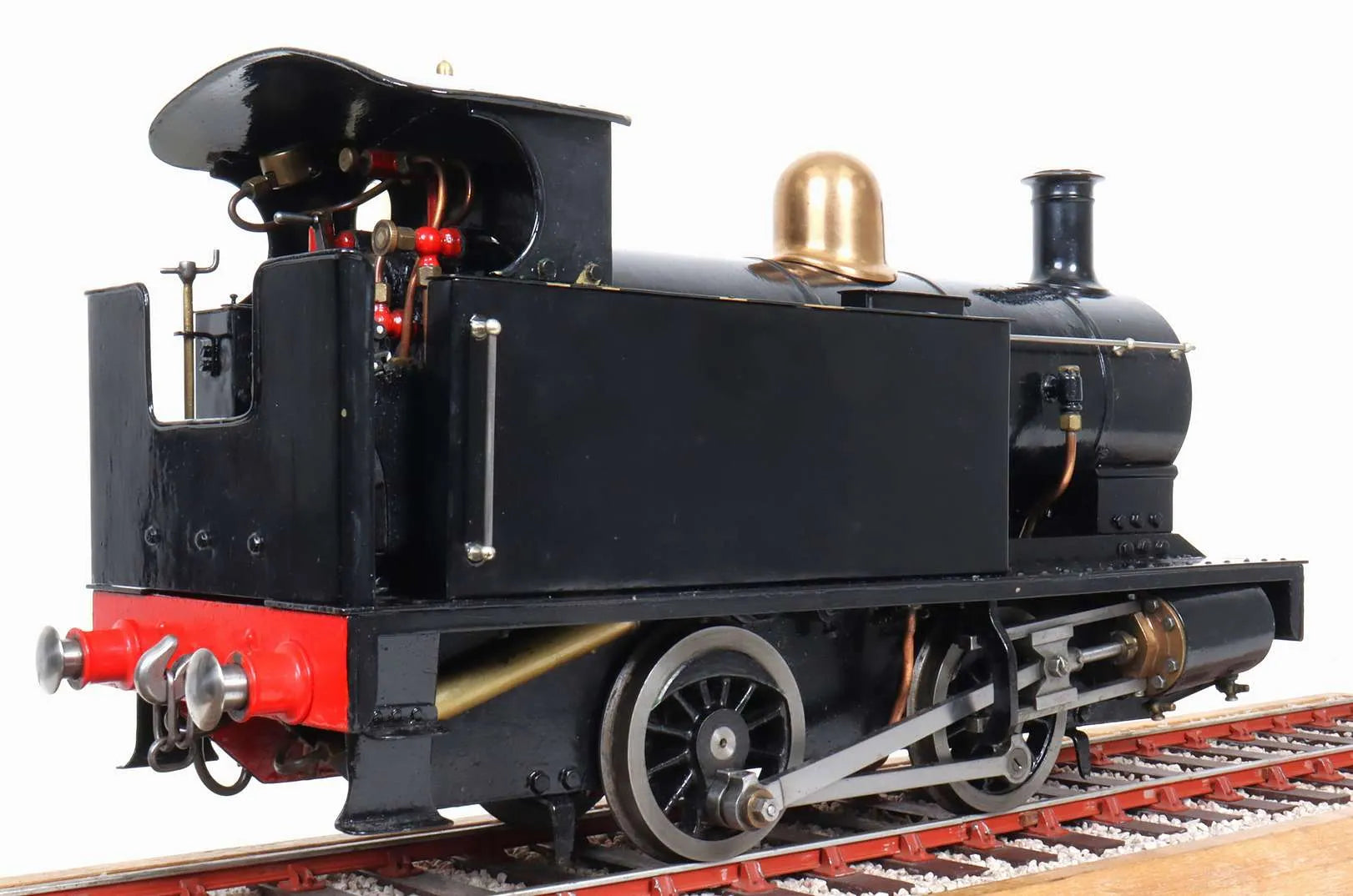

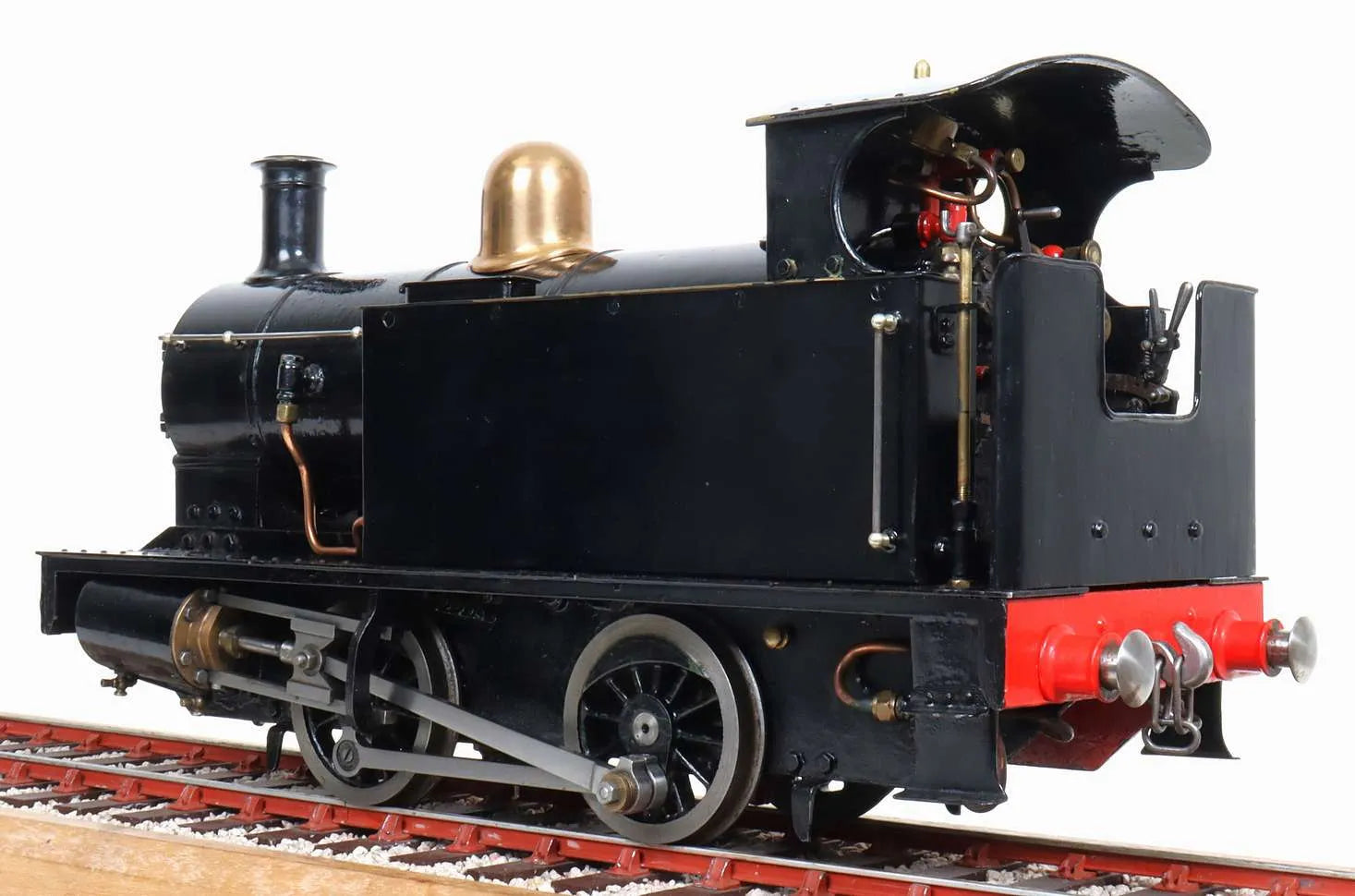

A well made older model, repainted in recent years. It's come to us with no previous history, the chassis runs on air in both directions, better in forwards than reverse.
A twice working pressure hydraulic test on the boiler showed up several nutted firebox stays which drip and will require re-calking, other than that the boiler appeared dry and structurally sound.
Stock code |
10948 |
Gauge |
3 1/2 inch |
Length/inches |
20 |
Width/inches |
7 |
Height/inches |
11 |
Weight/Kg |
17 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |

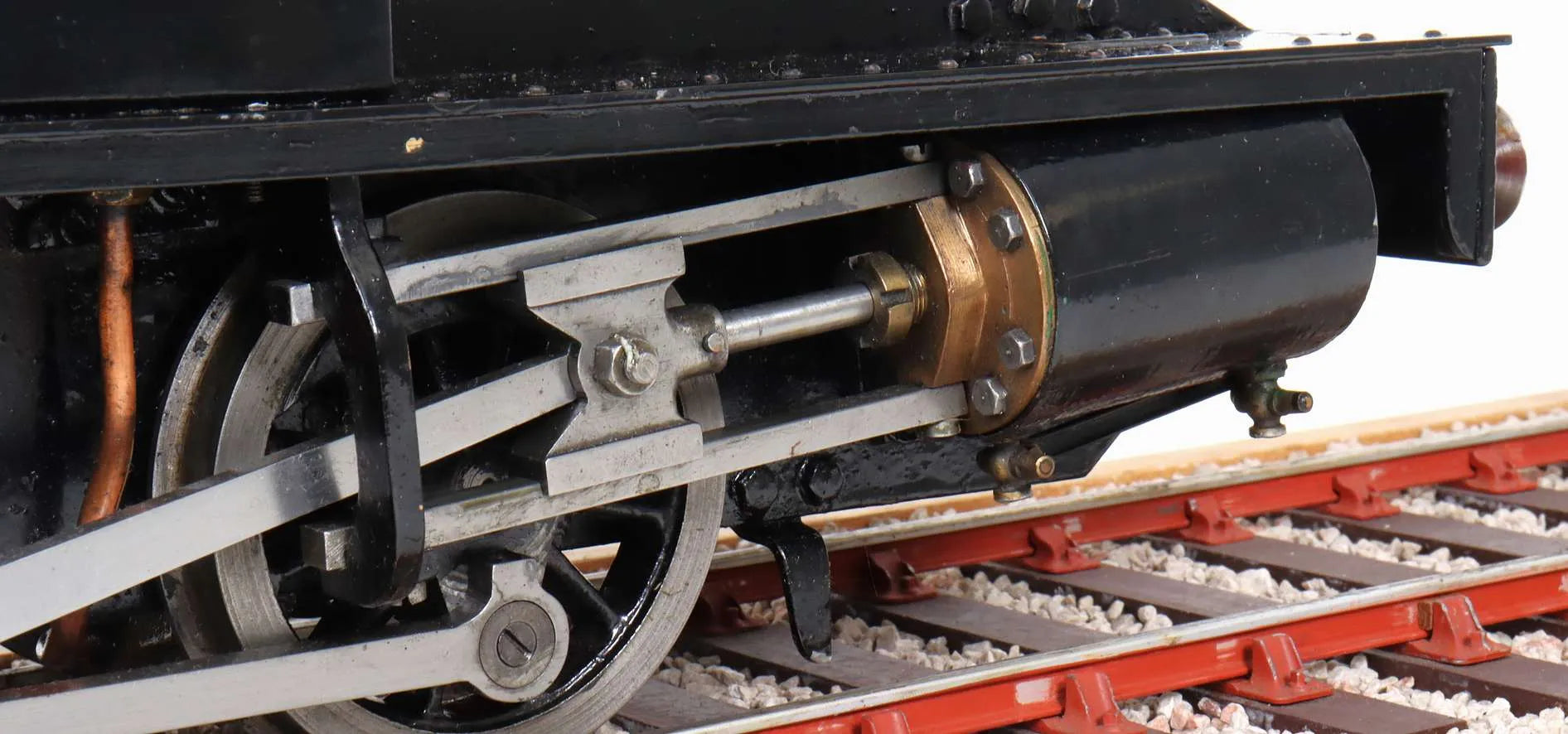

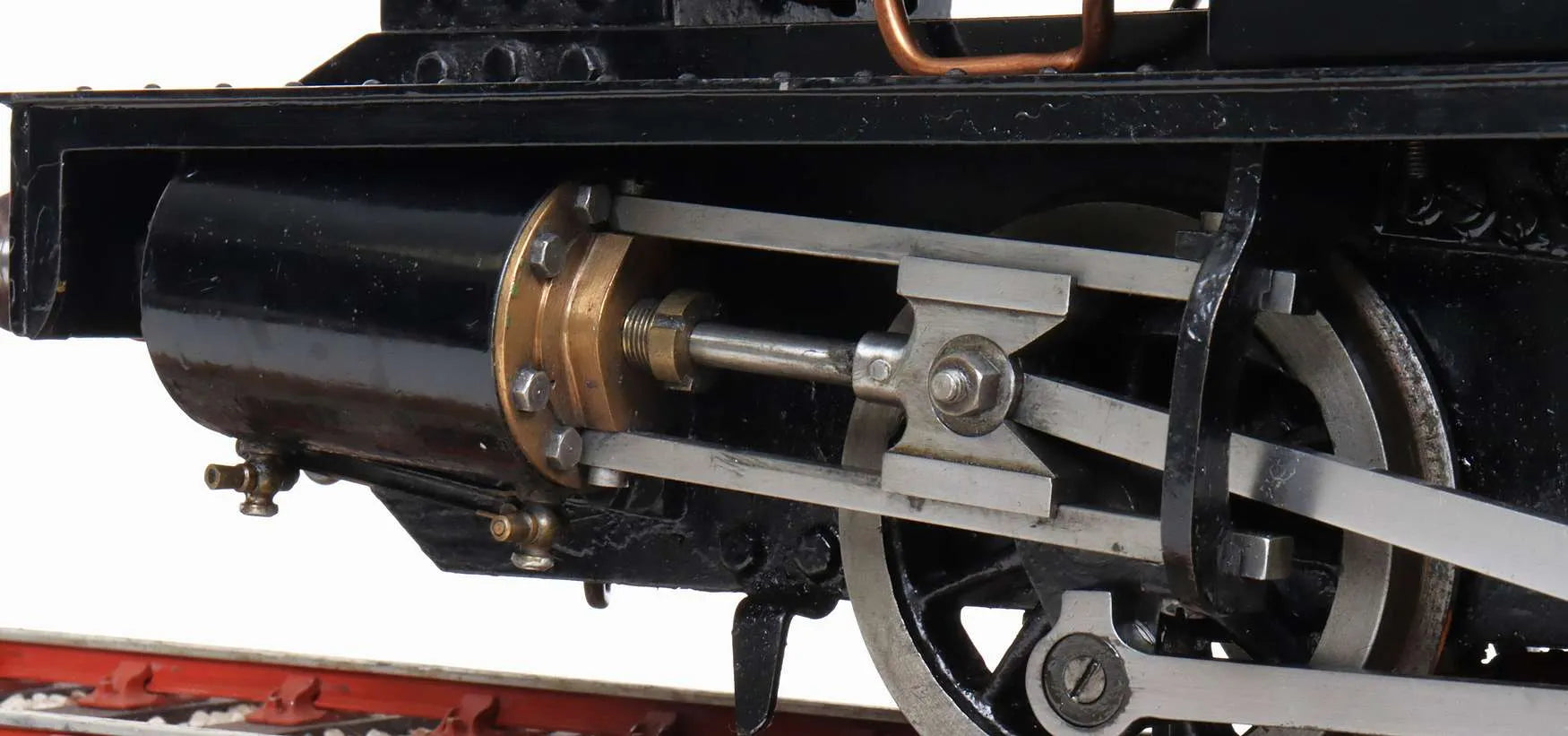

Cylinder material |
gunmetal |
Valve type |
slide |

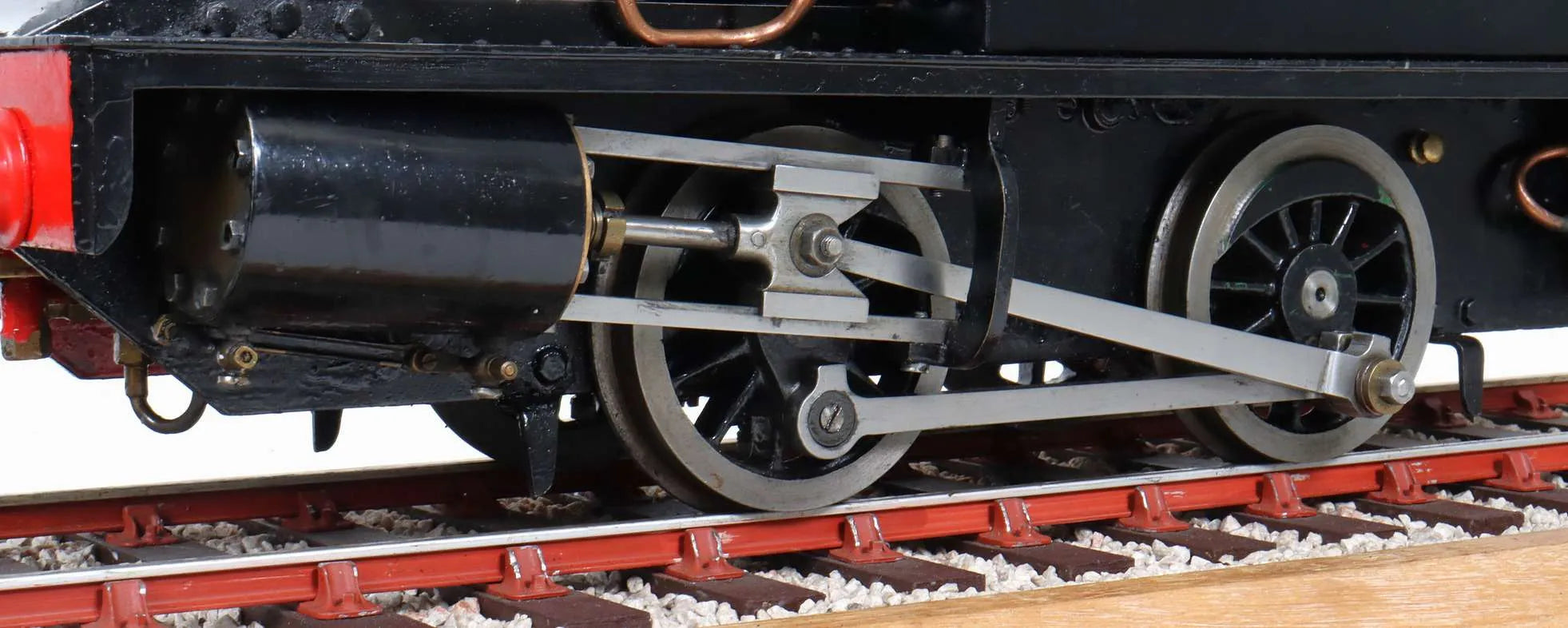

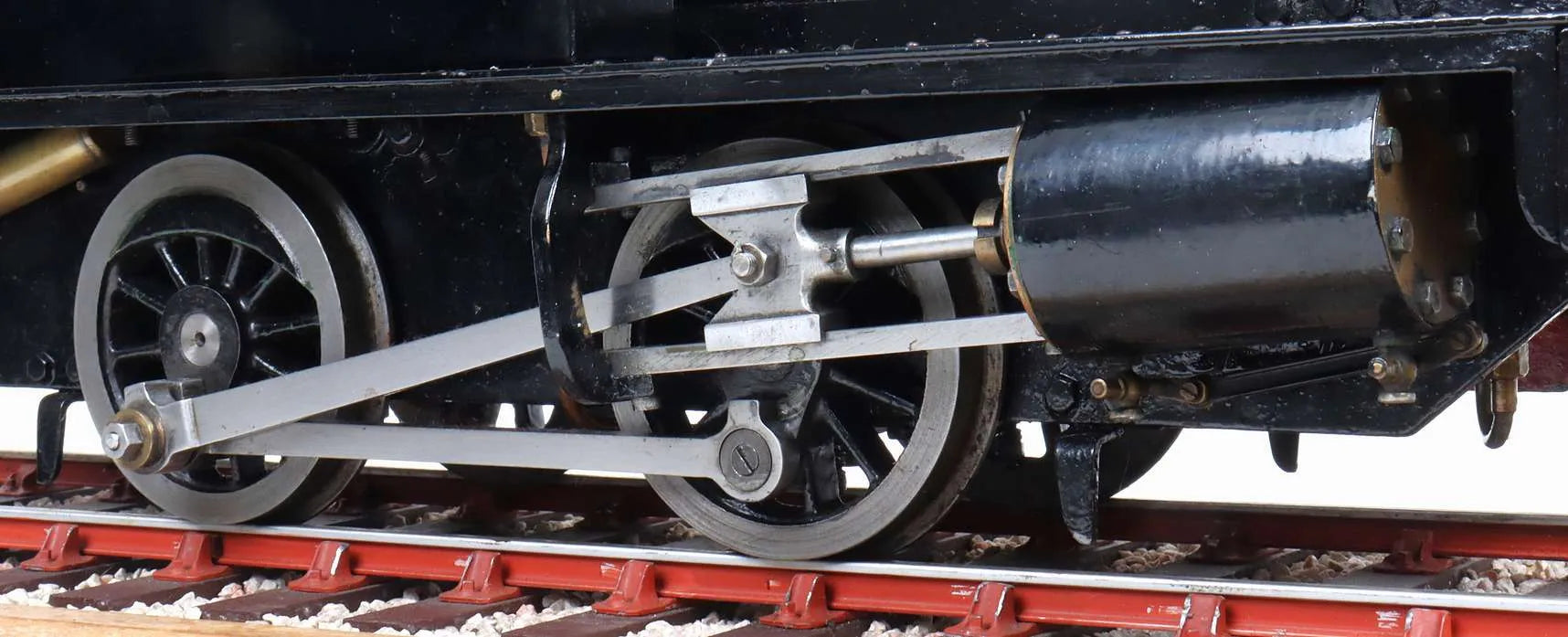

Valve gear |
Stephensons |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver soldered with nutted and calked firebox |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a - non-commercial |
Safety valve type |
spring |
Safety valve |
1 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |

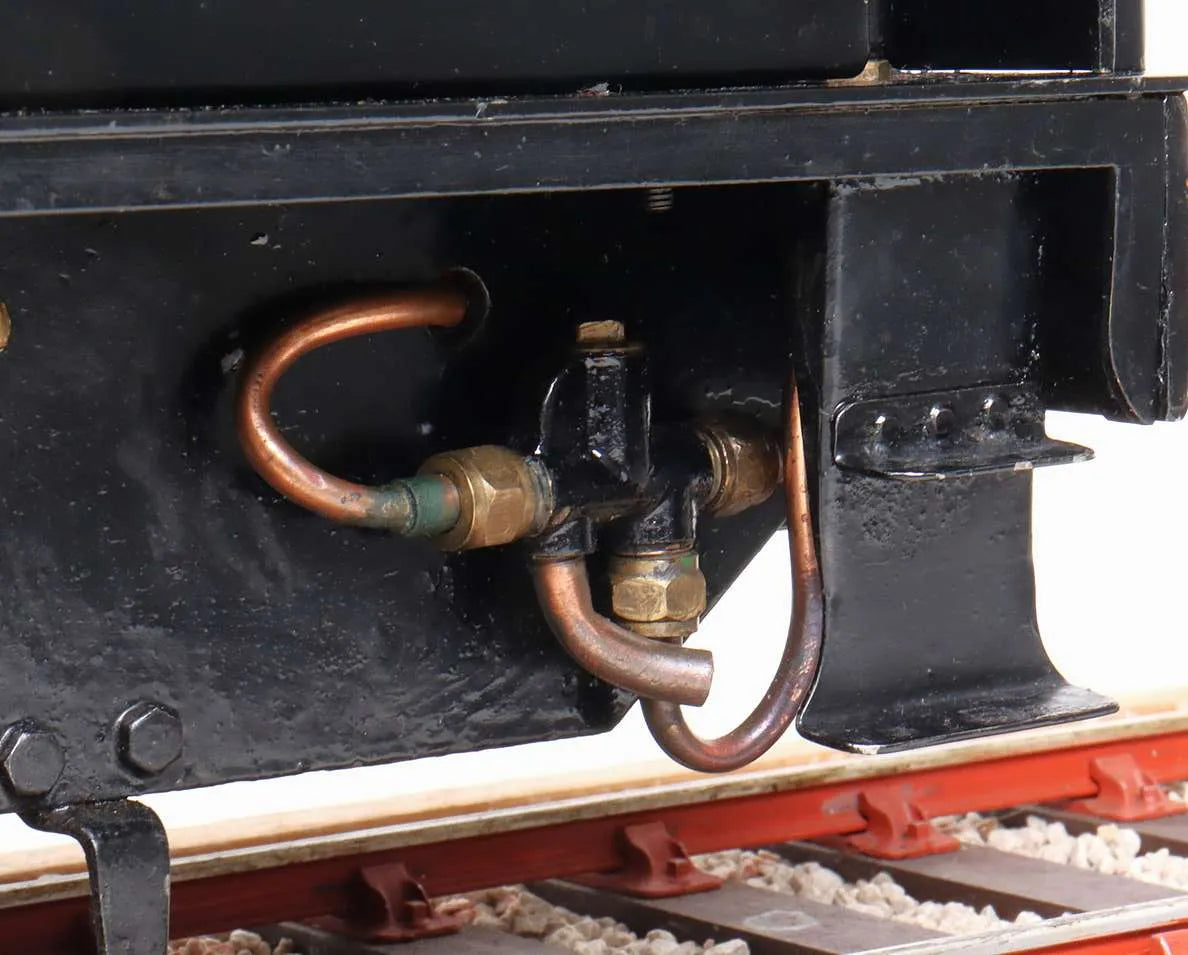

Injector |
1 |
Date out |
Dec-22 |
