10949

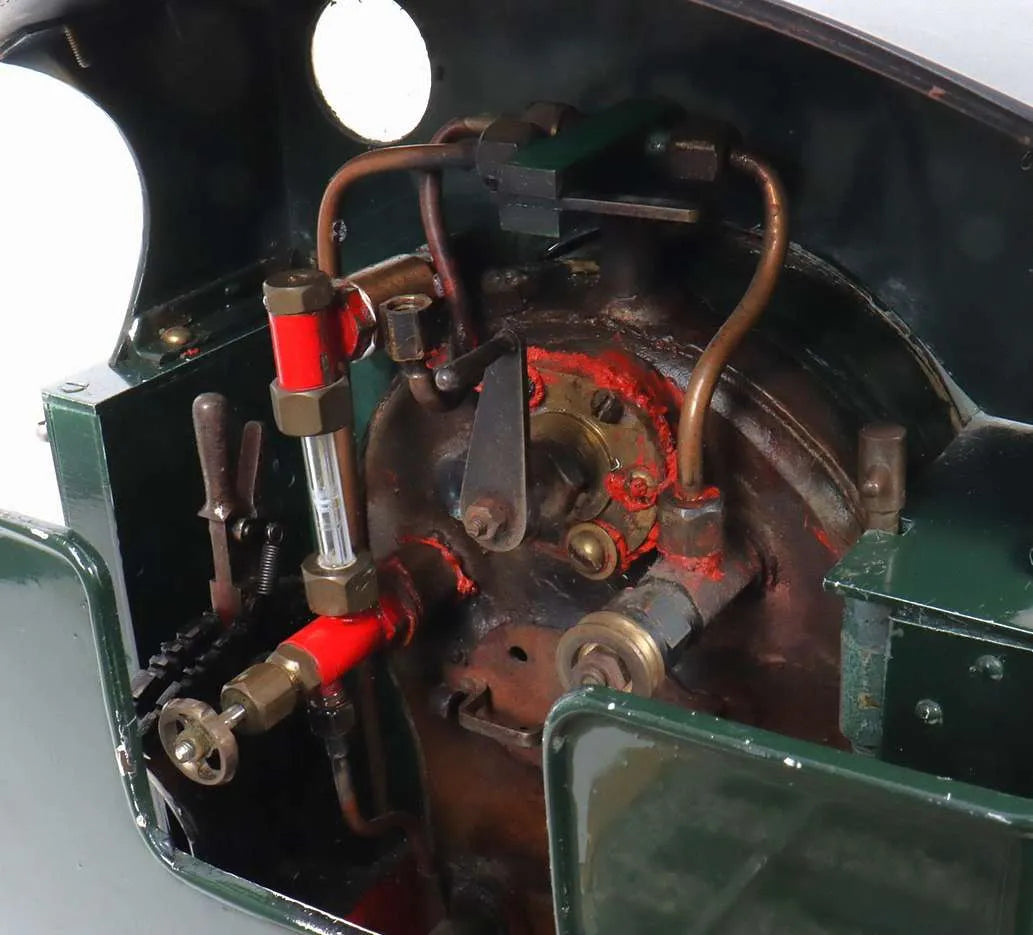

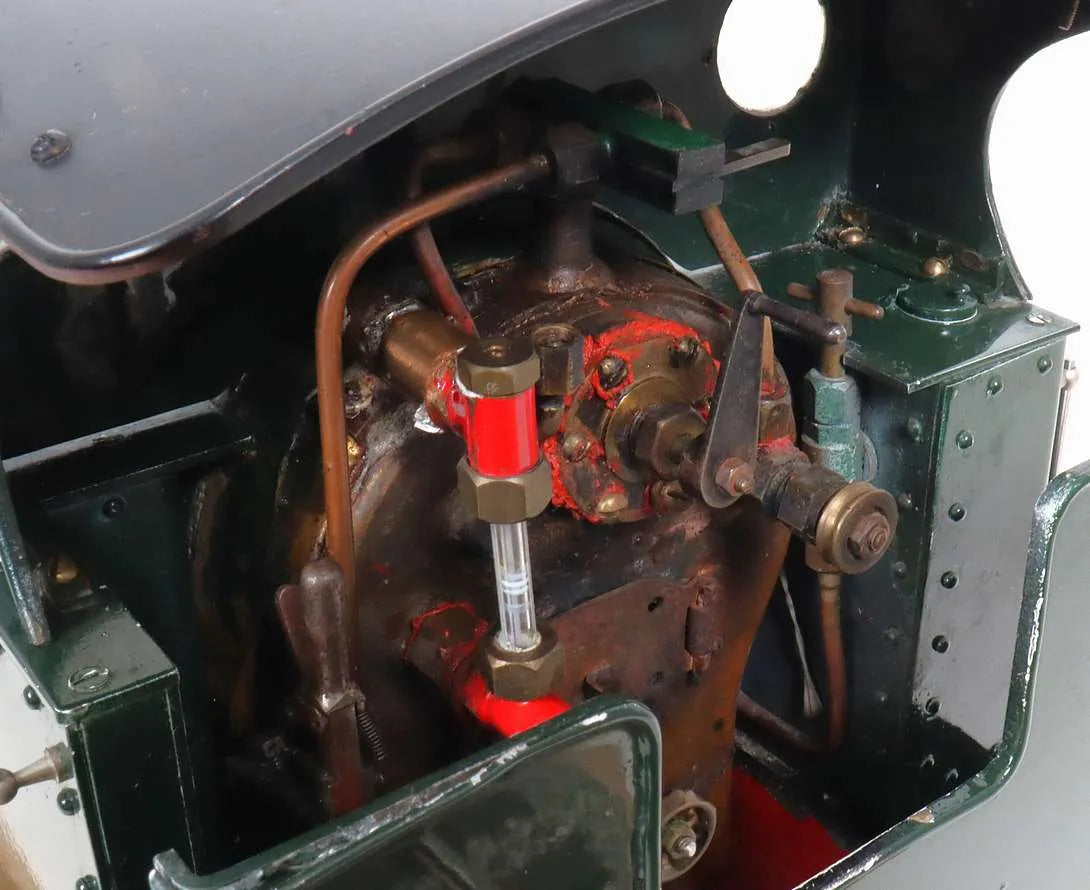

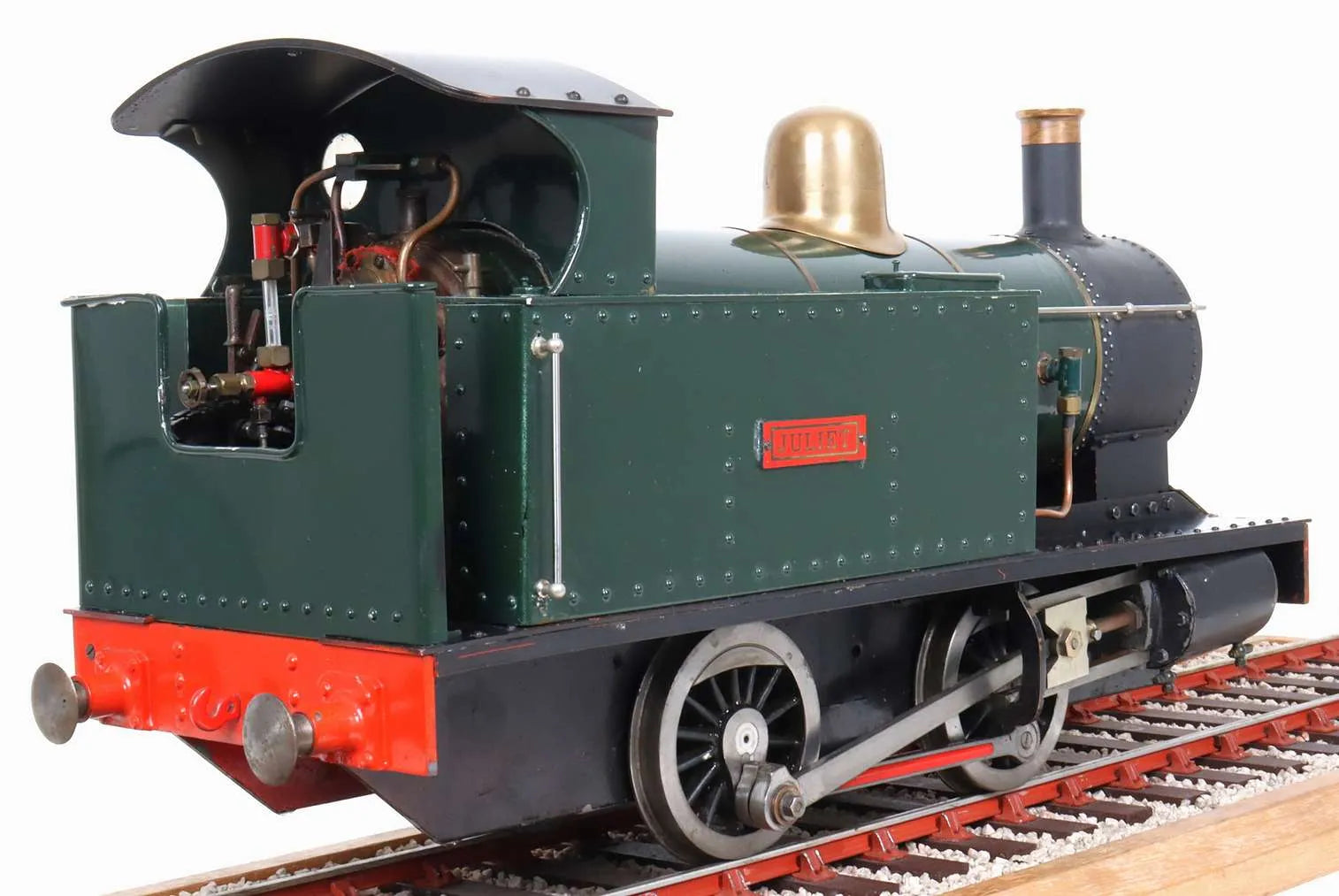

An older engine, although free to turn over it doesn't currently run on air - from the quantity of red Hermetite smeared liberally around the regulator flange, we suspect somebody's already had a go at finding out why.
Stock code |
10949 |
Gauge |
3 1/2 inch |
Length/inches |
20 |
Width/inches |
7 |
Height/inches |
11 |
Weight/Kg |
17 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |
Valve gear |
Stephensons |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a - non-commercial |
Safety valve type |
spring |
Safety valve |
1 |
Fusible plug |
no |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Date out |
Mar-23 |
