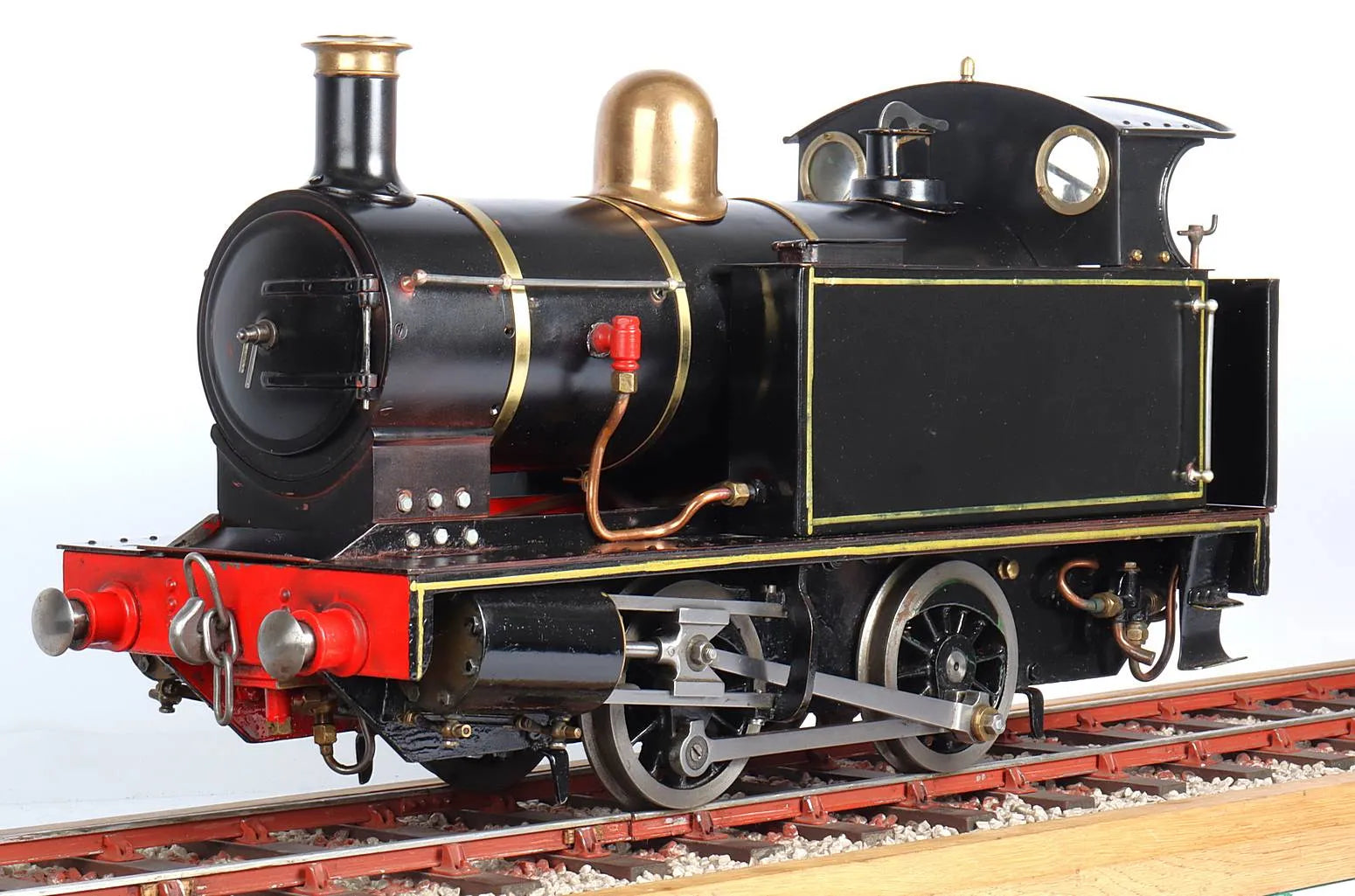

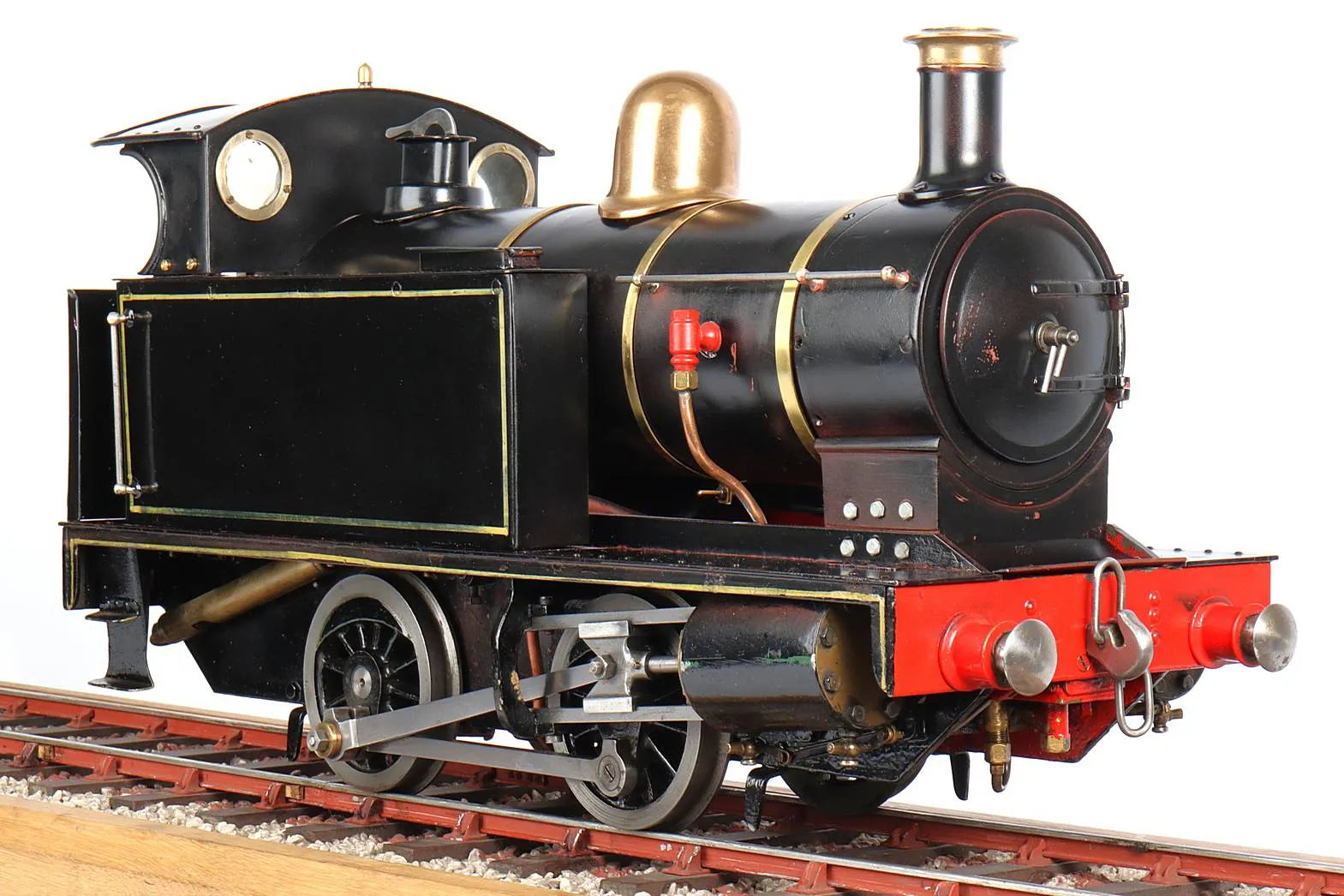

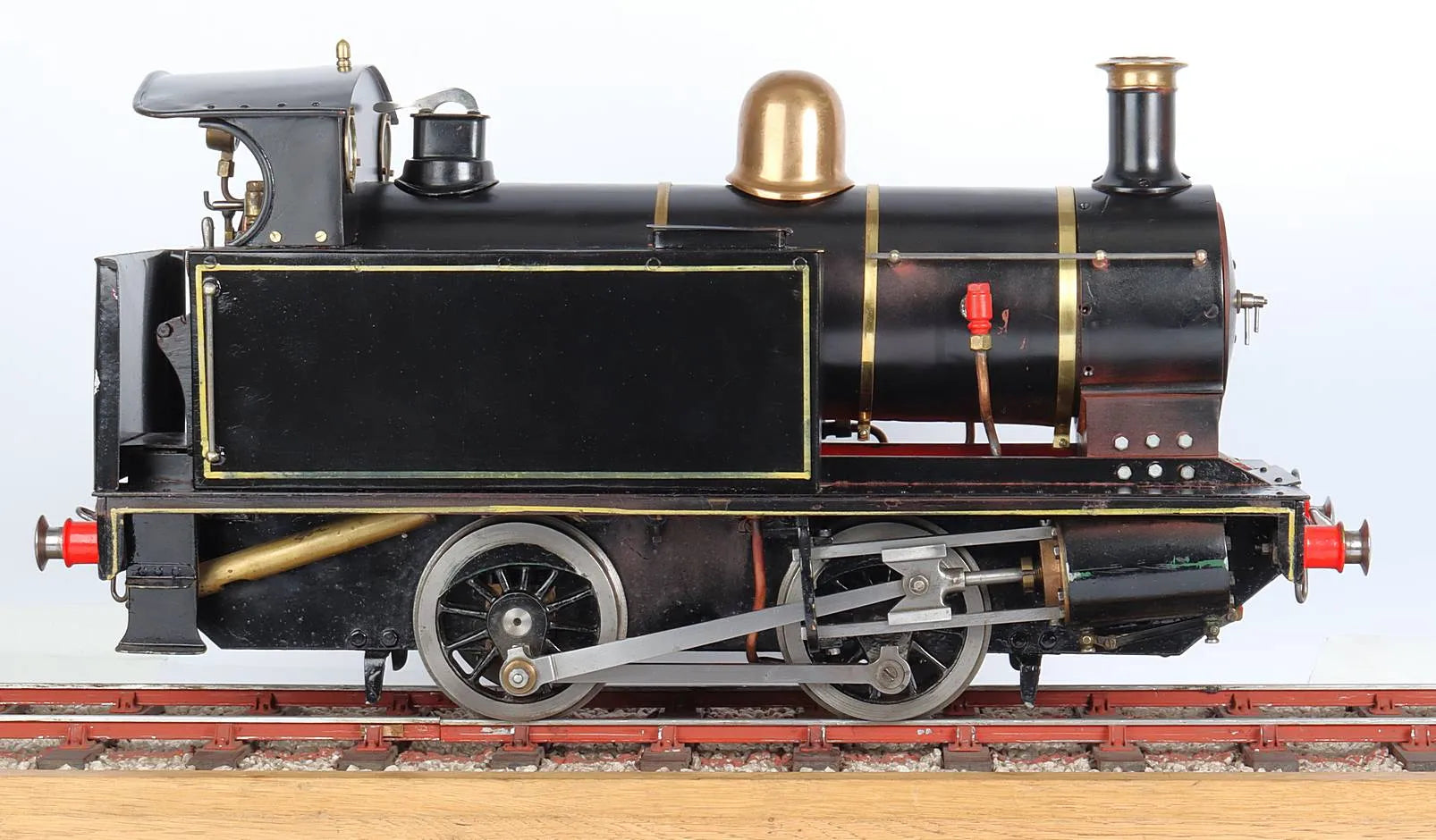

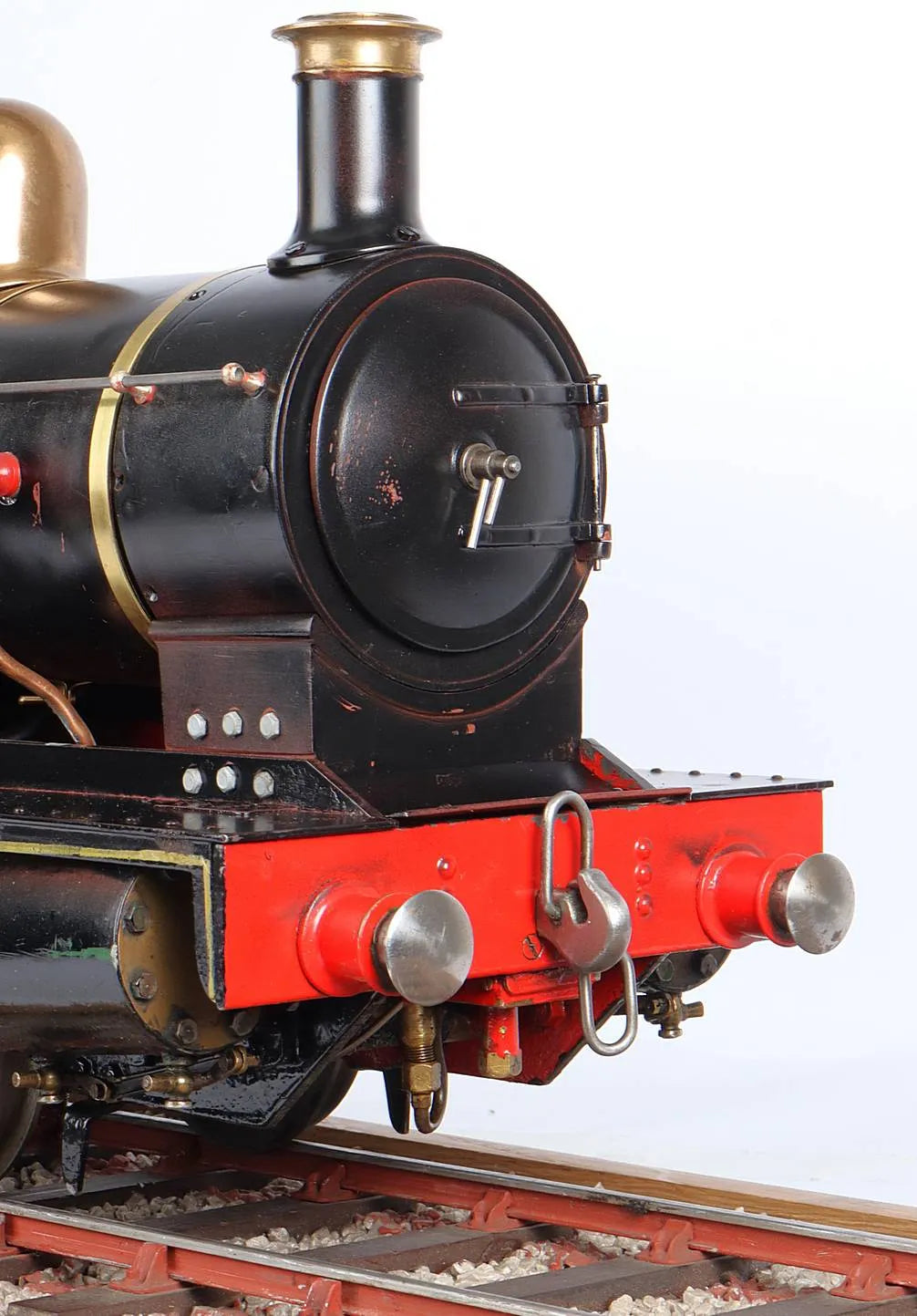

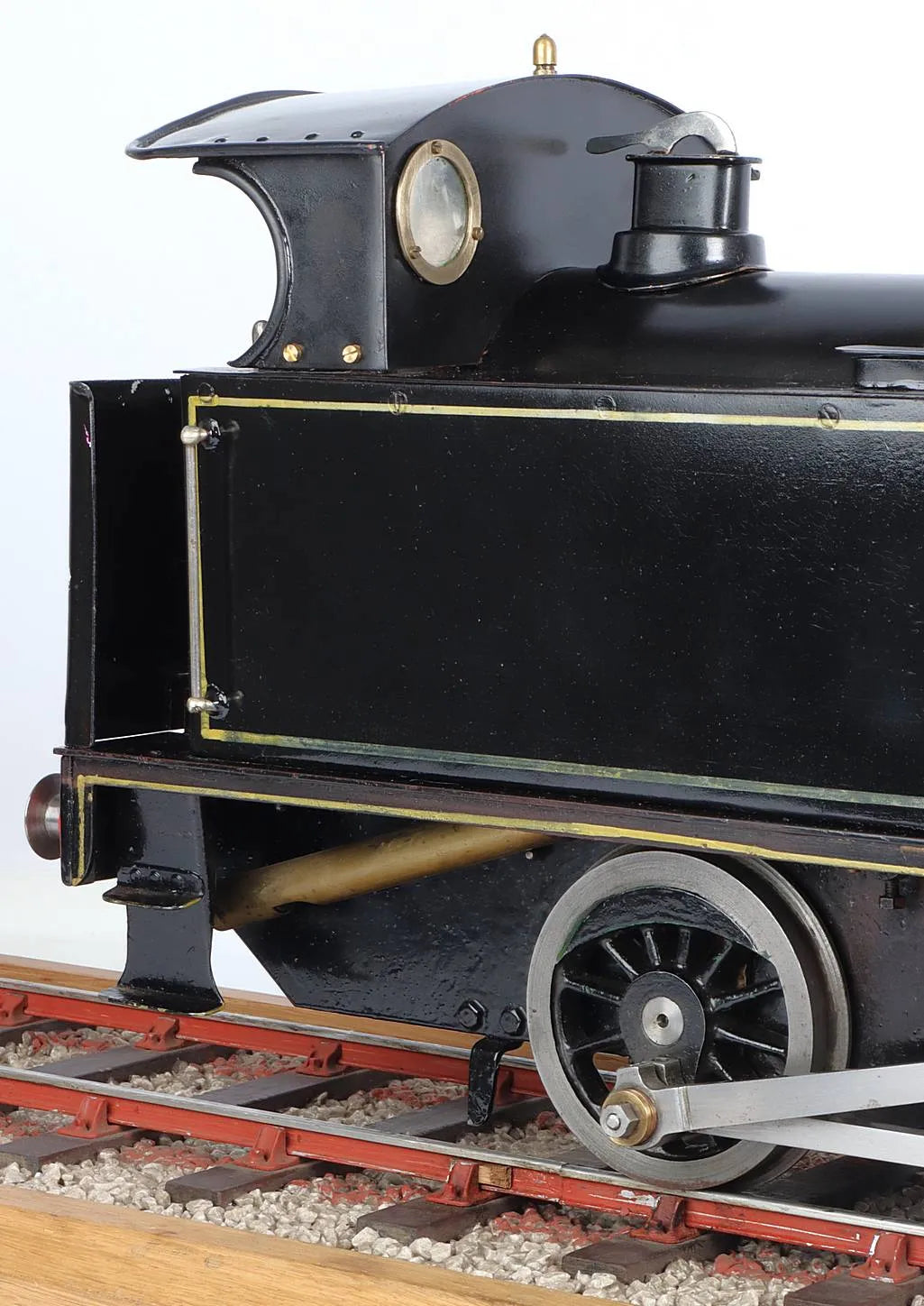

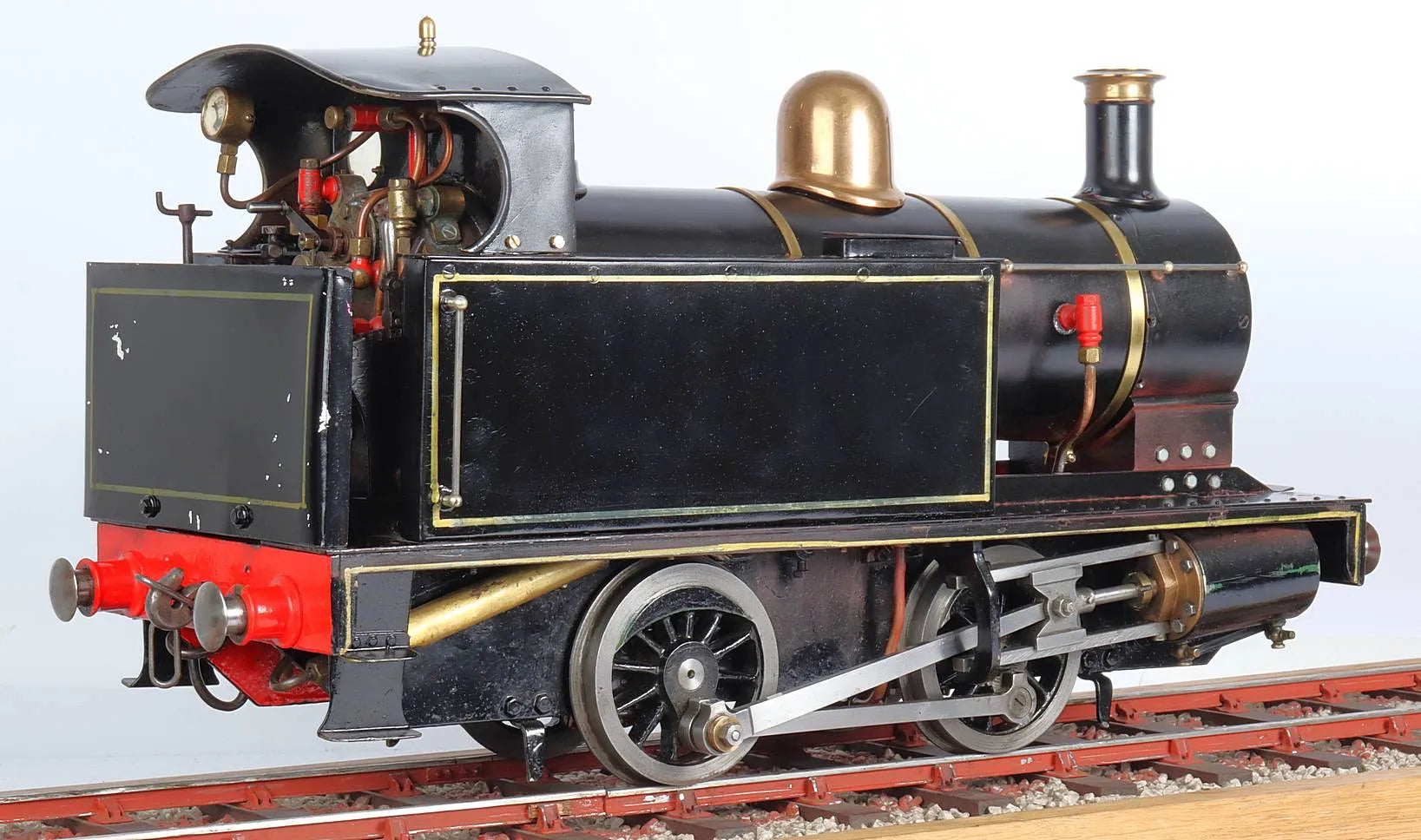

3 1/2 inch gauge "Juliet" 0-4-0T

A 3 1/2 inch gauge 0-4-0T to LBSC's "Juliet" design.

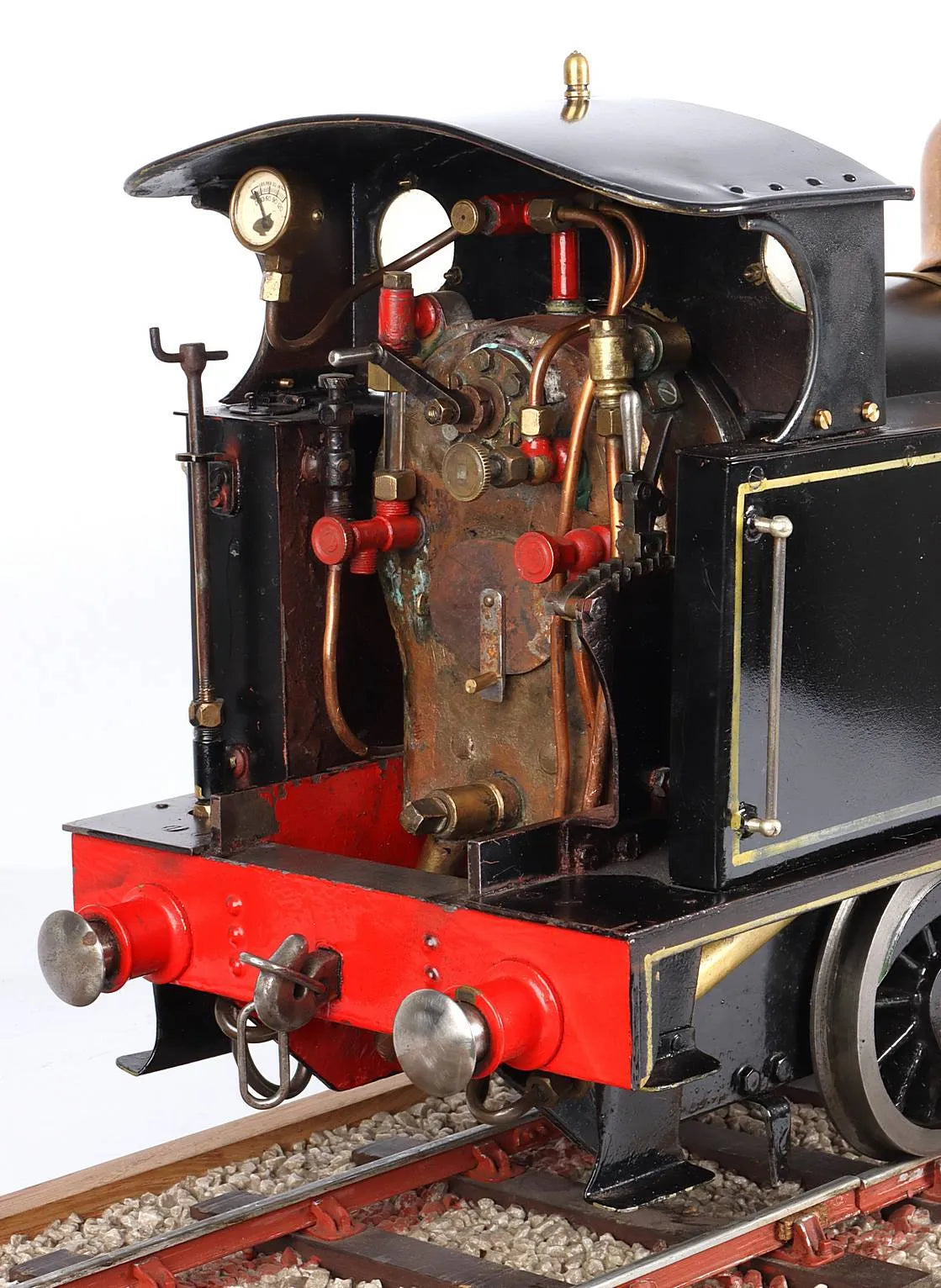

In a sorry state, it's afflicted with a snapped regulator which has seized open.

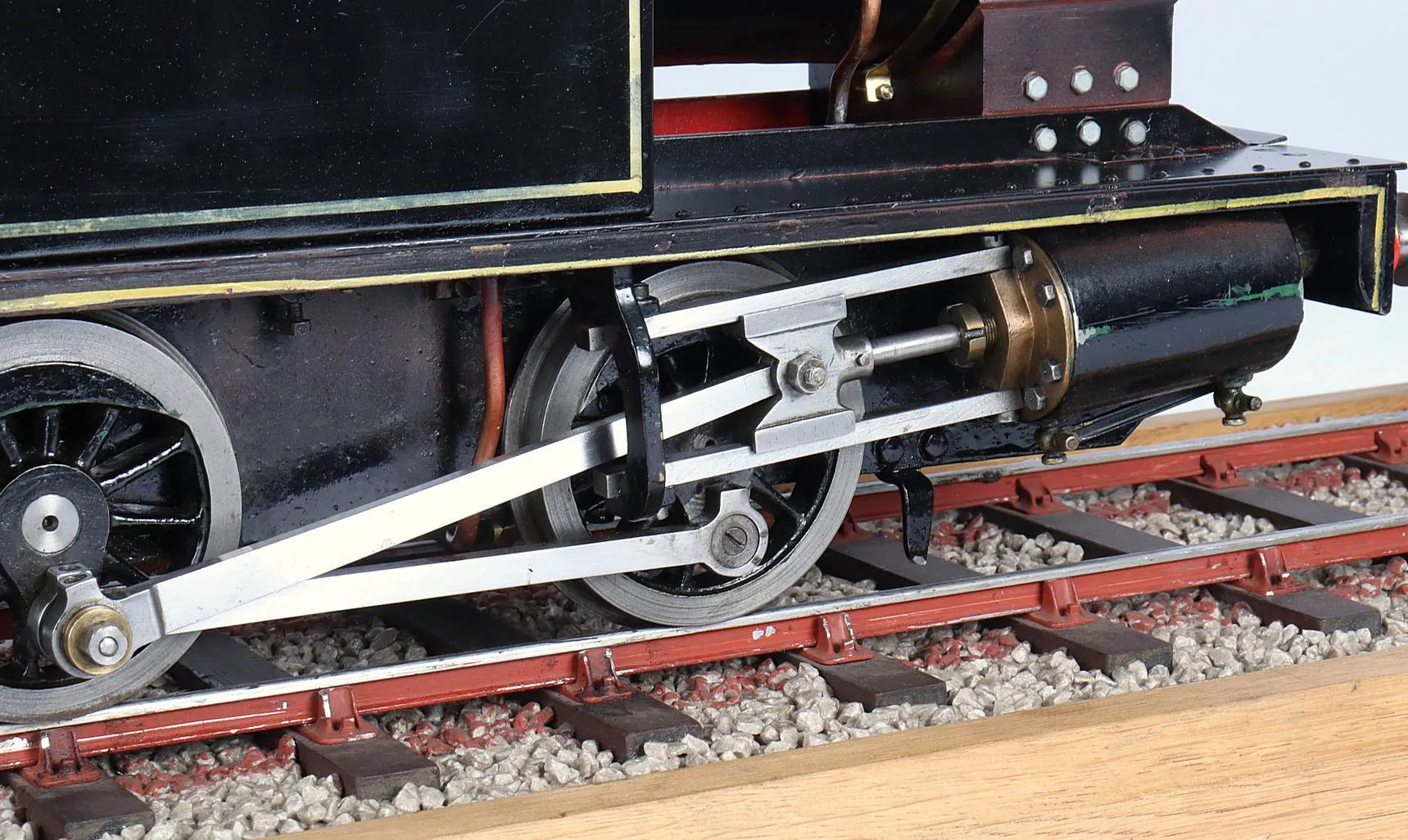

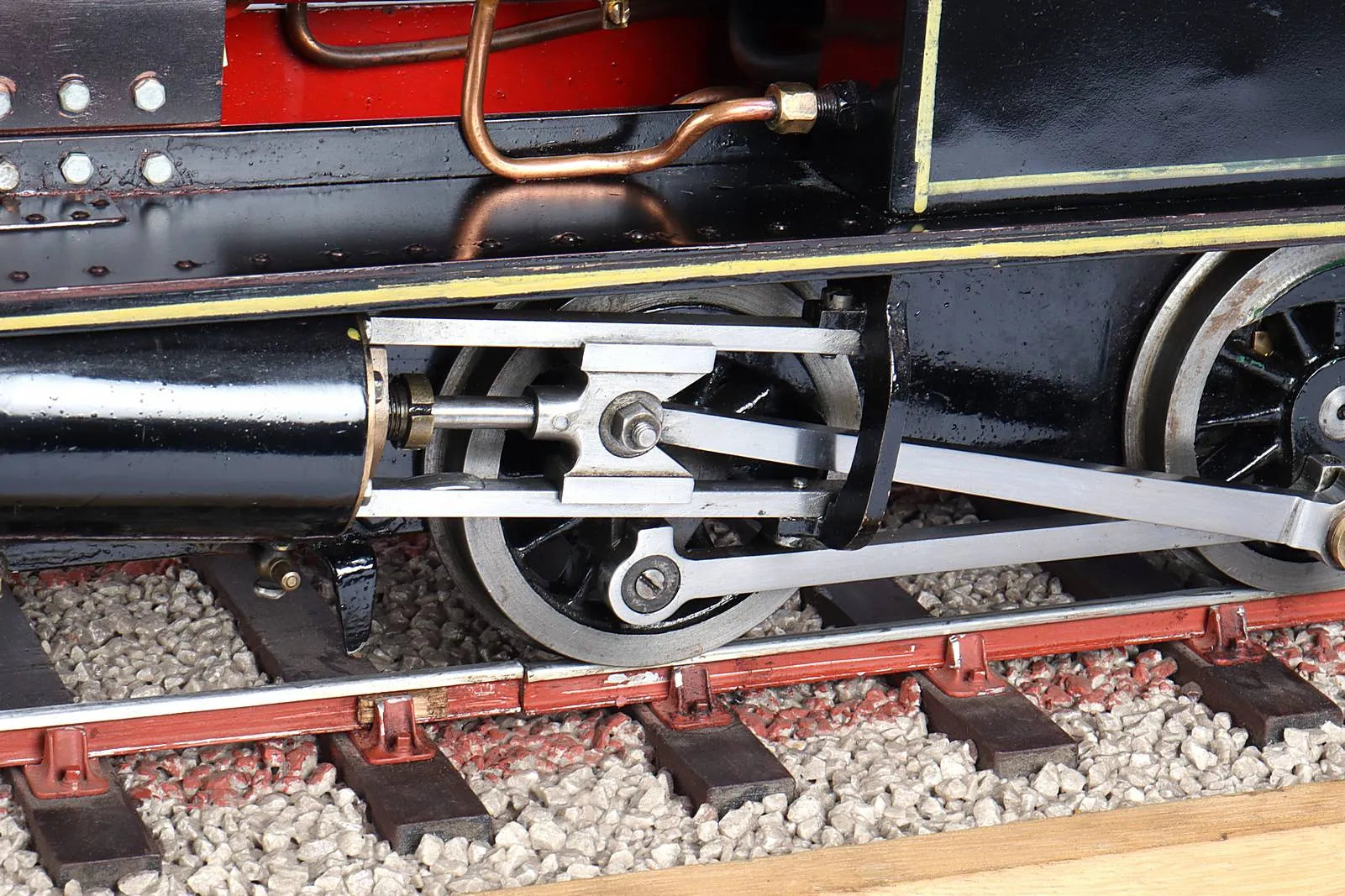

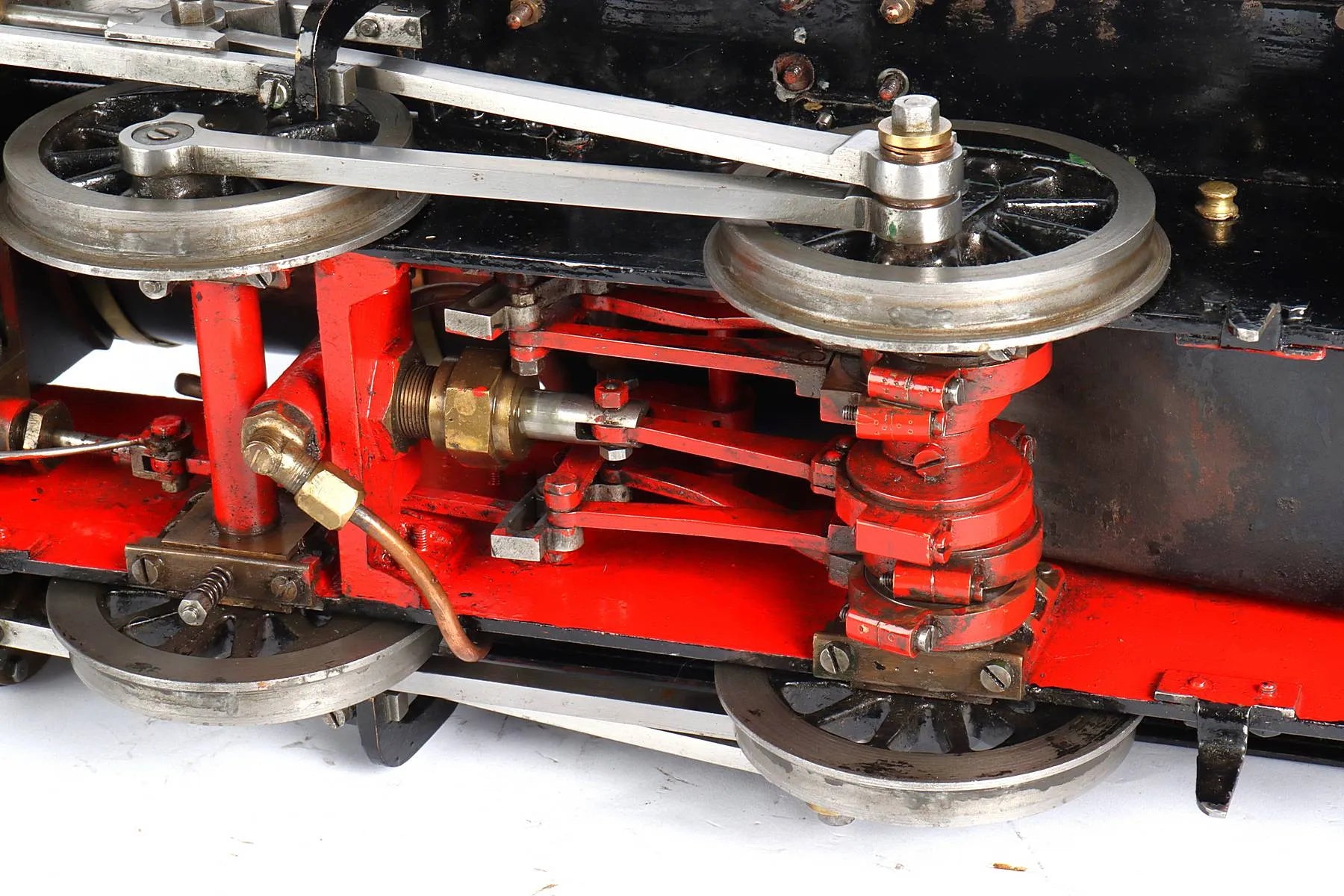

Stiff to turn over, we've run it on compressed air using our airline regulator - it does run in both directions, though with a good deal of clatter from the motionwork.

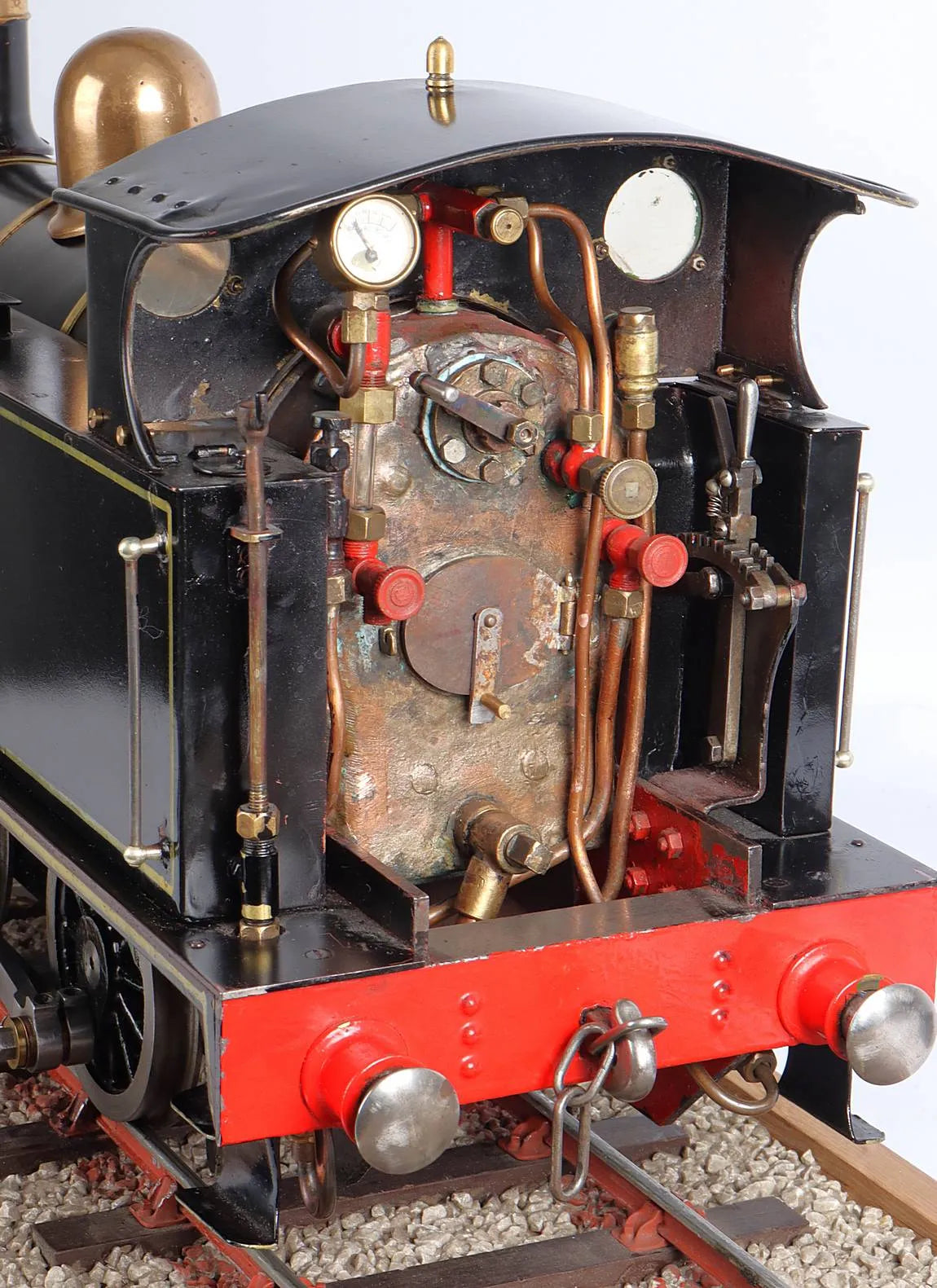

Boiler is amateur-built and of so-so quality; we've pumped it up as far as 100psi and noted a multiplicity of leaking stays in the firebox which preclude issuing a certificate.

Technical information

Stock code

13289

Gauge

3 1/2 inch

Length/inches

20

Width/inches

7

Height/inches

10

Weight/Kg

16

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Boiler maker

unknown

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

Year built

unknown

Safety valve type

spring

Safety valve

1

Whistle

yes

Hand pump

1

Mechanical pump

yes

Injector

1

Superheater type

flue tube

Superheater

2
