10947

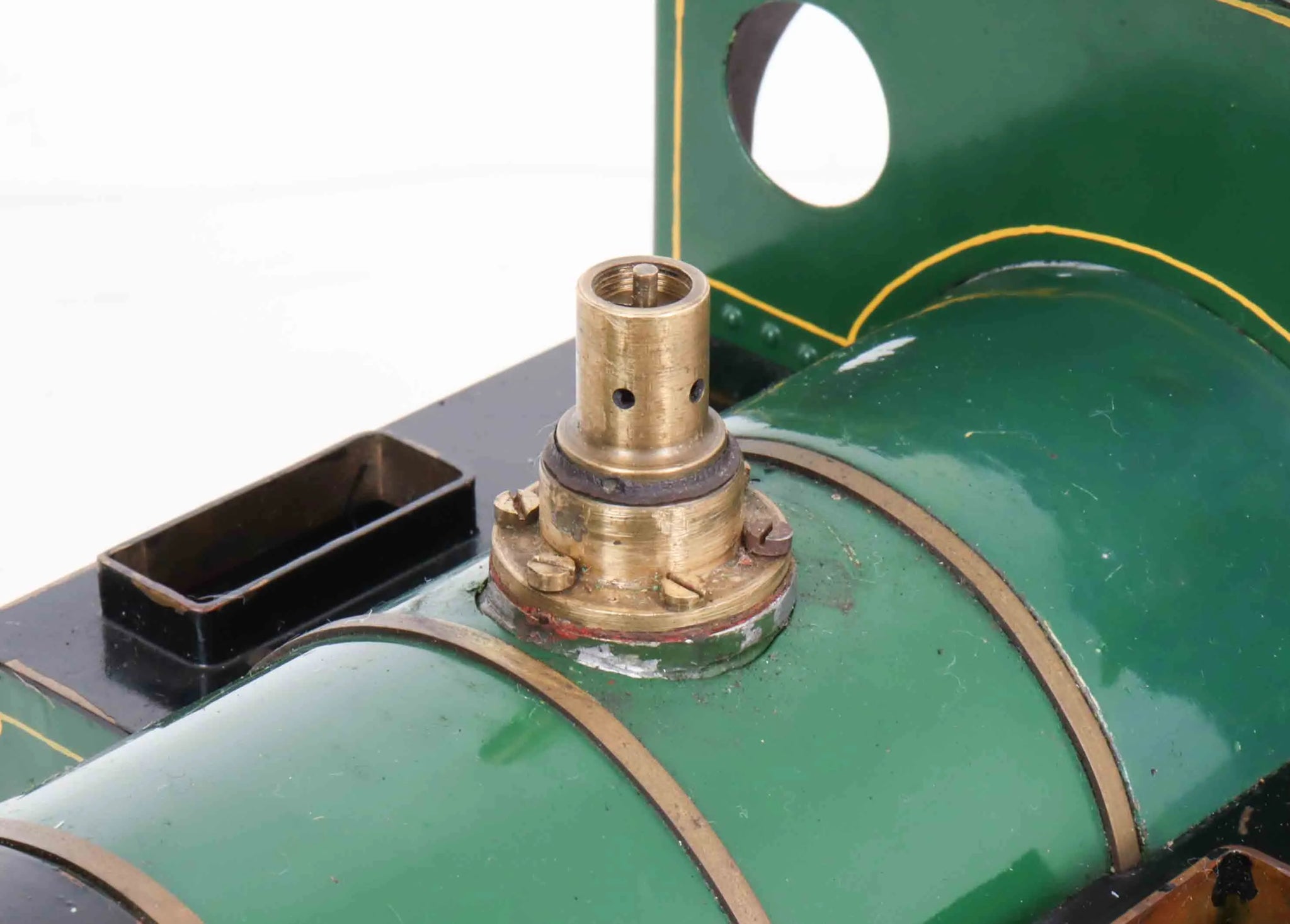

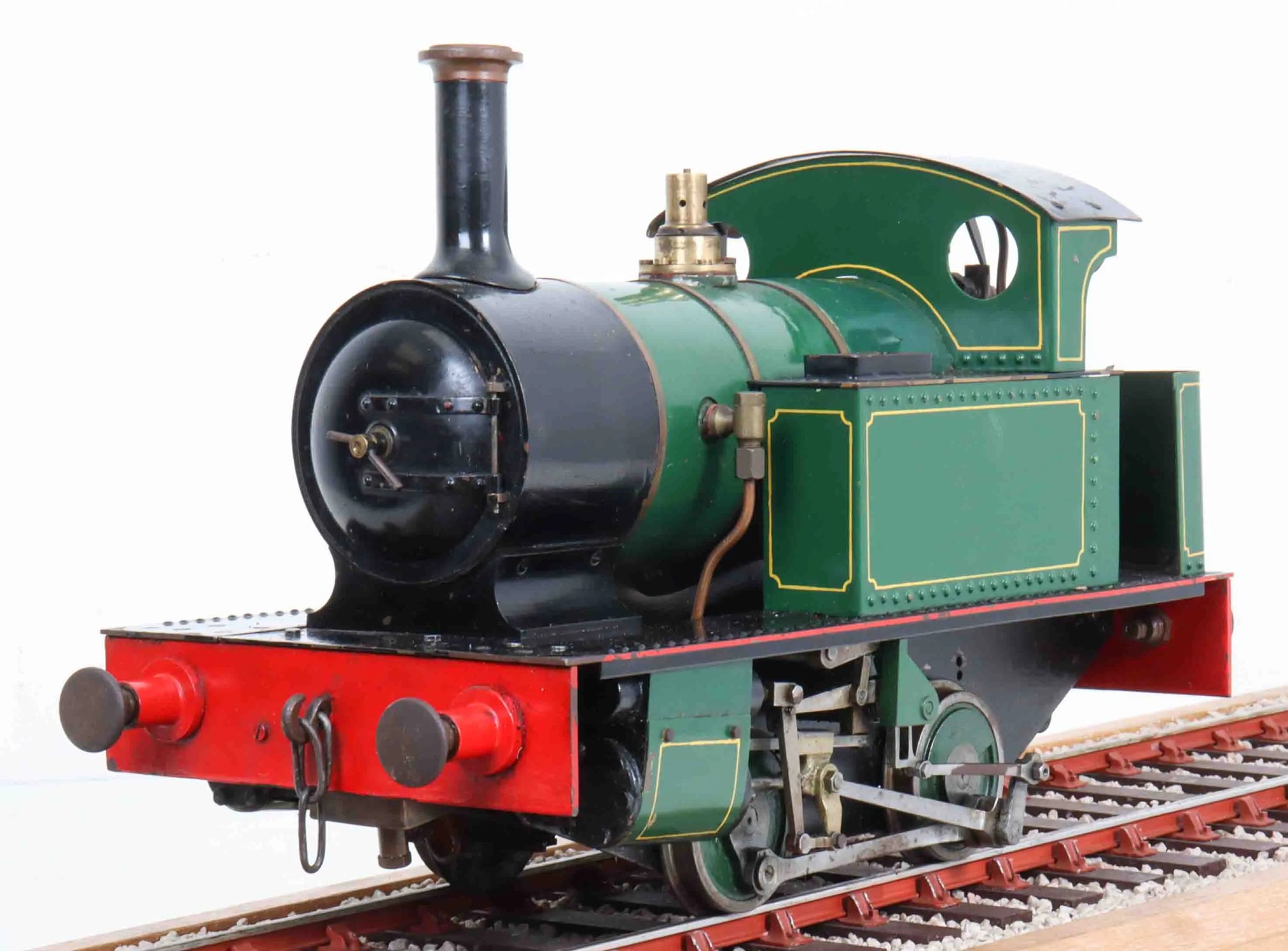

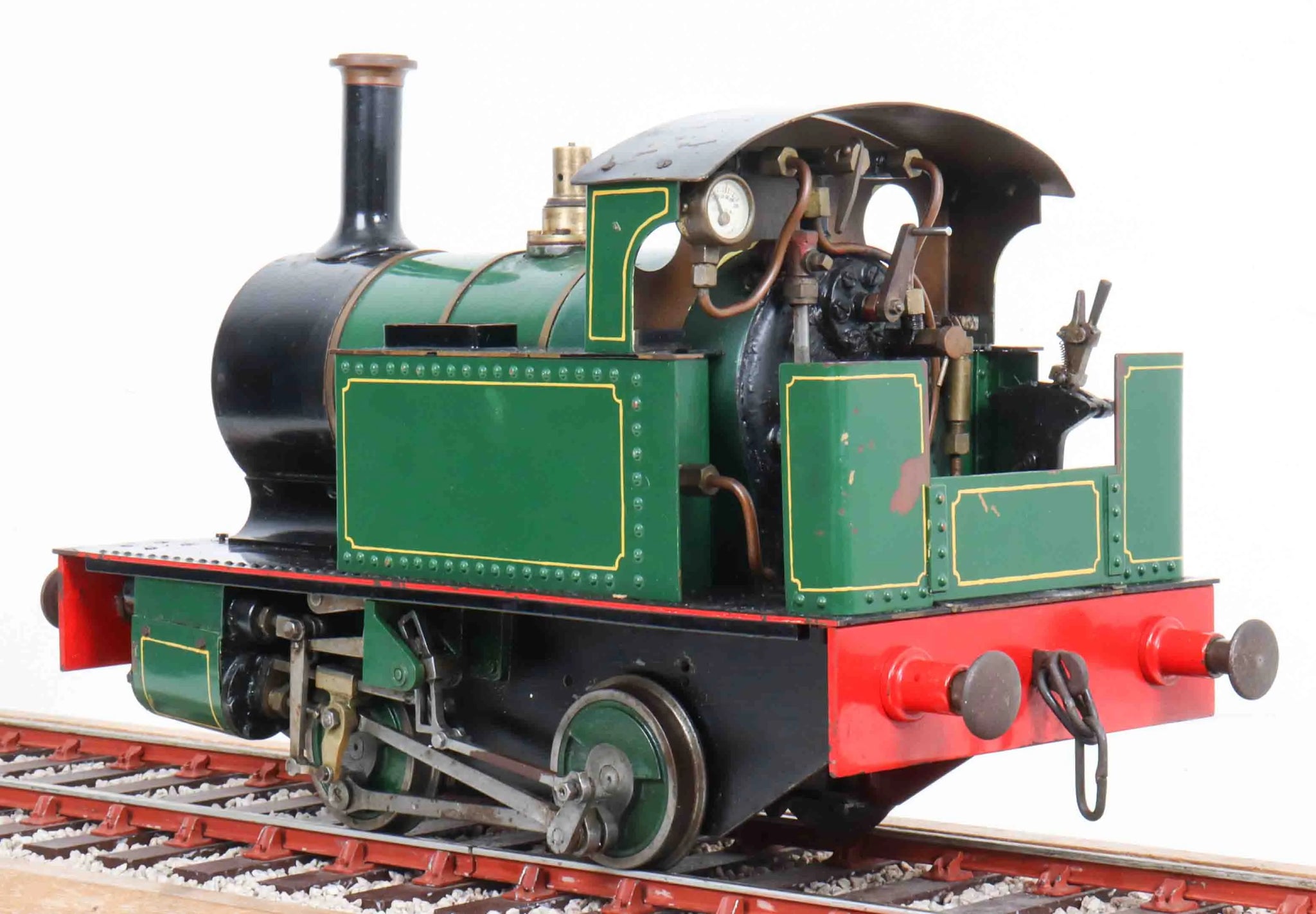

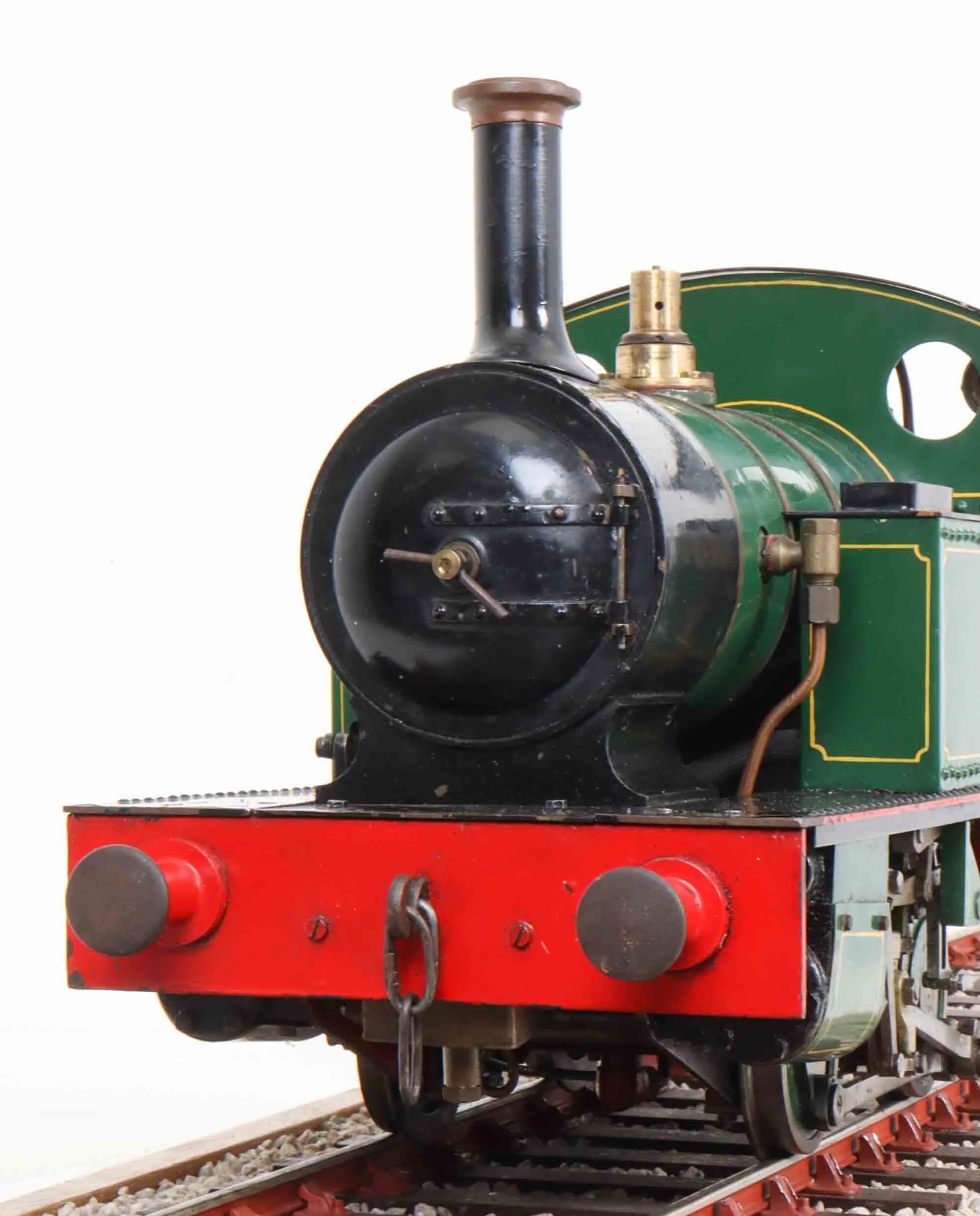

An older engine, apparently not run in many years. Free to turn over, it runs on air in both directions, outer dome is missing although a casting for same is available from Reeves.
We have no previous history for the boiler - it's silver soldered with nutted and calked firebox stays, several of which leak and will require recalking.
Stock code |
10947 |
Gauge |
3 1/2 inch |
Length/inches |
16 |
Width/inches |
7 |
Height/inches |
10 |
Weight/Kg |
10 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |

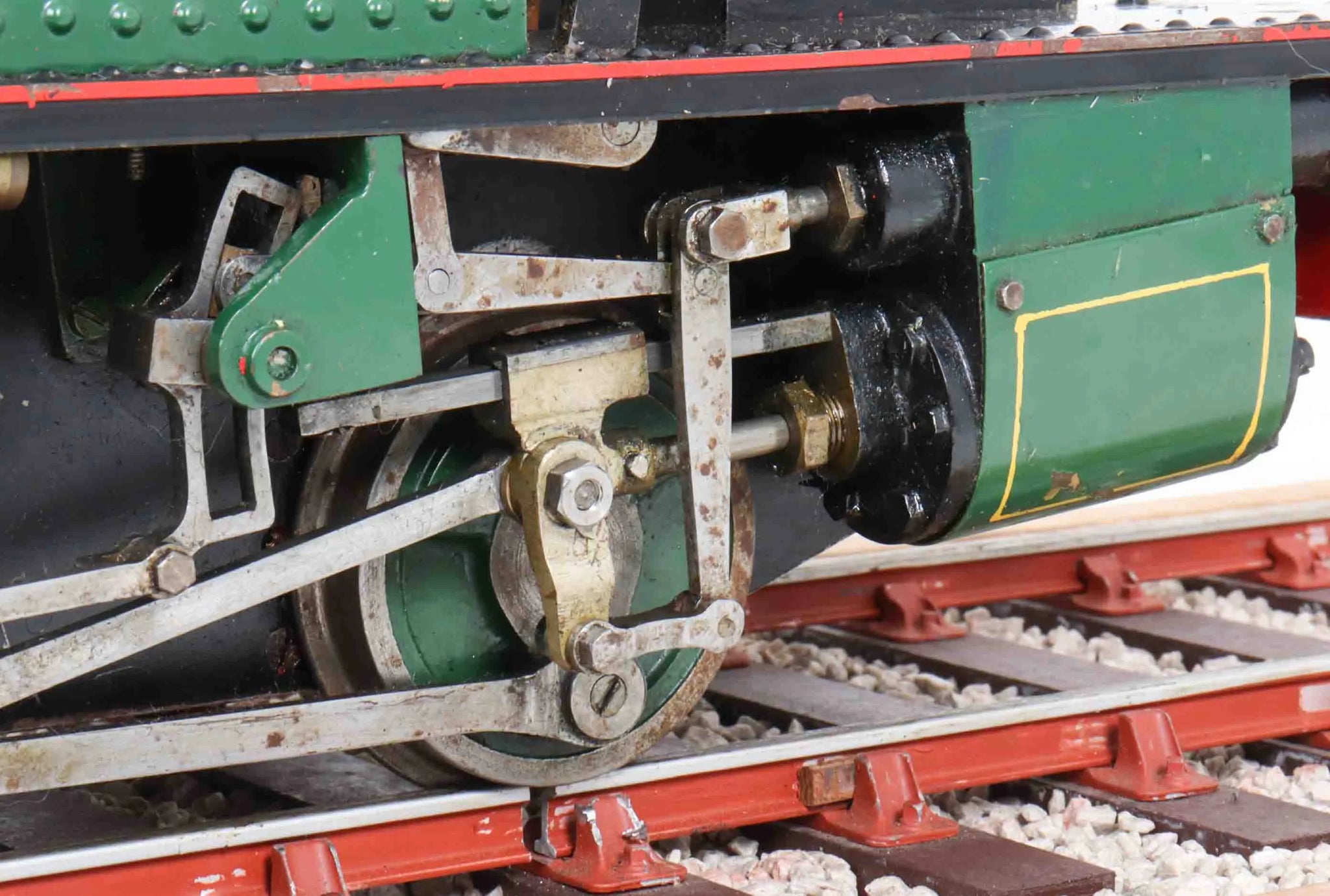

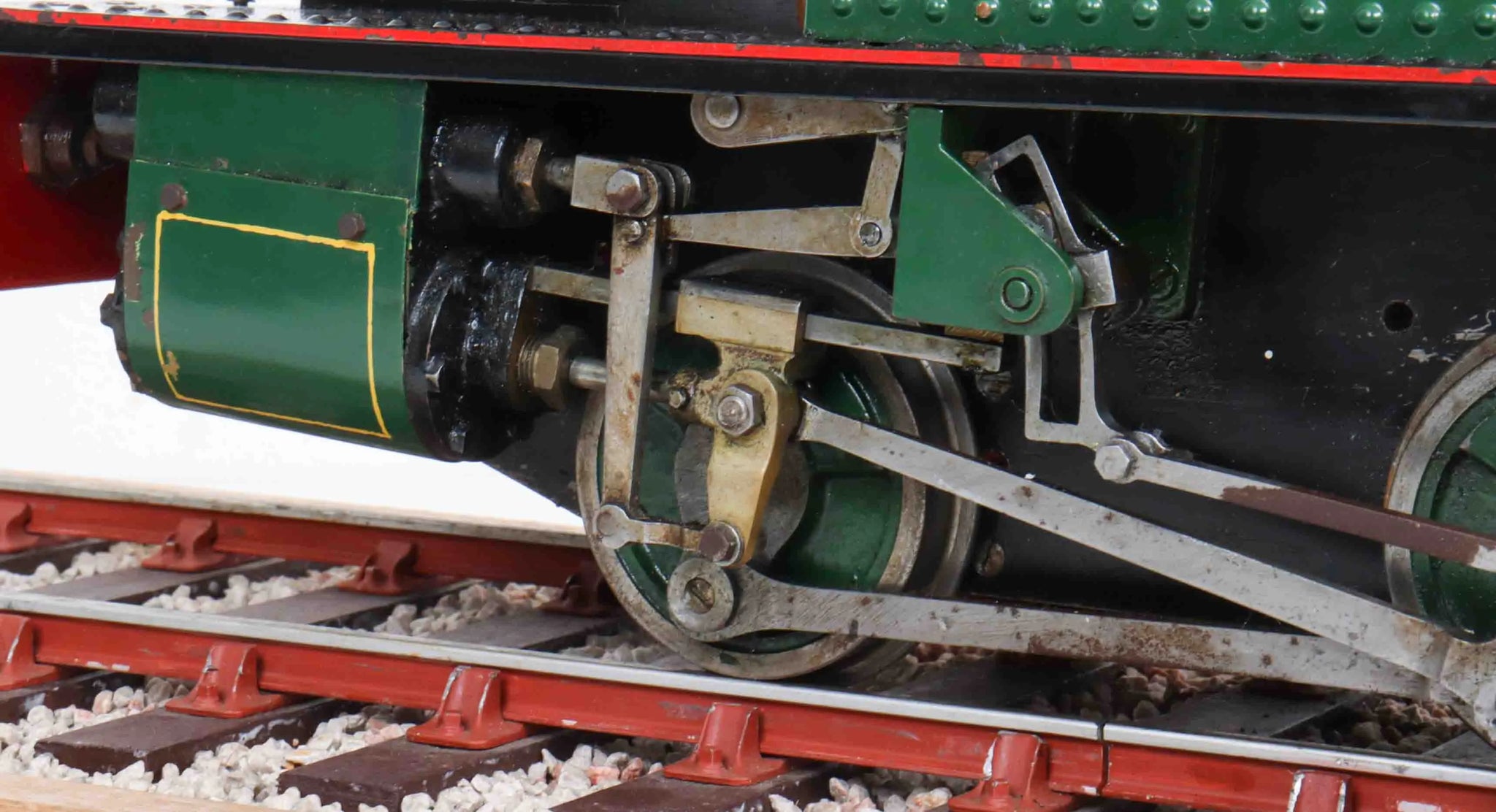

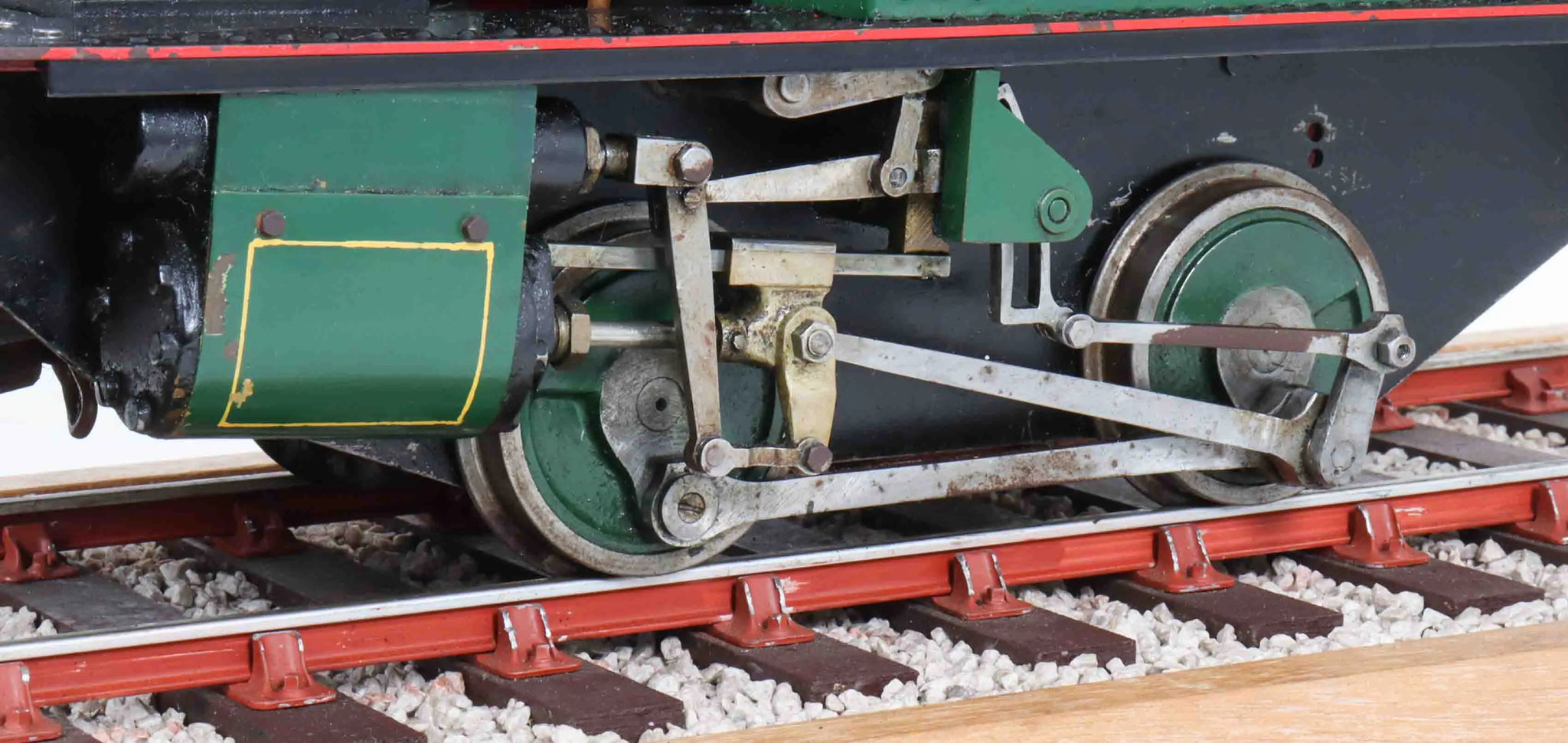

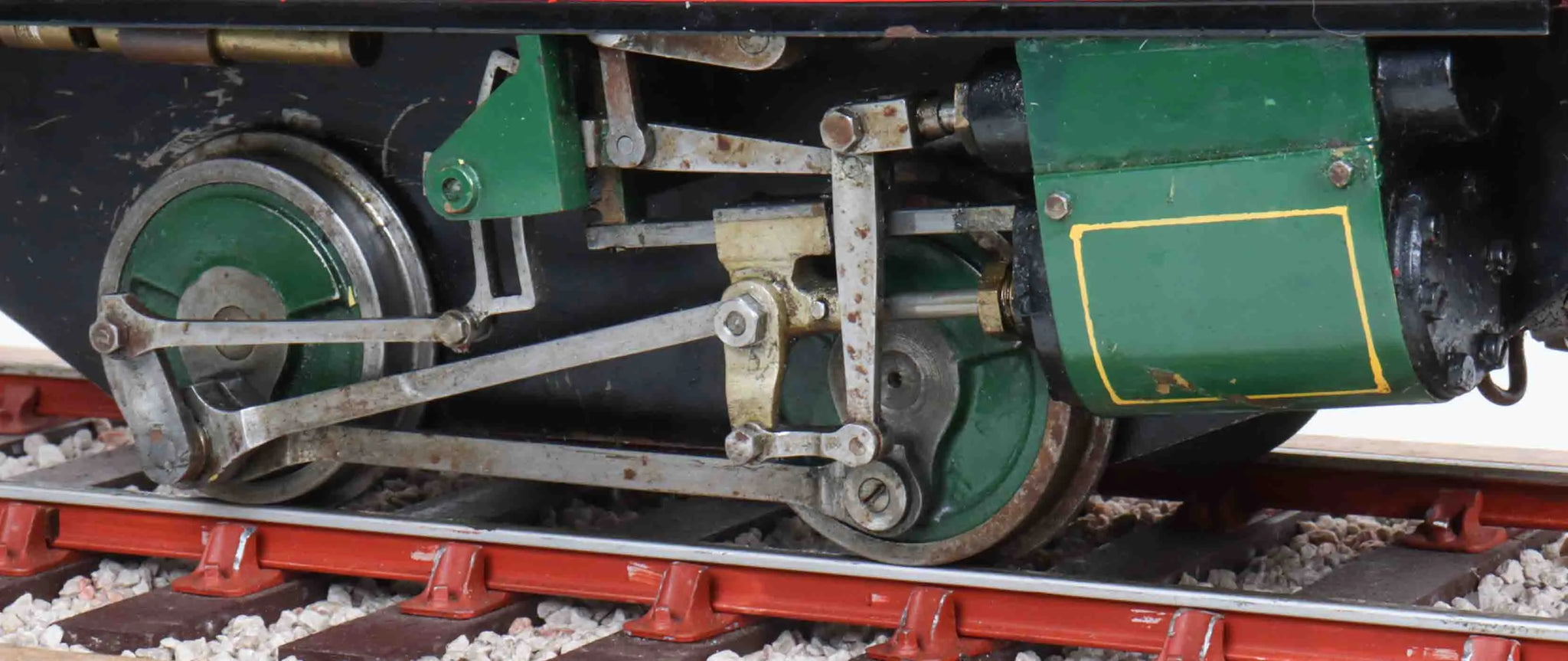

Valve gear |
Walschaerts |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver soldered with nutted and calked firebox |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a - non-commercial |
Safety valve type |
spring |
Safety valve |
1 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Date out |
May-23 |
