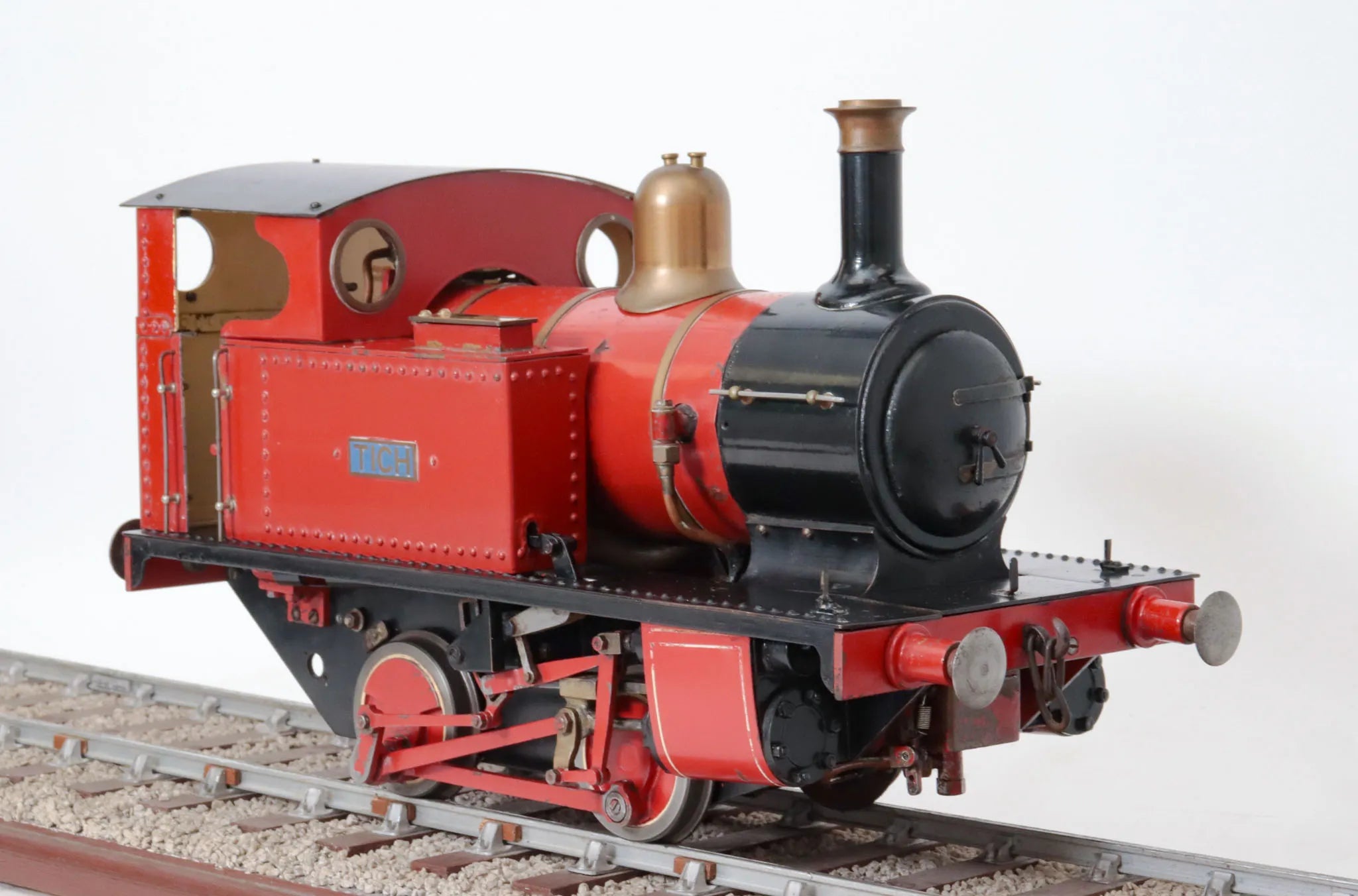

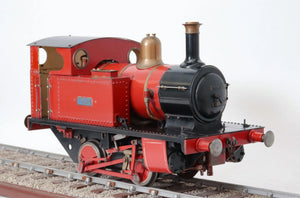

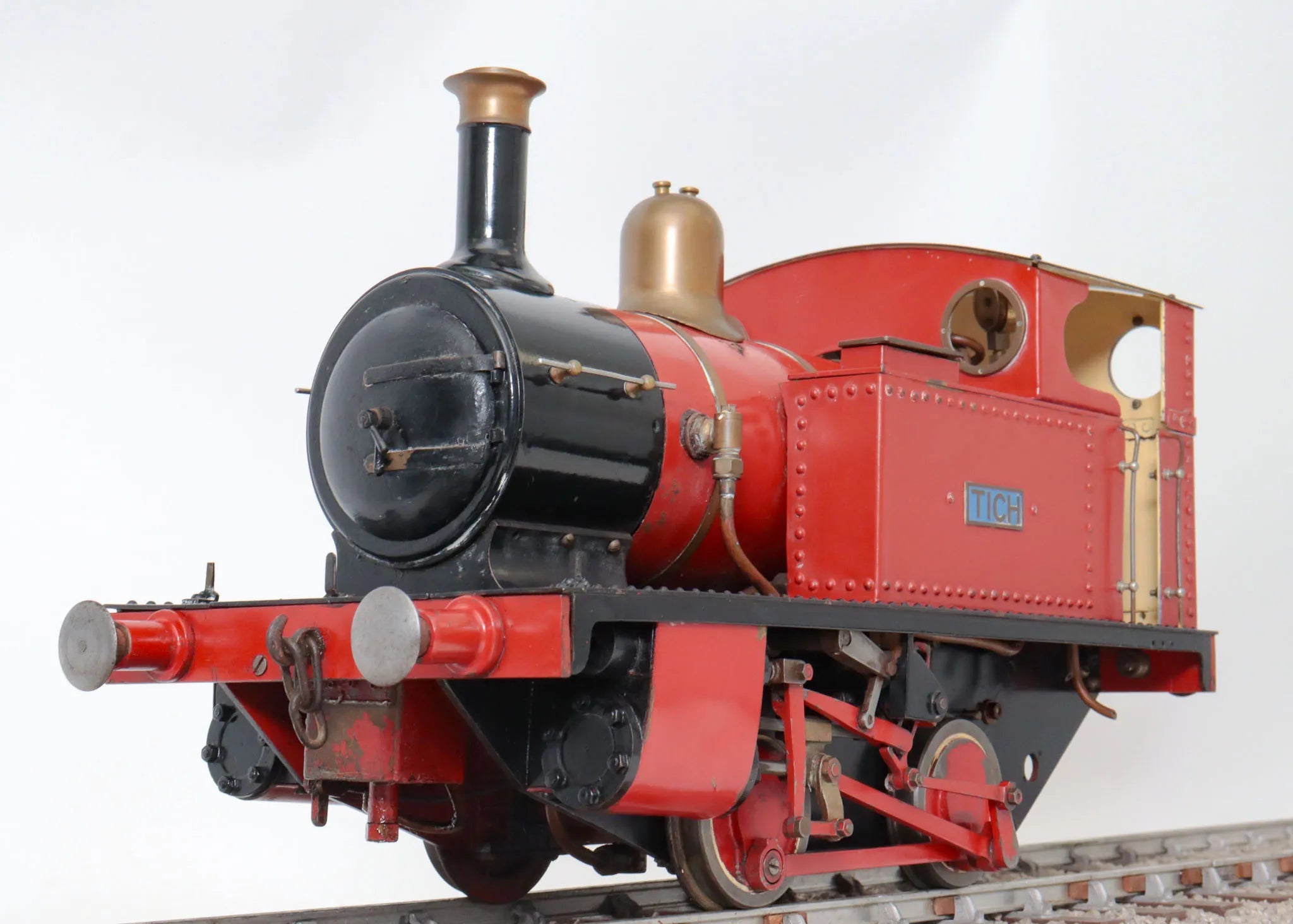

3 1/2 inch gauge large-boilered "Tich" 0-4-0T

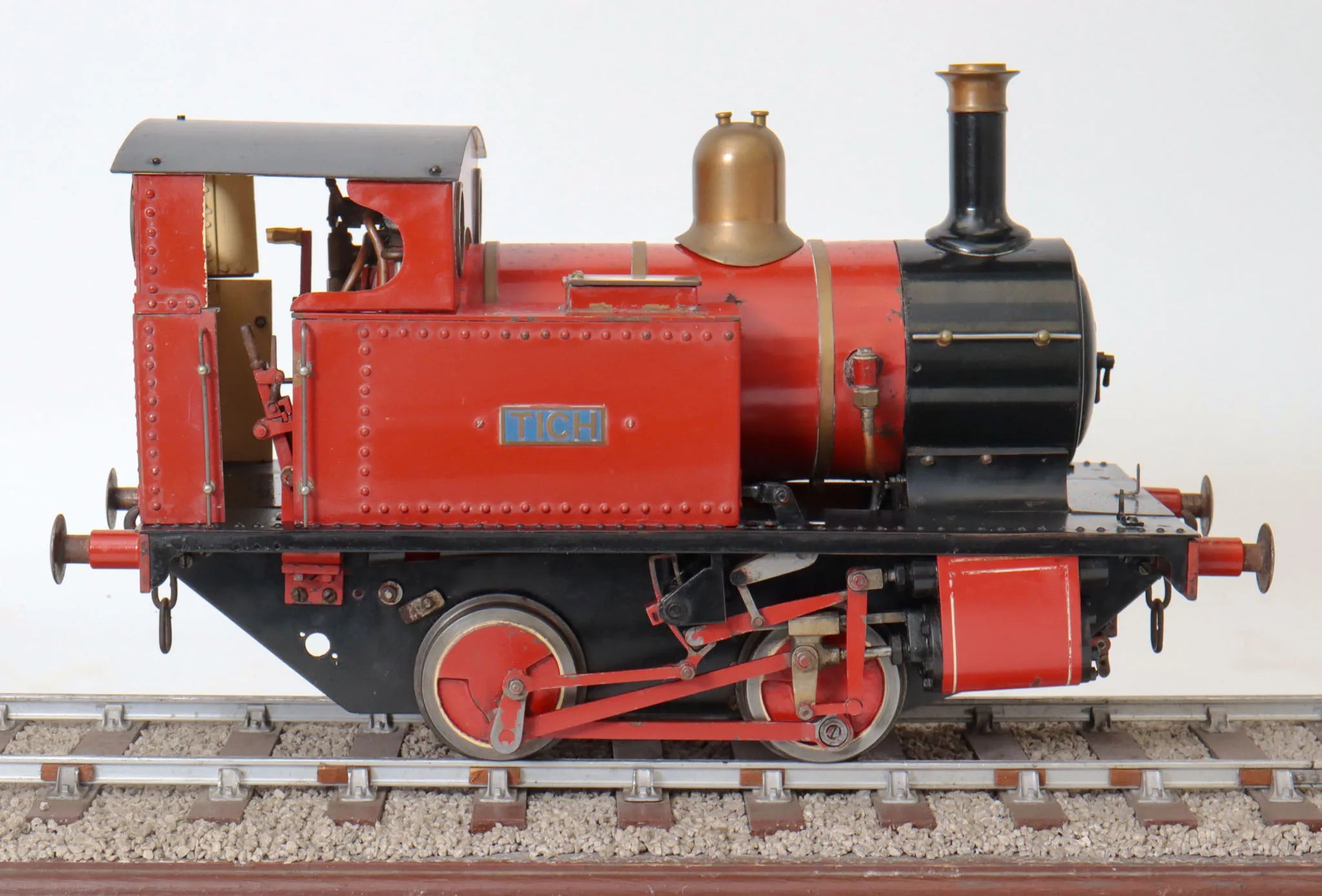

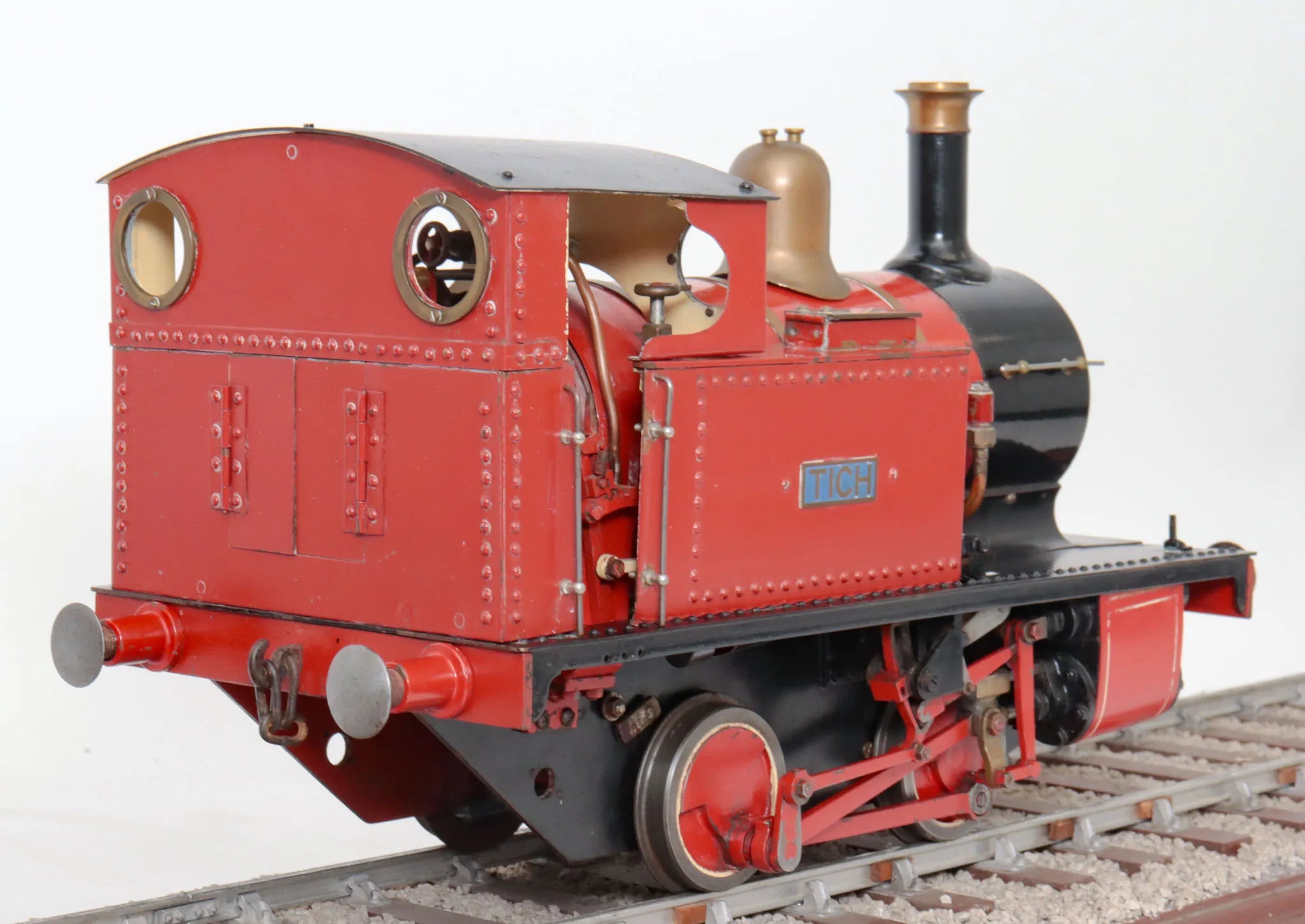

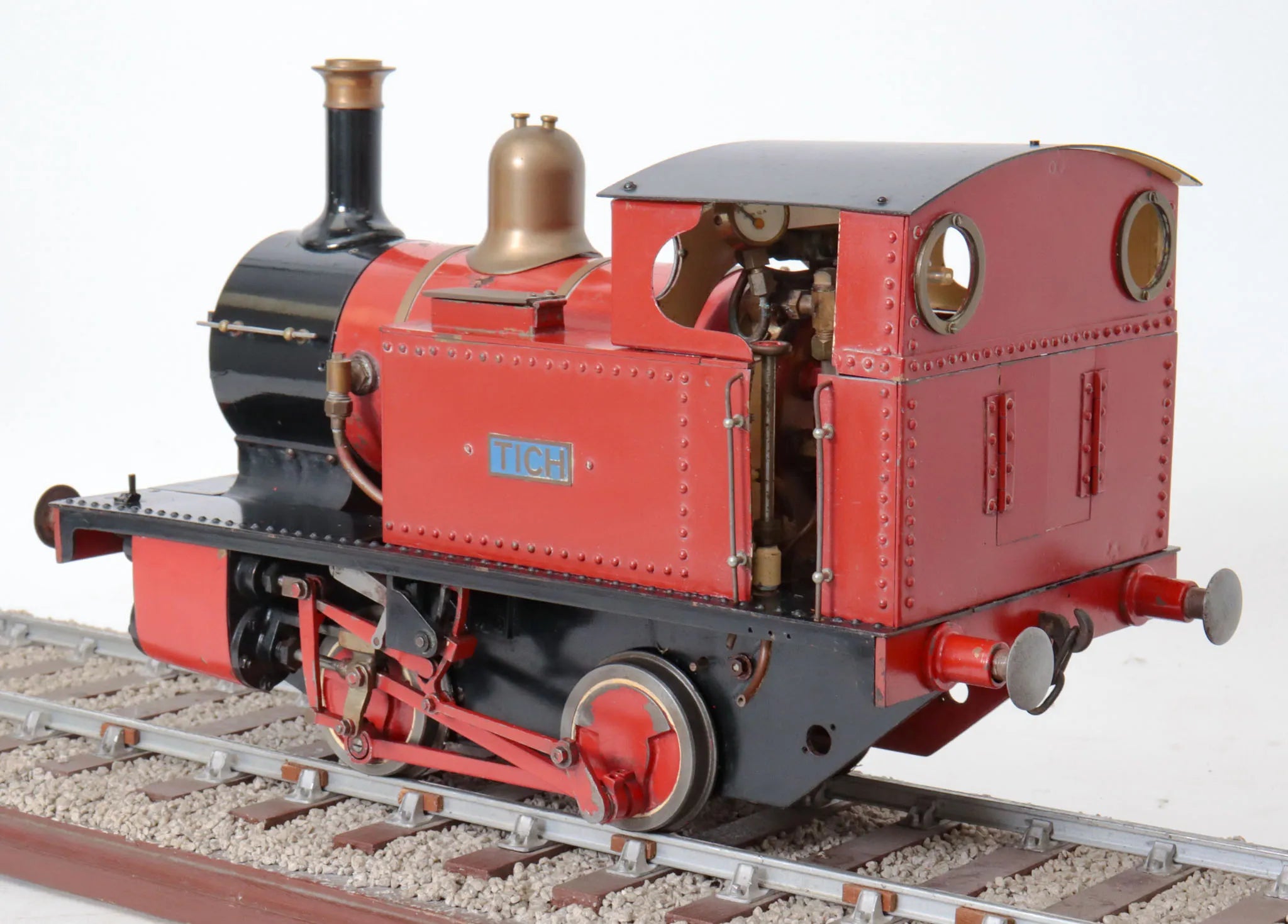

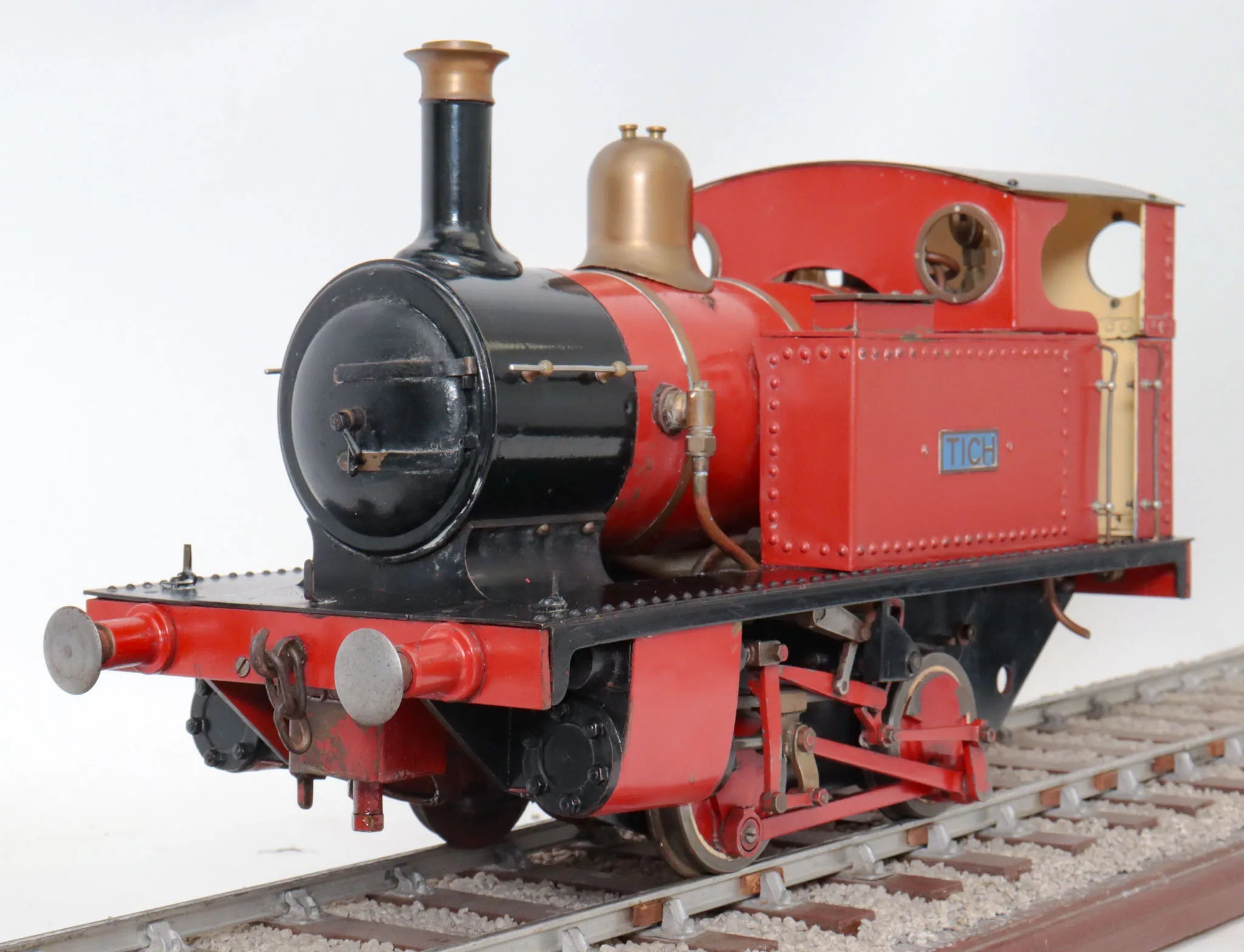

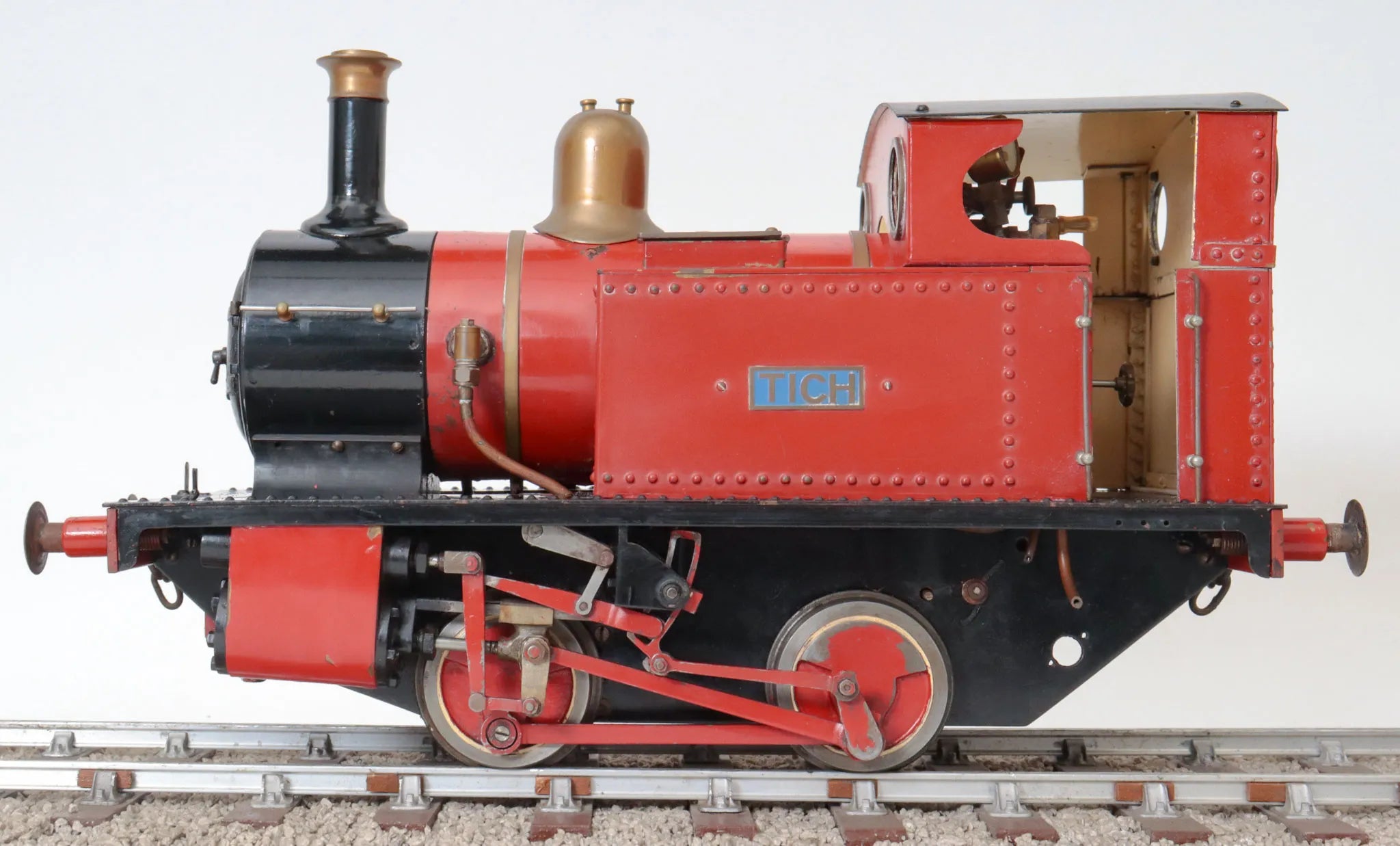

A 3 1/2 inch gauge large-boilered "Tich" with Walschaert's valve gear, an older model that appears to have had very little use.

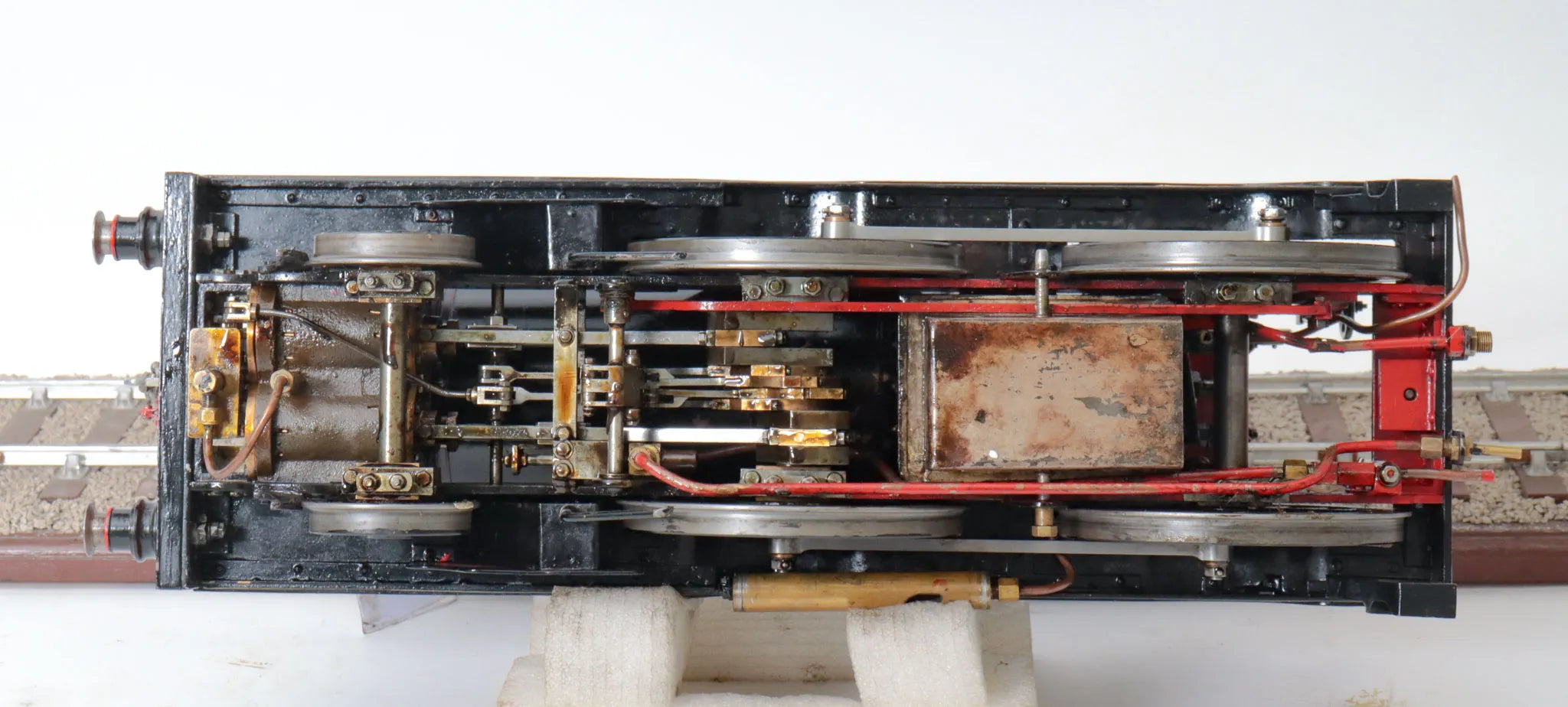

The boiler has had a twice working pressure hydraulic test with new certification issued, the chassis rolls freely and runs on air in either direction.

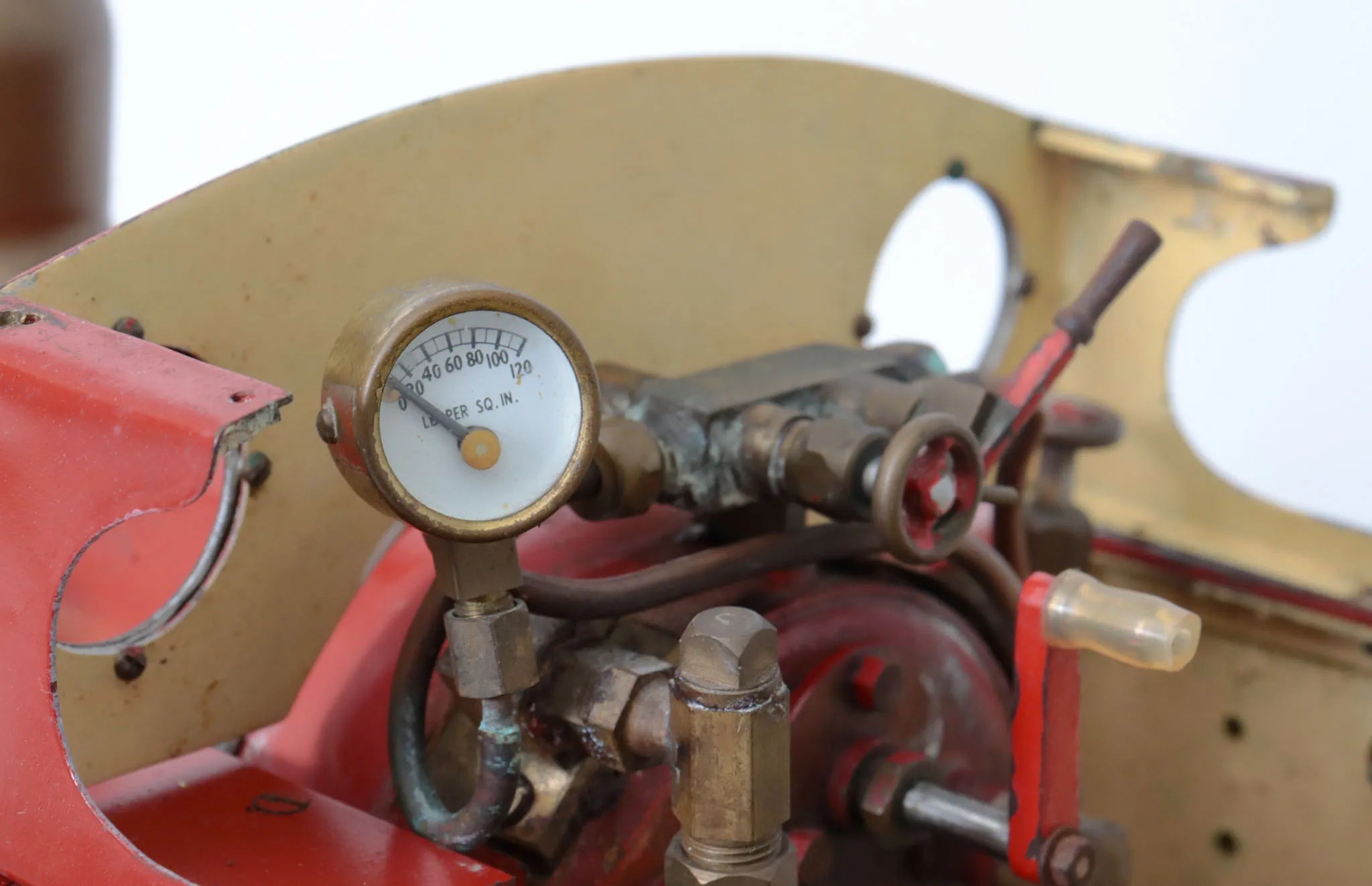

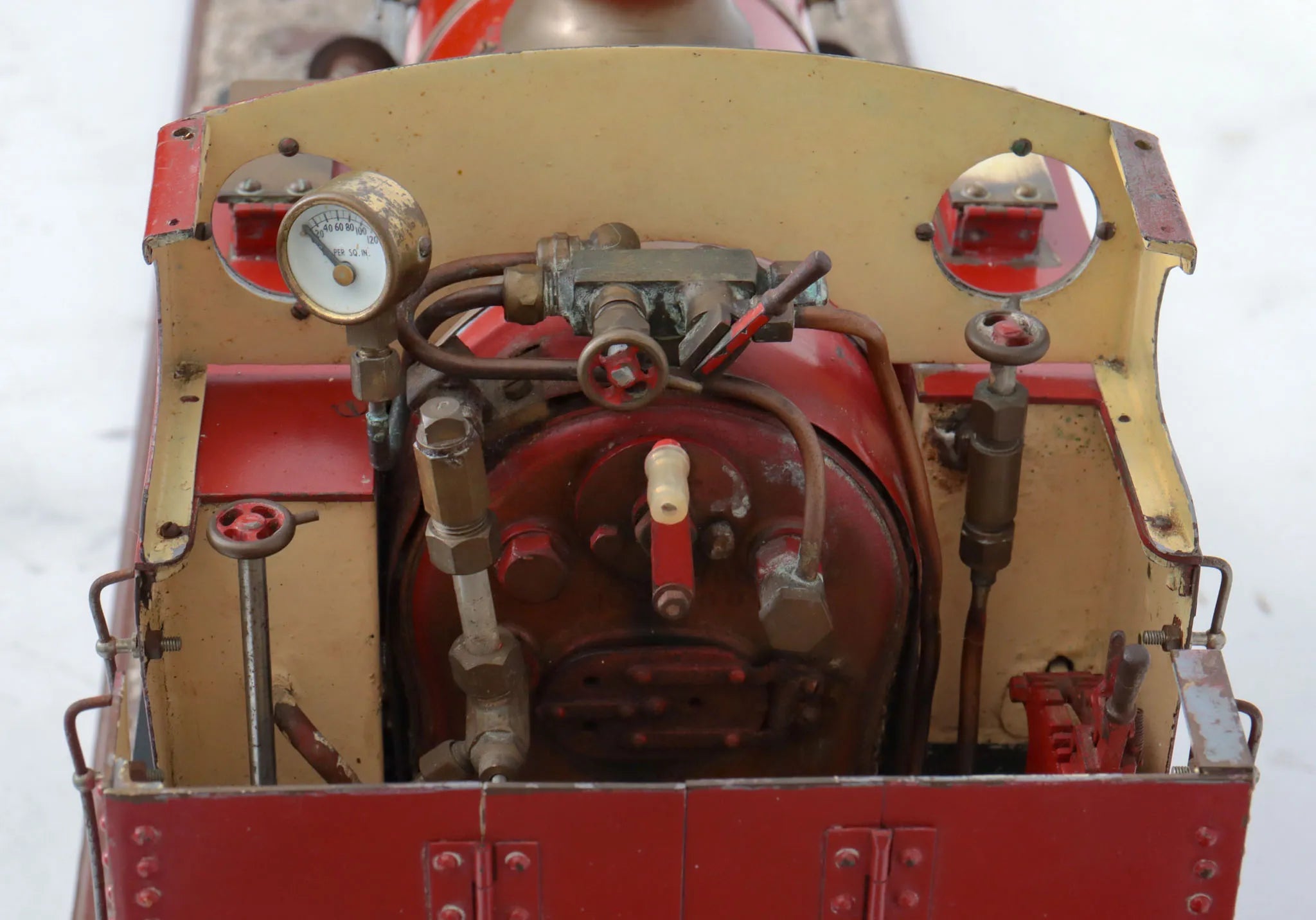

The smokebox door is missing a hinge and hinge pin, there are minor leaks from fittings on the manifold.

Includes free UK shipping.

Technical information

Stock code

12028

Gauge

3 1/2 inch

Length/inches

15.5

Width/inches

7

Height/inches

9.5

Weight/Kg

8.5

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

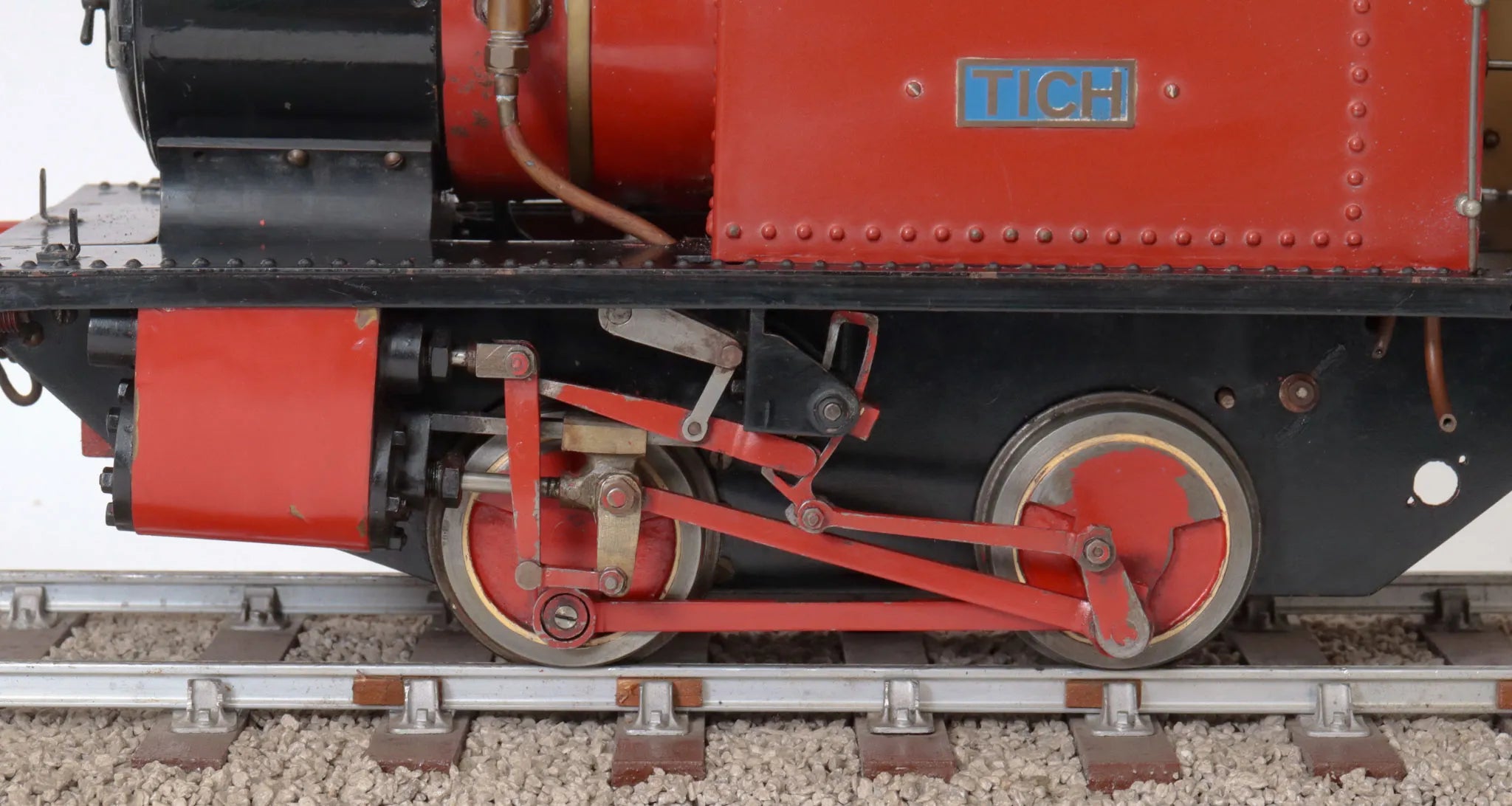

Valve gear

Walschaerts

Reverser type

pole

Lubricator type

mechanical

Boiler maker

Jubilee

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a pre-2002

Boiler number

03/00/1279

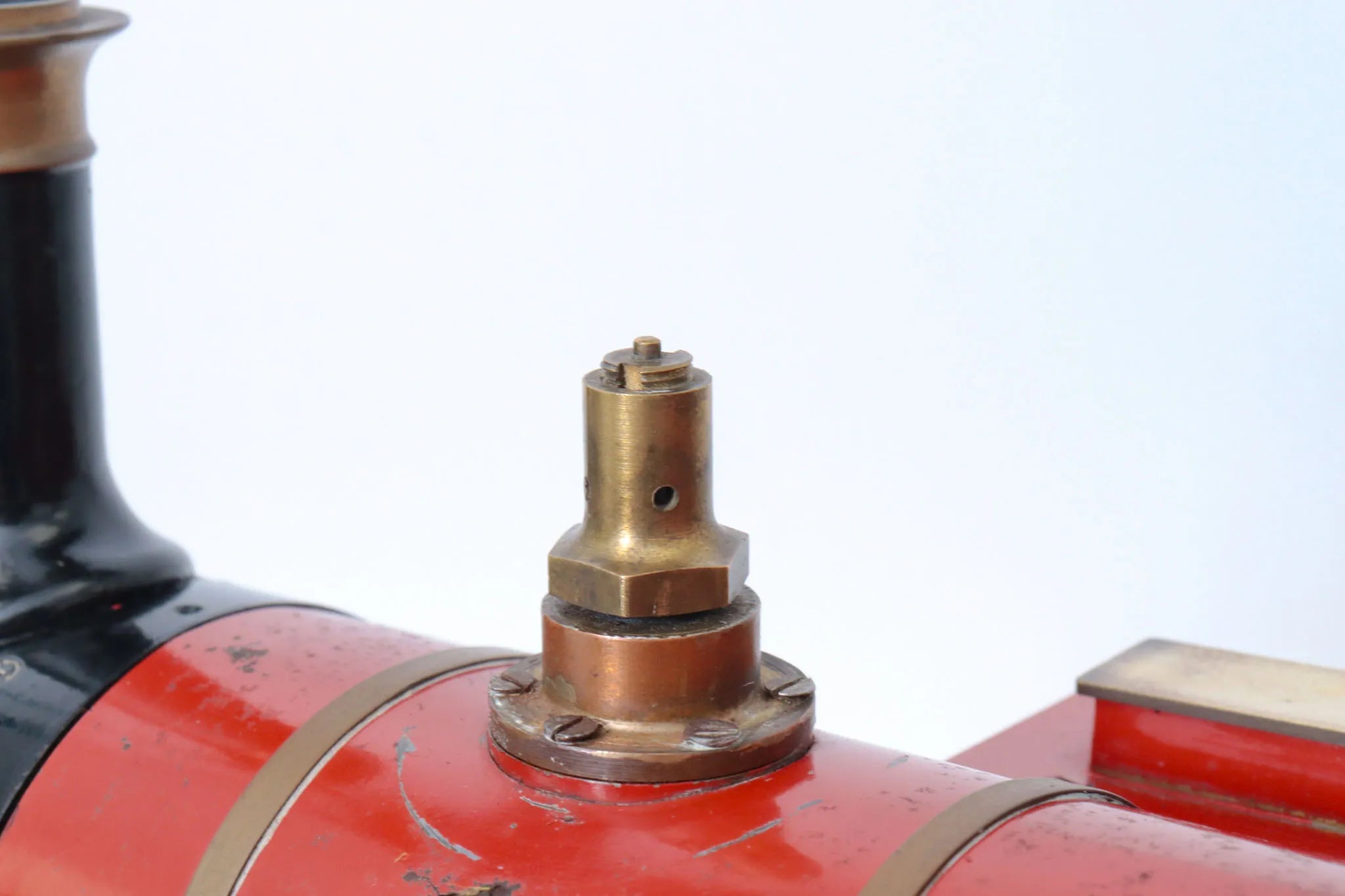

Safety valve type

spring

Safety valve

1

Fusible plug

no

Whistle

yes

Hand pump

1

Mechanical pump

1

Superheater type

flue tube

Superheater

1

Date out

Sep-24

Hydraulic test valid to

03-Jun-28
