The boiler has had a twice working pressure hydraulic test with new certification issued - silver soldered, with some calking it proved remarkably watertight on test.

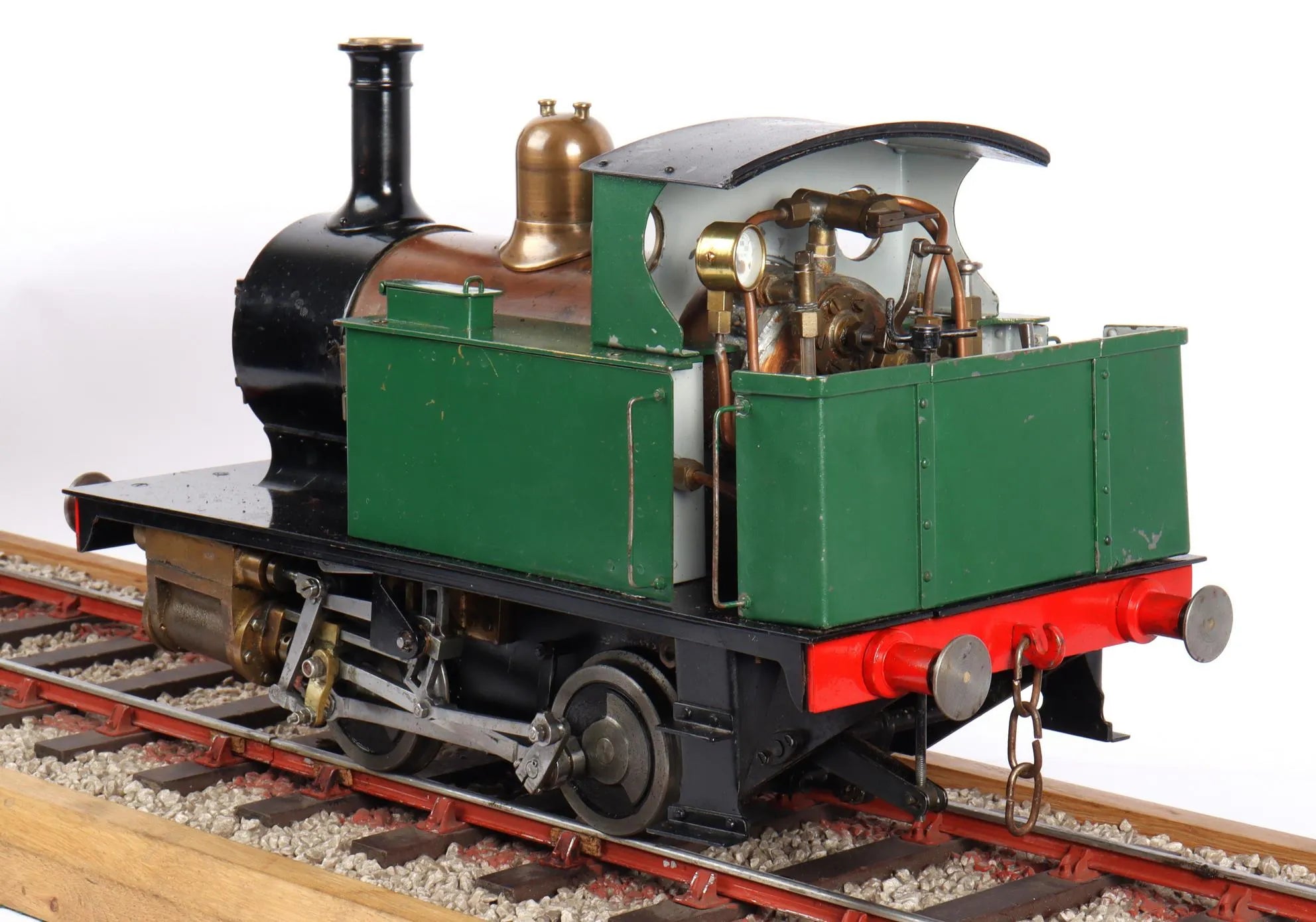

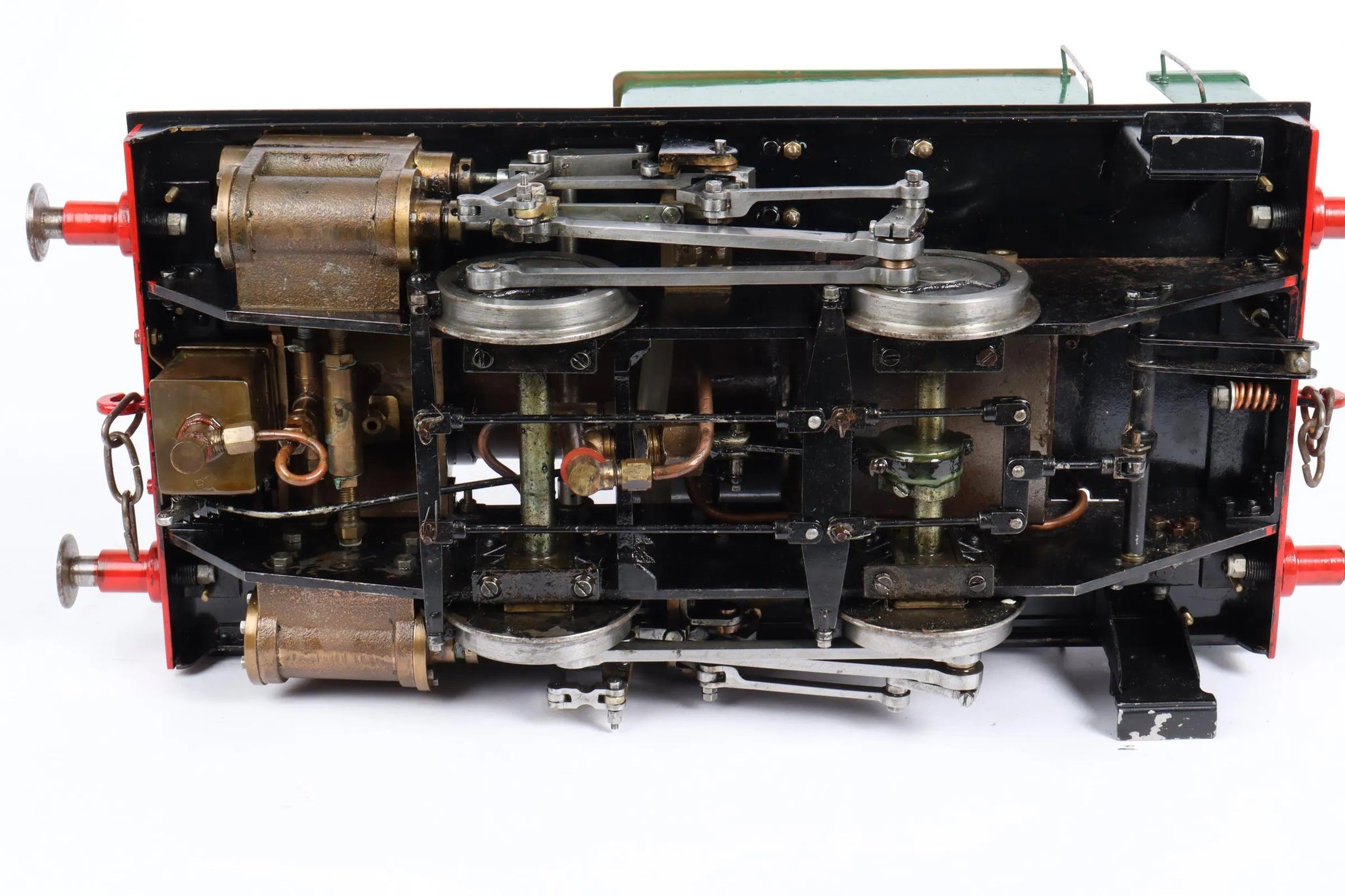

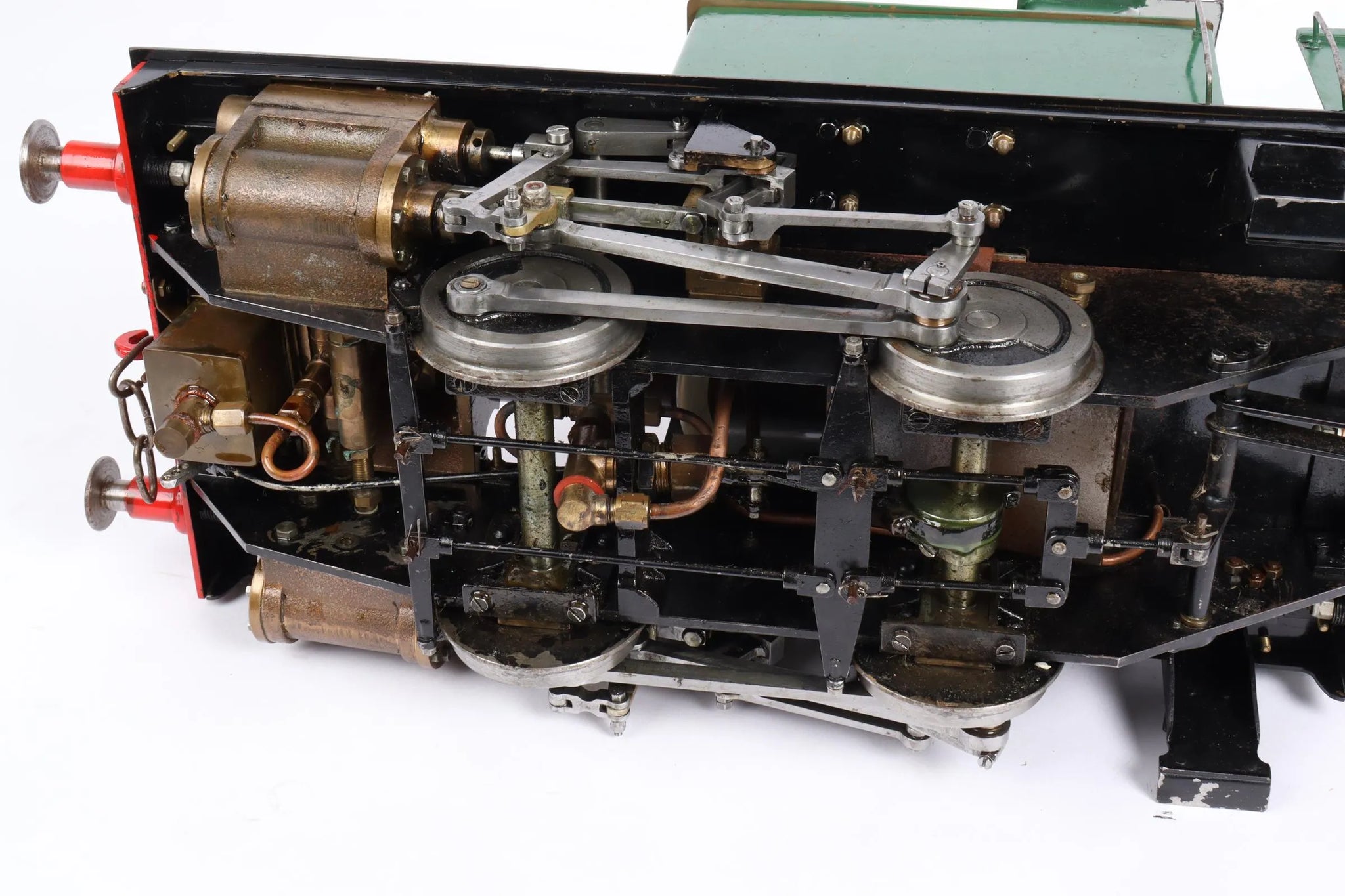

The chassis rolls freely and ran well on air with crisp, even exhaust beats.

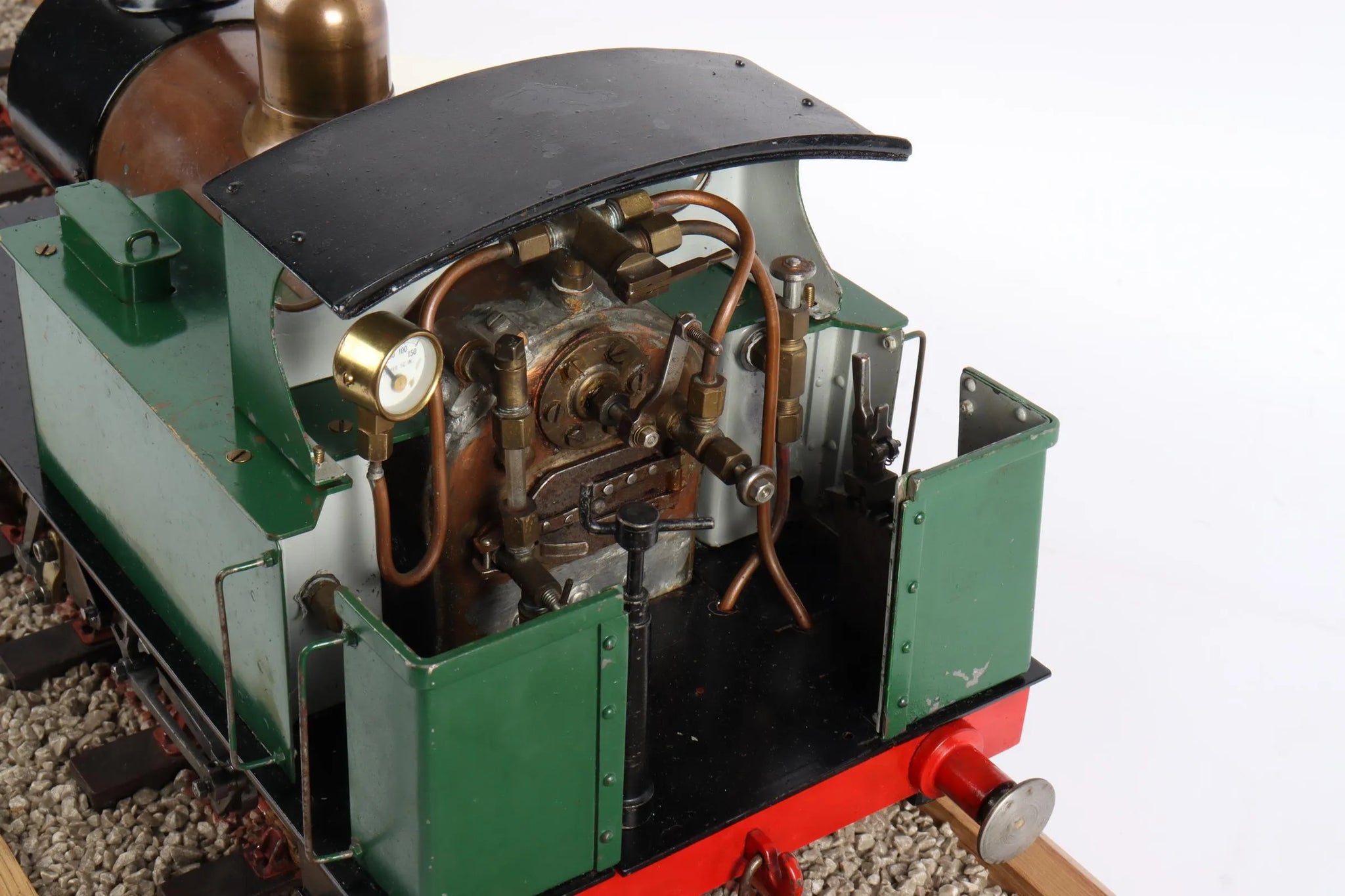

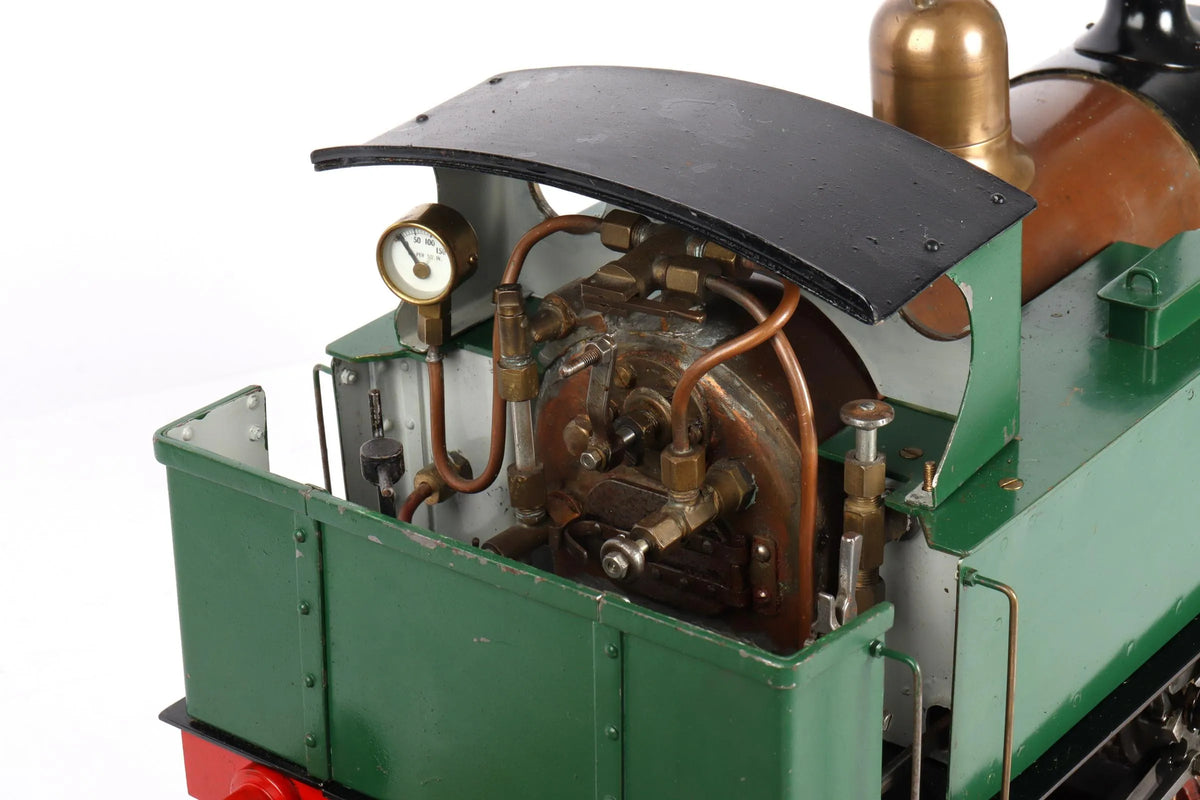

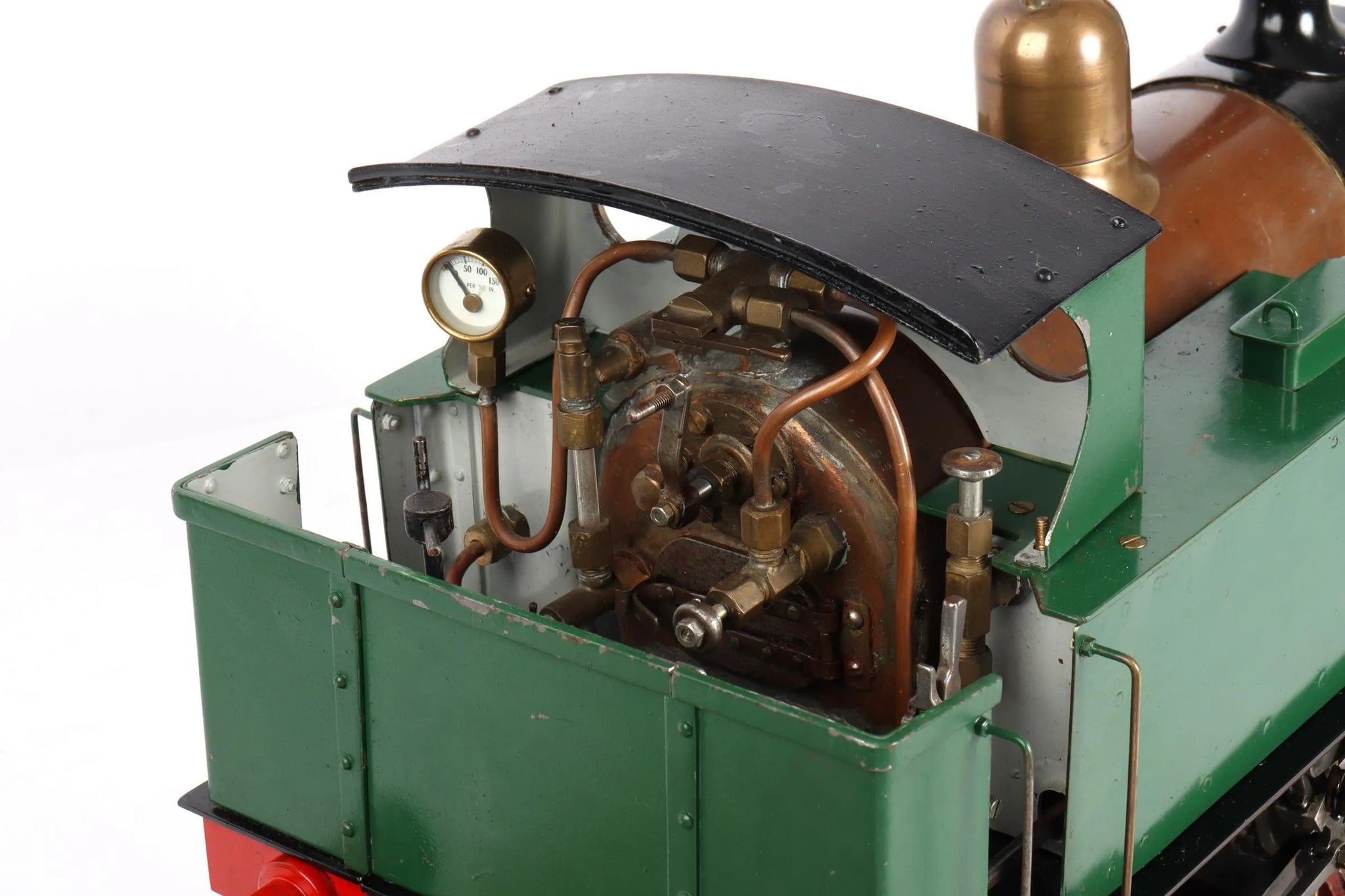

There are a variety of jobs required to recommission this one for steaming, including fitting new cylinder end cover gaskets and servicing regulator and blower valve, both of which leak.
Includes free UK shipping.
Stock code |
12698 |
Gauge |
3 1/2 inch |
Length/inches |
15.5 |
Width/inches |
7 |
Height/inches |
9.5 |
Weight/Kg |
8.5 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |

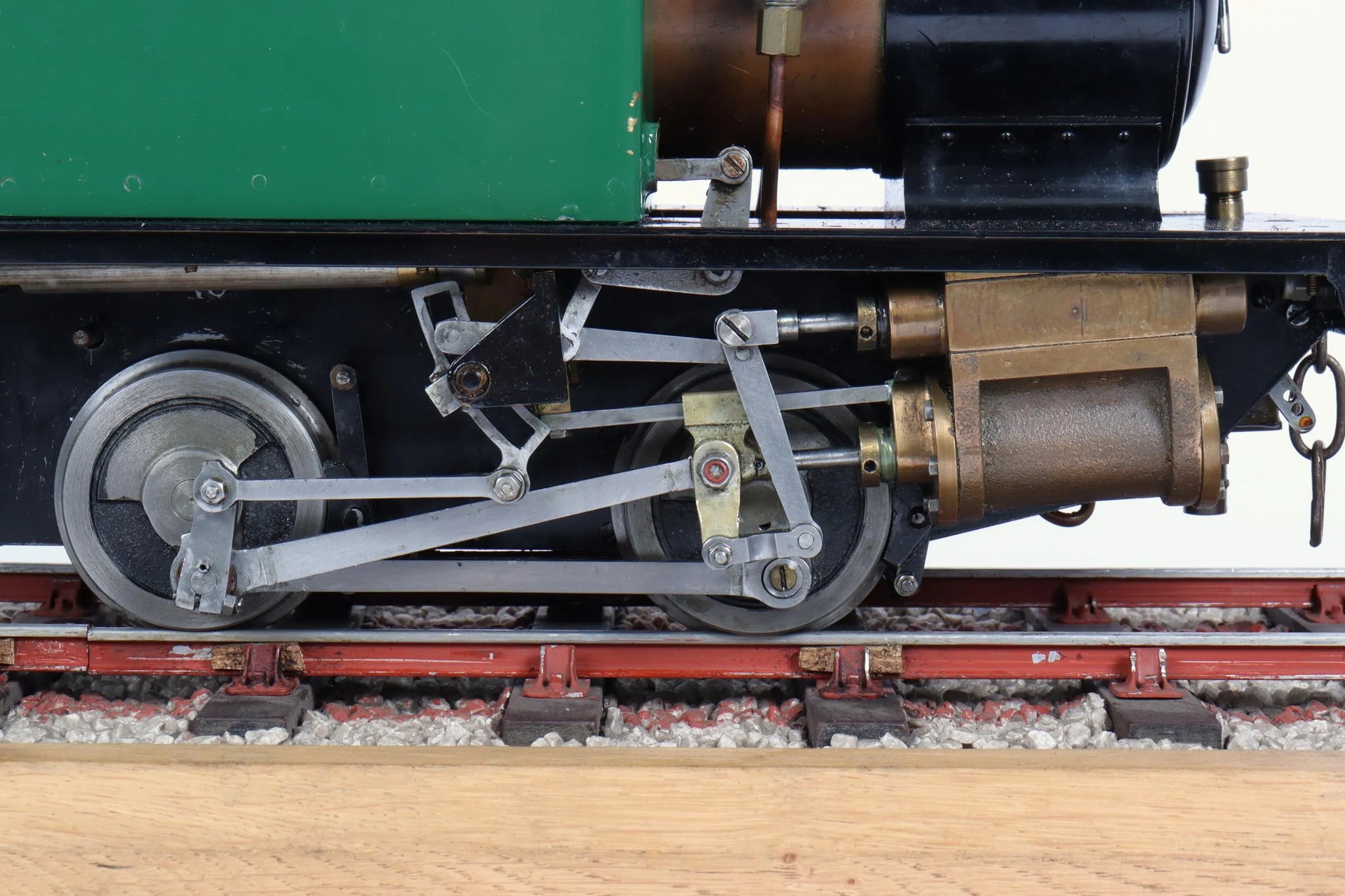

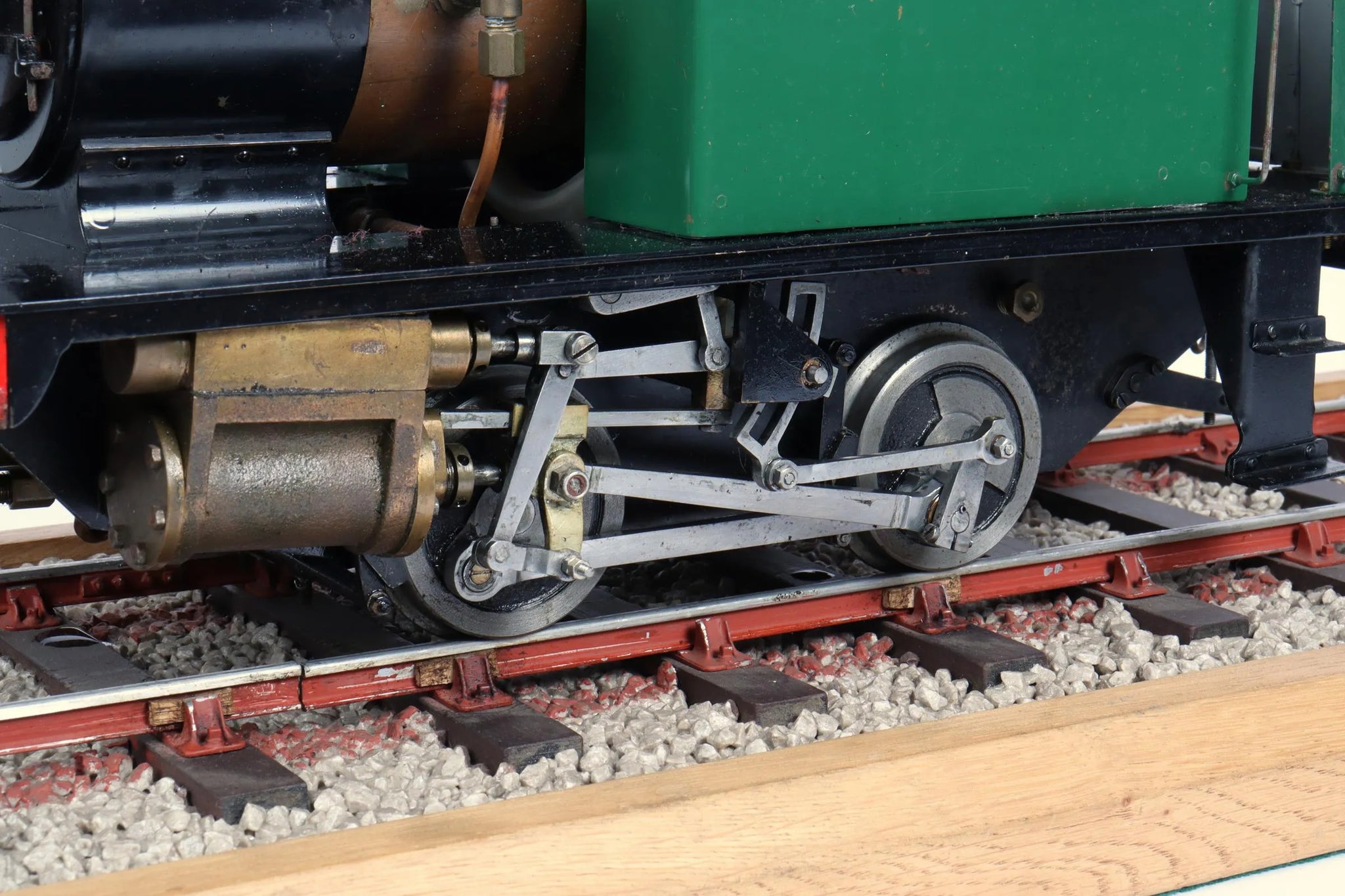

Valve gear |
Walschaerts |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
CE/UKCA mark |
n/a - non-commercial |
Boiler number |
12698 |
Safety valve type |
spring |
Safety valve |
1 |
Fusible plug |
no |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Superheater type |
flue tube |
Superheater |
1 |
Date out |
May-25 |
Hydraulic test valid to |
18-Feb-29 |
