10213

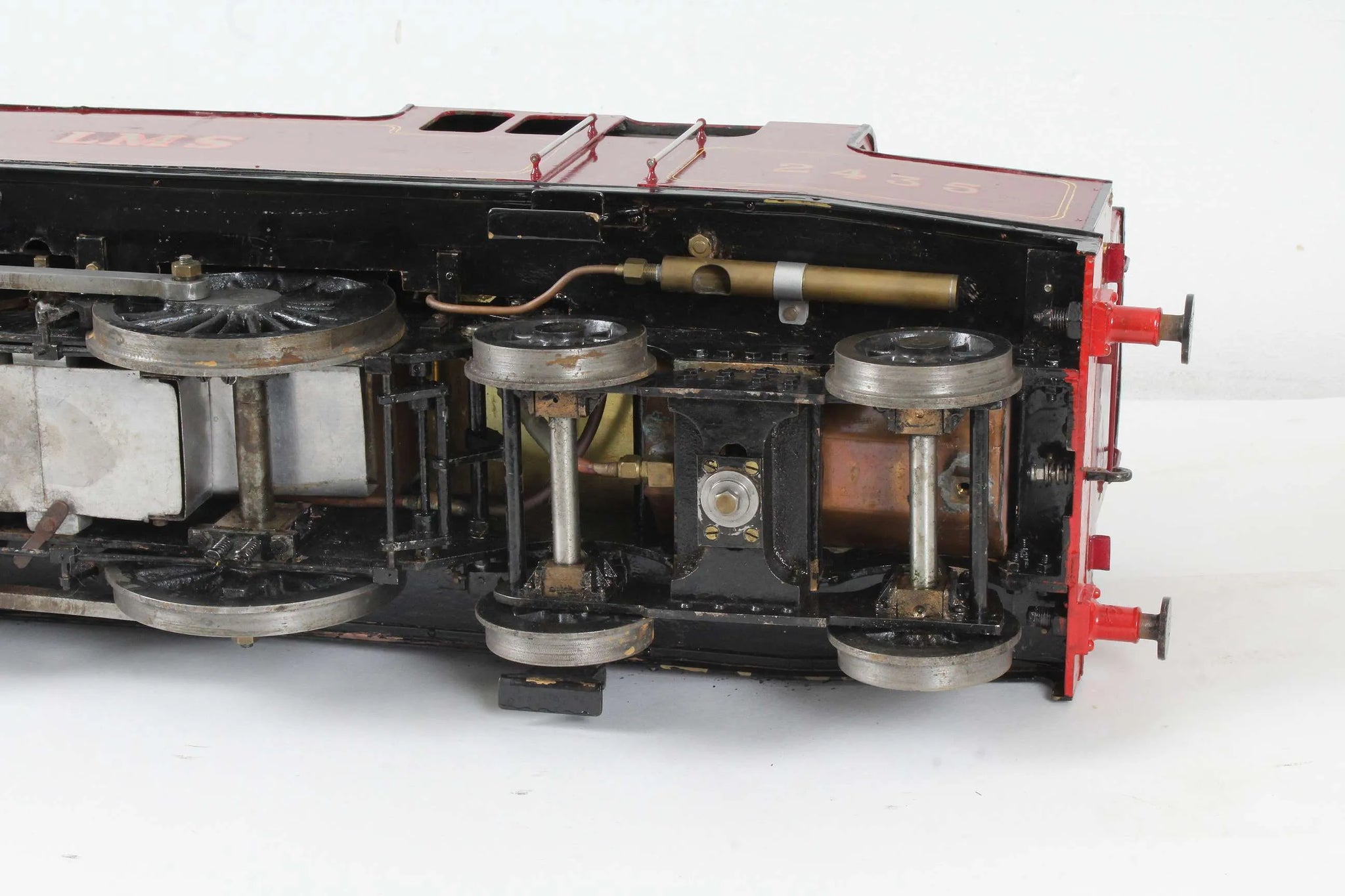

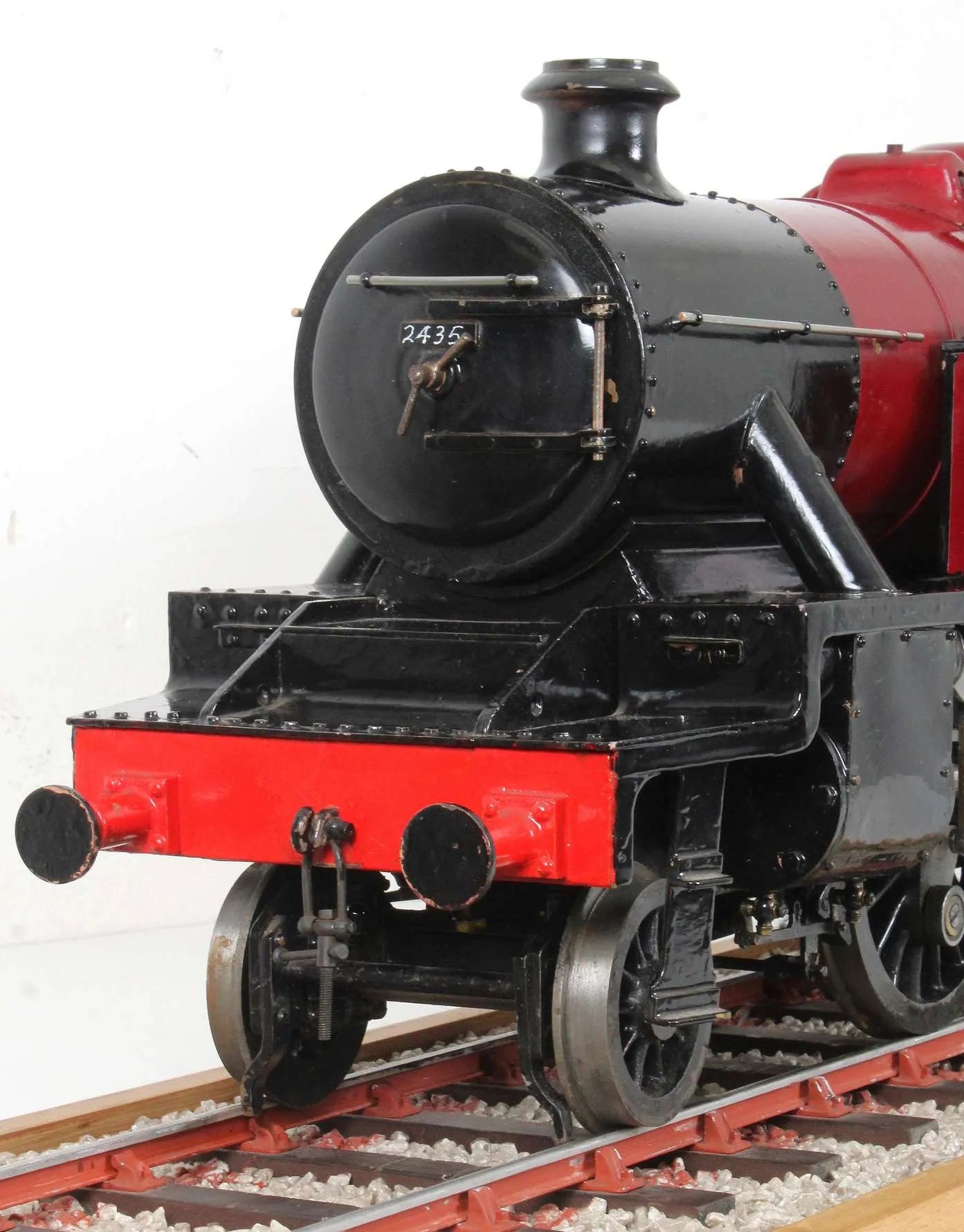

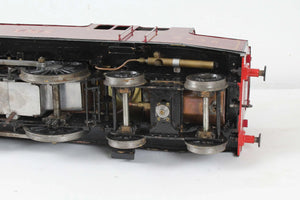

In the same condition as last time it was here, pictures opposite were taken in recent days, words below from last year. The commercially-built boiler remains as-new, we would warranty it as sound.

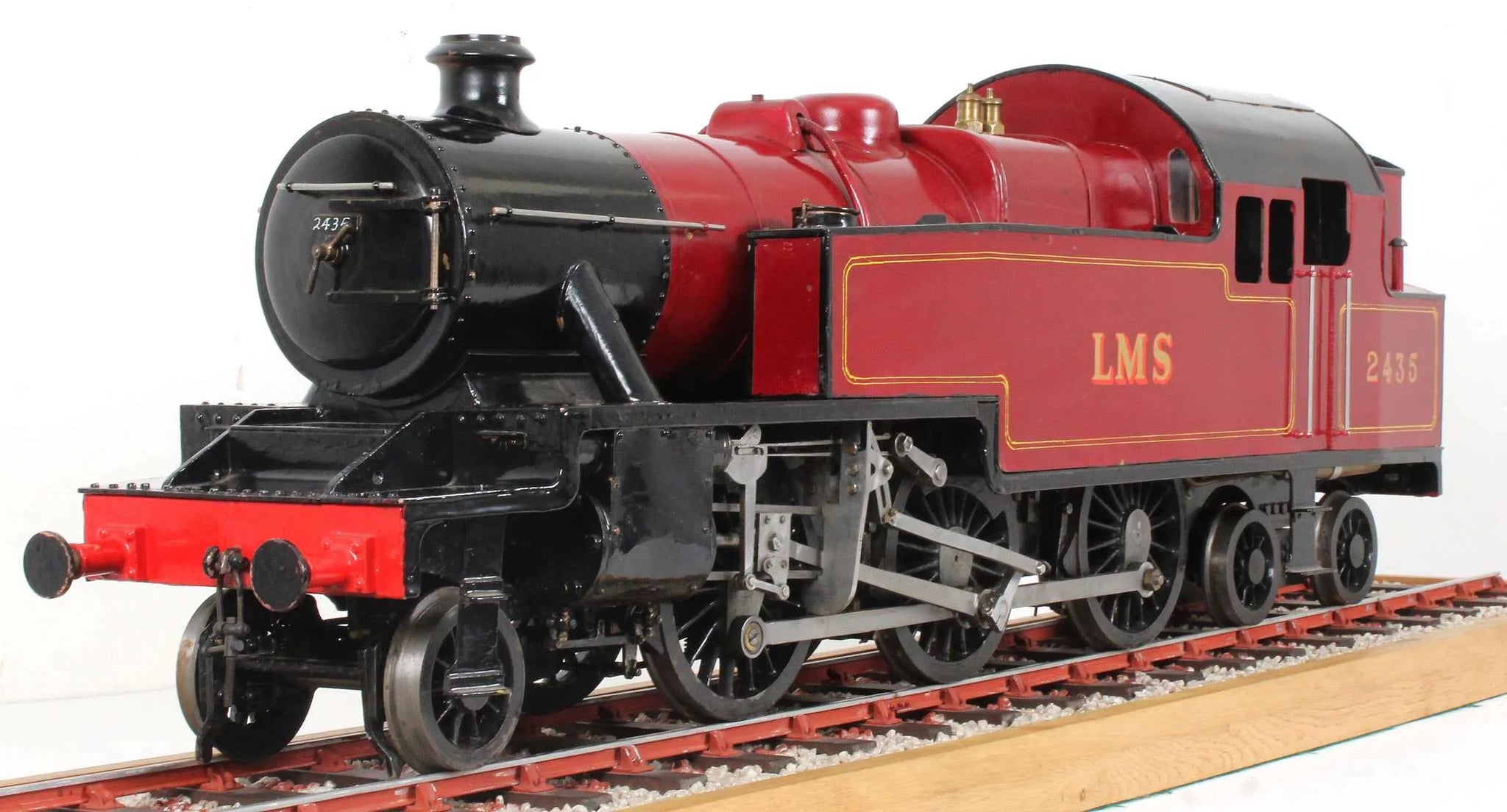

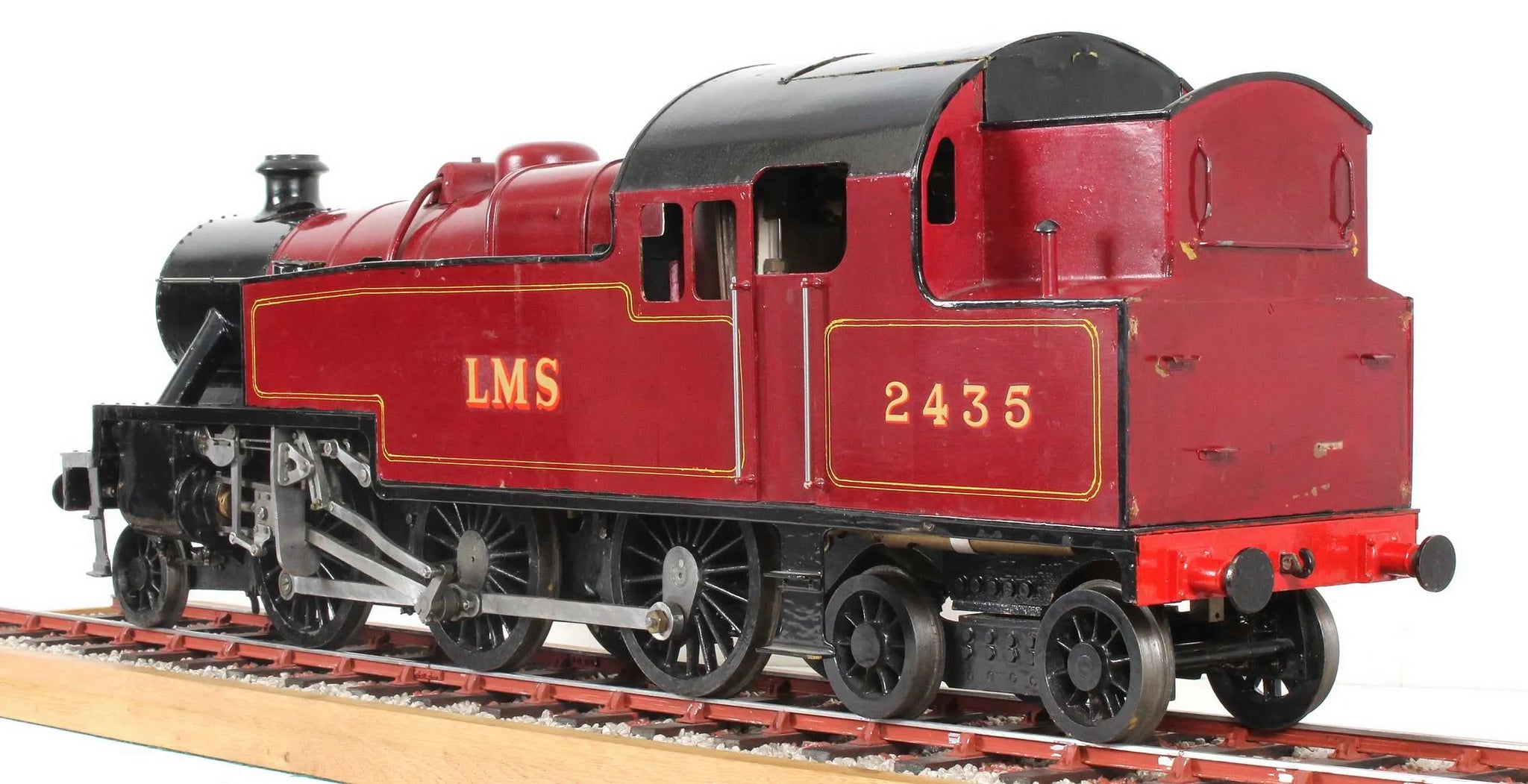

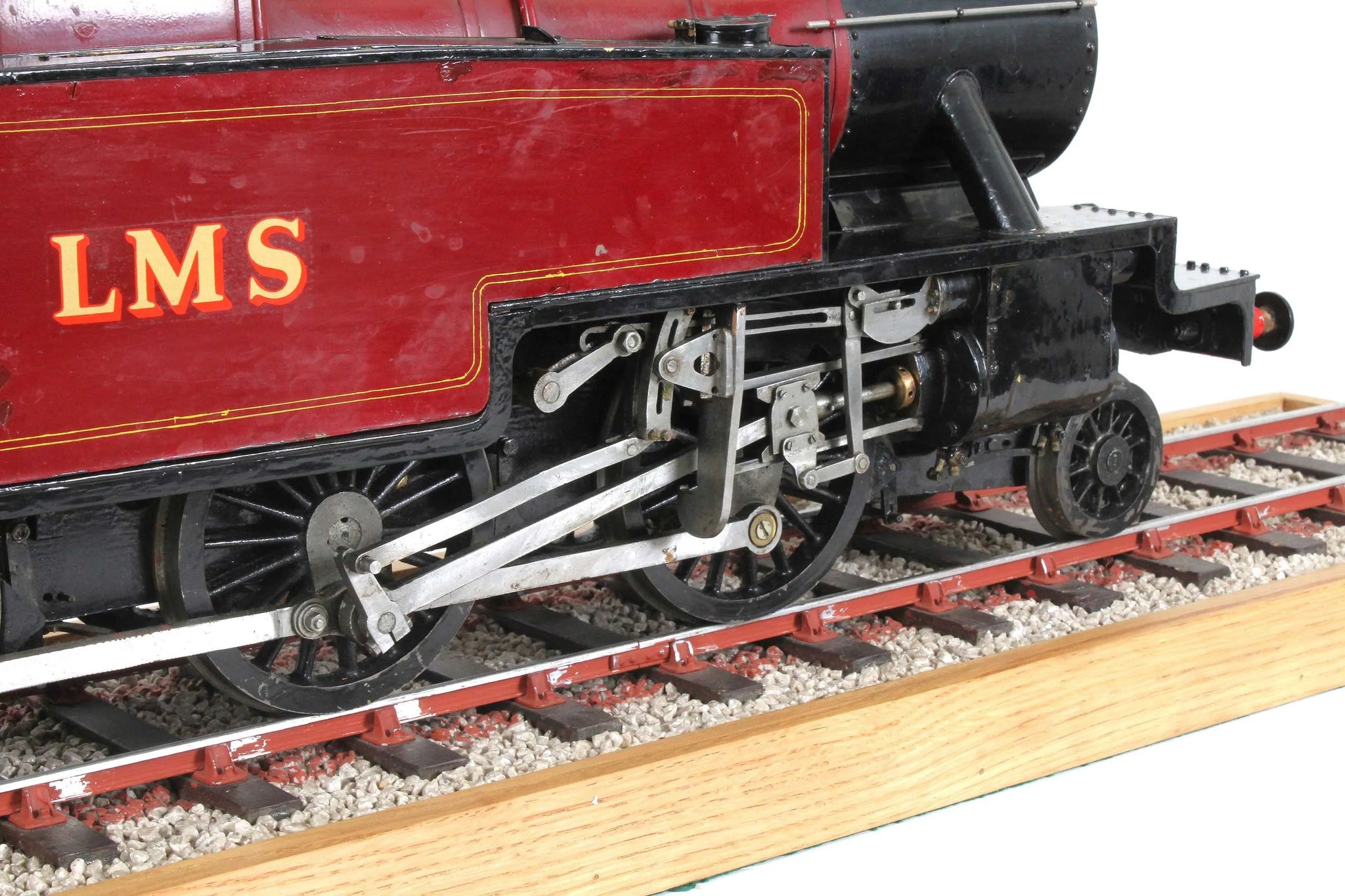

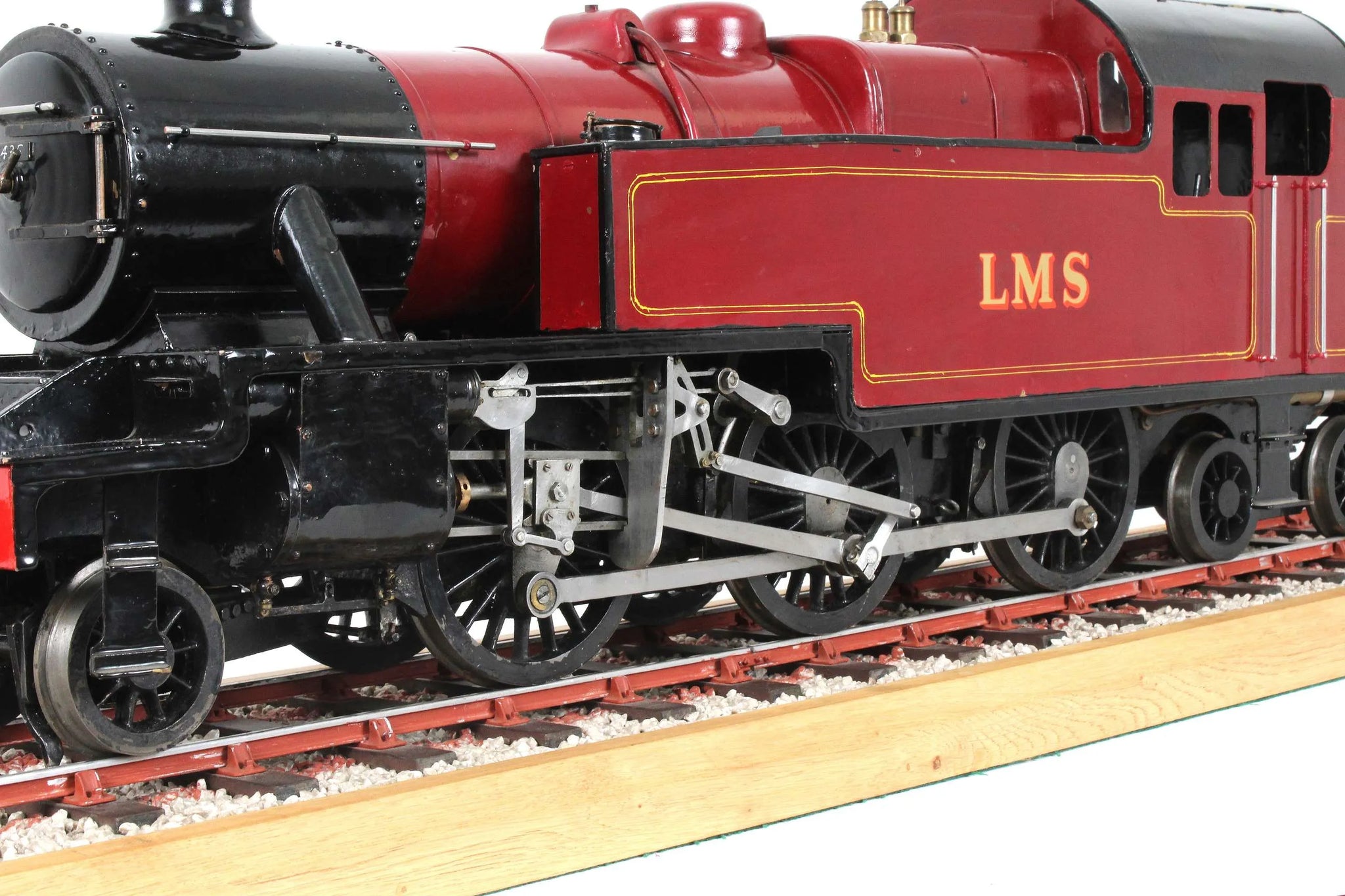

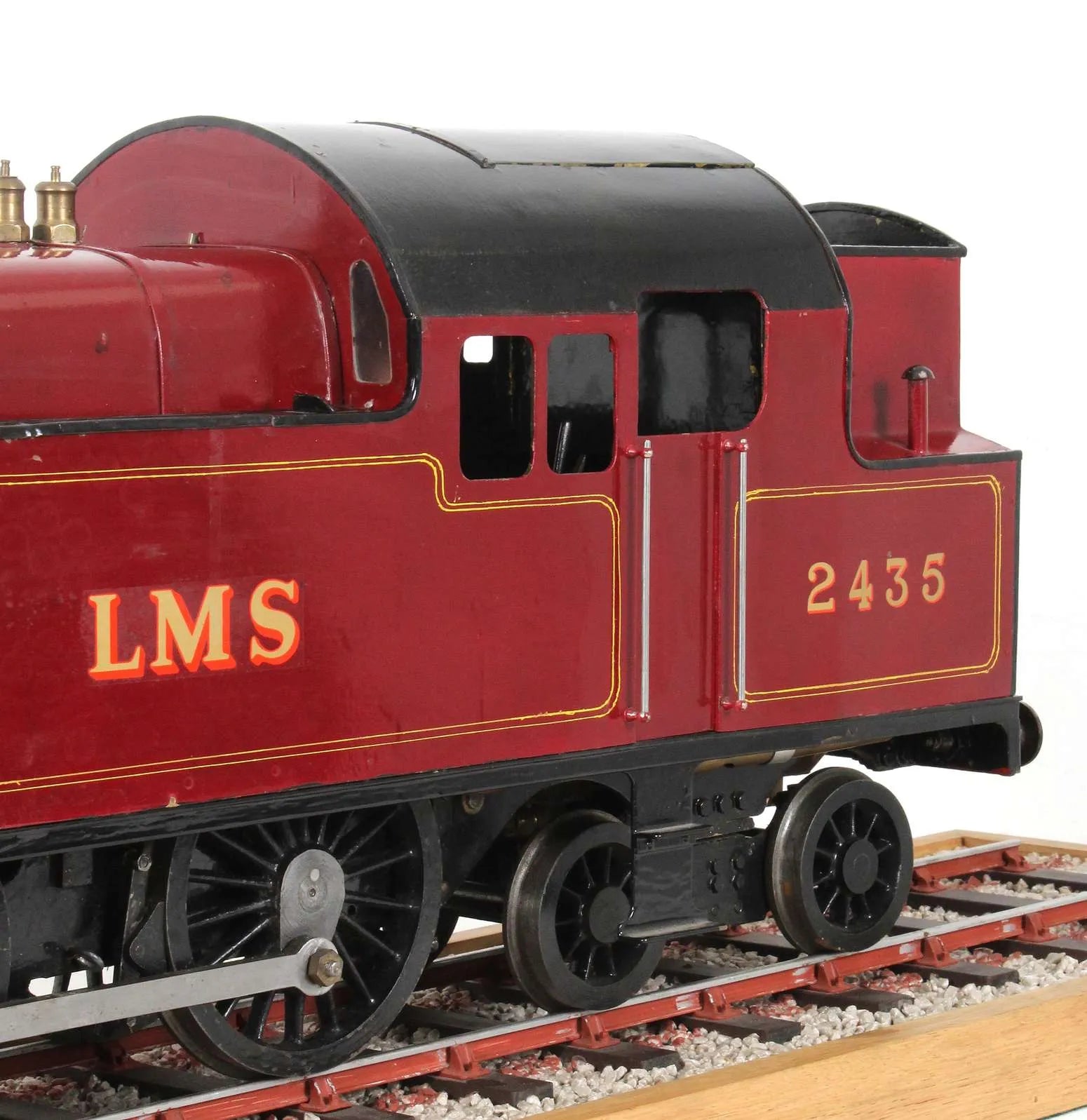

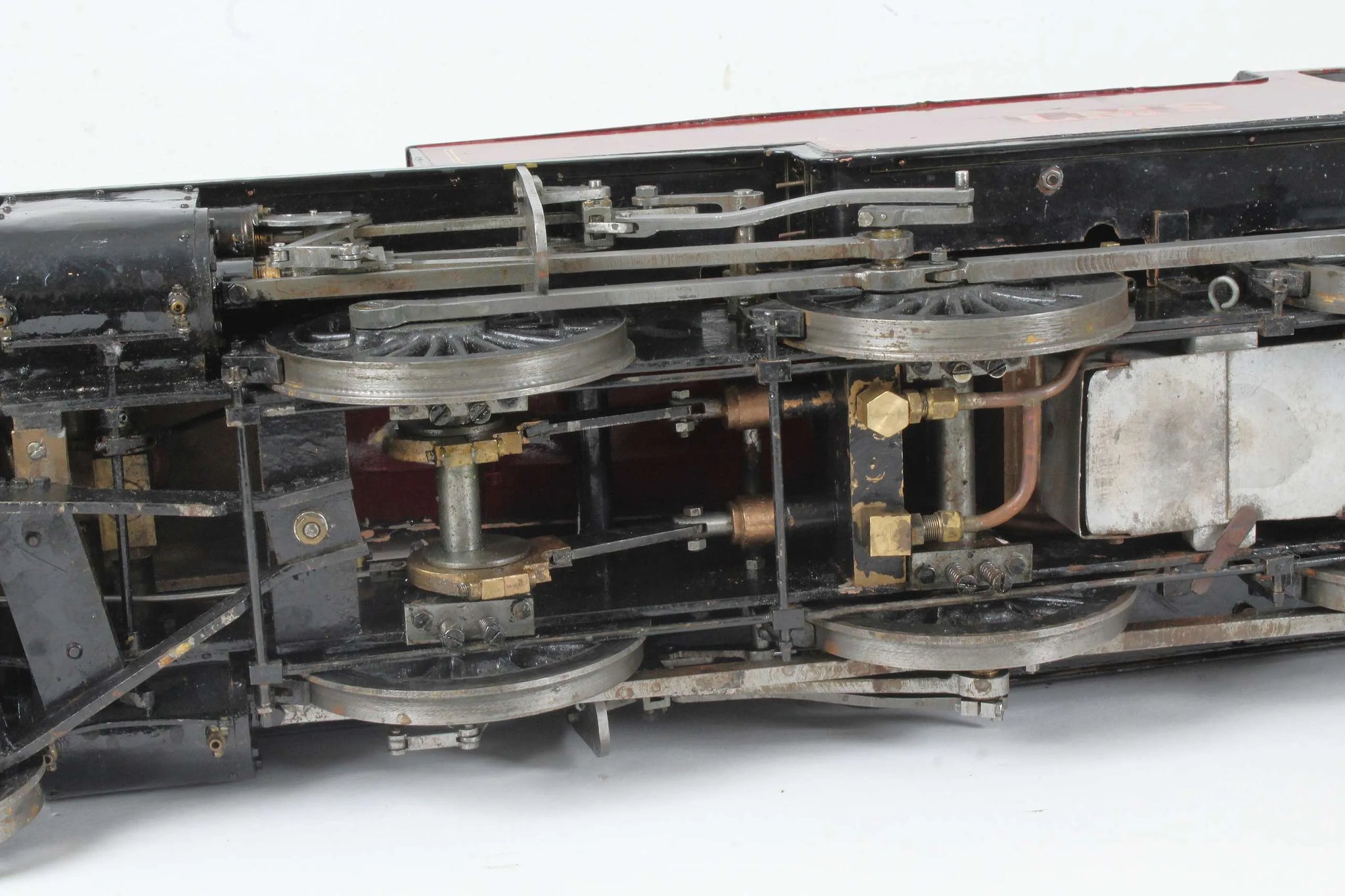

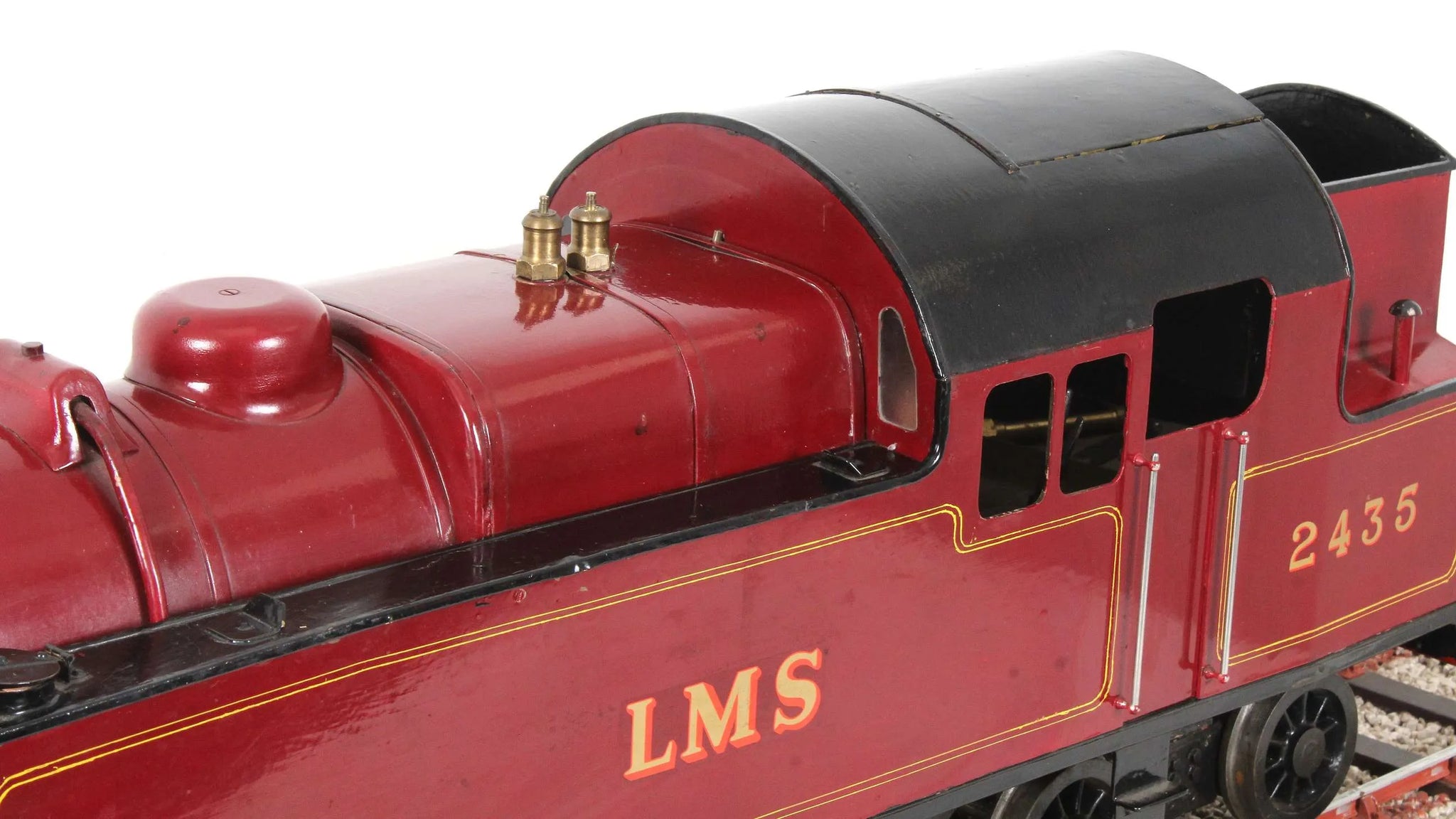

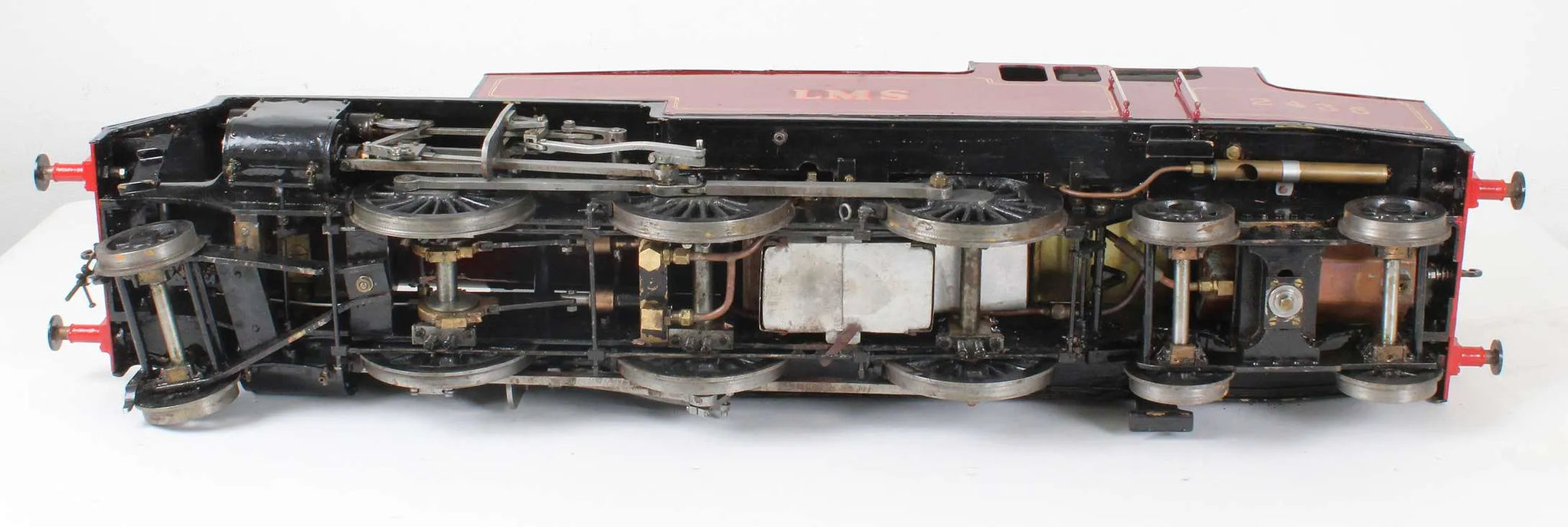

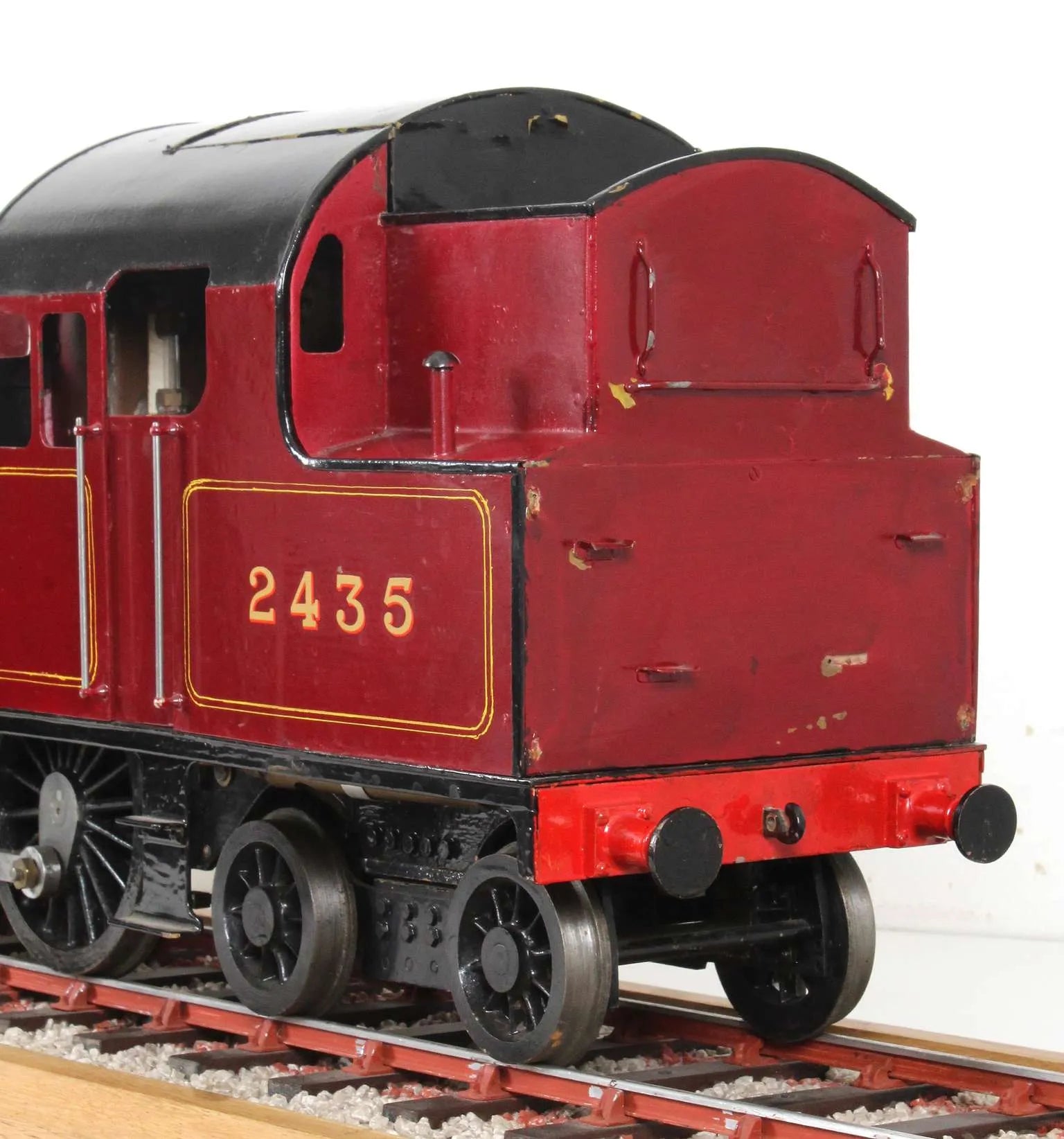

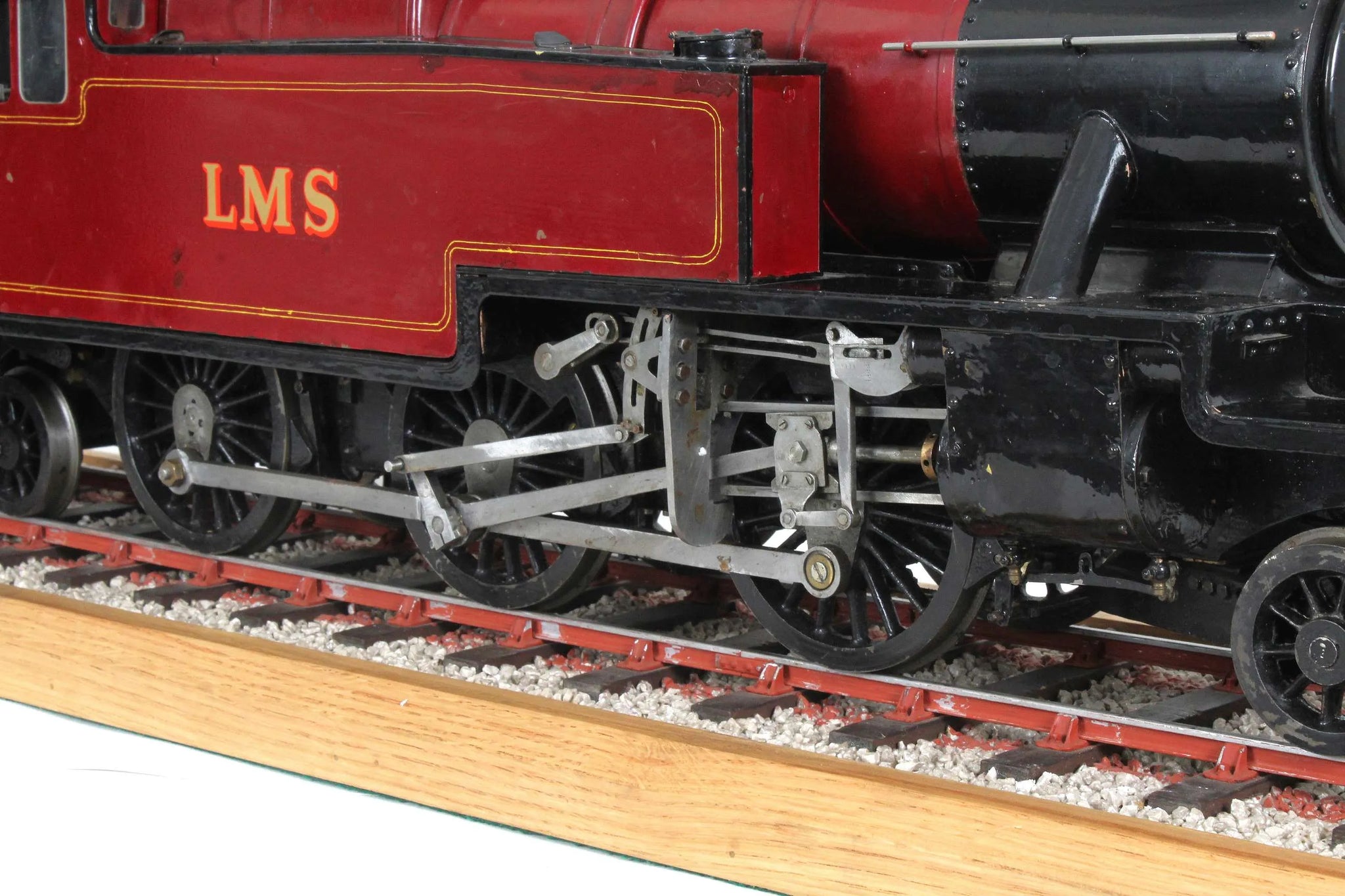

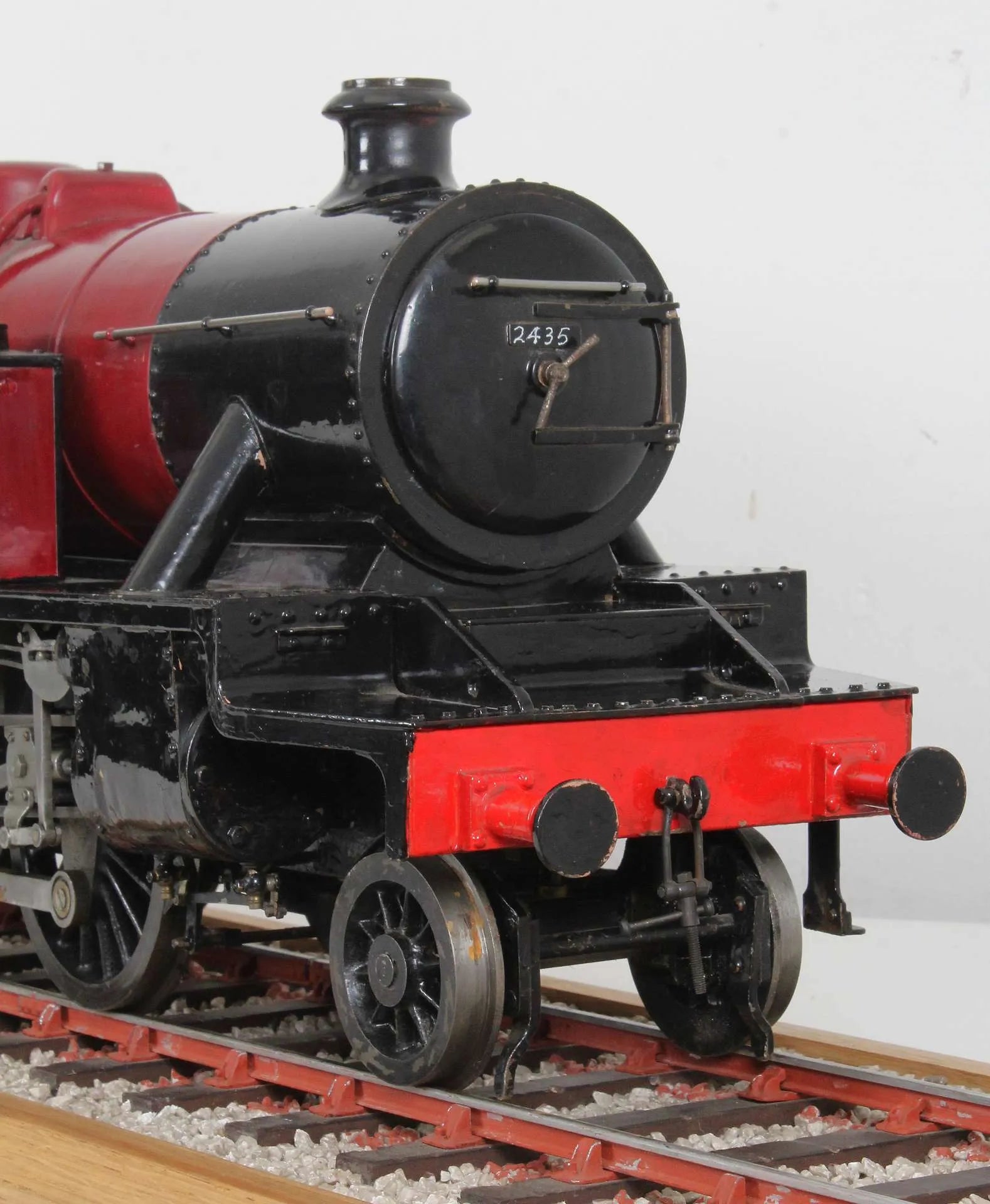

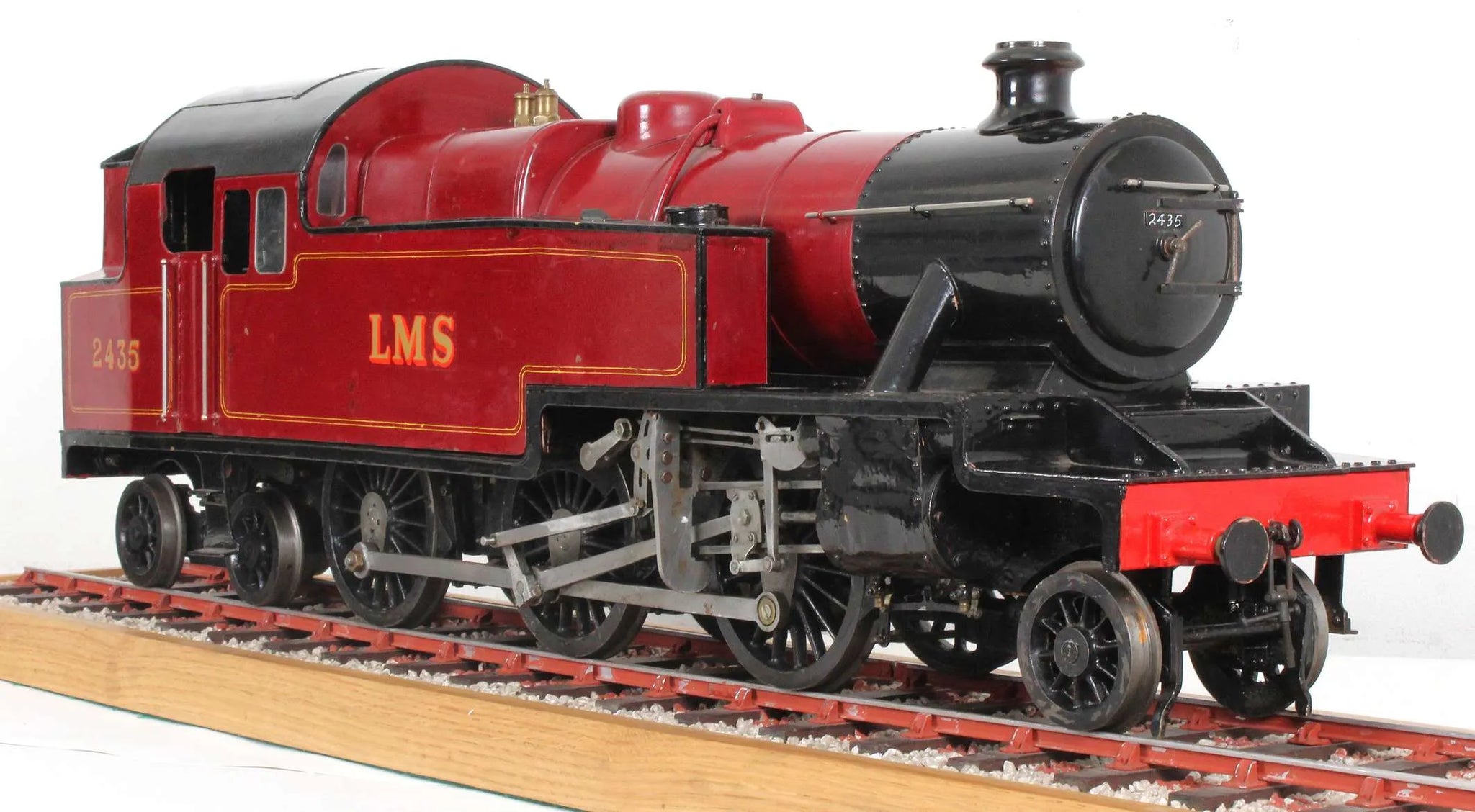

A 3 1/2 inch gauge Stanier 2-6-4T to Martin Evans' "Jubilee" design. Built to a fairly pedestrian standard and apparently painted with a tar brush, it requires work including repair to a leaking superheater element, attention to a tight spot in the motion and seized regulator.

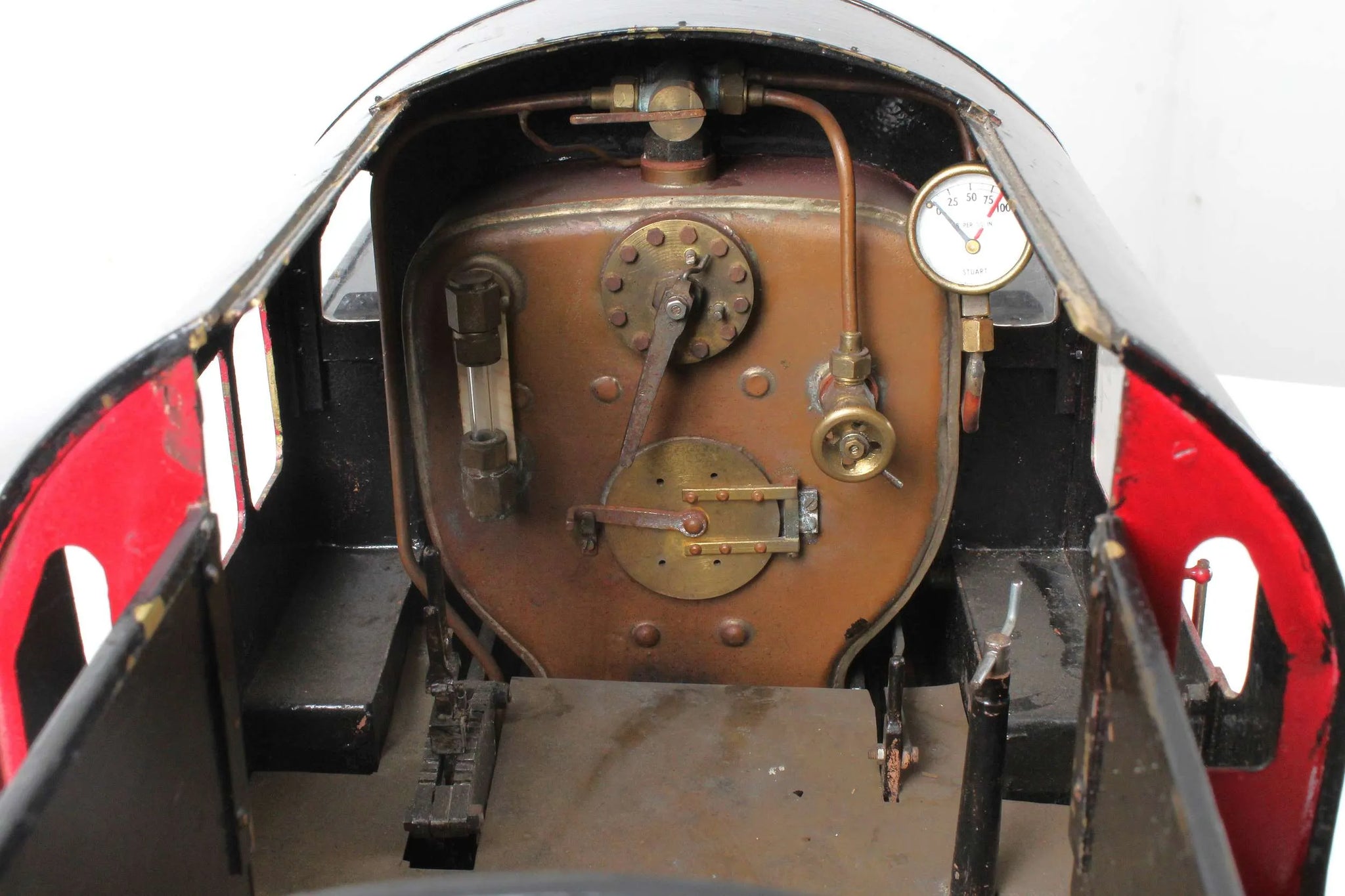

Fitted with a commercially made boiler by Cheddar, which looks like it's only been steamed a handful of times.
Stock code |
10213 |
Gauge |
3 1/2 inch |
Length/inches |
36 |
Width/inches |
7 |
Height/inches |
10 |
Weight/Kg |
35 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |
Valve gear |
Walschaerts |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler maker |
Cheddar Models |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
CE/UKCA mark |
n/a - pre-2002 |
Year built |
1996 |
Boiler number |
CM.558 |
Safety valve type |
spring |
Safety valve |
2 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
2 |
Superheater type |
flue tube |
Superheater |
2 |
Date out |
Mar-22 |
