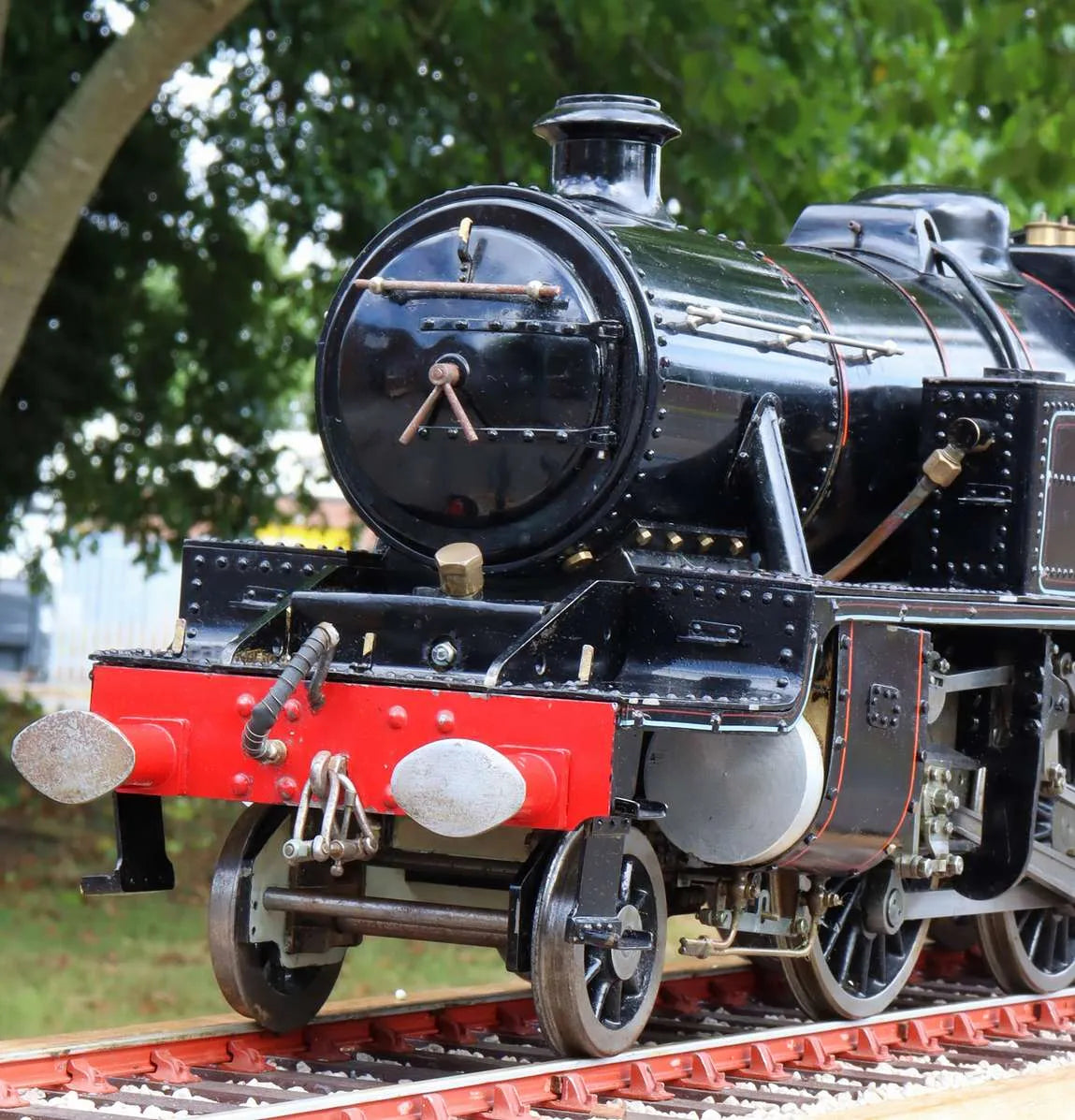

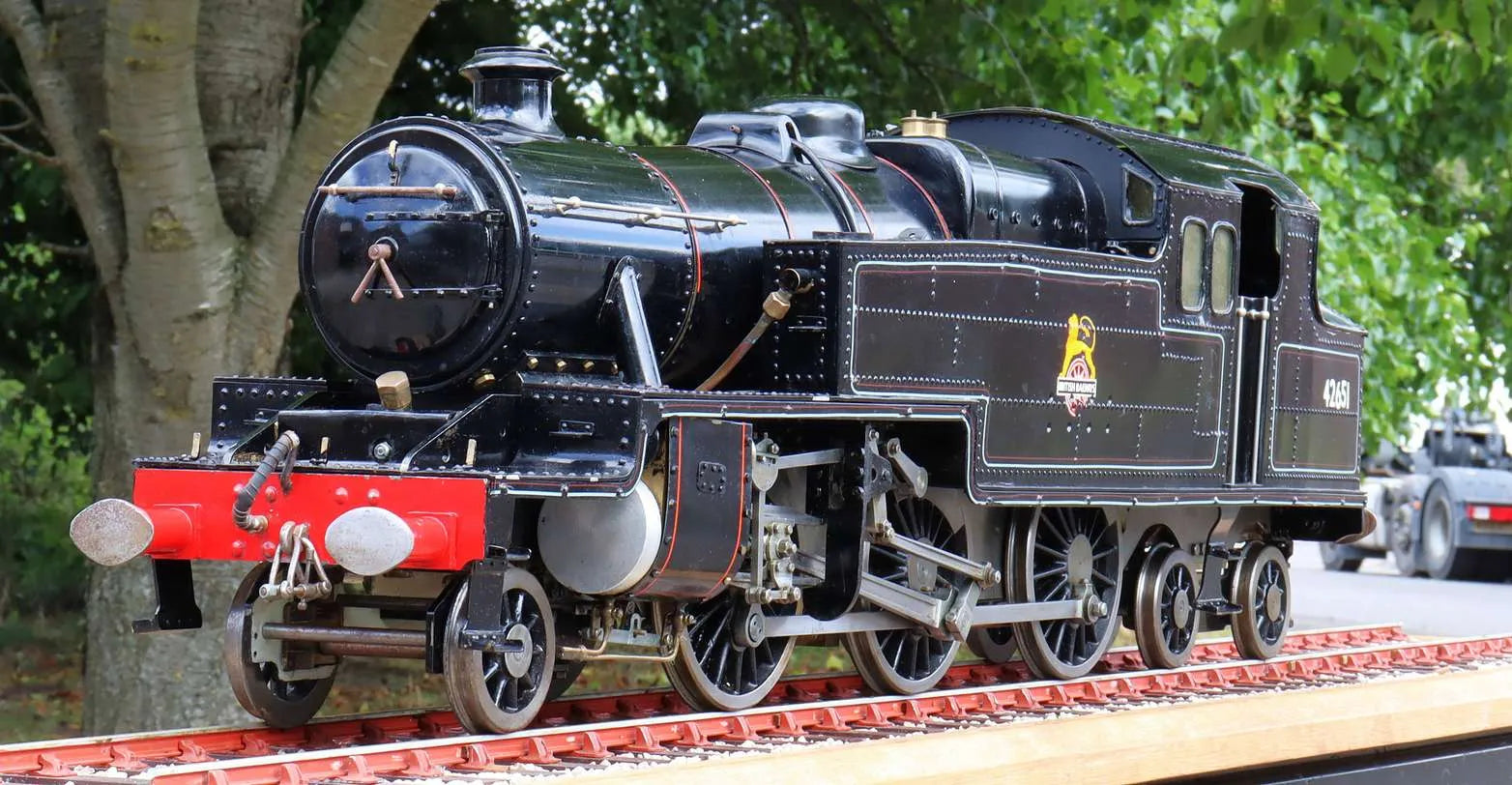

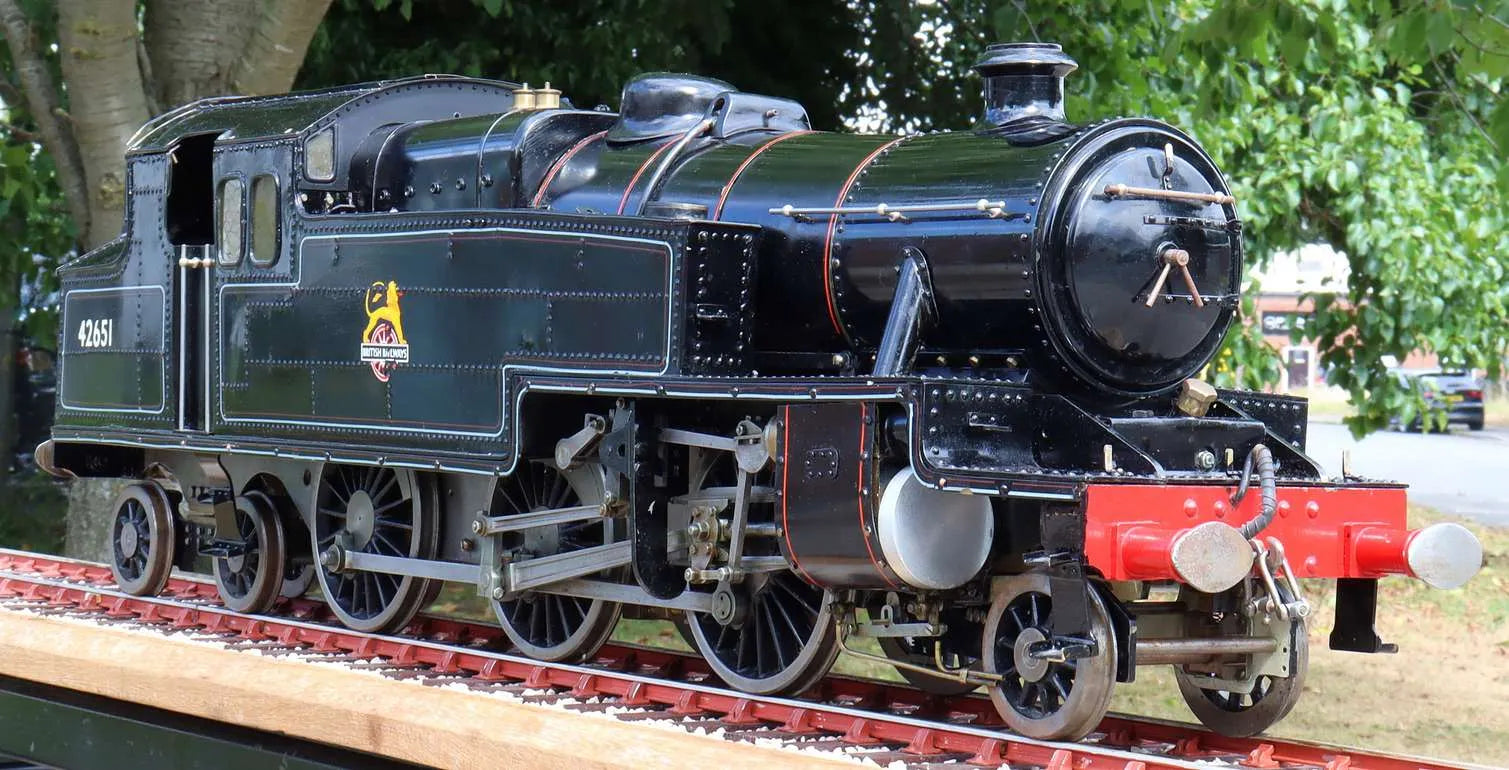

3 1/2 inch gauge LMS 2-6-4T

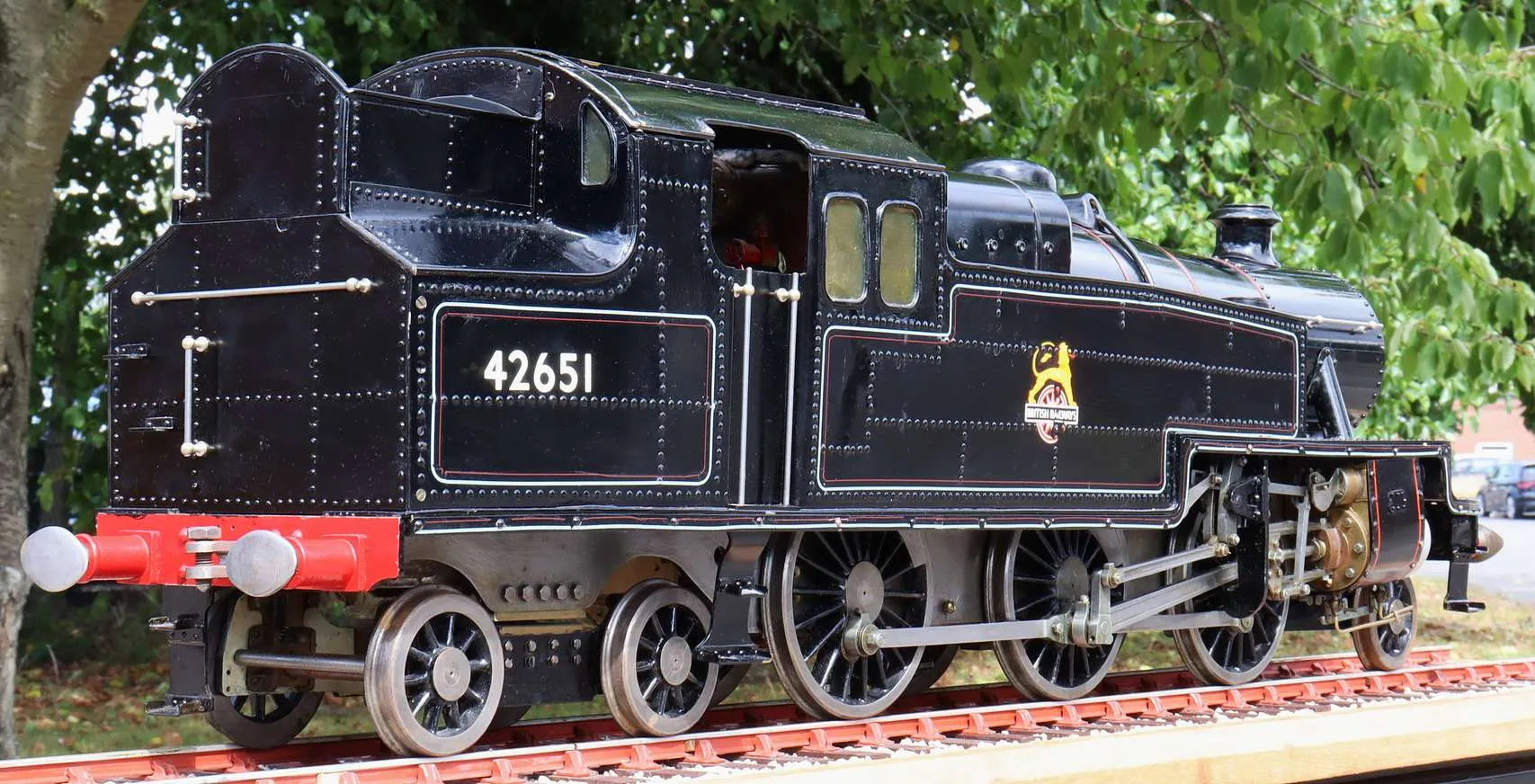

A 3 1/2 inch gauge LMS 2-6-4T to Martin Evans' "Jubilee" design.

This one came to us as part of a collection of 3 1/2 and 5 inch gauge locomotives from a long-time customer.

Of somewhat pedestrian construction, the engine runs on air in either direction quite well, although the right hand coupling rod knock on the underside of the running board.

The fountain is missing and regulator leaks badly preventing any meaningful testing of the boiler until rectified.

Technical information

Stock code

10736

Gauge

3 1/2 inch

Length/inches

36.5

Width/inches

6.5

Height/inches

11

Weight/Kg

34

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Walschaerts

Reverser type

Screw

Lubricator type

mechanical

Boiler type

locomotive

Boiler construction

silver soldered with nutted and calked firebox

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a - non-commercial

Year built

1994

Boiler number

N4-90-293

Safety valve type

spring

Safety valve

2

Fusible plug

no

Superheater type

flue tube

Superheater

3

Date out

Aug-23
