11792

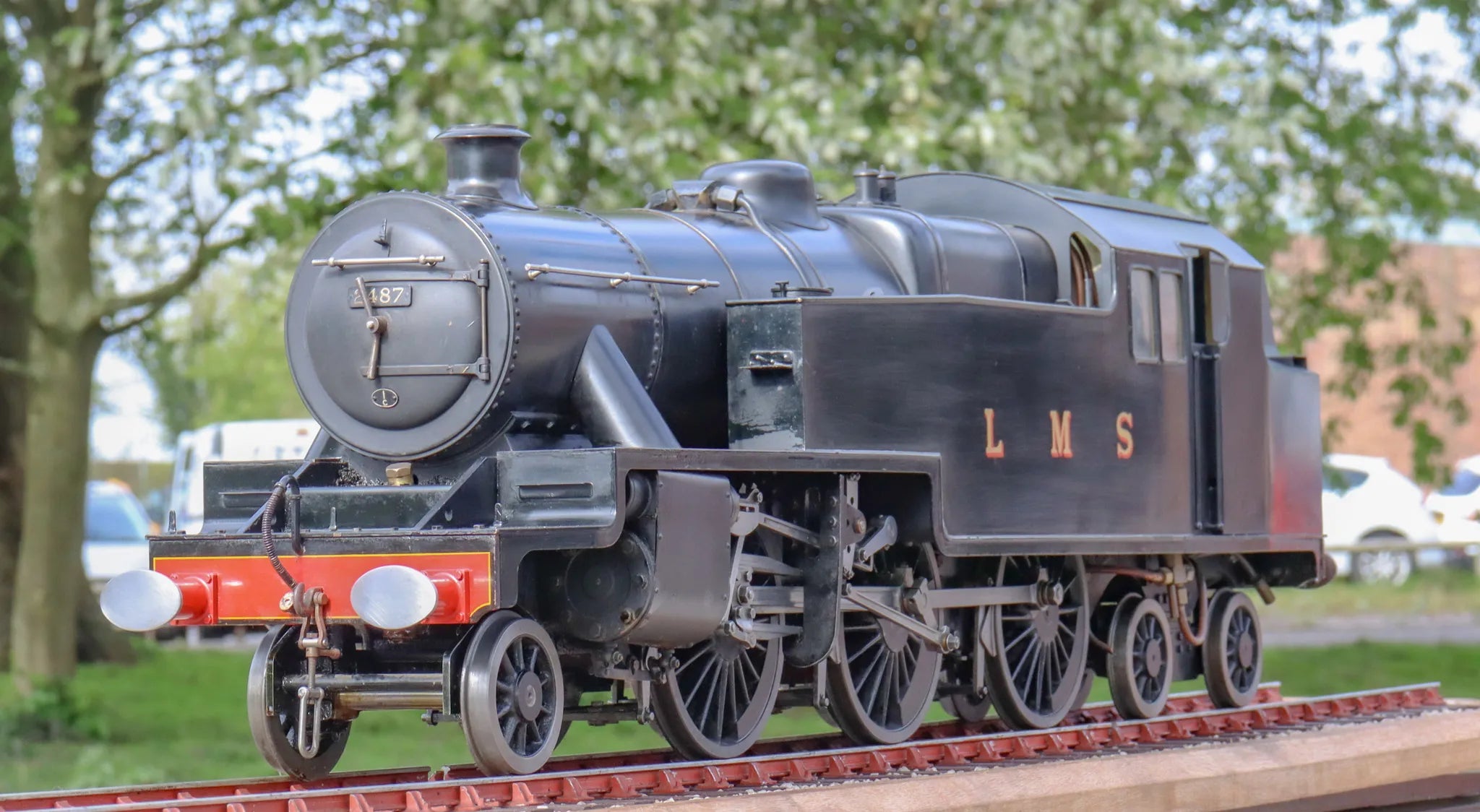

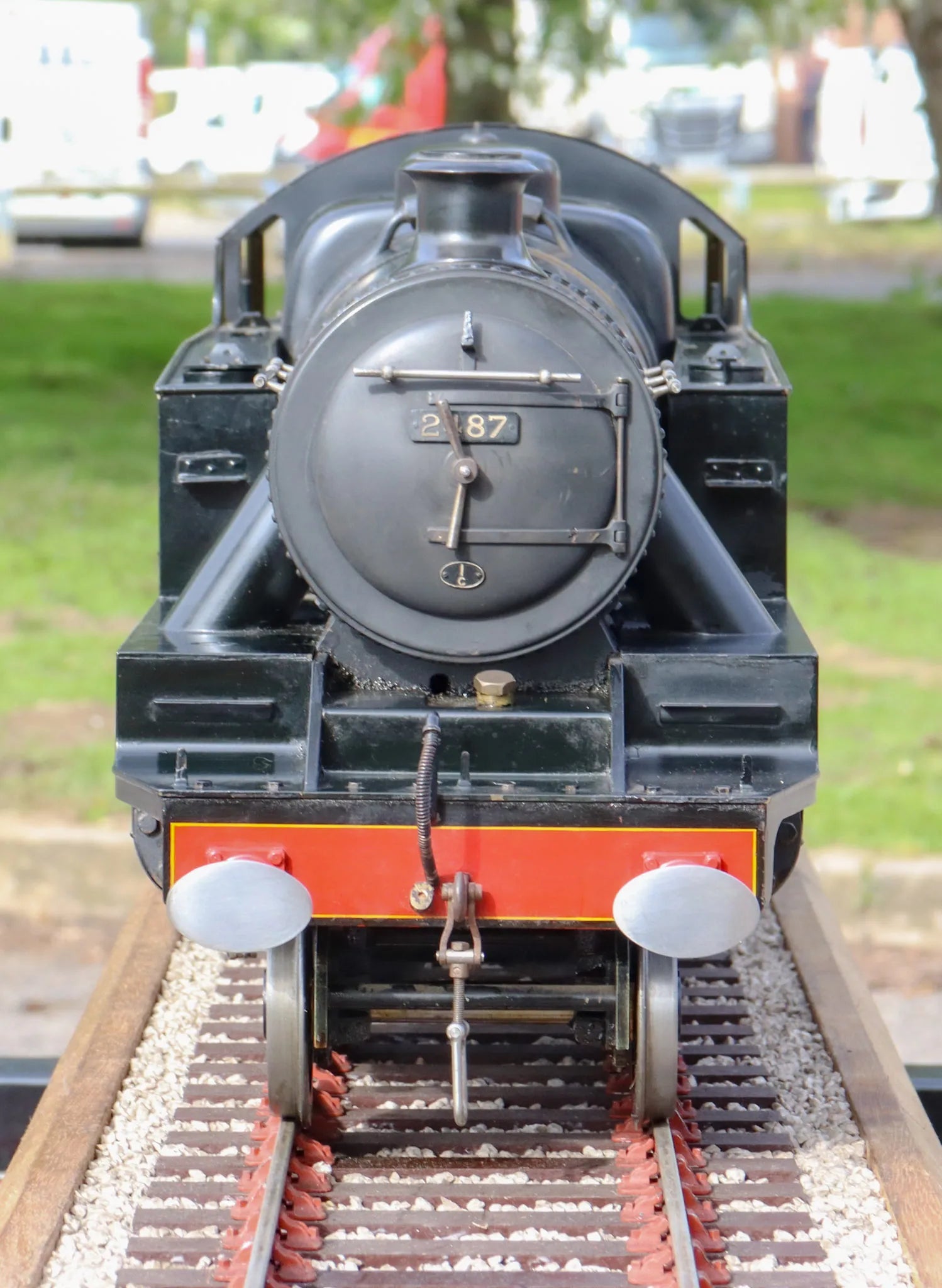

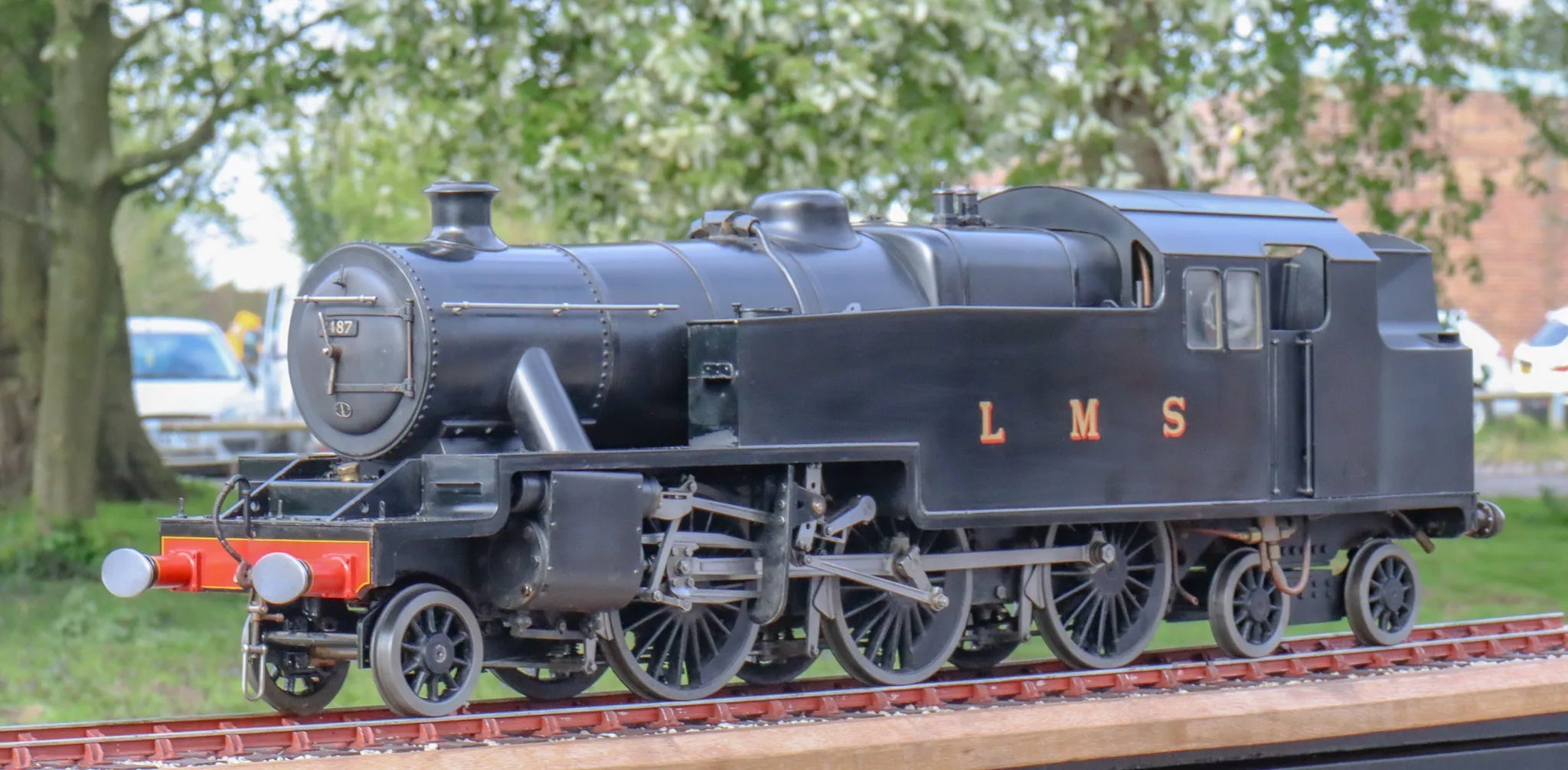

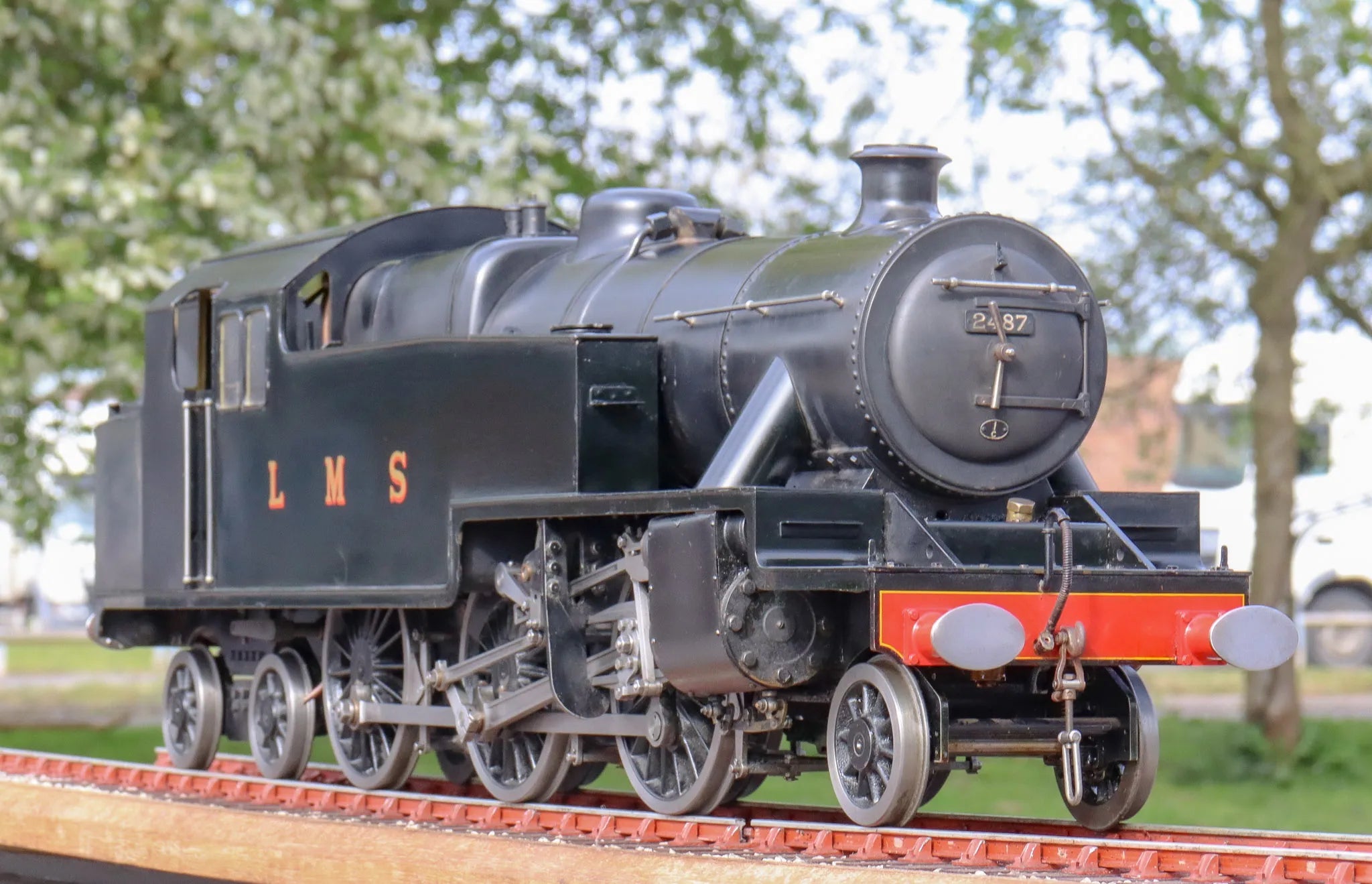

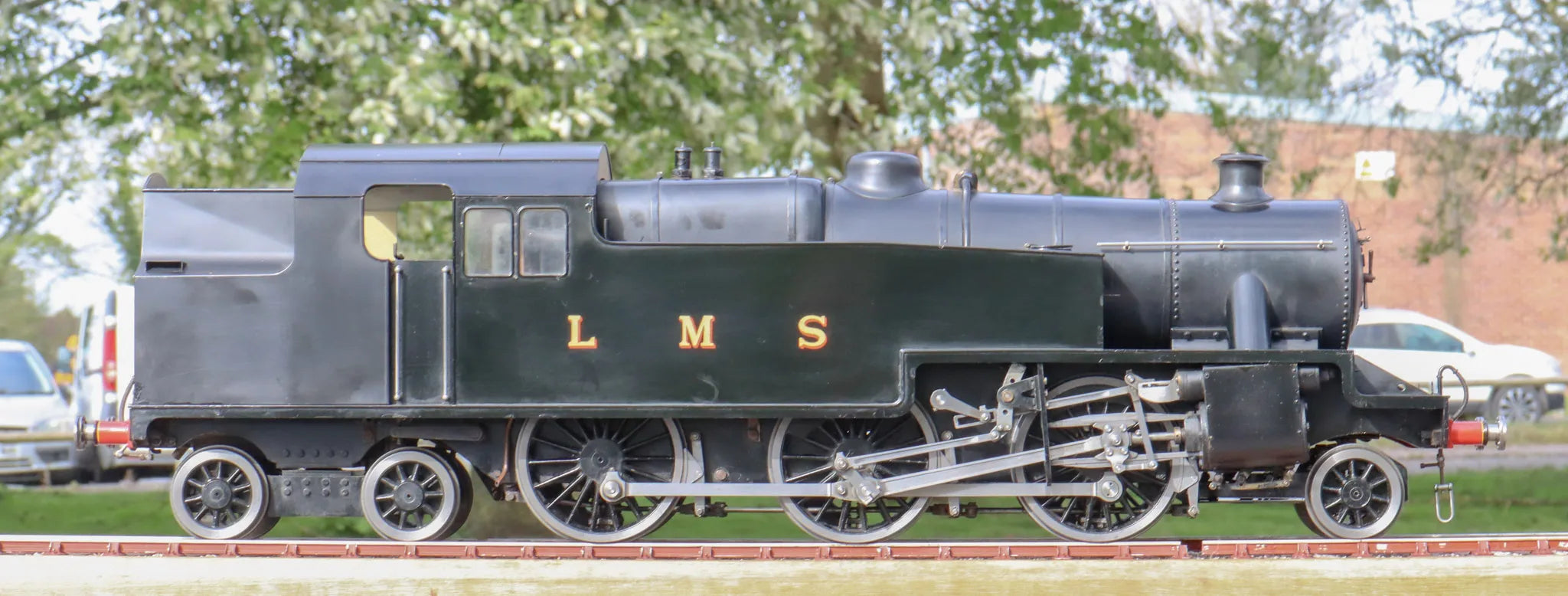

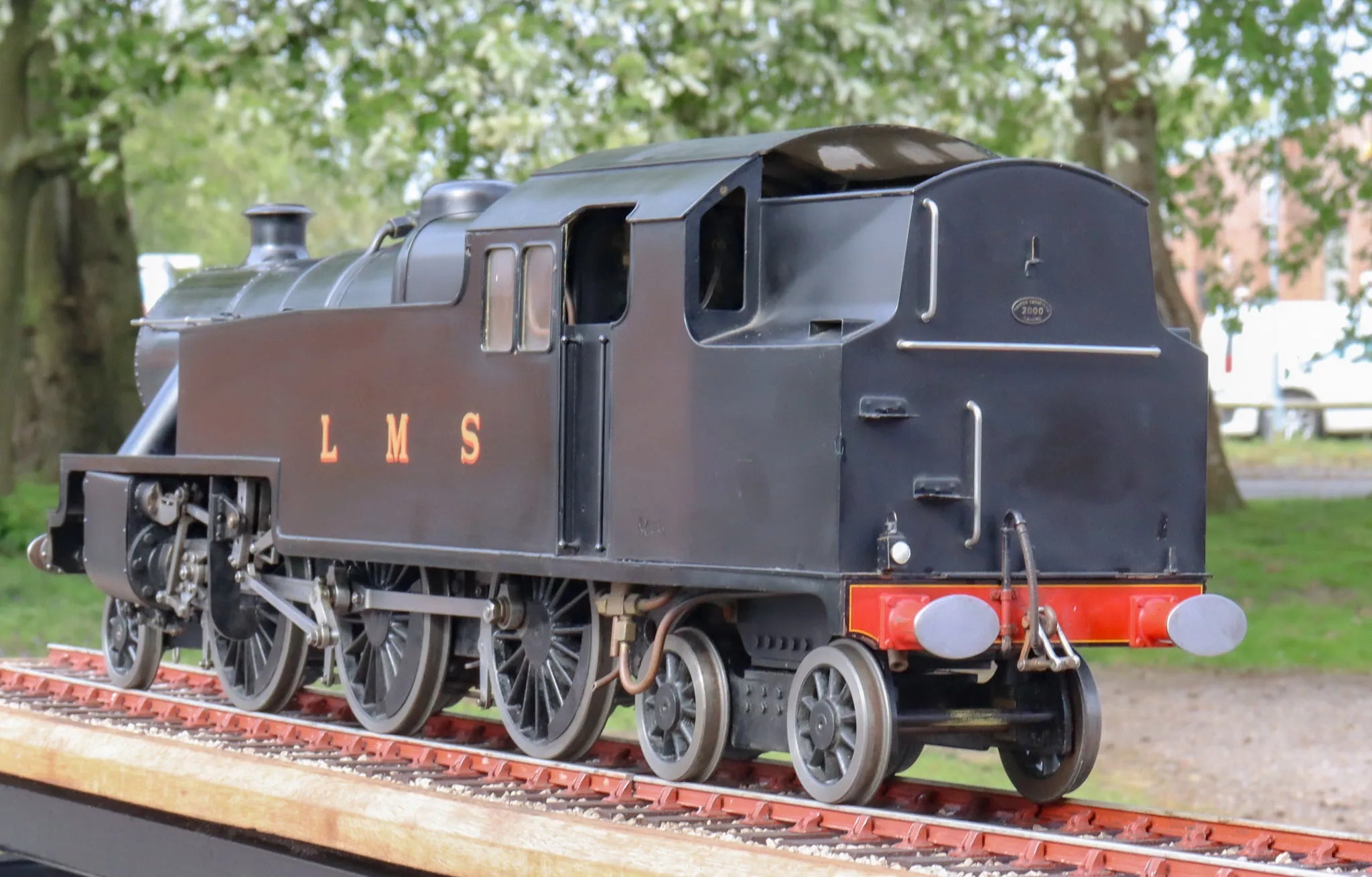

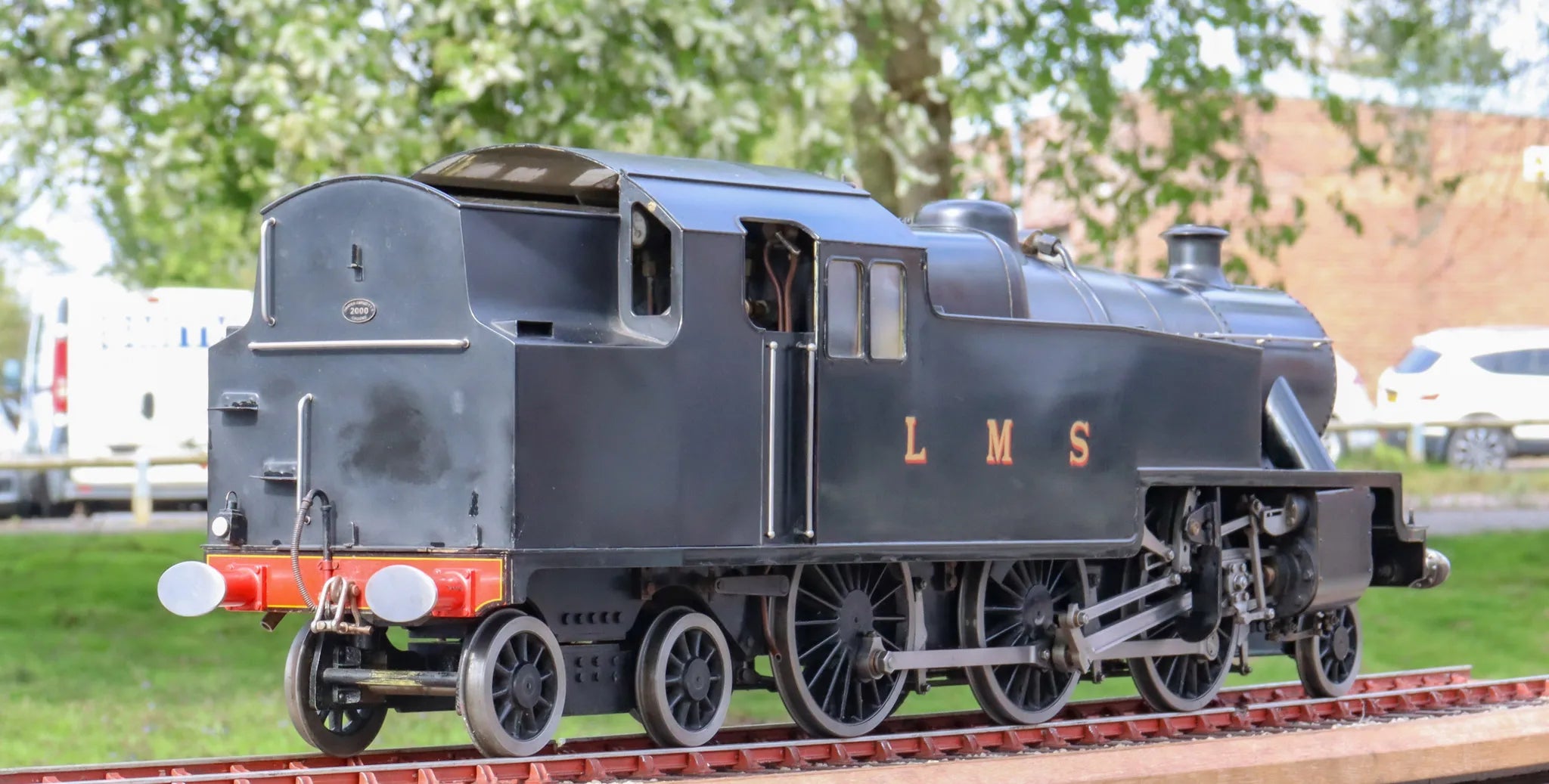

This one has come to us as part of a small collection of engines, the work of a highly capable engineer responsible, amongst other things, for the magnificent Britannia "Apollo" we sold earlier in the year and the Midland 2P currently listed.
The engine has had a good deal of running in the past, witnessed by wear to the motion work and valve gear which will need some rebushing in the future.
The boiler has had a hydraulic test with new certification issued, the regulator is currently seized.
Stock code |
11792 |
Gauge |
3 1/2 inch |
Length/inches |
36 |
Width/inches |
7.5 |
Height/inches |
10 |
Weight/Kg |
31 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |
Valve gear |

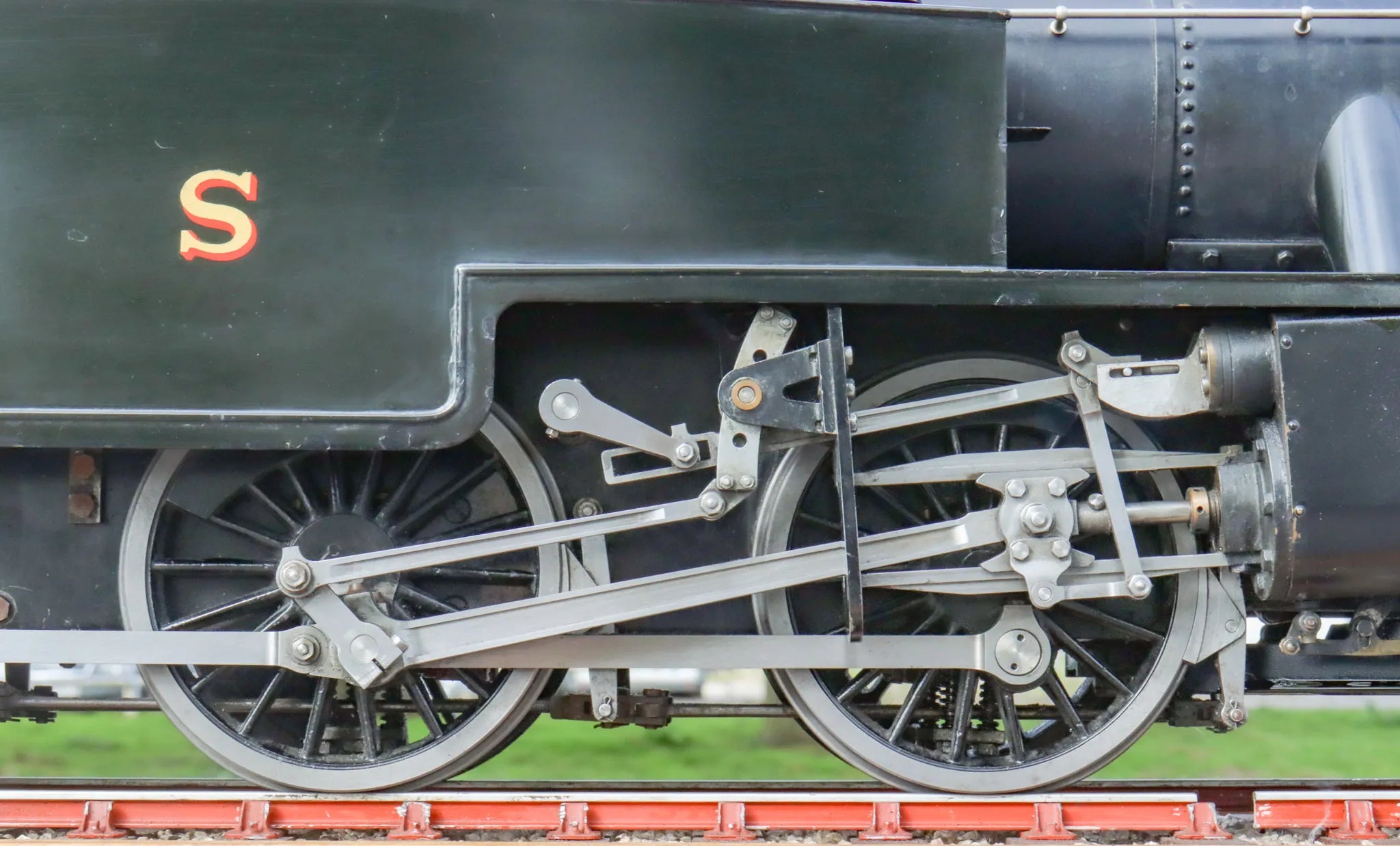

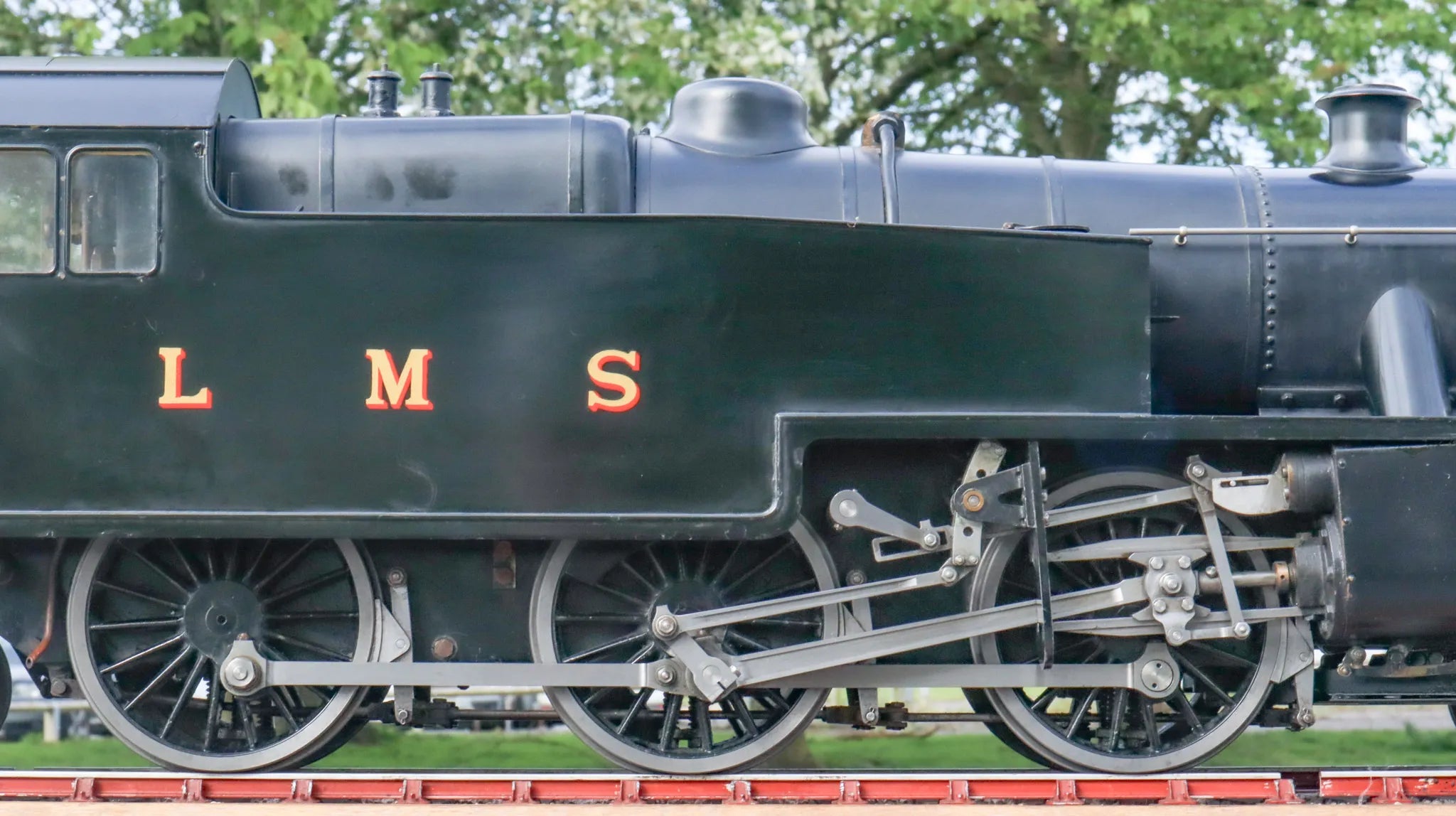

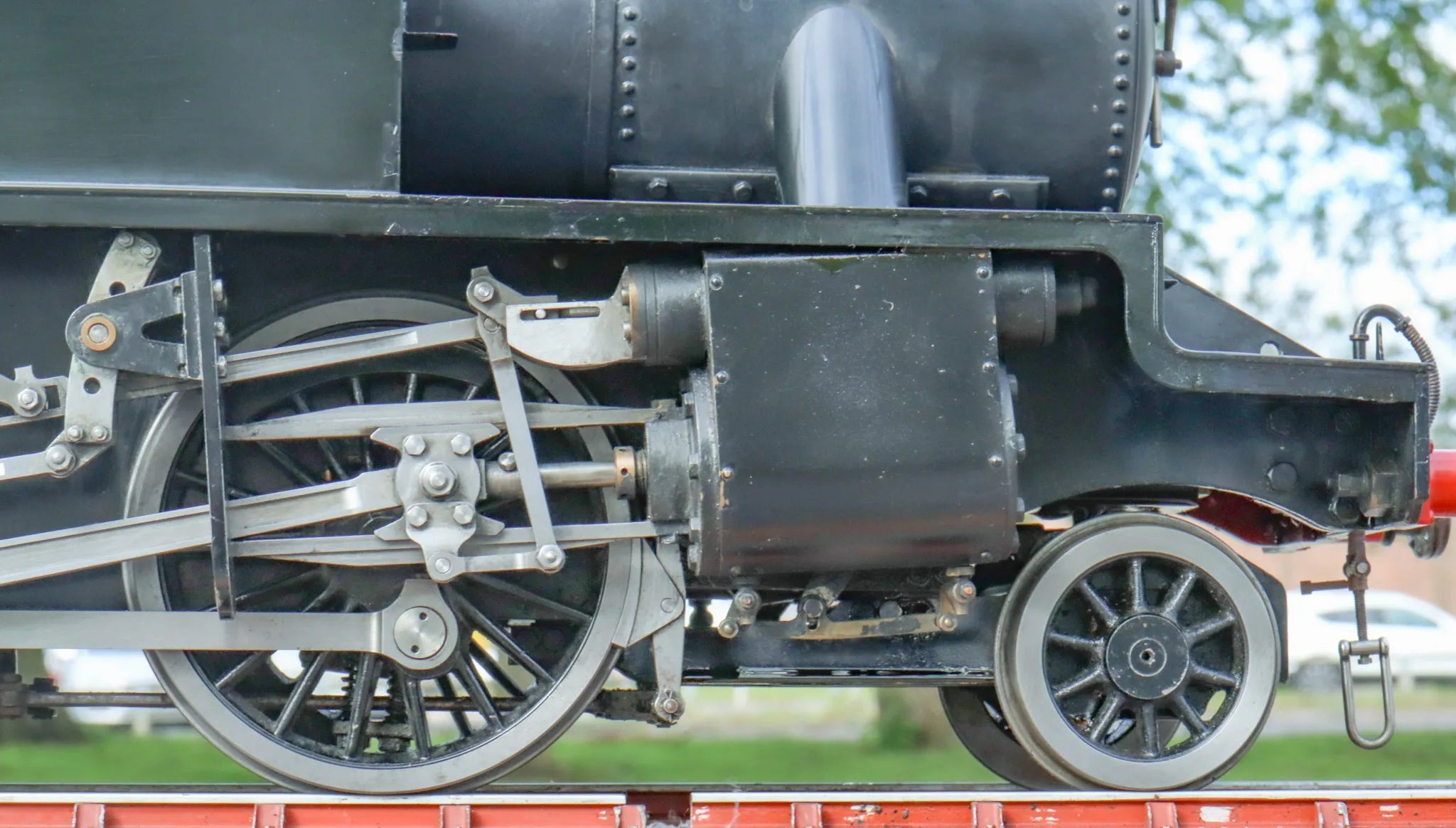

Walschaerts |
Reverser type |
screw |
Lubricator type |
mechanical |
Boiler maker |
A.T.Clarke |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
CE/UKCA mark |
n/a - non-commercial |

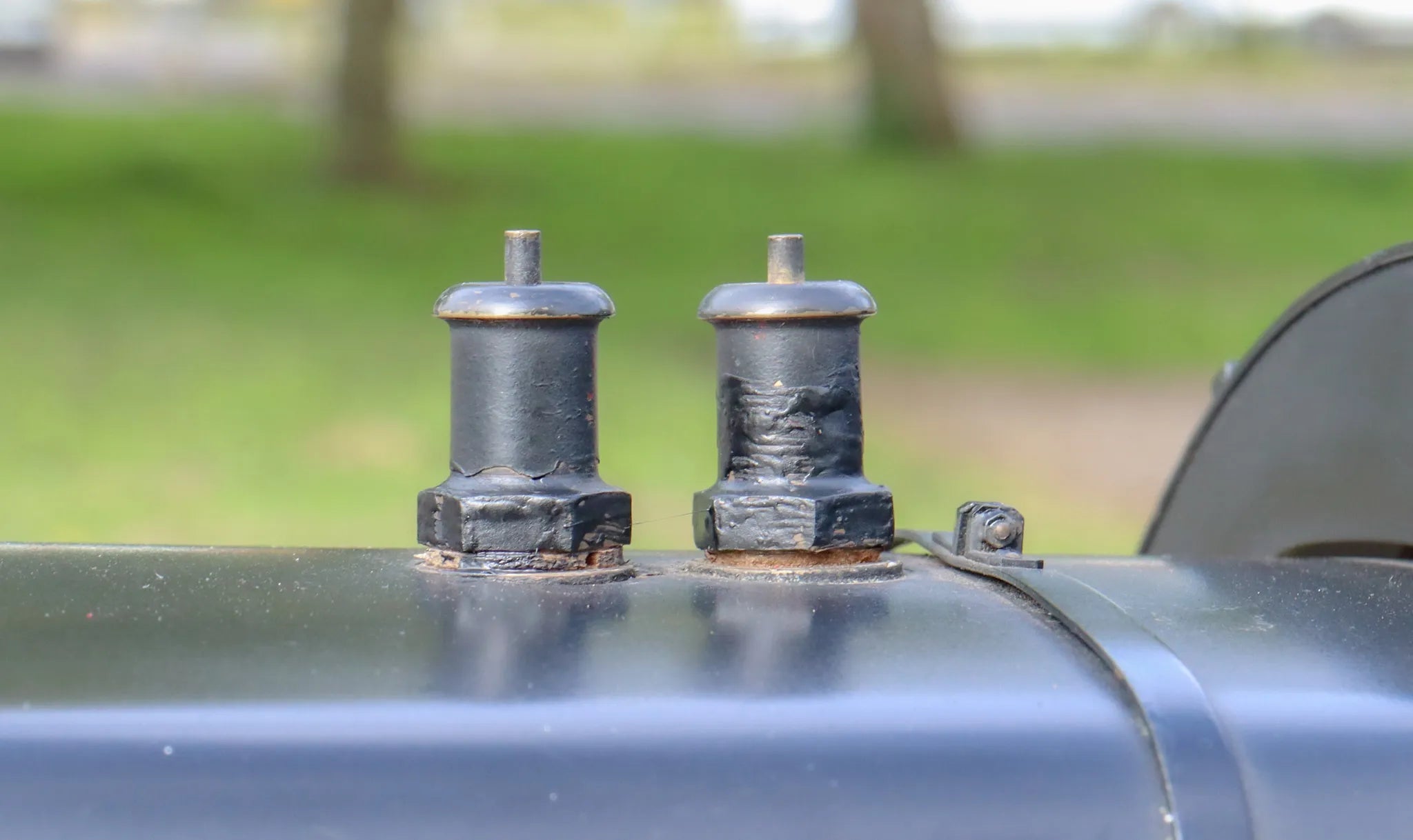

Safety valve type |
spring |
Safety valve |
2 |
Whistle |
resonator type |
Hand pump |
1 |
Mechanical pump |
twin ram axle |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
3 |
Date out |
Feb-25 |
Hydraulic test valid to |
23-Jan-28 |
