Sold

9743

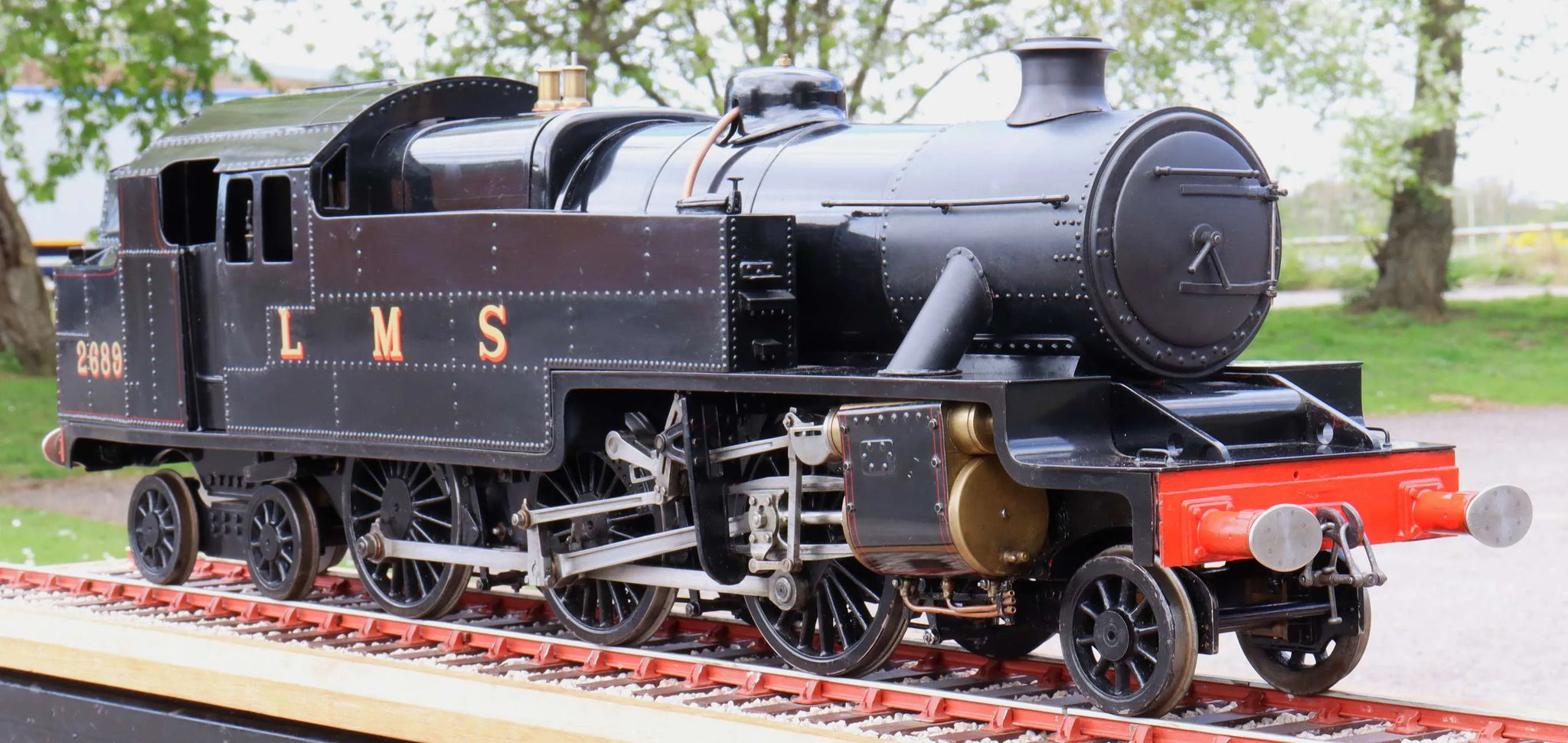

3 1/2 inch gauge LMS 2-6-4T

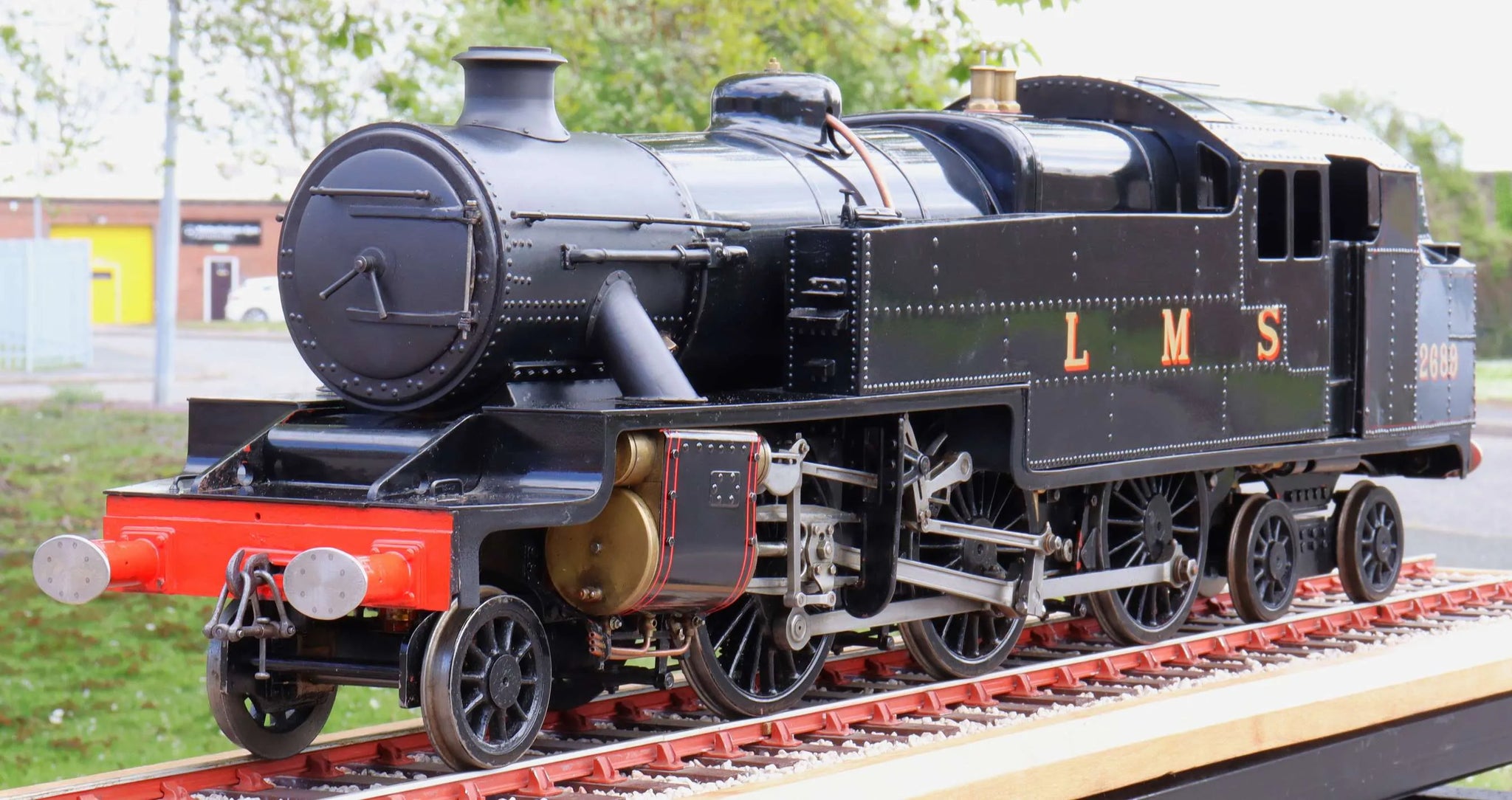

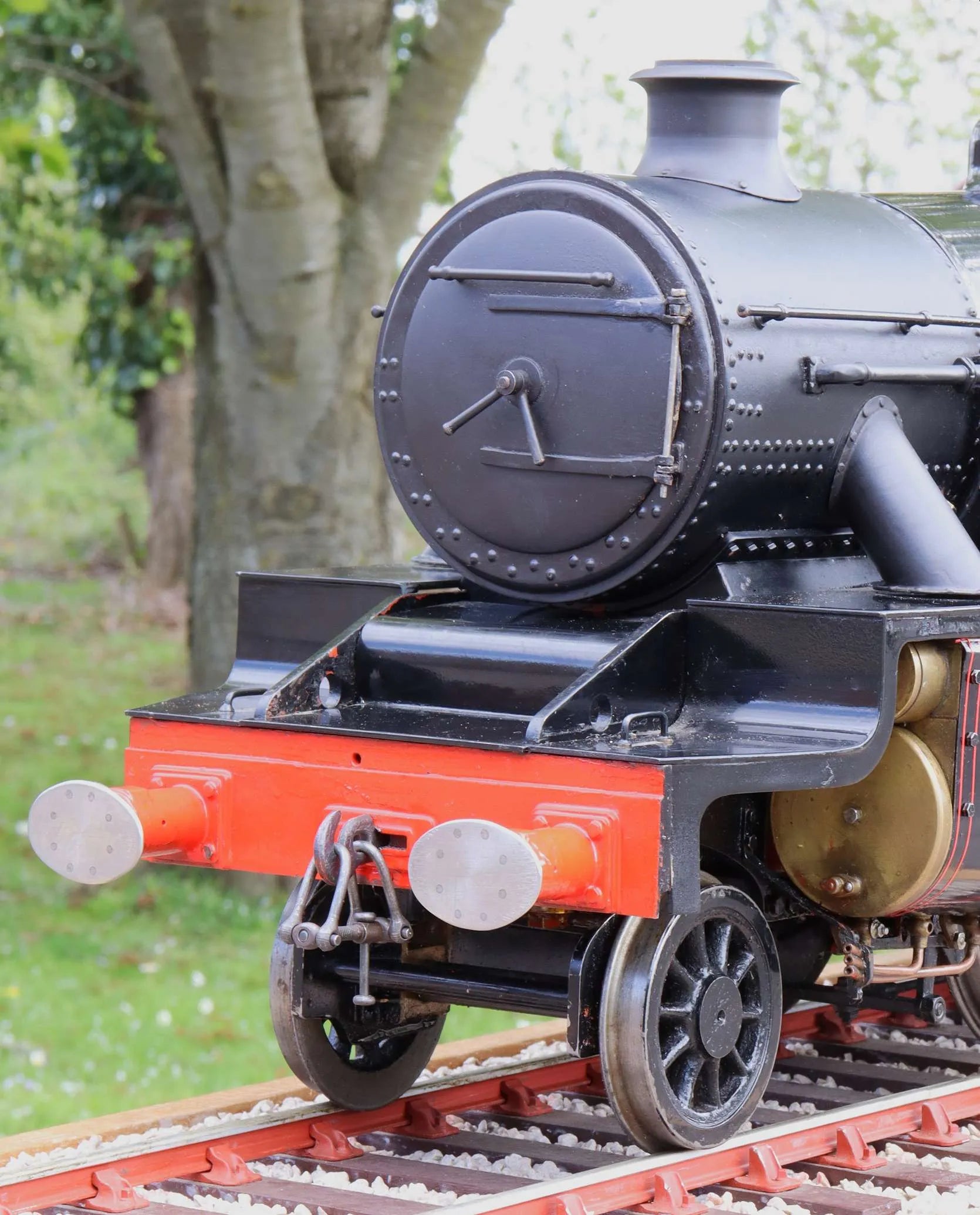

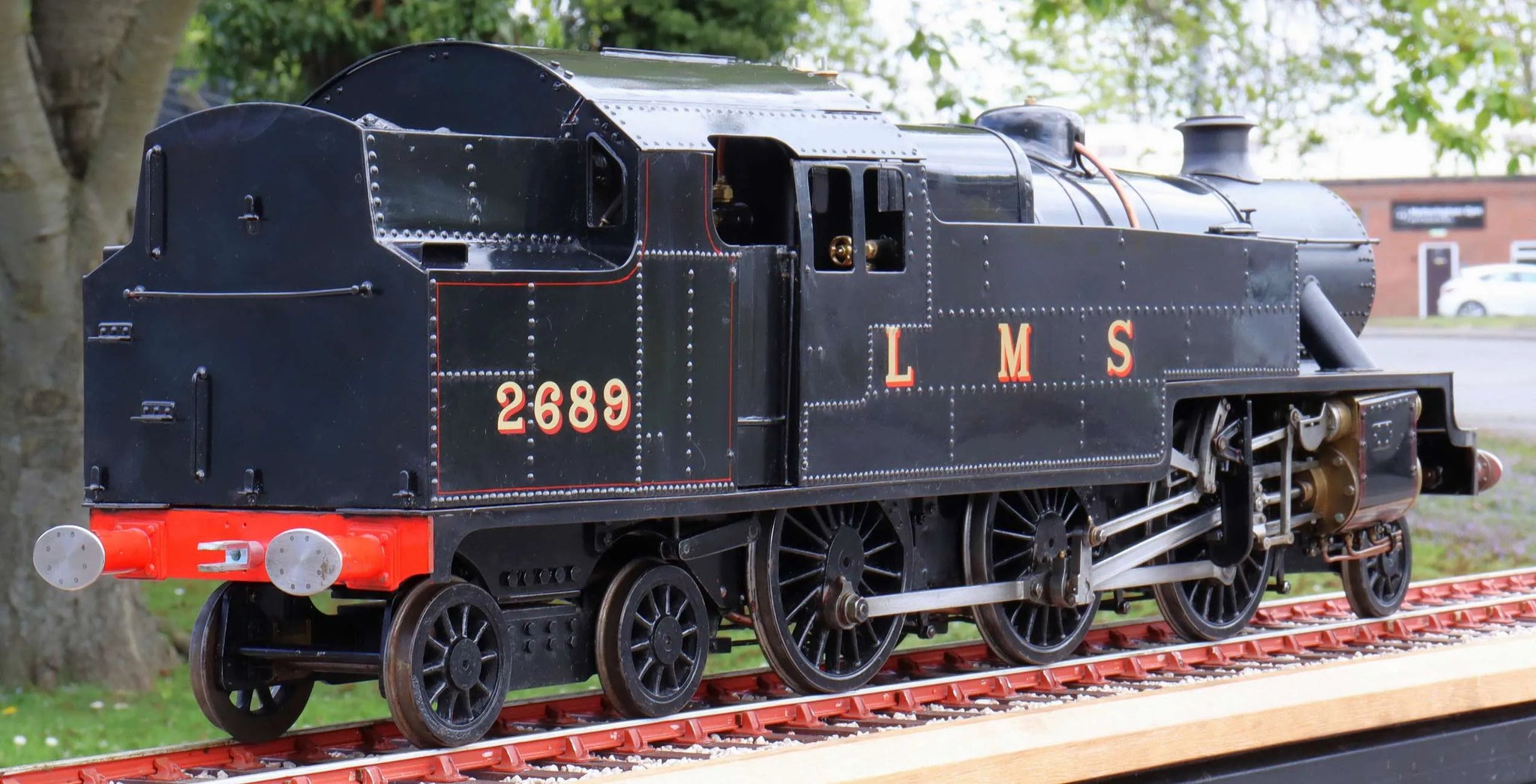

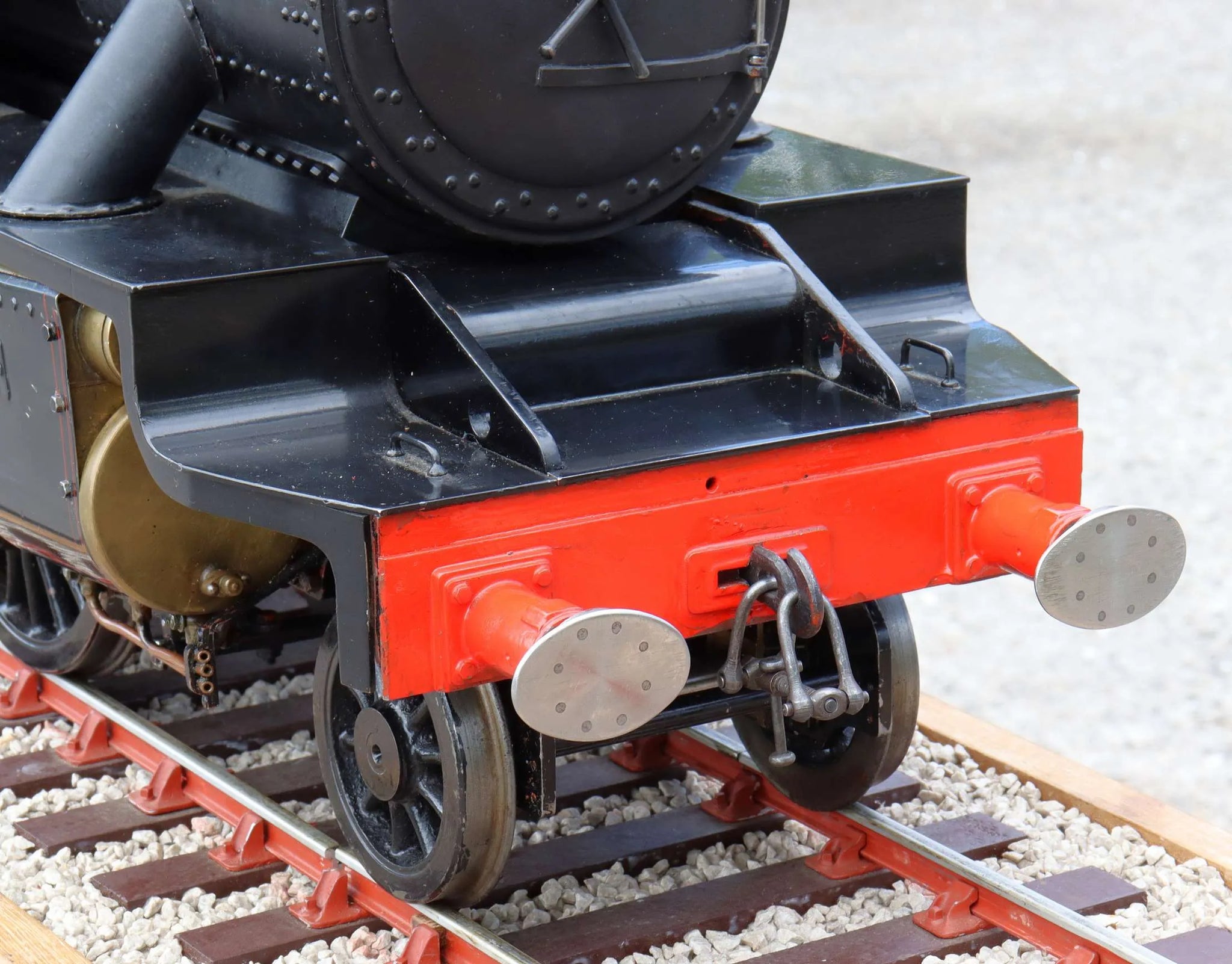

A finely built 3 1/2 inch gauge Stanier 2-6-4T to Martin Evans' elegant "Jubilee" design.

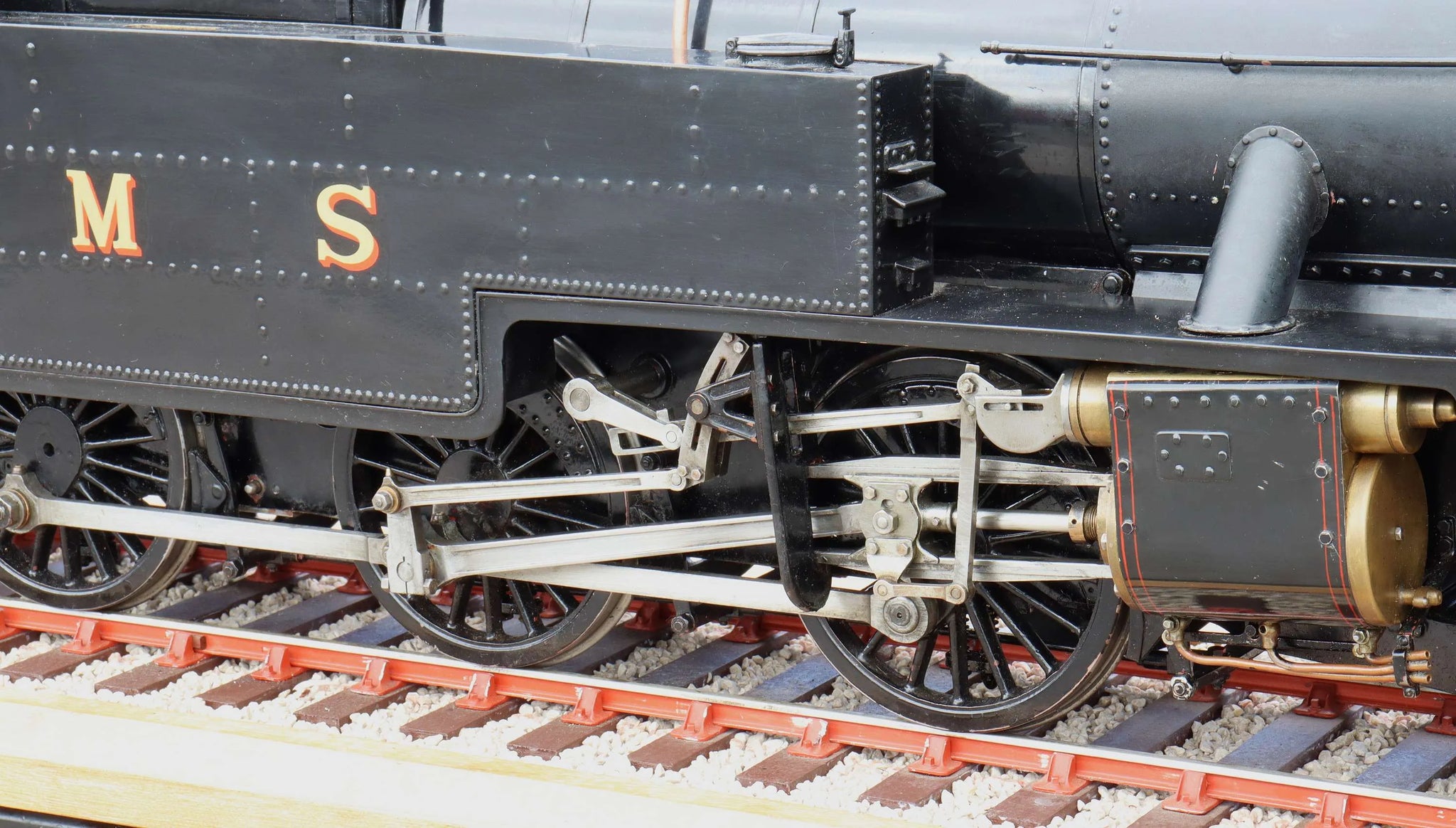

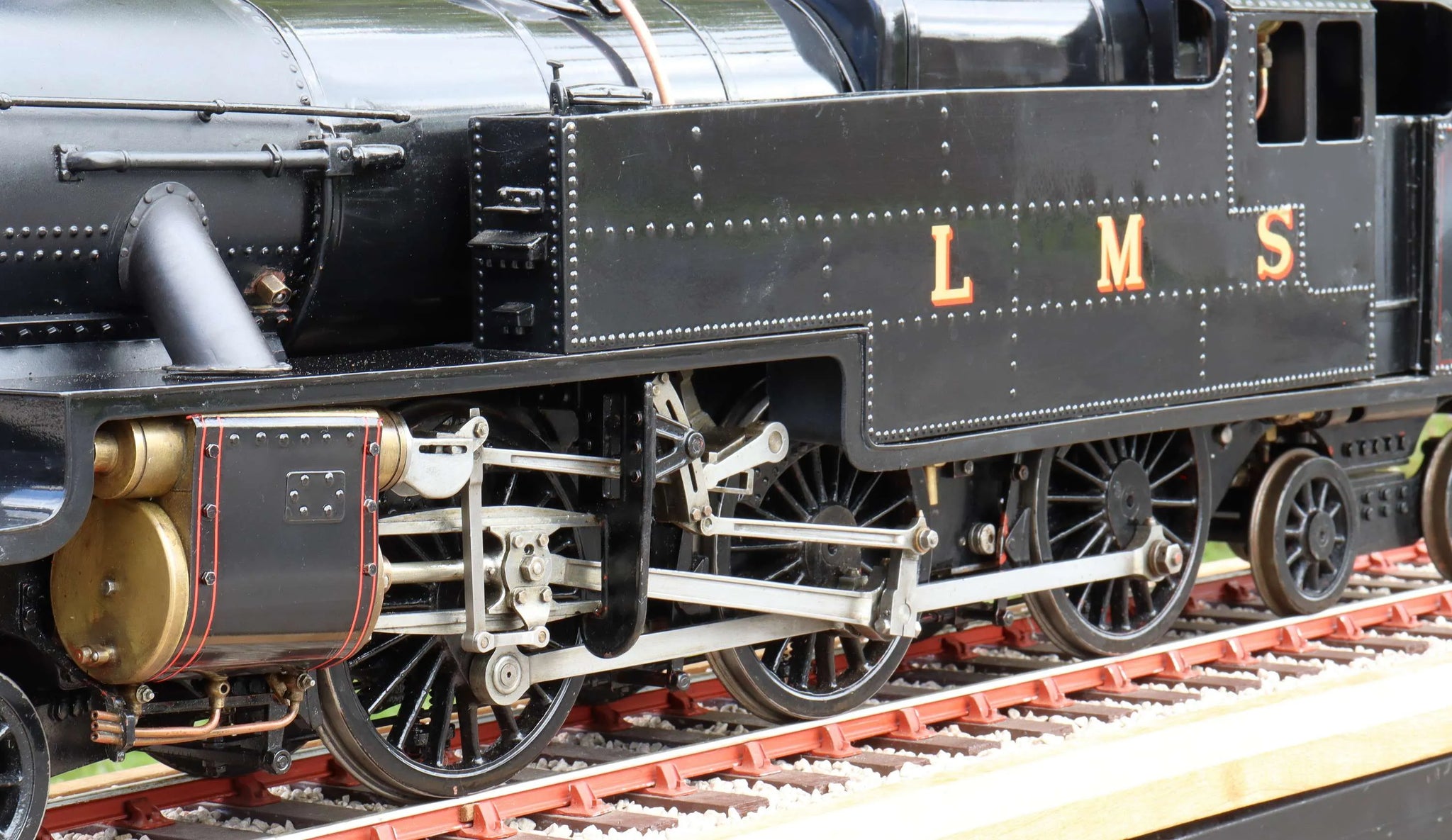

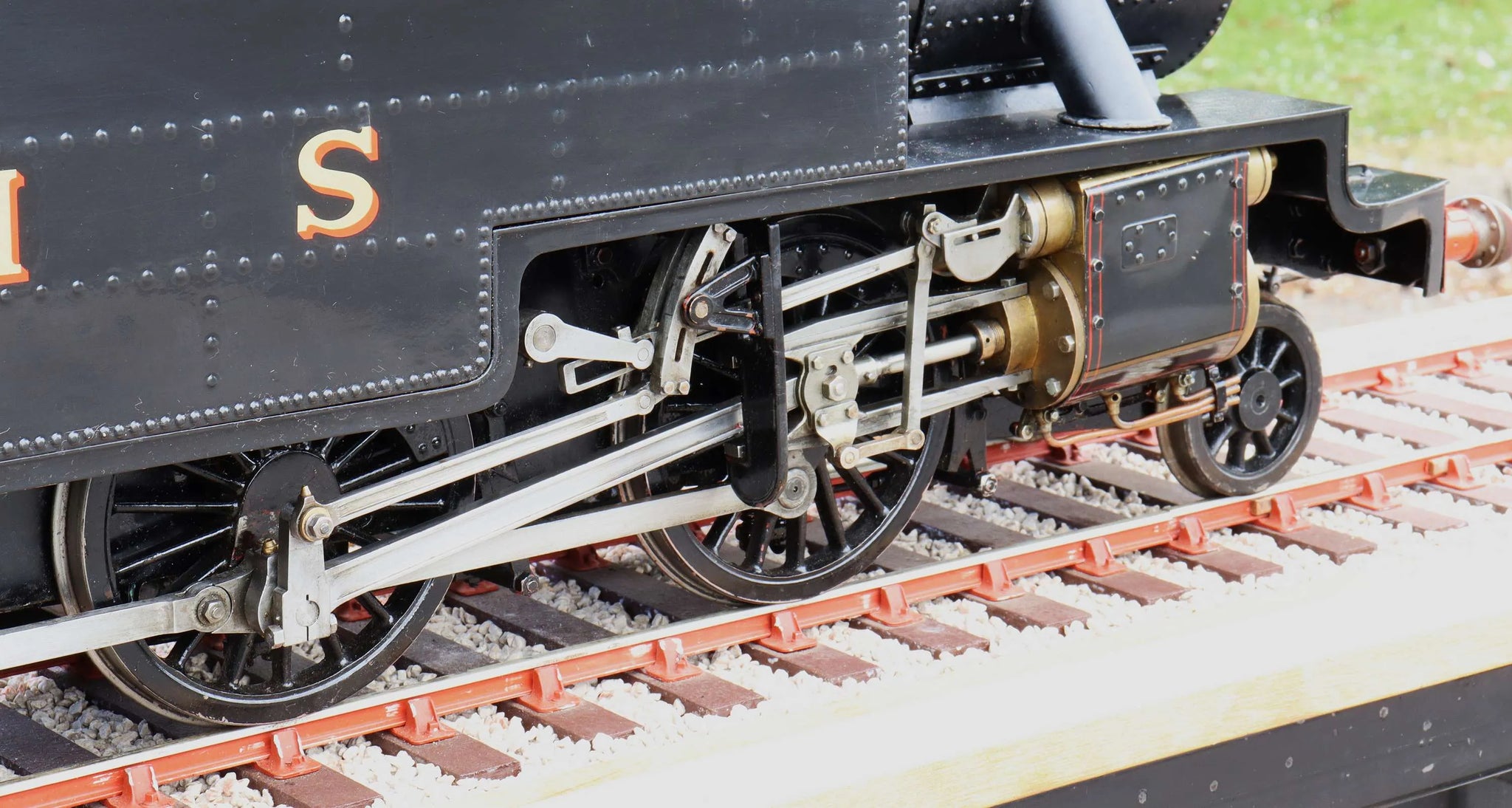

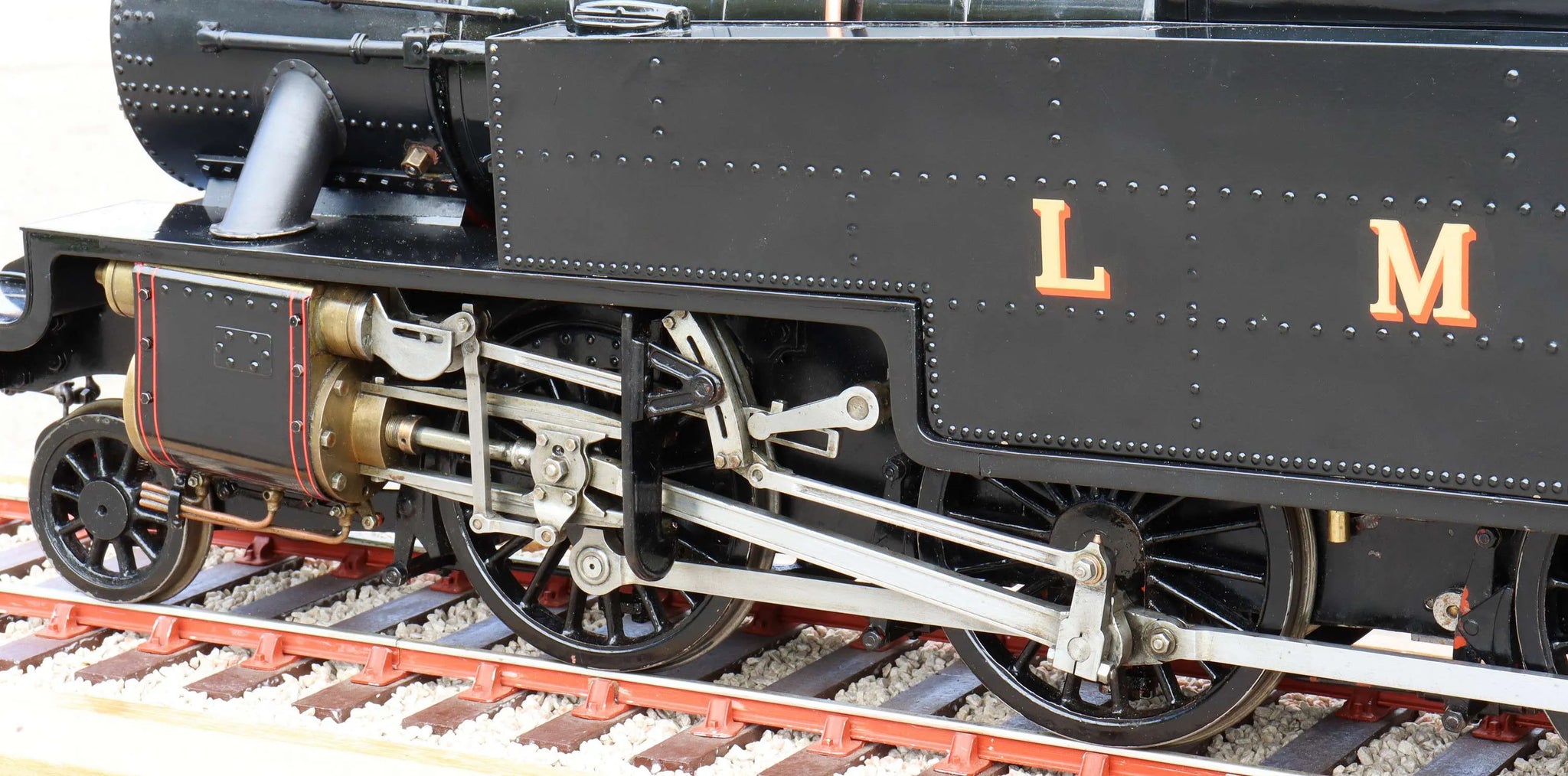

Standard of workmanship is good throughout, machining is crisp, motionwork and valve gear well-executed, the platework neatly formed. Paintwork is to a good standard, it presents very well.

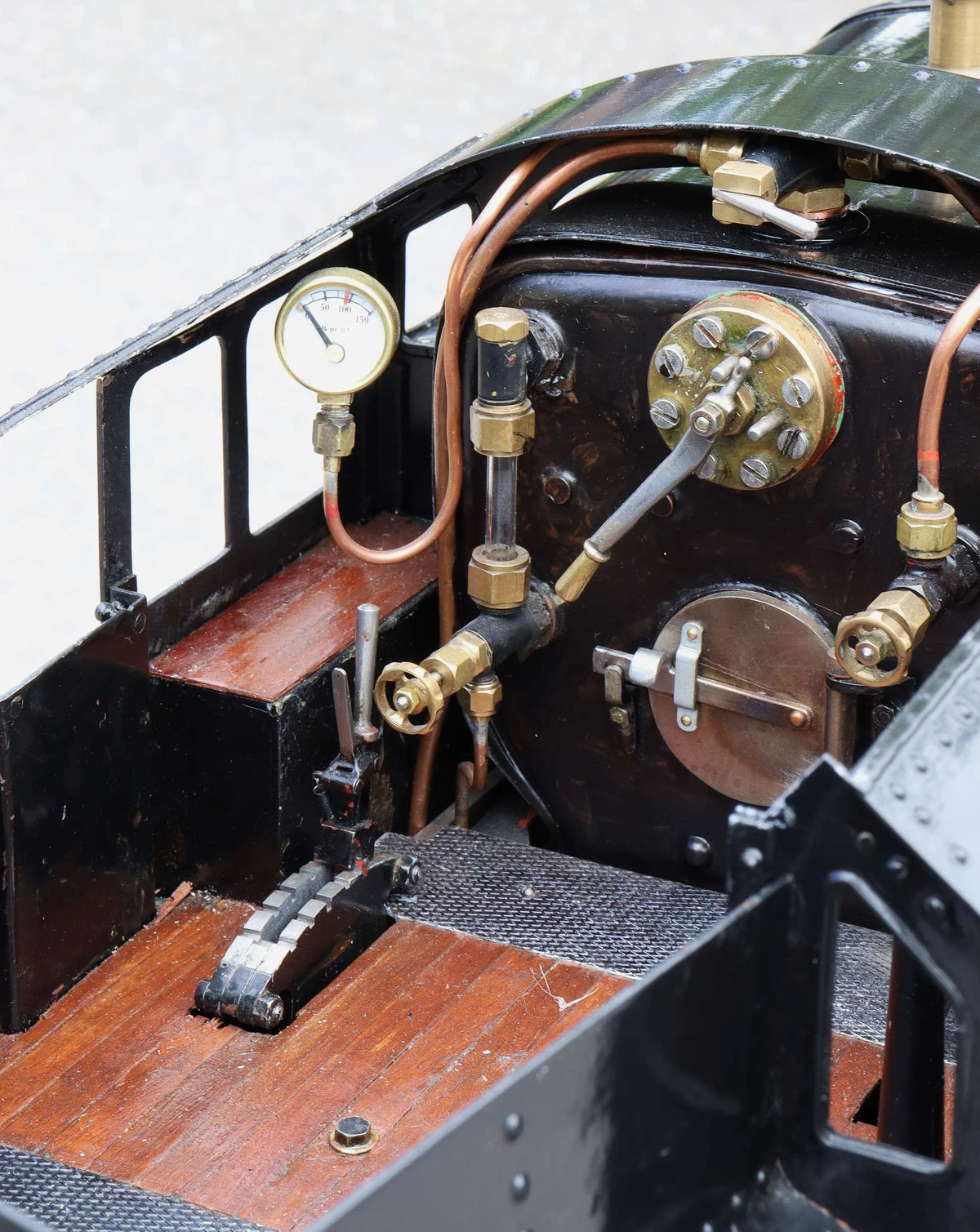

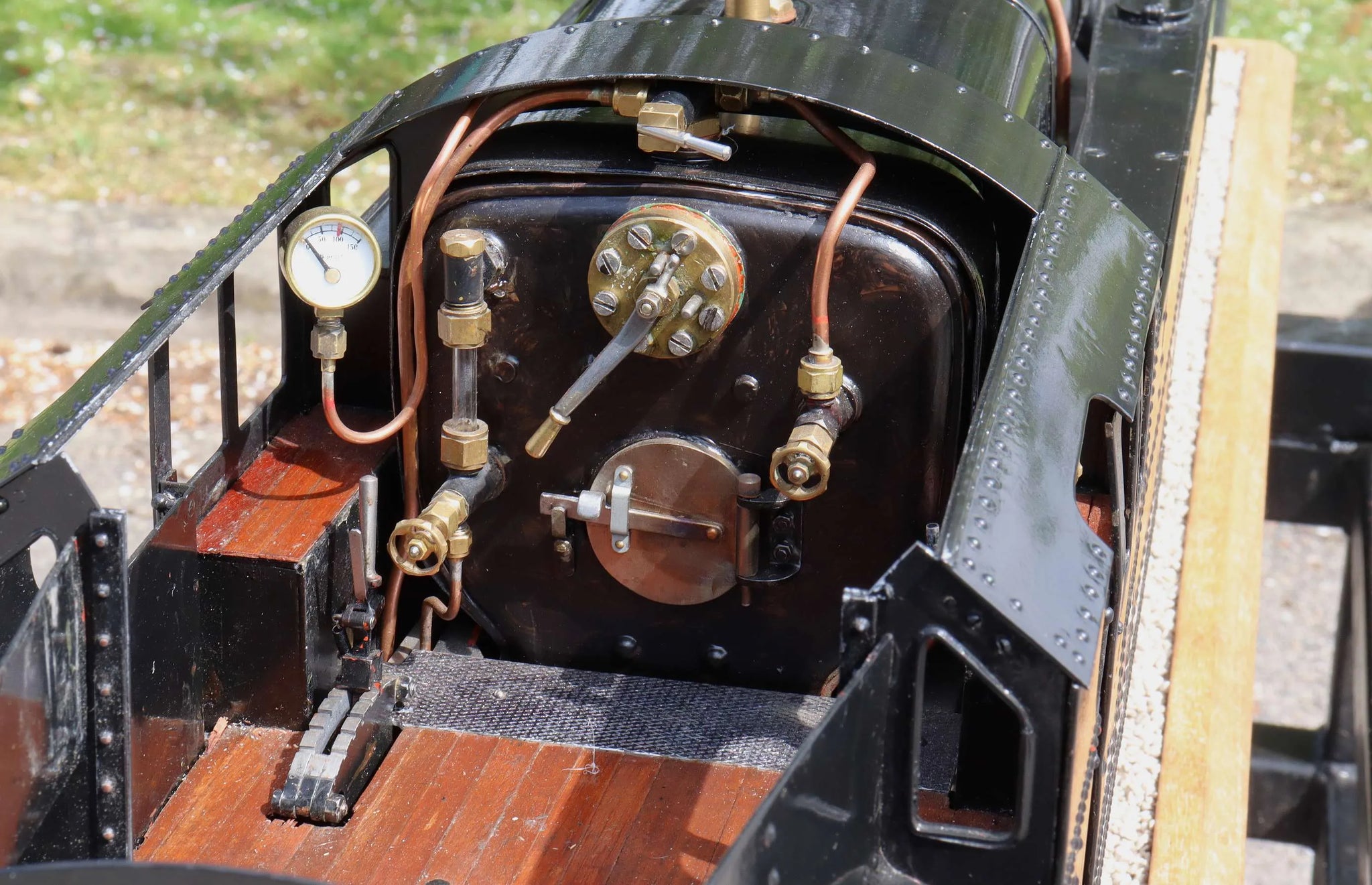

Hydraulic tested by the builder's club when built and complete with their documentation, the engine has yet to be steamed. It will require some work to commission, including attention to a seized regulator.

Technical information

Stock code

9743

Gauge

3 1/2 inch

Length/inches

36.5

Width/inches

7.5

Height/inches

10.5

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Walschaerts

Reverser type

pole

Lubricator type

mechanical

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a - non-commercial

Year built

2008

Boiler number

492

Safety valve type

spring

Safety valve

2

Fusible plug

no

Whistle

yes

Hand pump

1

Mechanical pump

1

Superheater type

flue tube

Superheater

3

Date out

May-22

Hydraulic test valid to

20-Feb-24
