Sold

9920

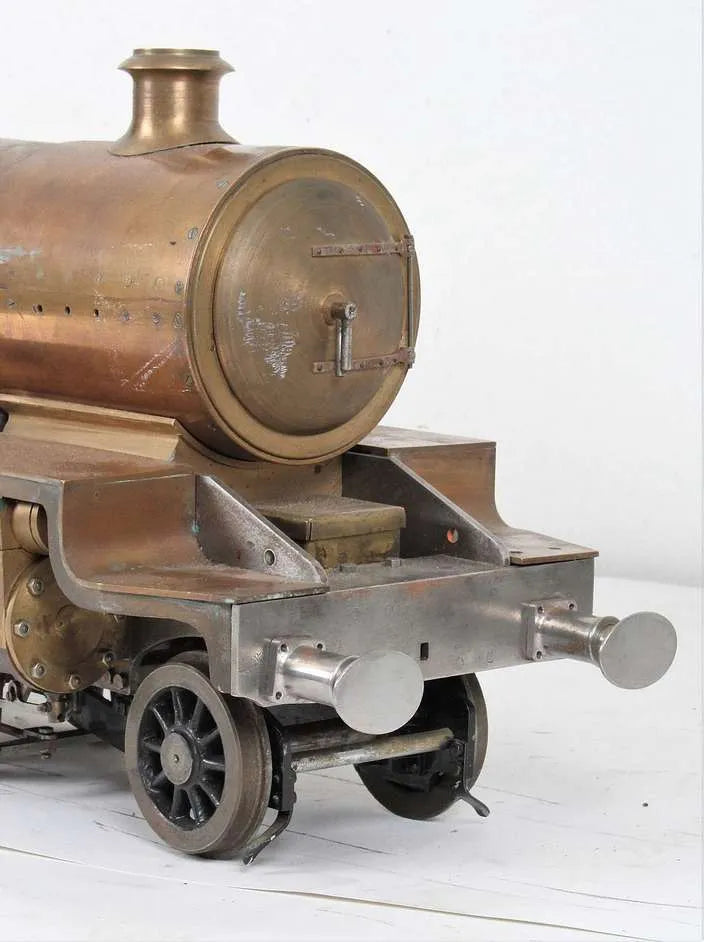

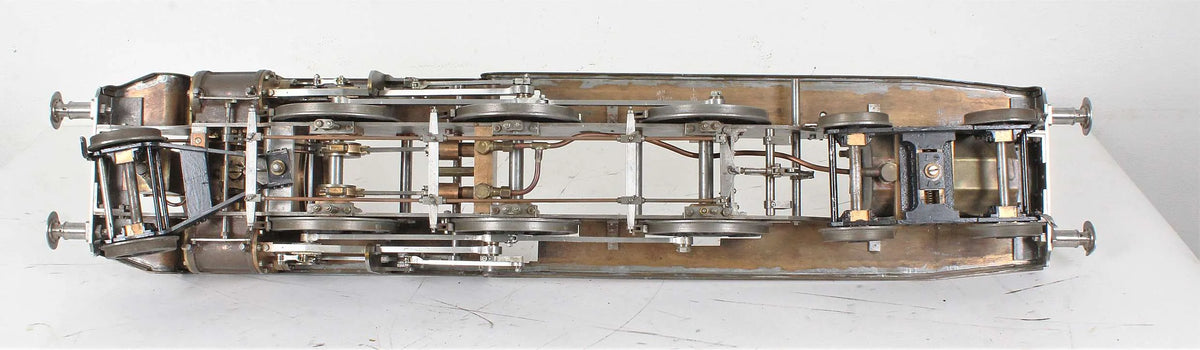

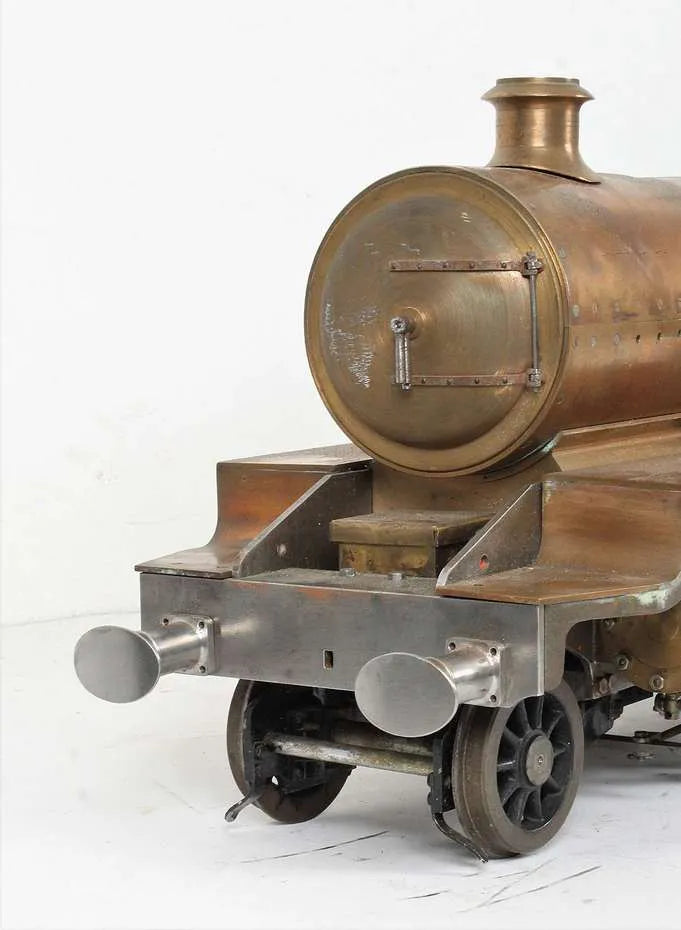

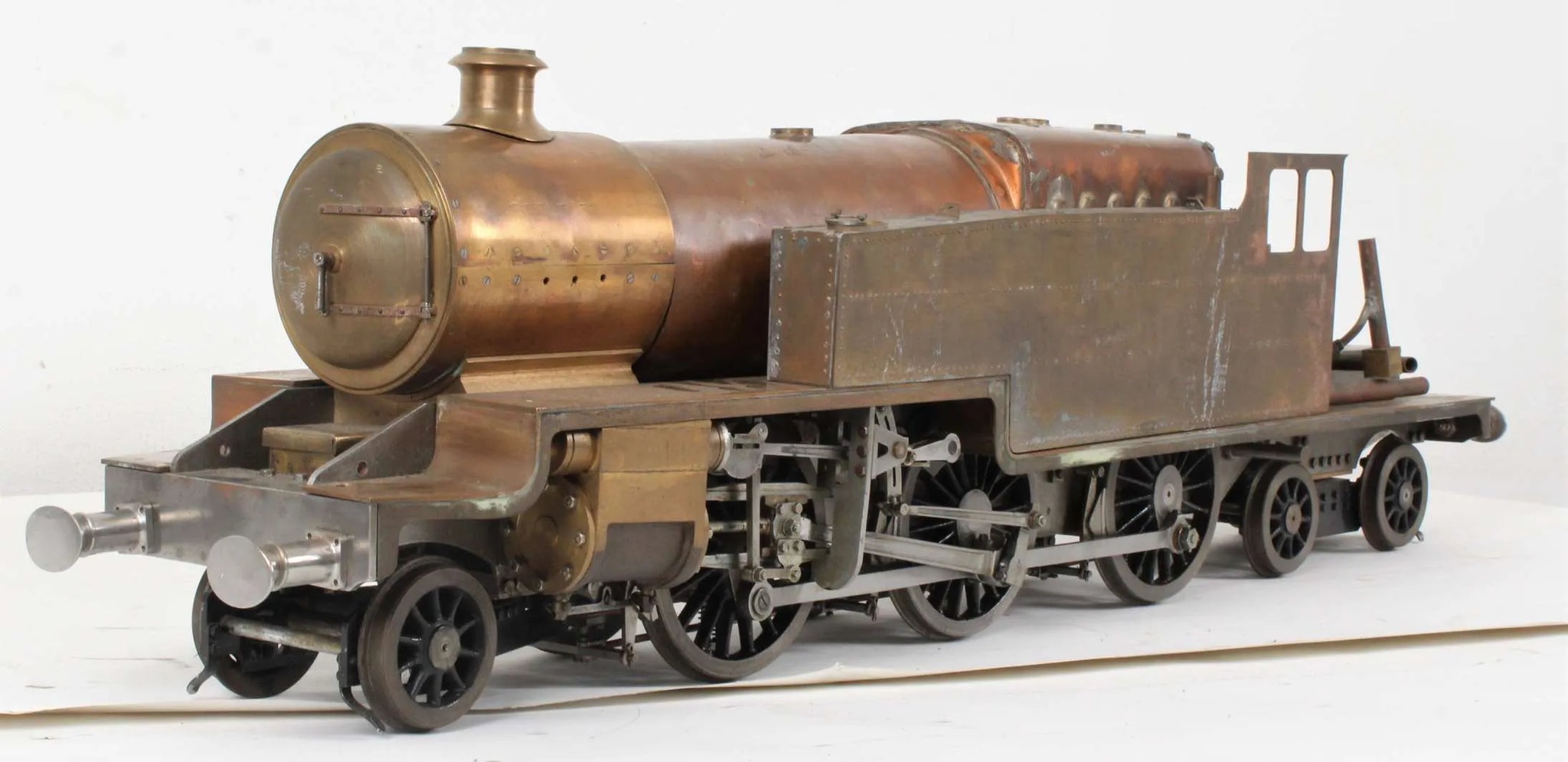

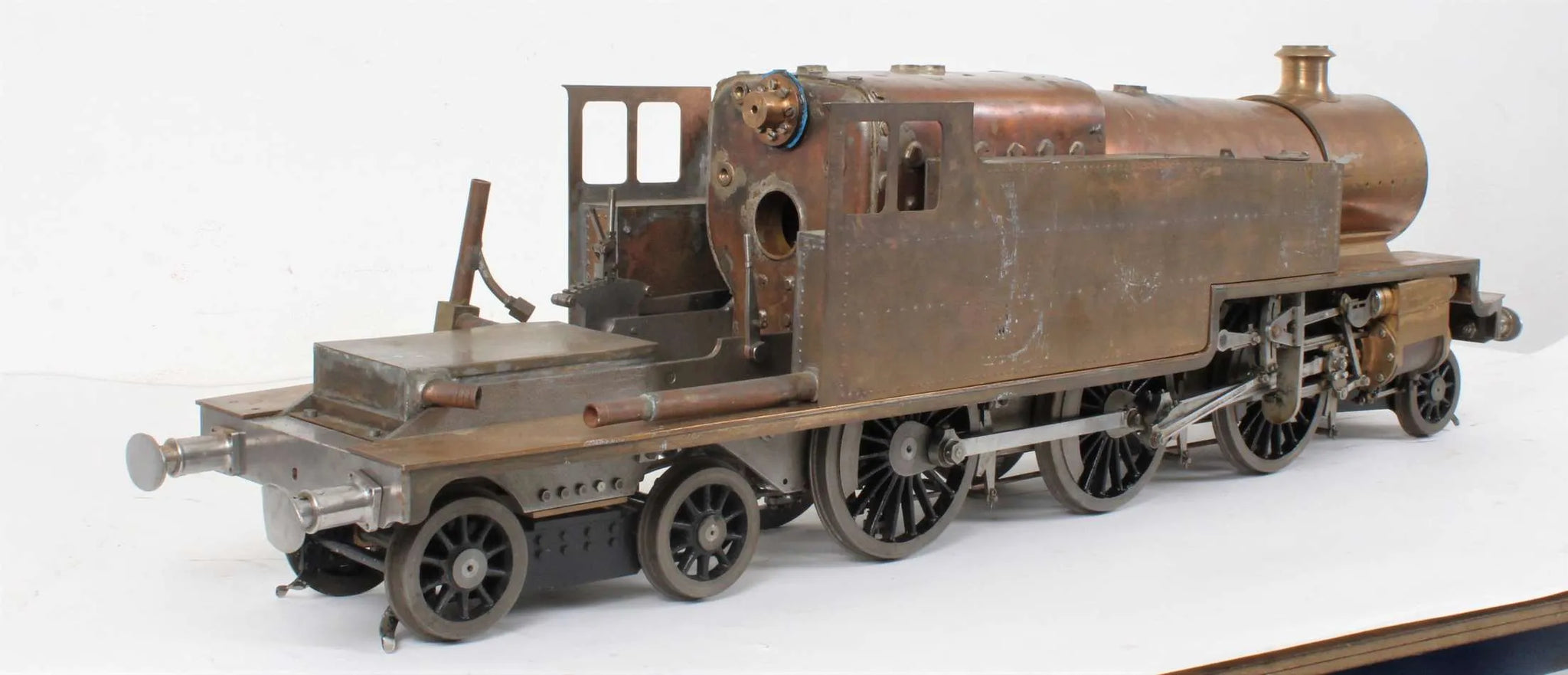

3 1/2 inch gauge LMS 2-6-4T

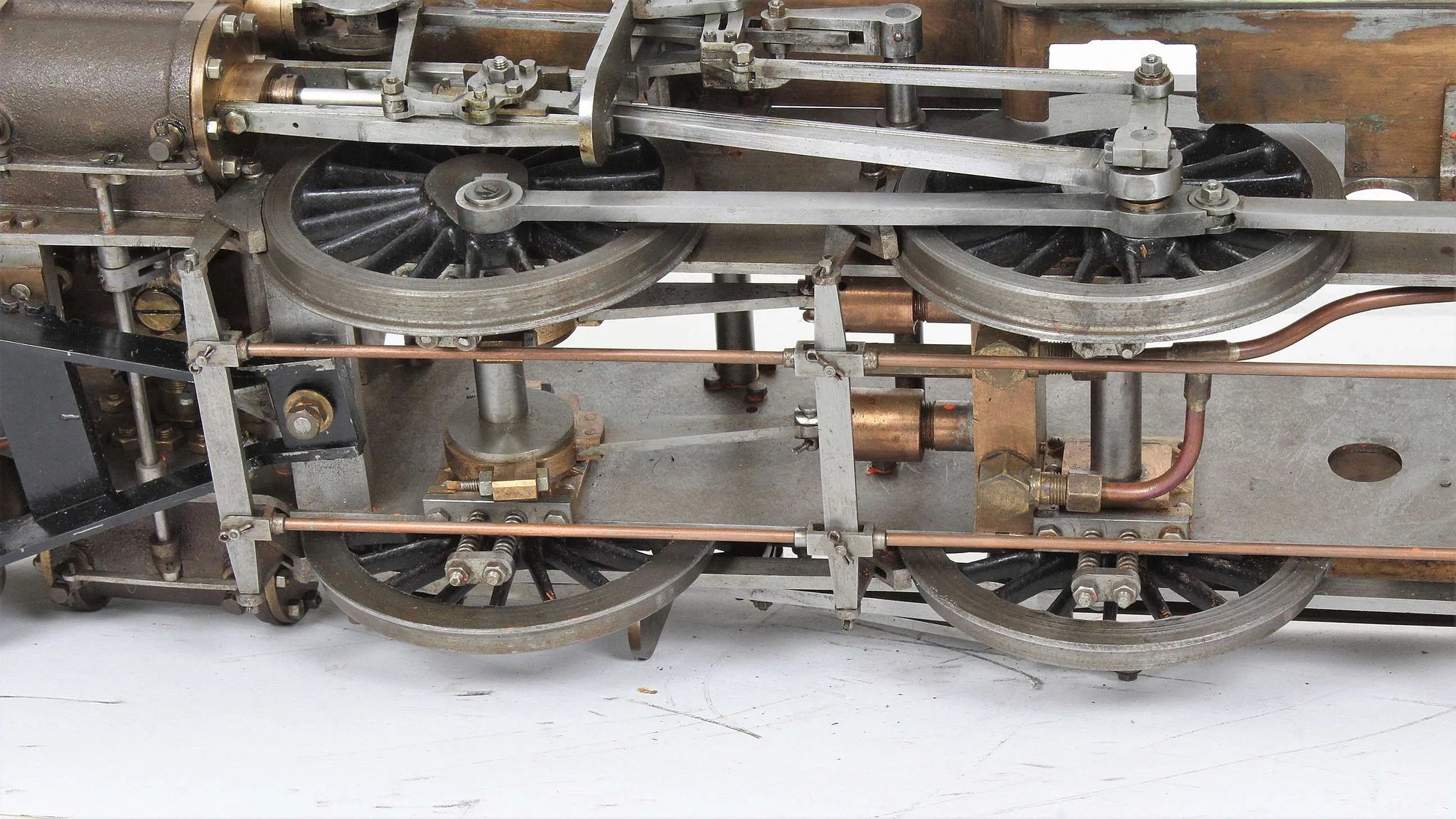

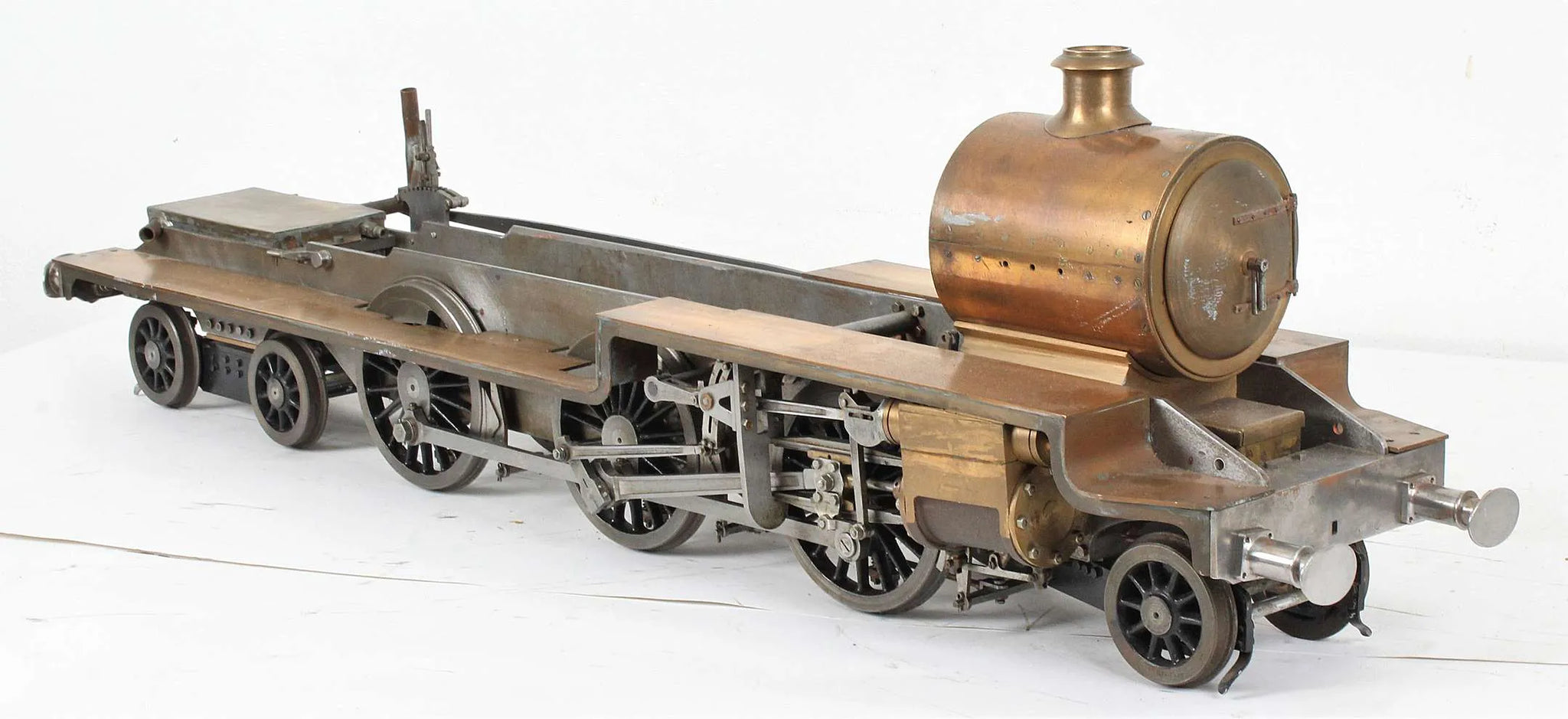

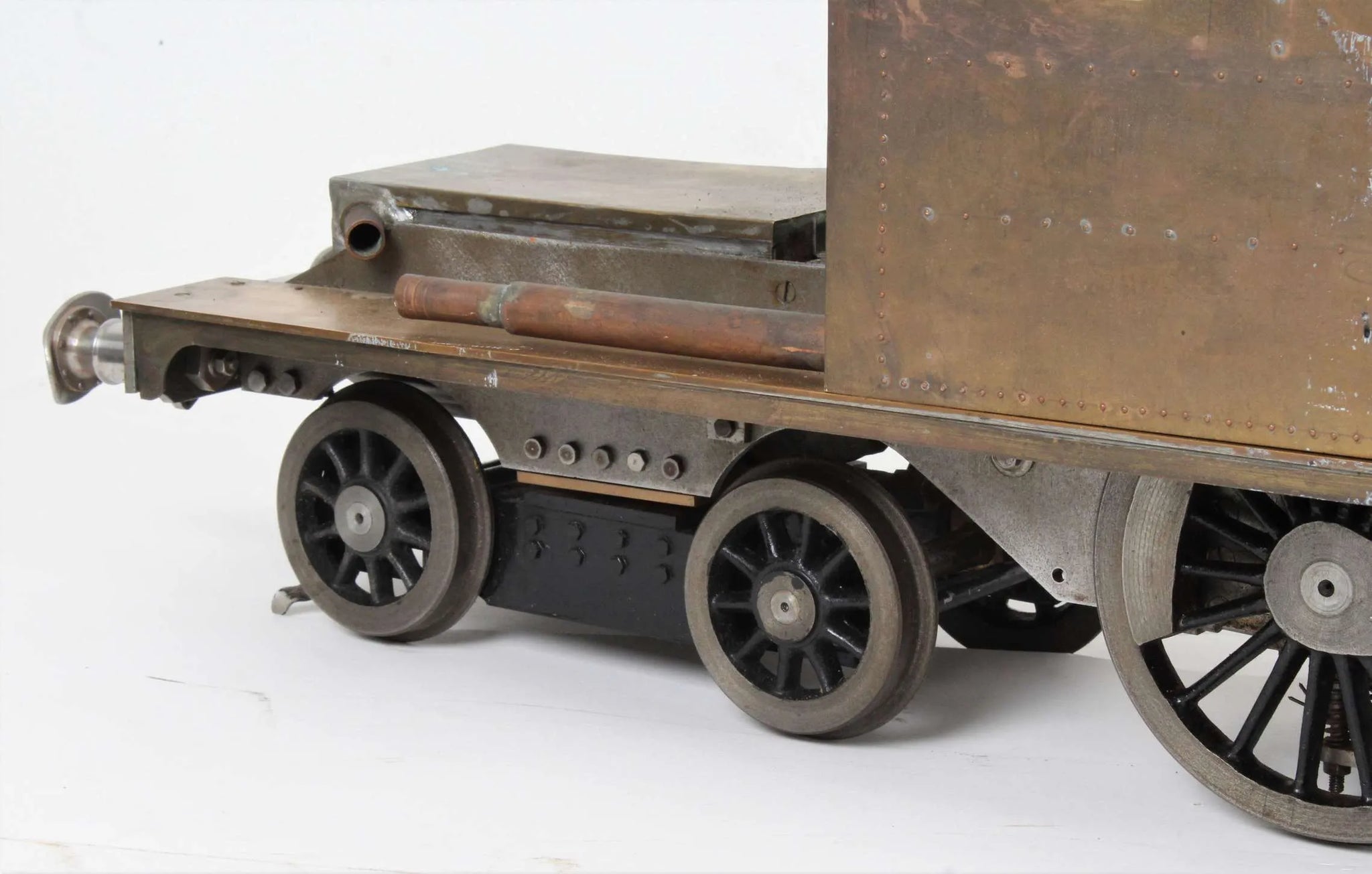

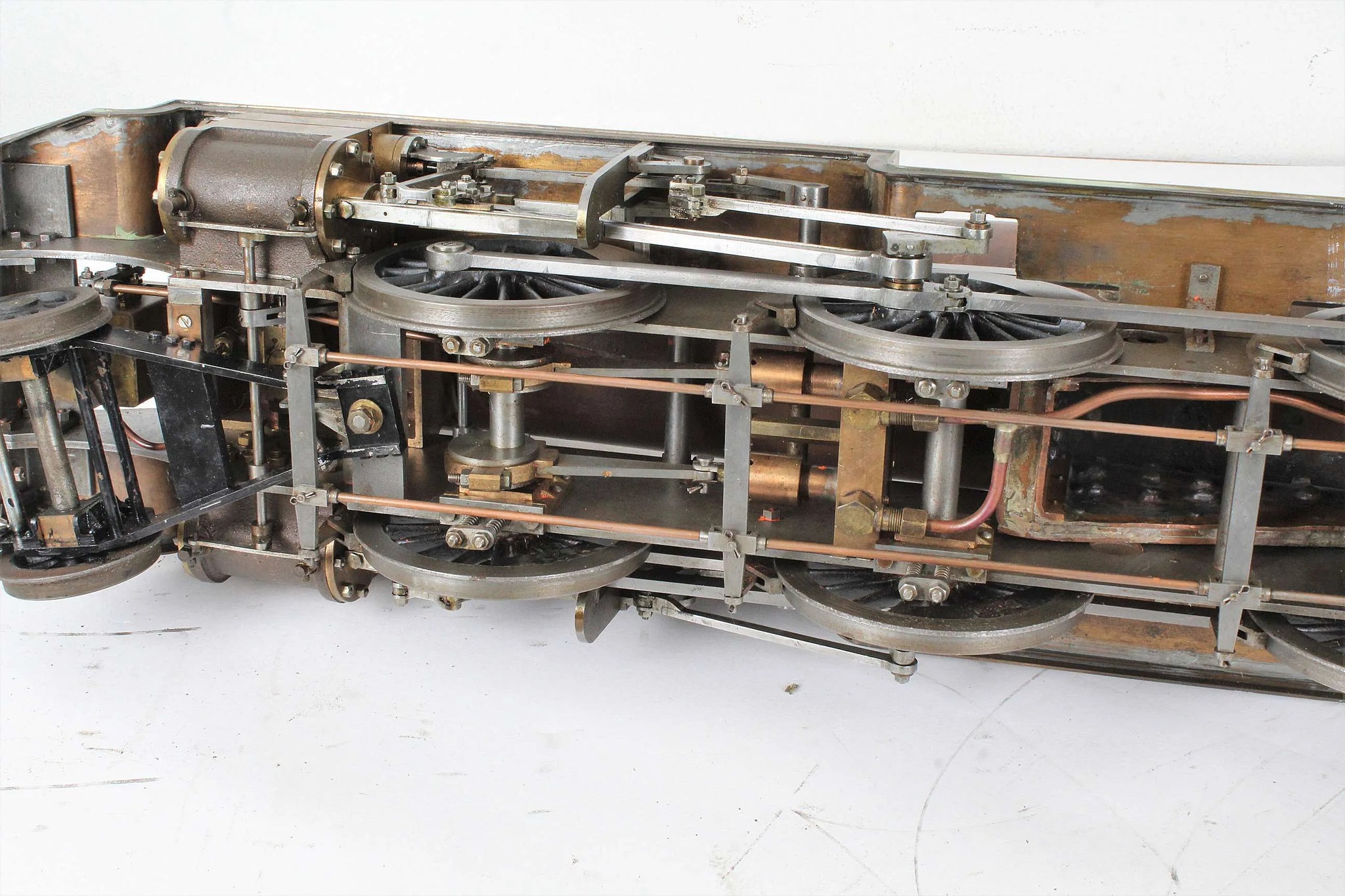

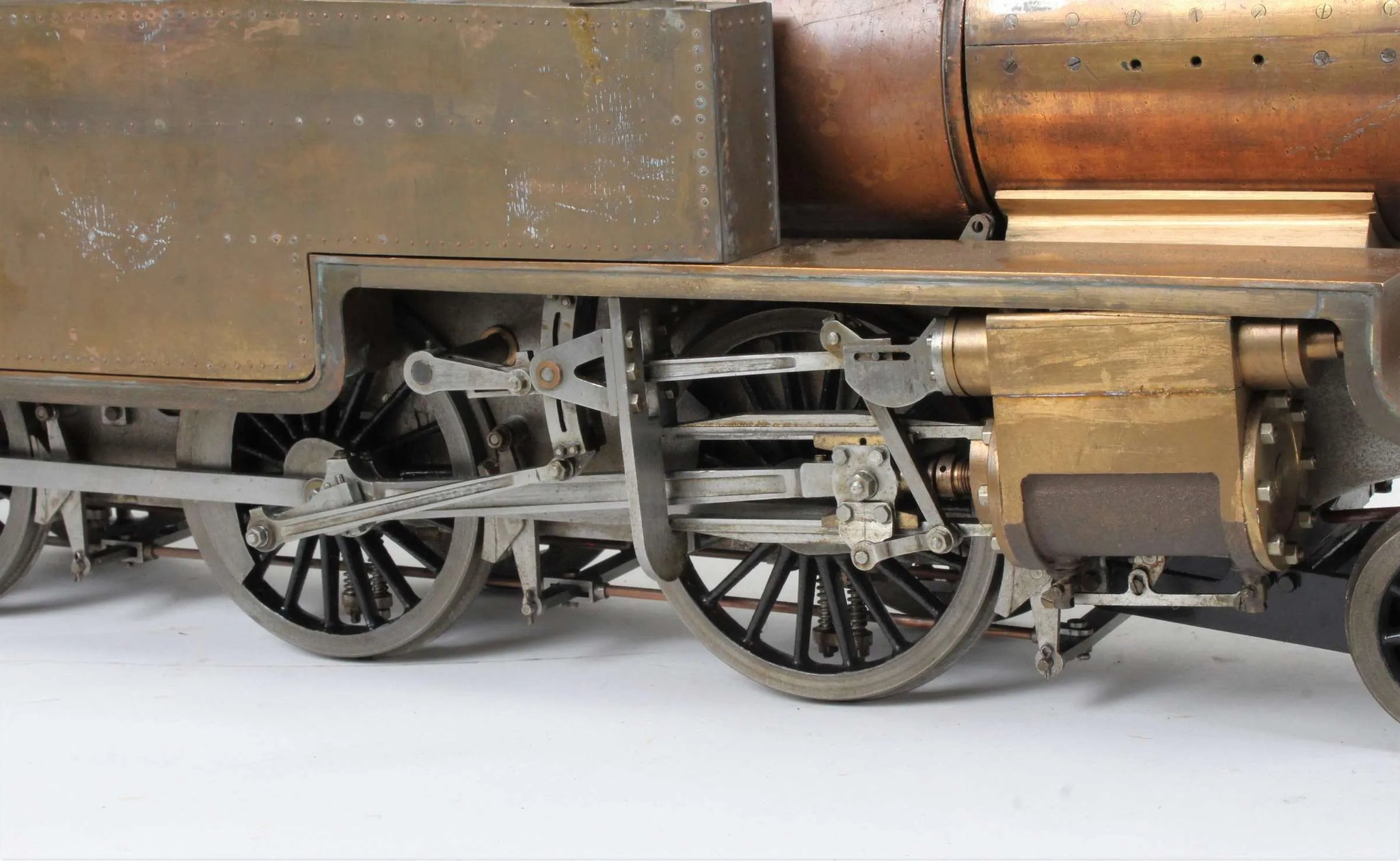

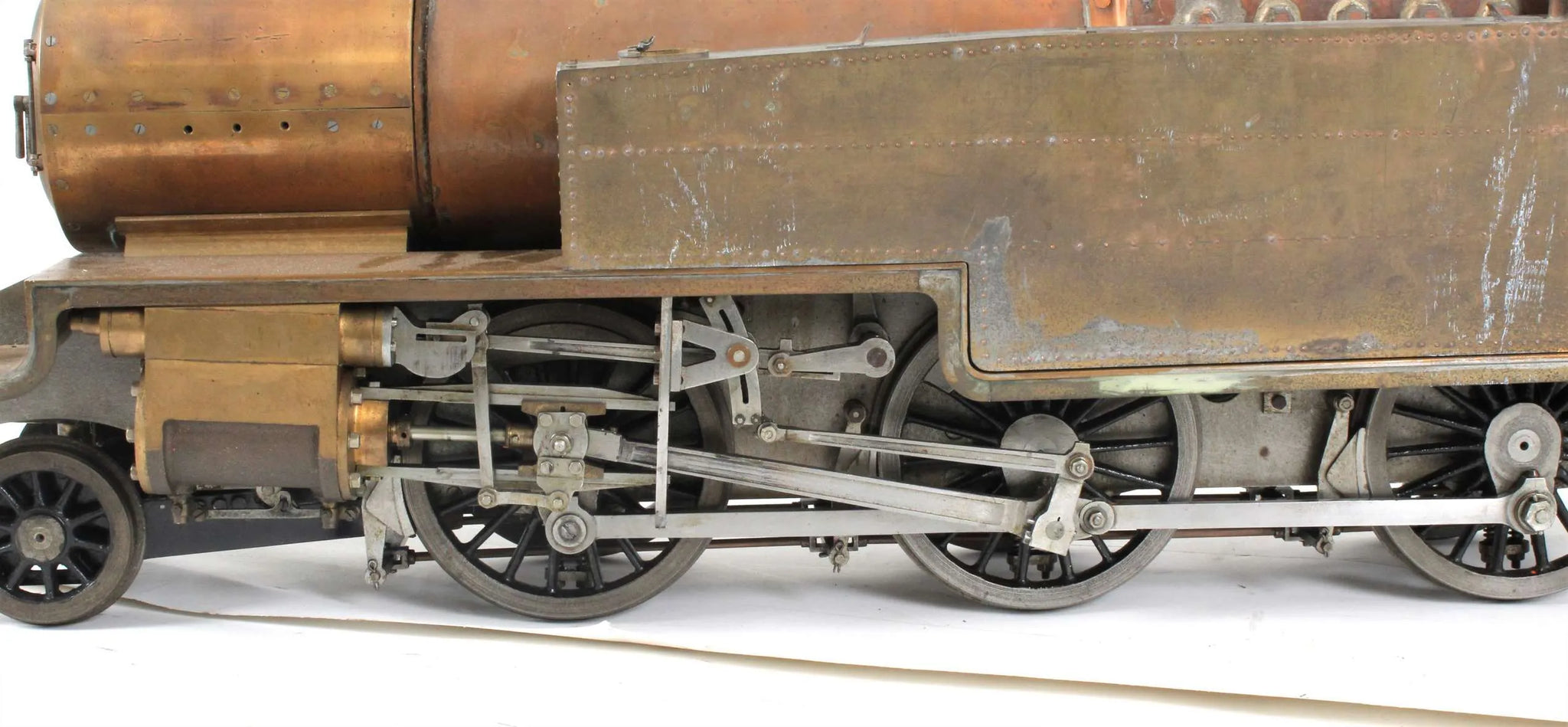

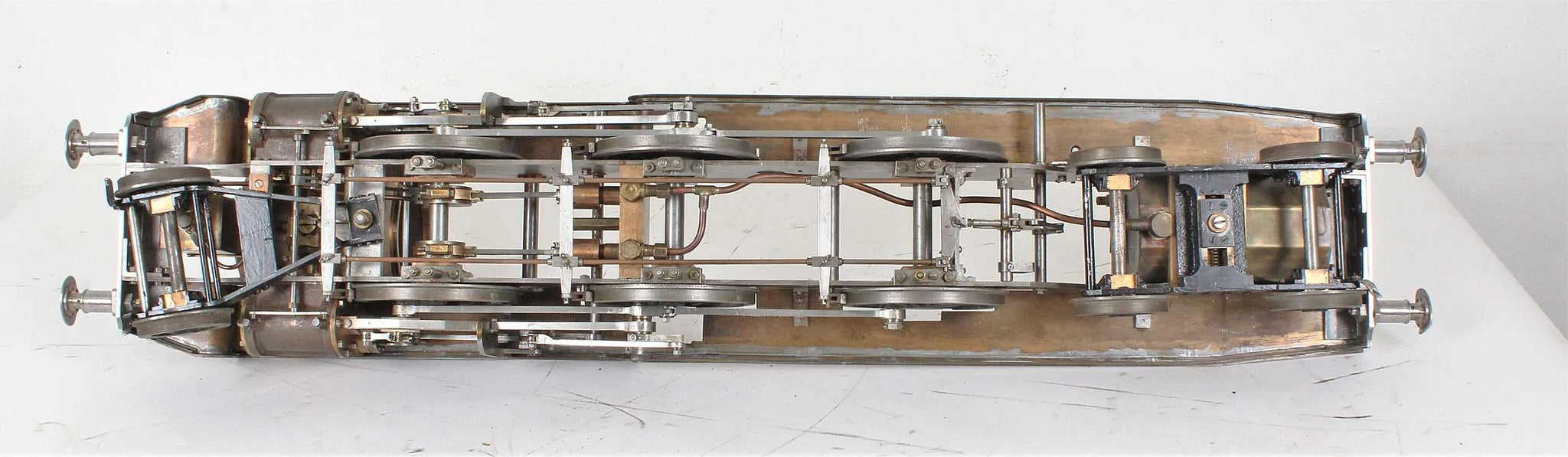

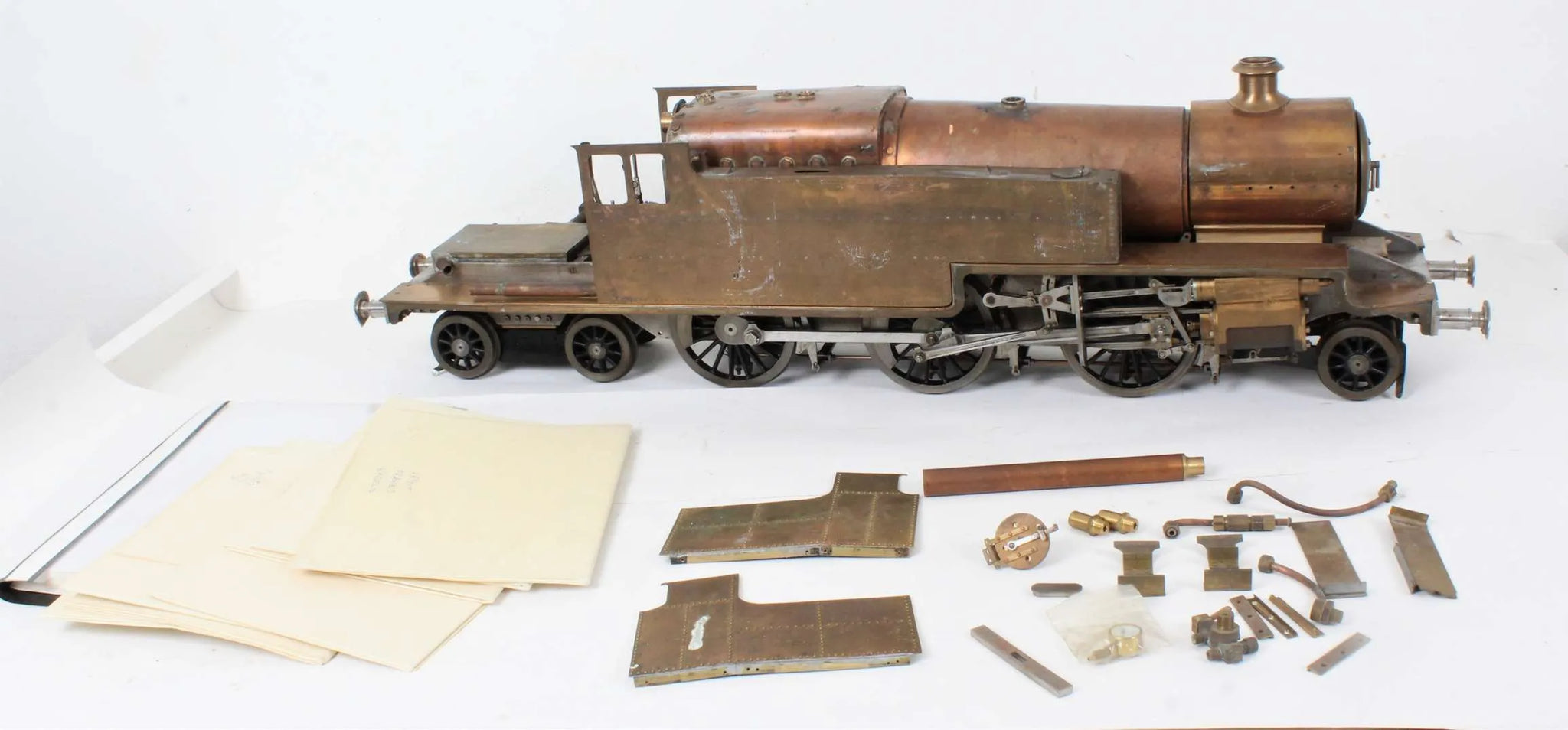

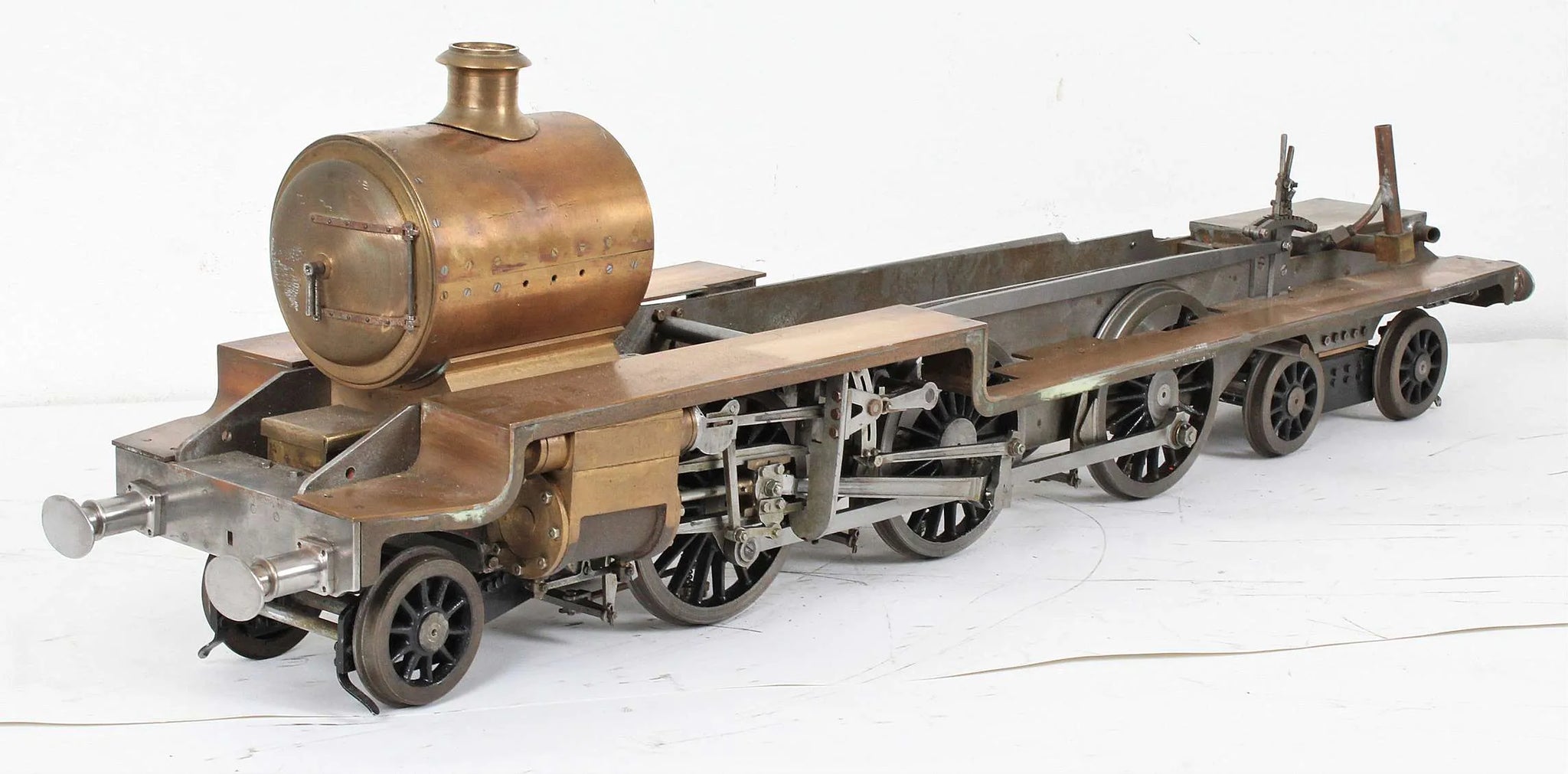

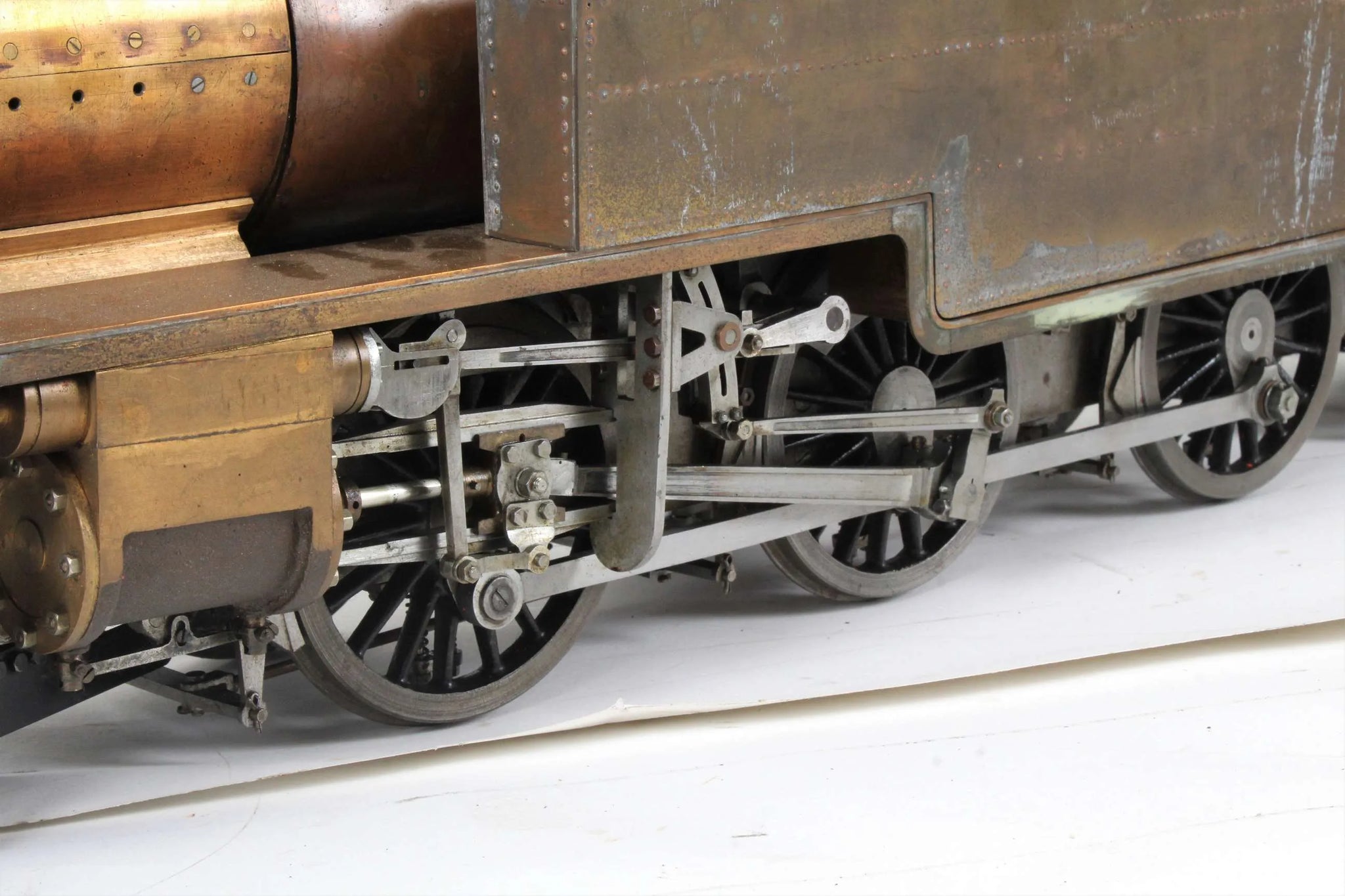

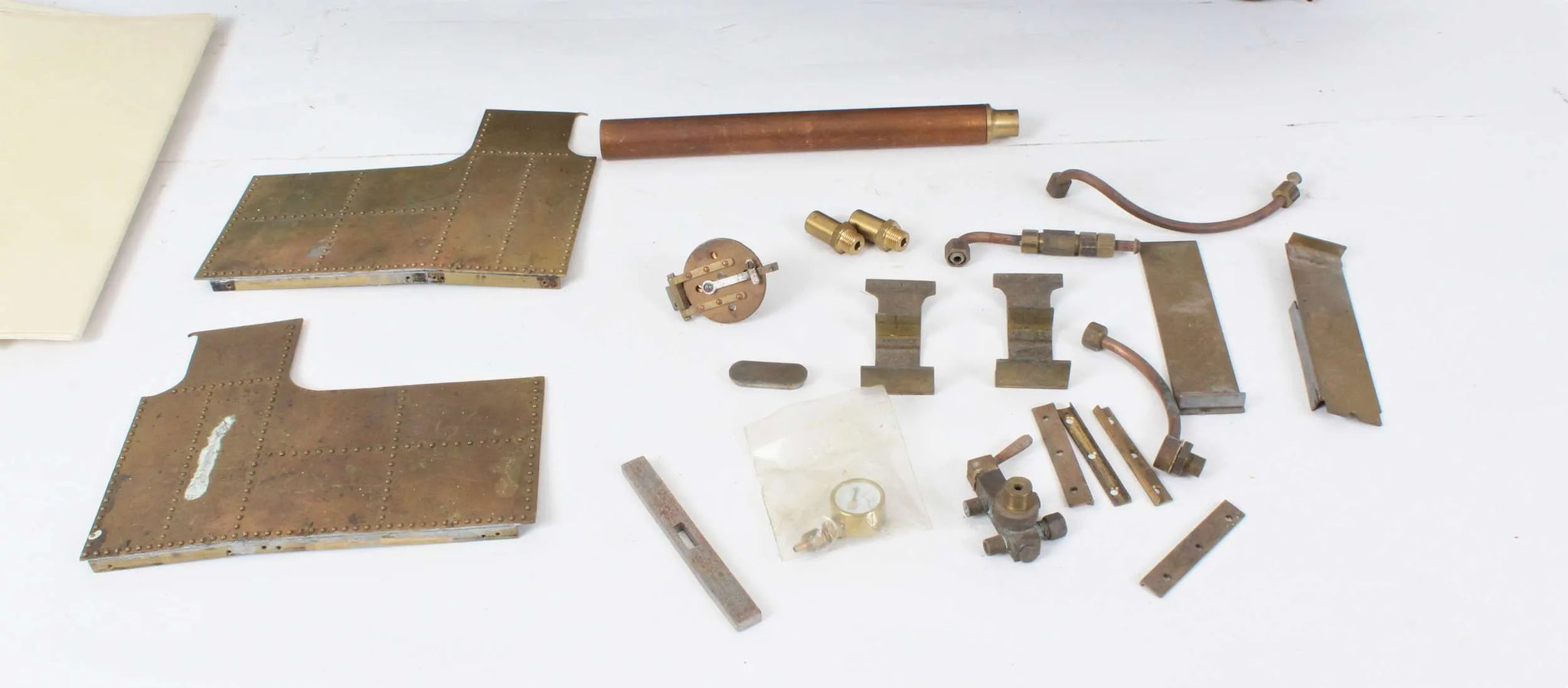

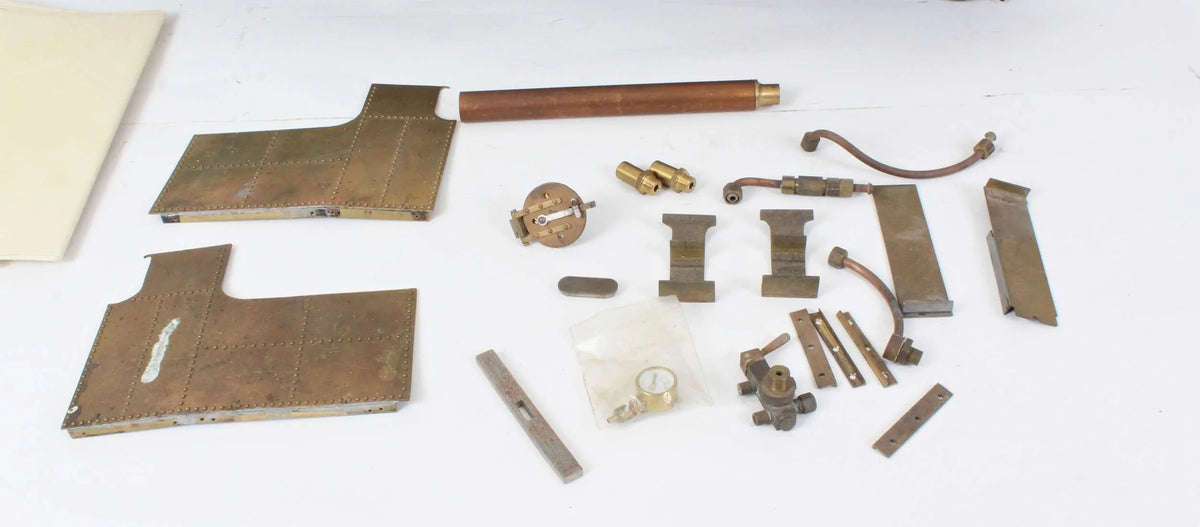

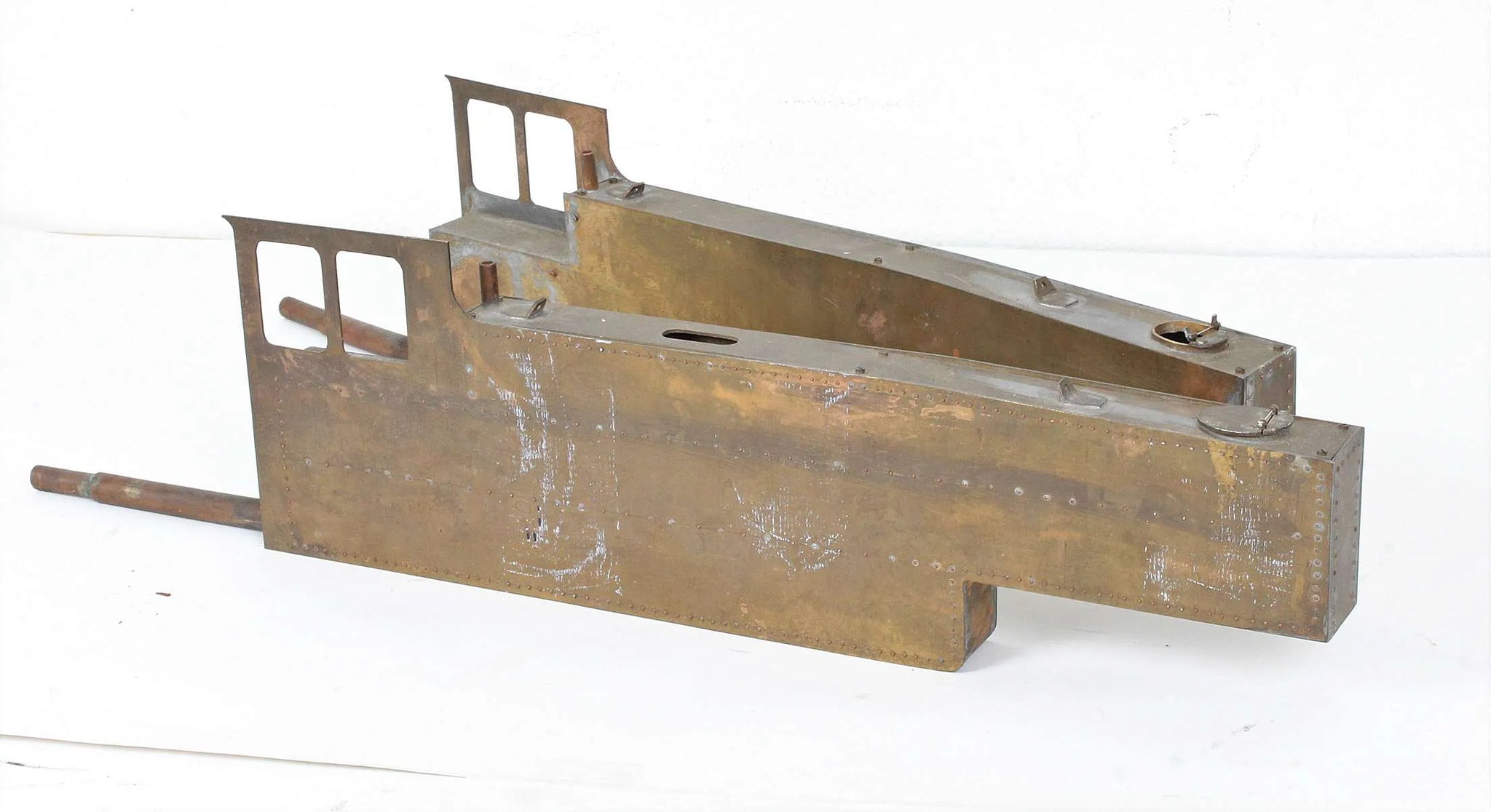

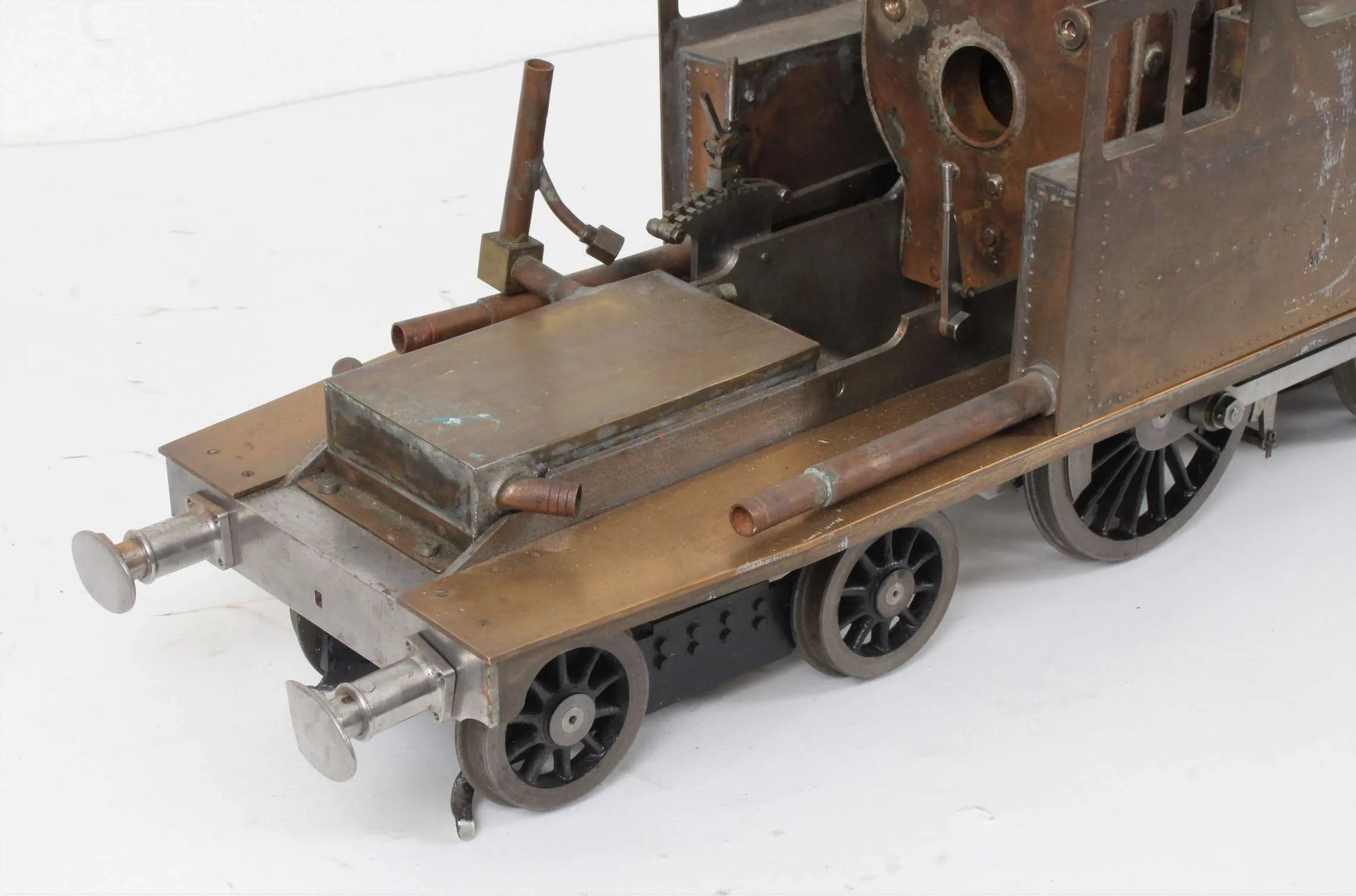

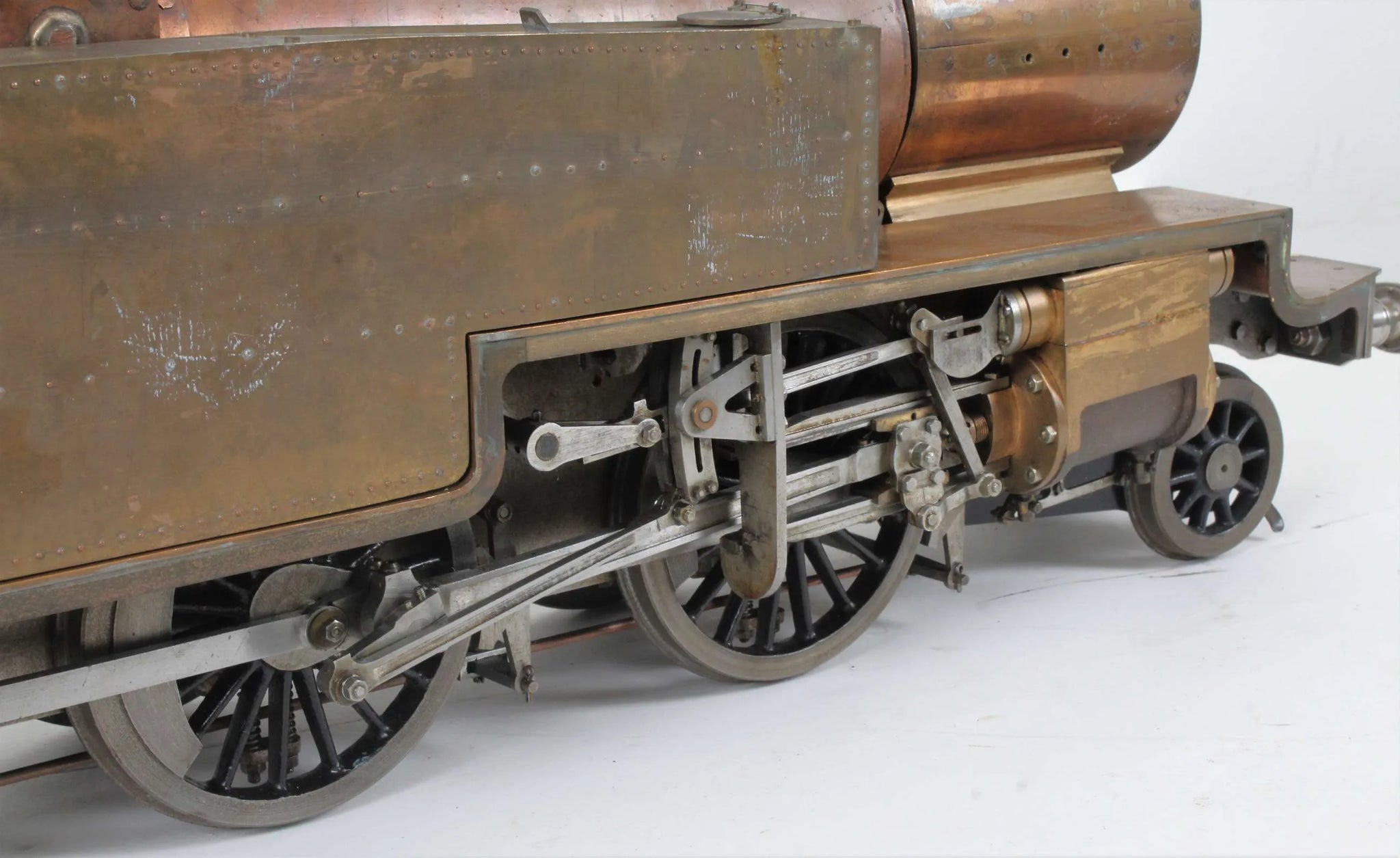

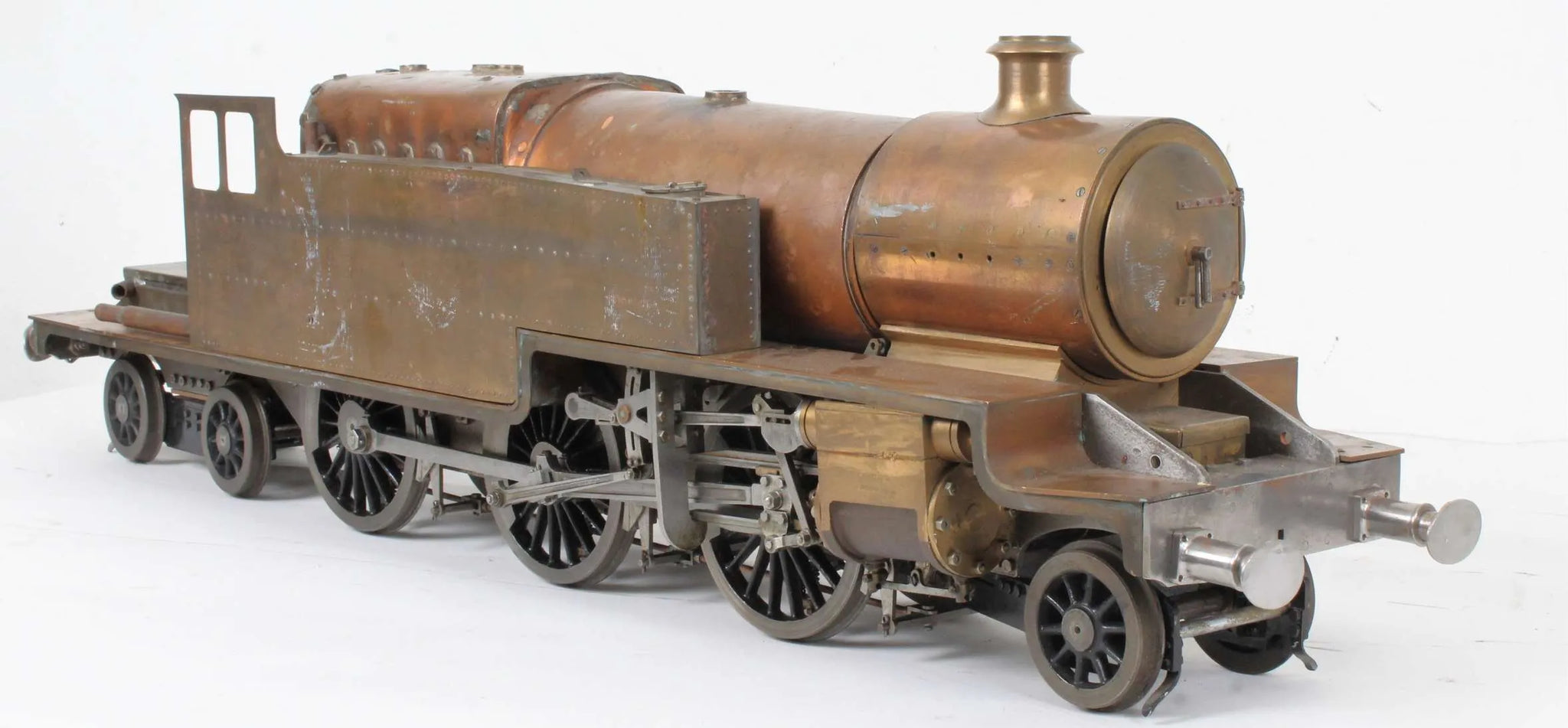

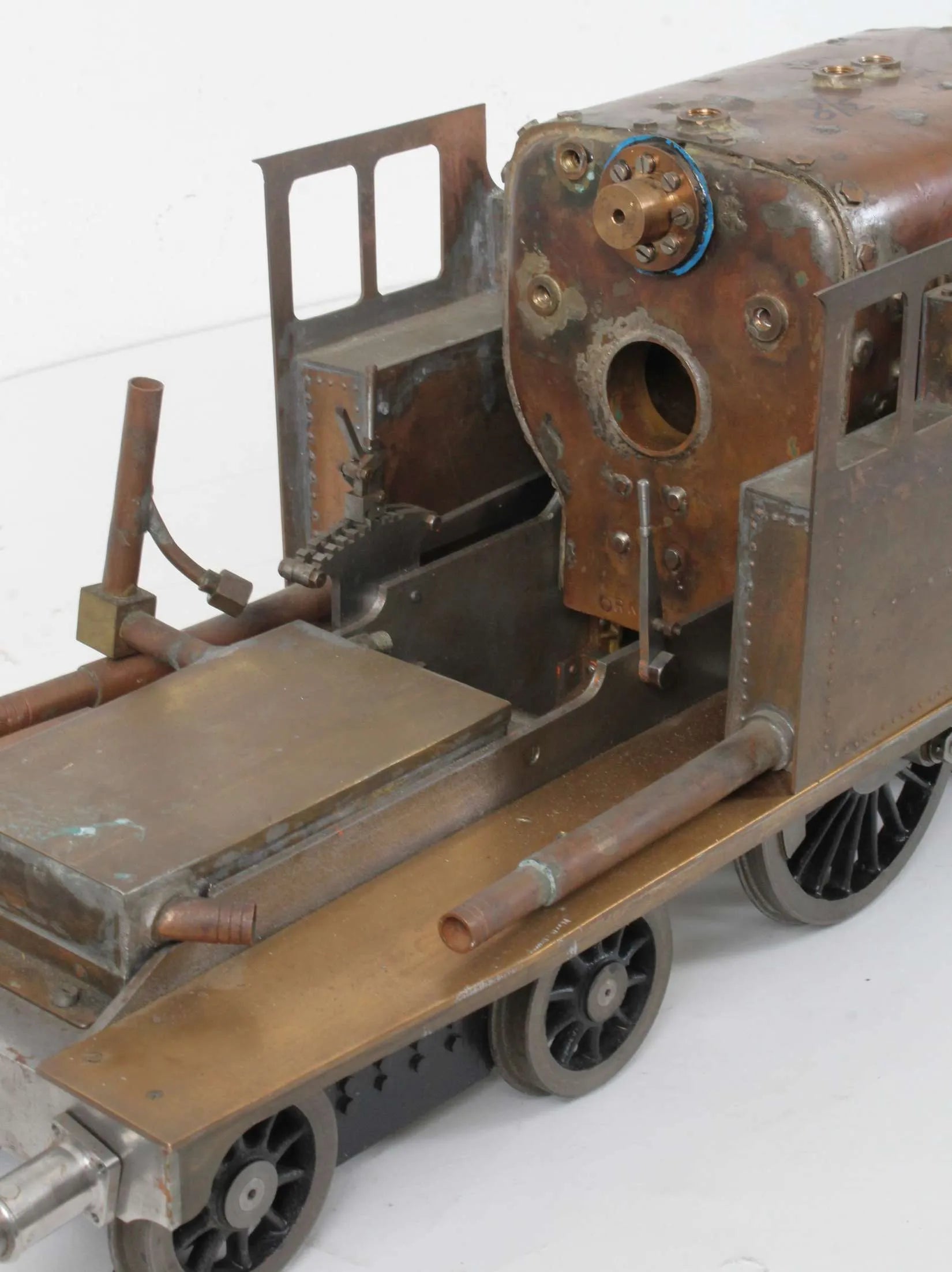

A well-advanced 3 1/2 inch gauge LMS Stanier 2-6-4T to Martin Evans' "Jubilee" design, comprising a free-rolling chassis complete with motionwork, valve gear, brake gear, drain cocks and water pumps, along with a quantity of brass platework for cab and tanks.

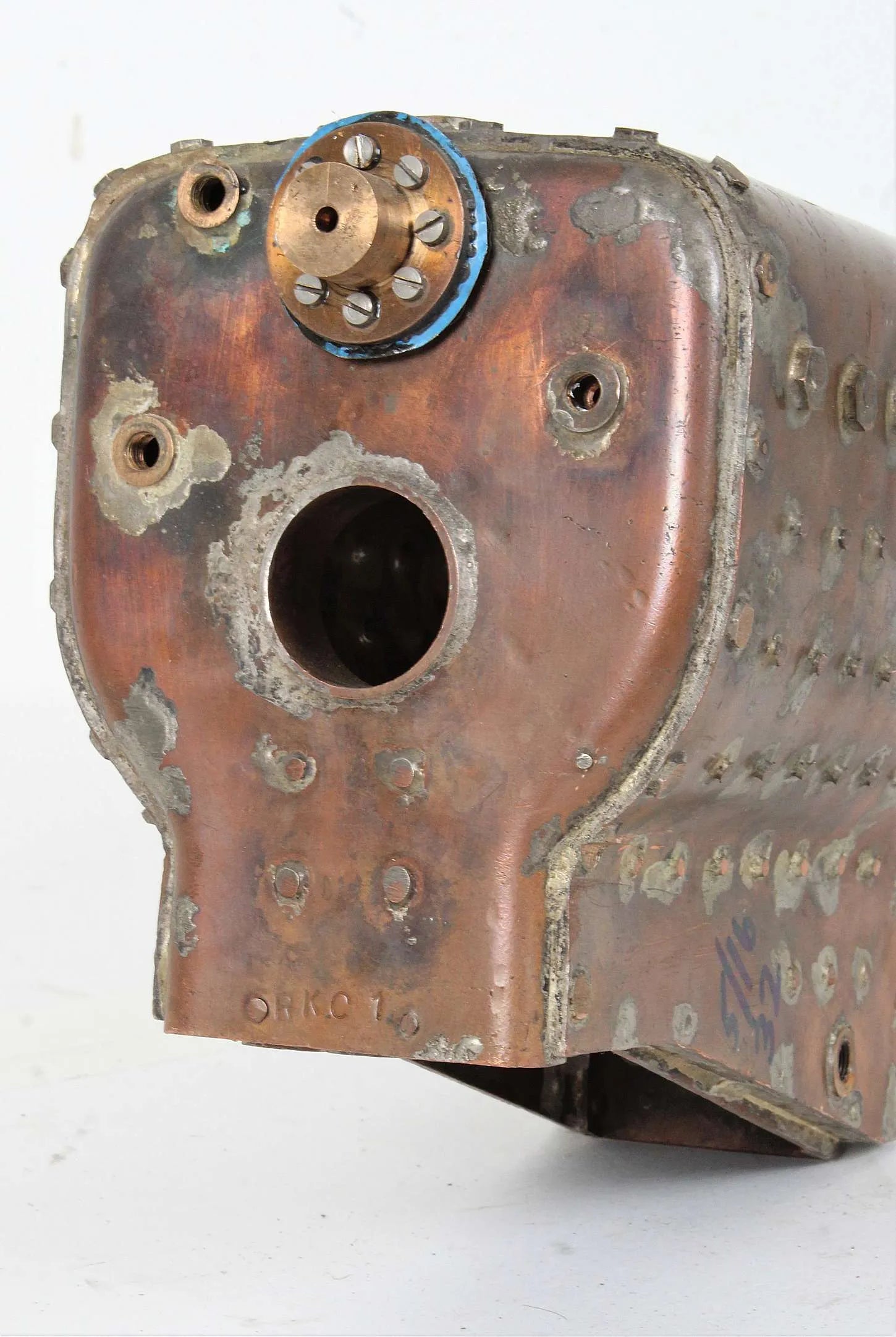

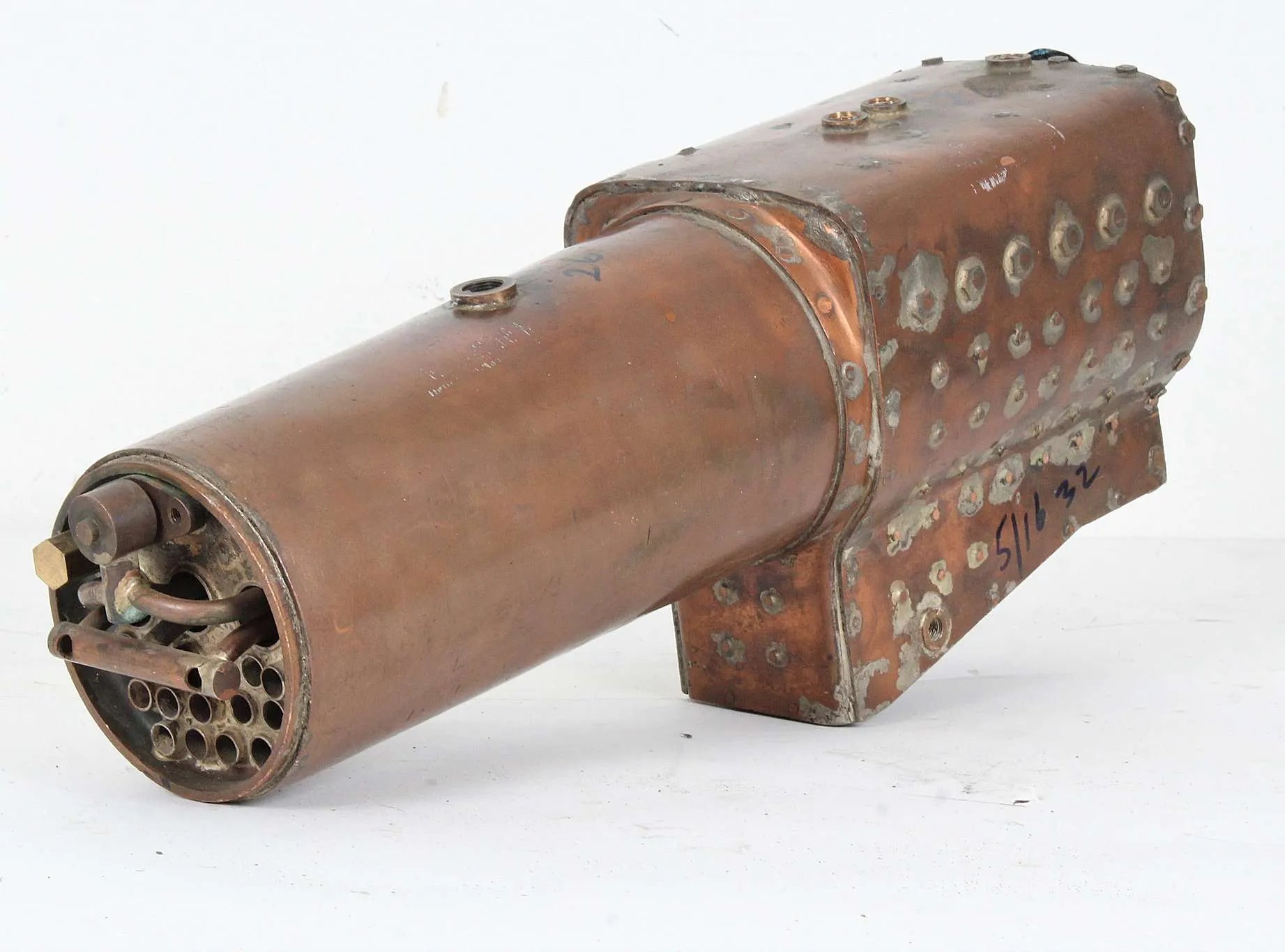

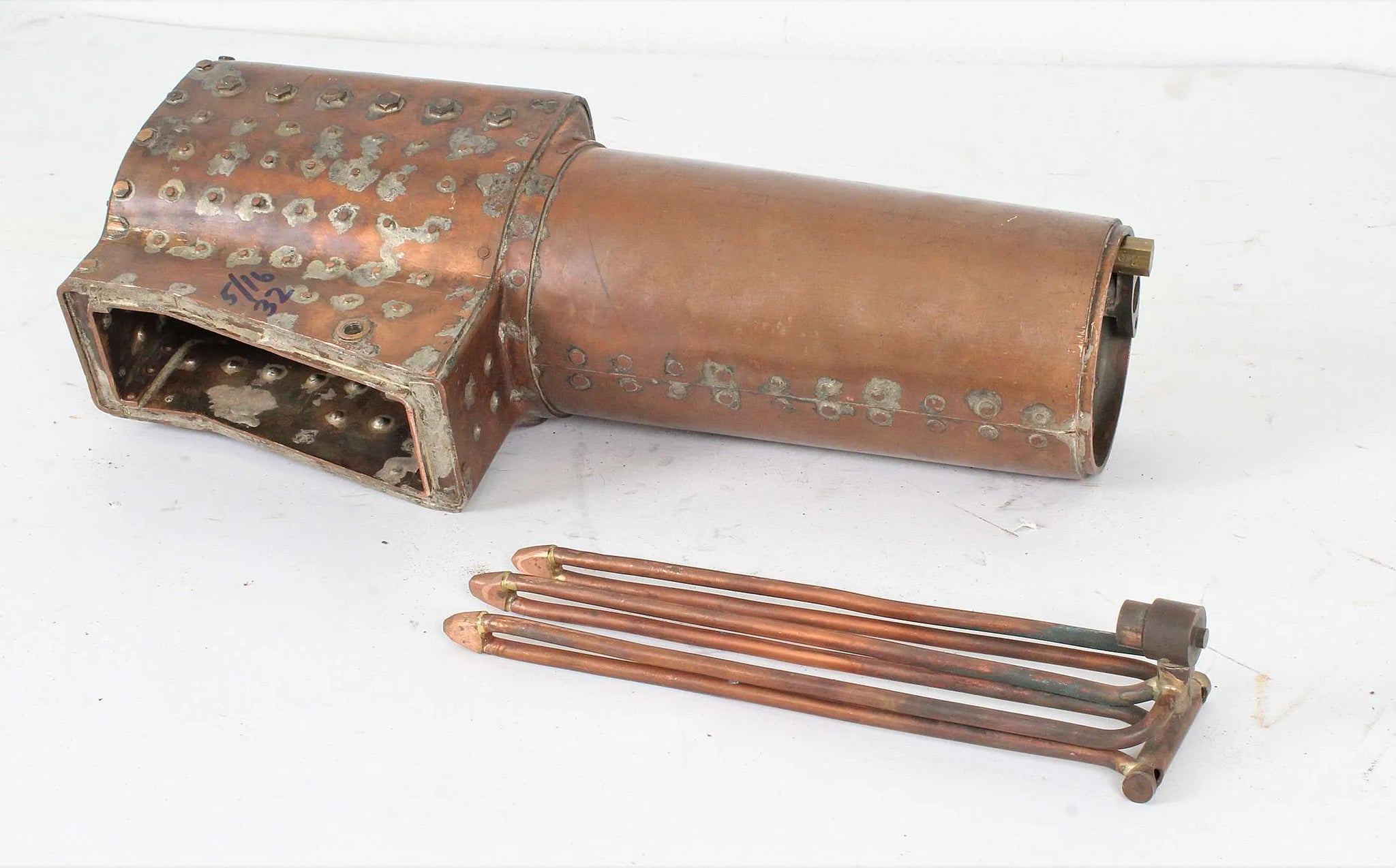

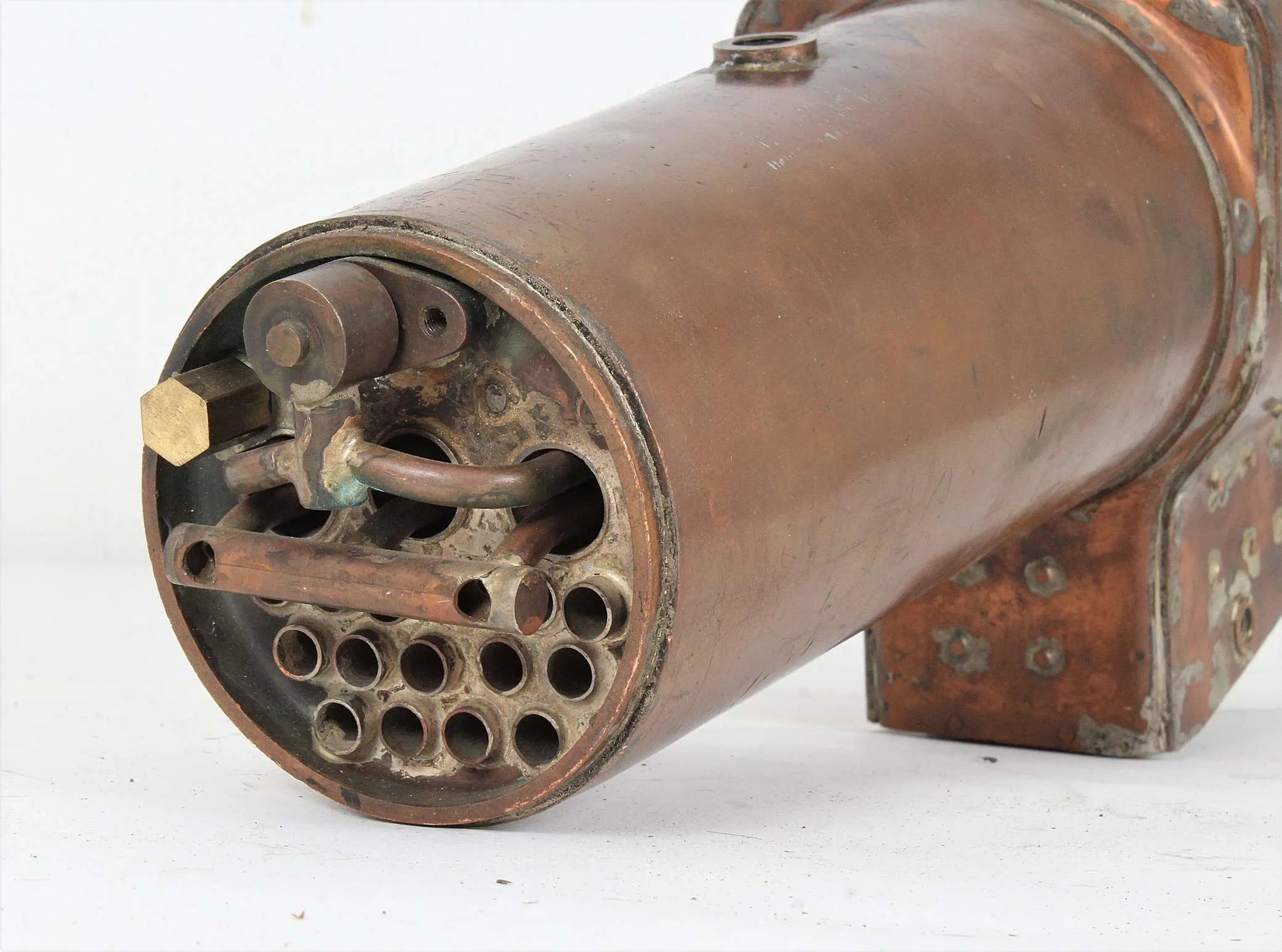

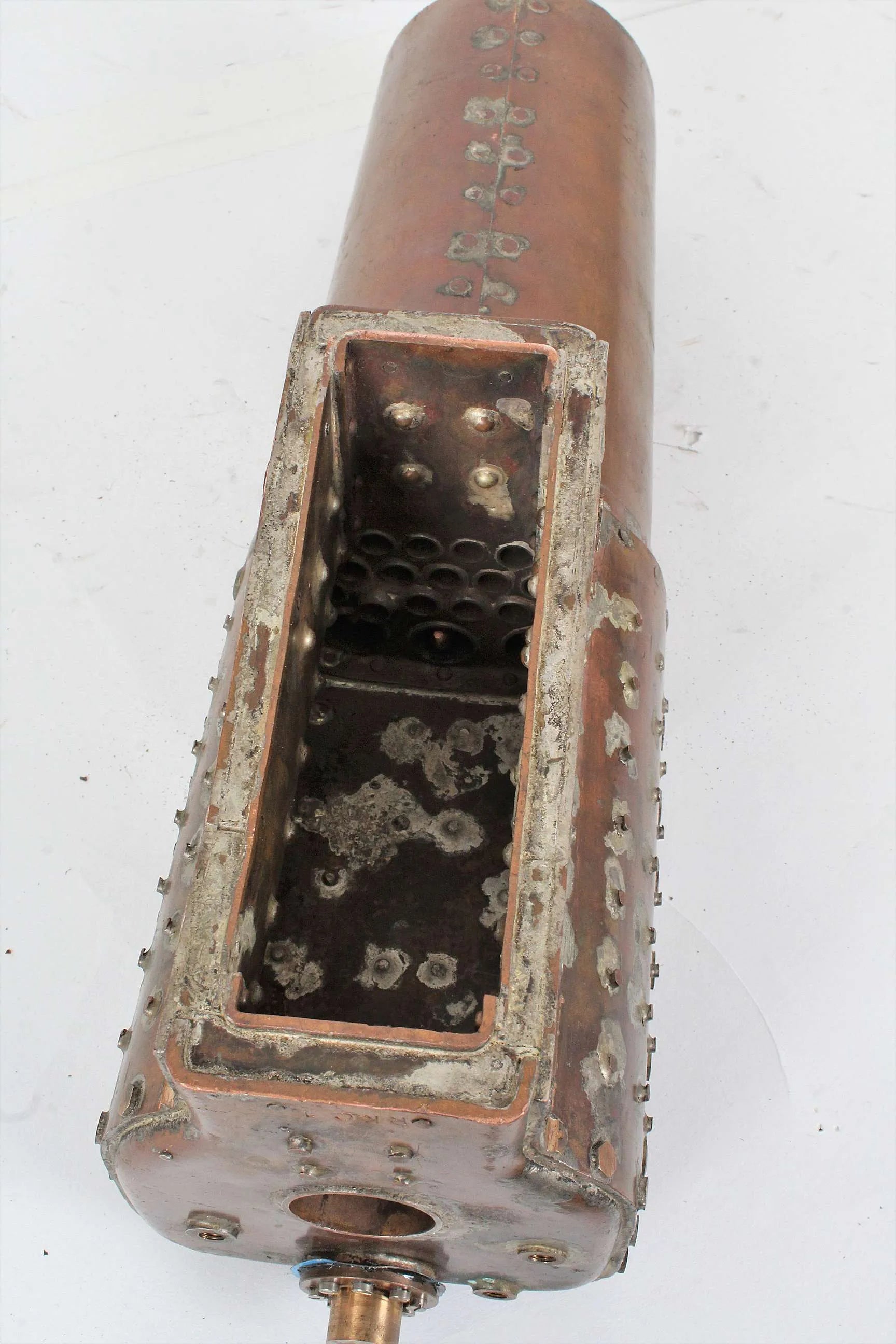

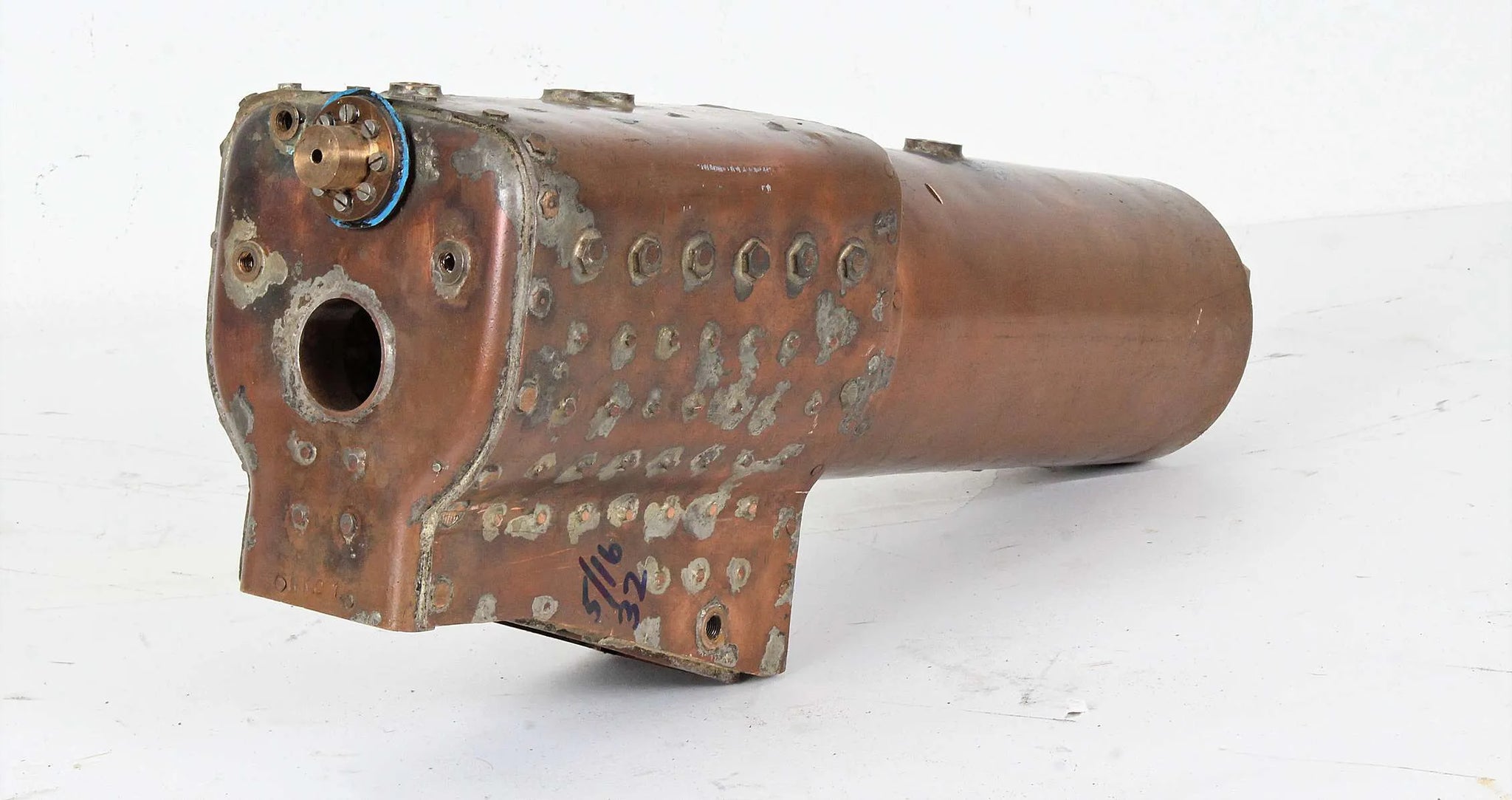

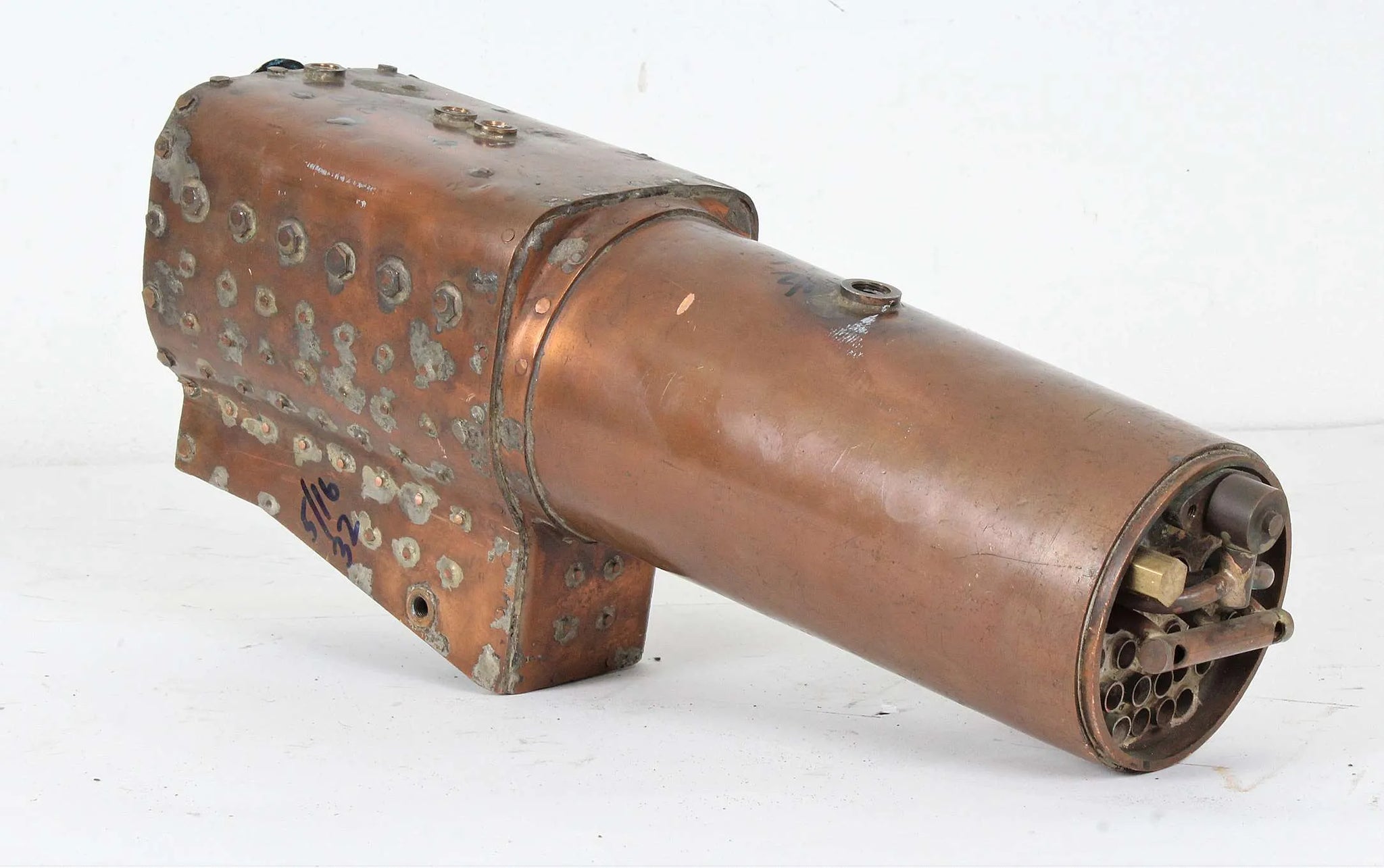

The silver soldered boiler has had a twice working pressure hydraulic test - it appears well made and is structurally sound, with a single pinhole leak which shows a bead of water at the front end of the barrel joint.

Complete with seven sheets of drawings and copies of the construction articles.

Technical information

Stock code

9920

Gauge

3 1/2 inch

Length/inches

36.5

Width/inches

7.5

Height/inches

10.5

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Walschaerts

Reverser type

pole

Lubricator type

mechanical

Boiler maker

R Cornes

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

CE/UKCA mark

n/a - non-commercial

Boiler number

RKC1

Fusible plug

no

Mechanical pump

2

Superheater type

flue tube

Superheater

3

Date out

Feb-22
