11791

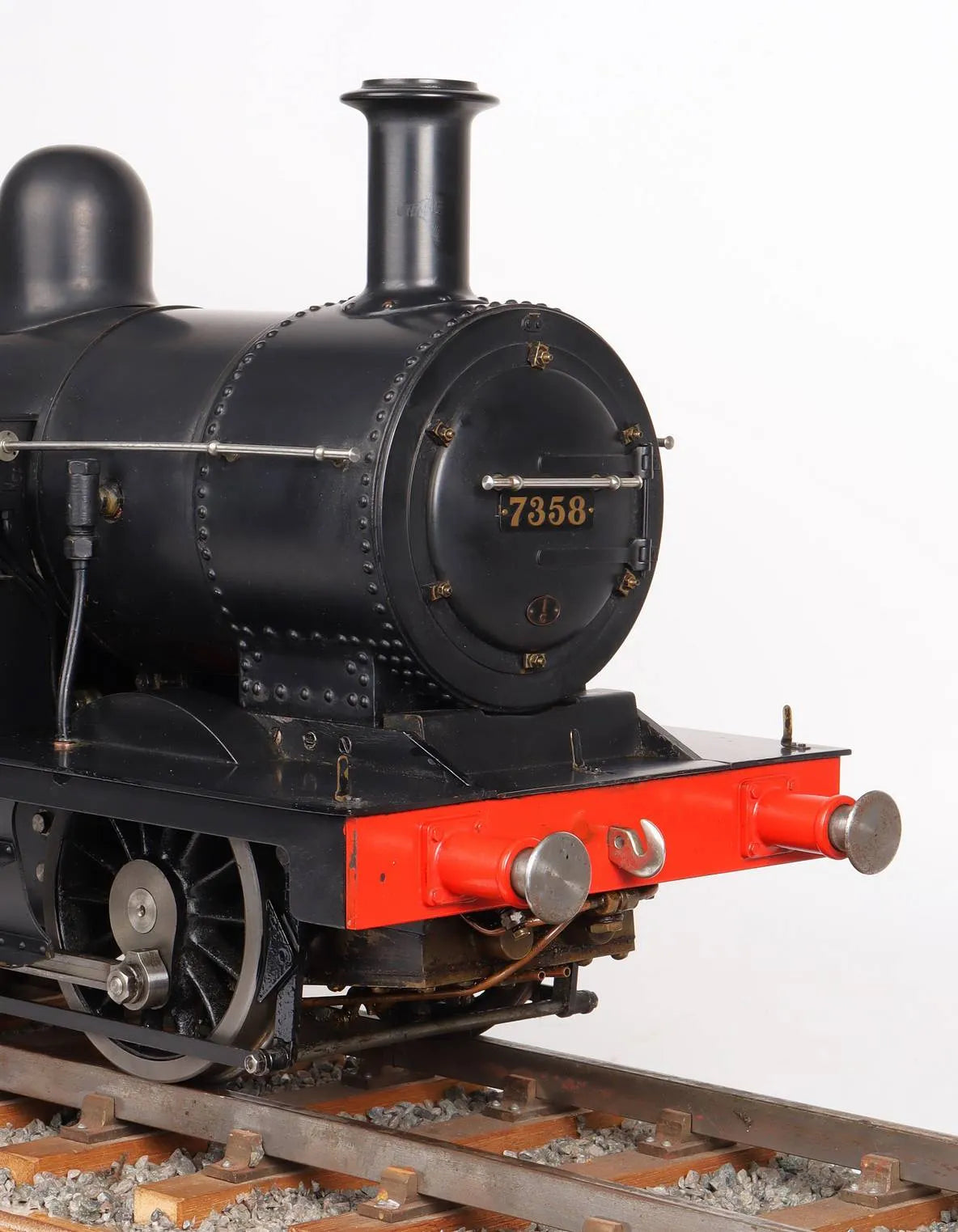

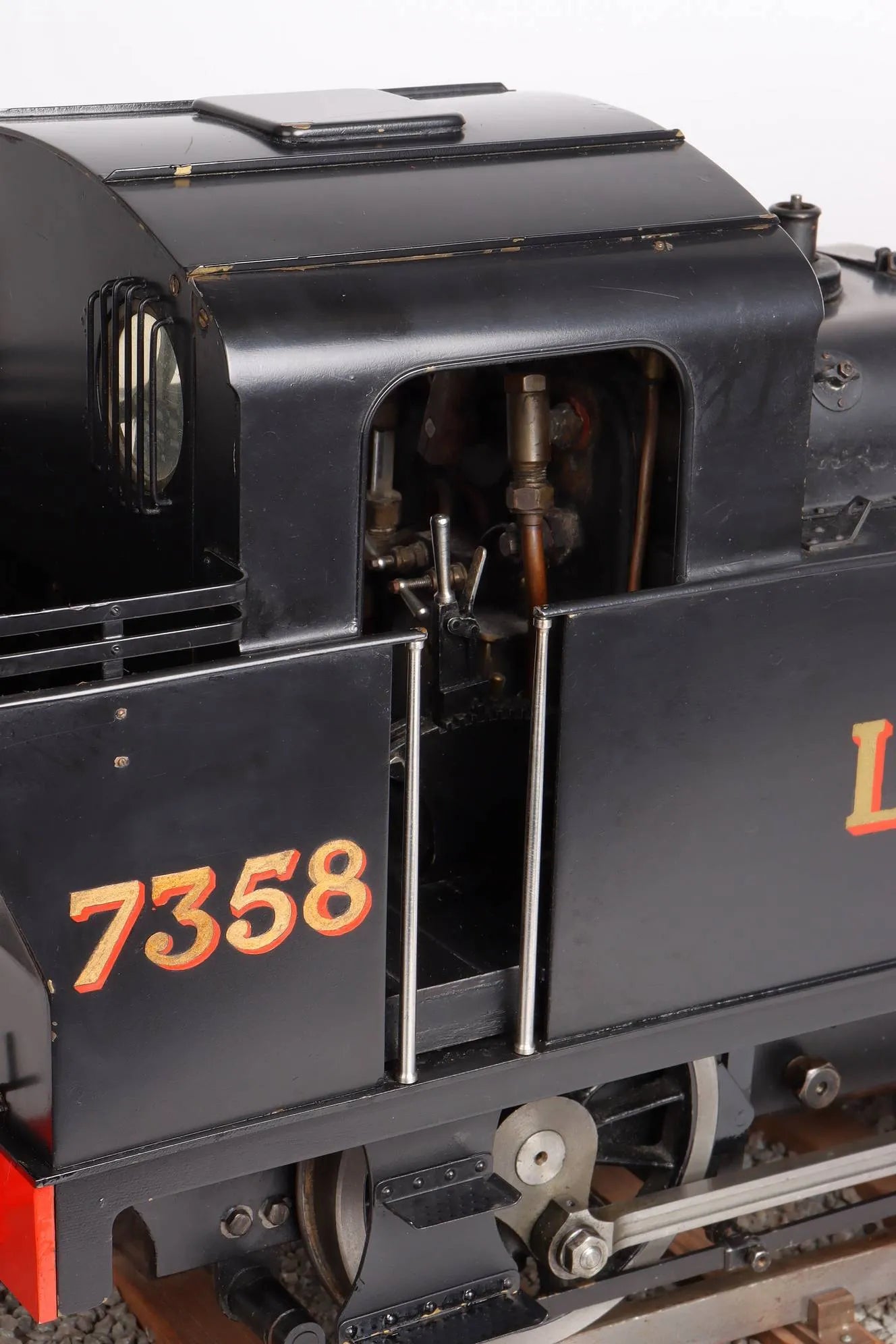

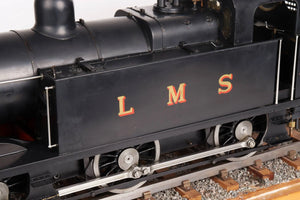

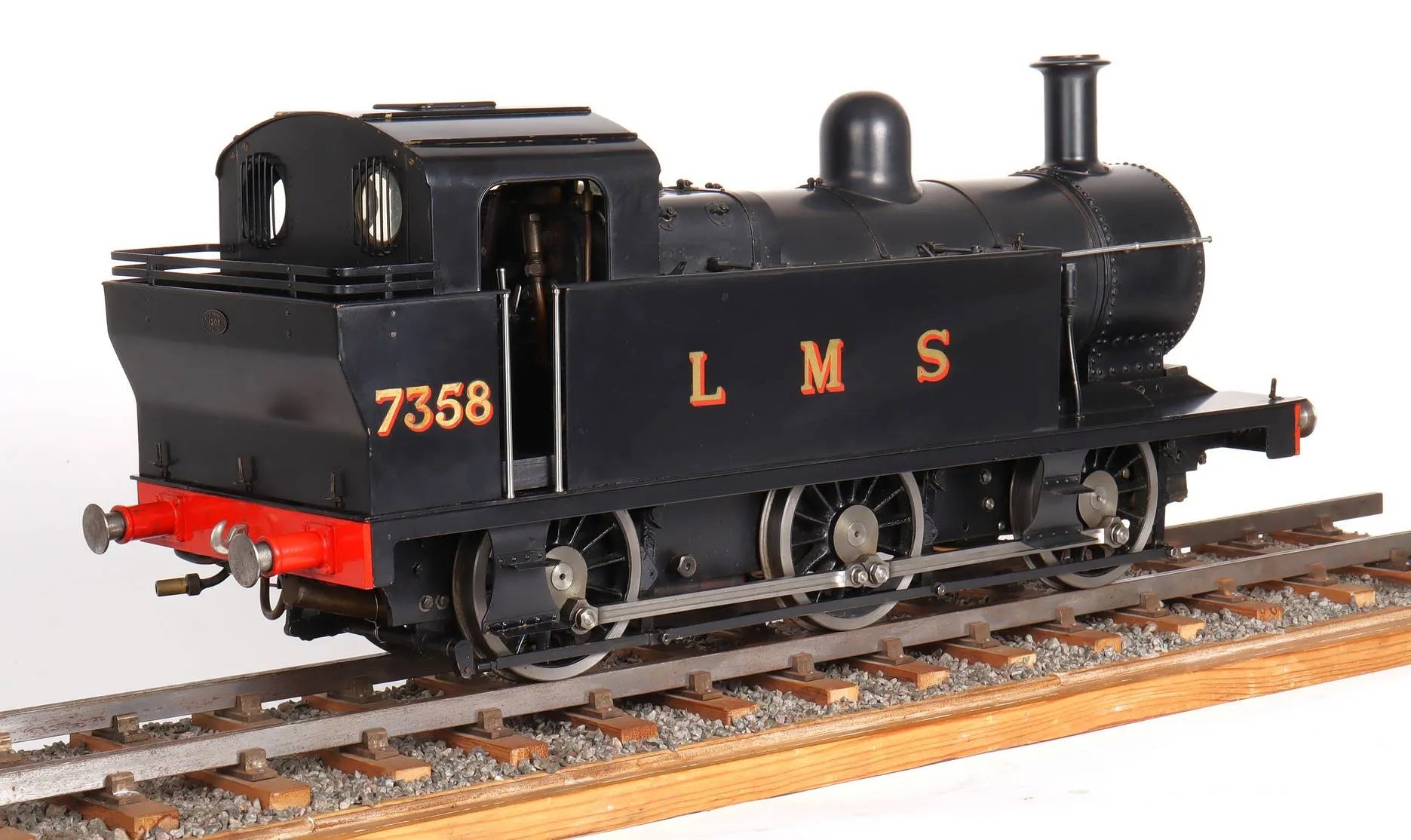

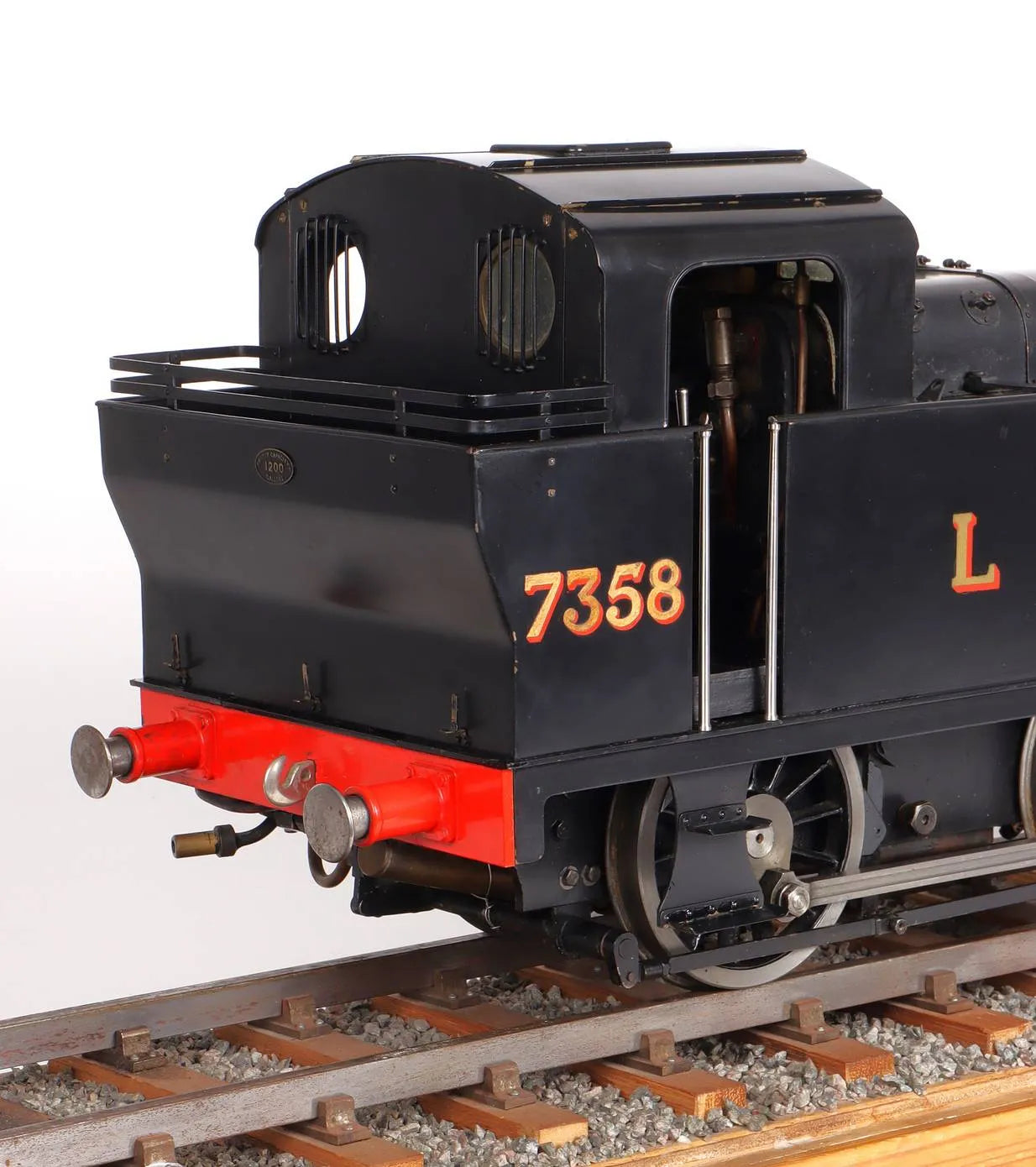

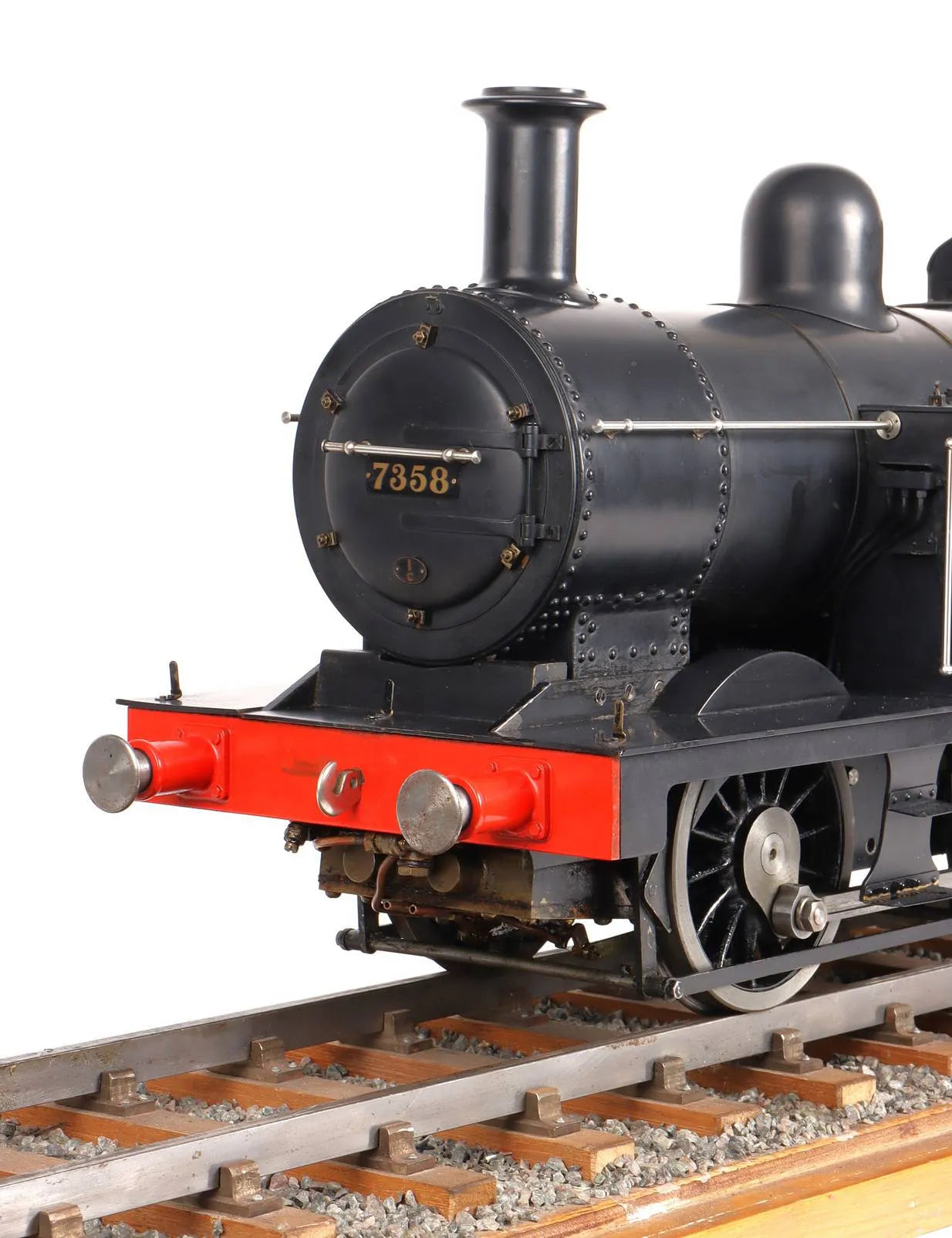

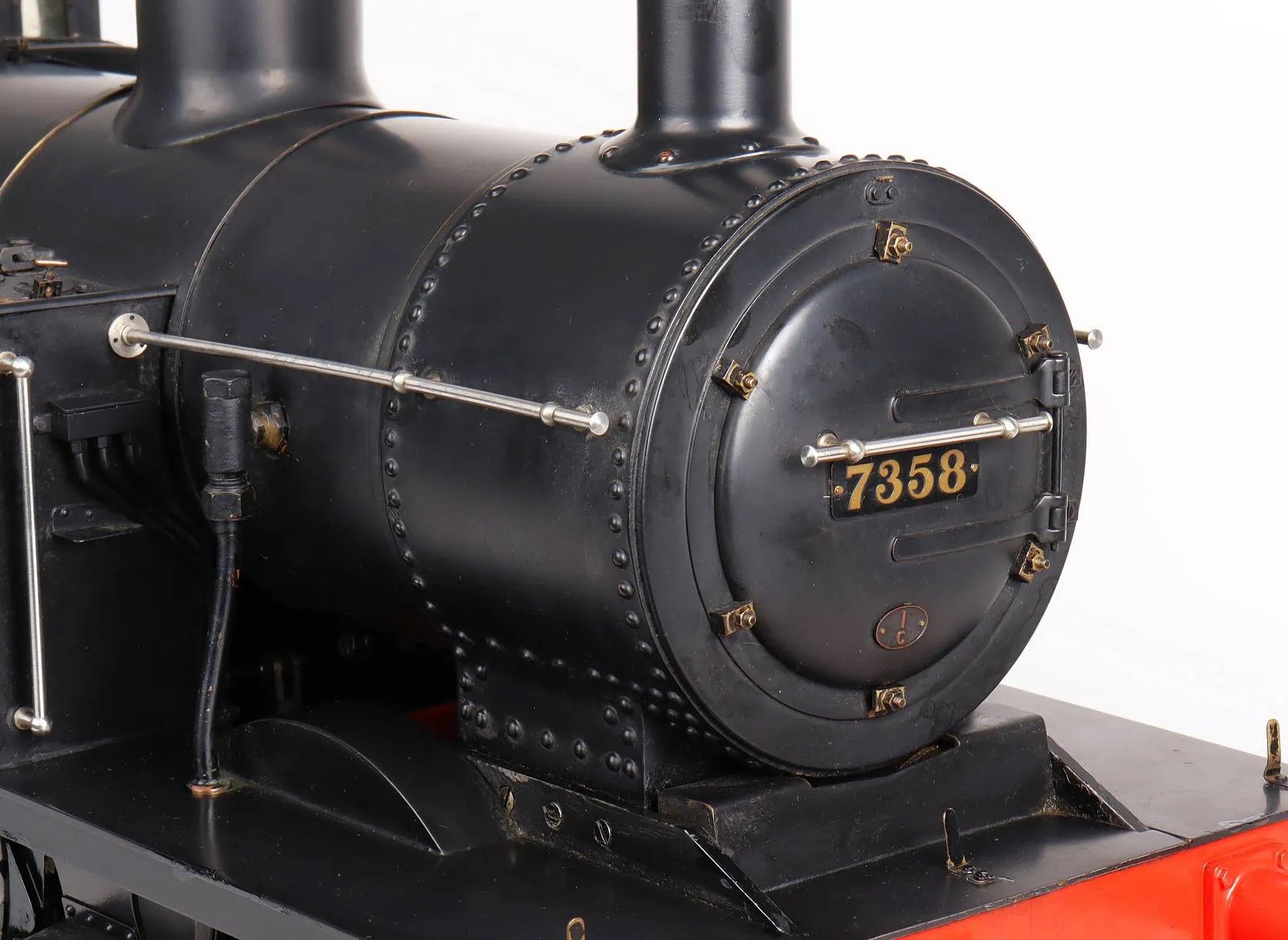

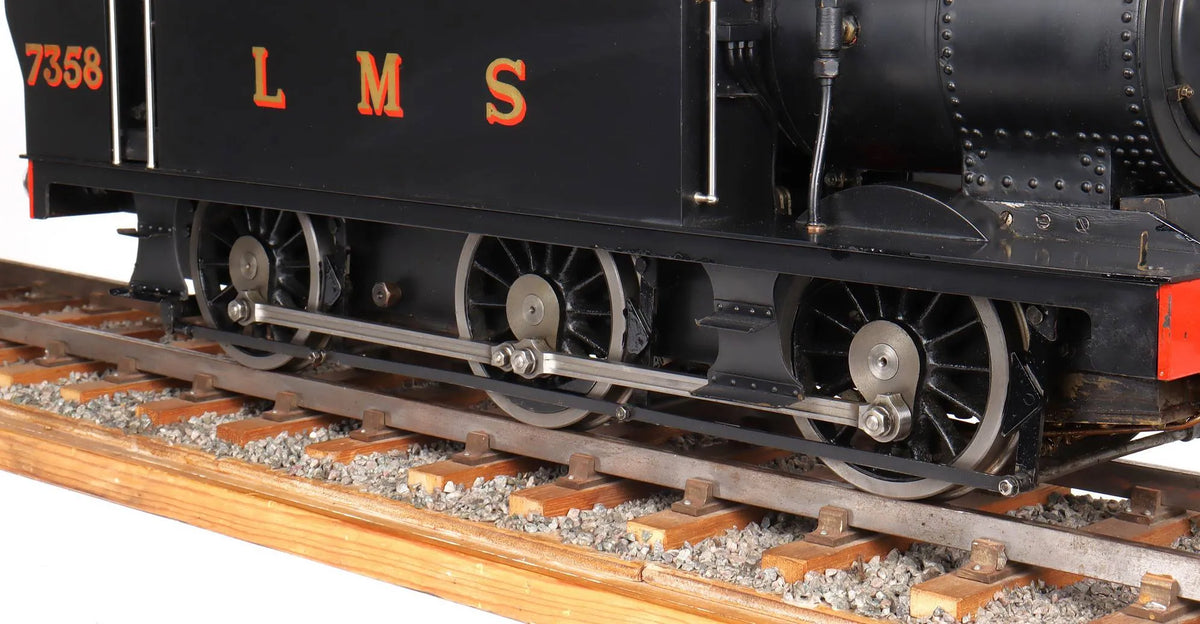

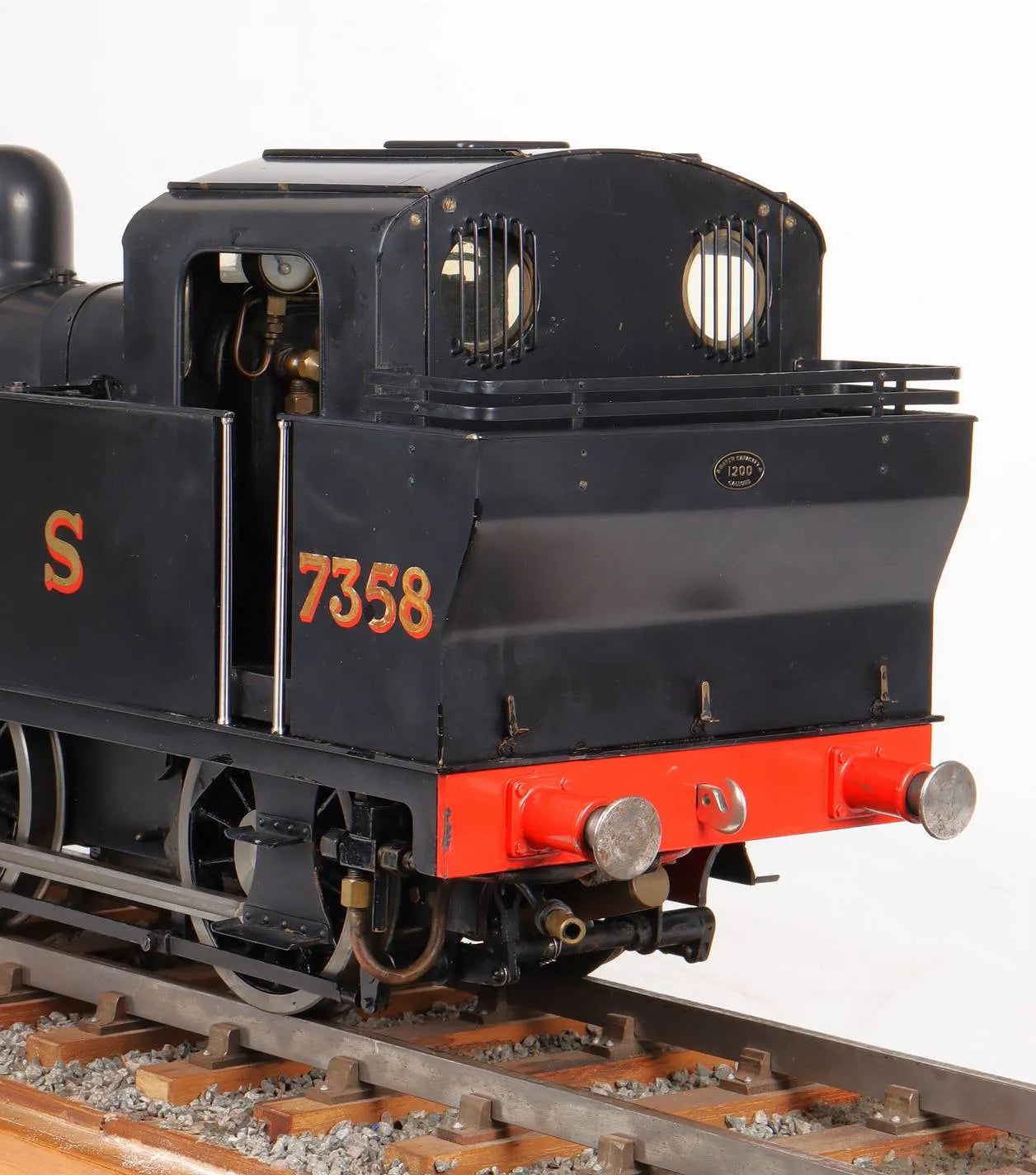

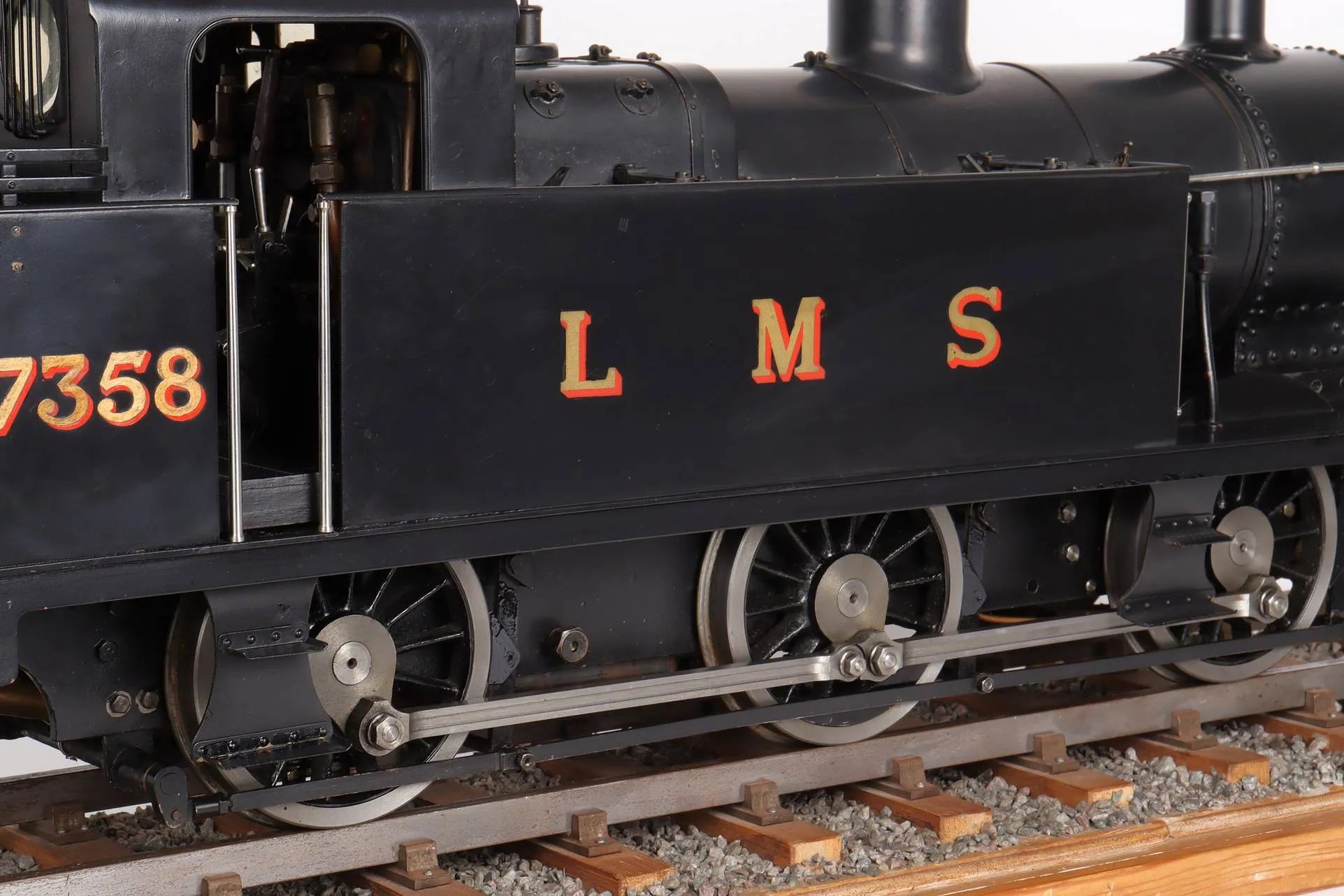

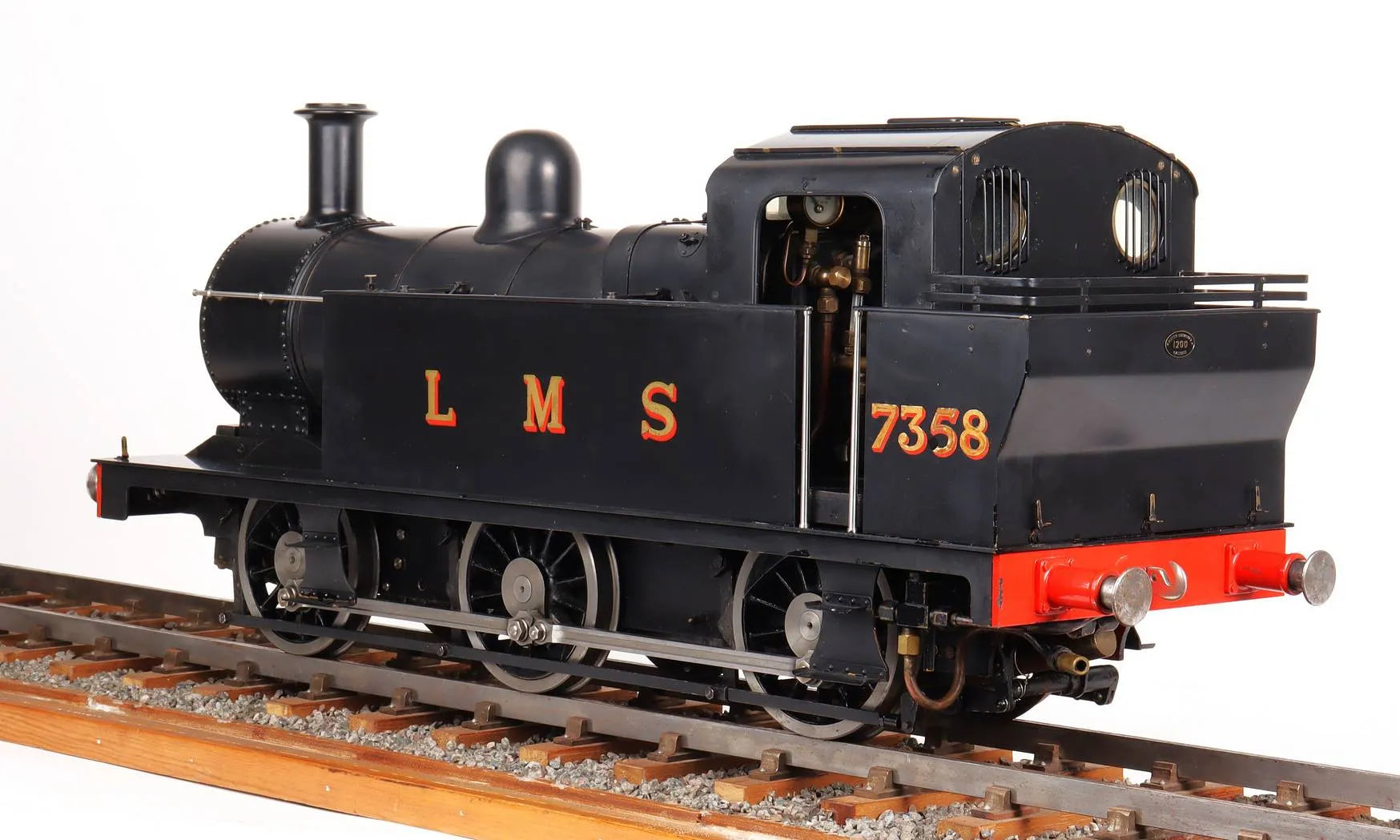

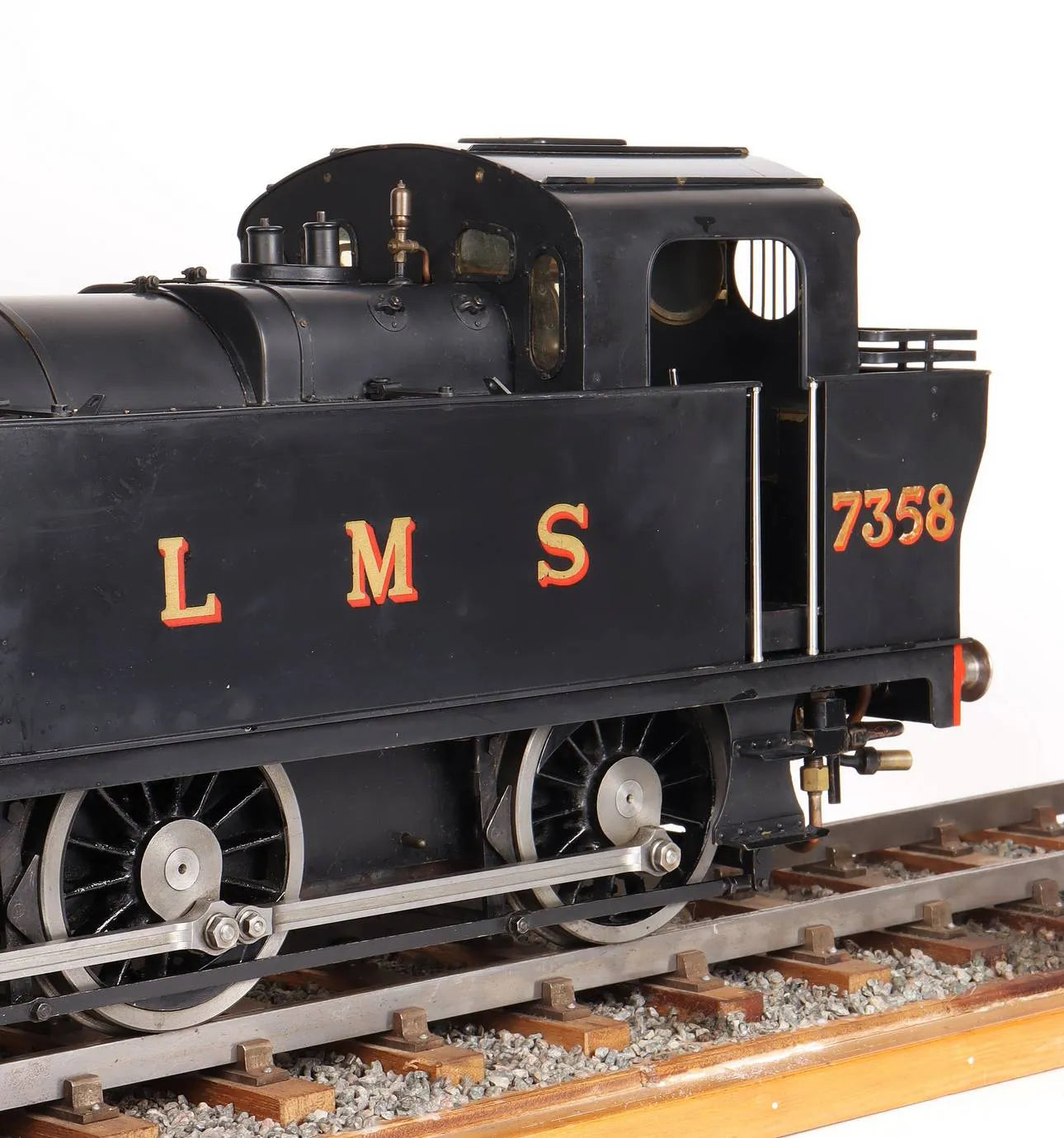

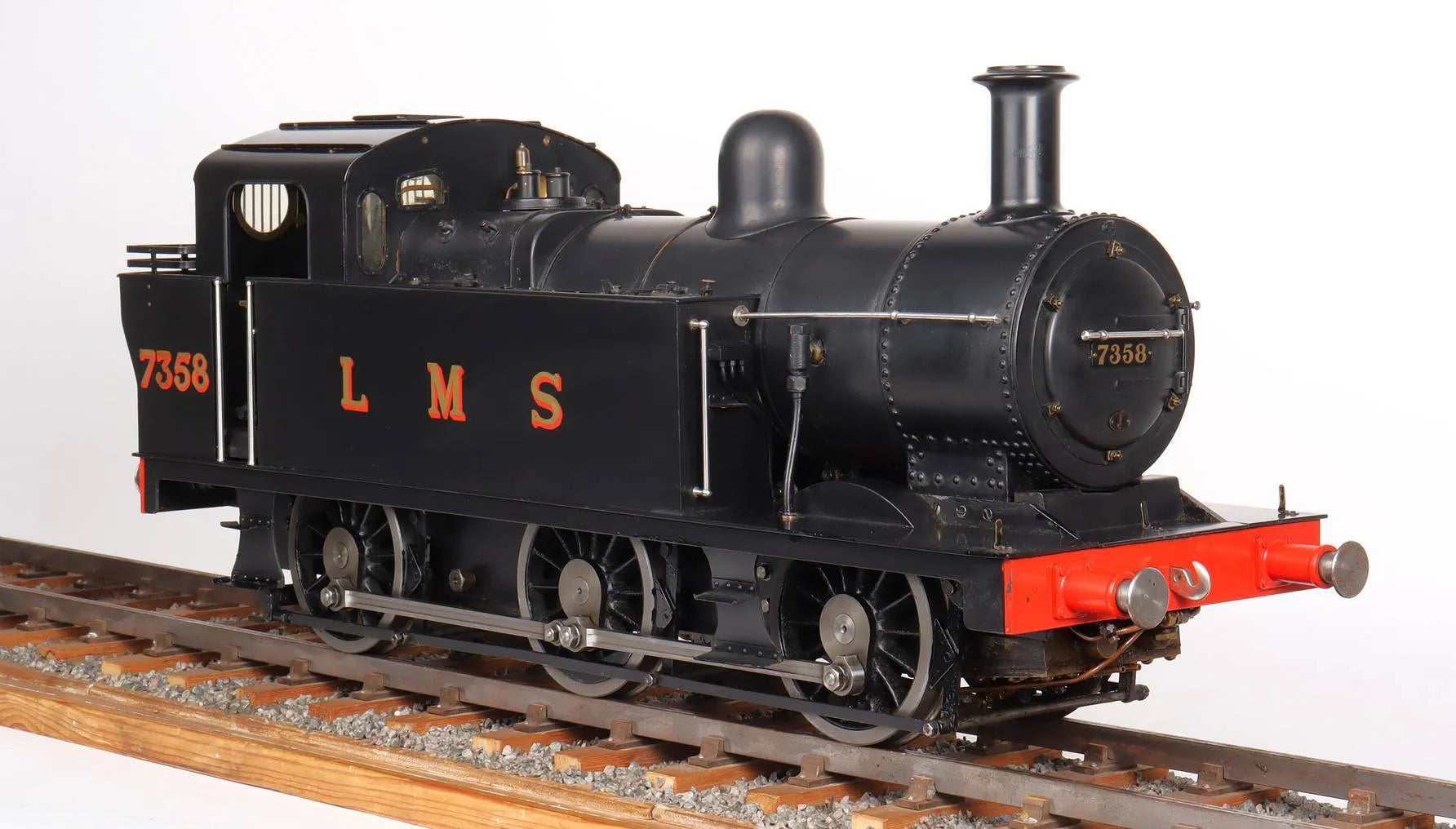

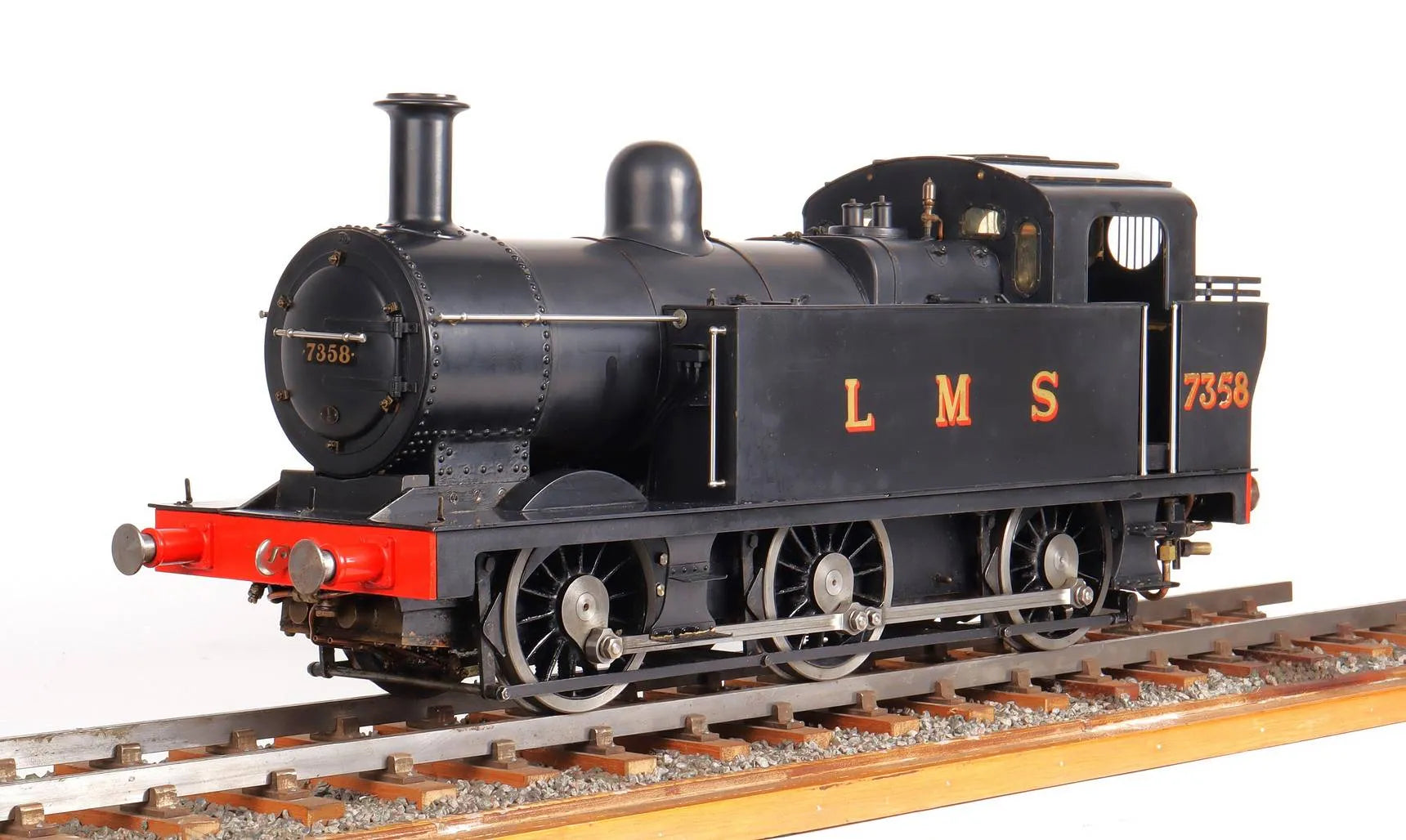

A finely built 3 1/2 inch gauge LMS 3F "Jinty", the work of an accomplished builder with several locomotives to his credit, including the magnificent Britannia "Apollo" which we sold recently.

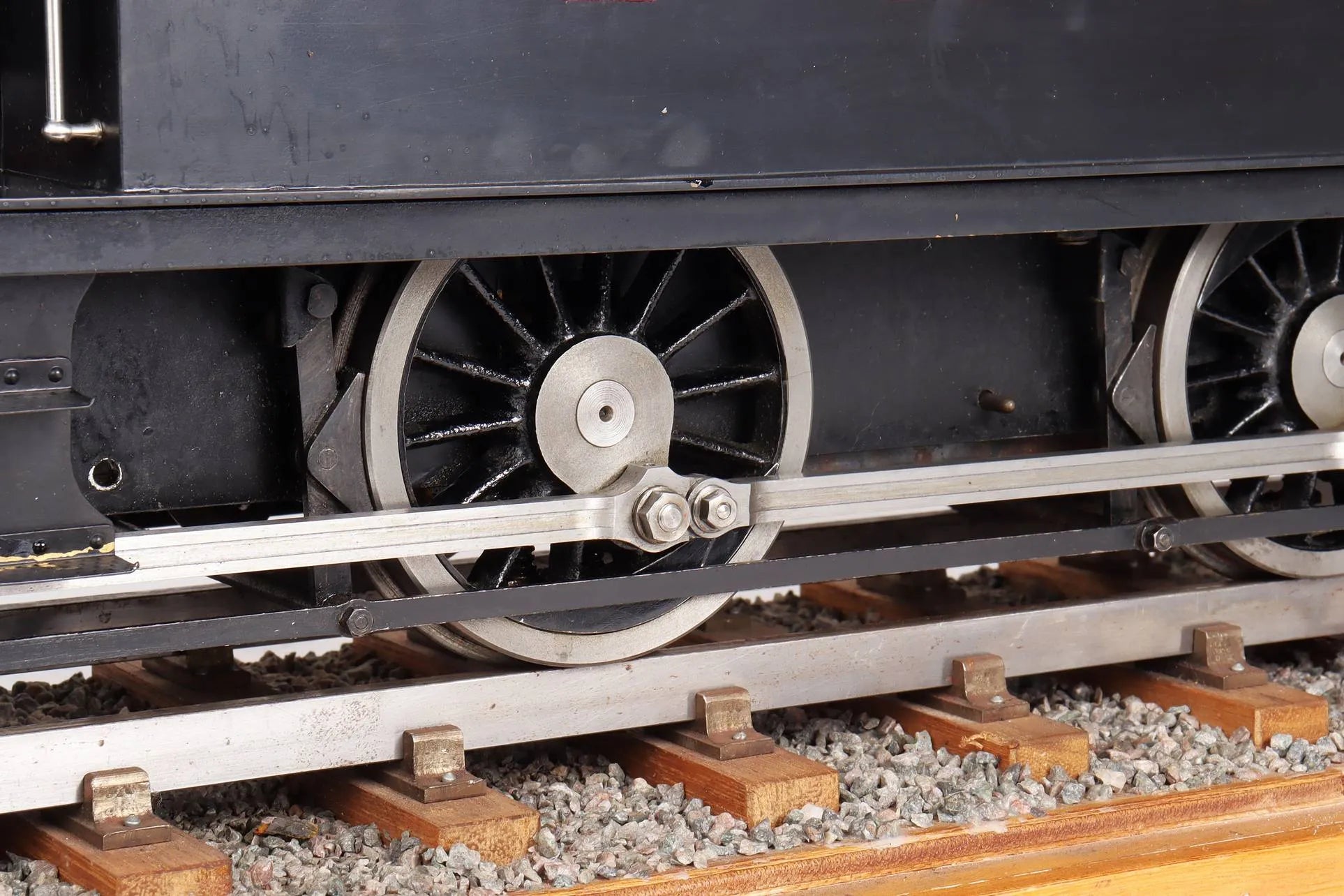

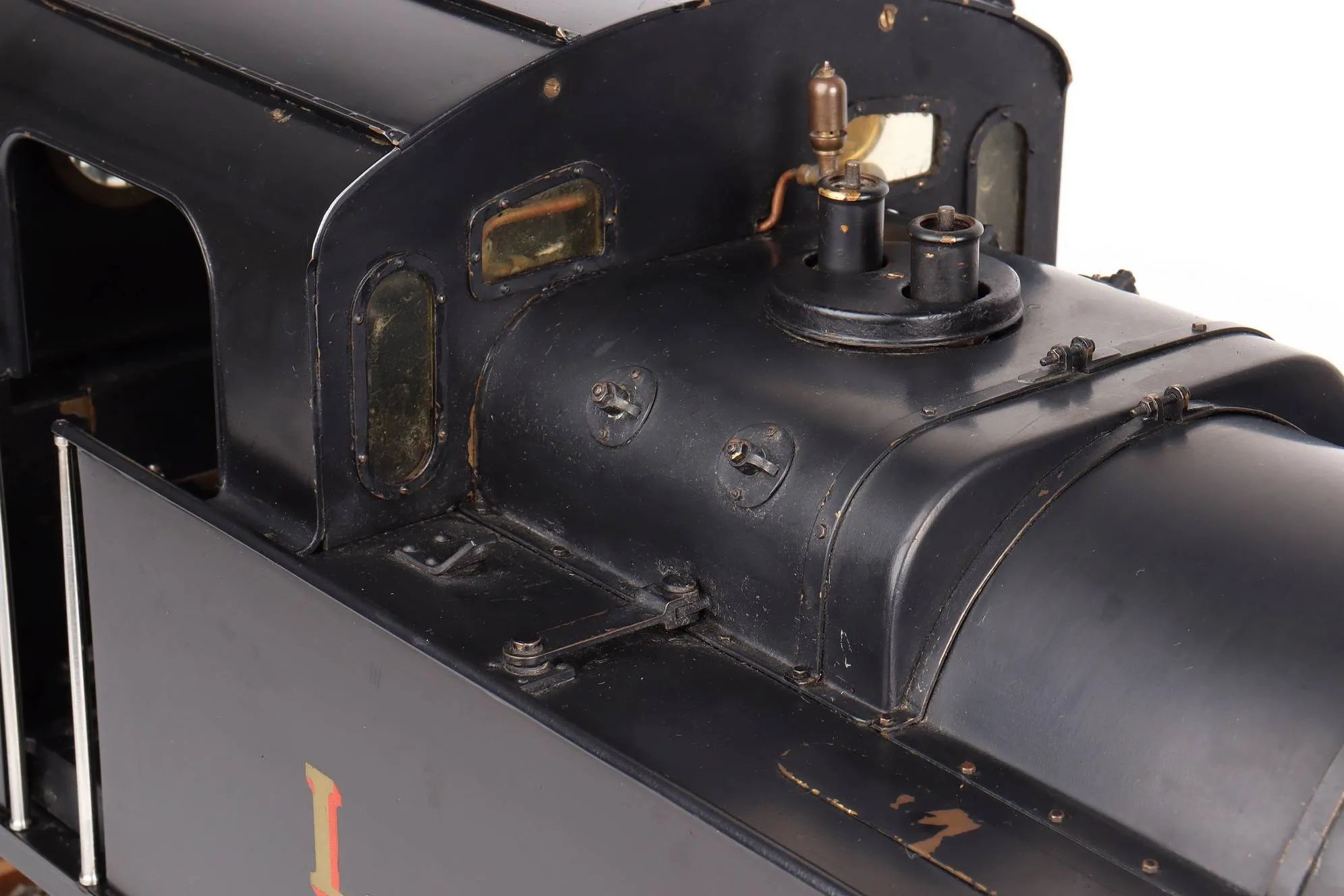

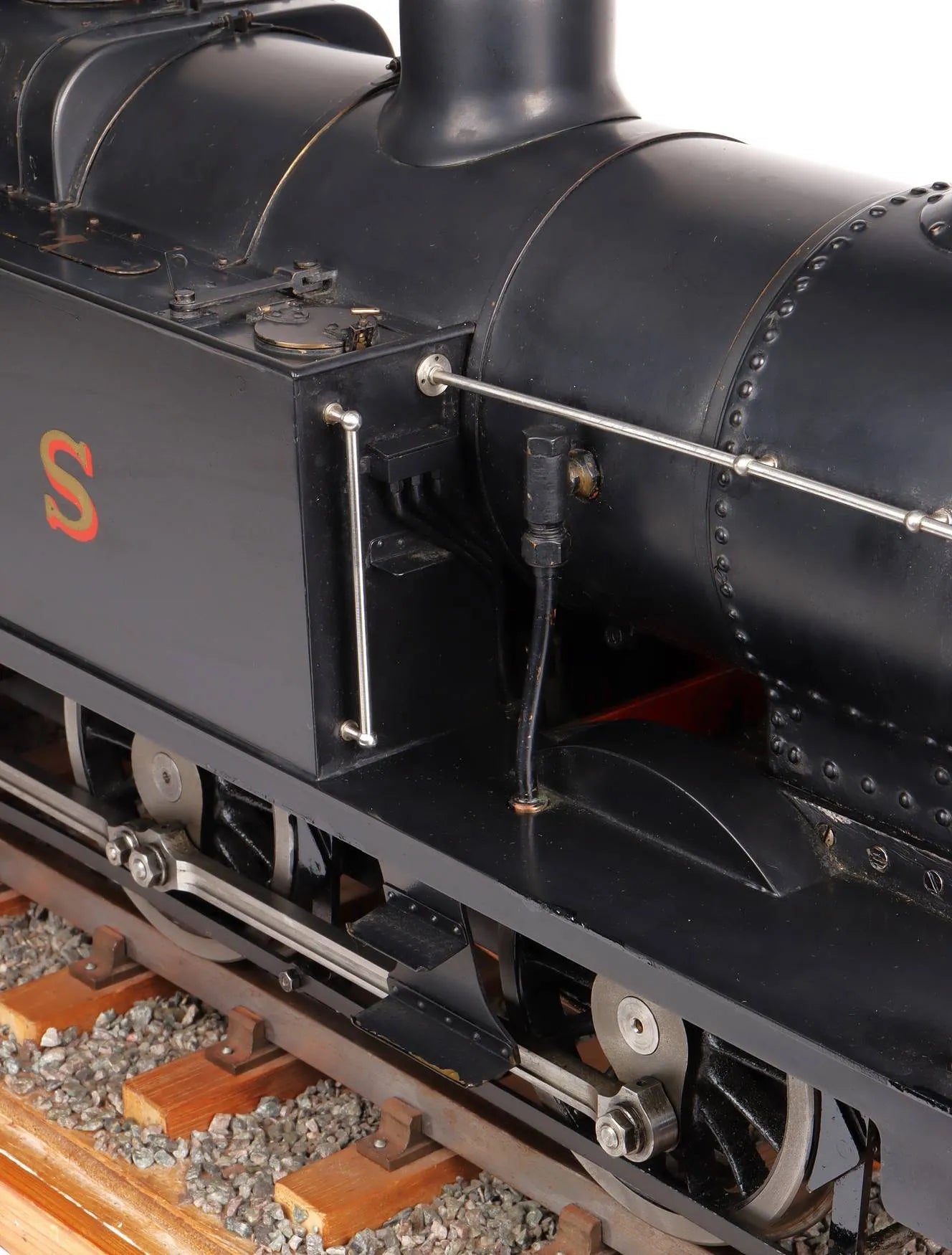

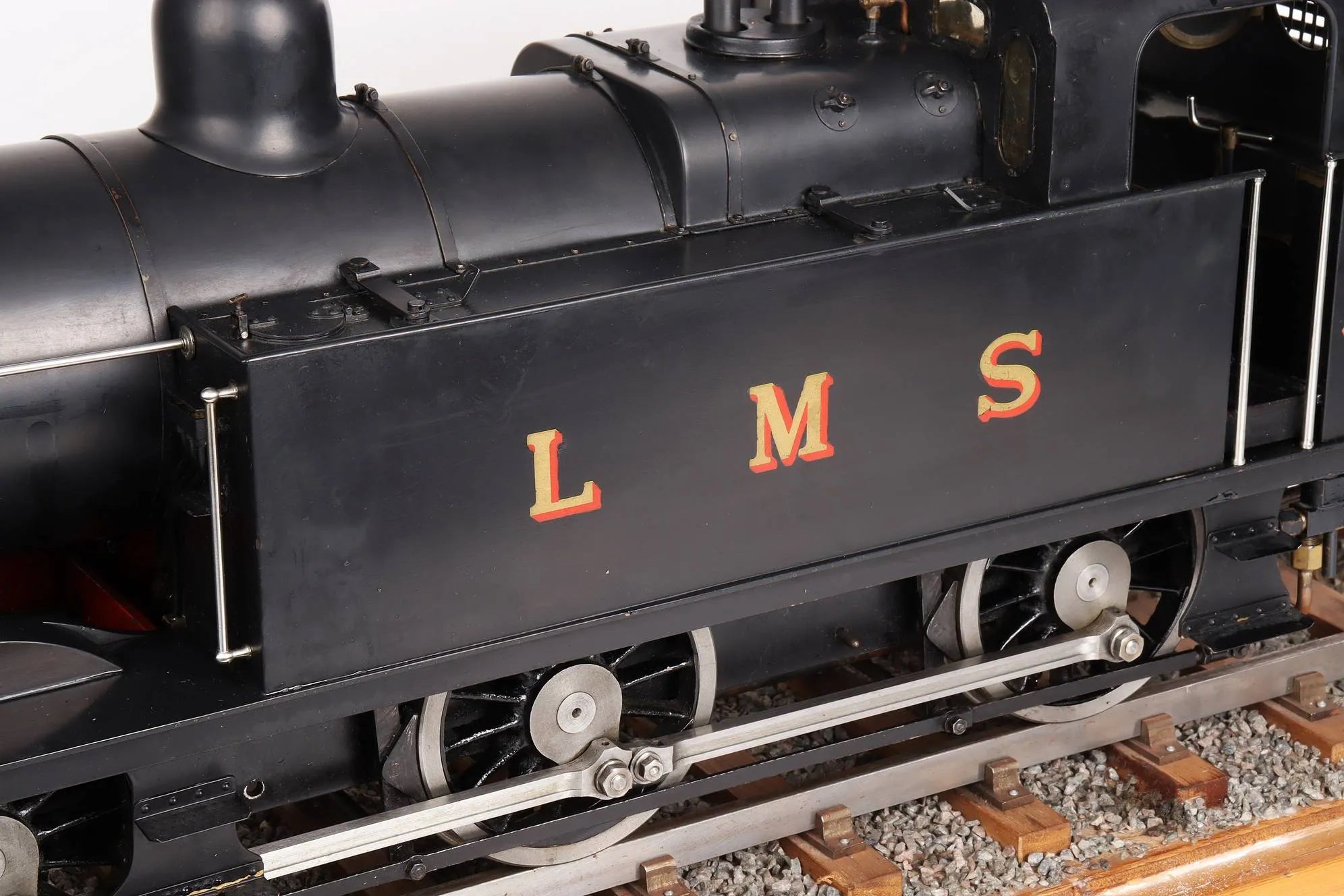

Standard of workmanship is good throughout, fit and finish of machined parts is to a high standard with neatly formed and painted platework.

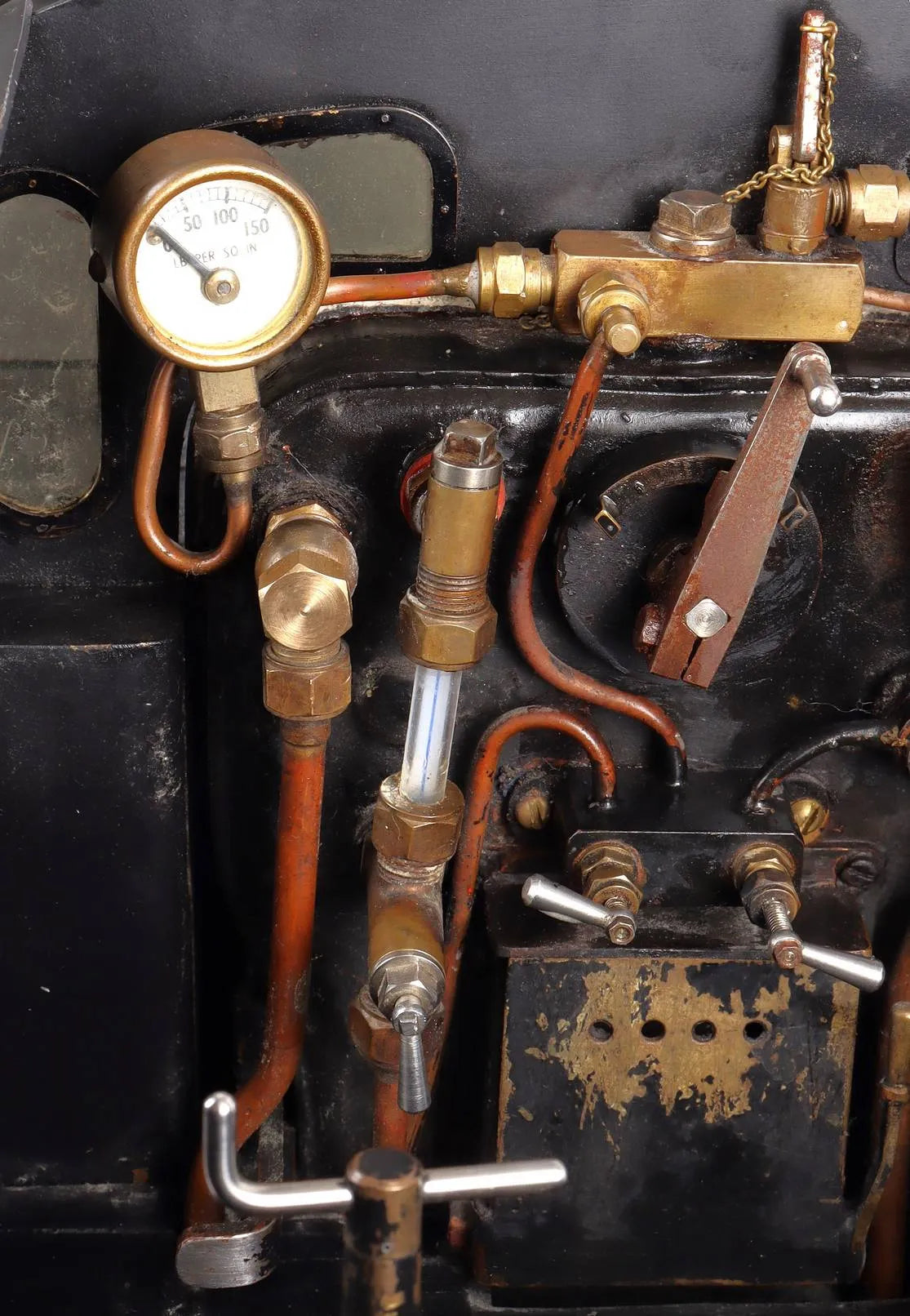

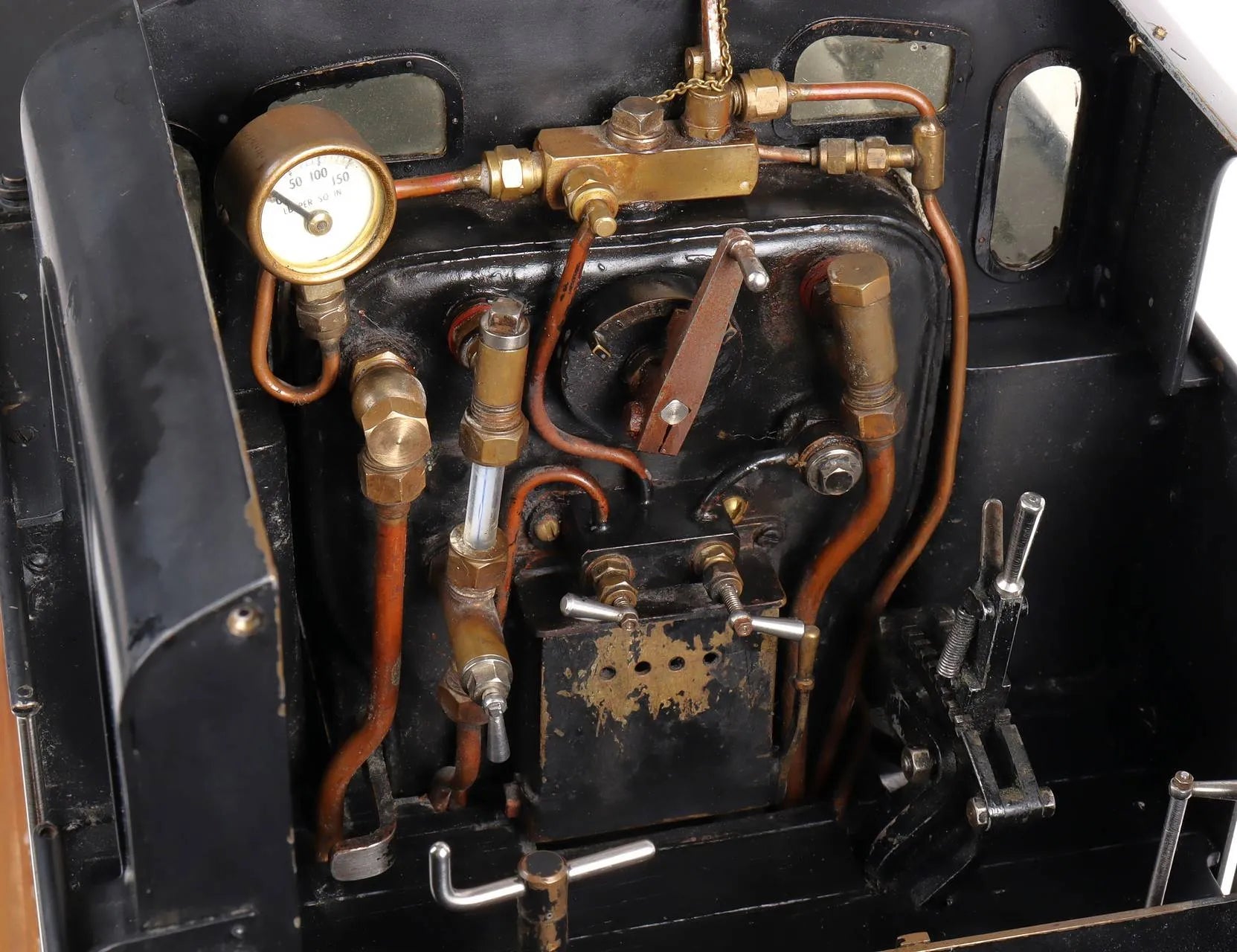

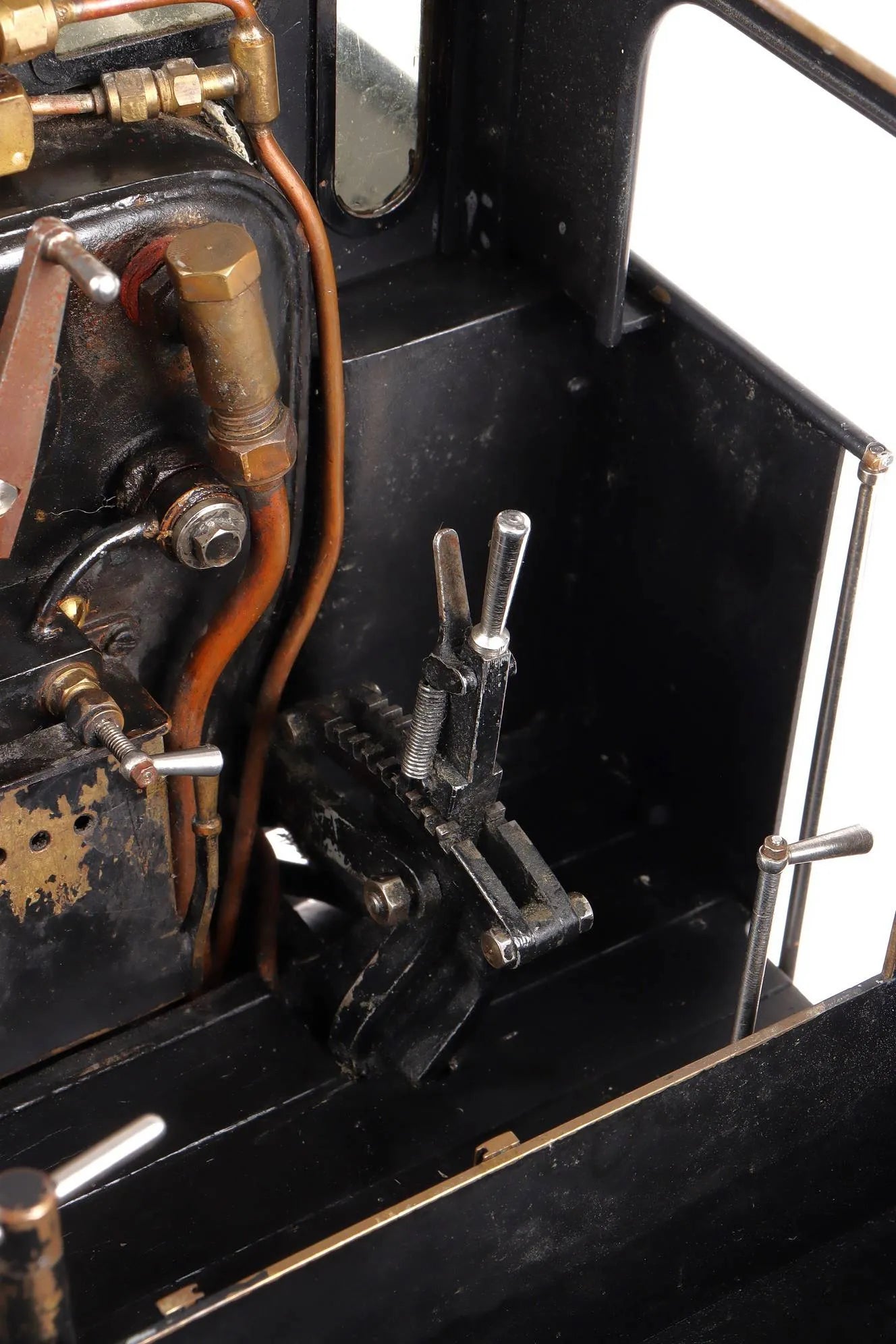

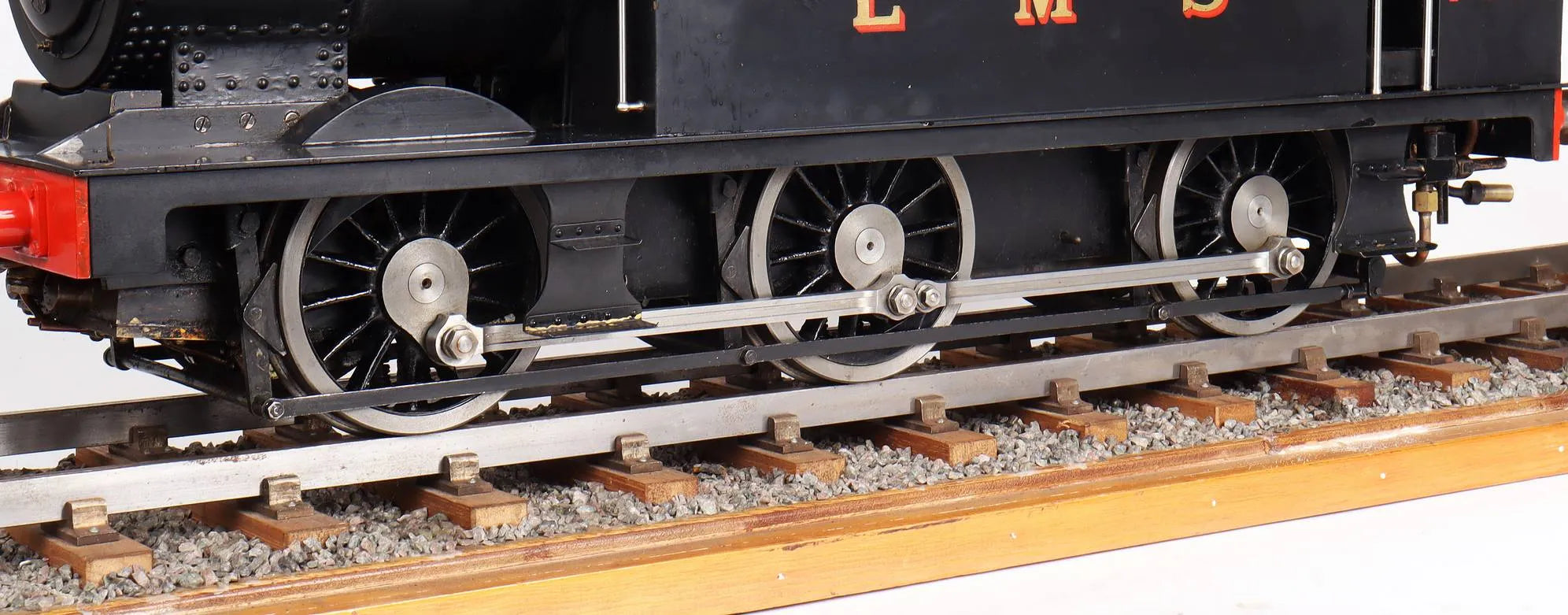

The boiler has had a twice working pressure hydraulic test with new certification issued. The chassis rolls freely although, with a seized regulator, hasn't been test run on air.
Requiring light restoration, a worthwhile project with the potential to produce a fine example of this handsome design.
Stock code |
11791 |
Gauge |
3 1/2 inch |
Length/inches |
24 |
Width/inches |
7 |
Height/inches |
10 |
Weight/Kg |
18 |
Wheel material |
cast iron |

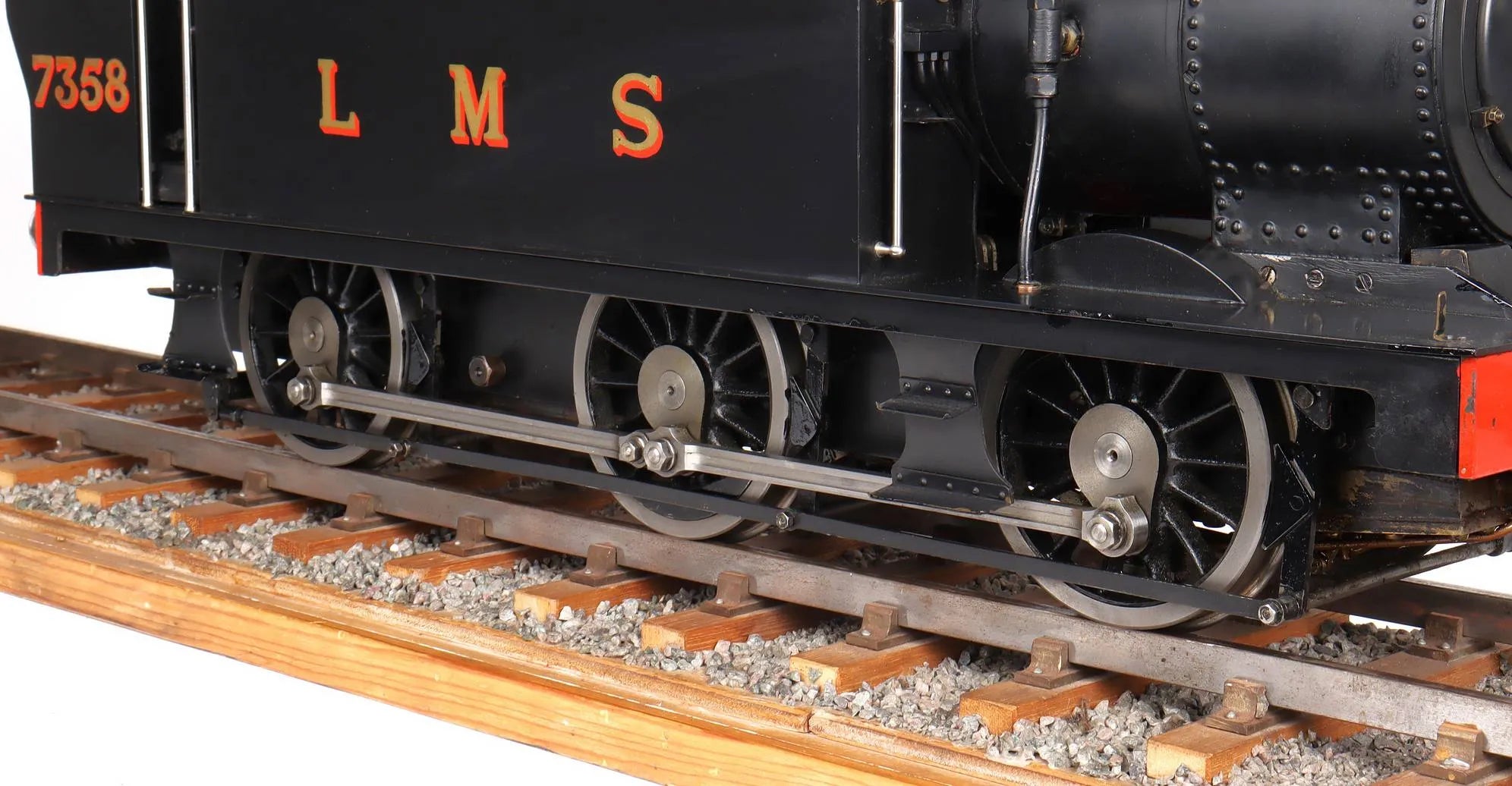

Axlebox type |
plain bearing with bronze liner |
Cylinder material |
gunmetal |
Valve type |
slide |
Valve gear |
Walschaerts |
Reverser type |
pole |
CE/UKCA mark |
n/a - non-commercial |
Year built |
unknown |
Safety valve type |
spring |
Safety valve |
2 |
Whistle |
1 + piped dummy |
Mechanical pump |
twin ram axle |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
2 |
Date out |
Mar-25 |
Hydraulic test valid to |
23-Jan-28 |
