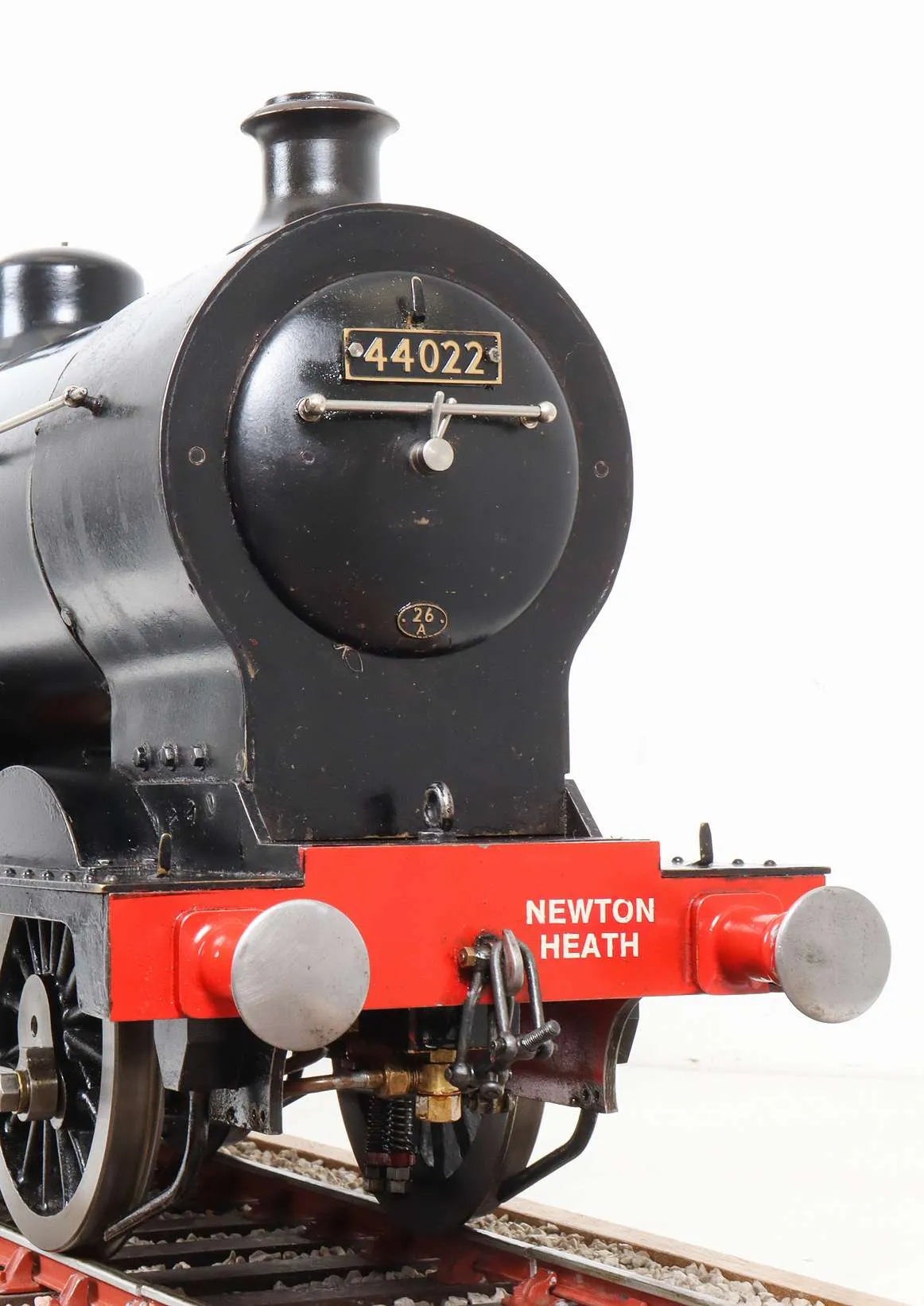

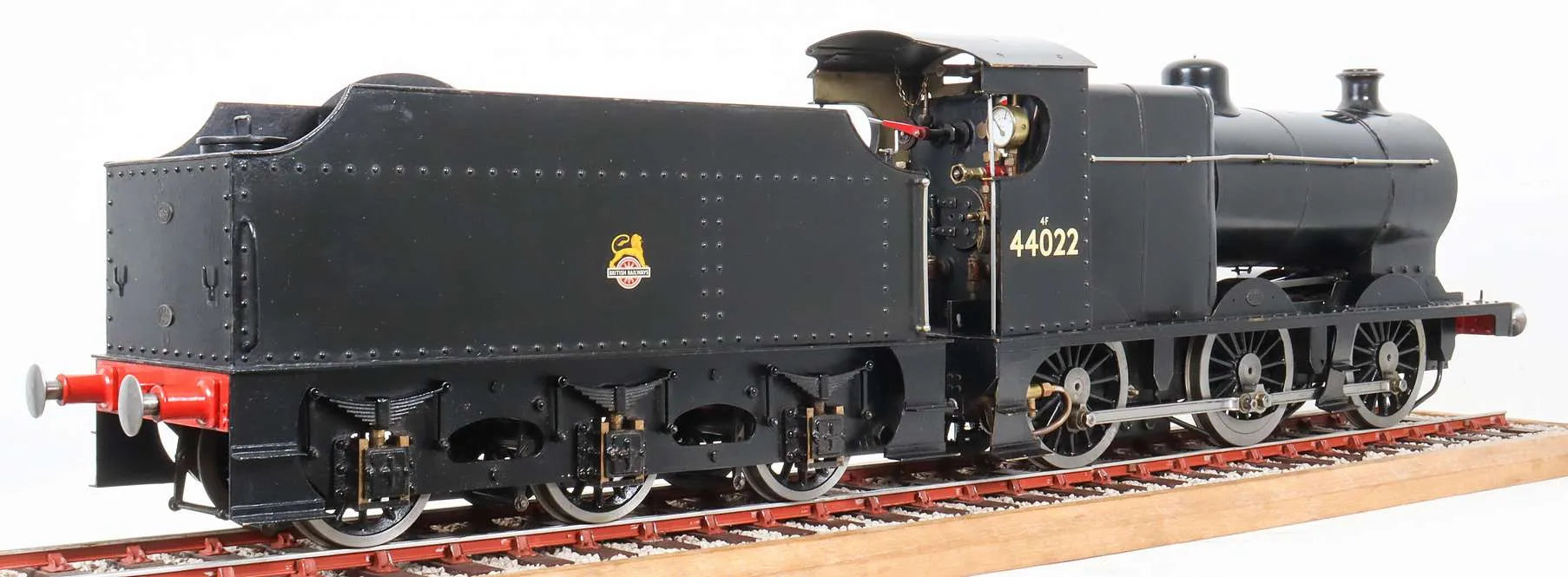

3 1/2 inch gauge LMS 4F 0-6-0

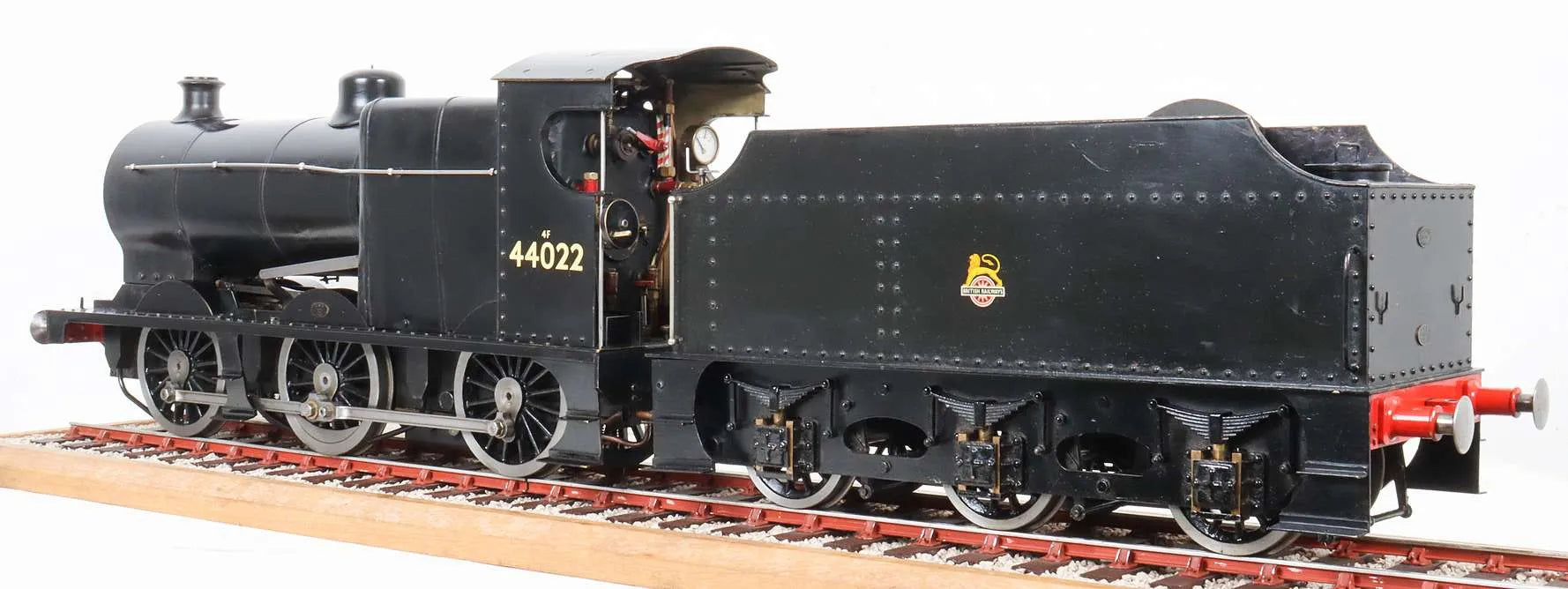

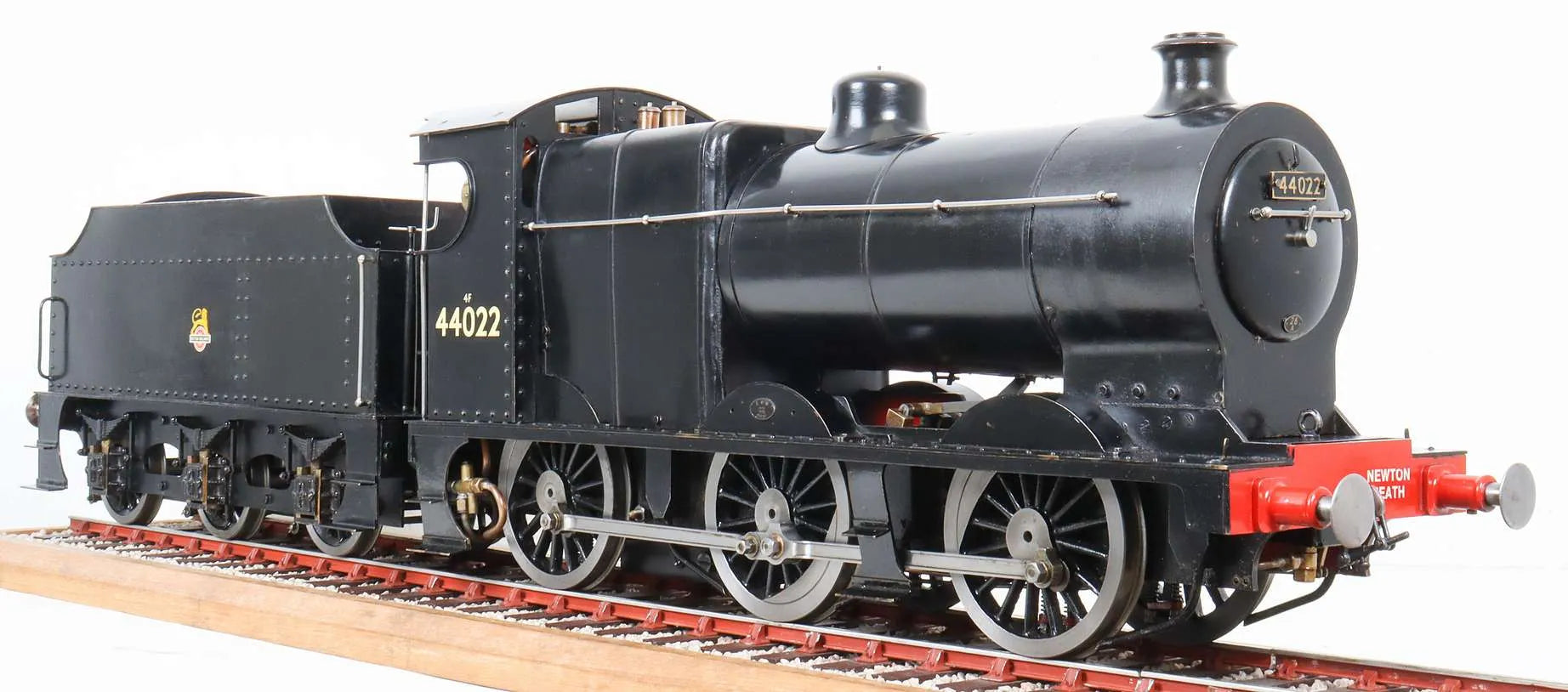

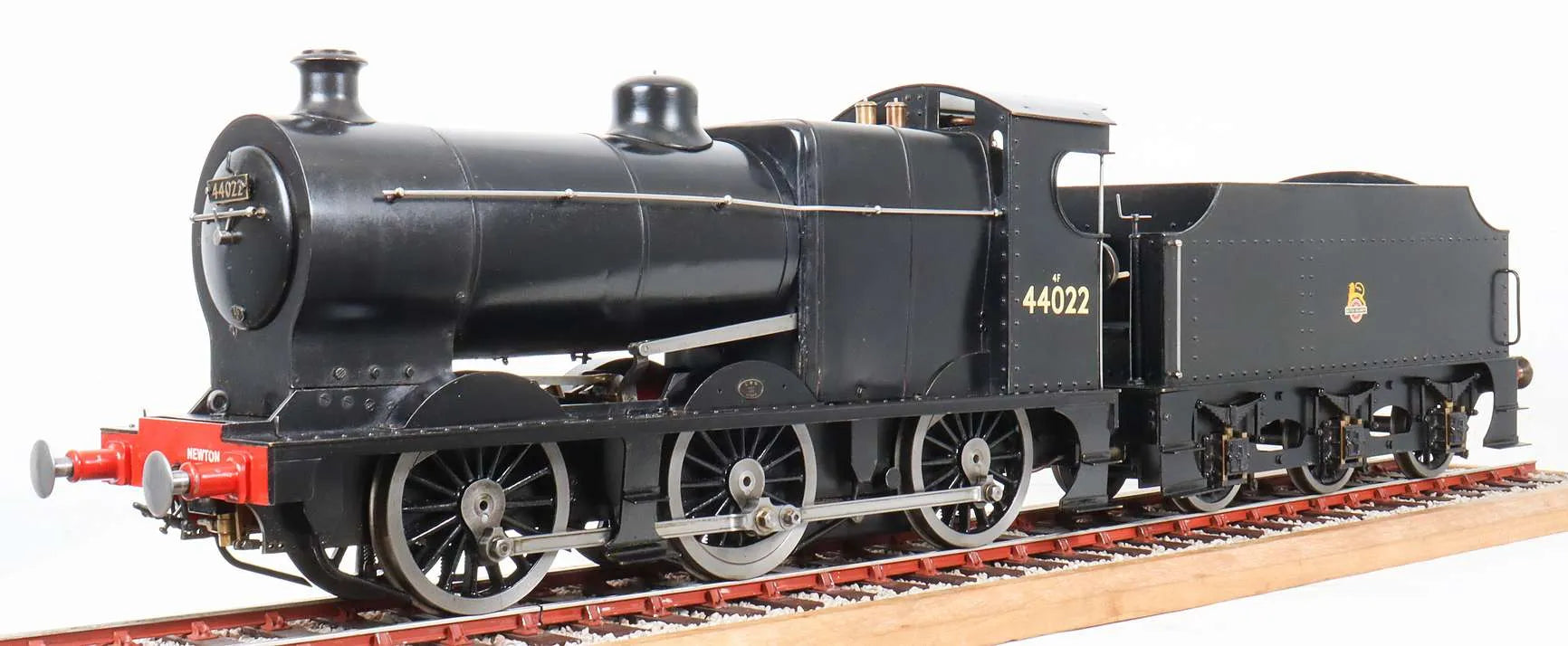

A 3 1/2 inch gauge LMS 4F 0-6-0, an older model well-built in the first place but now requiring overhaul.

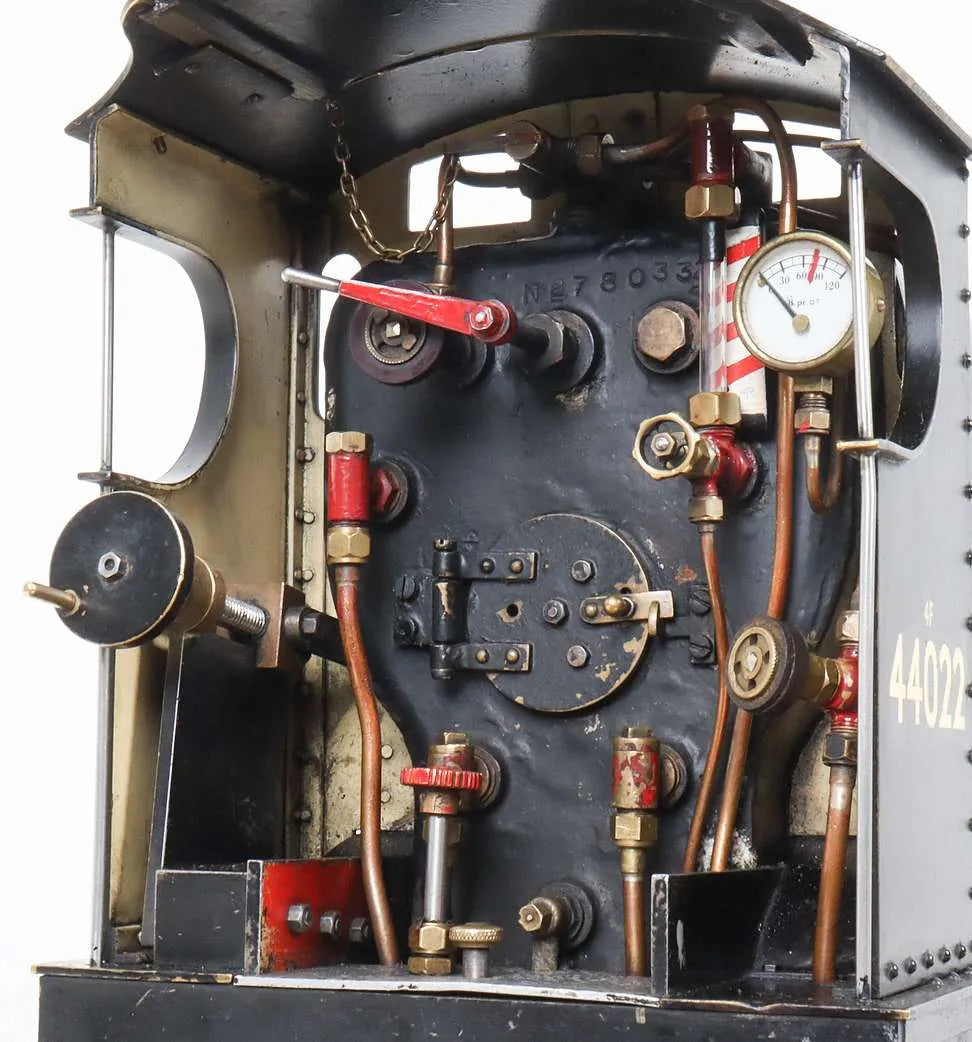

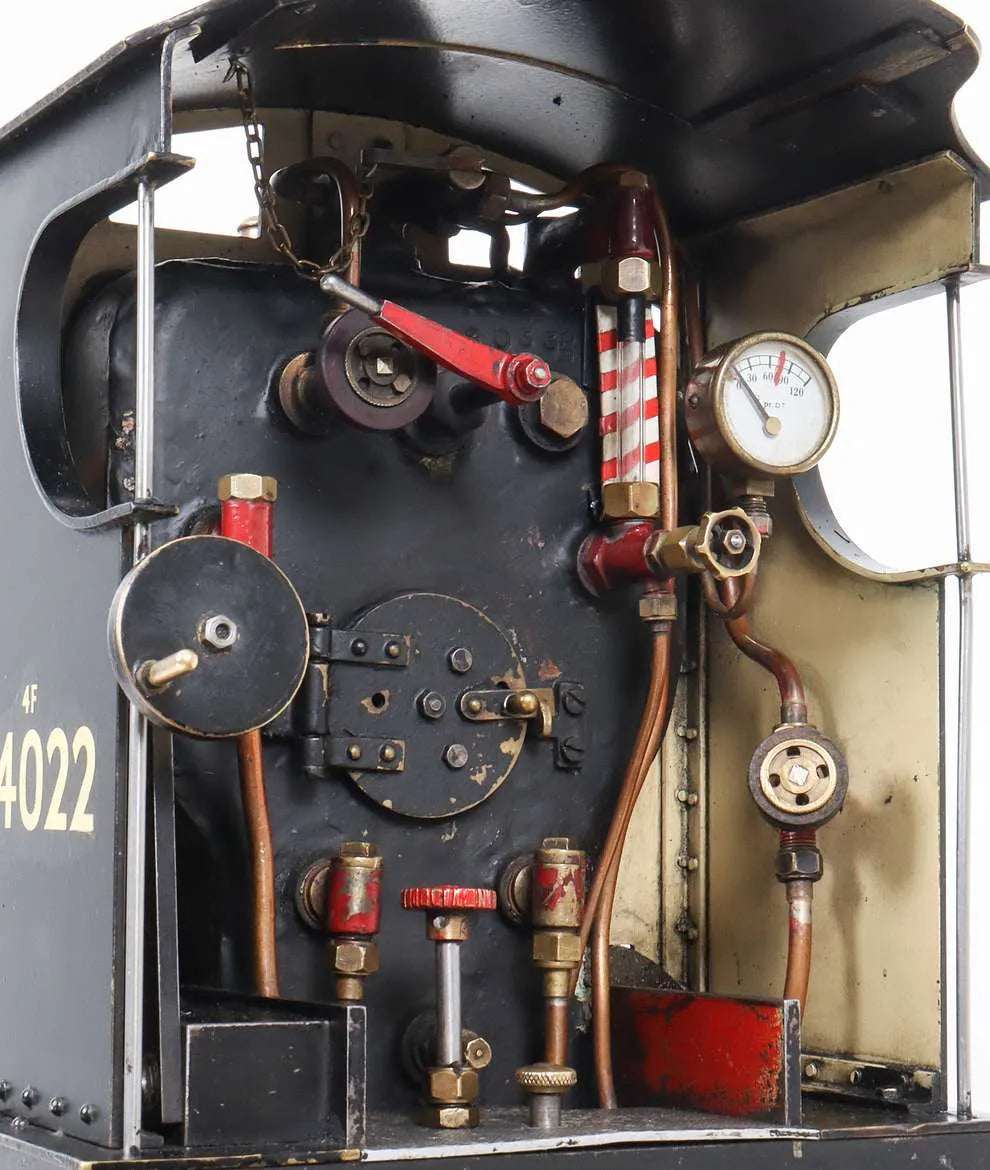

The boiler has had recent hydraulic test with new certification issued. The pressure gauge requires replacement, however all fittings all appeared remarkably watertight, the boiler held pressure well on test.

The chassis runs on air in either direction, rather asthmatically although with little detectable blow-by in mid gear - first step would be to have a look at the pistons and their packings.

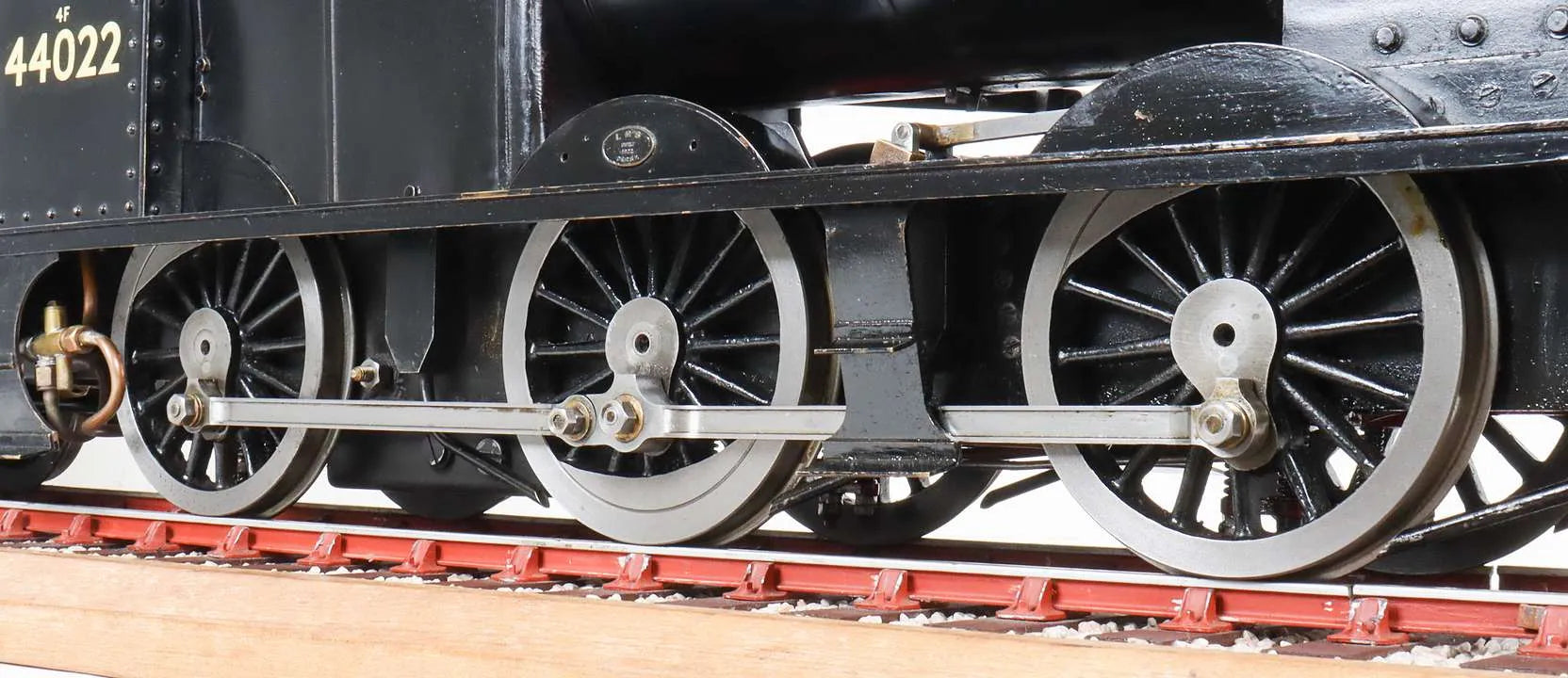

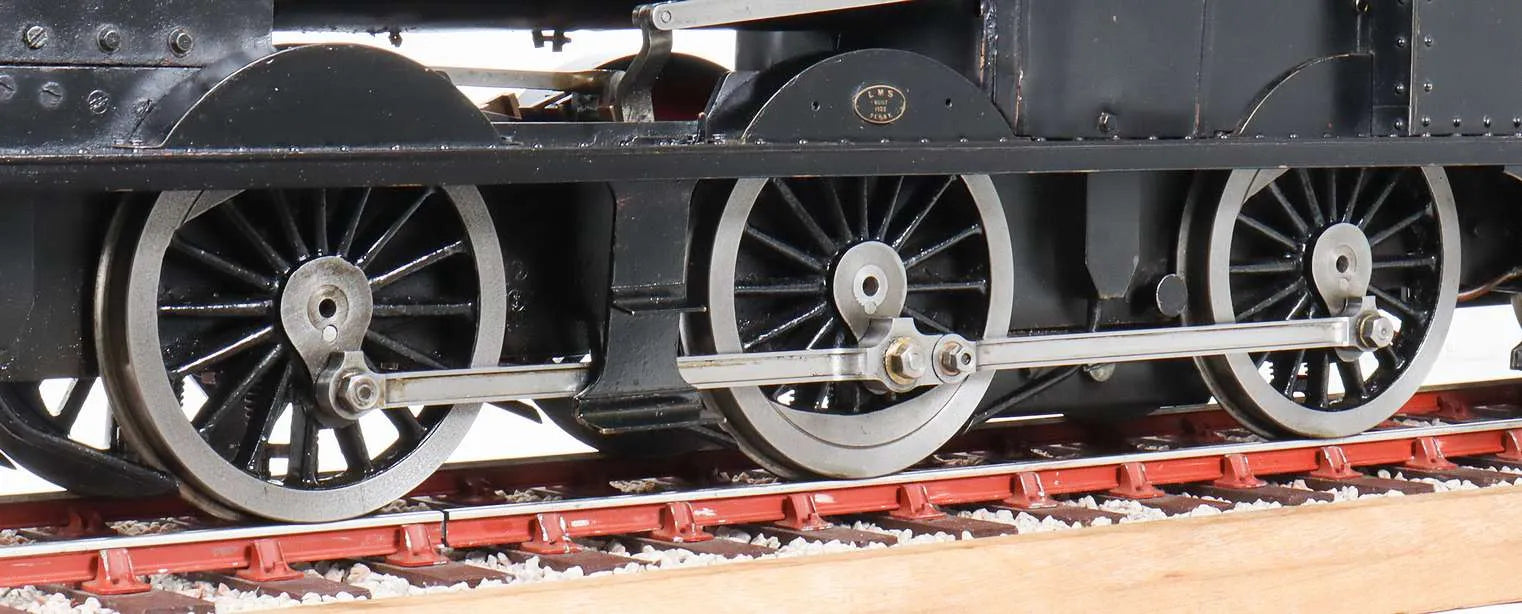

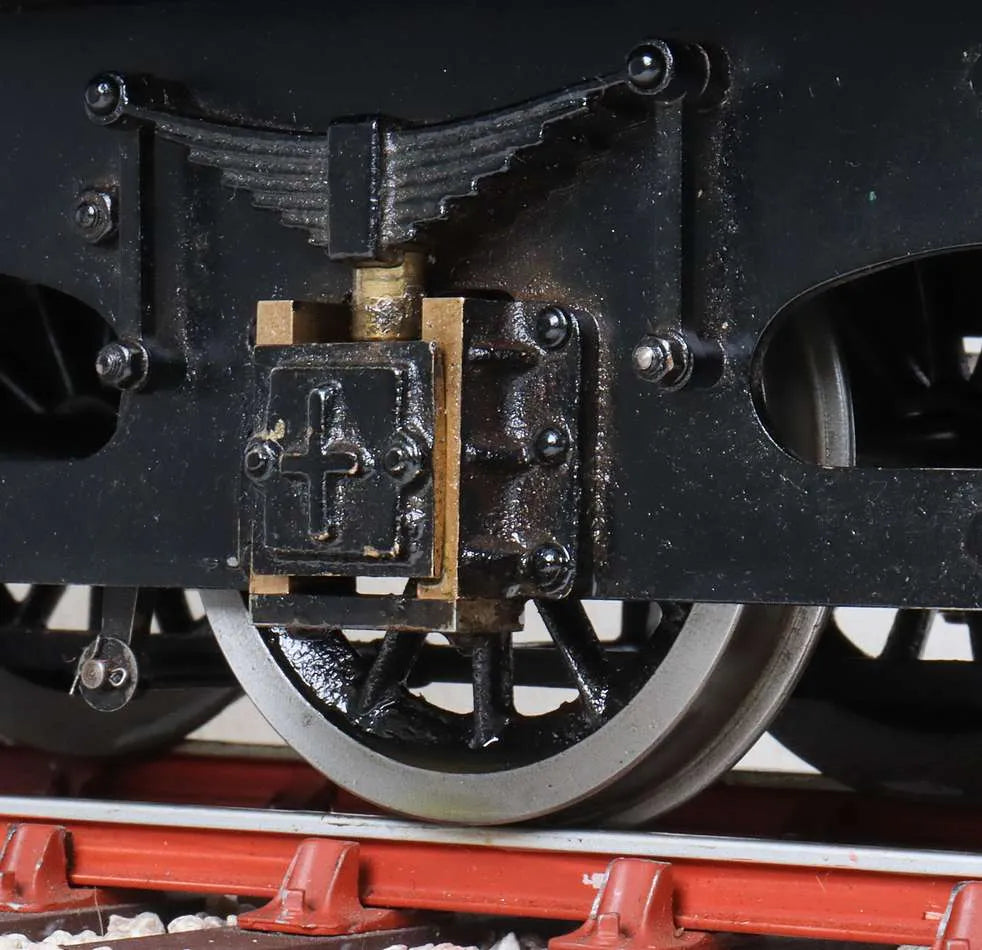

The axleboxes have generous clearances in the horns and the centre right hand wheel is loose on the axle, evidence of a good deal of running since its last bottom end overhaul.

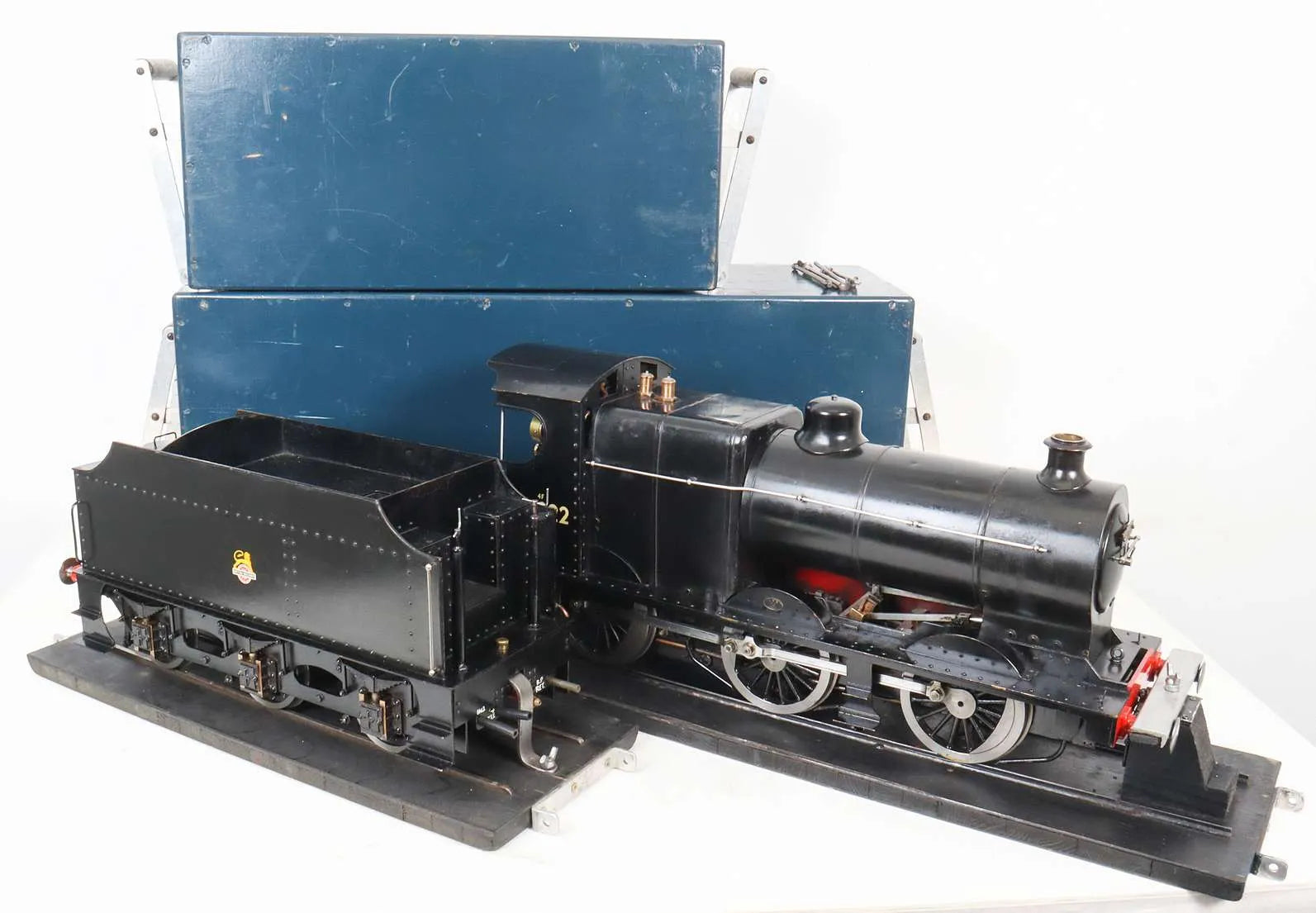

Complete with a pair of purpose built storage crates.

Technical information

Stock code

10992

Length/inches

23 + 19

Width/inches

7

Height/inches

11

Weight/Kg

43

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Joy

Reverser type

screw

Lubricator type

mechanical

Boiler maker

non-commercial

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

Year built

unknown

Boiler number

N2780332

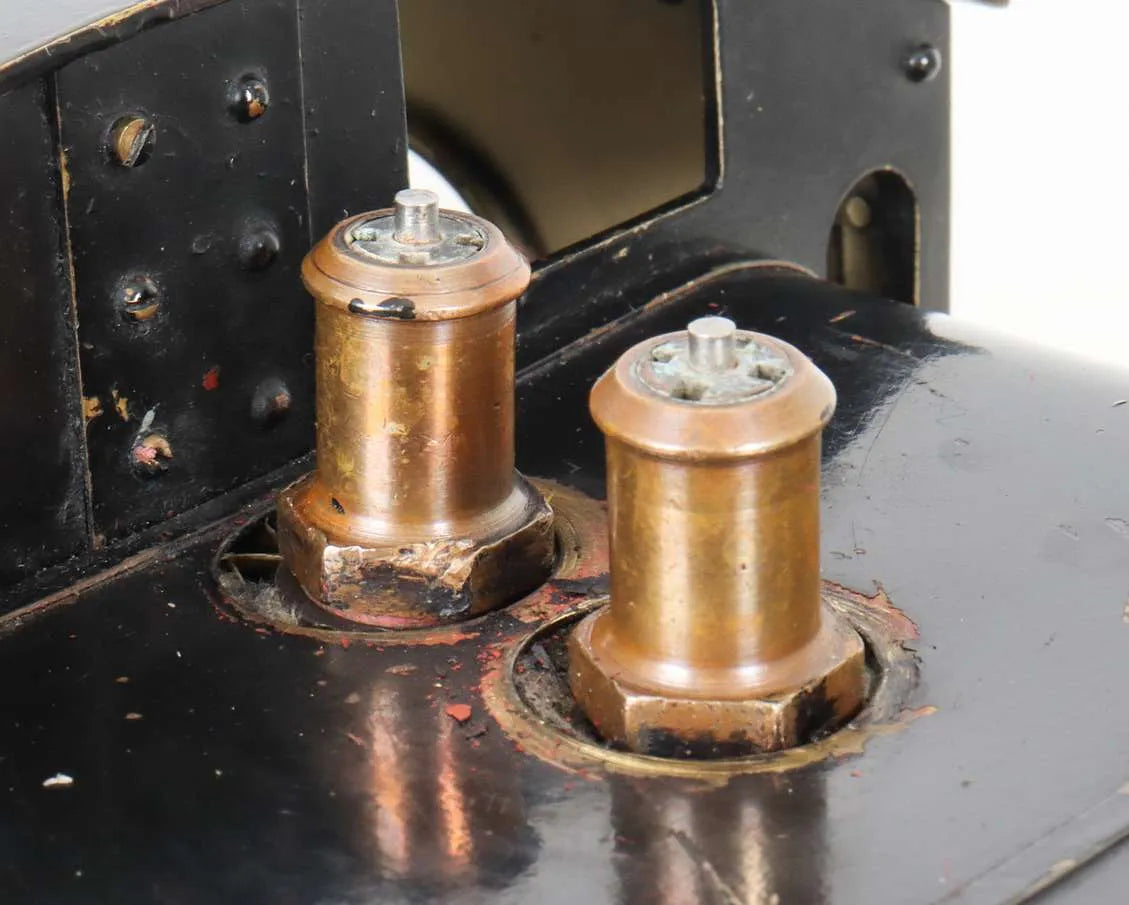

Safety valve type

spring

Safety valve

2

Whistle

yes

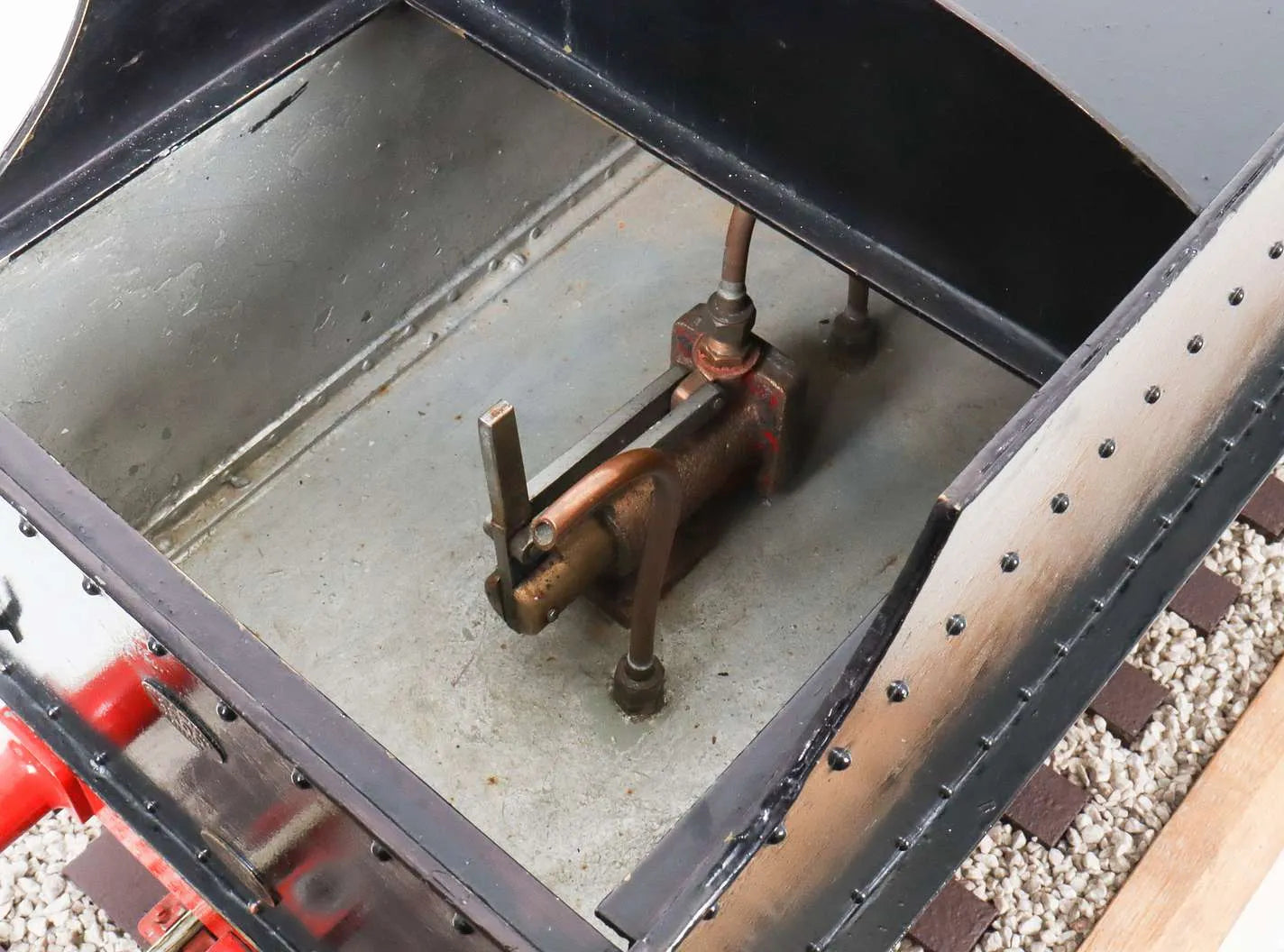

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

radiant

Superheater

1

Date out

Mar-25

Hydraulic test valid to

14-Nov-26
