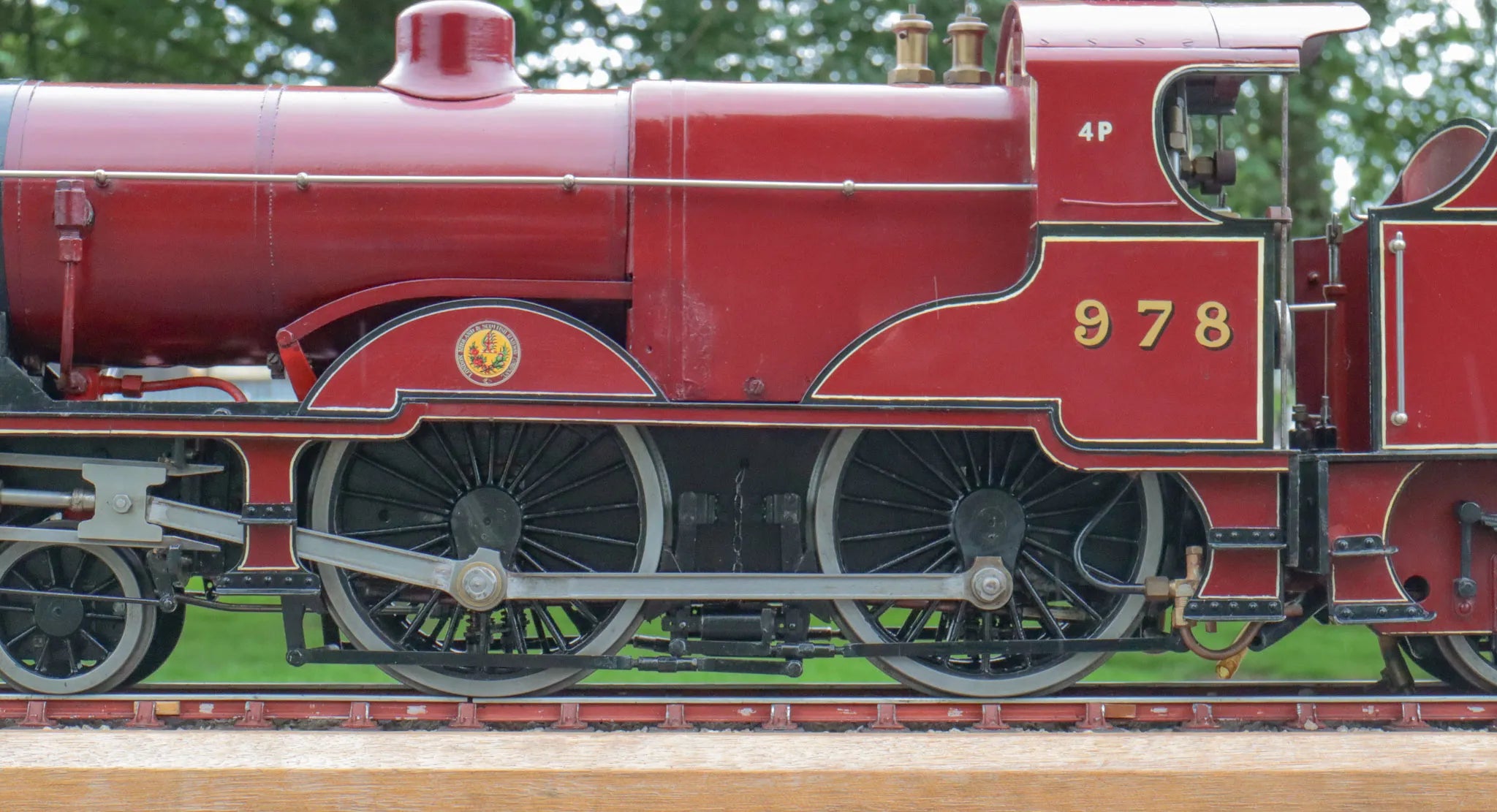

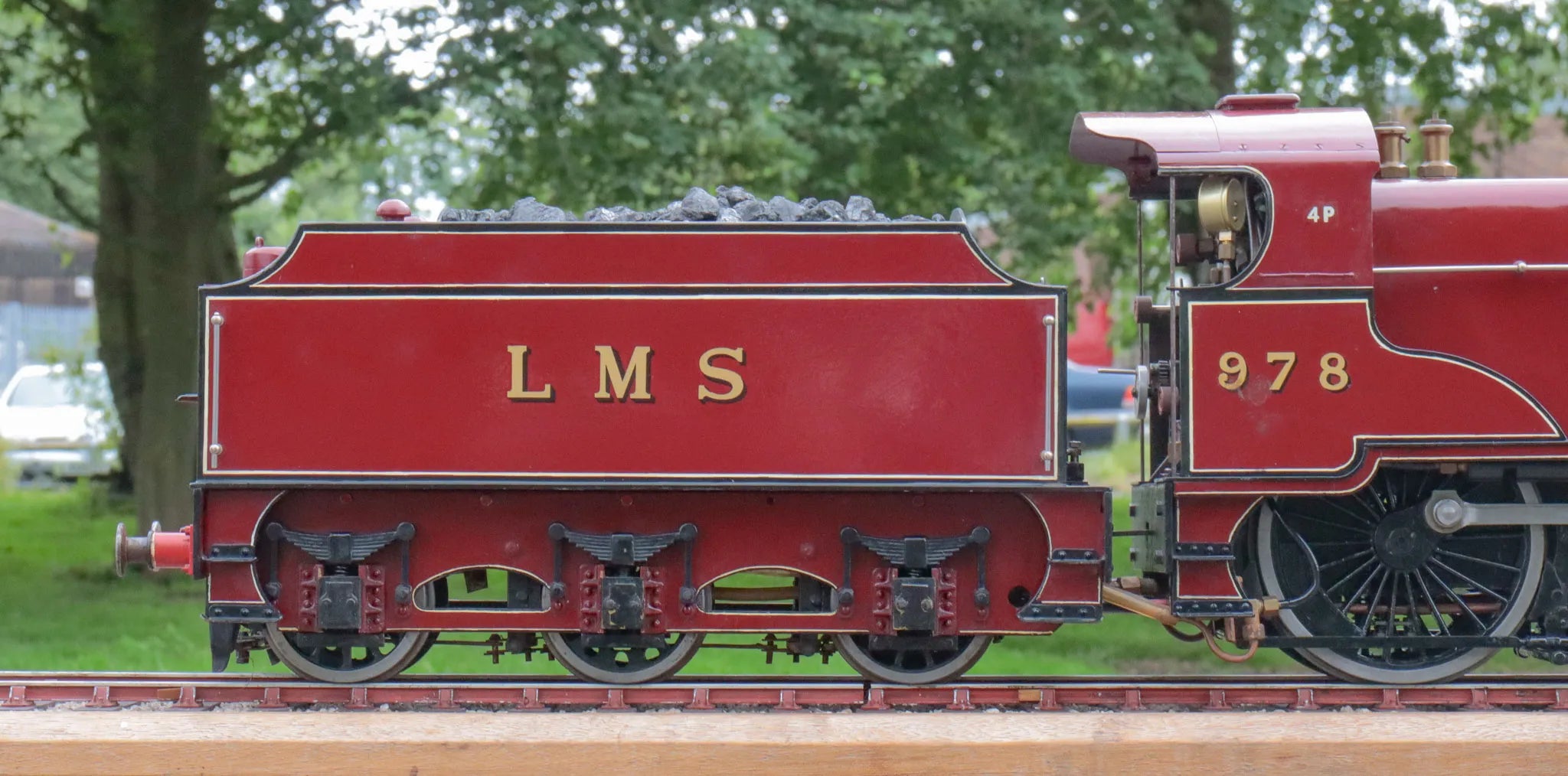

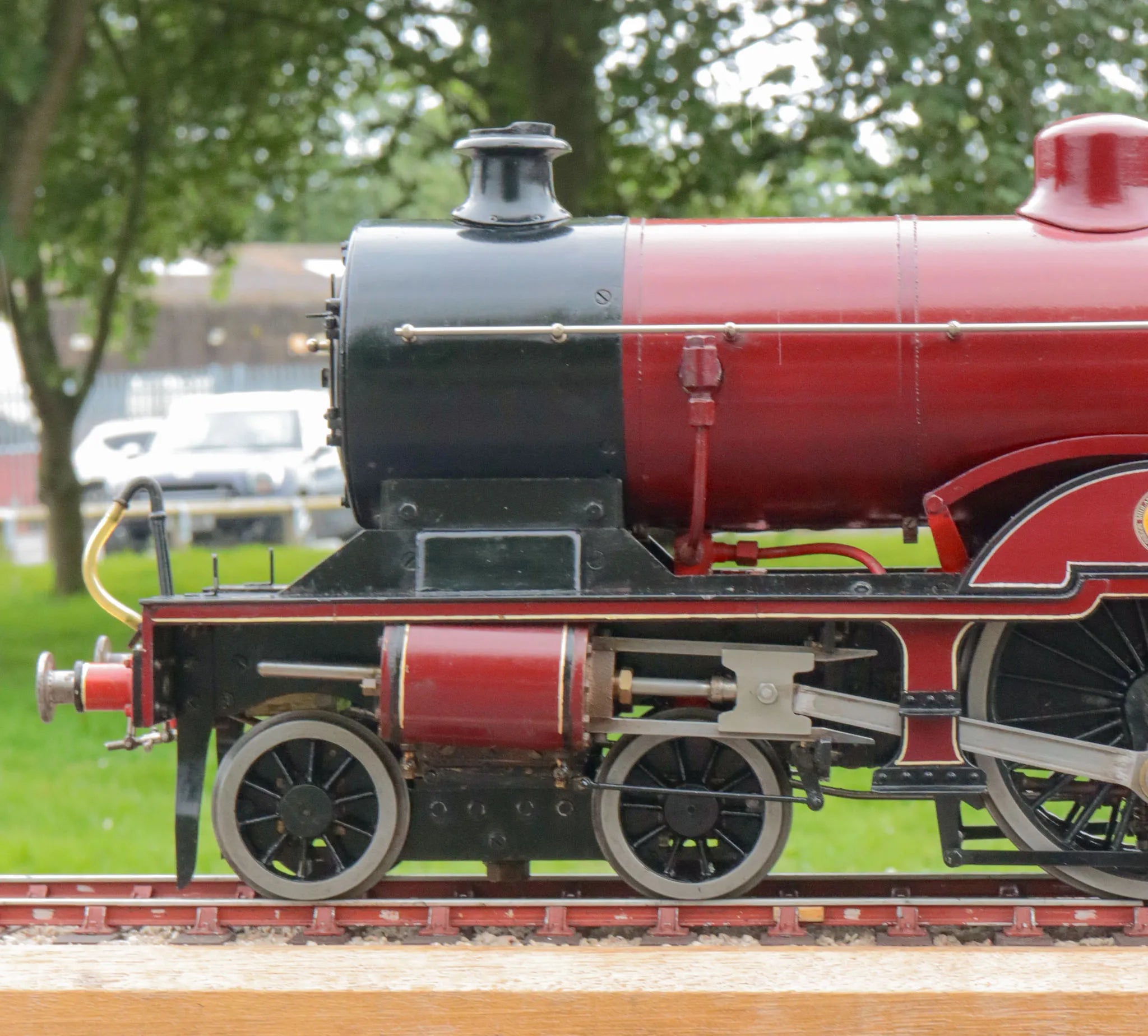

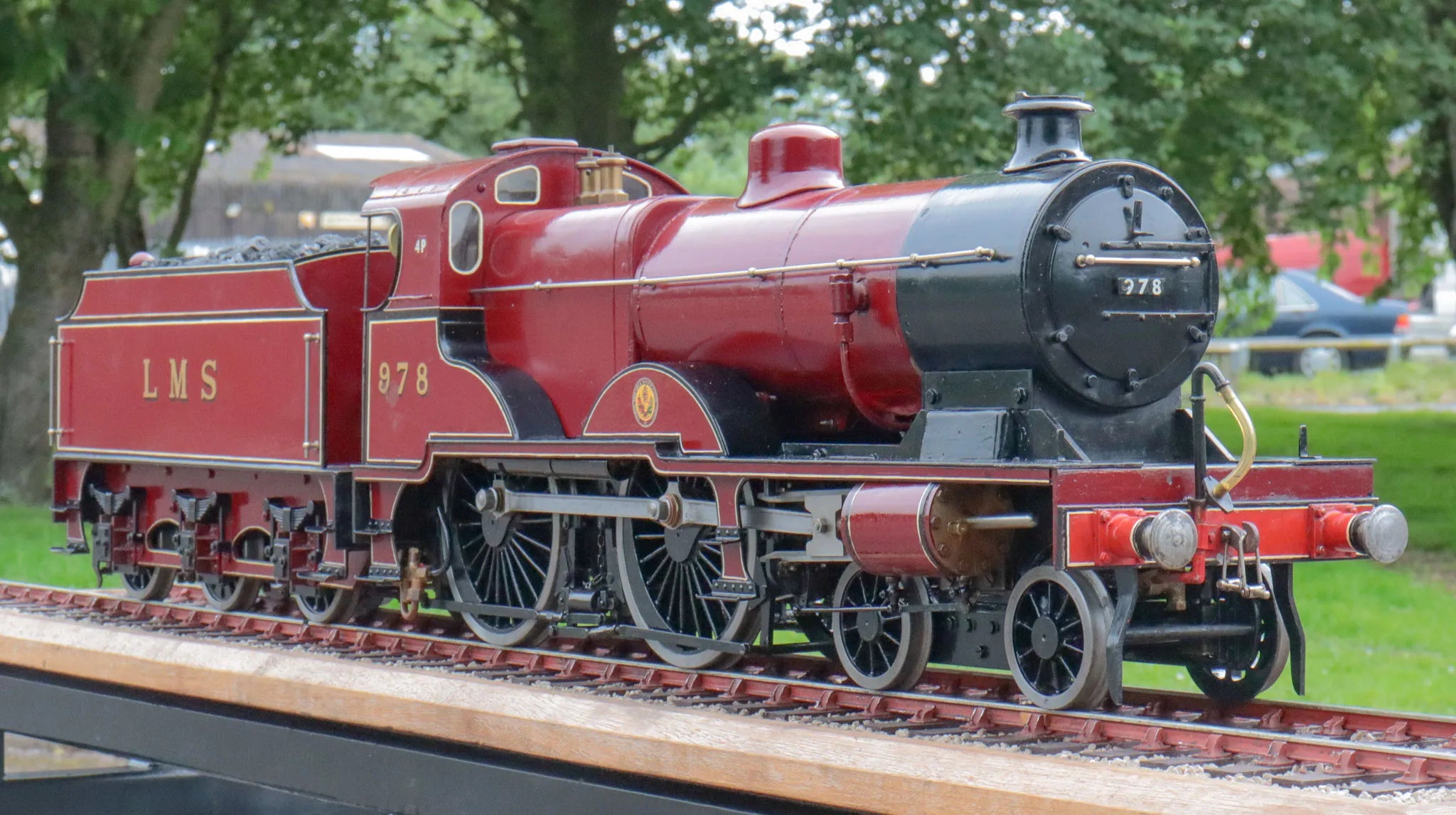

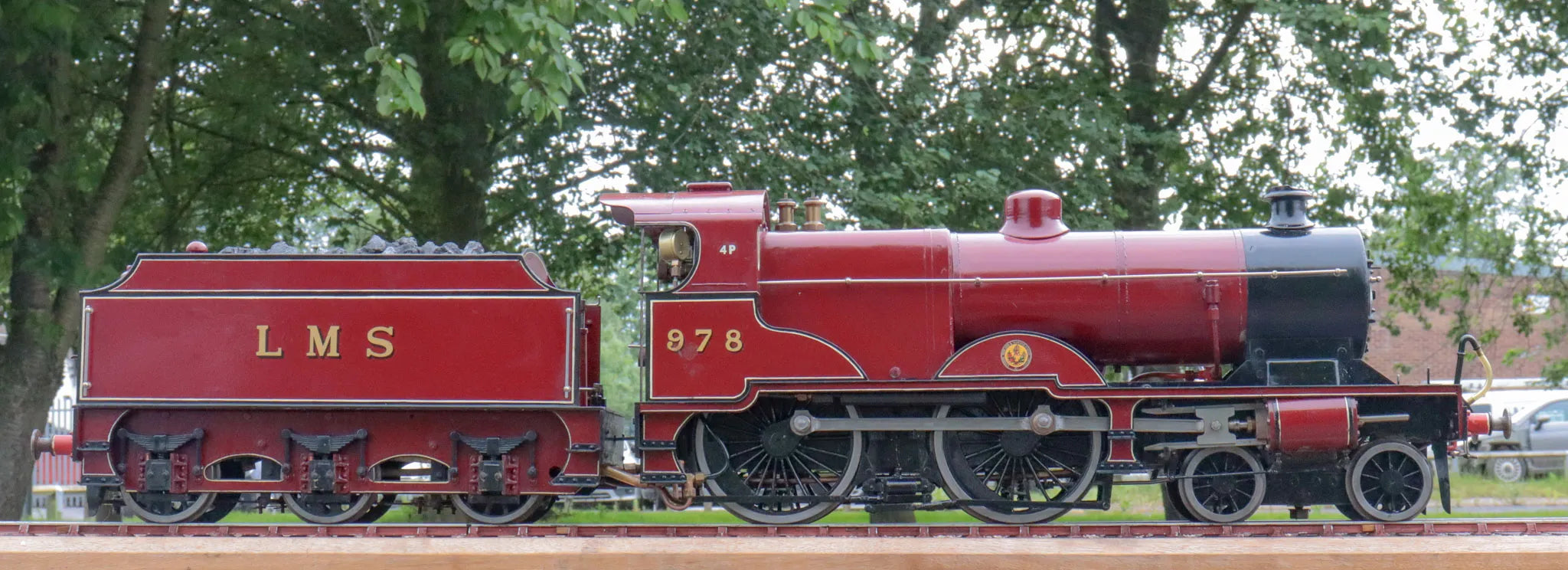

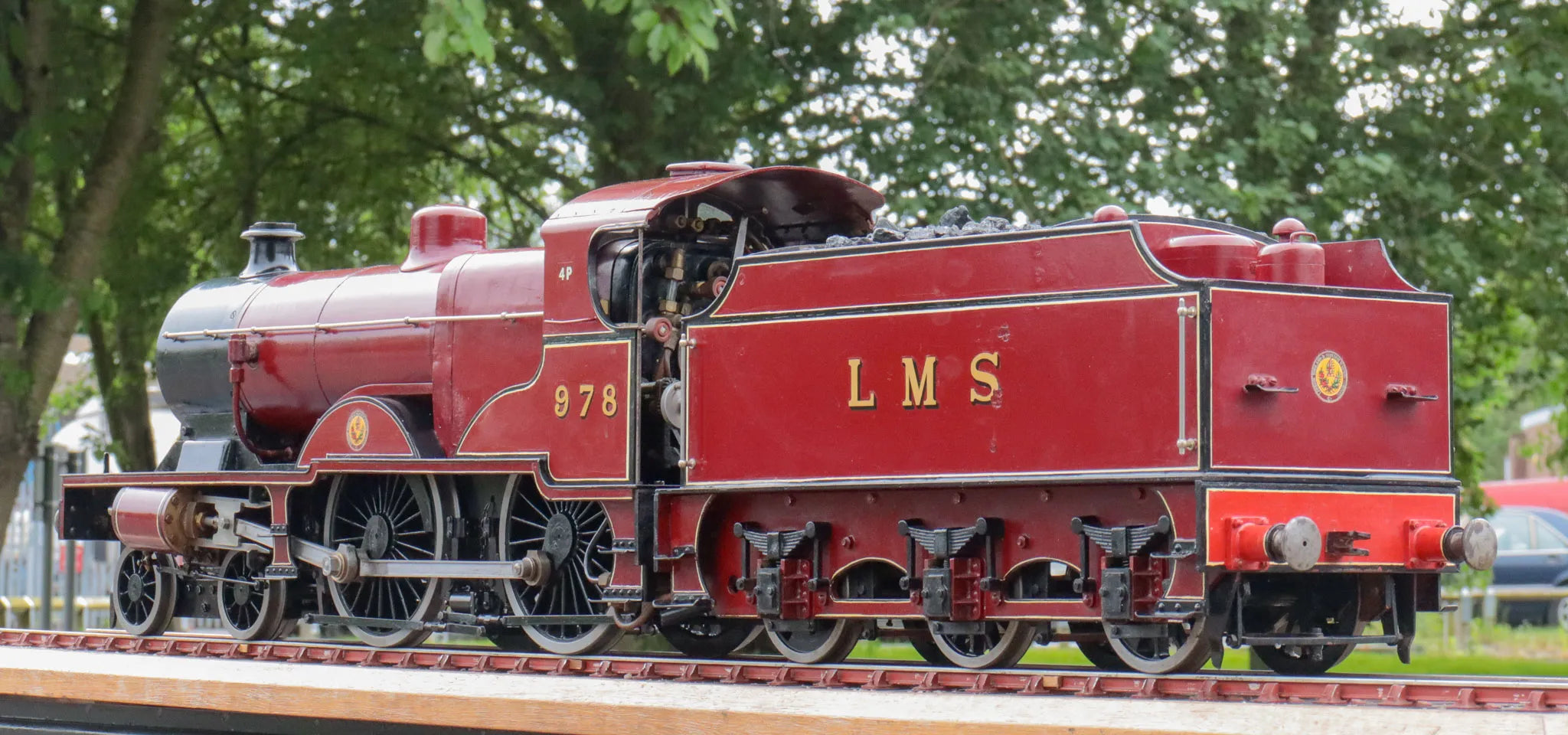

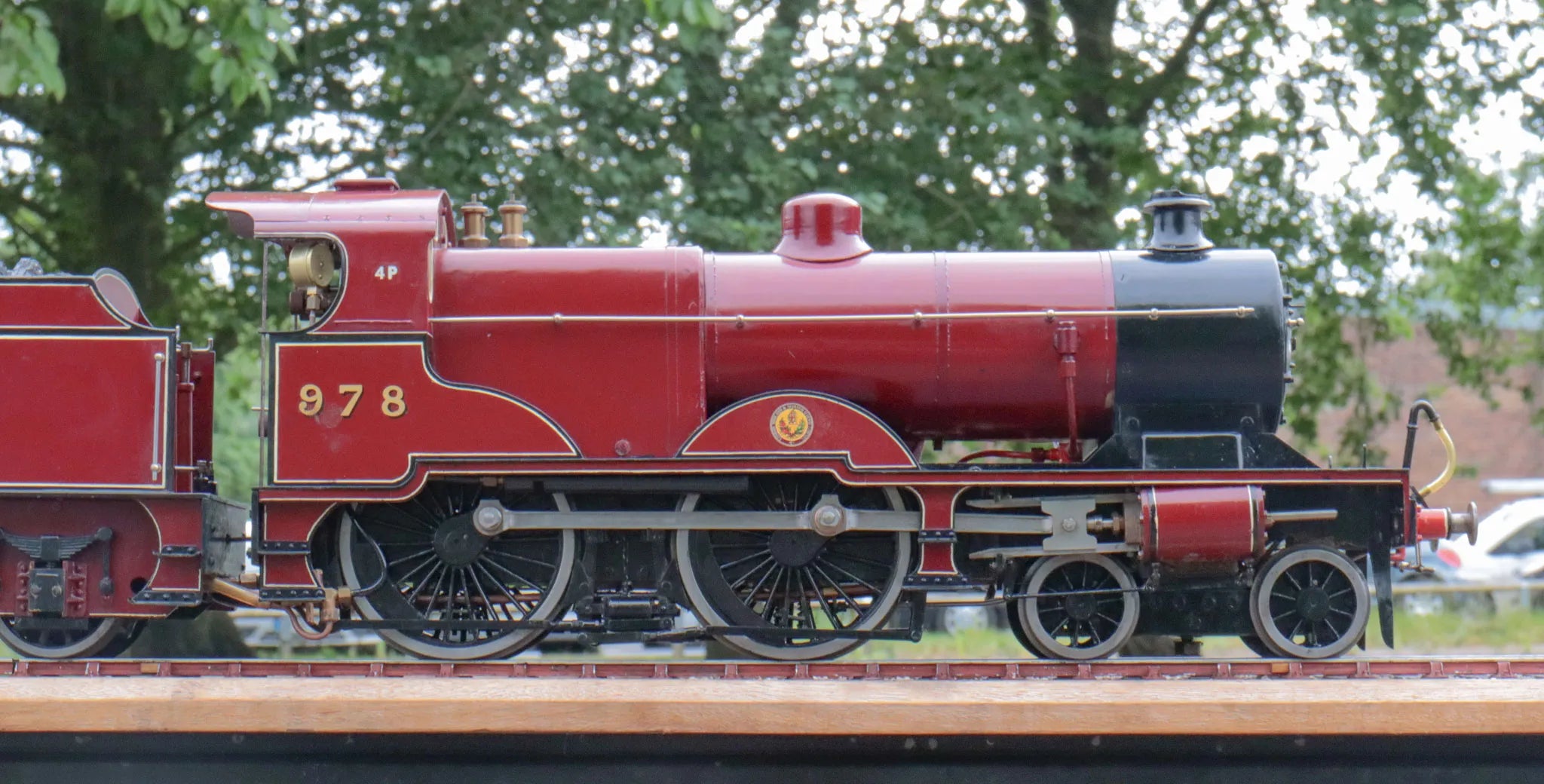

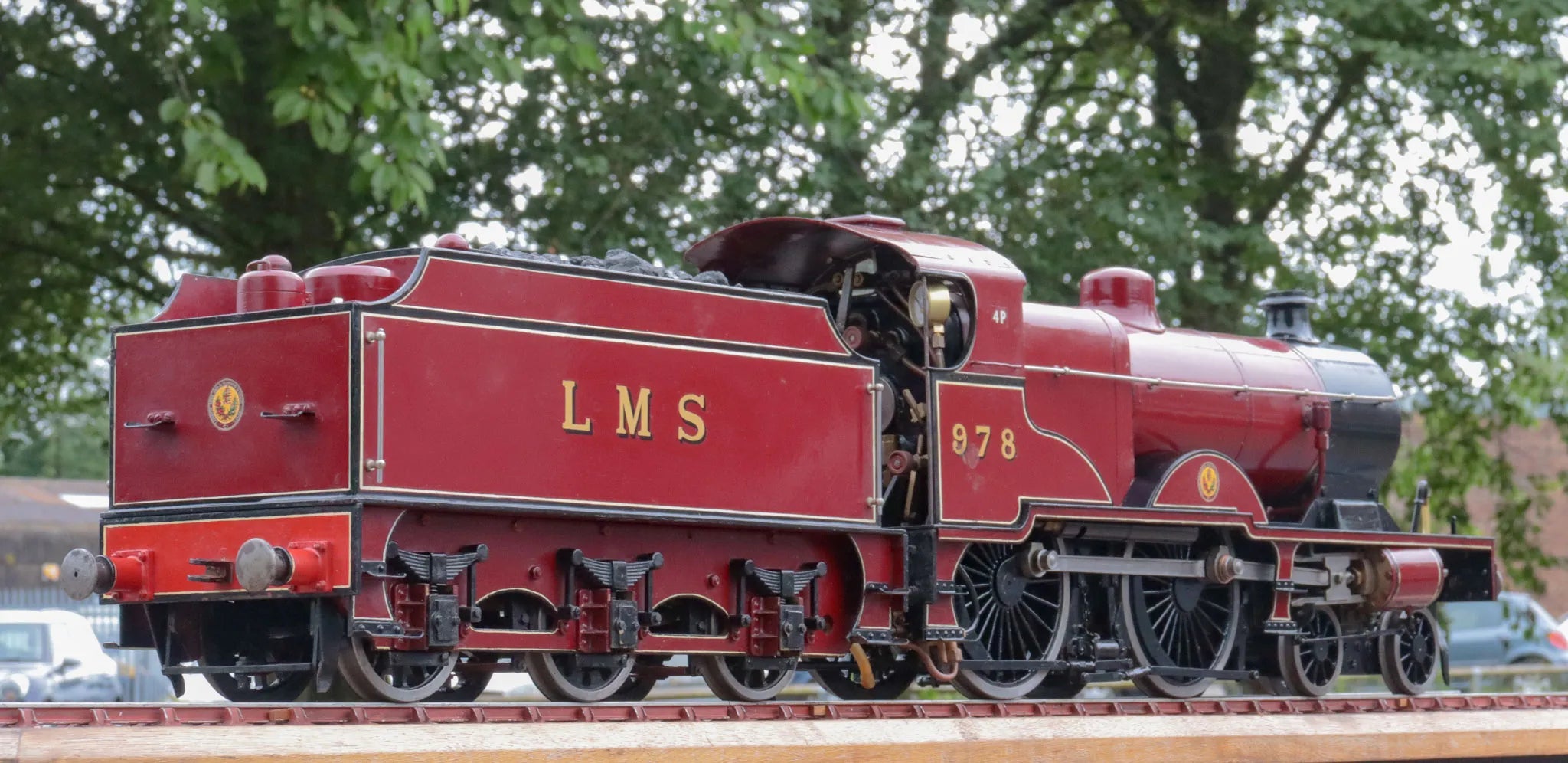

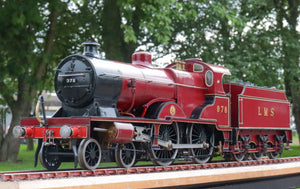

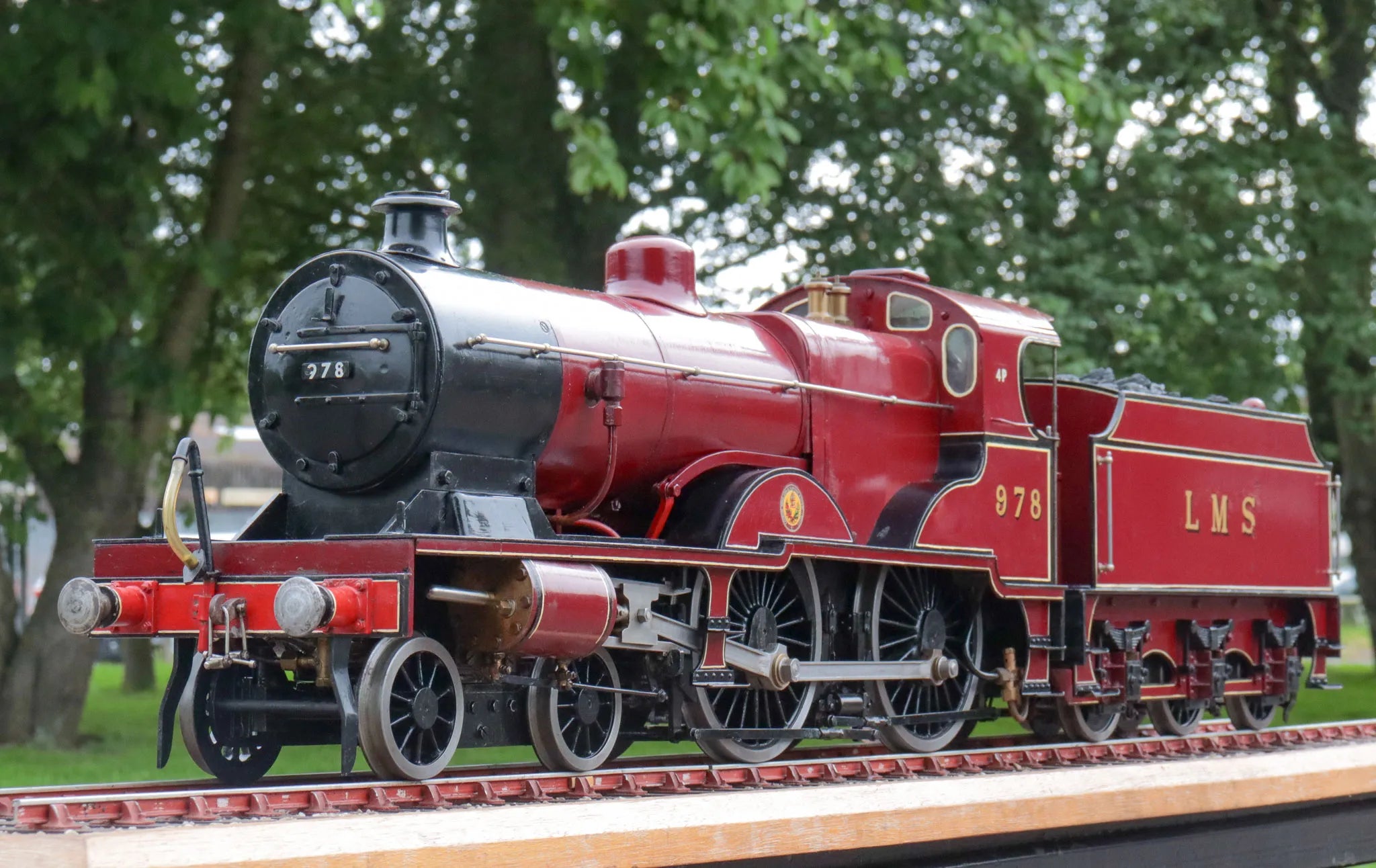

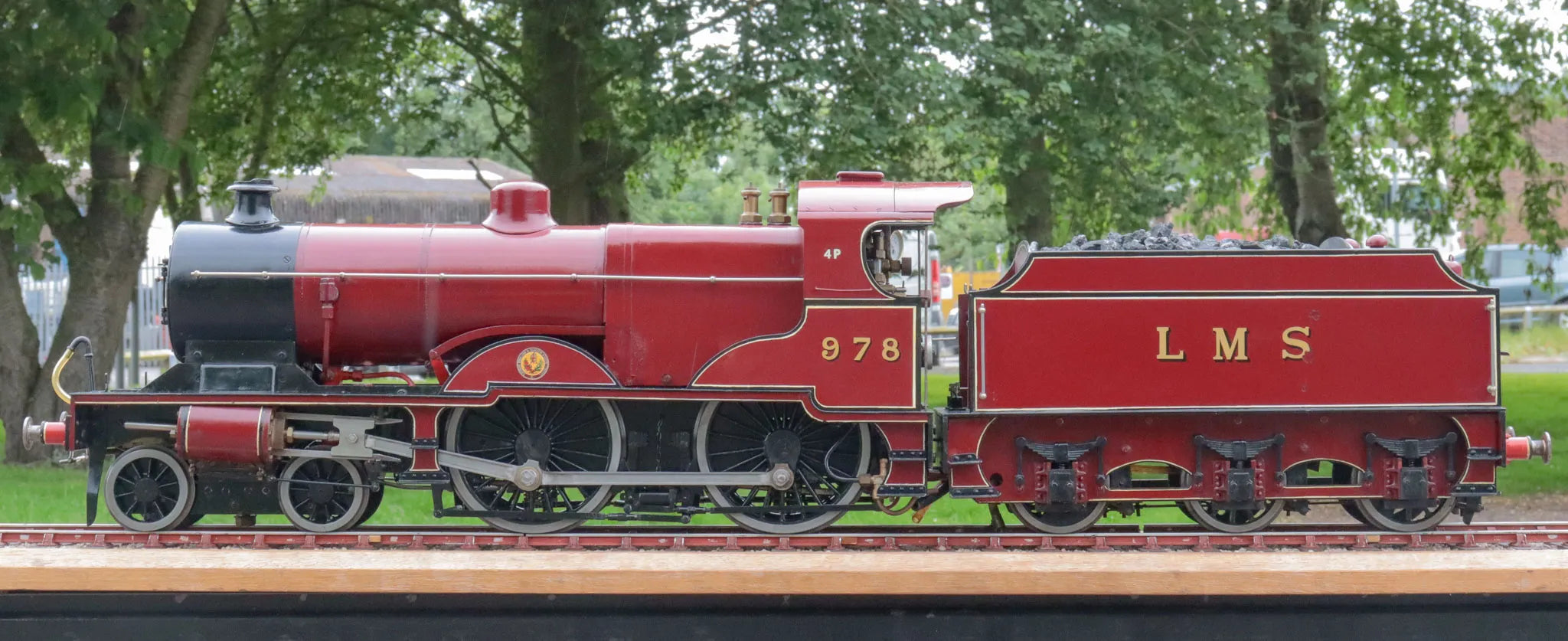

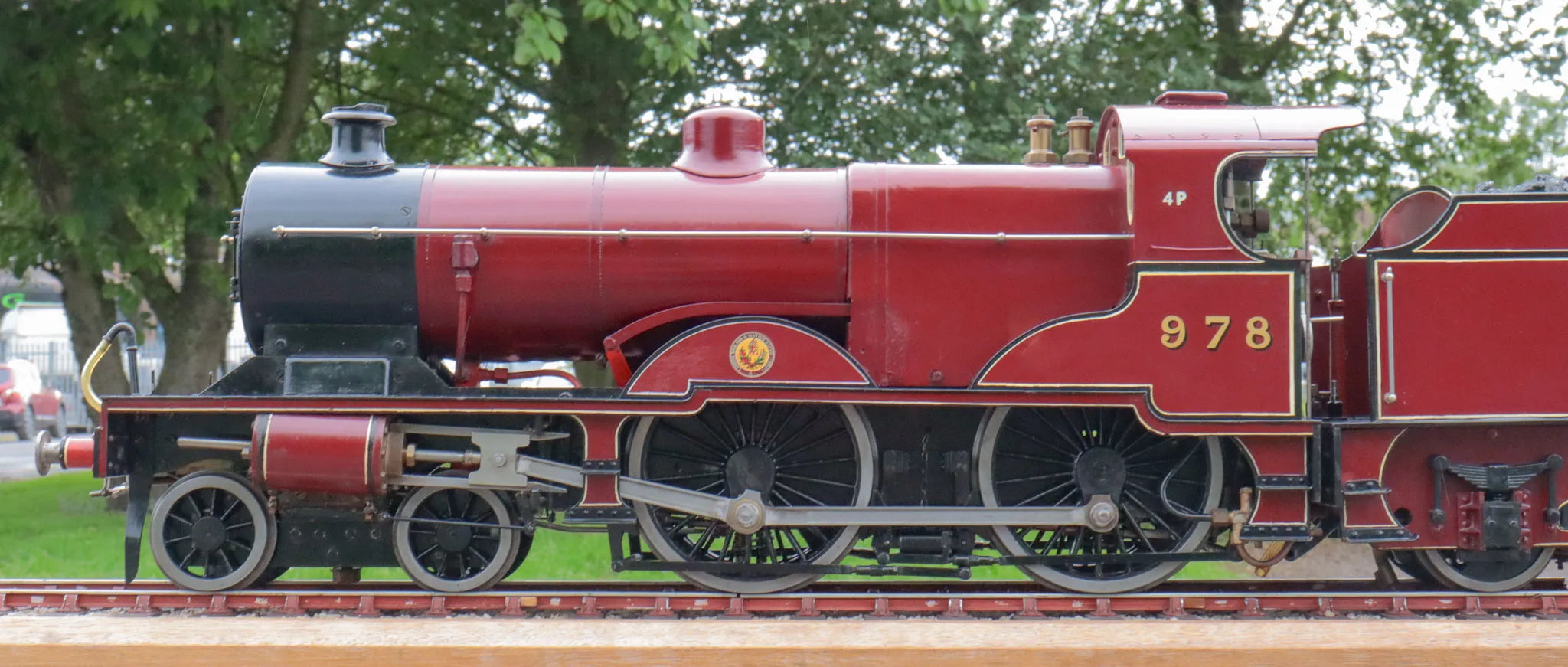

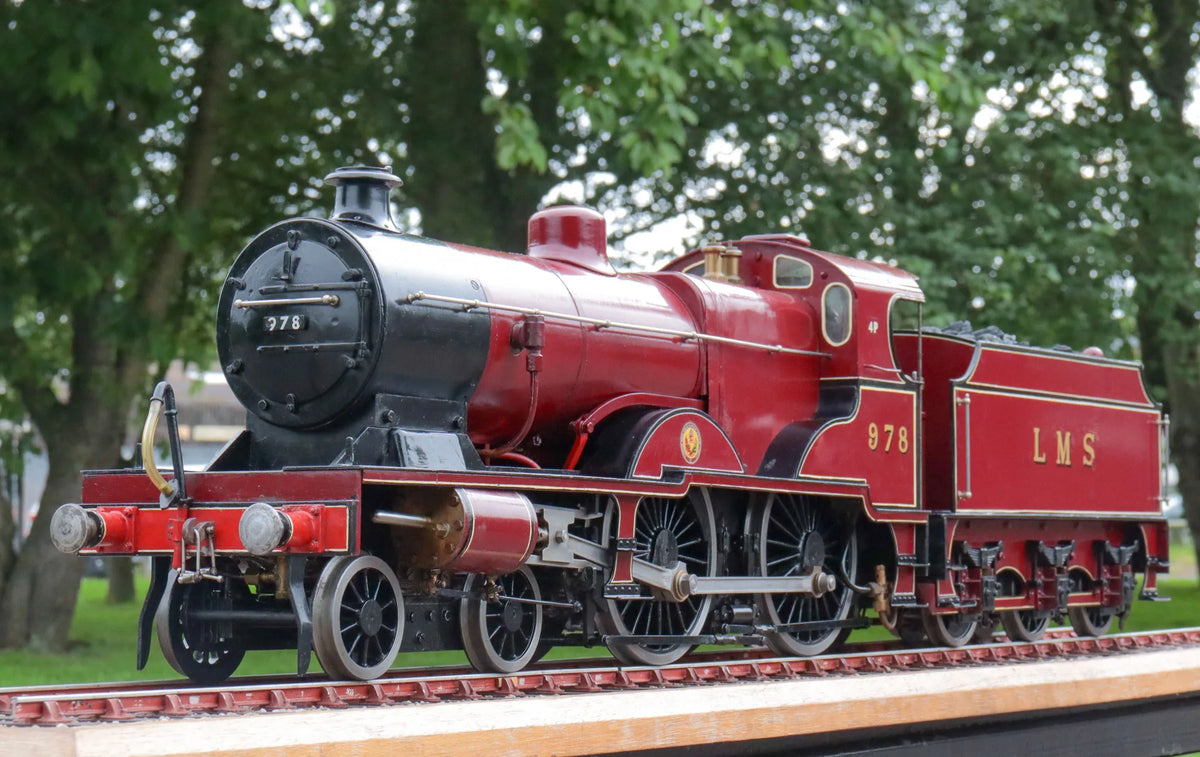

3 1/2 inch gauge LMS 4P 4-4-0

A 3 1/2 inch gauge Midland 4P 4-4-0, the work of a highly experienced model engineer and prolific contributor to "Model Engineer" magazine, he was also responsible for the 5 inch GWR 4-2-2 broad gauge "Iron Duke" we sold recently.

An older engine, one of nine produced by the builder and one of a pair - the other being "Iron Duke" - retained by the family, unused since 1994.

The boiler has had a hydraulic test with new certification issued. The engine steams freely and runs in either direction, with some wear apparent as might be expected in a locomotive of this age.

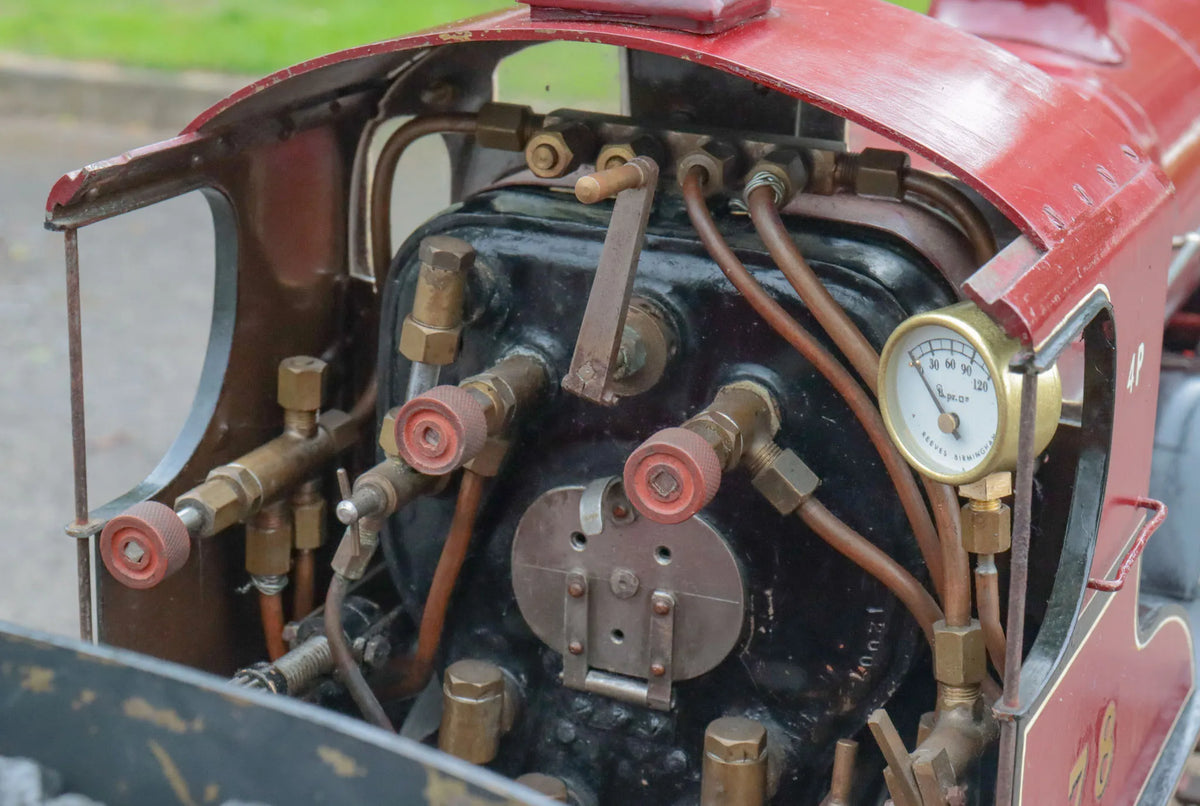

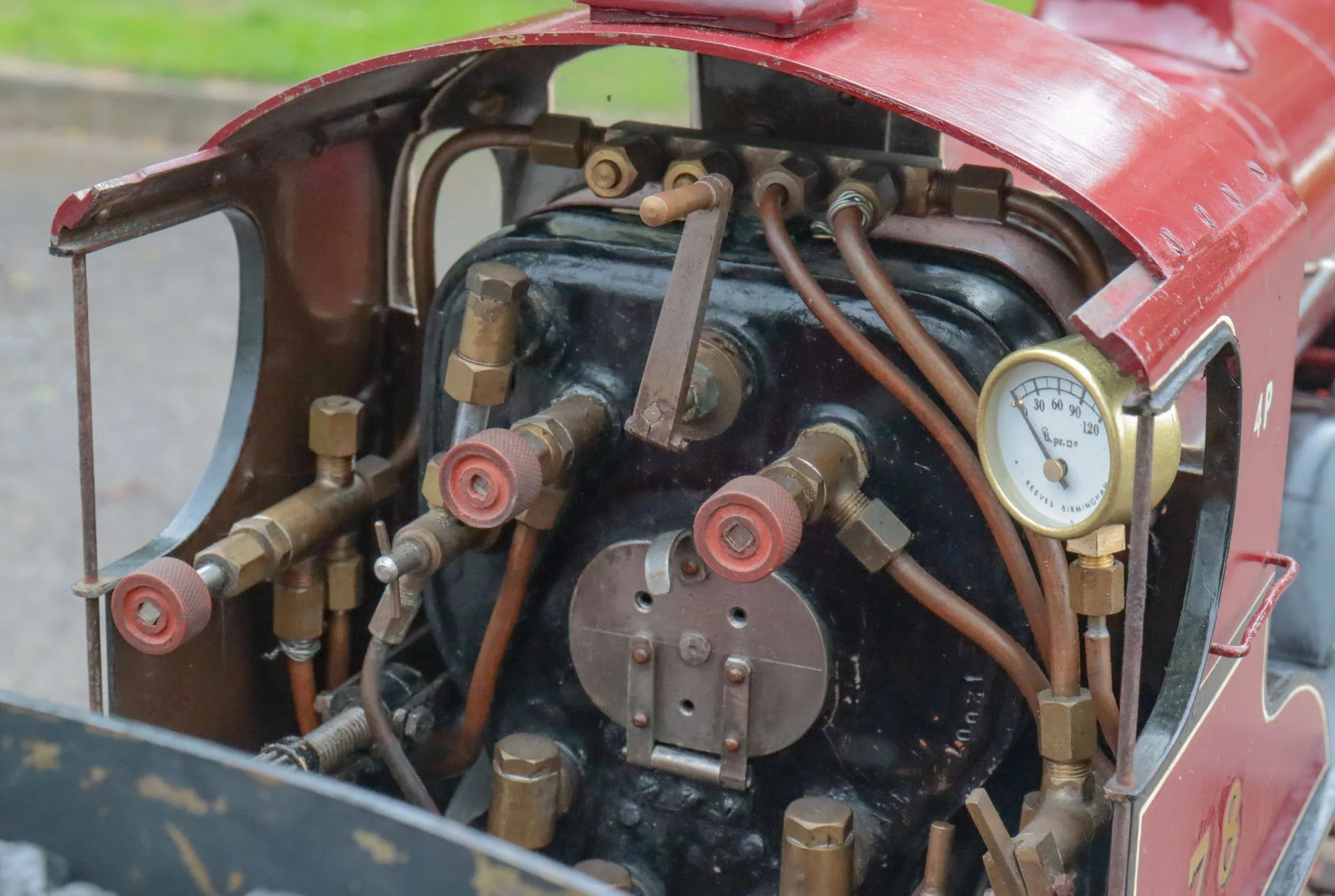

Both injectors require servicing or replacement - an odd-sized thread, it would require replacement of unions on the pipework if new ones are fitted.

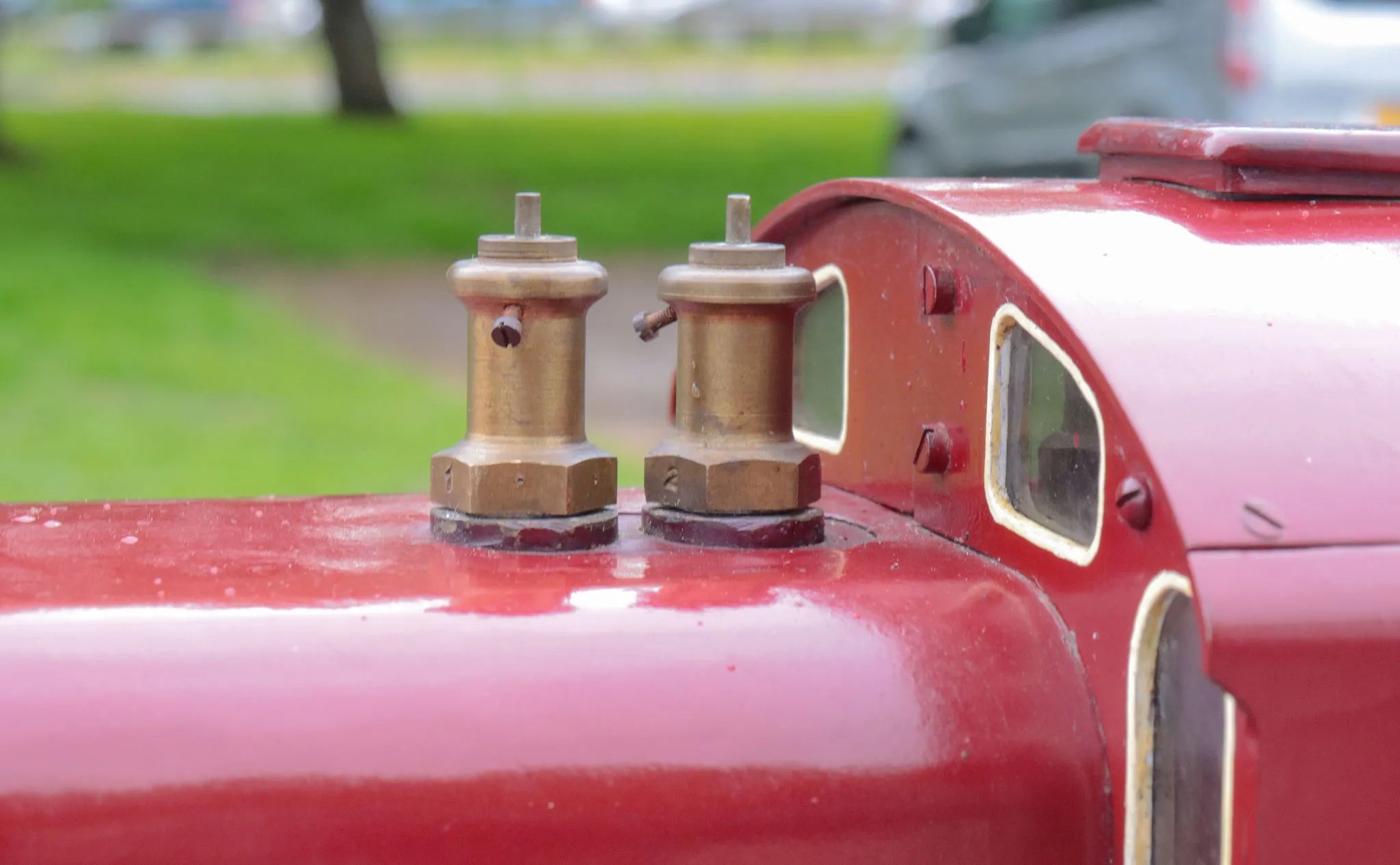

The safety valves accumulate - whilst they could be replaced, we'd be tempted to pull them apart and modify if required to improve their performance, to maintain the originality of this rather lovely old engine.

Technical information

Stock code

12007

Gauge

3 1/2 inch

Length/inches

28 + 17.5

Width/inches

7

Height/inches

11

Weight/Kg

35

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

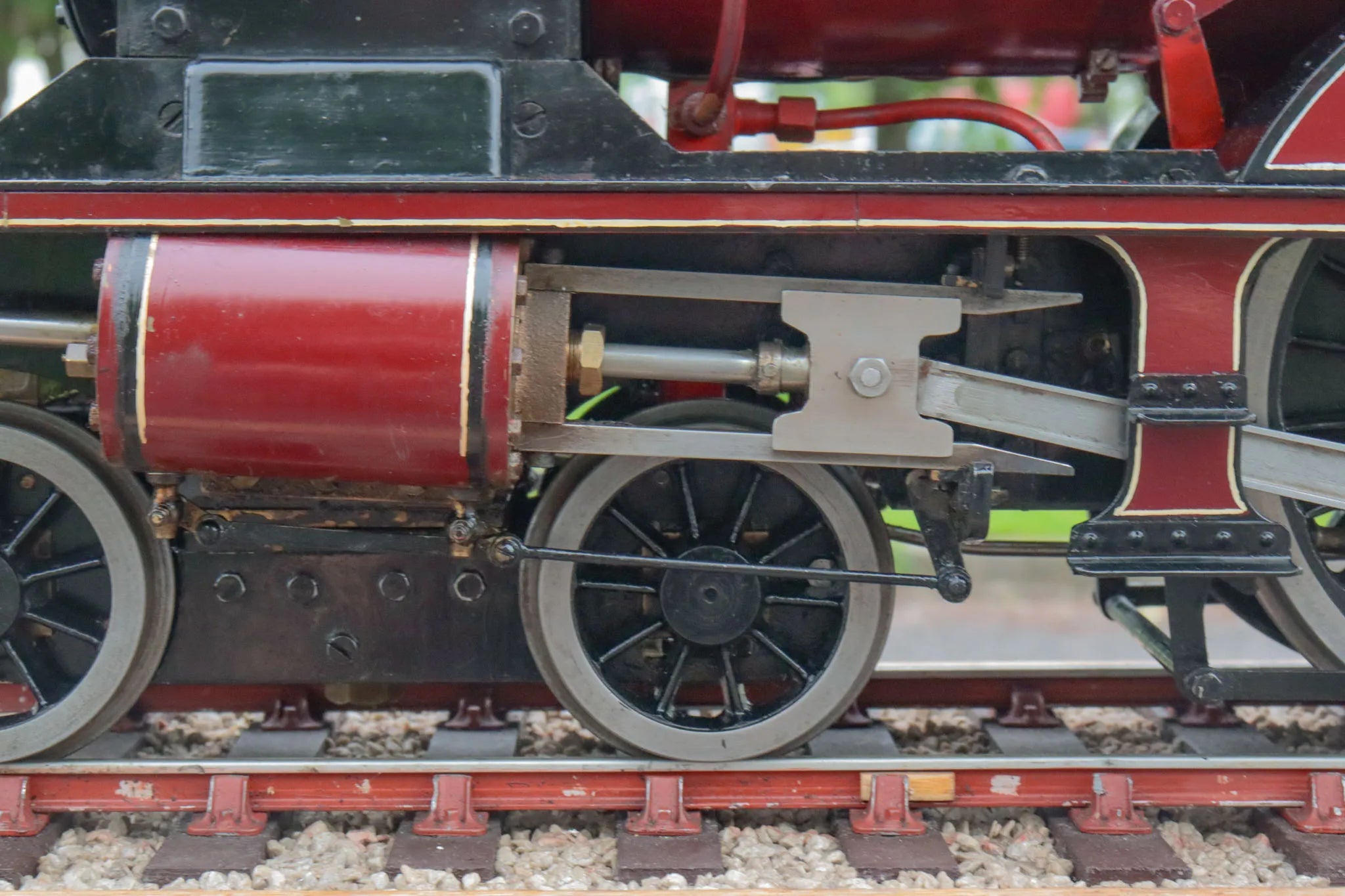

Valve gear

Stephensons

Reverser type

screw

Boiler maker

V.M.Lewitt

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

Boiler number

12007

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

2

Superheater type

flue tube

Superheater

4

Date out

Jul-25

Hydraulic test valid to

22-May-28
