10991
Sometime between then and now it's suffered a mishap - the foundation ring developing several small but persistent leaks - which will require the boiler lifting from the frames for repair.
Pictures opposite and words below are from 2023 - cosmetically the engine is in similar condition as when it was last here.

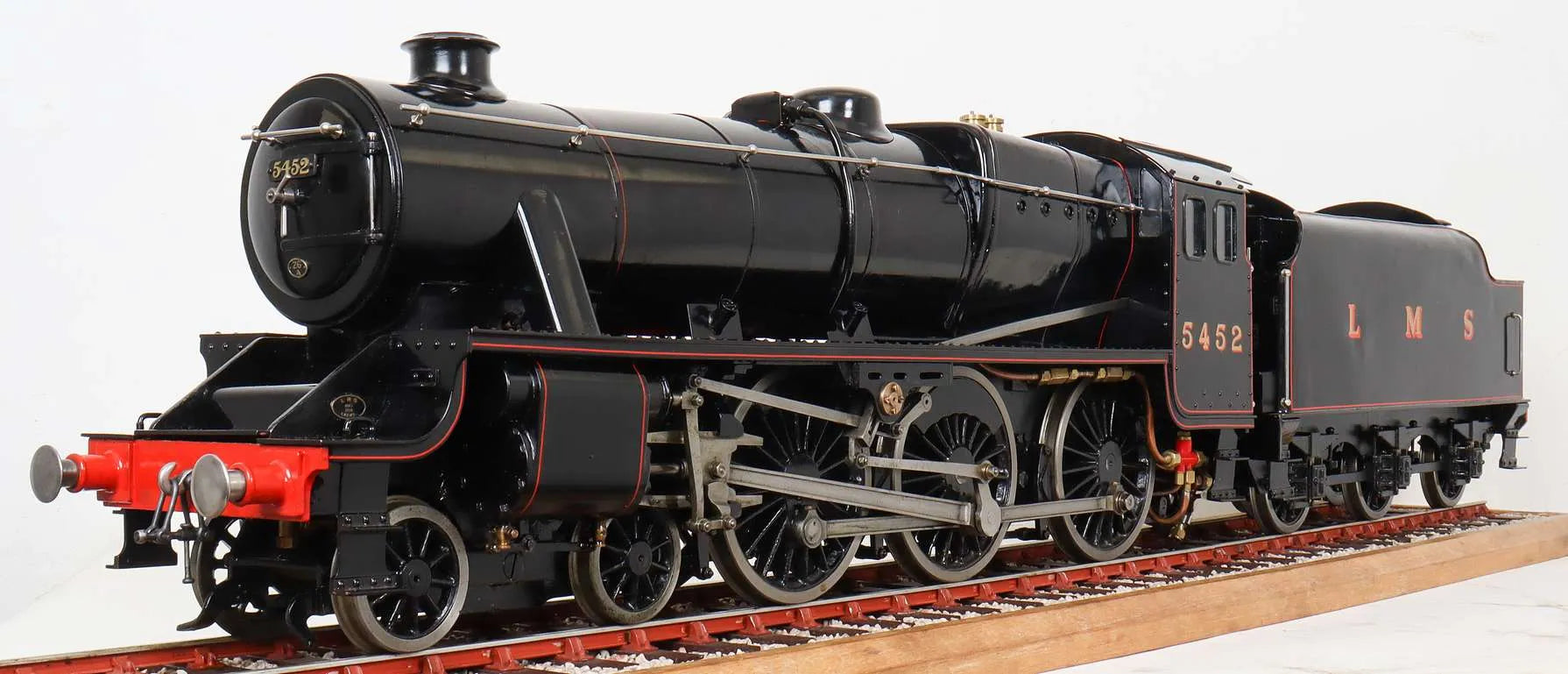

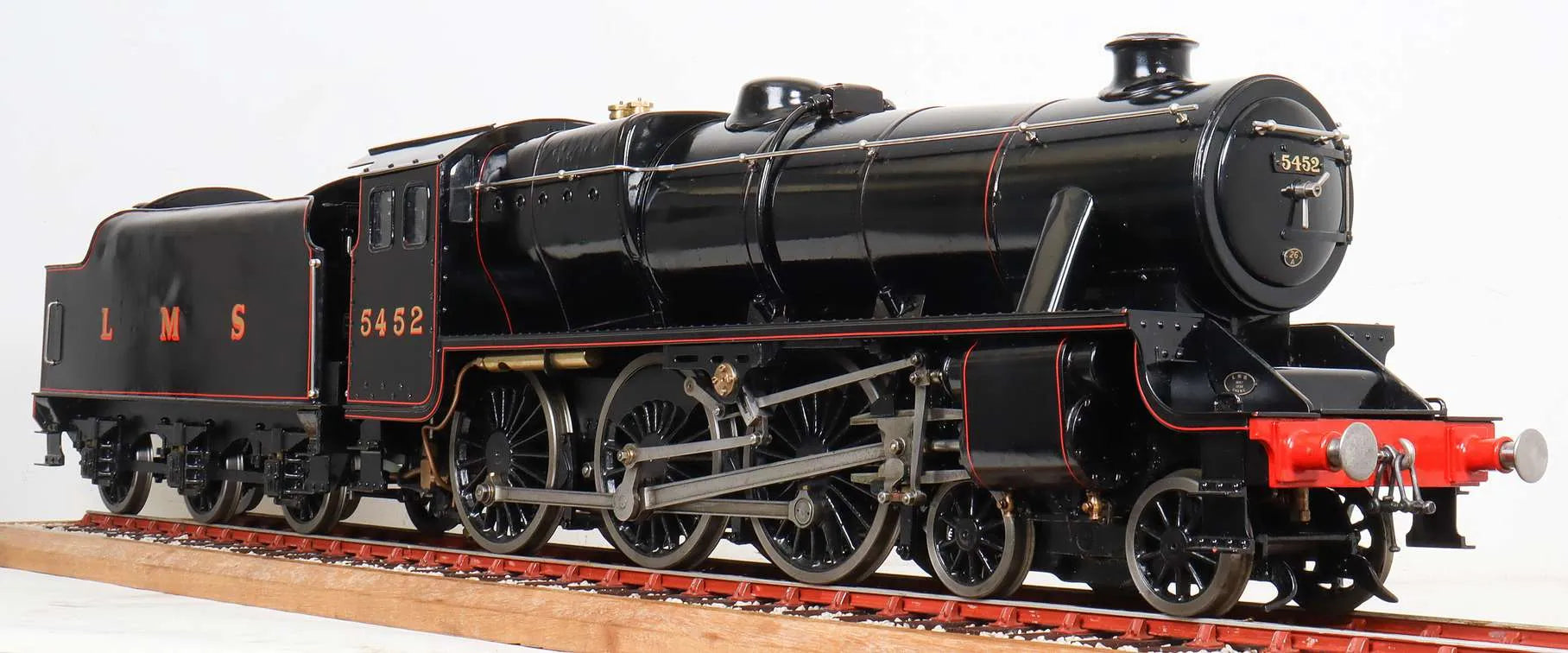

A well-built 3 1/2 inch gauge LMS Black 5 to LBSC's well-regarded "Doris" design.
This one has come to us as part of a collection of 3 1/2 and 5 inch gauge steam and battery-electric locomotives, along with his workshop equipment, from a long time customer of ours now downsizing.
The commercially-built, CE-marked boiler has had hydraulic and steam tests in recent days with new certification issued.

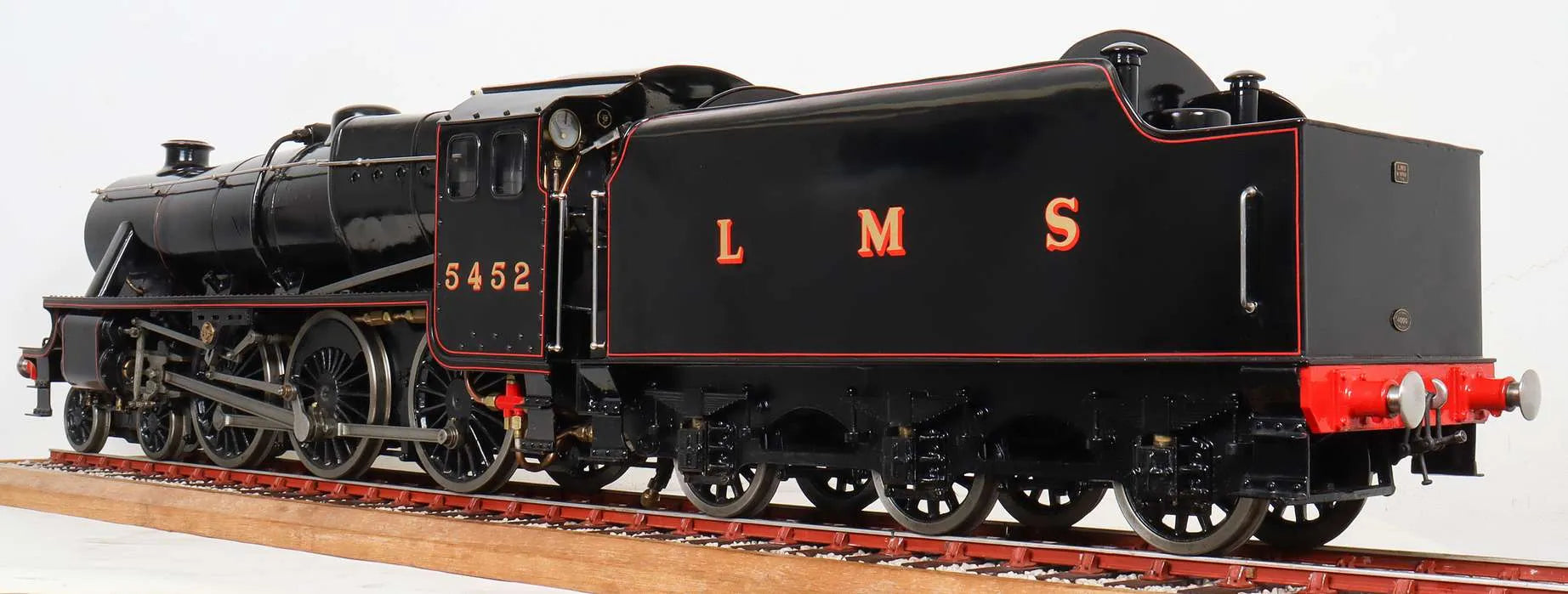

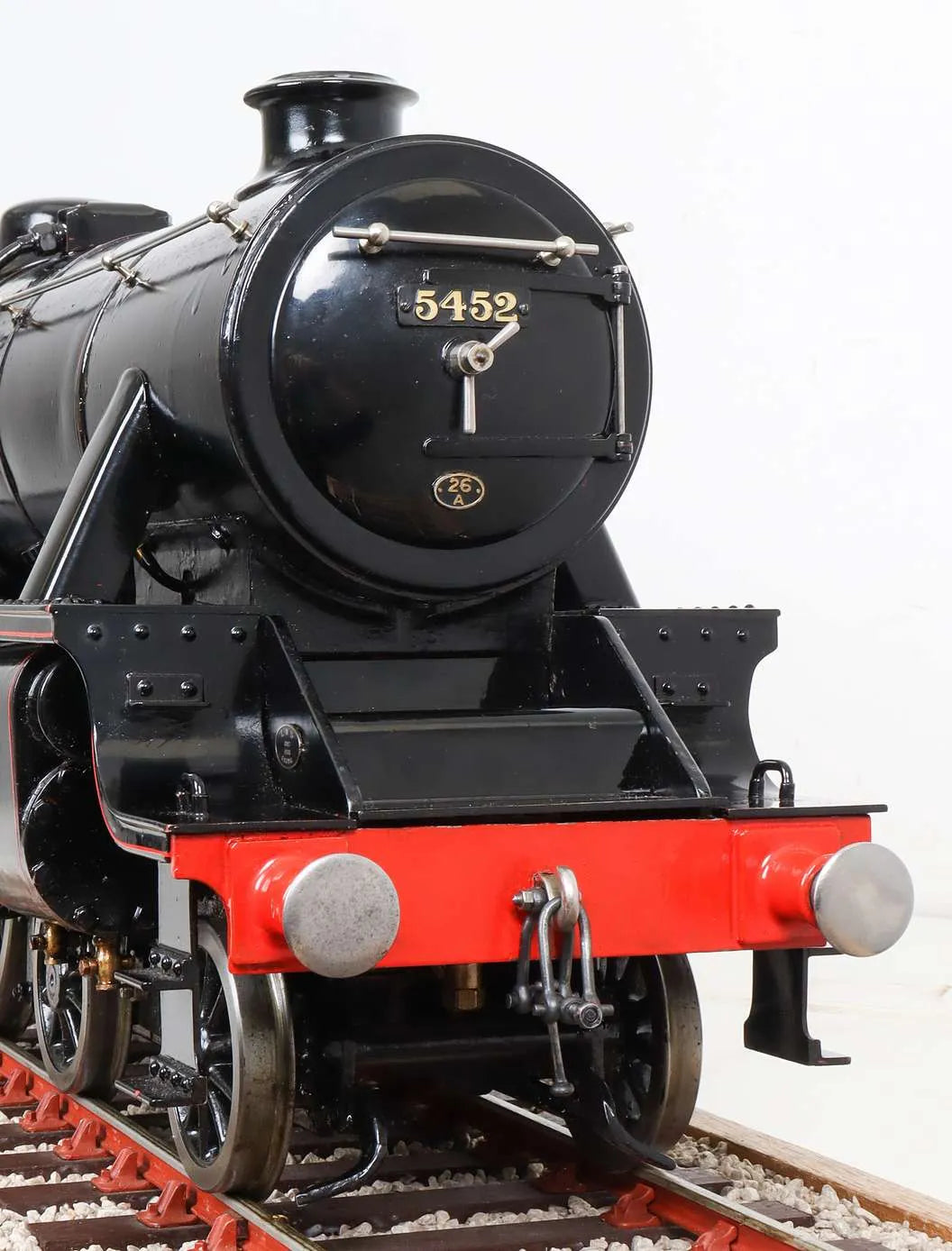

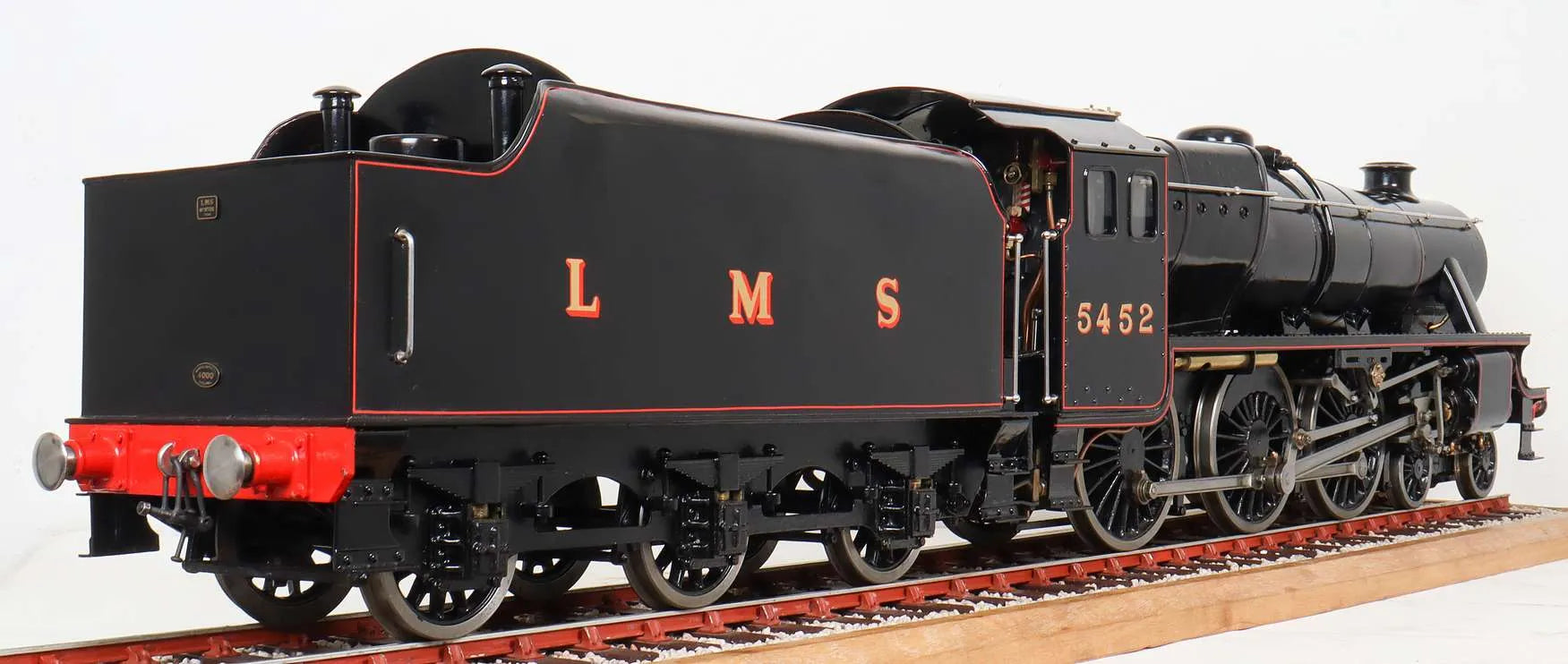

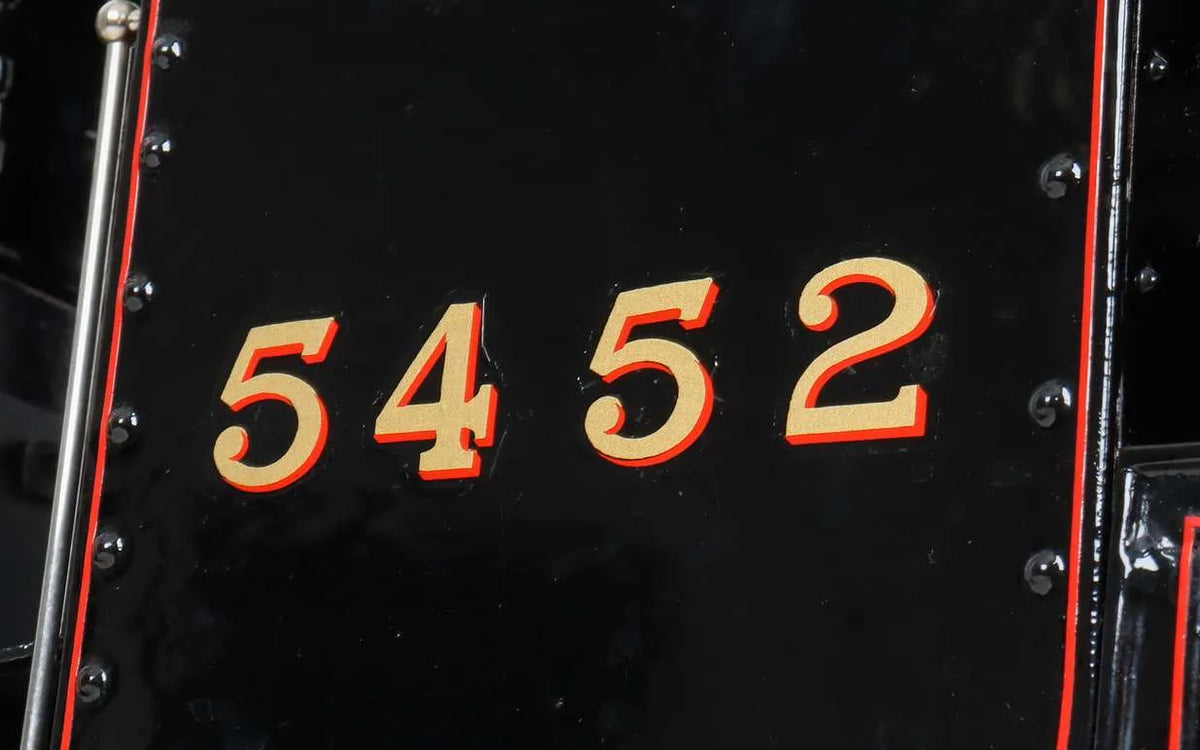

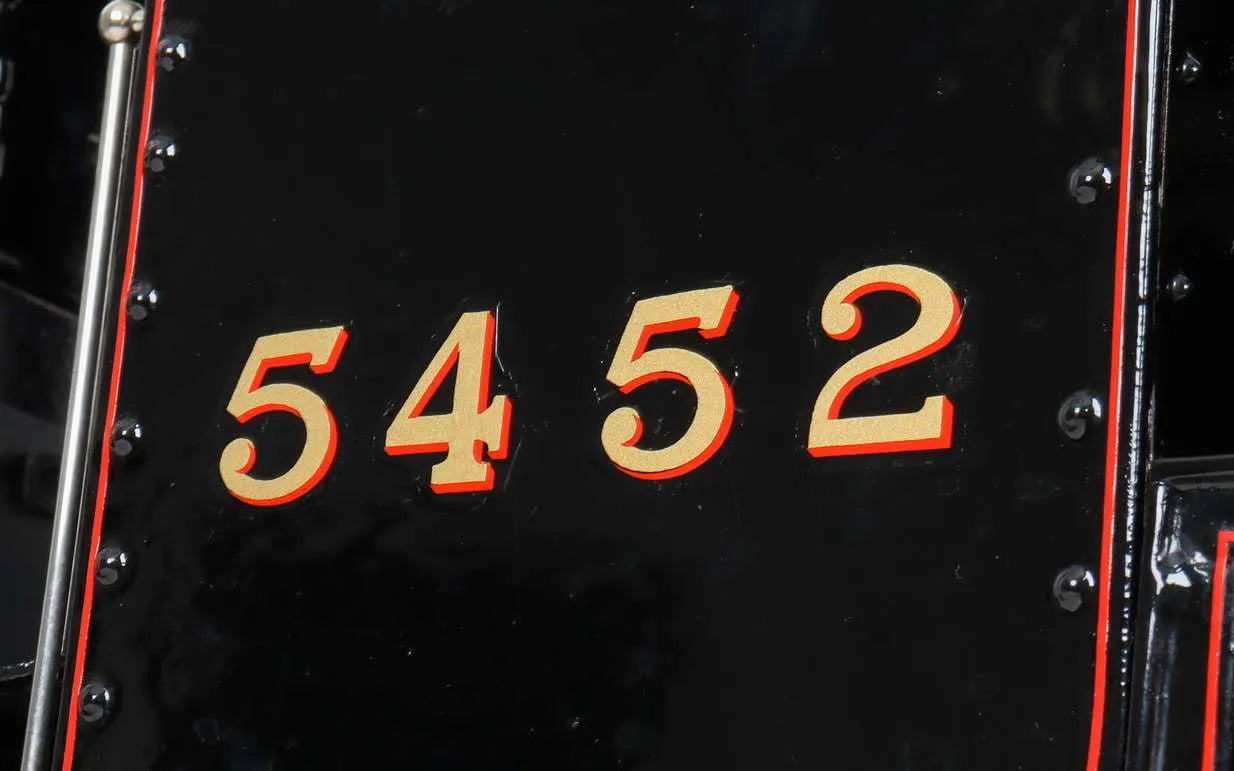

In good order, the engine presents well in LMS black livery.

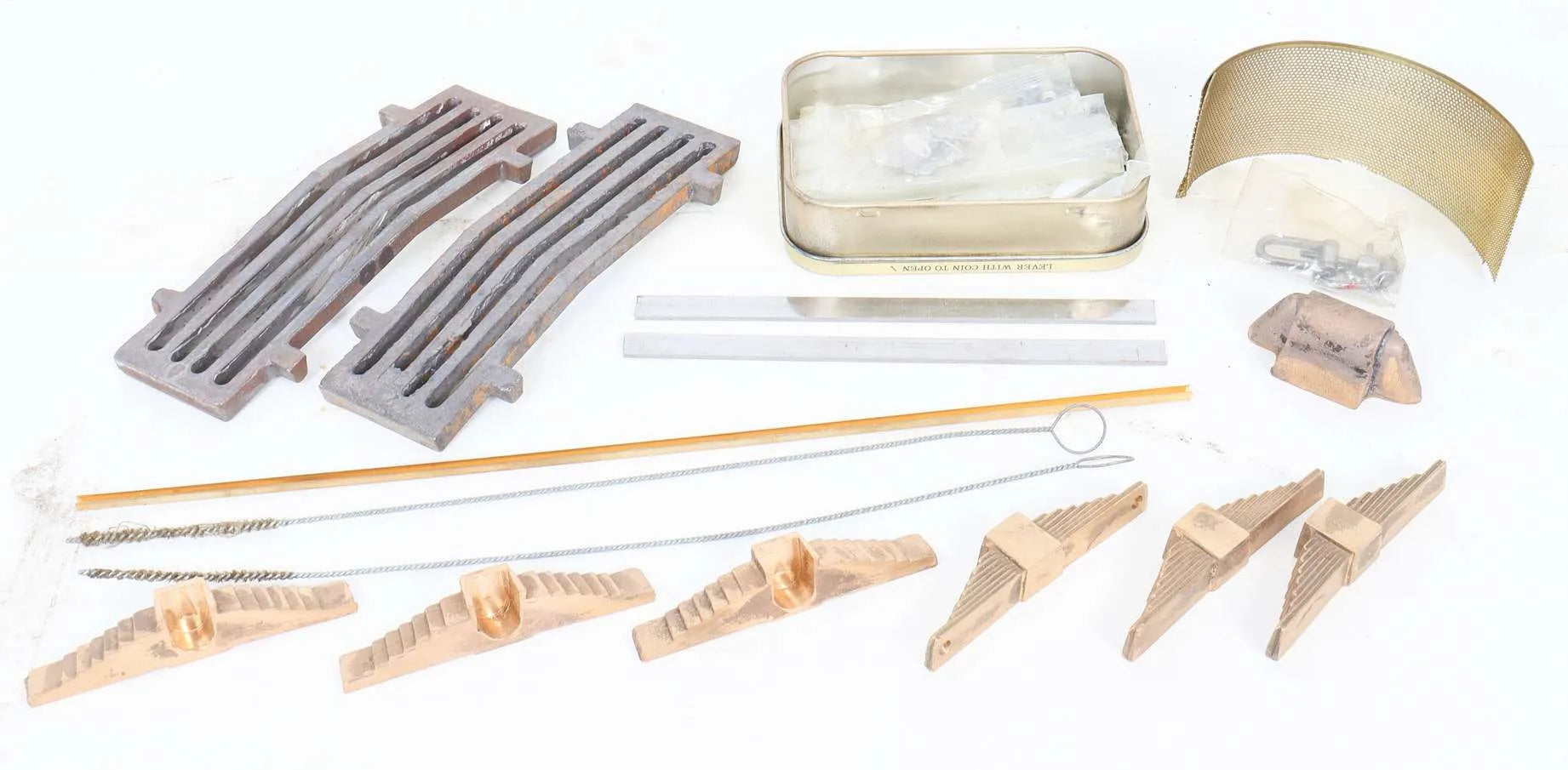

Complete with some spare castings, including grates and tender dummy leaf springs.
A well-sorted locomotive, it steams freely and runs very nicely.
Stock code |
10991 |
Length/inches |
31 + 19 |
Width/inches |
17 |
Height/inches |
10 |
Weight/Kg |
42 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
piston |

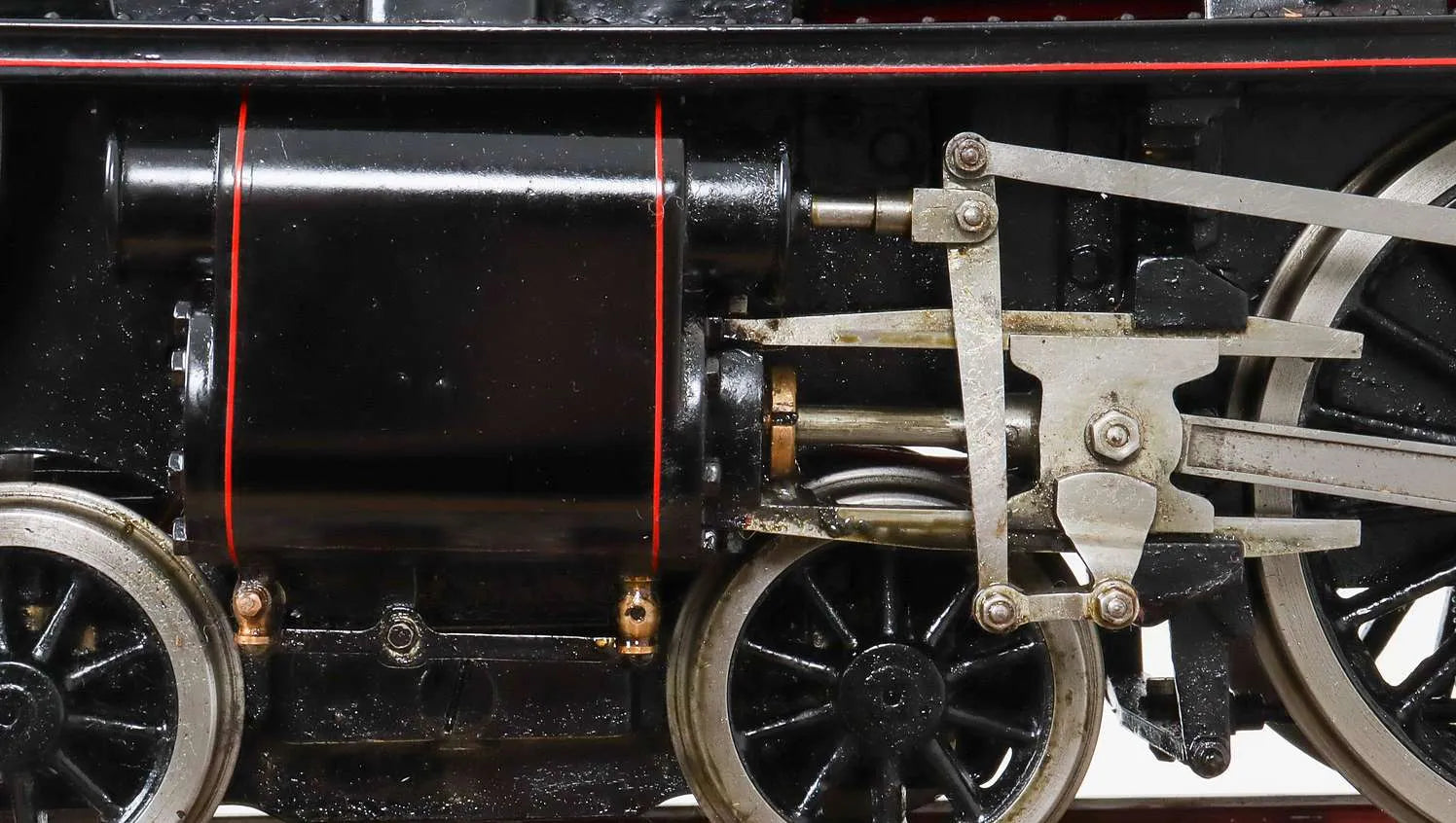

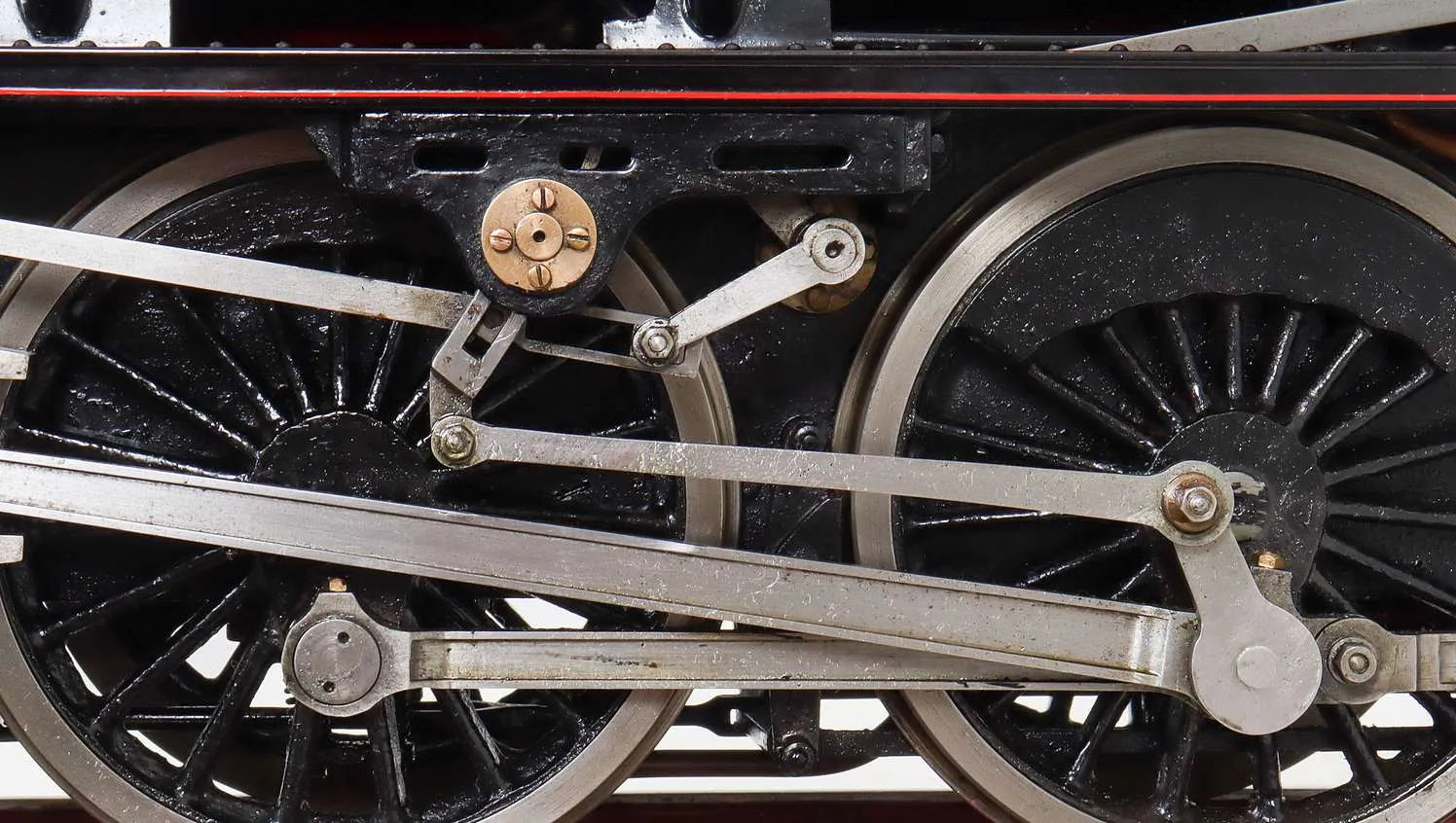

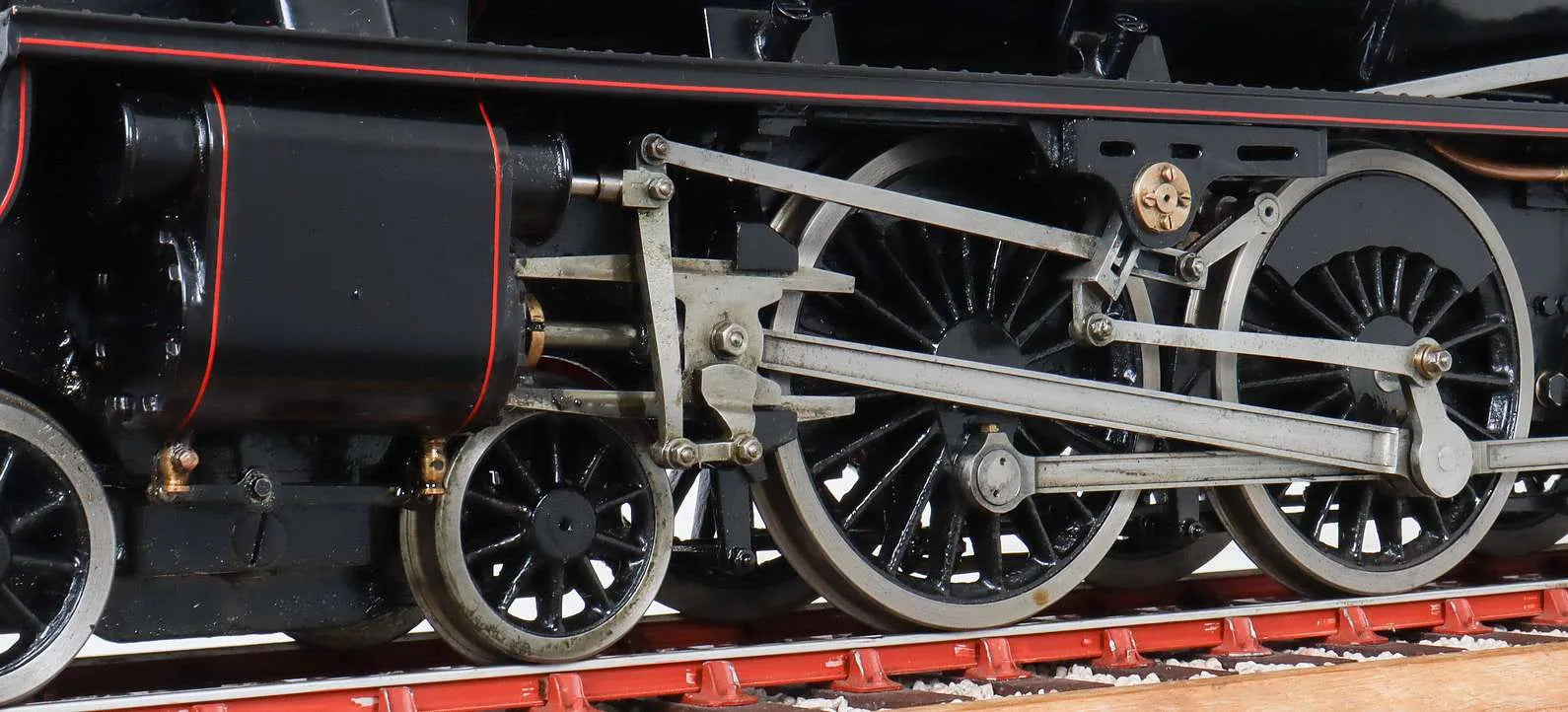

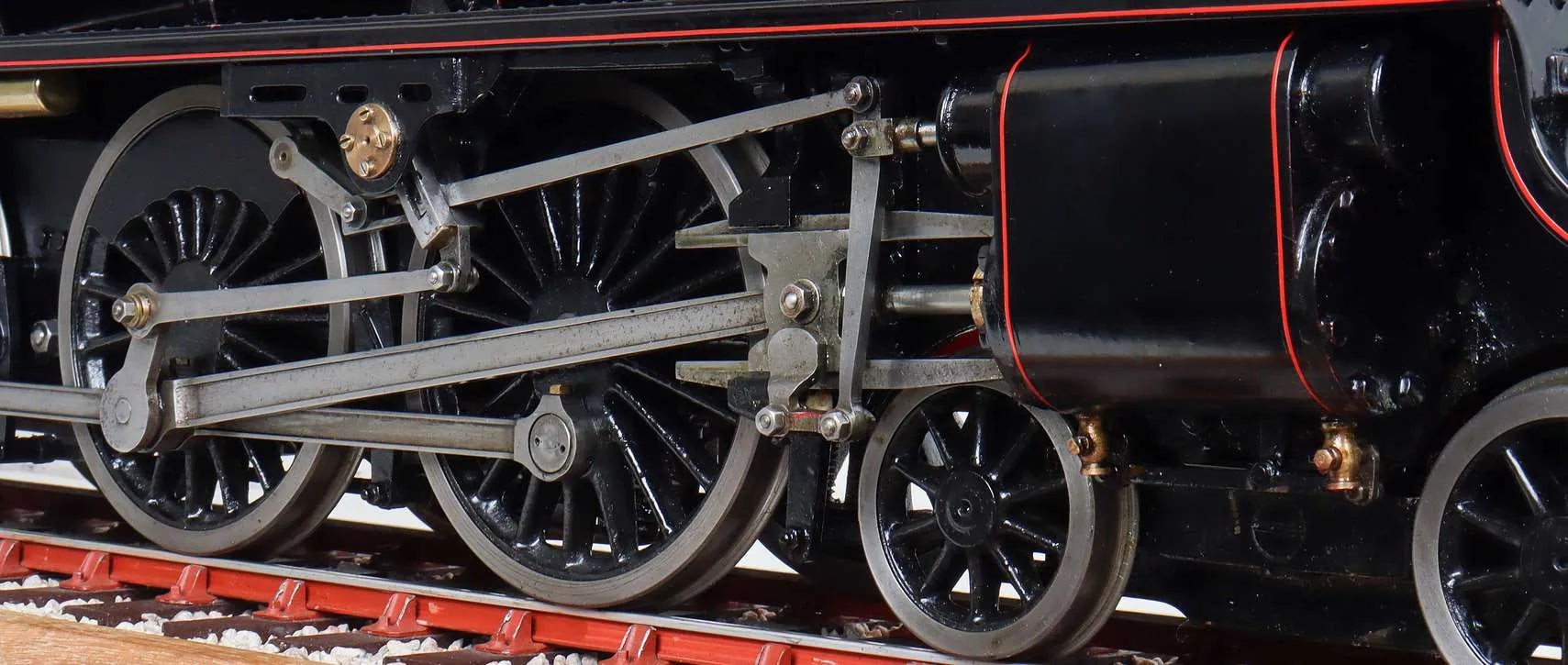

Valve gear |
Walschaerts |
Reverser type |
screw |
Lubricator type |
mechanical |
Boiler maker |
GB Boiler Services |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
CE/UKCA mark |
yes |
Year built |
2005 |
Boiler number |
RV.117 |
Safety valve type |
spring |
Safety valve |
2 |
Whistle |
yes |

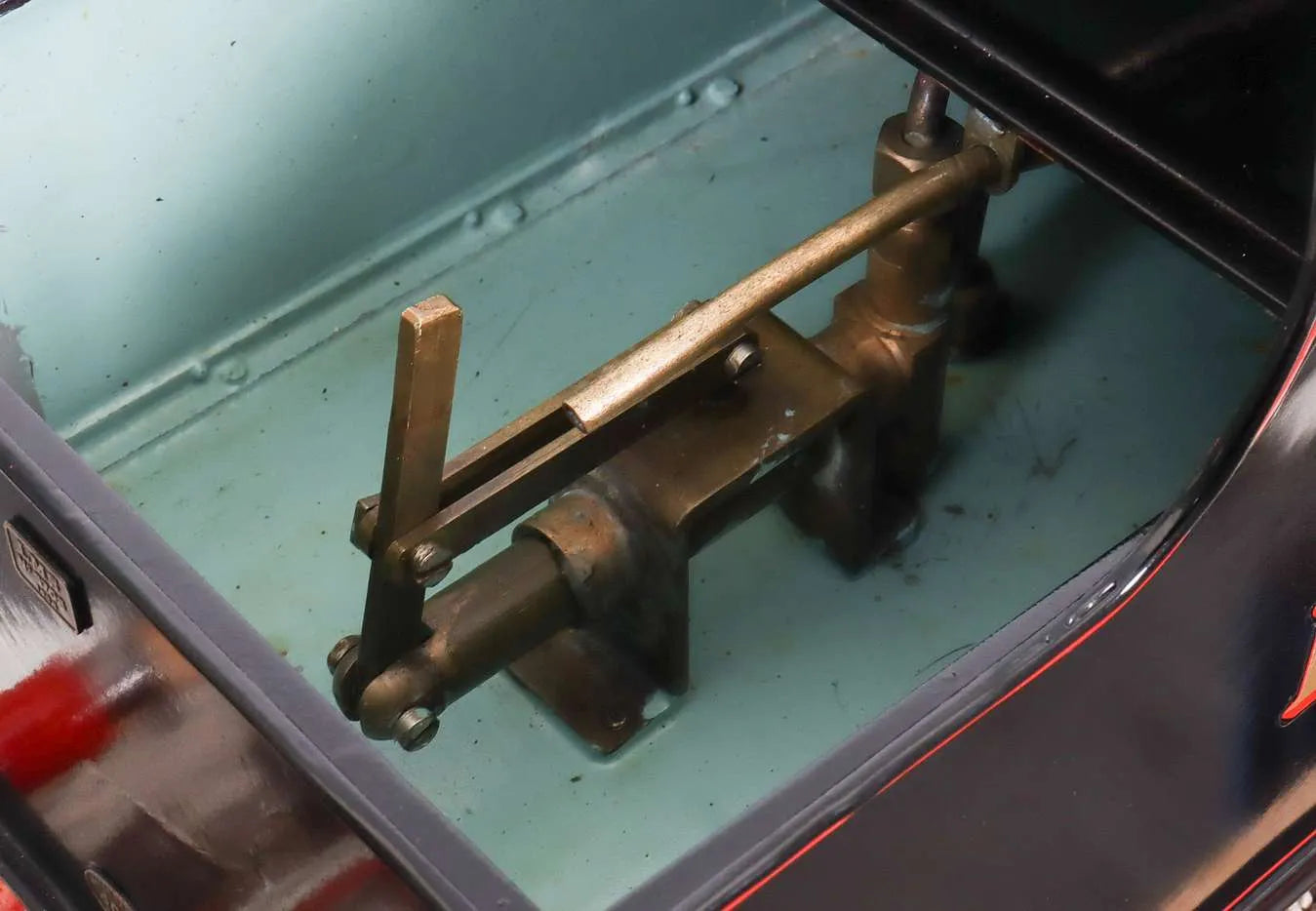

Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
4 |
Date out |
Jul-25 |
