Sold

11333

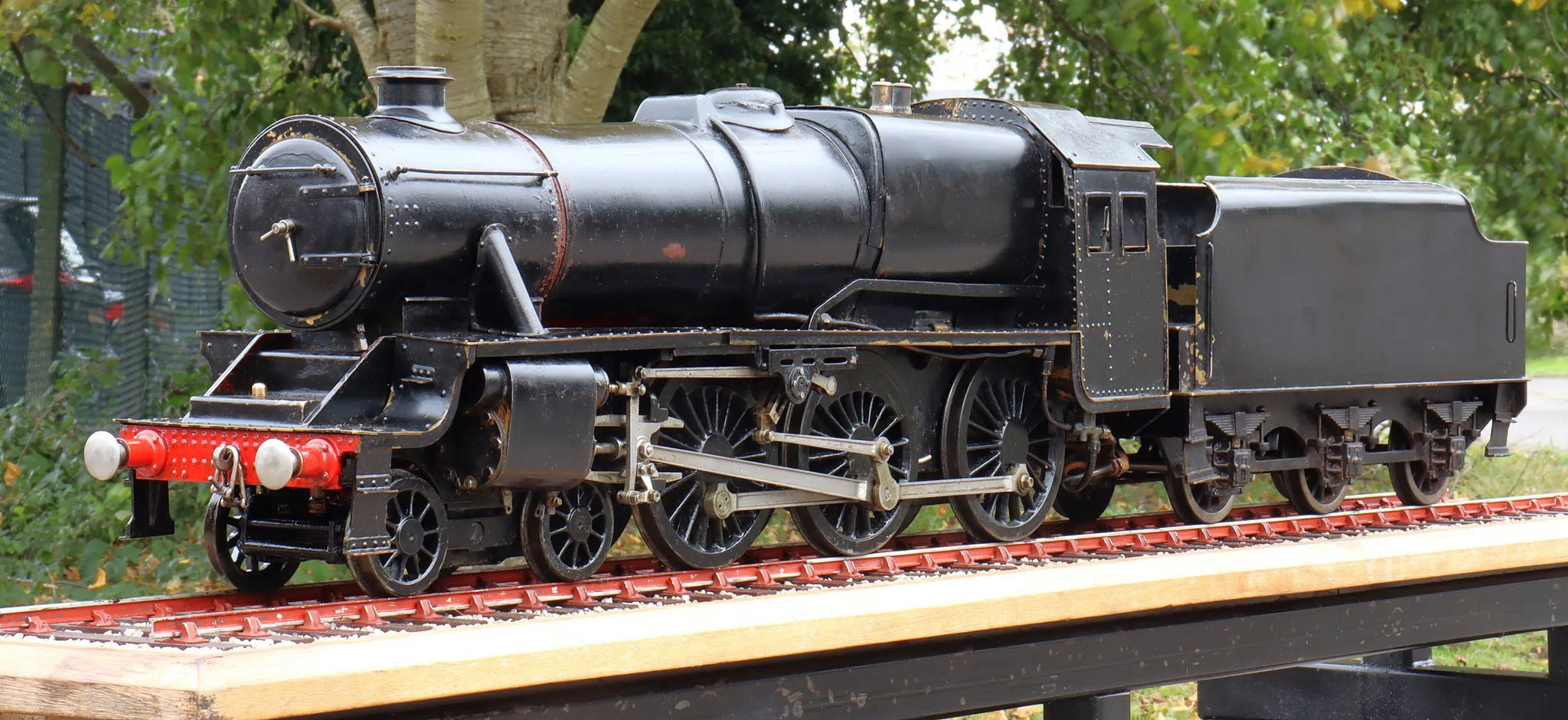

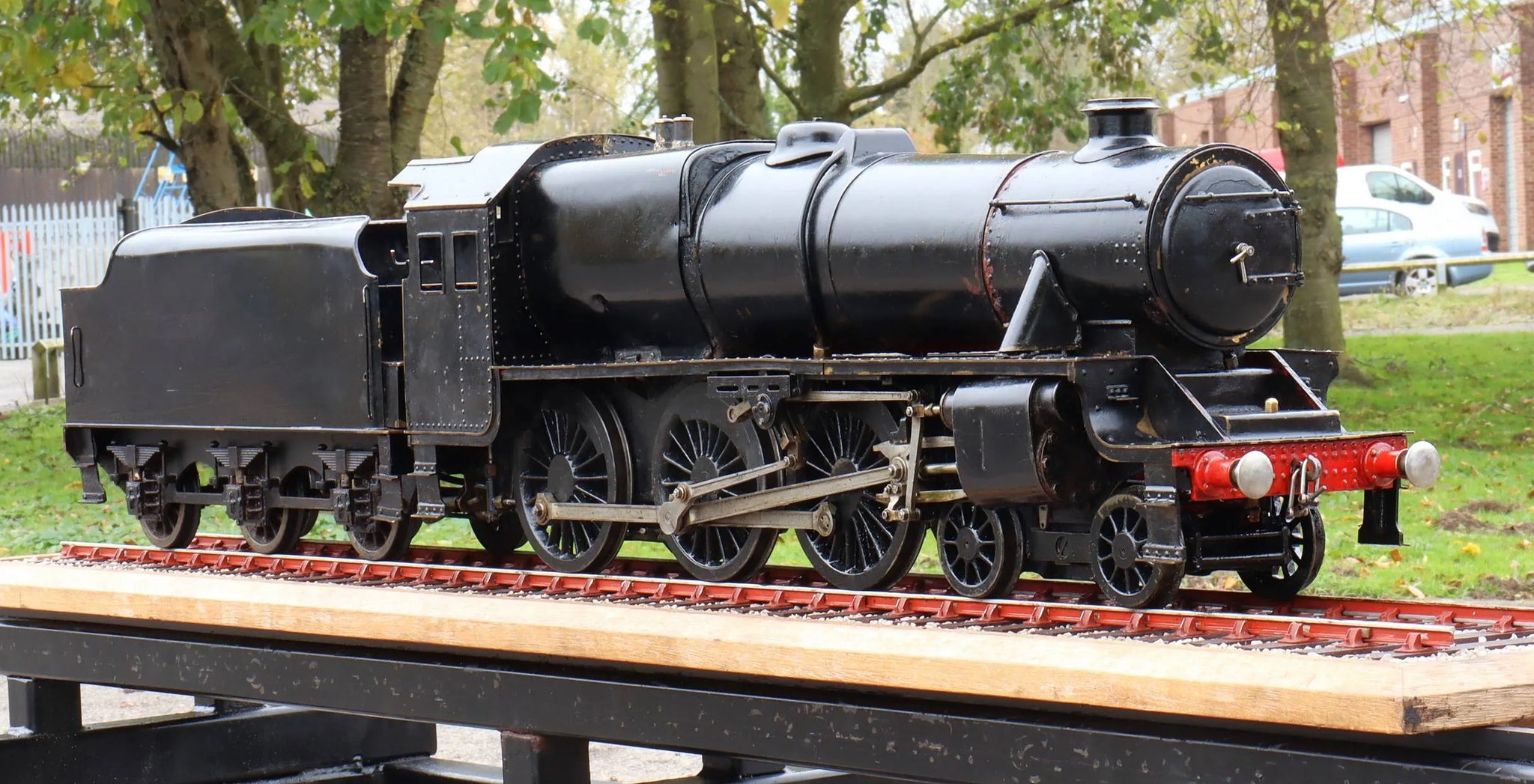

3 1/2 inch gauge LMS Black 5

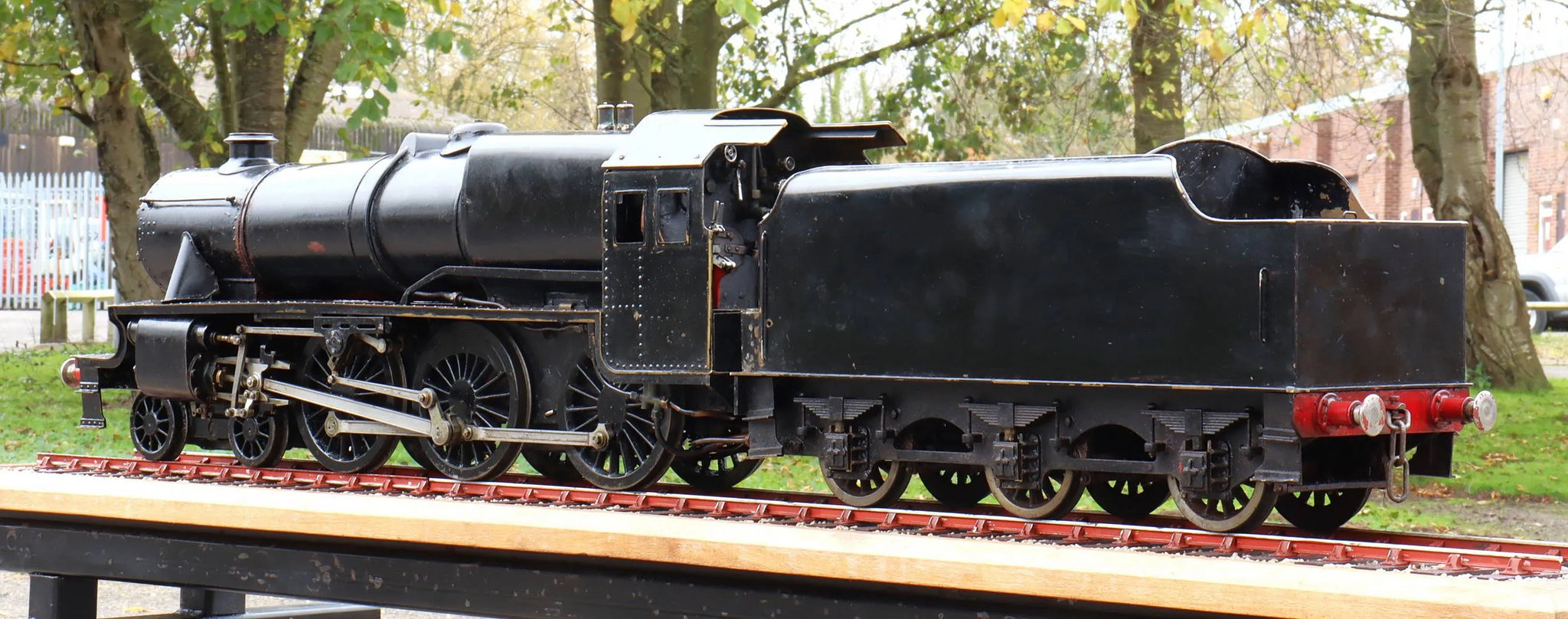

An ancient 3 1/2 inch gauge Black 5 to LBSC's "Doris" design, this one came to us as part of a larger collection of running and part-built locomotives acquired and/or built over many years by a father and son, both model engineers.

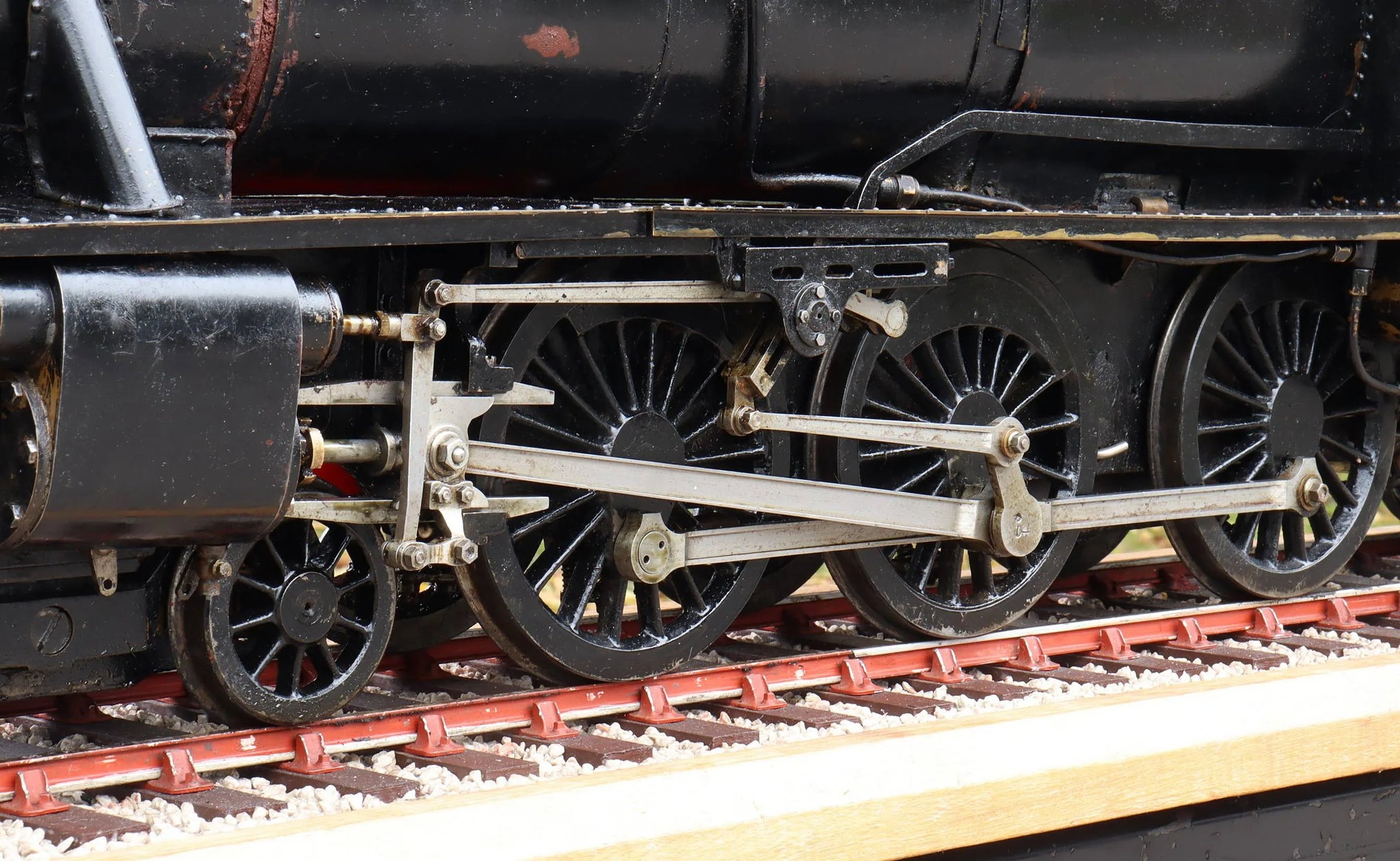

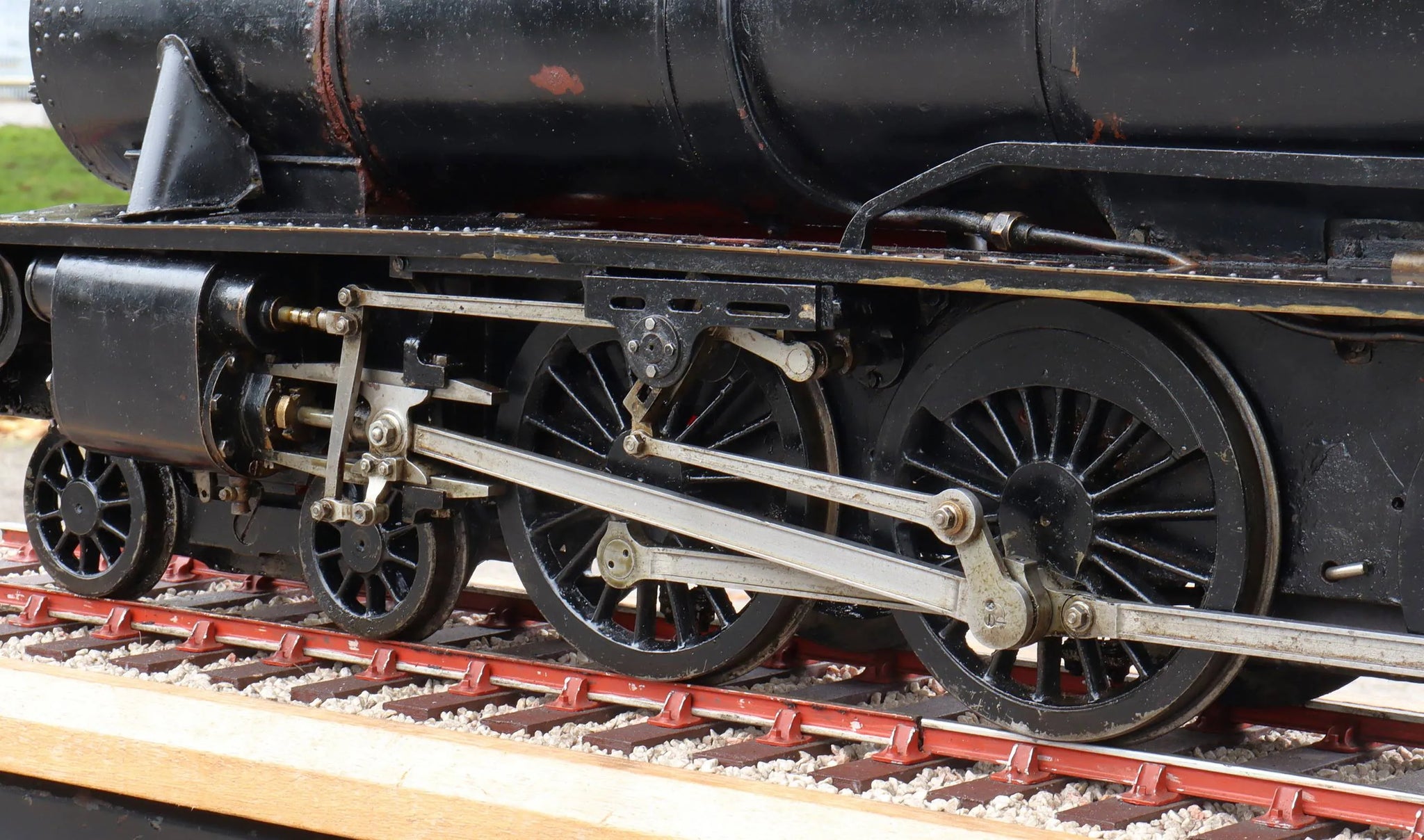

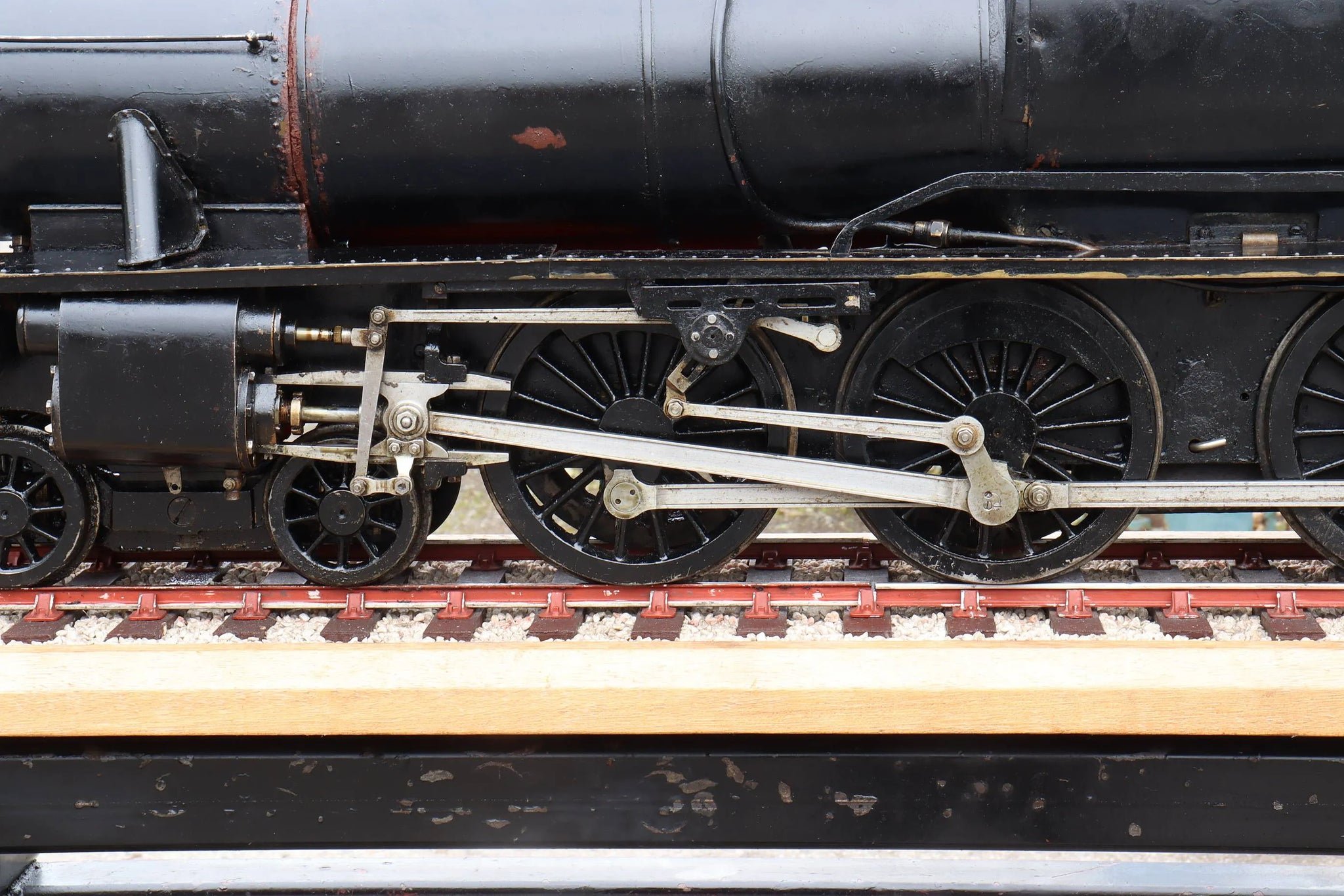

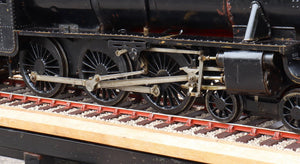

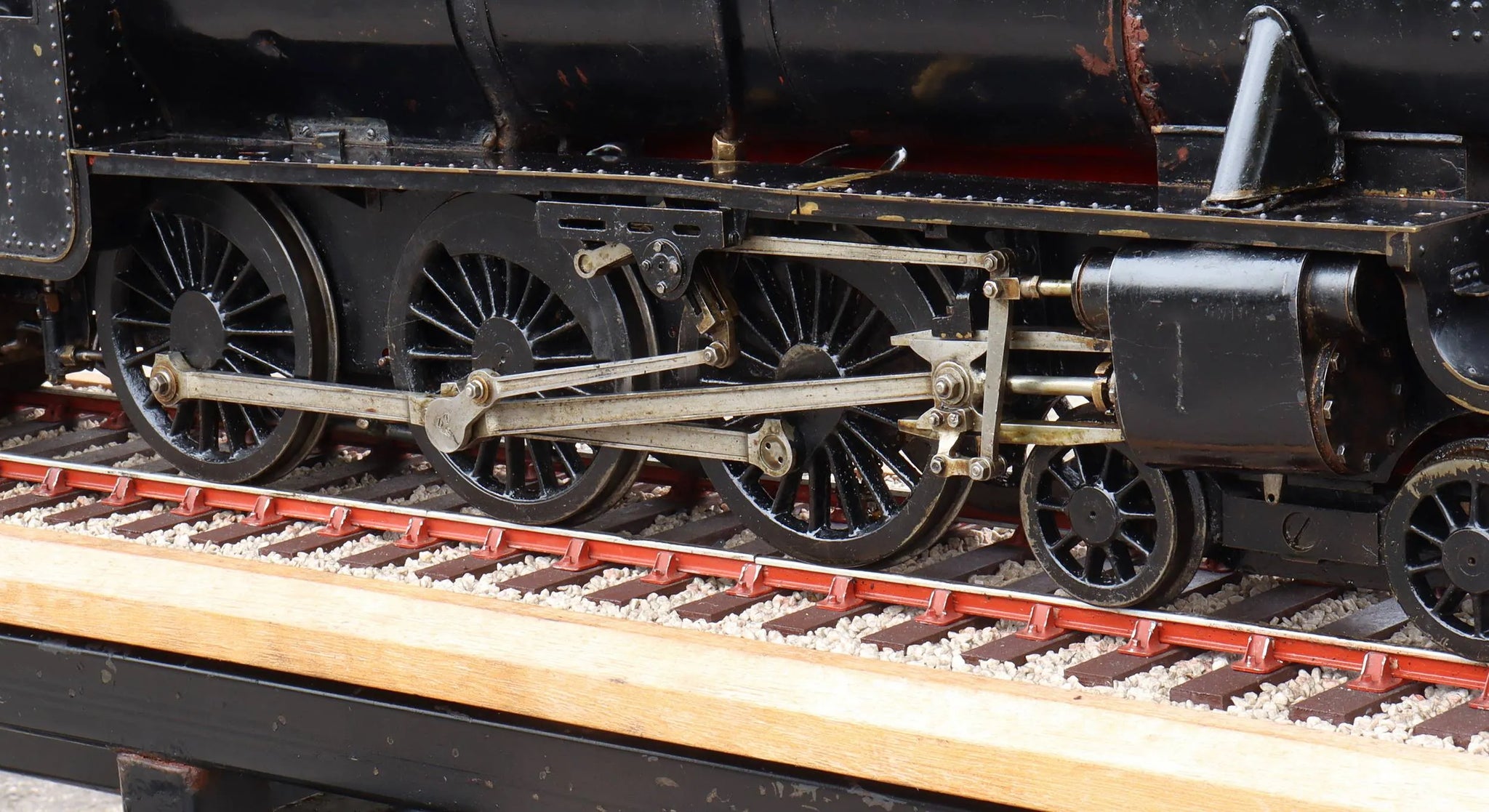

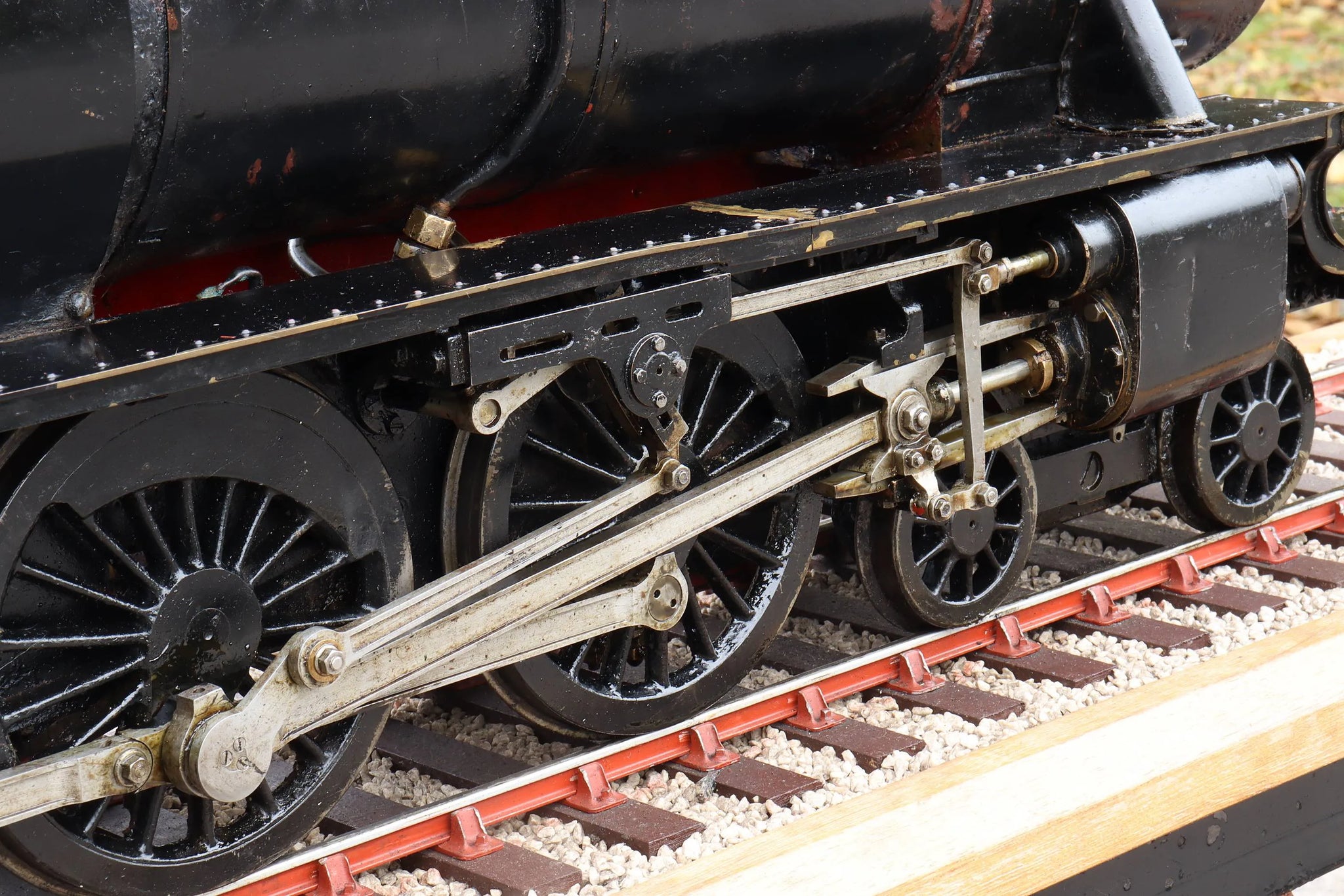

Free to turn over, the engine runs on air in both directions; motionwork and valve gear has wear in just about every joint, the drain cocks are missing.

Untested, the boiler has signs of verdigris on the throatplate, with what appears to be a brazed and calked barrel seam.

Technical information

Stock code

11333

Gauge

3 1/2 inch

Length/inches

30

Width/inches

7

Height/inches

10.5

Weight/Kg

27+0

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

cast iron

Valve type

piston

Valve gear

Walschaerts

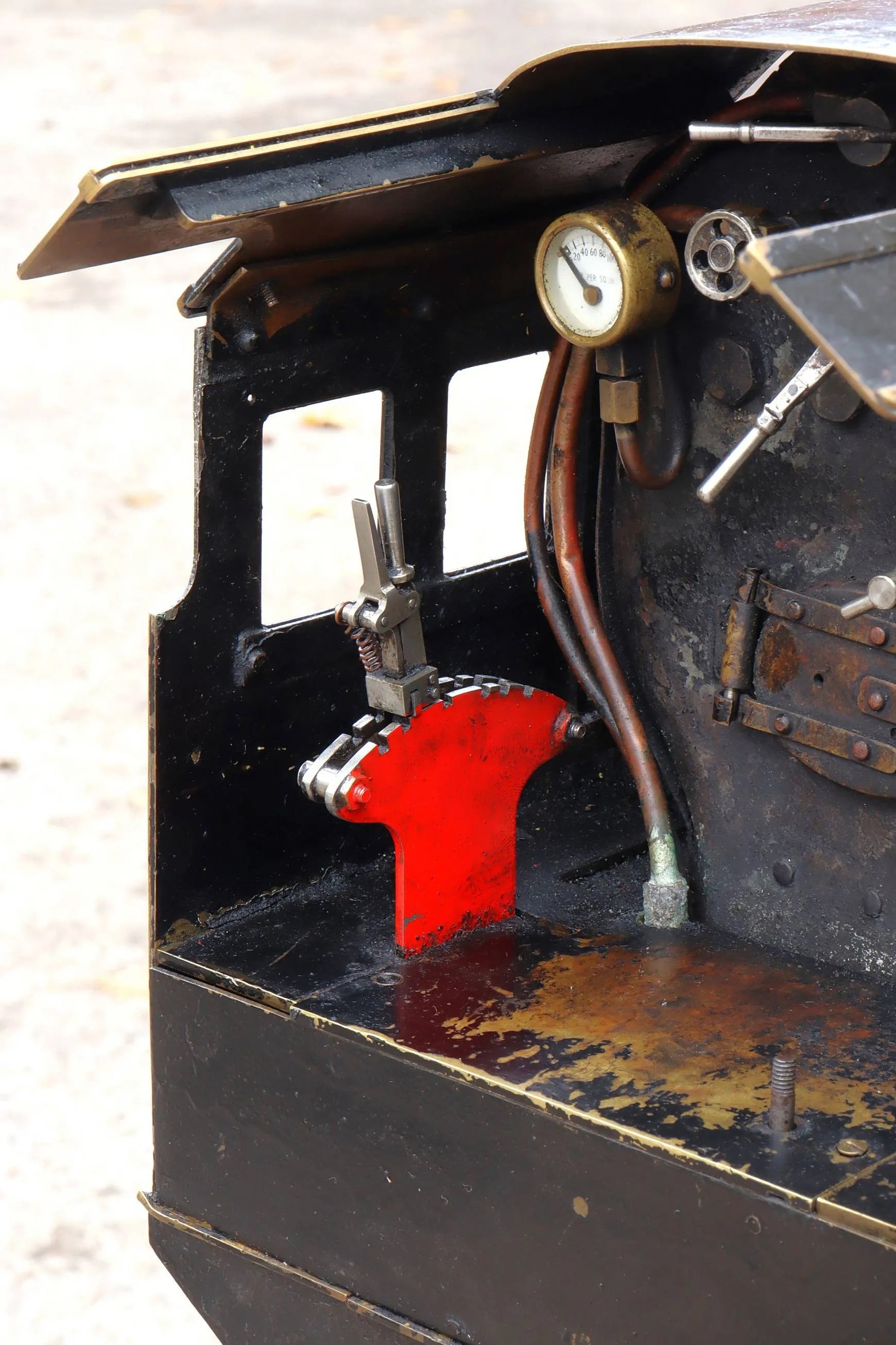

Reverser type

pole

Lubricator type

mechanical

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

4

Date out

Feb-24
