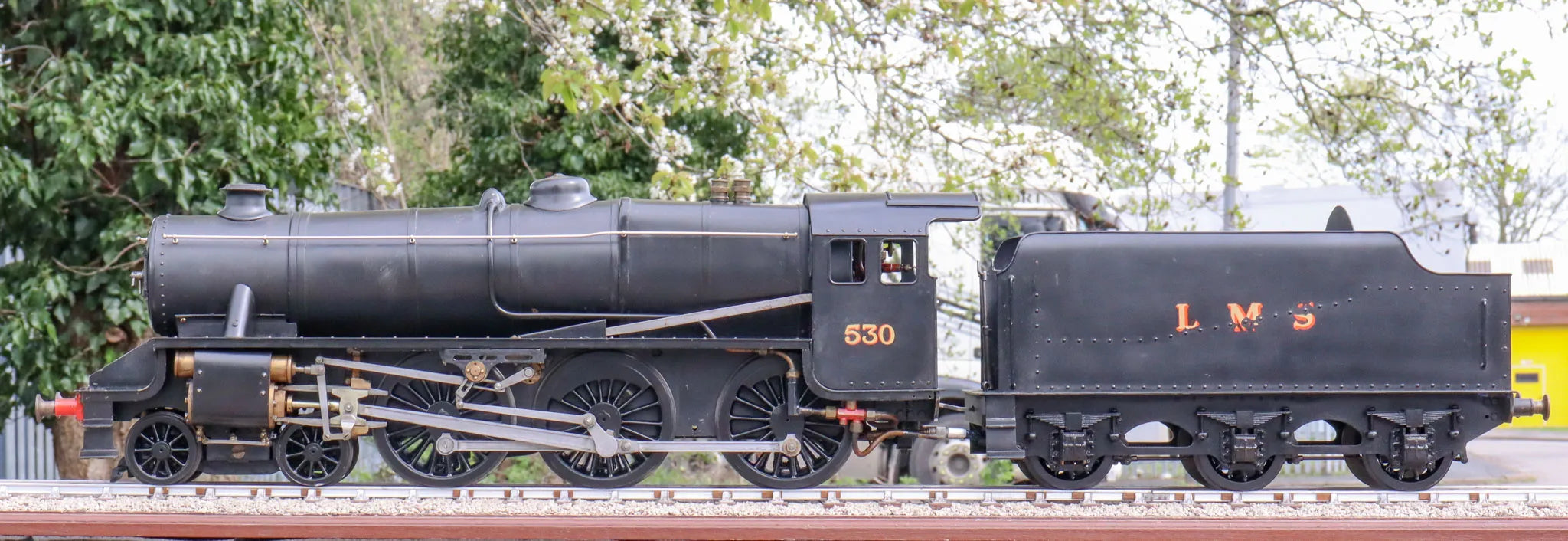

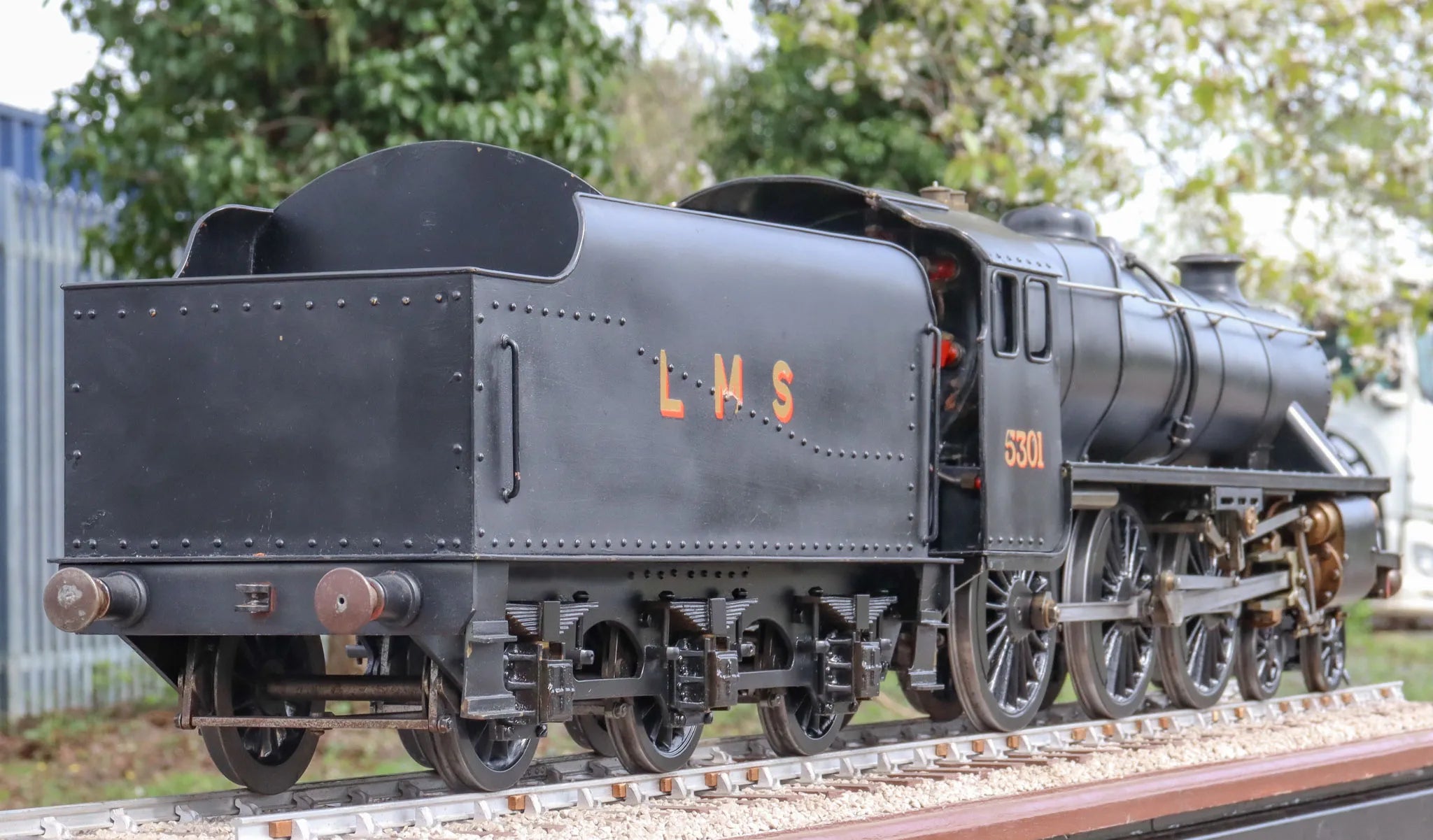

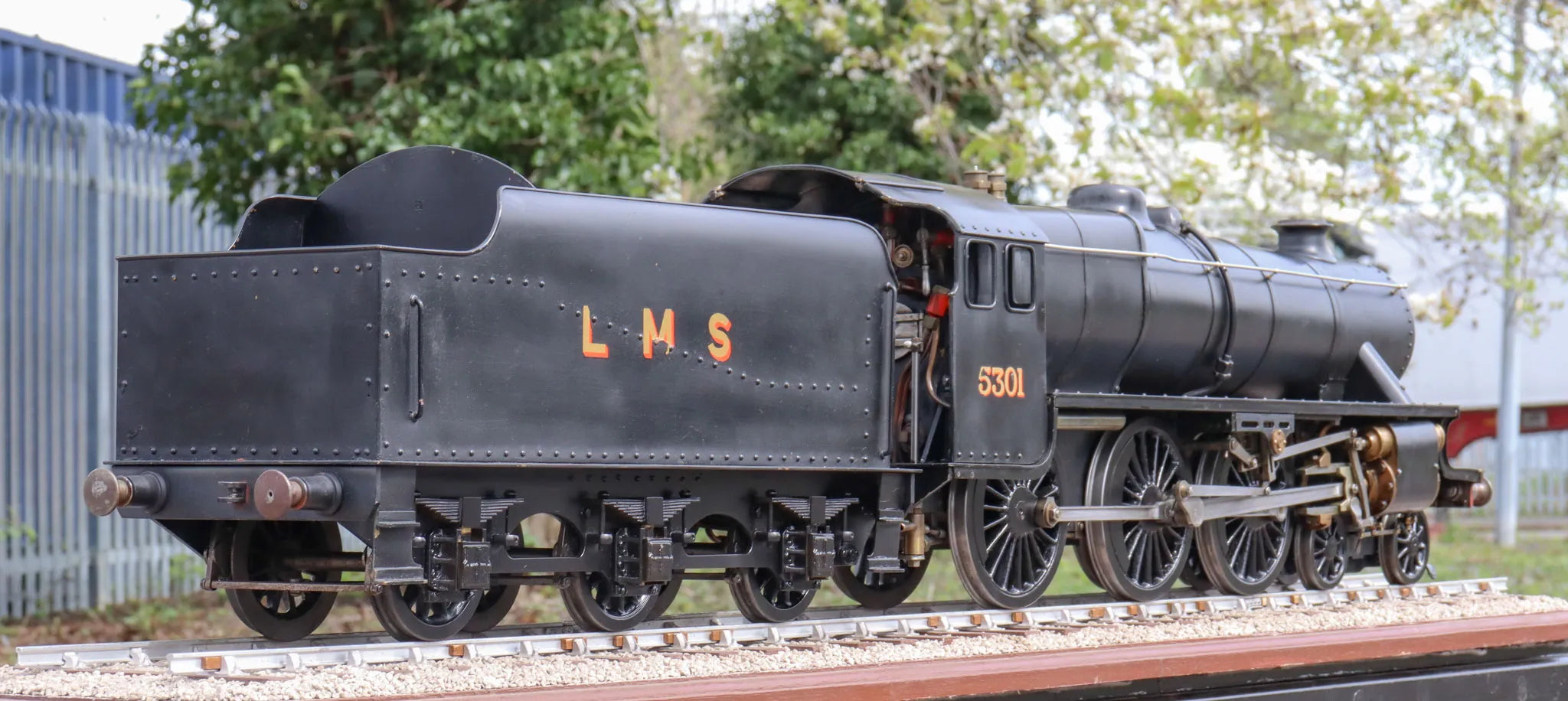

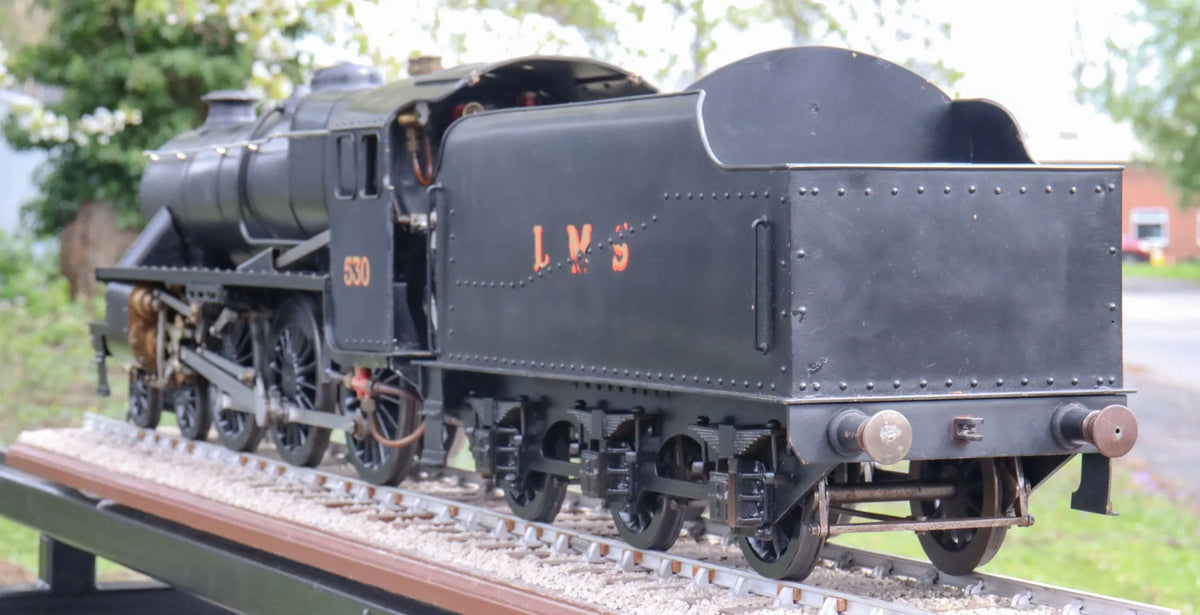

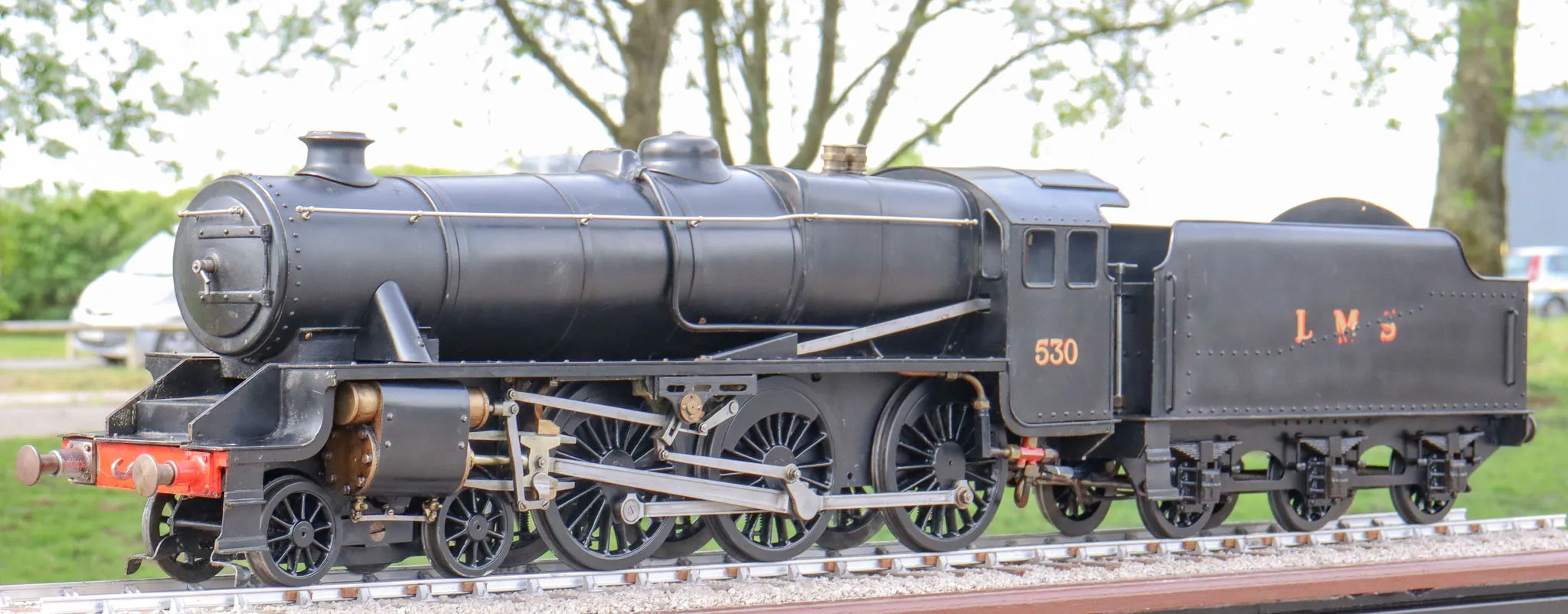

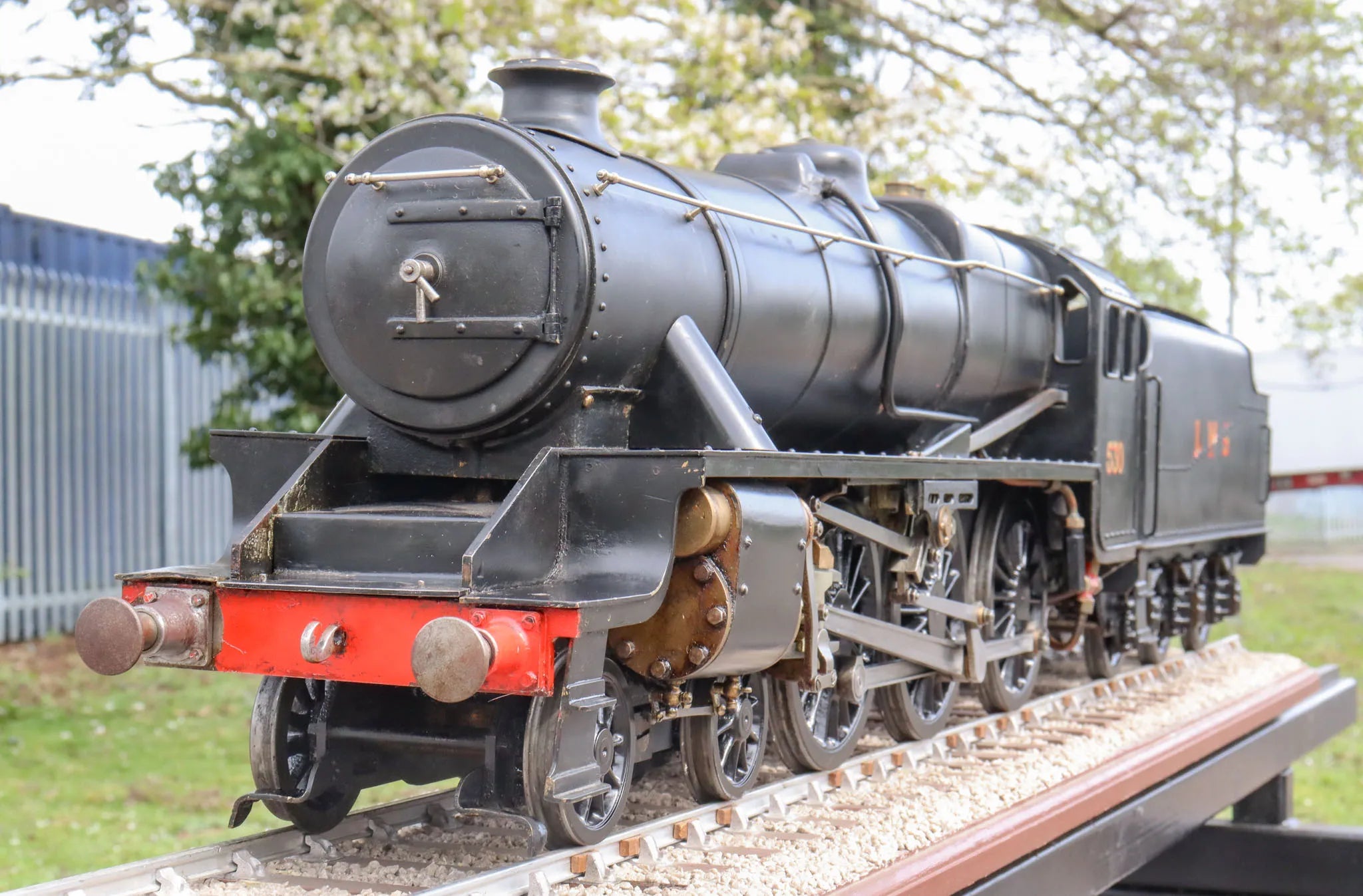

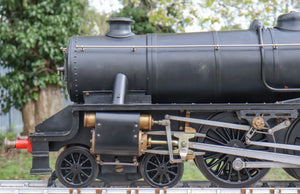

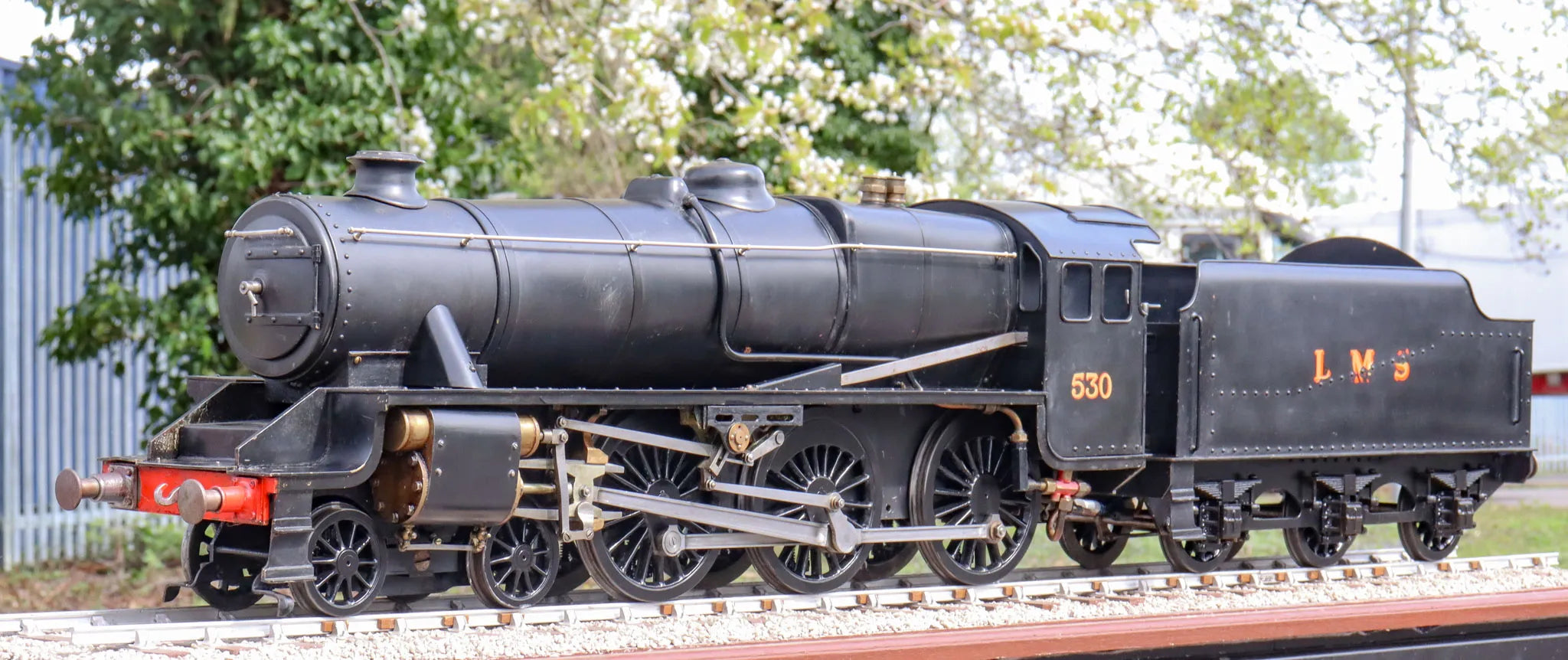

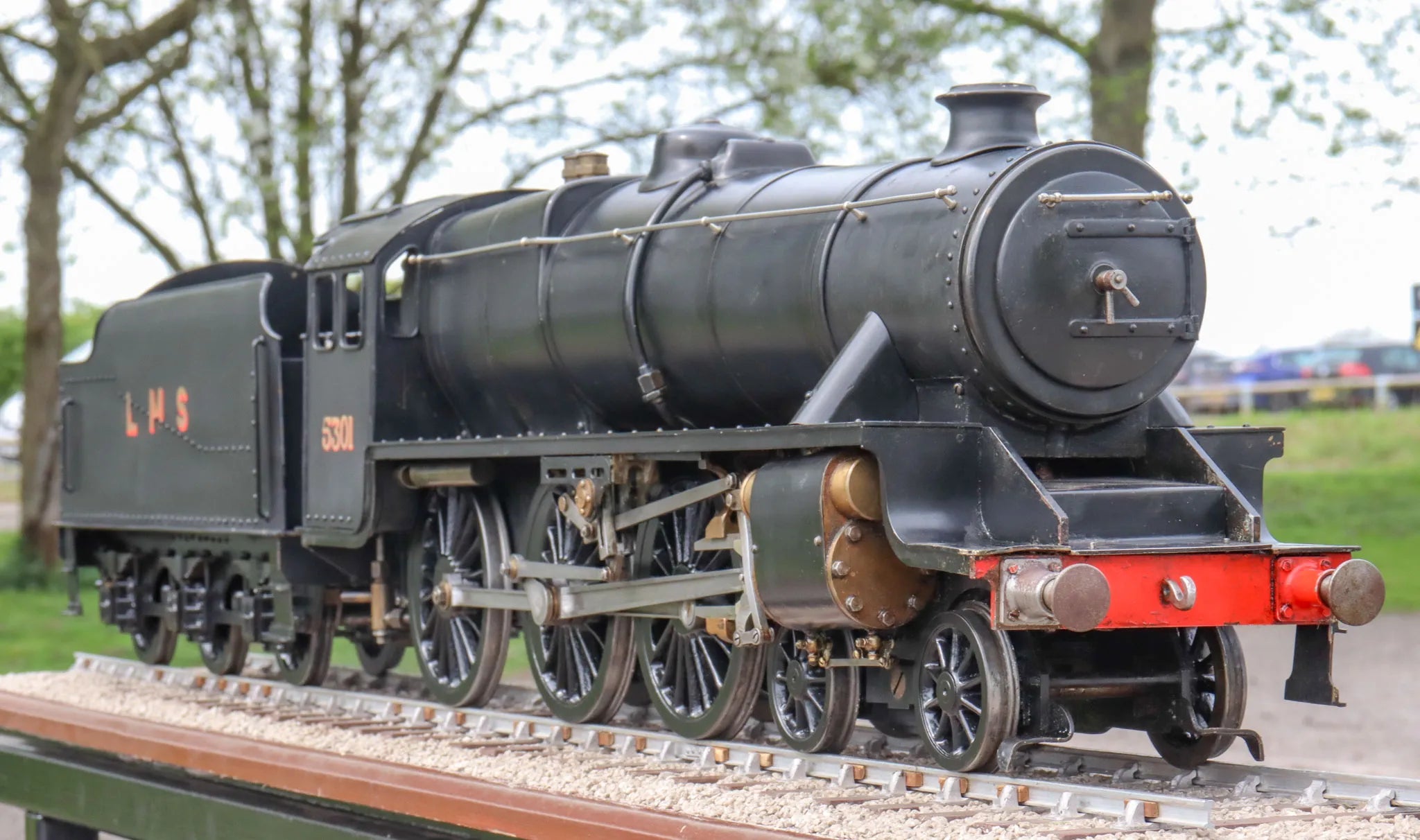

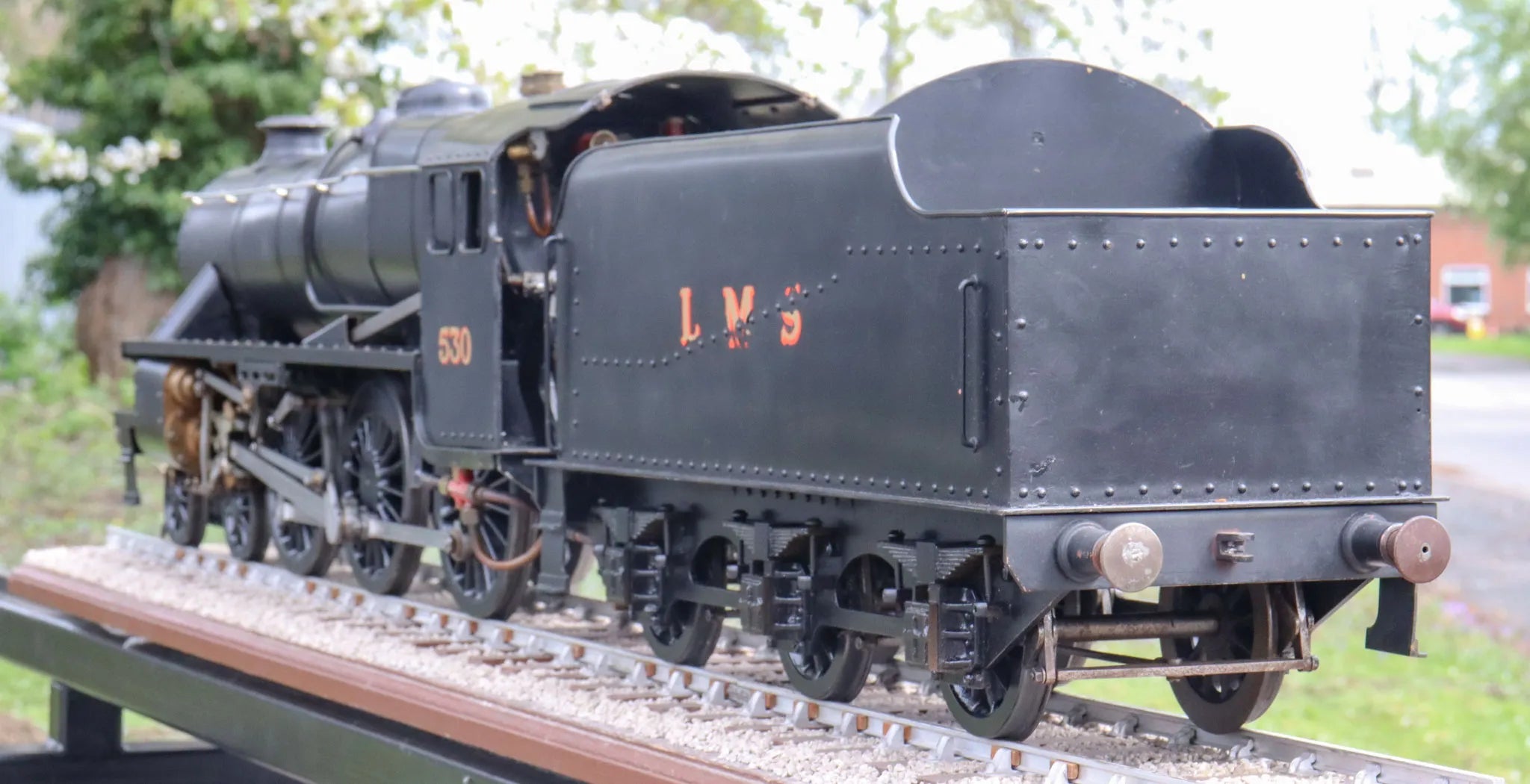

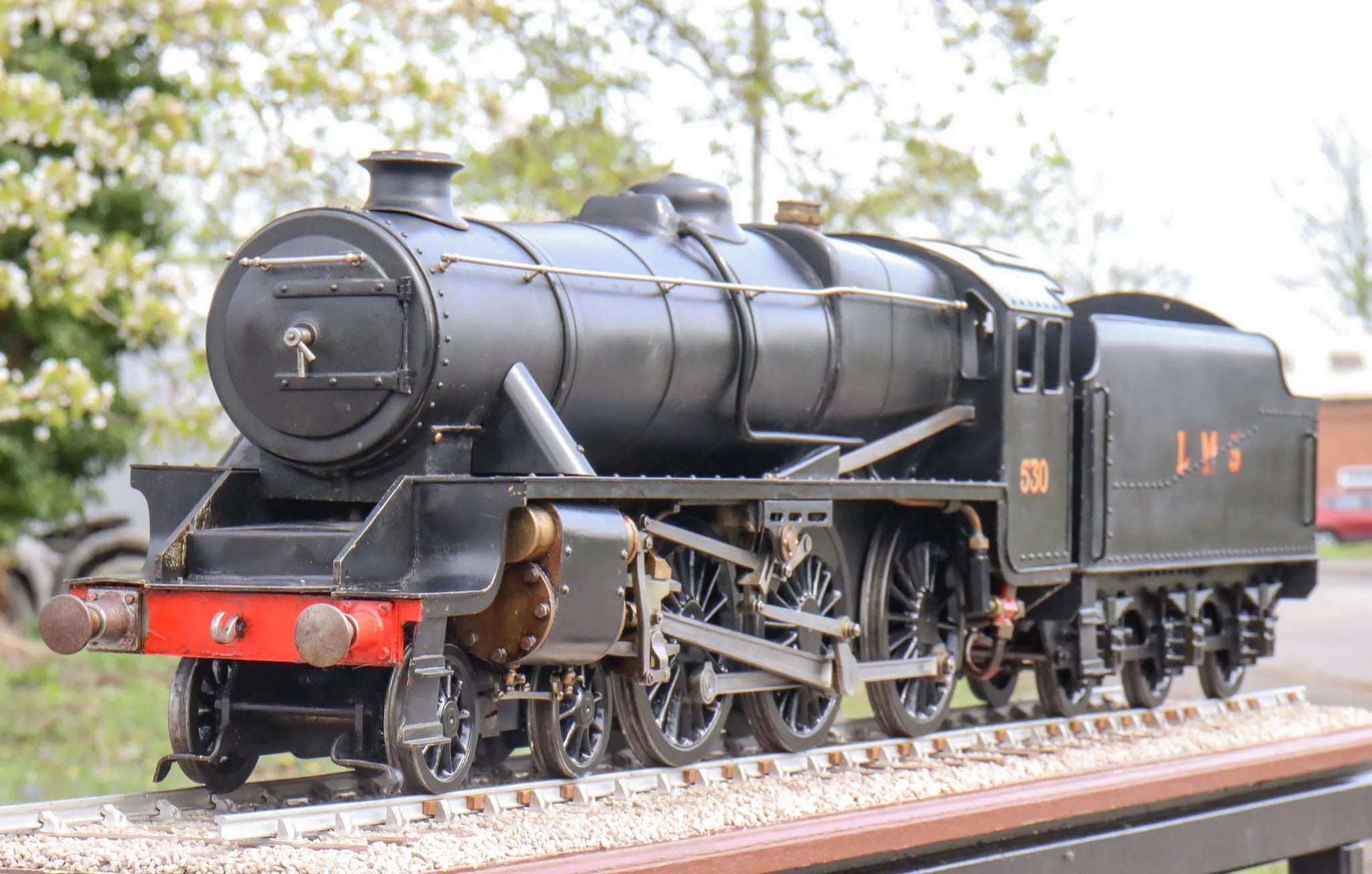

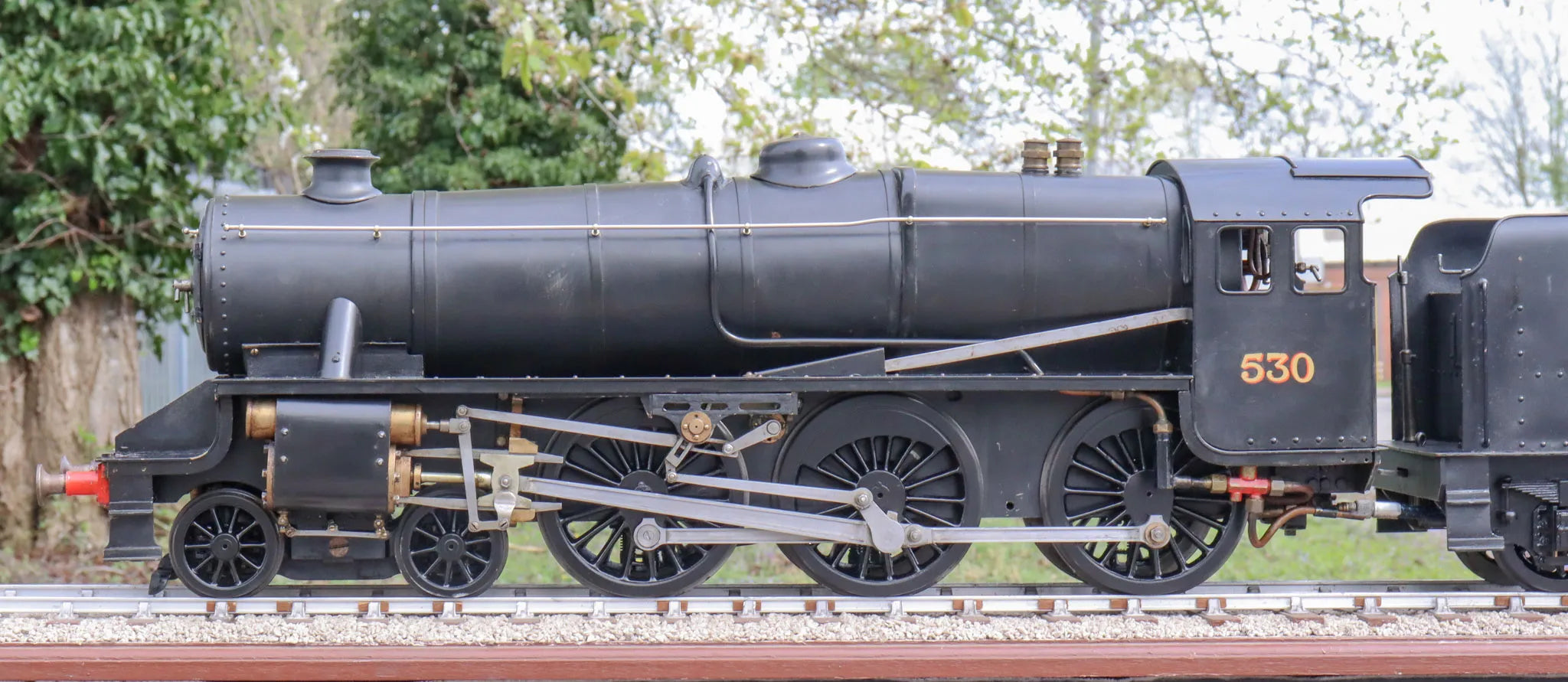

3 1/2 inch gauge LMS Black 5

A 3 1/2 inch gauge LMS Black 5 to LBSC's popular "Doris" design. An older engine, well built in the first place but now needing some light restoration work.

The commercially built boiler has had a hydraulic test with new certification issued. The engine rolls freely and the chassis runs very well on air in either direction, with slight blow by which we would expect to improve under steam.

The grate and ashpan are missing - the grate casting is available from the usual suppliers, an ashpan could be easily laser cut and folded up.

Technical information

Stock code

11748

Length/inches

30+20

Width/inches

6

Height/inches

10

Weight/Kg

30+11

Wheel material

cast iron

Axlebox type

plain bearing

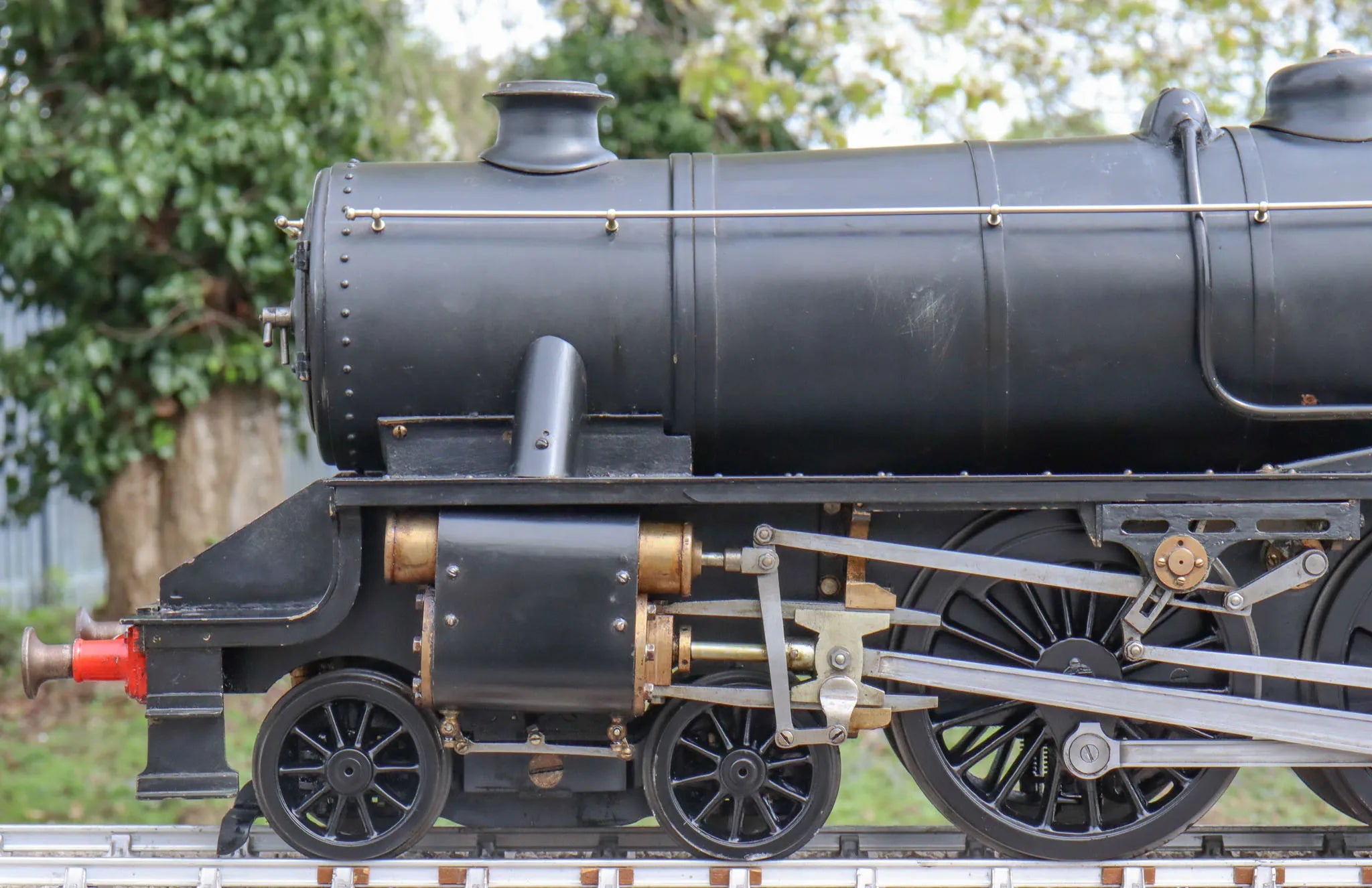

Cylinder material

gunmetal

Valve type

piston

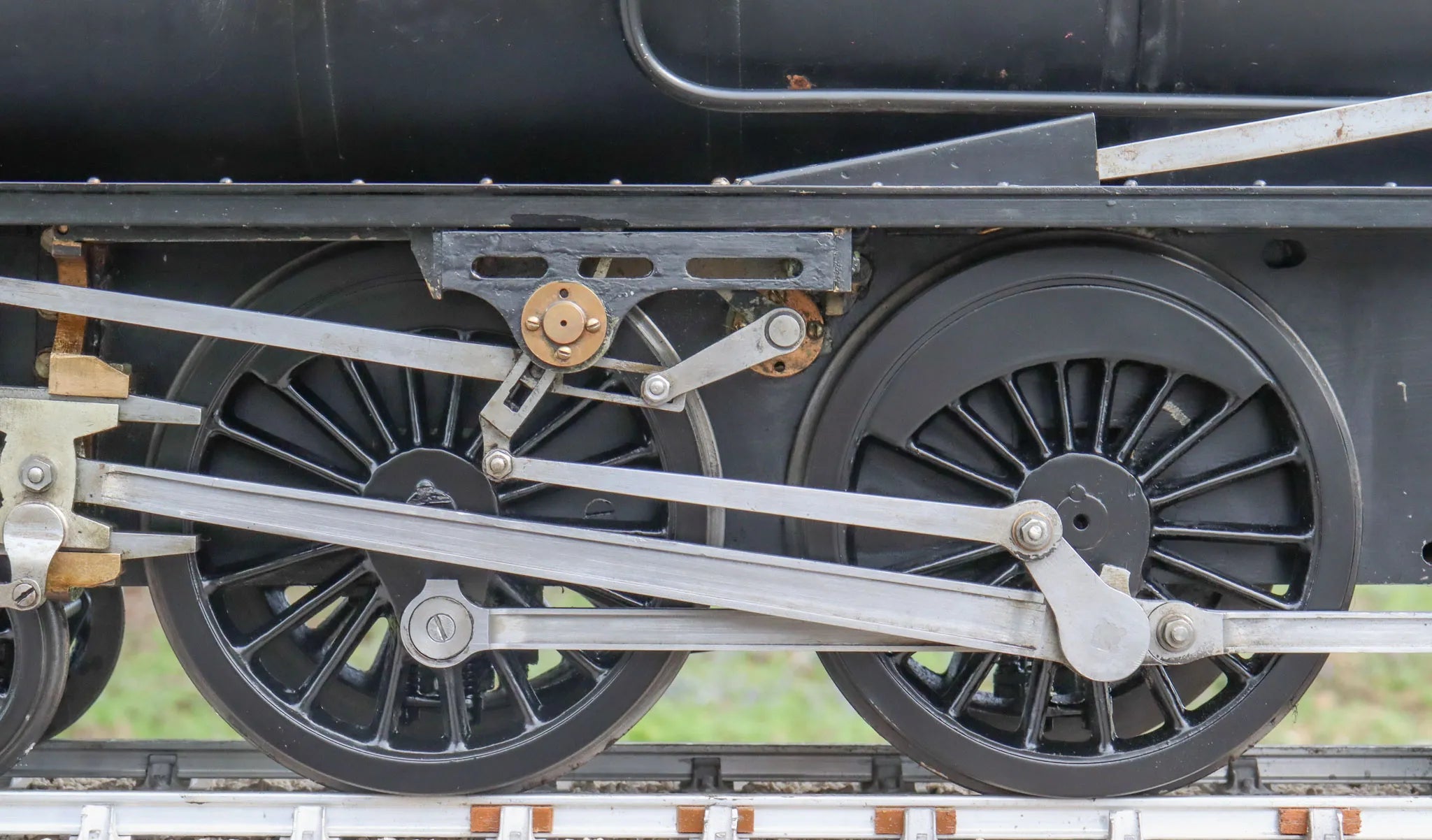

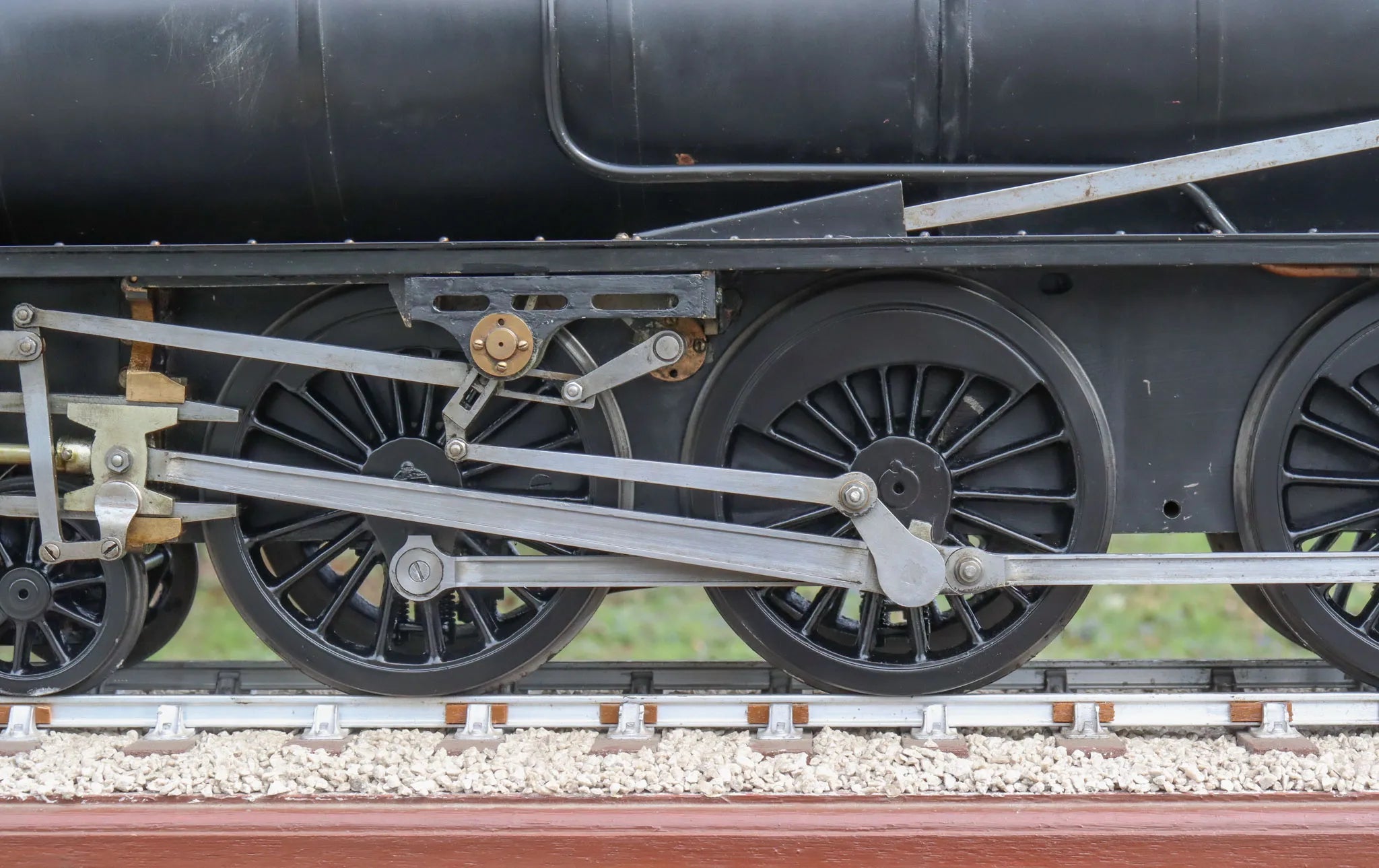

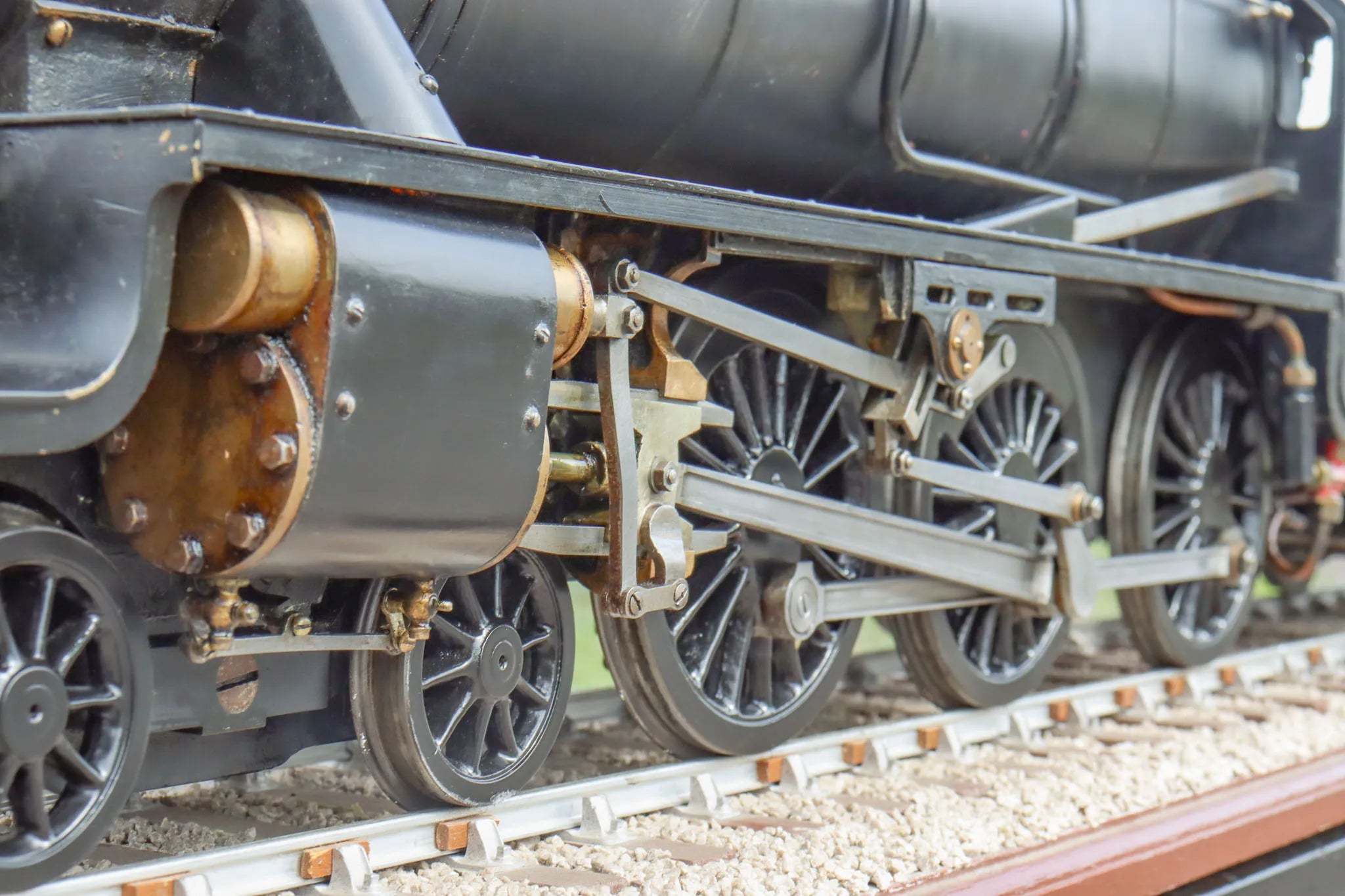

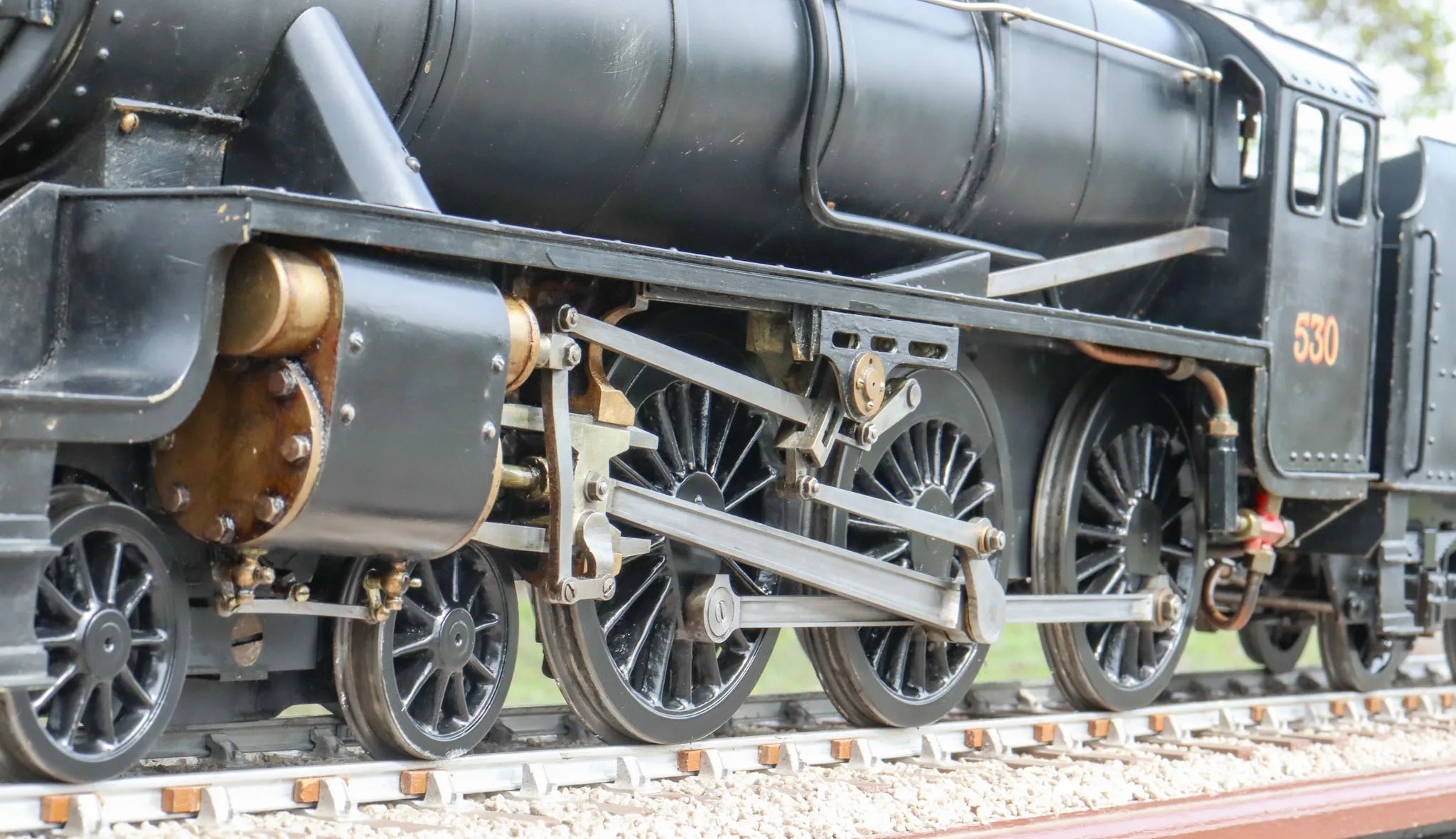

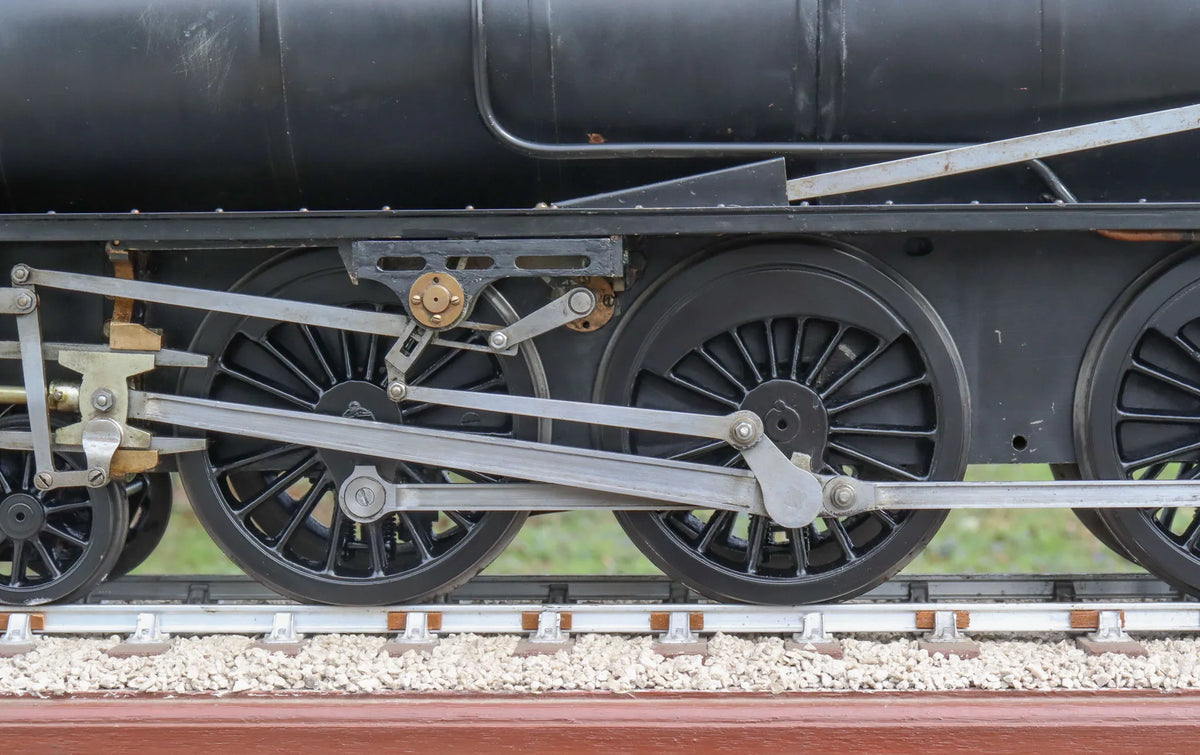

Valve gear

Walschaerts

Boiler maker

Arian Services

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - pre-2002

Year built

1996

Boiler number

141086

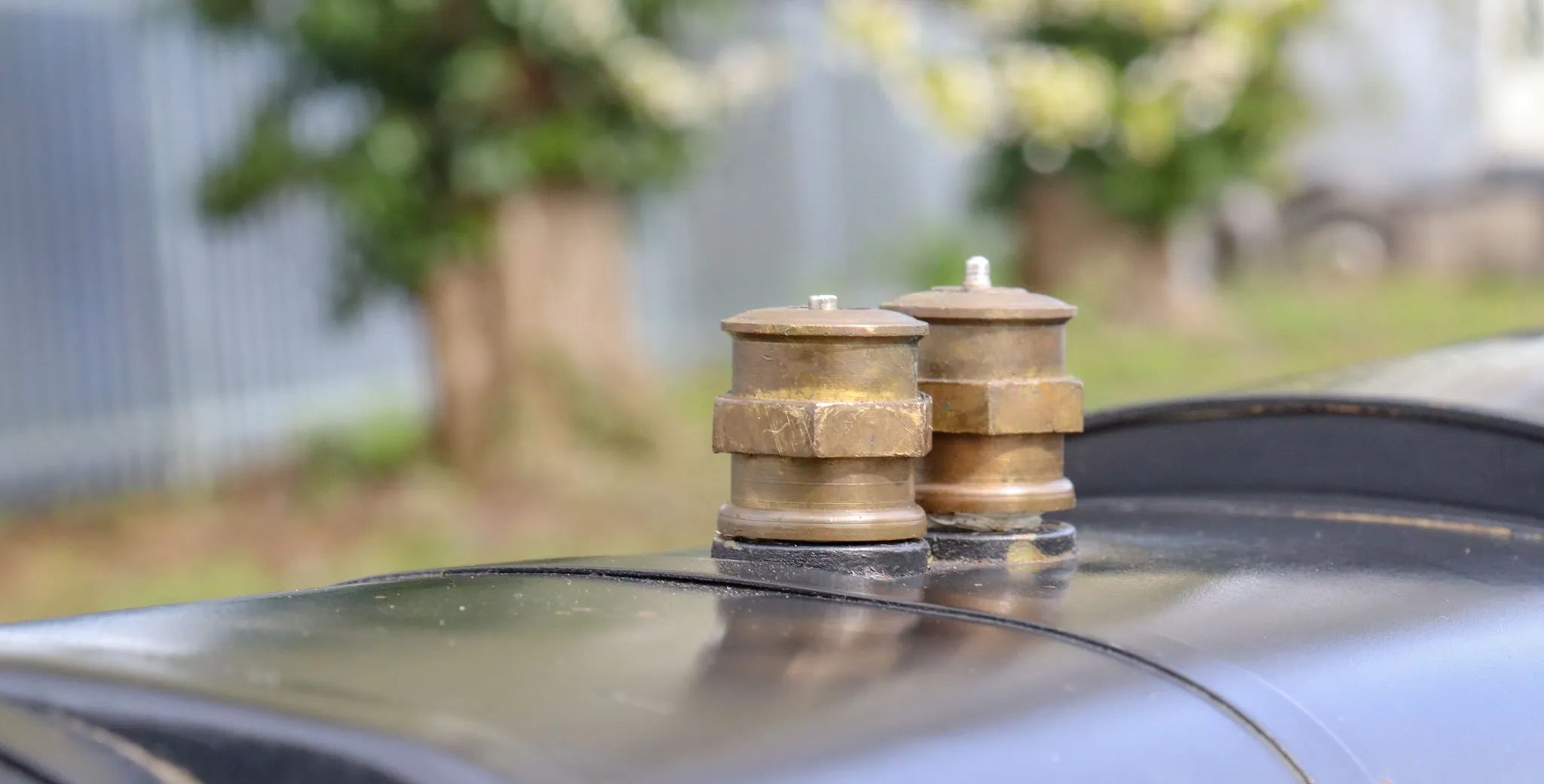

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

4

Date out

Jan-25

Hydraulic test valid to

10-Jan-28
