3 1/2 inch gauge LMS Black 5 with commercial boiler

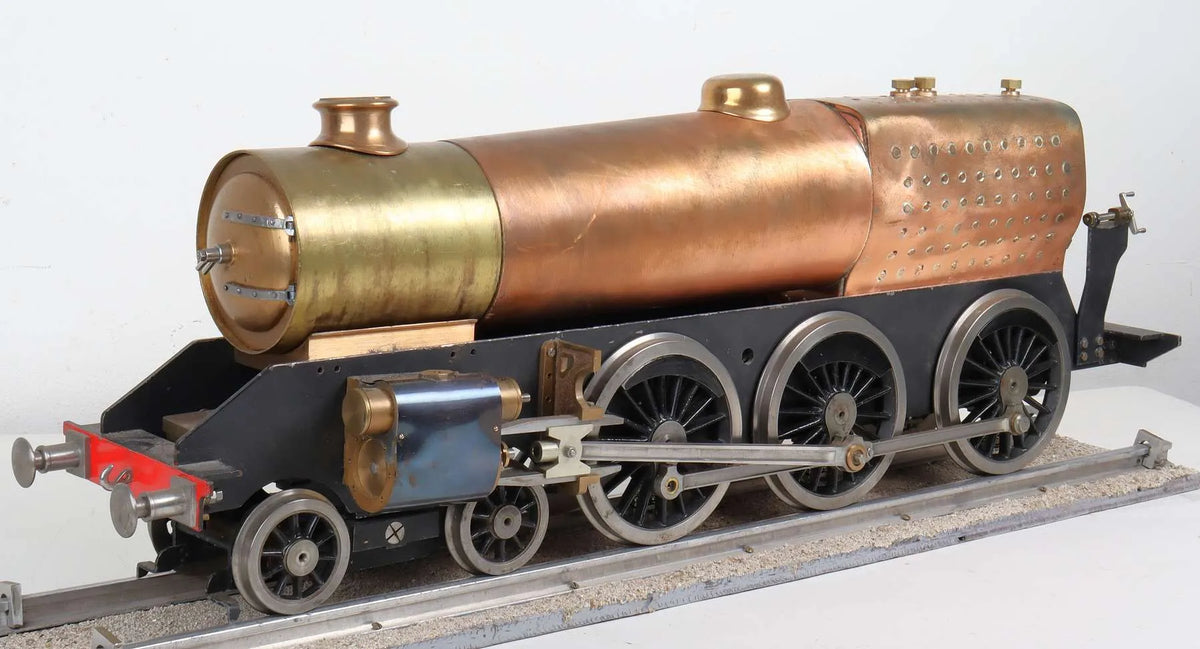

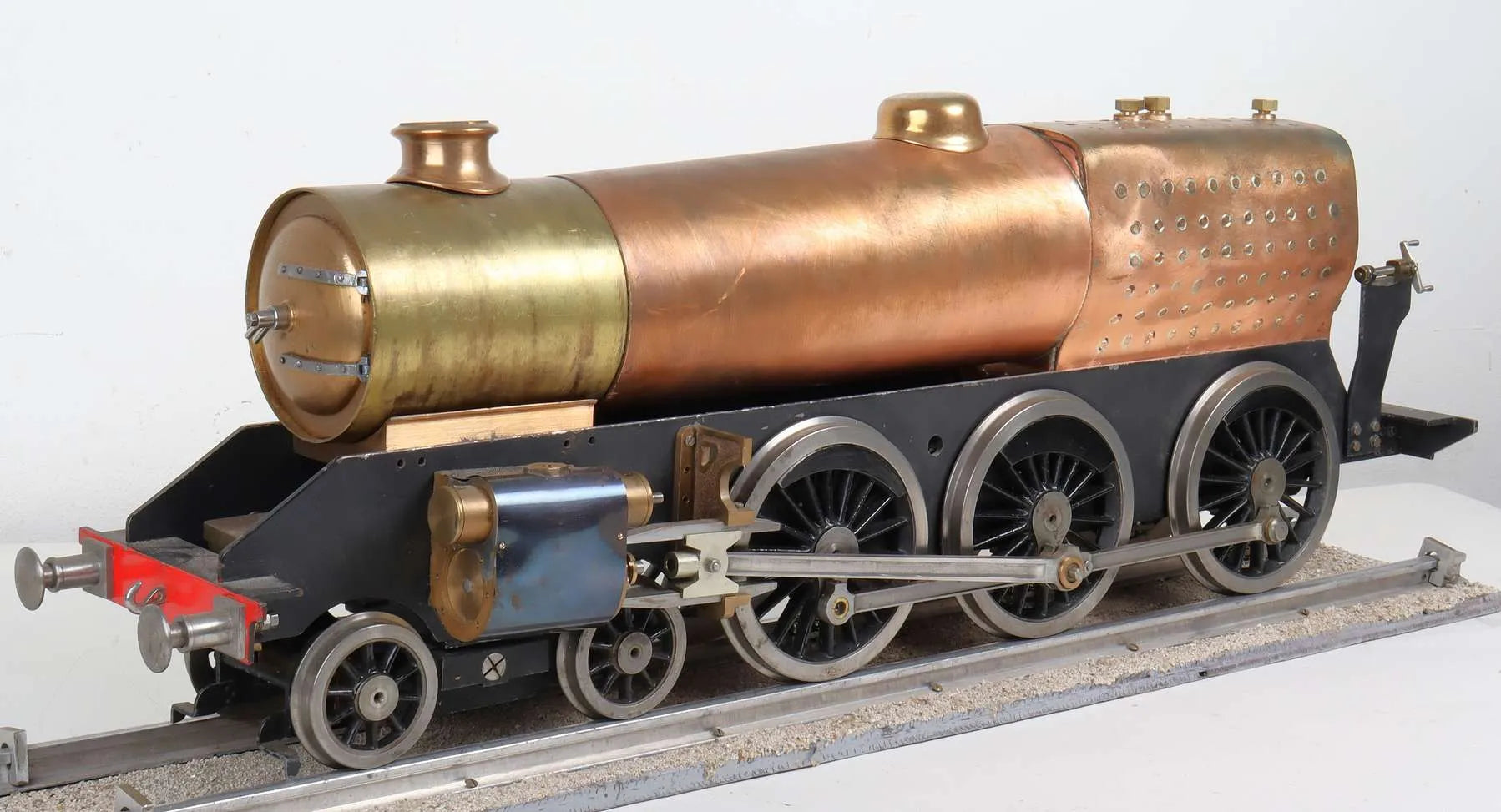

A 3 1/2 inch gauge LMS Black 5 to LBSC's "Doris" design. Work to date is to a decent standard, it includes:

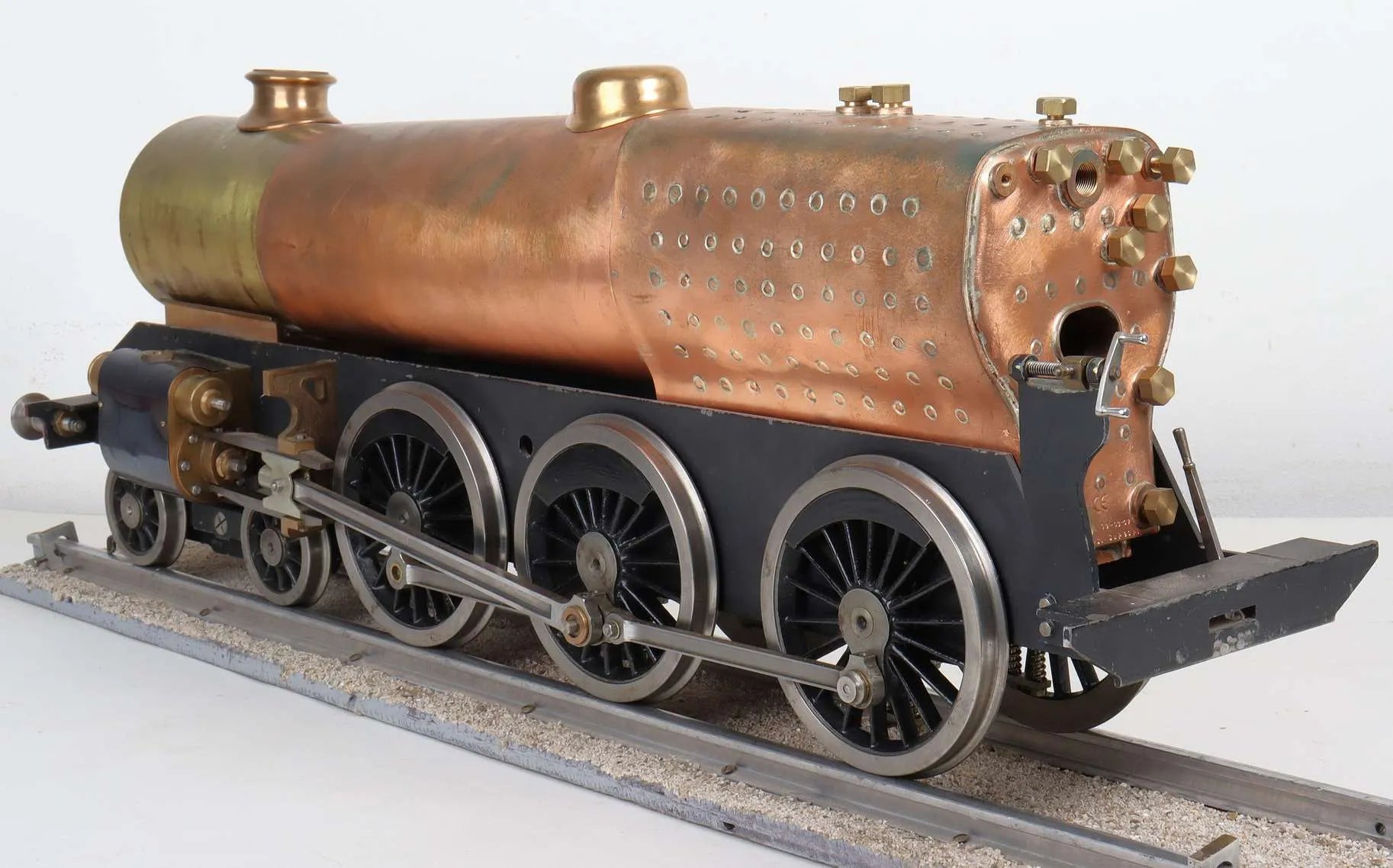

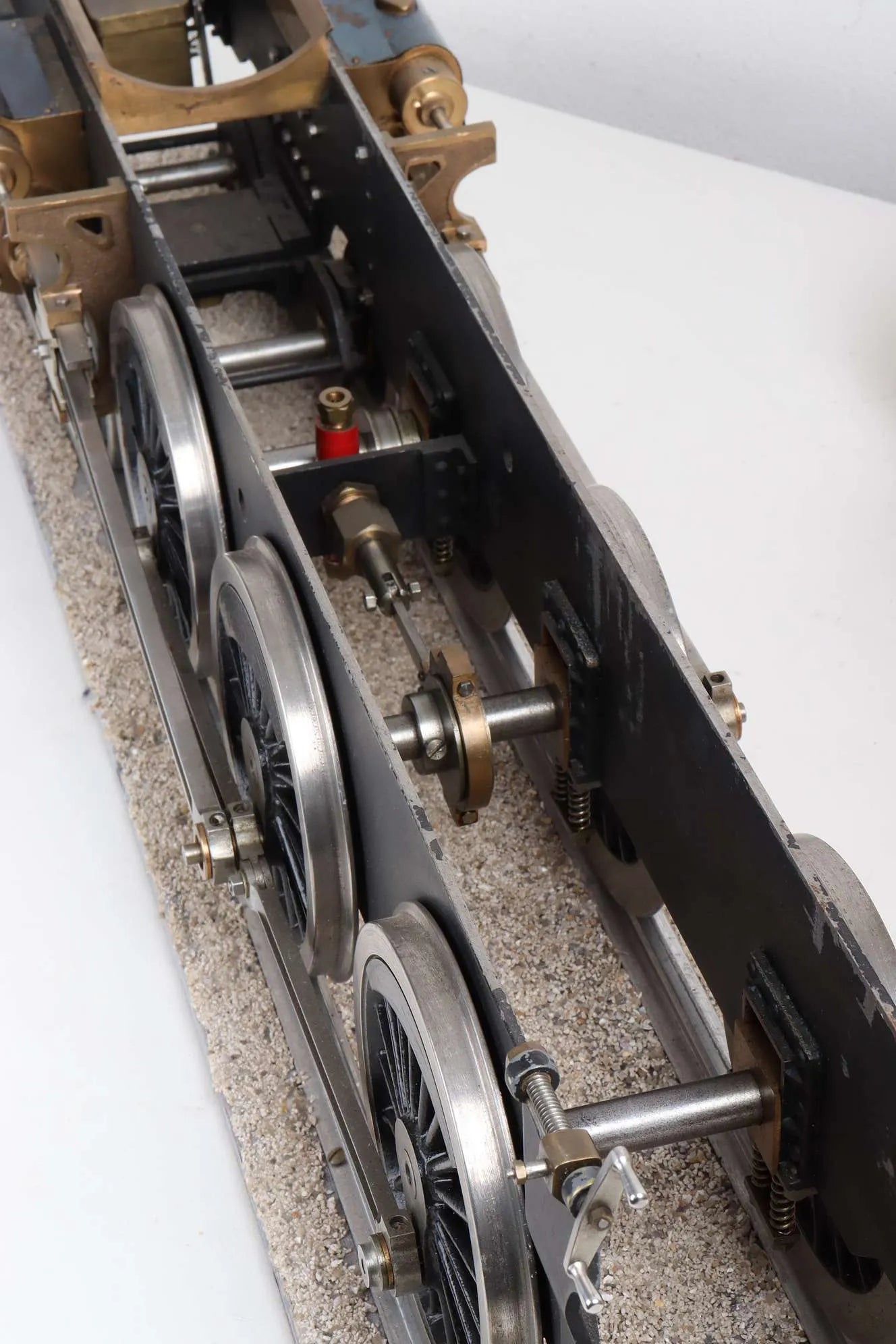

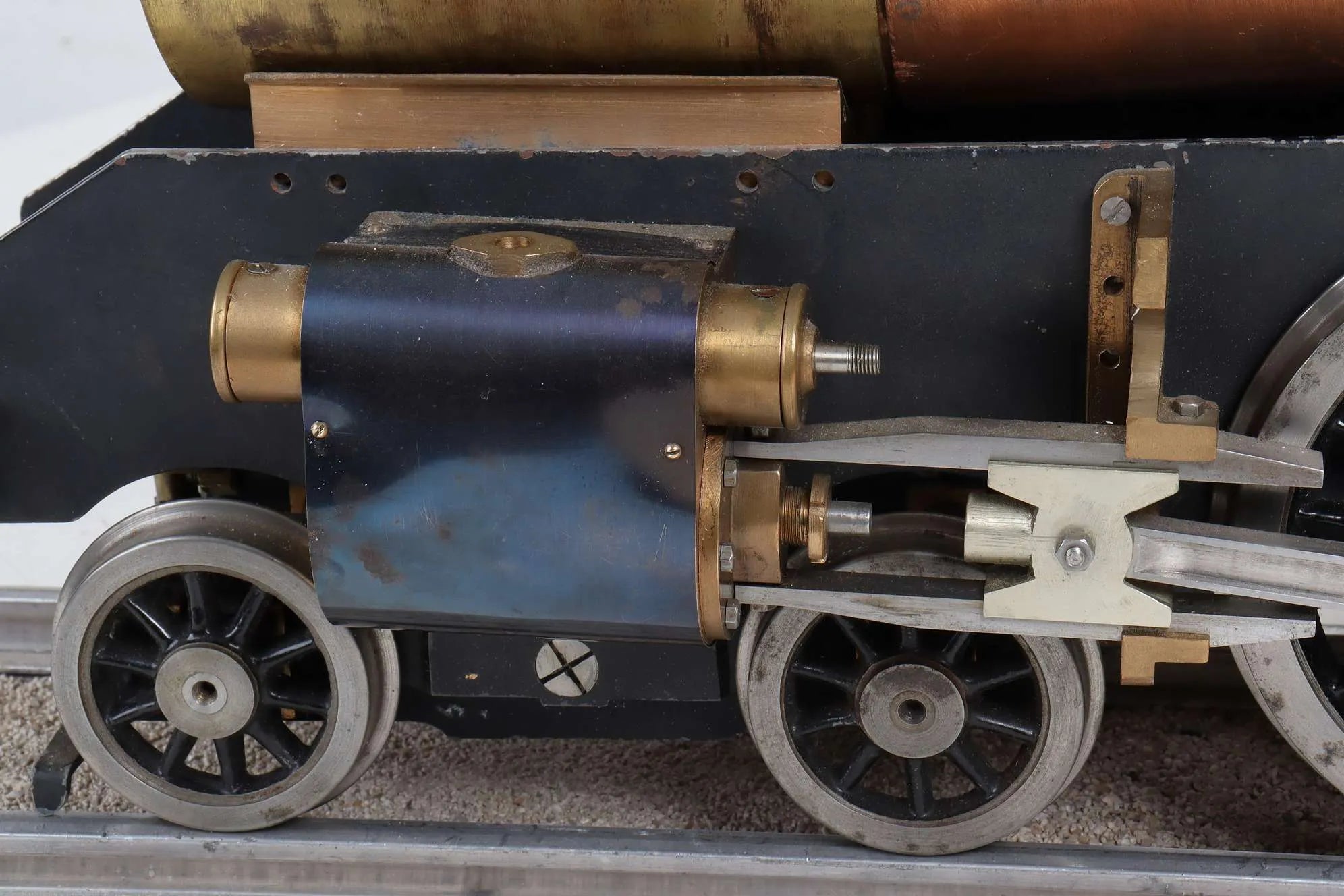

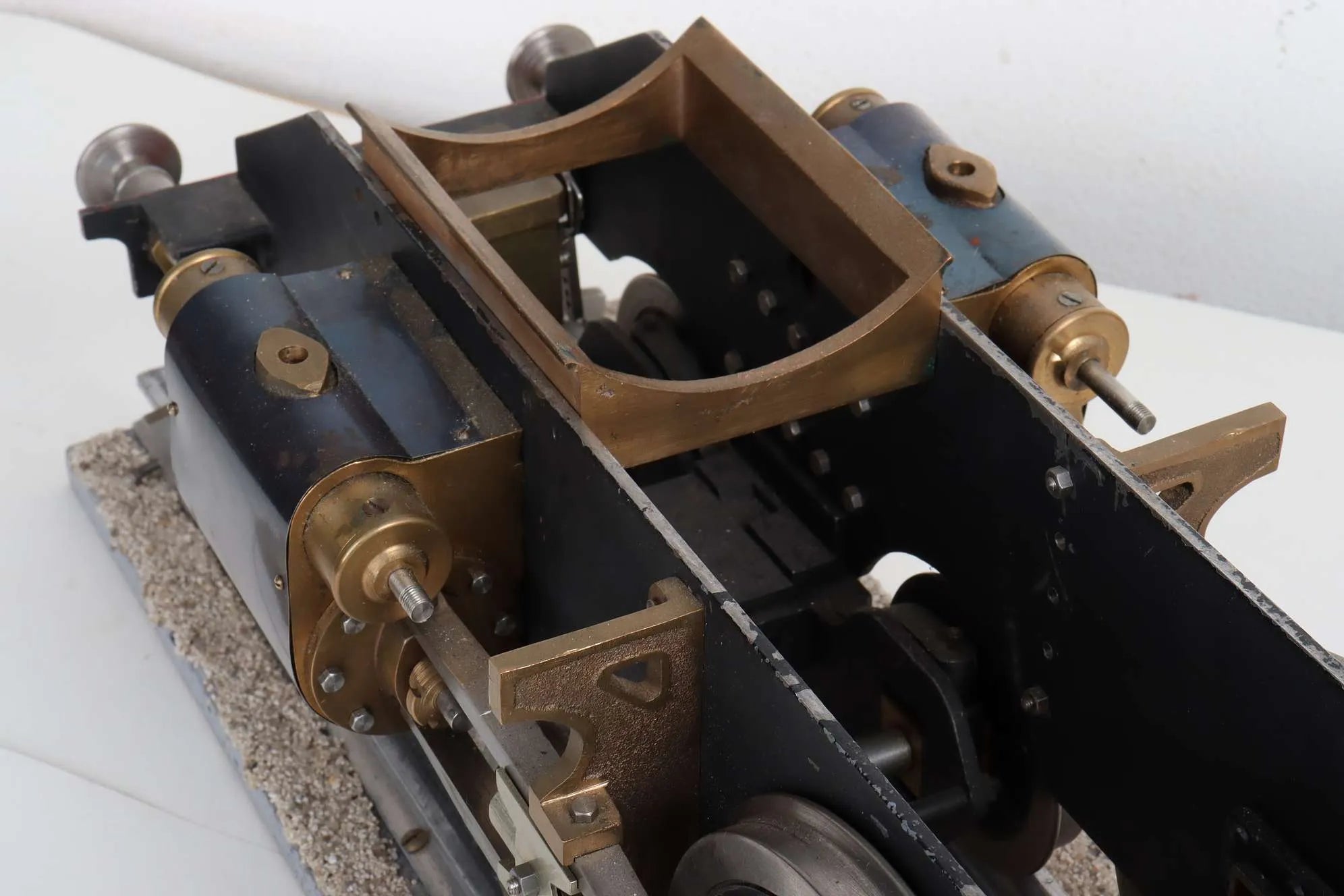

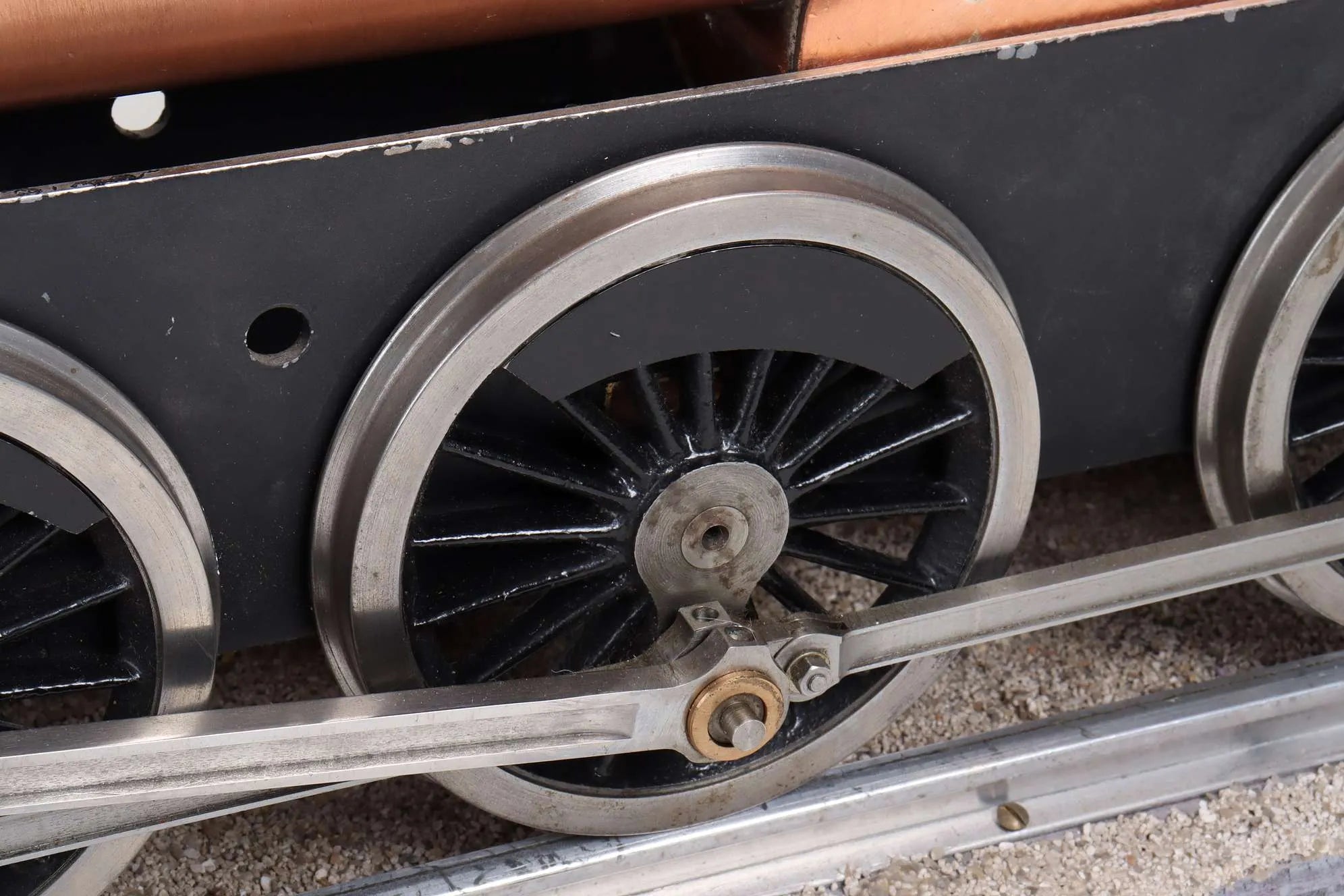

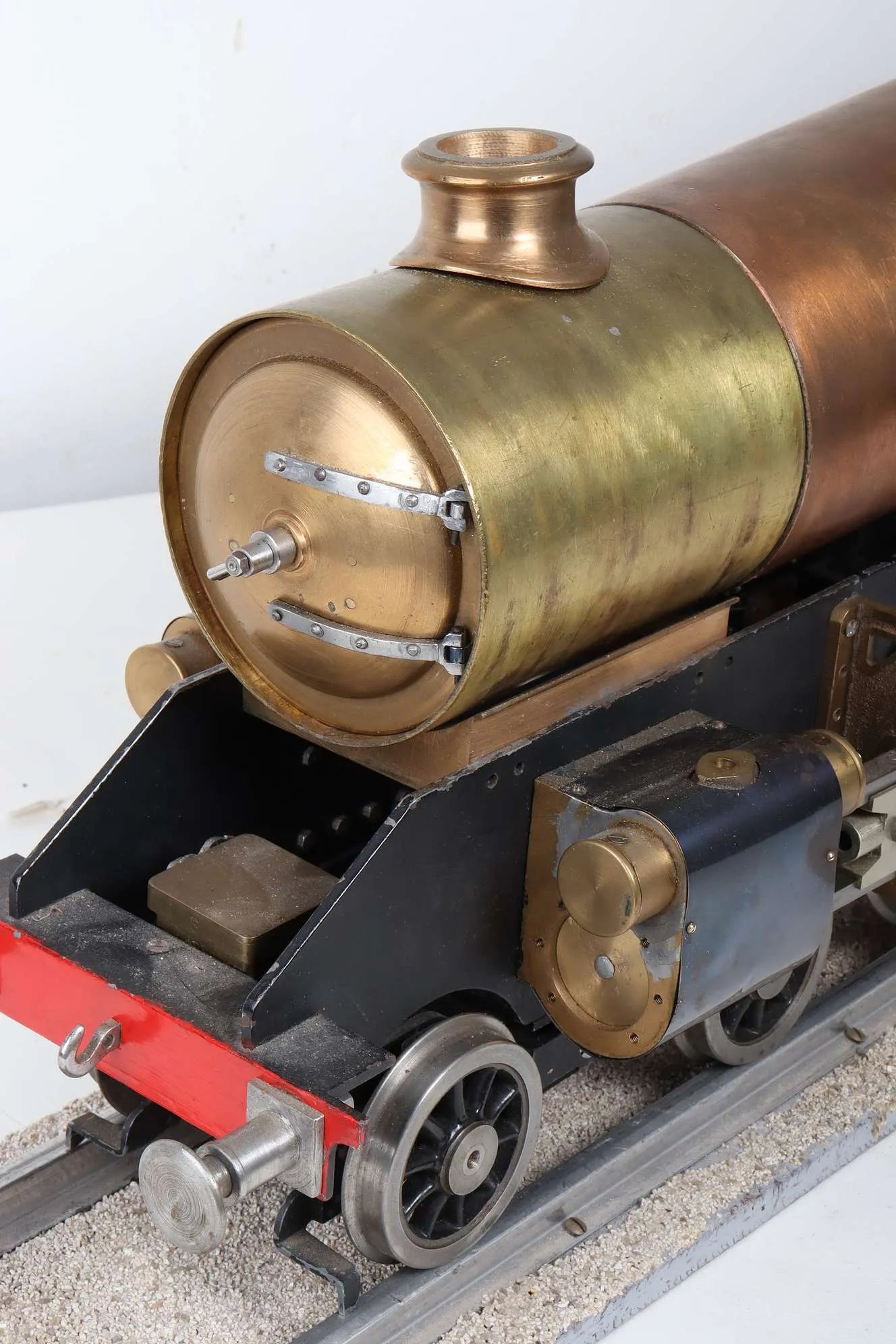

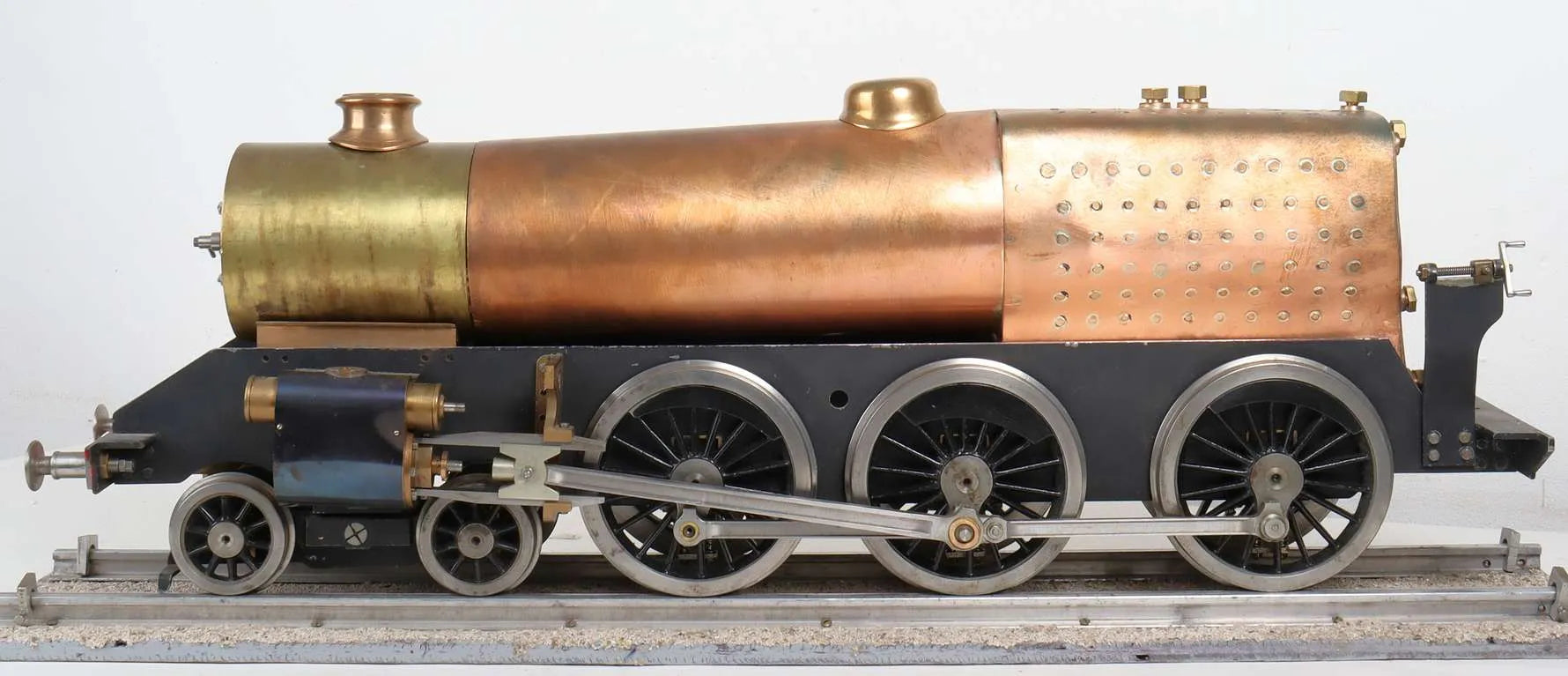

Rolling chassis fitted with machined gunmetal cylinders, axle pump, mechanical lubricator and front bogie

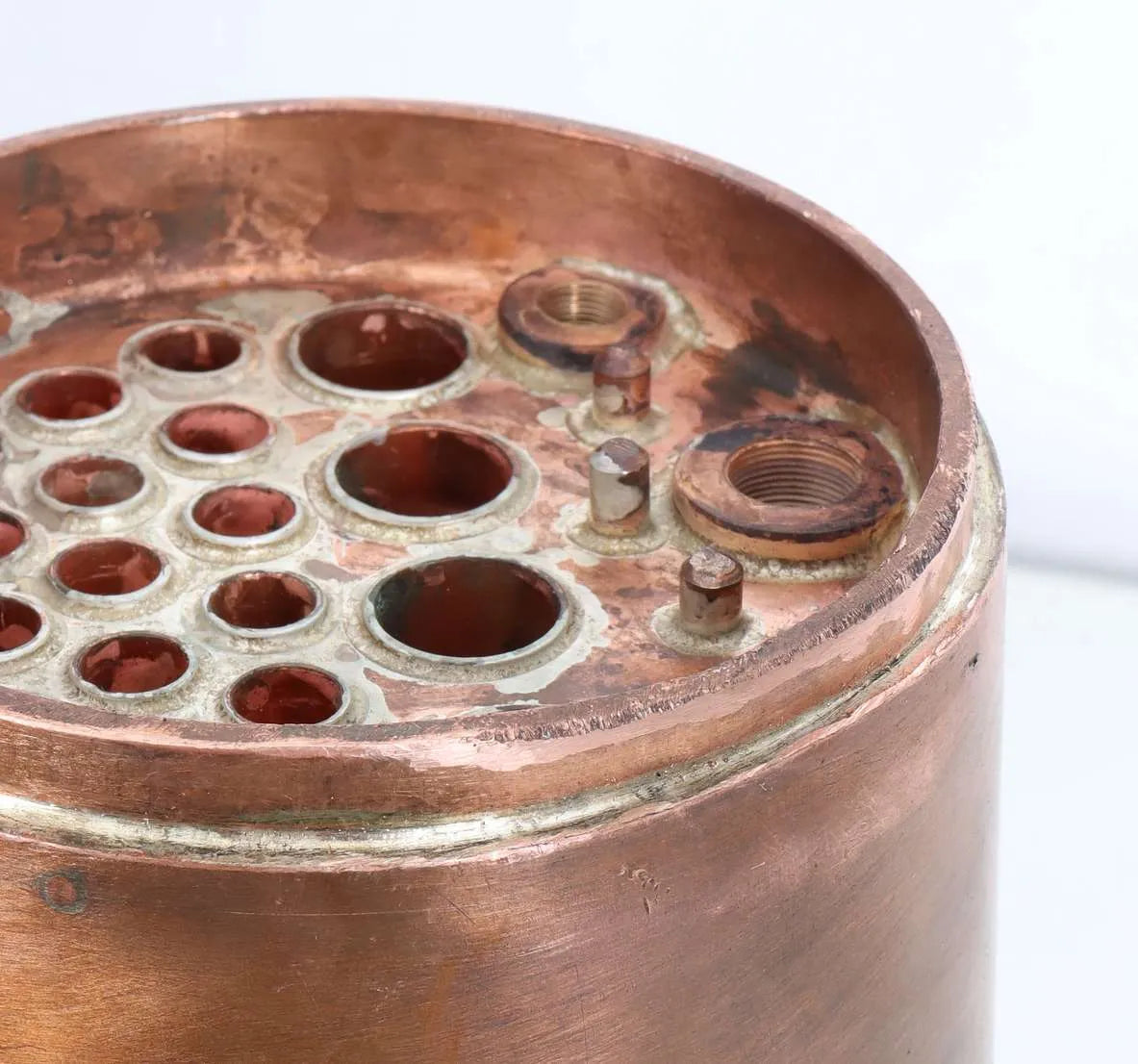

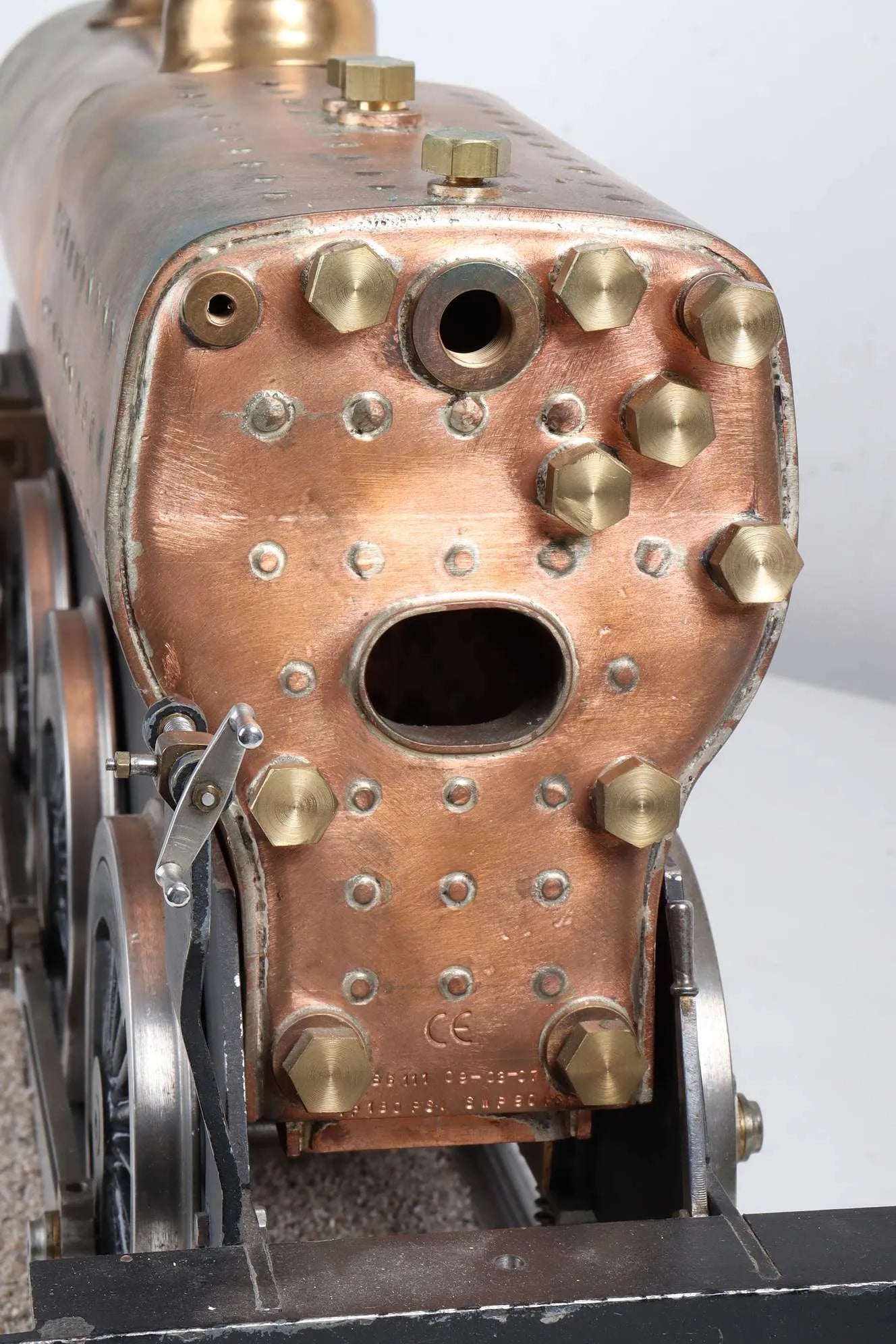

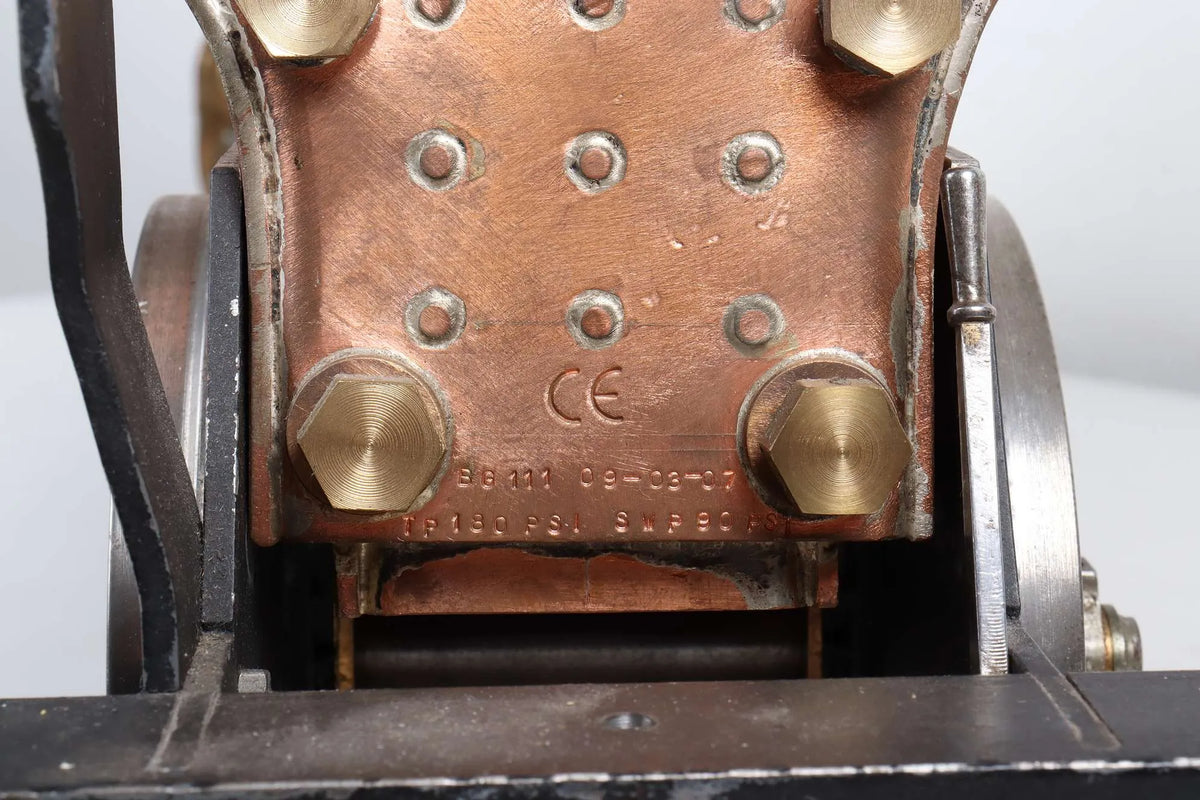

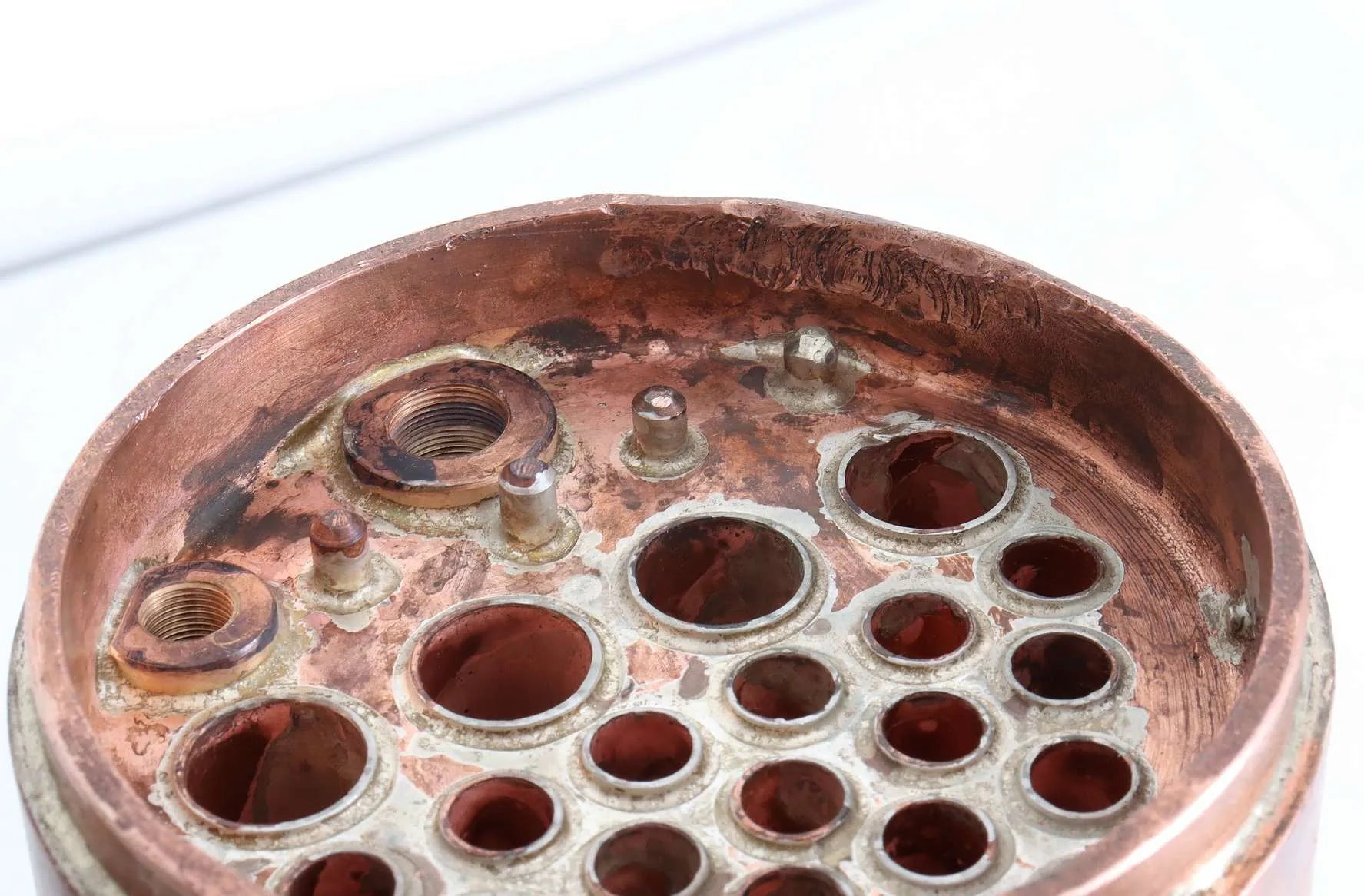

Commercially built CE-marked boiler with maker's original documentation

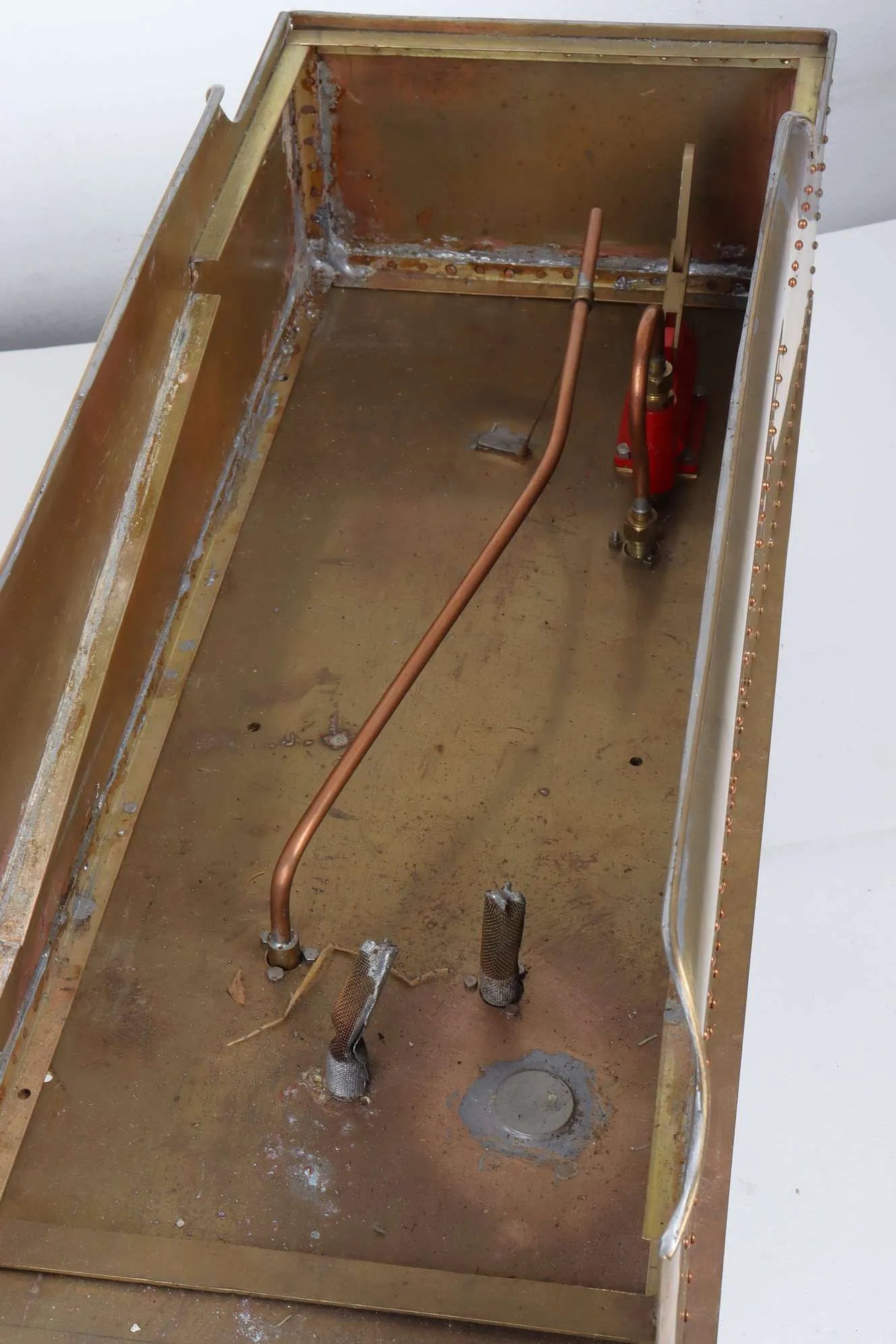

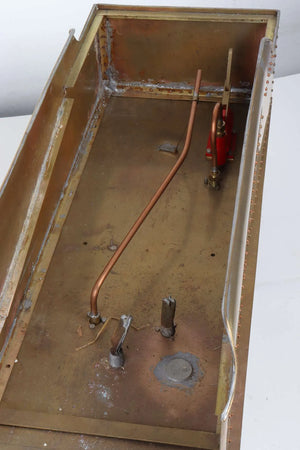

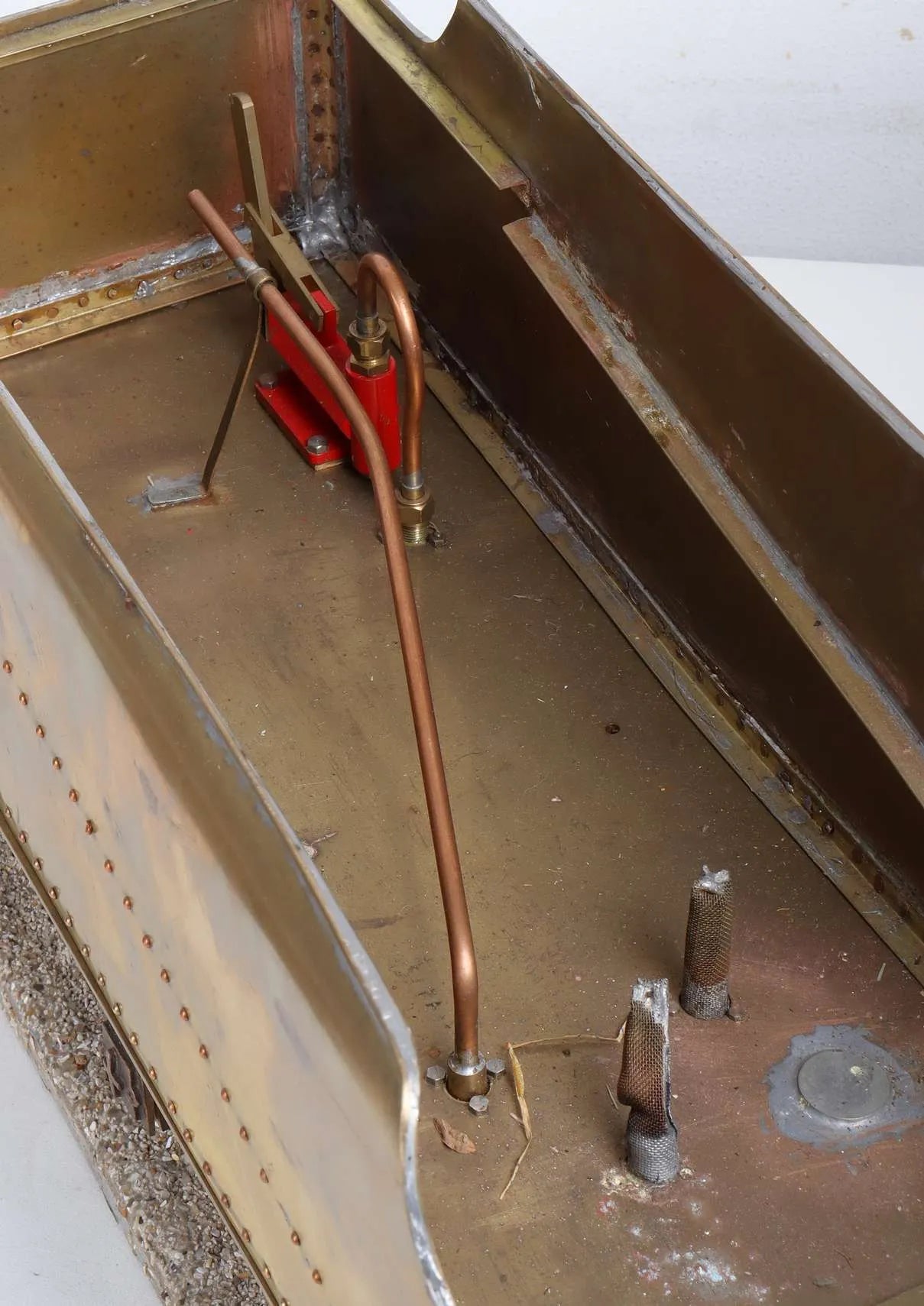

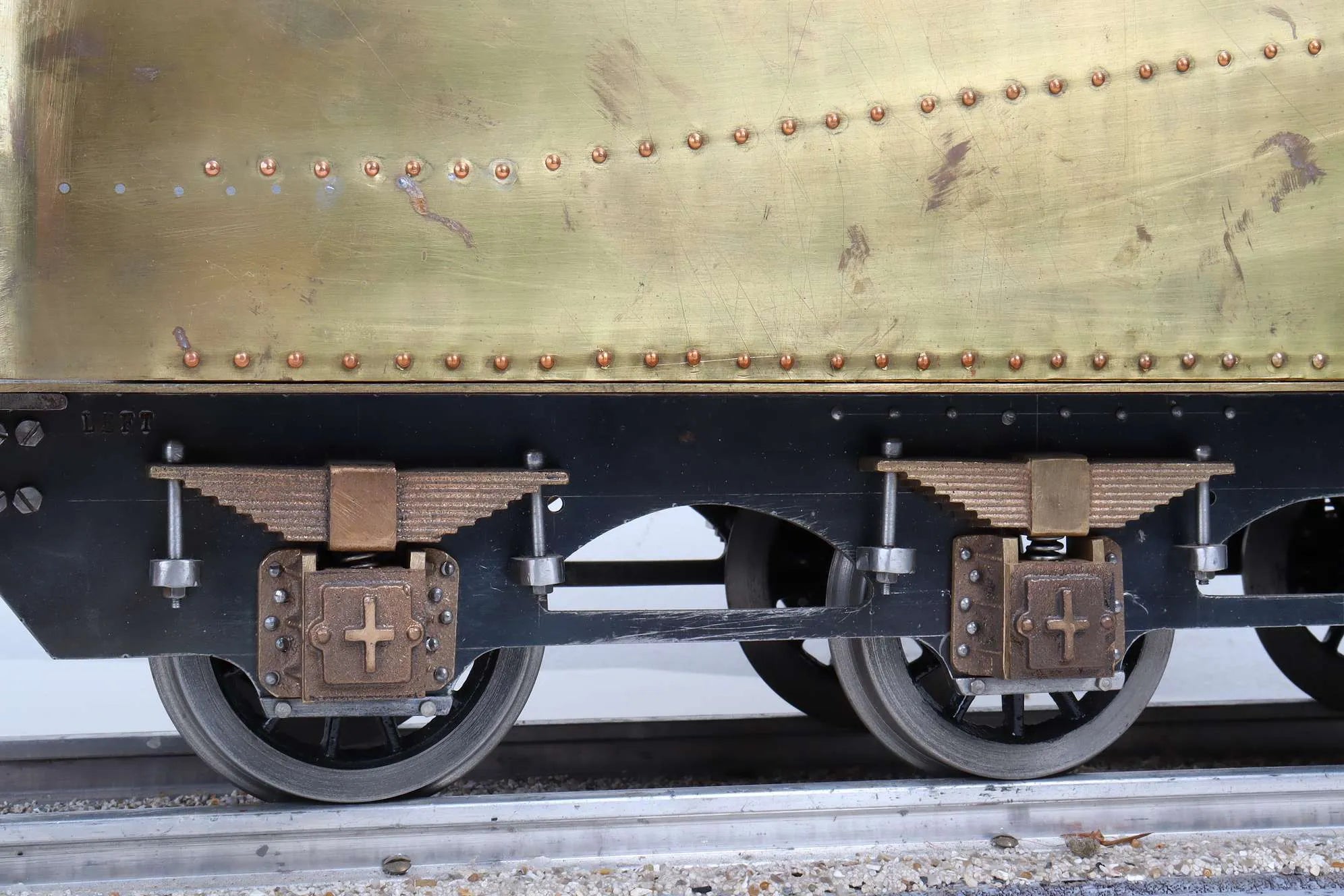

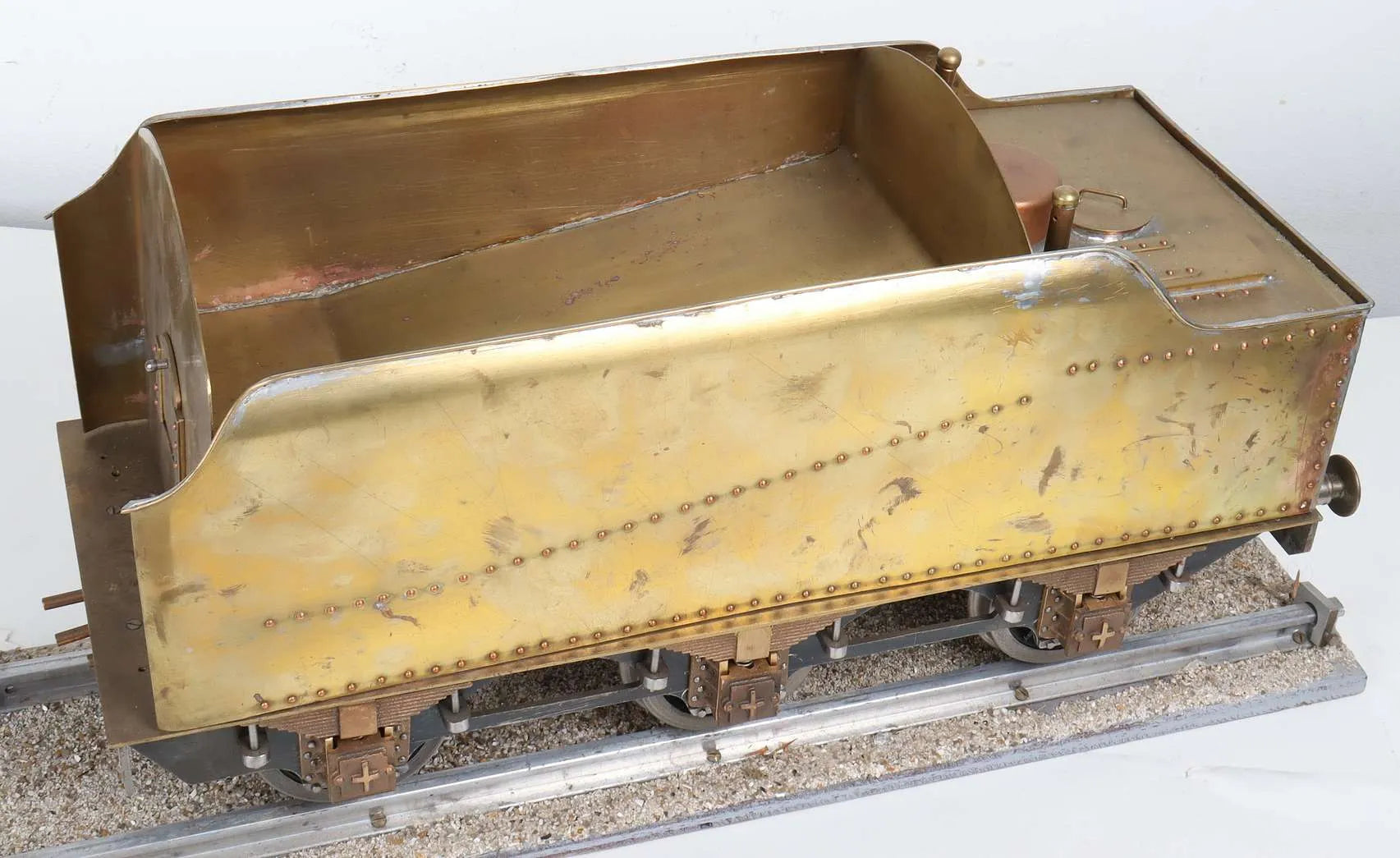

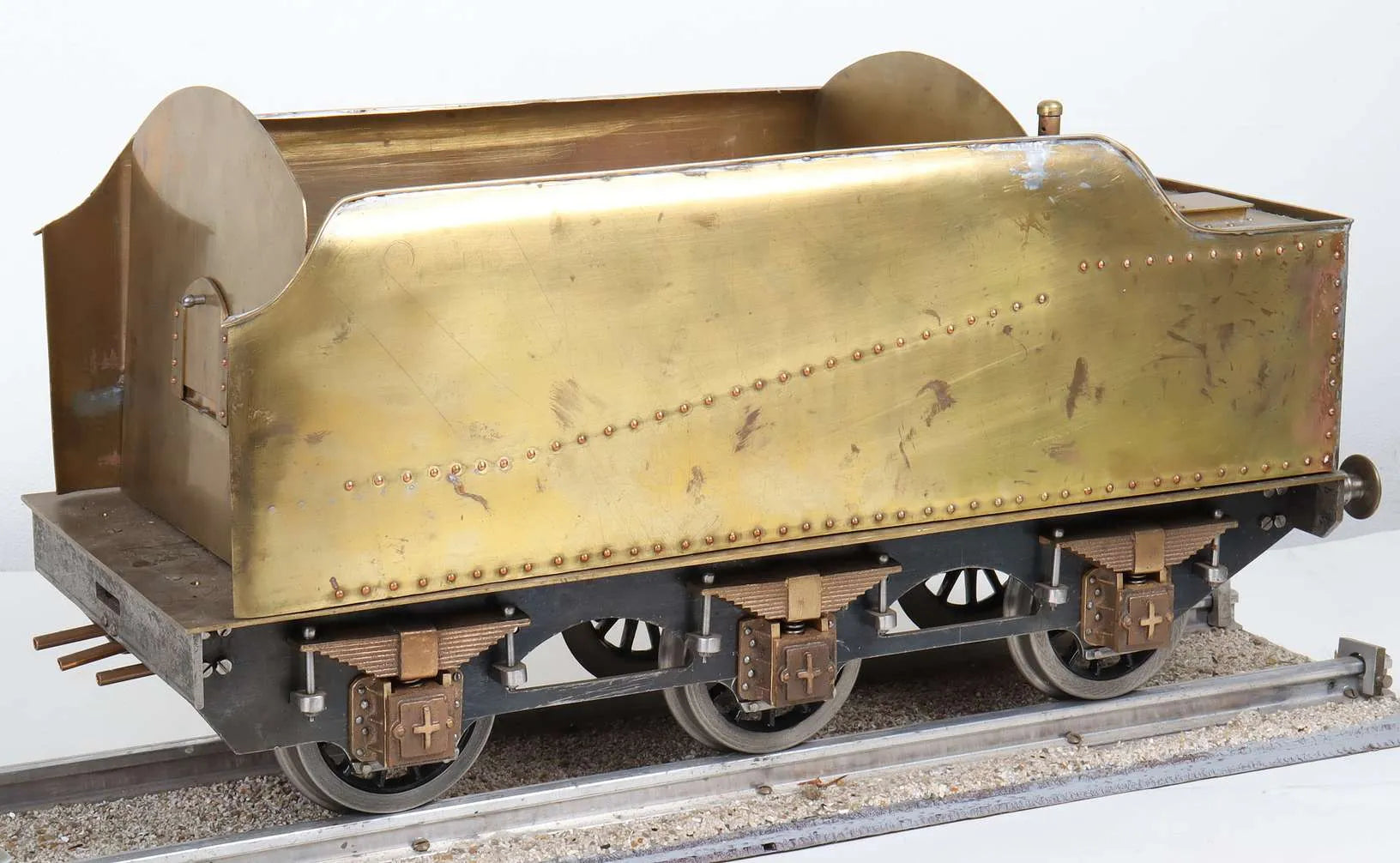

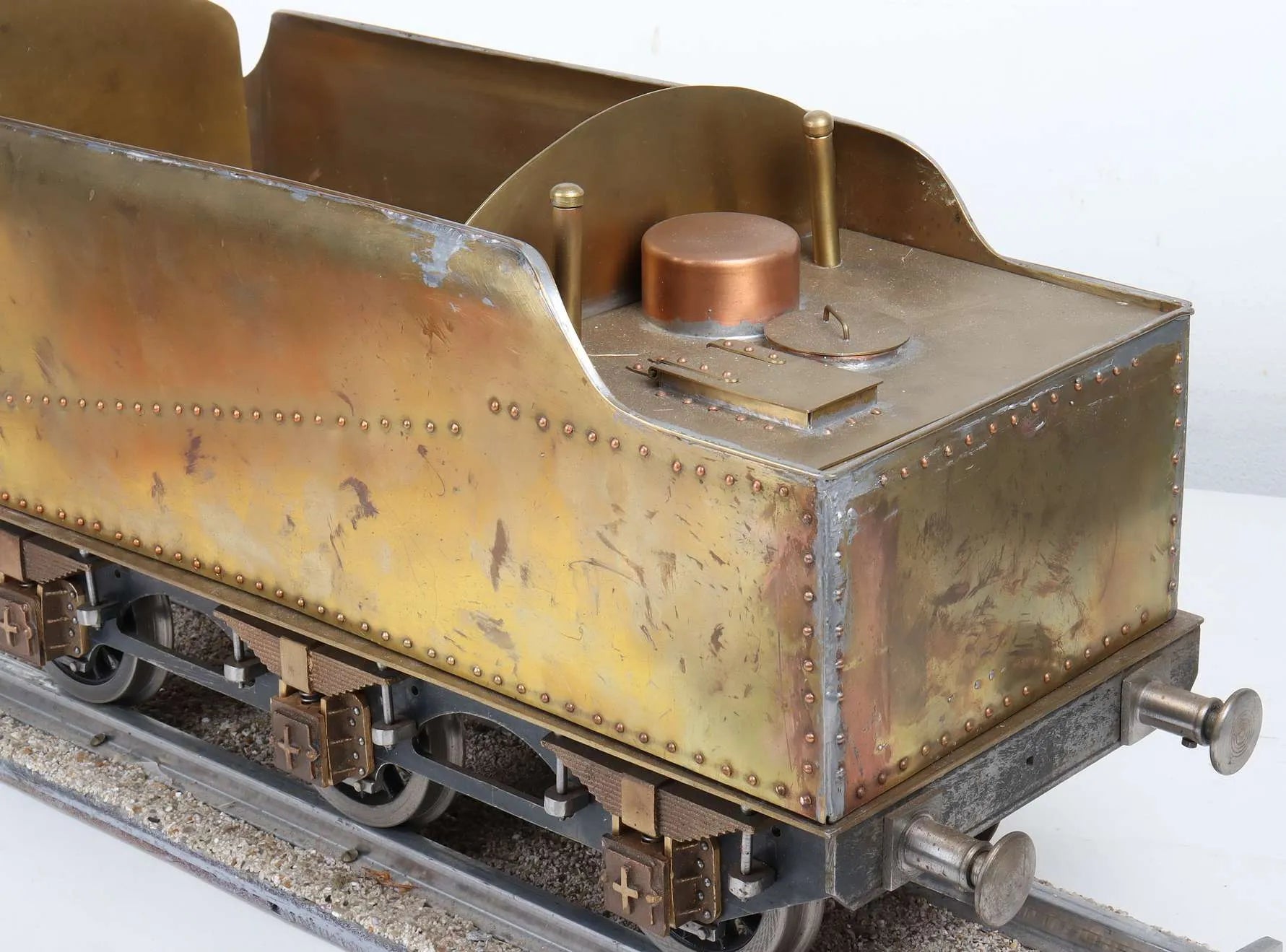

Tender, comprising rolling chassis and partly assembled tank
Several sheets of drawings, original copies of "Model Engineer" magazine covering the construction series and a copy of LBSC's "Shop, Shed & Road"

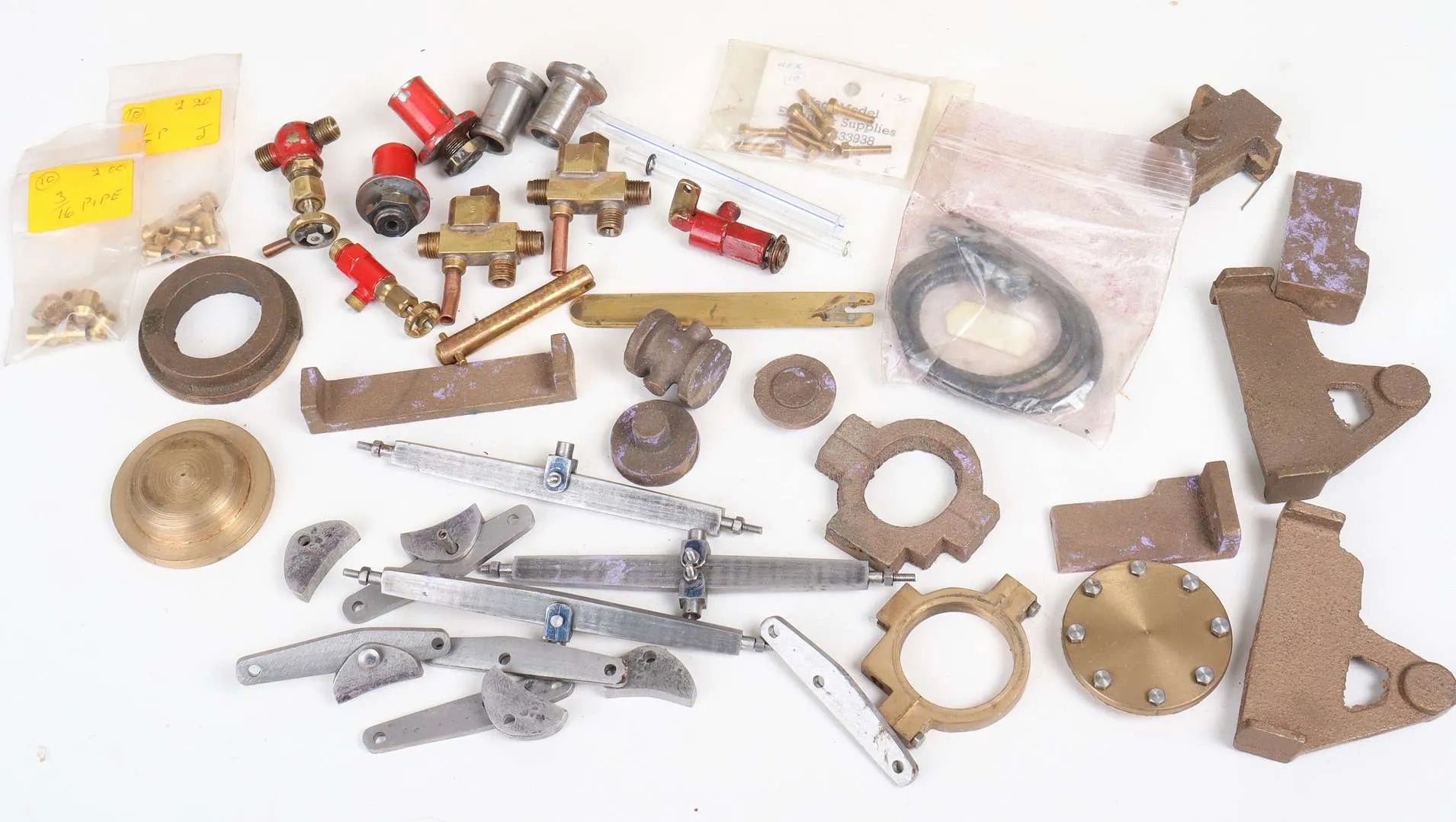

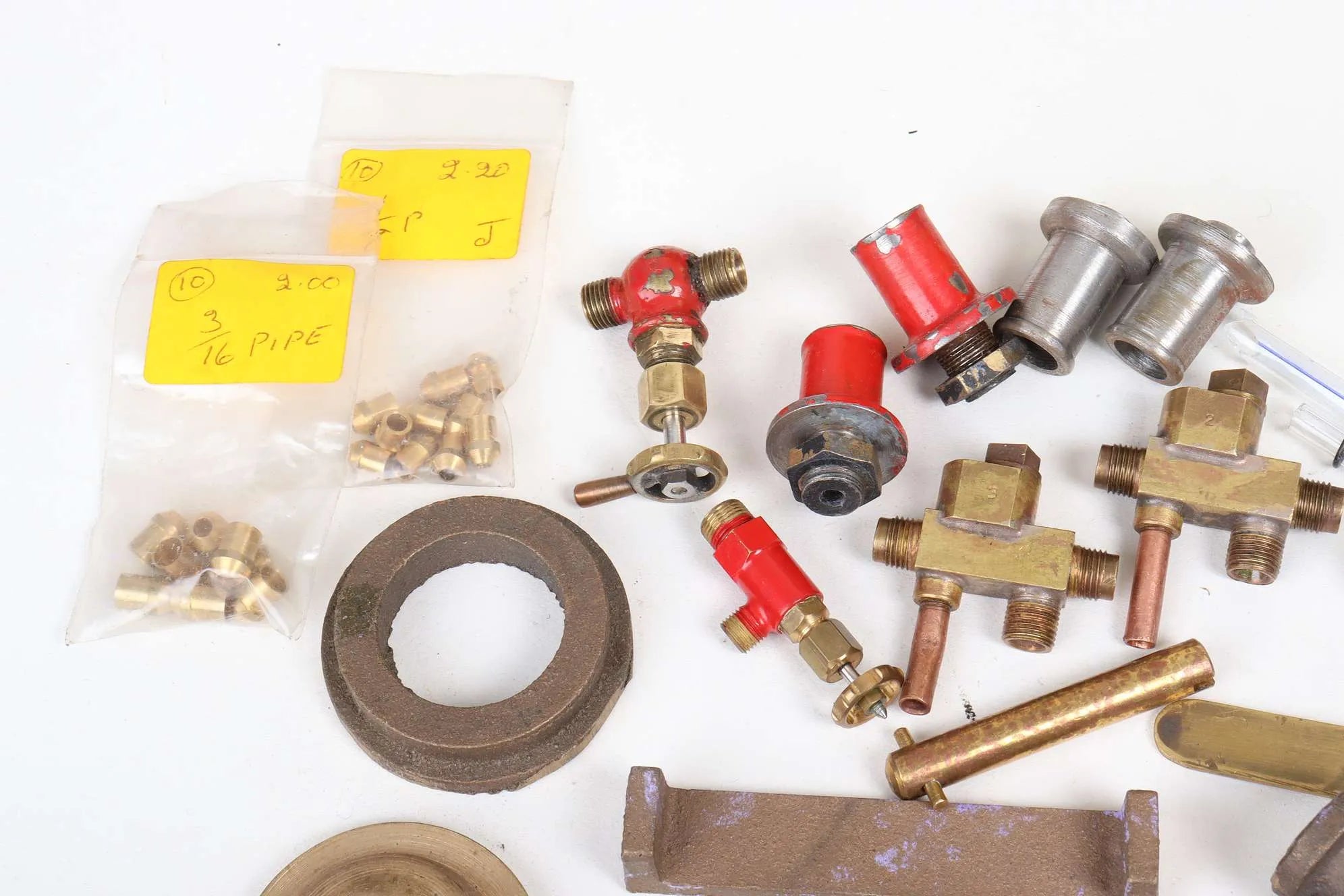

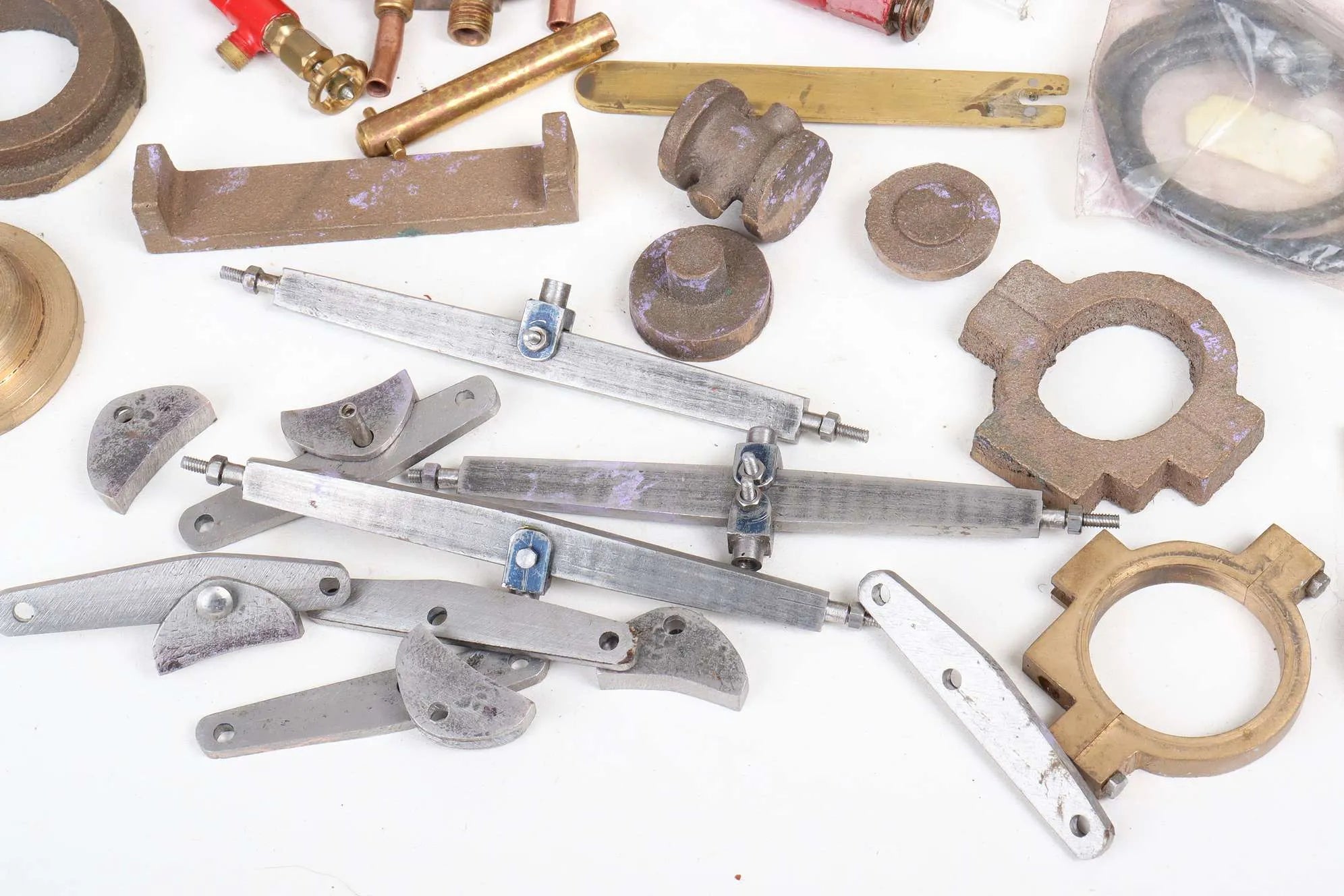

Box of loose parts including fittings, injectors, brake parts etc.
Two short lengths of track for locomotive and tender

Type: Second hand

Tags: Projects

Technical information

Stock code	10503
Gauge	3 1/2 inch
Length/inches	31+19
Width/inches	7
Height/inches	11
Wheel material	cast iron
Axlebox type	plain bearing
Cylinder material	gunmetal
Valve type	piston
Valve gear	Walschaerts

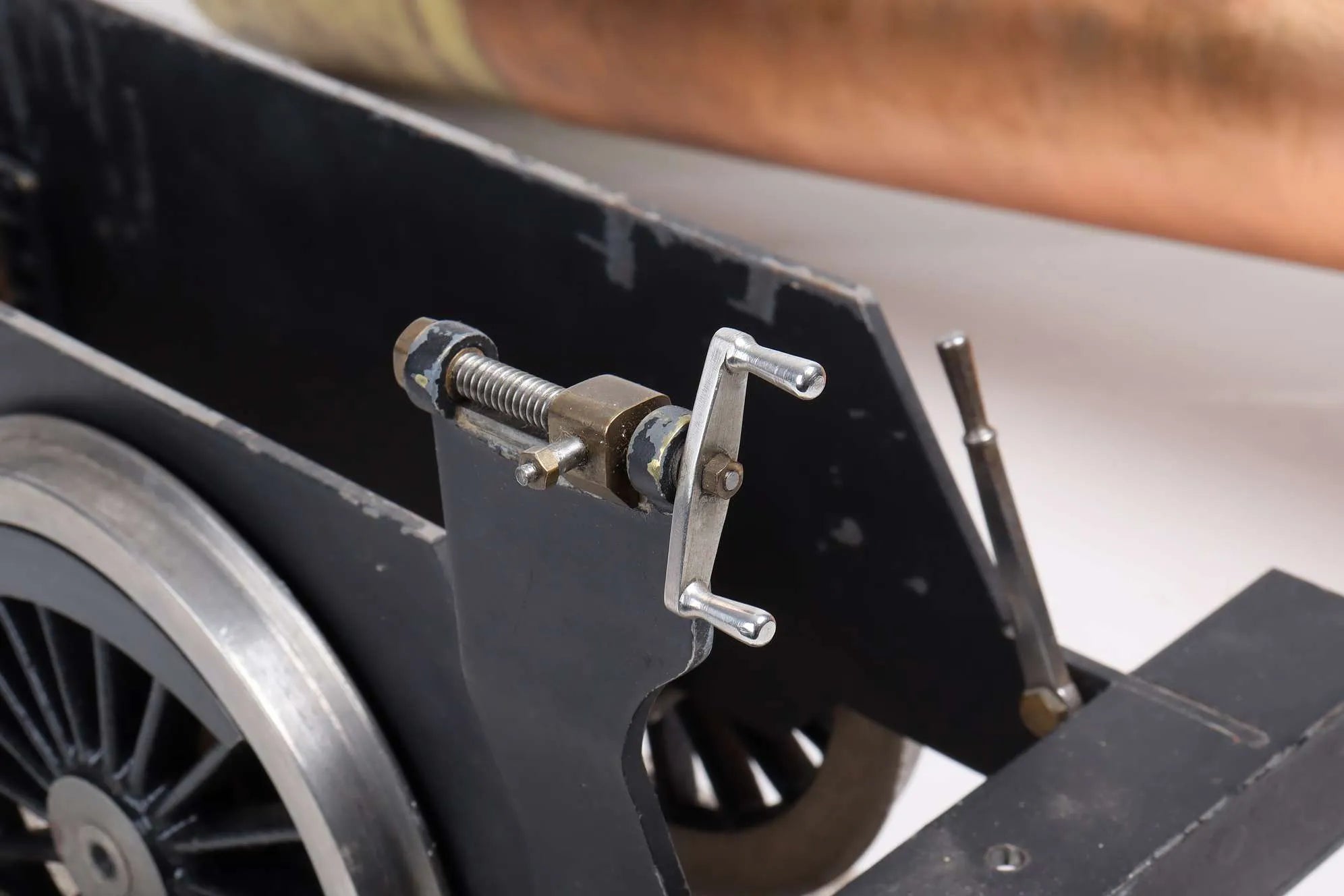

Reverser type	screw
Lubricator type	mechanical
Boiler maker	Blackgates Engineering
Boiler type	locomotive
Boiler construction	silver soldered
Boiler material	copper
Working pressure	90
CE/UKCA mark	yes
Year built	2007

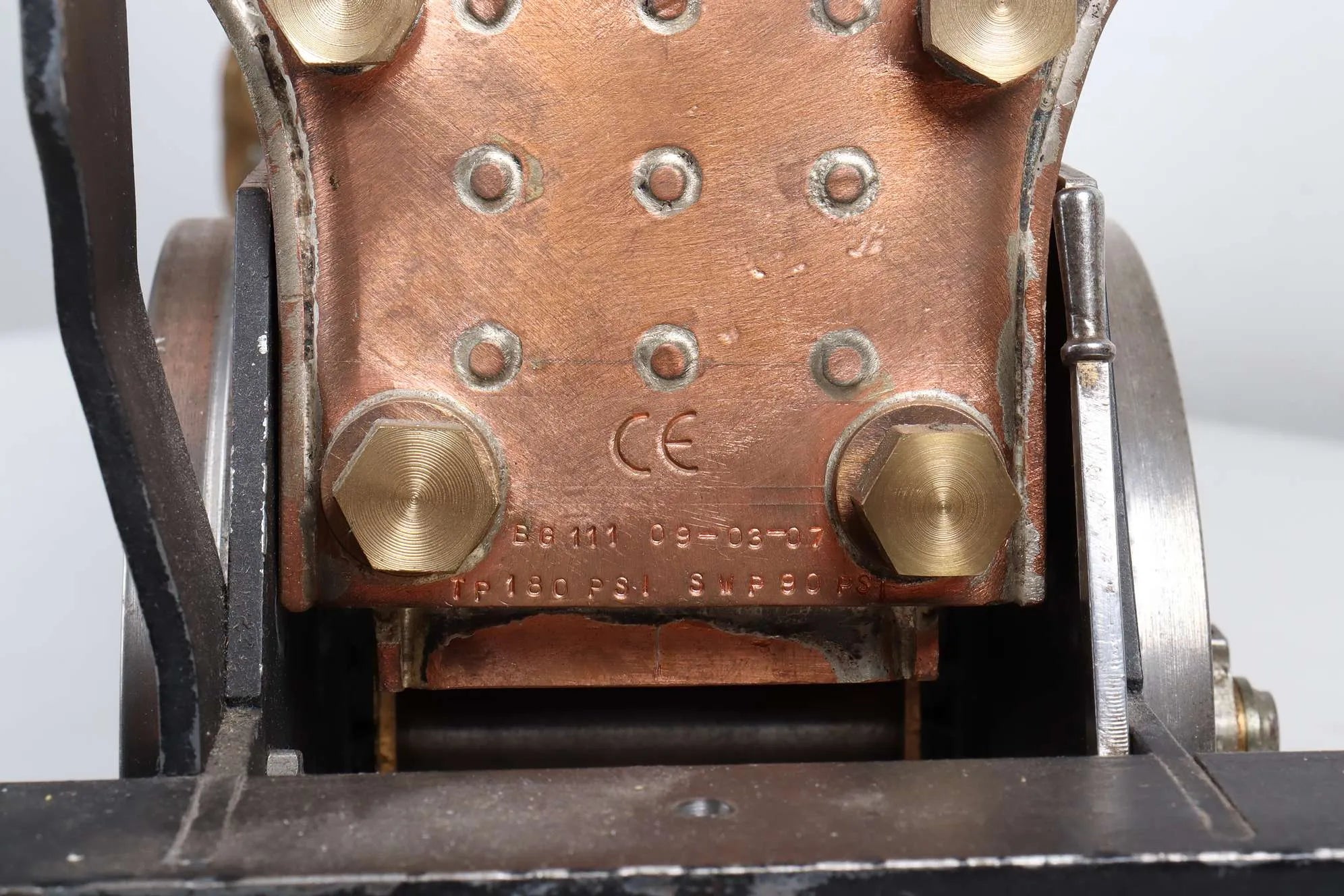

Boiler number	BG111
Date out	Jun-22
