3 1/2 inch gauge LMS "Jinty" 0-6-0T

One of those stories of rather a nicely made engine that's fallen on hard times at the hands of a "restorer".

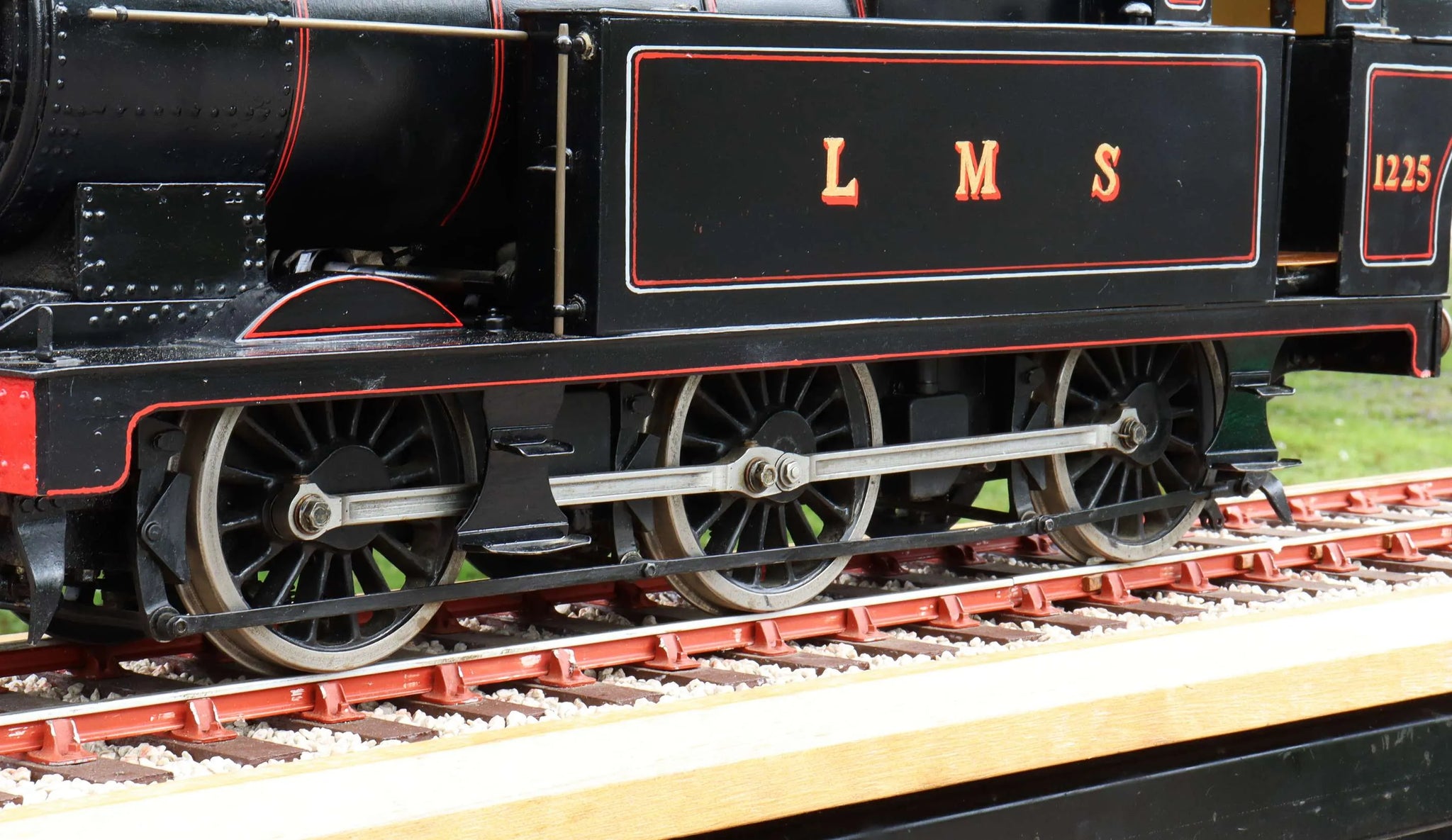

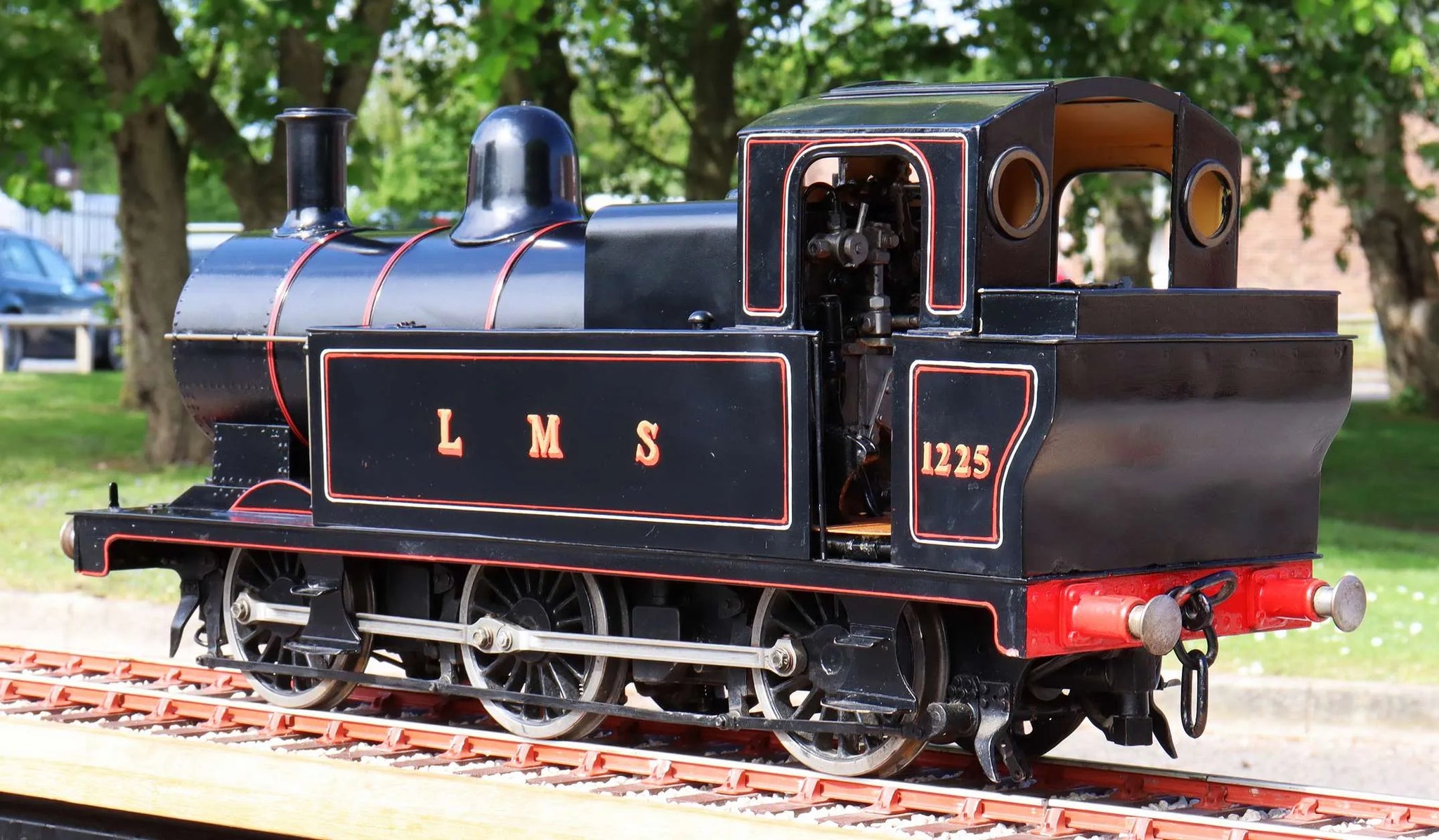

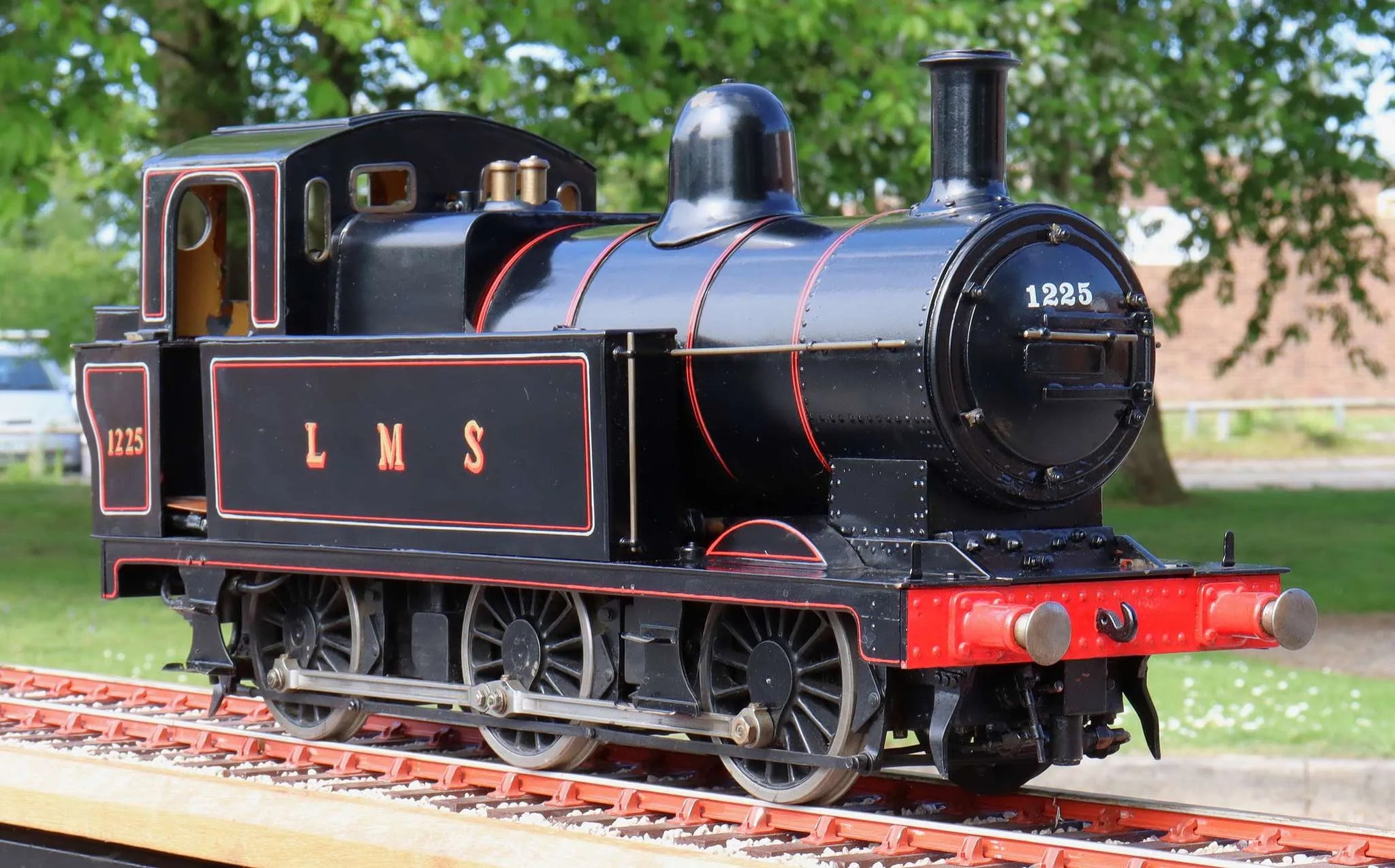

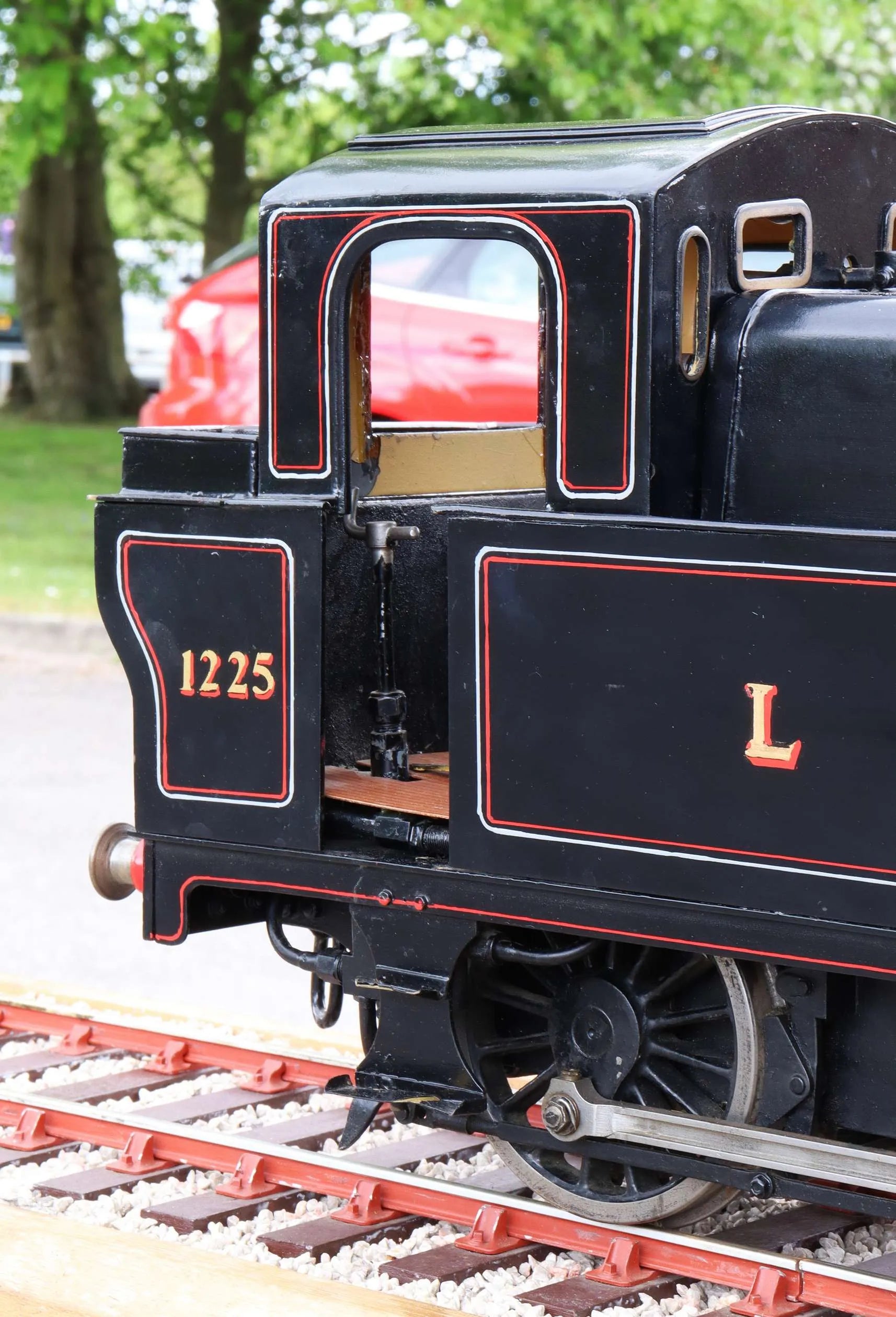

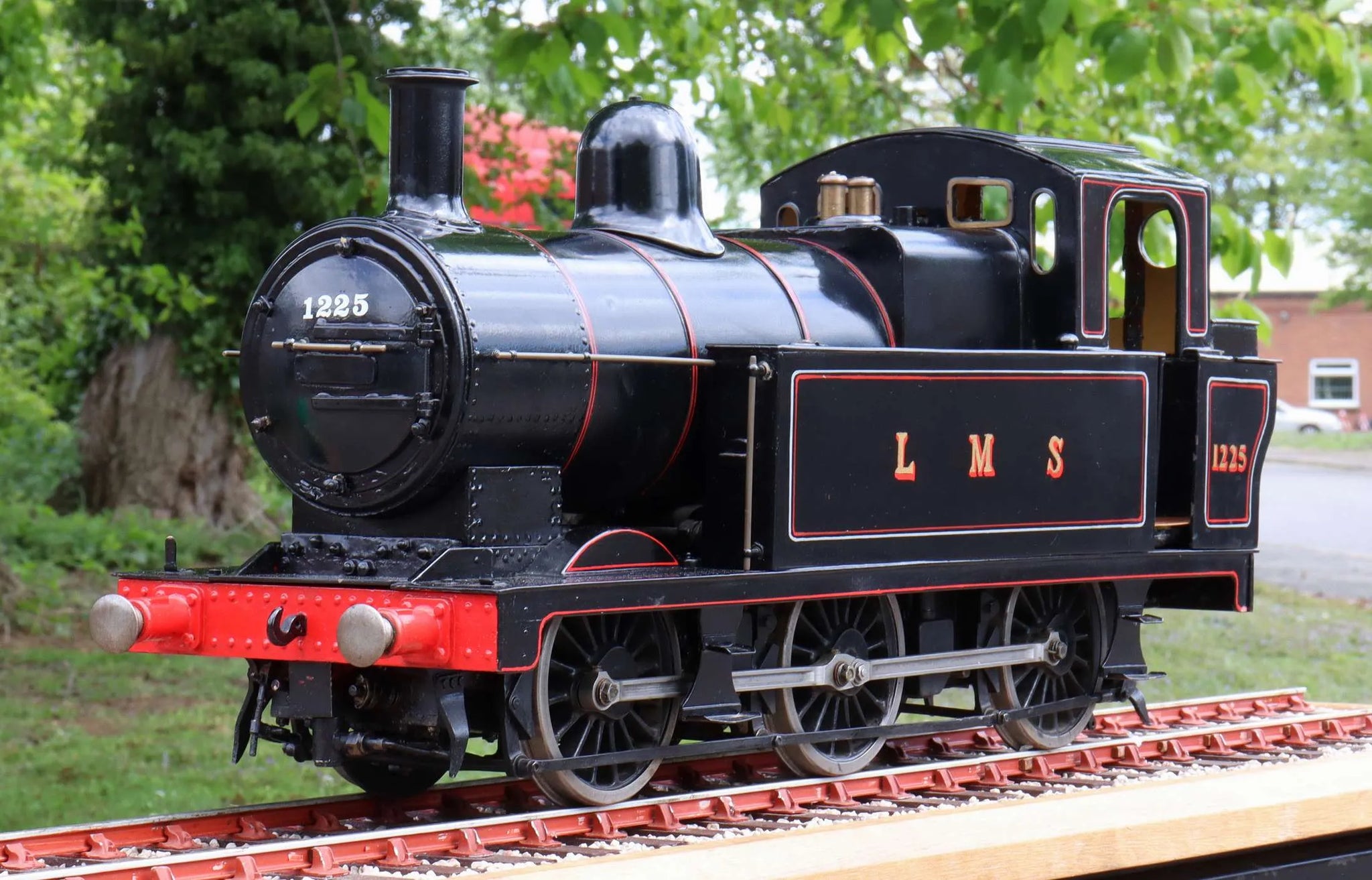

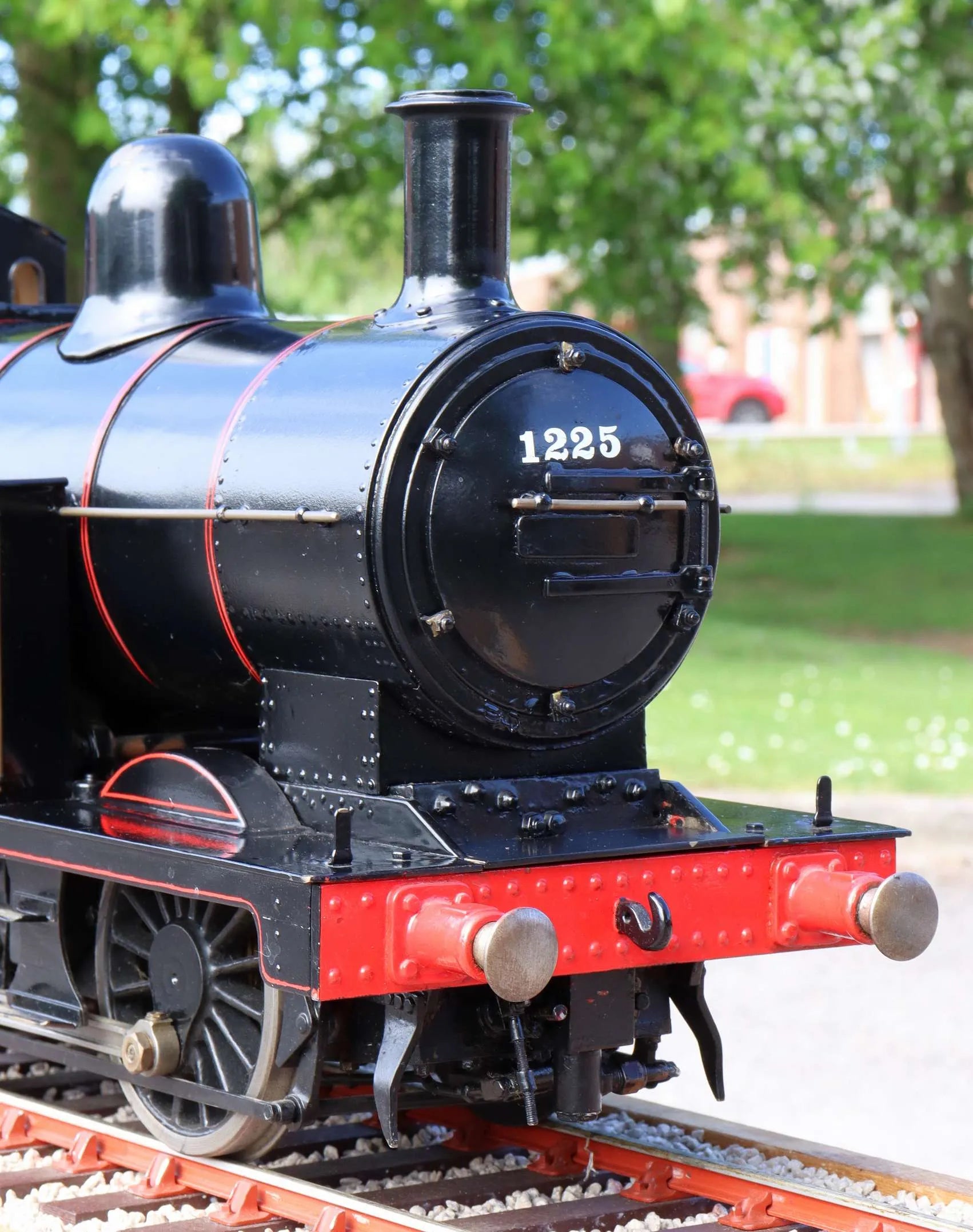

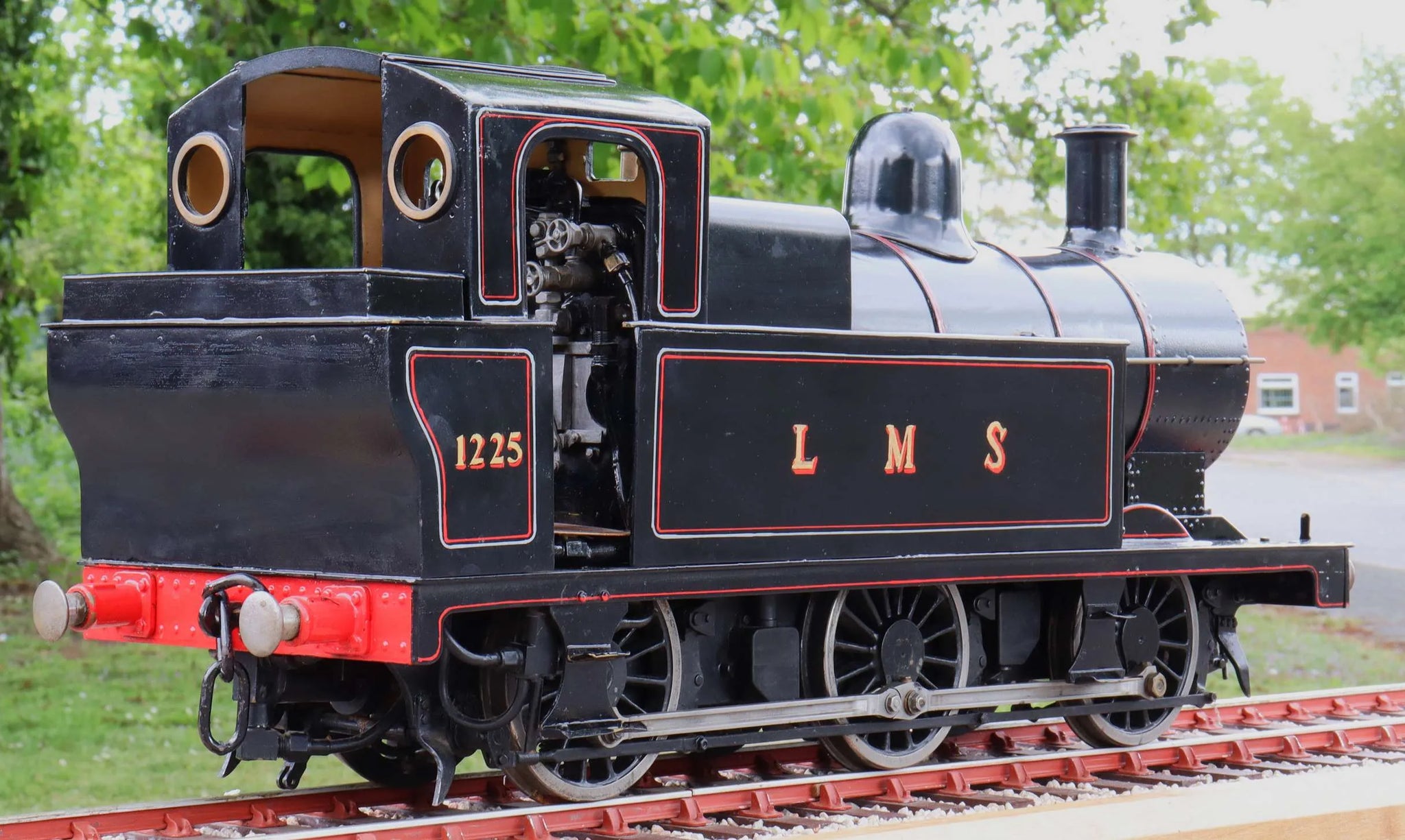

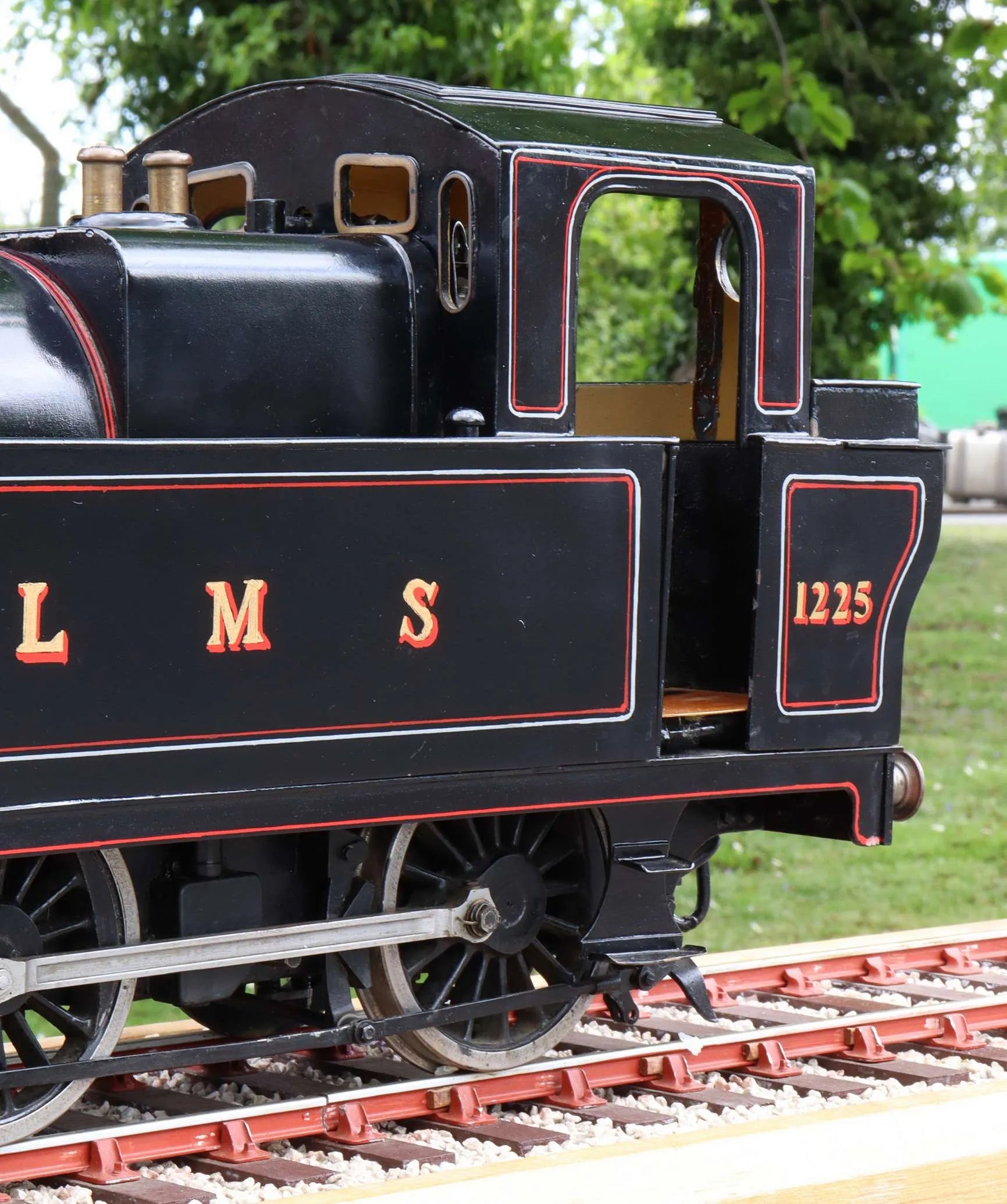

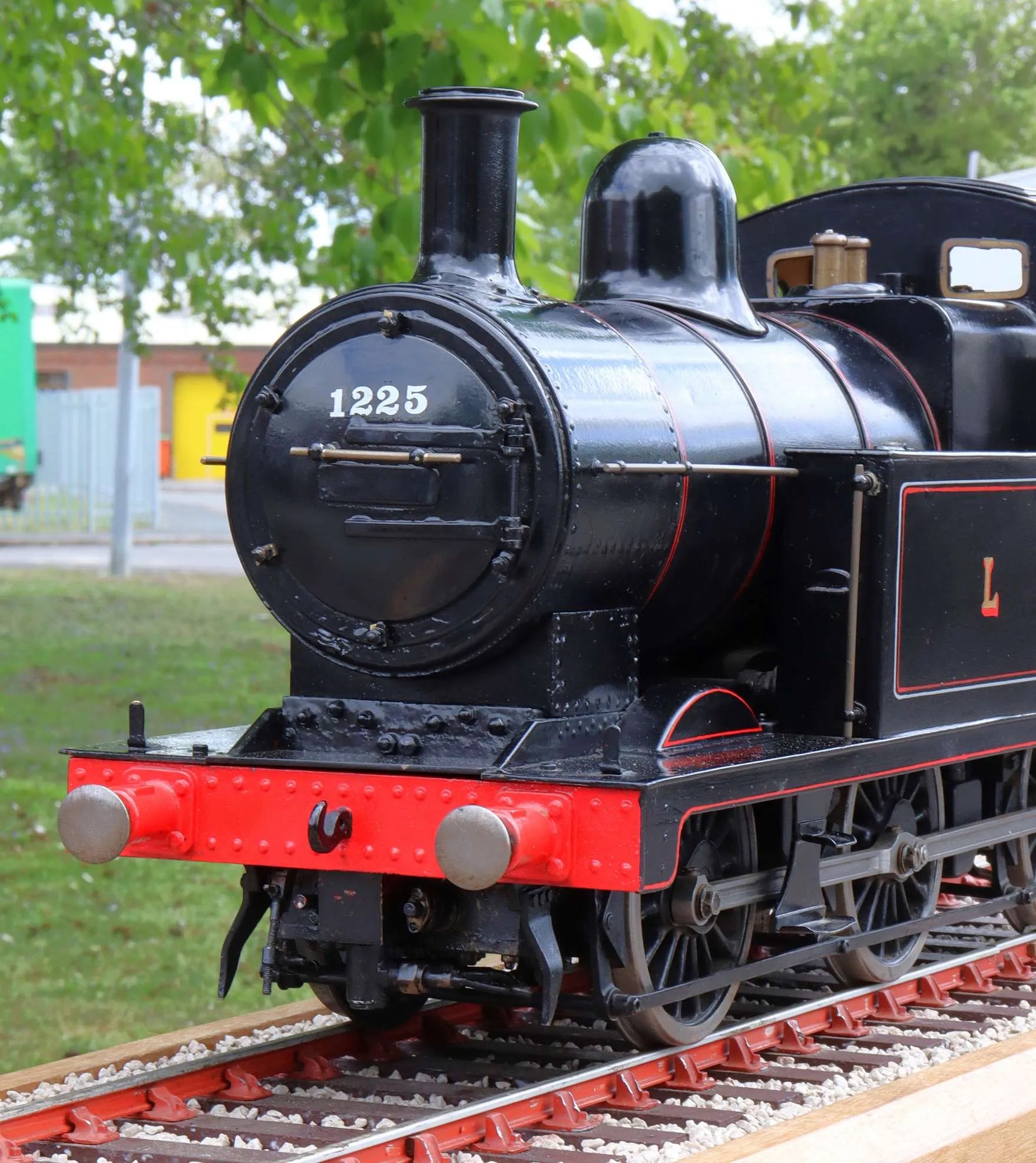

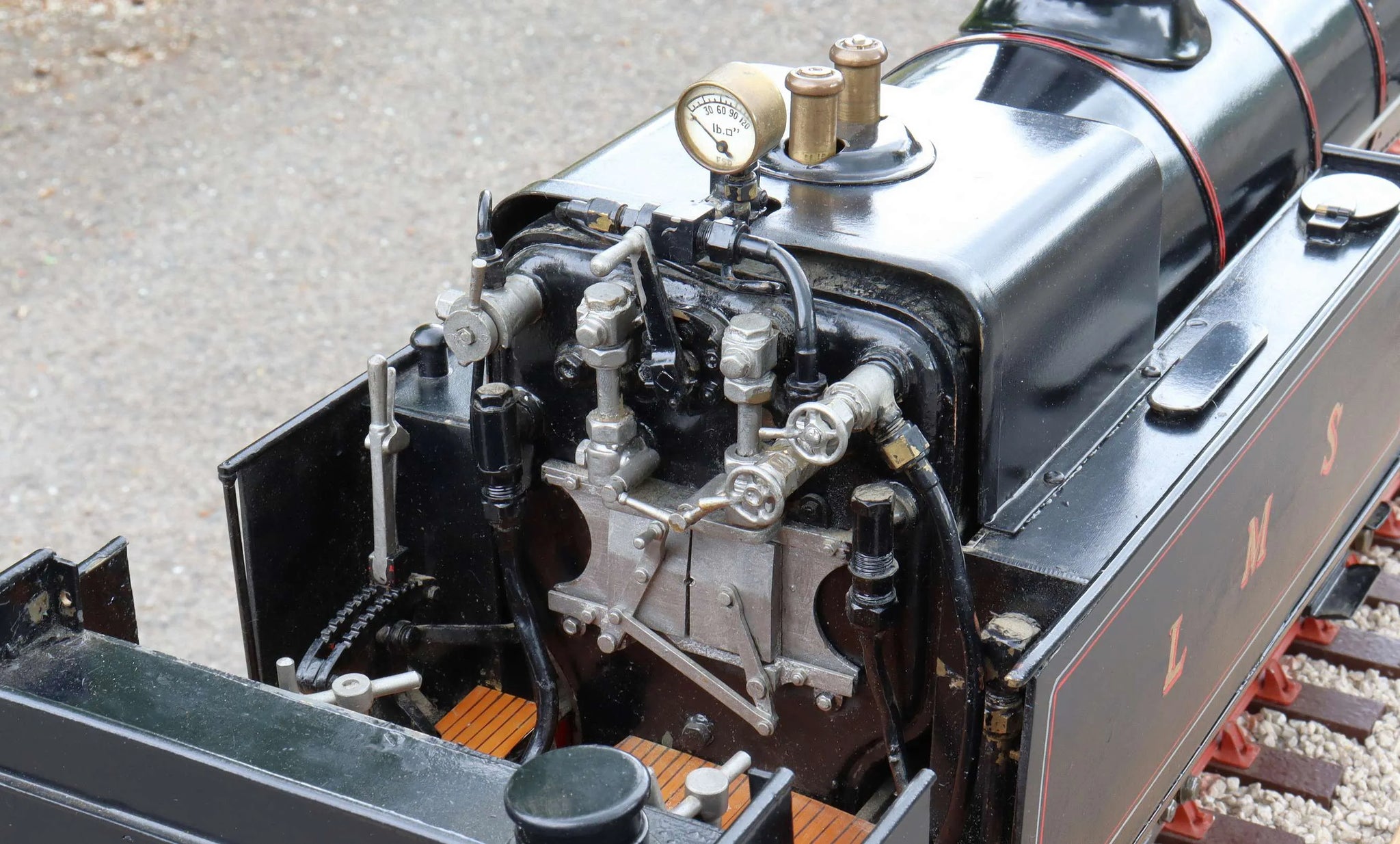

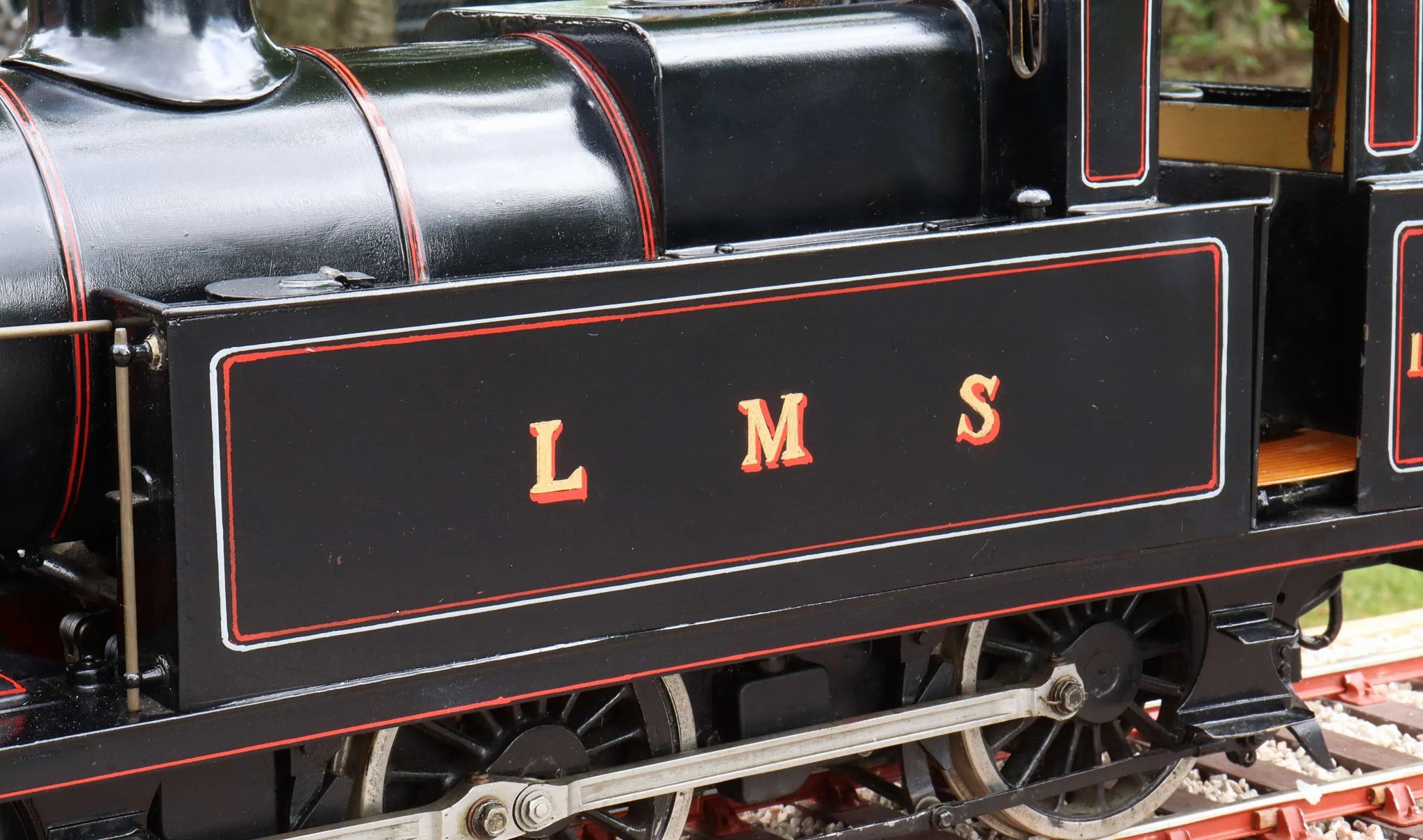

A 3 1/2 inch gauge LMS "Jinty" 0-6-0T, originally rather a well made engine turned out in lined black livery. In recent times it's had what appears to be a cosmetic "restoration" which included painting the backhead and fittings silver (apparently with a tar brush).

The copper boiler appeared dry and free of distortion on hydraulic test, although the regulator and blower valve both leak copiously - we would warranty as sound once the leaky valves have been attended to.

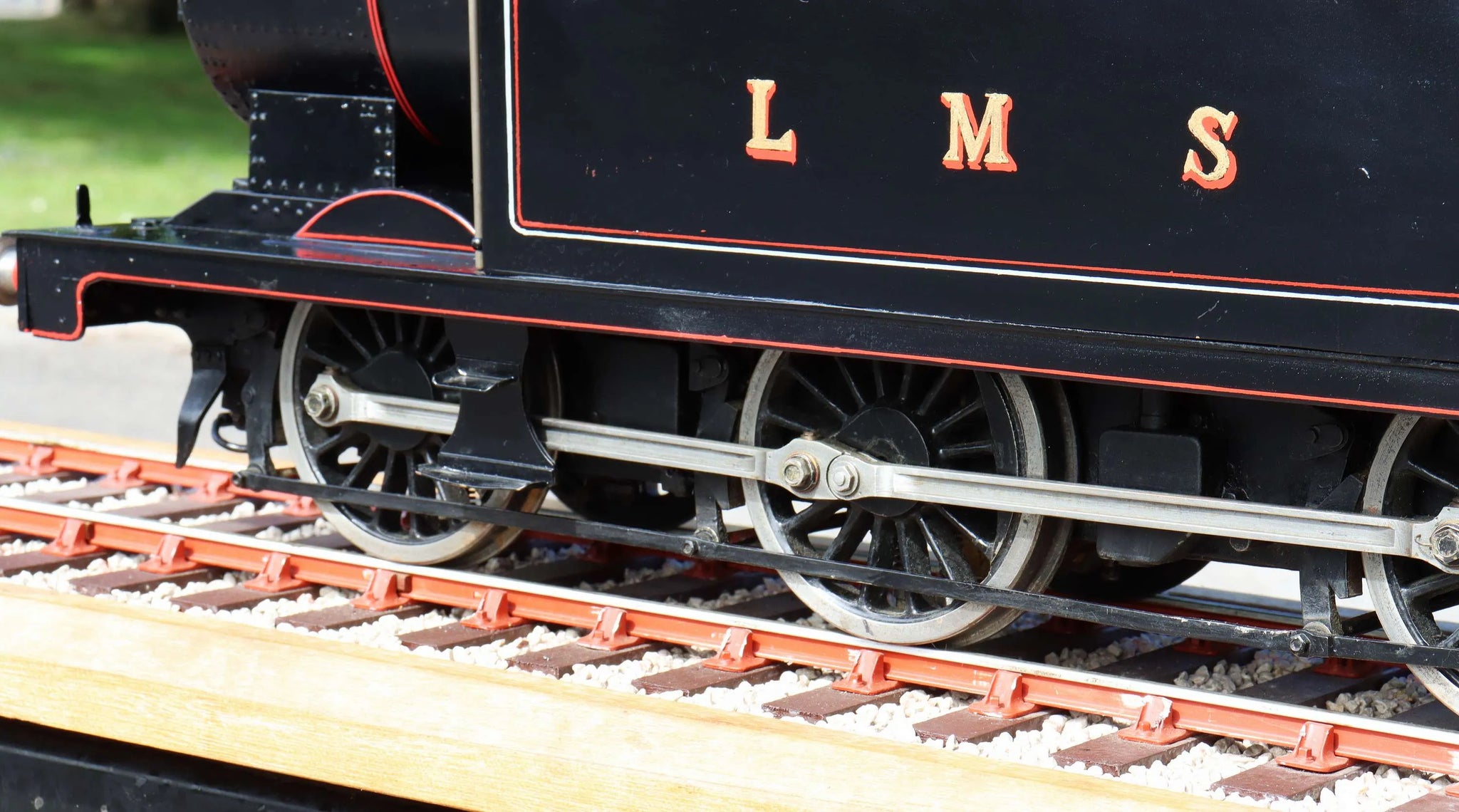

Wheels currently make a part revolution before locking up.

A handsome design, it would be a worthwhile project to put back into running order.

Technical information

Stock code

10172

Gauge

3 1/2 inch

Length/inches

25

Width/inches

7

Height/inches

11

Weight/Kg

23

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Stephensons

Reverser type

pole

Lubricator type

mechanical

Boiler maker

non-commercial

Boiler type

locomotive

Boiler construction

silver soldered with nutted and calked firebox

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

Year built

unknown

Safety valve type

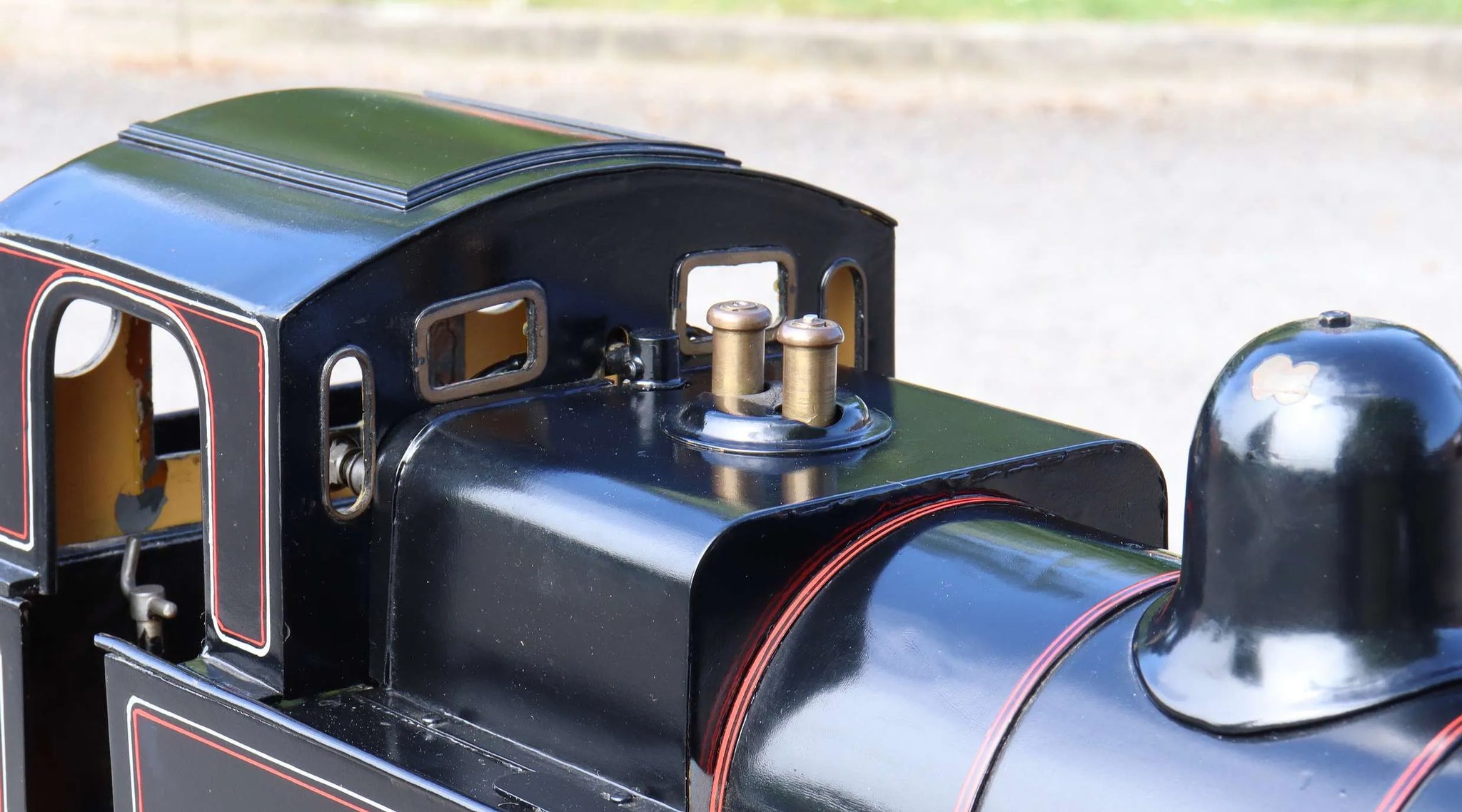

spring

Safety valve

2

Fusible plug

no

Whistle

no

Hand pump

1

Mechanical pump

1

Injector

1

Date out

Jun-23
