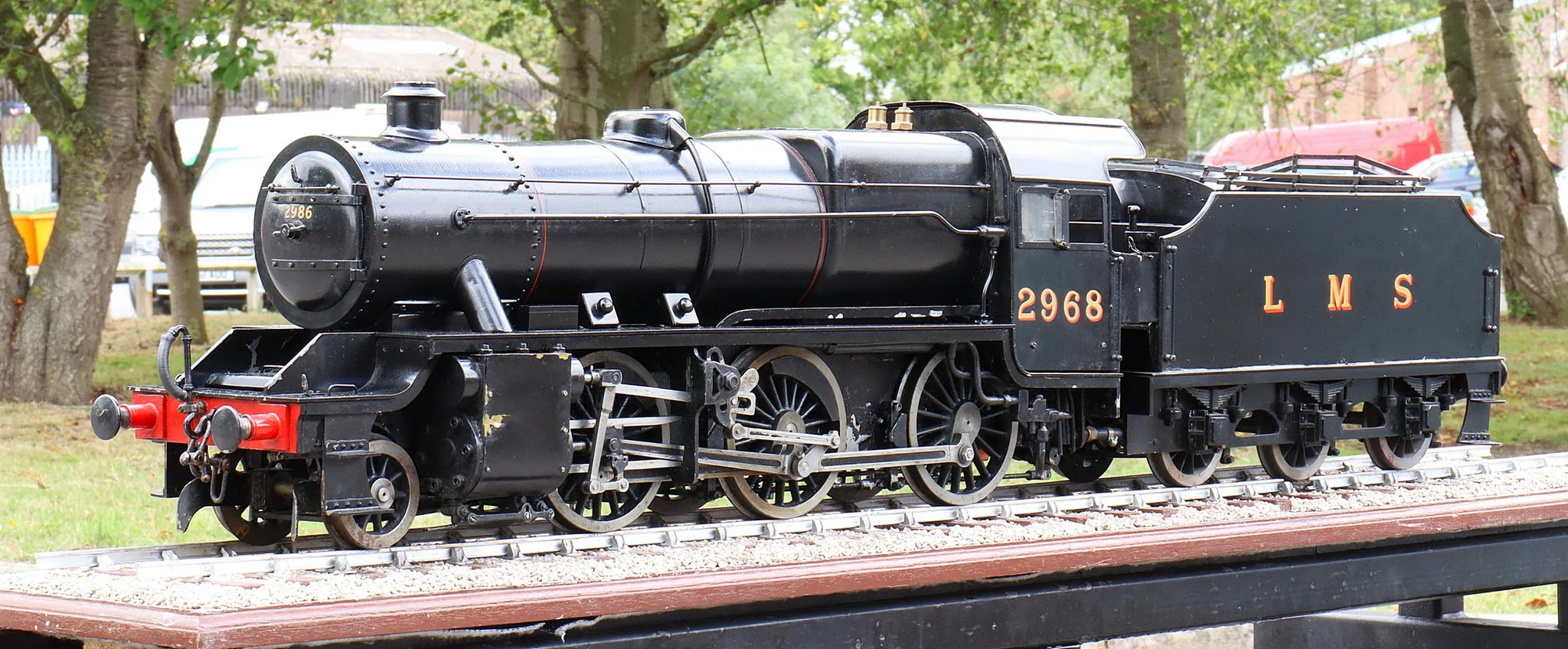

3 1/2 inch gauge LMS Mogul 2-6-0

We sold this one back in 2015, it's recently arrived back with us as part of a downsizing effort. The boiler has had a hydraulic test, with new certification issued, and a new safety valve has been fitted to replace the missing original.

Pictures opposite were taken in recent days, words below are from the original listing.

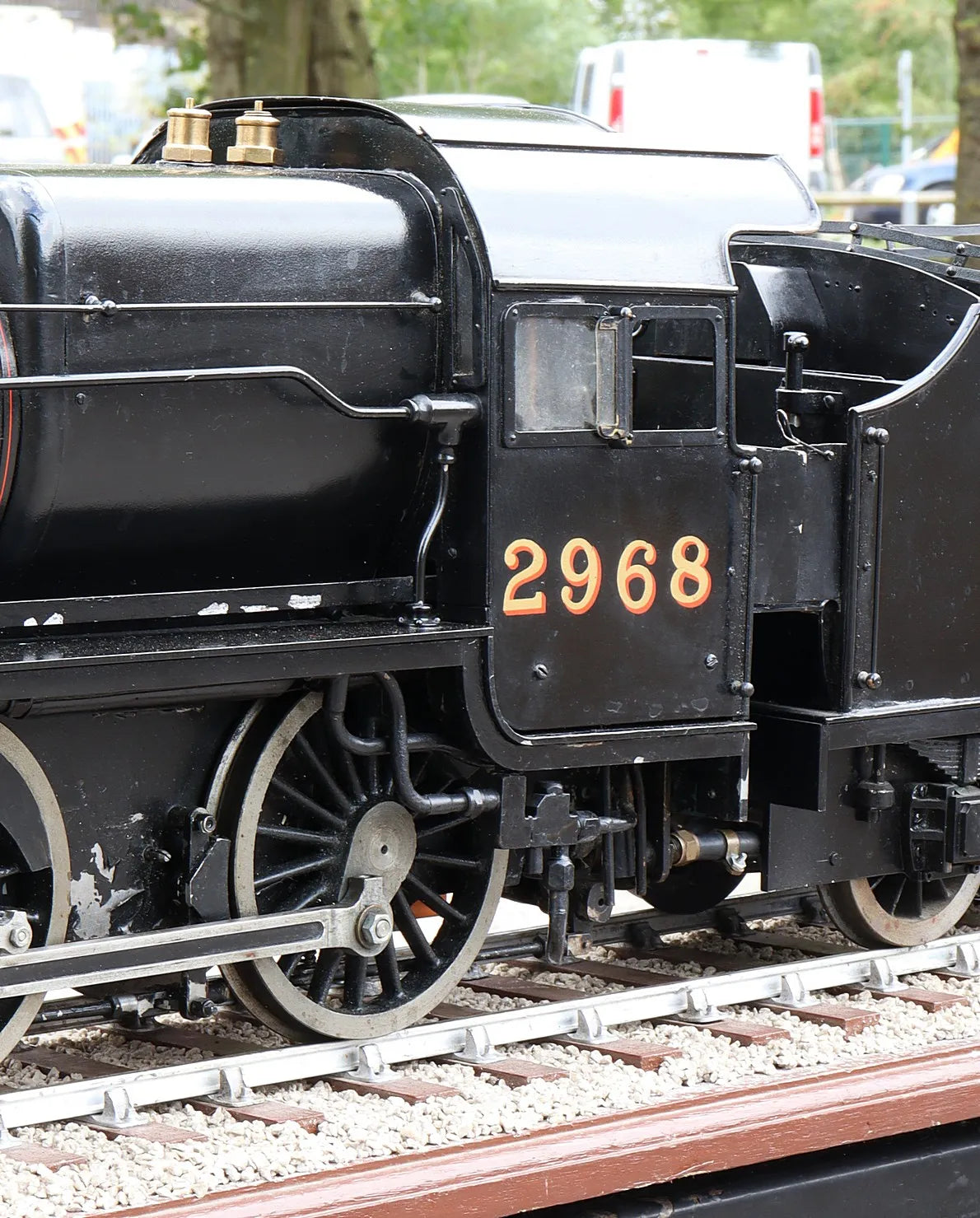

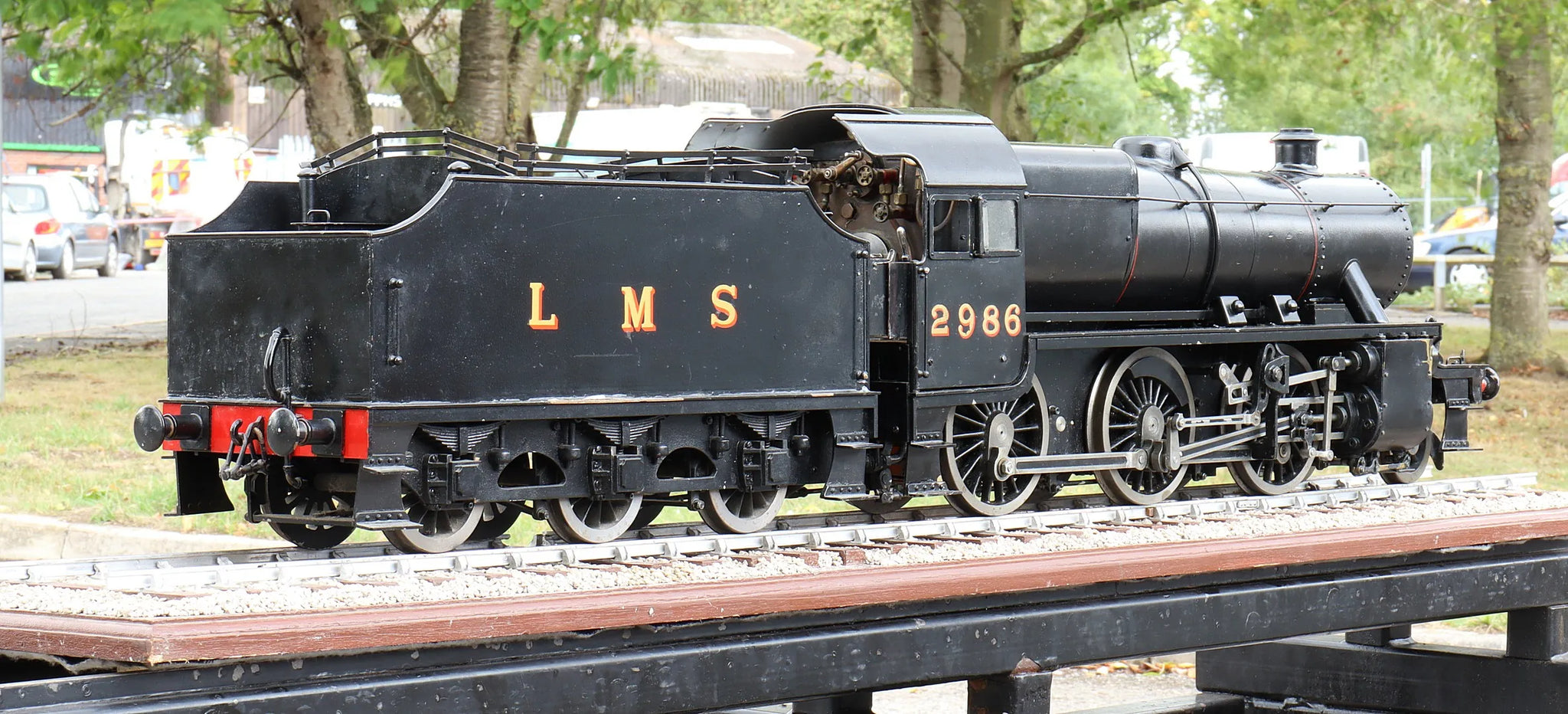

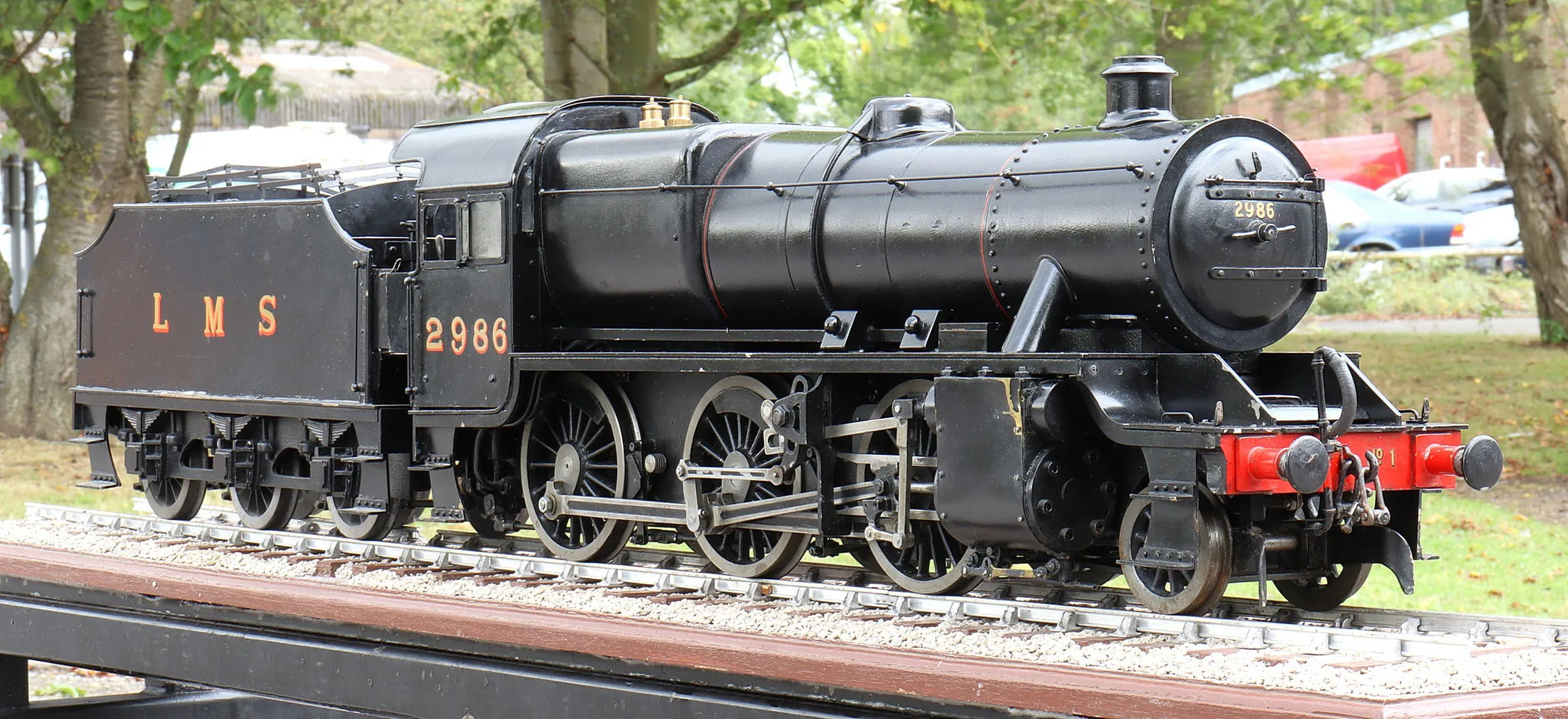

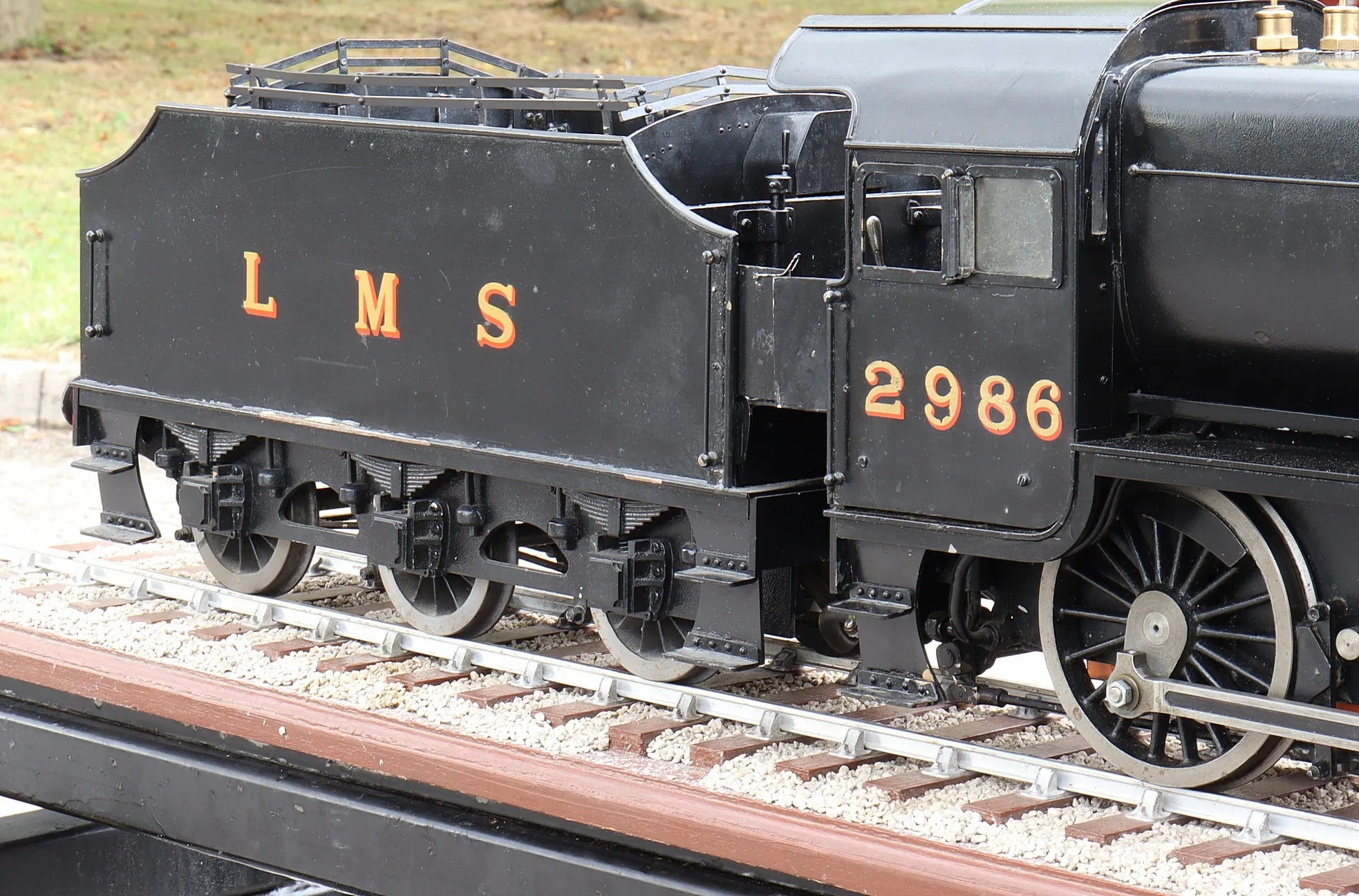

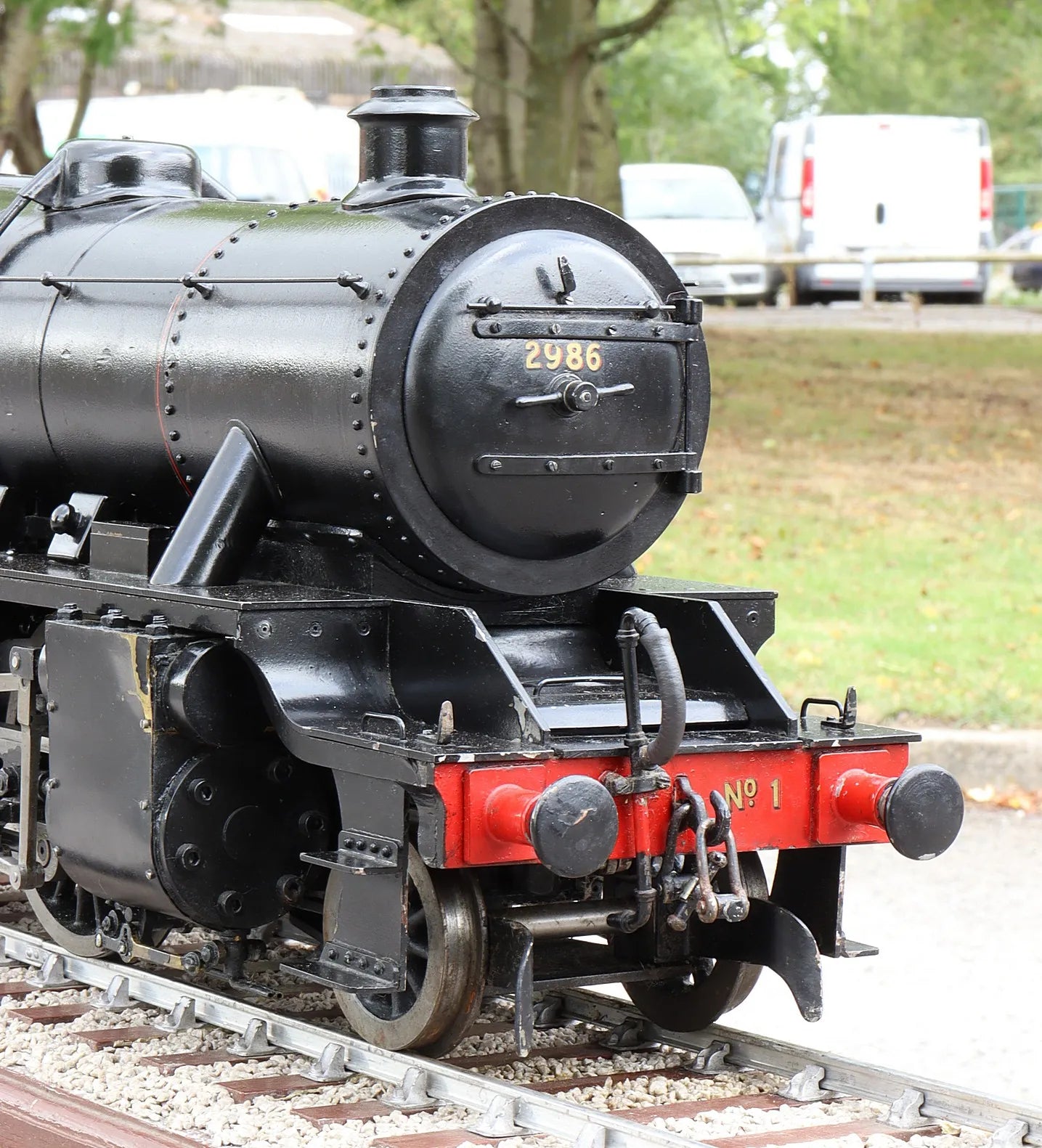

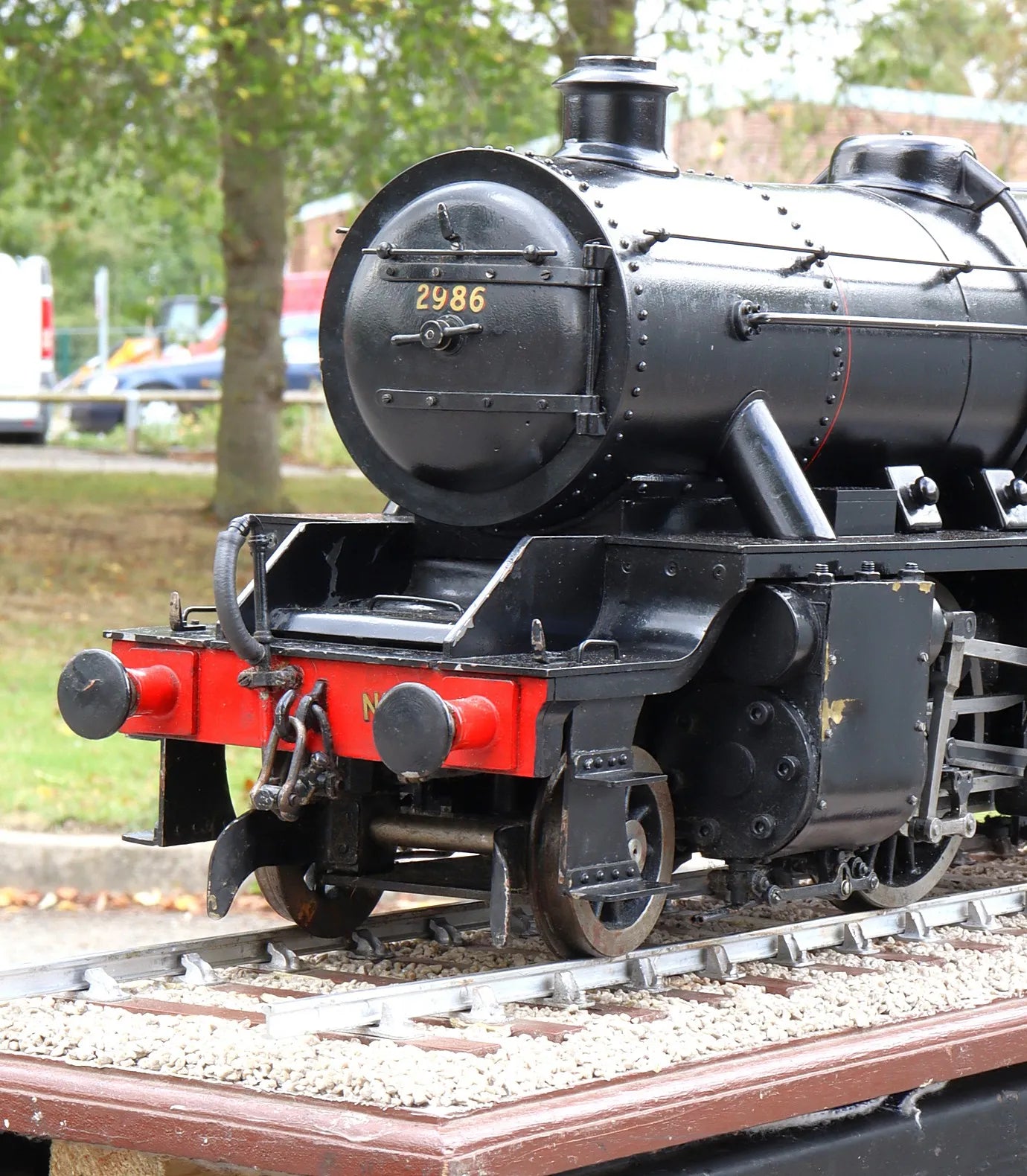

A 3 1/2 inch gauge LMS Mogul to LBSC's "Princess Marina" design. Built by a man responsible for several other good models, including the Burrell Gold Medal tractor we currently have in, the engine was completed in recent years but has never been steamed from new - it spent its life in his living room, run occasionally on compressed air.

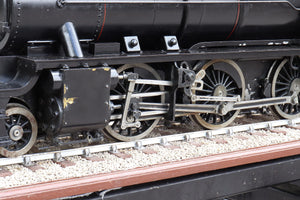

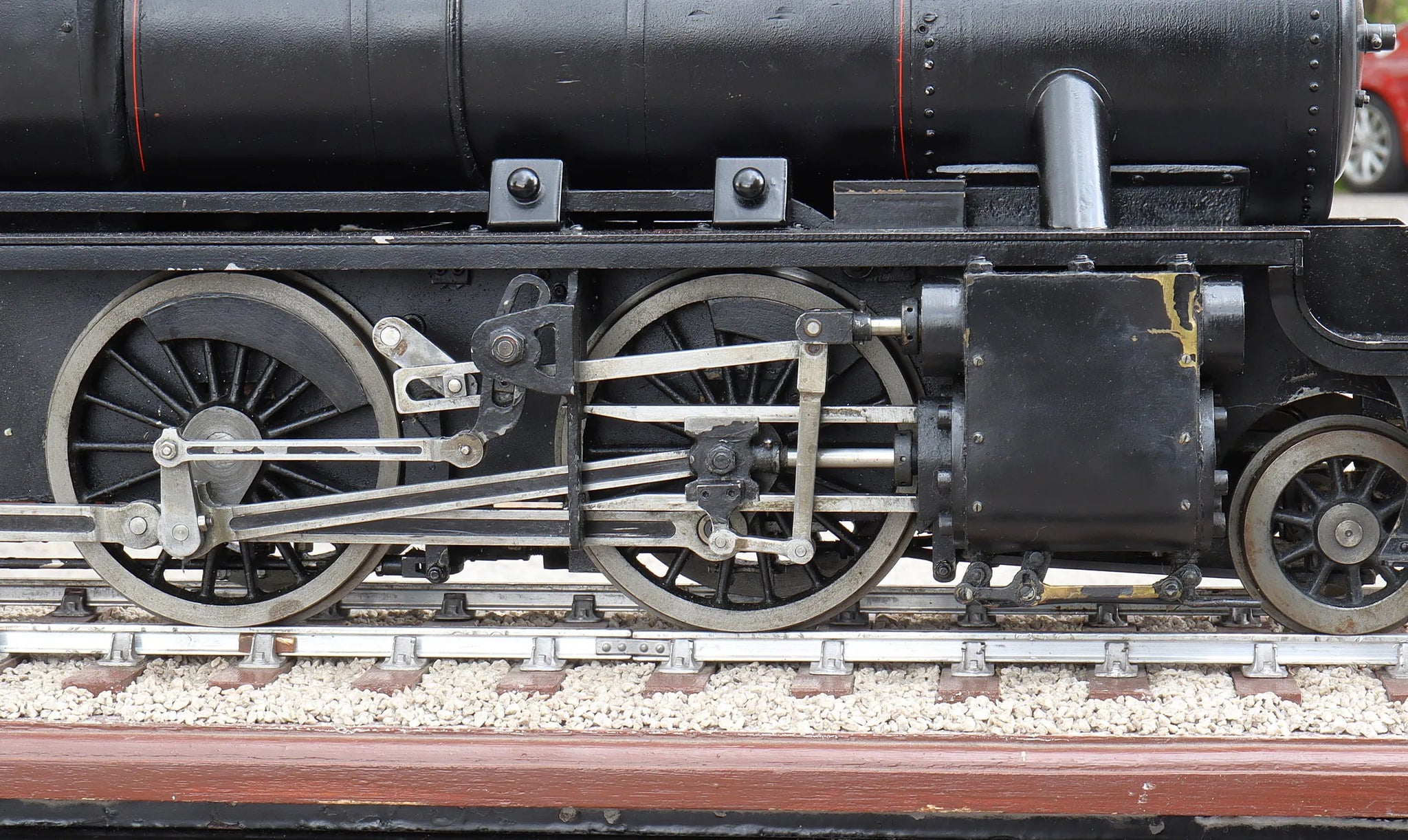

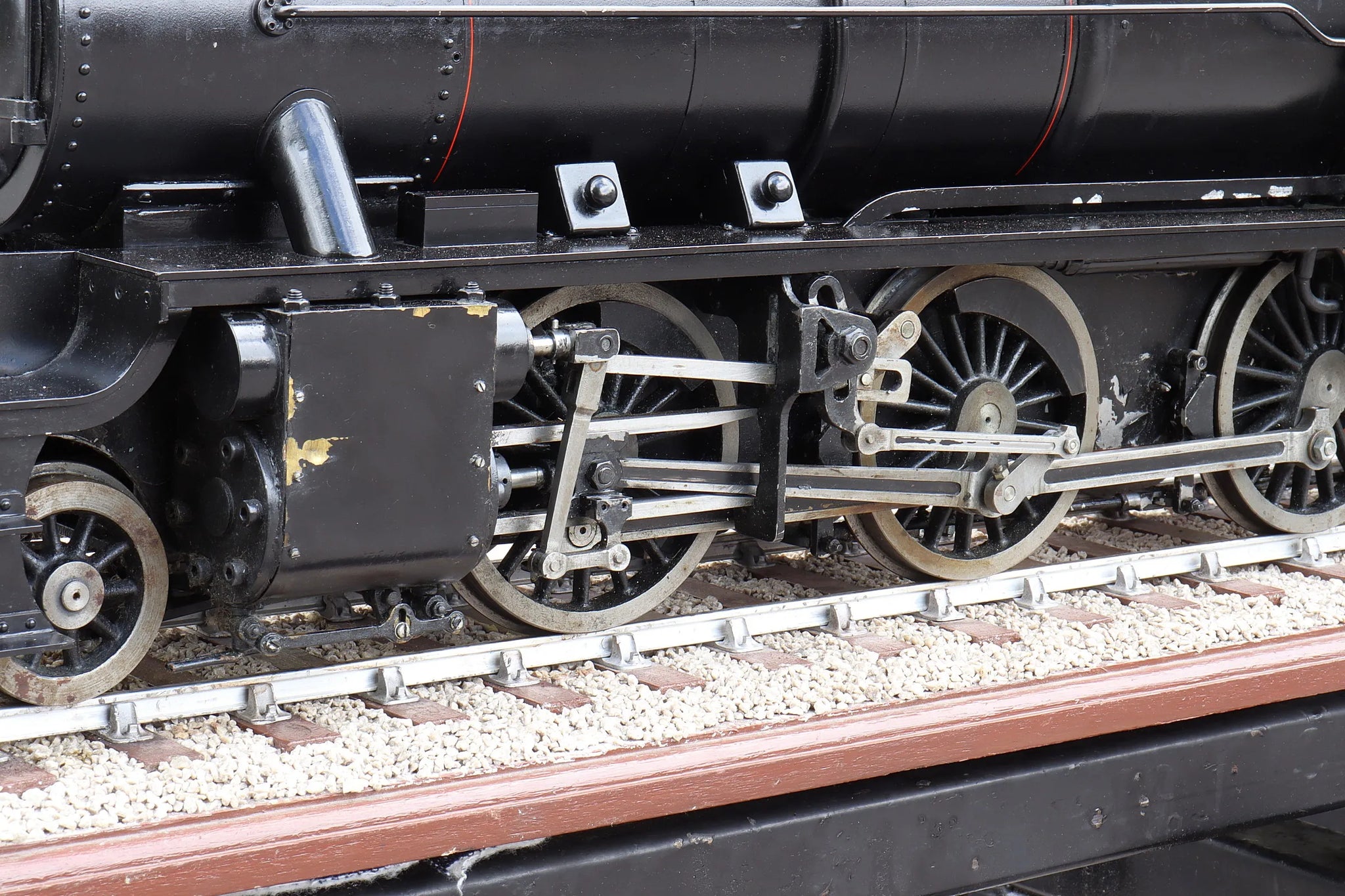

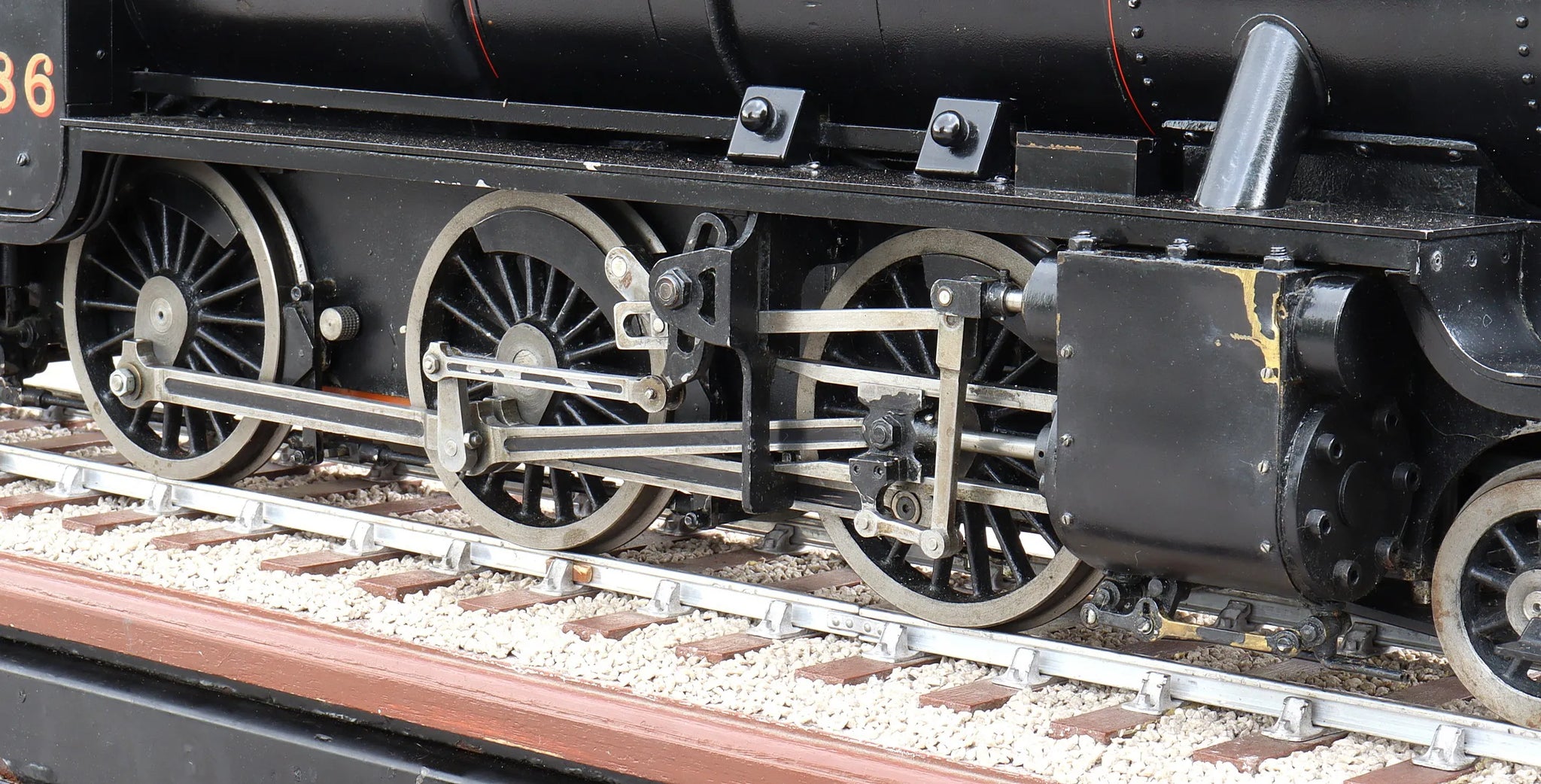

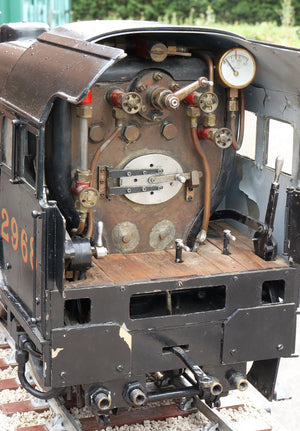

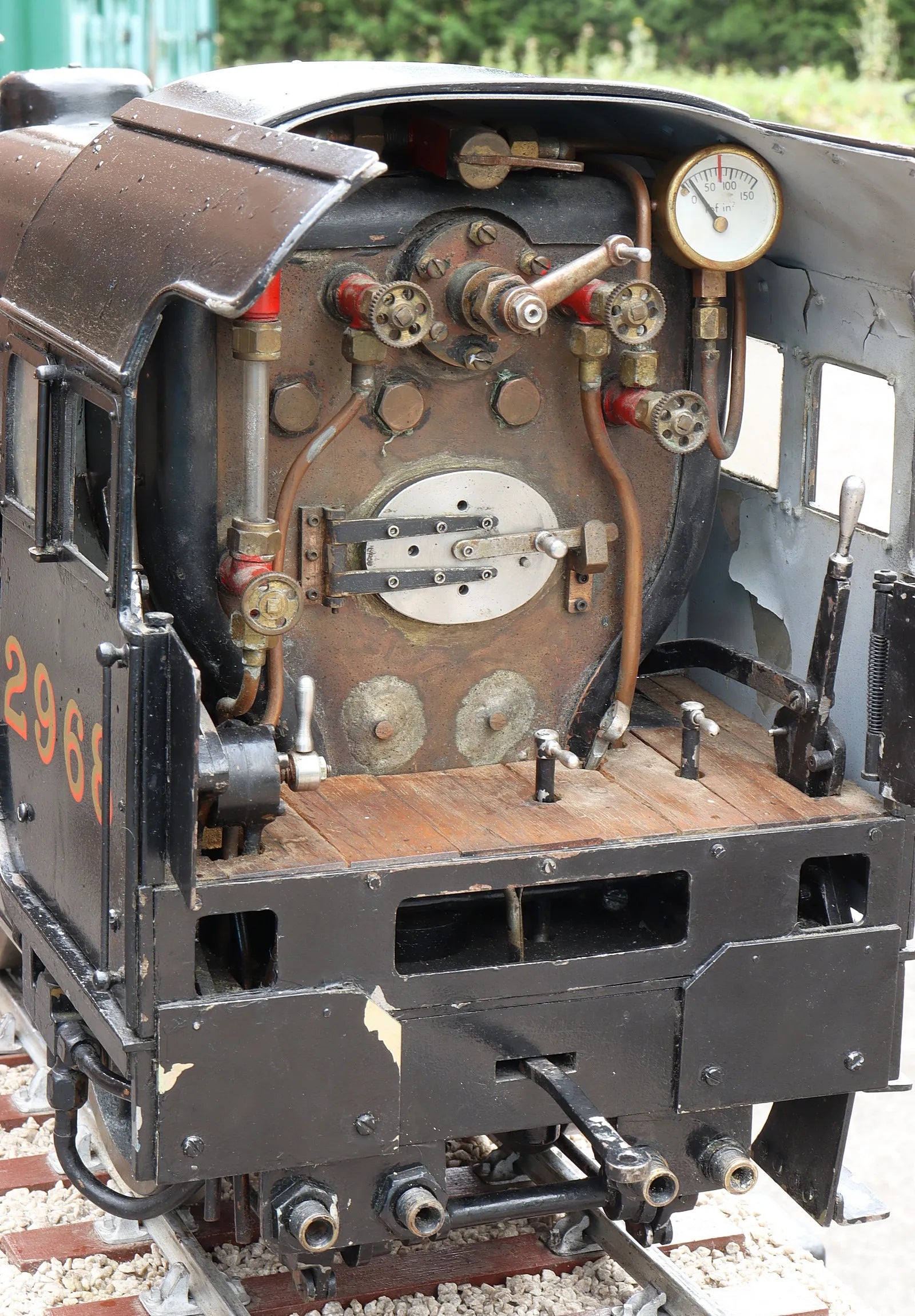

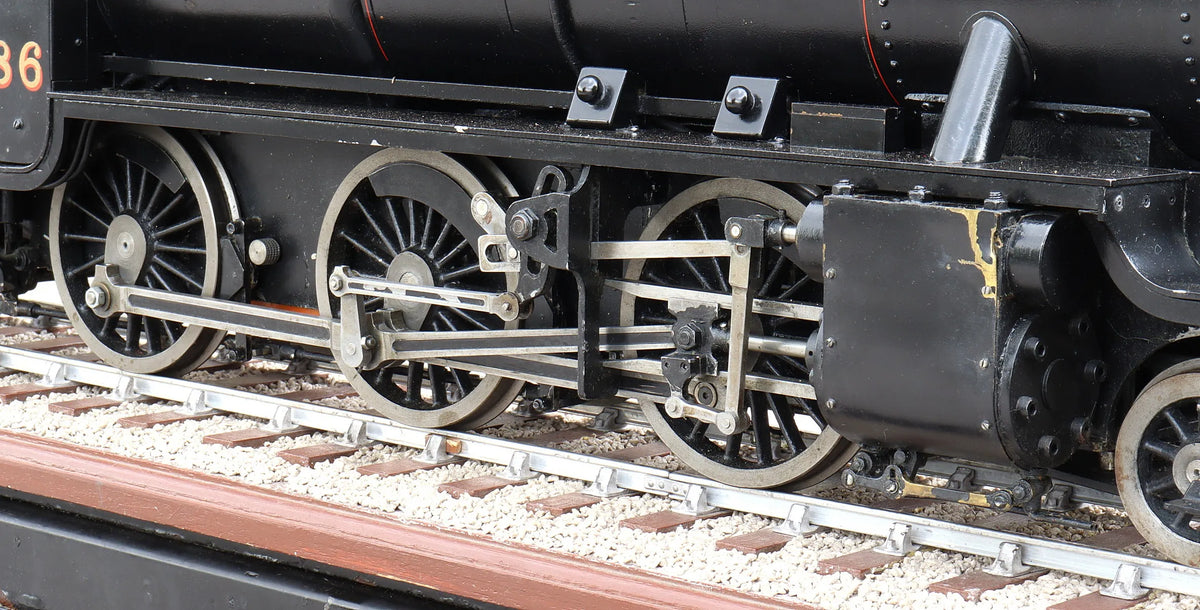

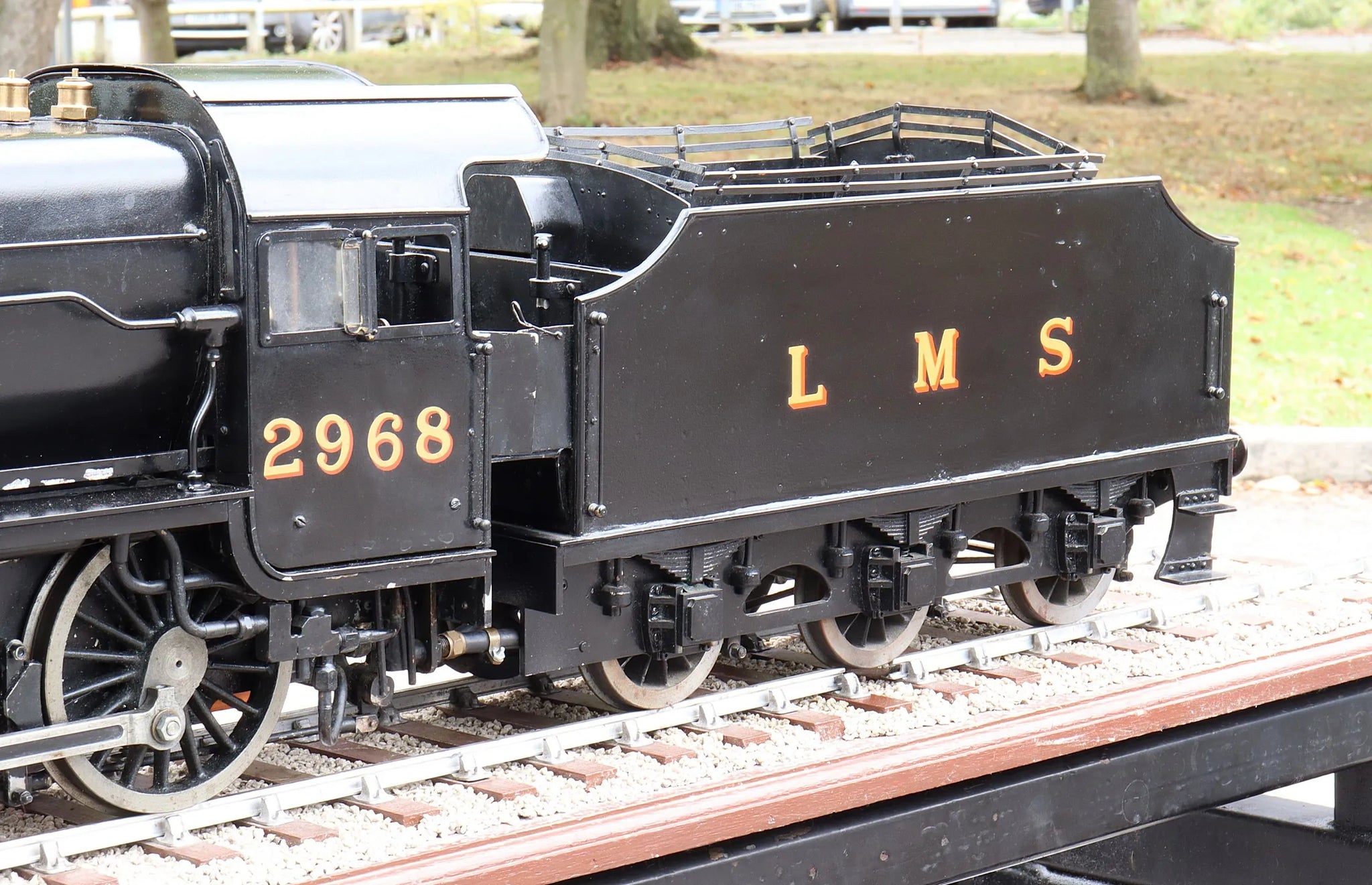

Silver soldered copper boiler, 80psi working pressure, feed by axle pump and injector with hand pump in tender. Gunmetal cylinders with piston valves actuated by Walschaert's gear, pole reverser in cab. Mechanical lubricator.

Boiler has had a hydraulic test and is sound, chassis runs well on air. The engine is missing one safety valve where an adaptor has been fitted to run it on air, cab steps need reattaching on one side and the paintwork is protective rather than decorative.

Technical information

Stock code

13000

Gauge

3 1/2 inch

Length/inches

30+18

Width/inches

8

Height/inches

11

Weight/Kg

31+9

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Walschaerts

Reverser type

pole

Boiler maker

non-commercial

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

CE/UKCA mark

n/a - non-commercial

Year built

unknown

Boiler number

13000

Safety valve type

spring

Safety valve

2

Hand pump

1

Mechanical pump

1

Injector

1

Date out

Jan-26

Hydraulic test valid to

09-Jul-29
