12703

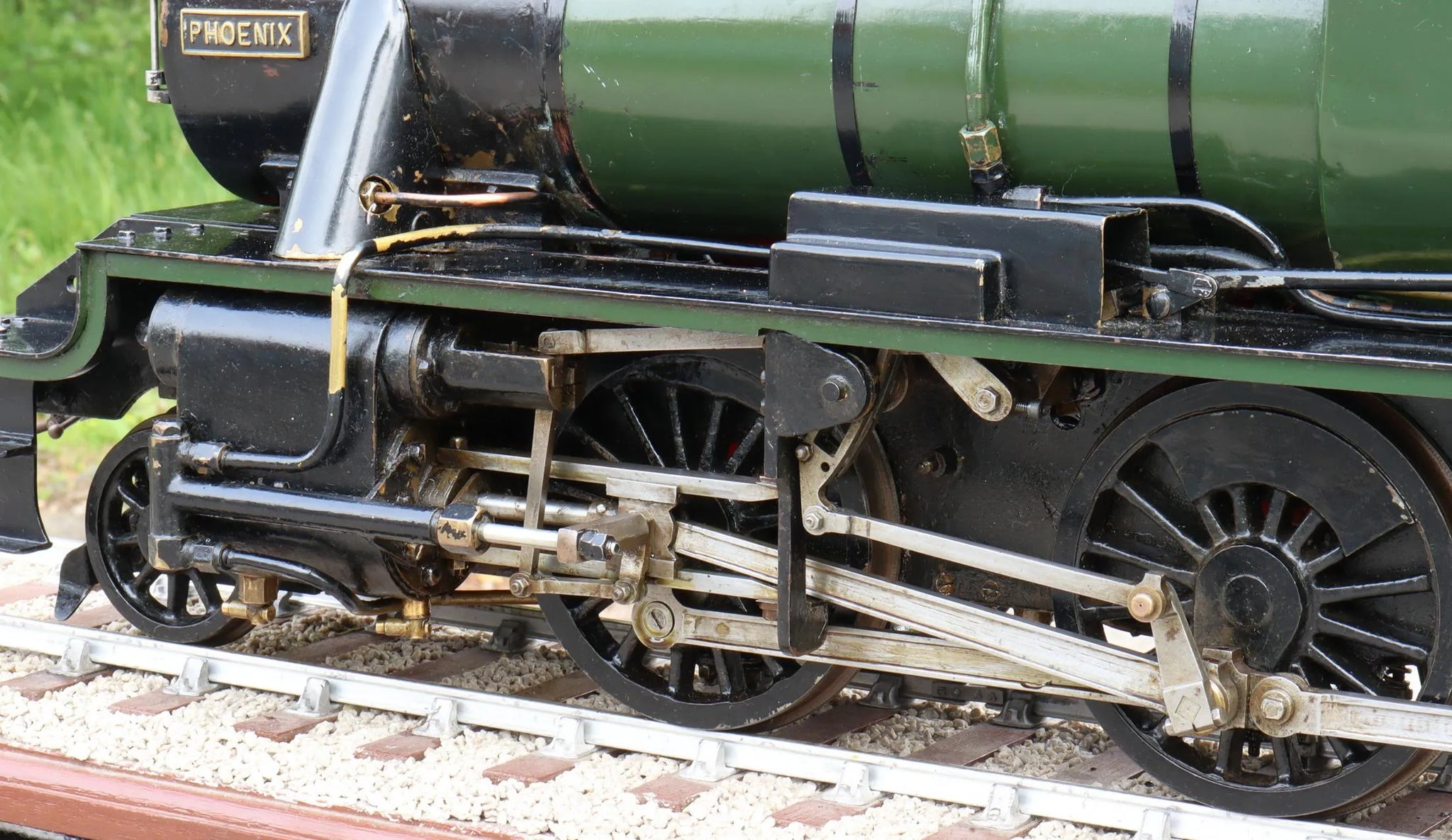

The engine is complete and runs on air in both directions, although passing by valves and/or pistons.
Although in current club test, on hydraulic test in the workshop the silver soldered copper boiler showed several minor leaks on the foundation ring, with an older repair to one of them. Two construction rivets showed beads of water.
Stock code |
12703 |
Gauge |
3 1/2 inch |
Length/inches |
28 |
Width/inches |
17.5 |
Height/inches |
11 |
Weight/Kg |
30+10 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |

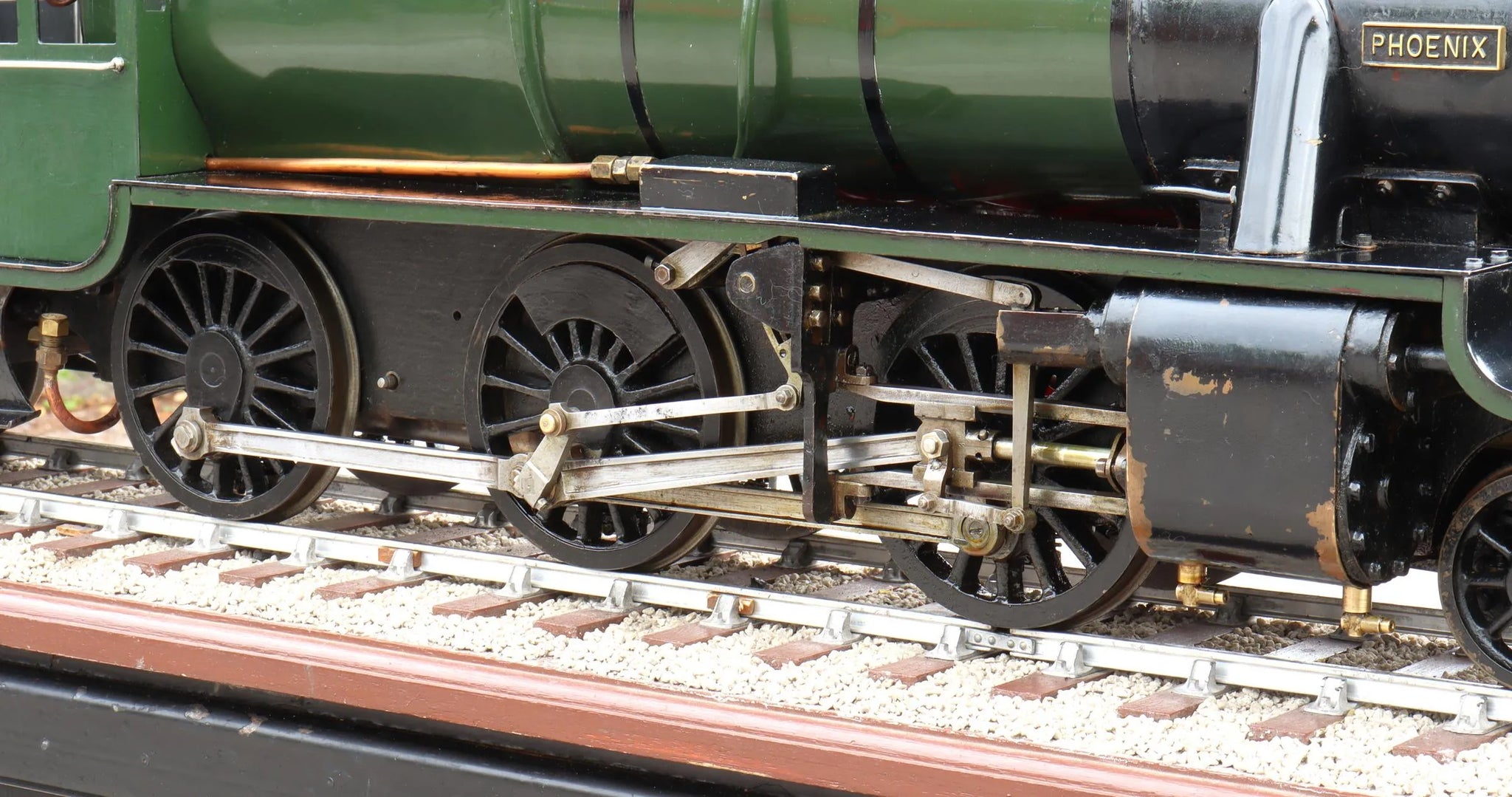

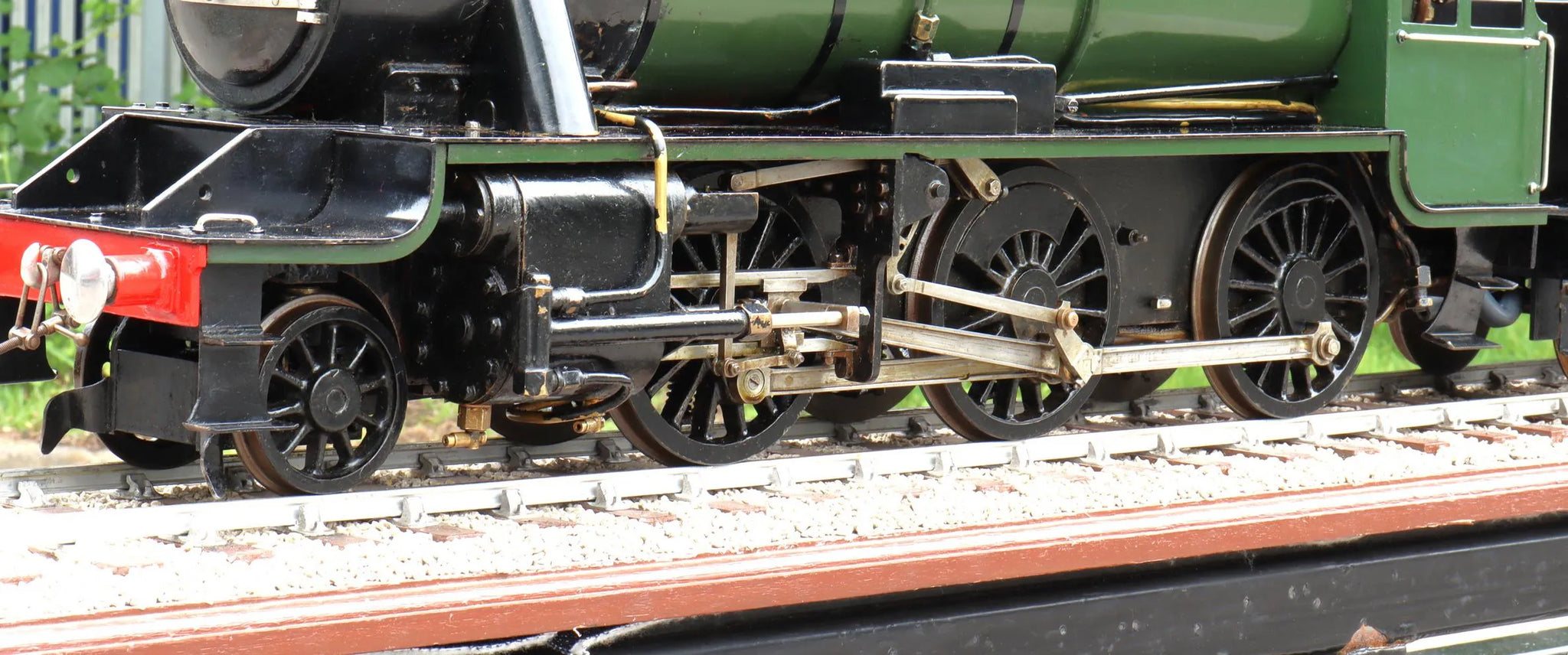

Valve gear |
Walschaerts |
Reverser type |
screw |
Boiler maker |
non-commercial |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a - non-commercial |
Year built |
unknown |
Boiler number |
307462 |
Safety valve type |
pop |
Safety valve |
2 |
Whistle |
1 |
Hand pump |
1 |
Mechanical pump |
1 |
Superheater type |
flue tube |
Superheater |
2 |
Date out |
Sep-25 |
