7064
The boiler was tested by the owner's club in August this year with new certification issued, the steam test expiring October 2026, hydraulic test August 2029. However, tested on arrival we noted a leak on one tube at the smokebox tubeplate, which will require repair. The engine still runs well on air, with some wear apparent.
Photographs were taken in recent days-video and words below were taken back in 2017.

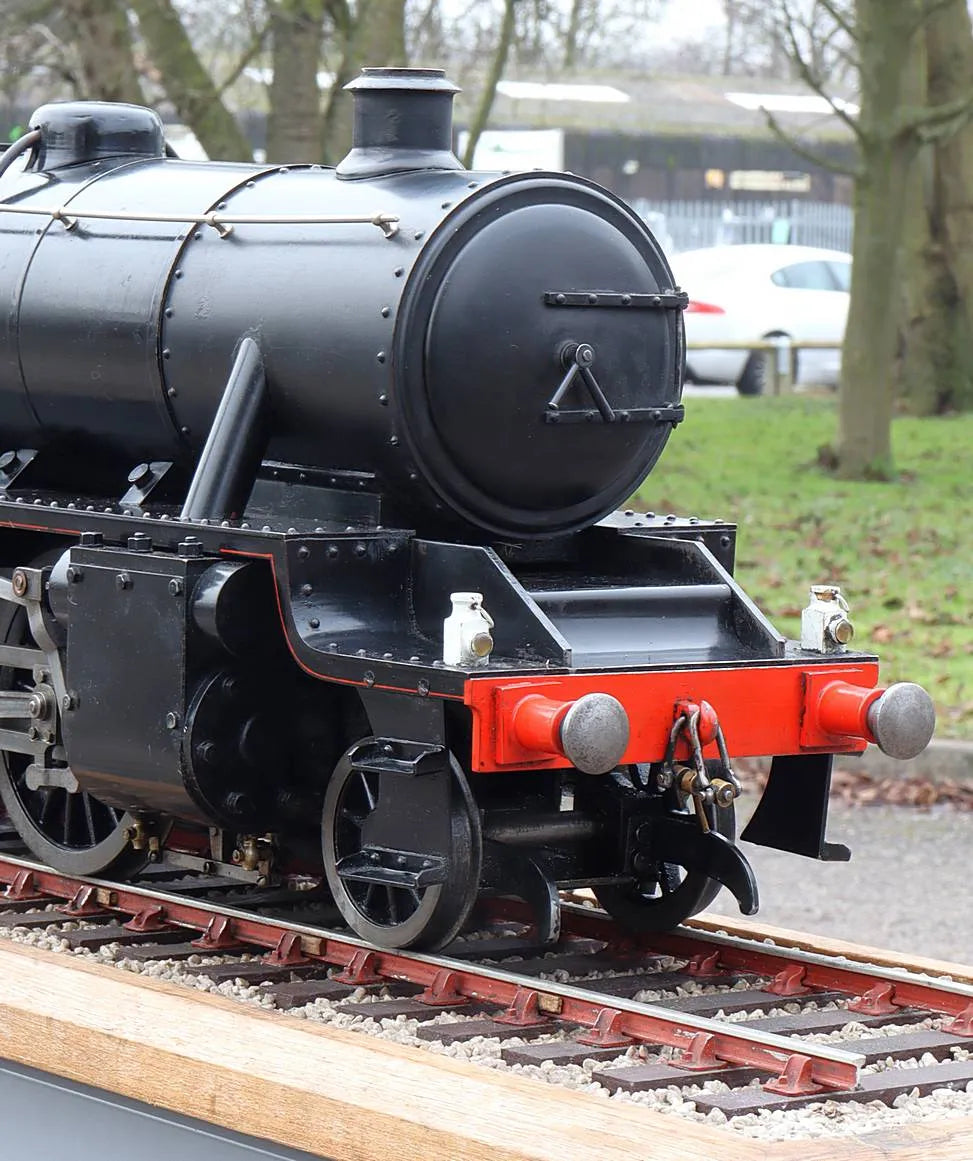

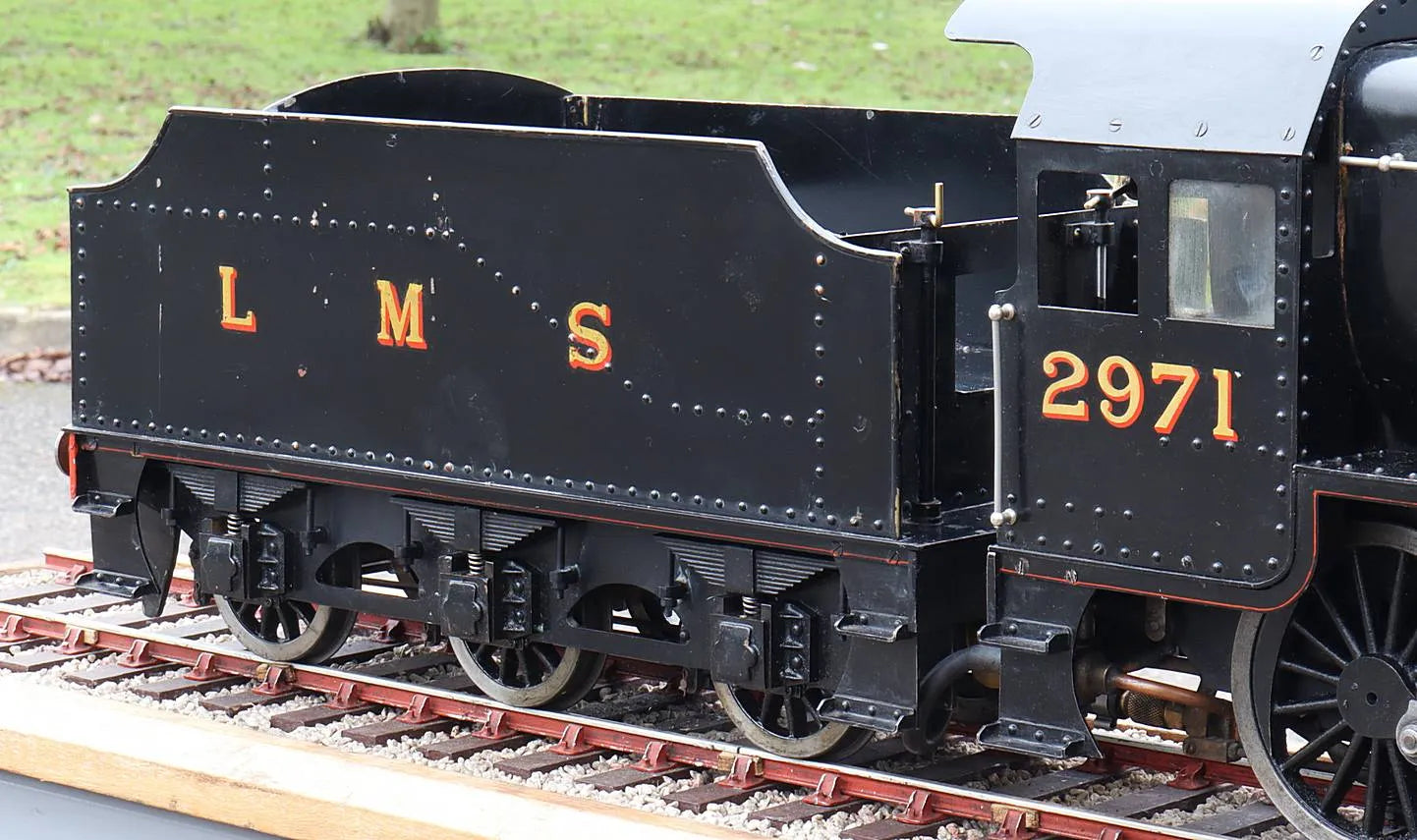

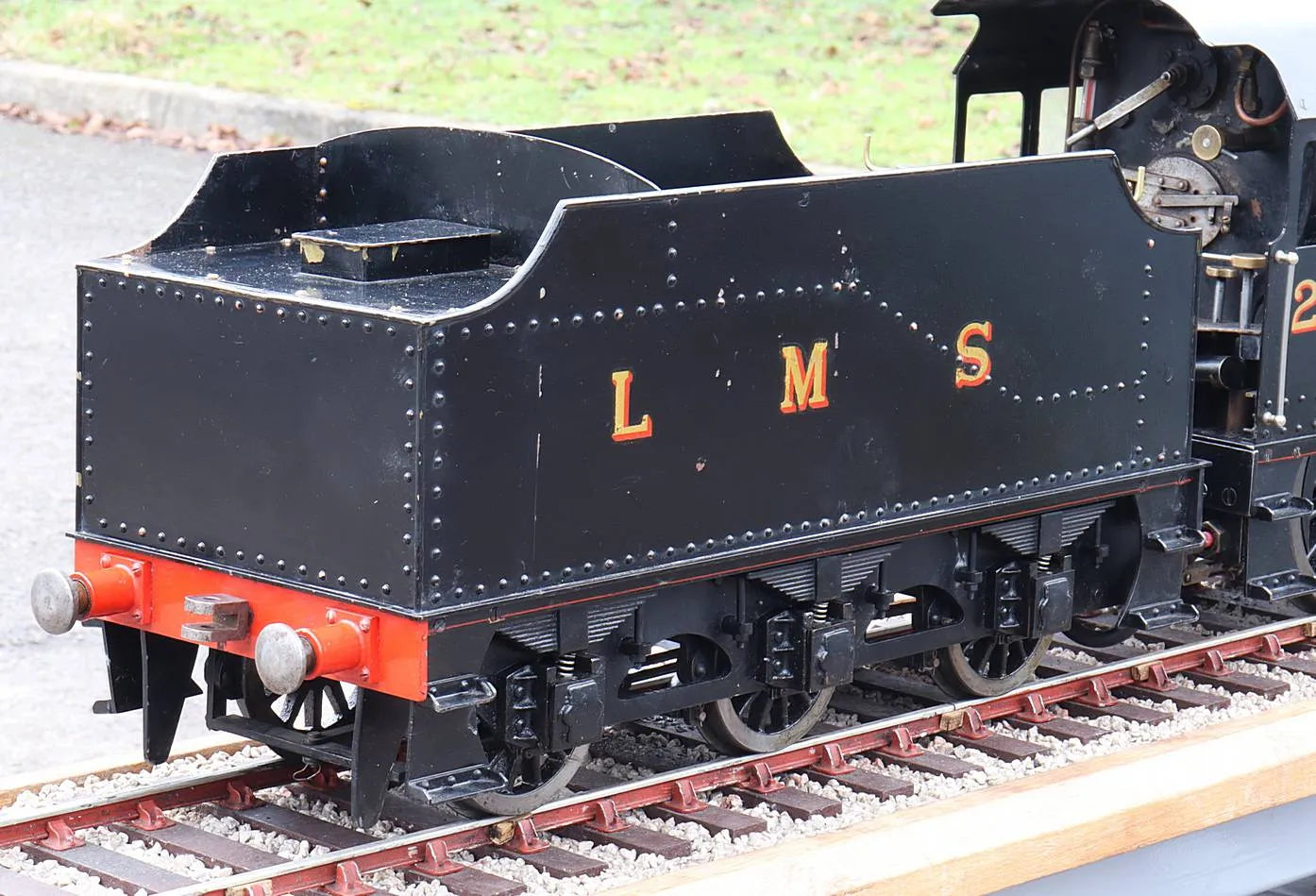

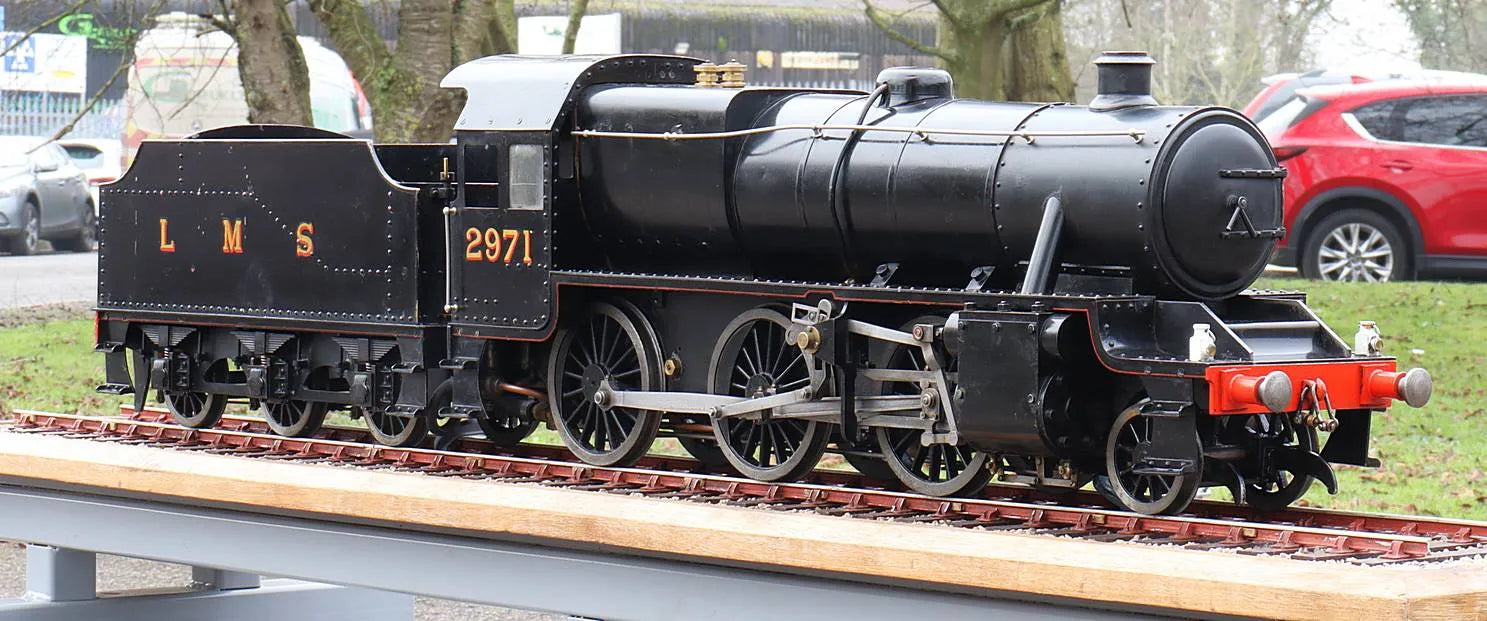

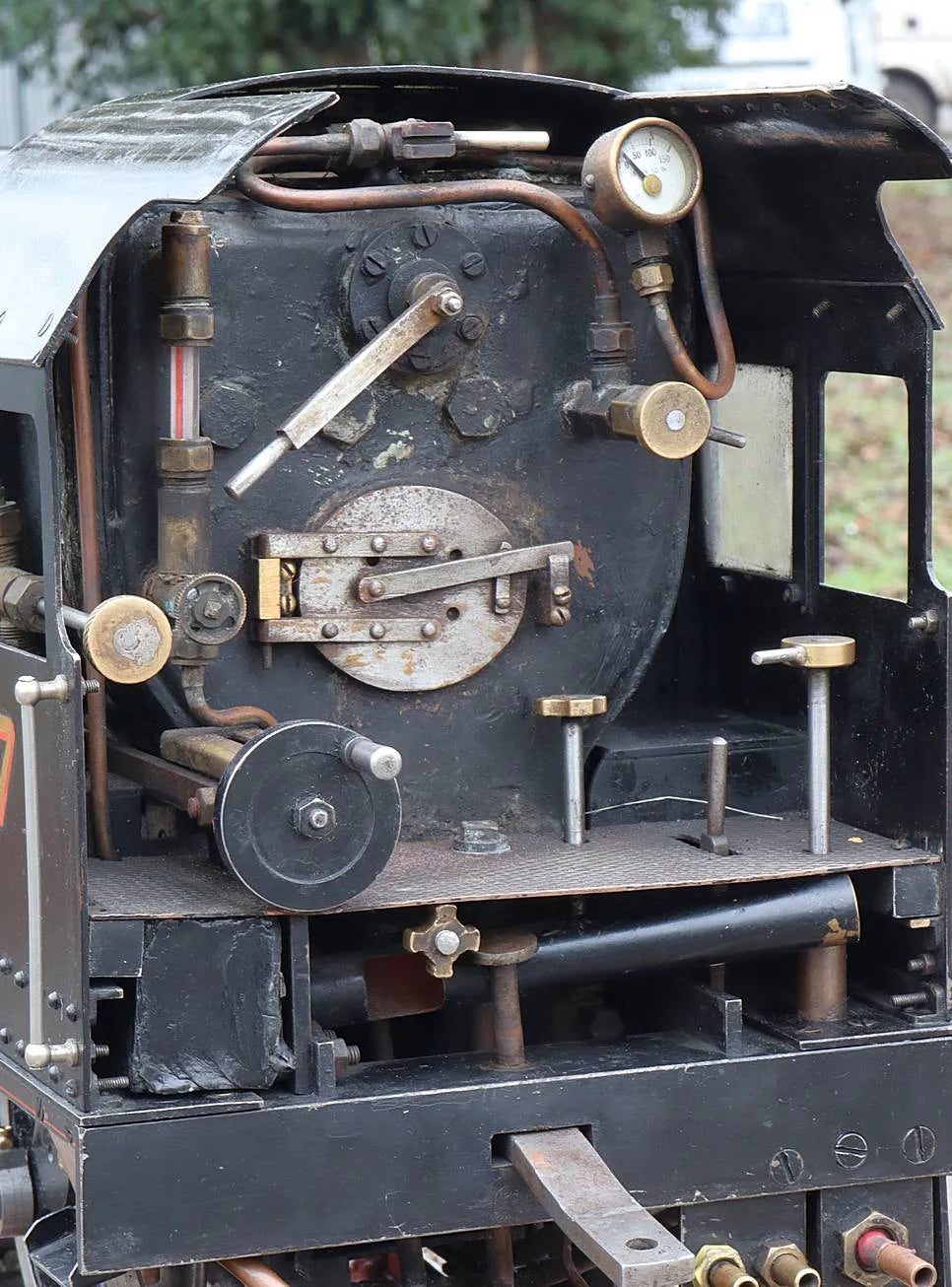

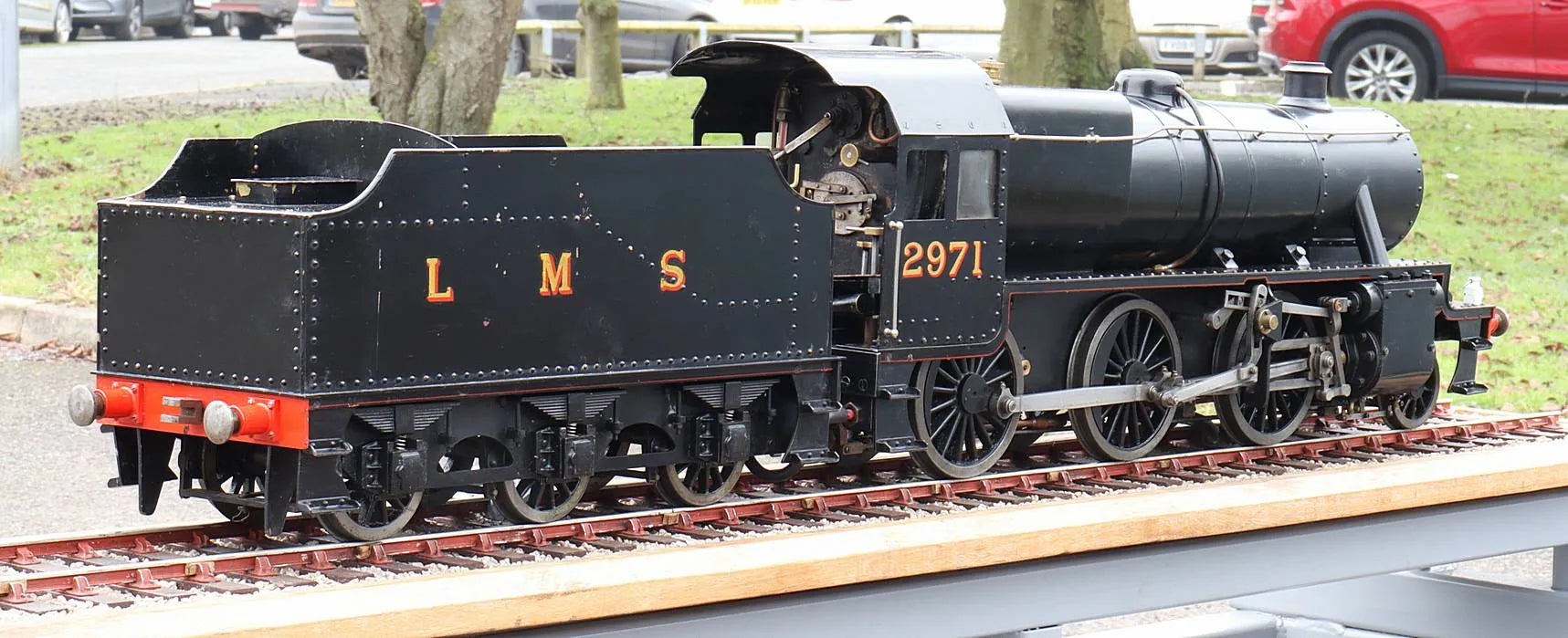

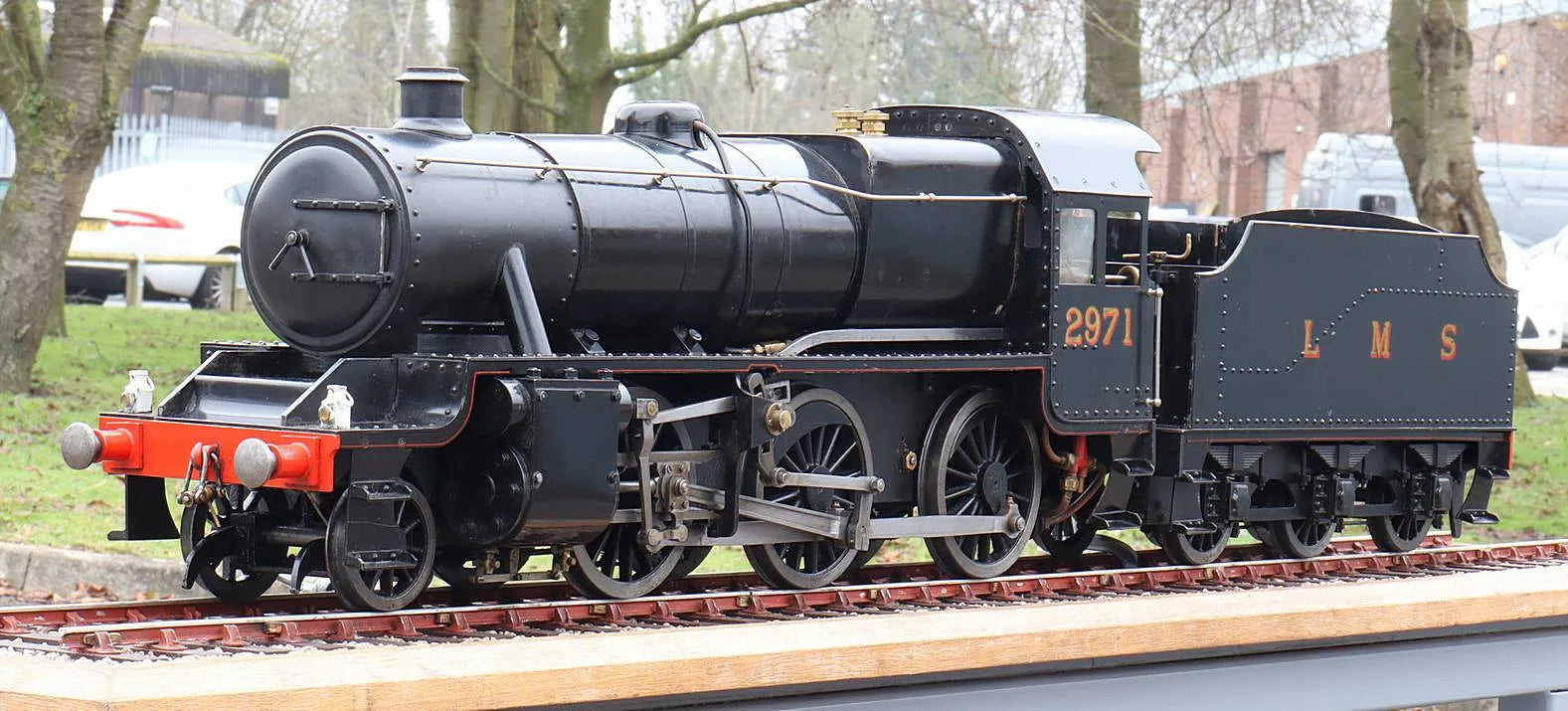

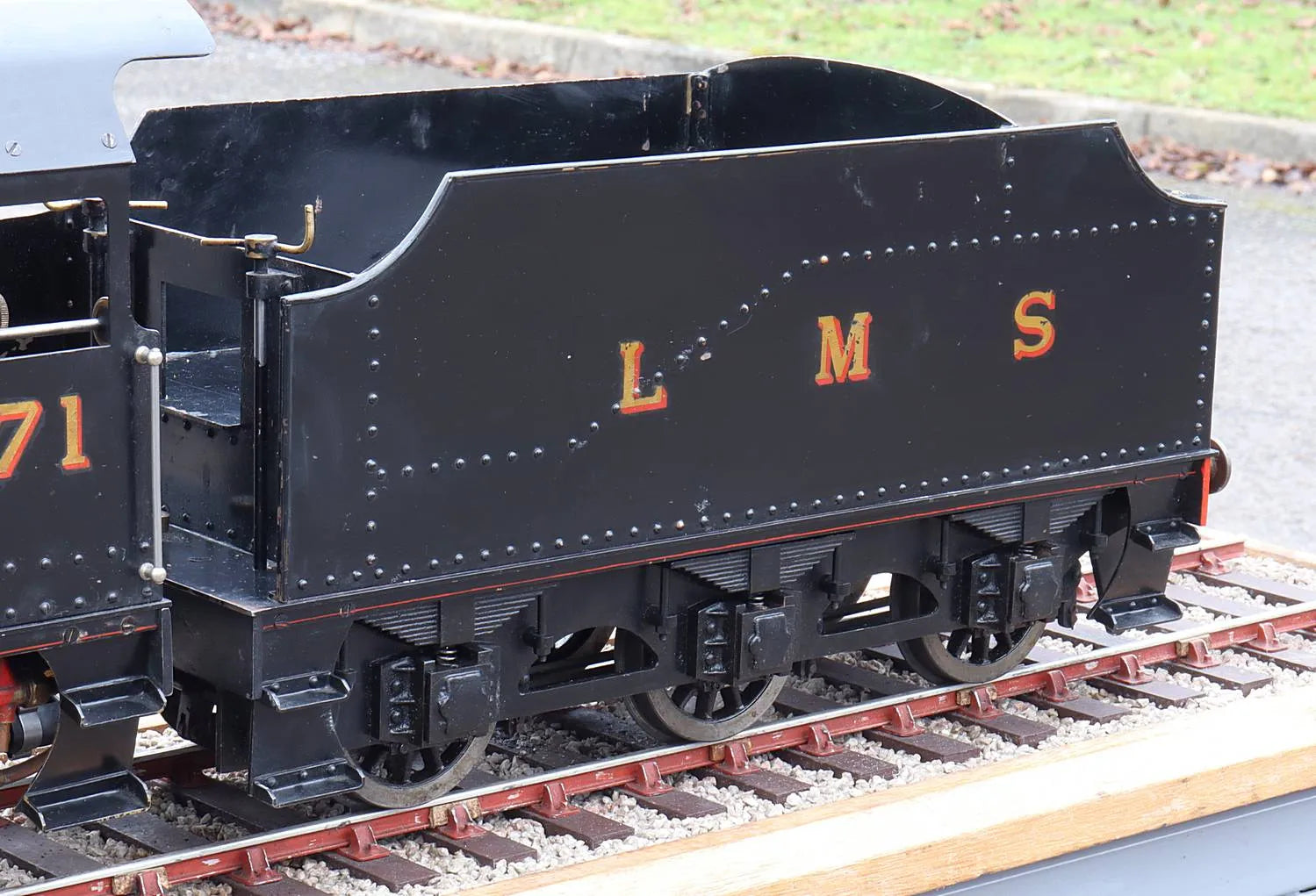

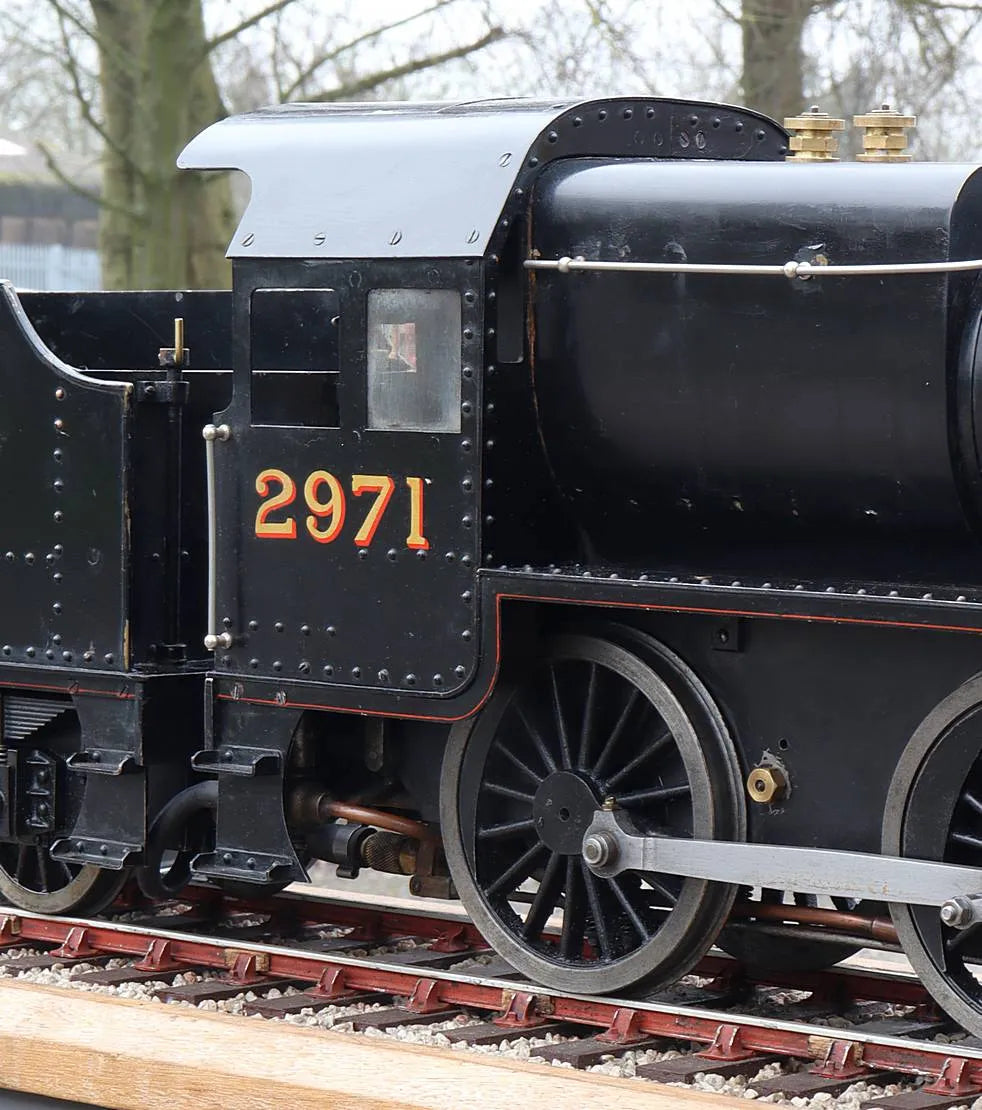

A well built 3 1/2 inch gauge Stanier Mogul to LBSC's popular "Princess Marina" design.
On test the engine steamed freely and ran well. The paintwork is in presentable condition, with some wear-related marks.
Stock code |
7064 |
Gauge |
3 1/2 inch |
Length/inches |
28 + 18 |
Width/inches |
8 |
Height/inches |
10 |
Weight/Kg |
40 |
Wheel material |
cast iron |
Cylinder material |
gunmetal |
Valve type |
piston |

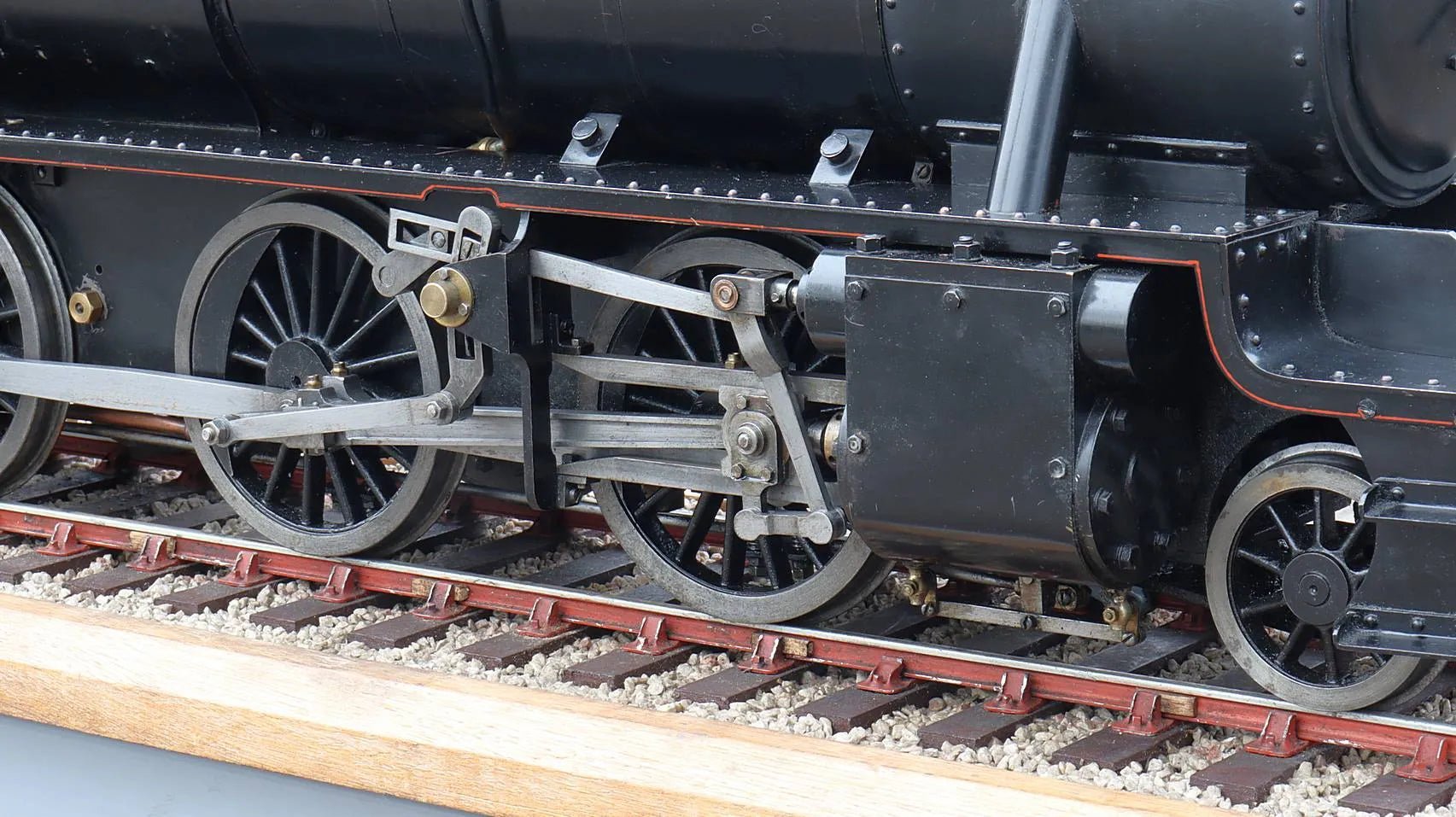

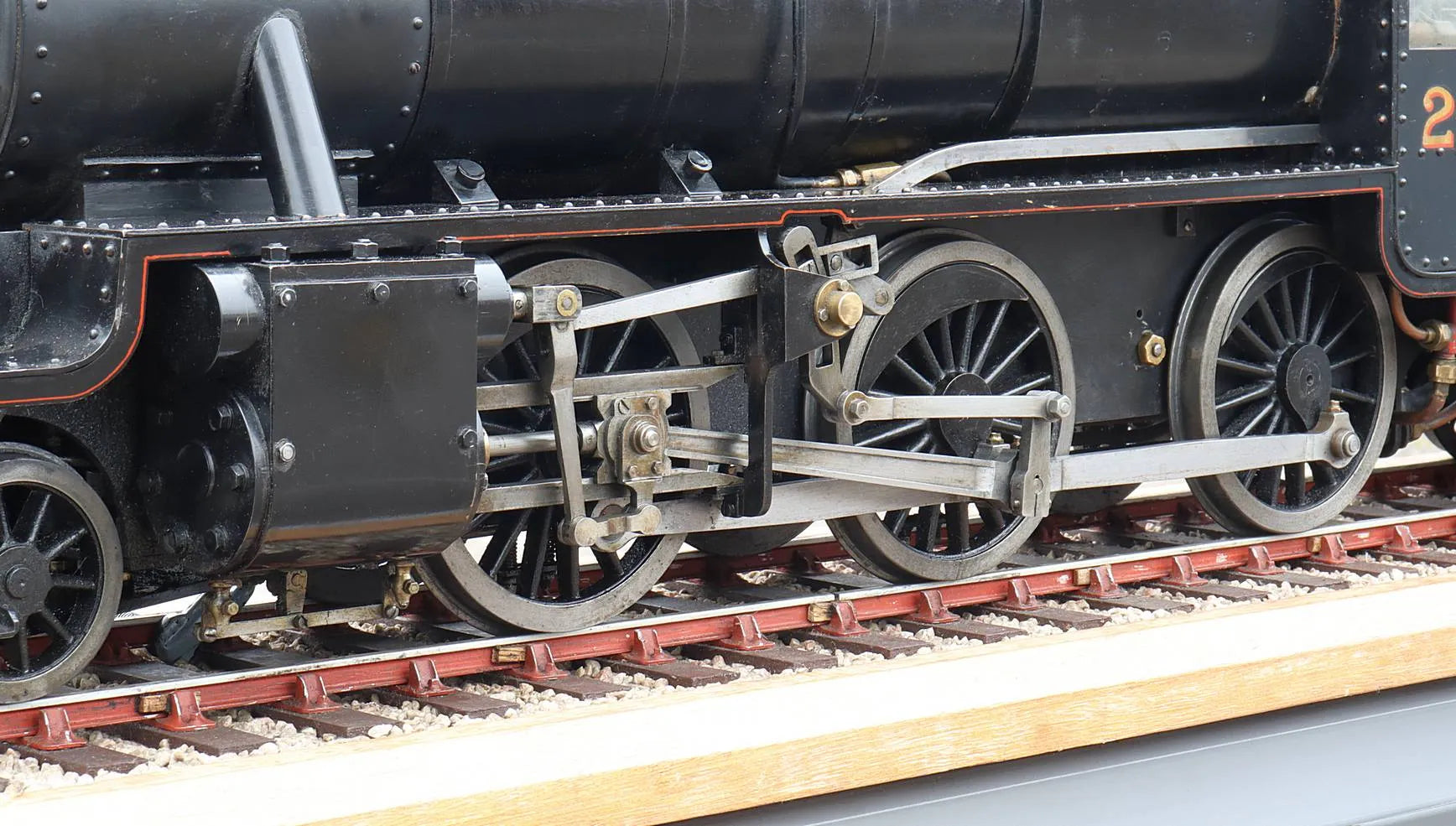

Valve gear |
Walschaerts |
Lubricator type |
mechanical |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a - non-commercial |
Boiler number |
7064 |
Safety valve type |
spring |
Safety valve |
2 |
Fusible plug |
no |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Hydraulic test valid to |
24-Aug-2029 |
Steam test valid to |
24-Oct-2026 |
