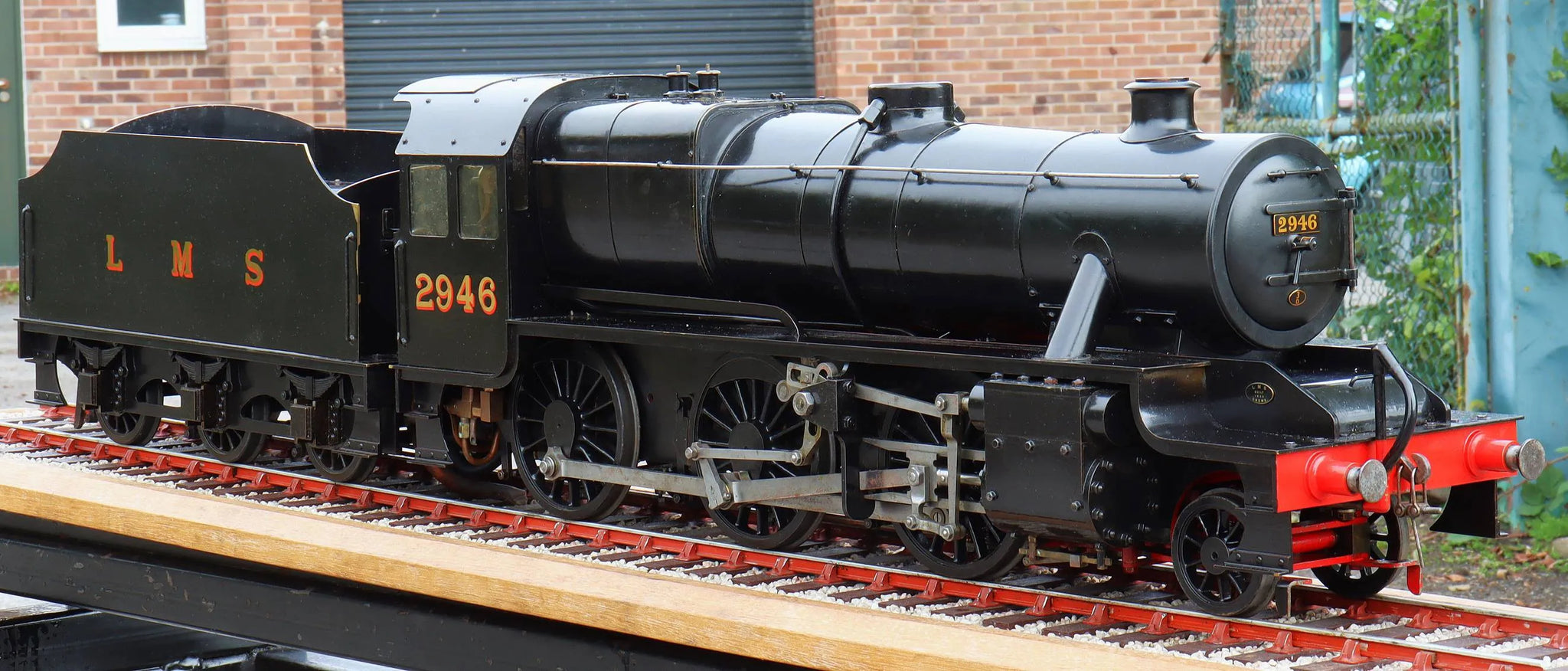

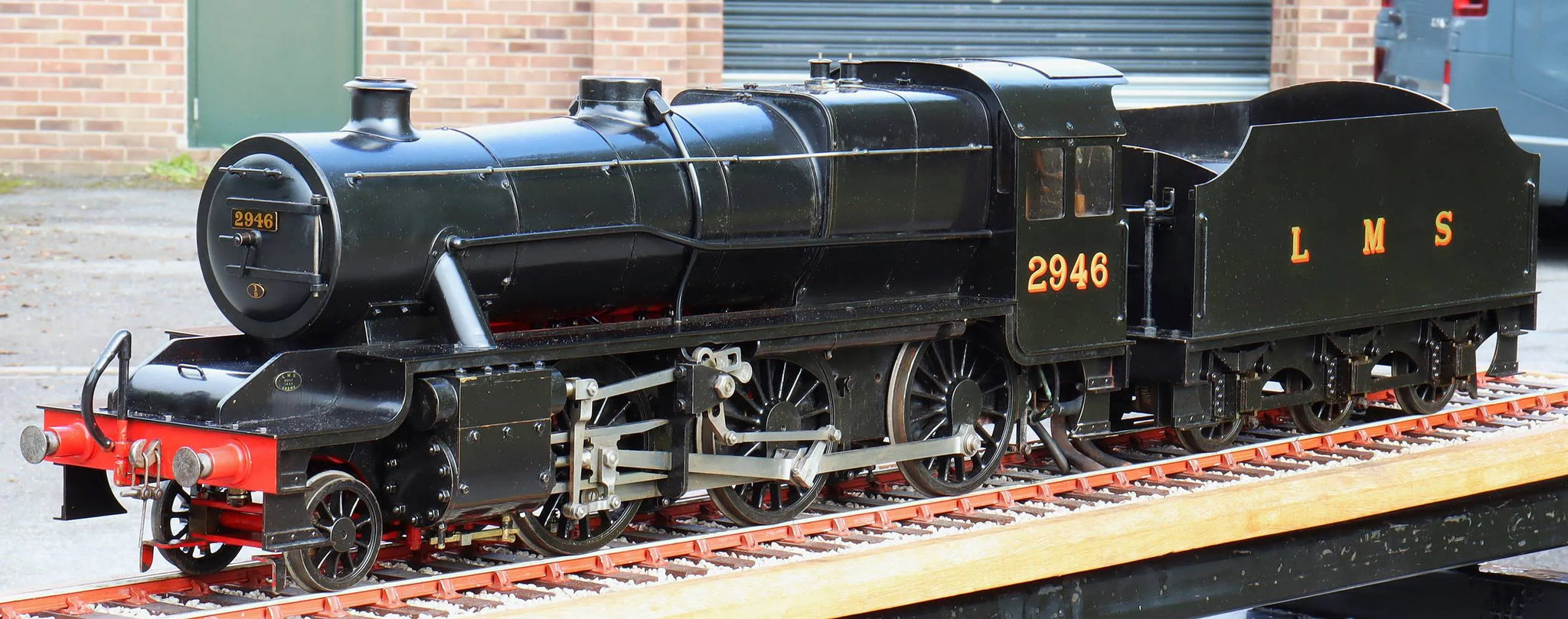

3 1/2 inch gauge LMS Mogul

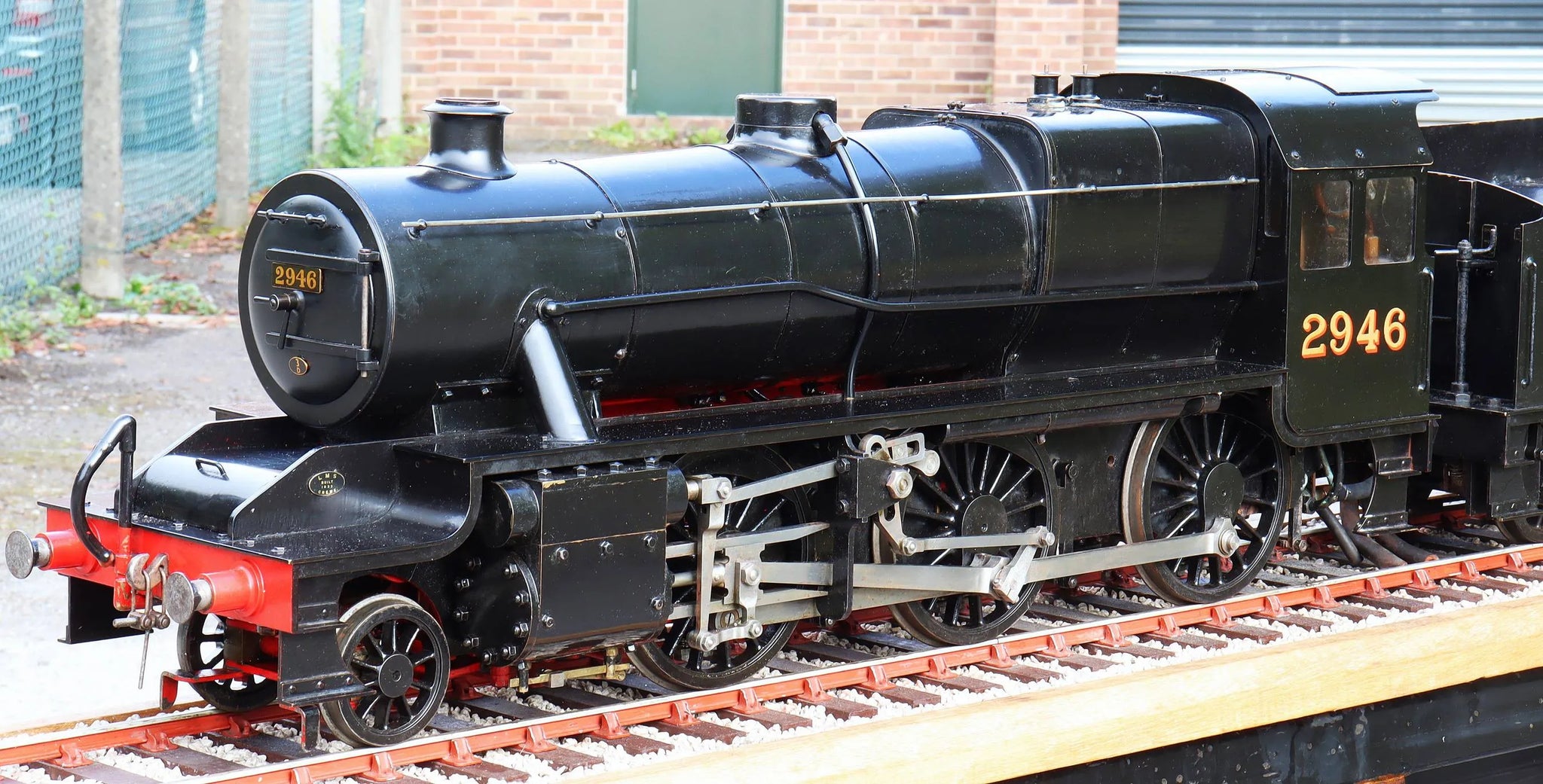

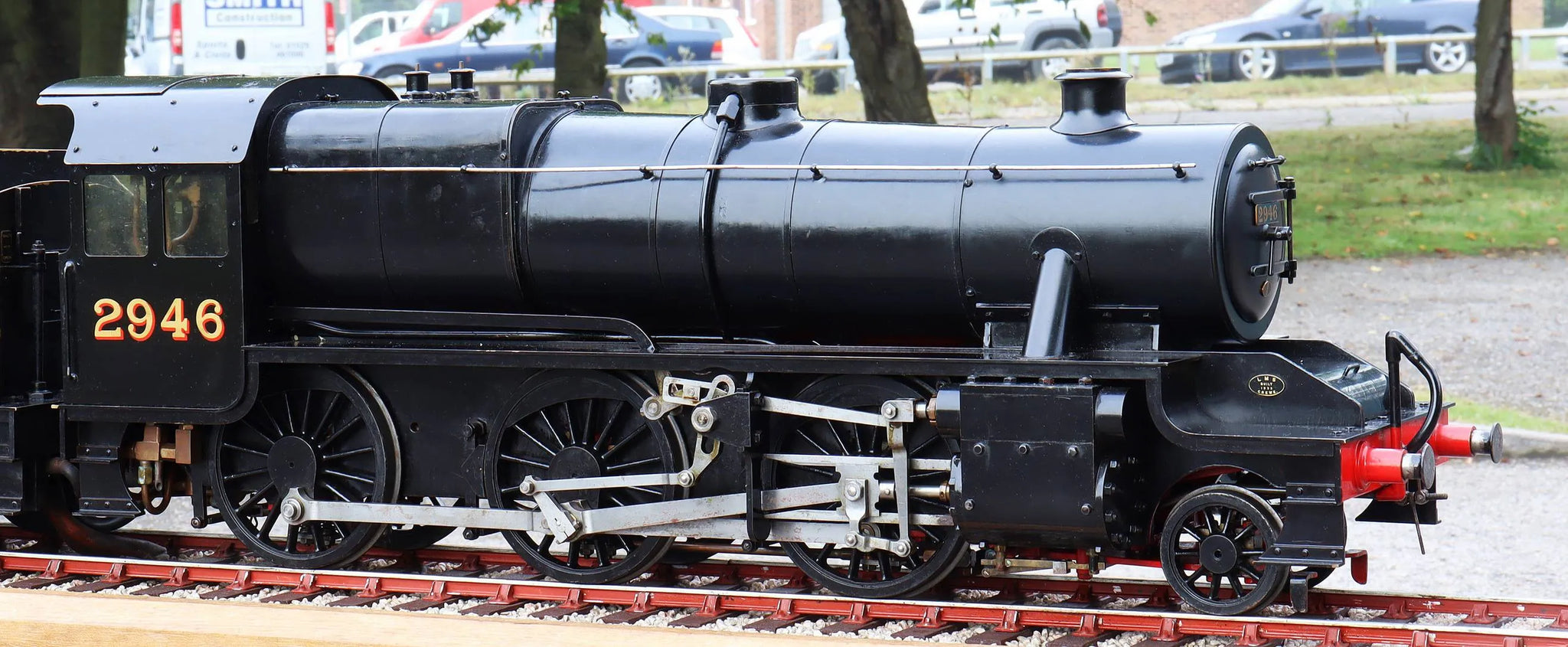

A 3 1/2 inch gauge LMS Mogul to LBSC's "Princess Marina" design, an older engine by a highly capable engineer with several good engines to his credit, known at his club for their excellent performance on the track.

Unused in some years, the engine has come to us from the late builder's family along with three other locomotives. We have club history for the boiler, which has also had a recent hydraulic test with new certification issued.

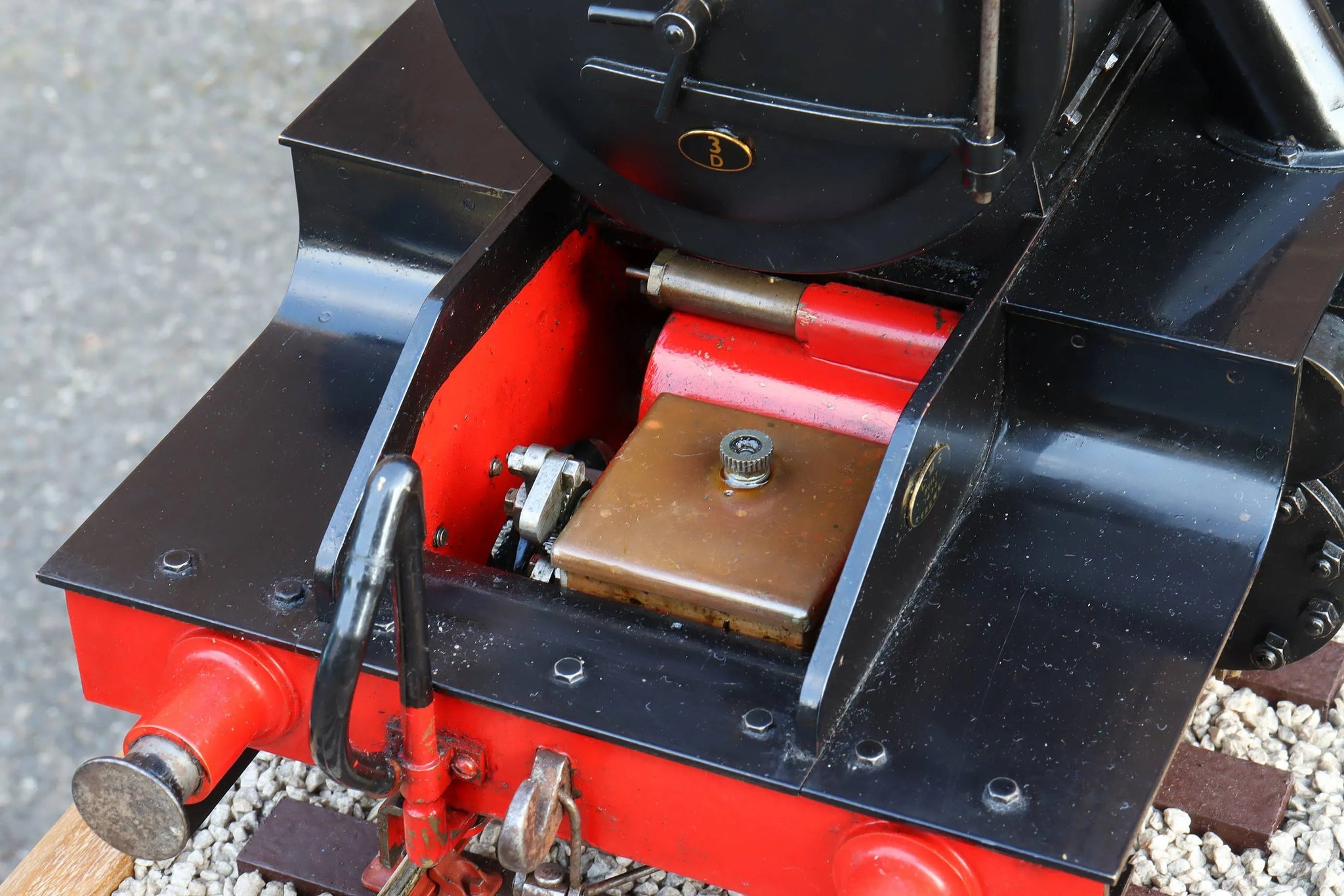

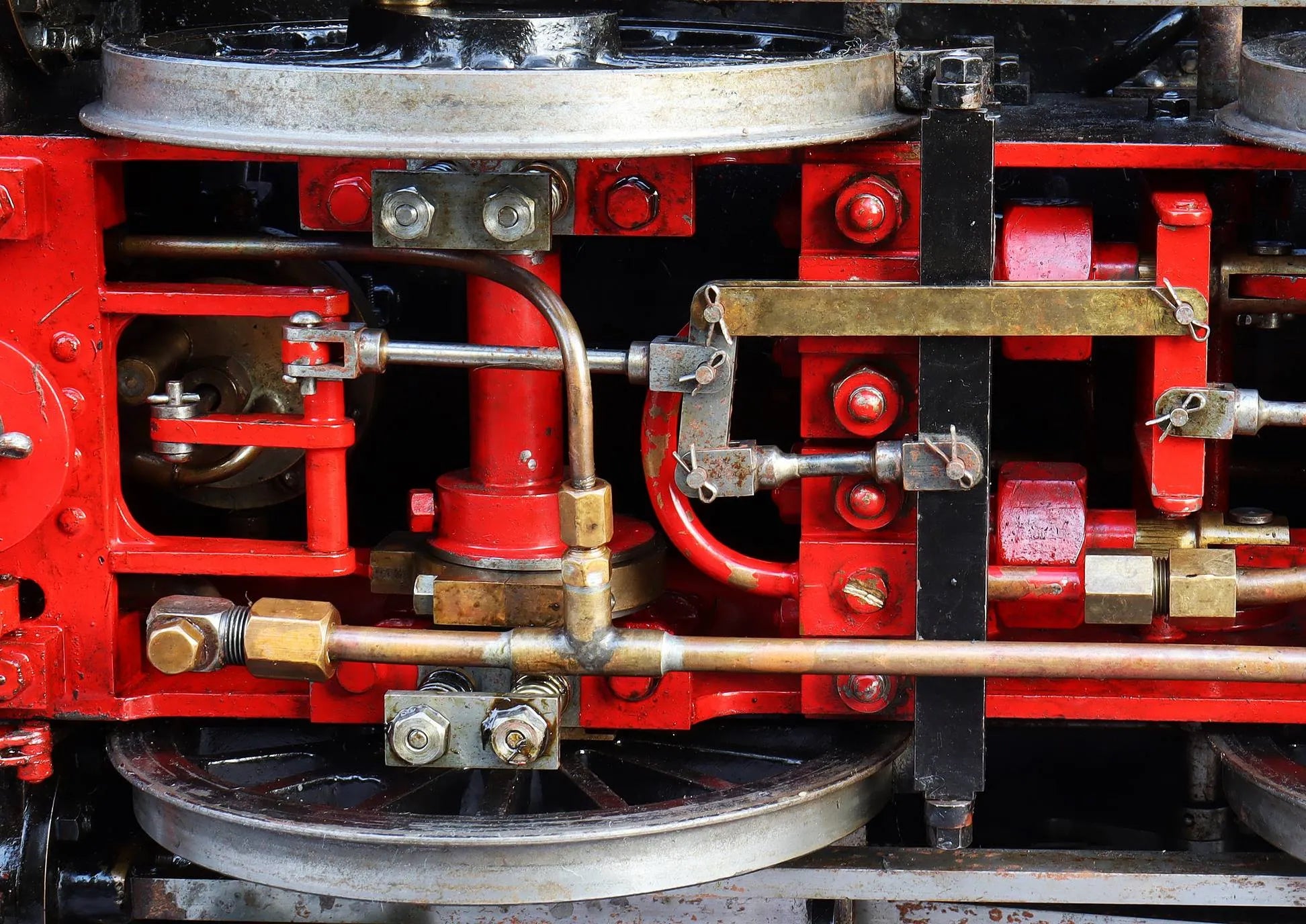

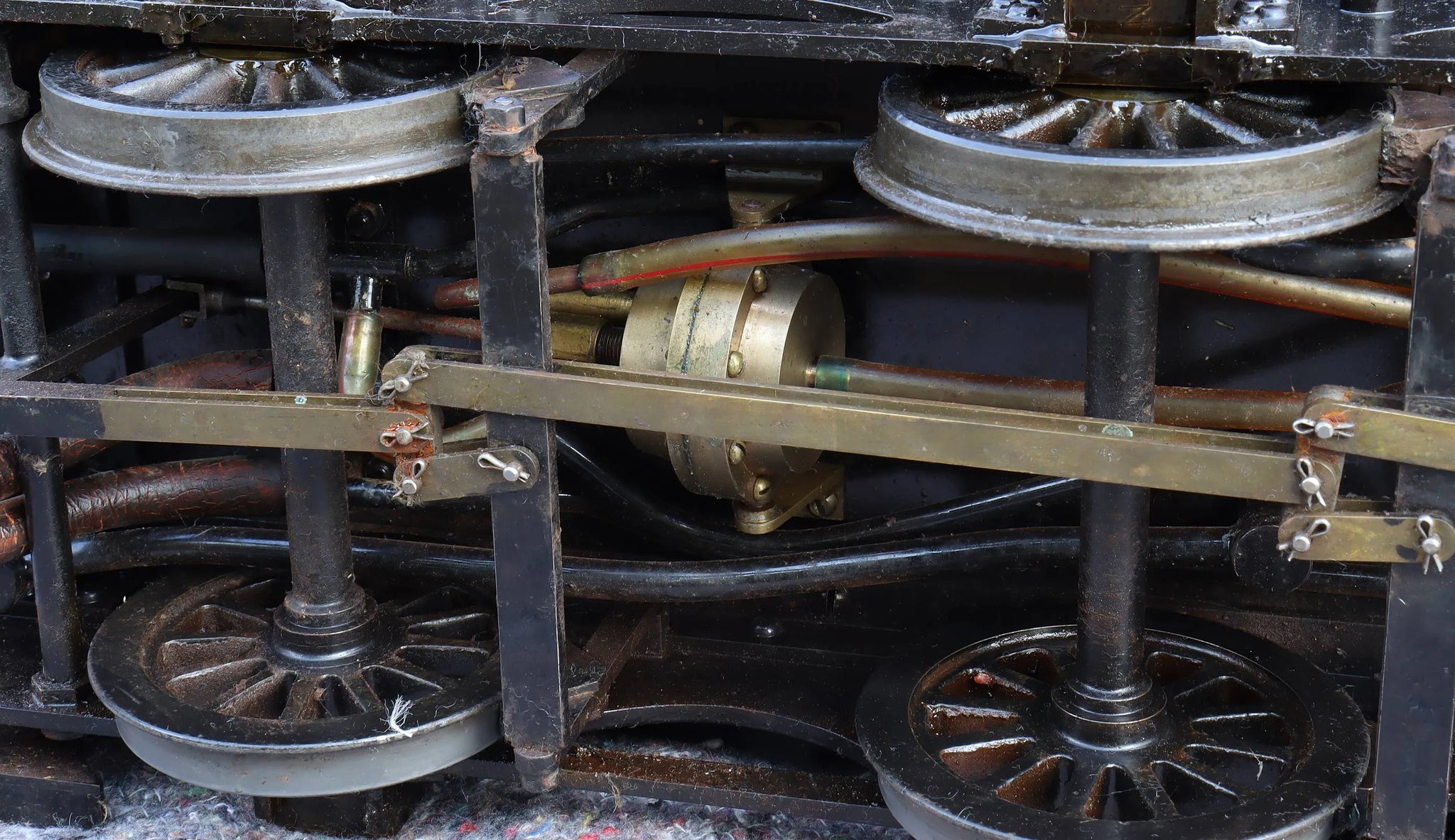

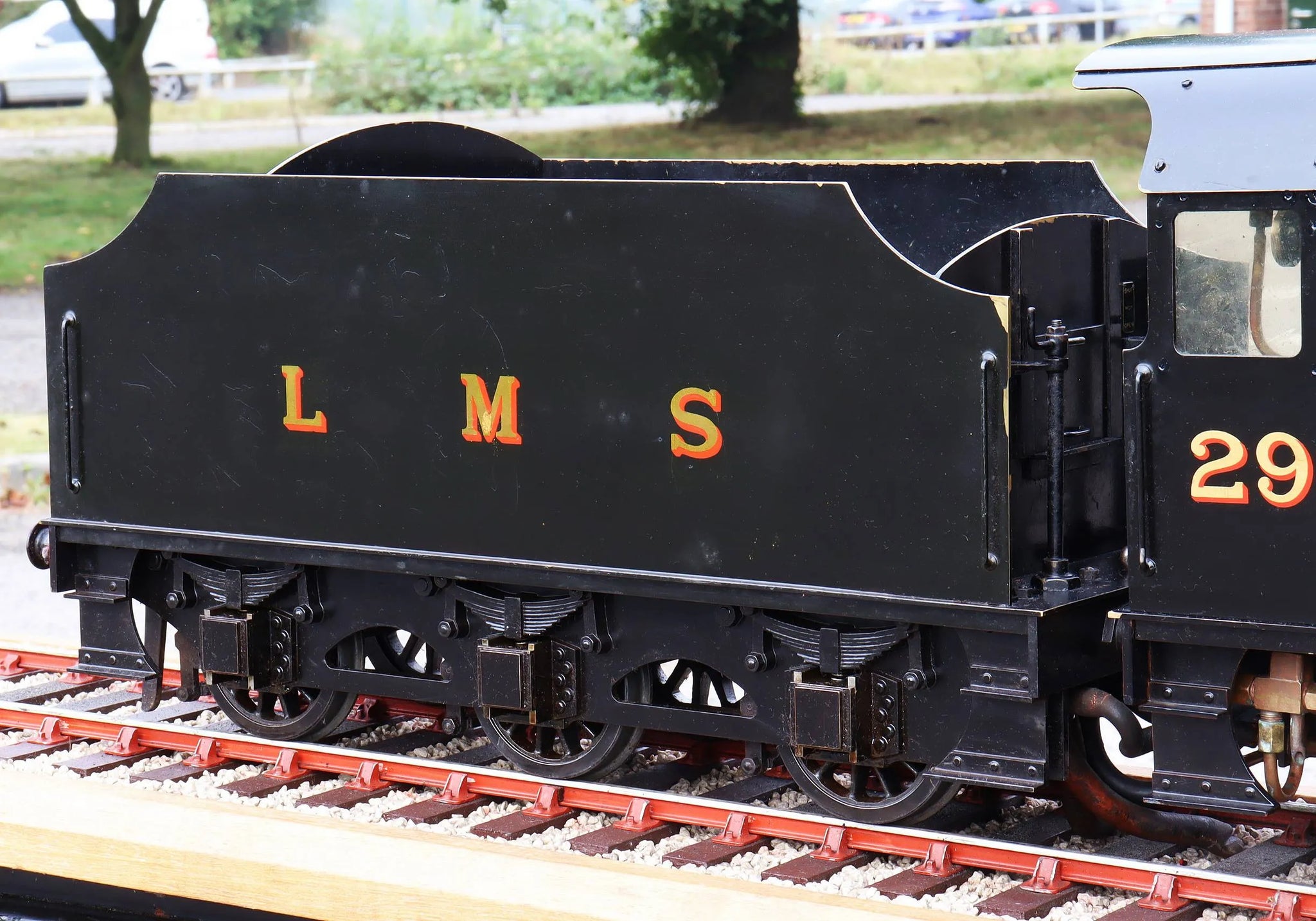

The engine runs well in both directions, the reverser having a quick start thread which makes for easy operation on the track. We like the practical details - the grate and ashpan have a very neat fastening with a spring retainer engaging on the axlebox keeps, the locomotive and tender are both vacuum-braked, with a reservoir neatly tucked in behind the mechanical lubricator.

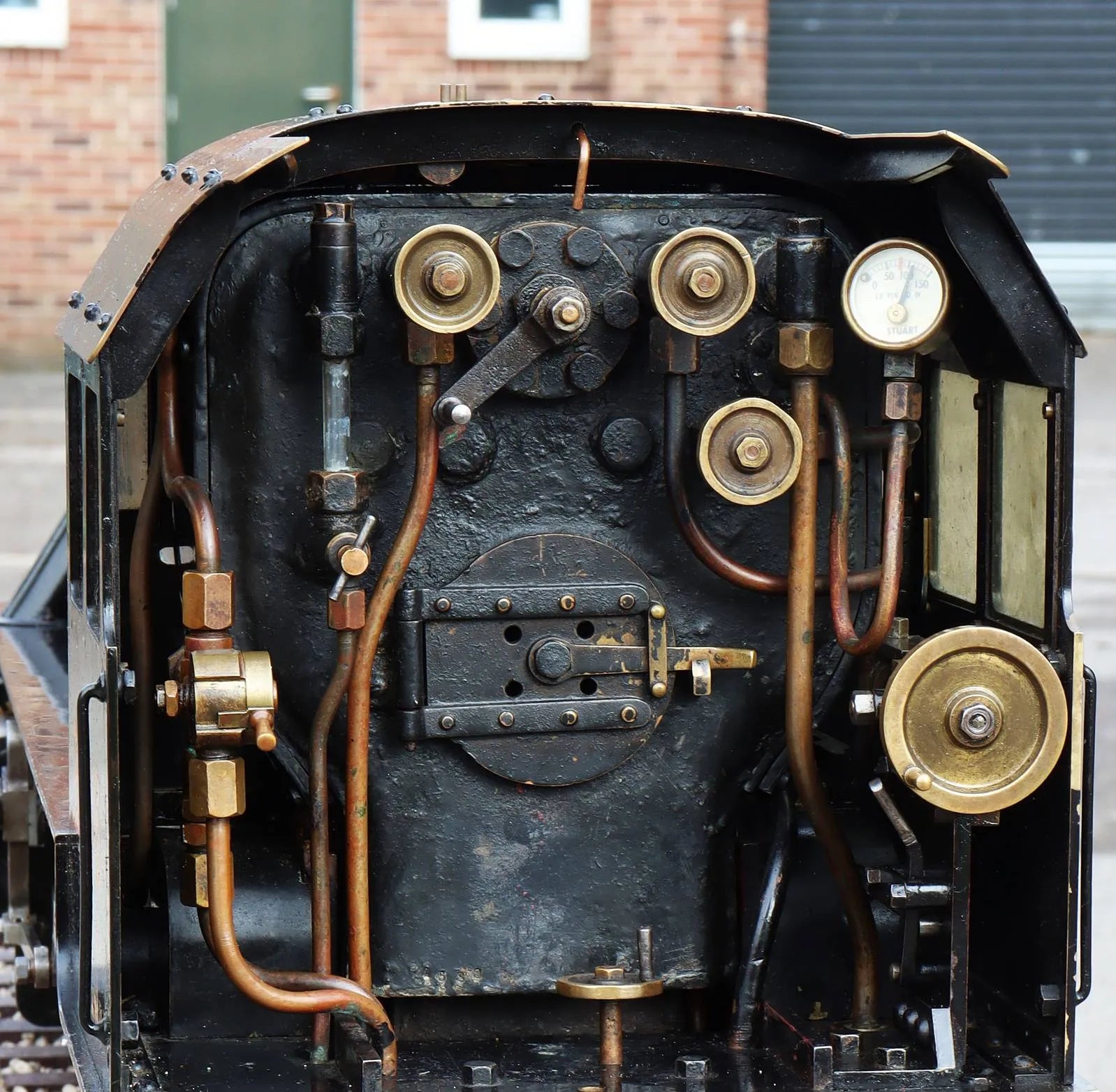

In running order although requiring some work to recommission including fitting a new pressure gauge and servicing the regulator which leaked on test.

Technical information

Stock code

11351

Gauge

3 1/2 inch

Length/inches

29 + 18

Width/inches

8

Height/inches

10

Weight/Kg

42

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

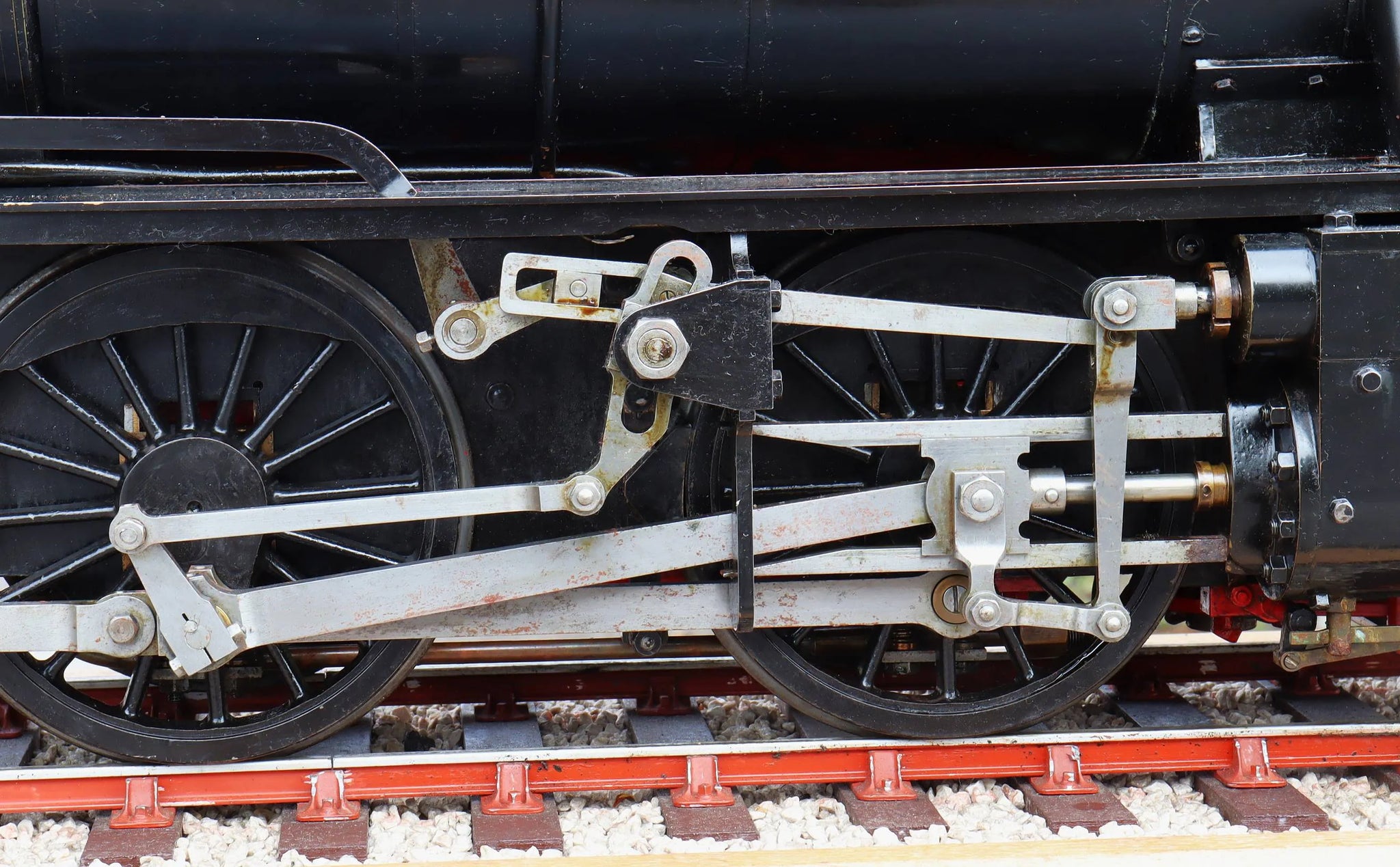

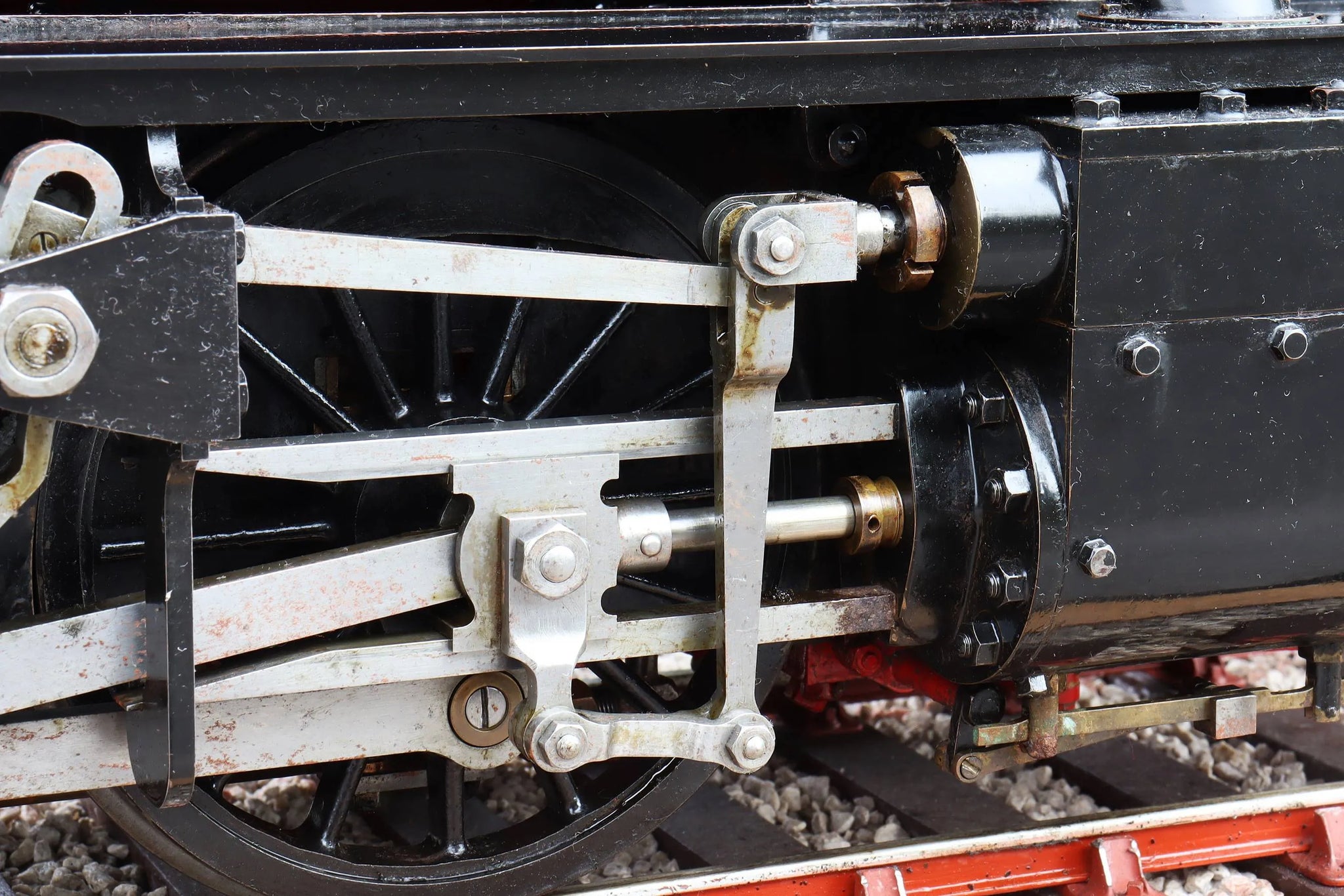

Valve gear

Walschaerts

Reverser type

screw

Lubricator type

mechanical

Boiler maker

D.Jones

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

Boiler number

4588

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

radiant

Superheater

2

Date out

Jun-24

Hydraulic test valid to

05-Sep-27
