11449

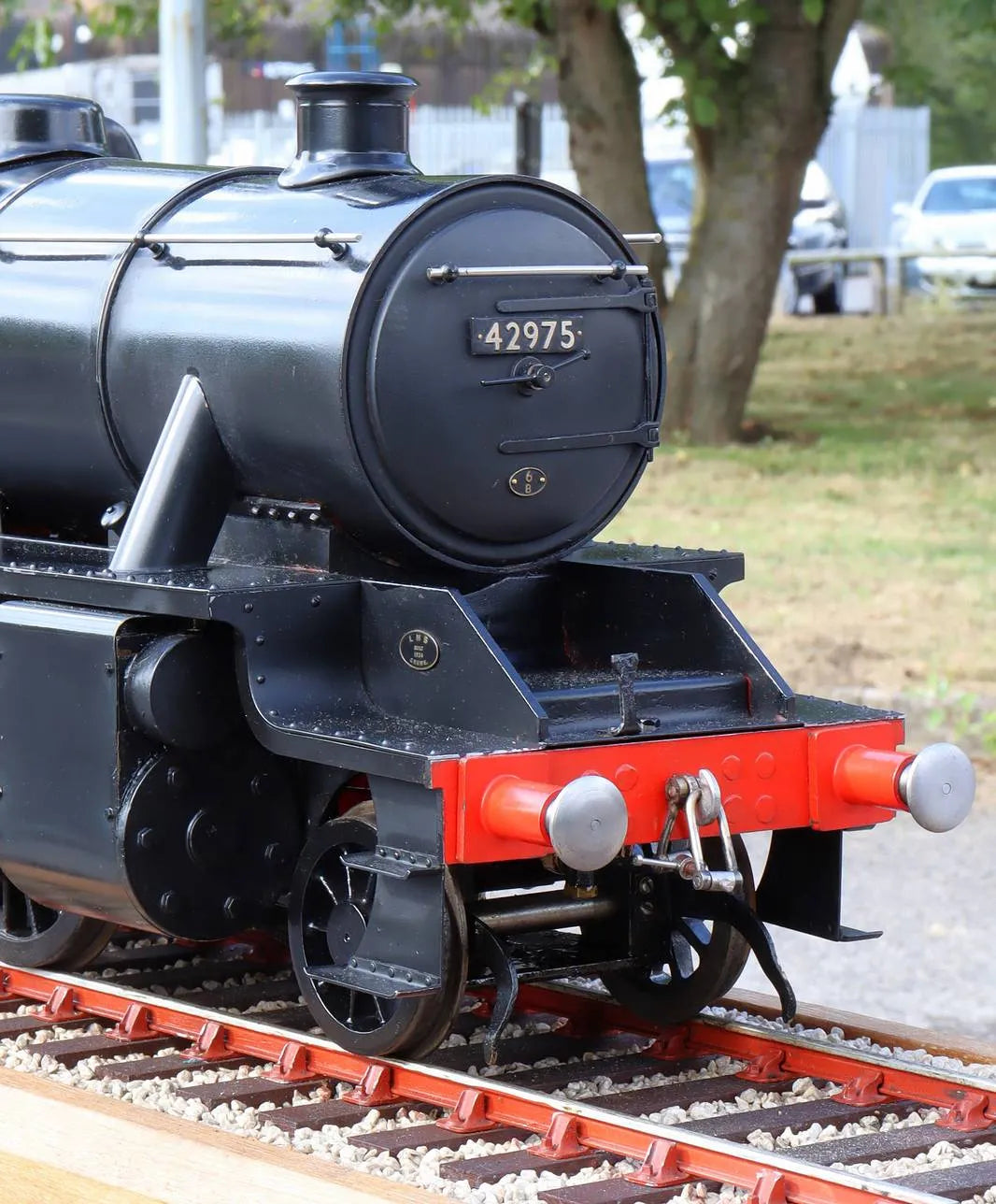

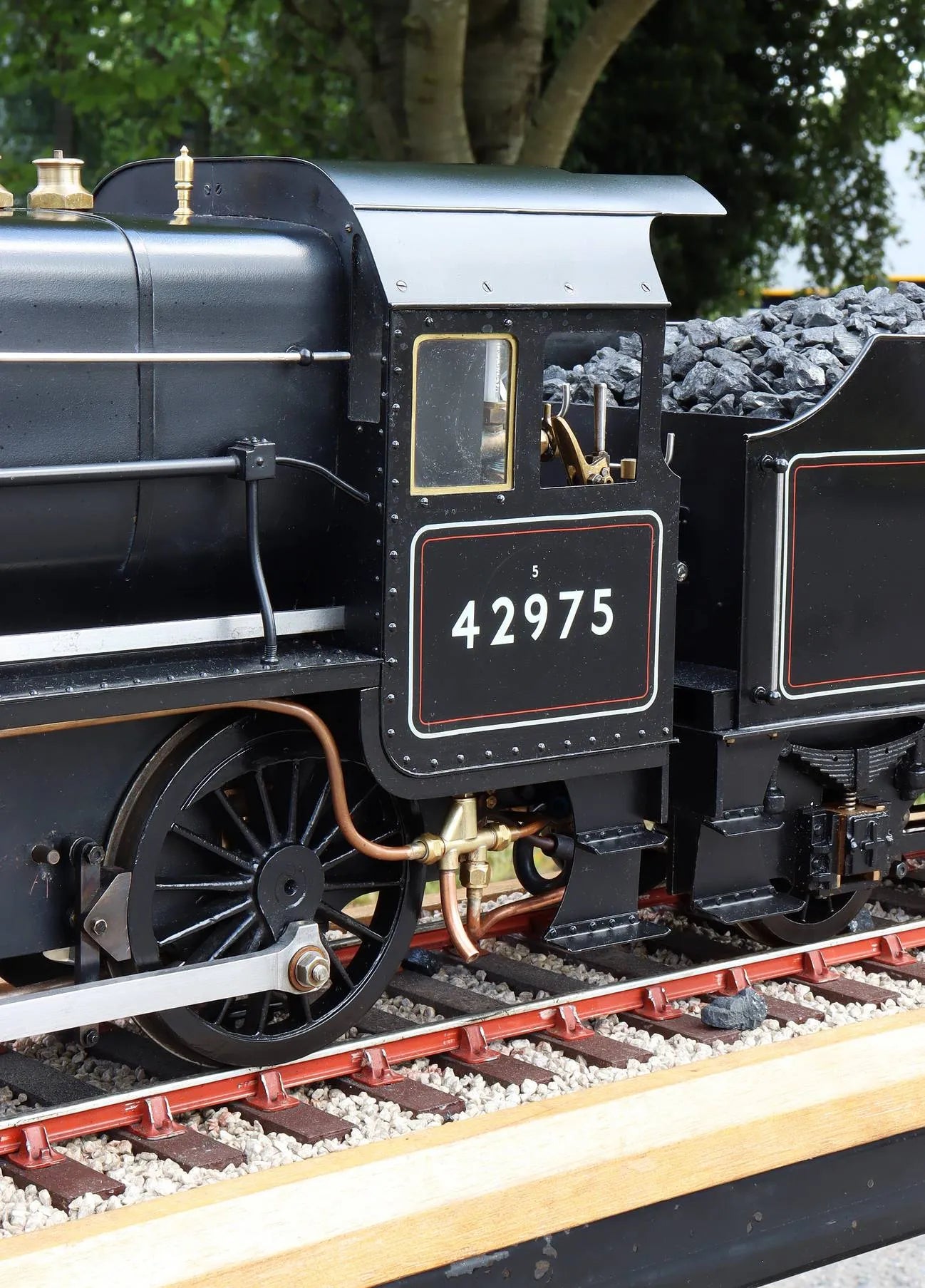

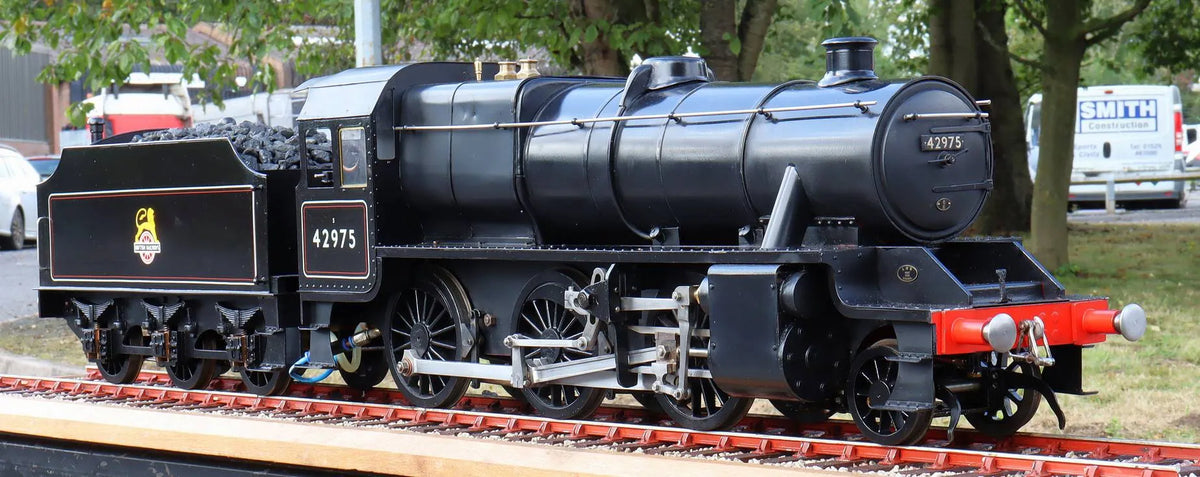

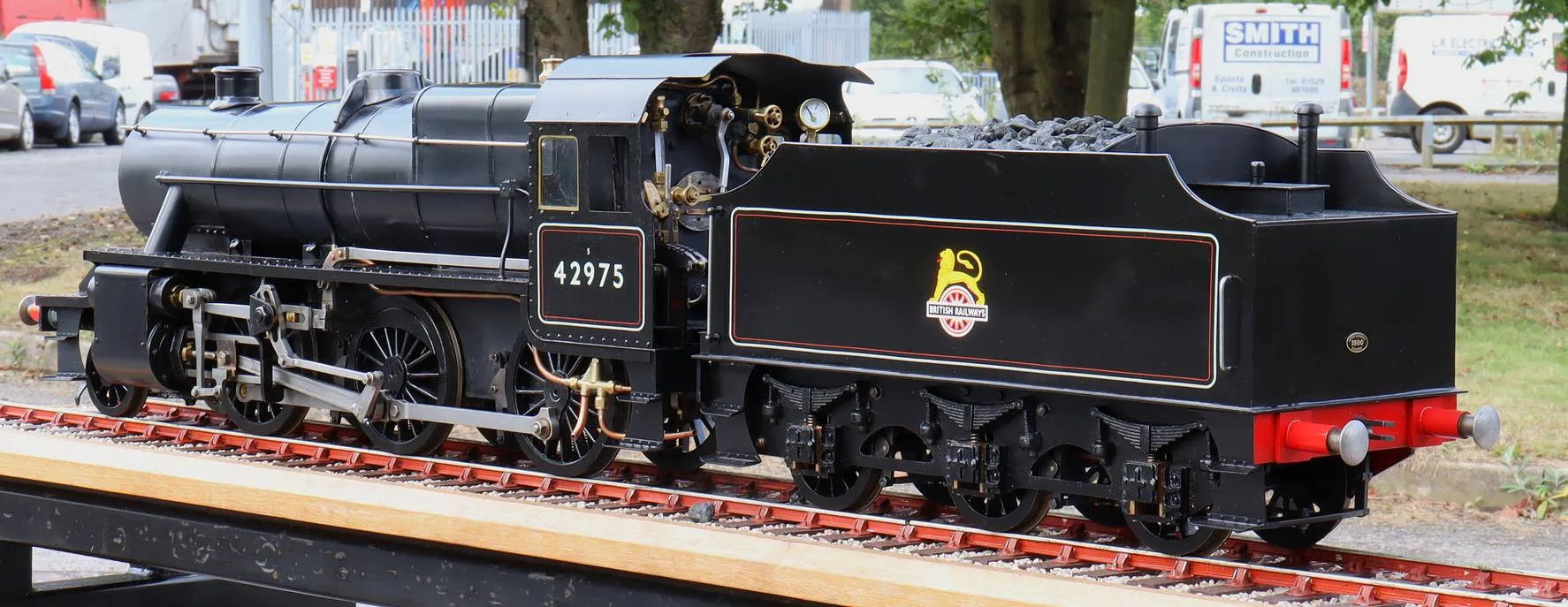

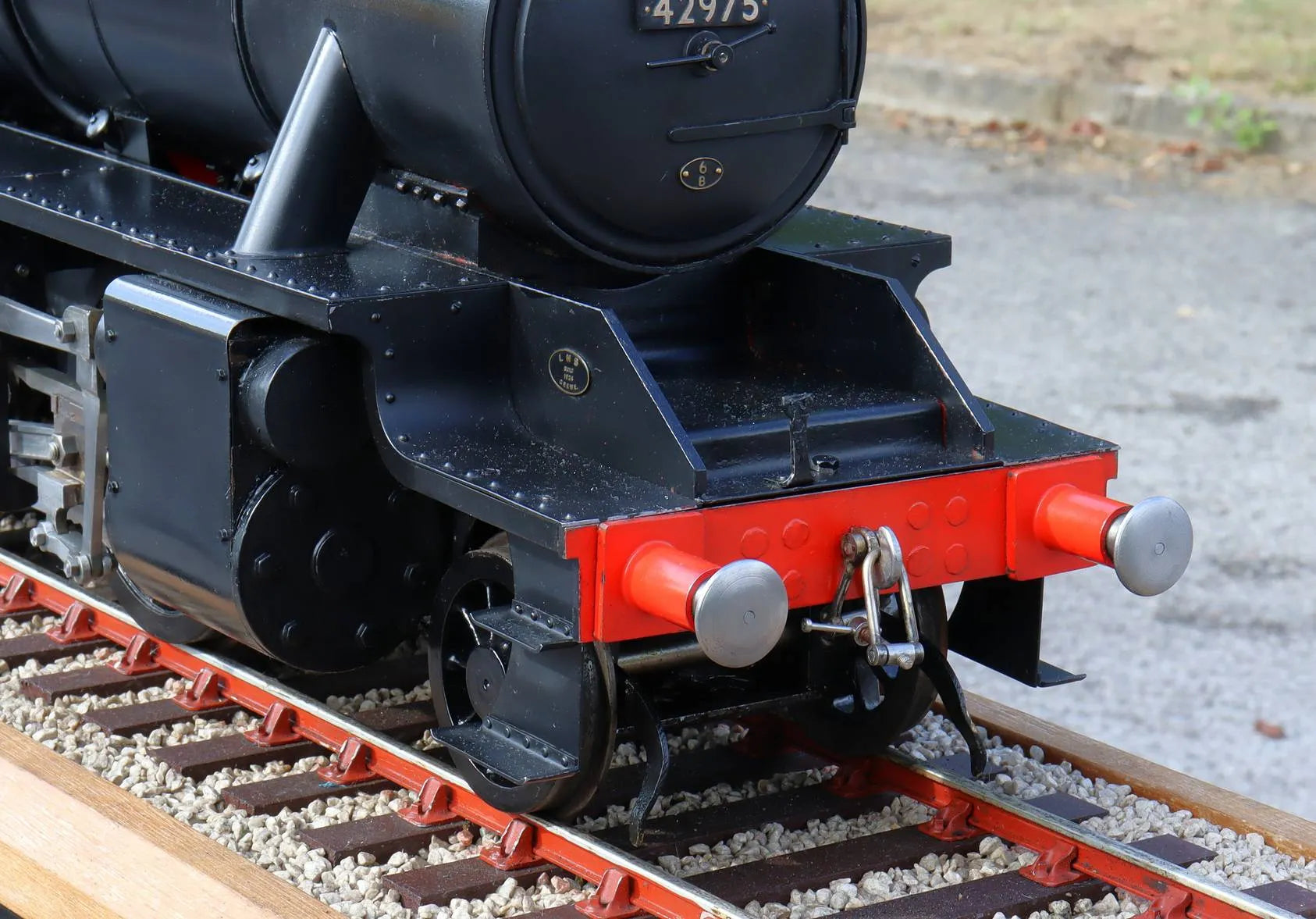

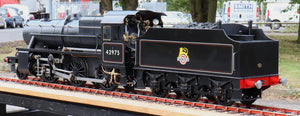

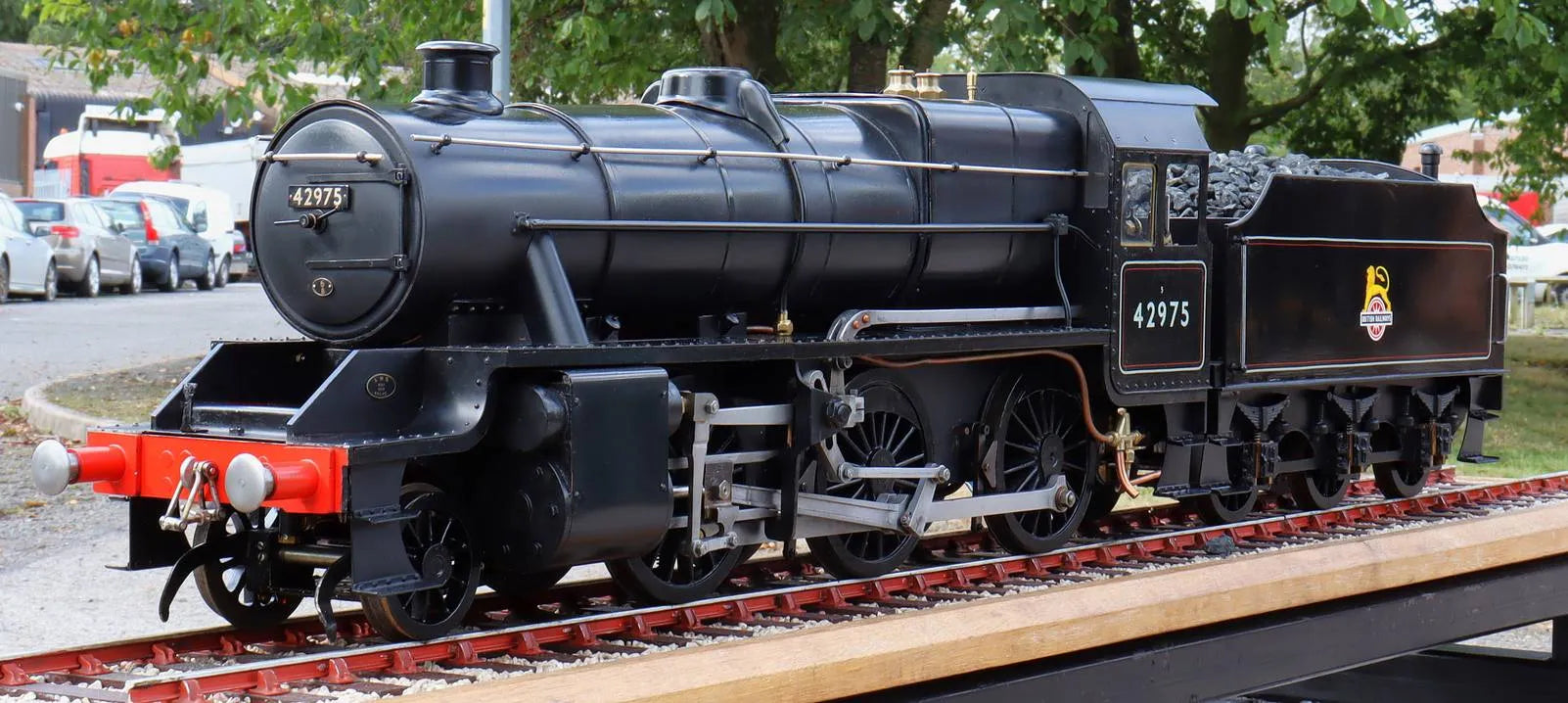

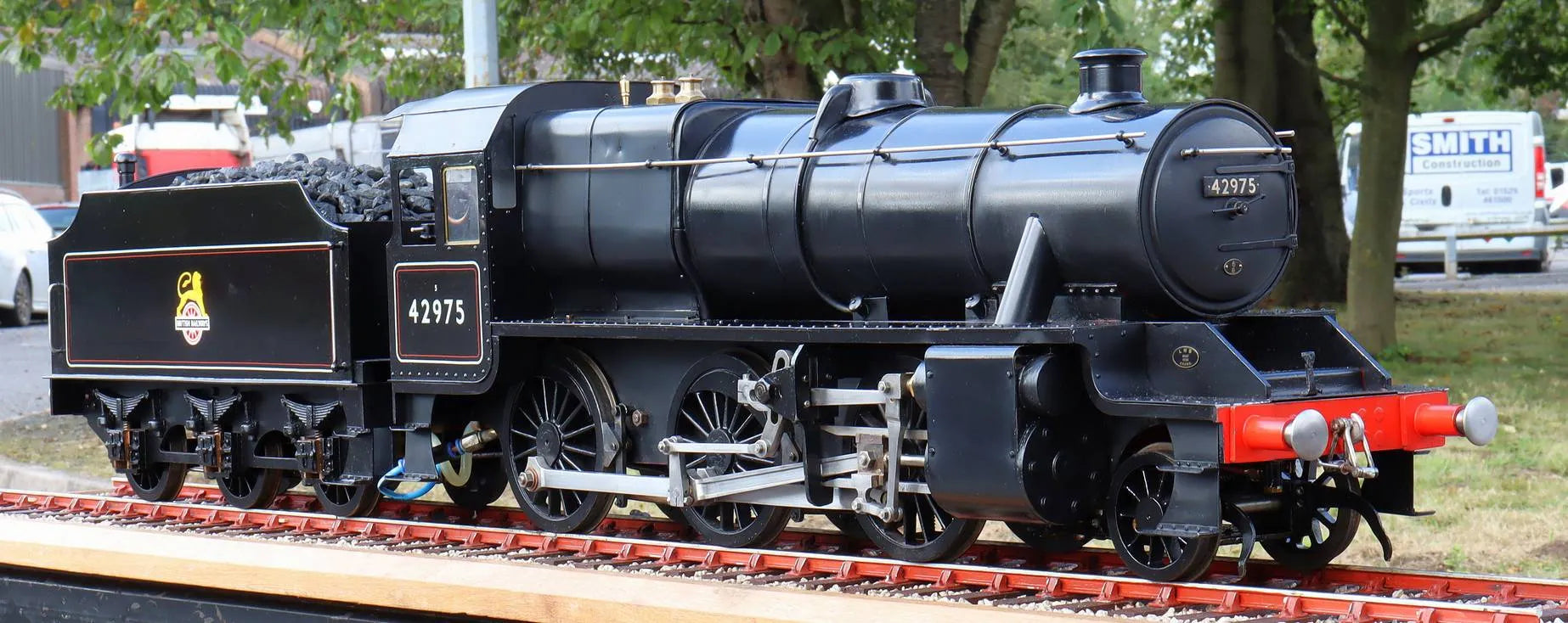

A 3 1/2 inch gauge LMS Mogul to LBSC's "Princess Marina" design.
An older engine, well made in the first place it steams freely and runs well, notching up in either direction. The boiler has had recent hydraulic and steam tests with new certification issued.

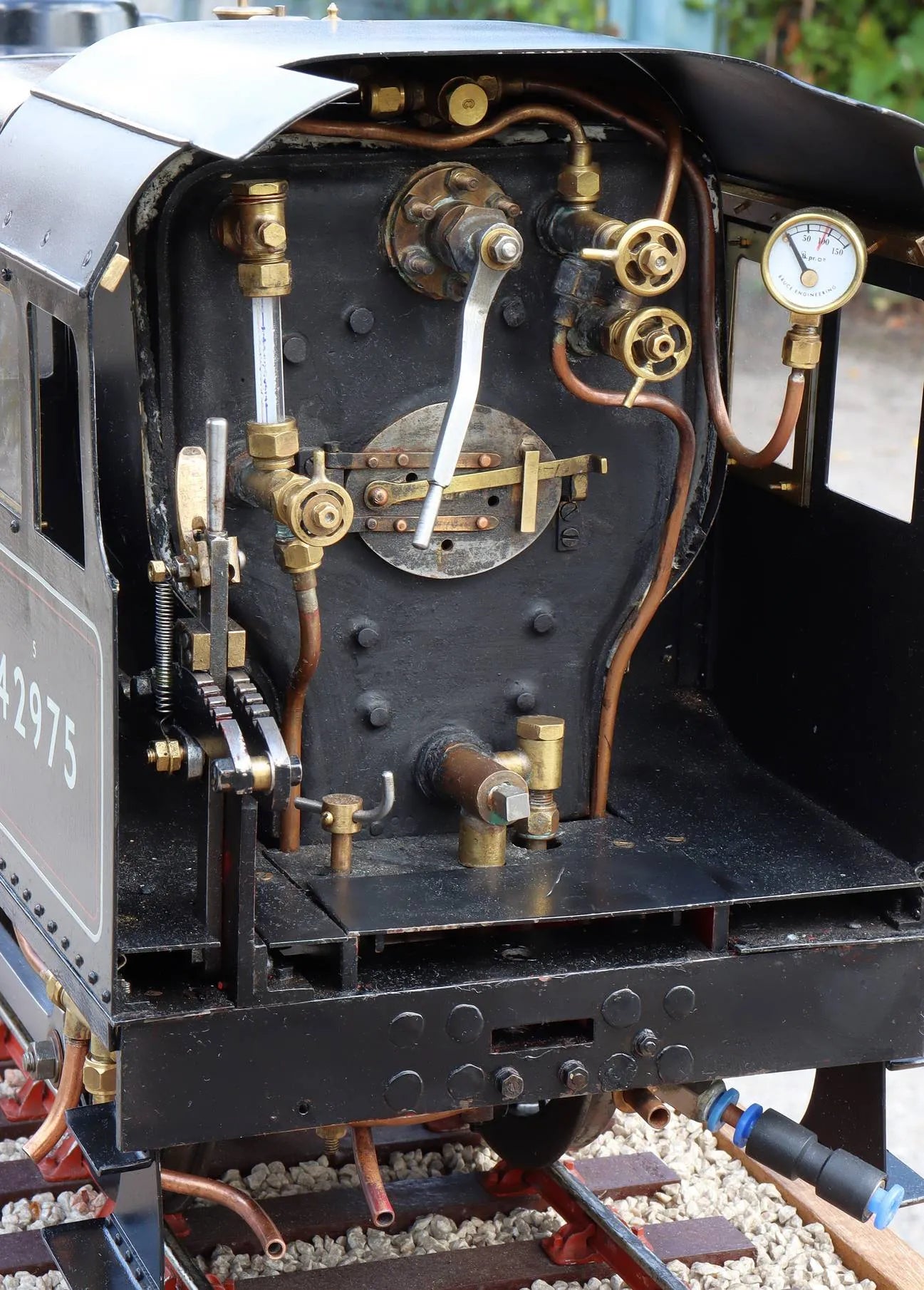

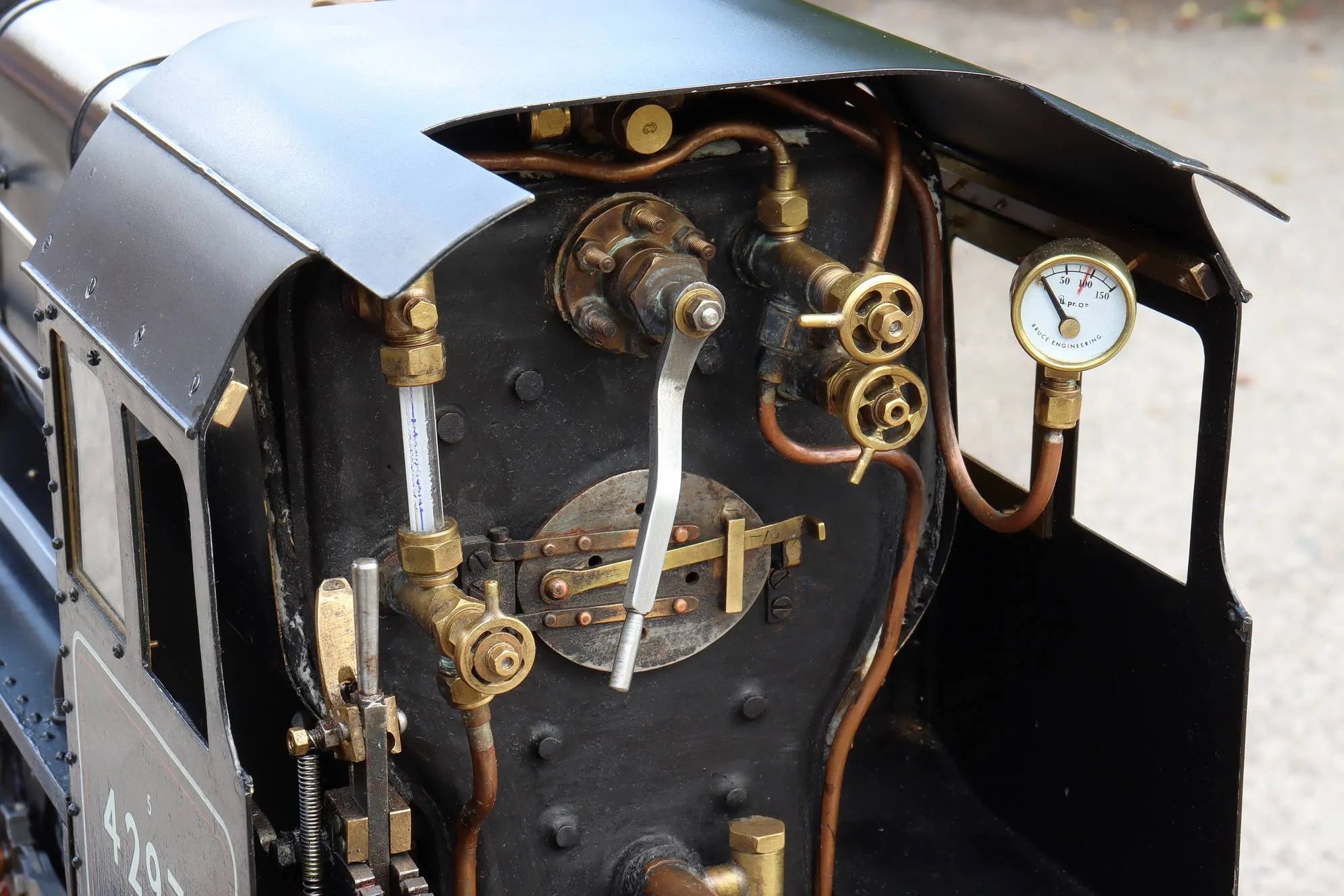

Boiler feed is by hand pump and axle pump - originally a pair, one has been blanked off and its clack used for an injector instead.
Stock code |
11449 |
Gauge |
3 1/2 inch |
Length/inches |
28+19 |
Width/inches |
7 |
Height/inches |
11 |
Weight/Kg |
48 |
Wheel material |
cast iron |
Axlebox type |
plain bearing |
Cylinder material |
gunmetal |
Valve type |
slide |

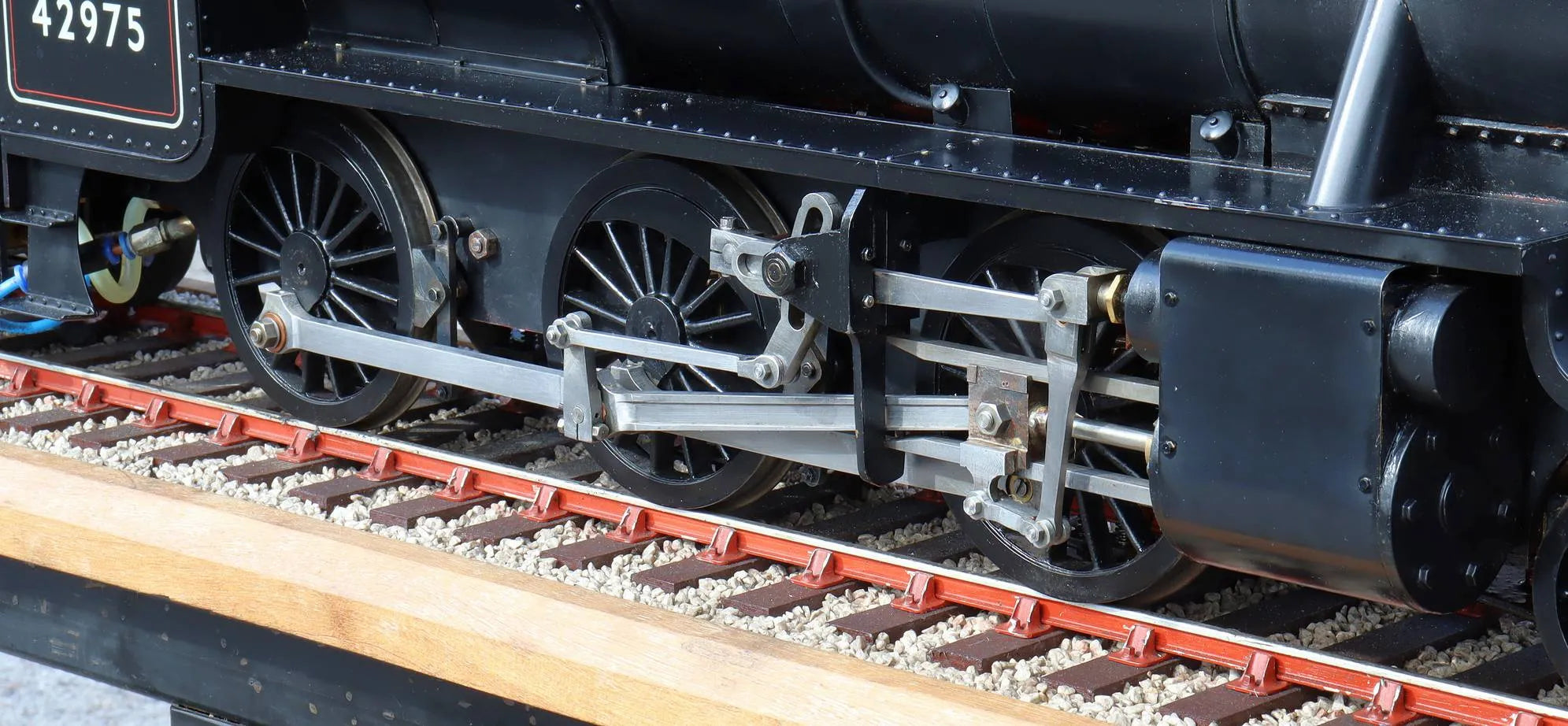

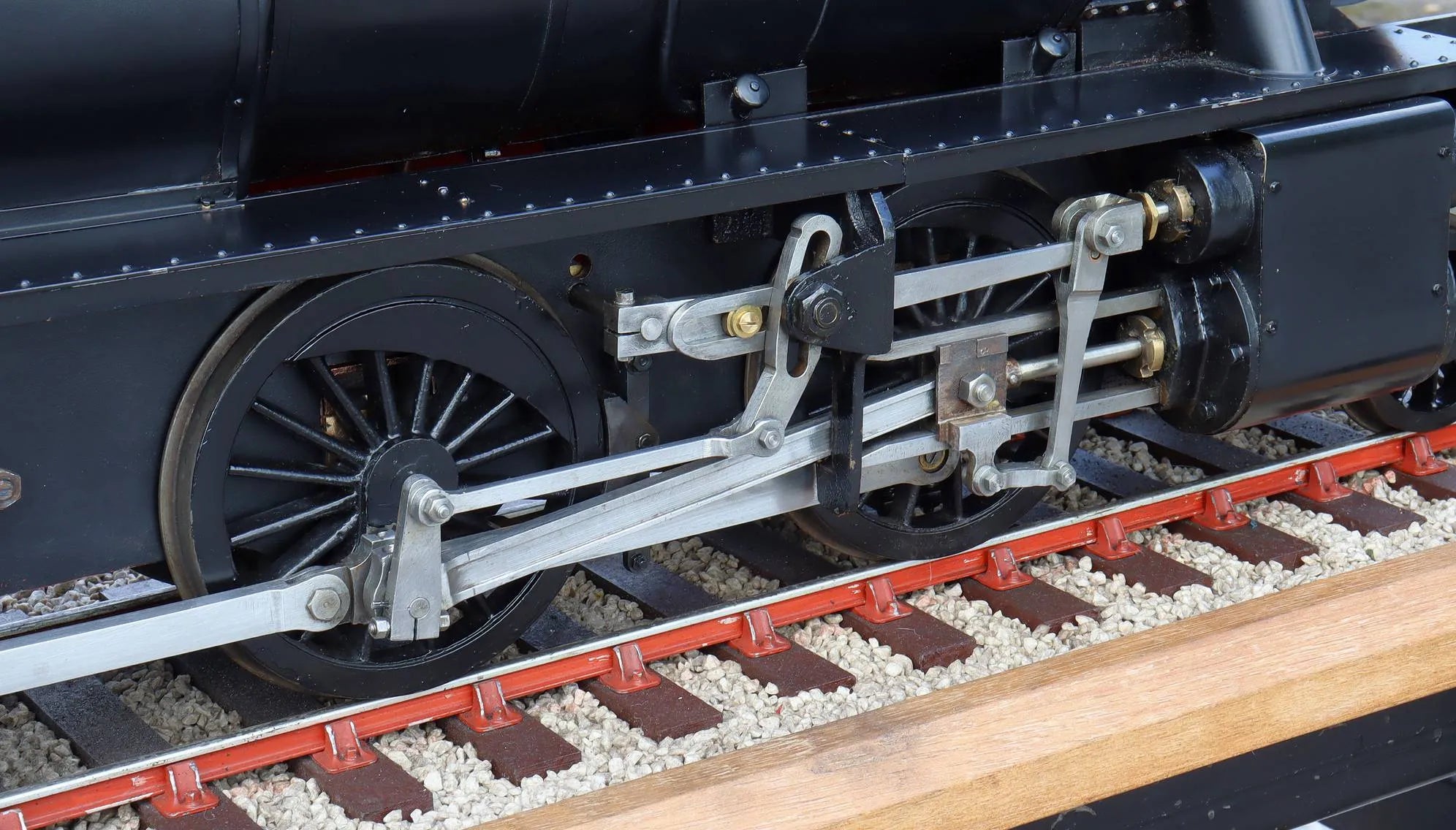

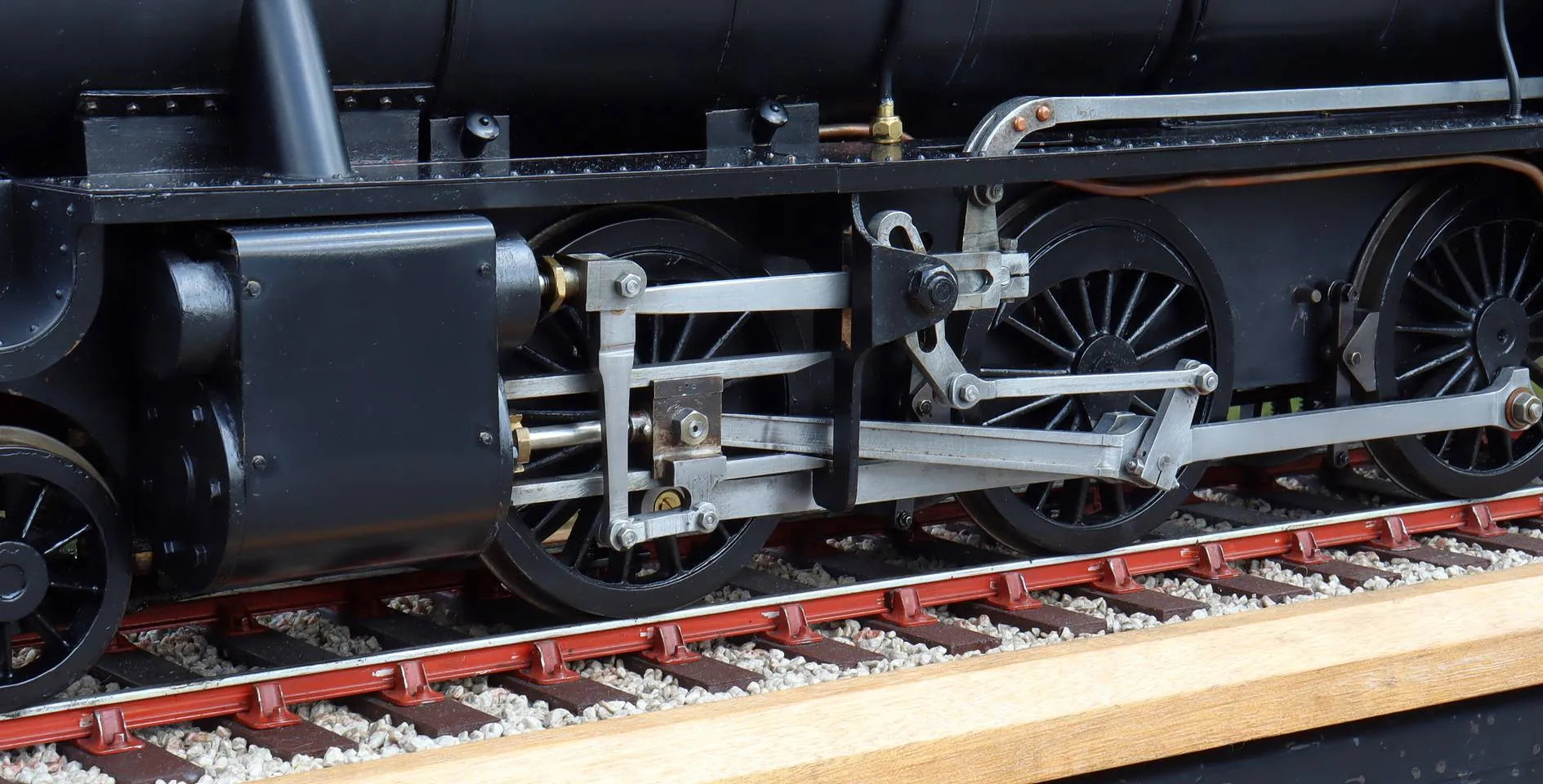

Valve gear |
Walschaerts |
Reverser type |
pole |
Lubricator type |
mechanical |
Boiler maker |
non-commercial |
Boiler type |
locomotive |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
90 |
CE/UKCA mark |
n/a - non-commercial |
Year built |
2008 |
Boiler number |
N18-90-130 |
Safety valve type |
spring |
Safety valve |
2 |
Whistle |
yes |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
2 |
Hydraulic test valid to |
20-Nov-2028 |
Steam test valid to |
20-Jan-2026 |
