Stock code |
9020 |
Gauge |
3 1/2 inch |
Length/inches |
38+20 |
Width/inches |
7.5 |
Height/inches |
10 |
Wheel material |
cast iron |
Cylinder material |
4 x cast iron |
Valve type |
slide |

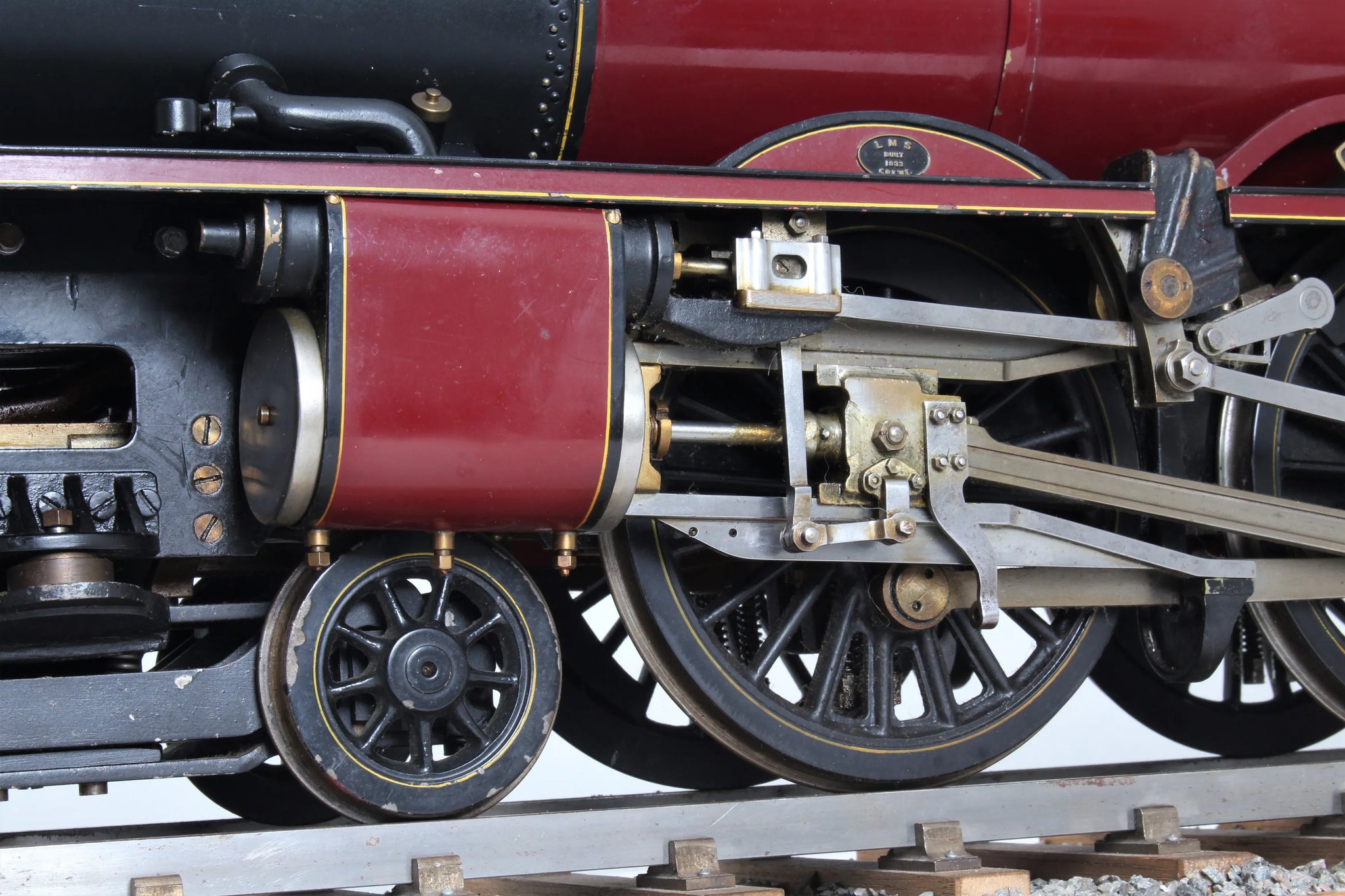

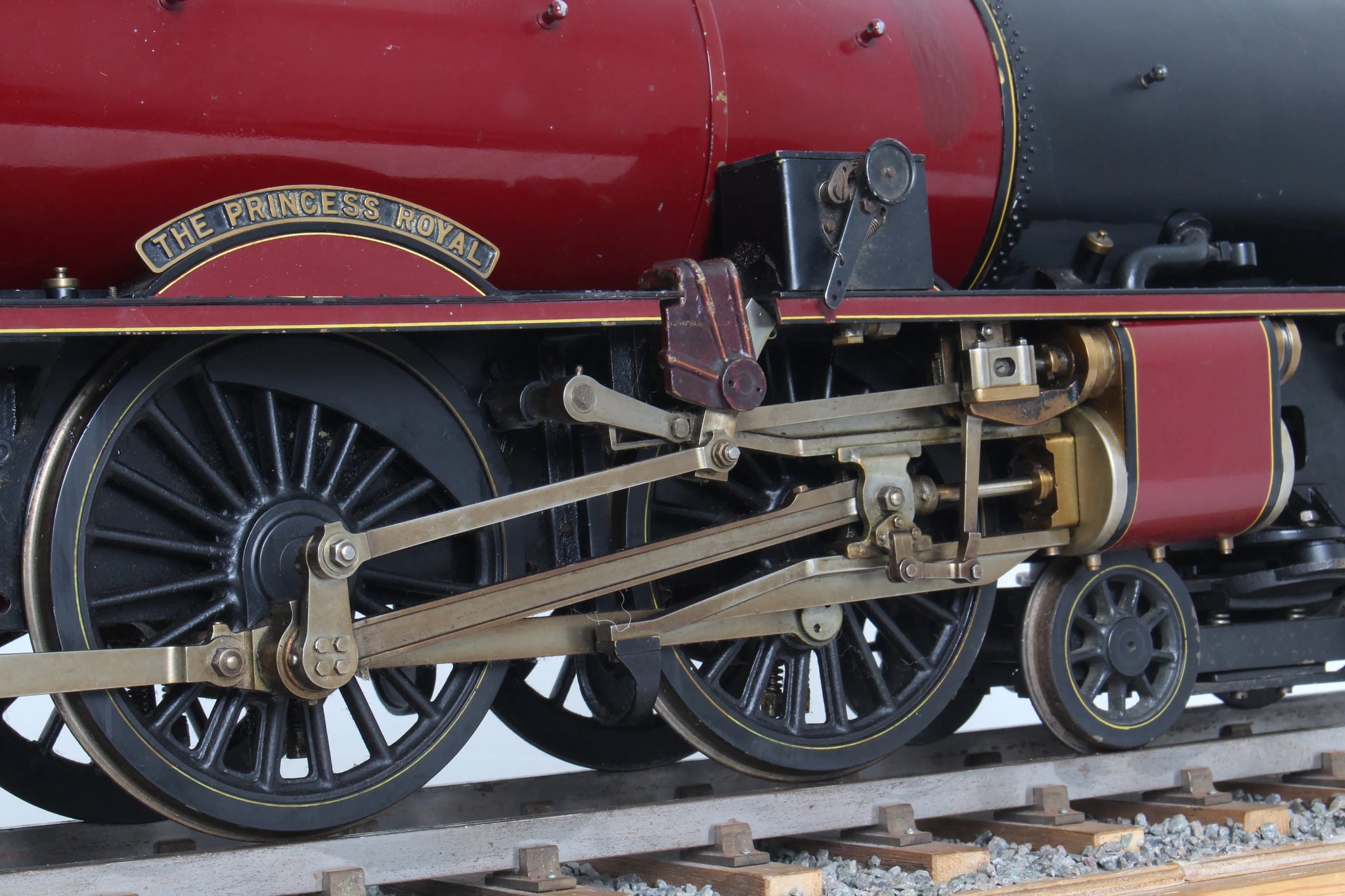

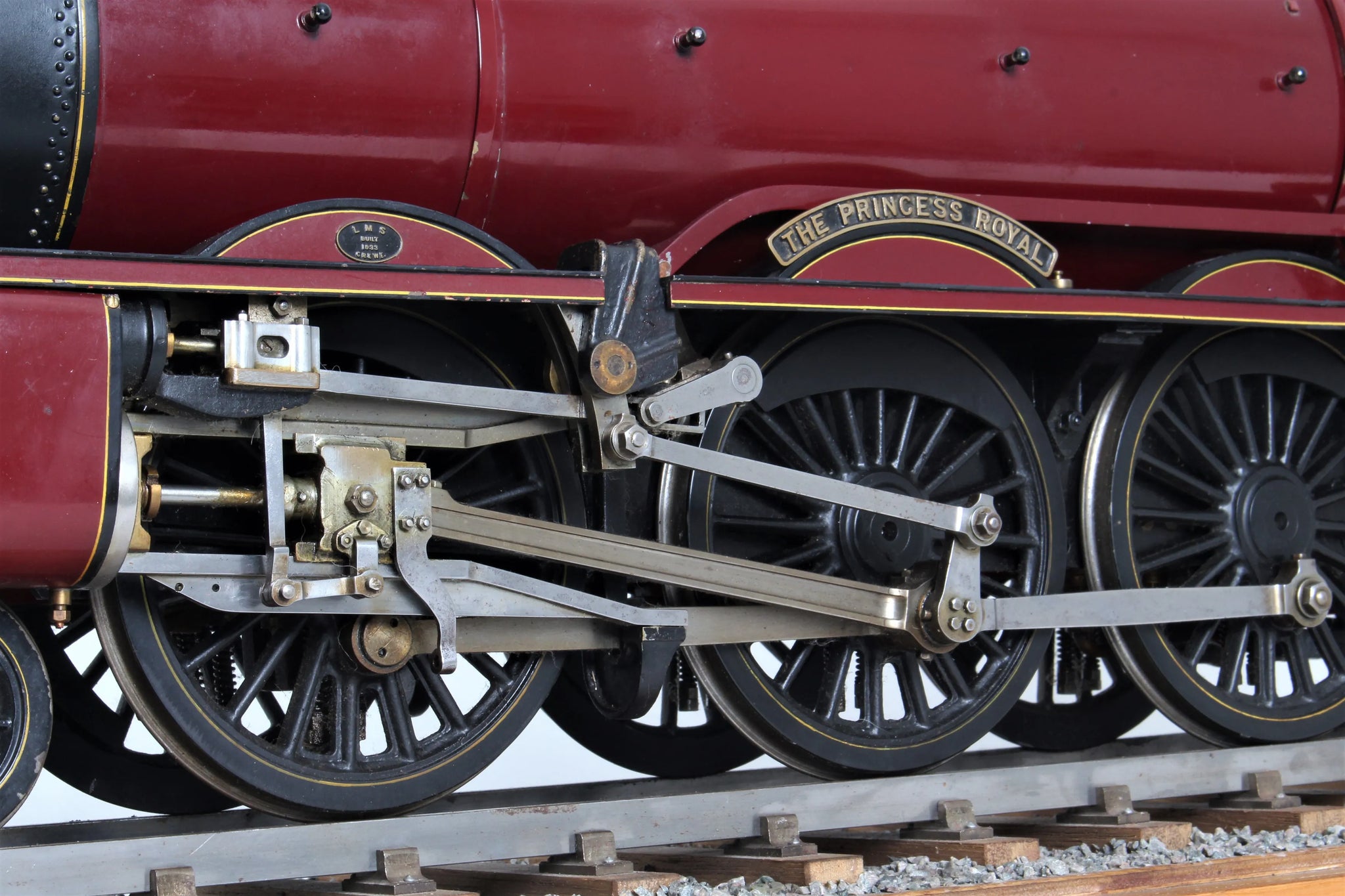

Valve gear |

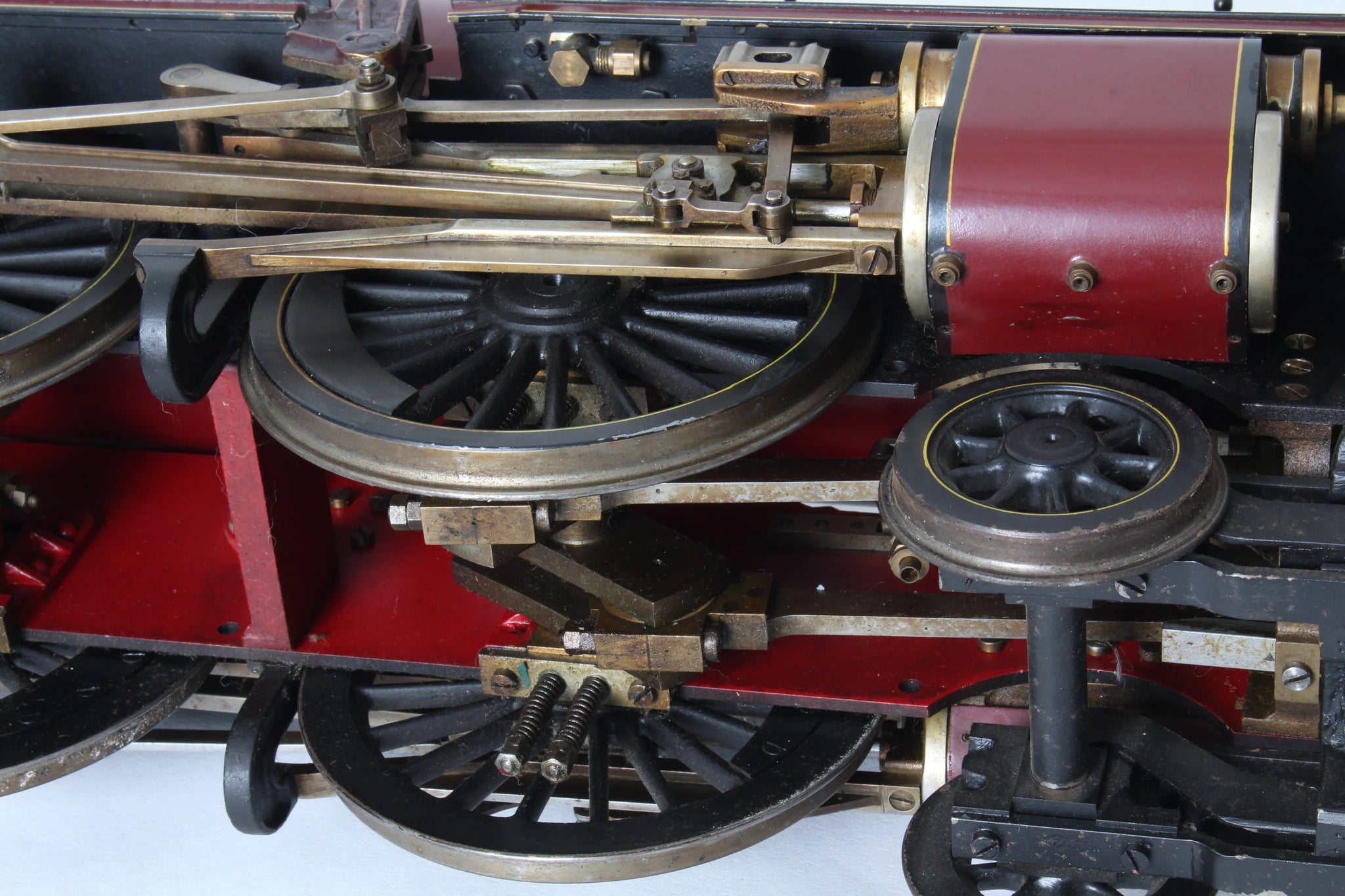

Walschaerts |
Reverser type |
screw |

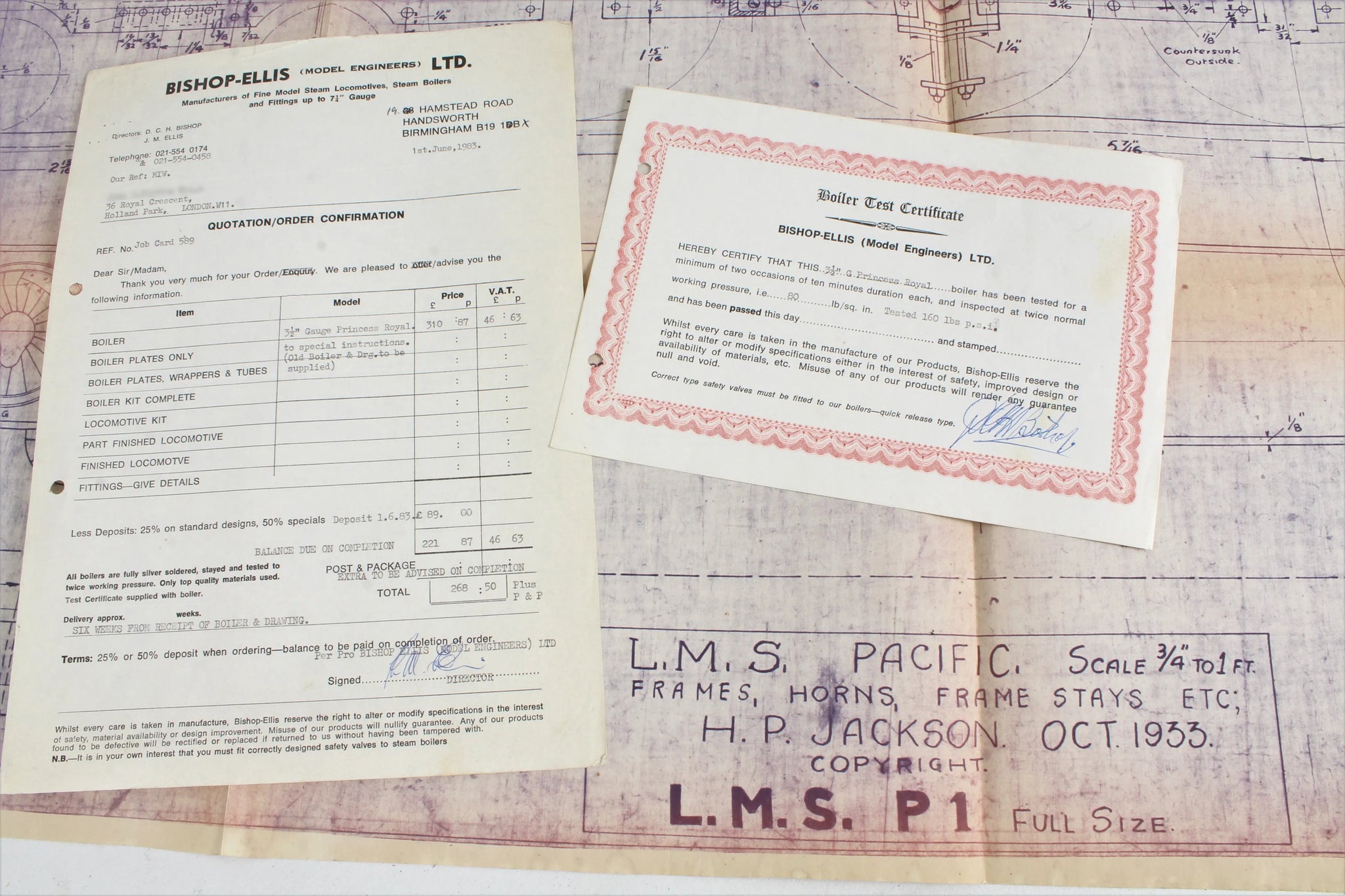

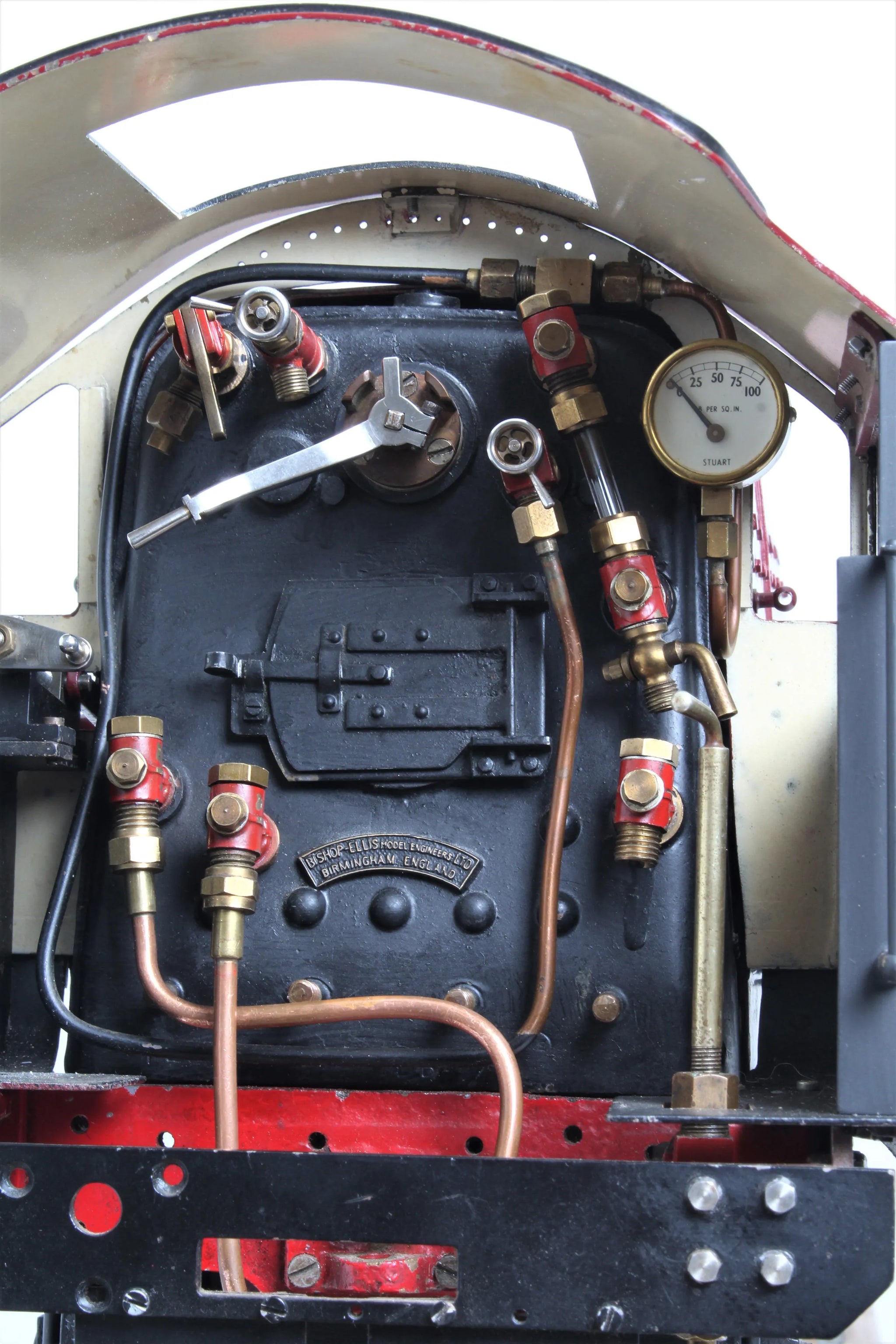

Boiler maker |
Bishop Ellis |
Boiler type |
locomotive with combustion chamber |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a, pre-2002 |
Safety valve type |
spring |
Safety valve |
4 |
Hand pump |
1 |

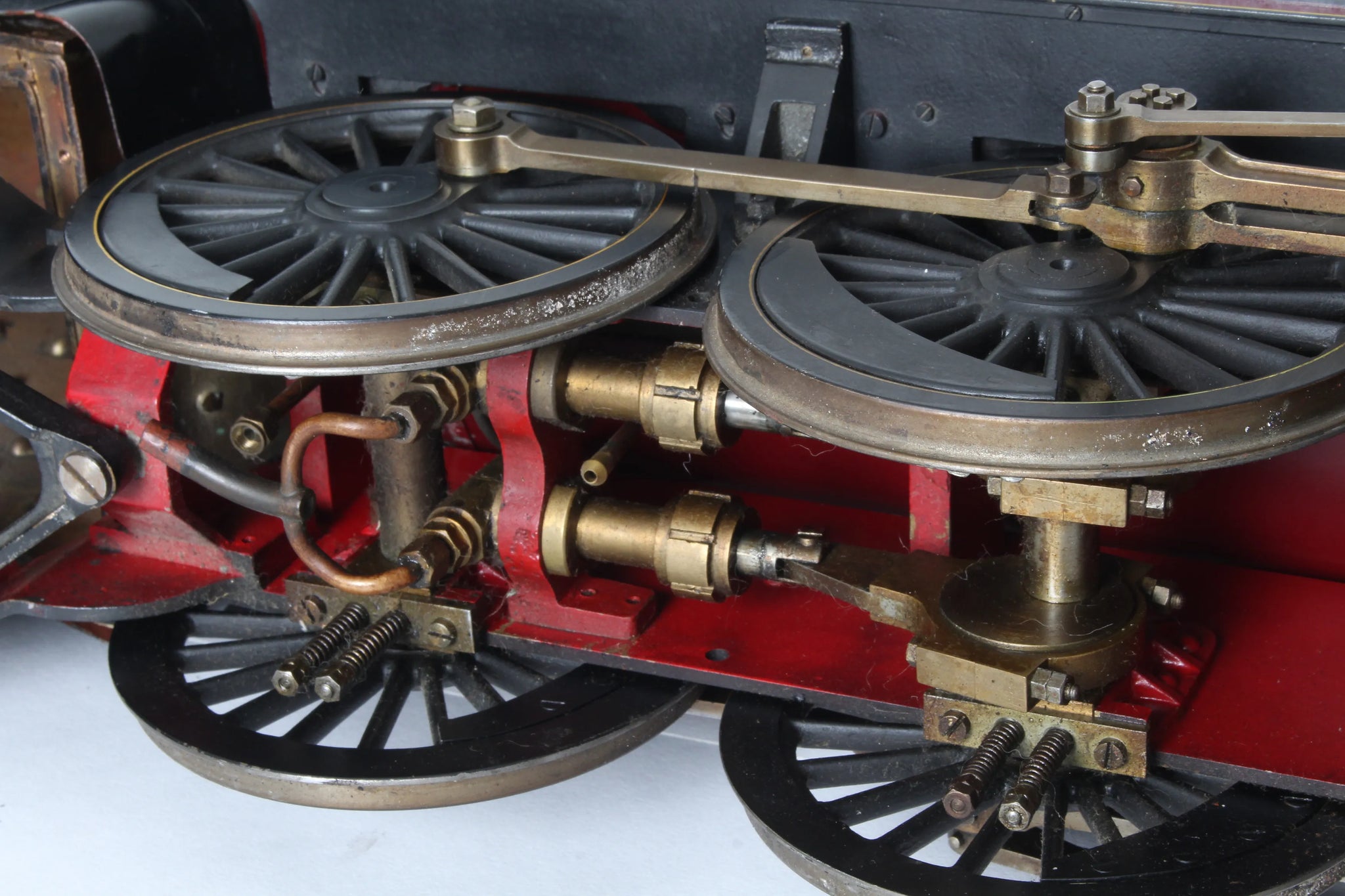

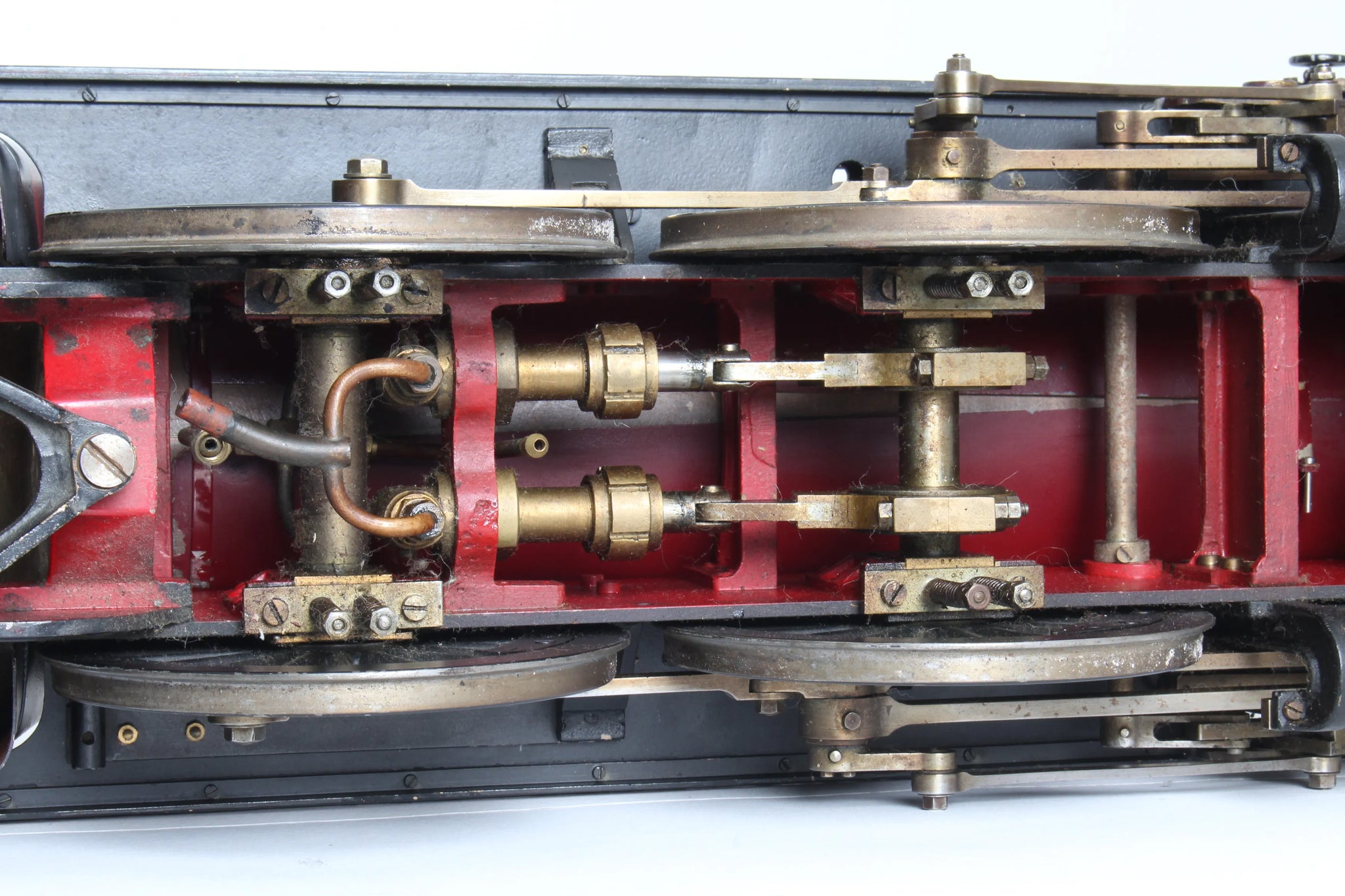

Mechanical pump |
2 |
Date out |
Oct-20 |
