11301

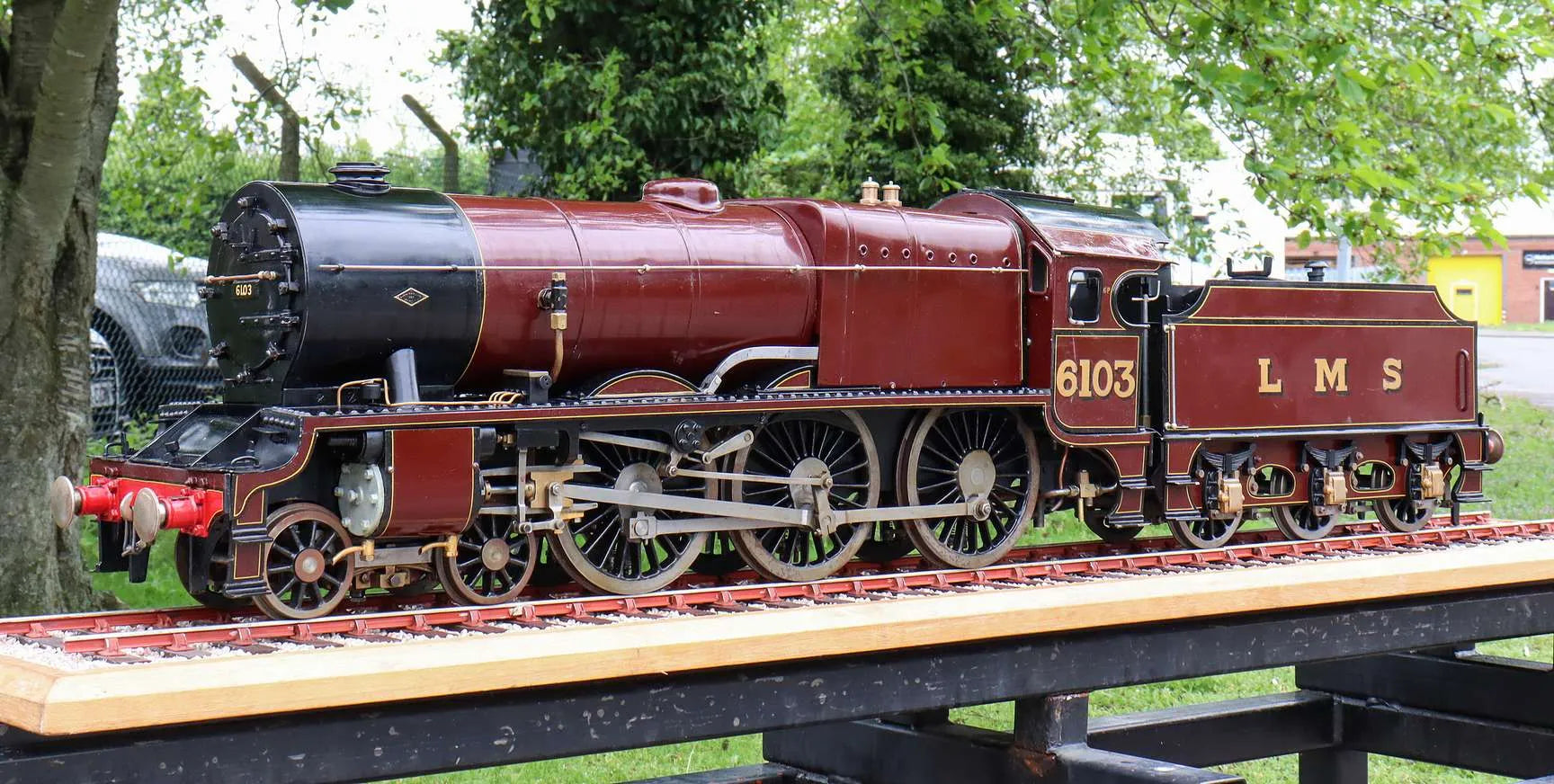

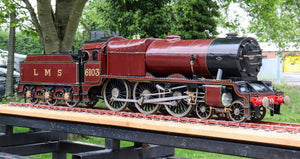

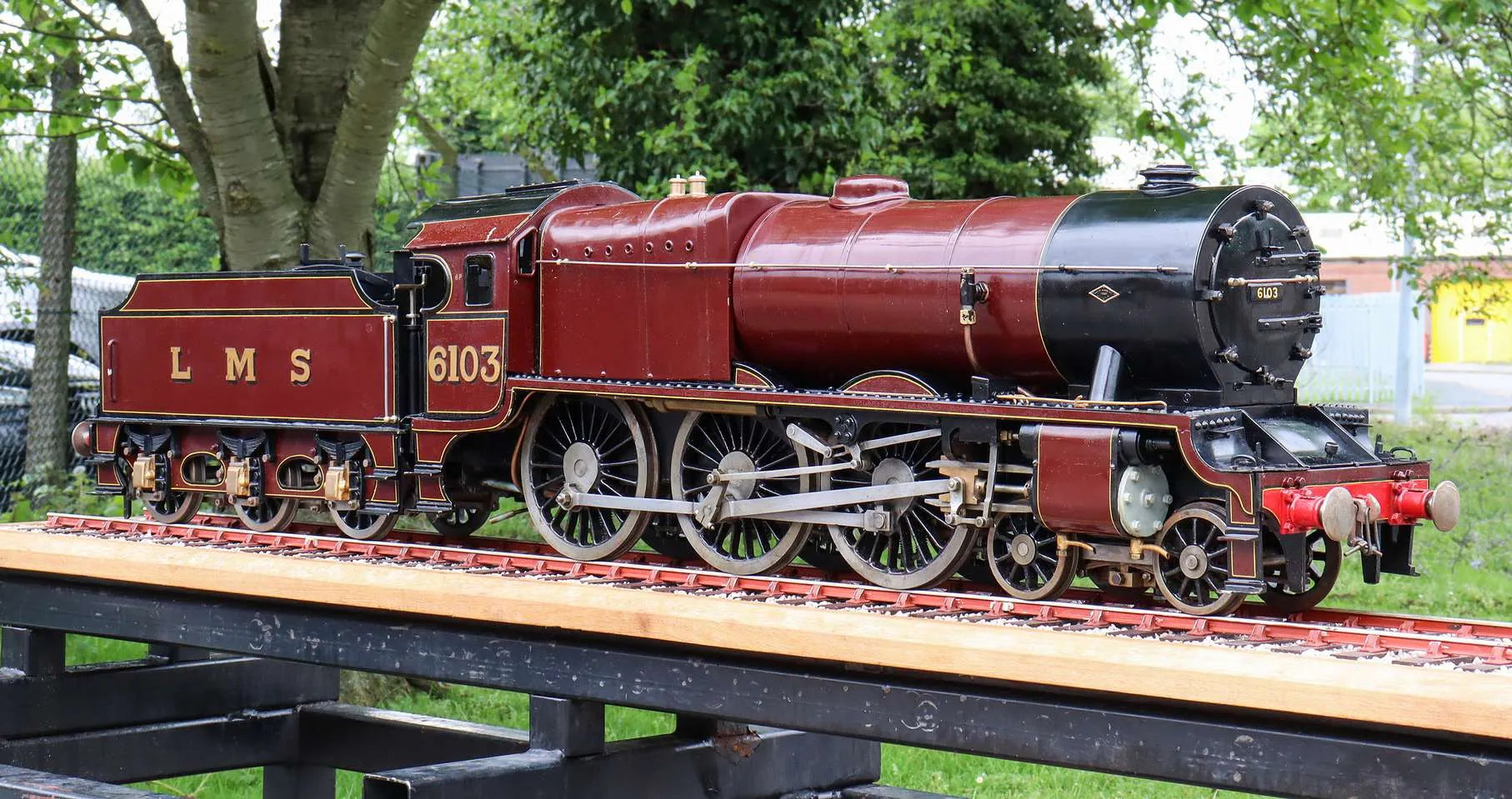

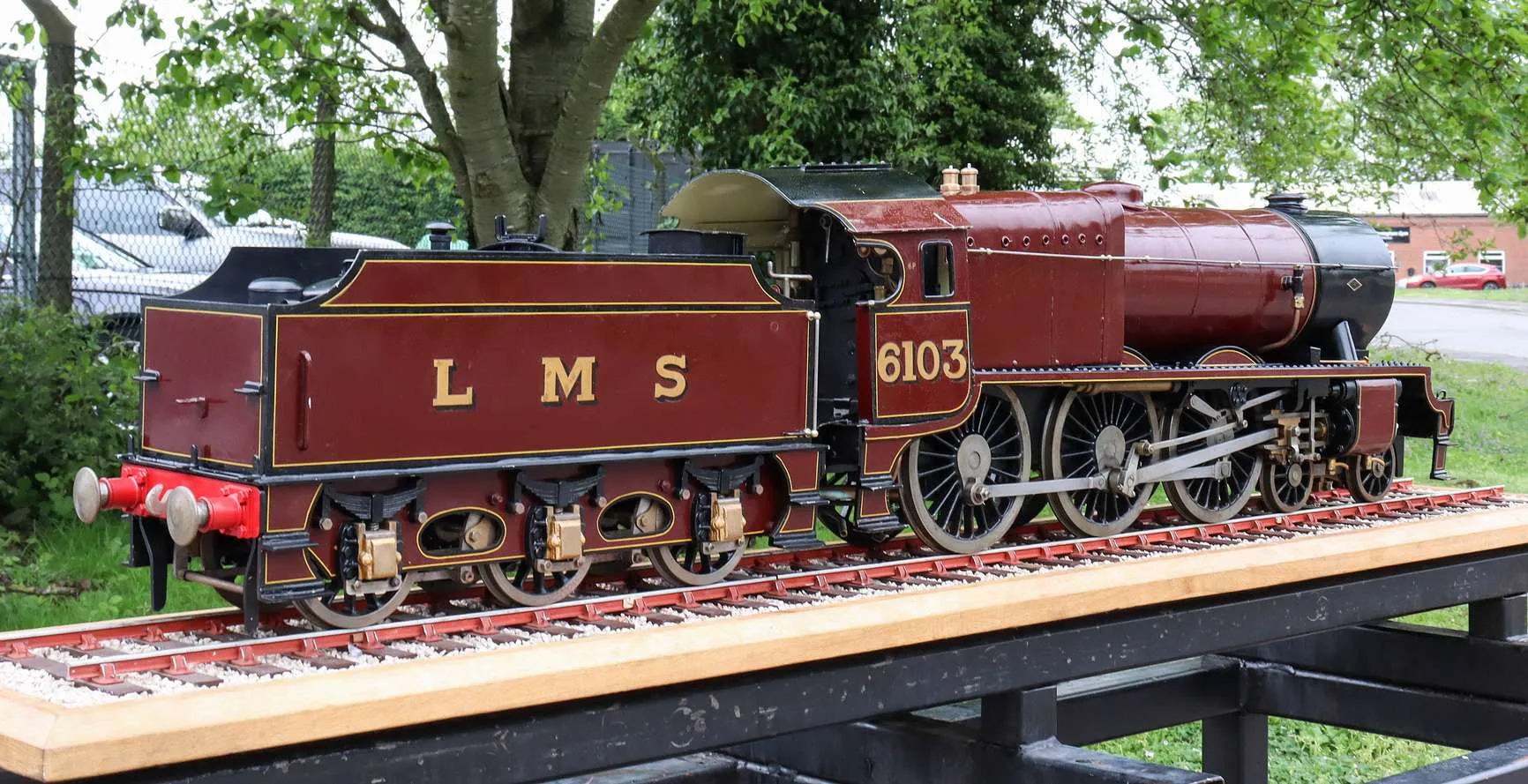

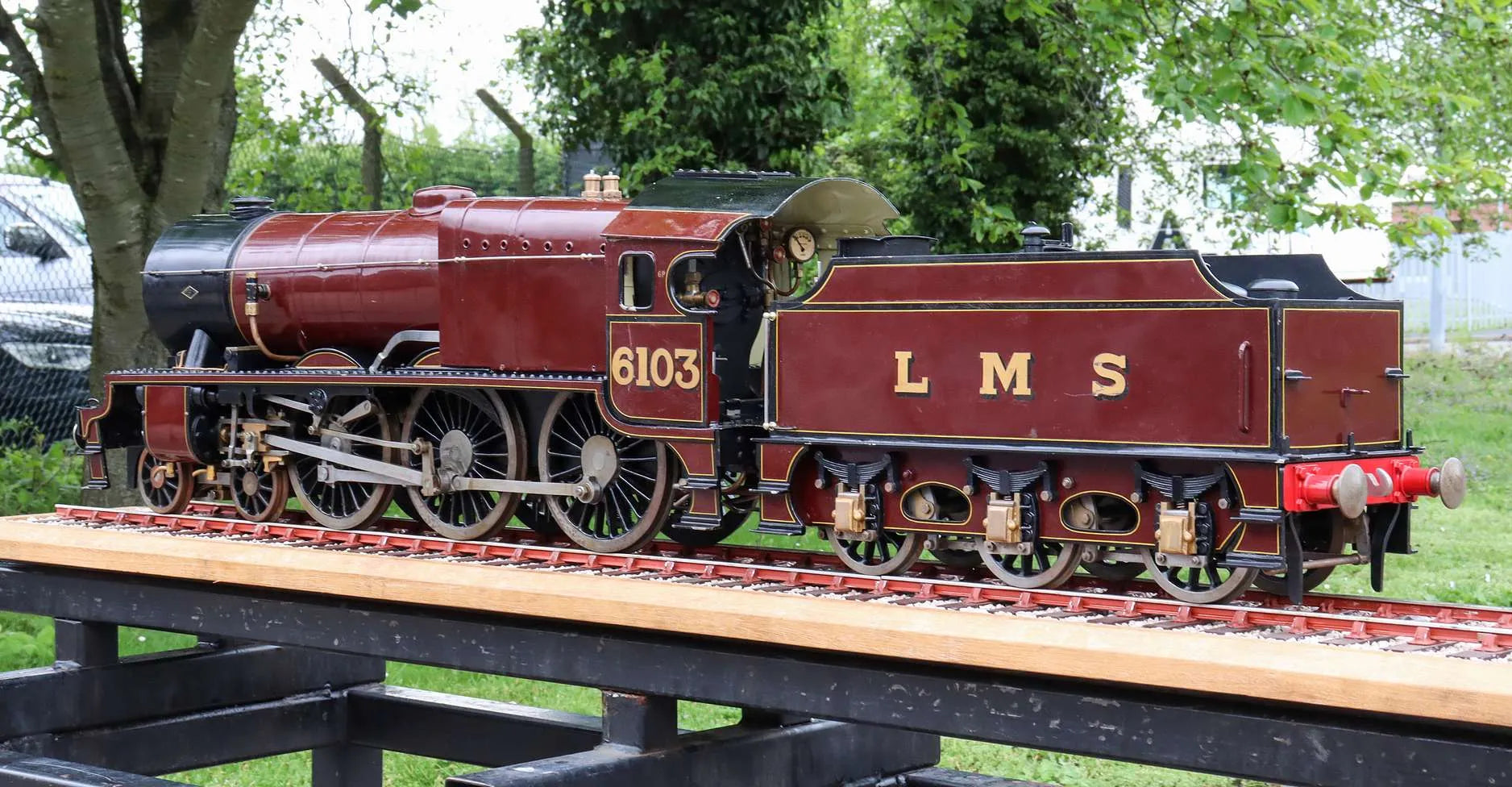

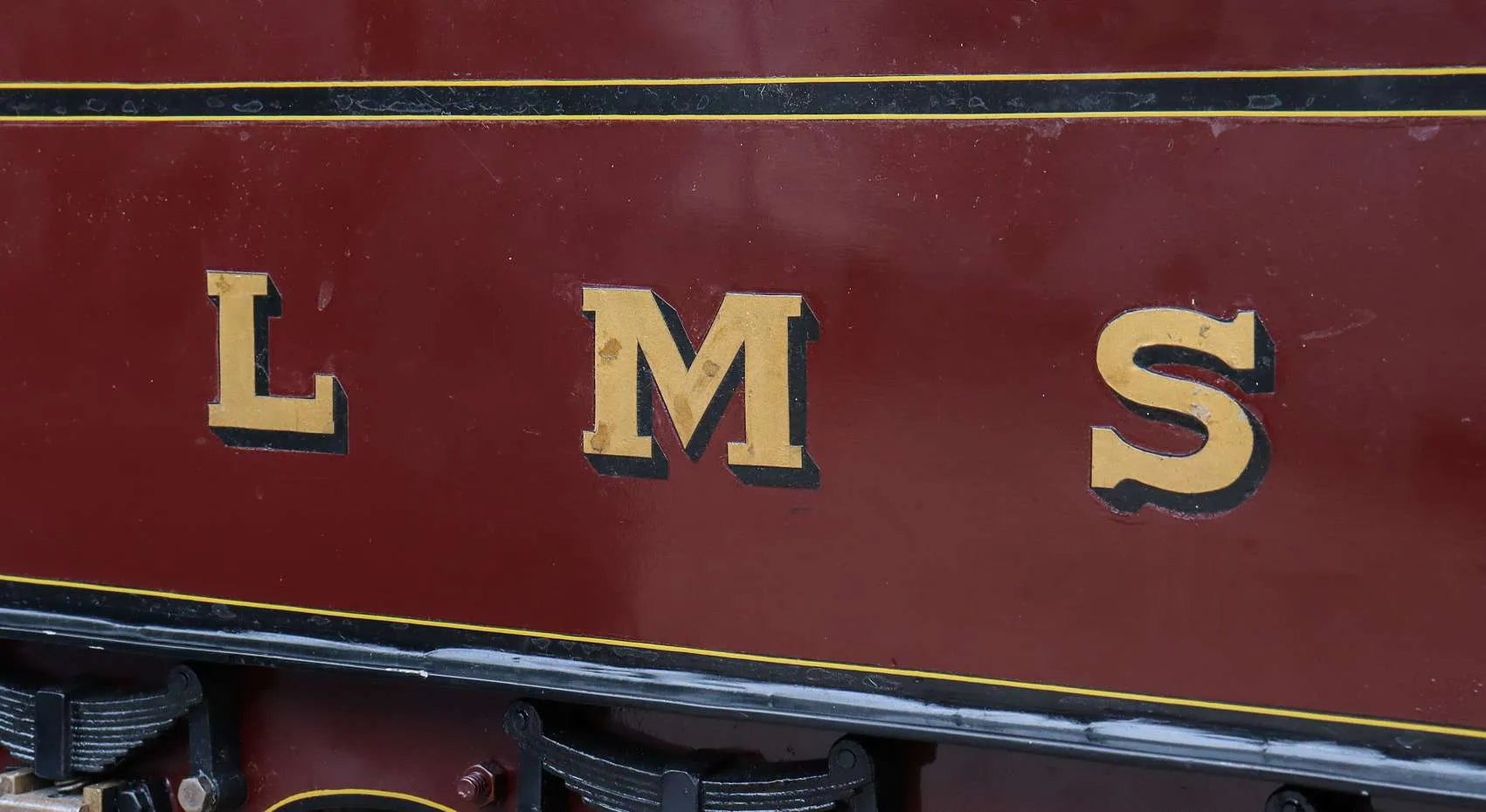

A 3 1/2 inch gauge LMS "Royal Scot" in original un-rebuilt form. Built - as most model Royal Scots are - as a two cylinder locomotive, it's an older engine; well built and nicely painted originally, it now has a rather attractive patina to it.

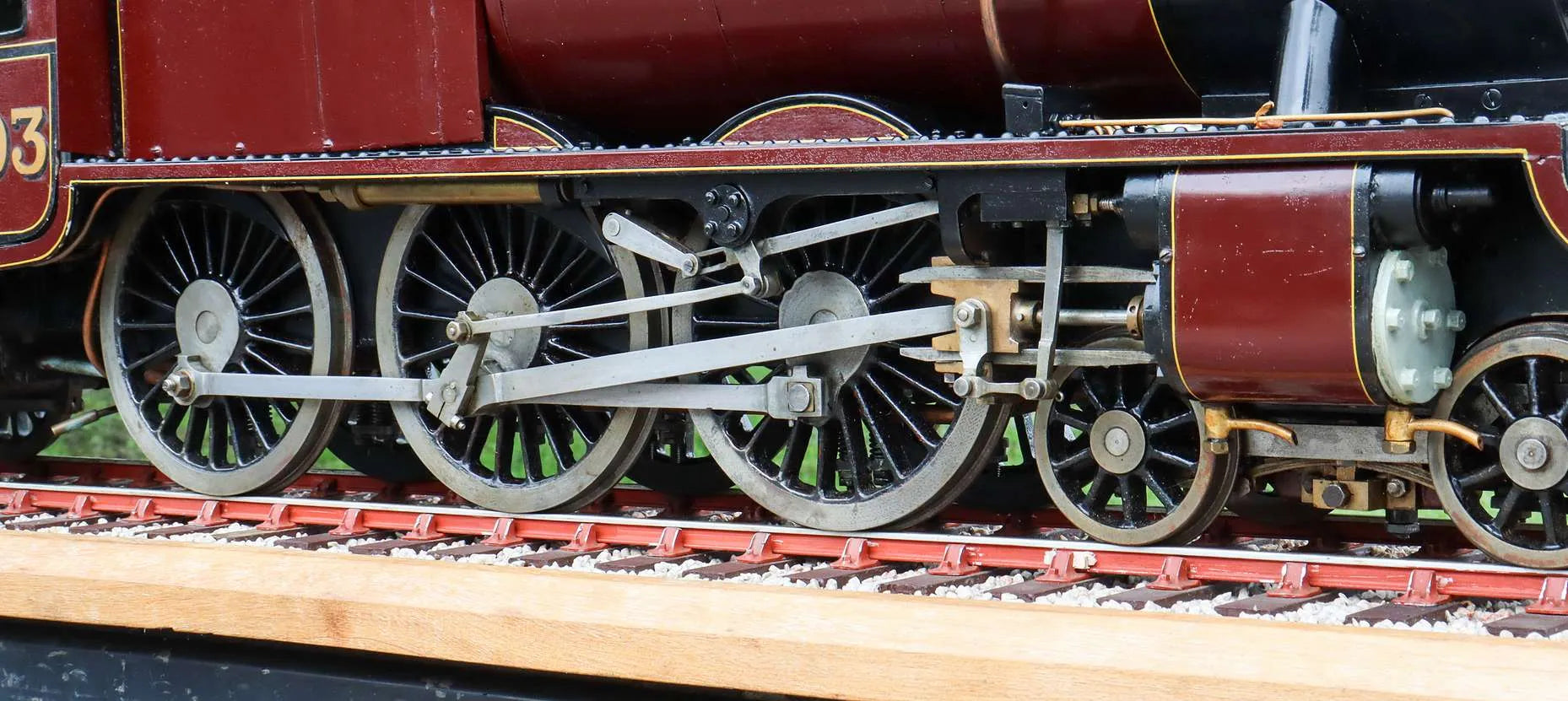

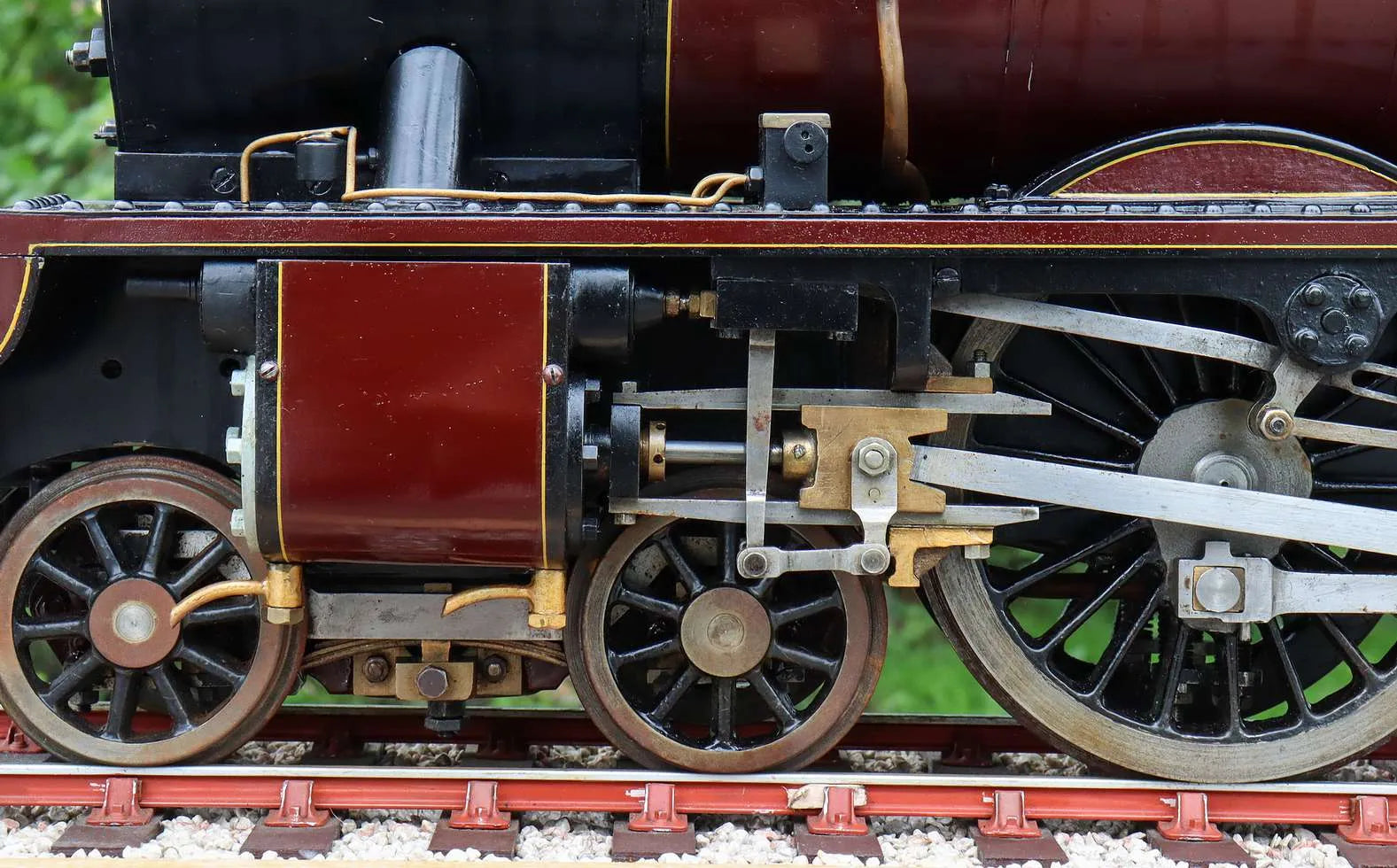

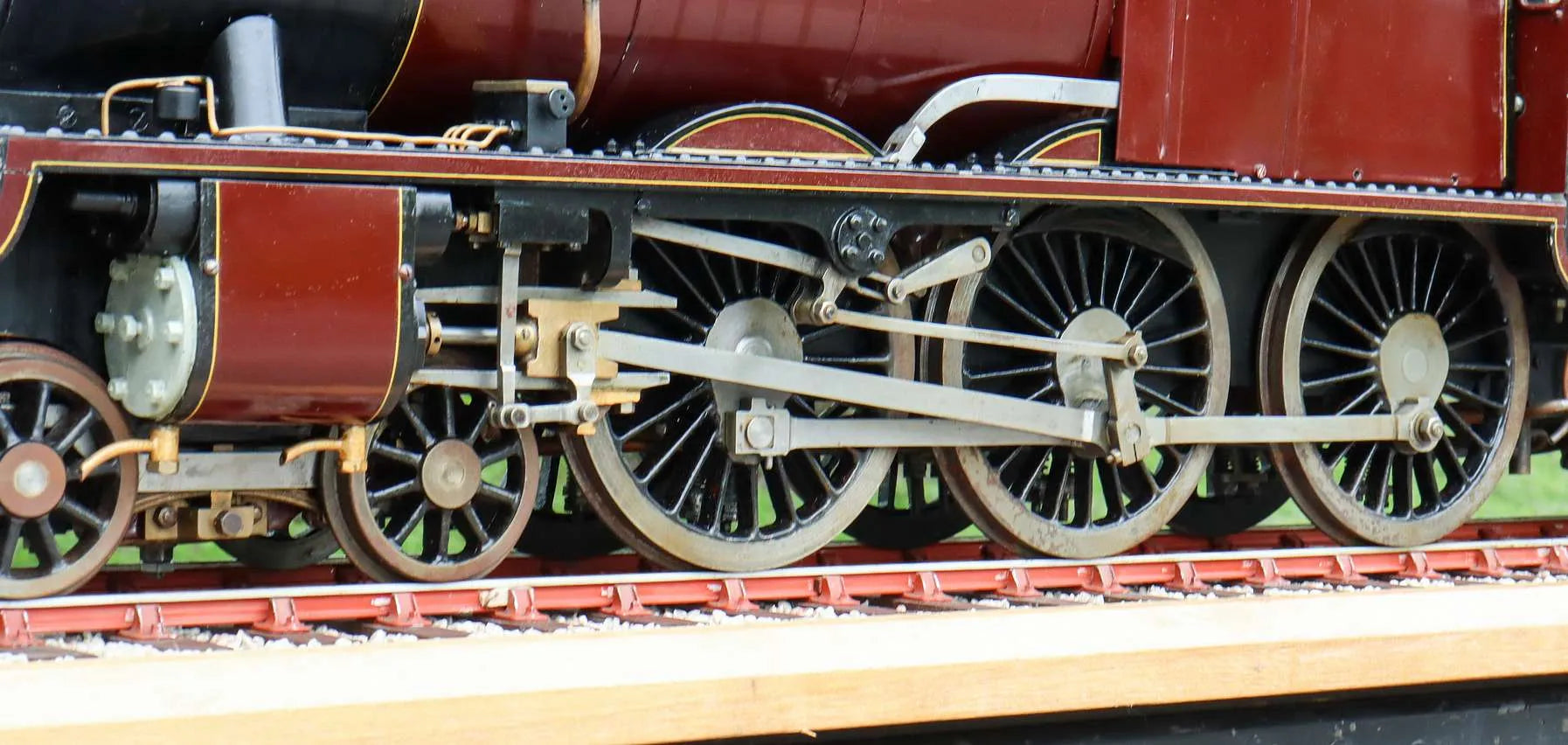

The chassis runs well on air with wear evident in motionwork and valve gear commensurate with age.
On hydraulic test the boiler showed a leak from under the cladding at the barrel/throatplate junction - the cladding would need to be removed to investigate further although, with no pipework in the area, we would suspect a failed seam.
Stock code |
11301 |
Gauge |
3 1/2 inch |
Length/inches |
32 + 17 |
Width/inches |
7 |
Height/inches |
11 |
Weight/Kg |
45 |
Wheel material |
cast iron |
Axlebox type |
plain |
Cylinder material |
gunmetal |
Valve type |
piston |

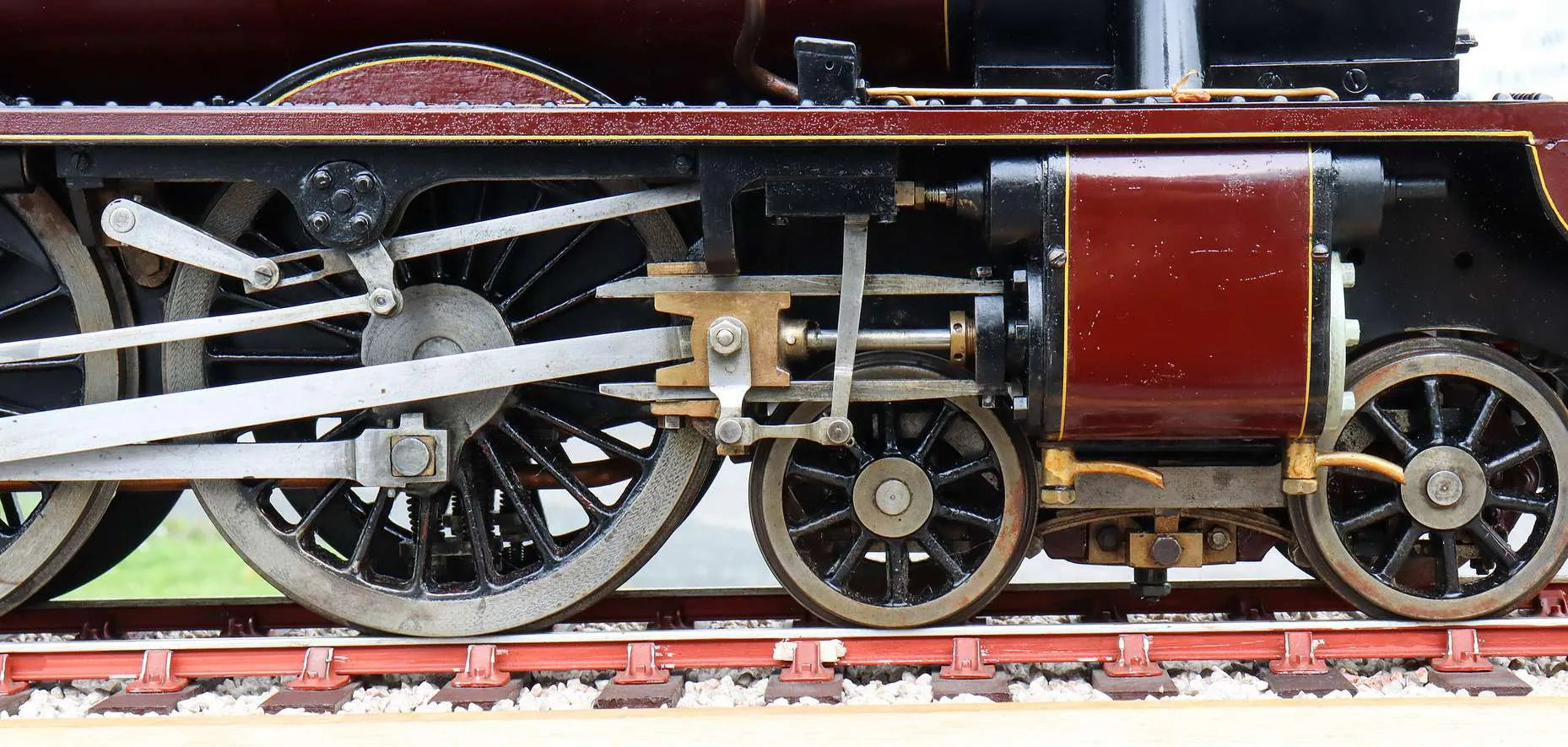

Valve gear |
Walschaerts |
Reverser type |
screw |
Boiler type |
locomotive |
Boiler construction |
silver soldered, nutted and calked firebox |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a - non-commercial |

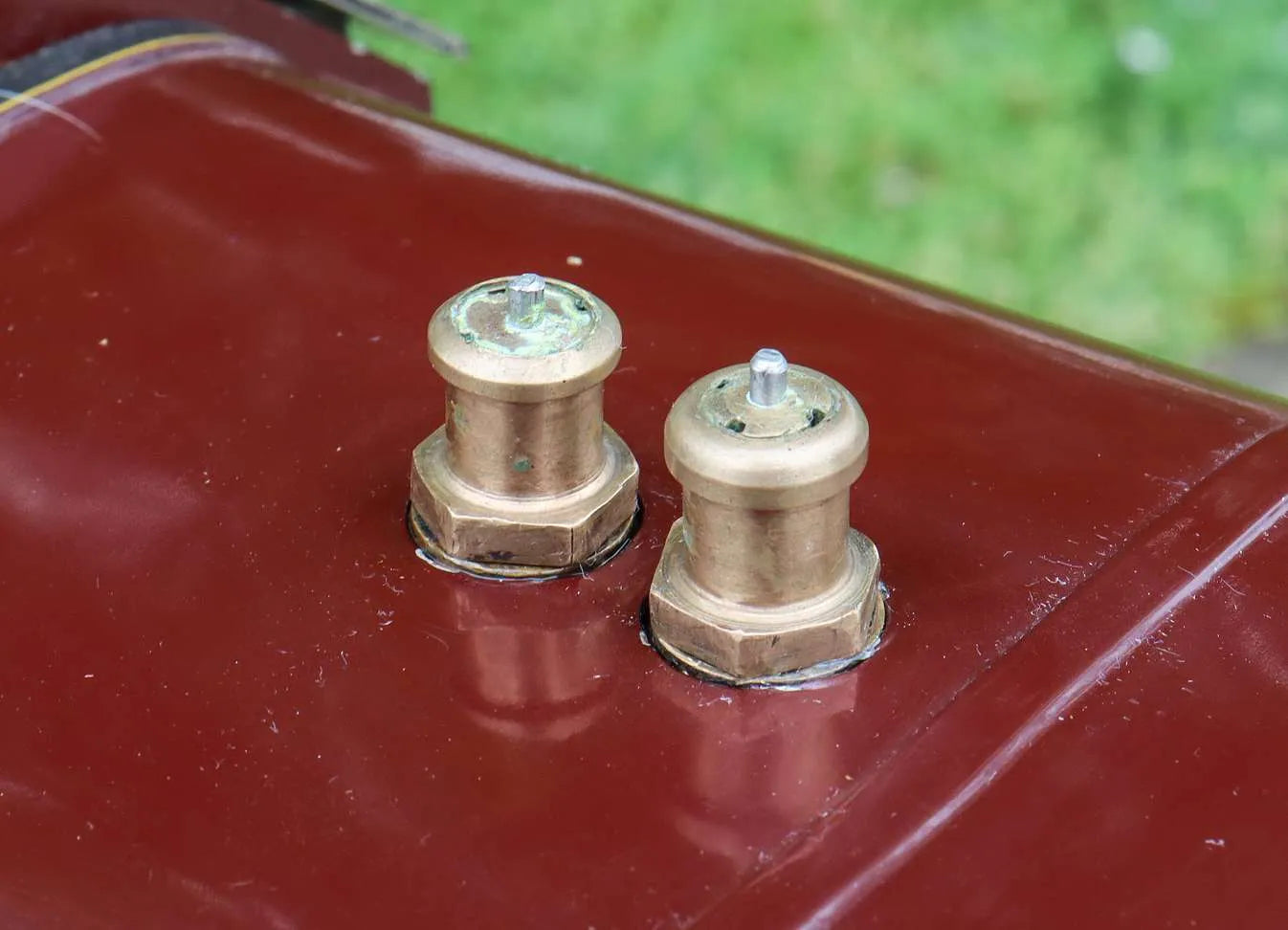

Safety valve type |
spring |
Safety valve |
2 |
Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
2 |
Date out |
May-25 |
