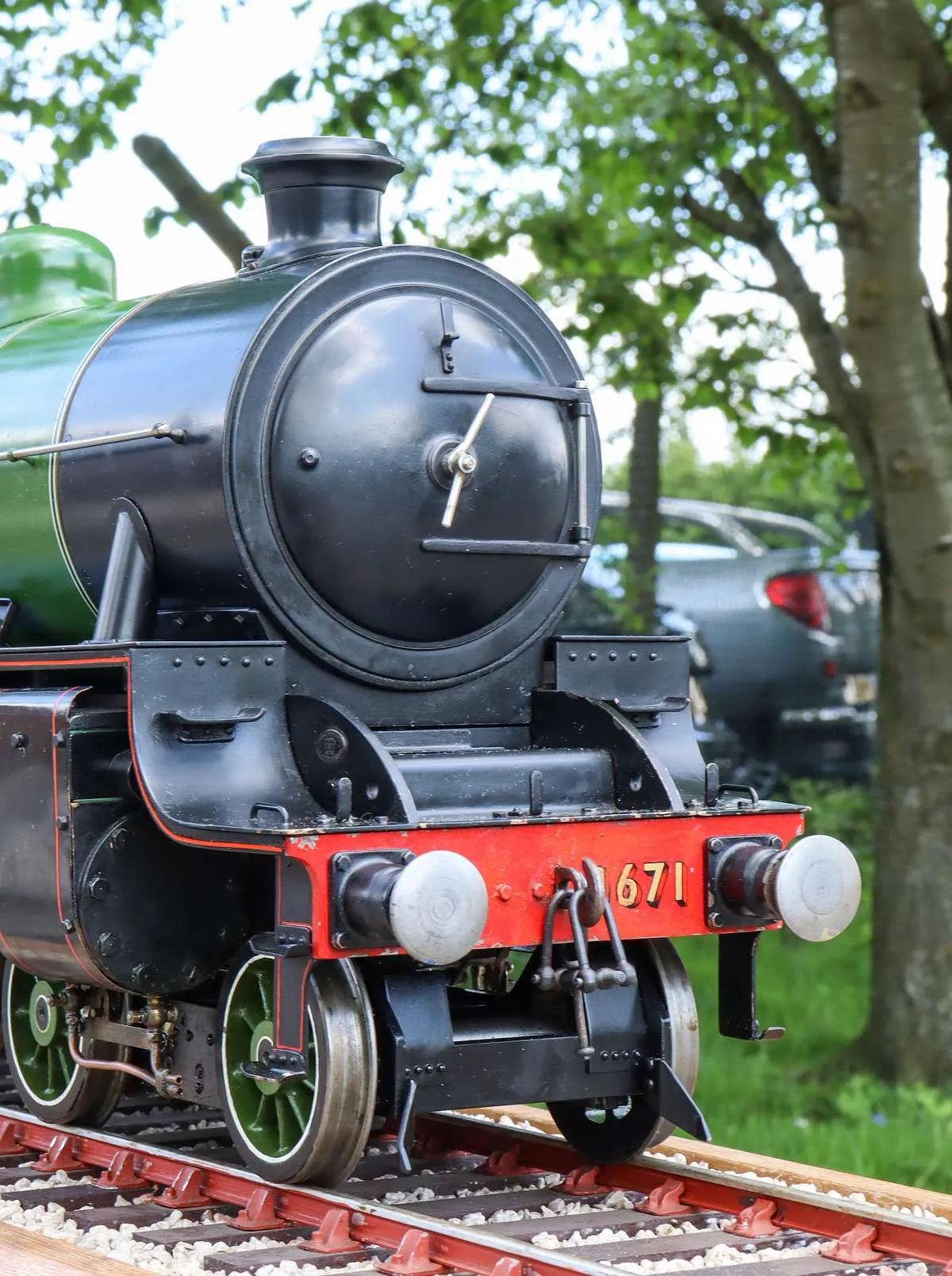

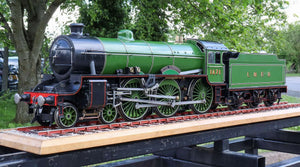

3 1/2 inch gauge LNER B2 4-6-0

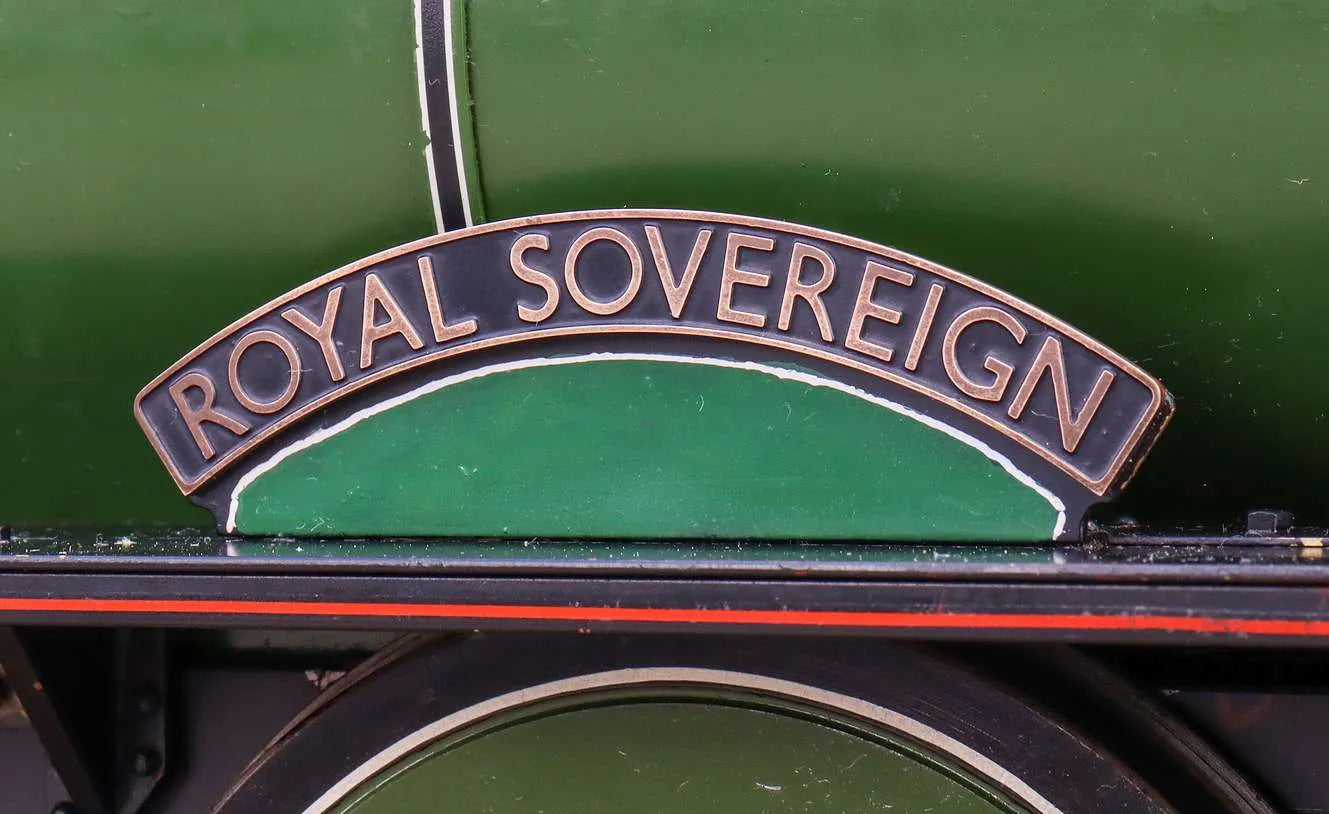

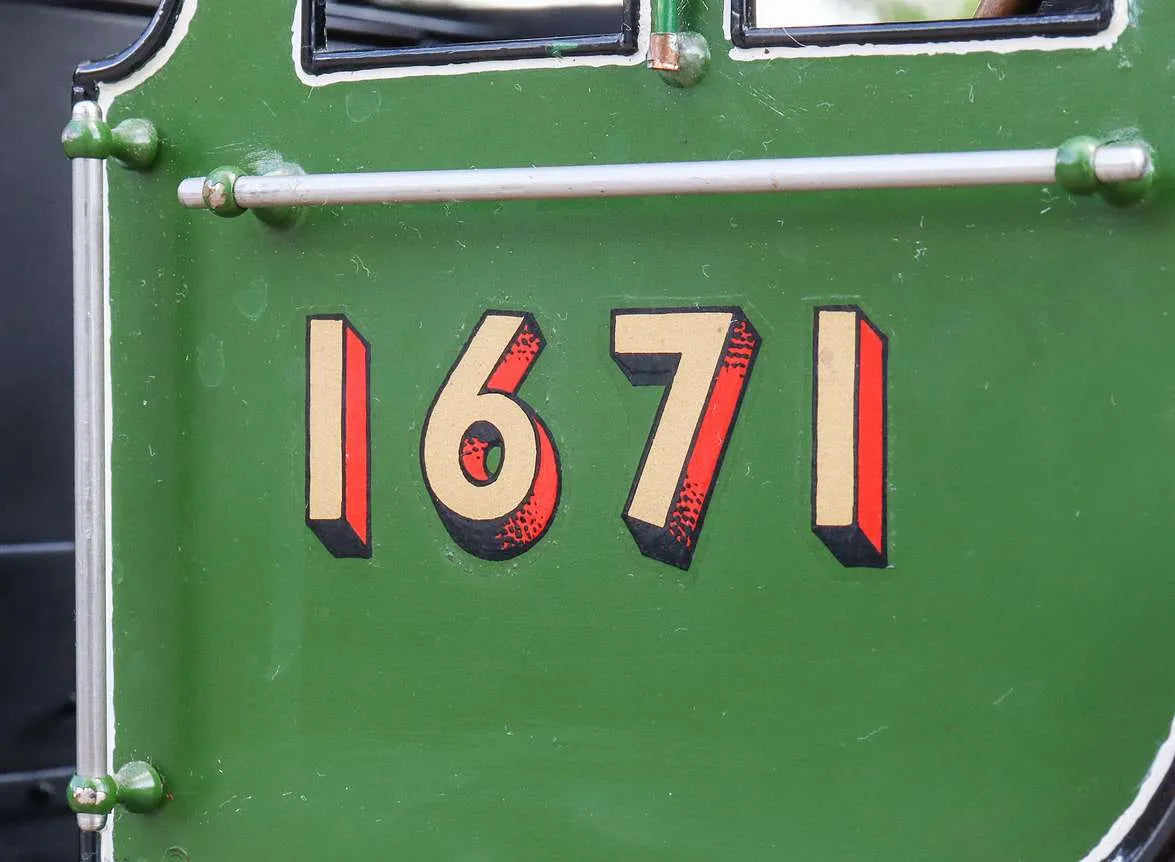

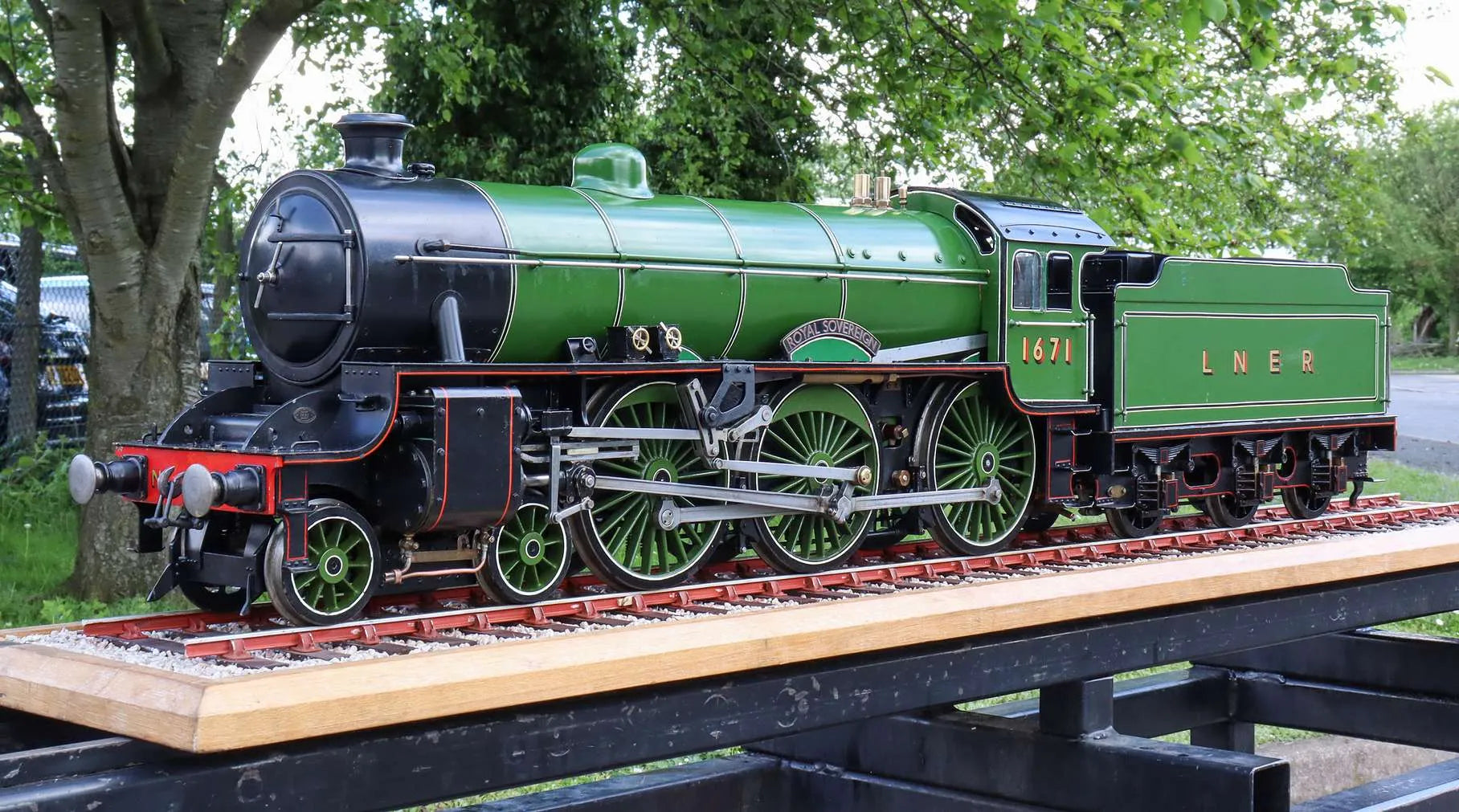

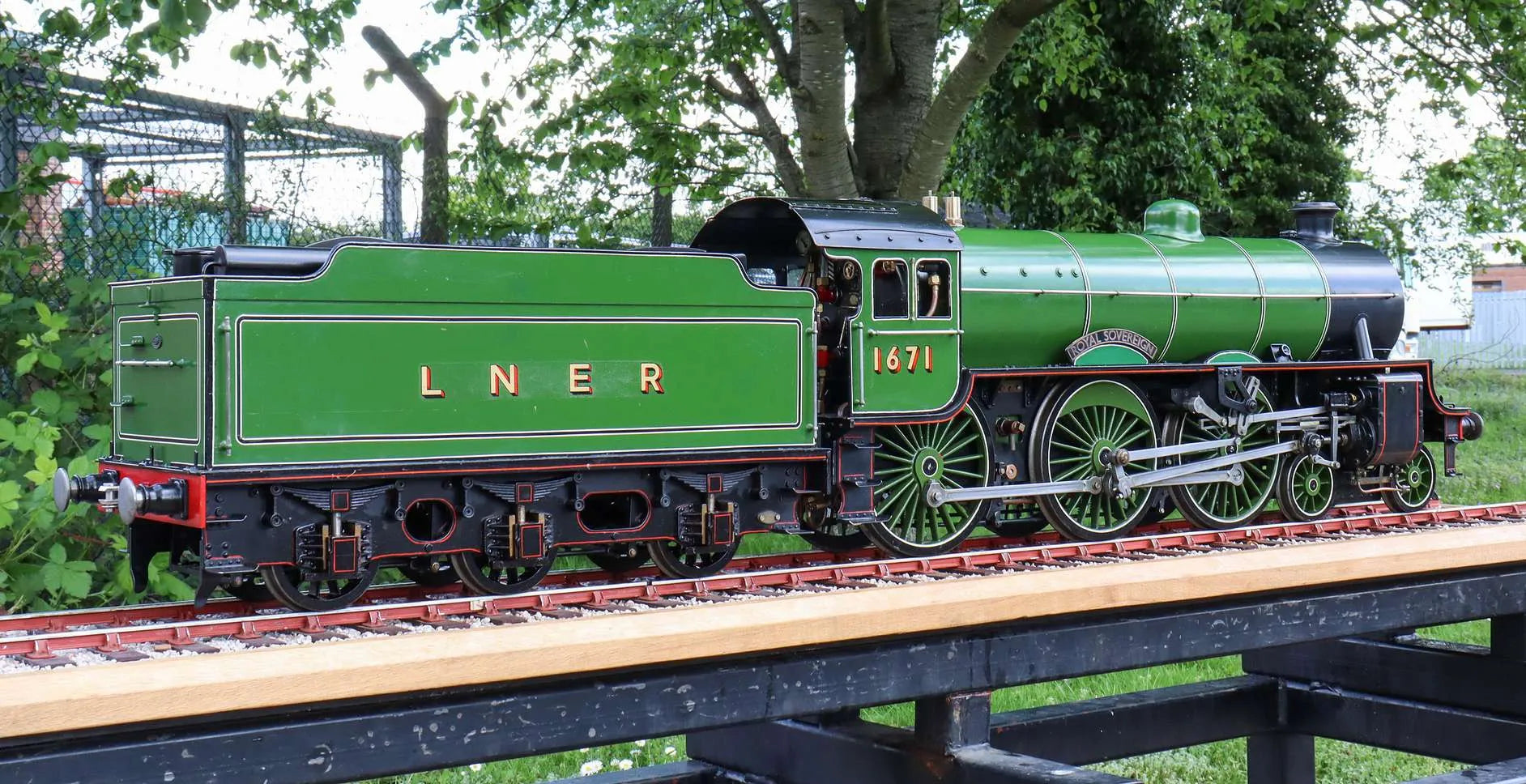

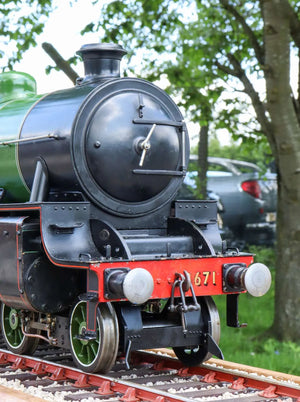

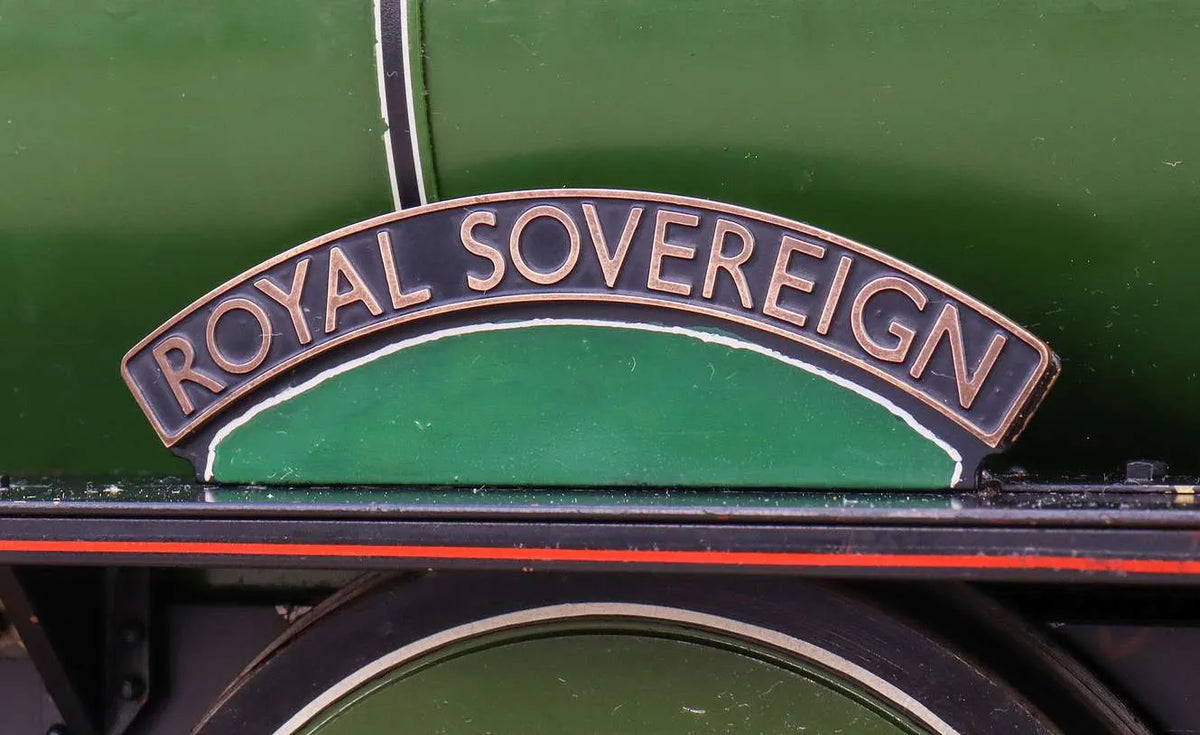

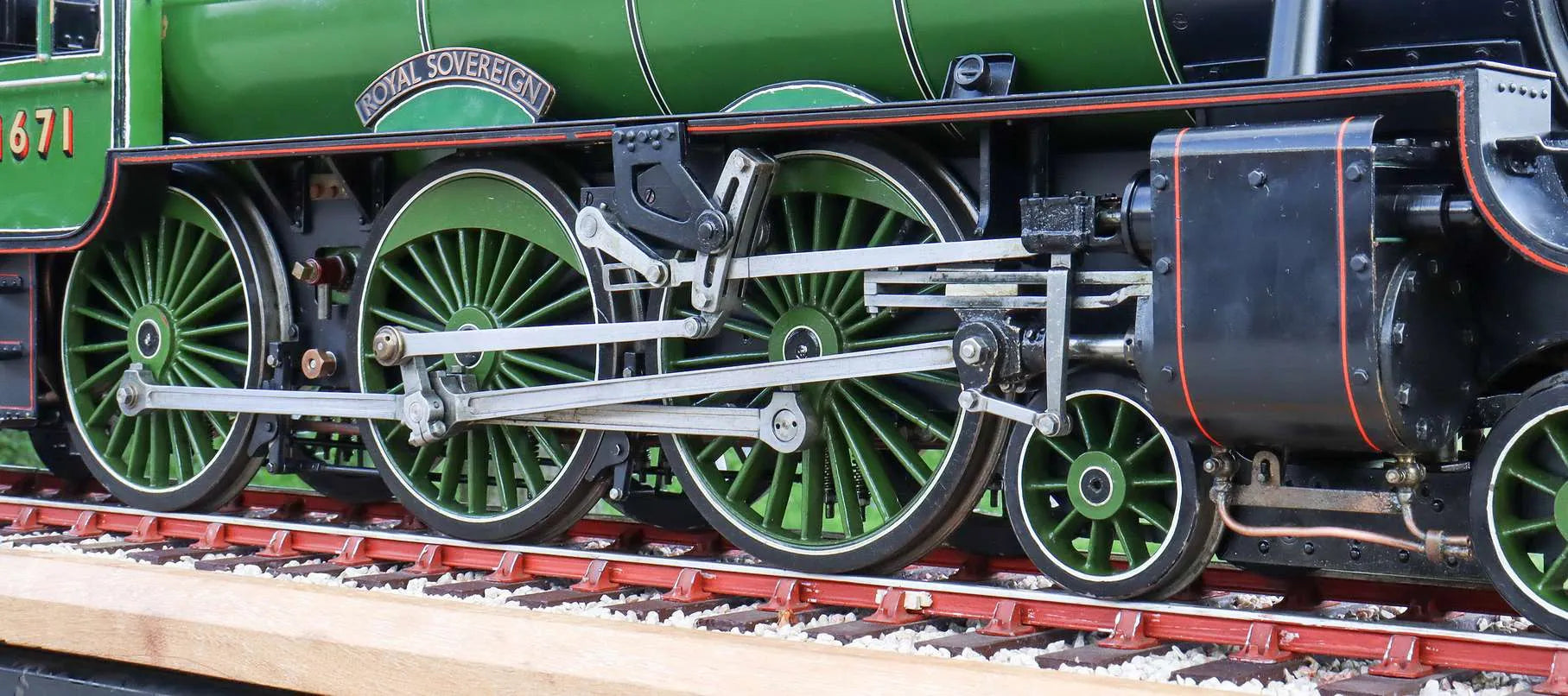

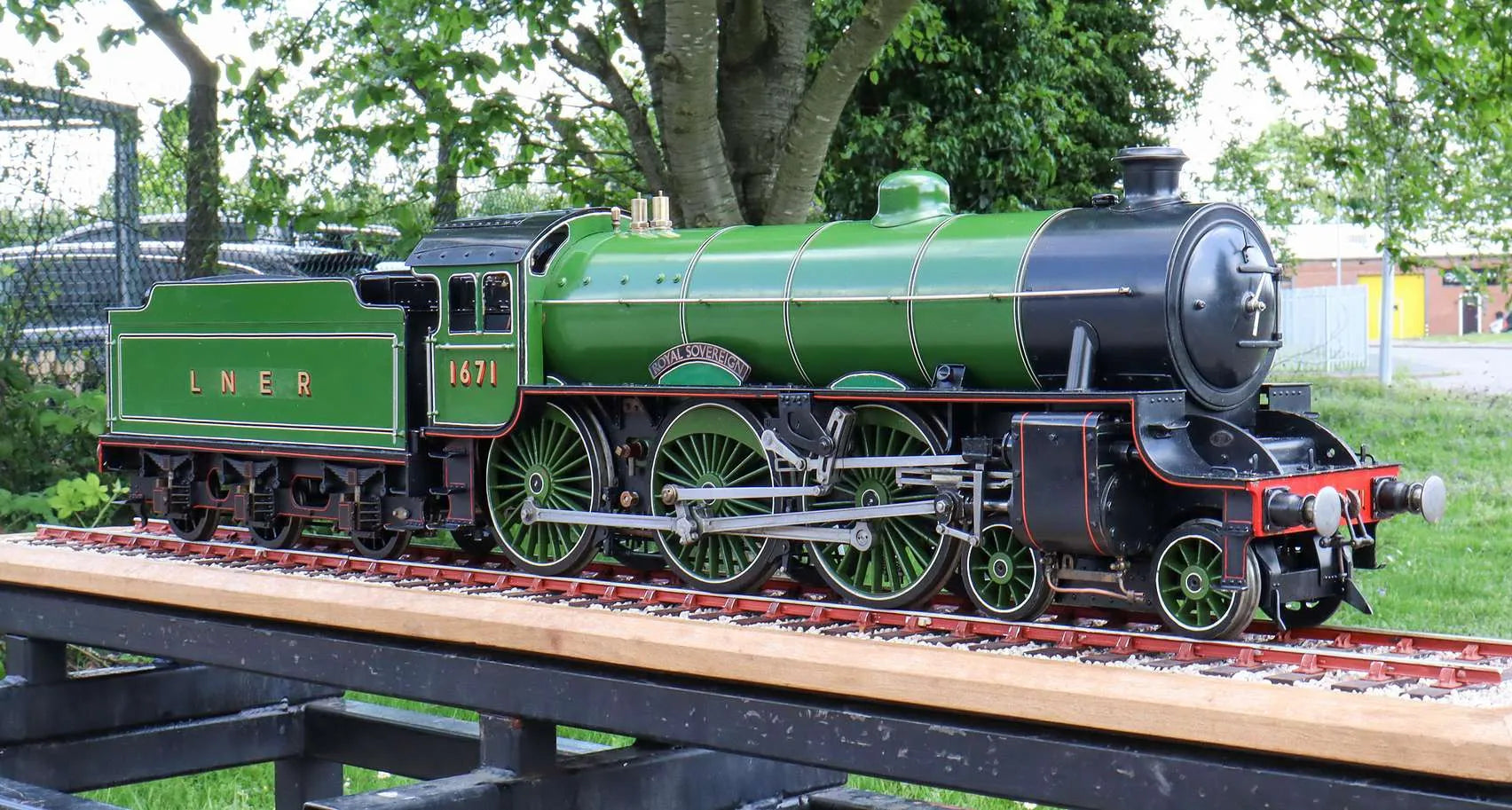

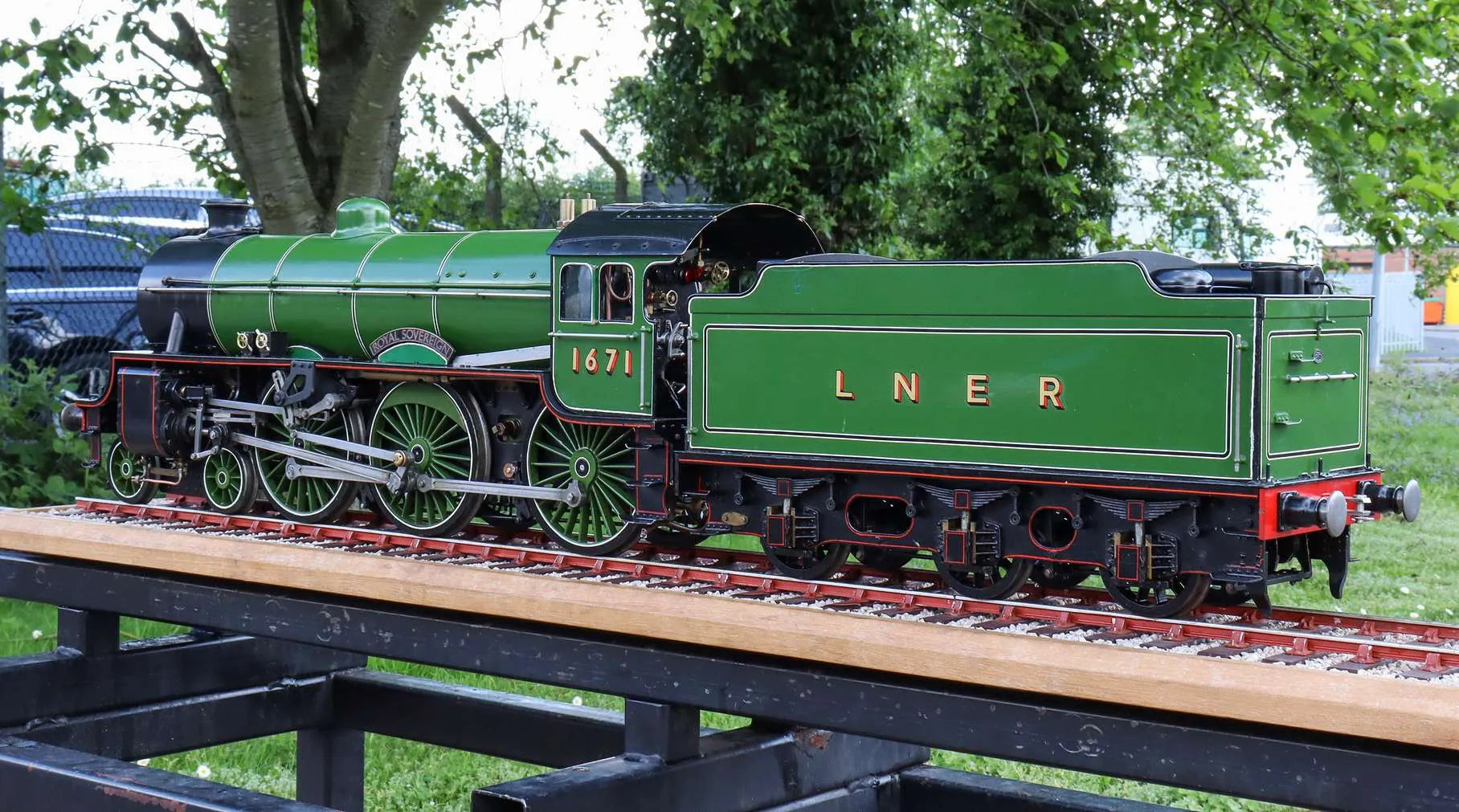

A finely-built 3 1/2 inch gauge LNER B2, No.1671 "Royal Sovereign", built to the H.Clarkson design.

In excellent condition, the engine was built in the 1990s whereupon it was "glass-cased" on display until 2018. A new owner at that time had it commissioned for steaming, although subsequently didn't use it at the track.

The commercially built boiler by the estimable John Ellis has had recent hydraulic and steam tests with new certification issued.

The engine proved free-steaming and runs every bit as well as it looks - on test it ran for an hour on the rolling road without need of the blower, the only problem we had was trying to stop the thing lifting the safety valves!

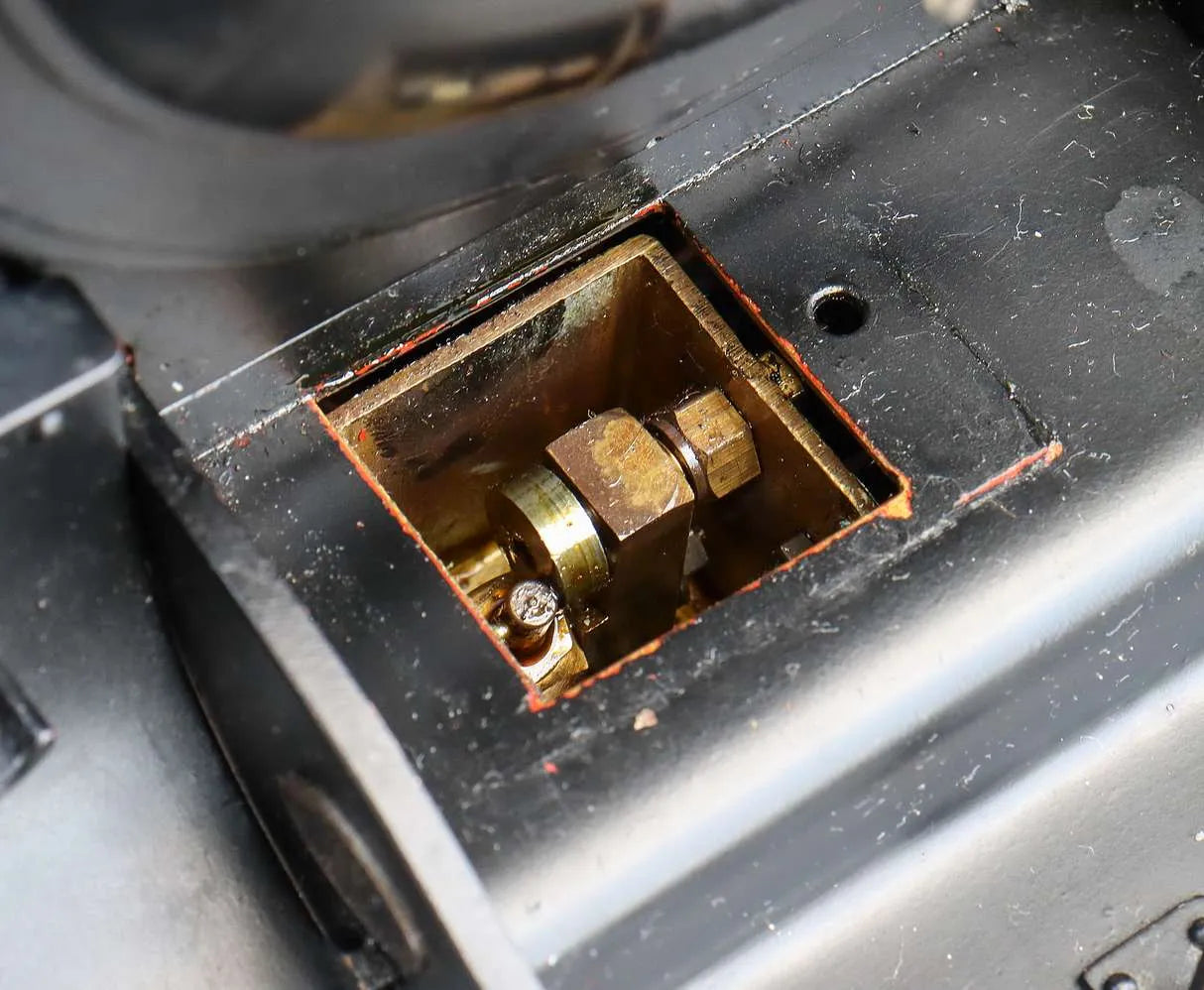

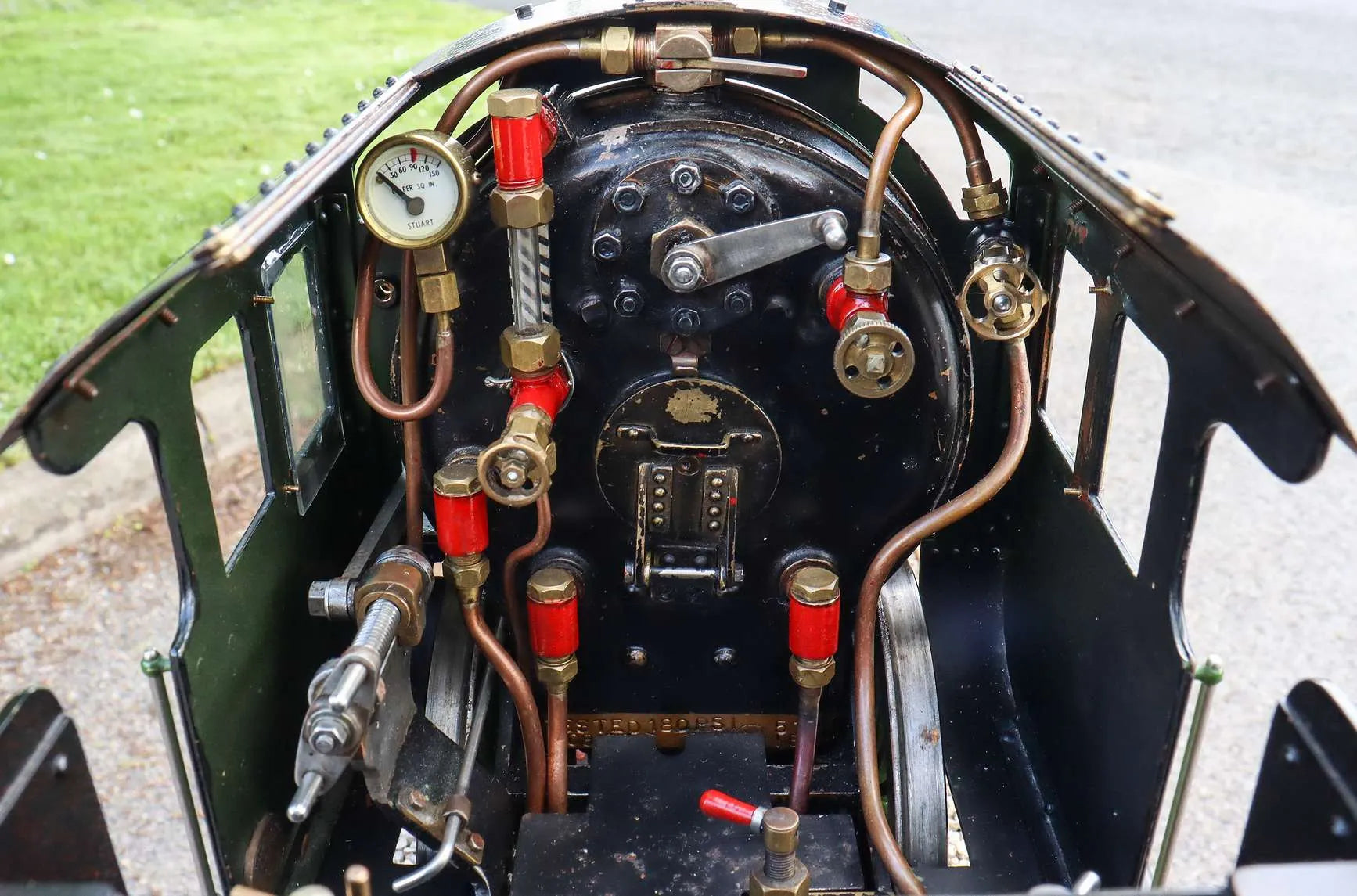

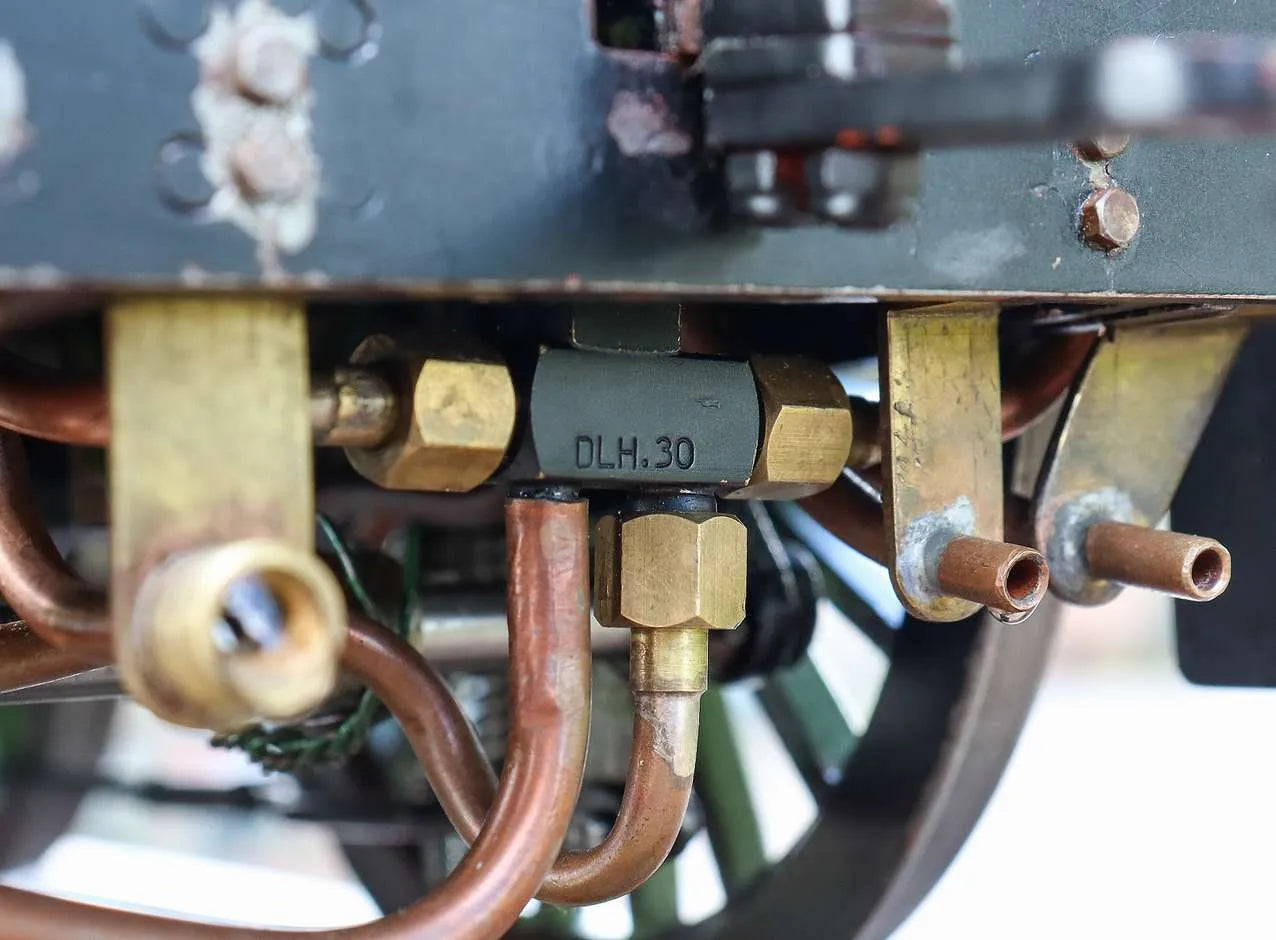

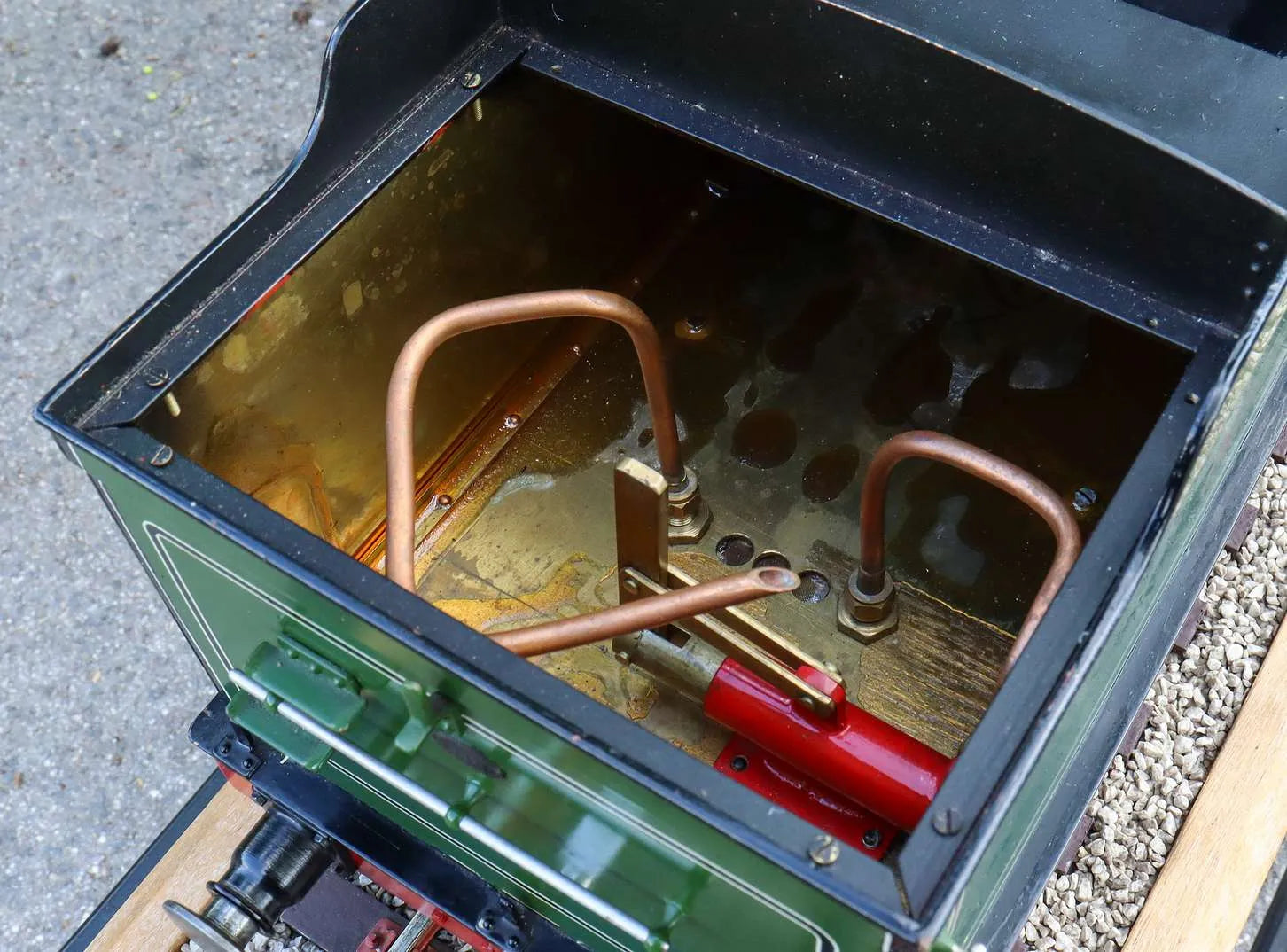

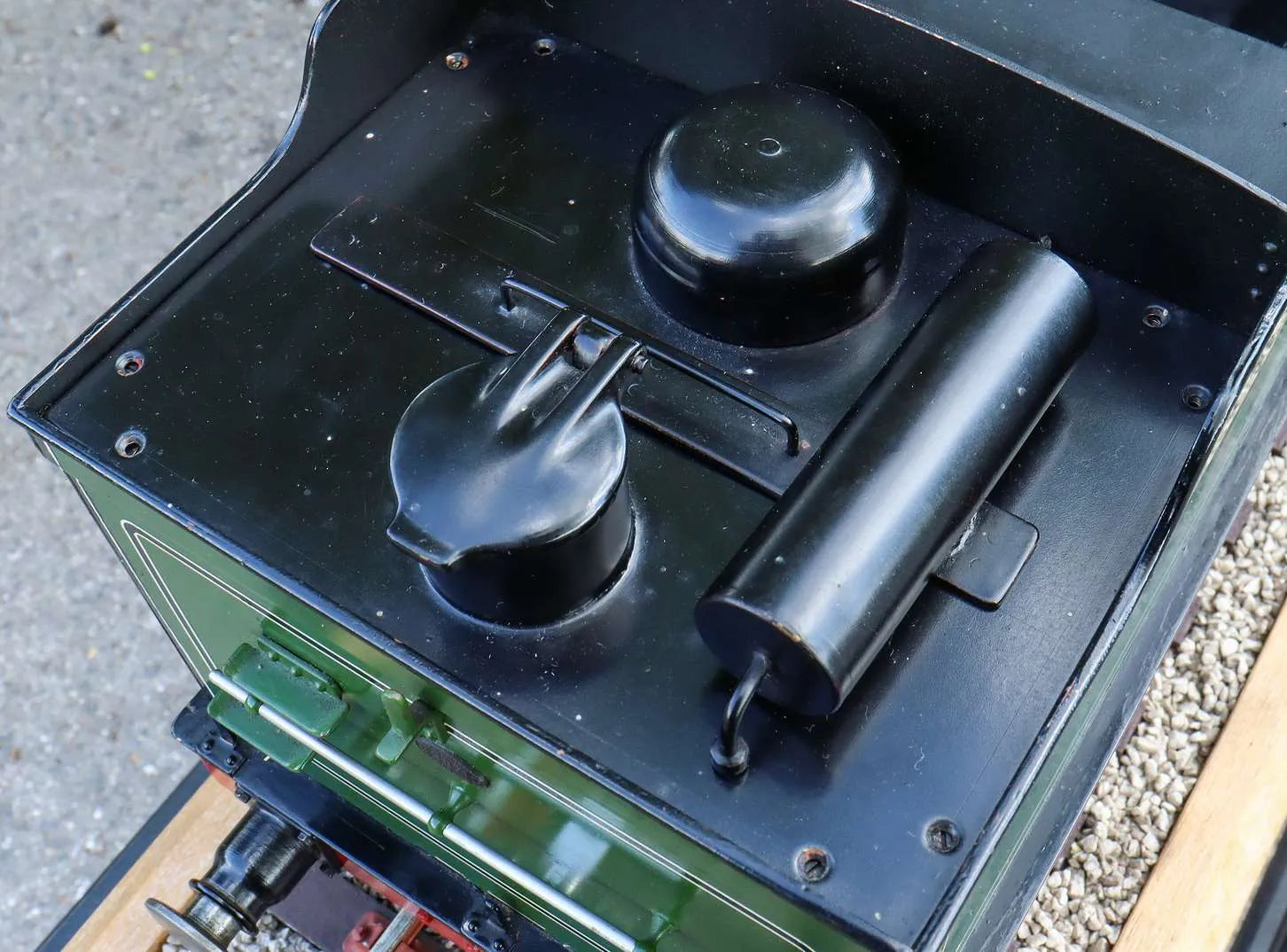

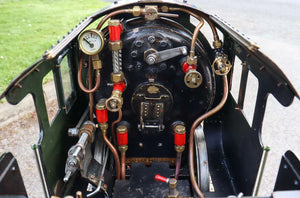

Boiler feed is by twin axle pumps and hand pump in the tender, both of which proved capable of keeping up with demand. There is an injector fitted which works after a fashion, however we would consider it ornamental rather than functional - only the tightness of plumbing under the footplate and use of non-standard pipe fittings prevented us replacing it.

Complete with wooden carry crates.

Technical information

Stock code

11306

Gauge

3 1/2 inch

Length/inches

28 + 18

Width/inches

7

Height/inches

11

Weight/Kg

39

Wheel material

cast iron

Cylinder material

cast iron

Valve type

piston

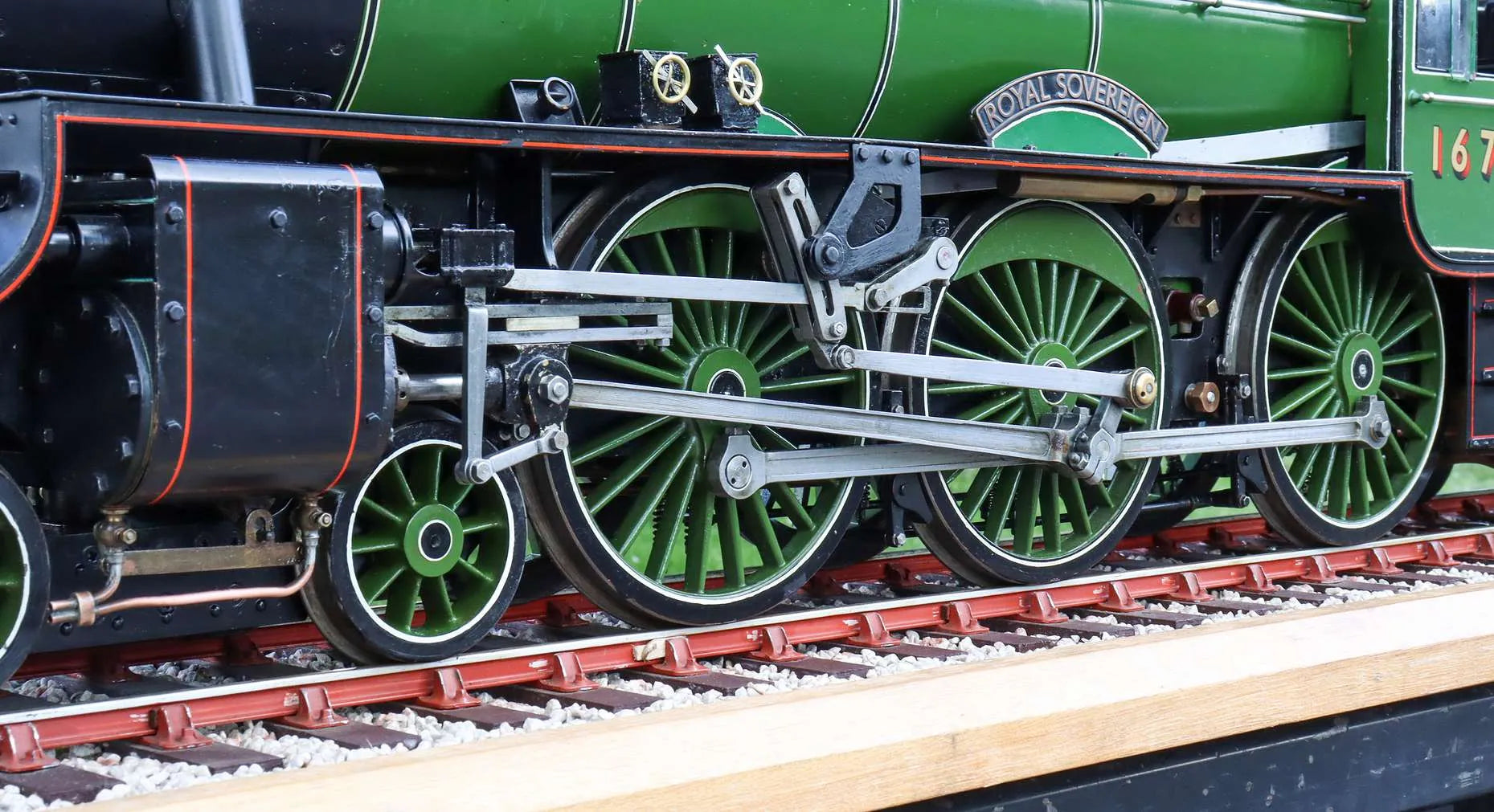

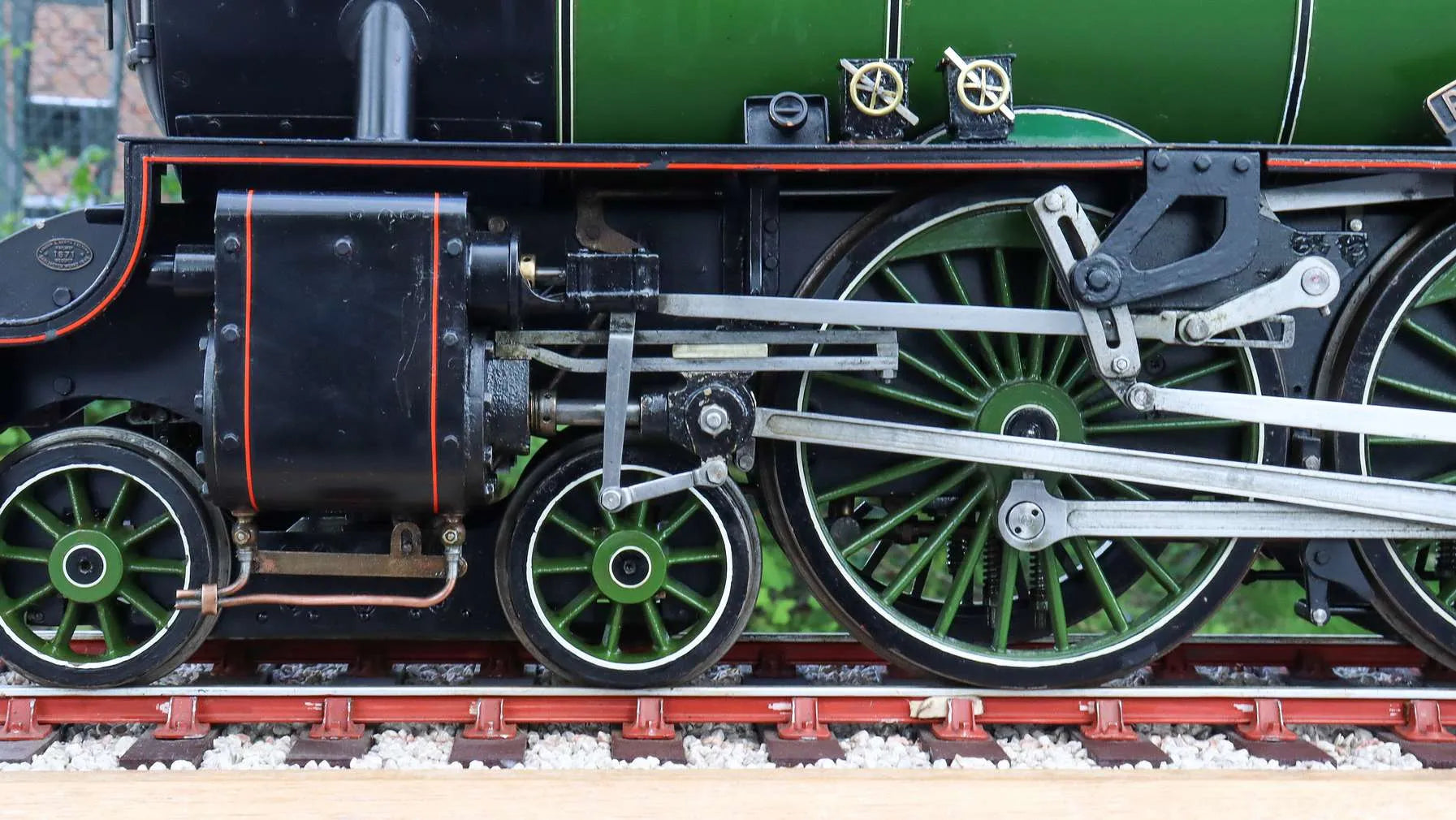

Valve gear

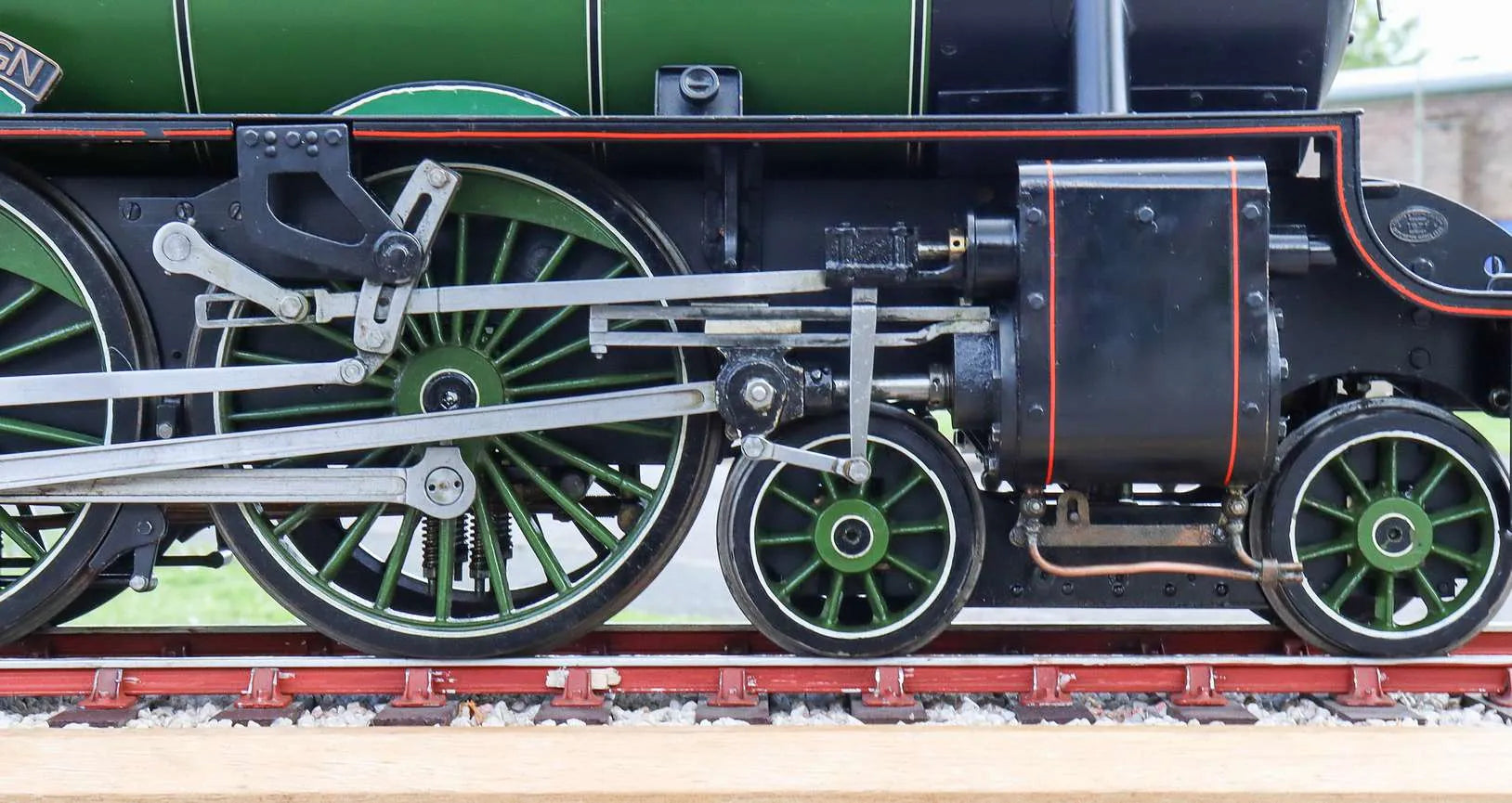

Walschaerts

Reverser type

screw

Lubricator type

mechanical

Boiler maker

Bishop-Ellis

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - pre-2002

Year built

1995

Boiler number

515B

Safety valve type

spring

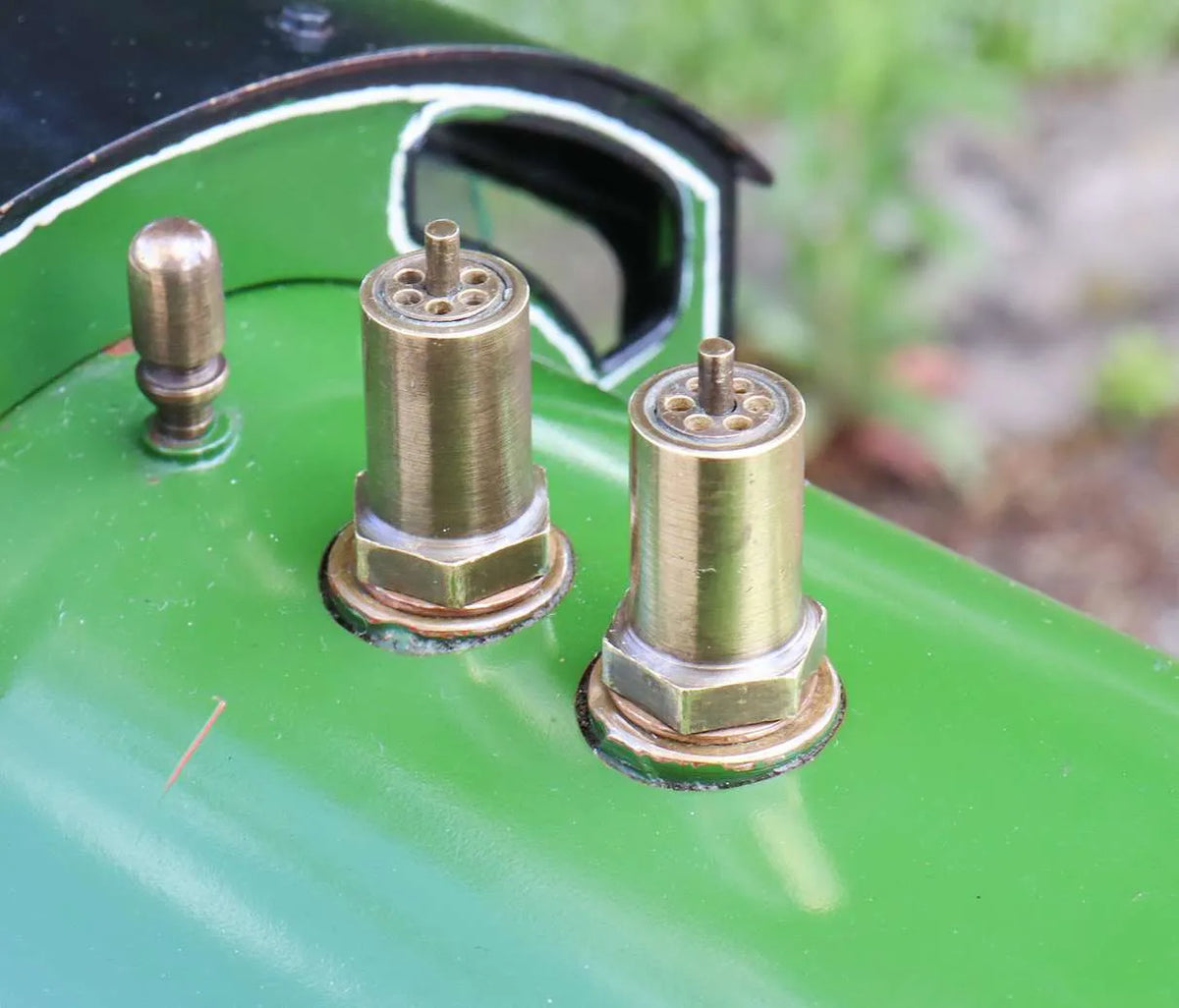

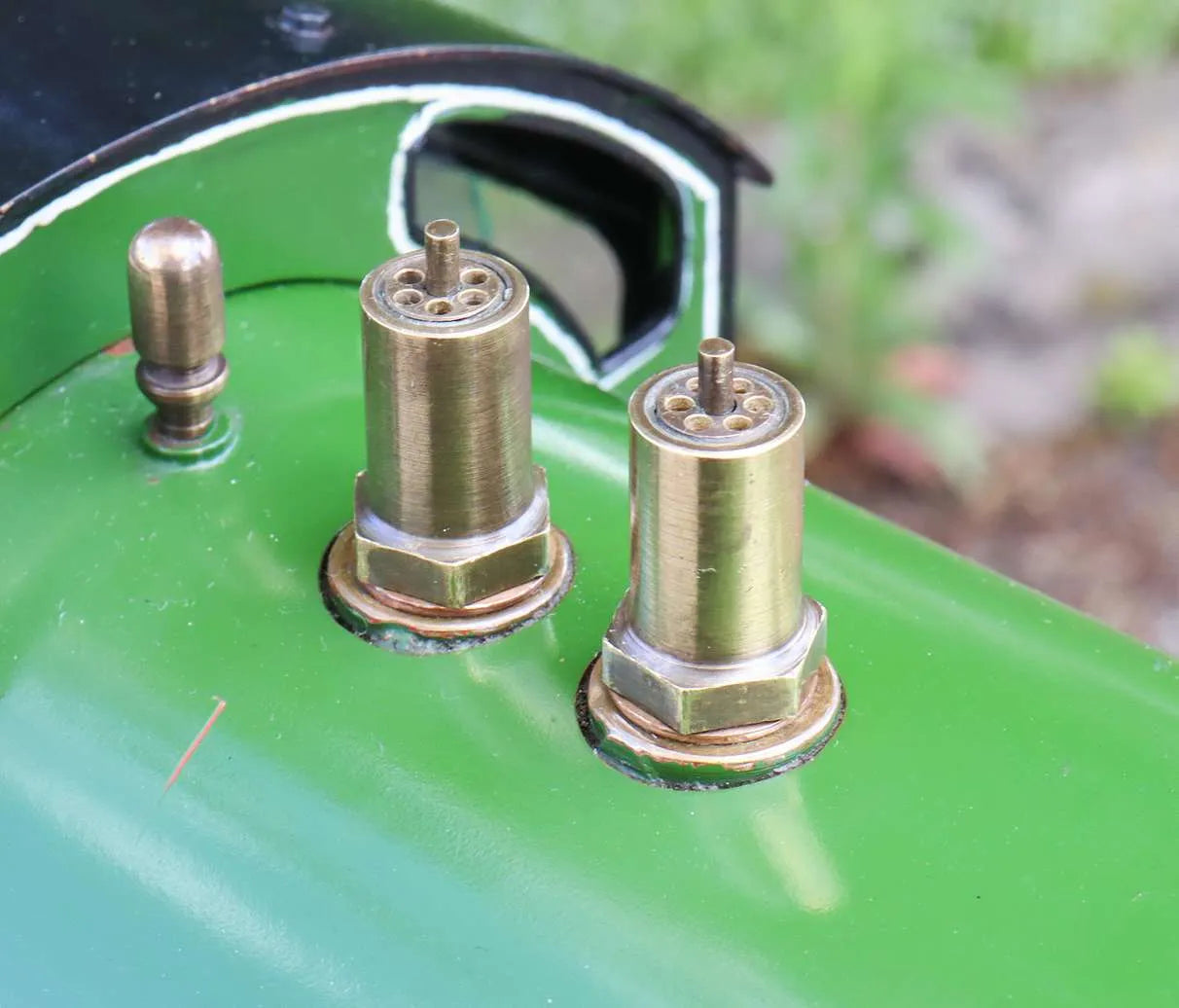

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

2

Date out

Mar-24

Hydraulic test valid to

09-May-27

Steam test valid to

14-Jul-24
