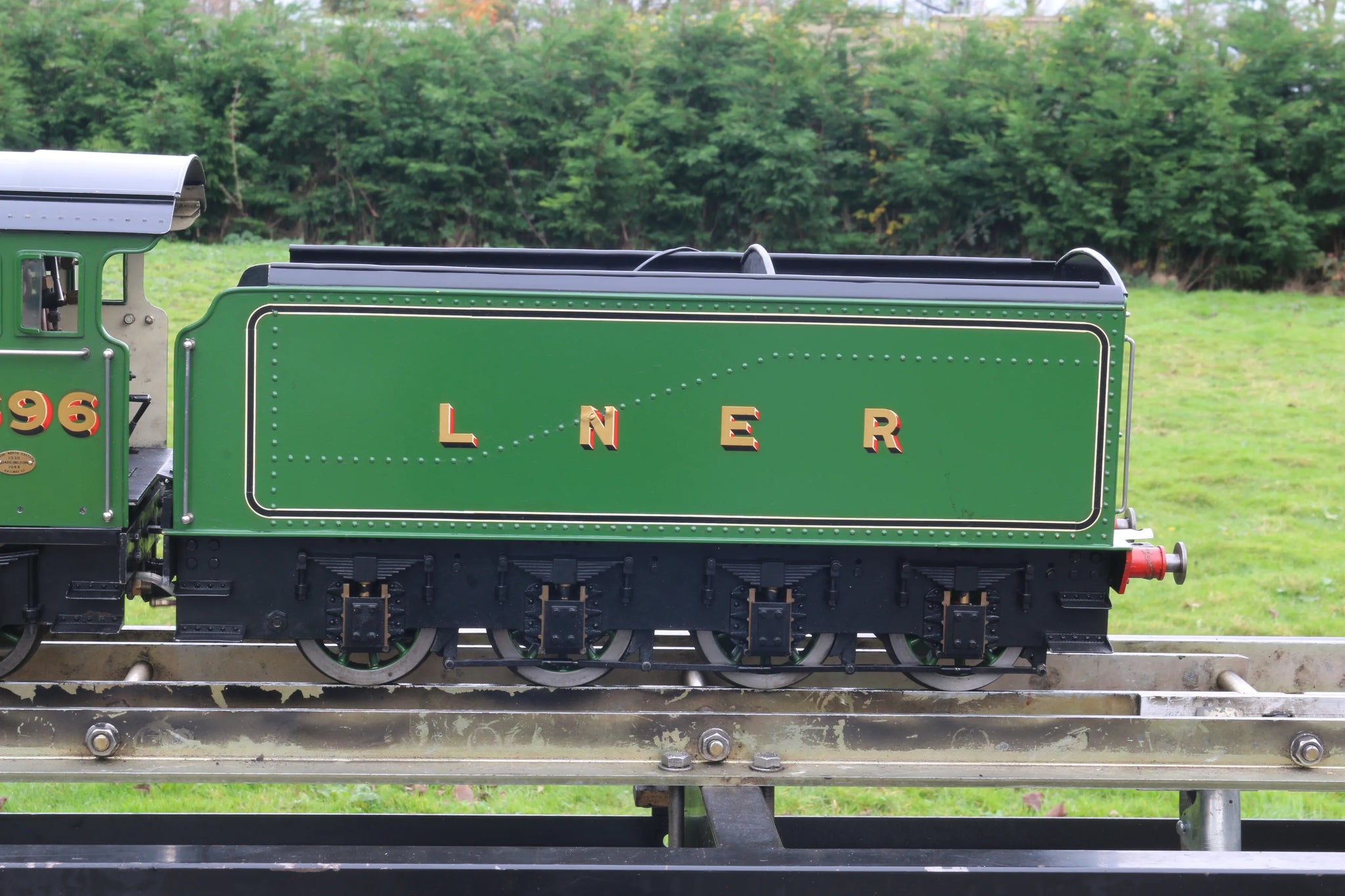

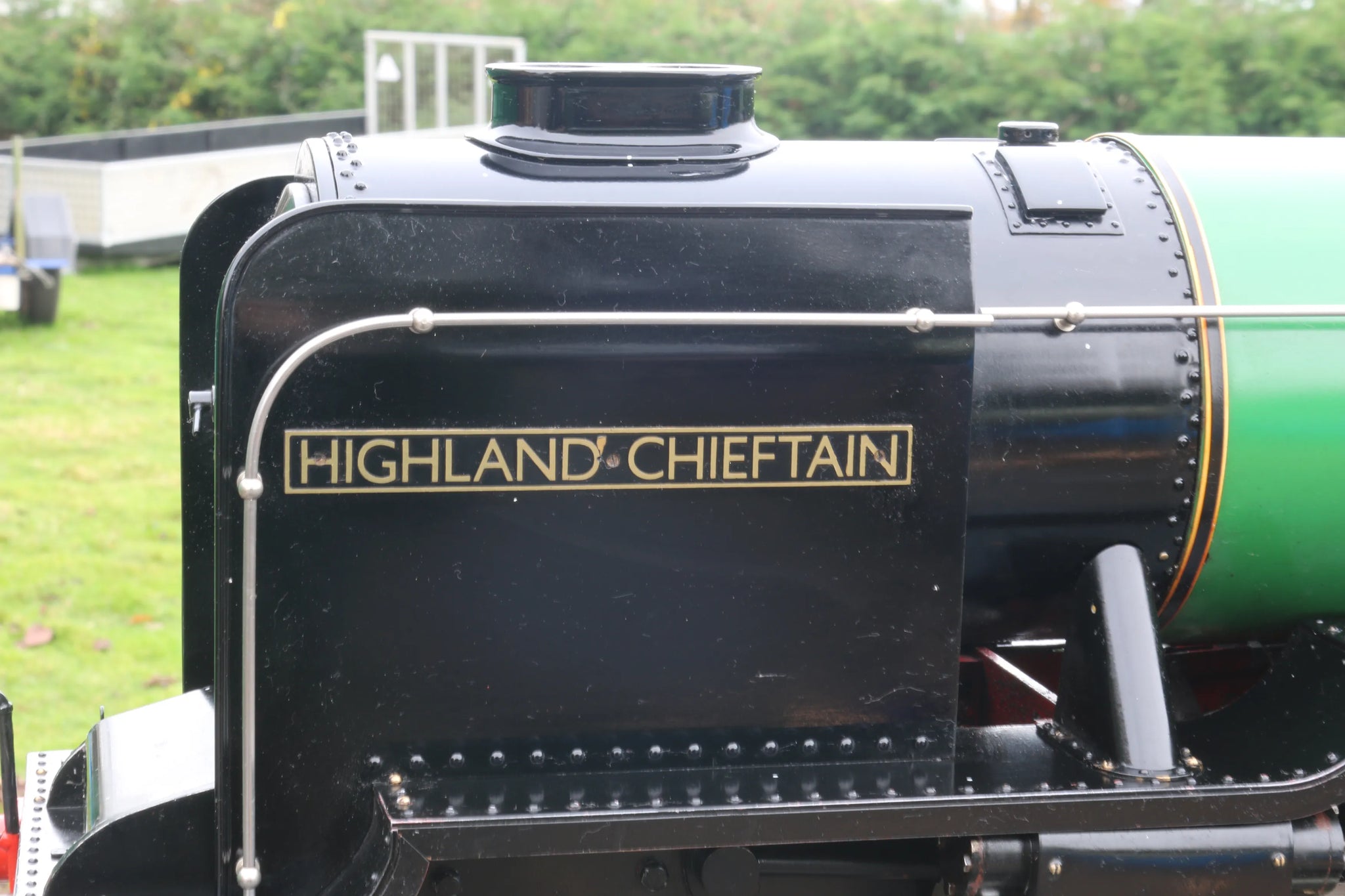

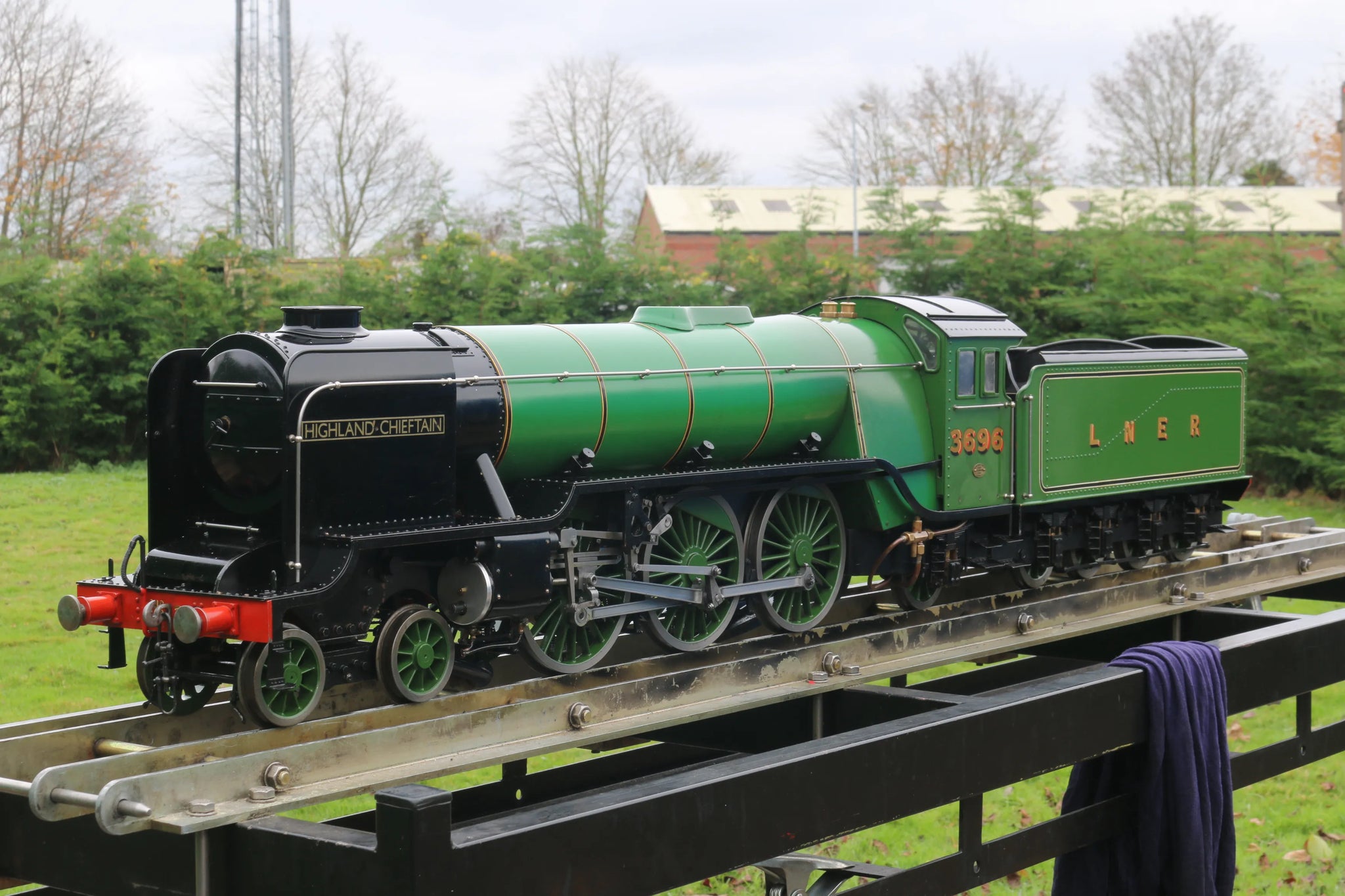

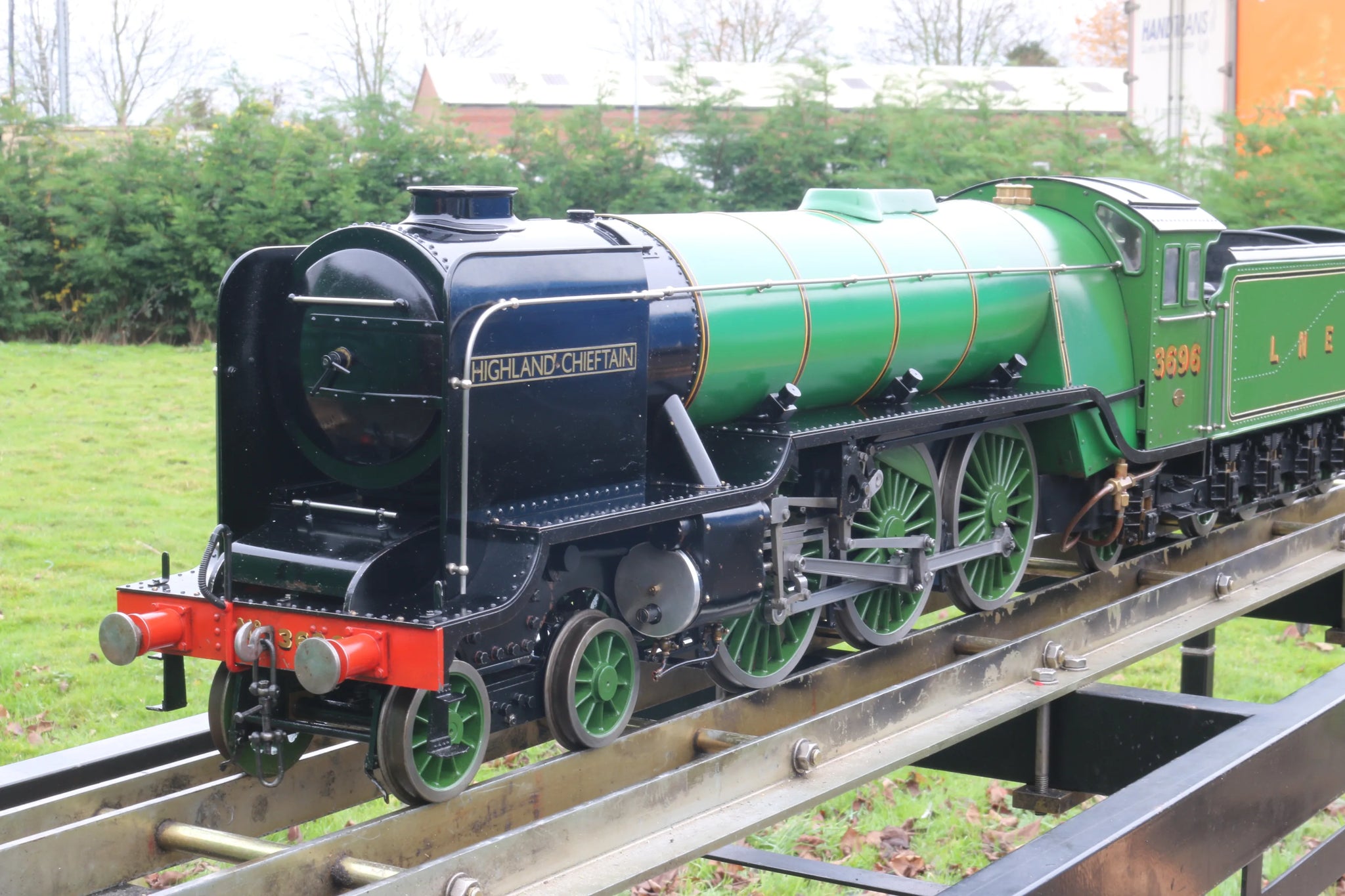

3 1/2 inch gauge LNER Pacific "Highland Chief"

A particularly well-built example of LBSC's "Hielan Lassie" design, based on Gresley's three cylinder Pacific. This one has come to us from a man who probably owns more engines than we do as part exchange against a large 5 inch gauge locomotive.

Built in 1990, the engine is in good mechanical order. We've had it in steam in the workshop here, it goes well with the feel of a well-sorted engine - exactly what we would expect given its previous owner.

Further details under the "details" tab above (unsurprisingly).

Technical information

Stock code

7791

Gauge

3 1/2 inch

Wheel material

cast iron

Cylinder material

gunmetal

Valve type

piston

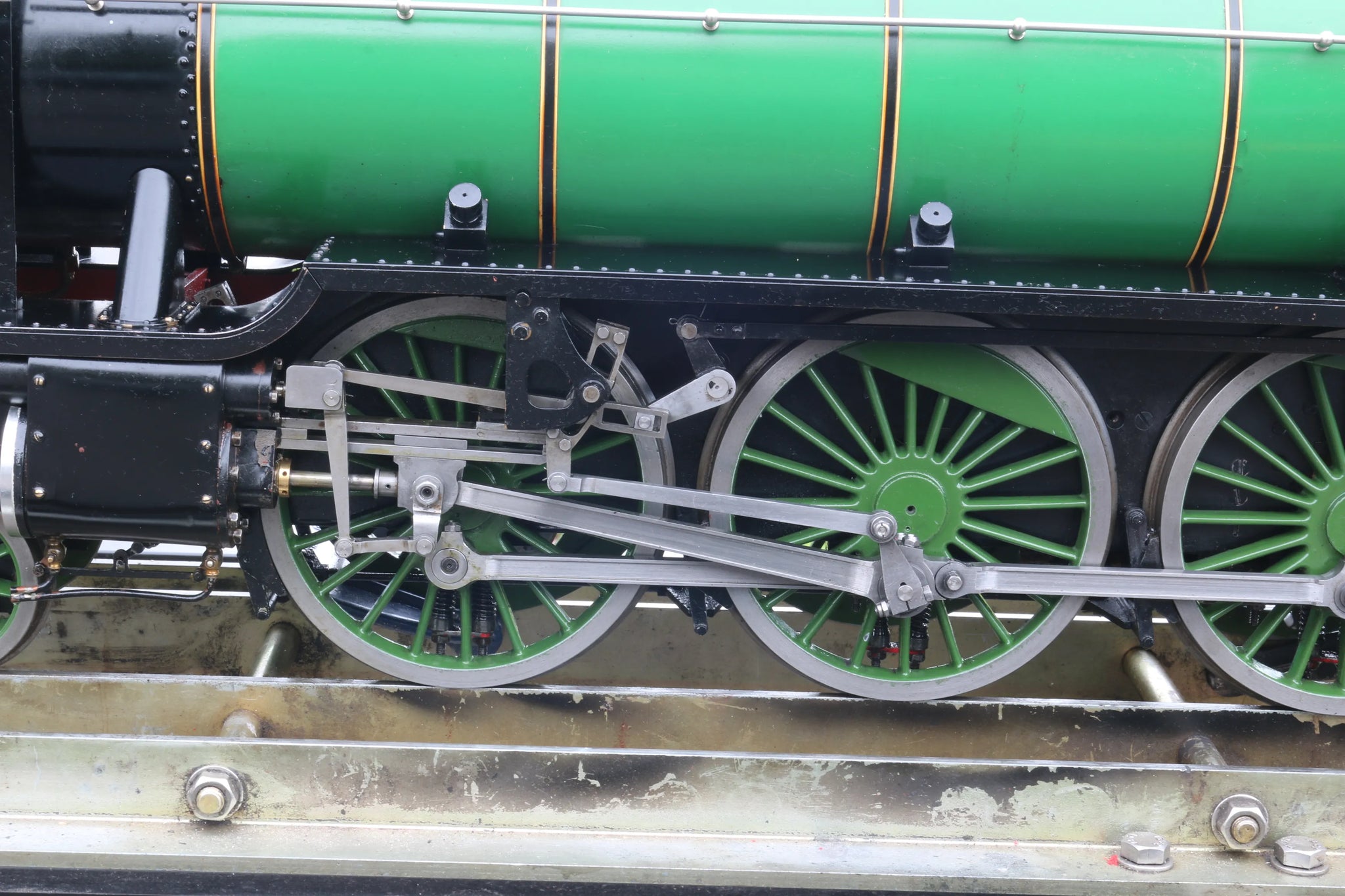

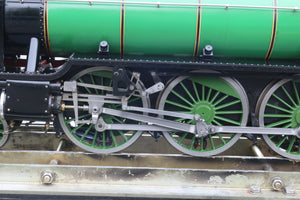

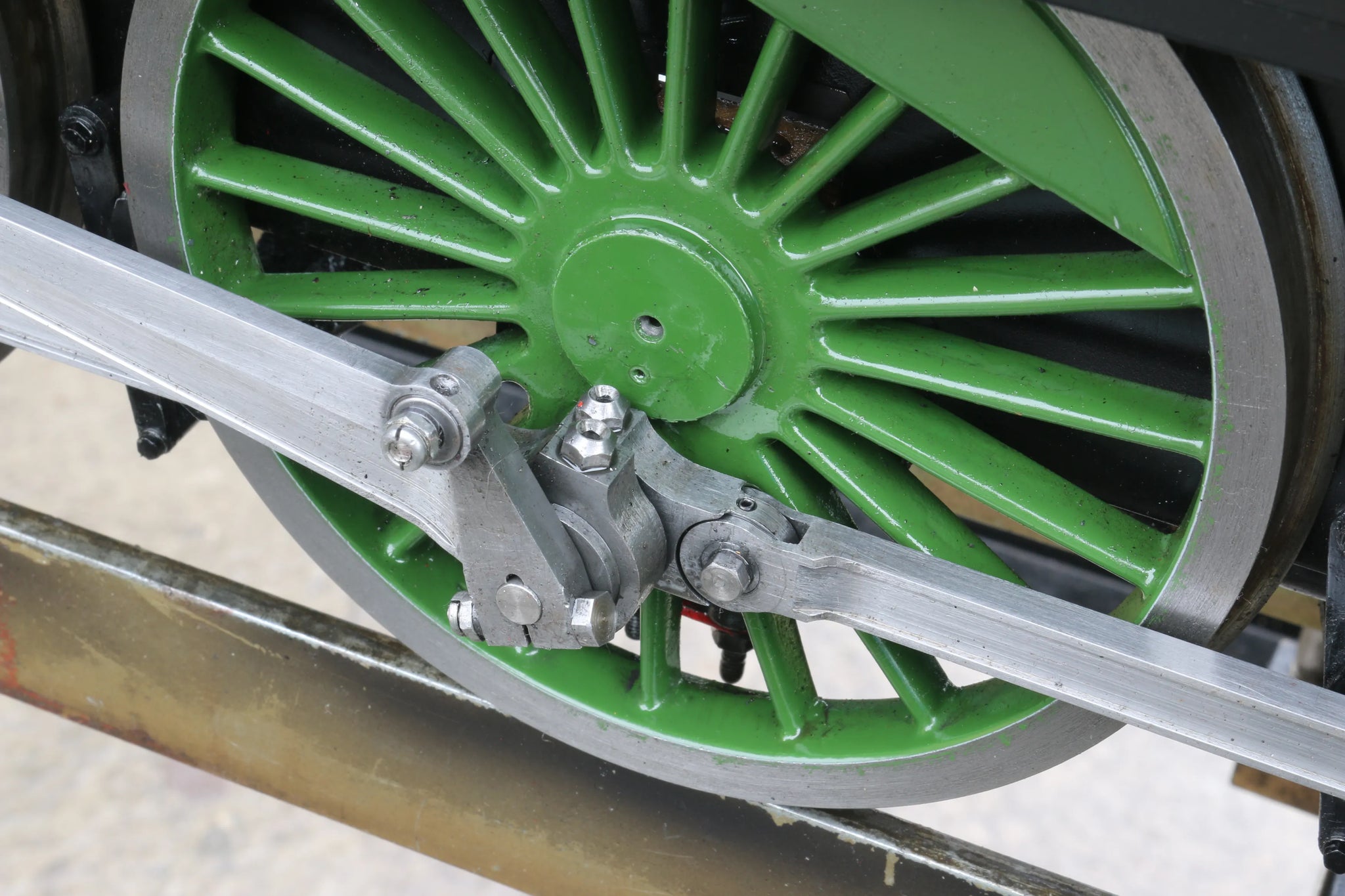

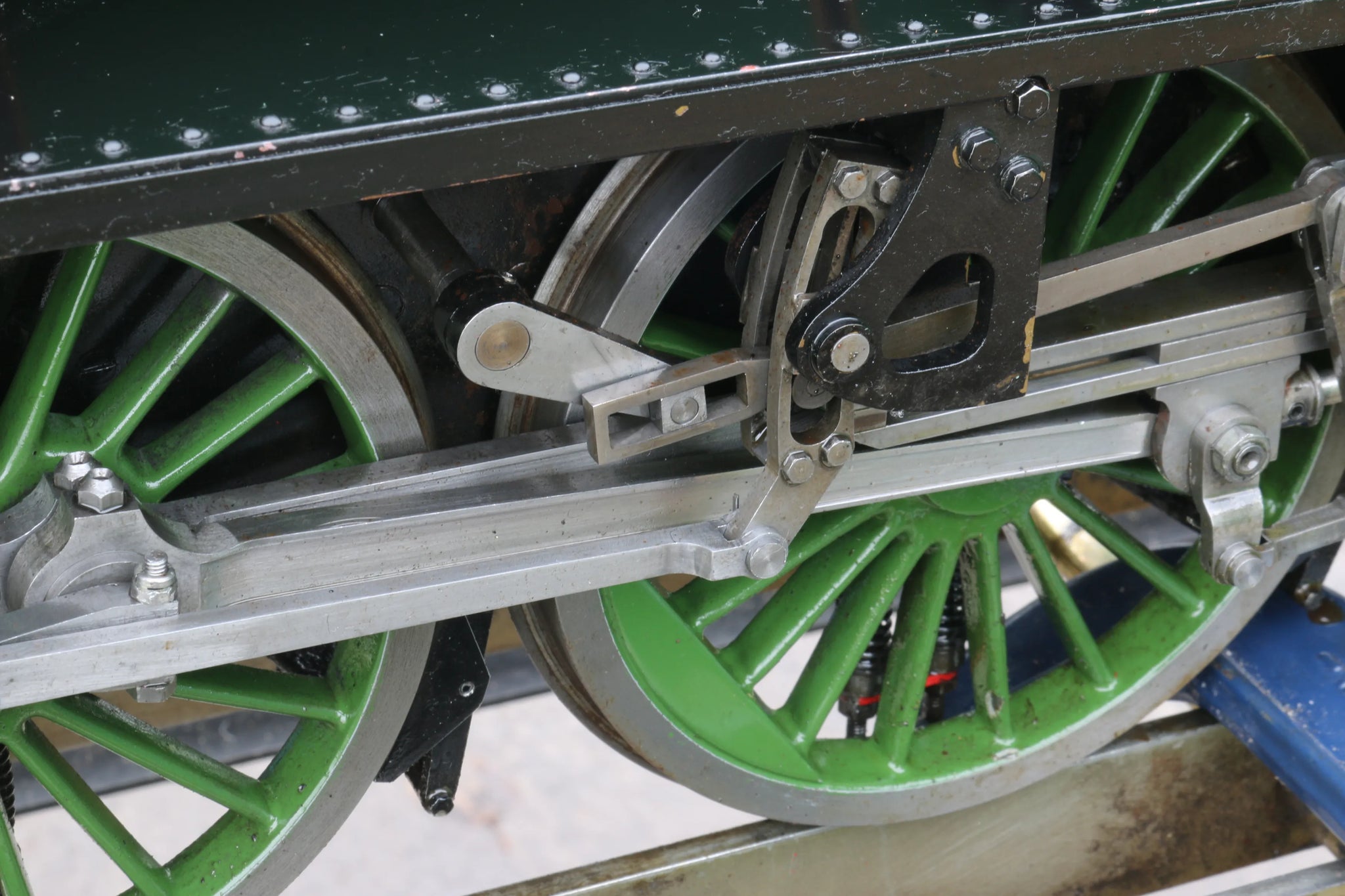

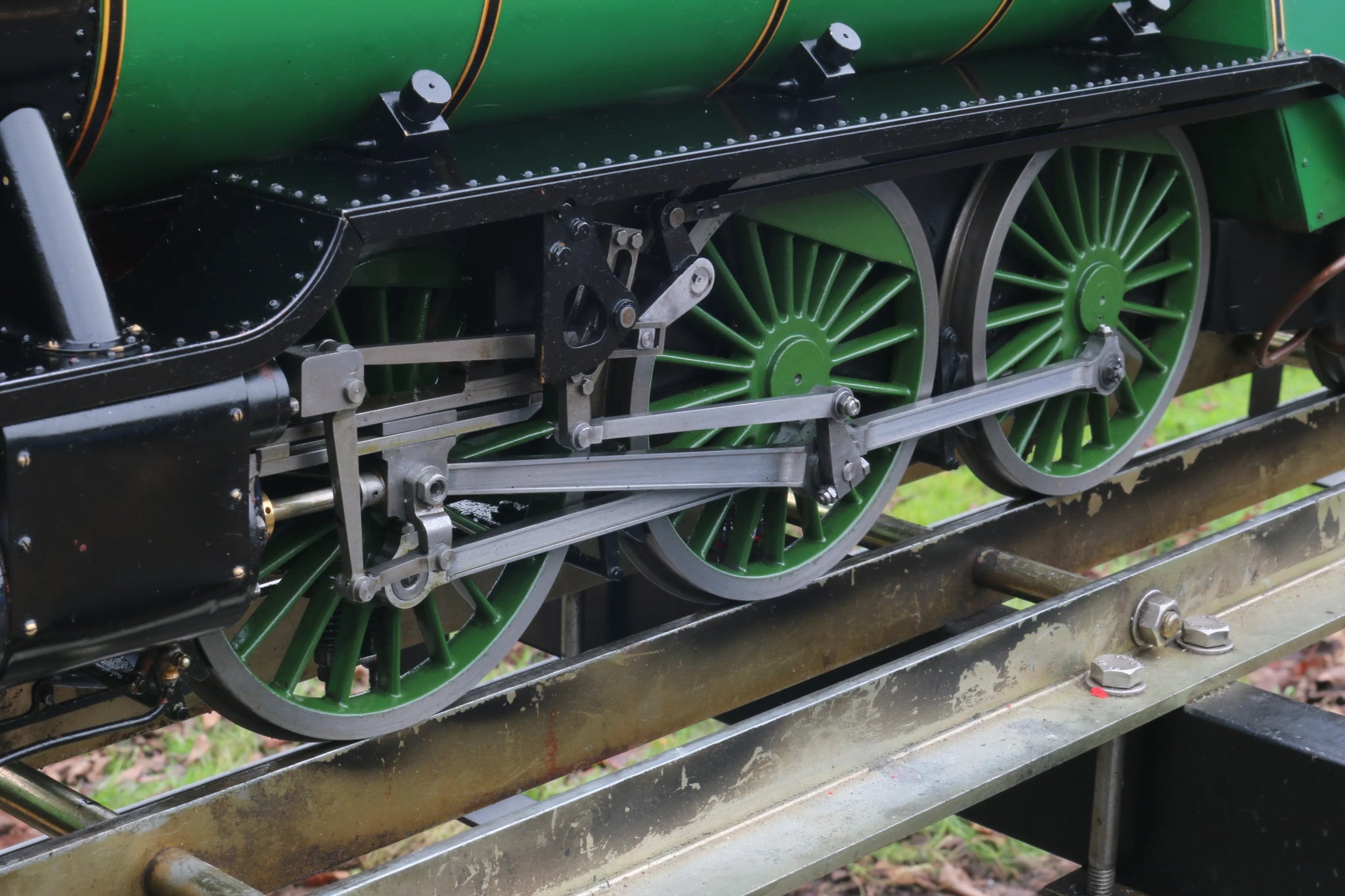

Valve gear

Walschaerts

Reverser type

screw

Lubricator type

mechanical

Boiler maker

non-commercial

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

n/a - non-commercial

Year built

1990

Boiler number

N48053

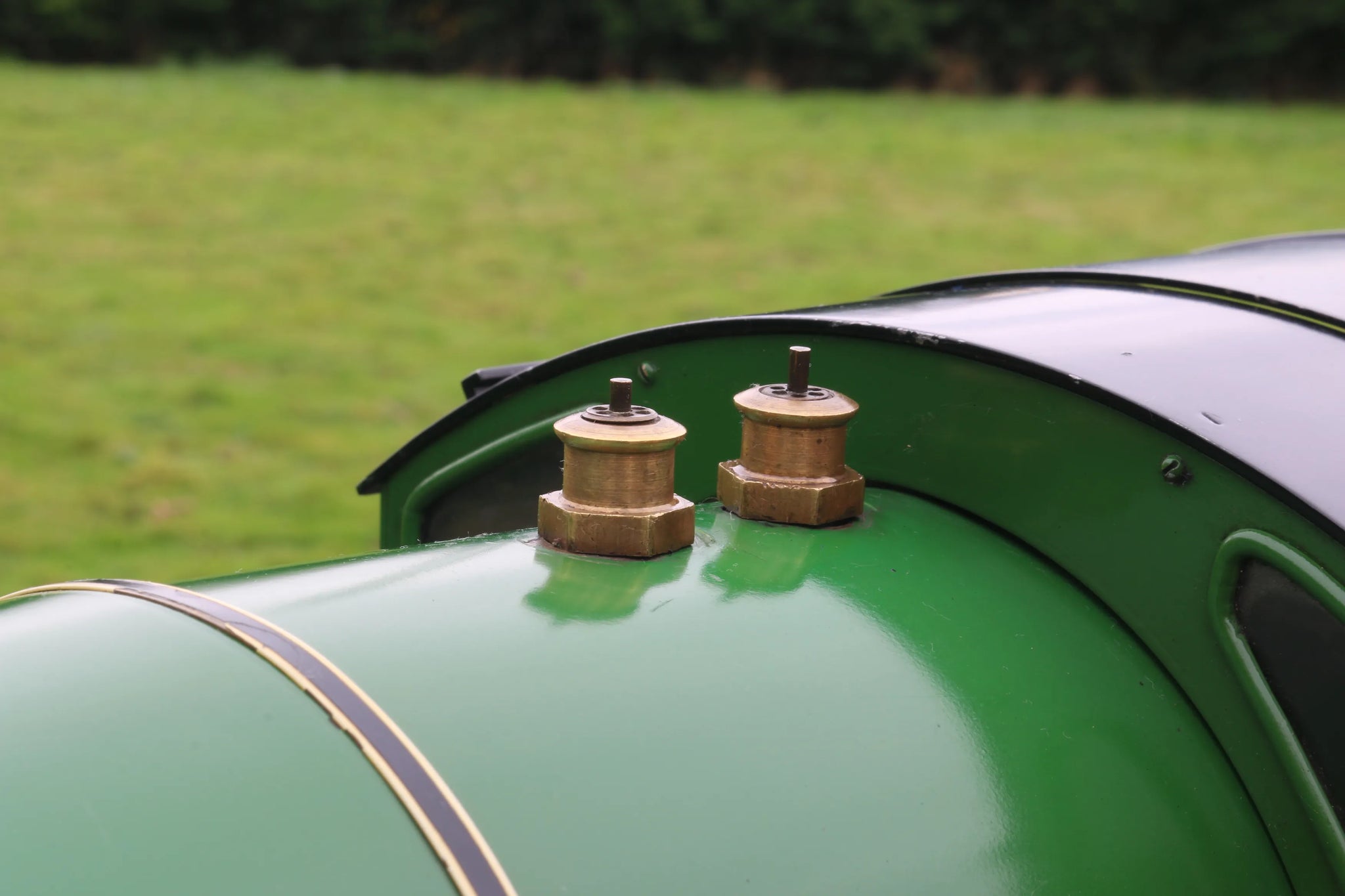

Safety valve type

spring

Safety valve

2

Fusible plug

no

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

4

Date out

May-18

Hydraulic test valid to

15-Nov-21

Steam test valid to

19-Jan-19
