Sold

7610

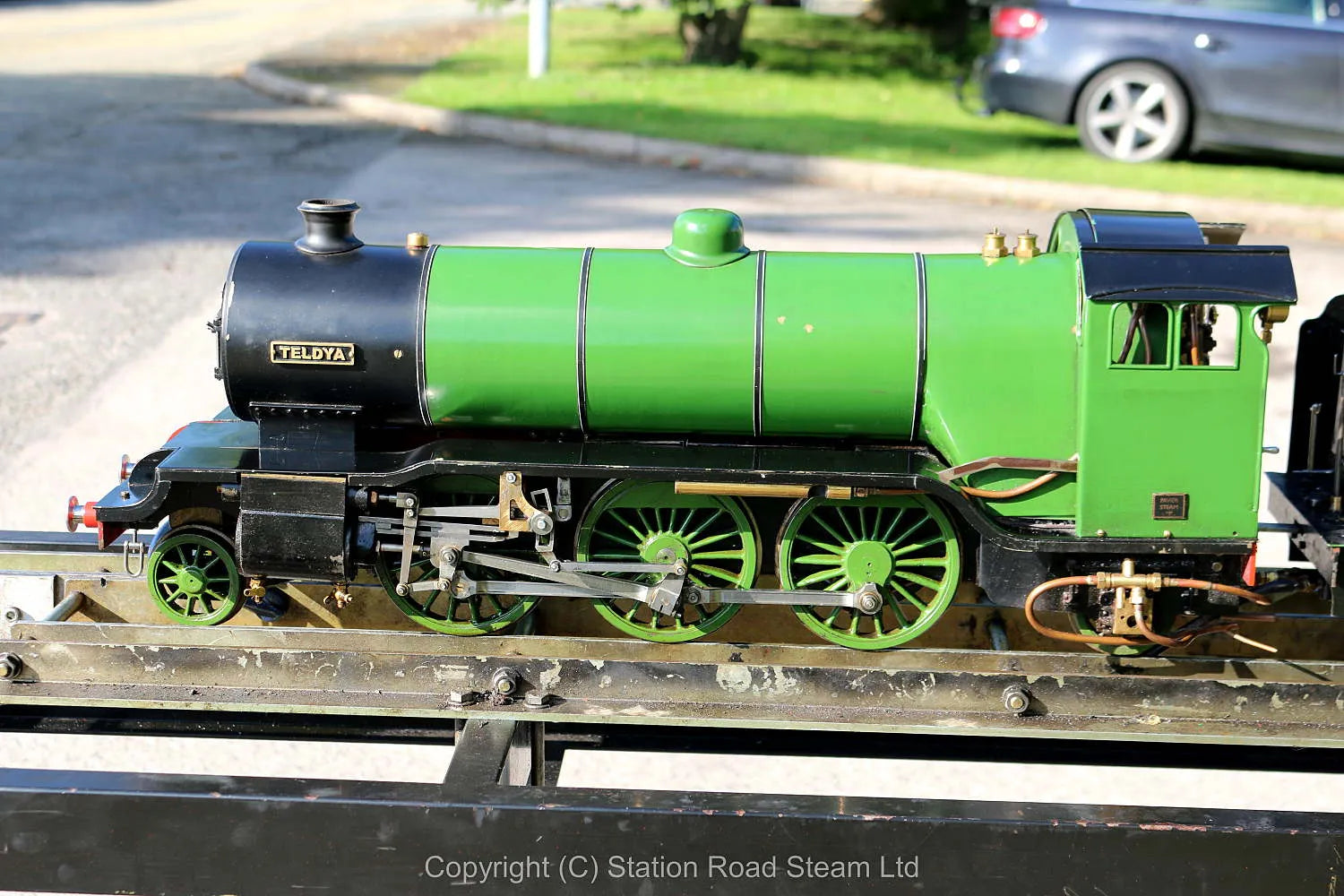

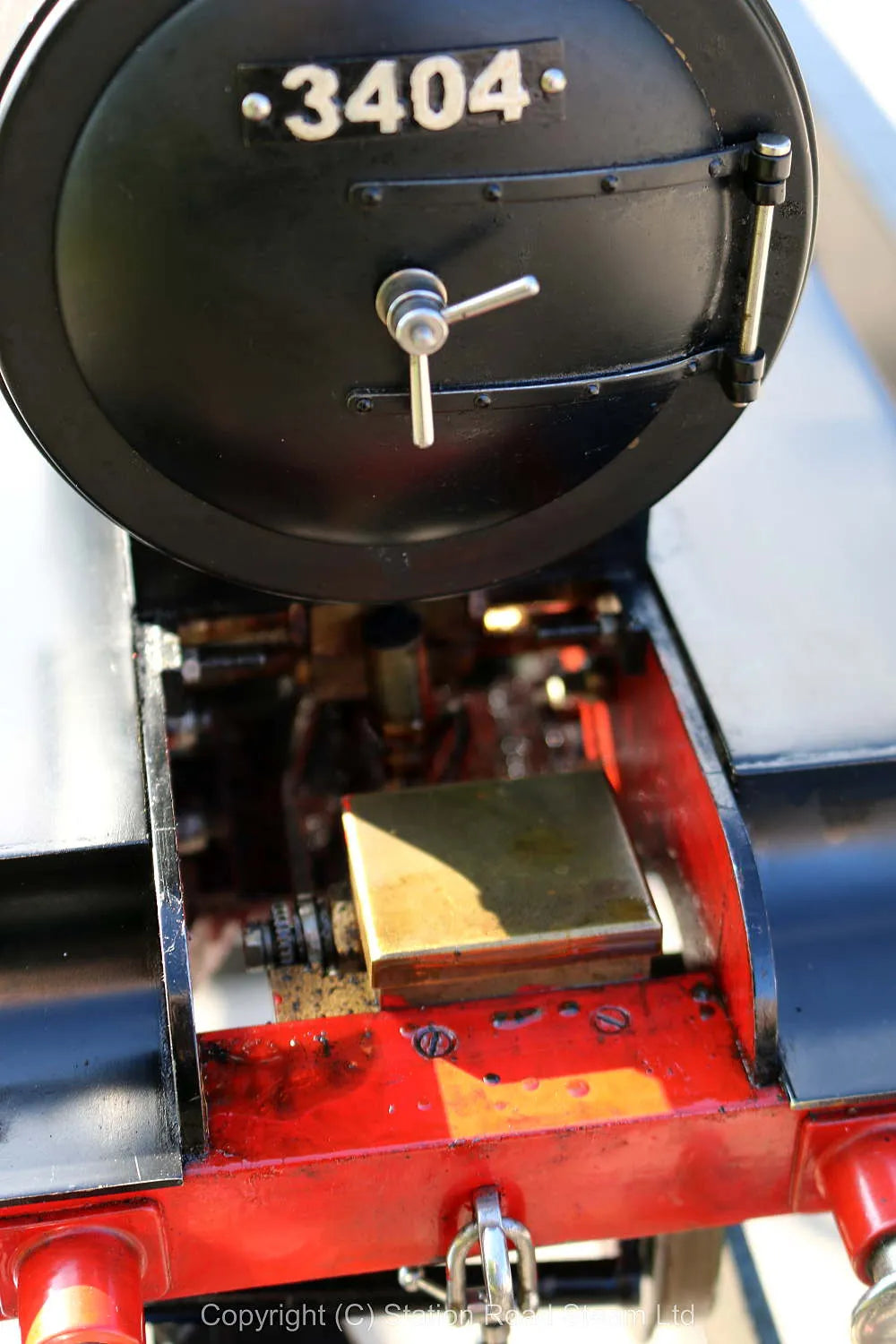

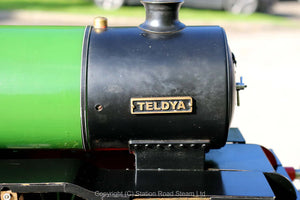

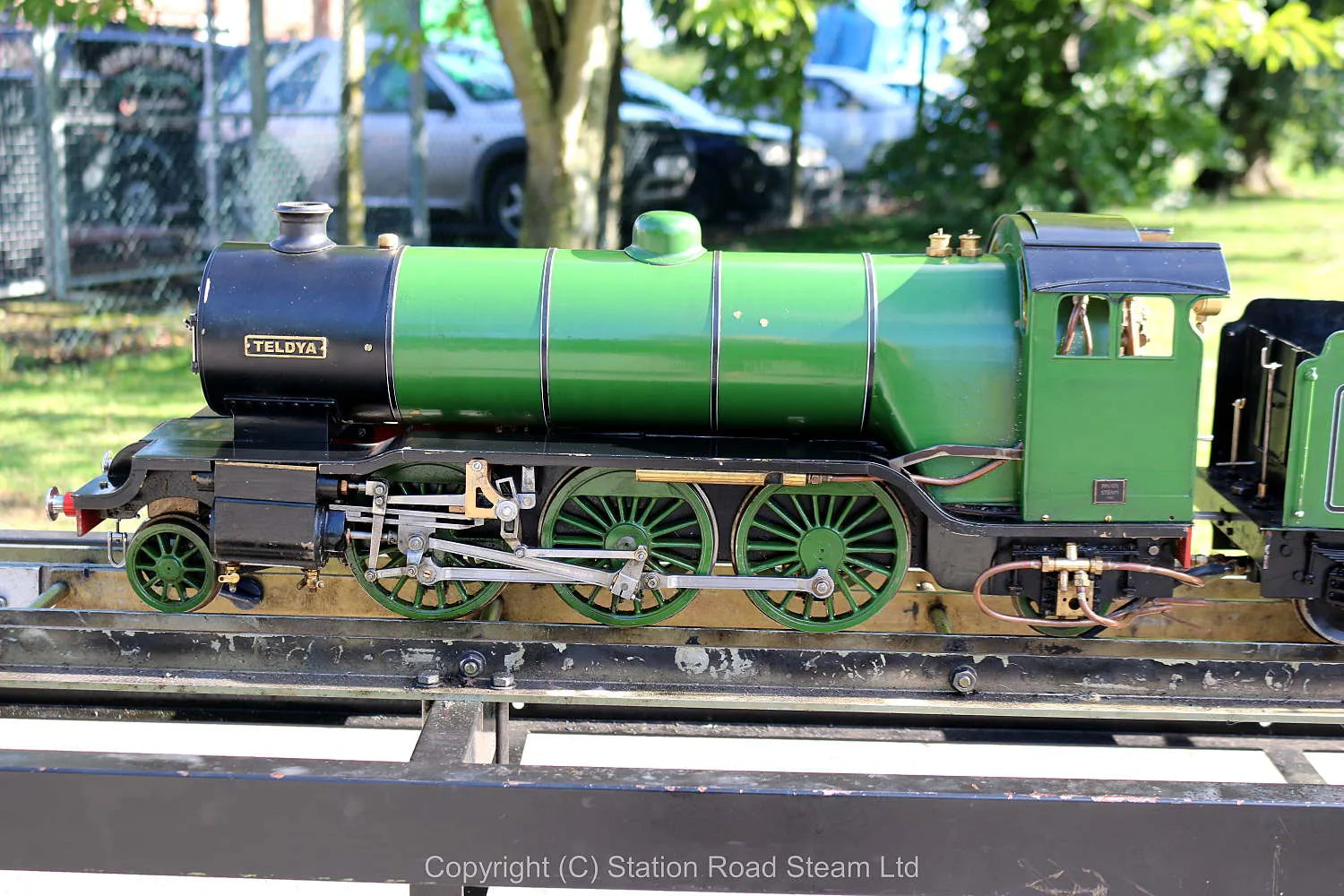

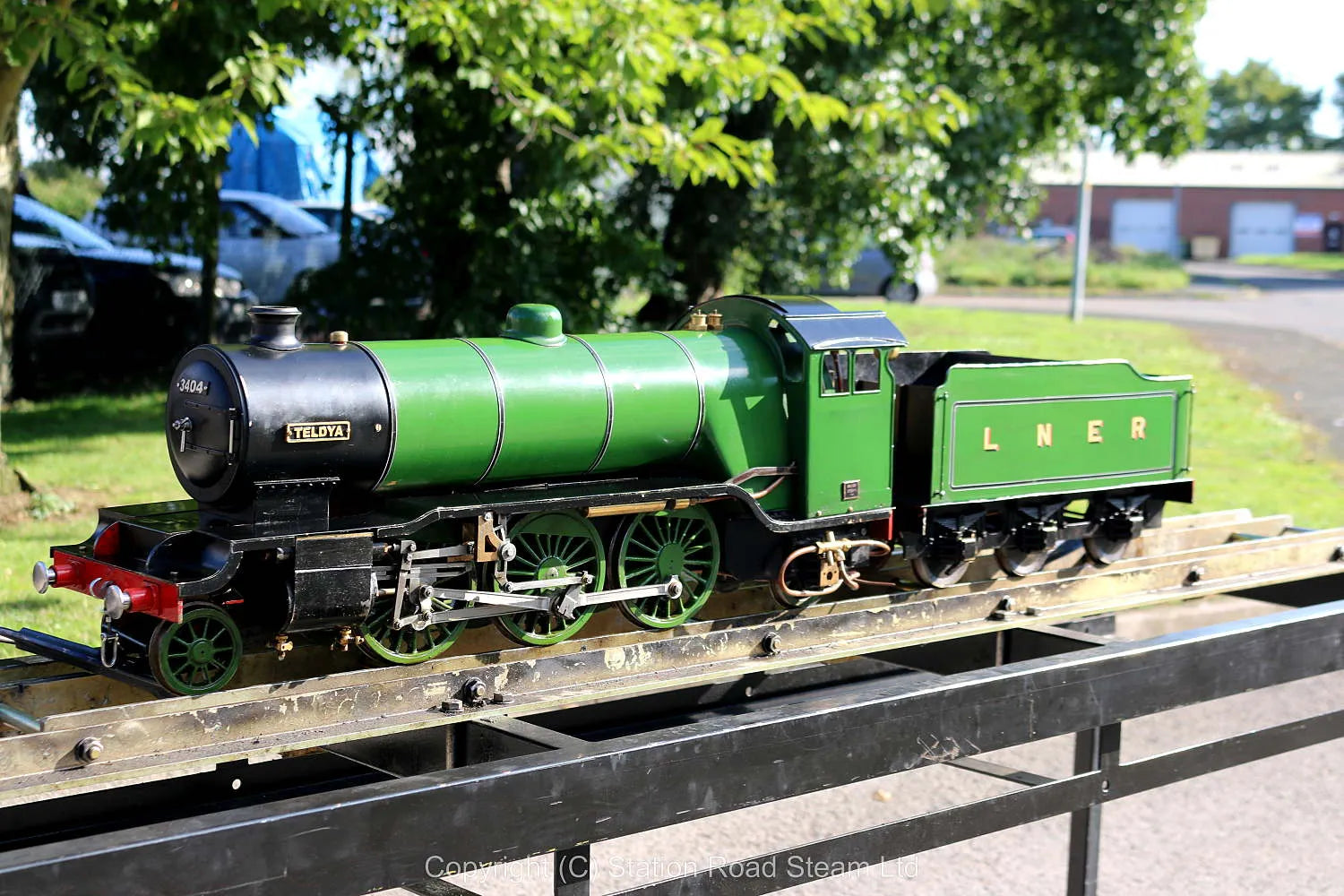

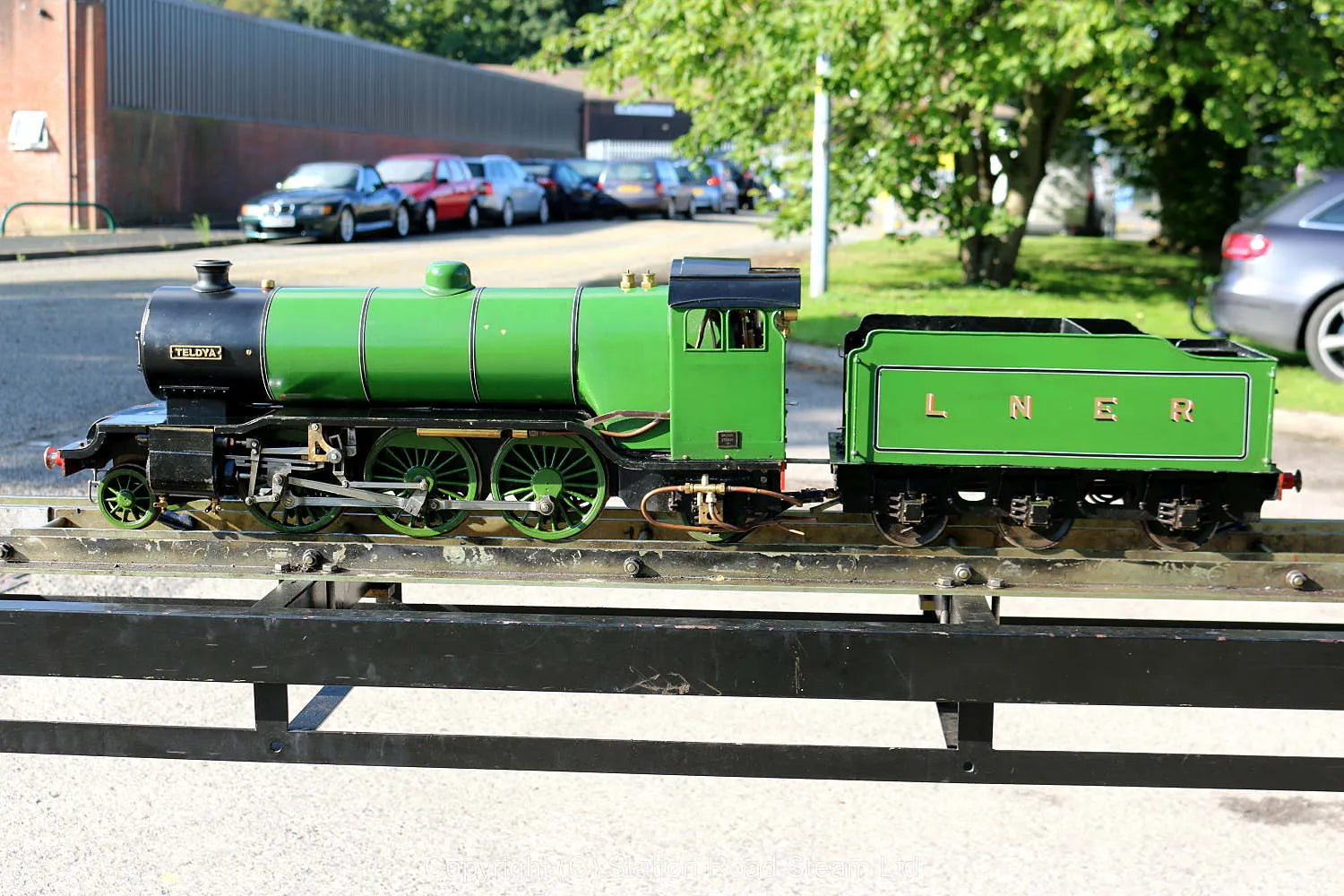

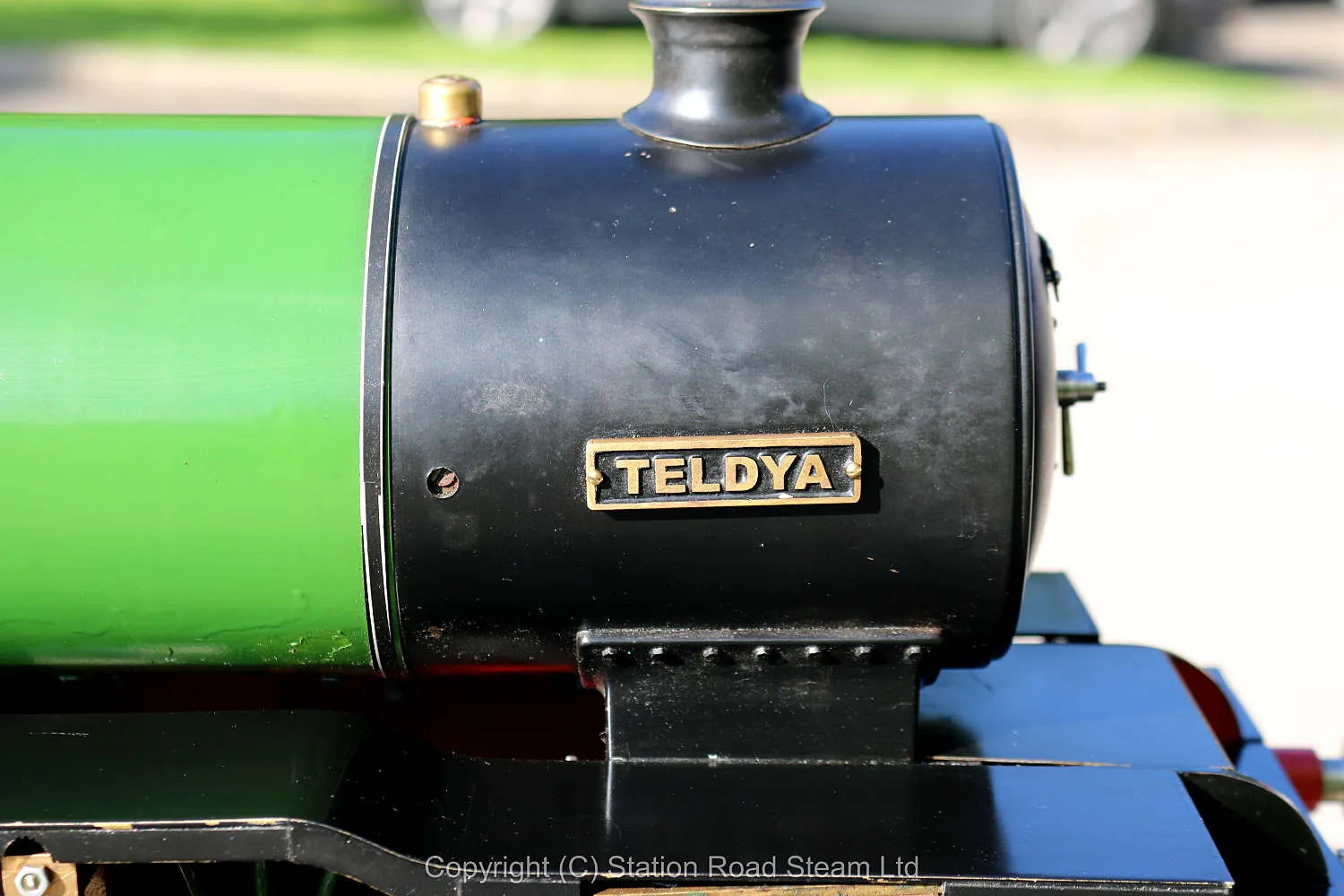

3 1/2 inch gauge LNER V4 2-6-2

A 3 1/2 inch gauge LNER V4 2-6-2, one of a pair built by Paul Pavier of Pavier Steam (we sold the other one back in 2015). Boiler sound and the engine runs, although in need of some work including straightening a valve rod - cosmetic more than functional given the way the engine runs - and attention to the guide bar mounting.

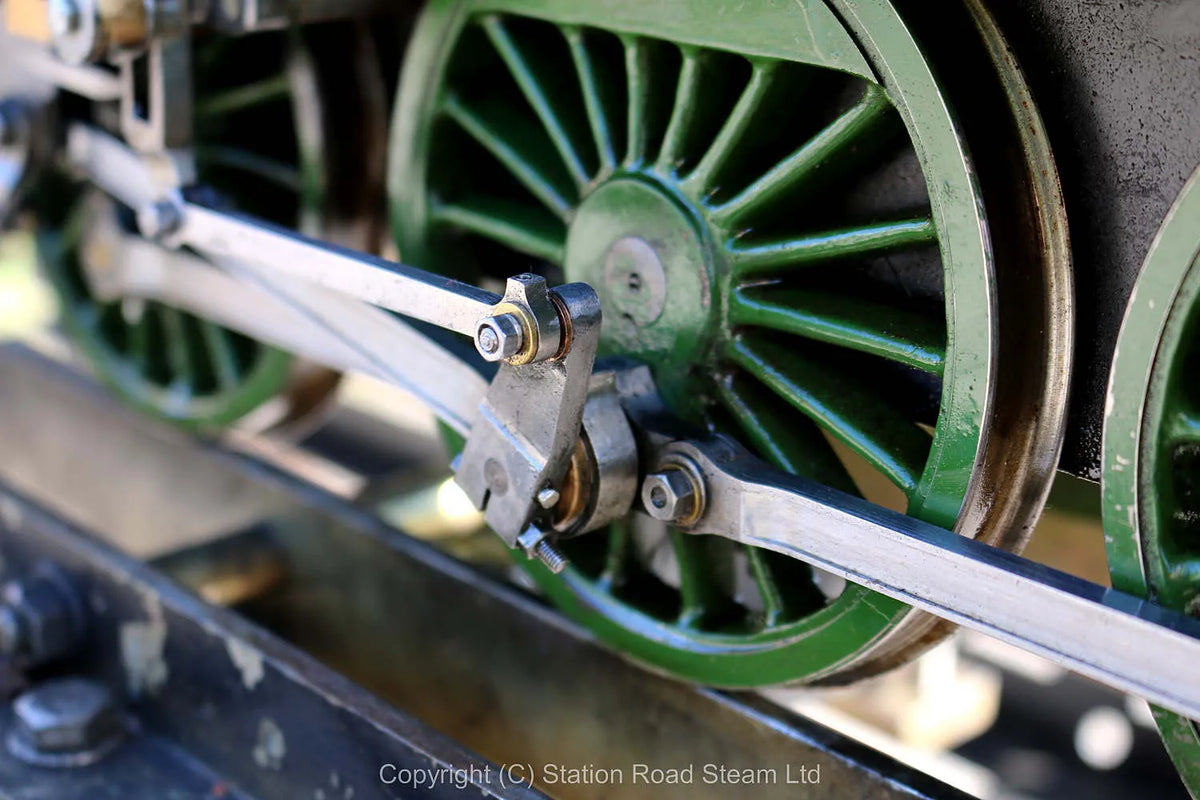

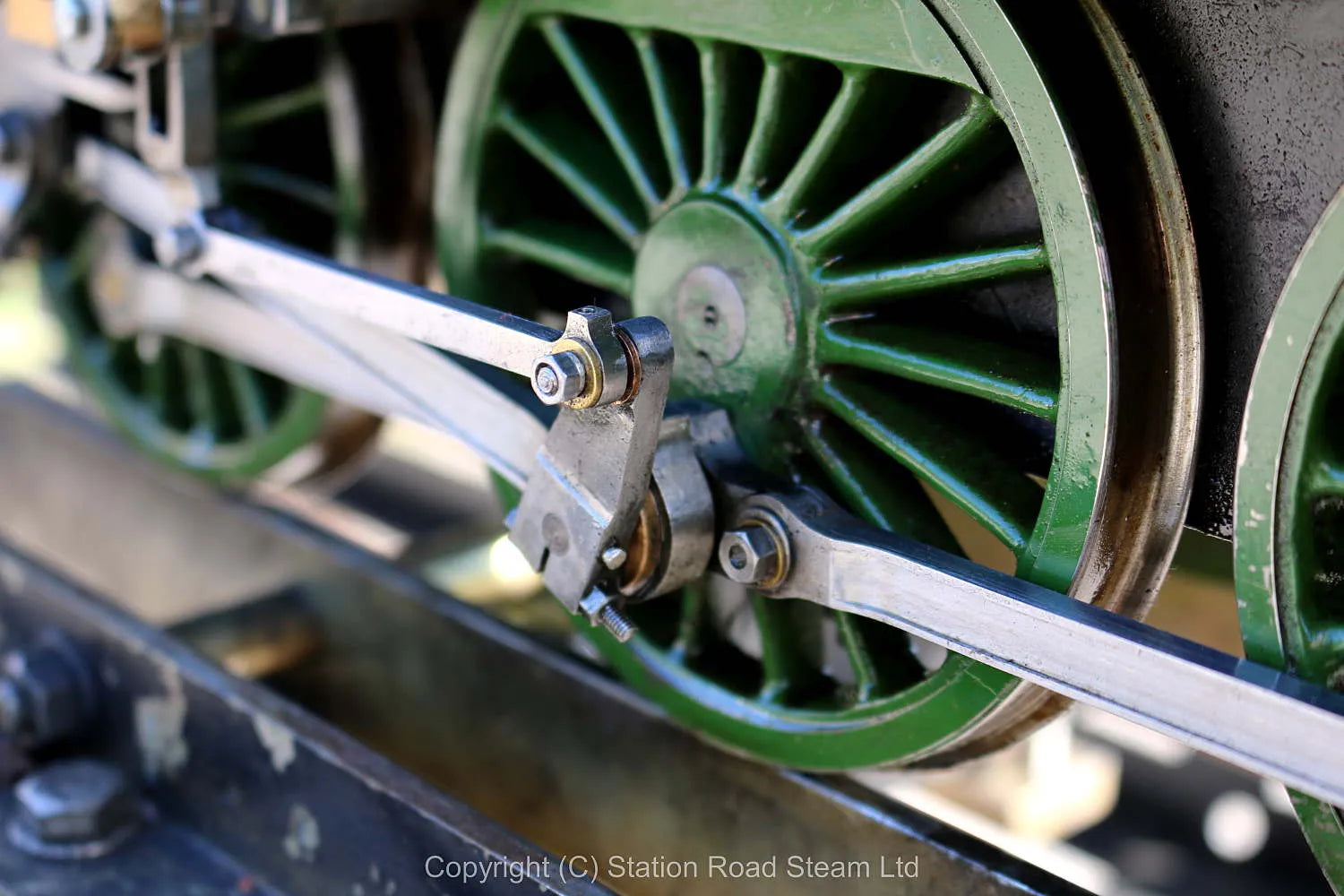

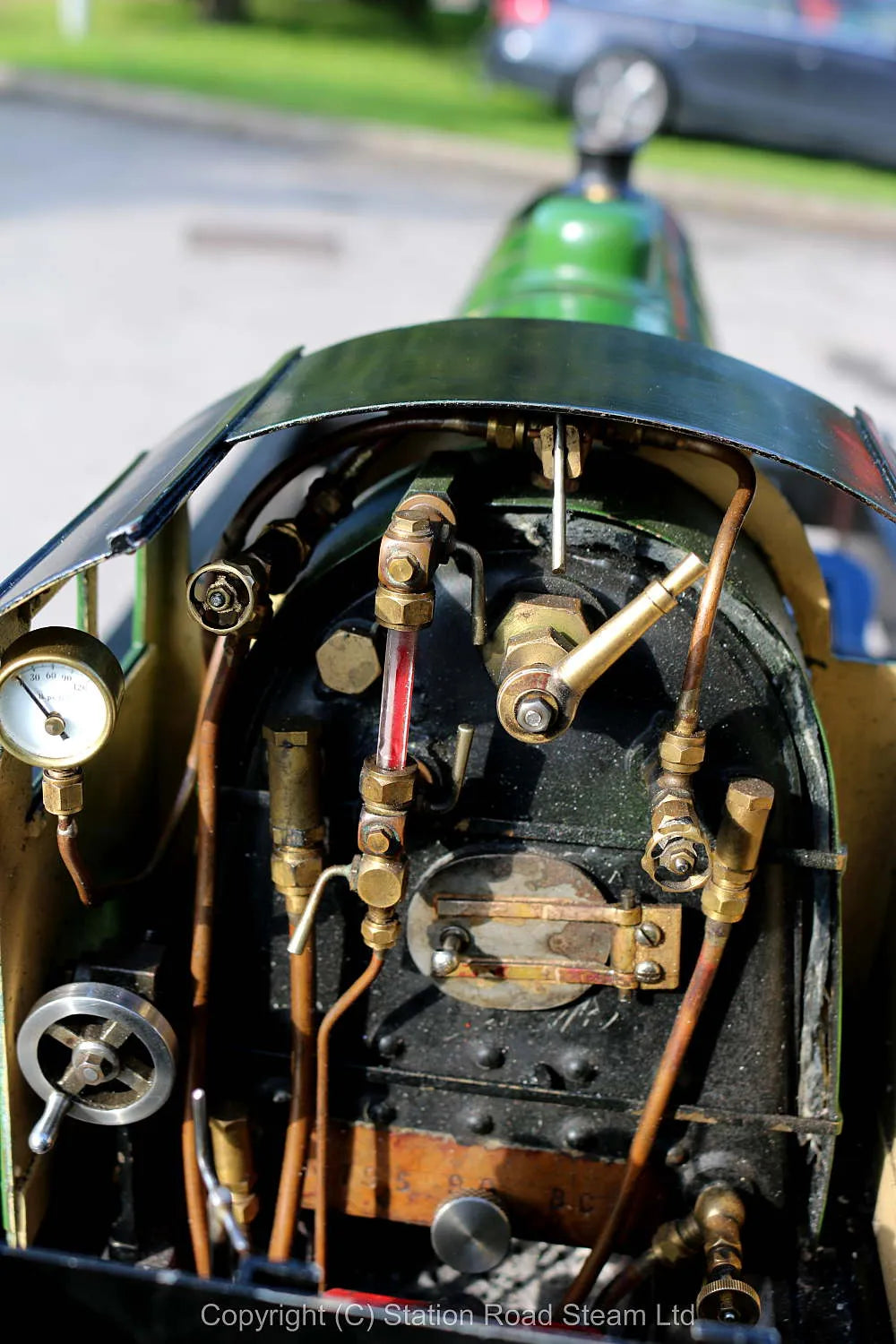

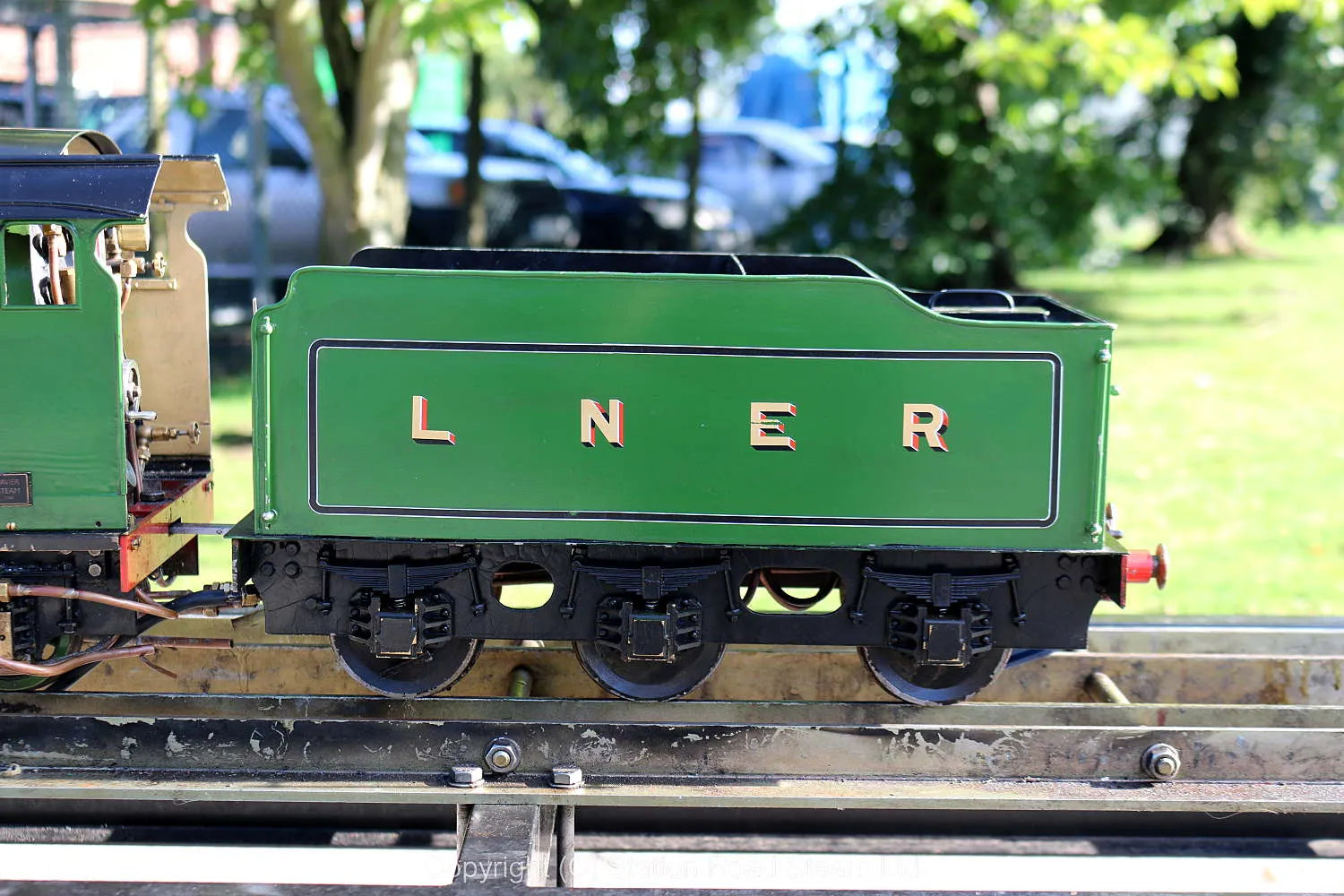

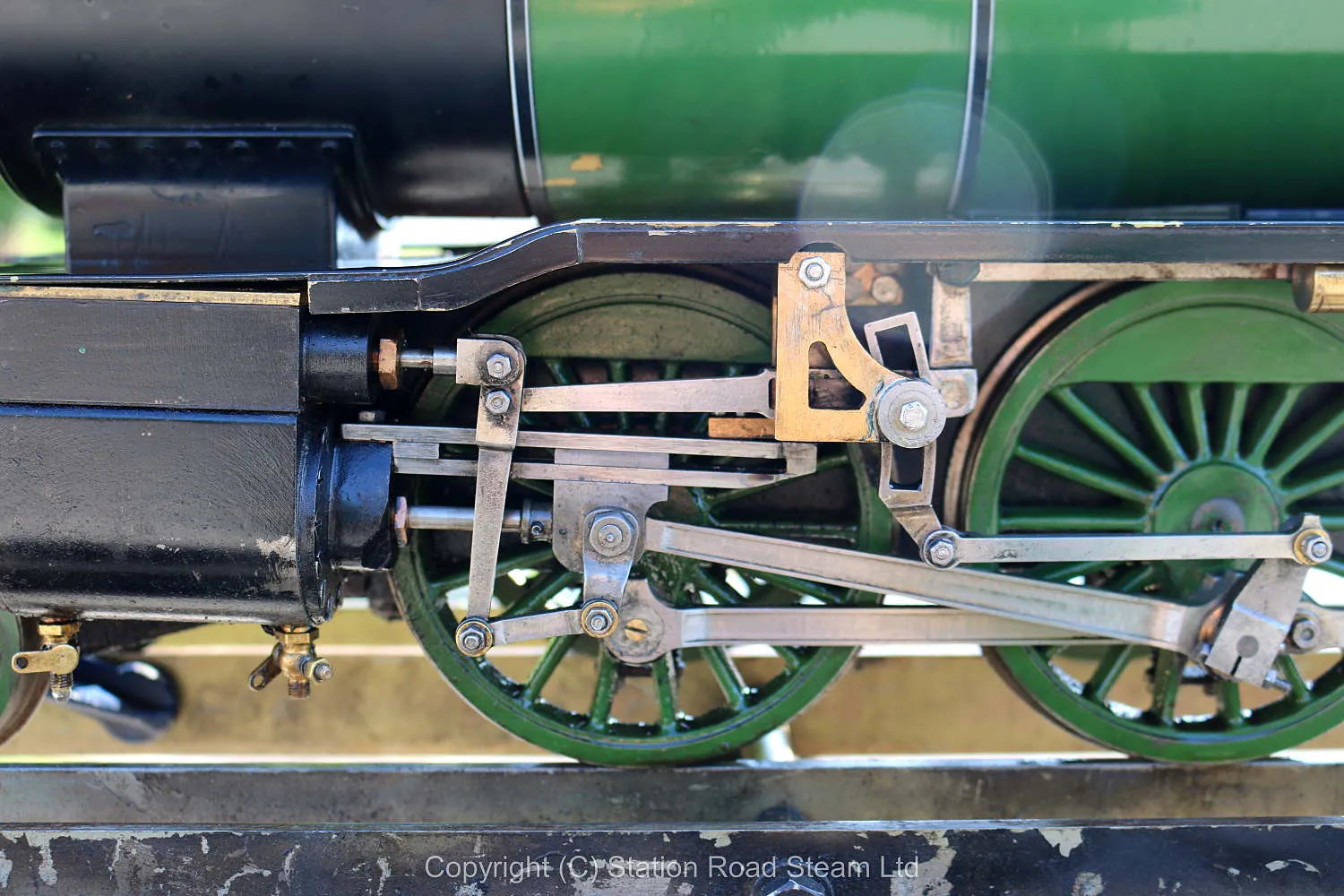

Silver soldered copper boiler, 80psi working pressure, feed by injector and axle pumpe with auxiliary hand pump in the tender. Slide valves actuated by Walschaert's gear, screw reverser in the cab. Mechanical lubricator.

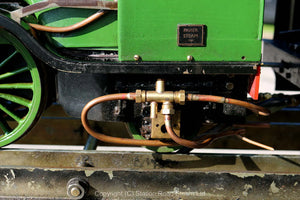

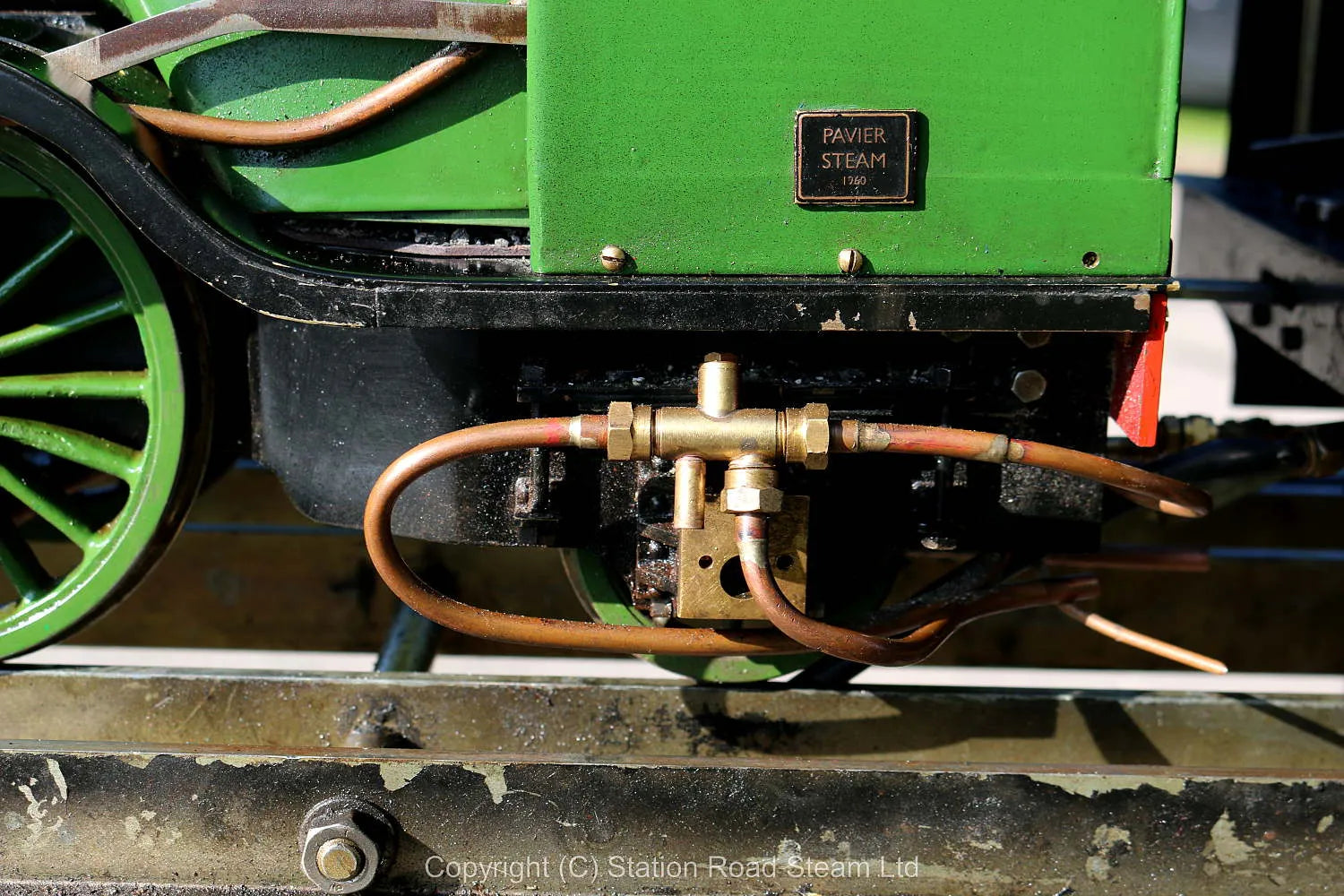

I didn't ask Paul when he was here, but assume the works plate "Pavier Steam 1960" refers to the origination date of builder rather than the engine (although both appear, prima facie, to be in fine condition for their age).

Technical information

Stock code

7610

Gauge

3 1/2 inch

Wheel material

cast iron

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

90

CE/UKCA mark

no

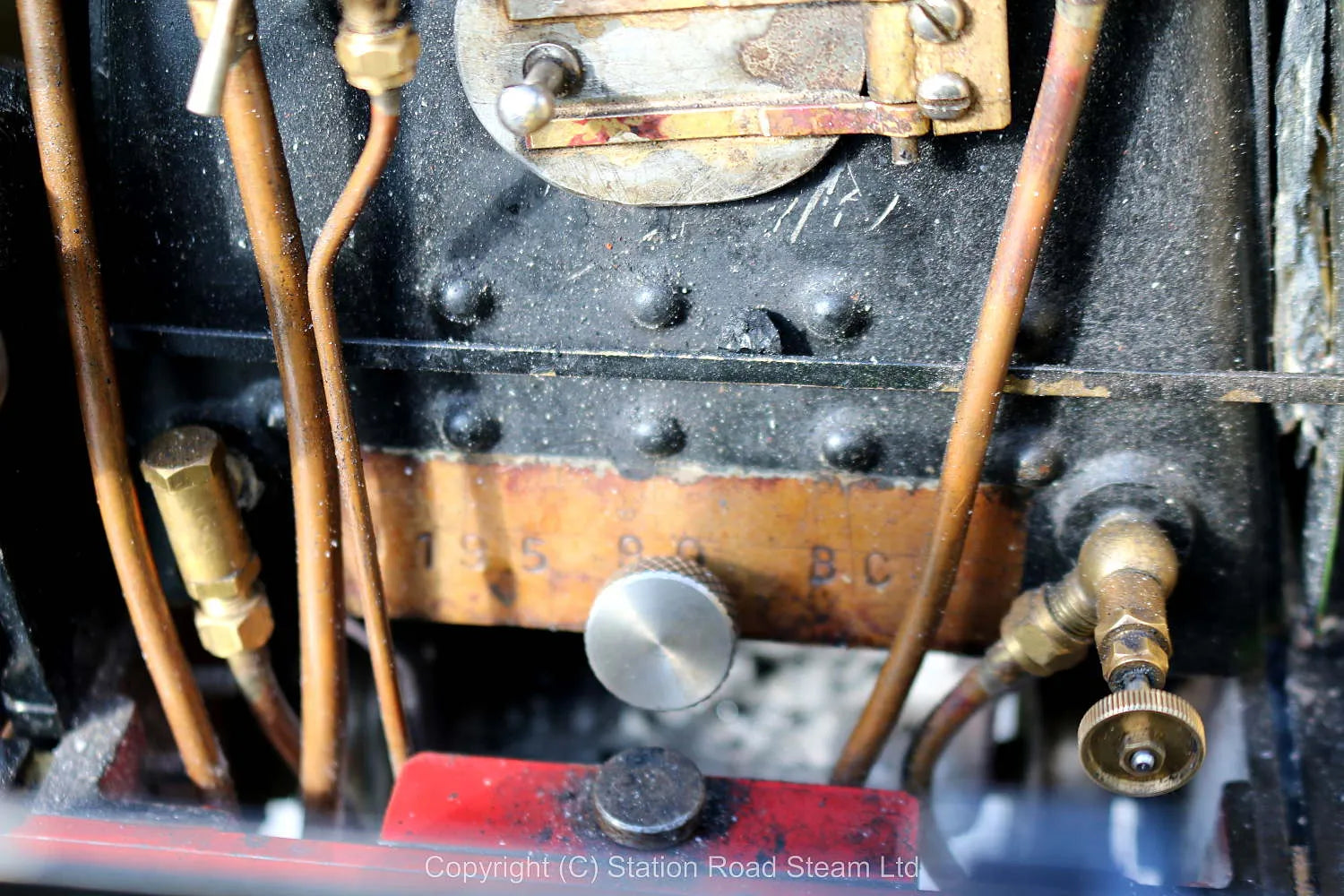

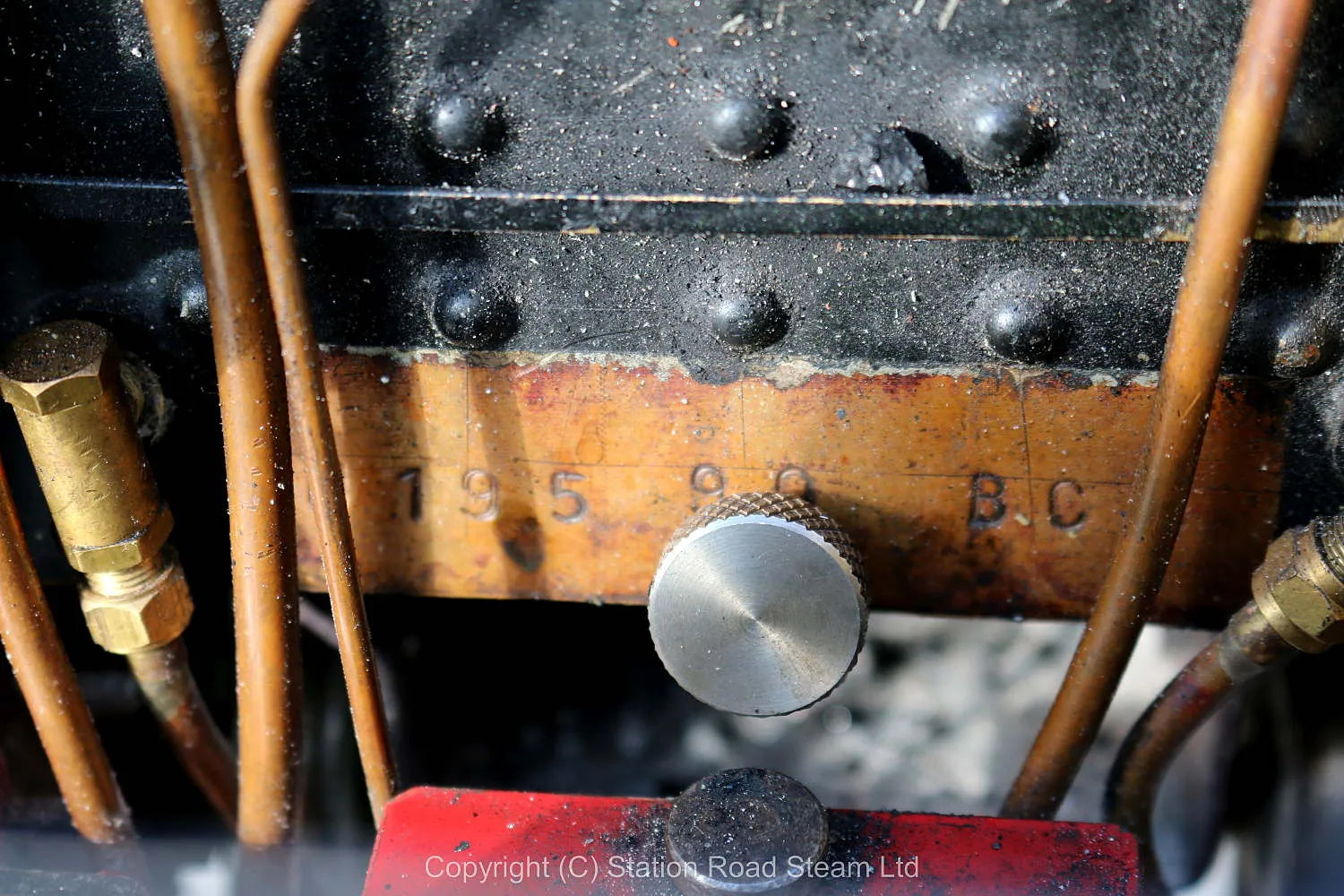

Boiler number

N195-90-BC2

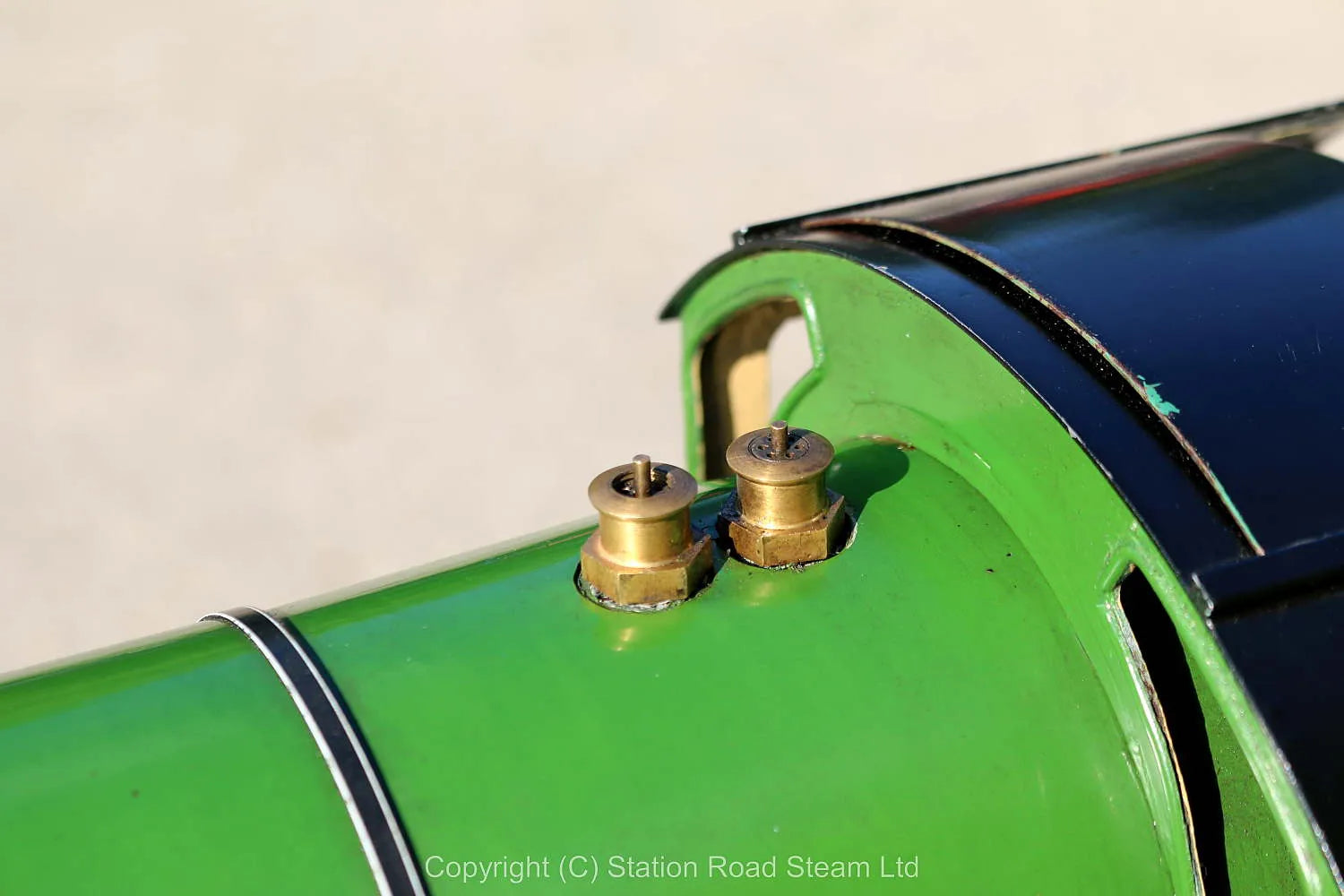

Safety valve type

spring

Safety valve

2

Fusible plug

yes

Whistle

yes

Hand pump

1

Mechanical pump

1

Injector

1

Superheater type

radiant

Superheater

2

Date out

Sep-18
