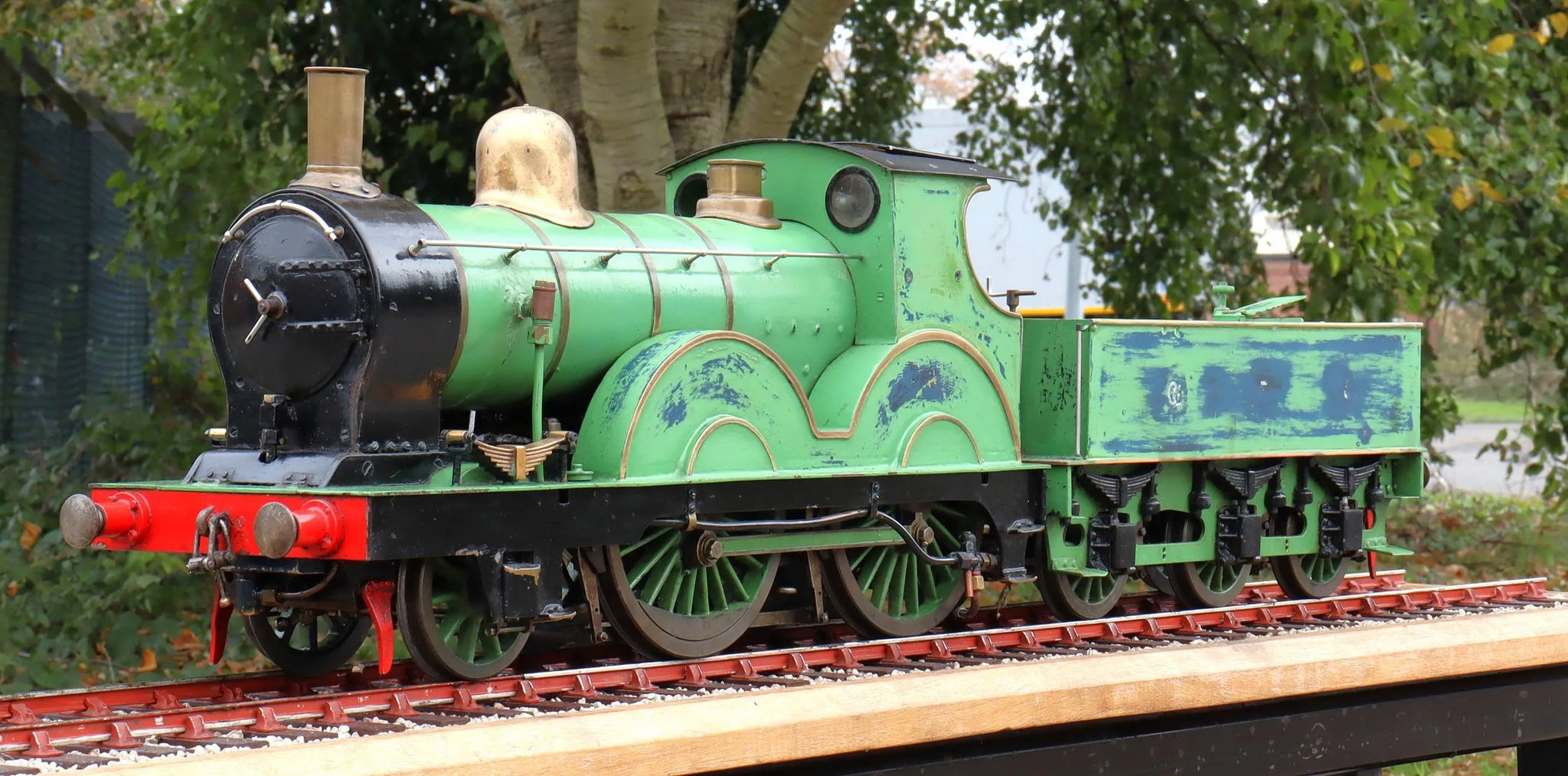

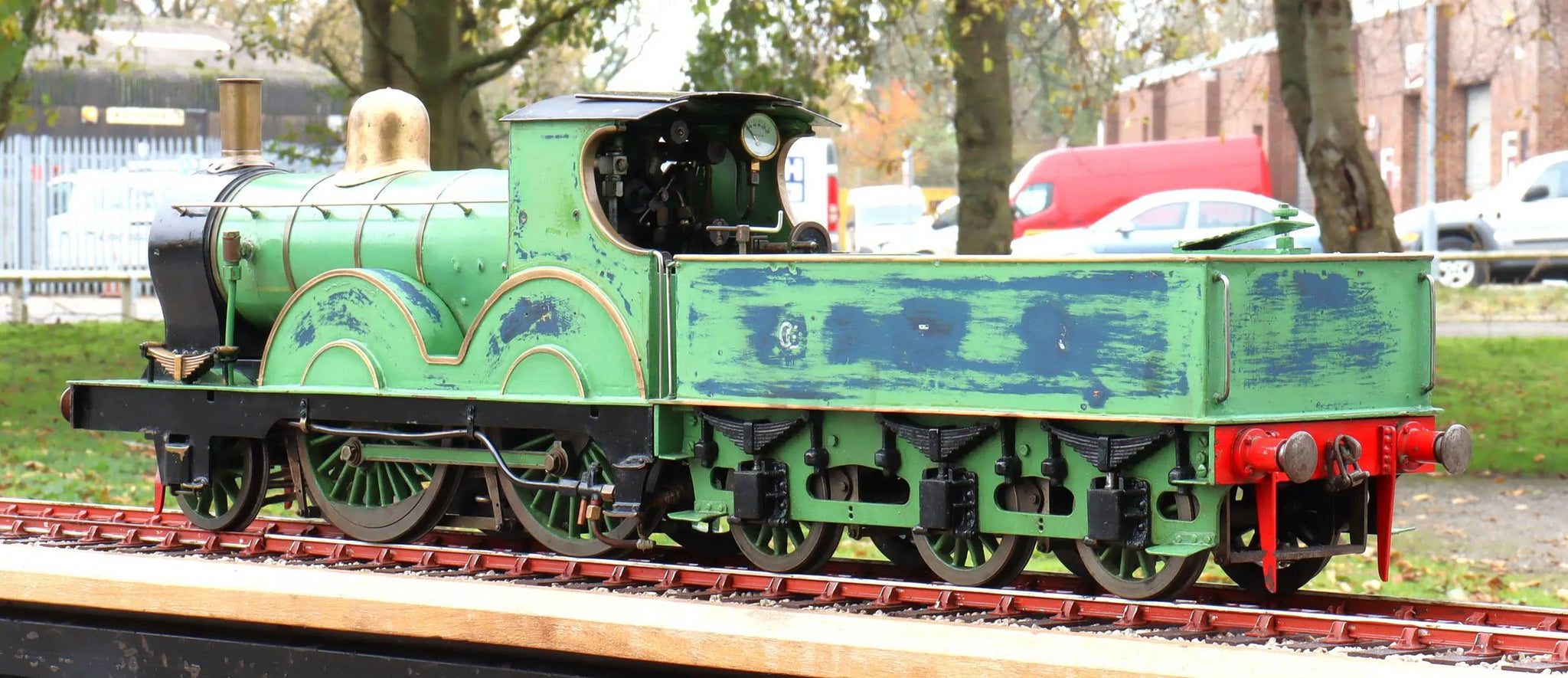

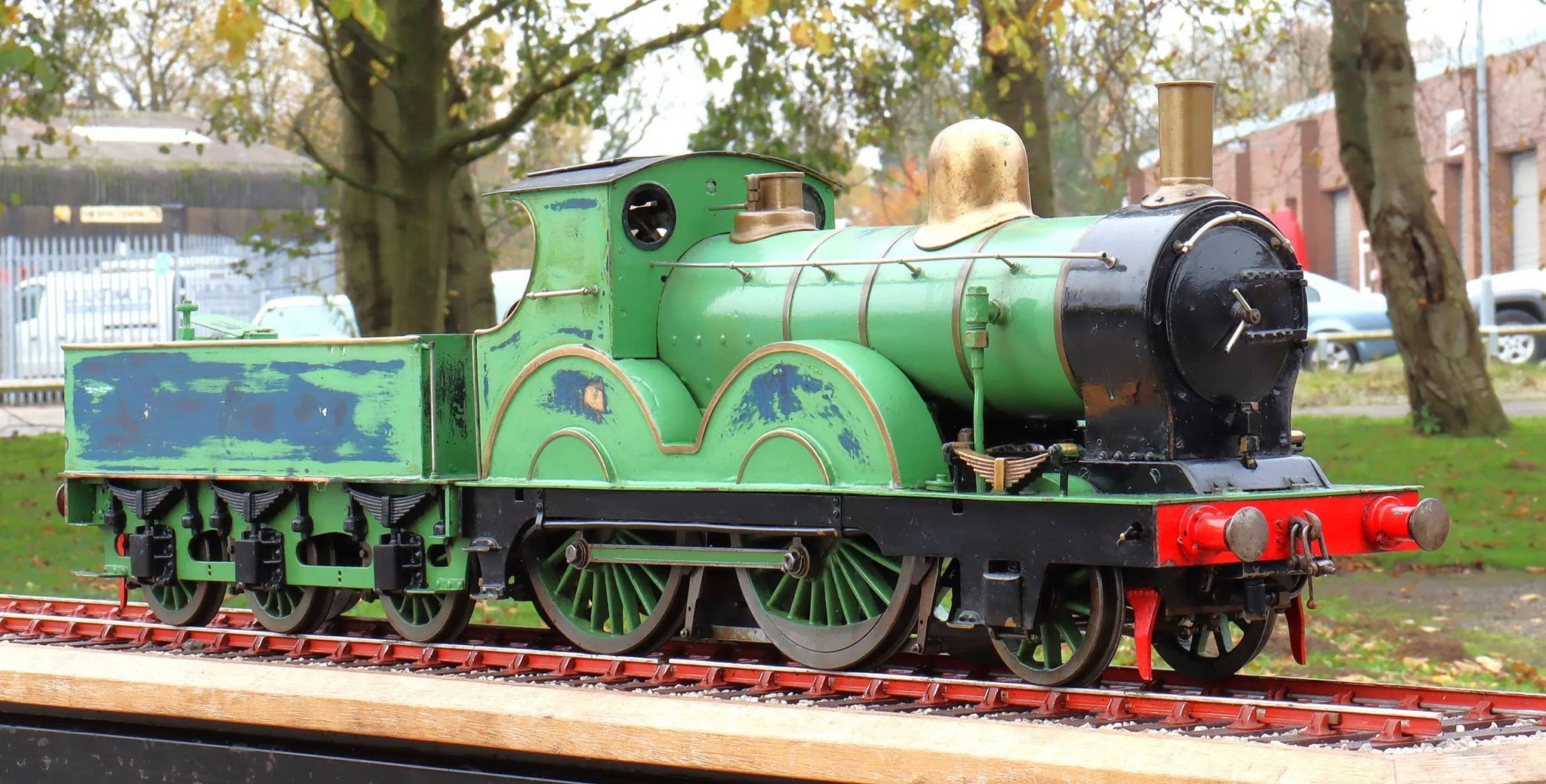

3 1/2 inch gauge LNWR T19

We last sold this one earlier this year - previously sold in 2021 (there's the writeup and some video of it in the archive) we steamed it at the time and were impressed at how nicely it ran - it sold as a running engine with full boiler certification.

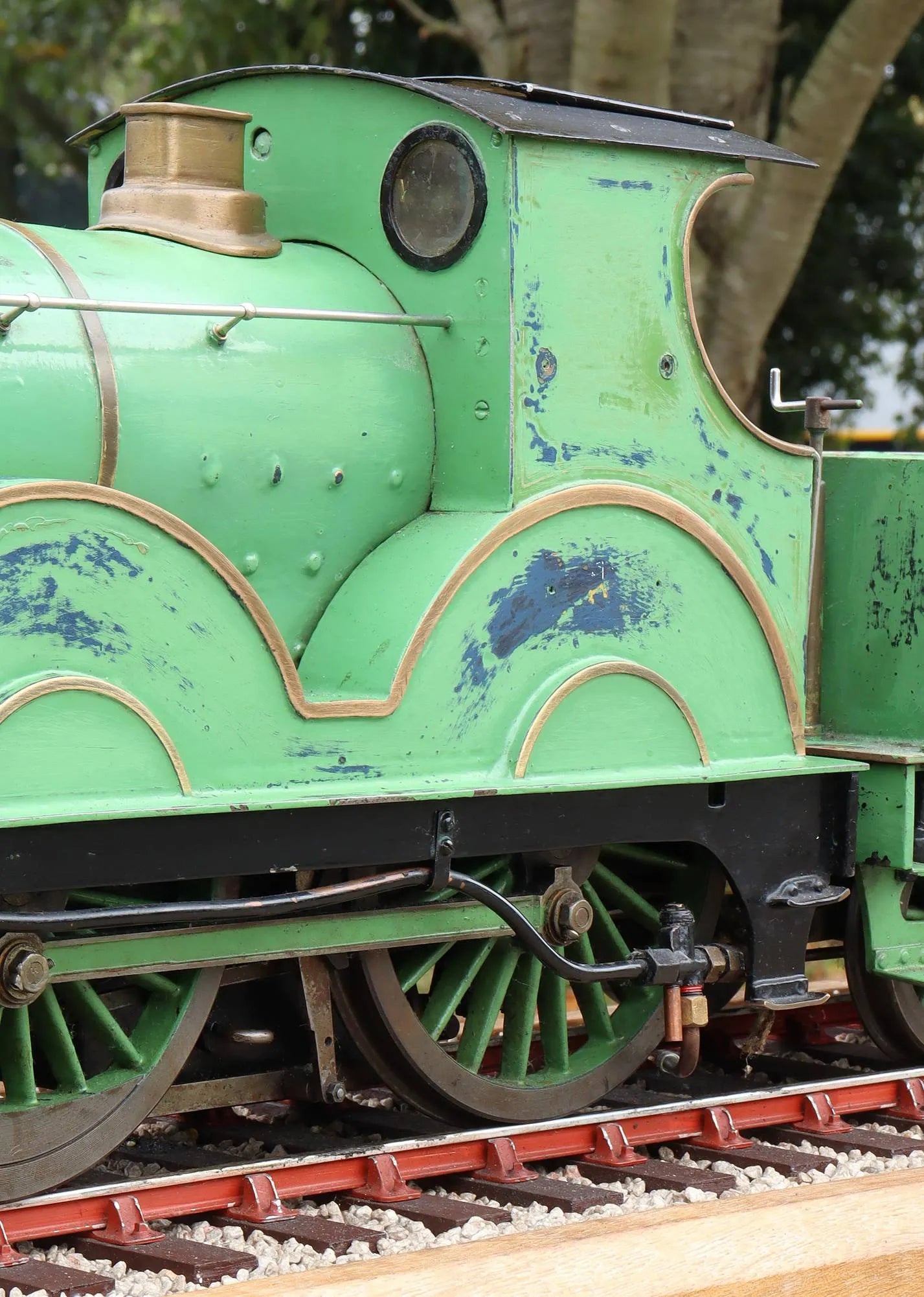

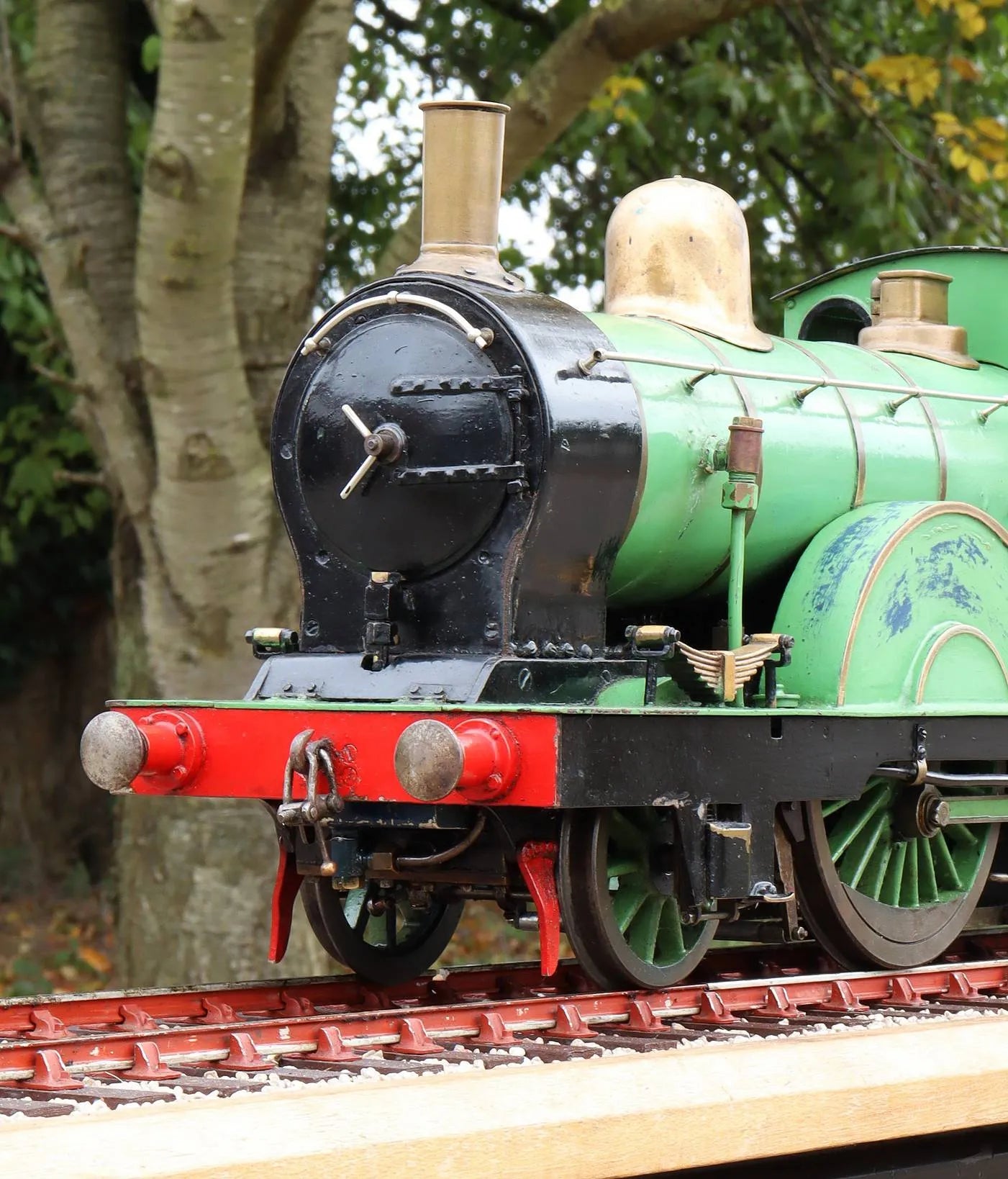

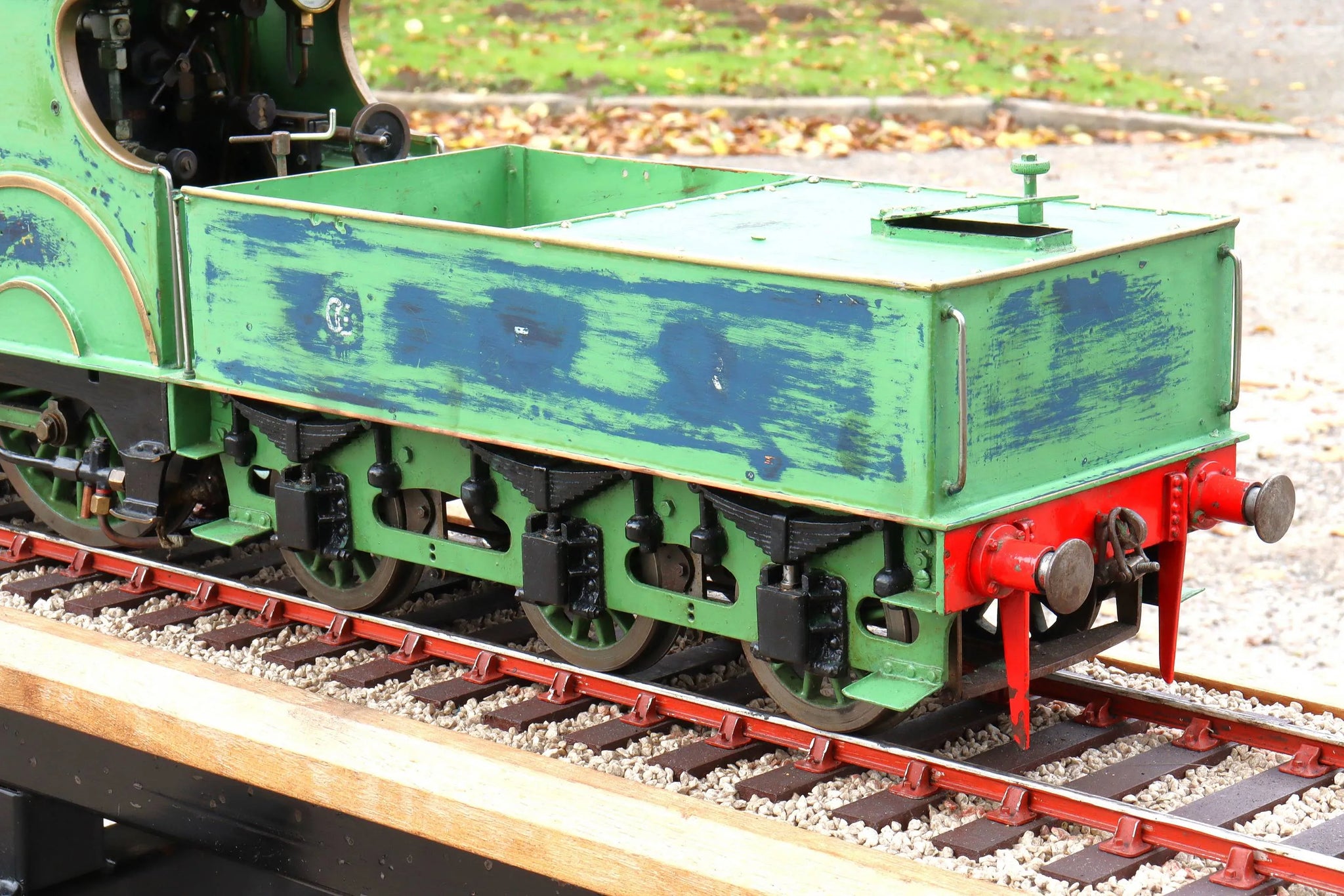

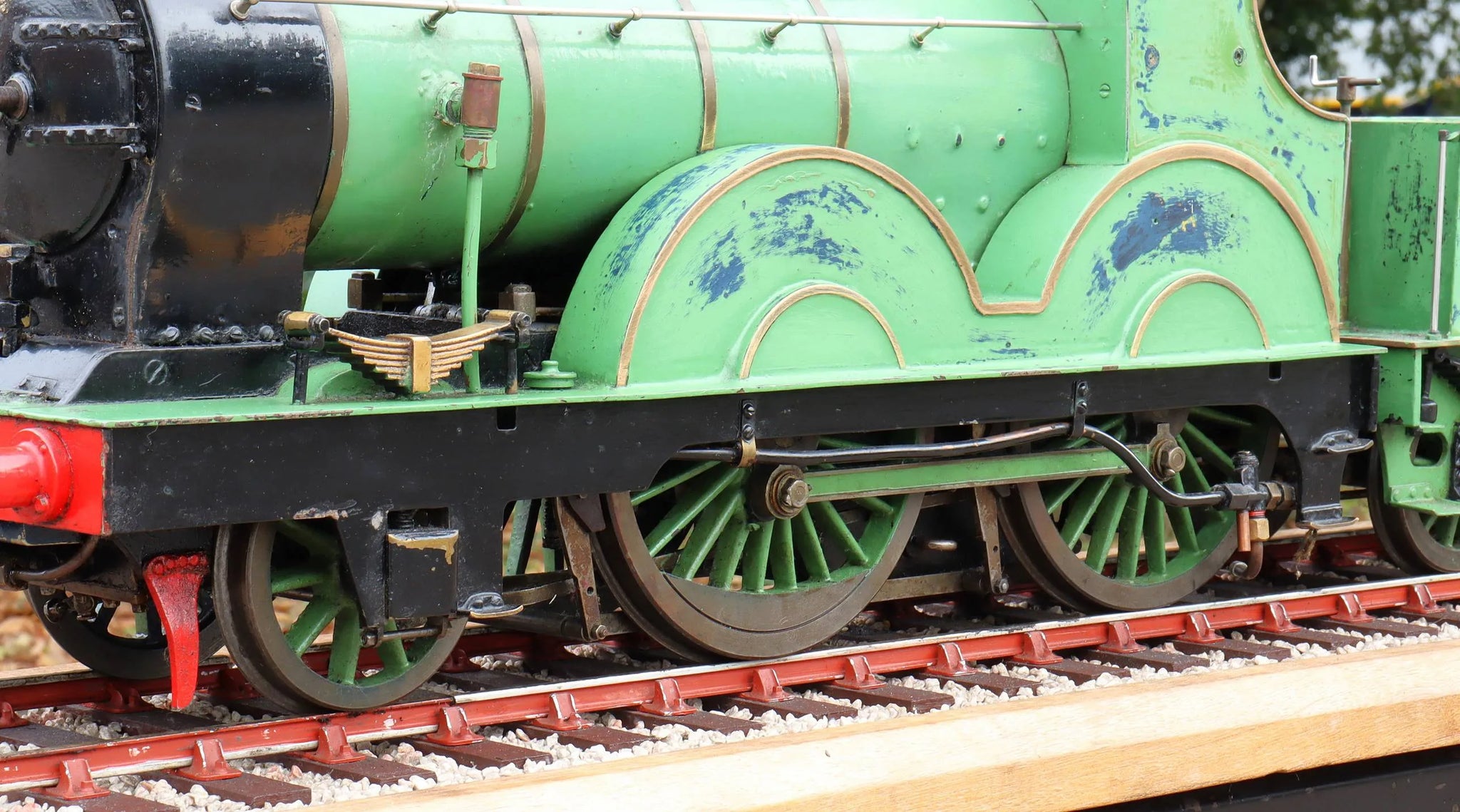

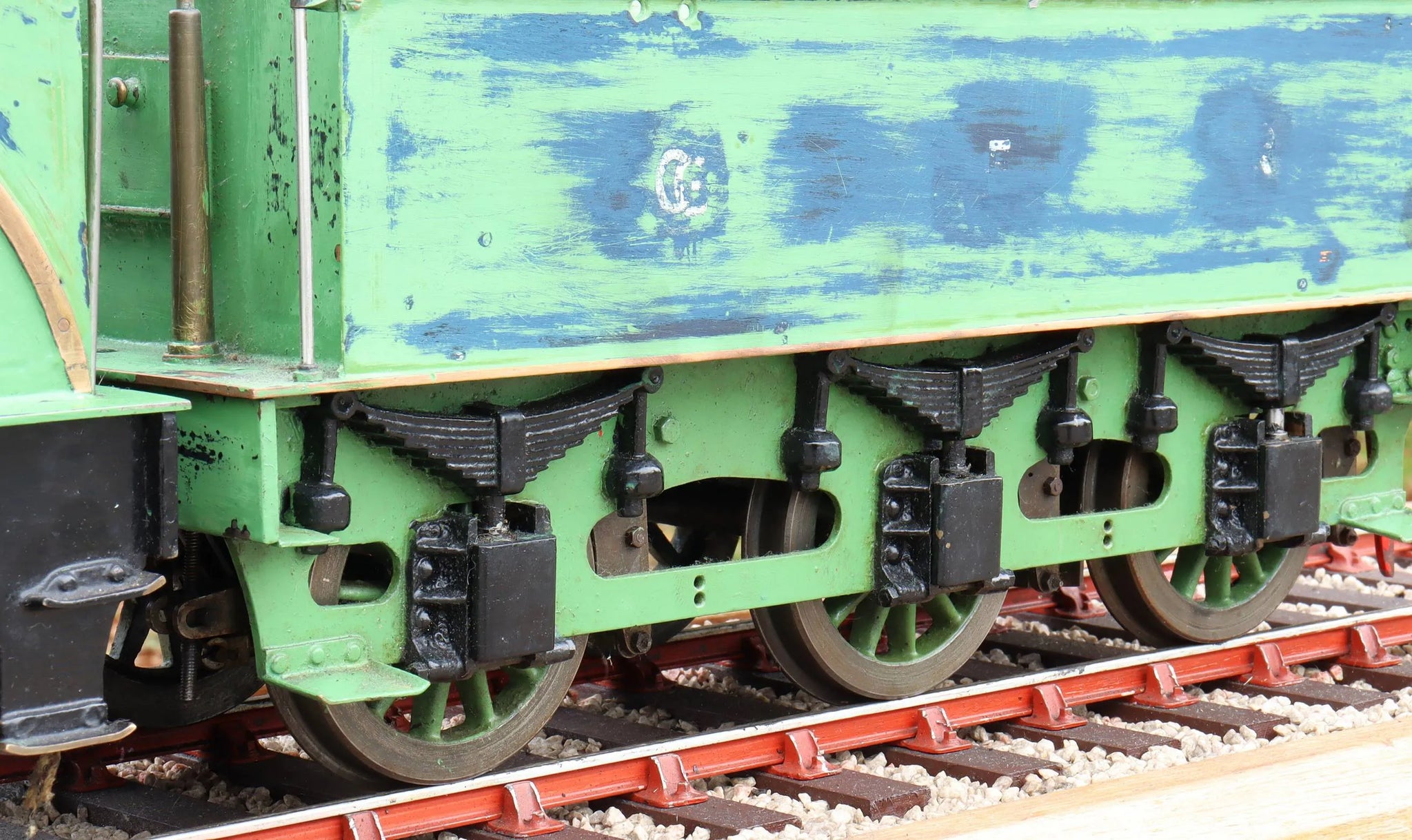

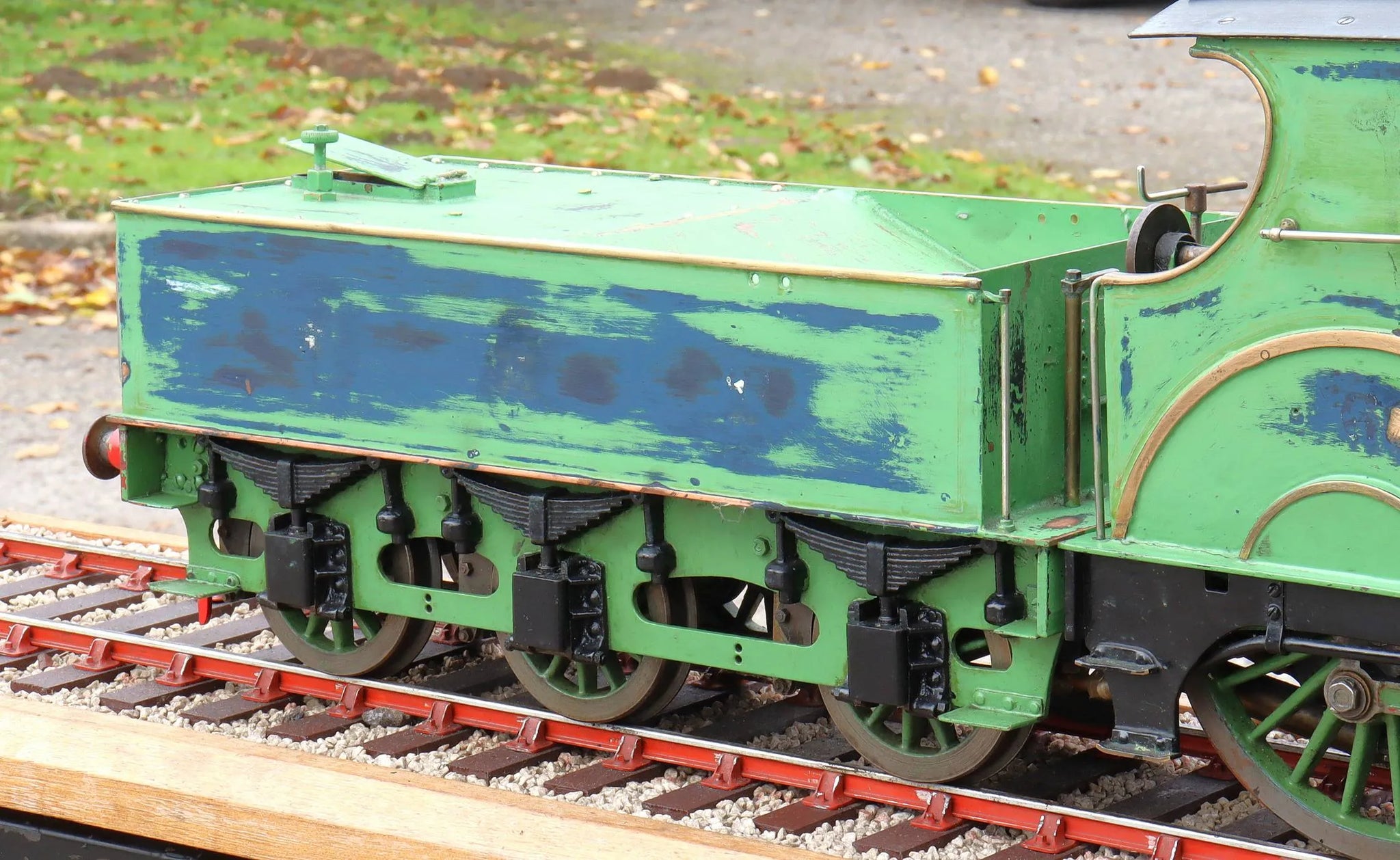

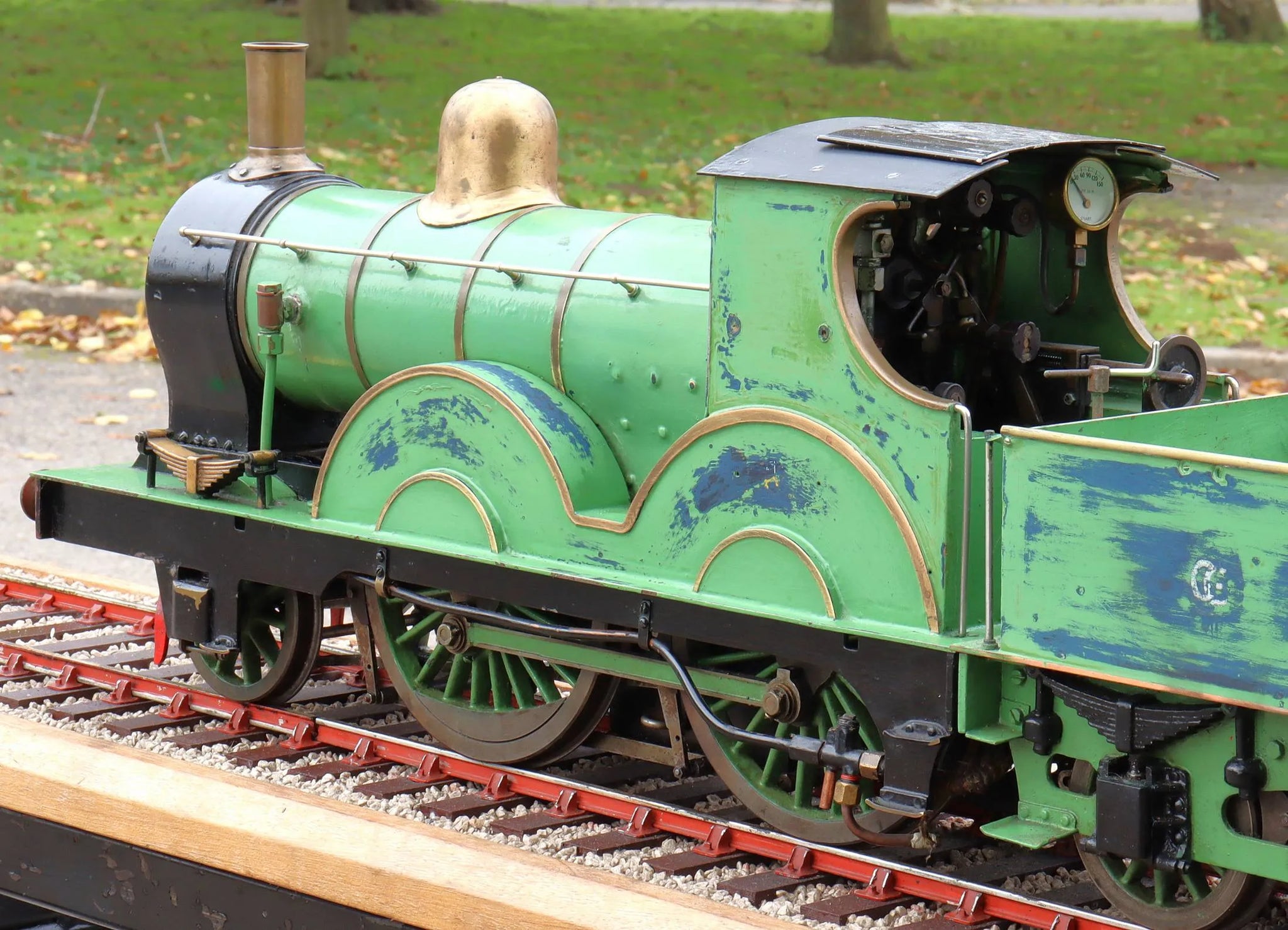

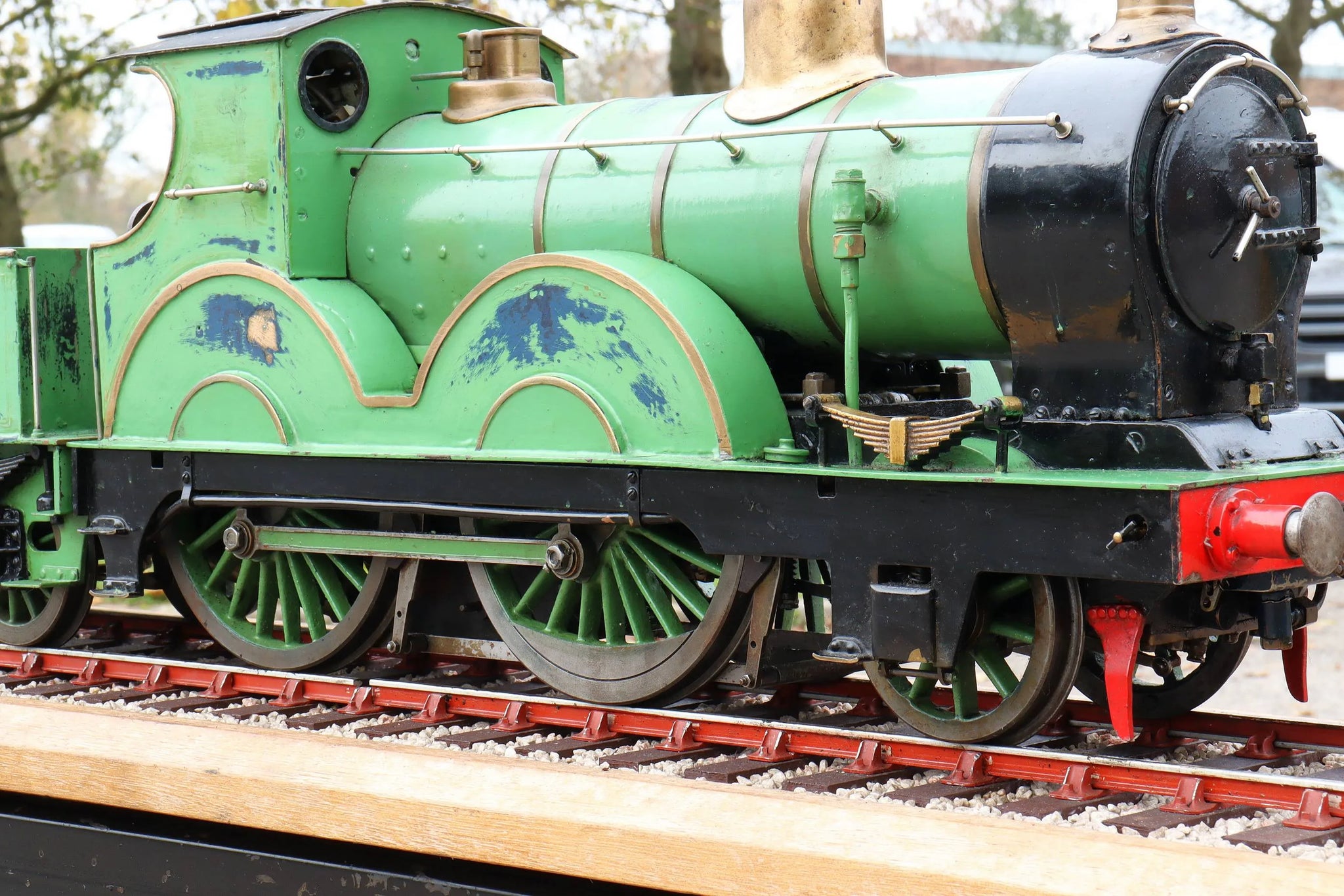

It's recently come in as something of a stalled "project", the paintwork partly stripped and a leaking dome which now requires attention - the workshop notes recording, somewhat pithily:

"Runs on air nicely still, someone has been into the dome which now leaks, snapped a couple of bolts and then made a half arse job of sorting it out, off centre screws etc, it wants pulling apart and doing properly before a hydraulic test can be issued, the rest of the boiler looks ok"

A worthwhile project, with the potential to produce a handsome engine that's already known to be a good runner.

If ever an engine deserves a good home - offering experience rather than enthusiasm - it's this one!

Technical information

Stock code

11397

Gauge

3 1/2 inch

Length/inches

21+16

Width/inches

6

Height/inches

10

Weight/Kg

26

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Stephensons

Reverser type

screw

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a non-commercial

Safety valve type

pop

Safety valve

1

Mechanical pump

1

Injector

1

Superheater type

flue tube

Superheater

2

Date out

May-24
