3 1/2 inch gauge LSWR Drummond D15 4-4-0

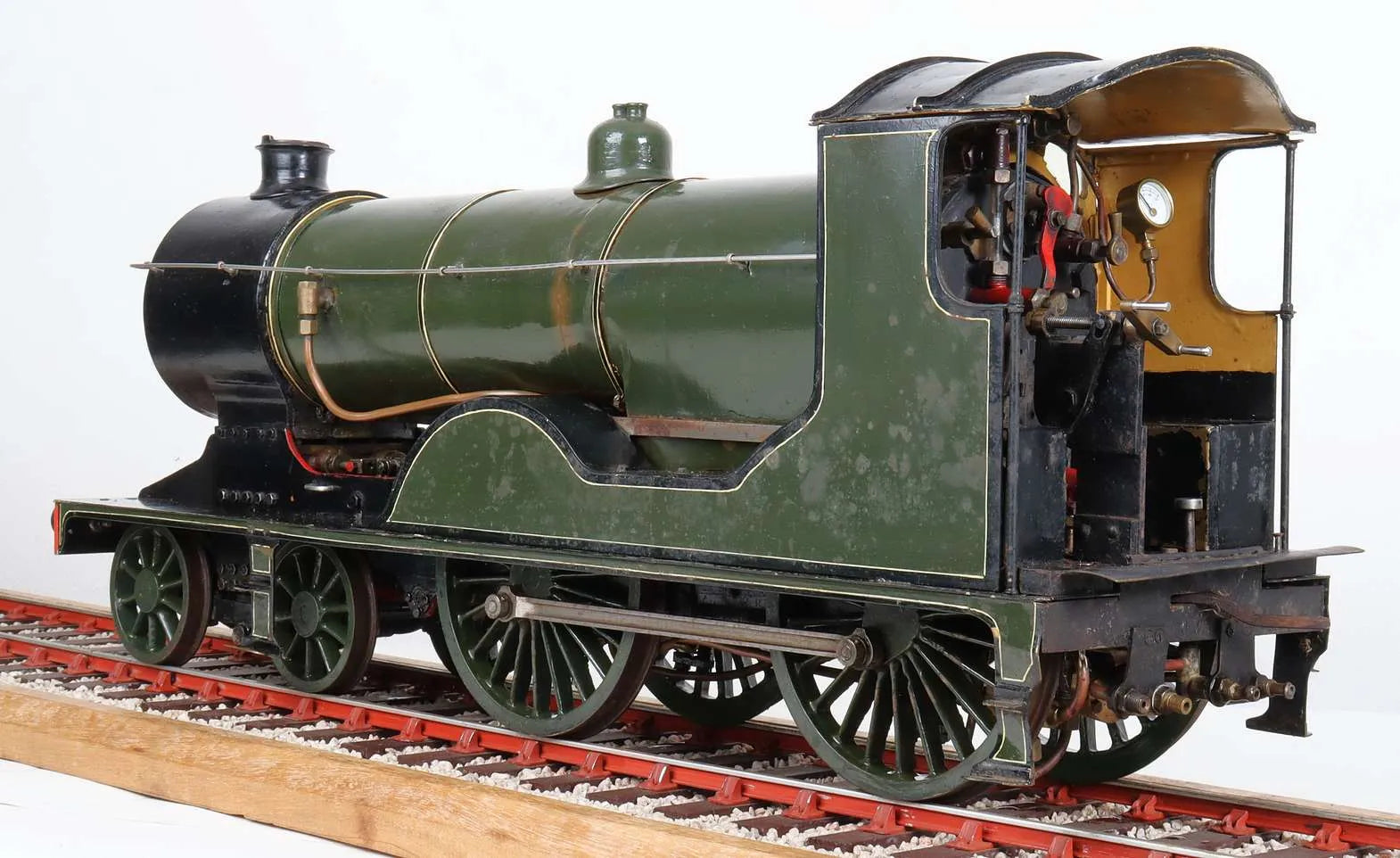

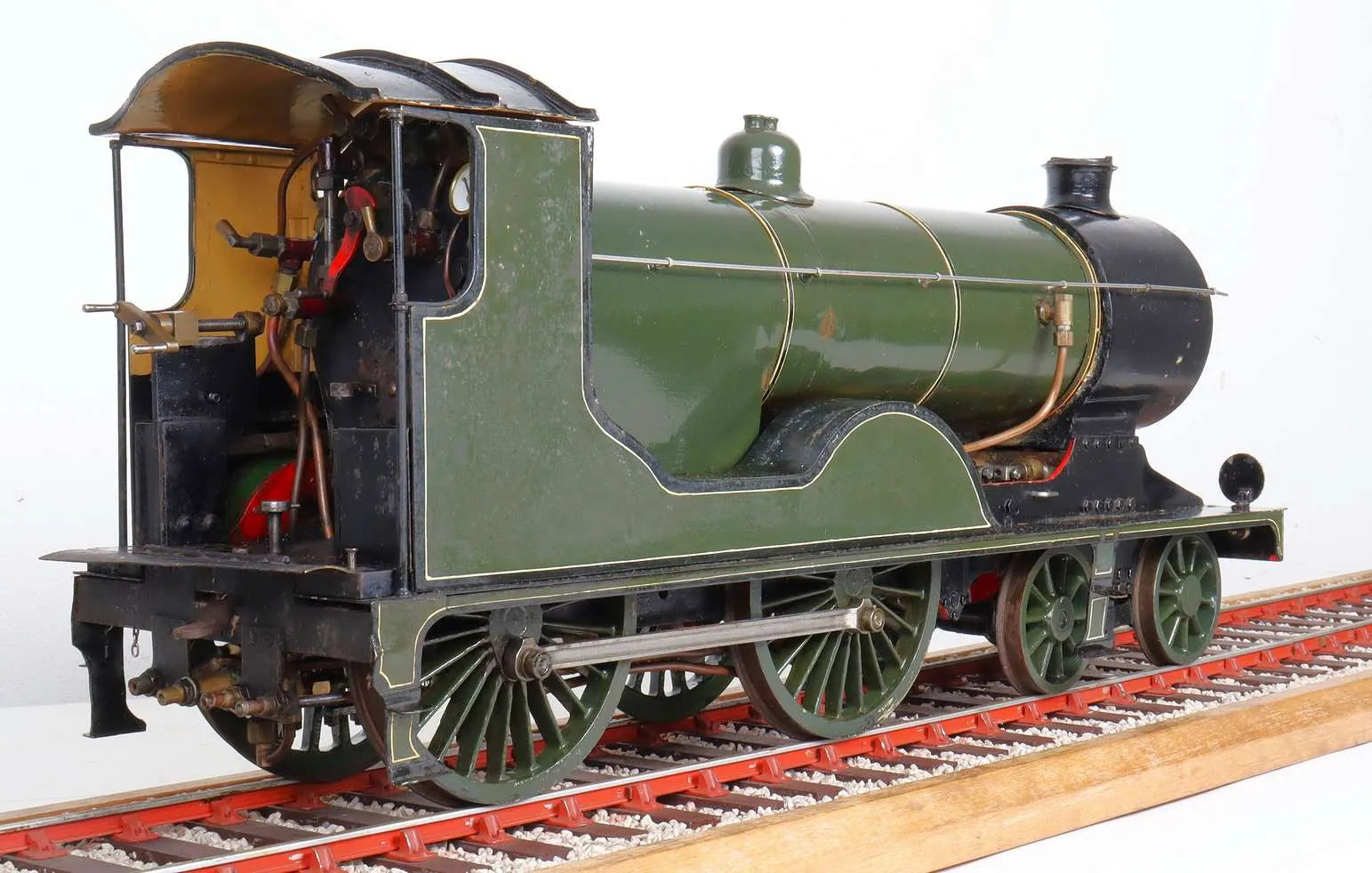

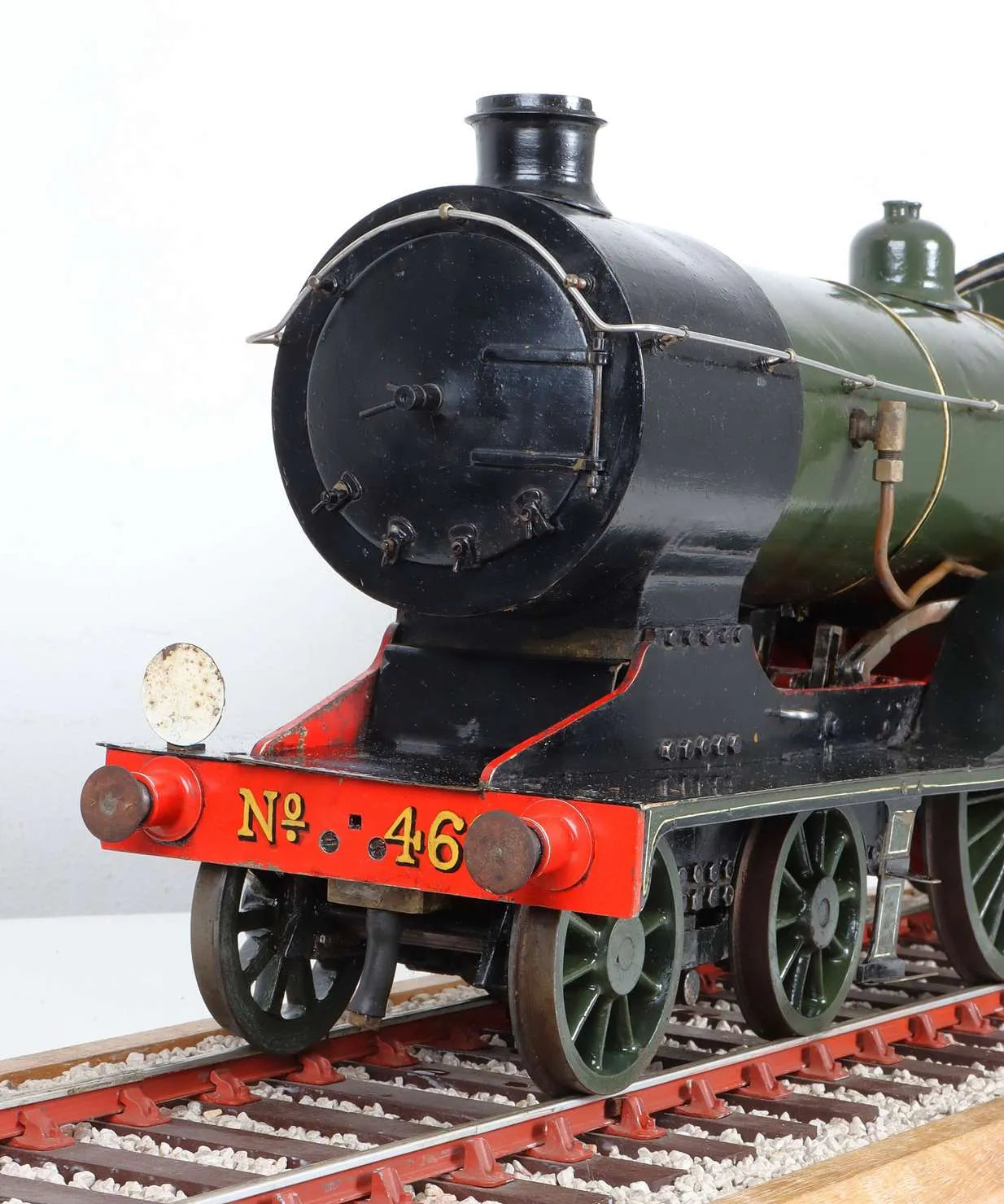

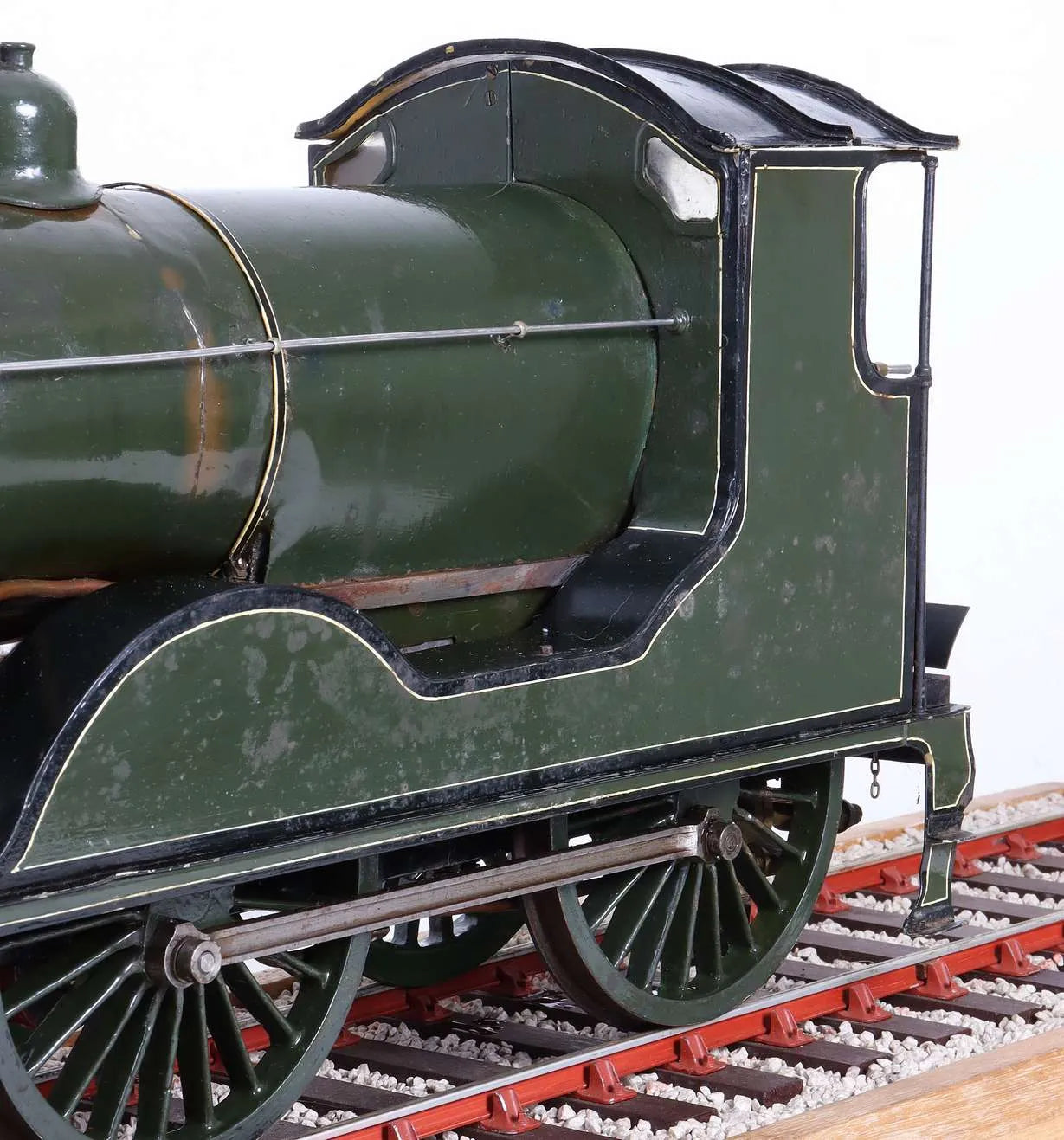

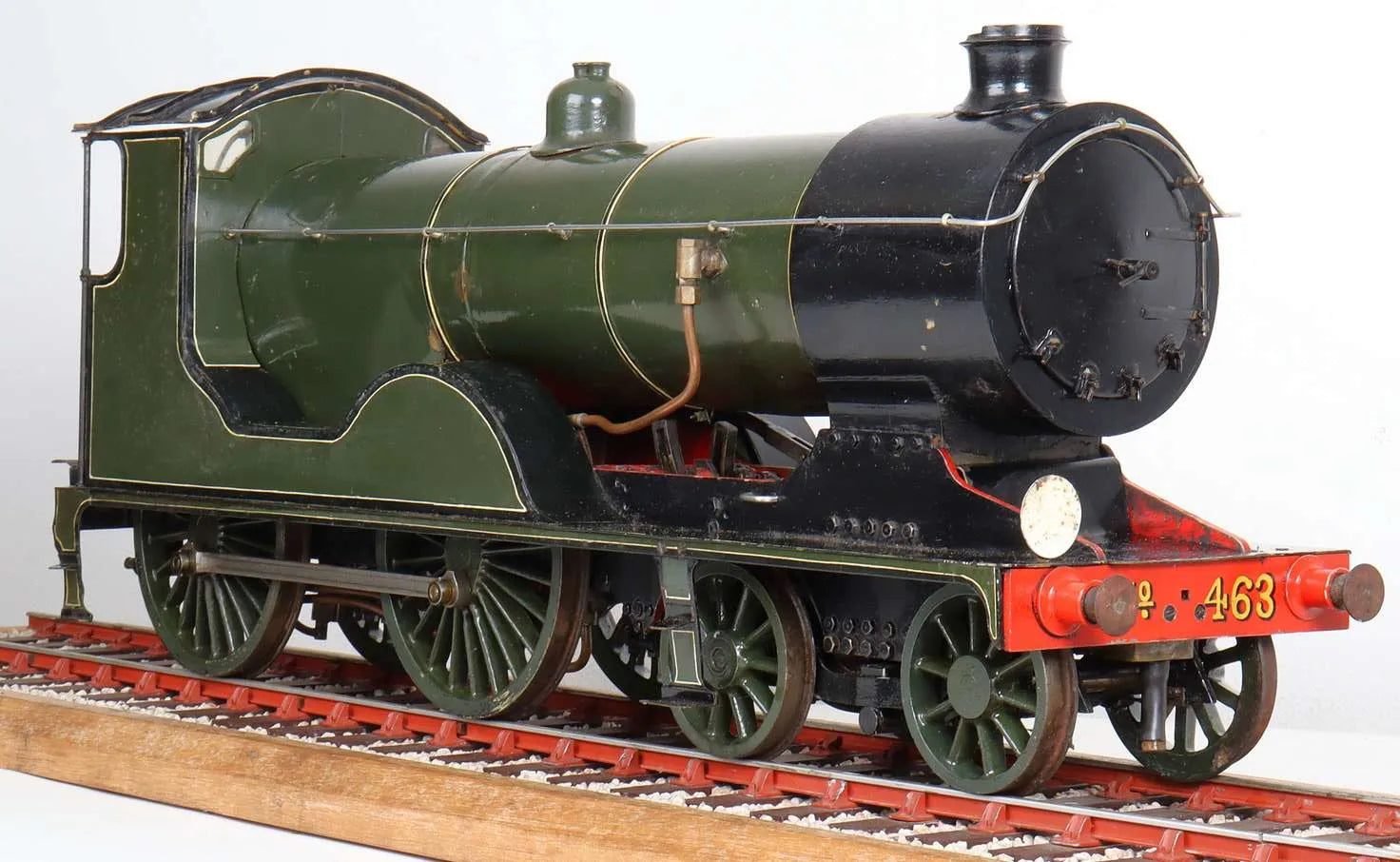

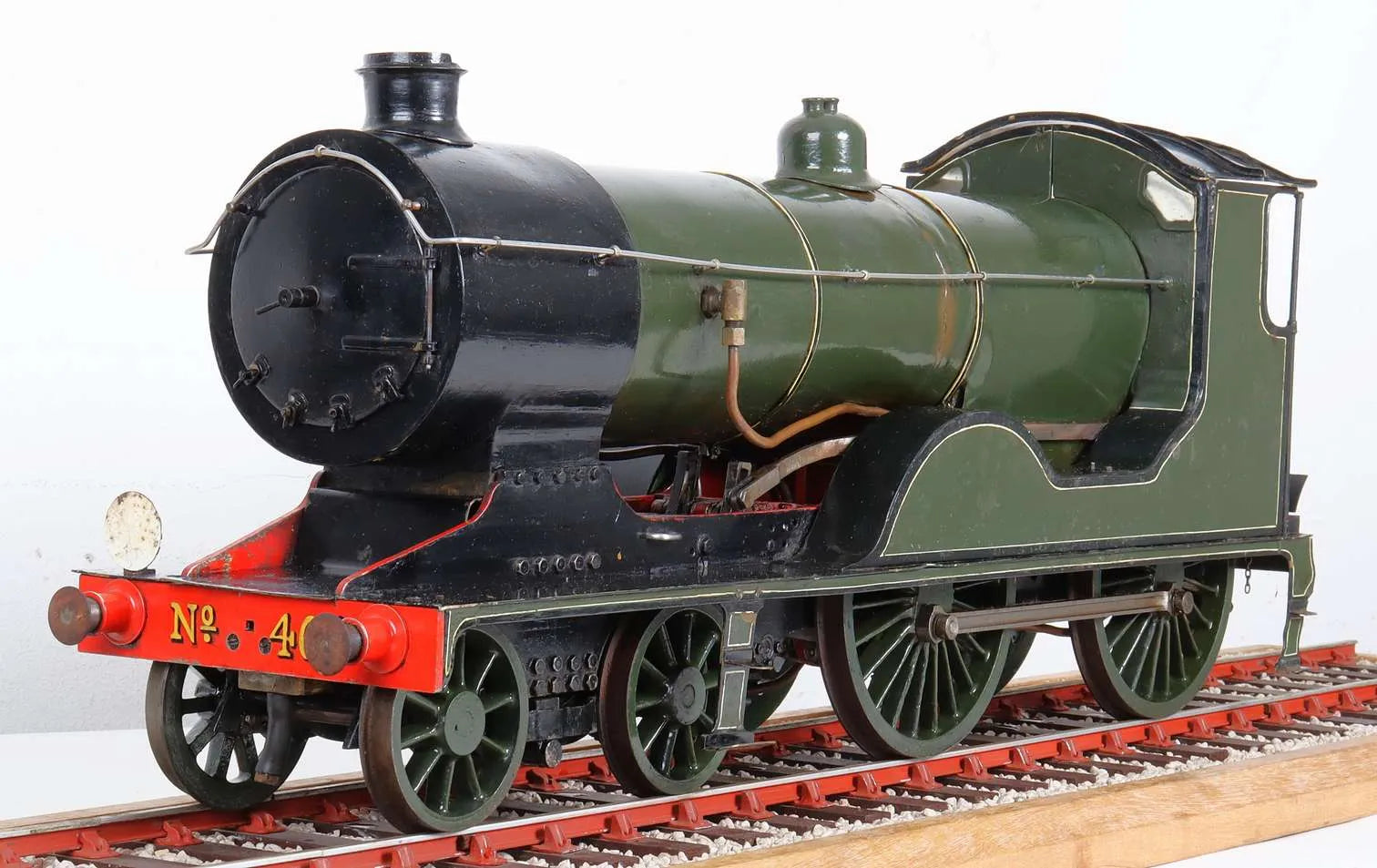

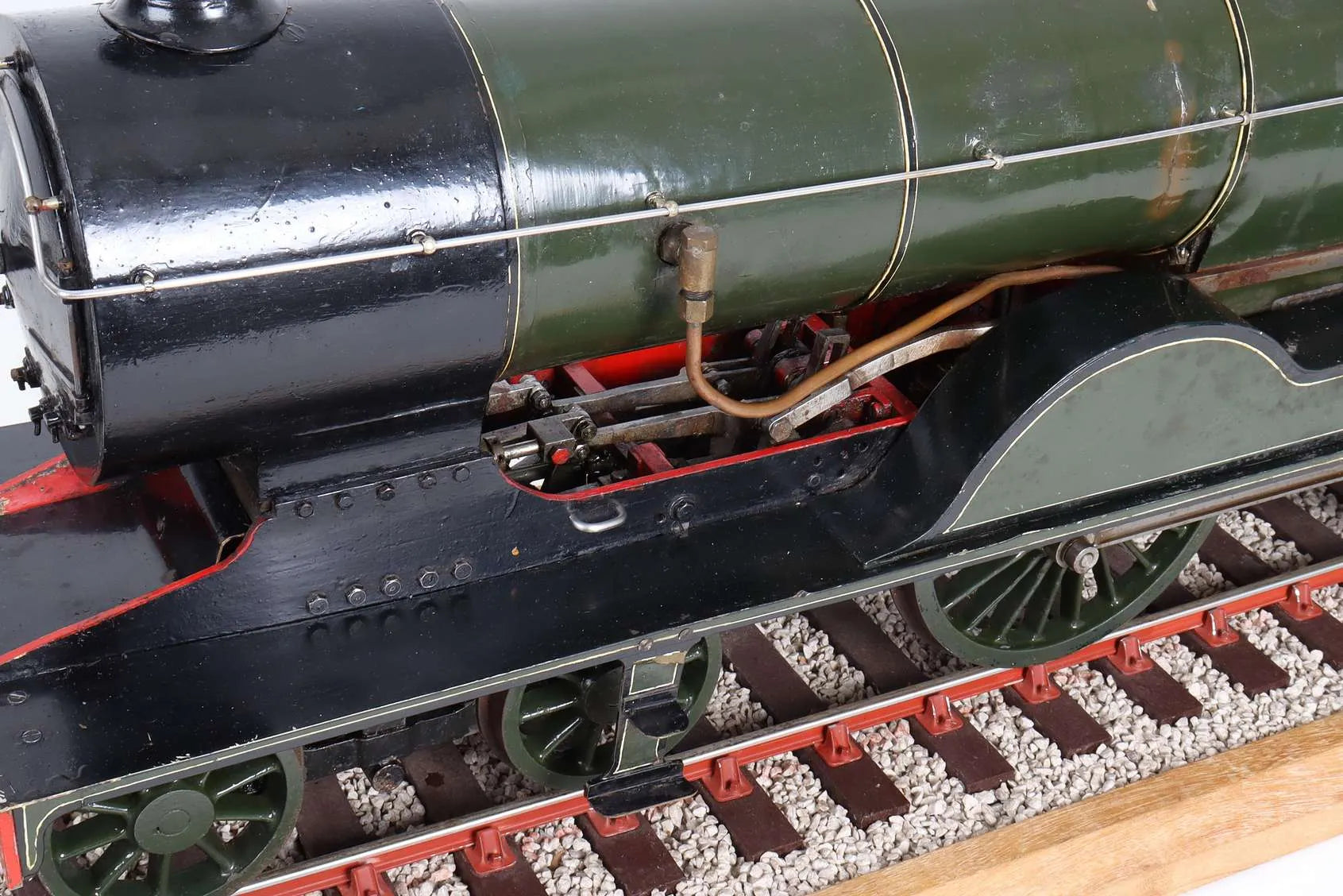

A 3 1/2 inch gauge LSWR D15 4-4-0, the last steam locomotive designed by Dugald Drummond for the railway, in 1912.

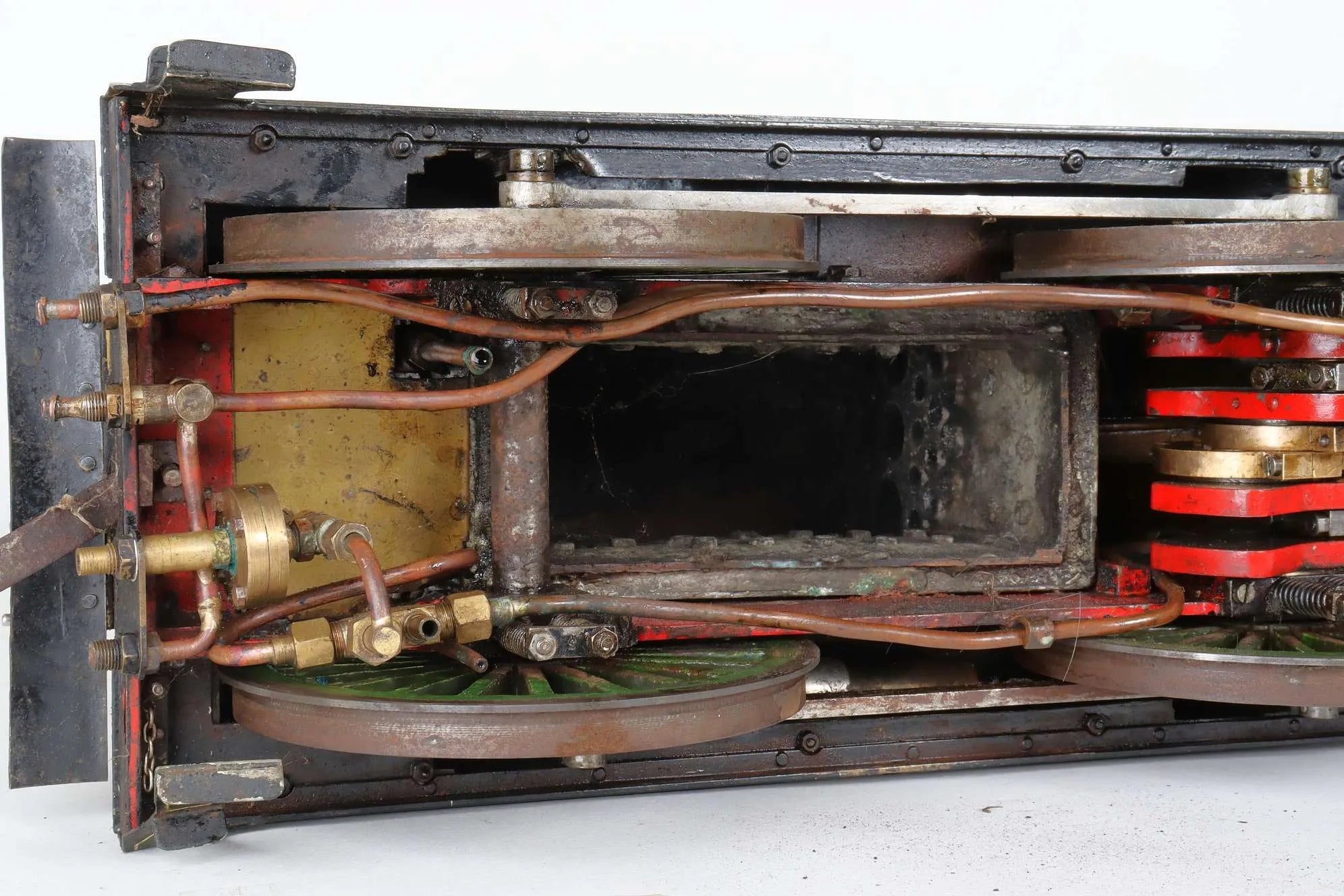

Something of a barn find, this one came to us missing its tender, grate and ashpan although complete with a great deal of dust and muck accumulated over the years!

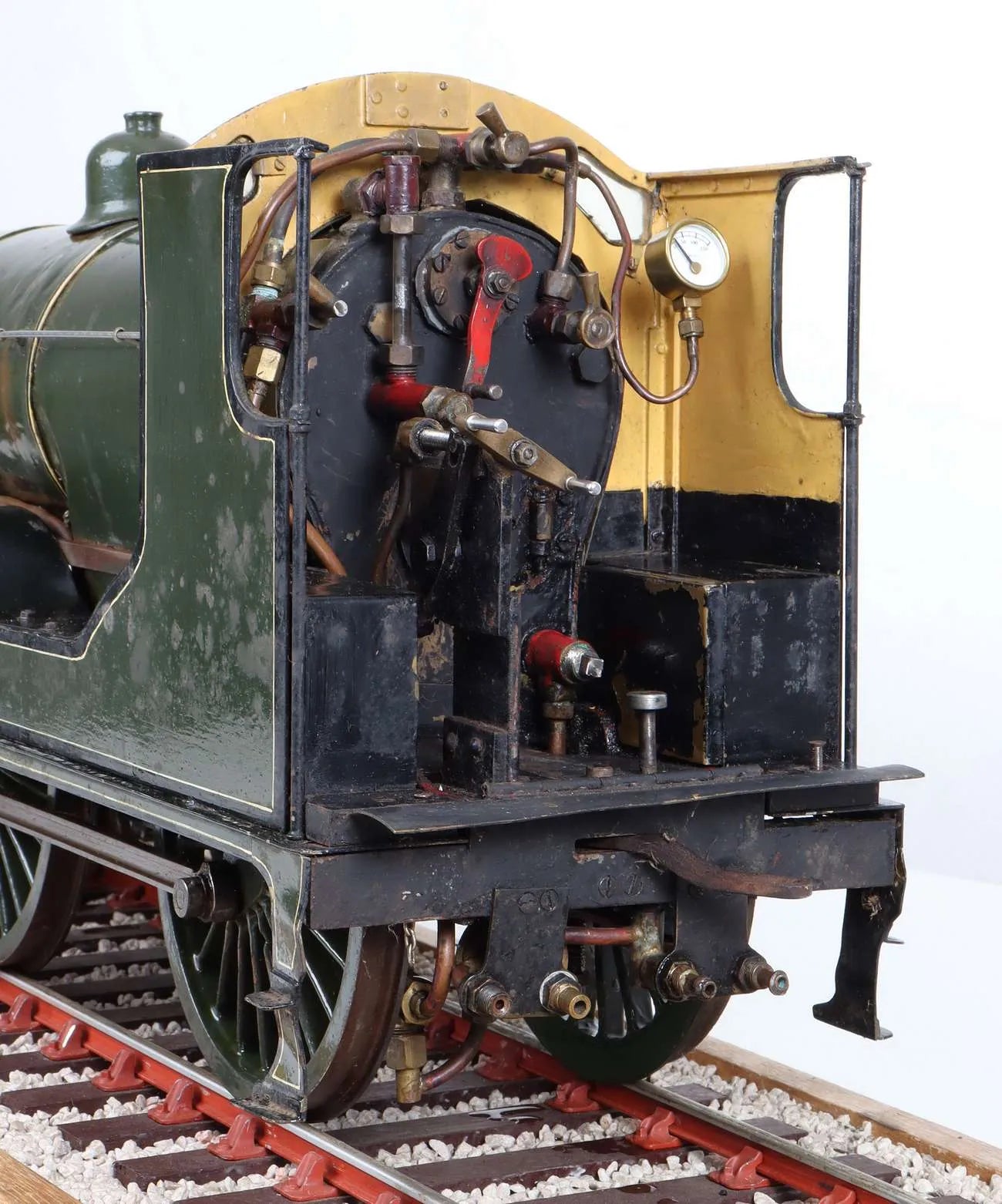

The boiler is silver soldered, with nutted and calked firebox. Under pressure it appeared dry other than one damp spot on the foundation ring which has apparently had repair in the past.

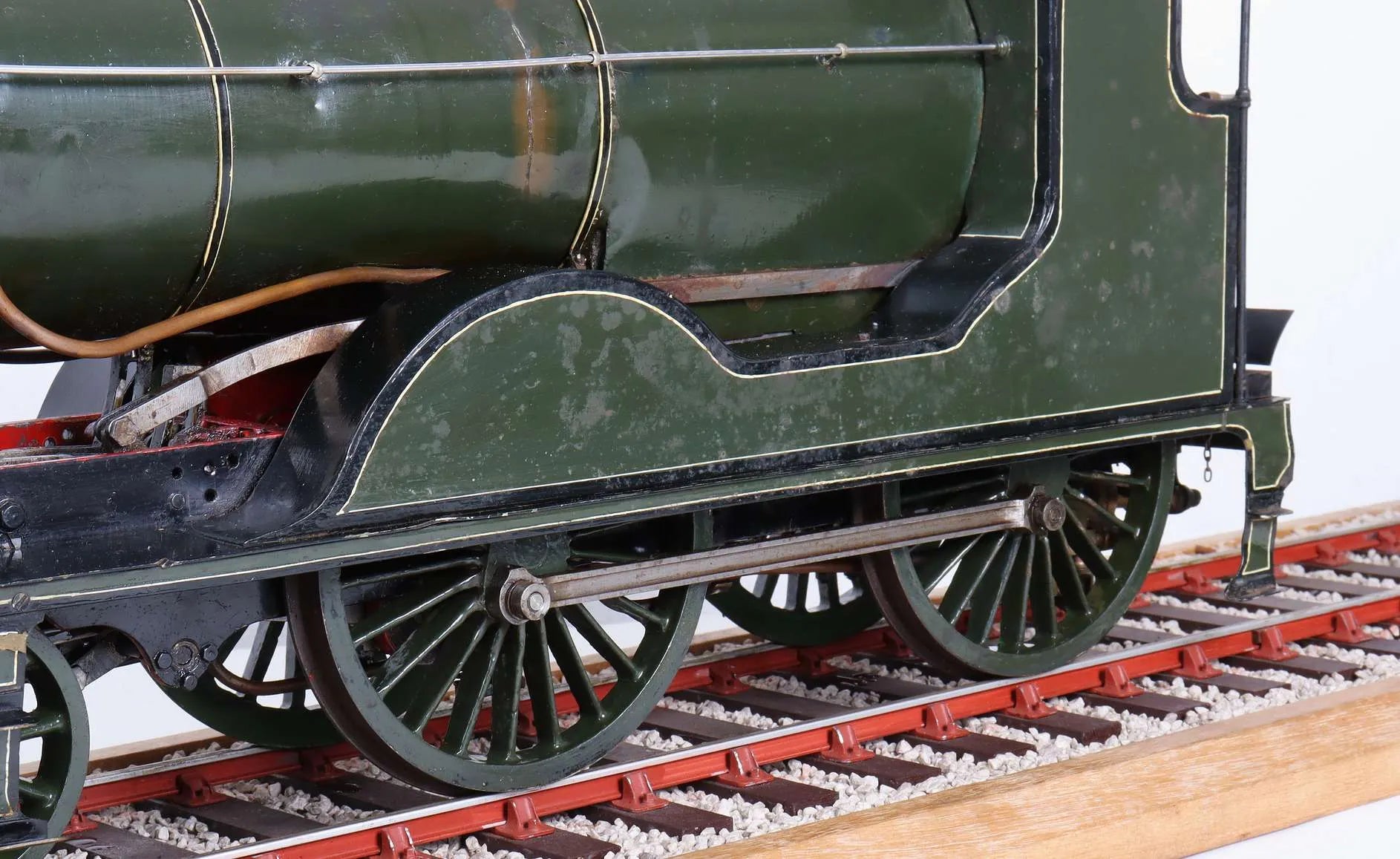

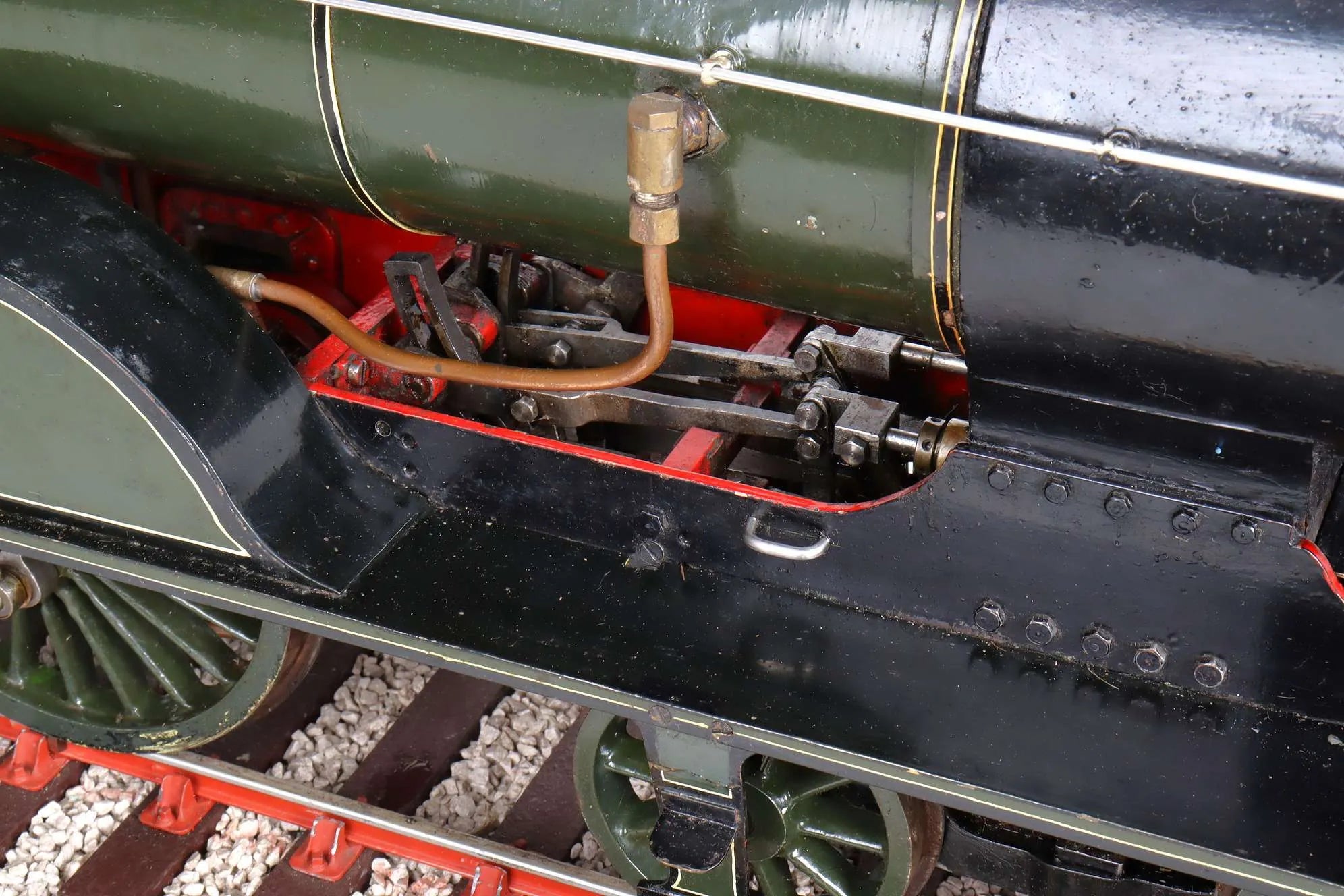

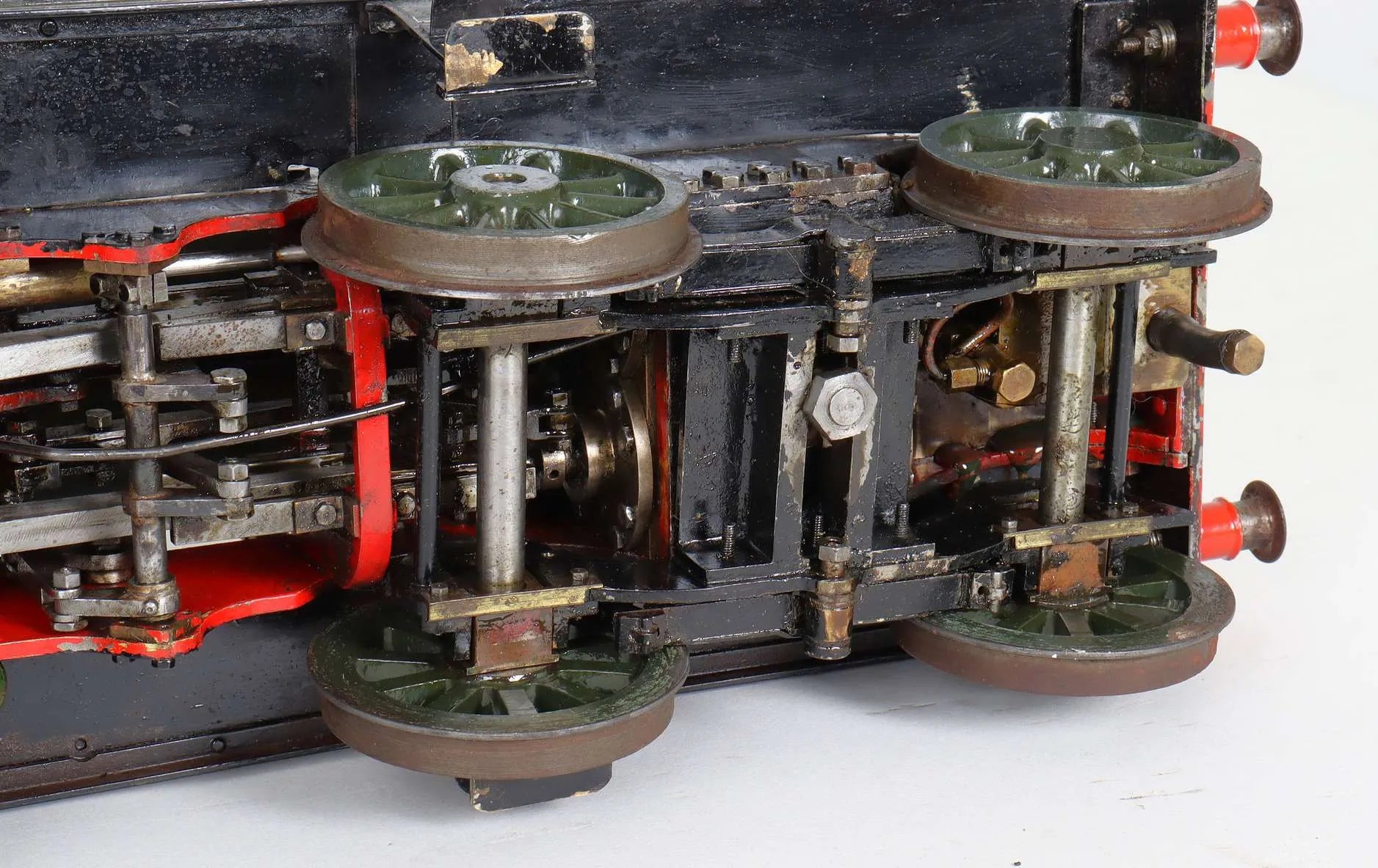

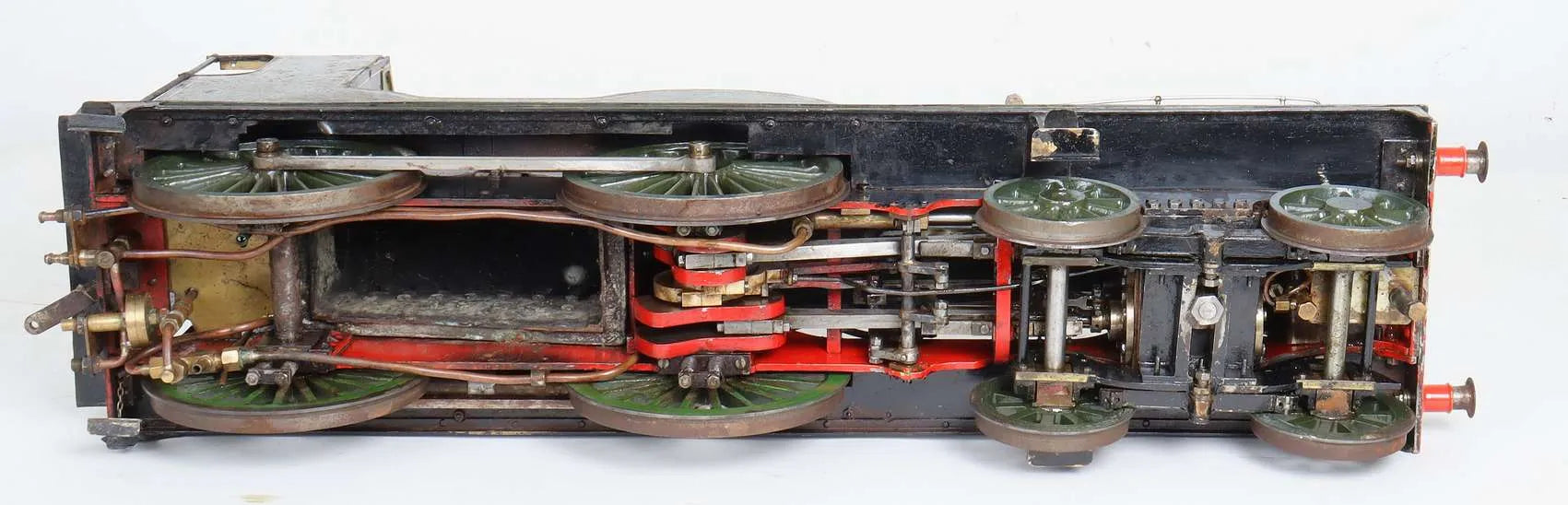

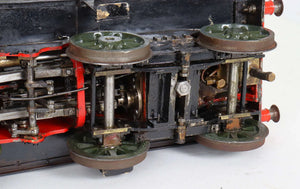

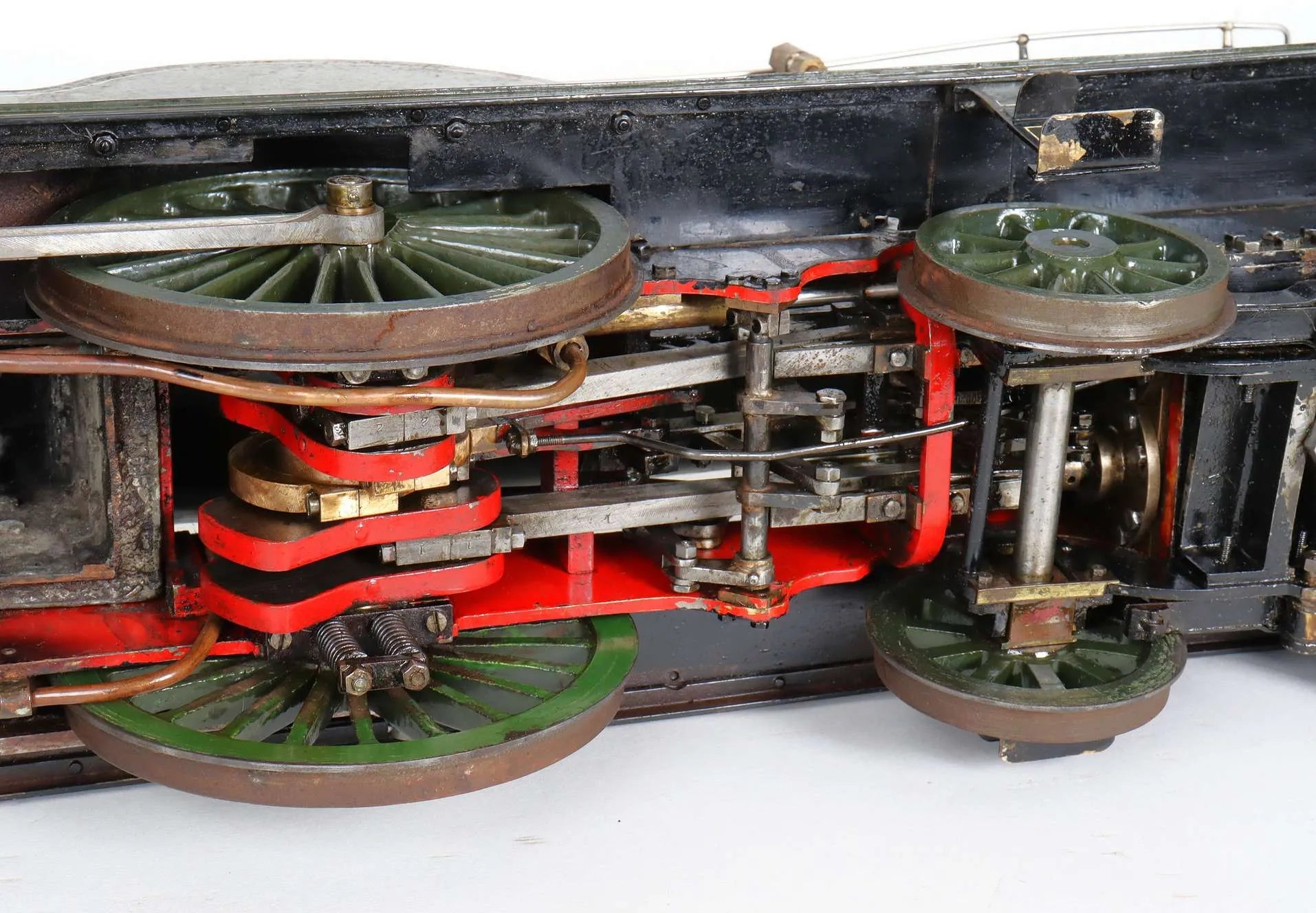

The chassis rolls freely, the seized regulator will require attention before the engine can be run on air.

Technical information

Stock code

10710

Gauge

3 1/2 inch

Length/inches

26

Width/inches

7

Height/inches

10.5

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Walschaerts

Reverser type

screw

Lubricator type

mechanical

Boiler type

locomotive

Boiler material

copper

CE/UKCA mark

n/a - non-commercial

Injector

1

Date out

Jul-22
