Sold

8400

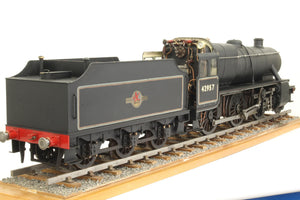

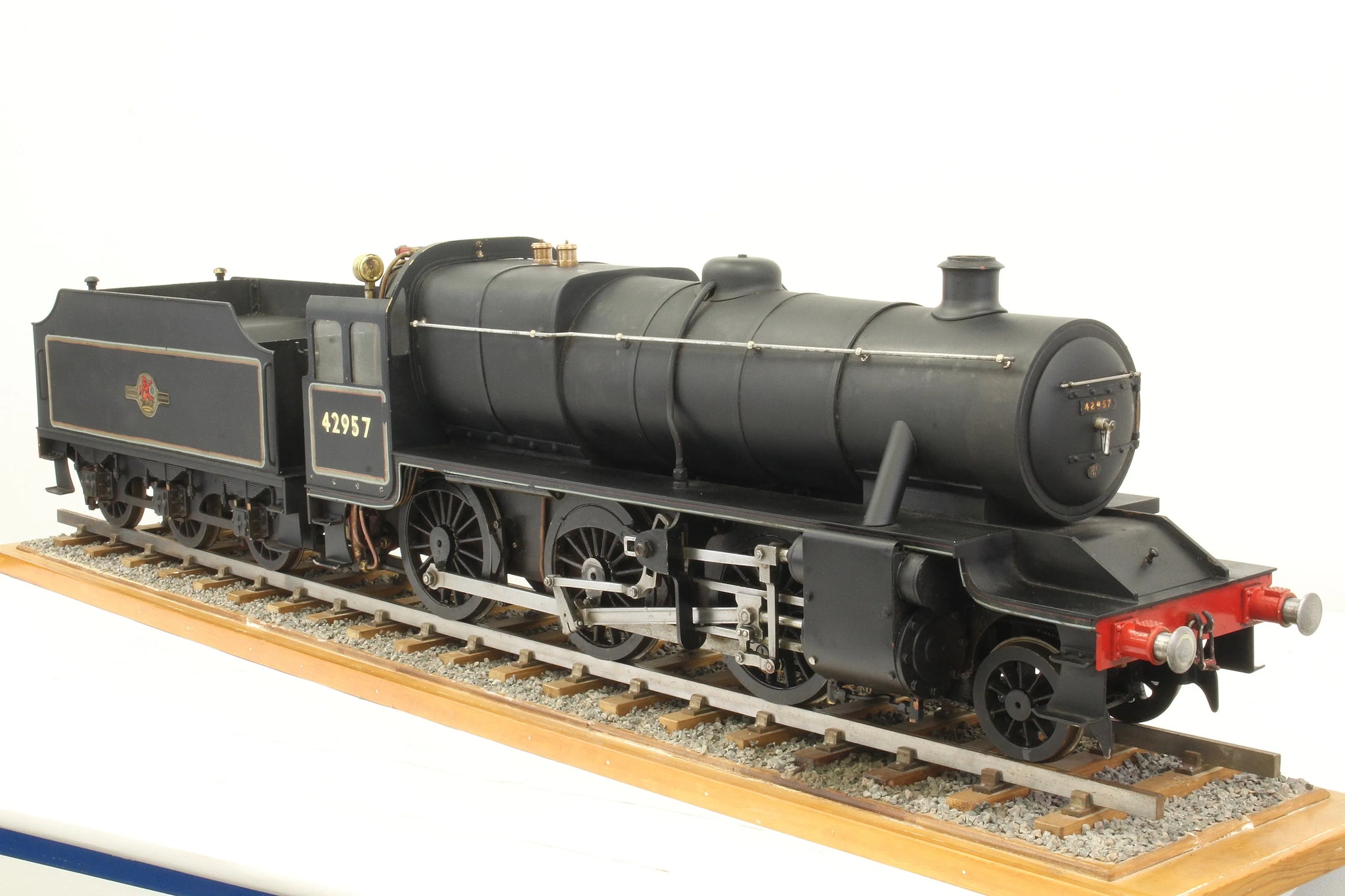

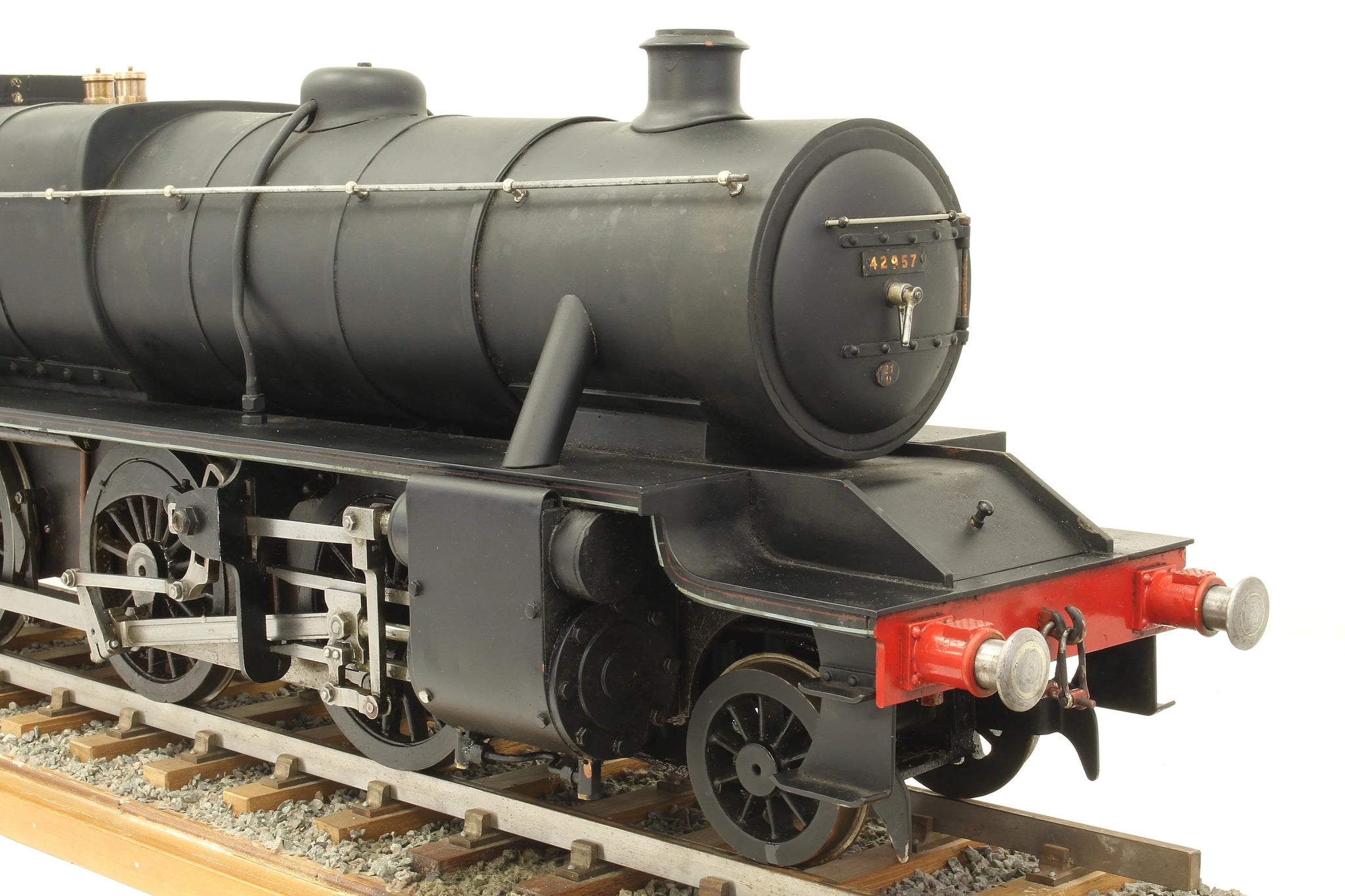

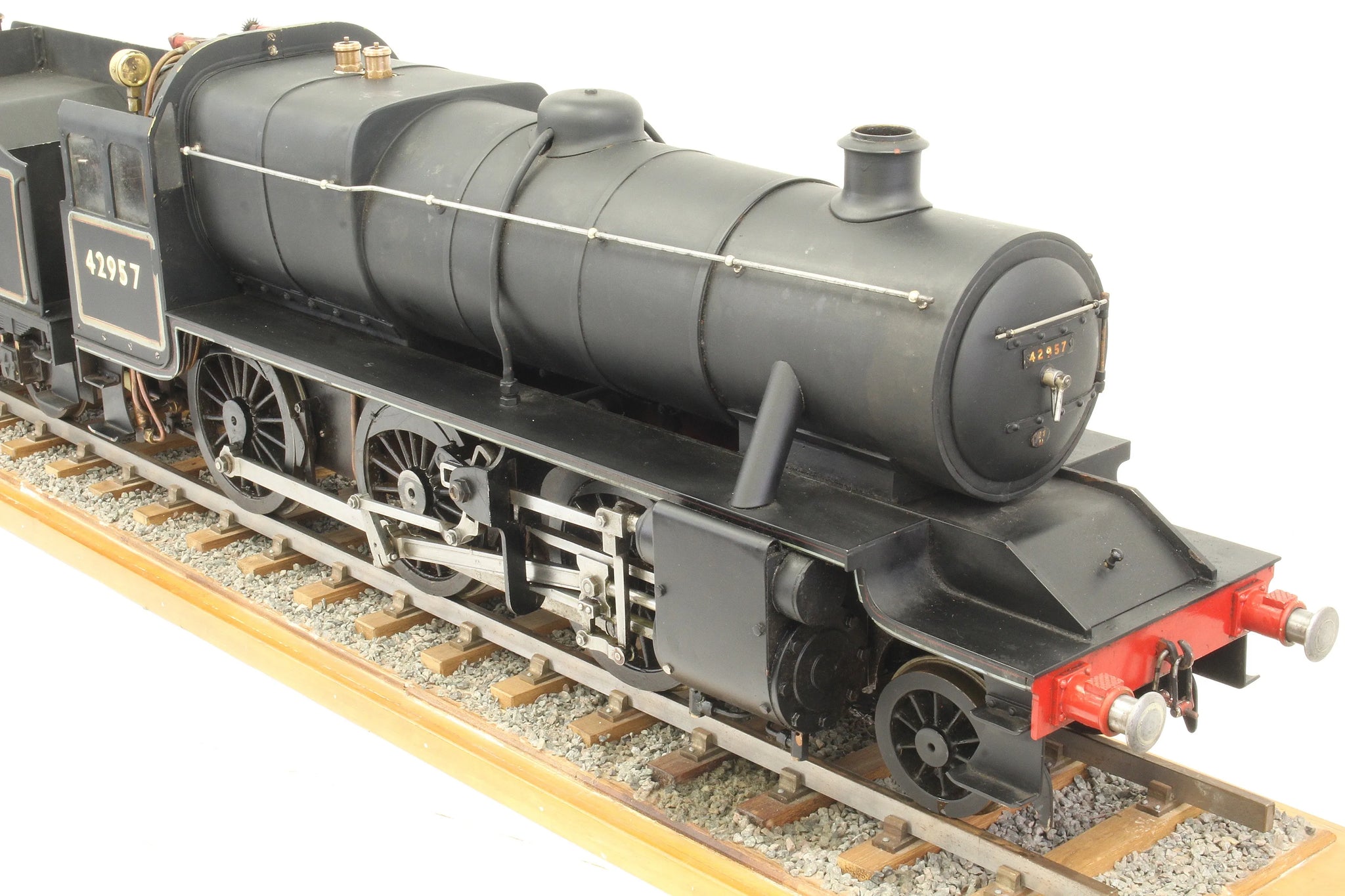

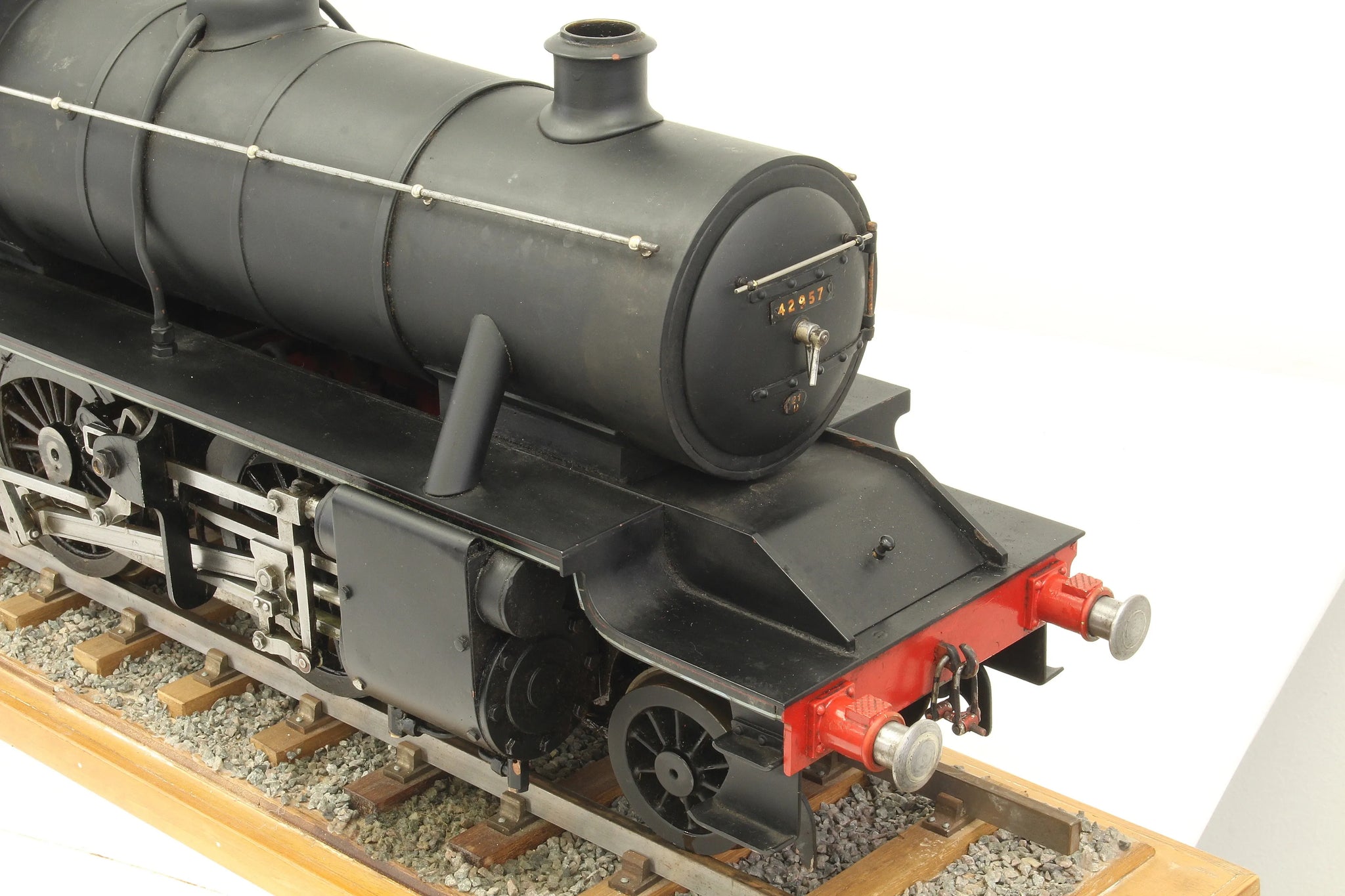

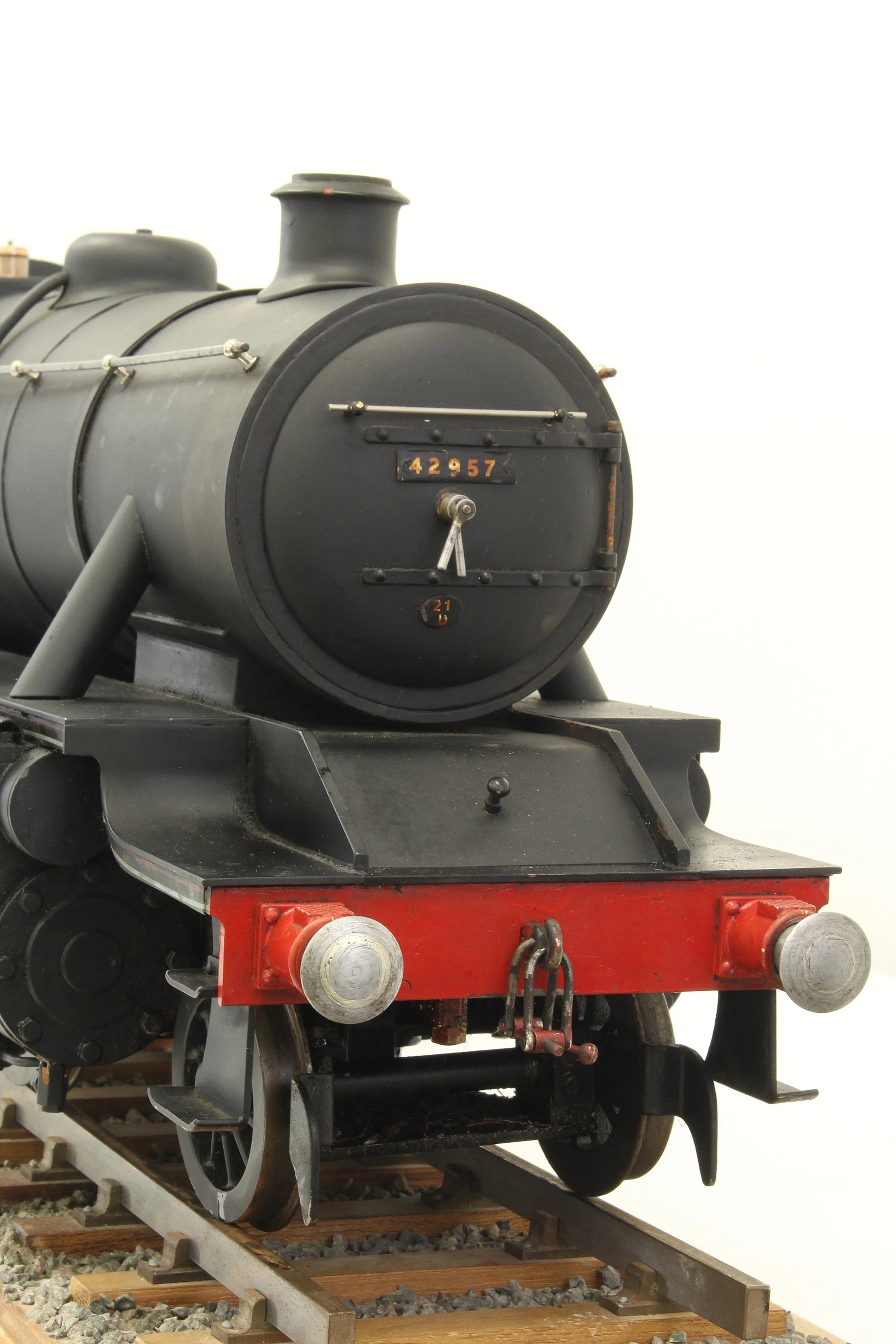

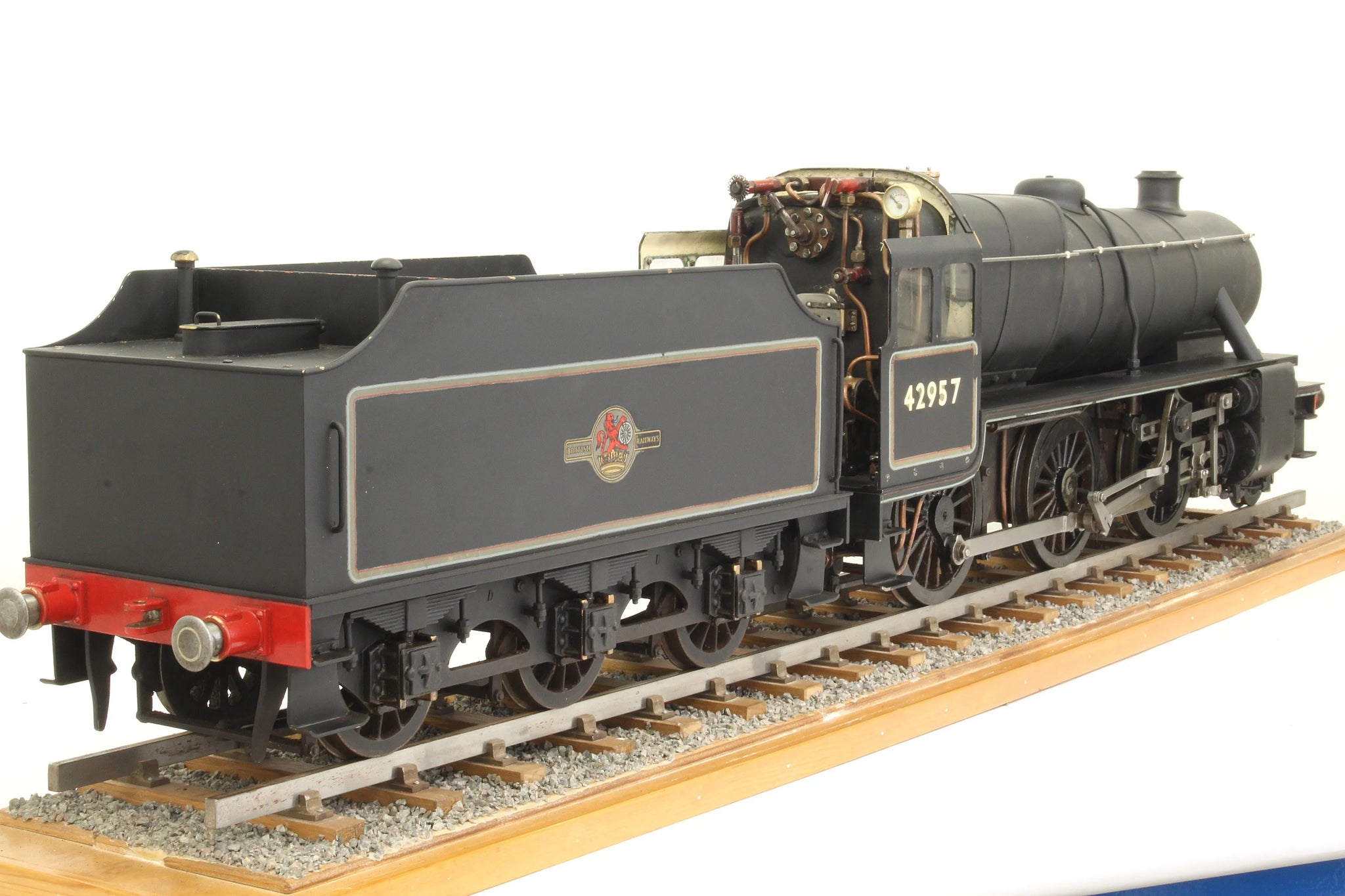

3 1/2 inch gauge LMS Mogul

A 3 1/2 inch gauge LMS Mogul to LBSC's "Princess Marina" design. A well-built engine, this one really impressed us on test - it makes steam like it's going out of fashion and runs well in both directions with good even exhaust beats.

Everything works as it should: injector, steam brake, even the steam operated drain cocks (which is quite an achievement on something this size).

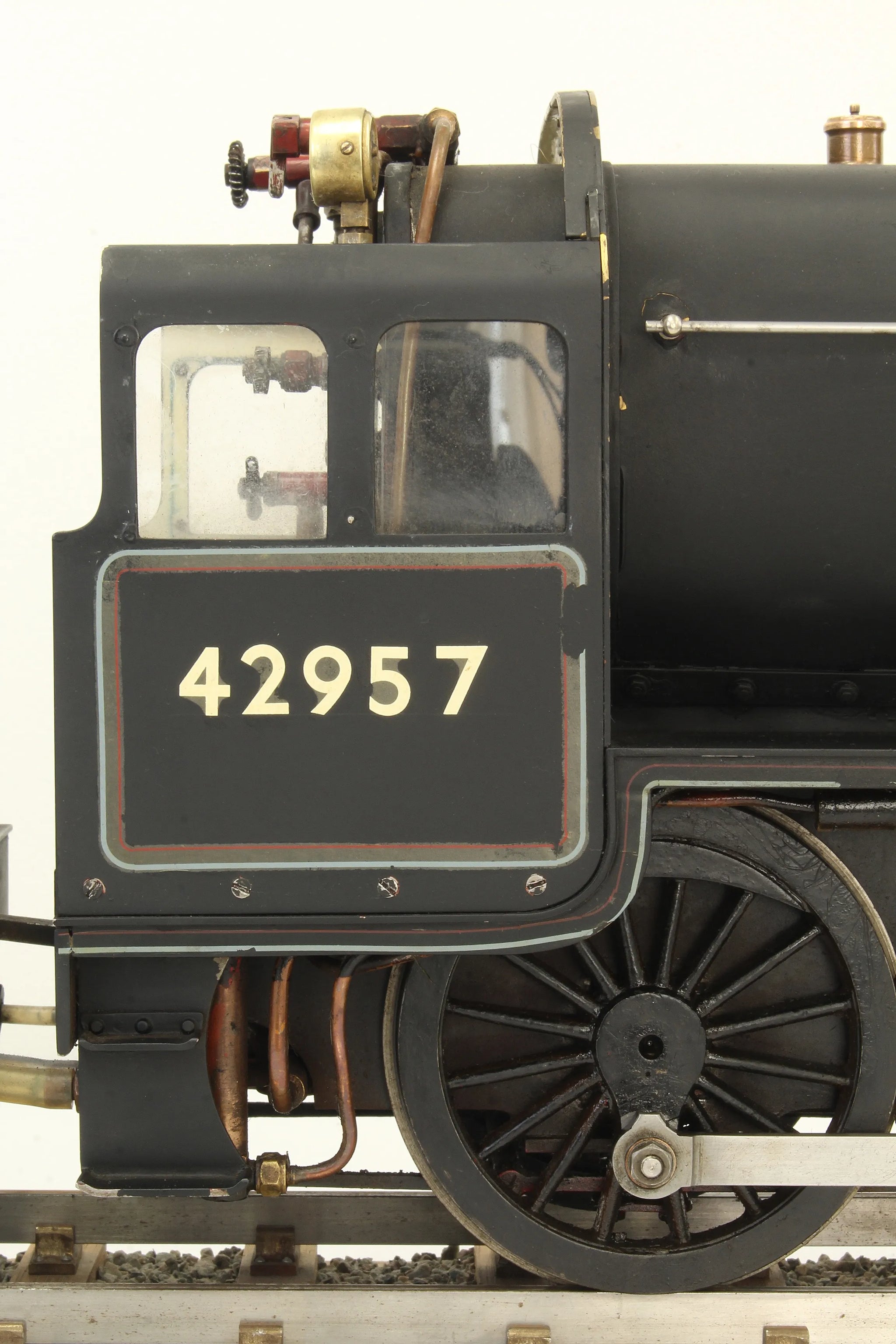

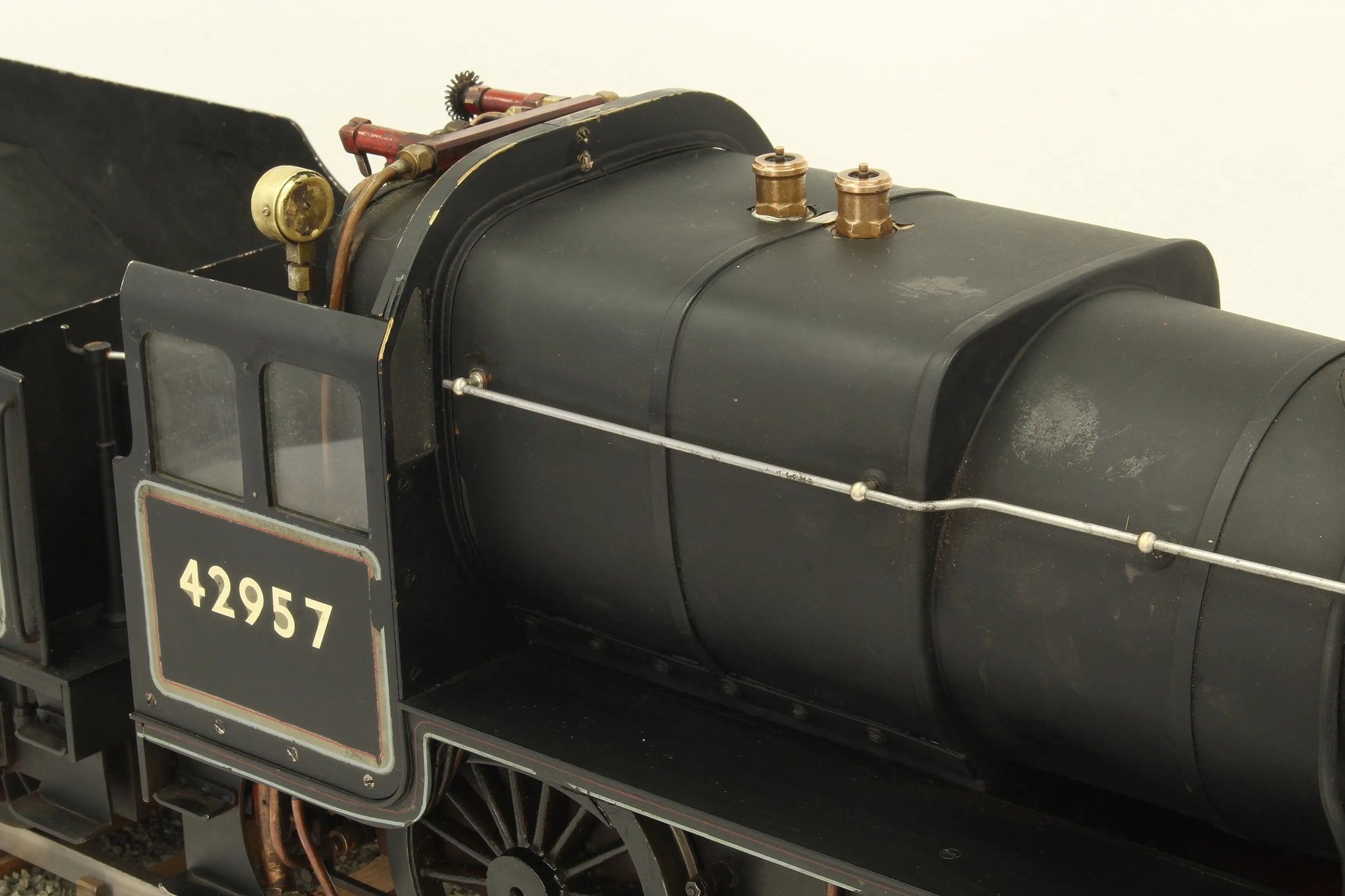

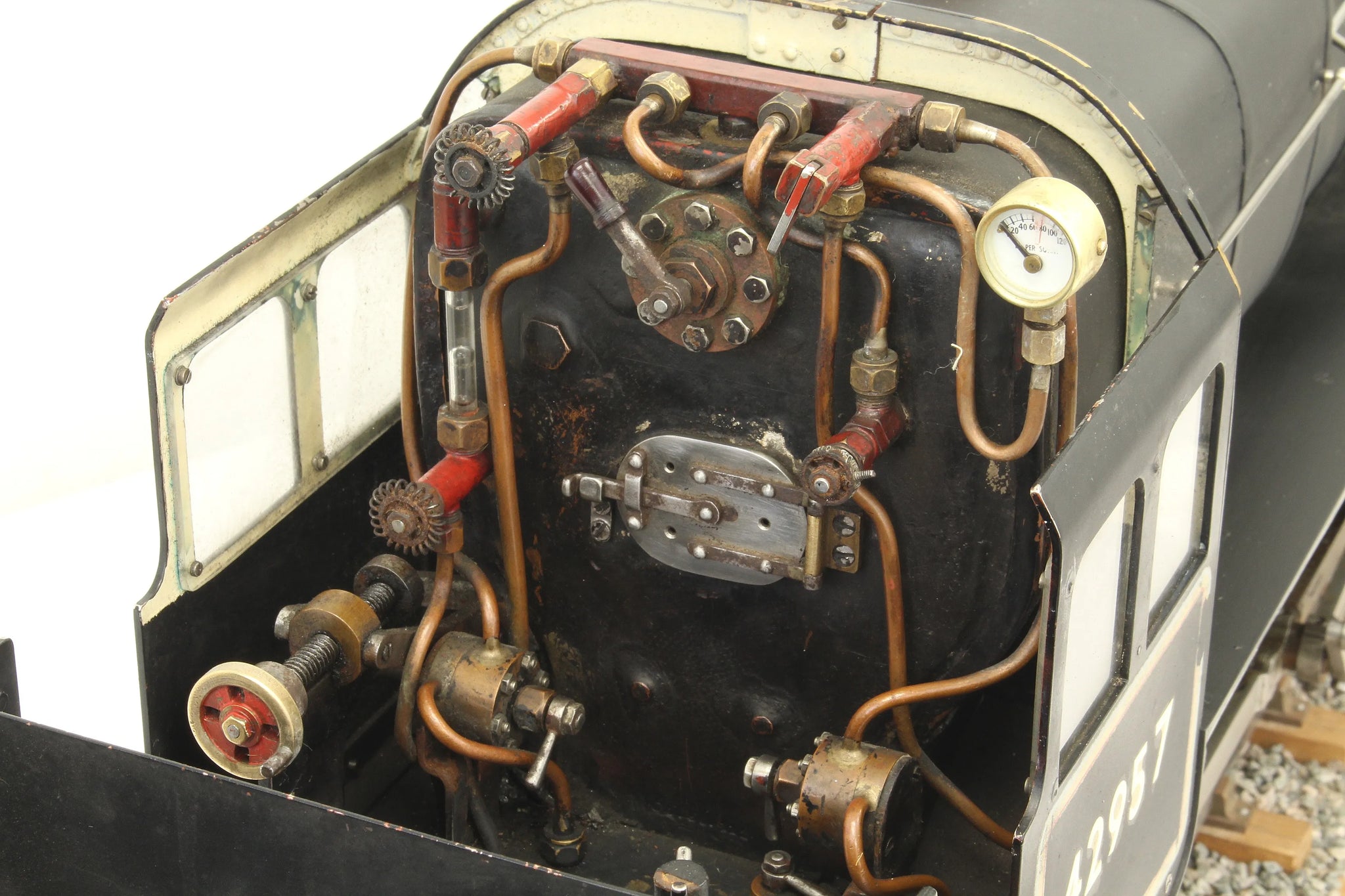

Paintwork is "working clothes" flat black, with some paint loss on the boiler cladding. From the lack of holes or any sort of fixing arrangement, it appears the cab has never had a roof, possibly to facilitate access to the backhead.

There's a short clip of the engine running on the rolling road here.

Technical information

Stock code

8400

Gauge

3 1/2 inch

Length/inches

28 + 17

Width/inches

7

Height/inches

11

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

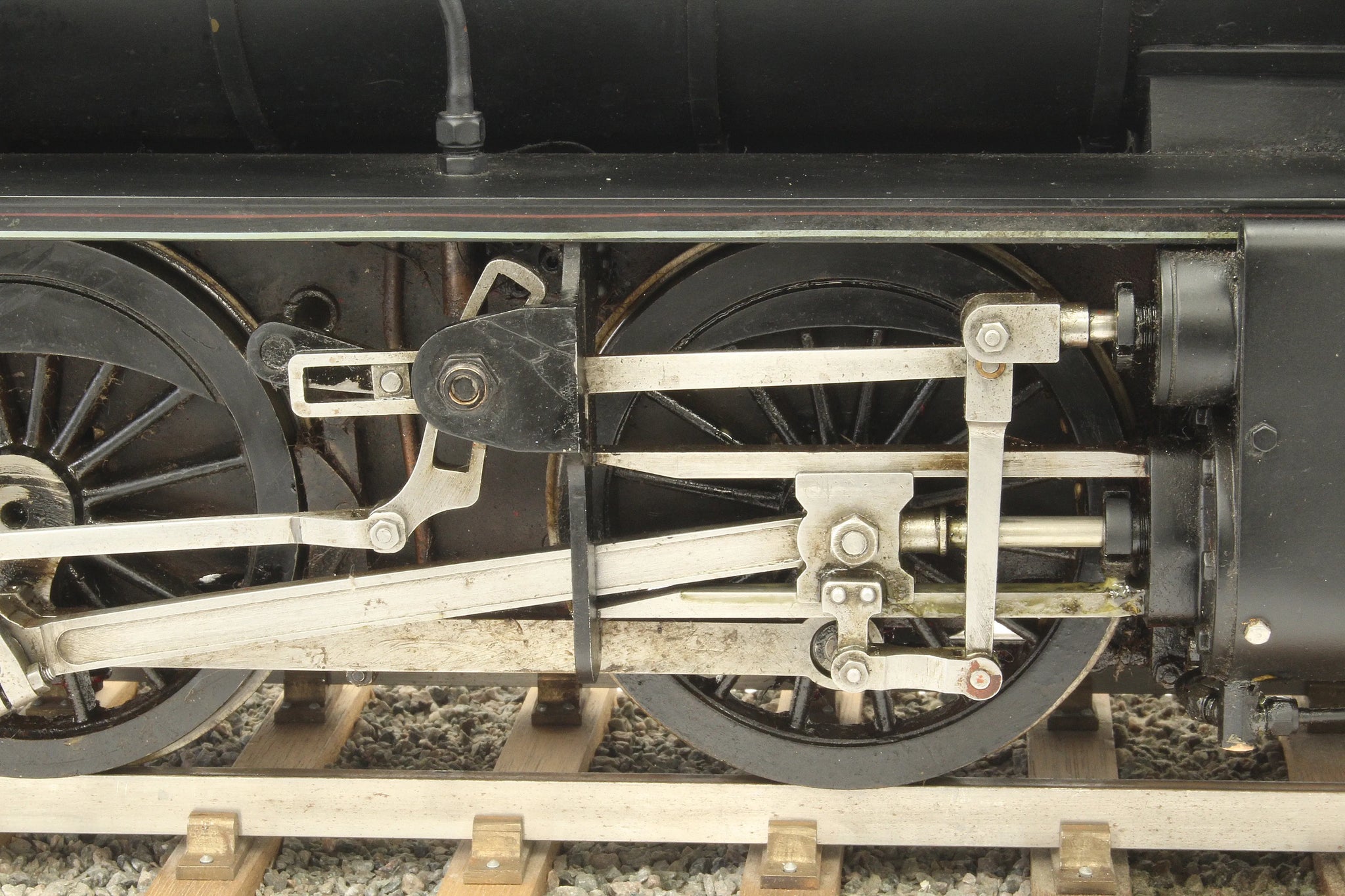

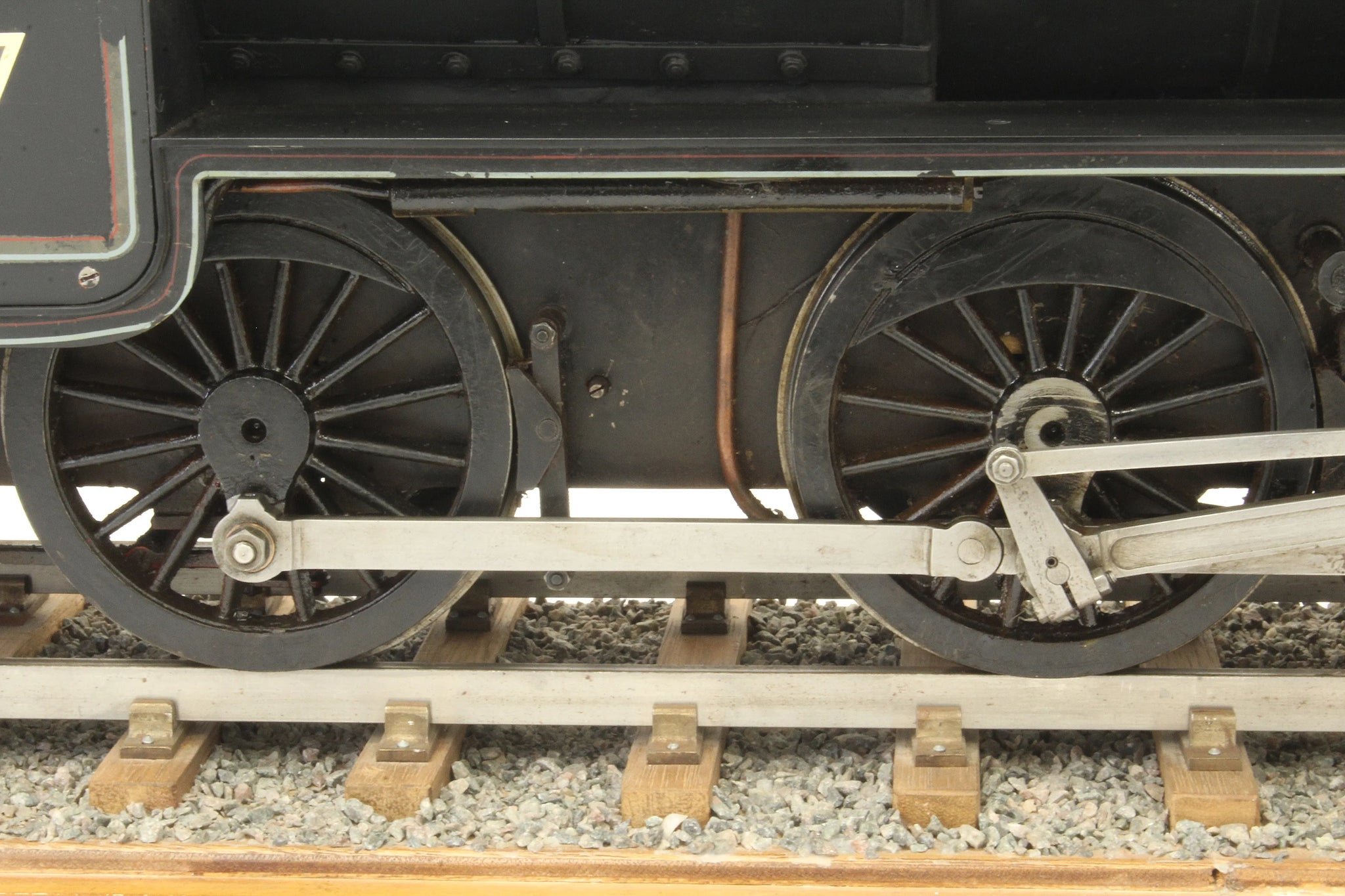

Valve gear

Walschaerts

Reverser type

screw

Lubricator type

mechanical

Boiler maker

D Clarke

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

Boiler number

N80-80-112

Safety valve type

pop

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

2 x axle

Injector

1

Superheater type

flue tube

Superheater

2

Date out

Feb-19

Hydraulic test valid to

11-Feb-23

Steam test valid to

11-Apr-20
