3 1/2 inch gauge "Netta" 0-8-0

Name: 3 1/2 inch gauge "Netta" 0-8-0
Brand: Station Road Steam
SKU: 12511
Price: 3250.0 GBP
Availability: OutOfStock

Sold

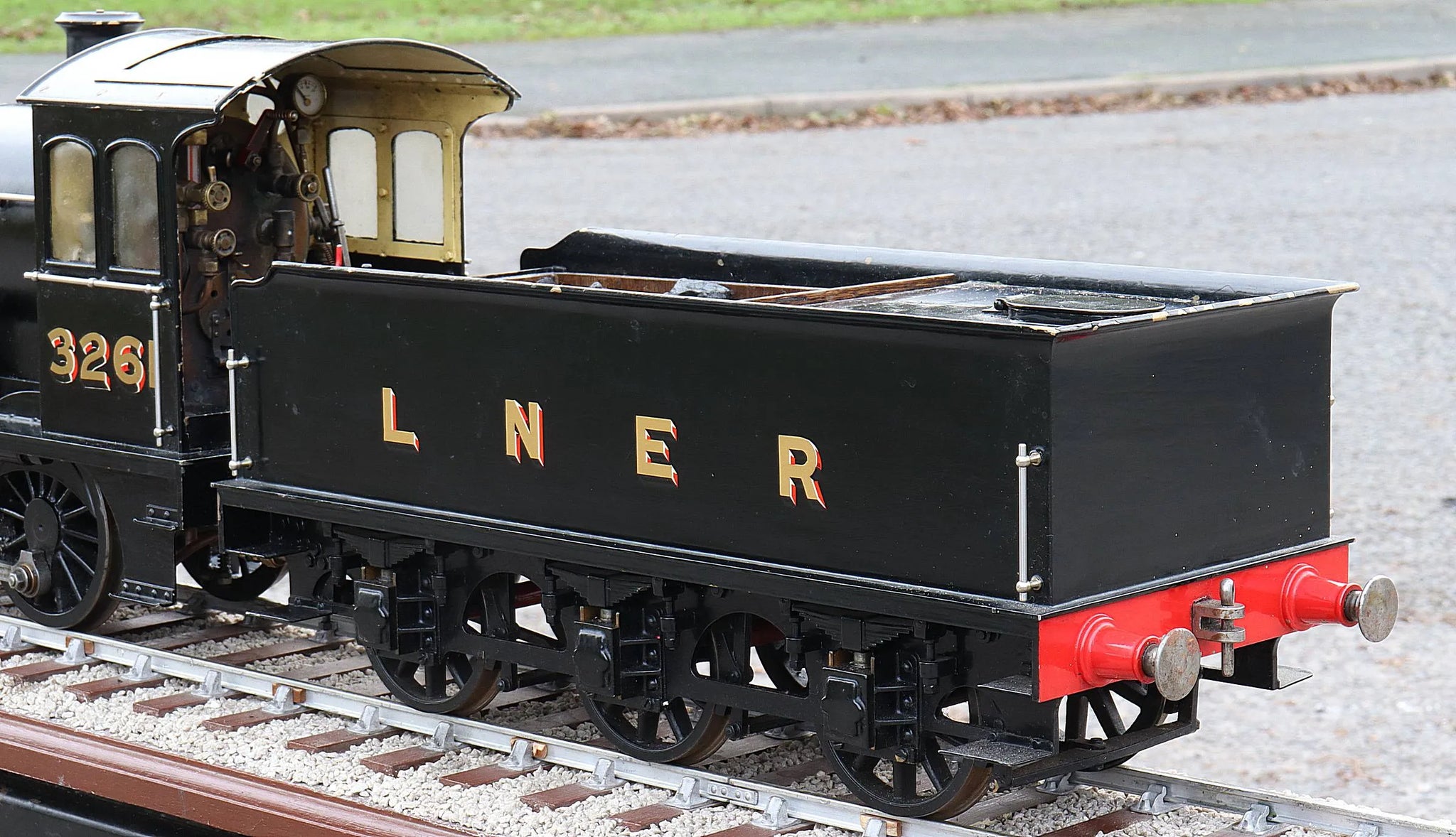

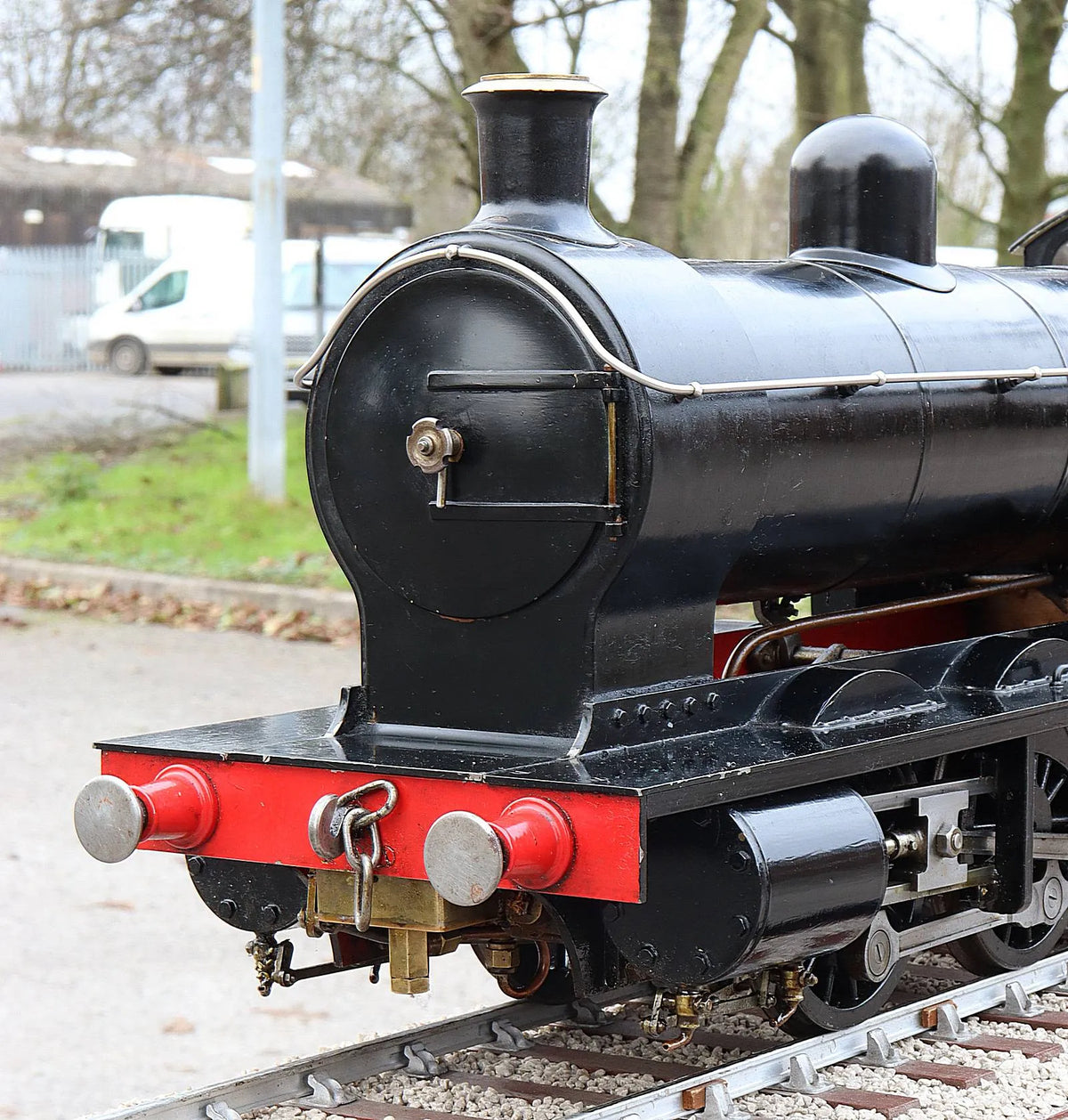

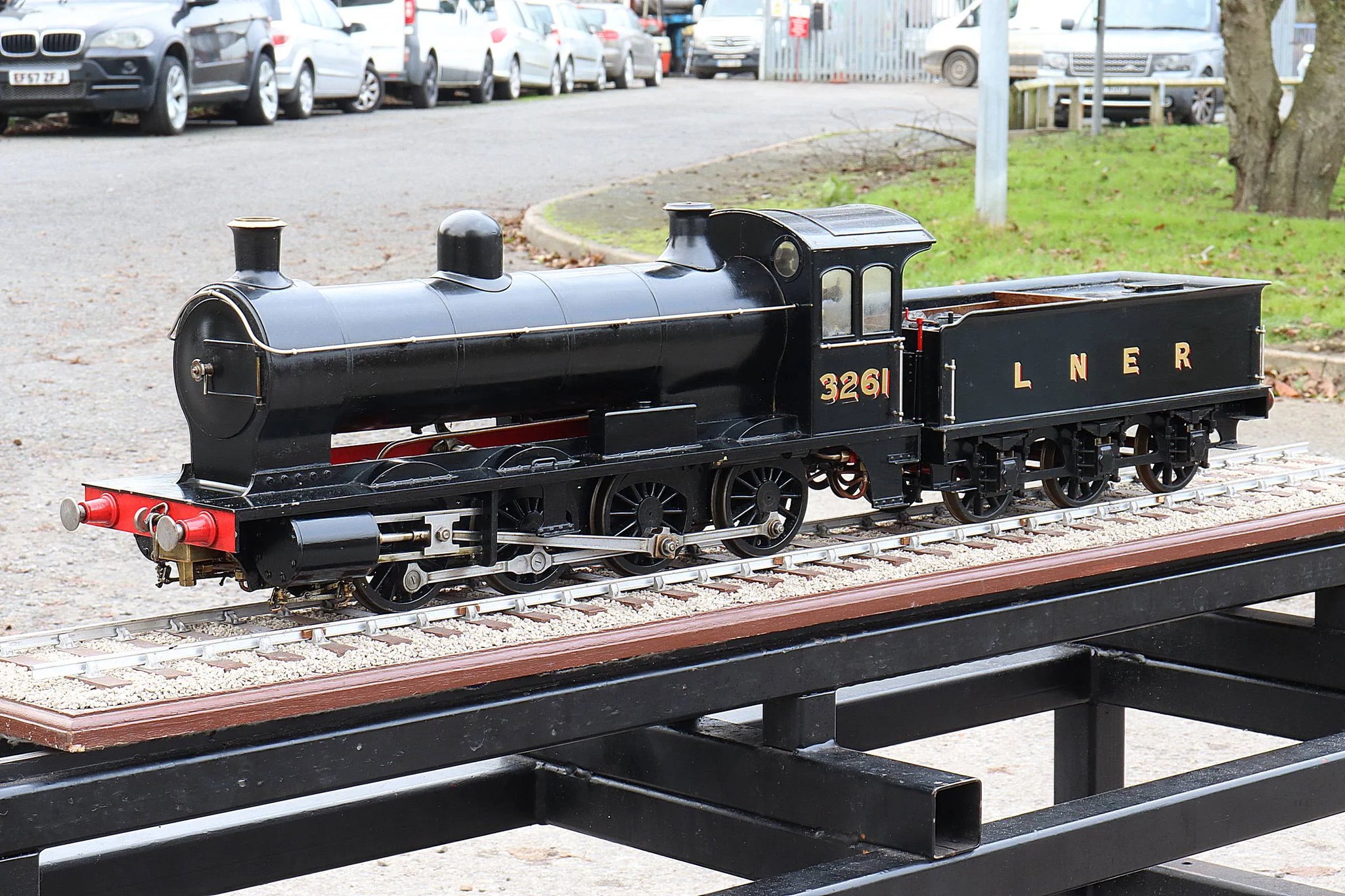

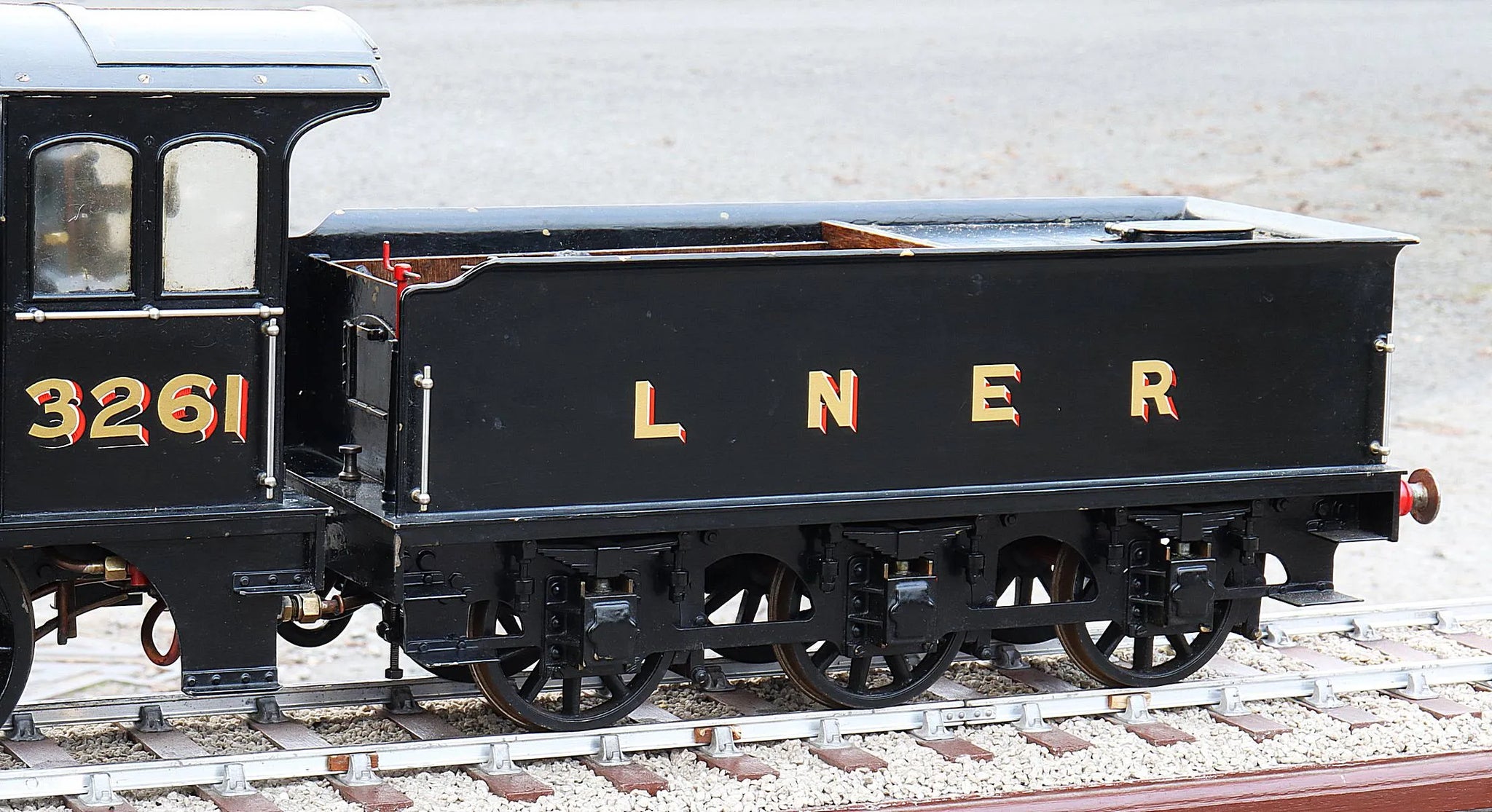

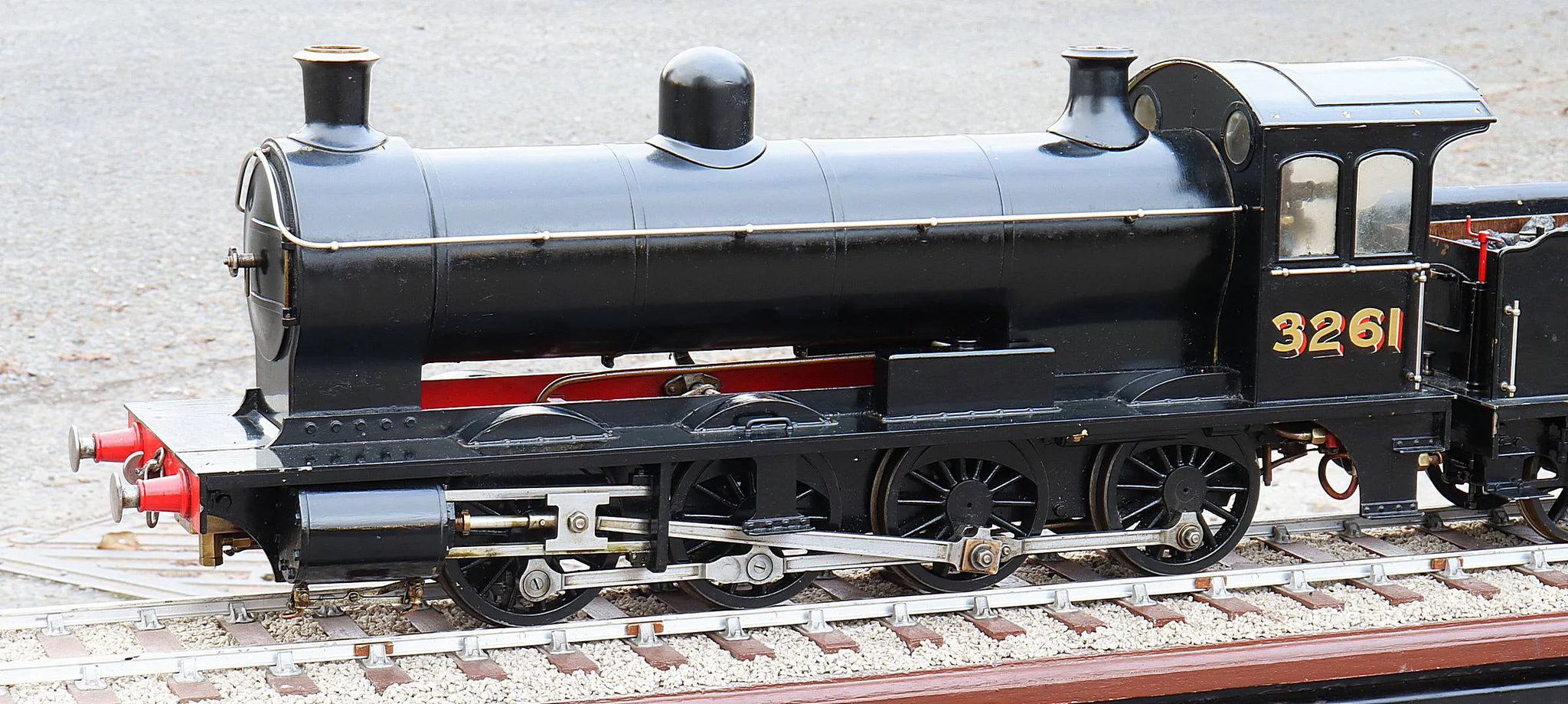

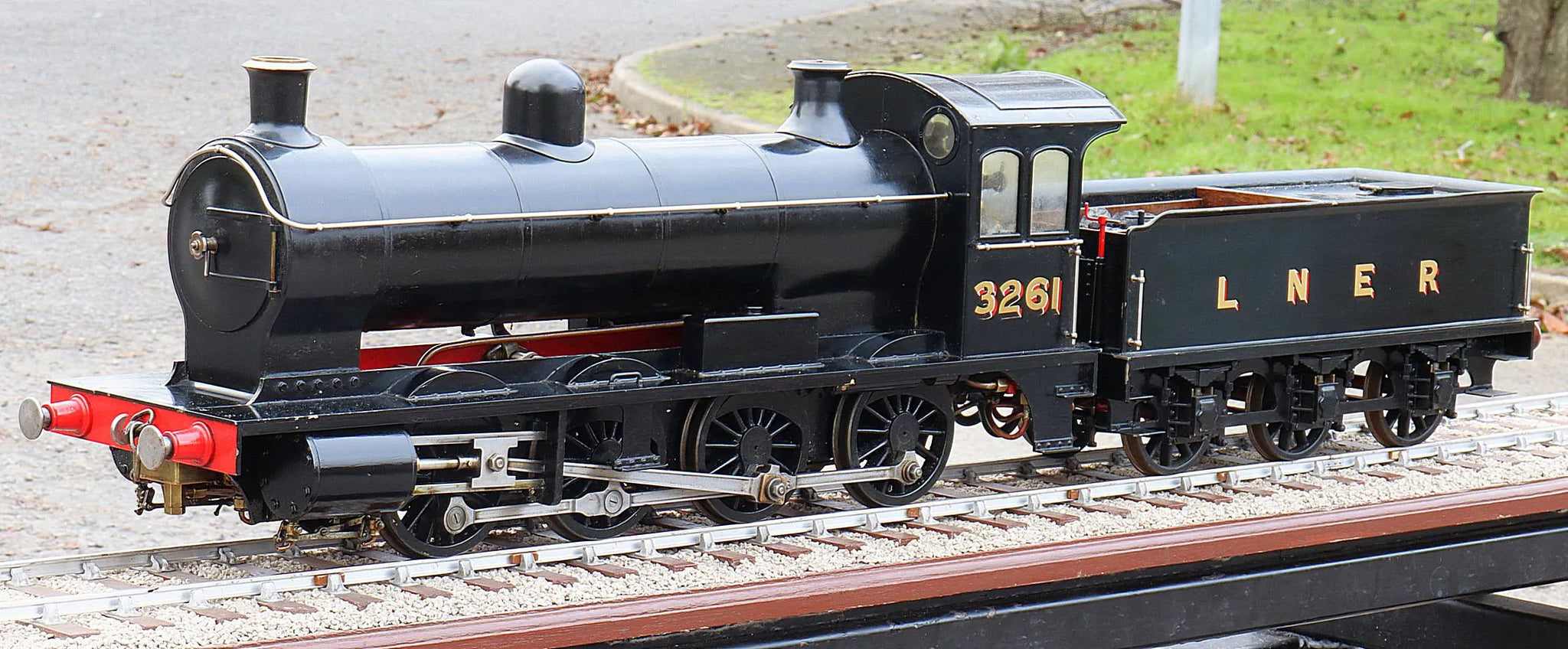

A well-made 3 1/2 inch gauge NE 0-8-0 to LBSC's pretty "Netta" design, an engine which we last sold in 2021 to a long-time customer, a highly capable model engineer and boilermaker. It's recently come back from him with several other locomotives in part exchange for a 5 inch gauge engine.

Unused in some time, the engine has had a hydraulic test with new certification issued, the chassis runs on air.

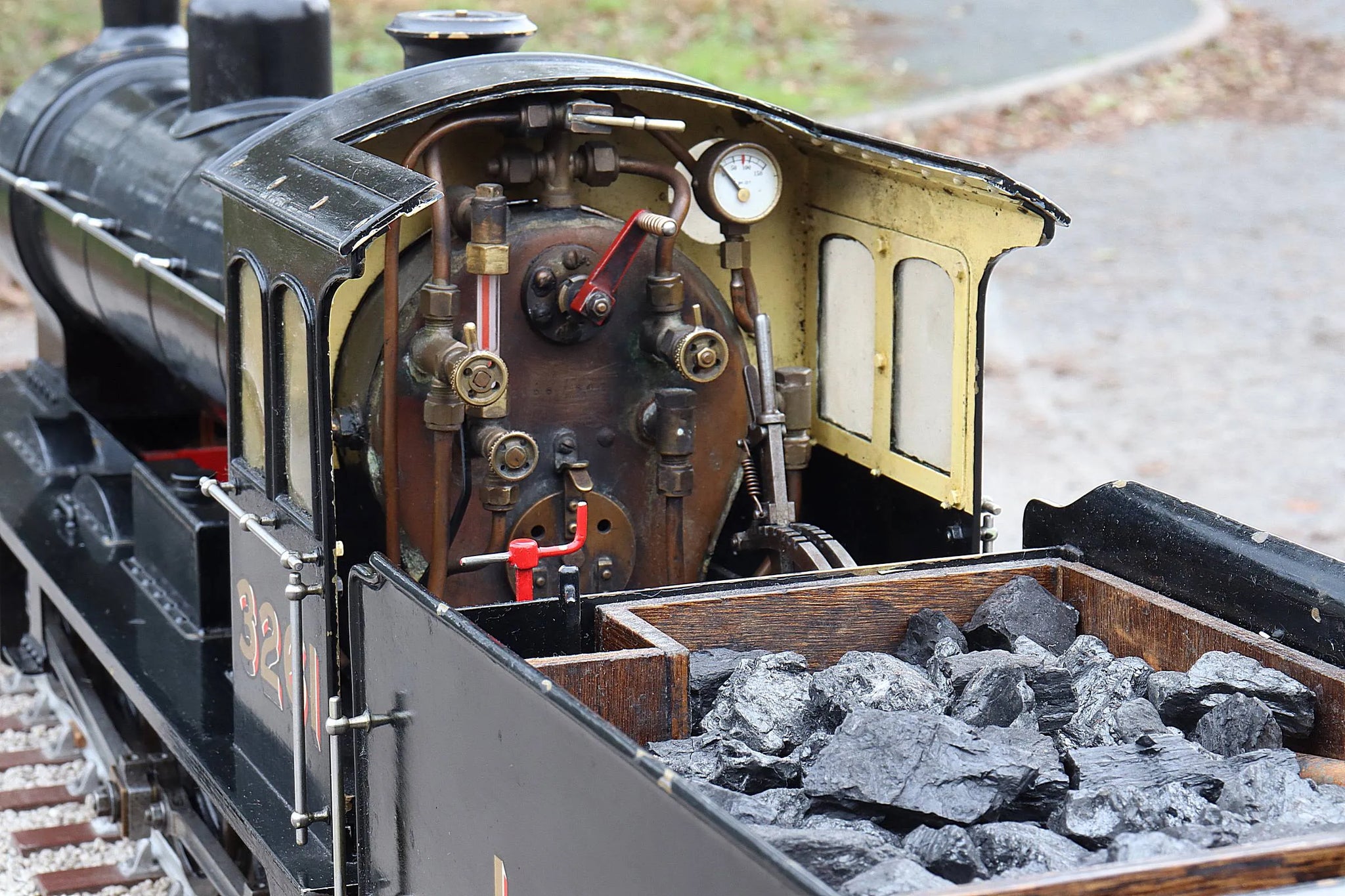

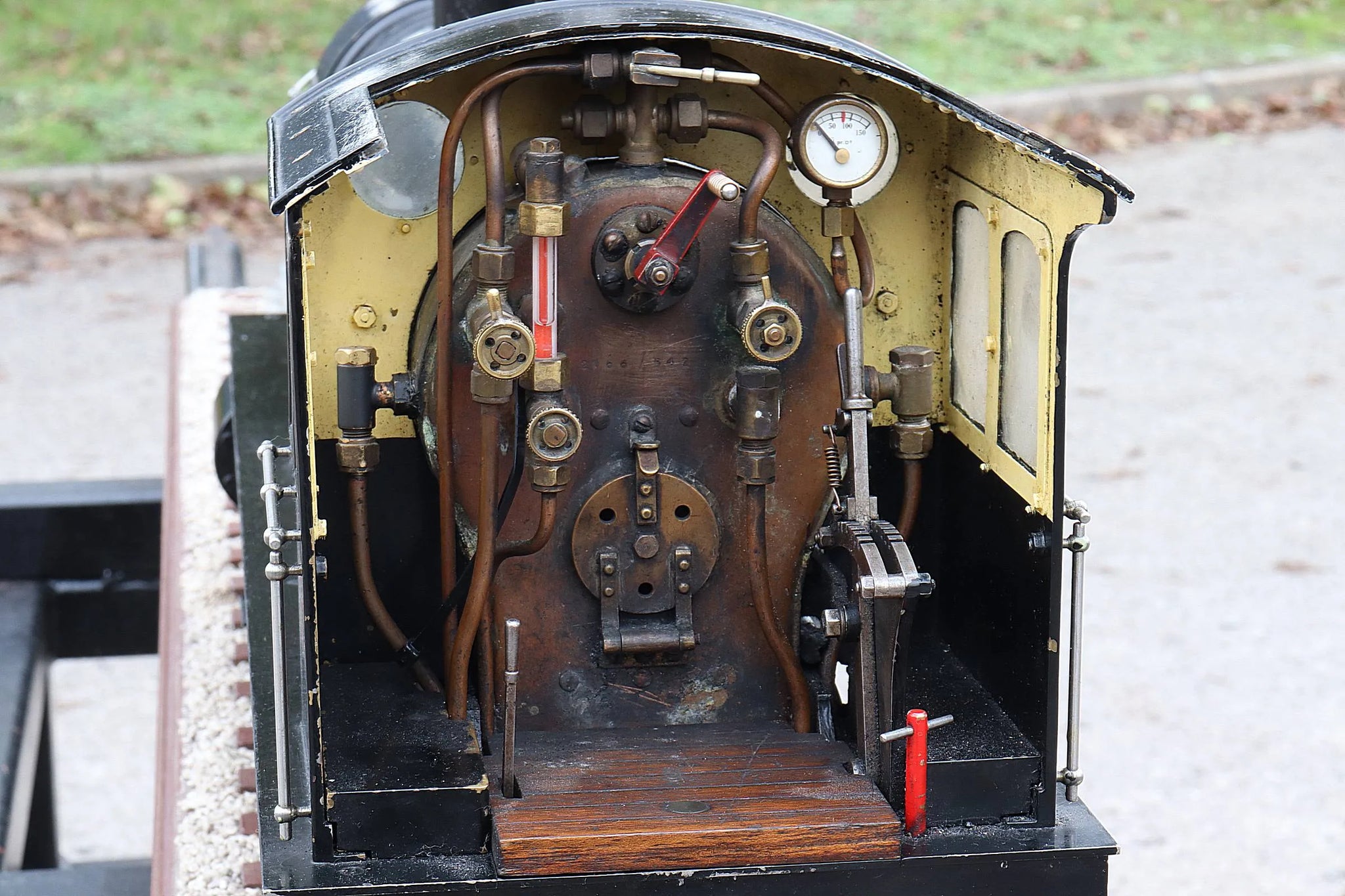

The Stroudley type regulator currently leaks copiously, usually they require nothing more than lapping in to seal the port faces.

Type: Second hand

Tags: Locomotives

Technical information

Stock code	12511
Gauge	3 1/2 inch
Length/inches	26+18
Width/inches	7
Height/inches	10
Weight/Kg	30
Wheel material	cast iron
Axlebox type	plain bearing
Cylinder material	gunmetal
Valve type	slide

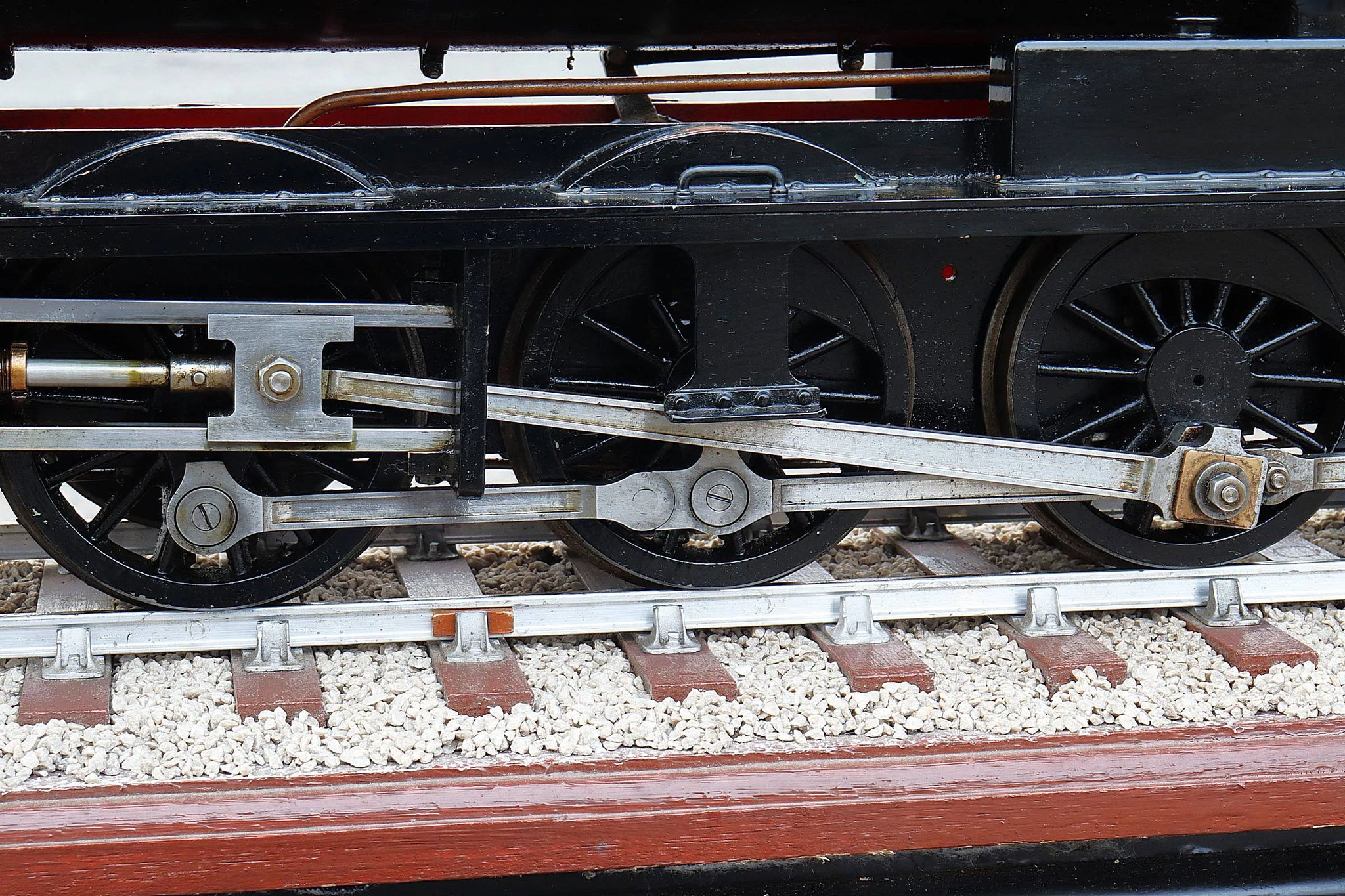

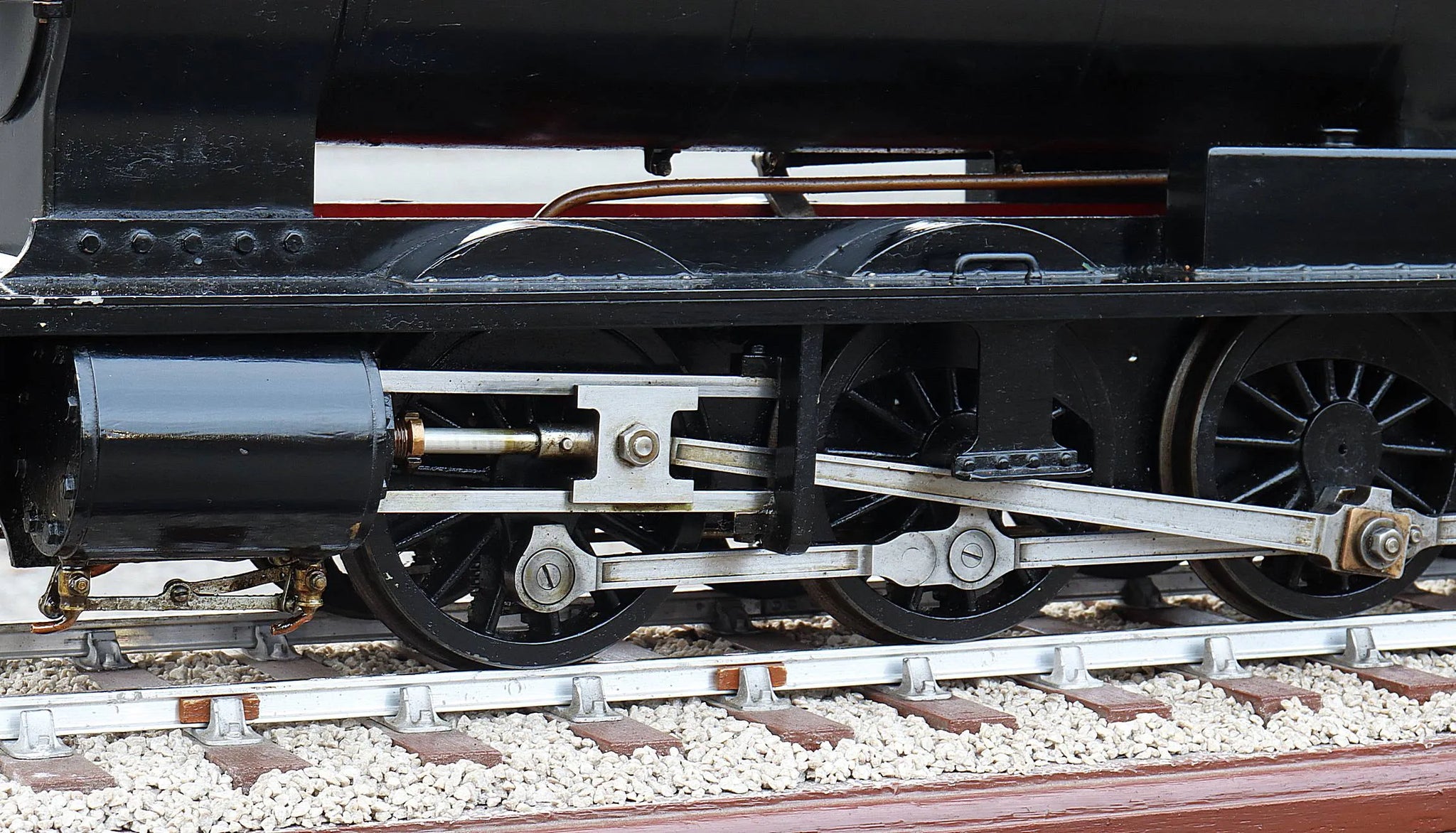

Valve gear	Stephensons
Reverser type	pole
Boiler type	locomotive
Boiler construction	silver soldered with nutted and chalked firebox
Boiler material	copper
Working pressure	80
CE/UKCA mark	n/a non-commercial
Boiler number	2166 / 542
Safety valve type	spring
Safety valve	1
Hand pump	1
Mechanical pump	1
Injector	1
Superheater type	flue
Superheater	3
Hydraulic test valid to	26-Nov-2028
