3 1/2 inch gauge Nigerian Railways "River" Class 2-8-2

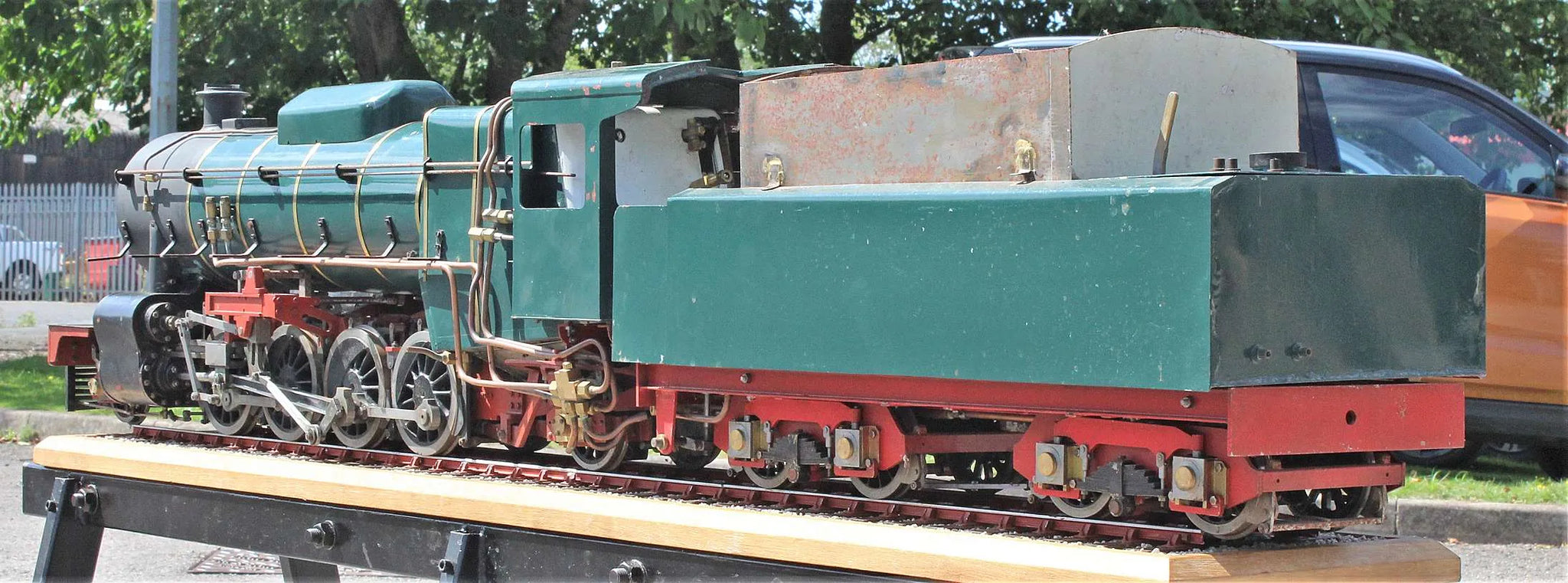

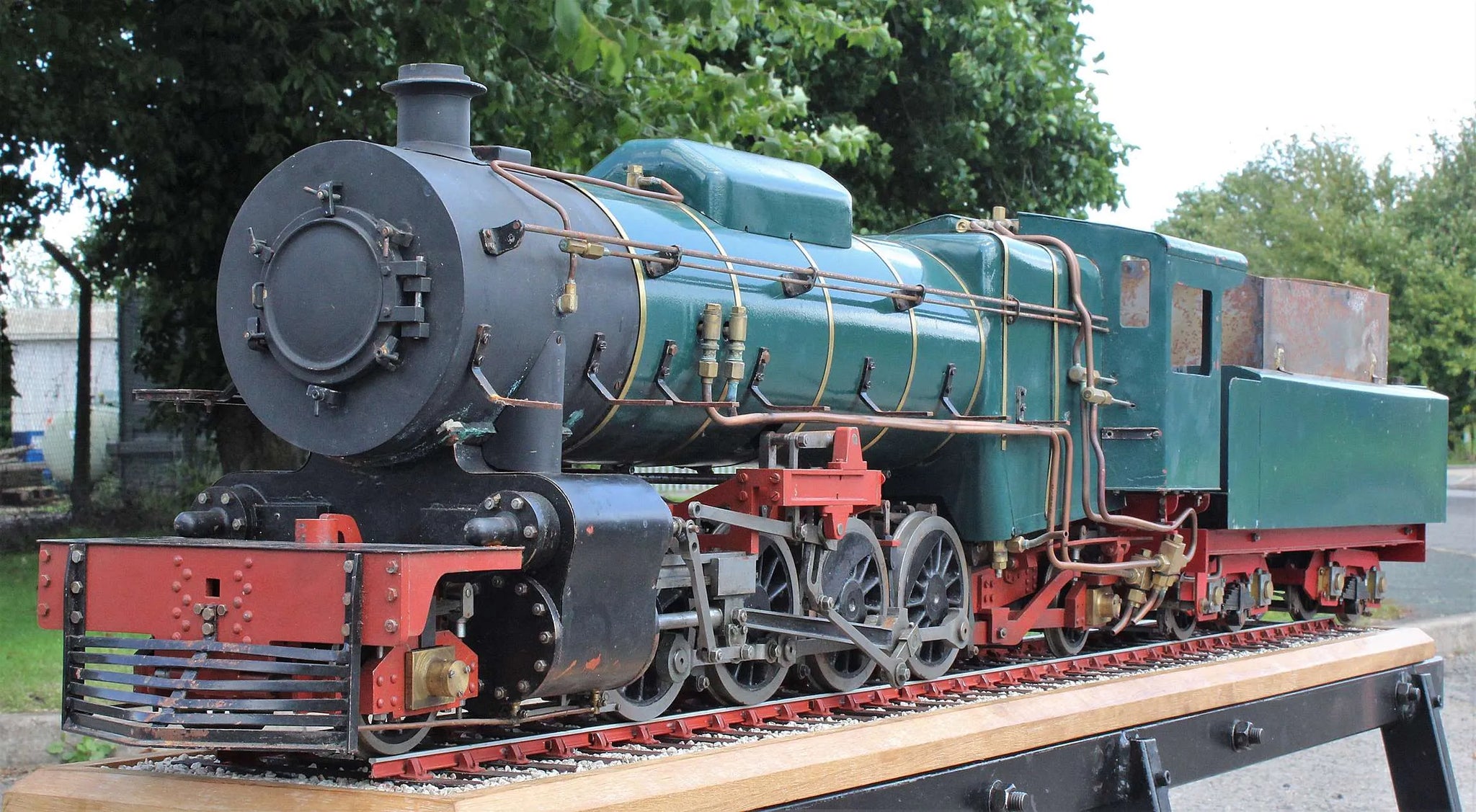

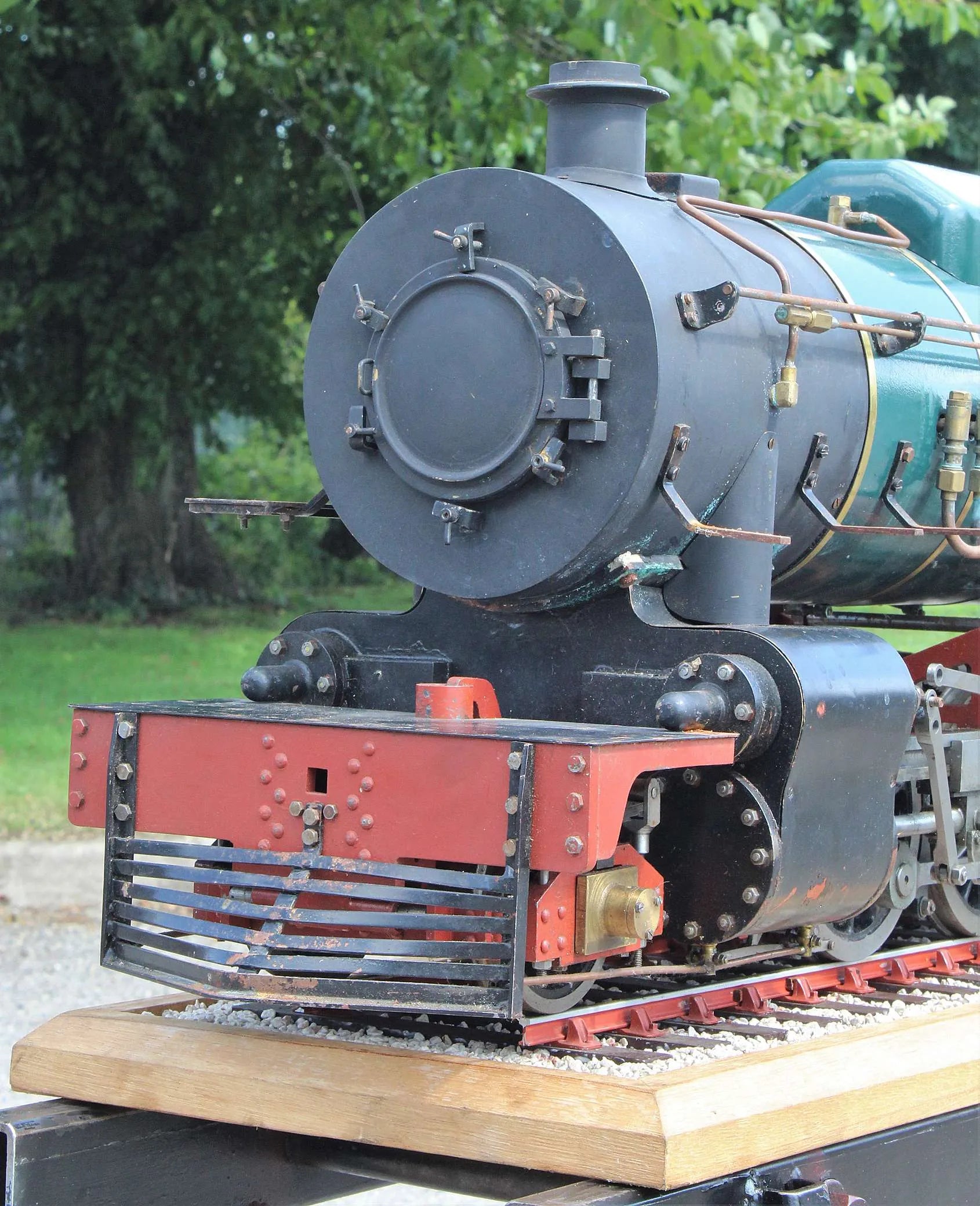

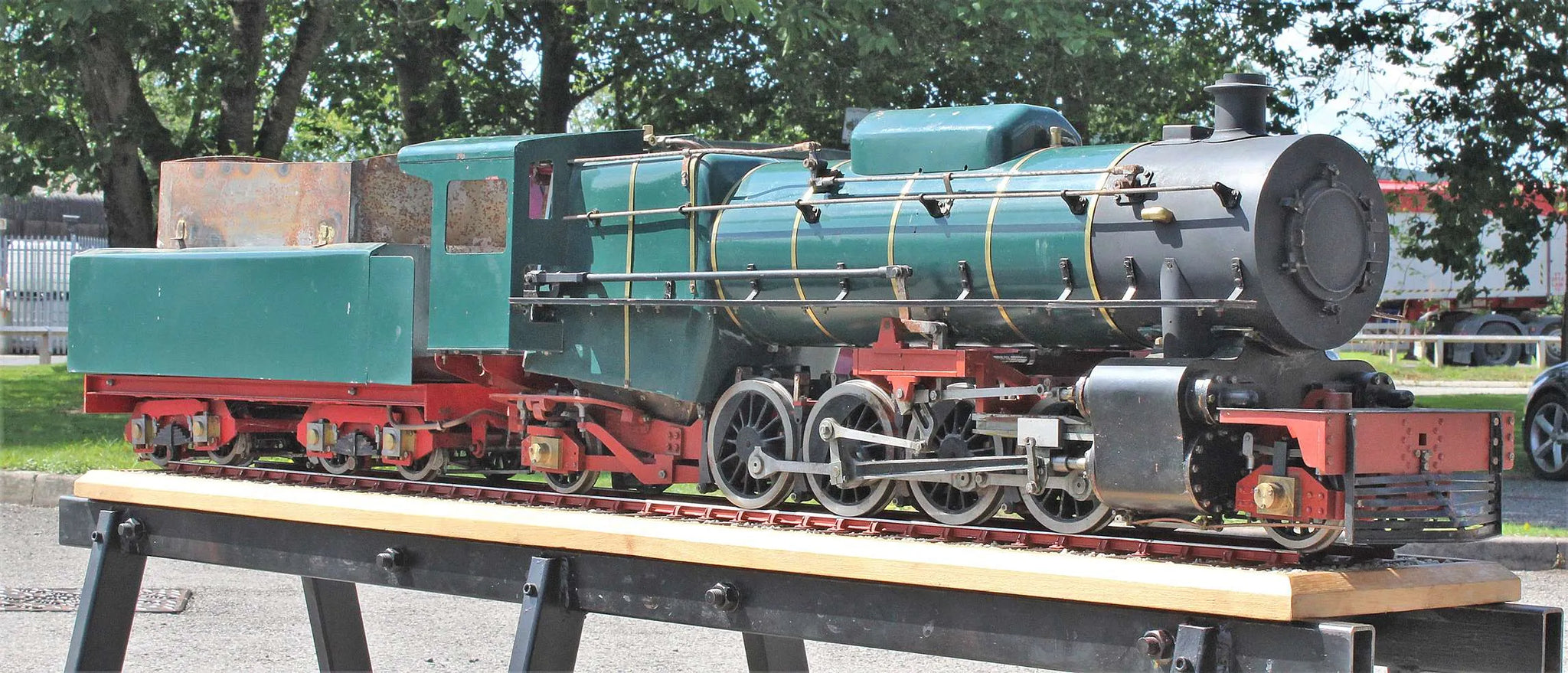

A 3 1/2 inch gauge Nigerian Railways "River" class 2-8-2. Built at a scale of 1 inch to the foot - the prototype was 3' 6" gauge - it's a large engine, nearly six feet long with tender.

A rarely modelled prototype, the original locomotives were built by the Vulcan Foundry from 1947.

The engine has come to us from the family of the late builder, largely complete although requiring boiler fittings.

On hydraulic test there are several stays leaking in the firebox and various drips from under the cladding - the boiler needs removing from the frames and testing with cladding removed to get a clear idea of what work is required.

Technical information

Stock code

9820

Gauge

3 1/2 inch

Length/inches

42 + 23 1/2

Width/inches

9.5

Height/inches

12

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

piston

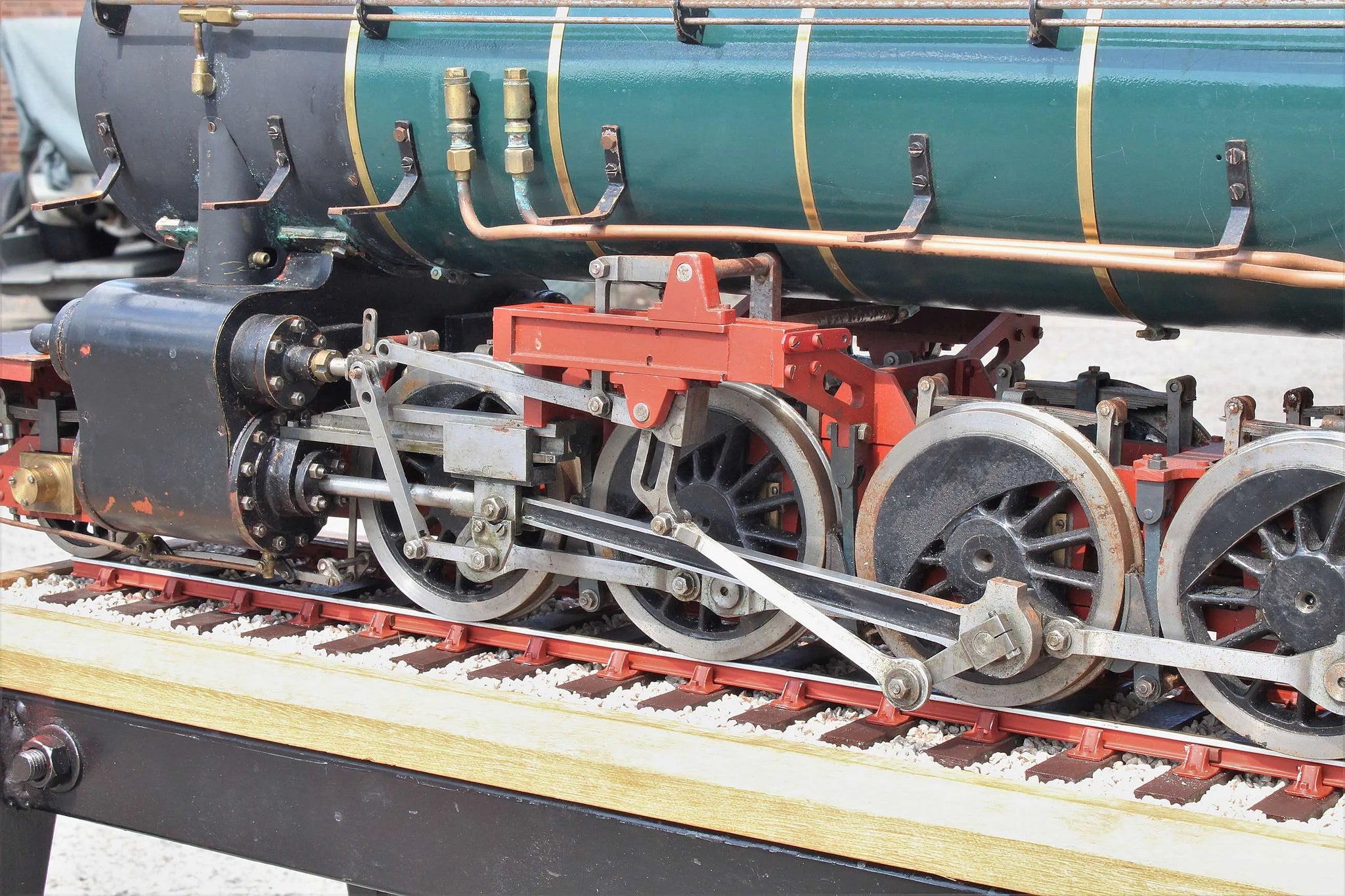

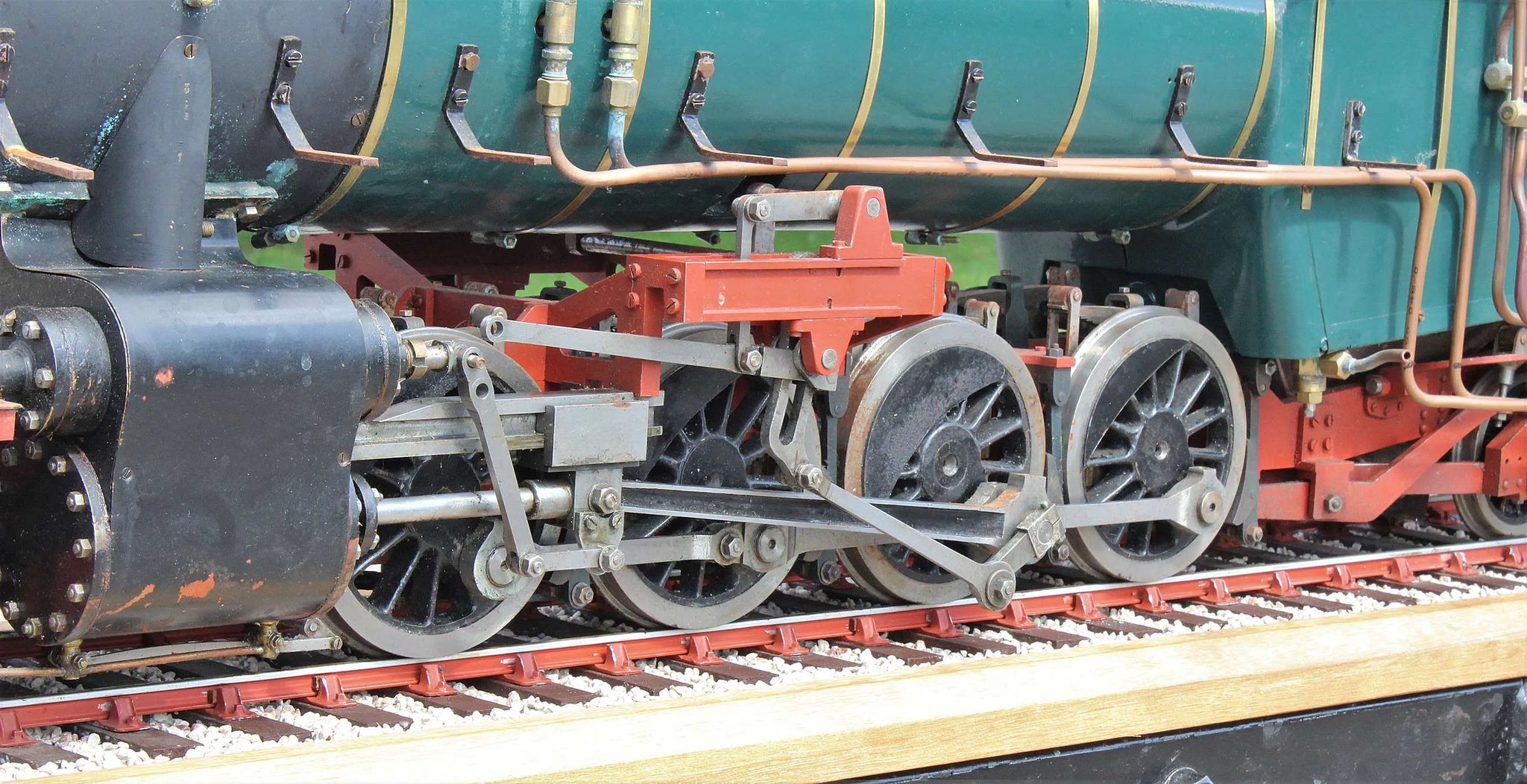

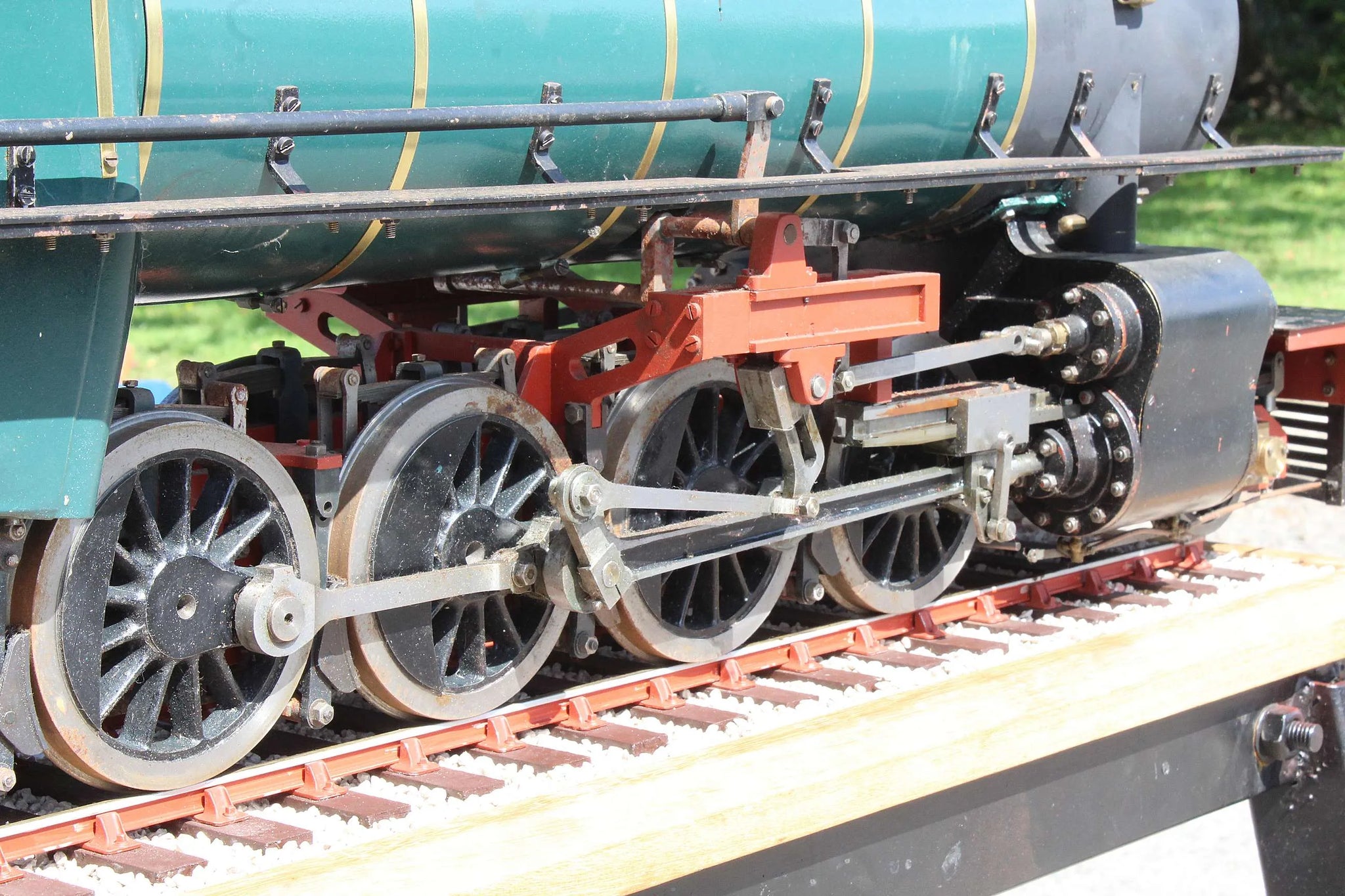

Valve gear

Walschaerts

Reverser type

screw

Boiler maker

non-commercial

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

CE/UKCA mark

n/a - non-commercial

Hand pump

1

Injector

2

Superheater type

flue tube

Superheater

2

Date out

Sep-21
