Sold

10465

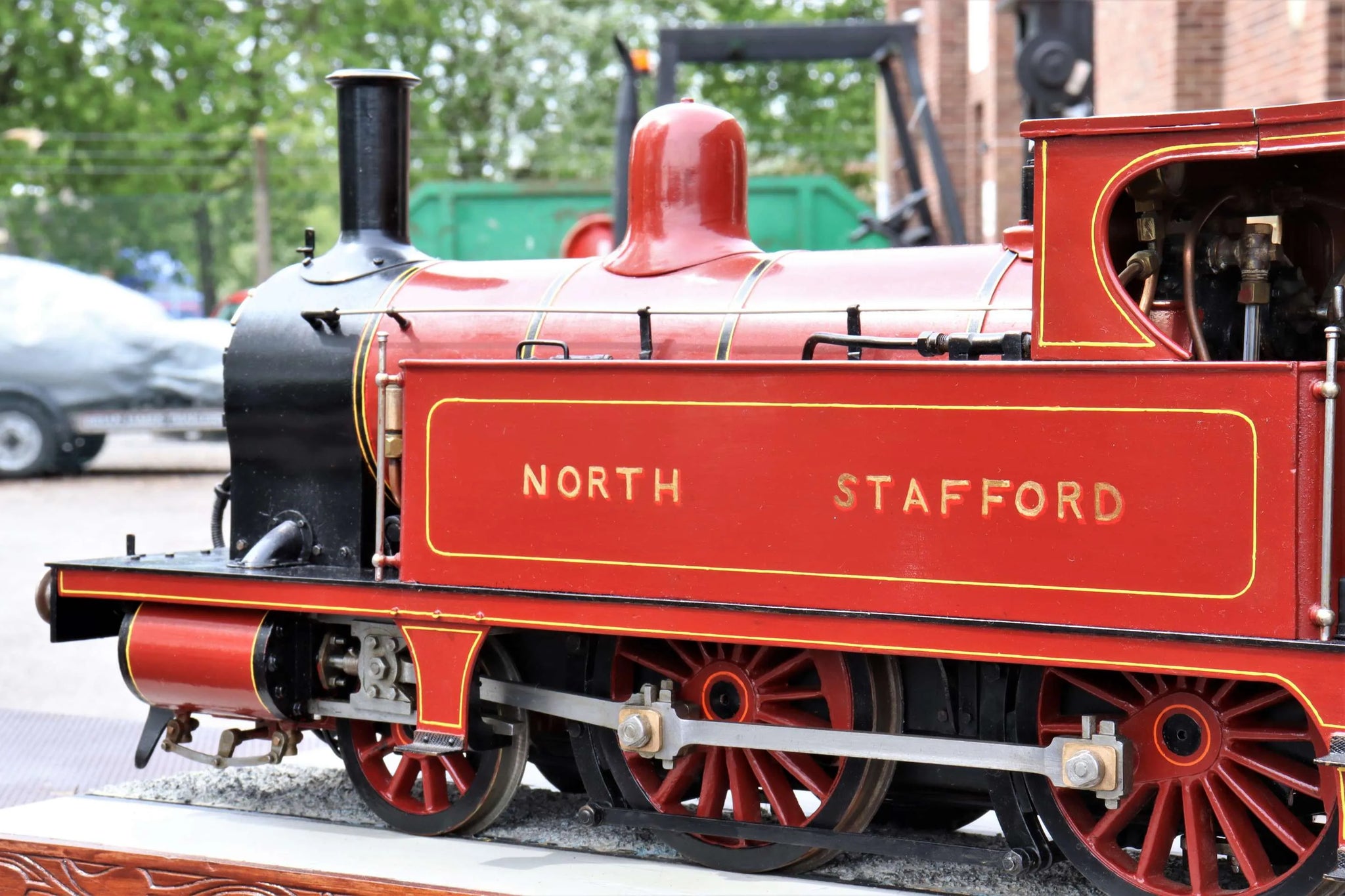

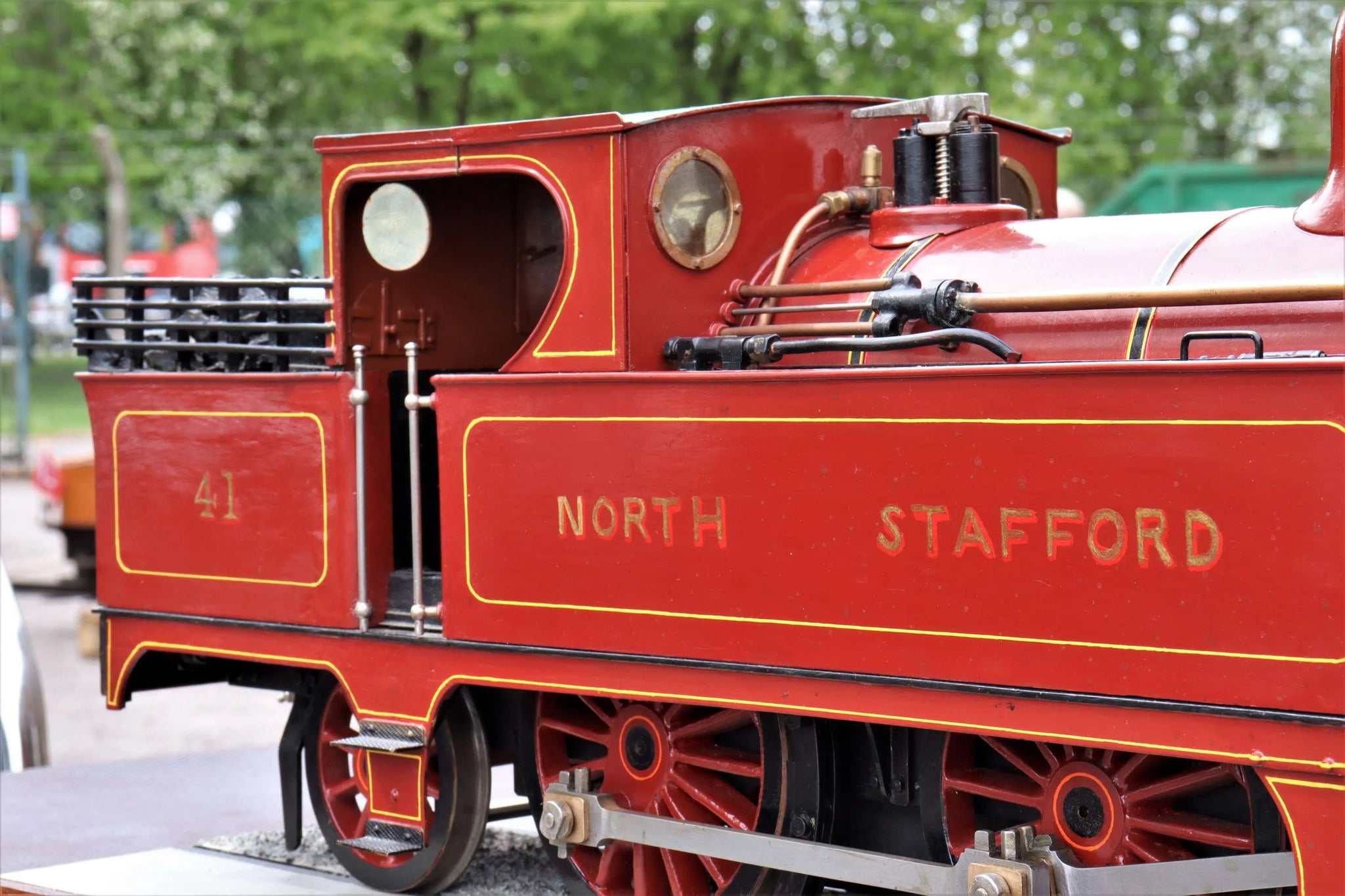

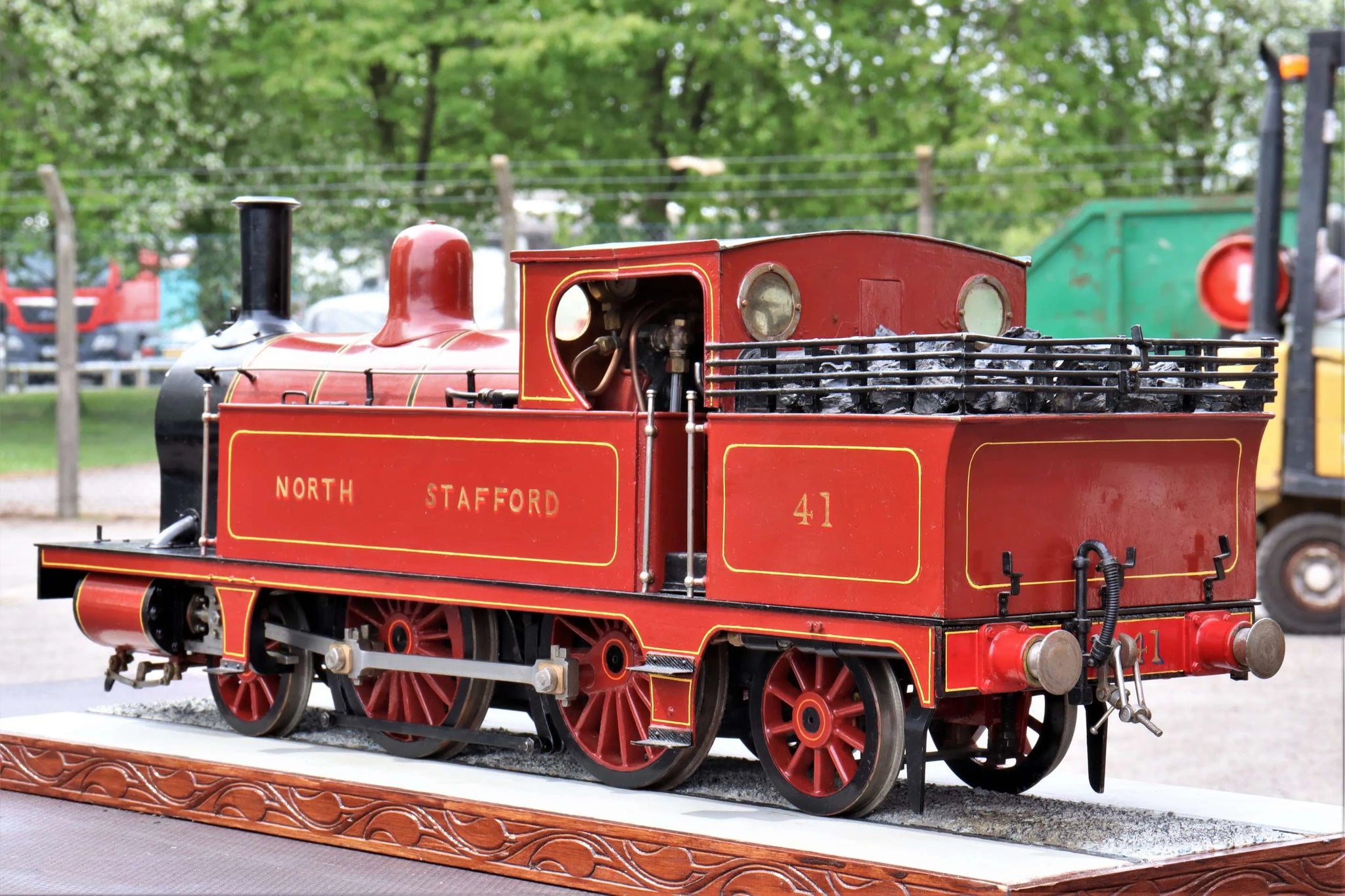

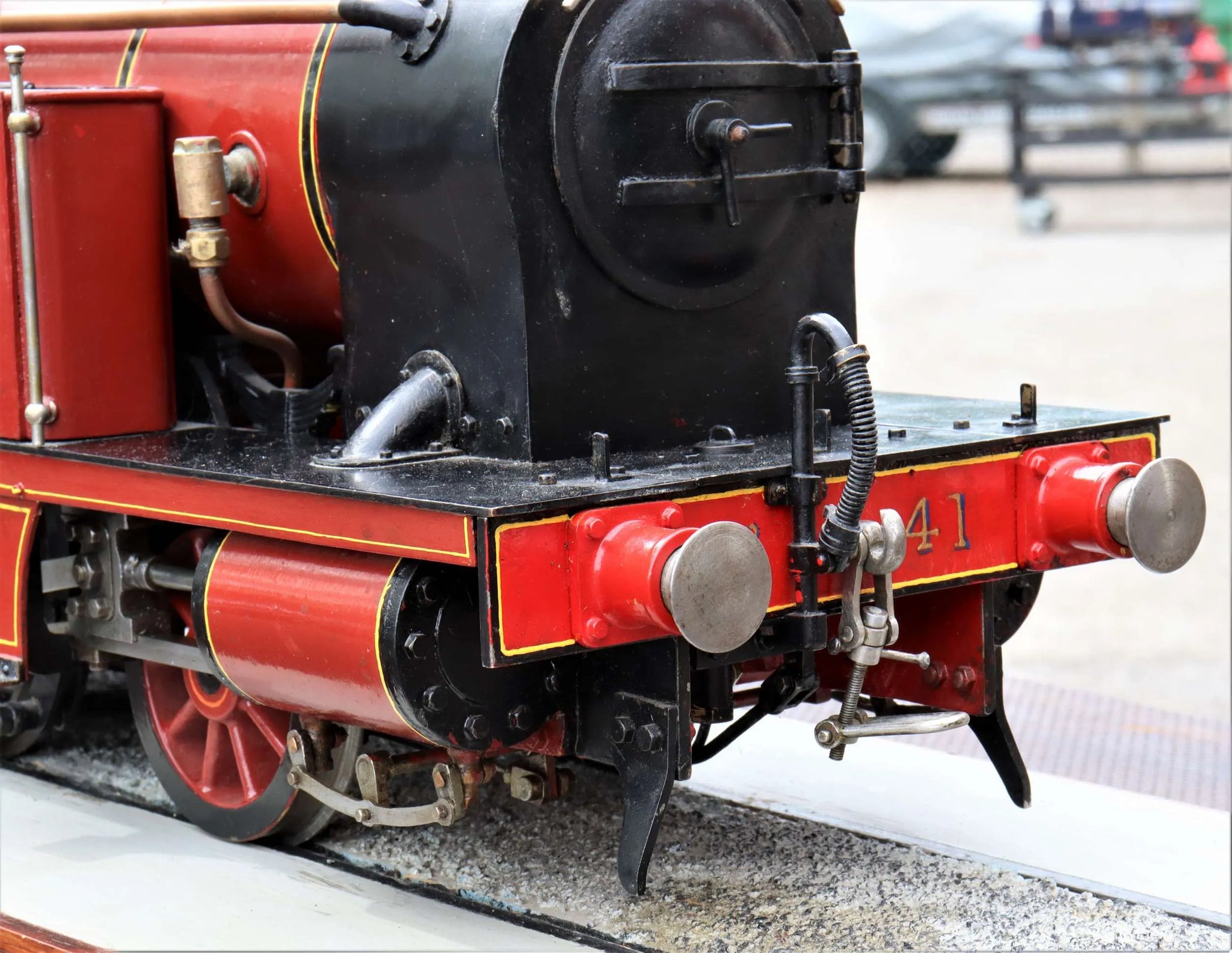

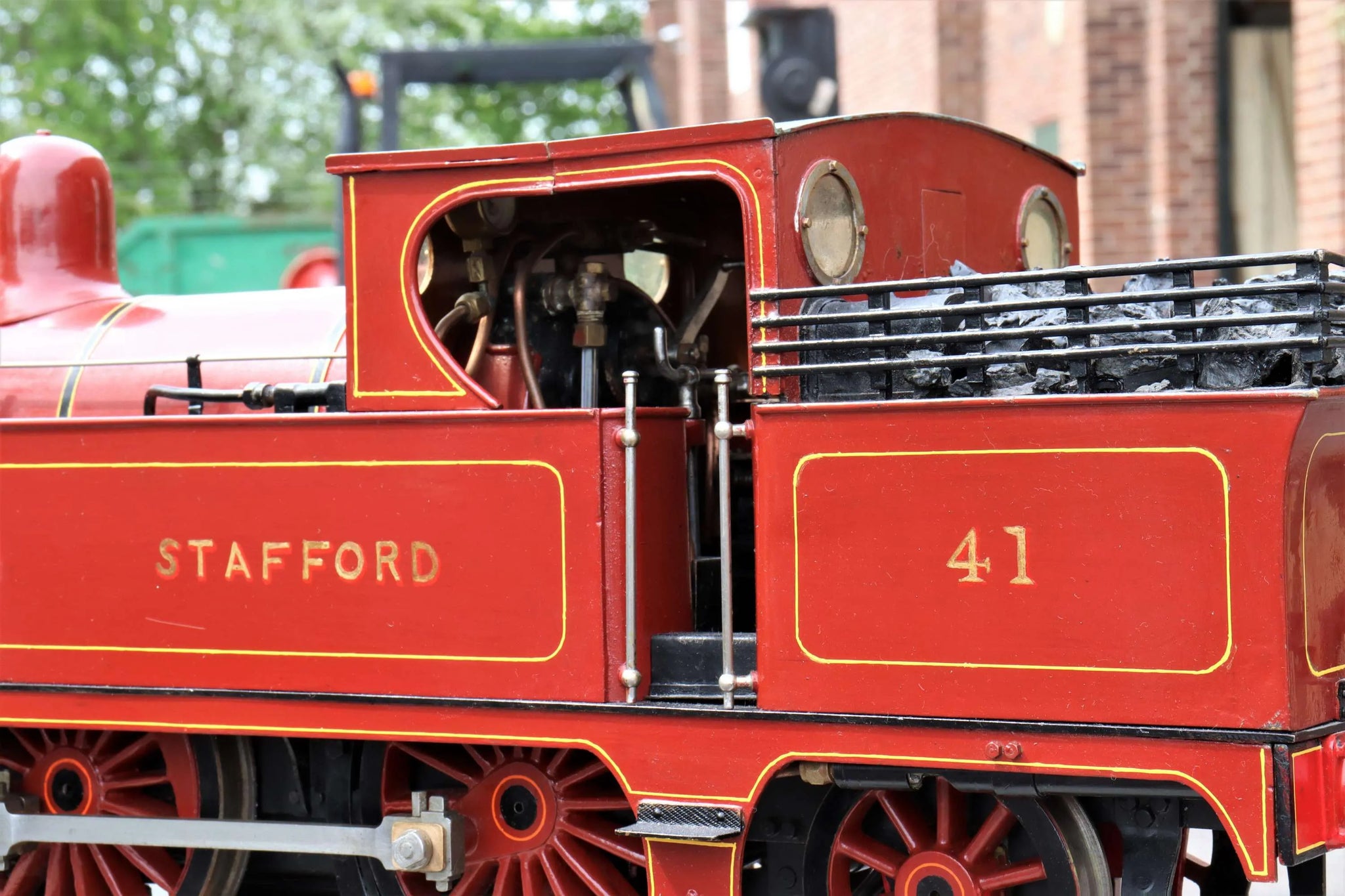

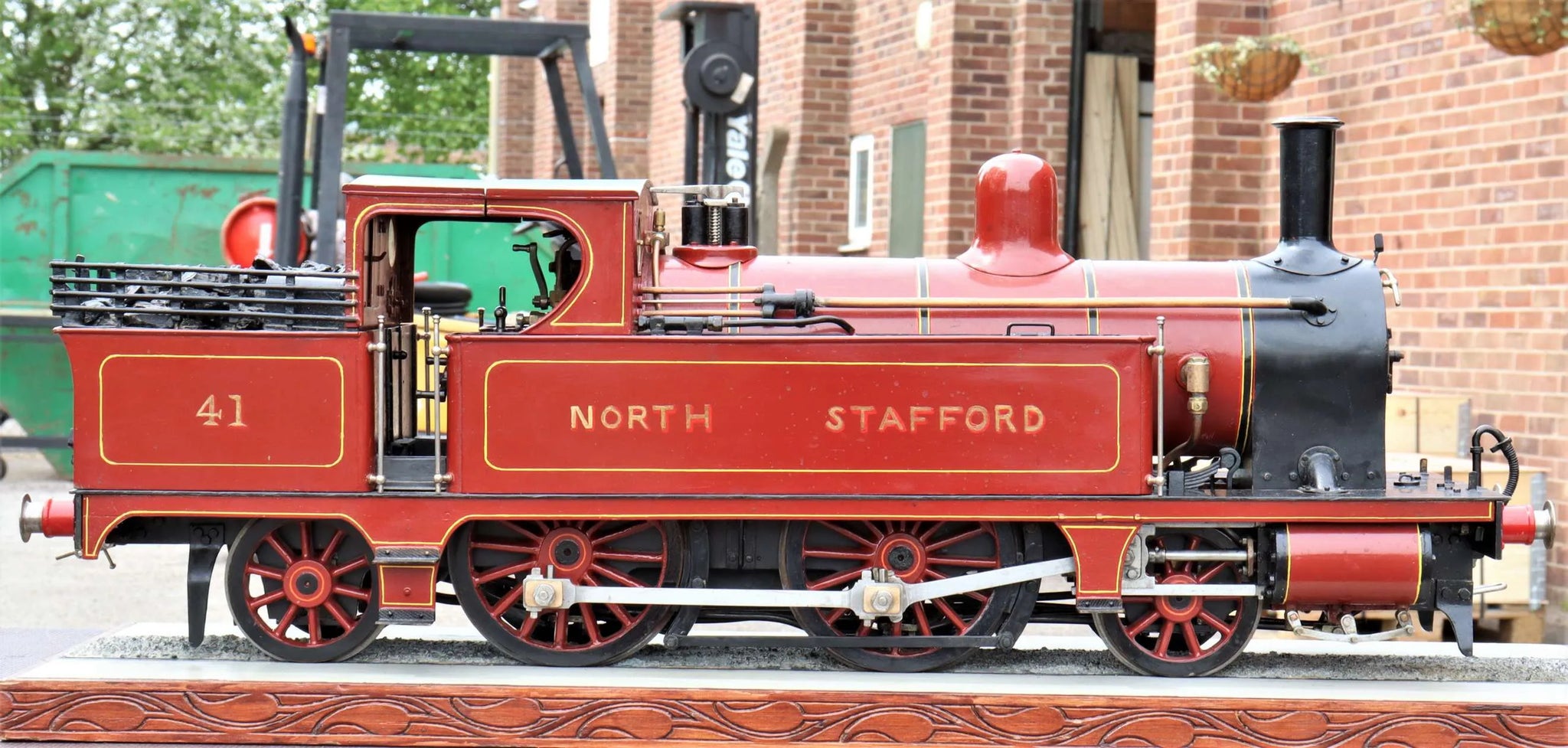

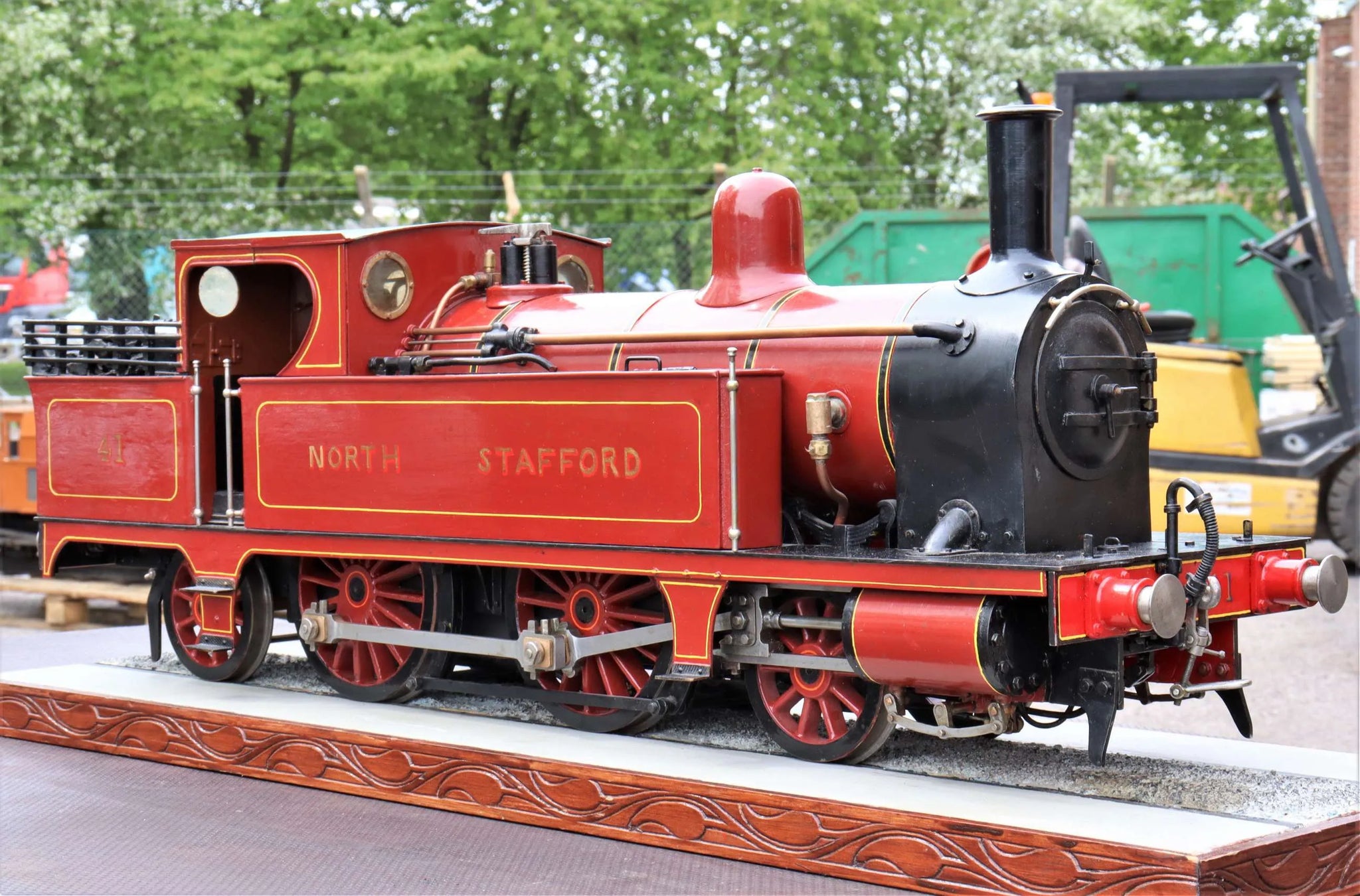

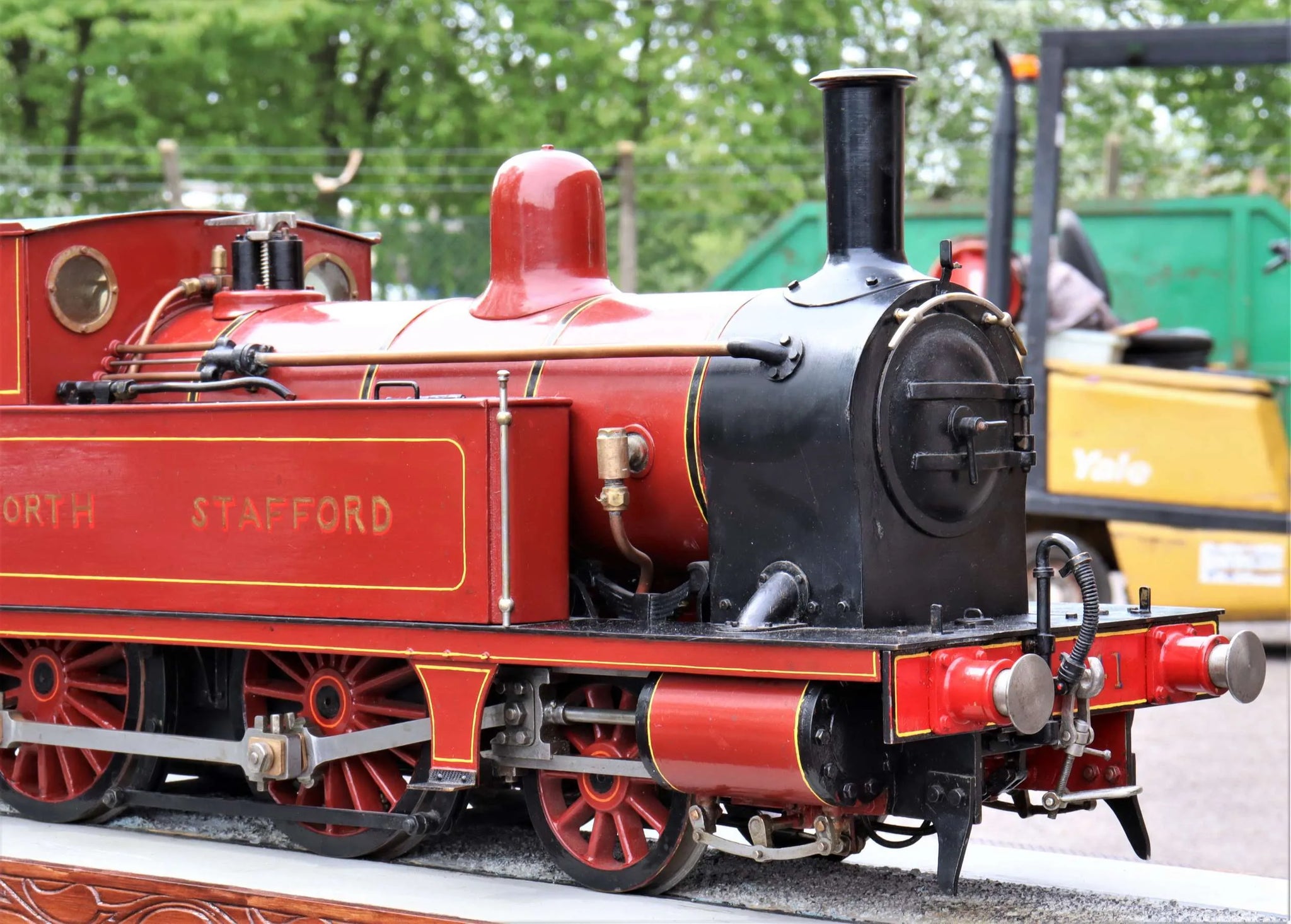

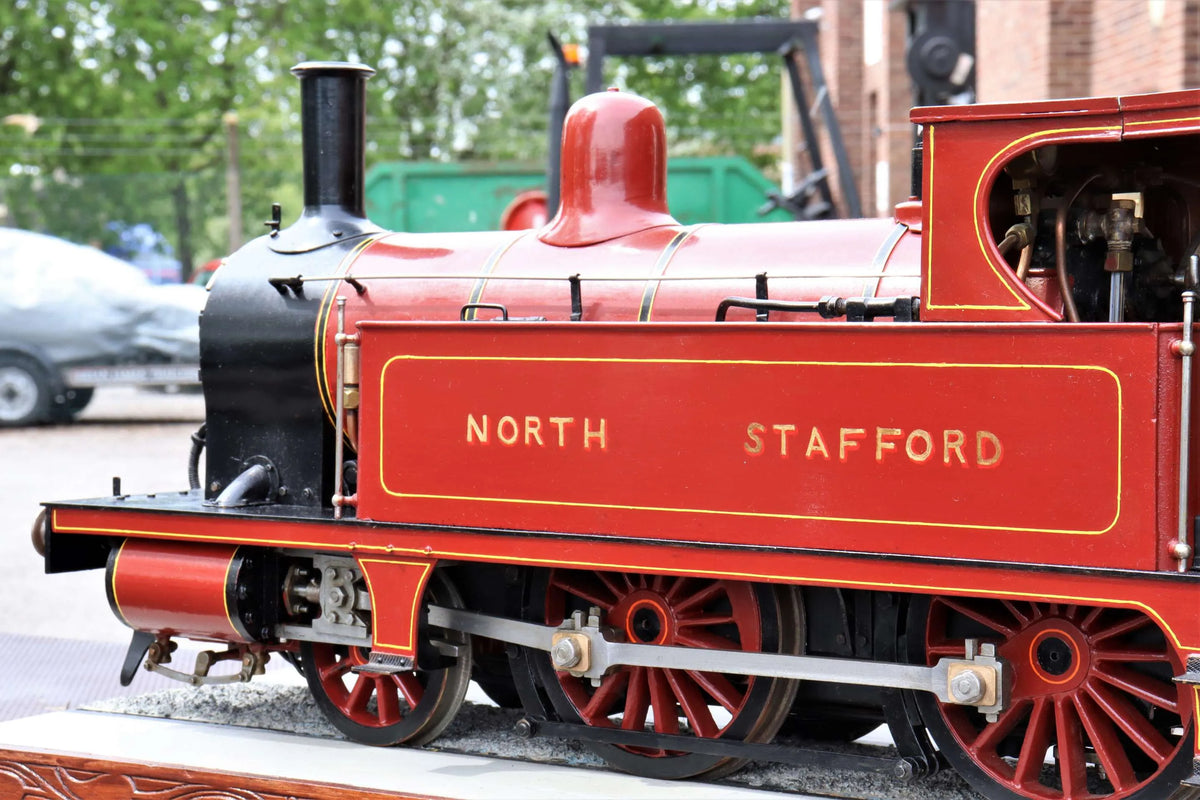

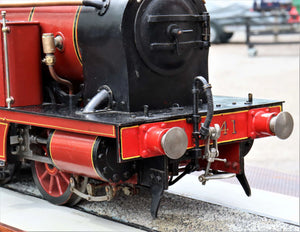

3 1/2 inch gauge North Staffordshire Railway 2-4-2T

A 3 1/2 inch gauge North Staffordshire 2-4-2T; originally one of a class of 21 "Class B" 2-4-0 tank locomotives built at their Stoke works between 1881 and 1895, three were subsequently converted to 2-4-2T configuration by the addition of a trailing pony truck.

This one is the last engine to come to us from a collection which included the 5 inch gauge "Ajax" 0-4-0T and Standard Class 2 tank we sold in 2019.

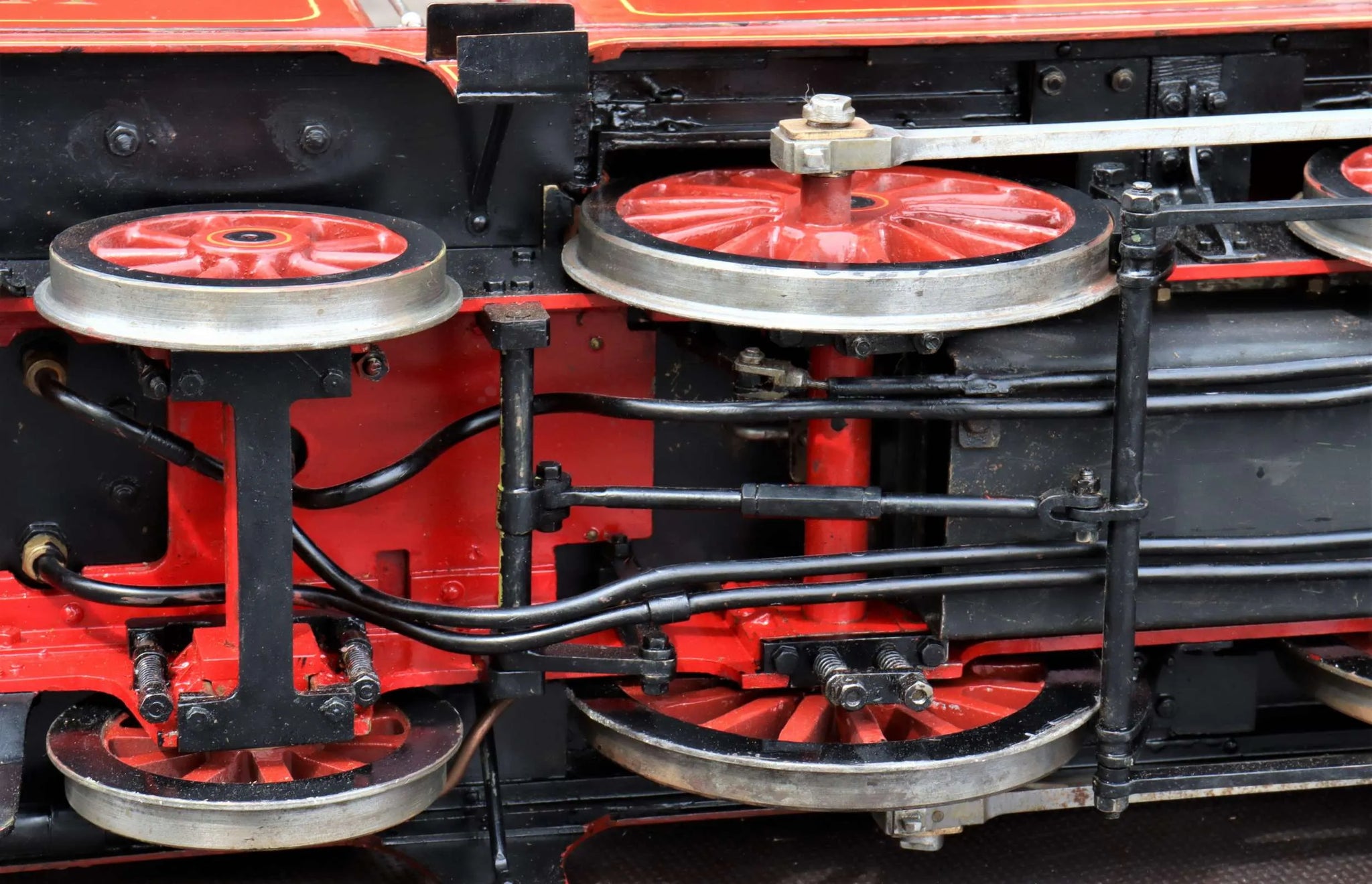

An old model, it's been on display for many years - chassis is dry and consequently stiff to turn over, although the engine appears to have been test steamed at some time in the distant past.

Technical information

Stock code

10465

Gauge

3 1/2 inch

Length/inches

27

Width/inches

7

Height/inches

11

Weight/Kg

23

Wheel material

cast iron

Axlebox type

plain bearing

Valve type

slide

Valve gear

Stephensons

Reverser type

screw

Lubricator type

mechanical

Boiler type

locomotive

Boiler material

copper

Hand pump

1

Mechanical pump

1

Date out

Sep-22
