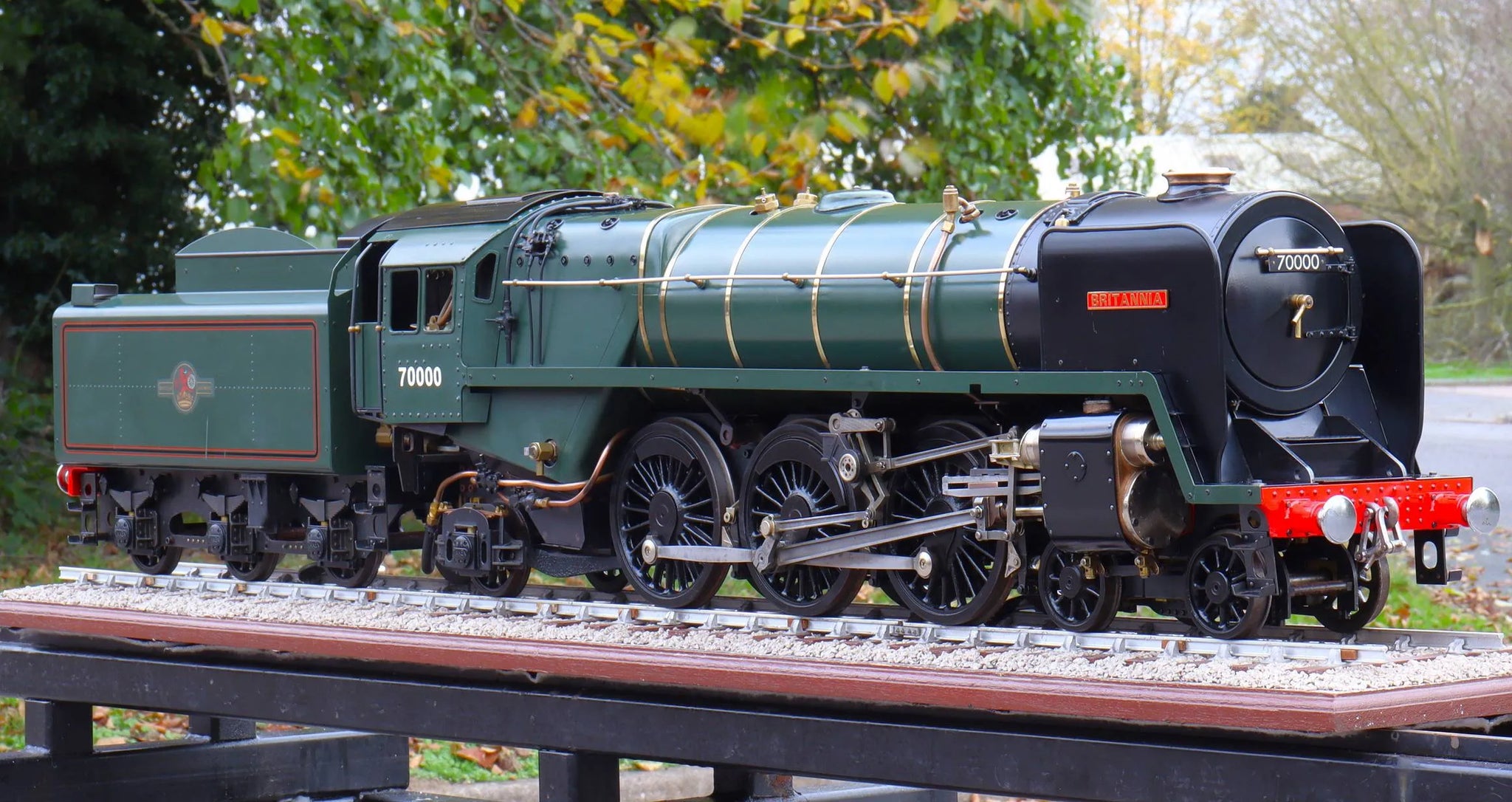

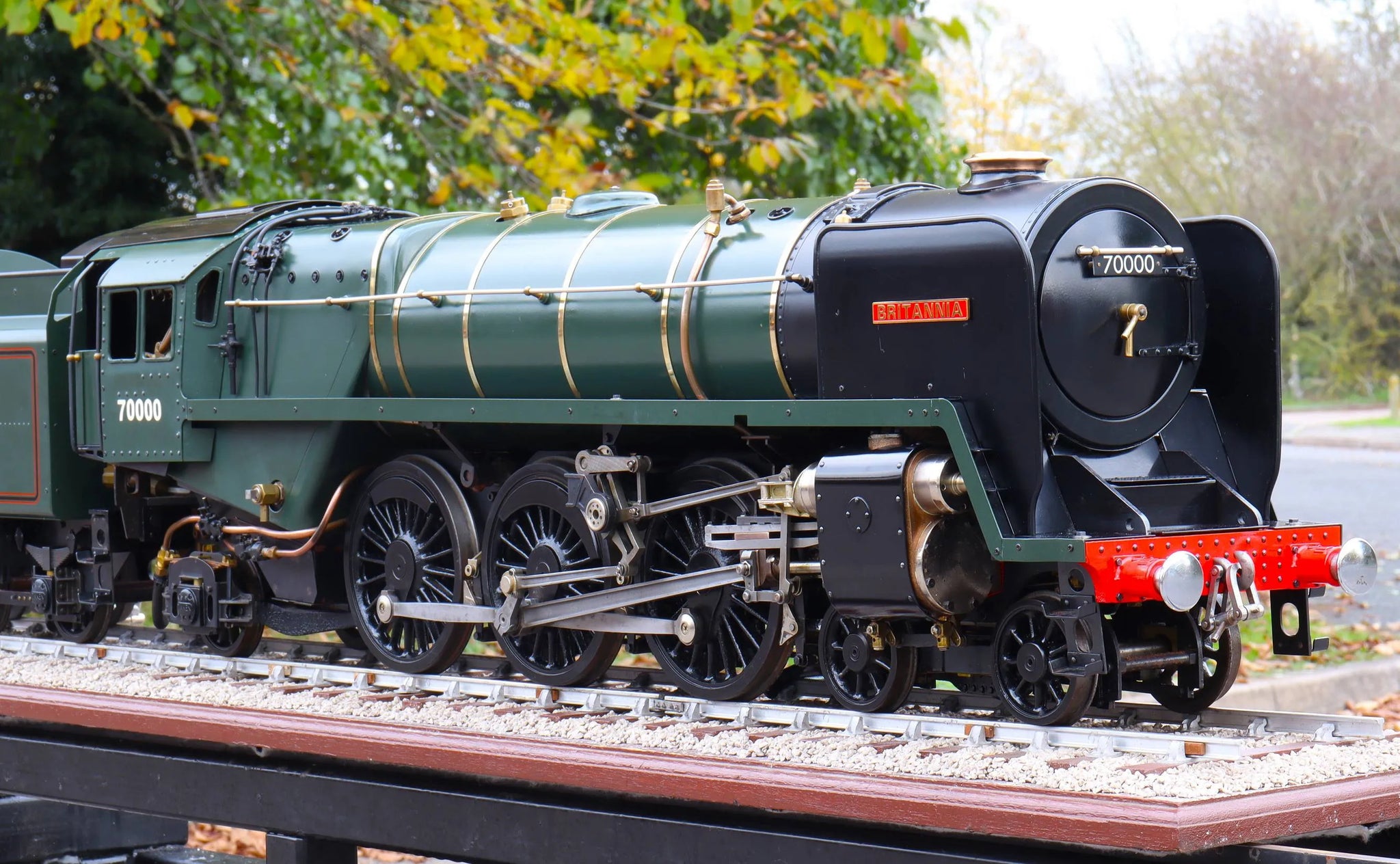

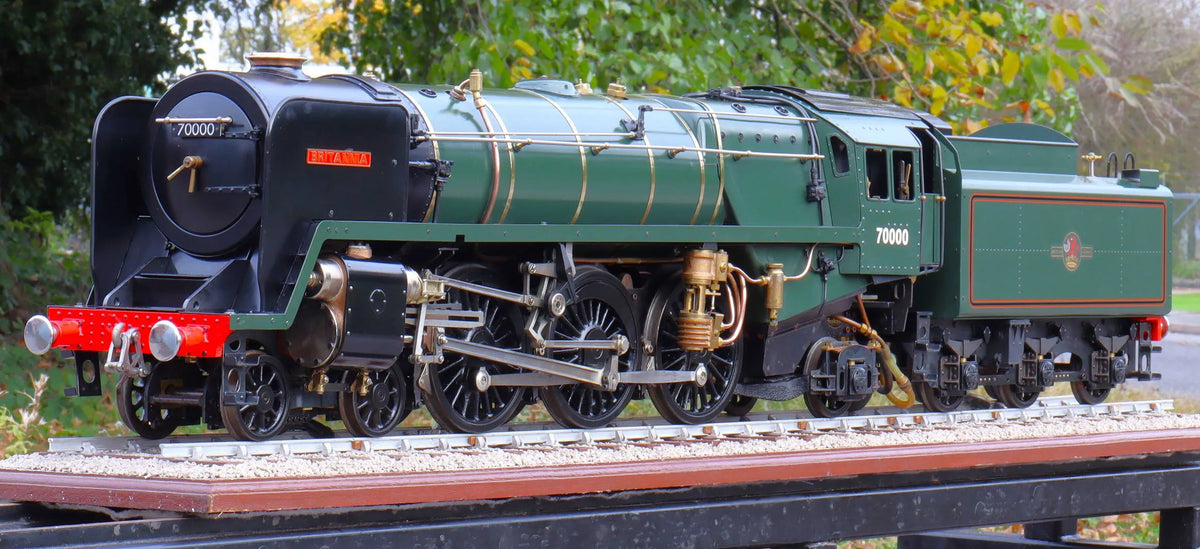

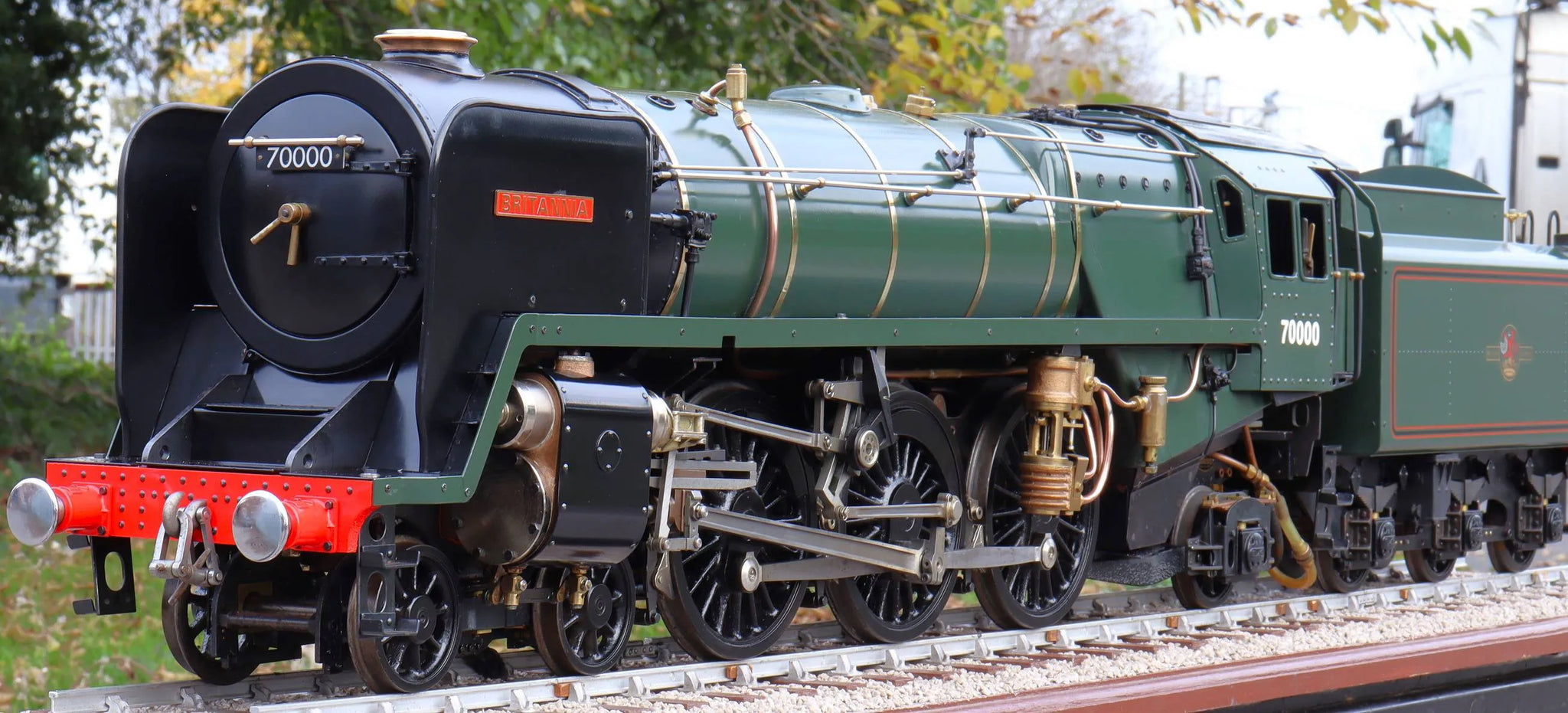

3 1/2 inch gauge OS BR Standard Class 7 "Britannia"

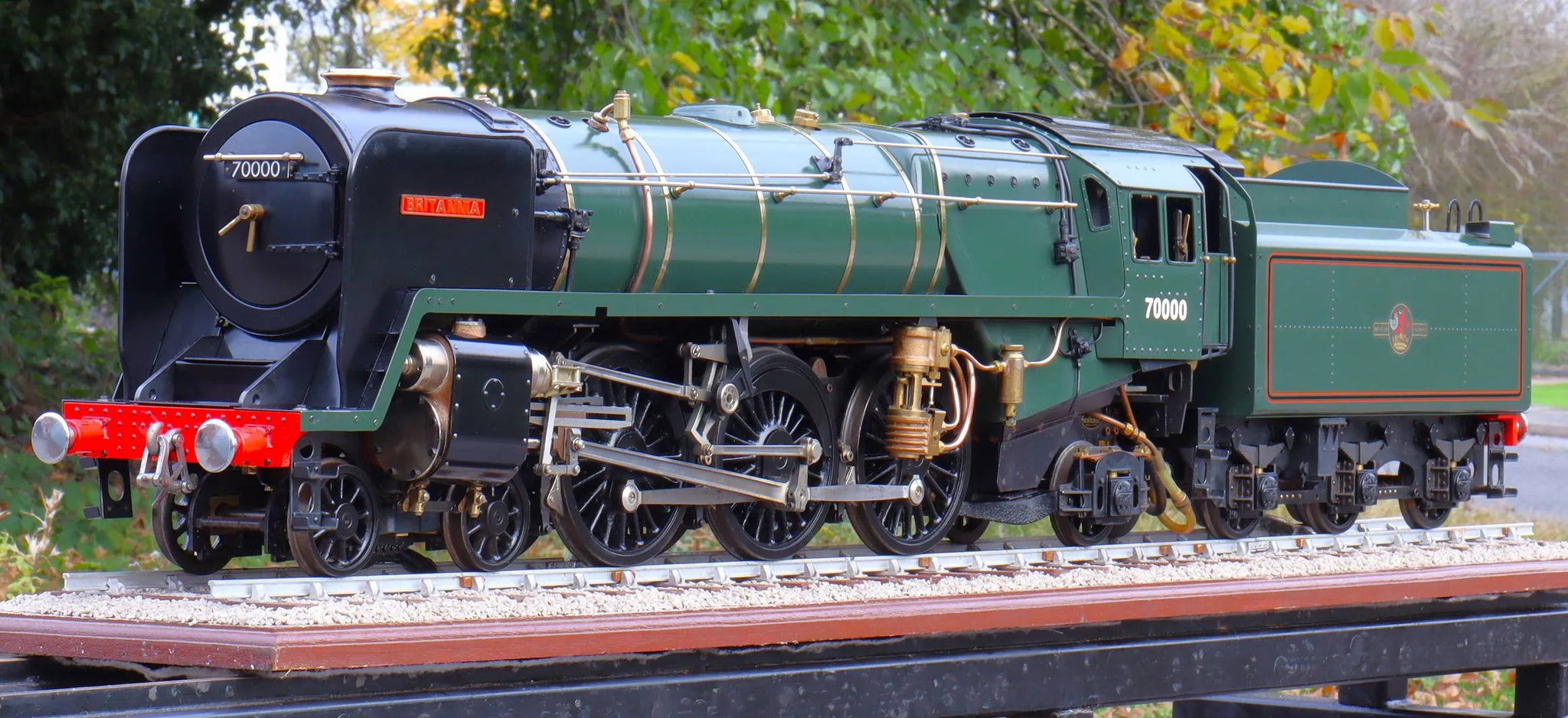

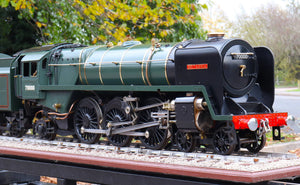

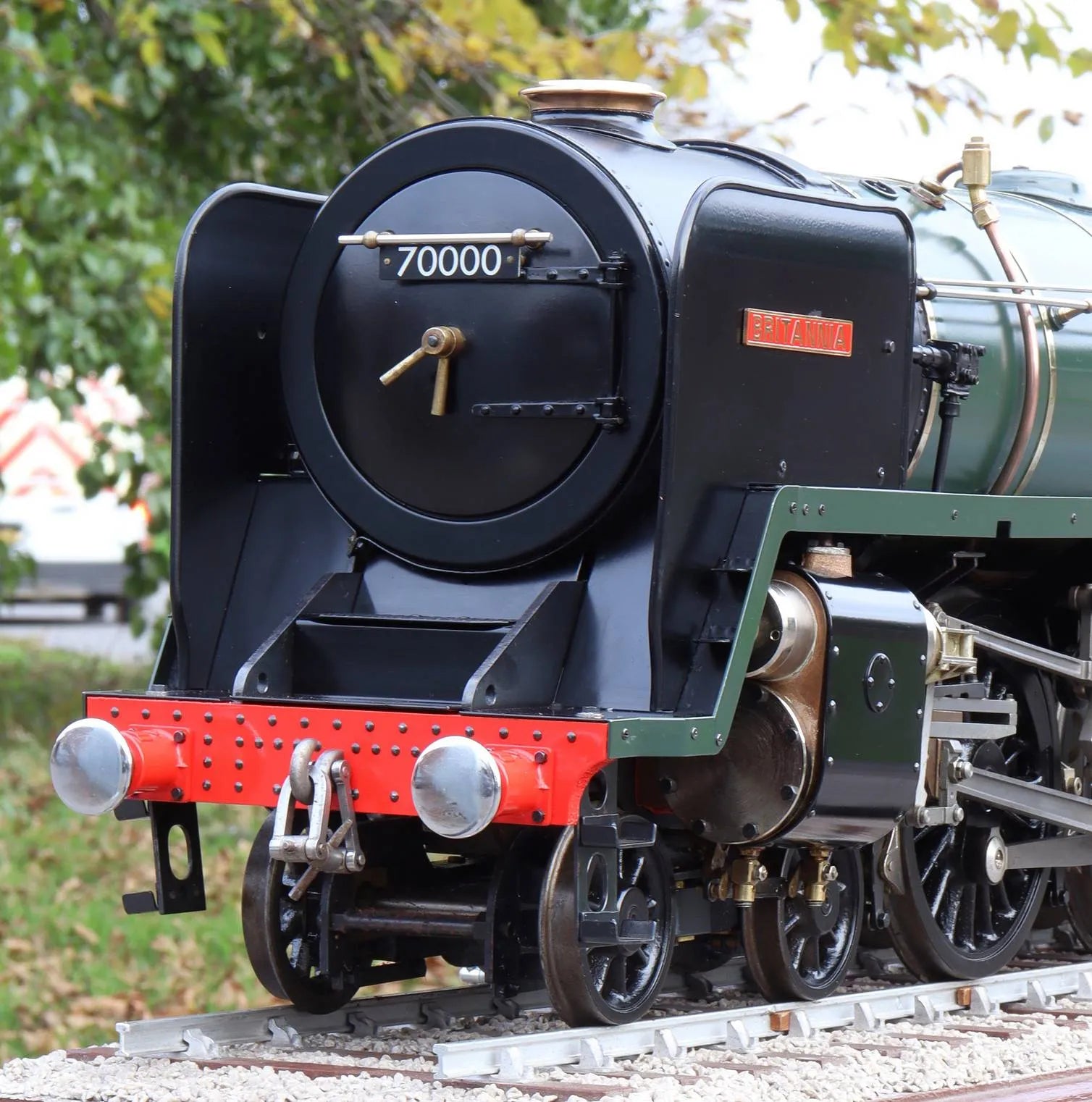

A 3 1/2 inch gauge OS "Britannia", assembled from a kit and largely complete, although with lining to the running boards yet to be applied. We suspect it's has little, if any use from new.

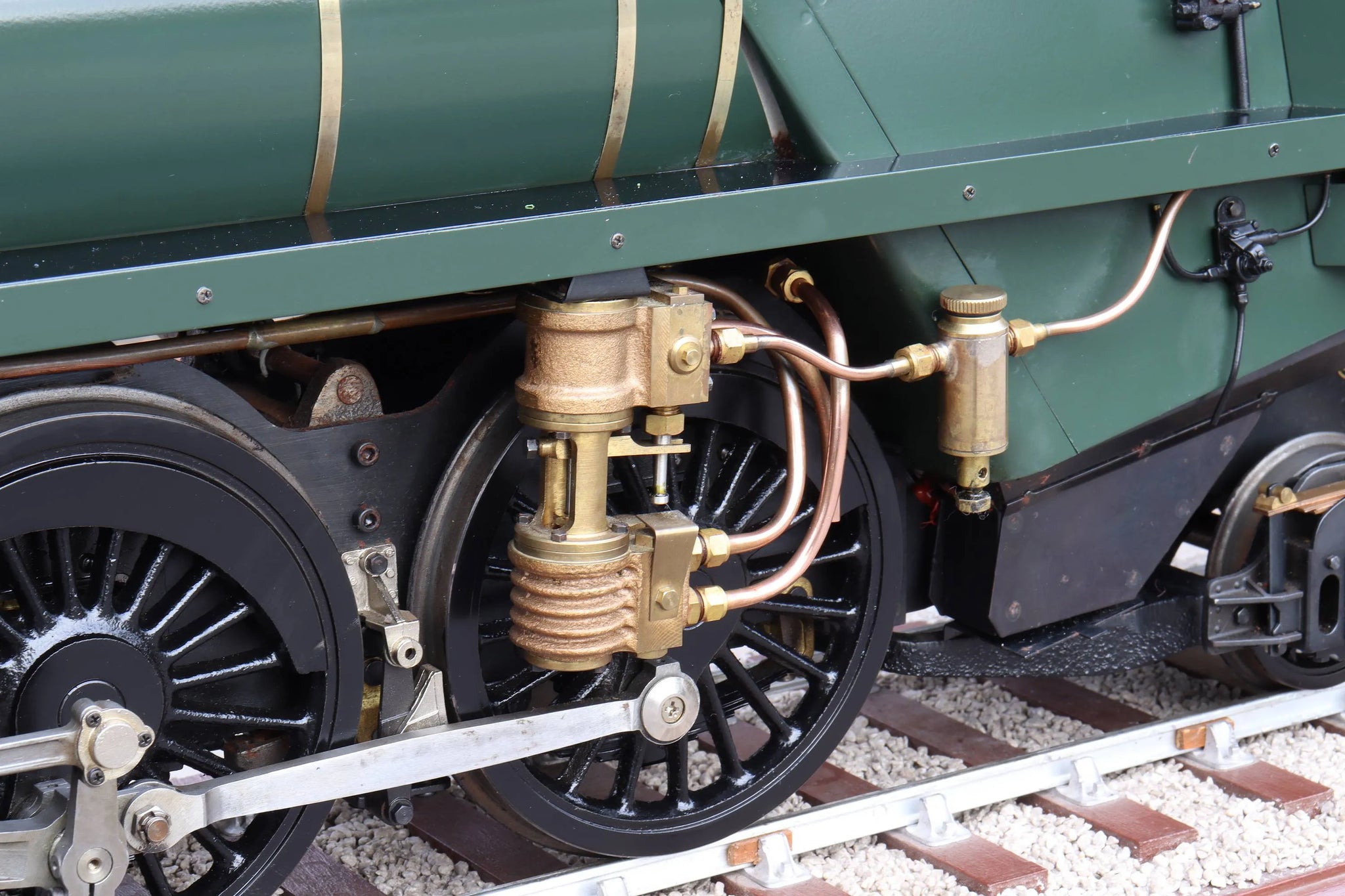

The engine doesn't currently run on air, with nothing coming through to the cylinders when the regulator is opened - first thing to check would be the regulator itself. The steam pump, in contrast, works beautifully!

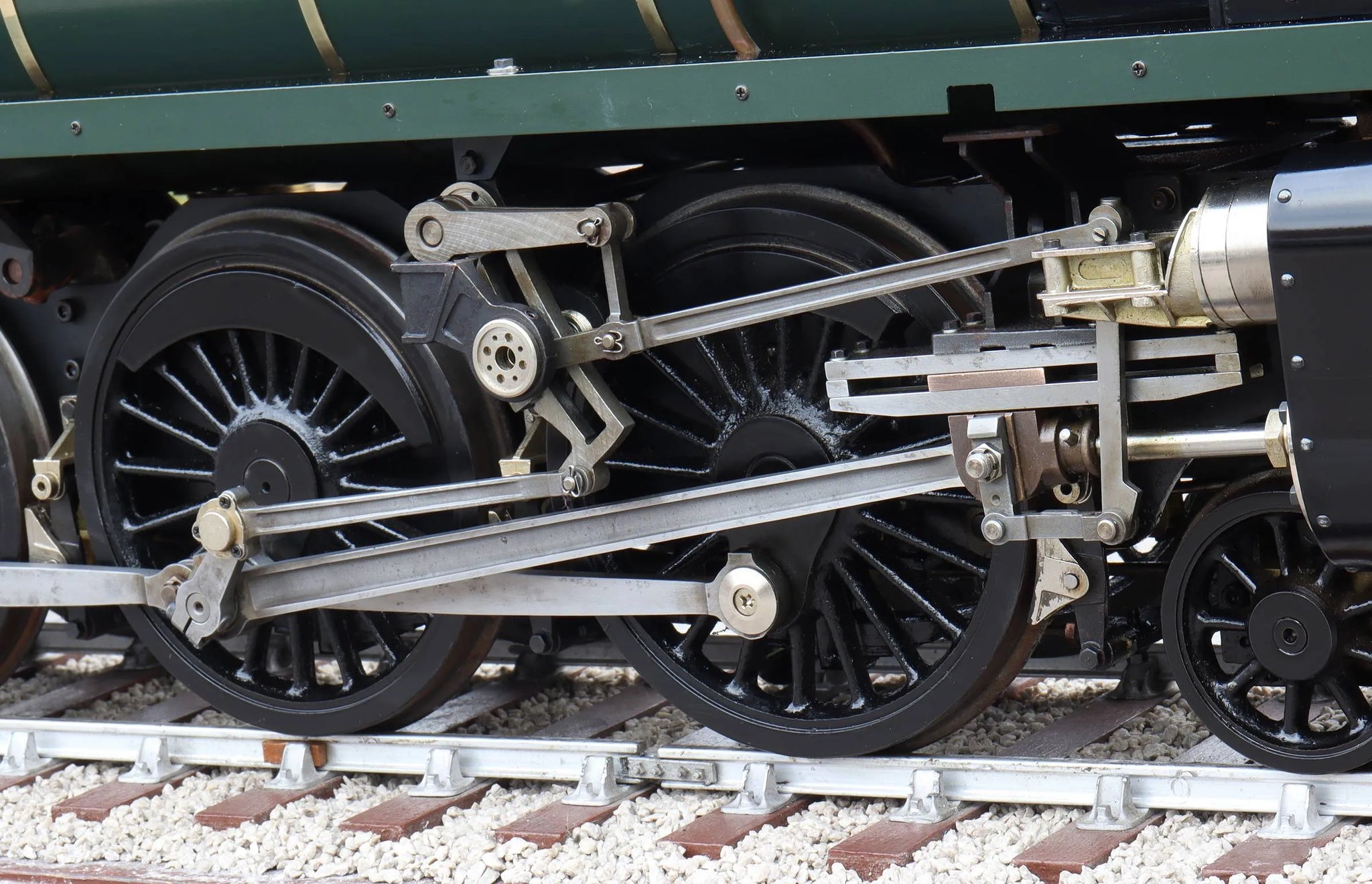

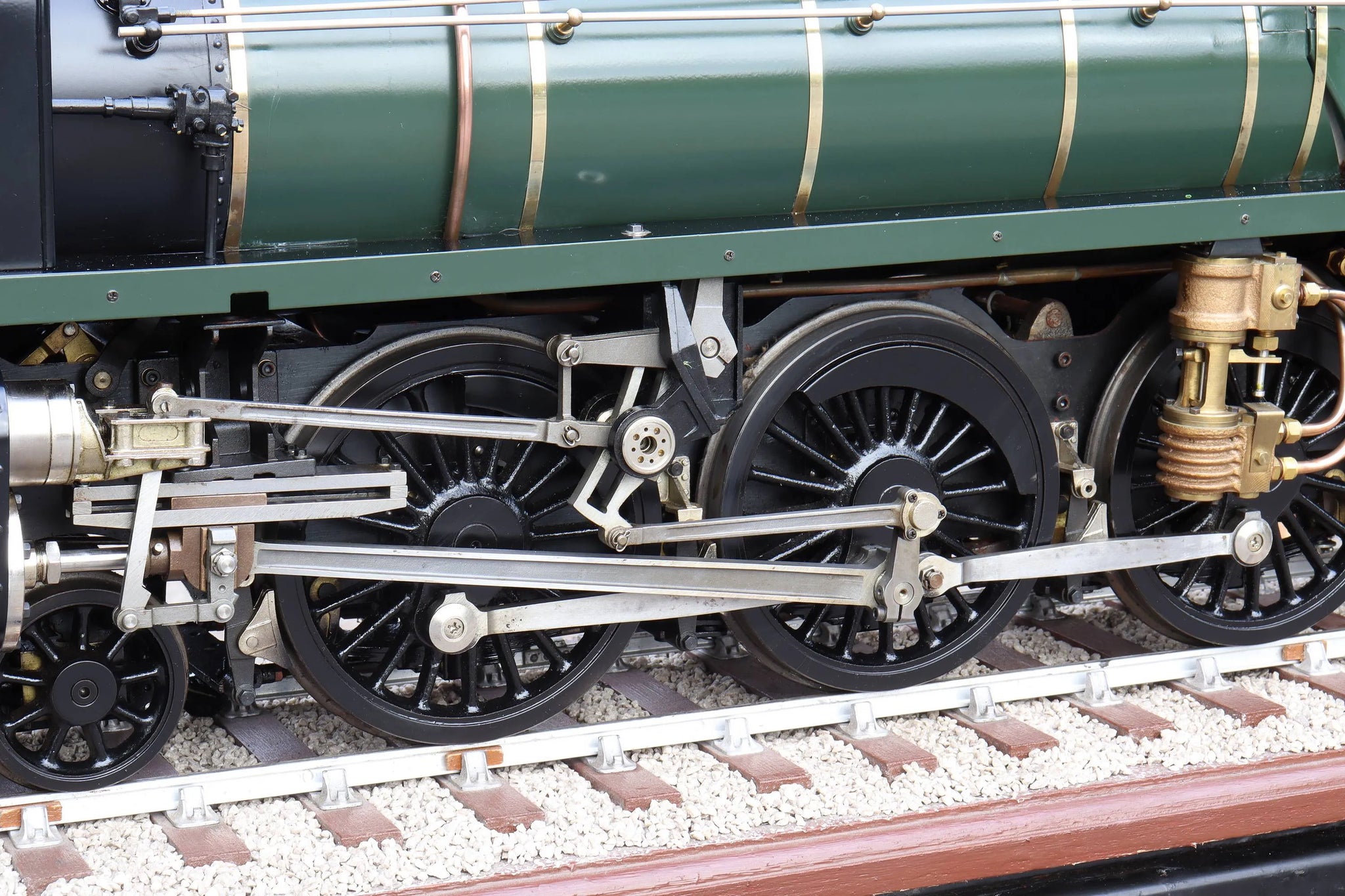

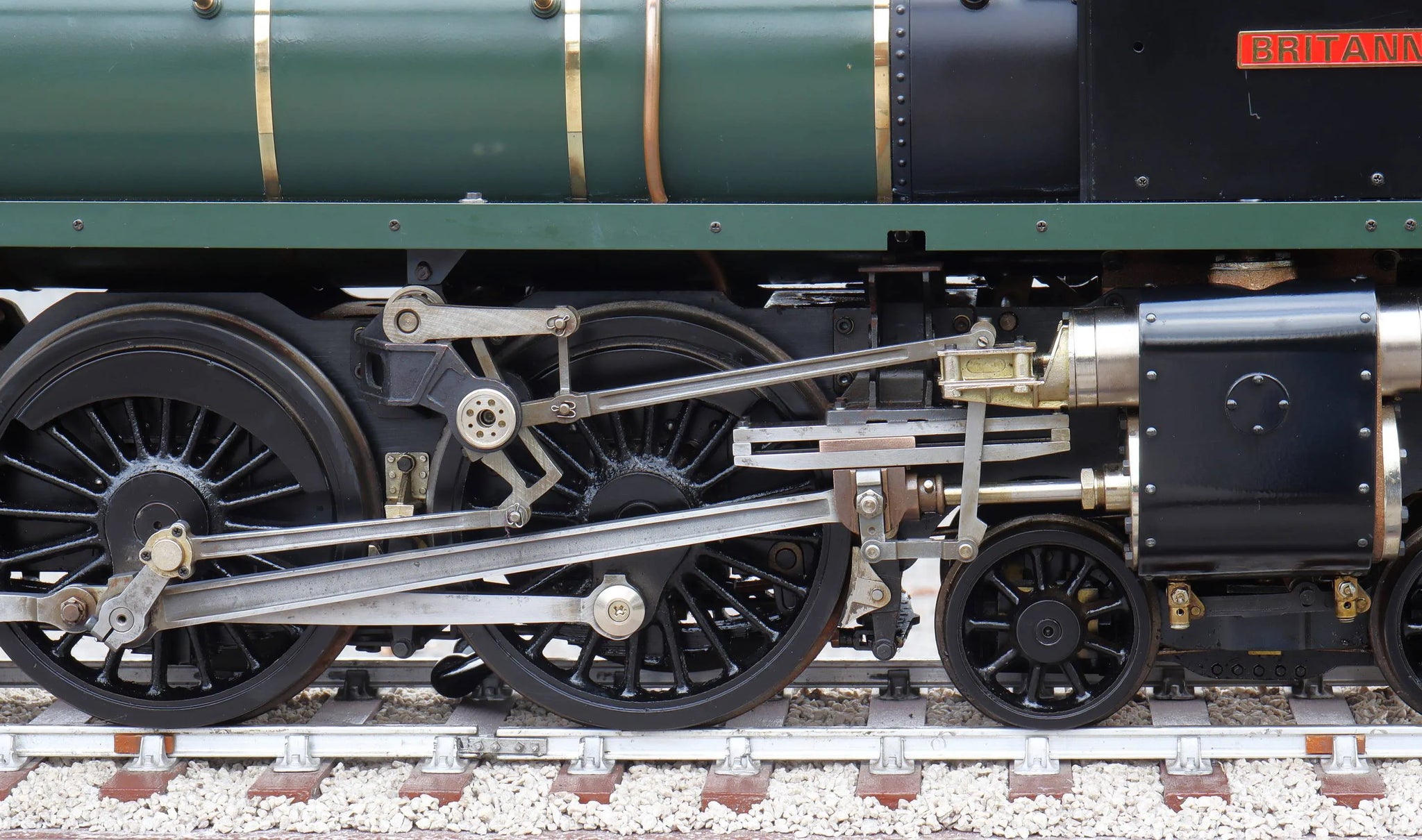

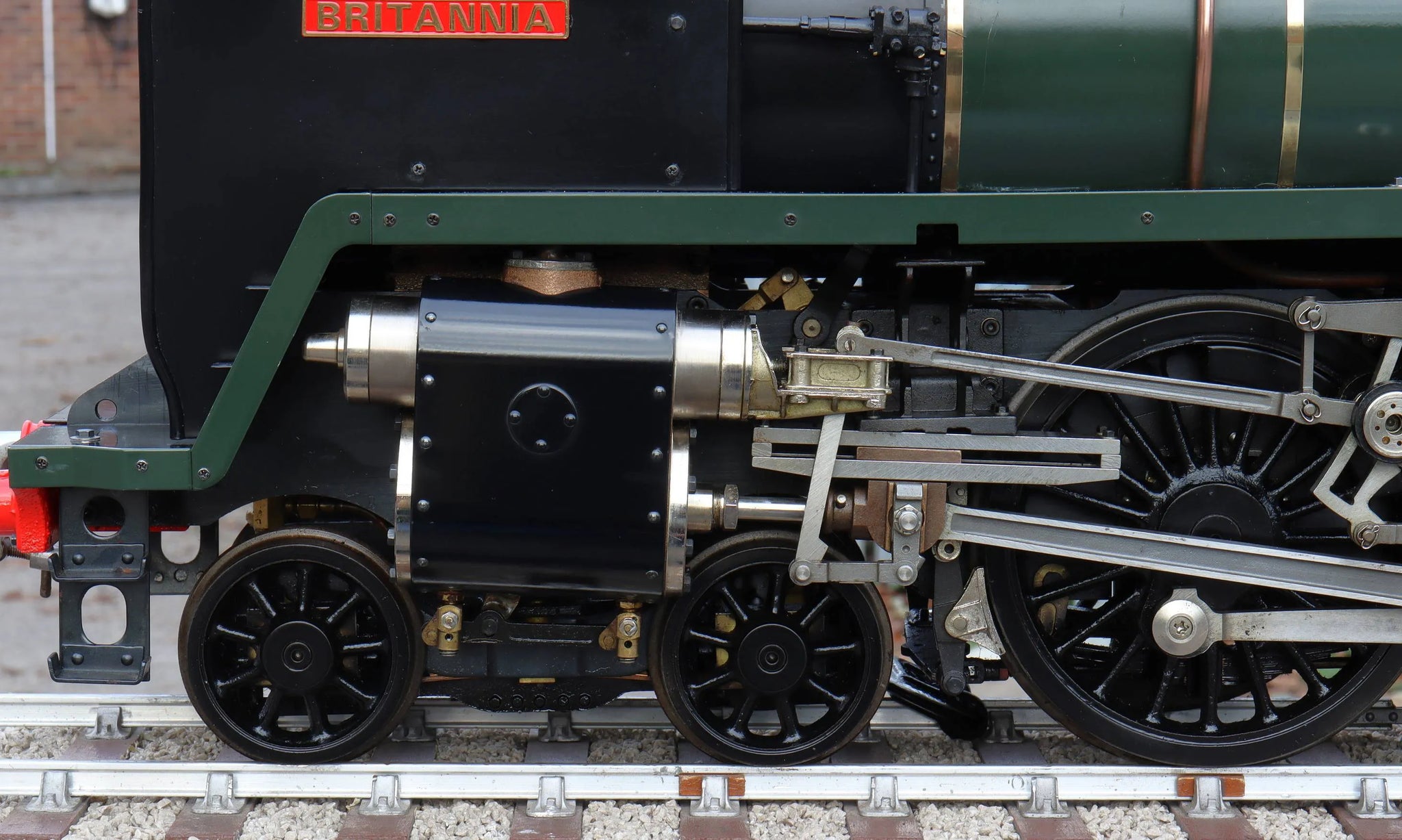

When turning over, the offside crosshead pin fouls the back of the combination lever.

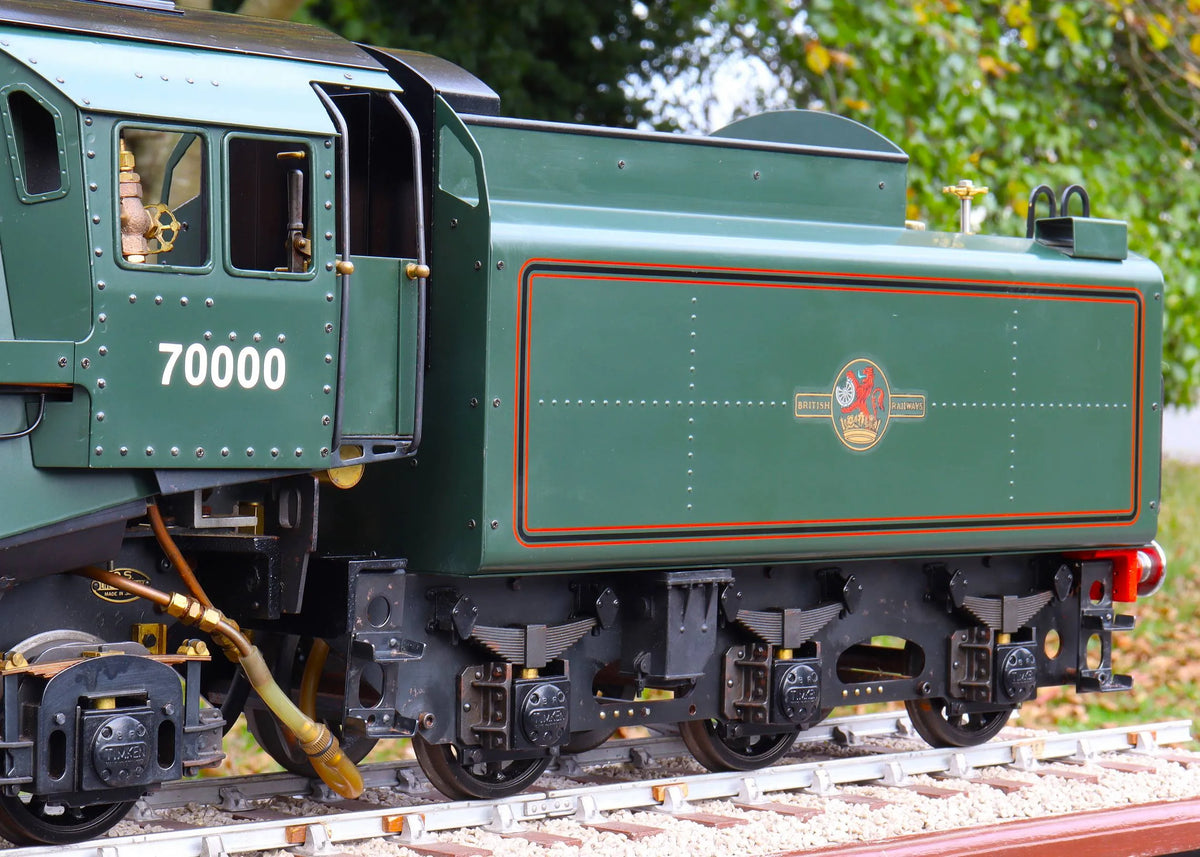

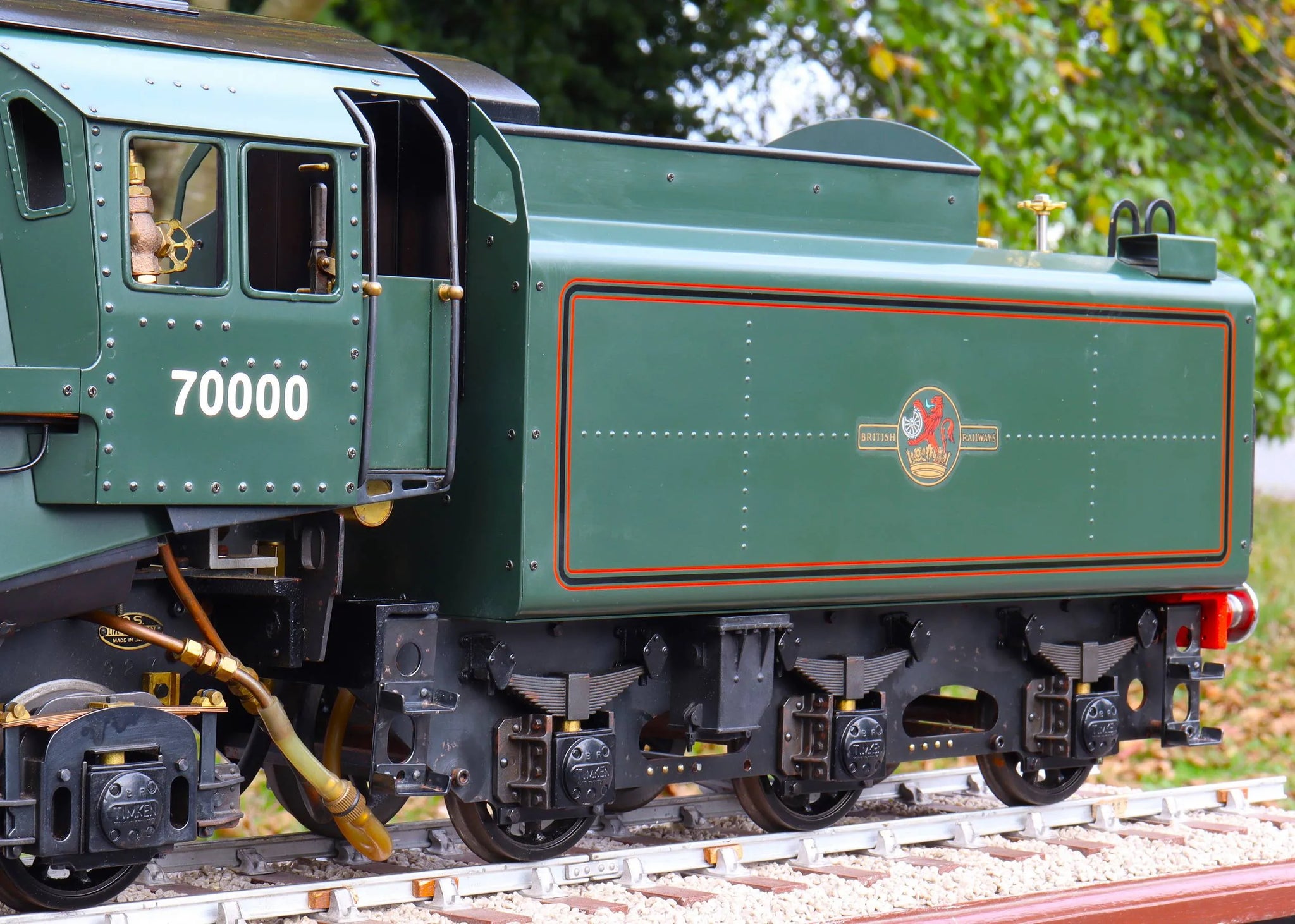

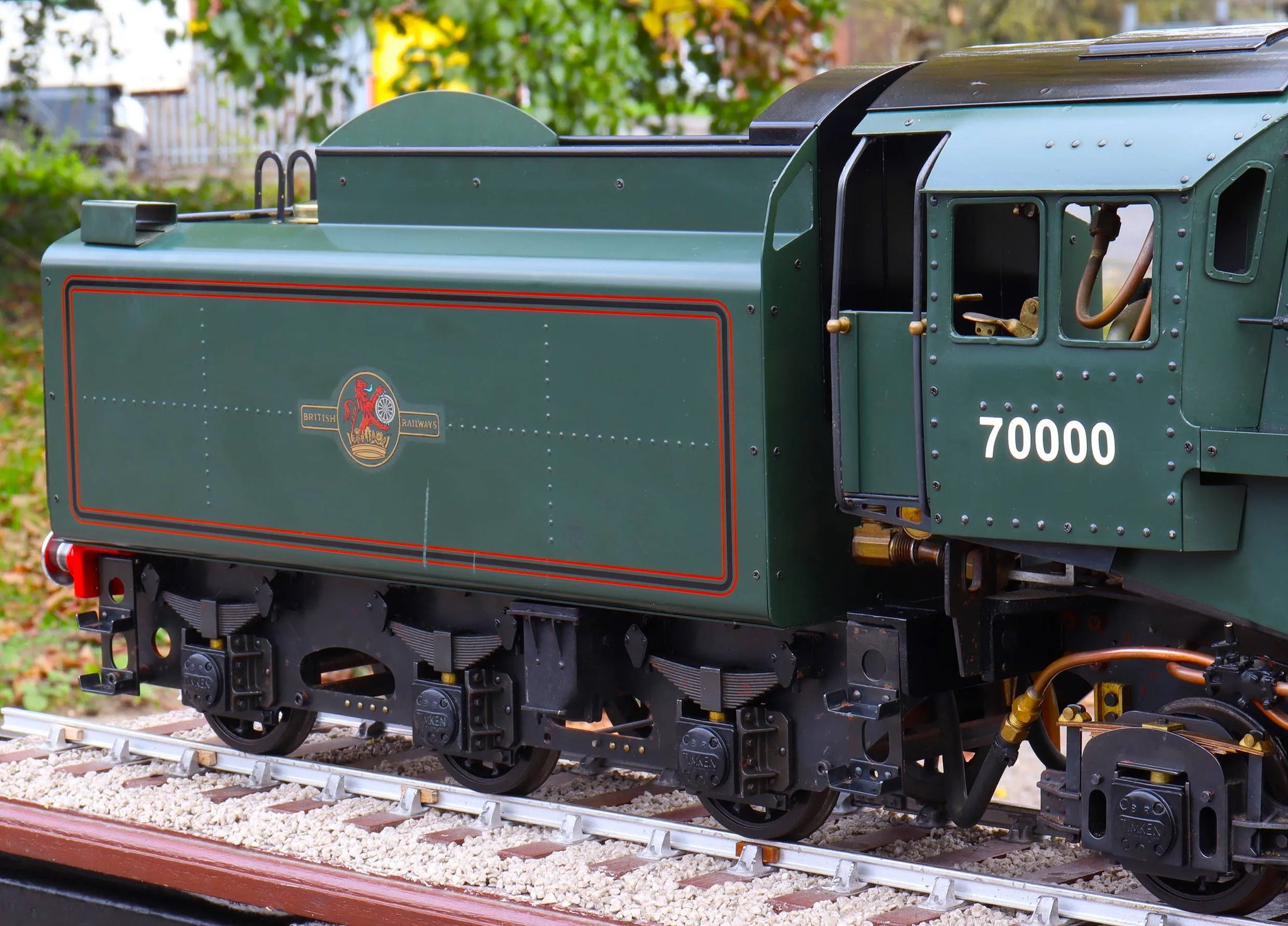

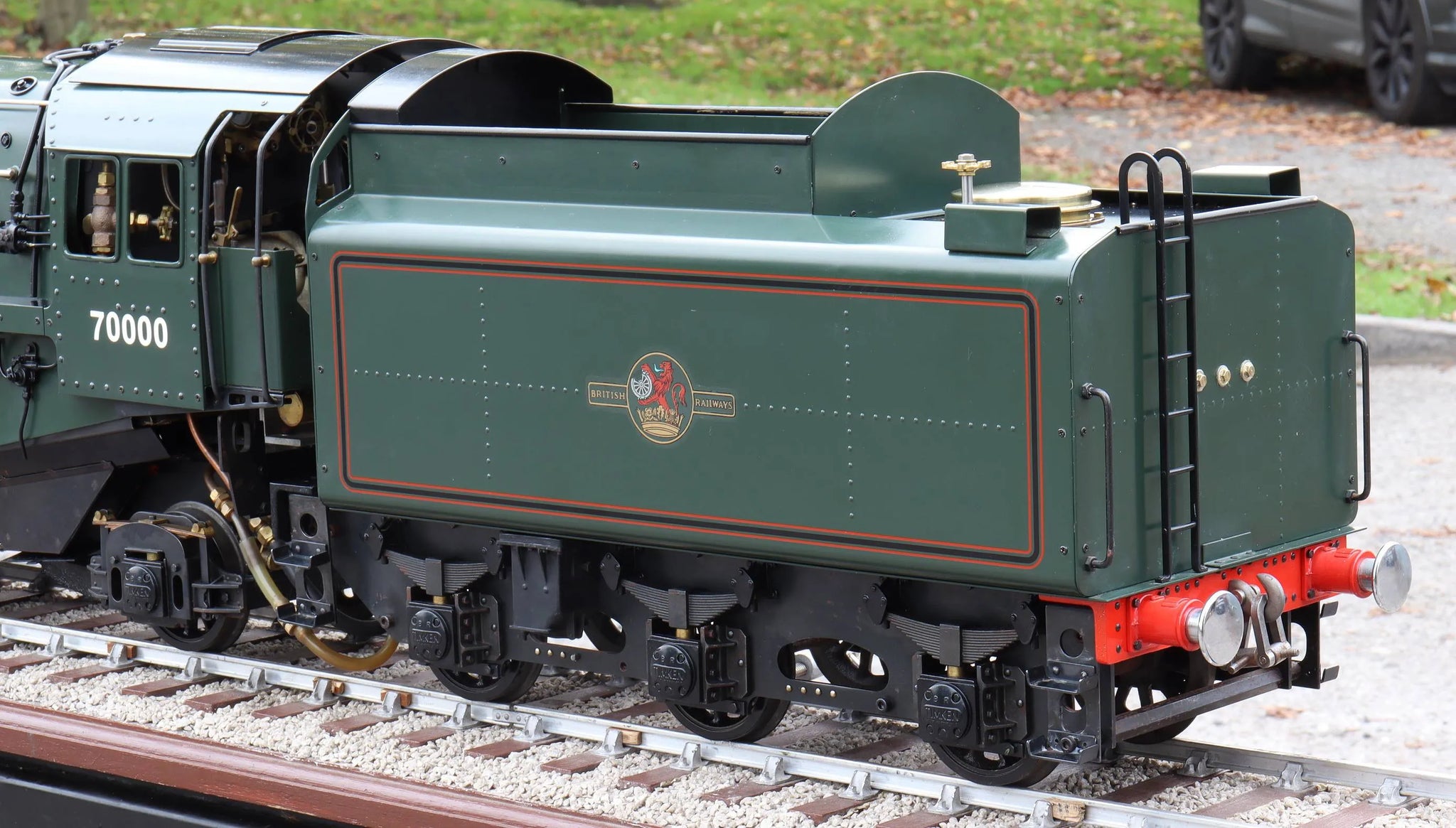

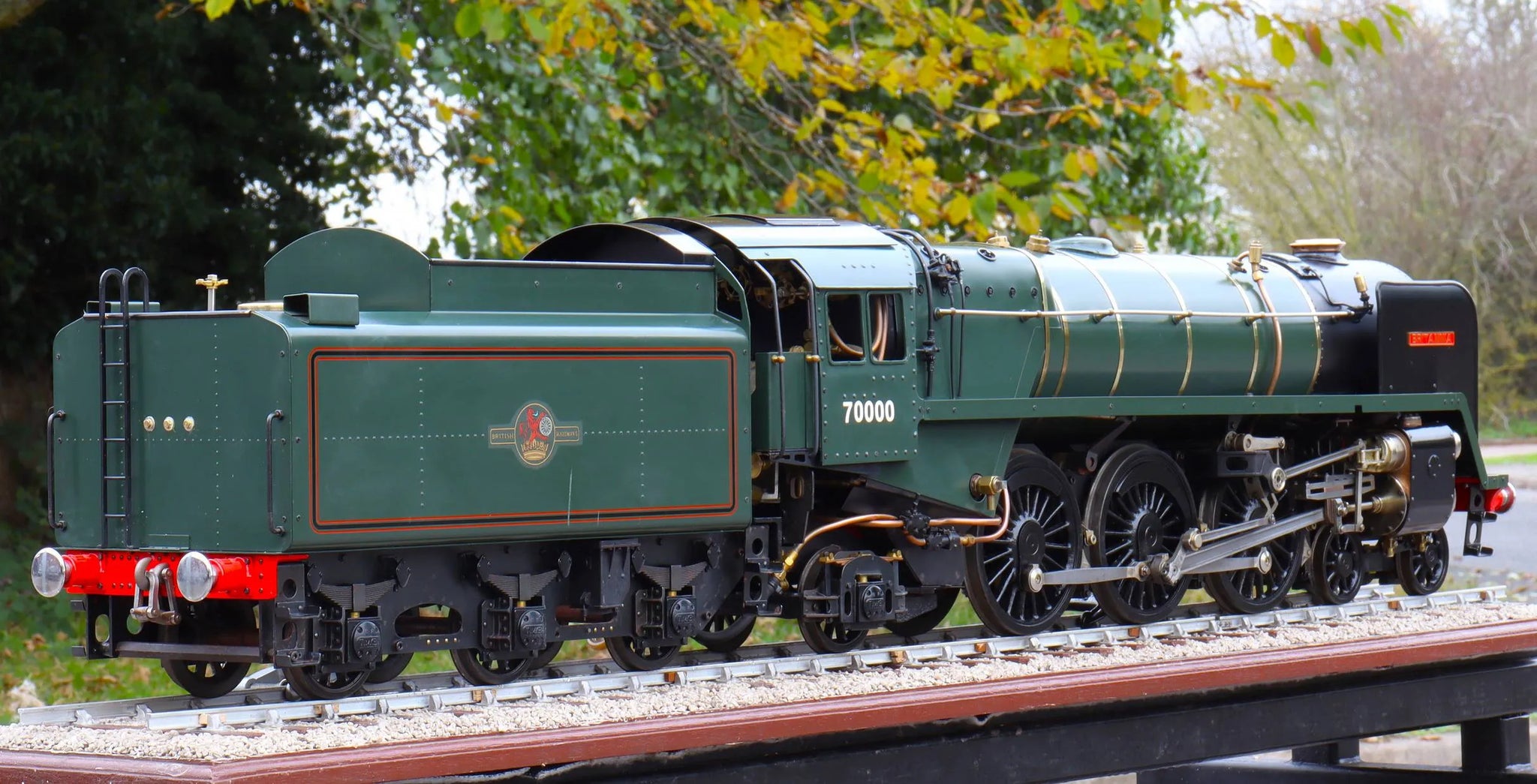

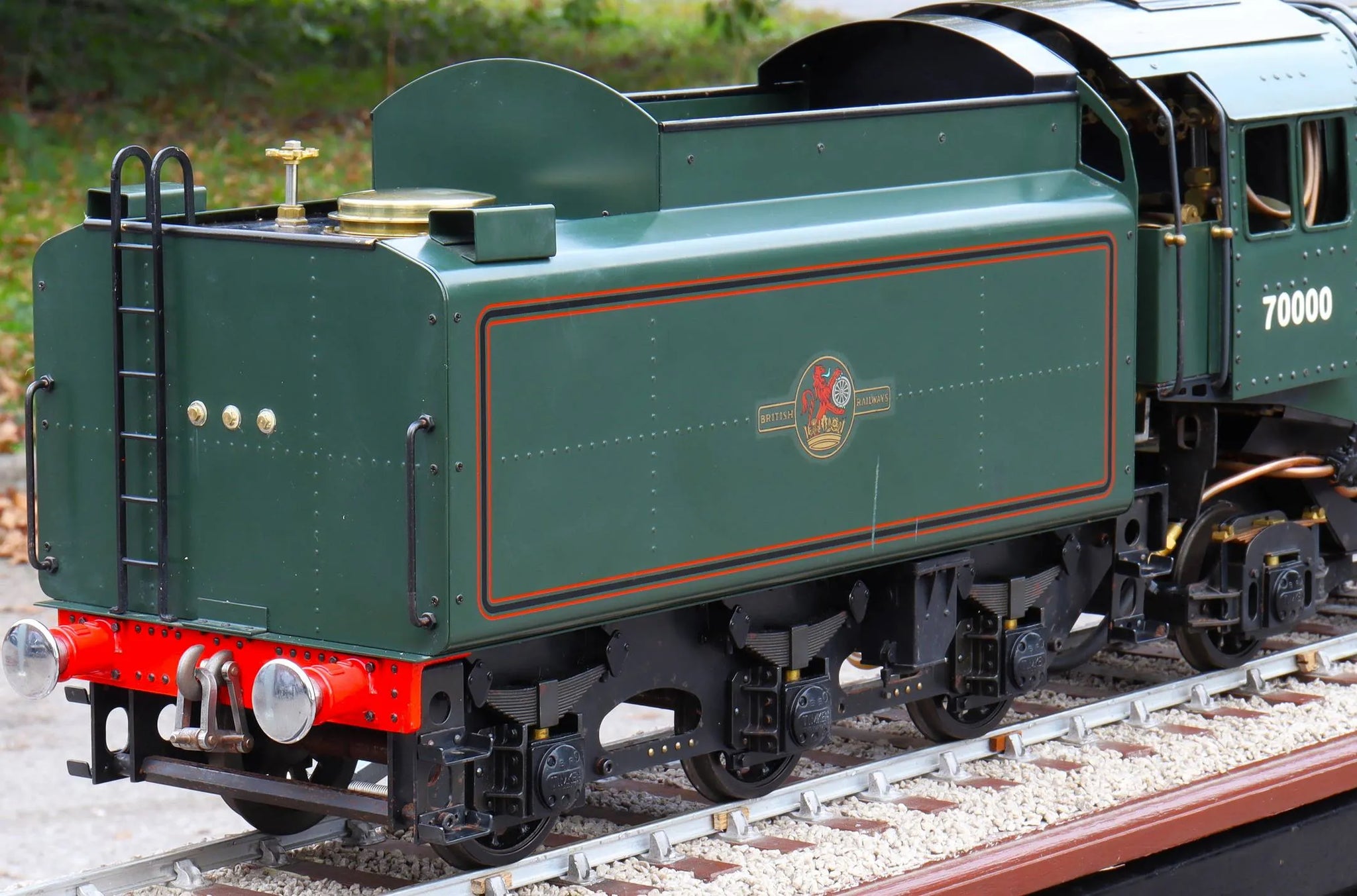

Paintwork is mainly in excellent condition, with two minor scratches as shown on the tender.

Gas-fired, the tender has a compartment to accommodate the gas cylinder, with pipework to the firebox.

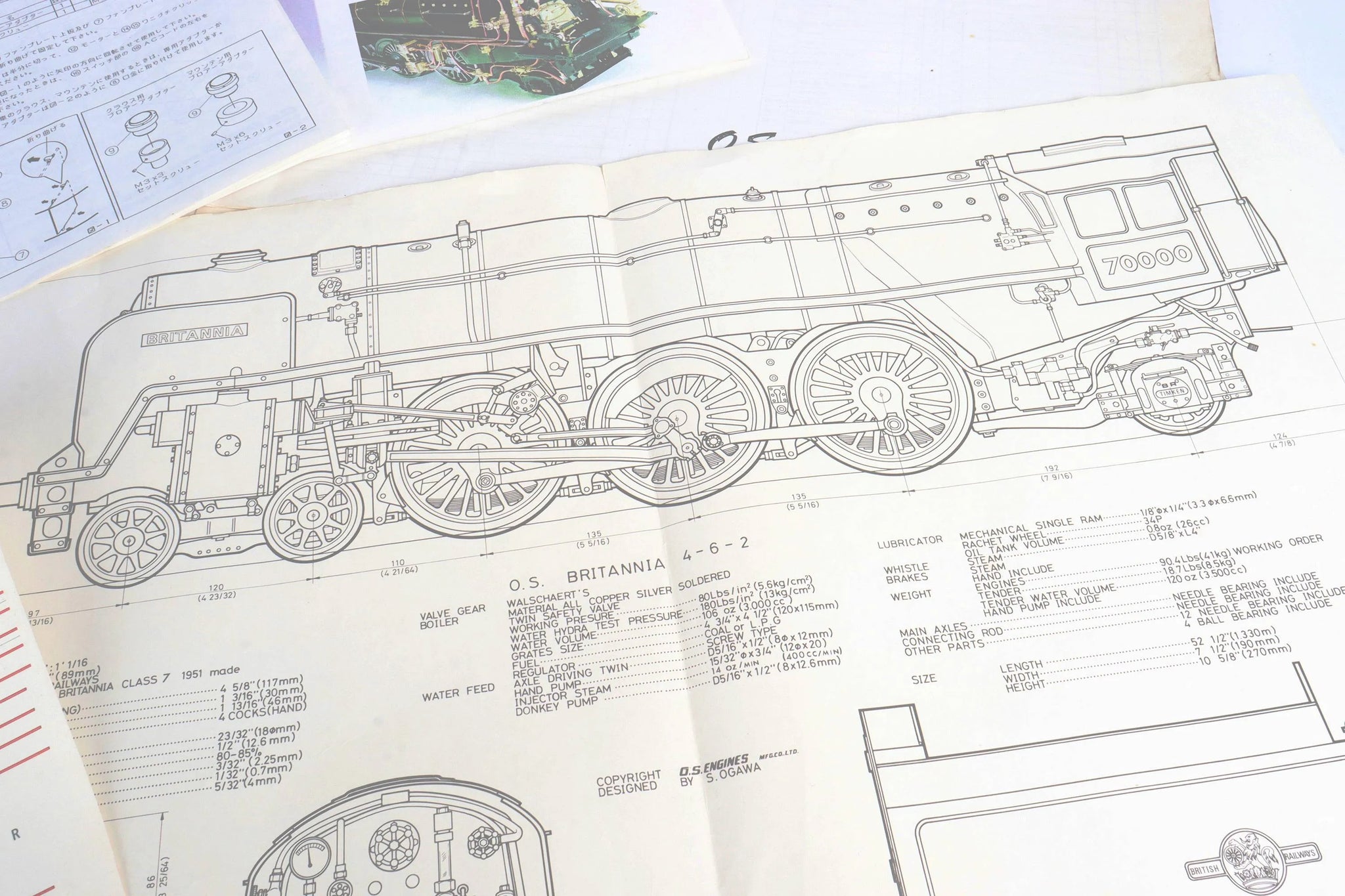

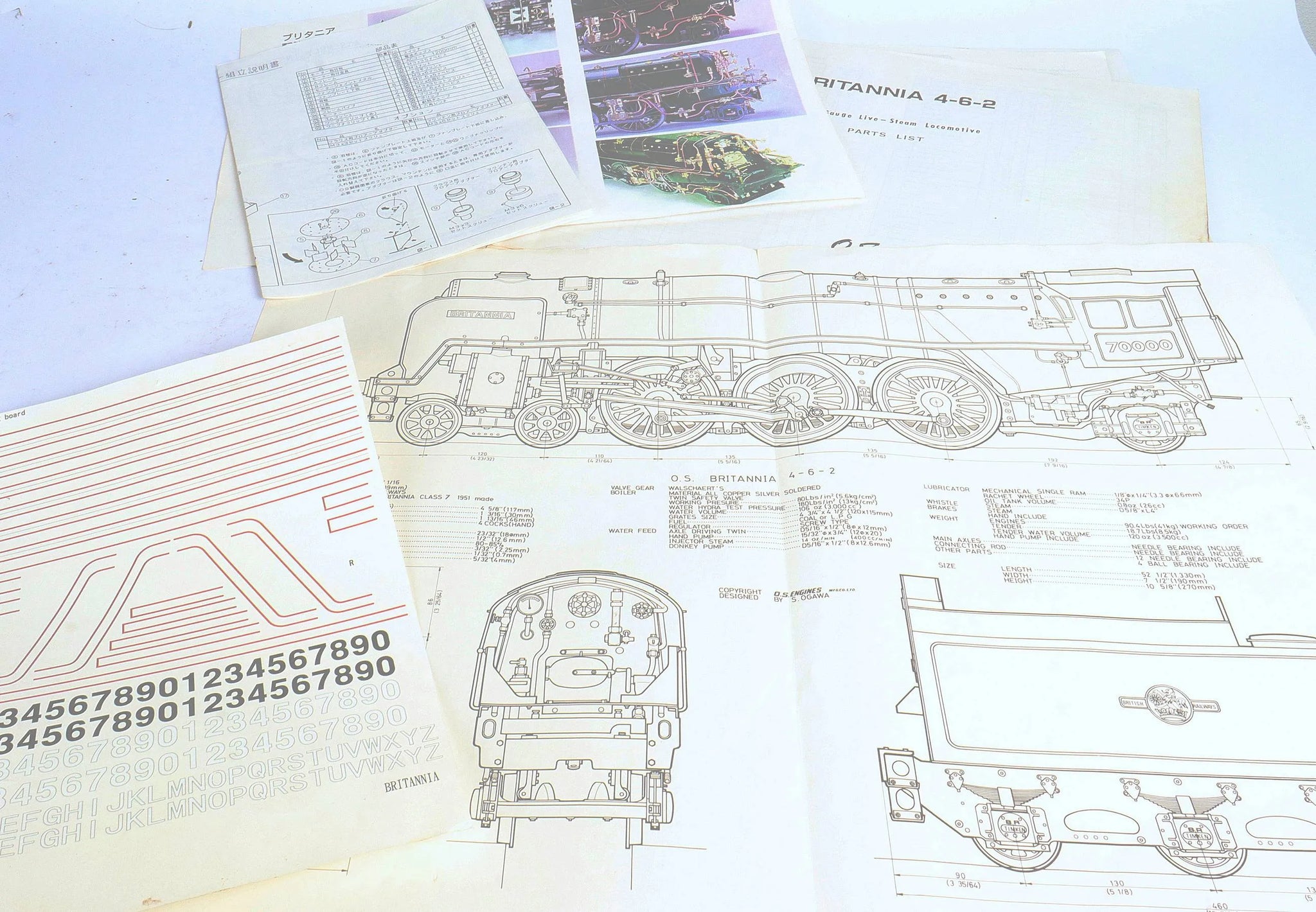

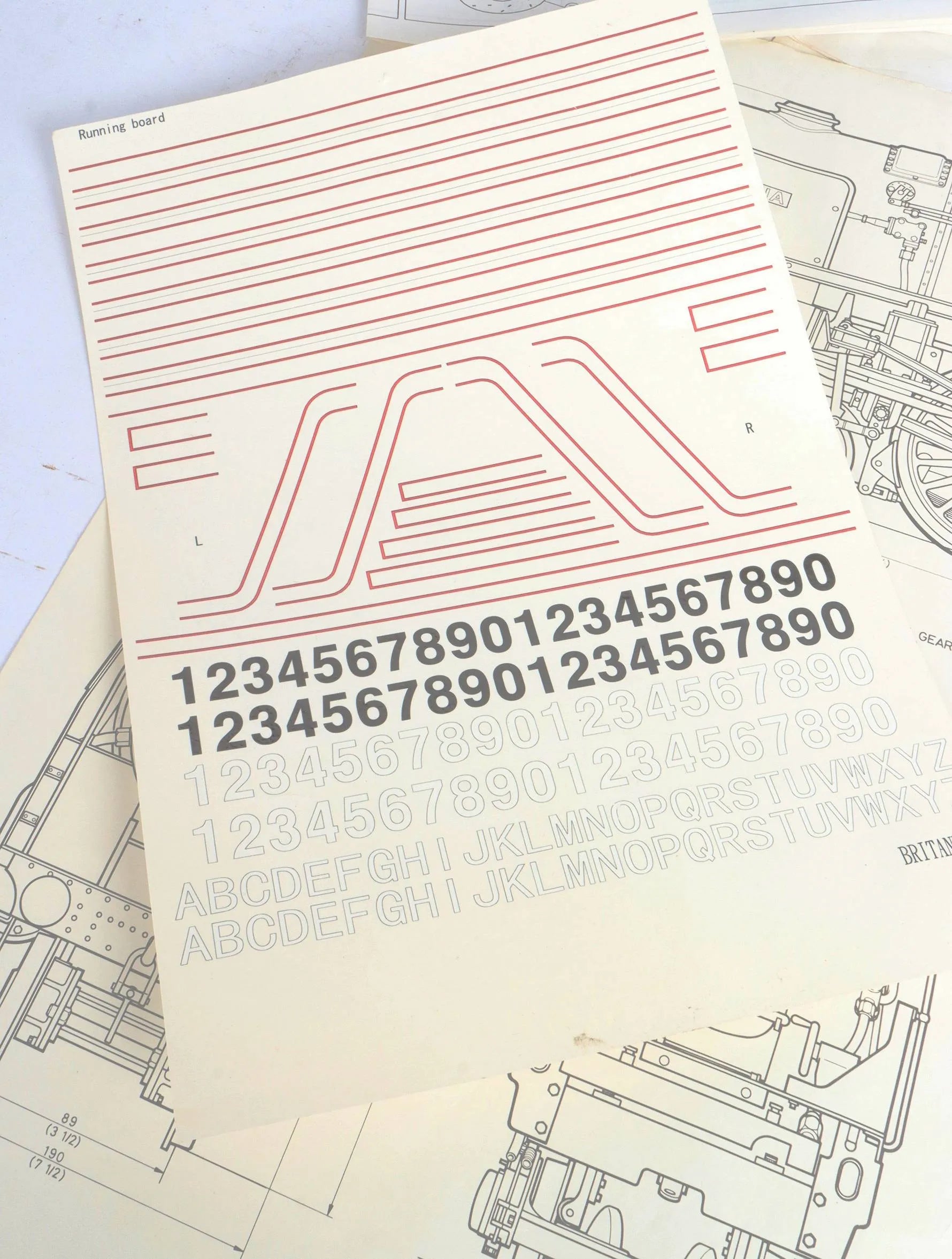

Complete with manufacturer's documentation including assembly instructions.

Technical information

Stock code

12469

Gauge

3 1/2 inch

Length/inches

37 + 20

Width/inches

7.5

Height/inches

11

Weight/Kg

55

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

piston

Valve gear

Walschaerts

Reverser type

pole

Boiler maker

OS Live Steam

Boiler type

gas-fired, locomotive with combustion chamber

Boiler construction

silver soldered

Boiler material

copper

CE/UKCA mark

yes

Boiler number

20260

Safety valve type

spring

Safety valve

2

Whistle

yes

Steam pump

1

Hand pump

1

Mechanical pump

2

Superheater type

flue tube

Superheater

4

Date out

Mar-25
