8586

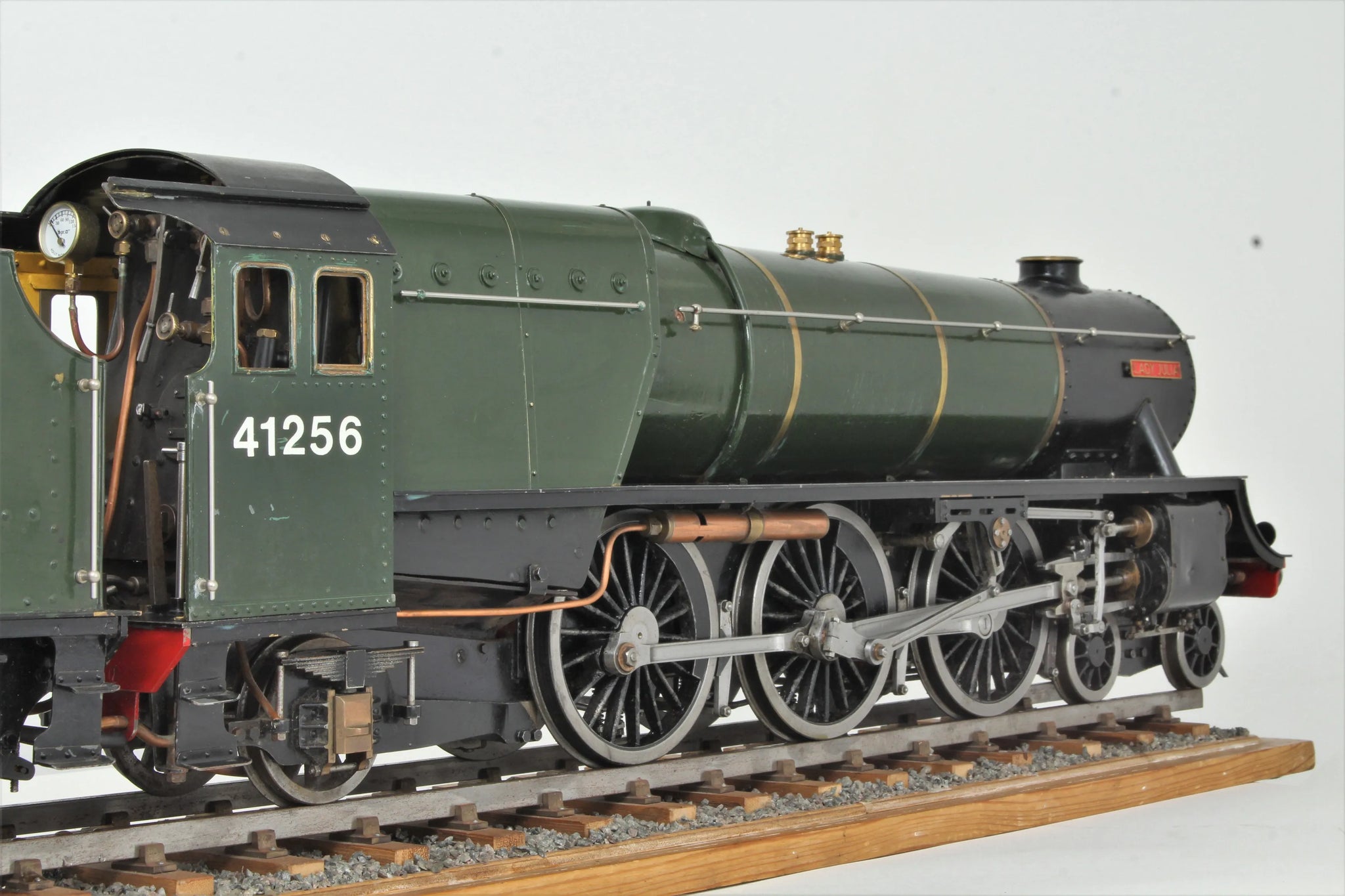

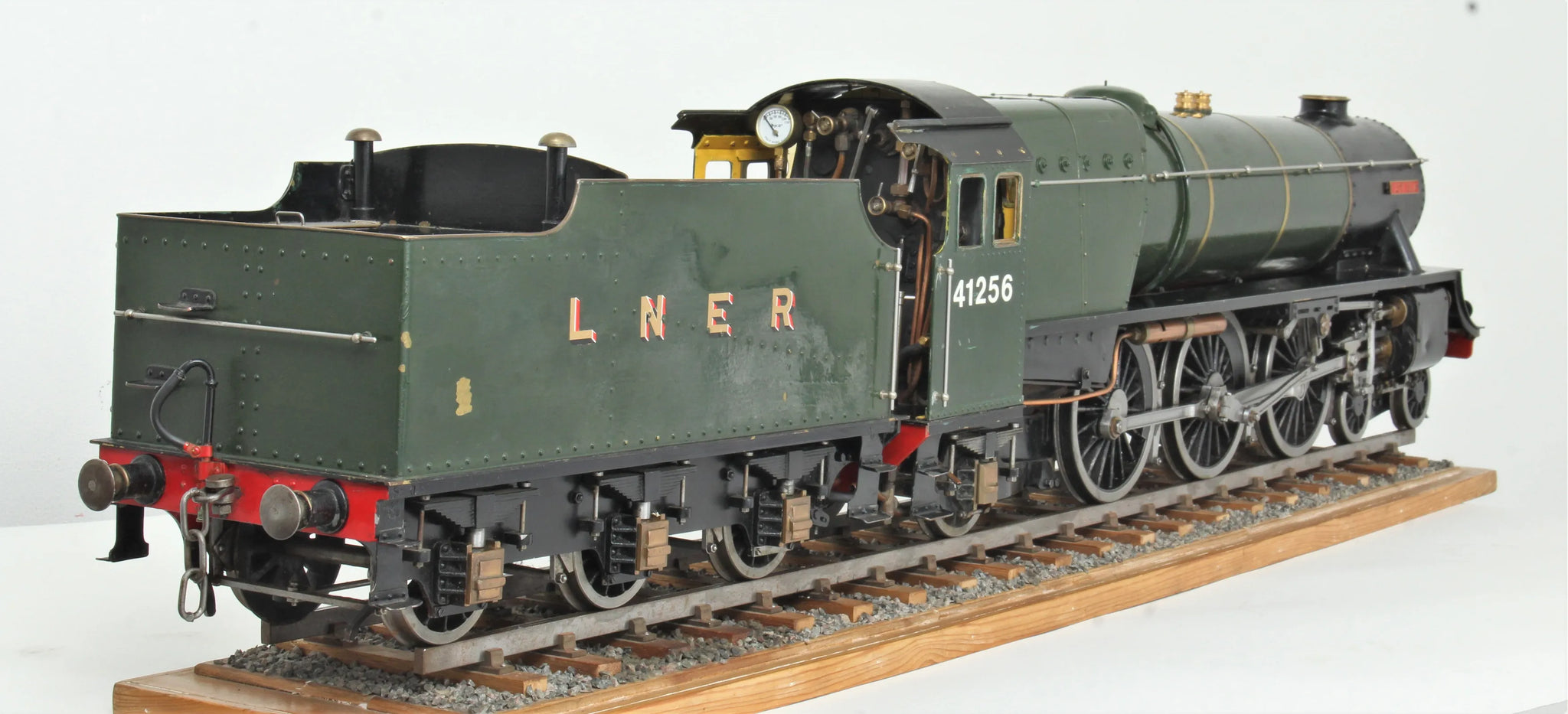

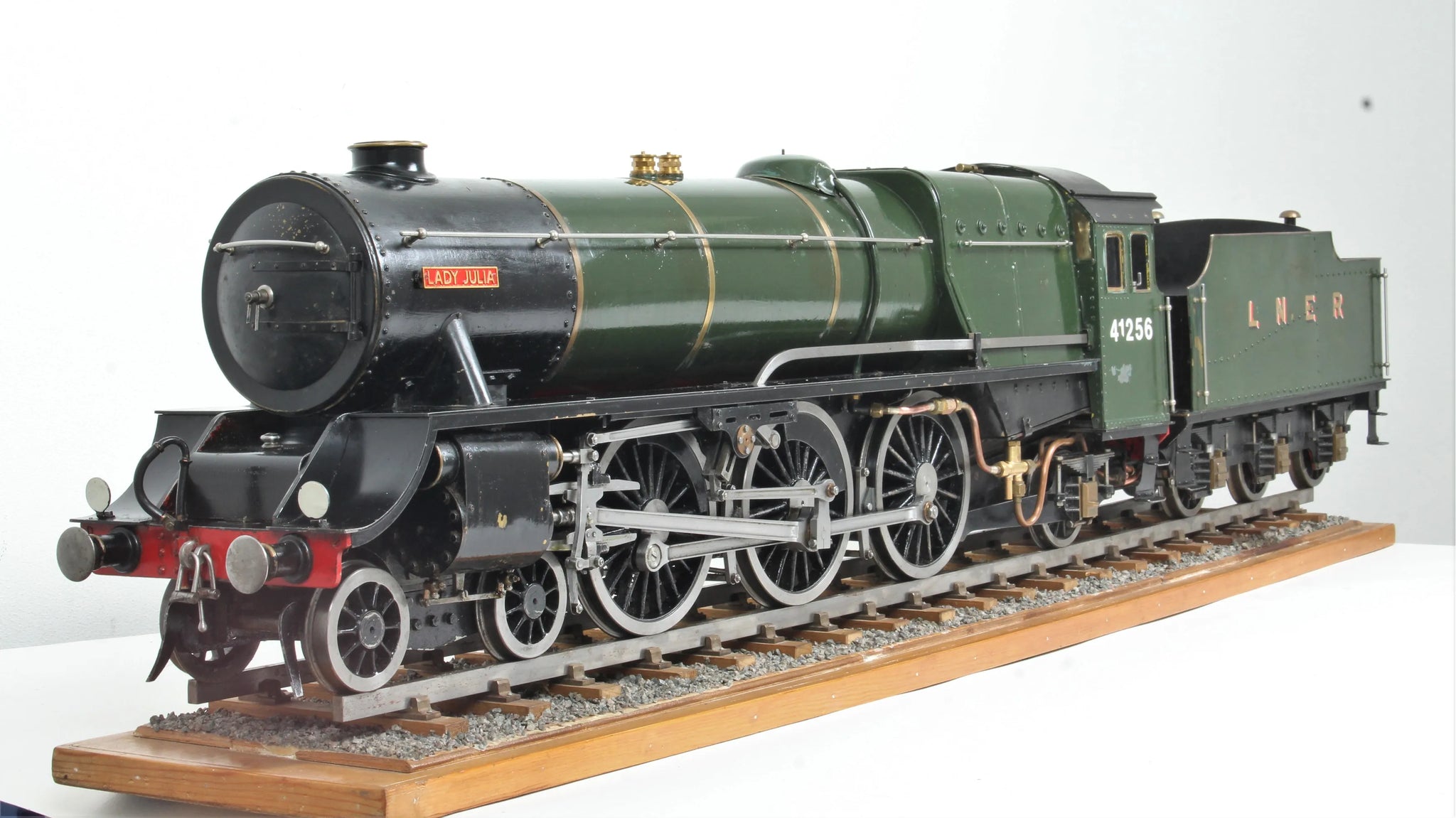

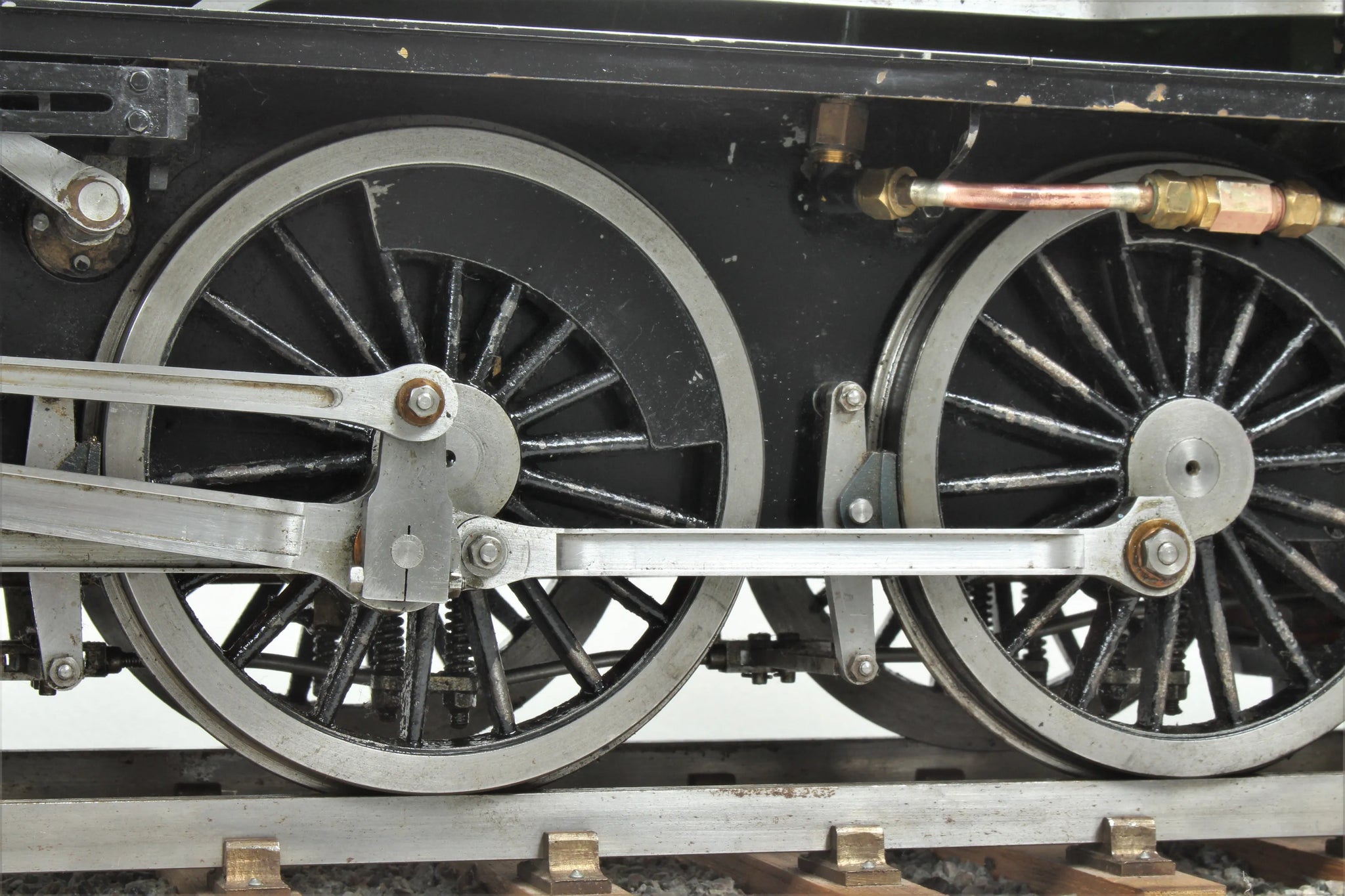

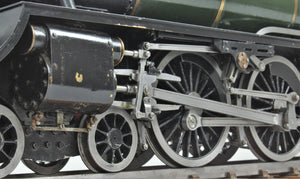

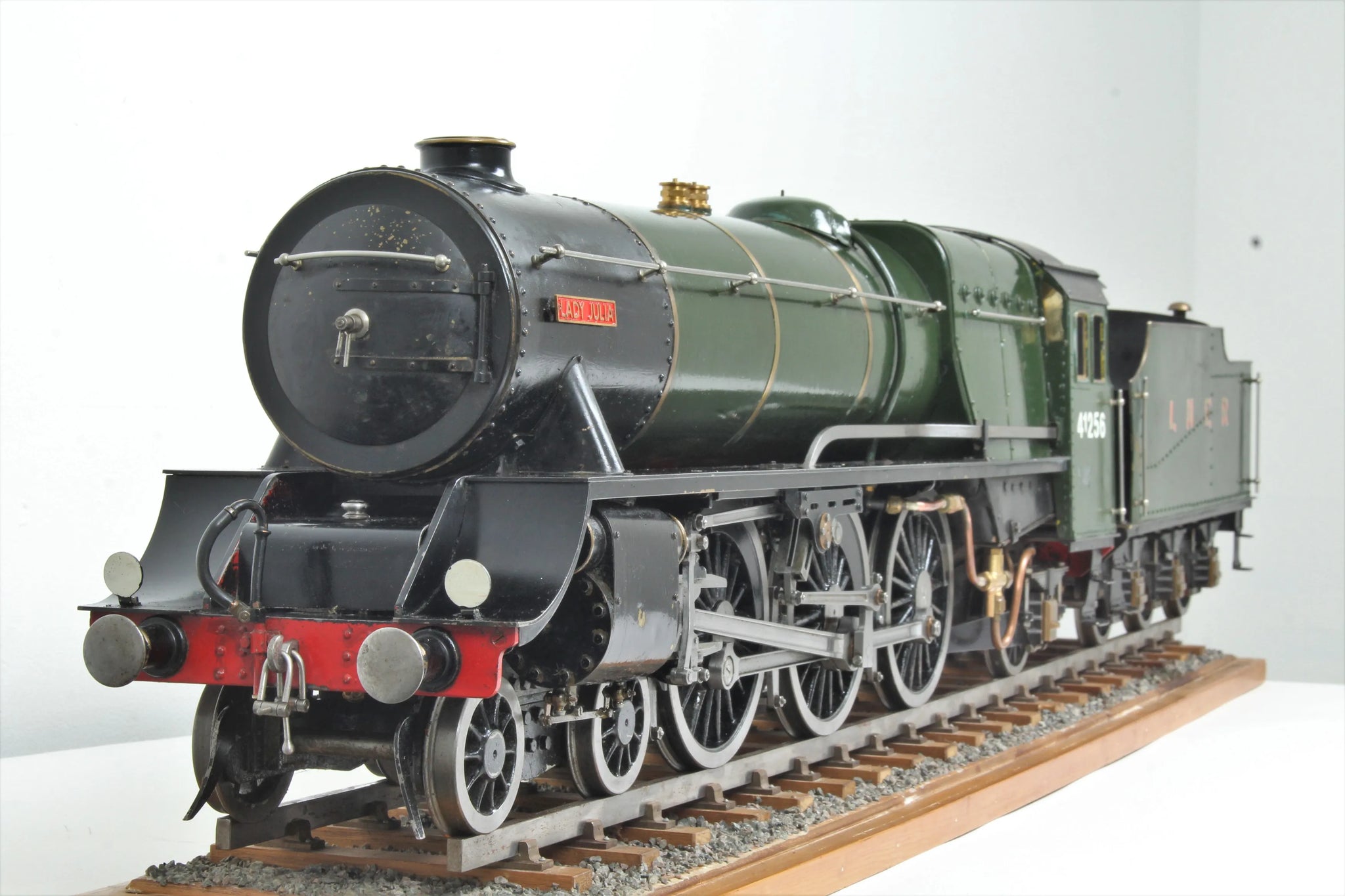

An older engine, paintwork is "working clothes", however the combustion chamber boiler makes steam like it's going out of fashion. The finely built chassis runs exceptionally well - it ran on the rolling road for an hour last week with the safety valves feathering pretty much constantly - notching up accurately in either direction with a crisp, even exhaust beat.
Stock code |
8586 |
Gauge |
3 1/2 inch |
Length/inches |
35 + 18 |
Width/inches |
8 |
Height/inches |
11 |

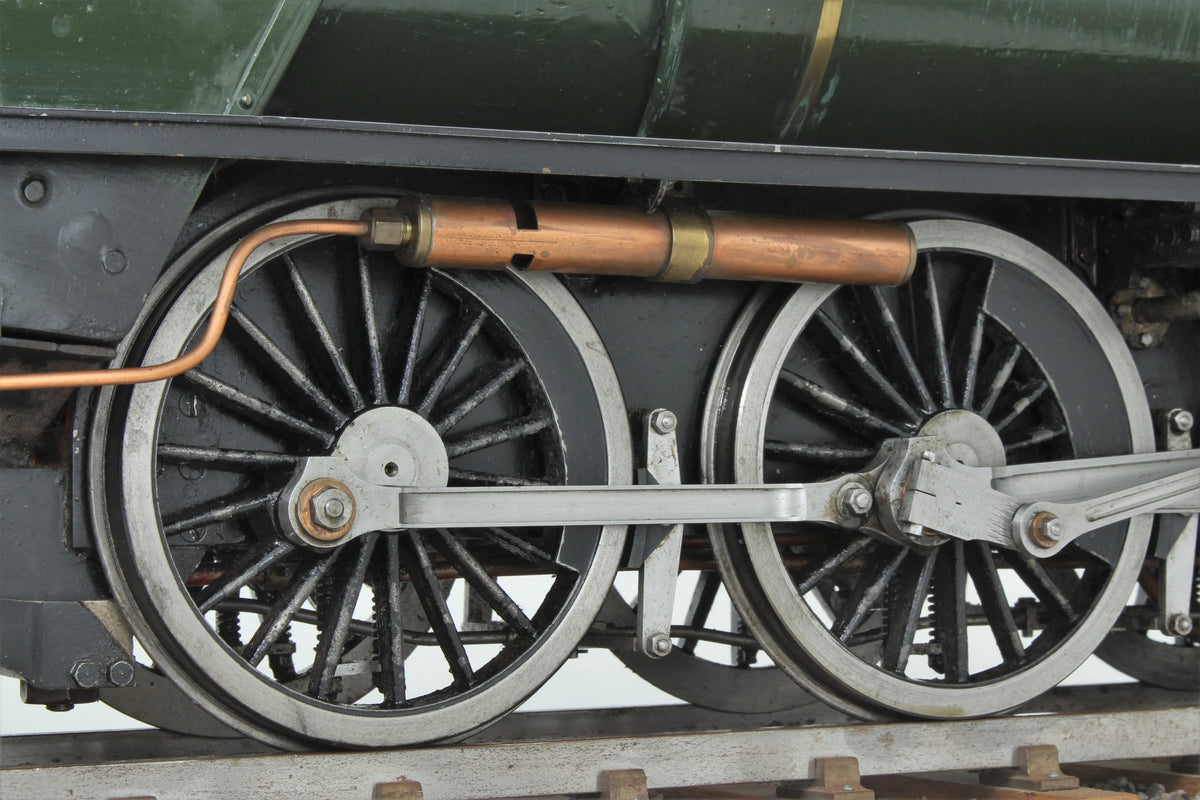

Wheel material |
cast iron |
Axlebox type |
plain |
Cylinder material |
gunmetal |
Valve type |
piston |

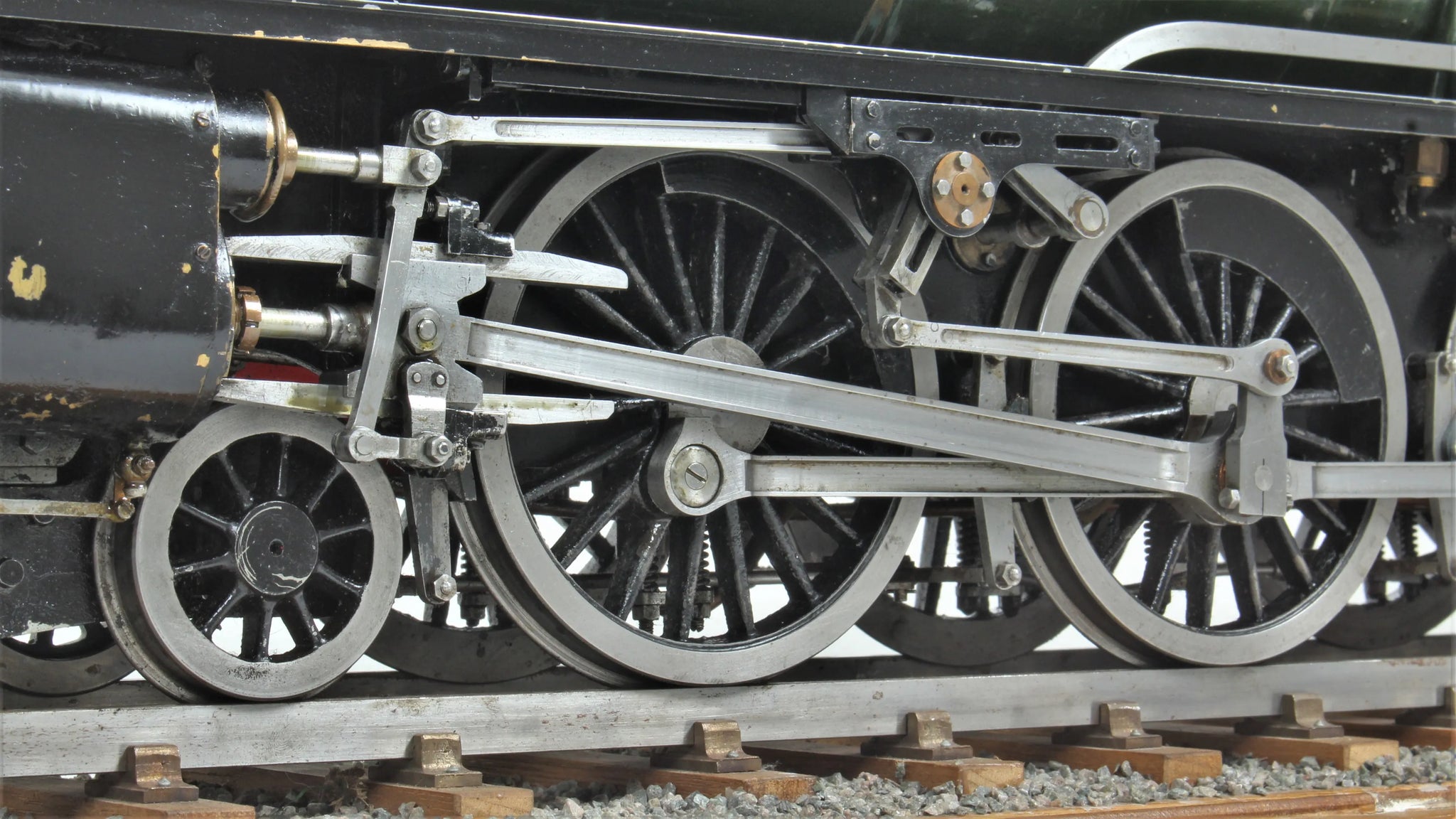

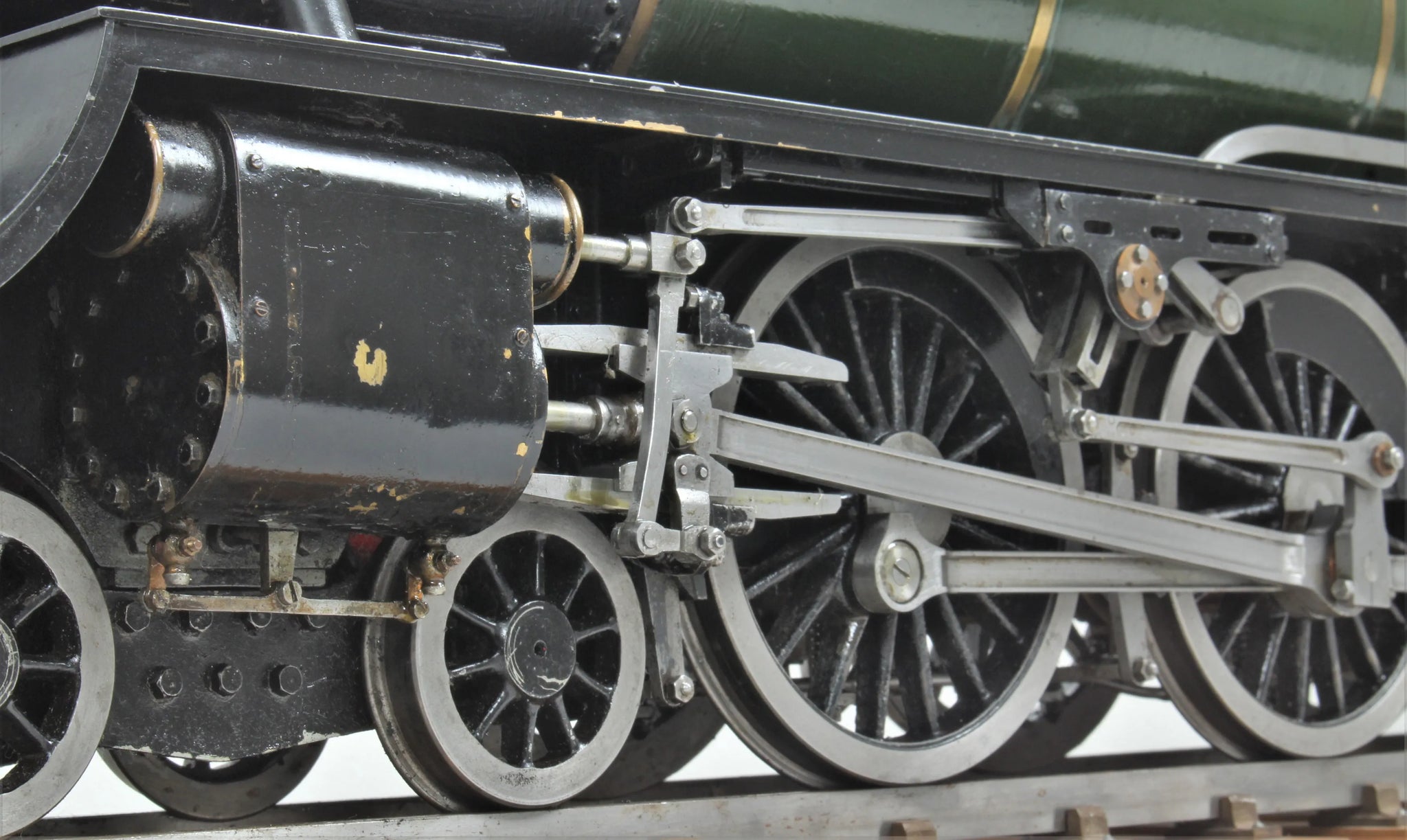

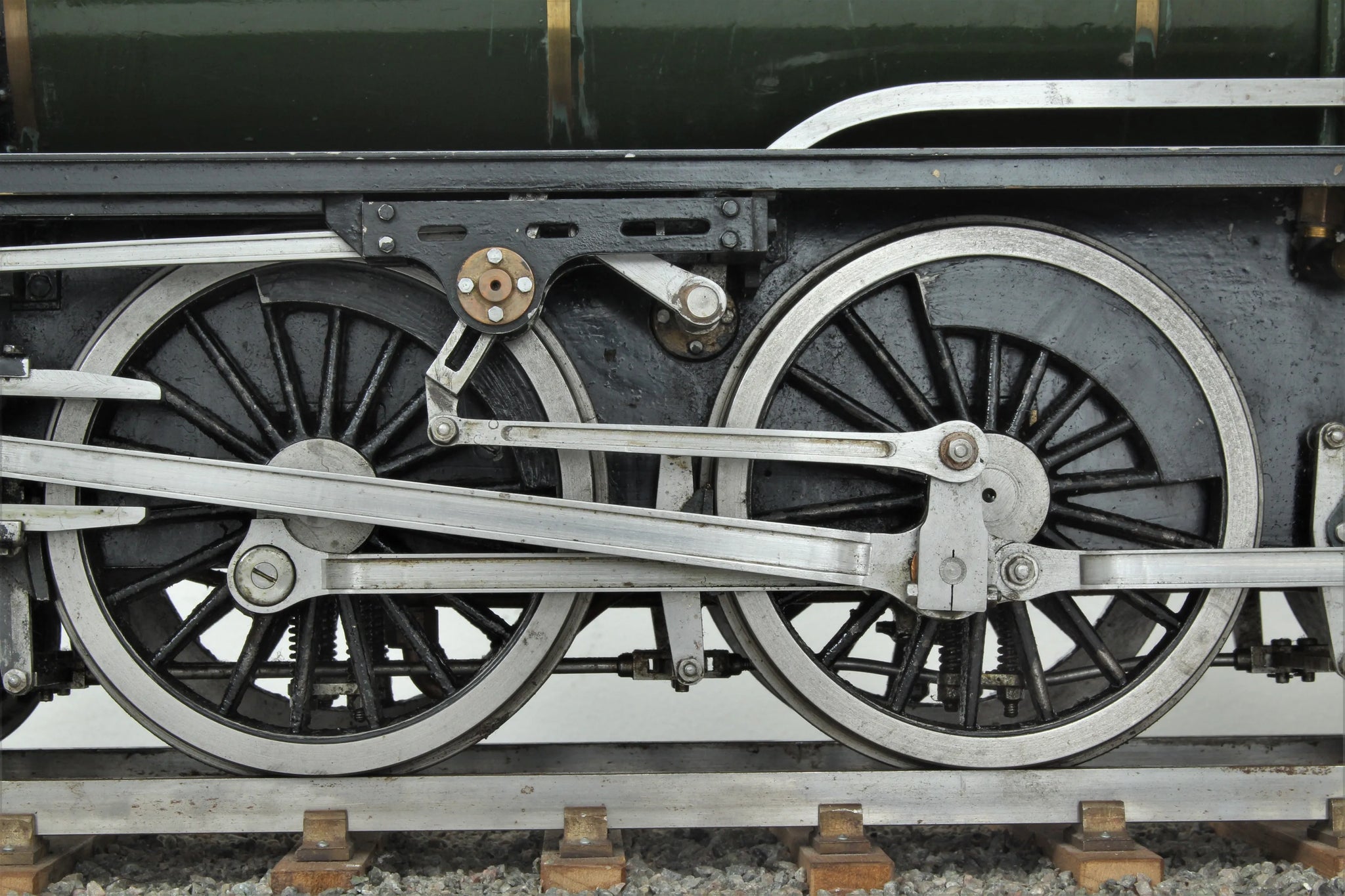

Valve gear |
Walschaerts |

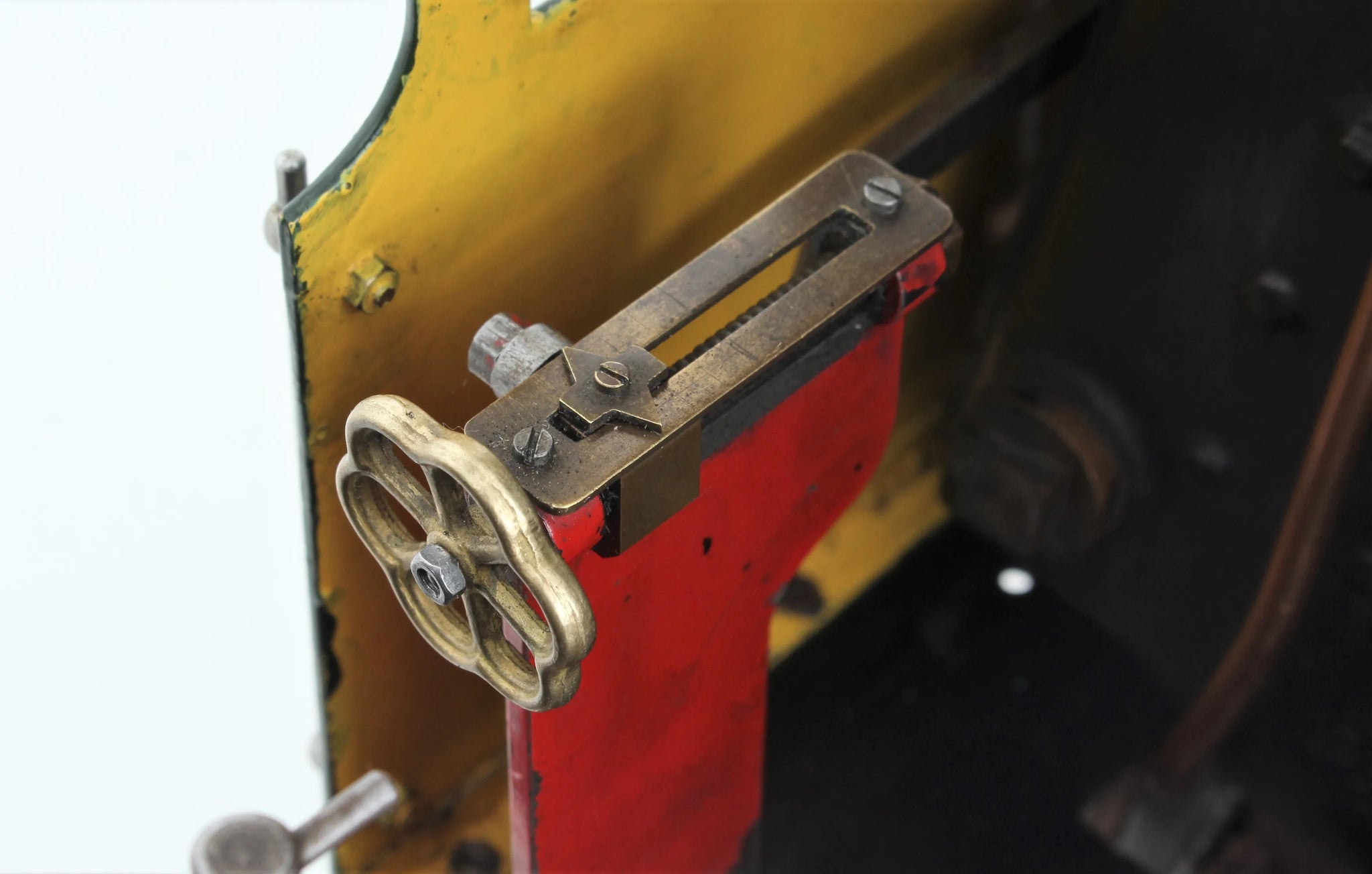

Reverser type |
screw |
Lubricator type |
mechanical |
Boiler type |
locomotive with combustion chamber |
Boiler construction |
silver soldered |
Boiler material |
copper |
Working pressure |
80 |
CE/UKCA mark |
n/a - non-commercial |
Boiler number |
1686 |

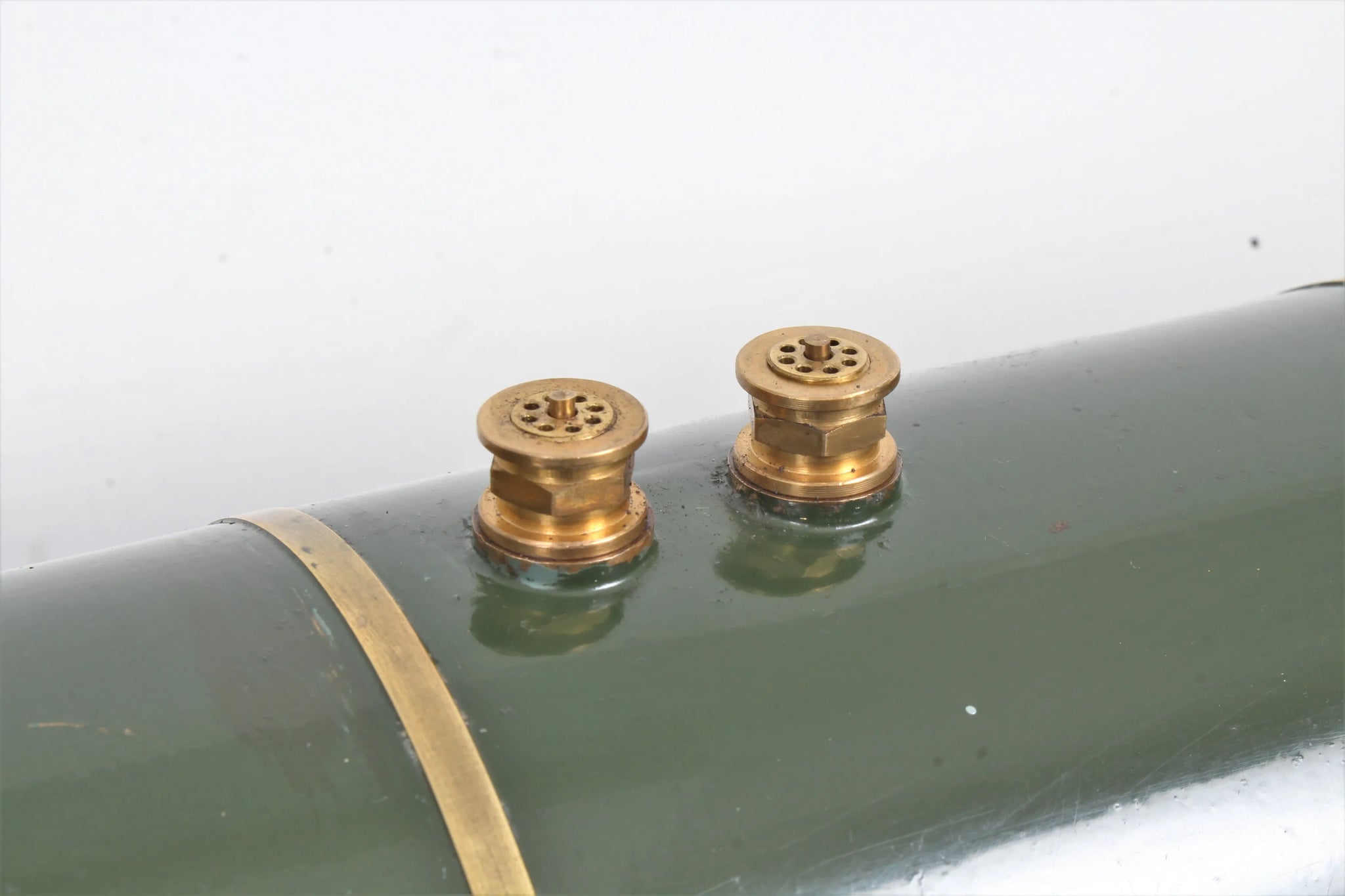

Safety valve type |
spring |
Safety valve |
2 |
Whistle |
yes |

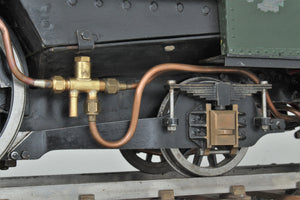

Hand pump |
1 |
Mechanical pump |
1 |
Injector |
1 |
Superheater type |
flue tube |
Superheater |
4 |
Date out |
Jul-20 |
Hydraulic test valid to |
24-Jun-23 |
Steam test valid to |
04-Jul-21 |
