Sold

10916

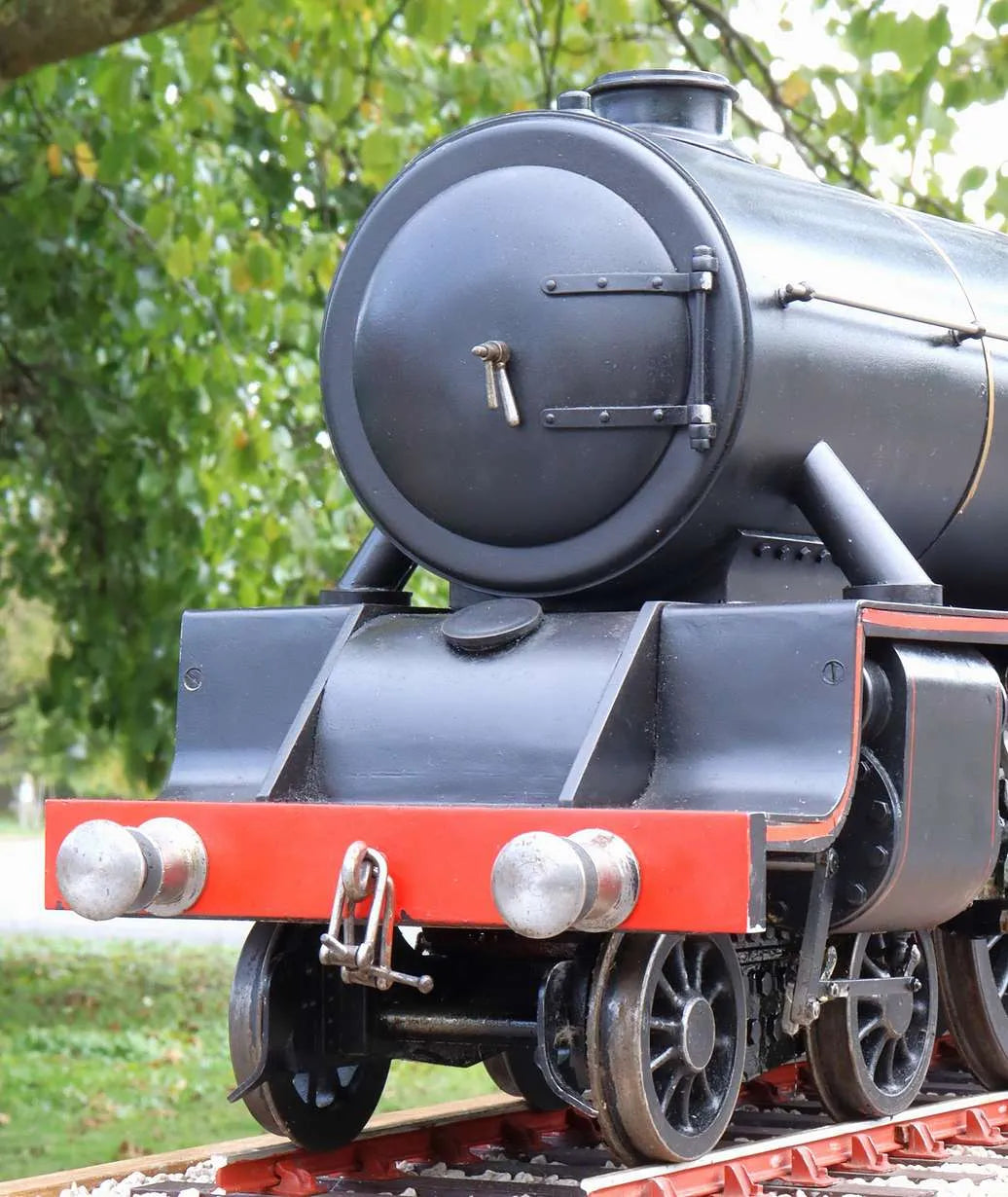

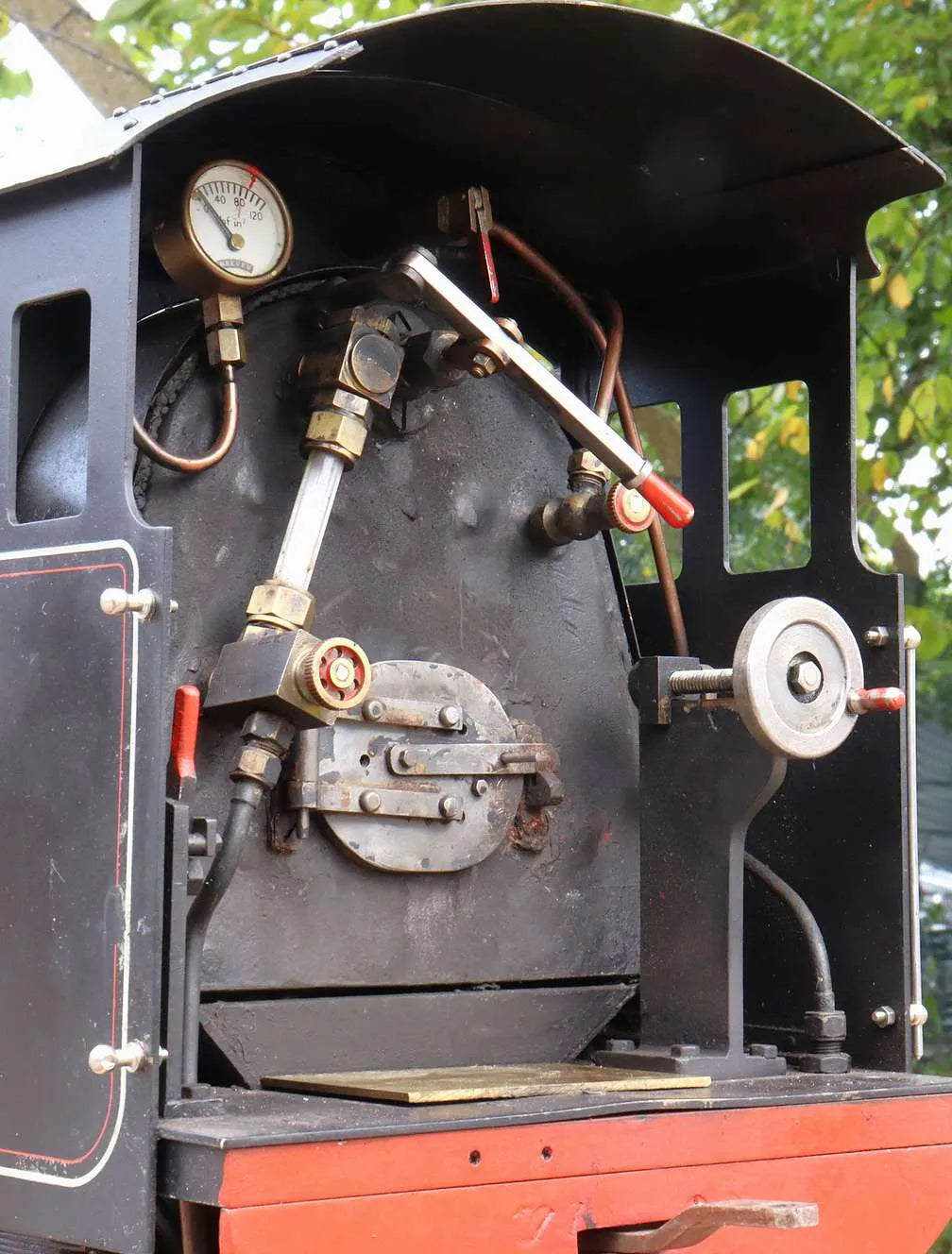

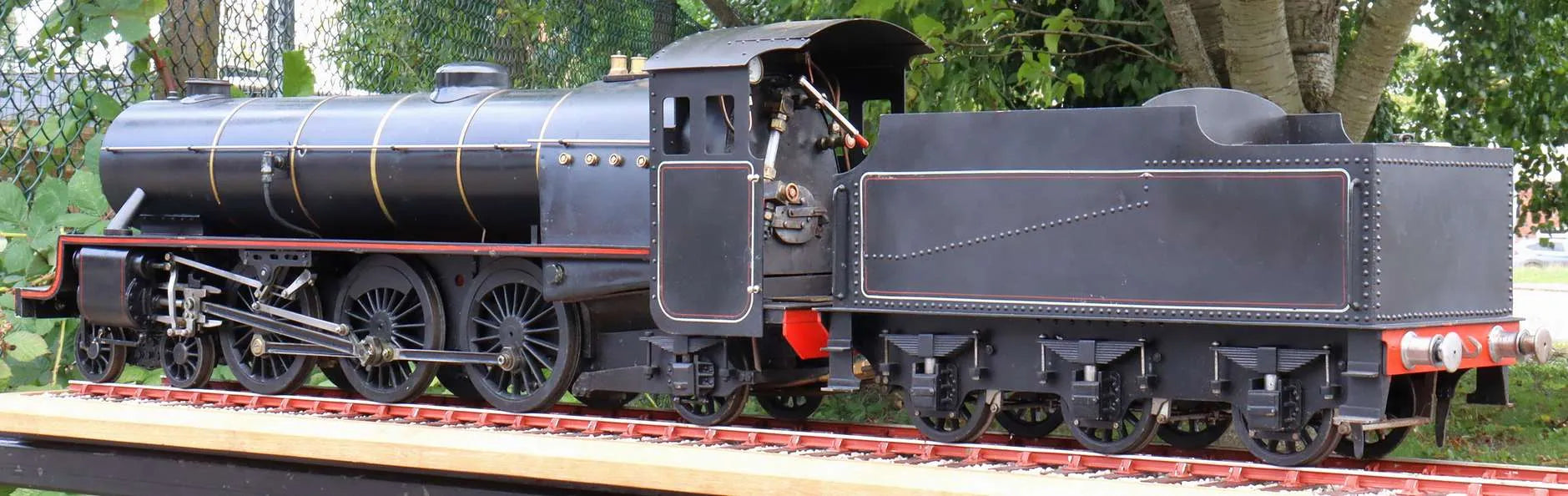

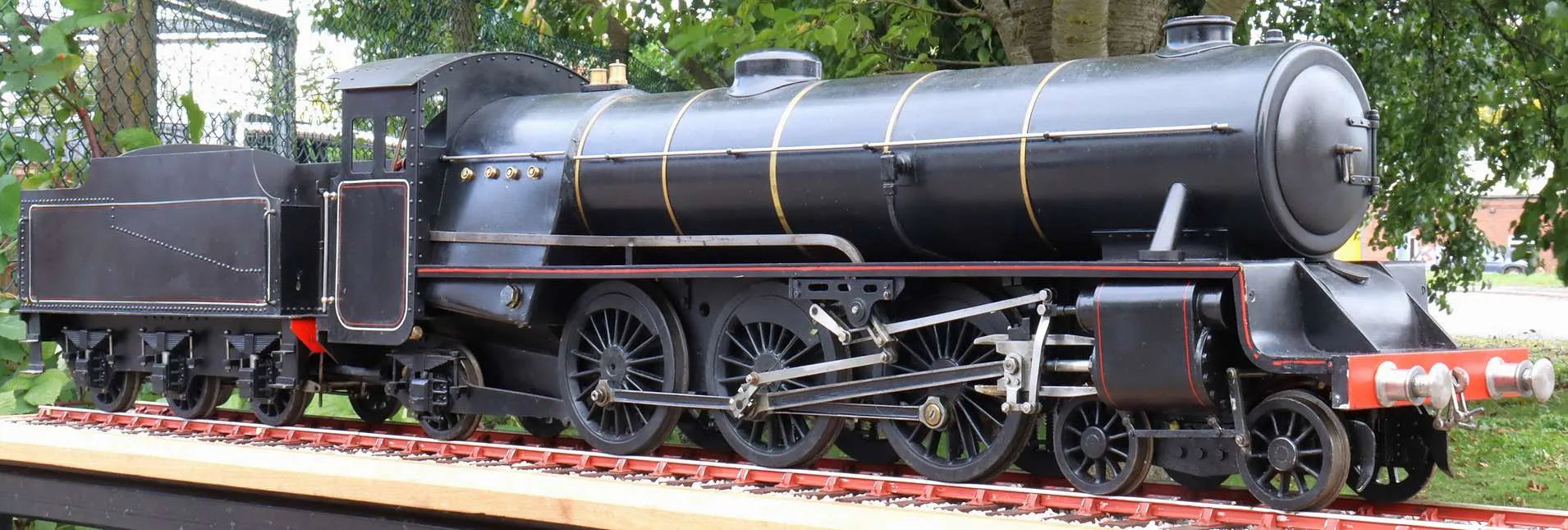

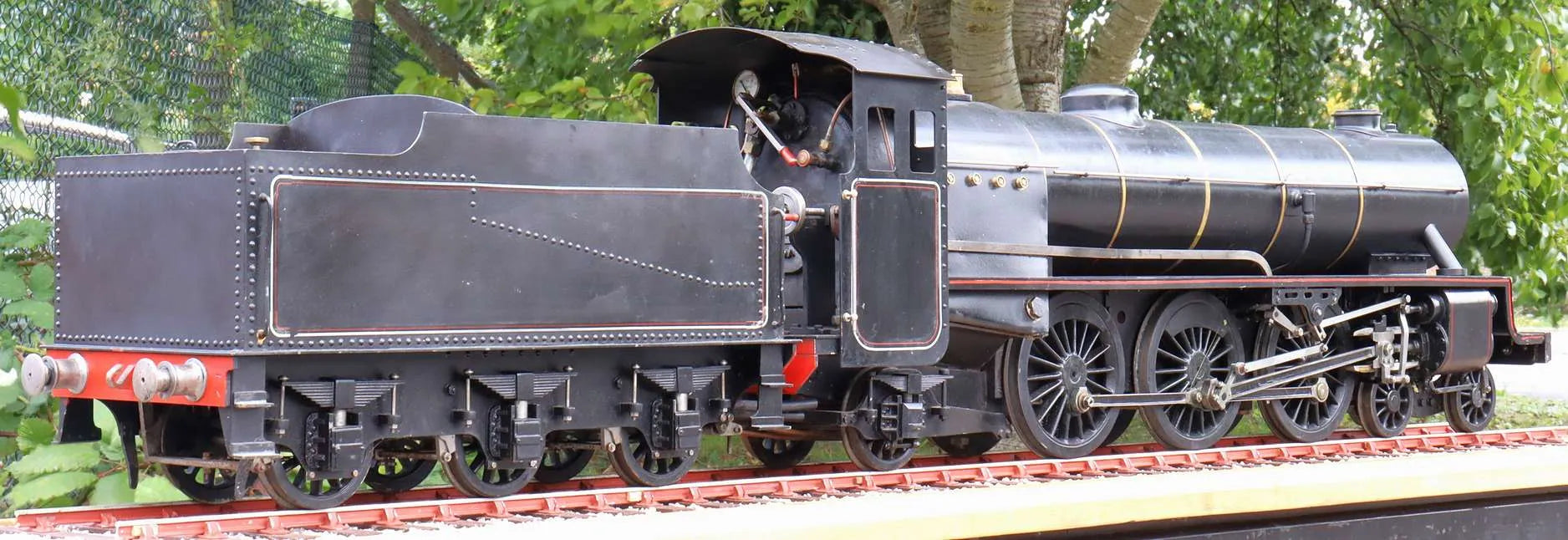

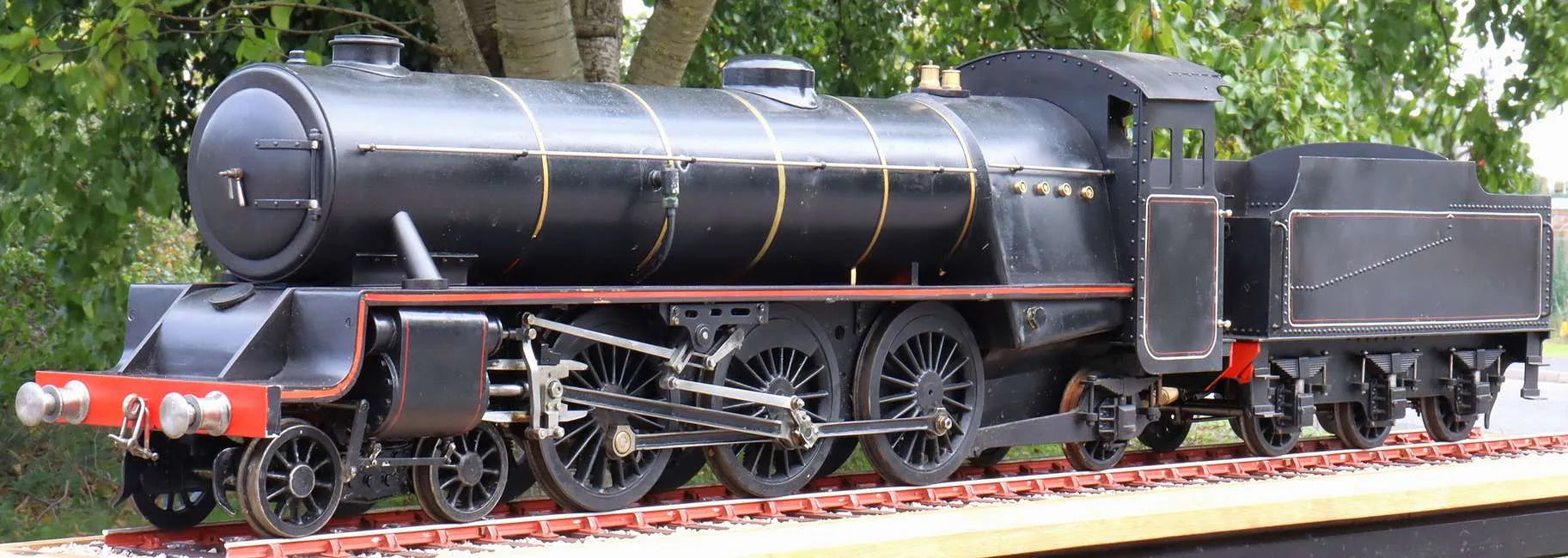

3 1/2 inch gauge "Pamela" 4-6-2

A 3 1/2 inch gauge Pacific to LBSC's "Pamela" design - not one that we see very often, we've had two or three running examples in over the last twenty years.

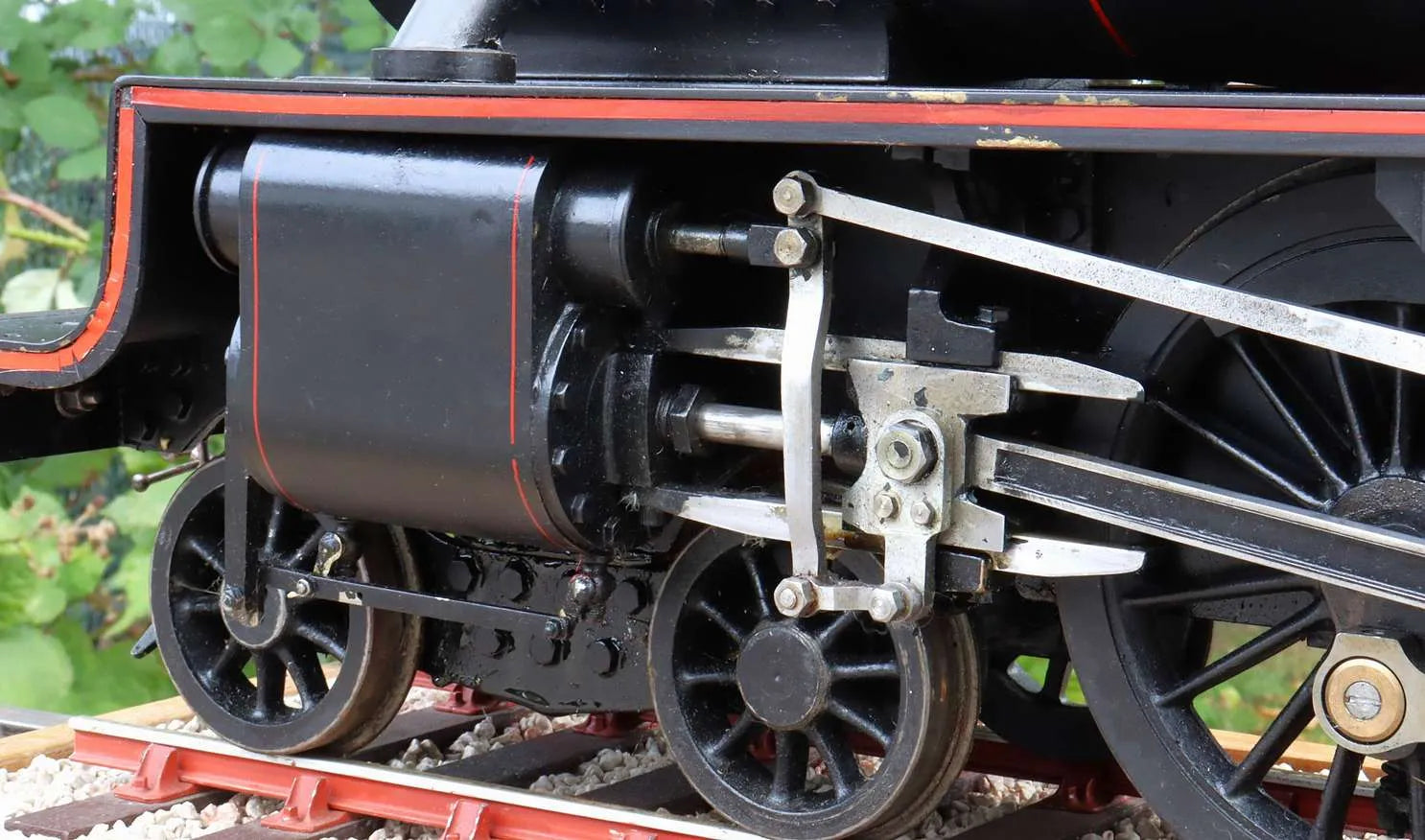

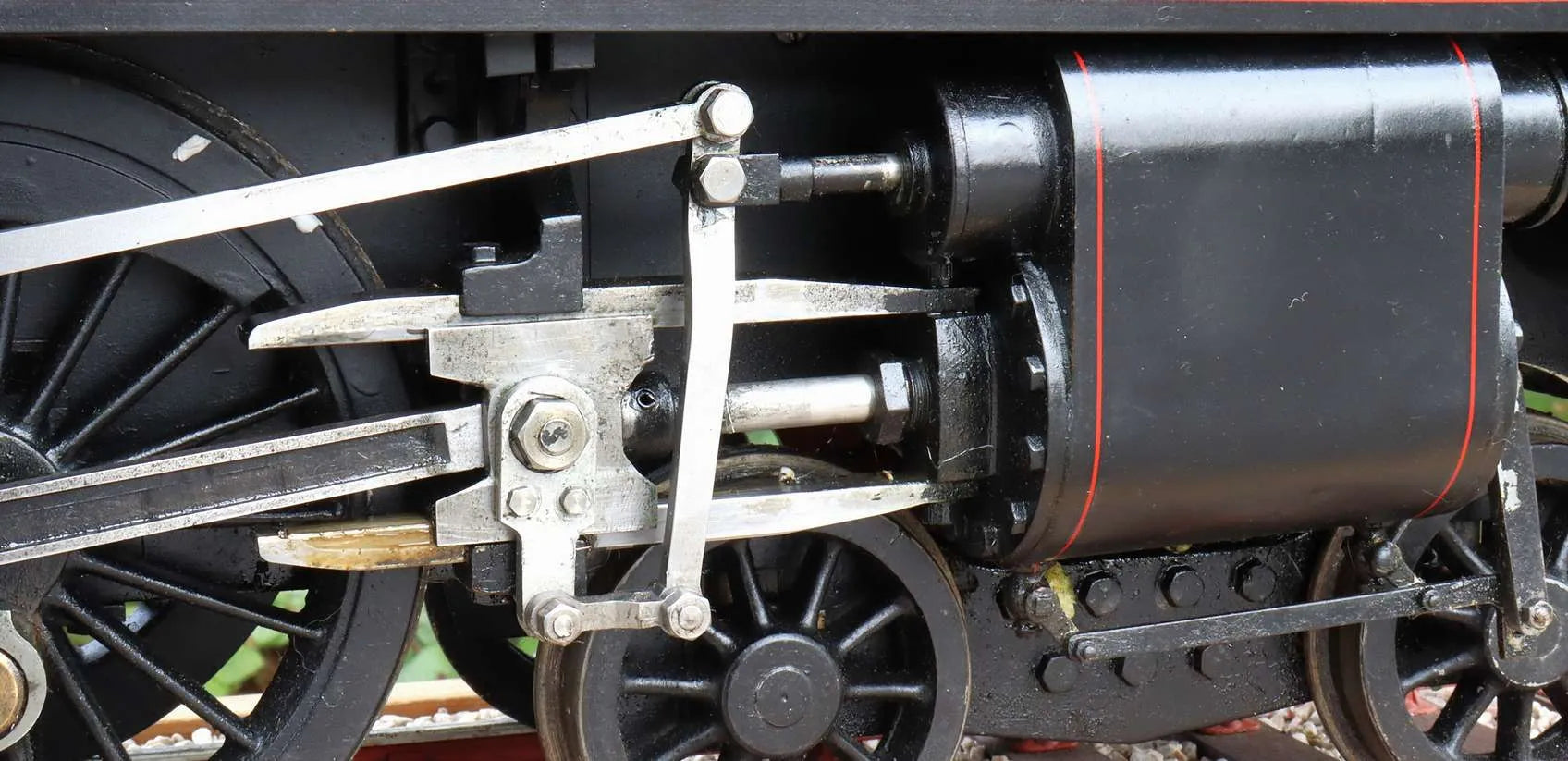

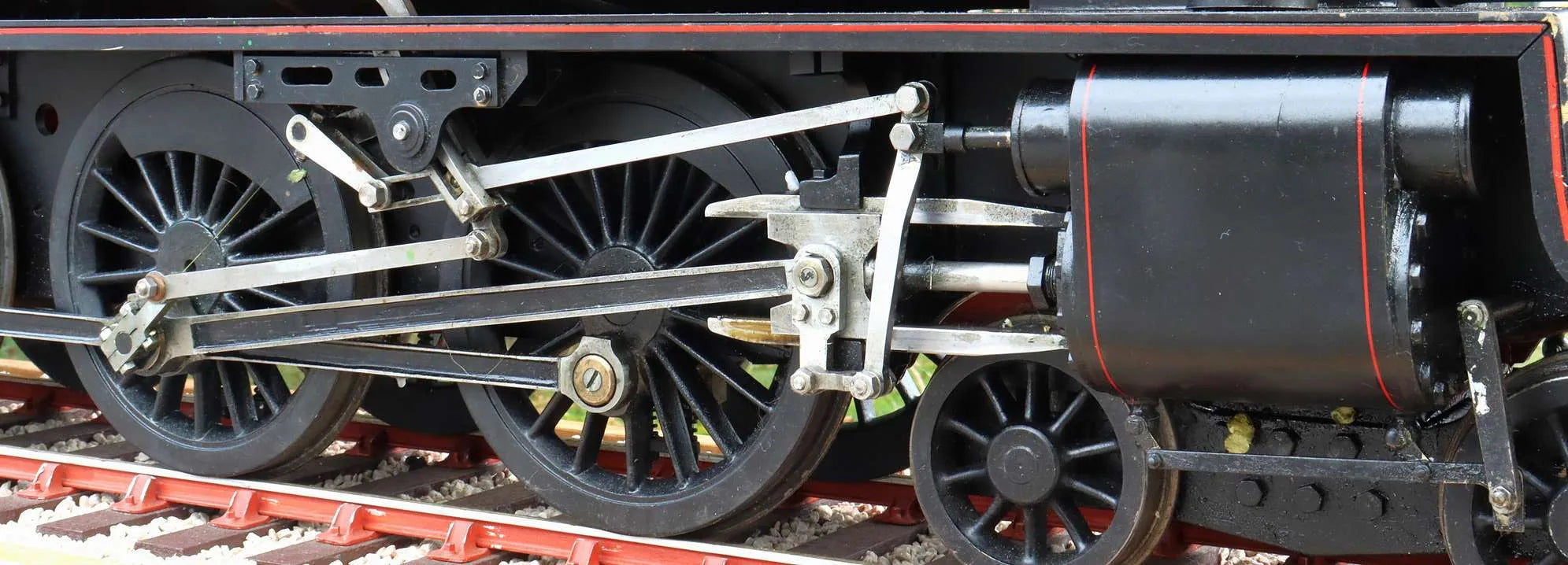

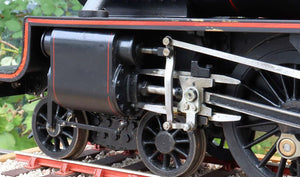

An older engine, this one was well-built in the first place and has done its share of running since - there is some wear in the motionwork and valve gear now which would benefit from rebushing over next winter.

The boiler has had a twice working pressure hydraulic test and appears sound and leak free - we would warranty it as such.

The chassis turns over freely and runs on air in either direction.

A handsome engine, it could be run with minor recommissioning work, whilst at the same time providing ample scope as a longer term improver.

Technical information

Stock code

10916

Length/inches

35 +19

Width/inches

7

Height/inches

12

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

piston

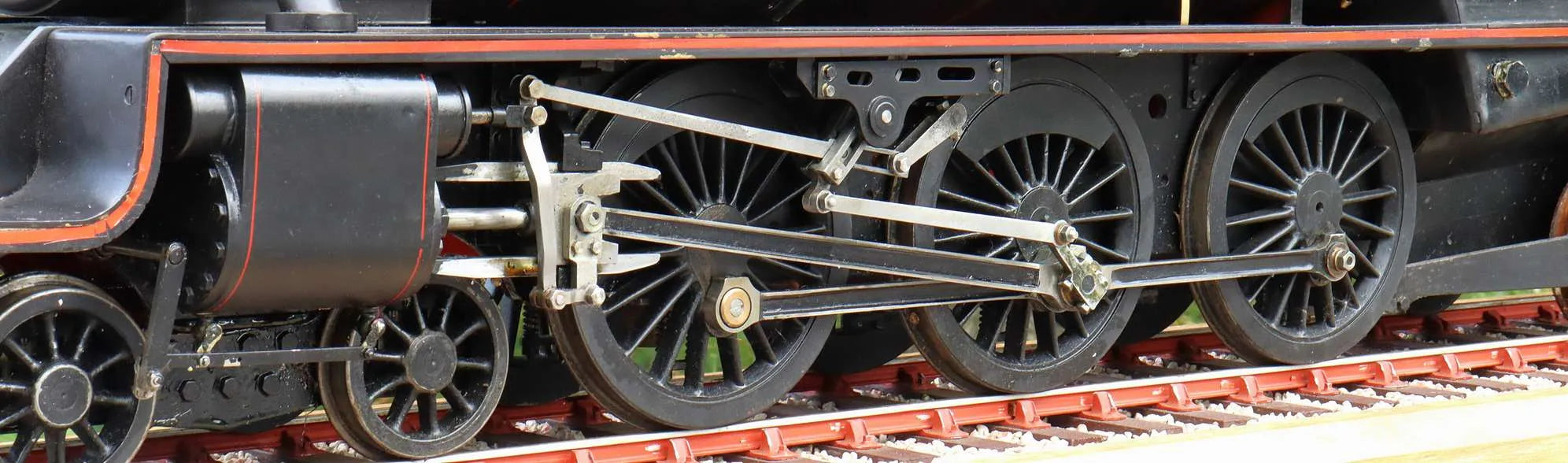

Valve gear

Walschaerts

Reverser type

screw

Lubricator type

mechanical

Boiler type

locomotive with combustion chamber

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a - non-commercial

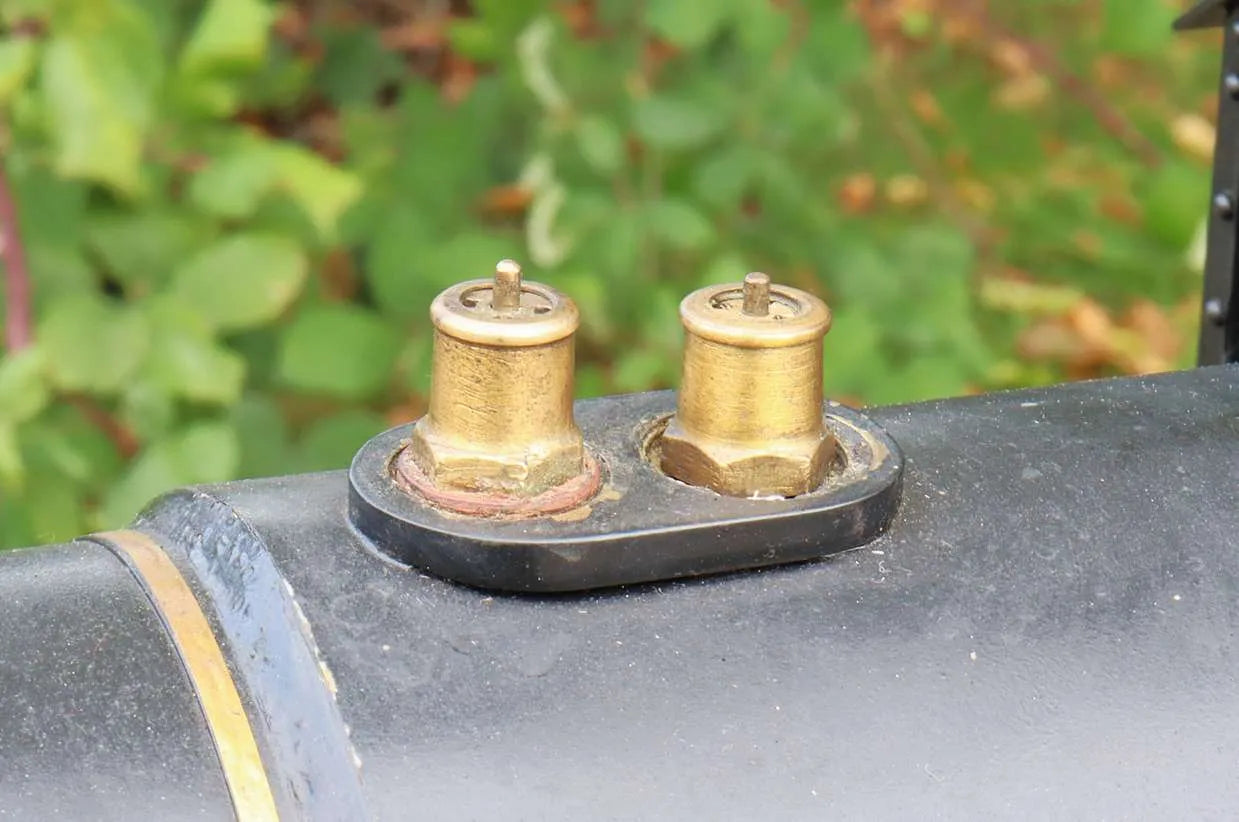

Safety valve type

spring

Safety valve

2

Whistle

yes

Hand pump

1

Mechanical pump

1

Superheater type

flue tube

Superheater

4

Date out

Nov-23
