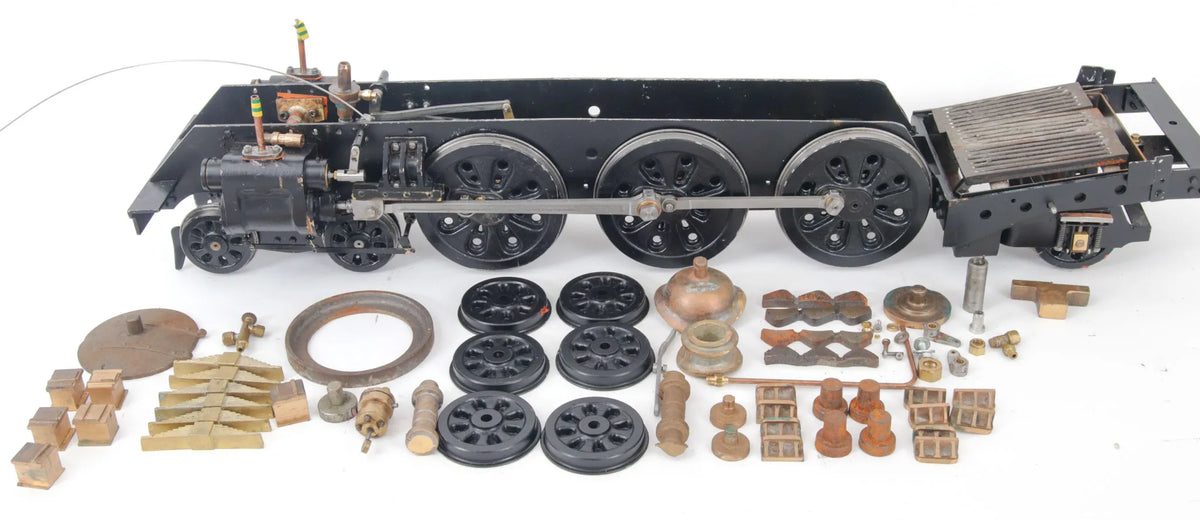

3 1/2 inch gauge "Pamela" 4-6-2

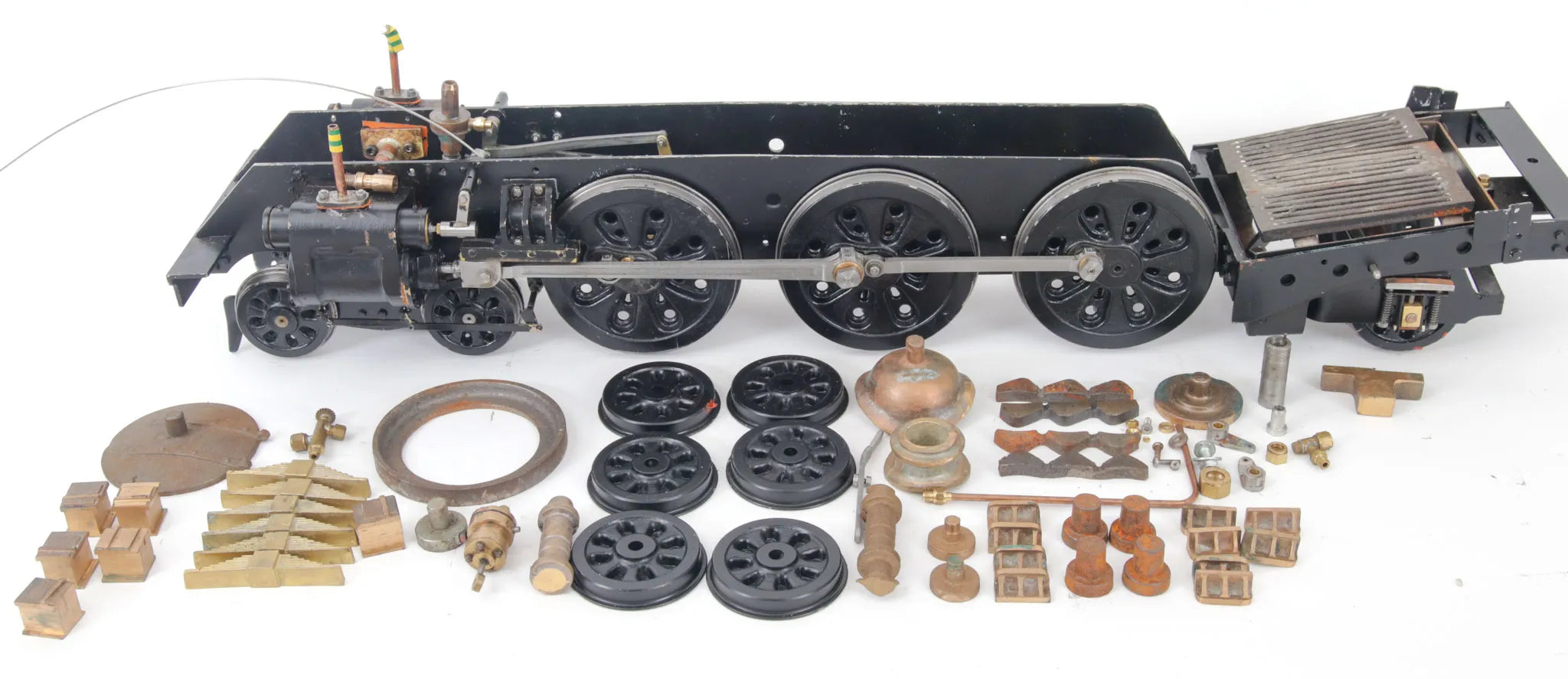

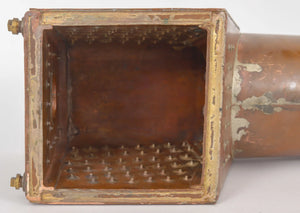

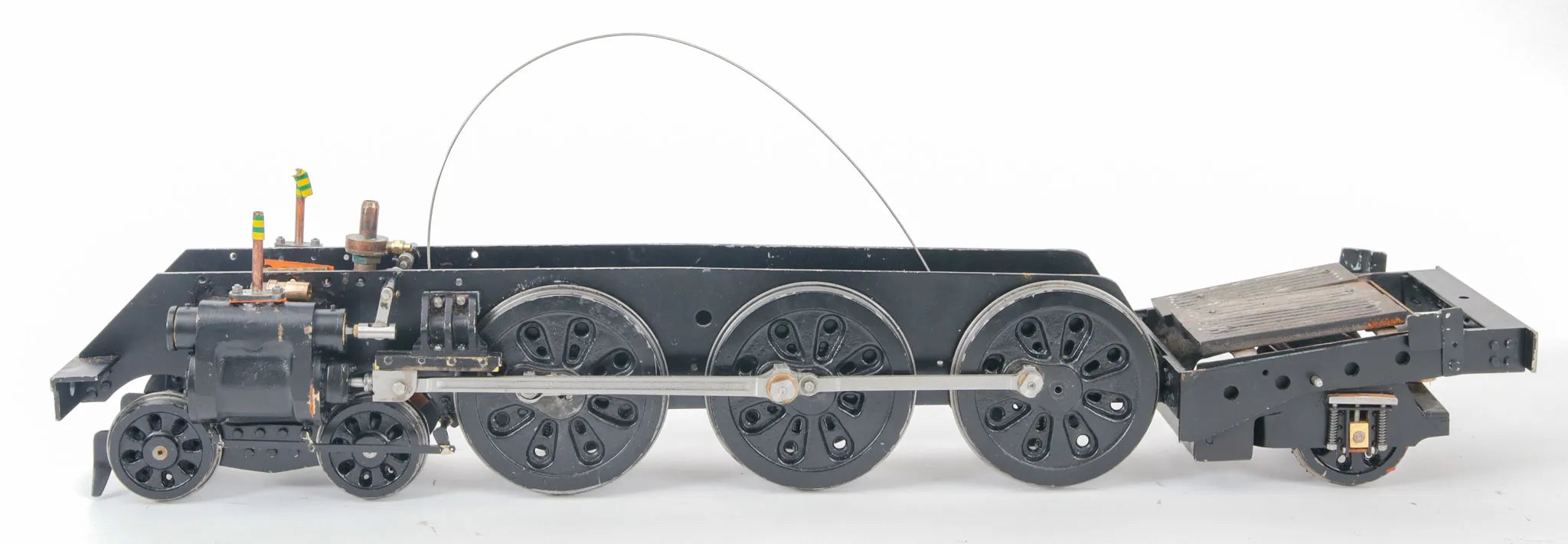

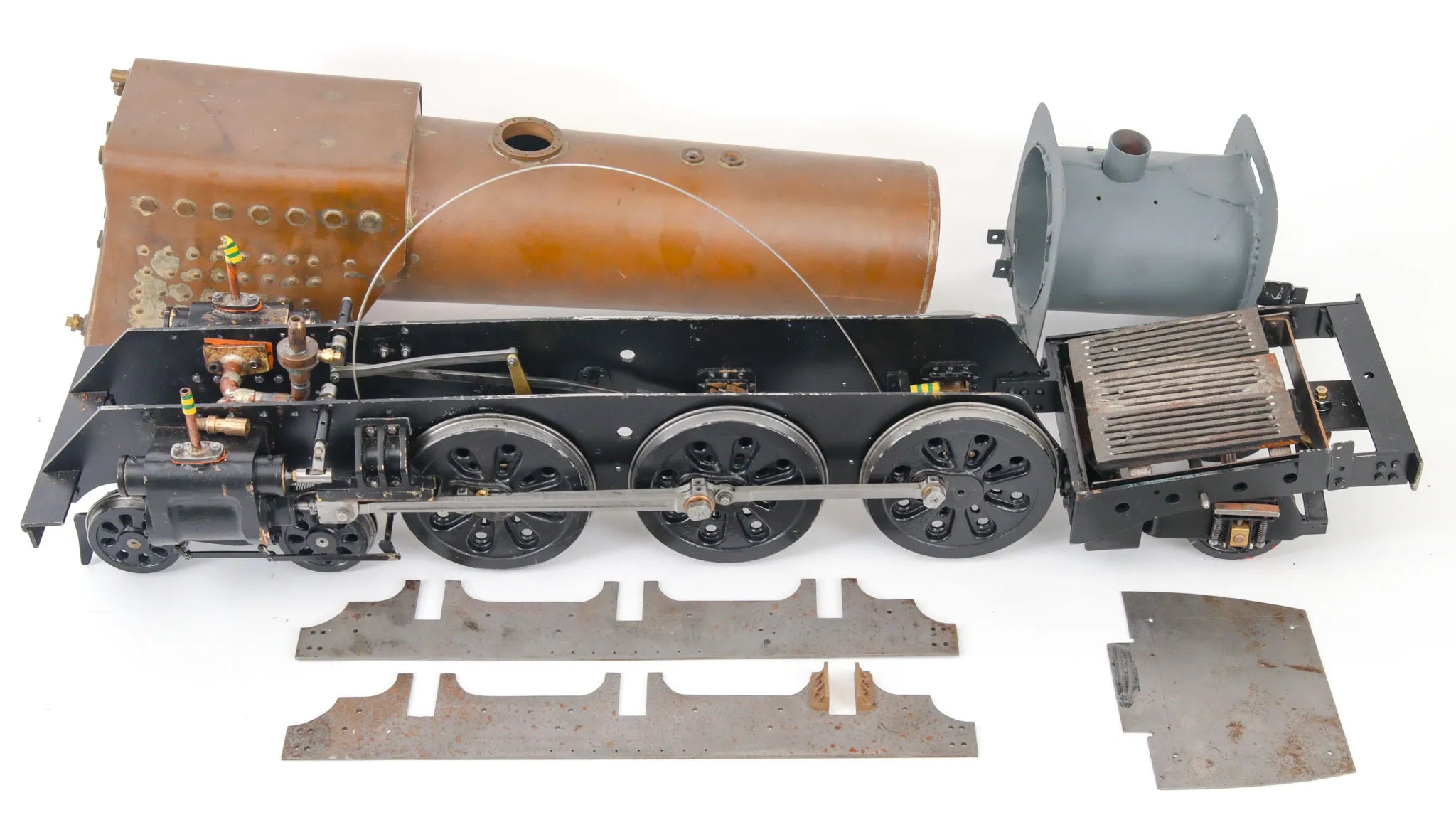

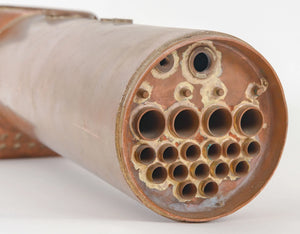

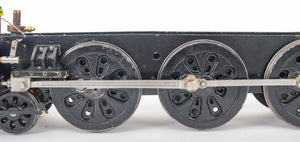

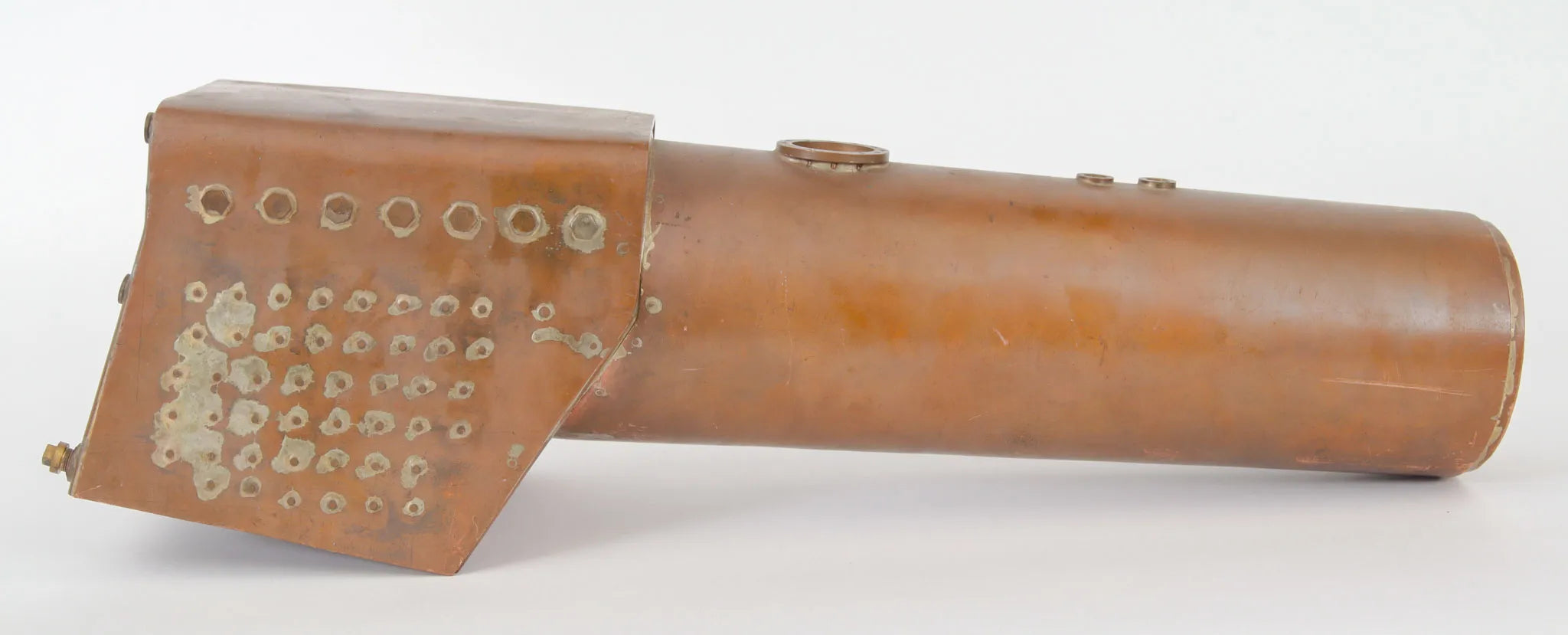

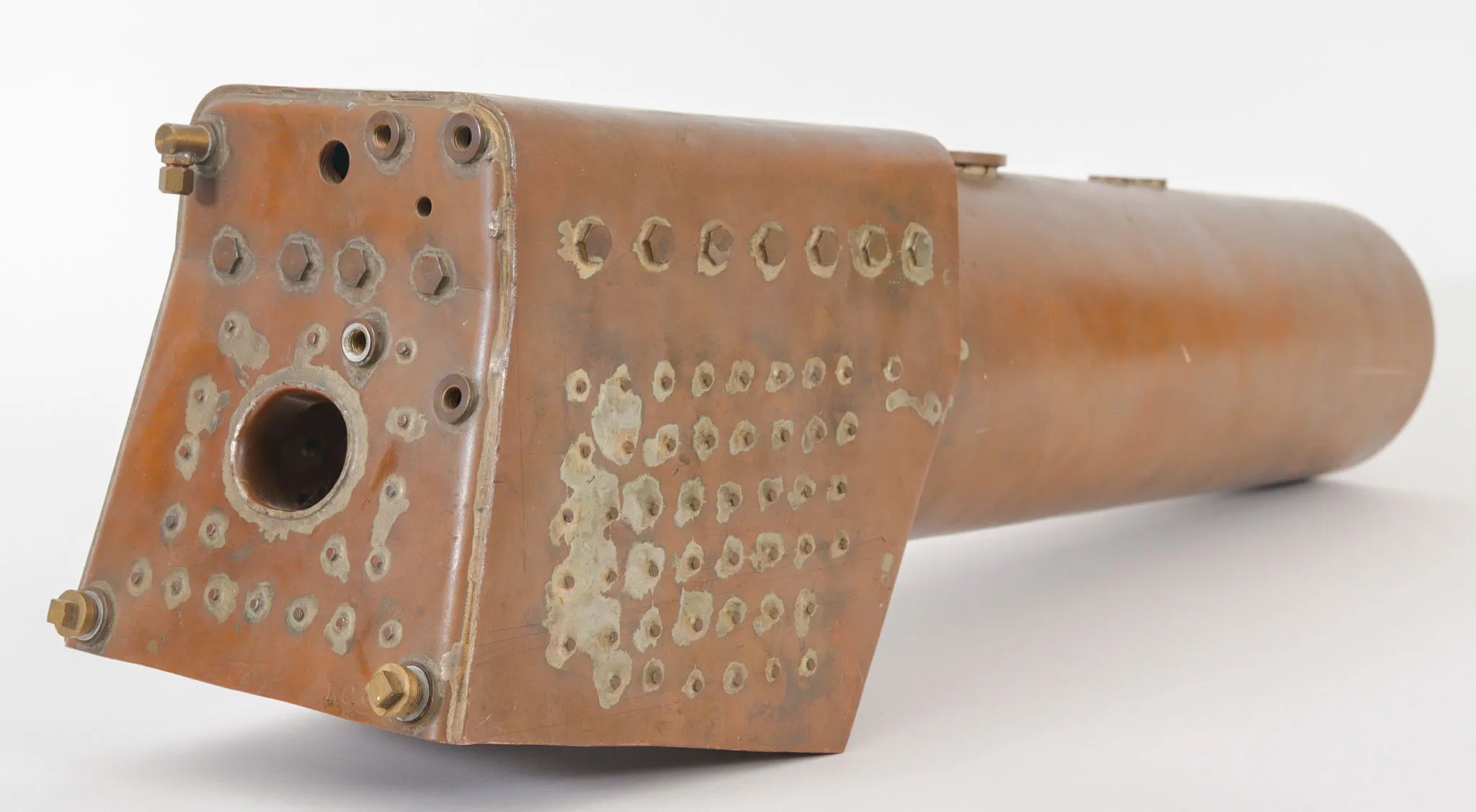

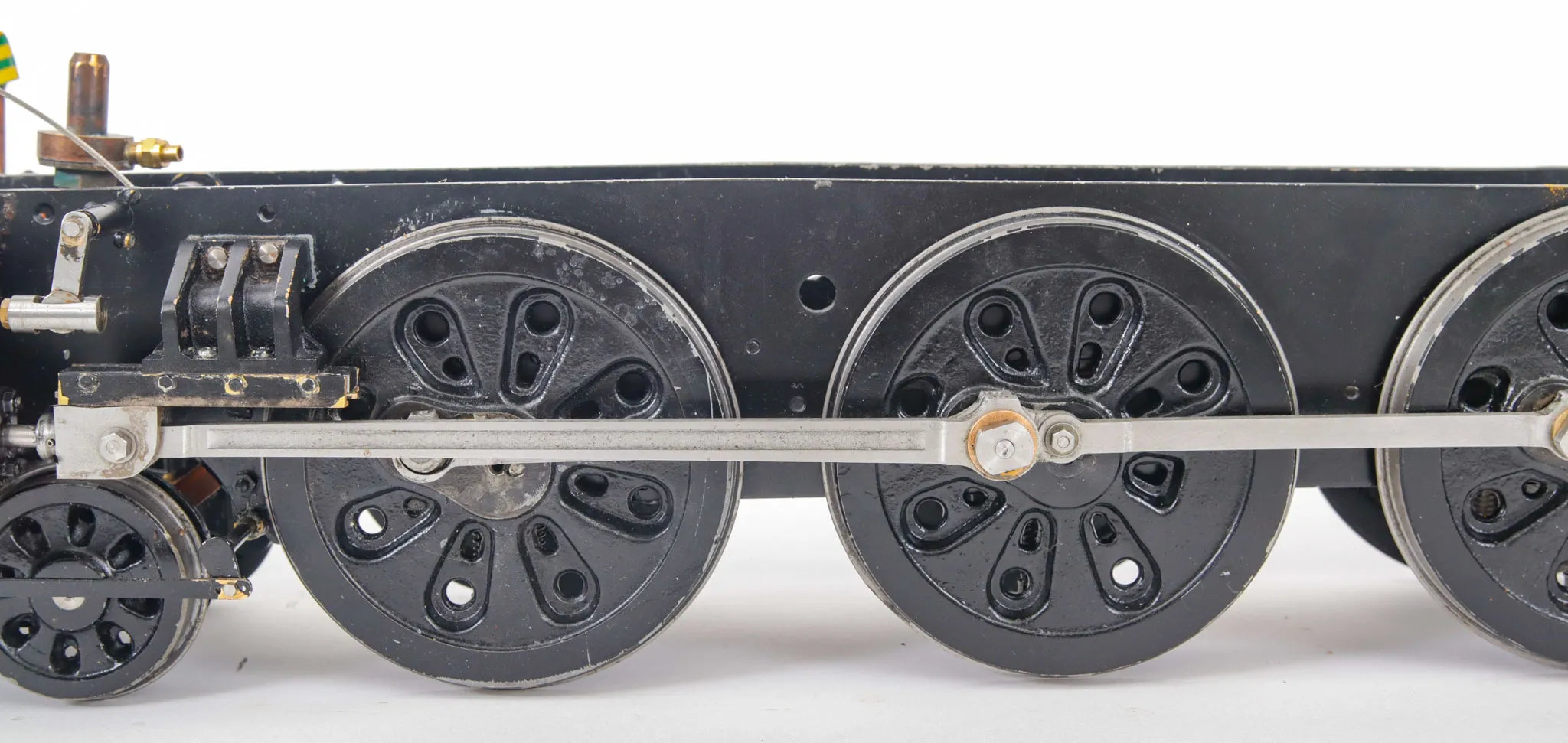

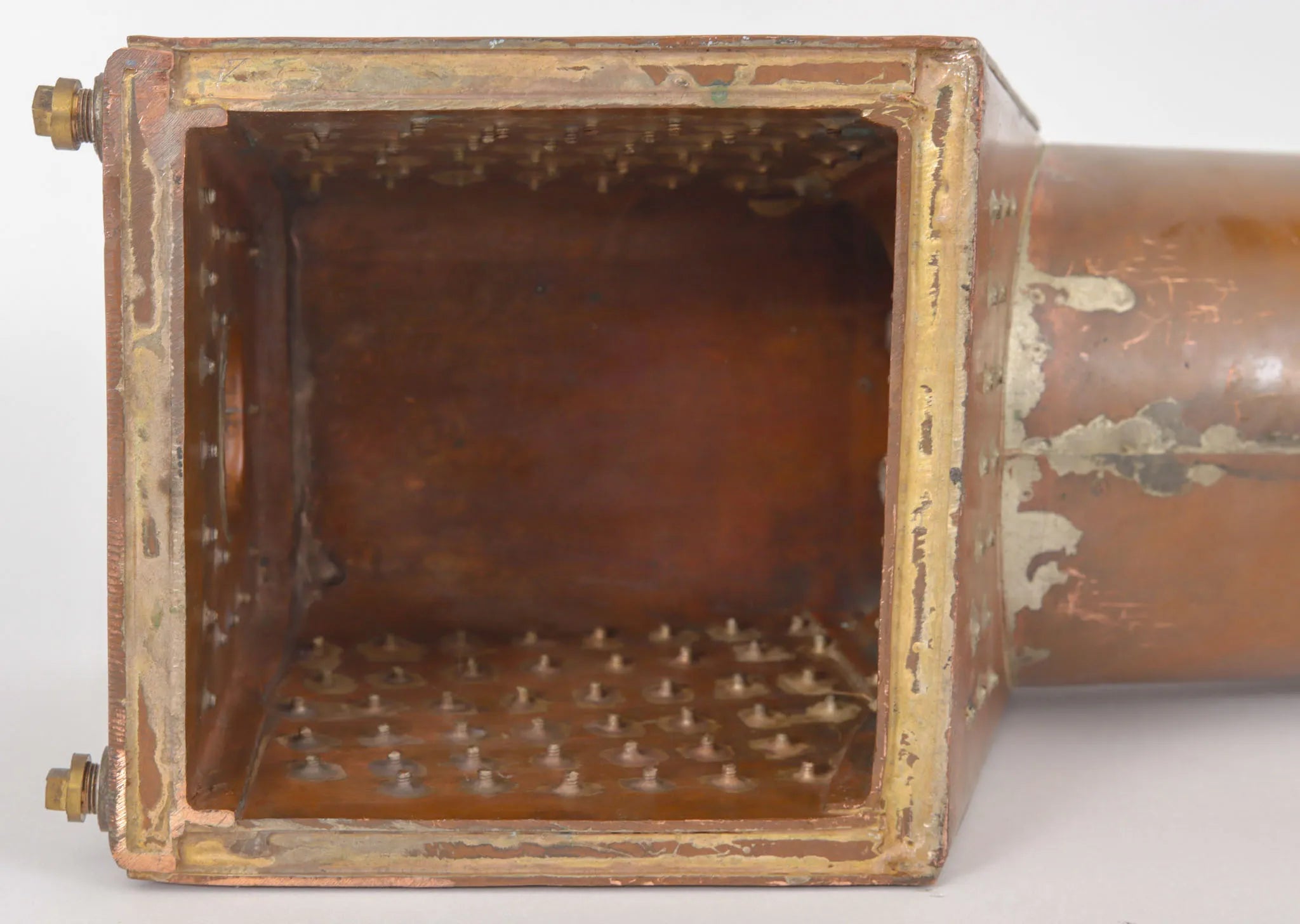

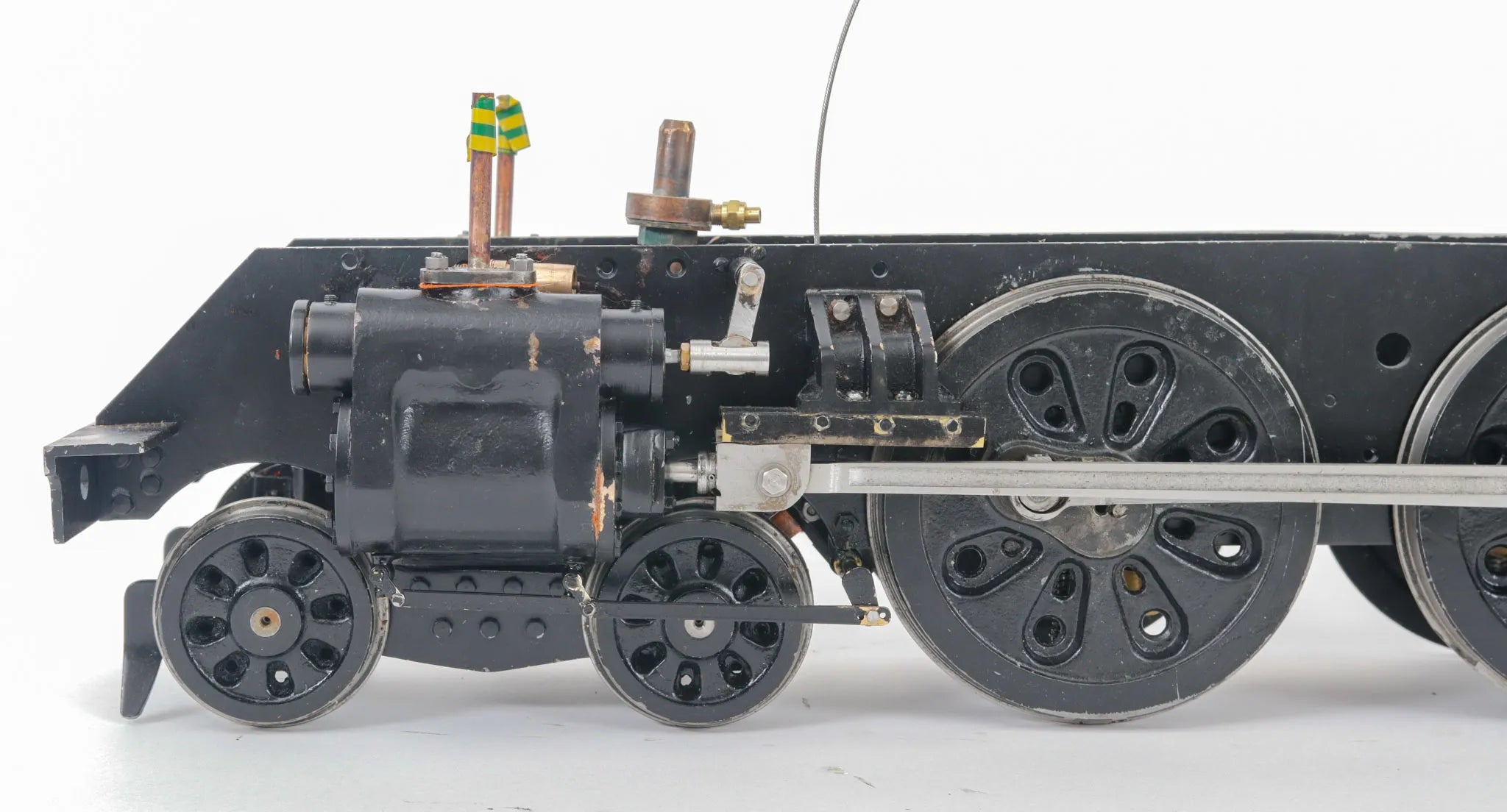

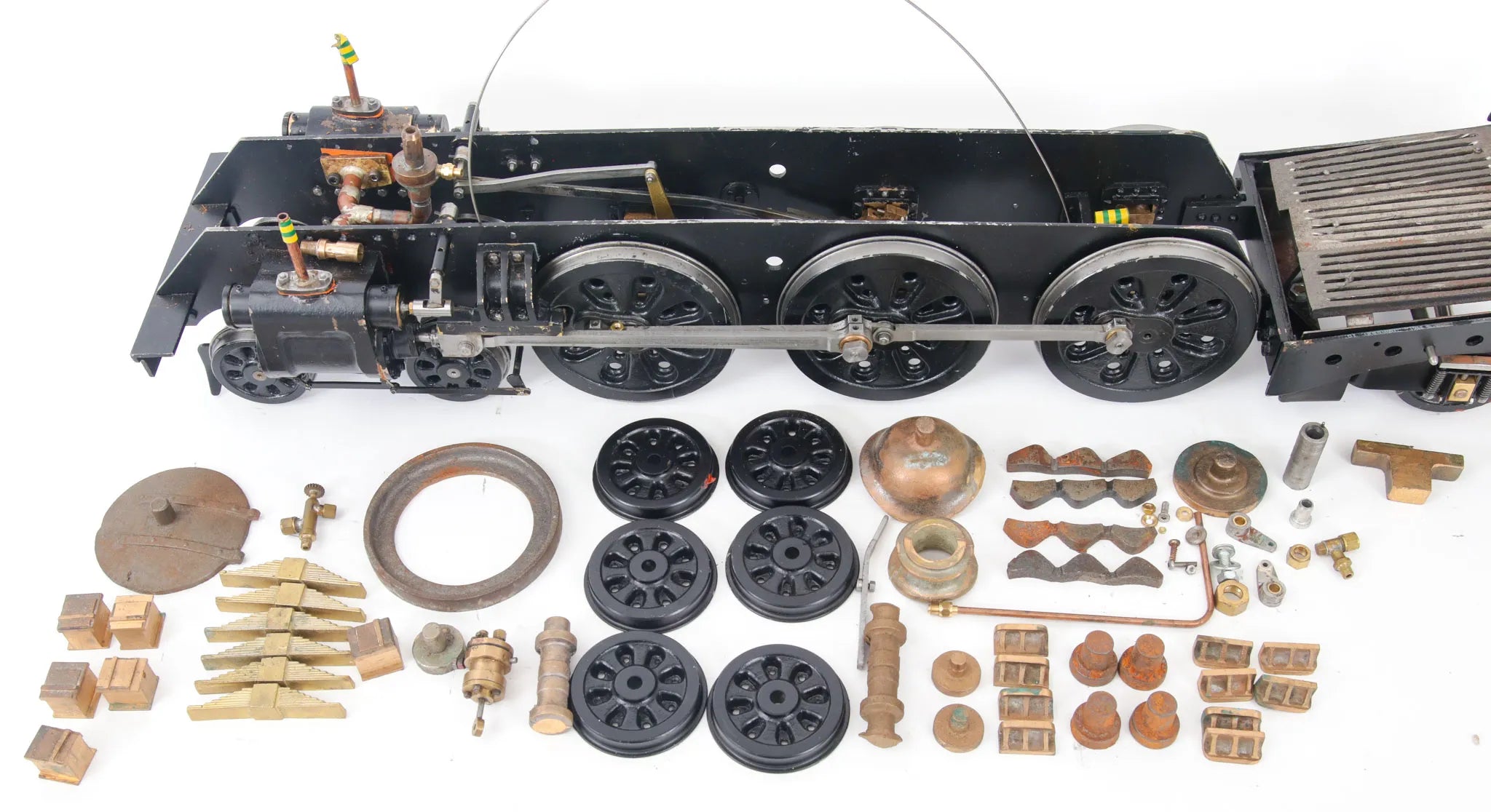

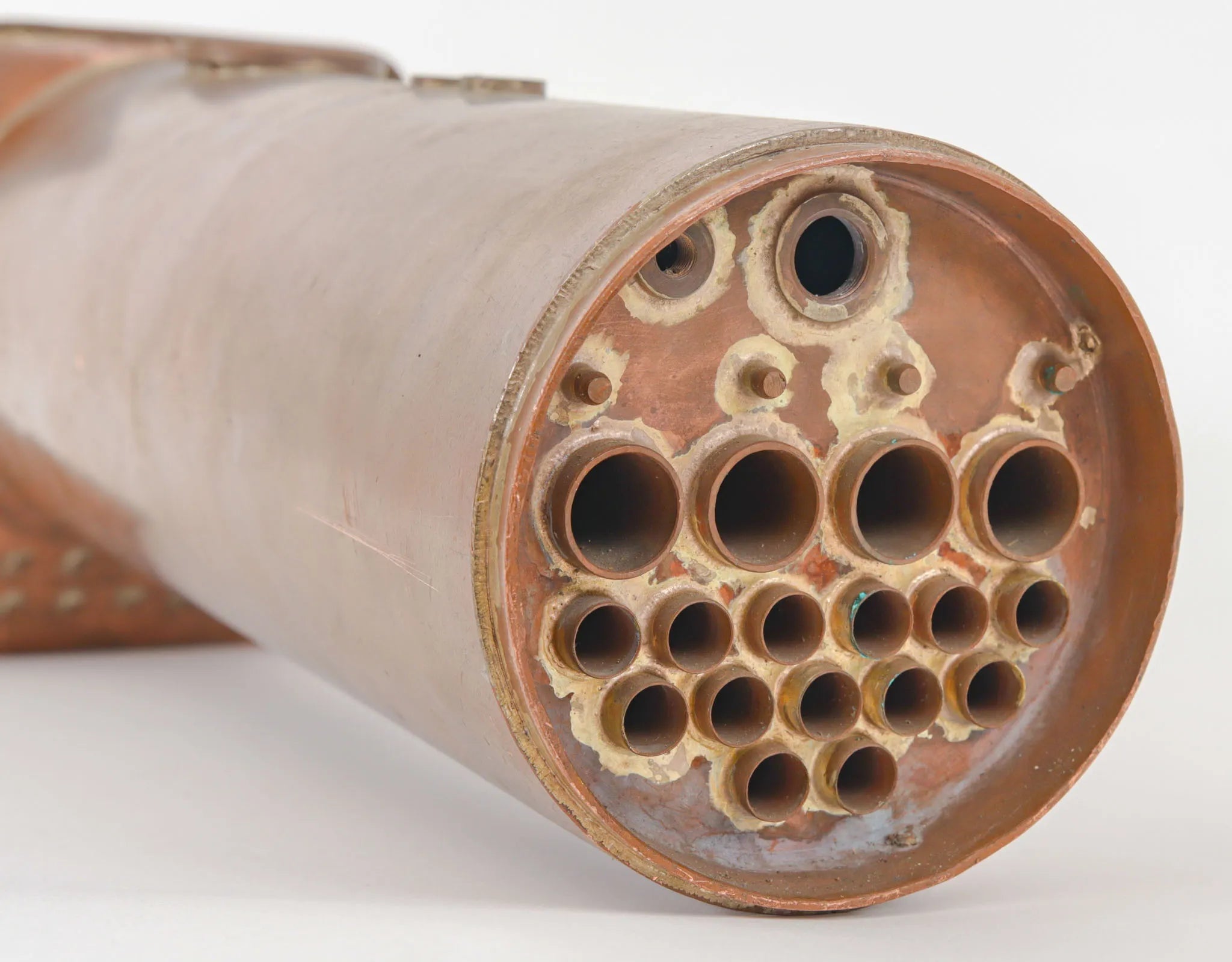

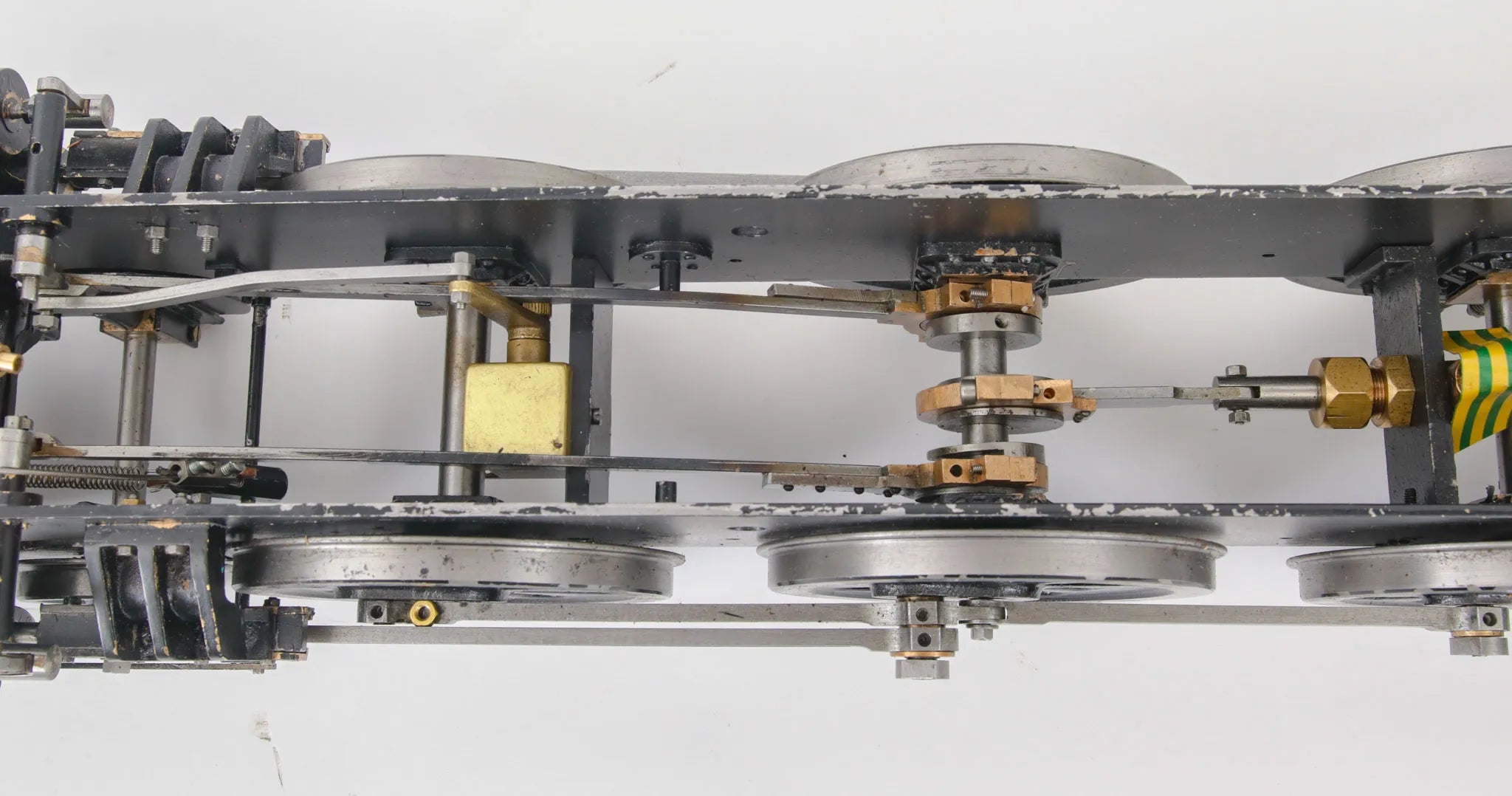

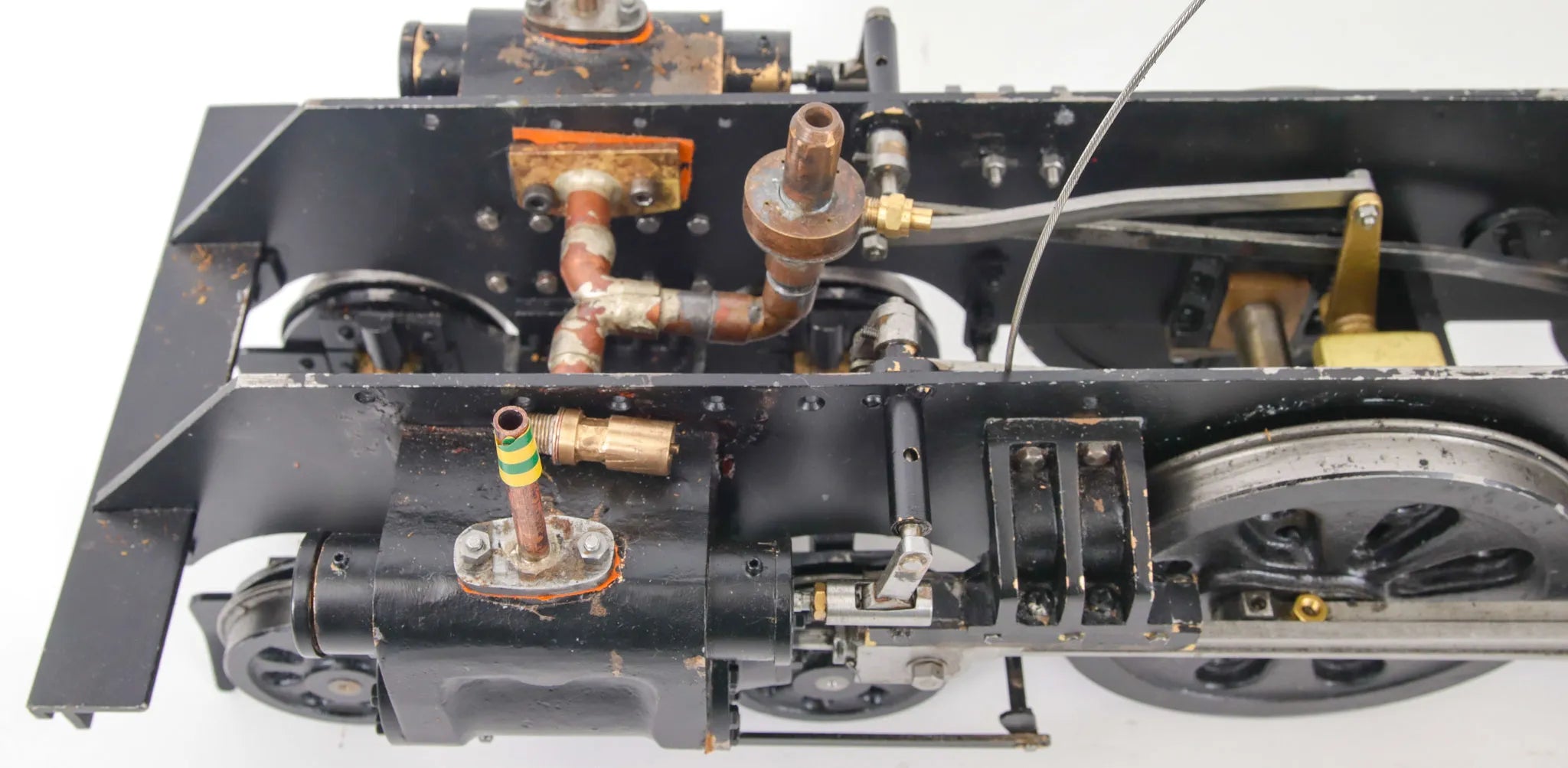

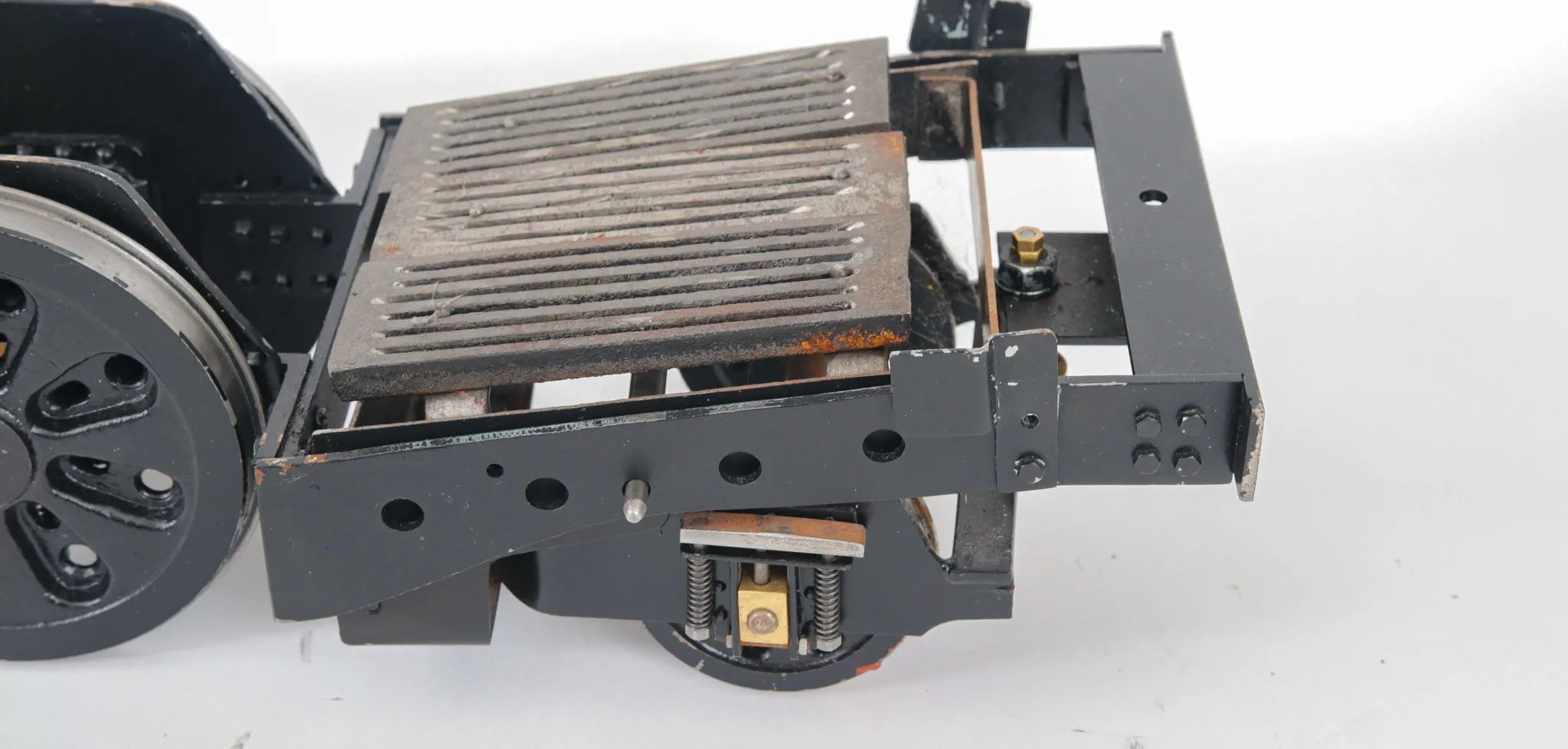

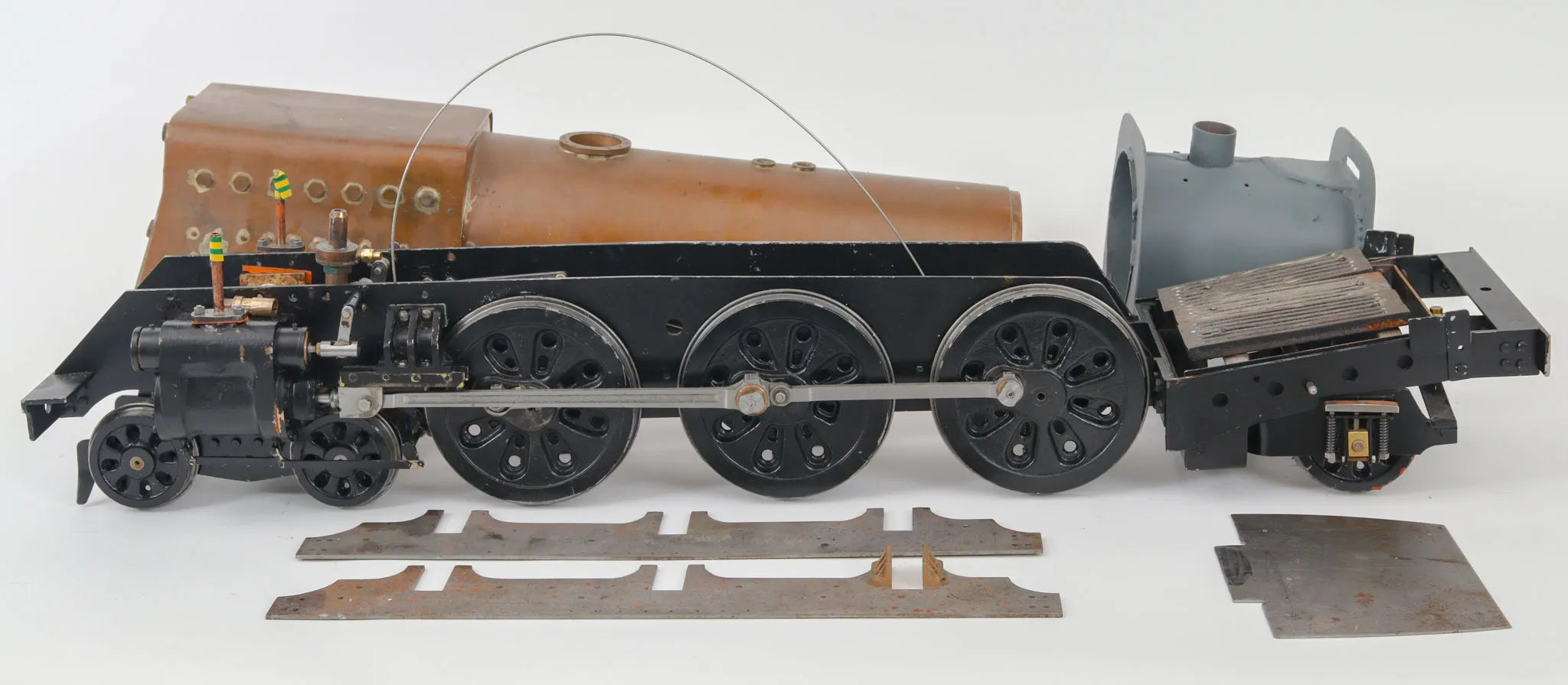

An interesting project, comprising a well-advanced 3 1/2 inch gauge chassis to LBSC's "Pamela" design, with commercially built combustion chamber boiler by R.Chambers, being built to resemble a Southern Railway air-smoothed Pacitic with Bulleid Firth Brown pattern "Boxpok" wheels.

The chassis runs well in both directions on air, we would warranty the boiler to pass a hydraulic test.

Technical information

Stock code

12044

Length/inches

36

Width/inches

8

Height/inches

13

Weight/Kg

36

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Boiler maker

R.Chambers

Boiler type

locomotive with combustion chamber

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

n/a pre-2002

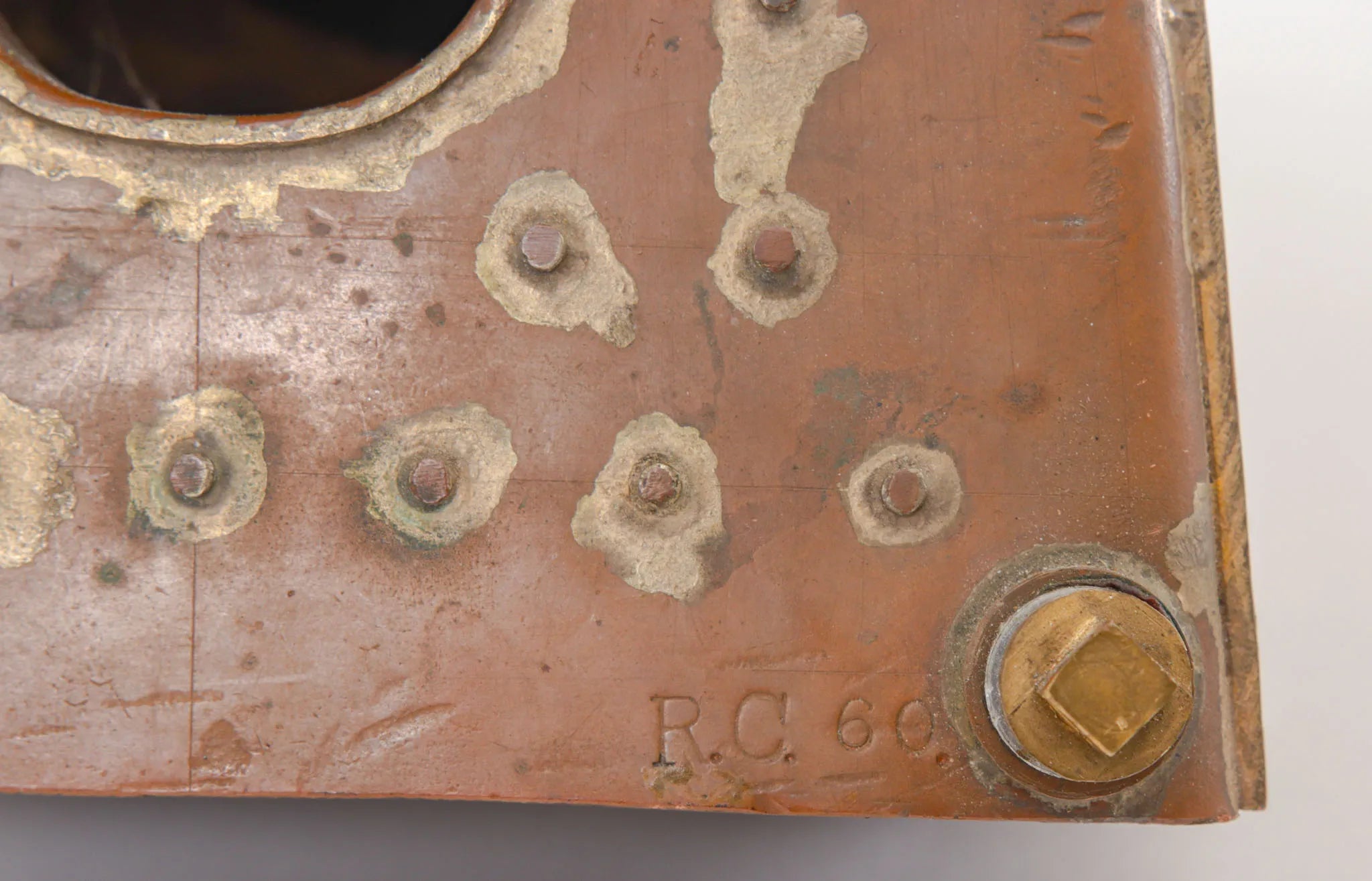

Boiler number

R.C.60

Fusible plug

n

Mechanical pump

1

Date out

Jun-24
