3 1/2 inch gauge part-built Southern 2-6-2, tested boiler

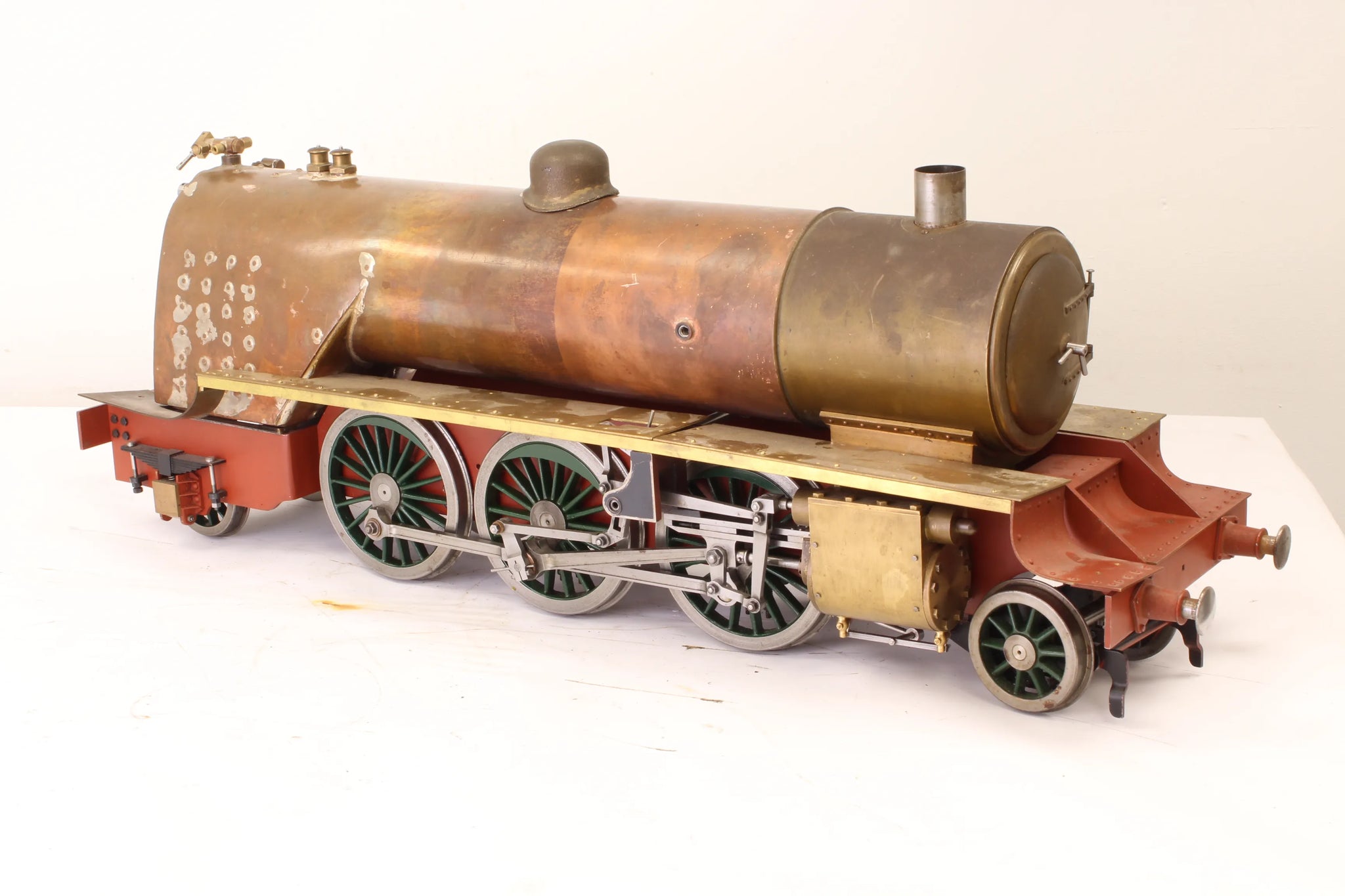

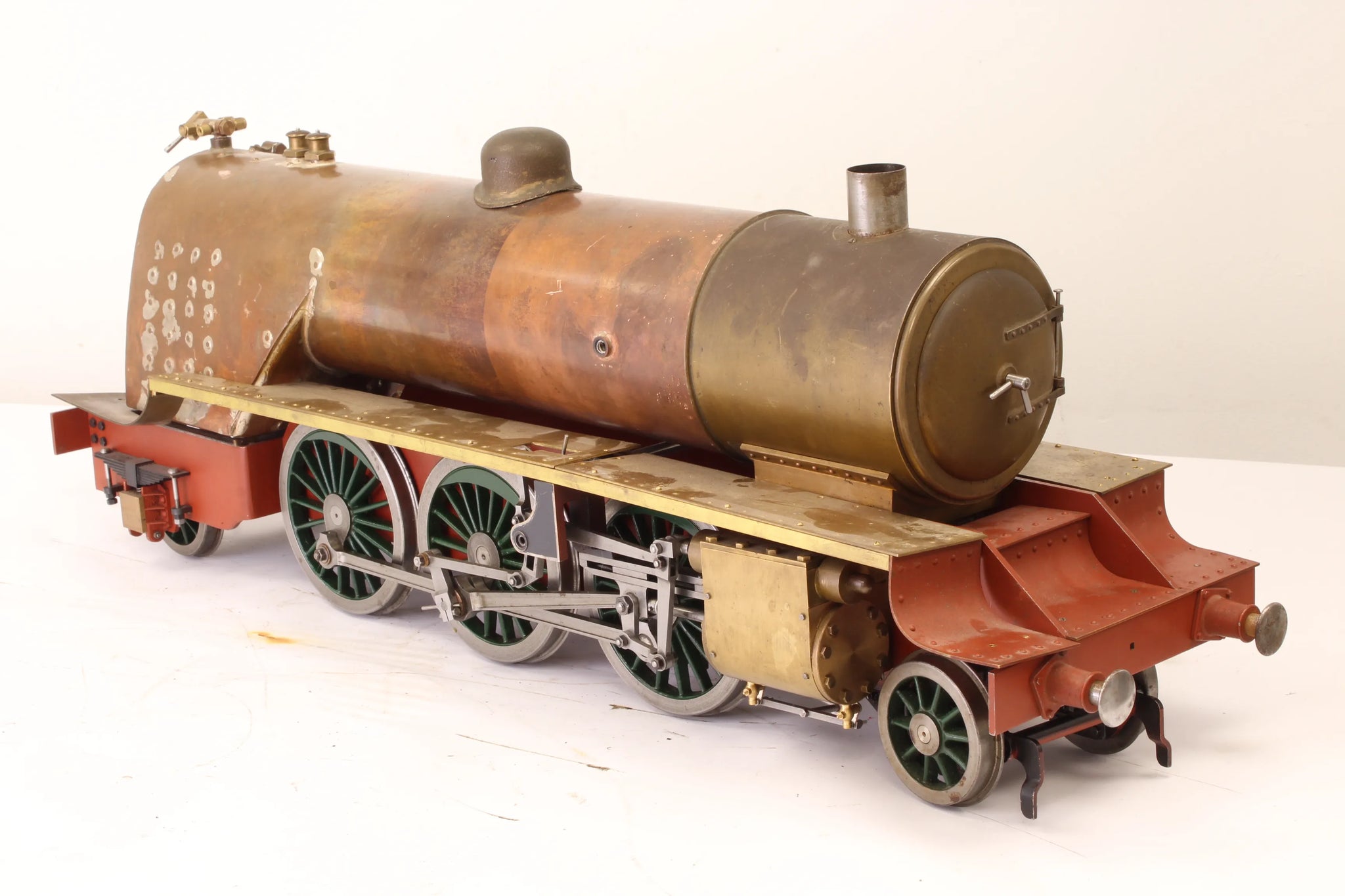

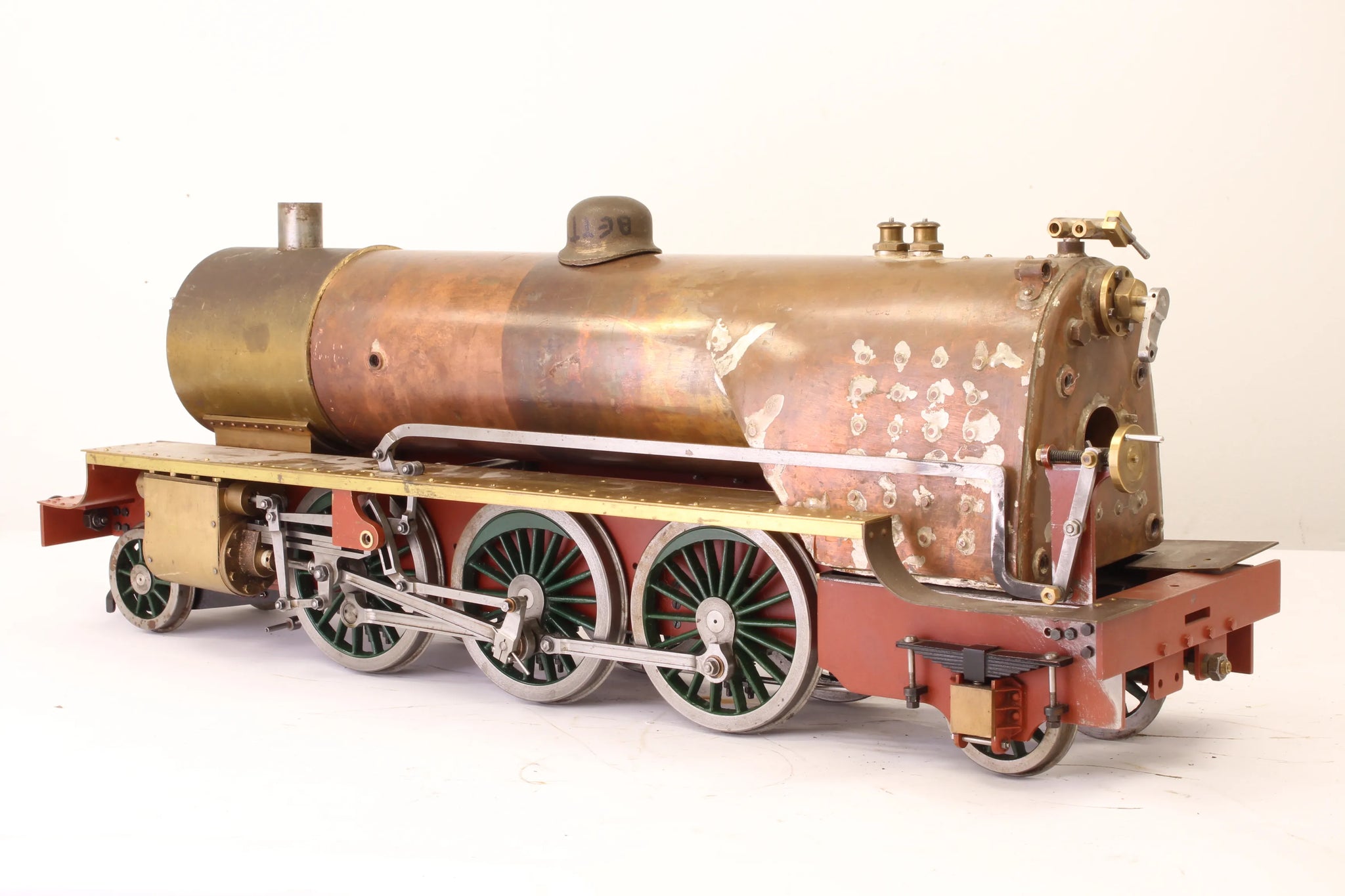

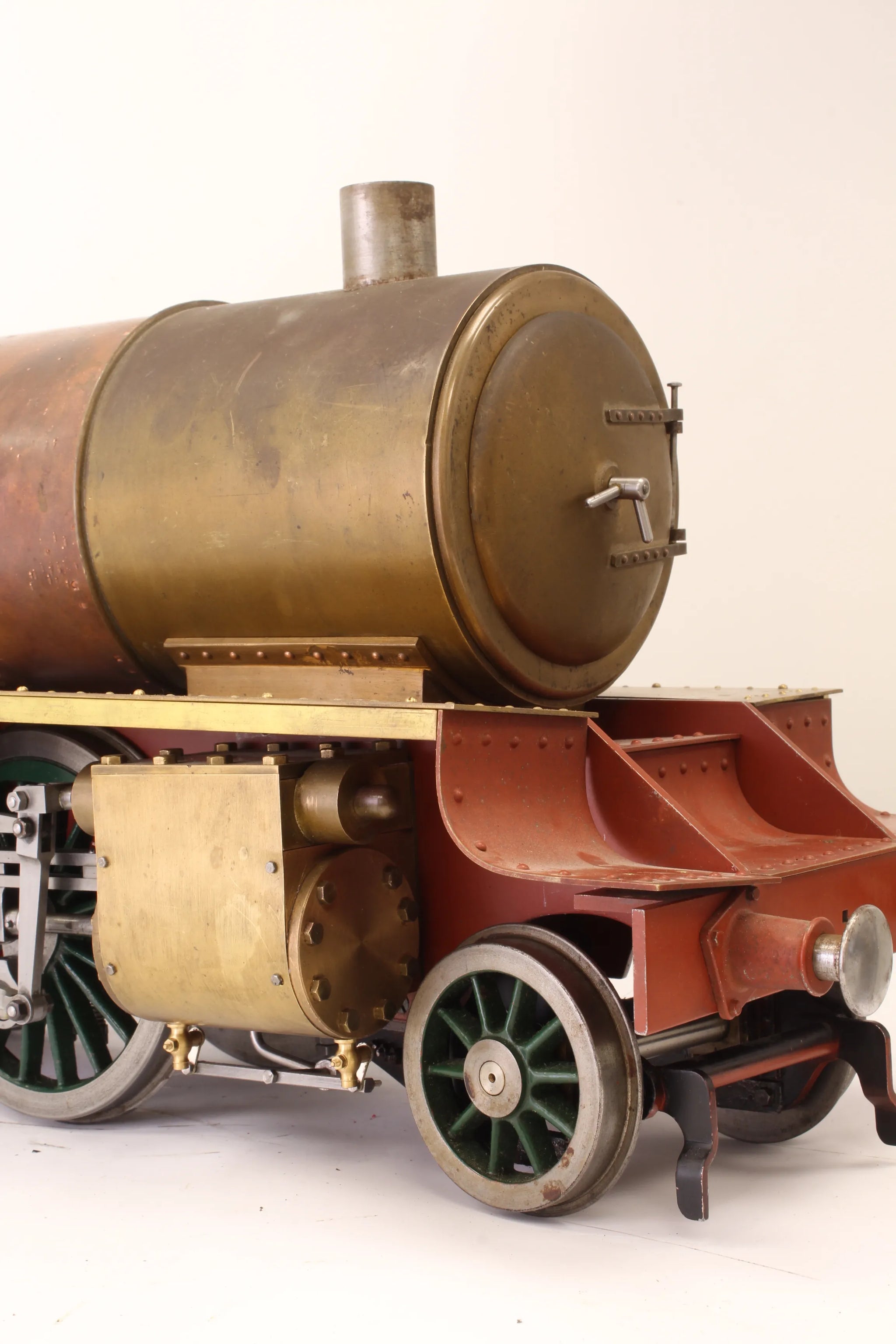

A well-advanced 3 1/2 inch gauge Southern Railway 2-6-2 to LBSC's "Betty" design.

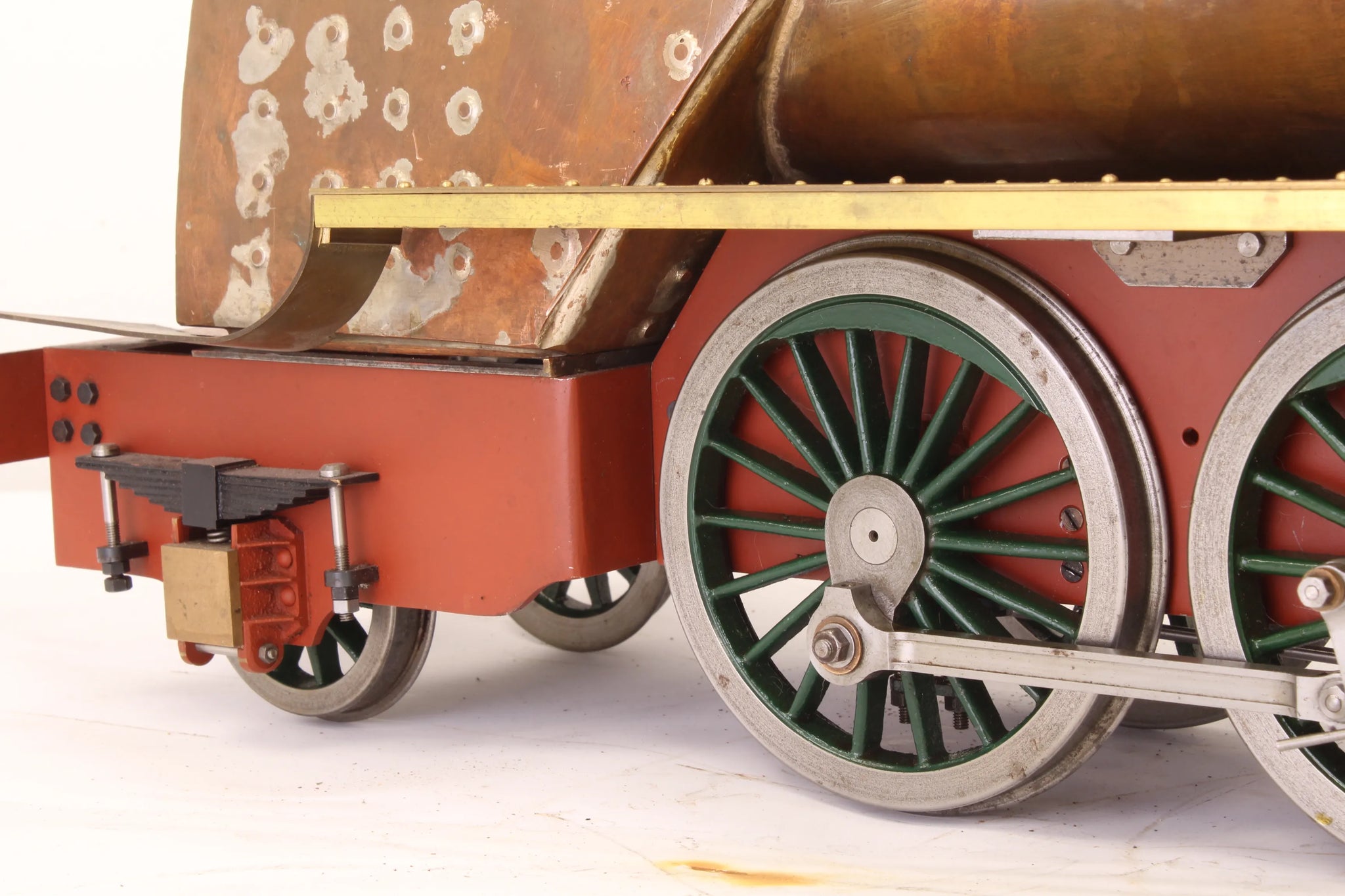

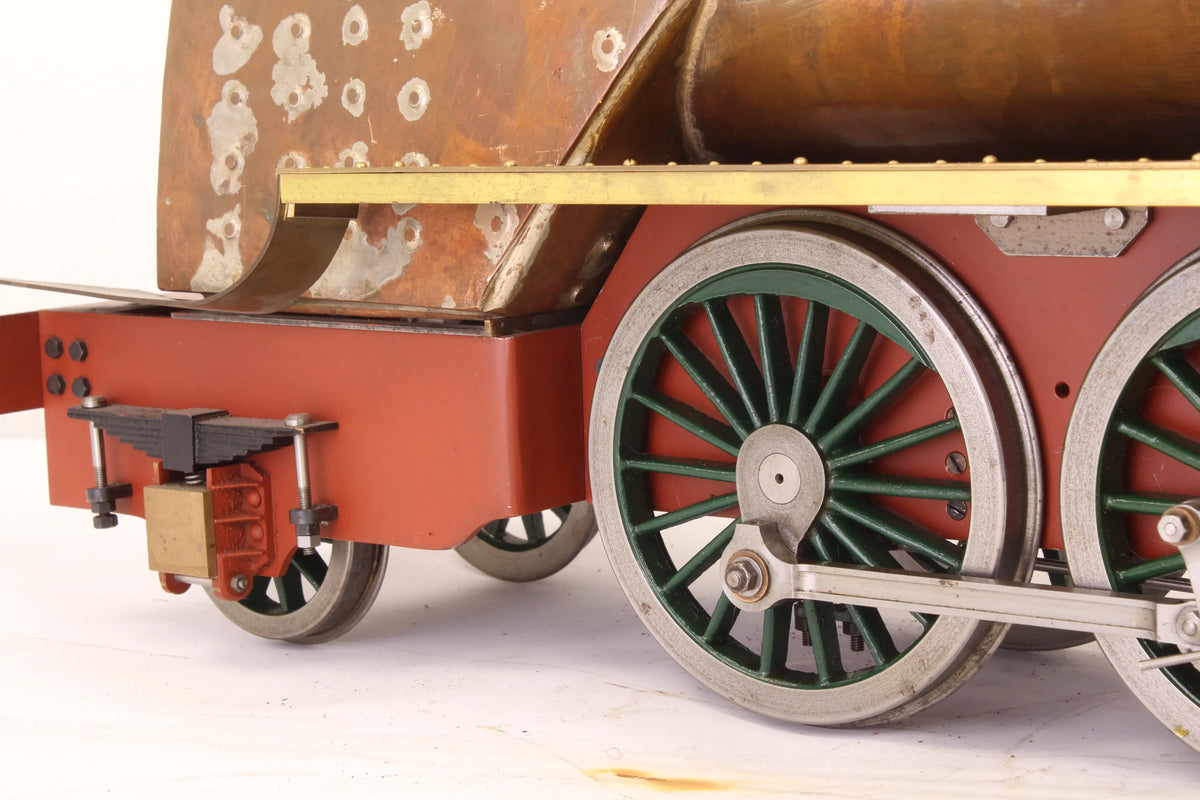

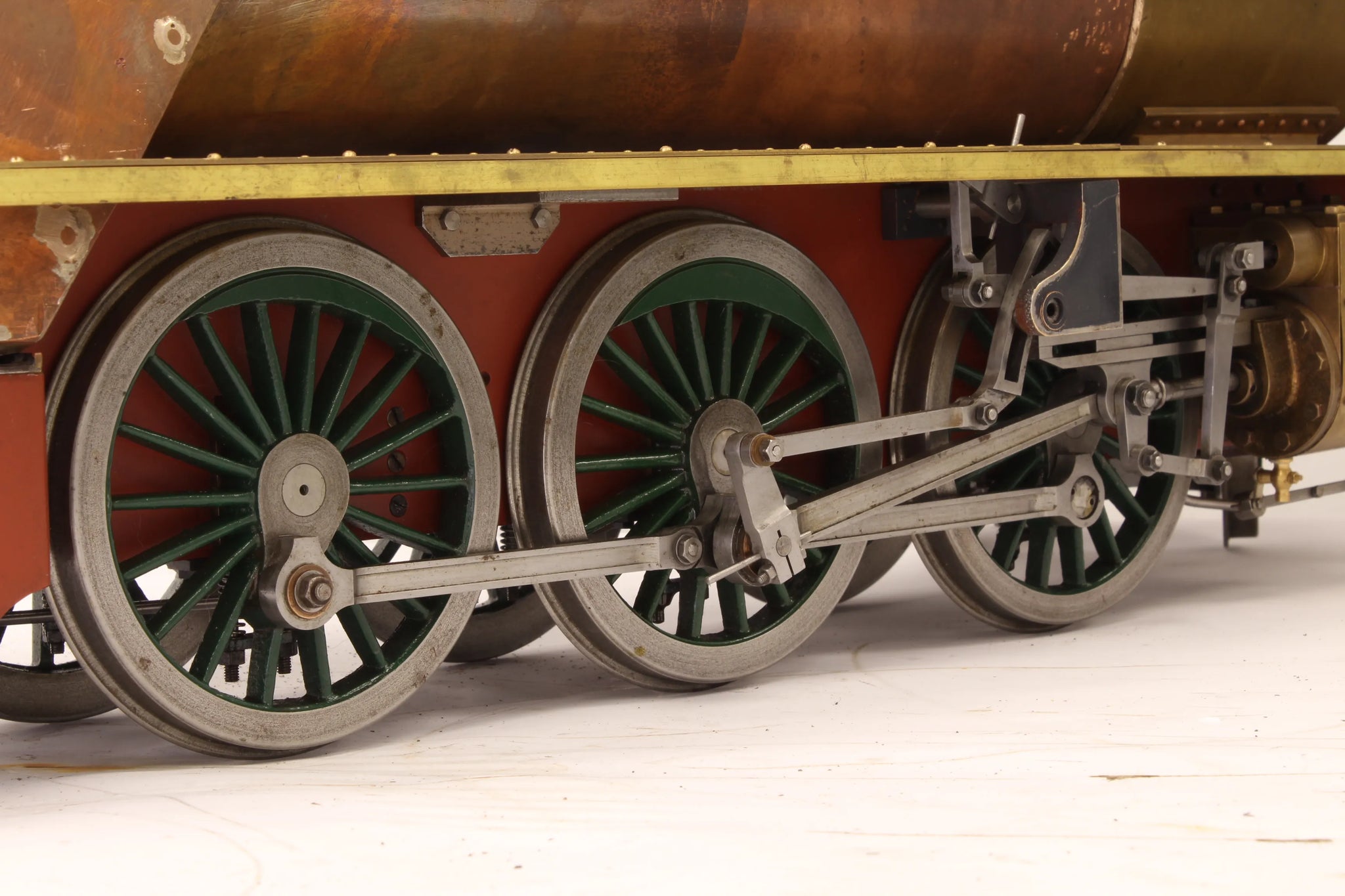

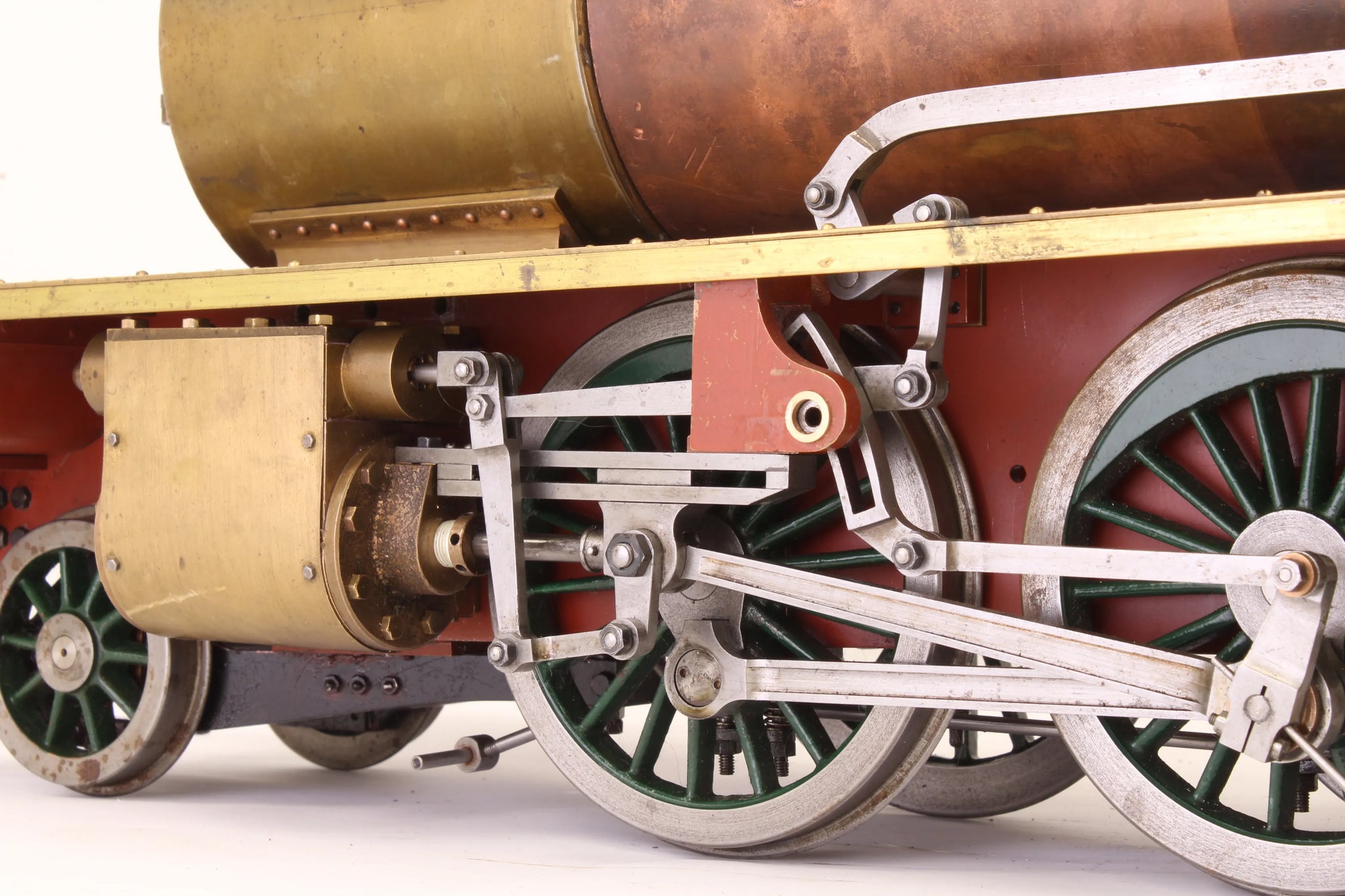

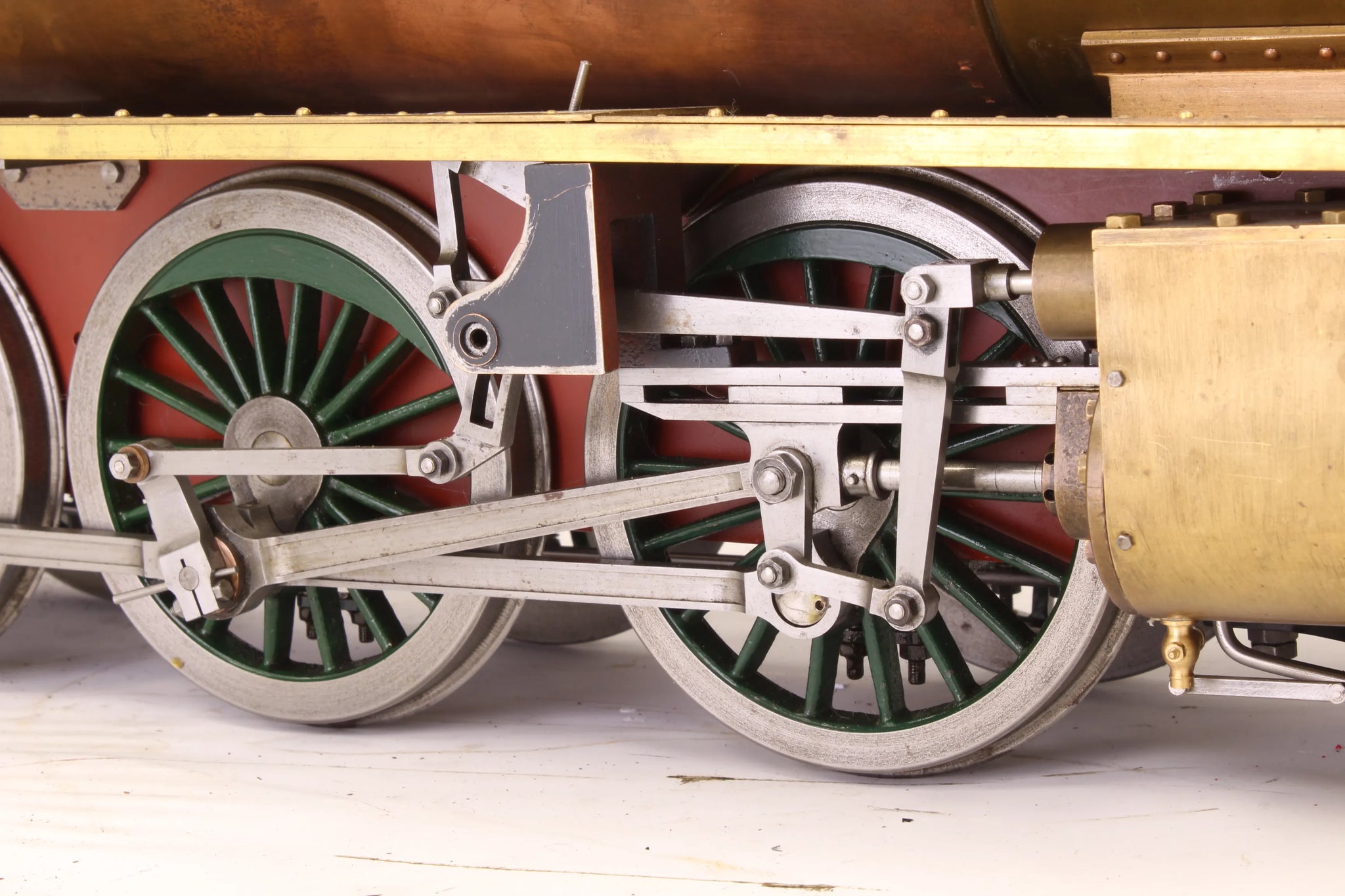

Work to date is to a fine standard, fit and finish of the motionwork and valve gear is very good - the engine pushes along freely without binding or tight spots, the chassis has been run on air by the builder.

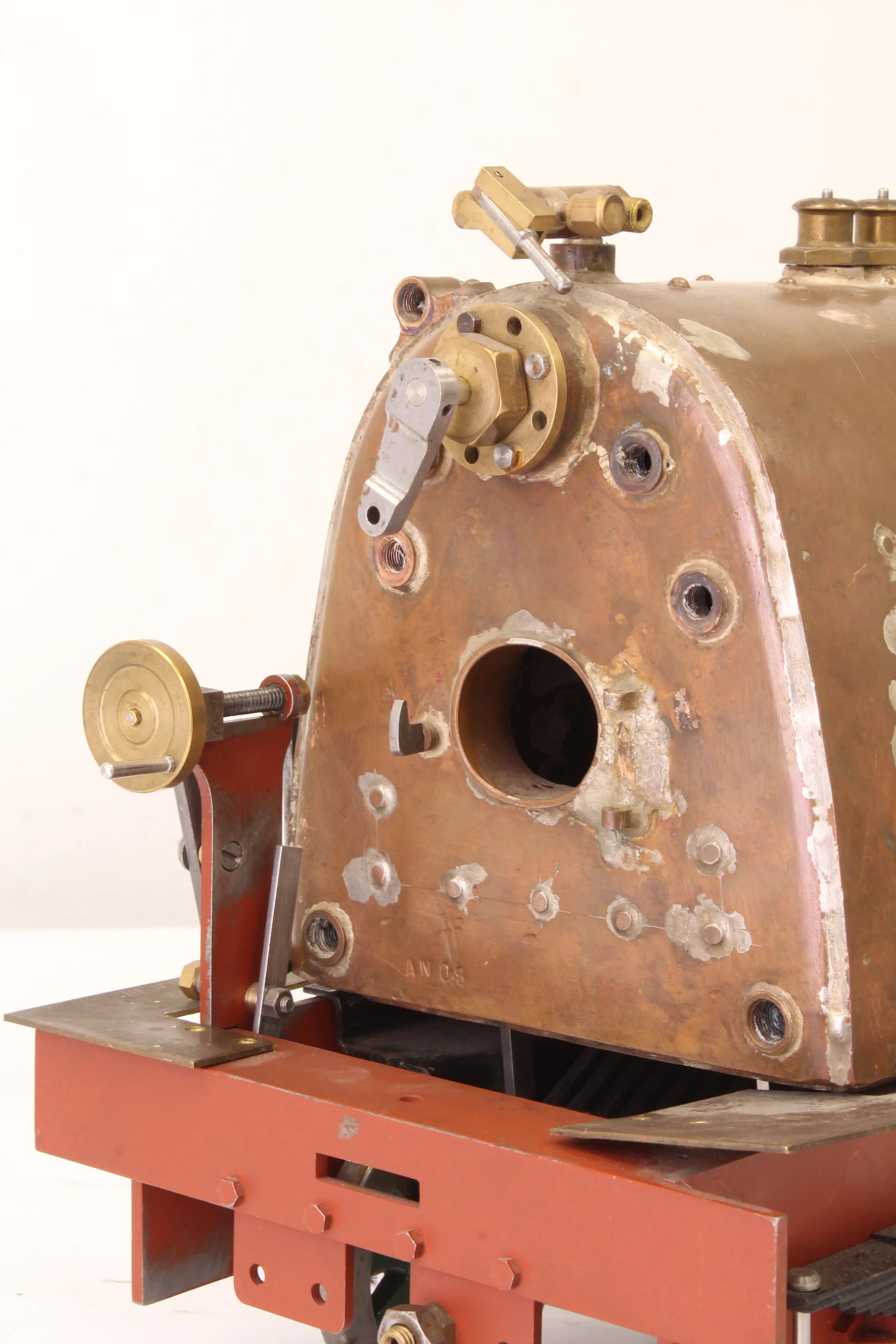

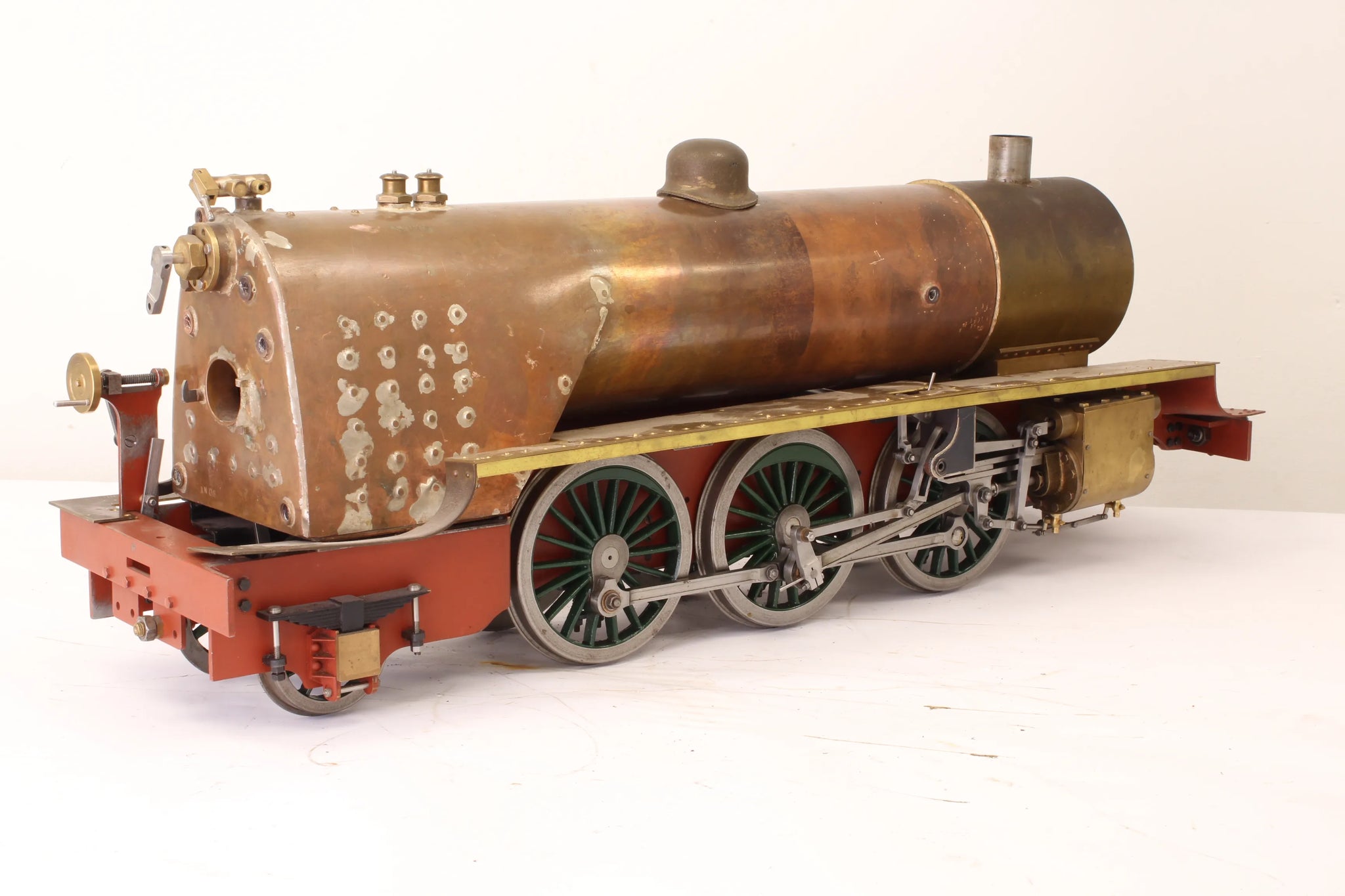

The combustion chamber boiler is copper, silver soldered. Plates have been neatly flanged, solder shows good penetration. It has had its initial twice working pressure shell test, for which we have the club certificate.

The three piece grate is in stainless steel, with dropping centre section.

An easy to finish project from here, requiring little by way of further expenditure - an opportunity to make a particularly good example of one of the lesser-known LBSC designs.

Technical information

Stock code

8237

Gauge

3 1/2 inch

Length/inches

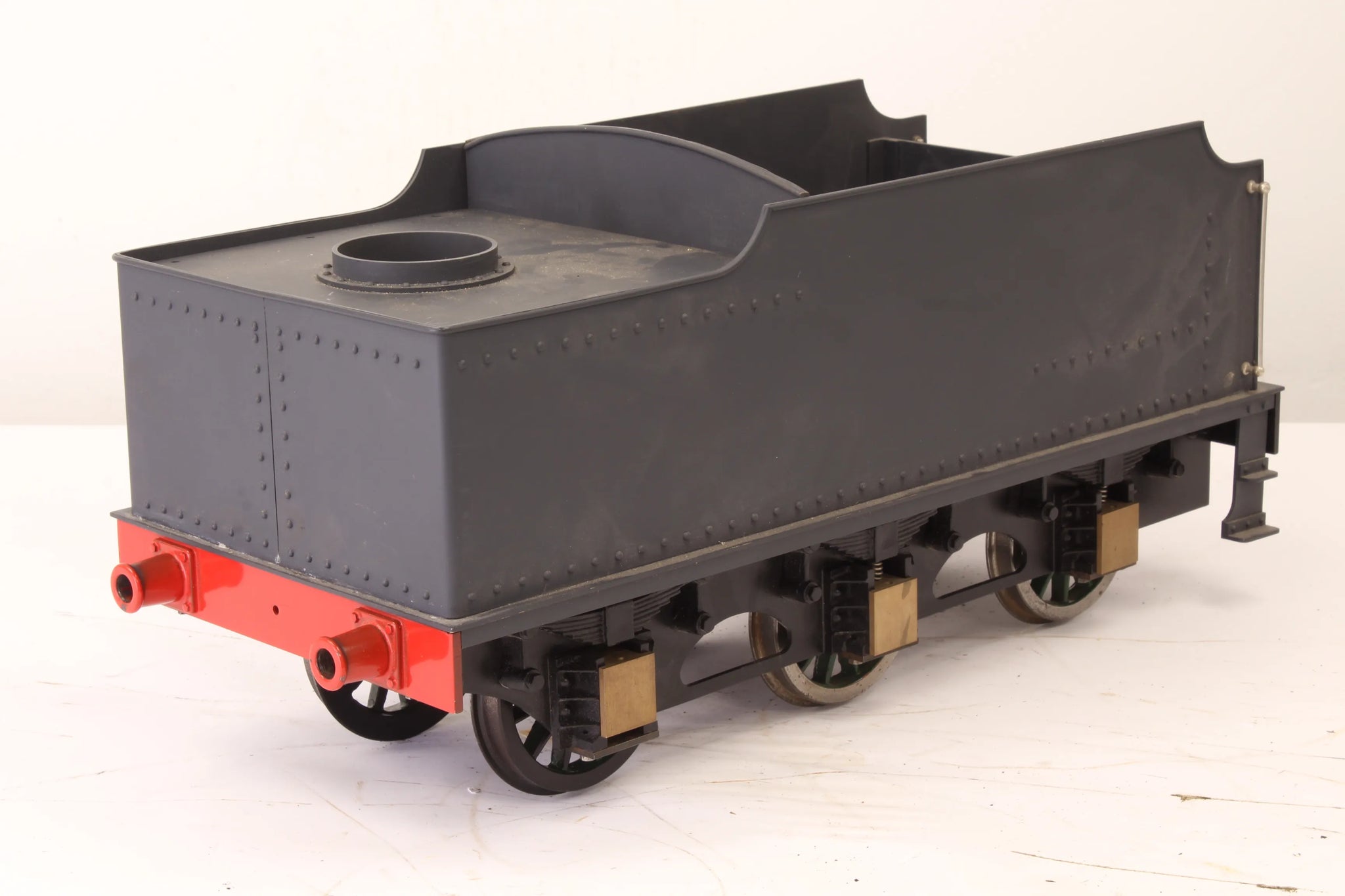

28 + 18

Width/inches

7.5

Height/inches

10.5

Wheel material

cast iron

Axlebox type

plain

Cylinder material

gunmetal

Valve type

slide

Valve gear

Walschaerts

Reverser type

screw

Lubricator type

mechanical

Boiler maker

B Chapman

Boiler type

locomotive with combustion chamber

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

non-commercial, n/a

Year built

2016

Boiler number

AN08

Superheater type

flue tube

Superheater

3

Date out

Nov-18
