3 1/2 inch gauge "Petrolea" 2-4-0 with commercial boiler

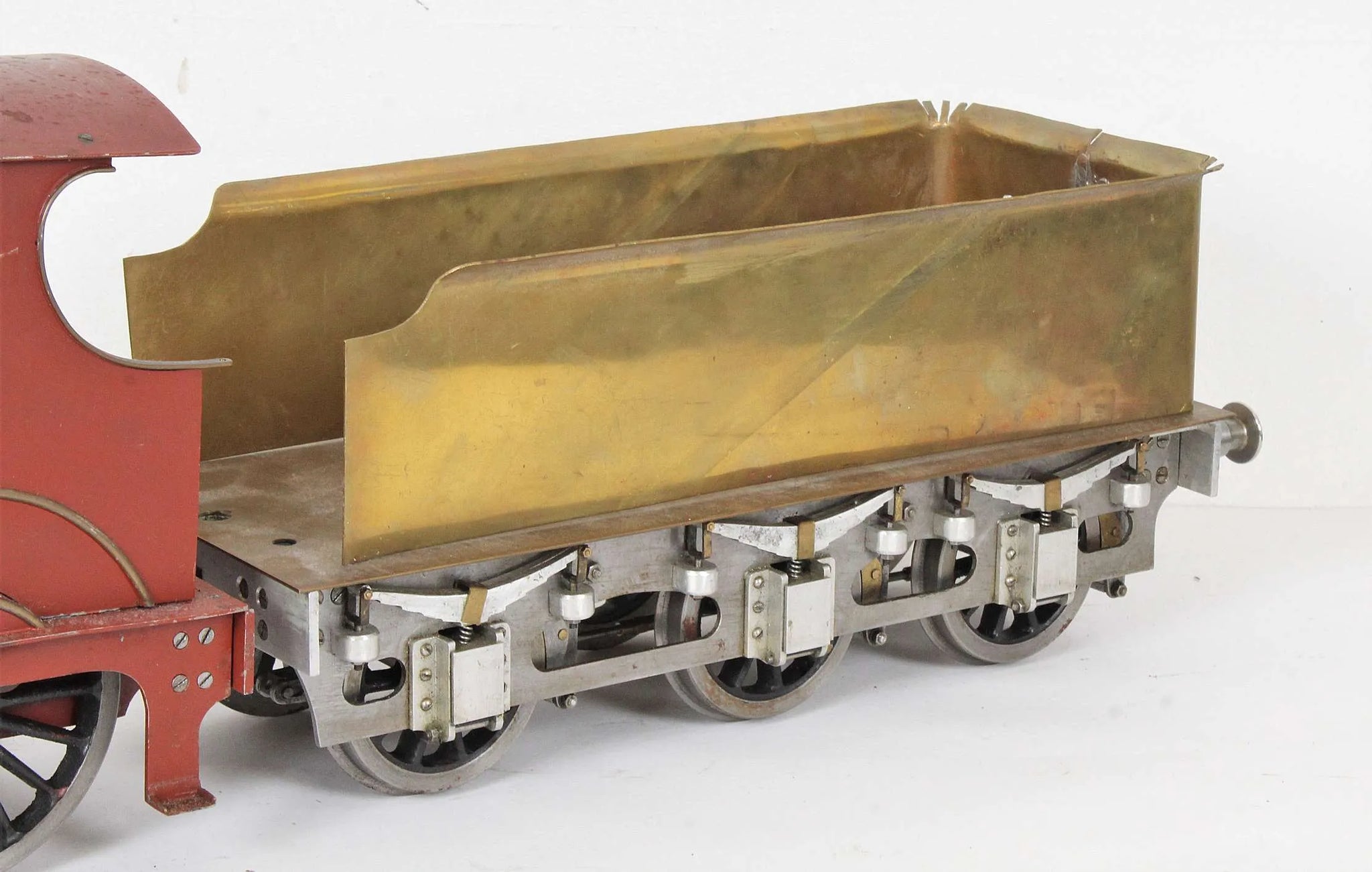

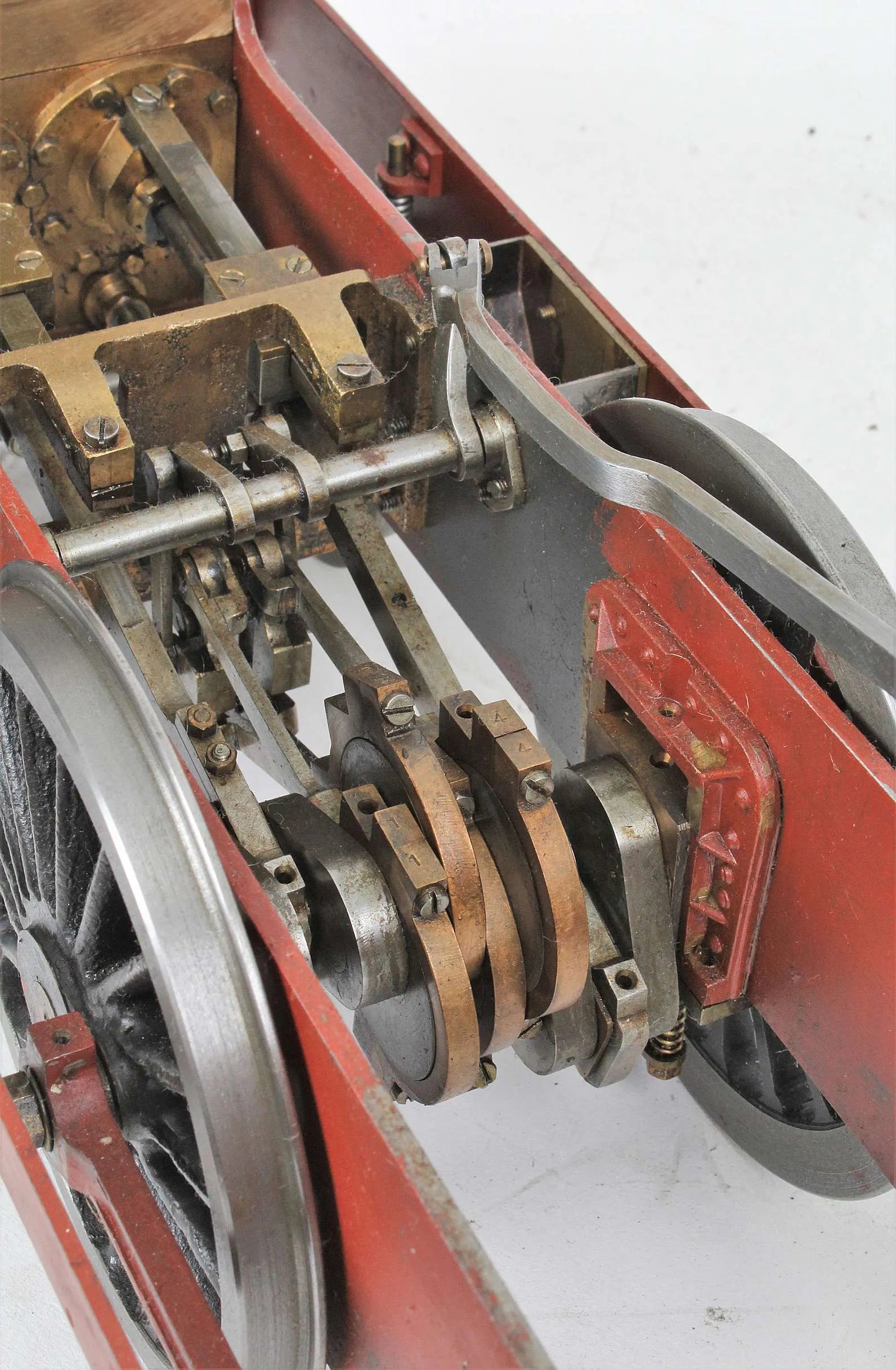

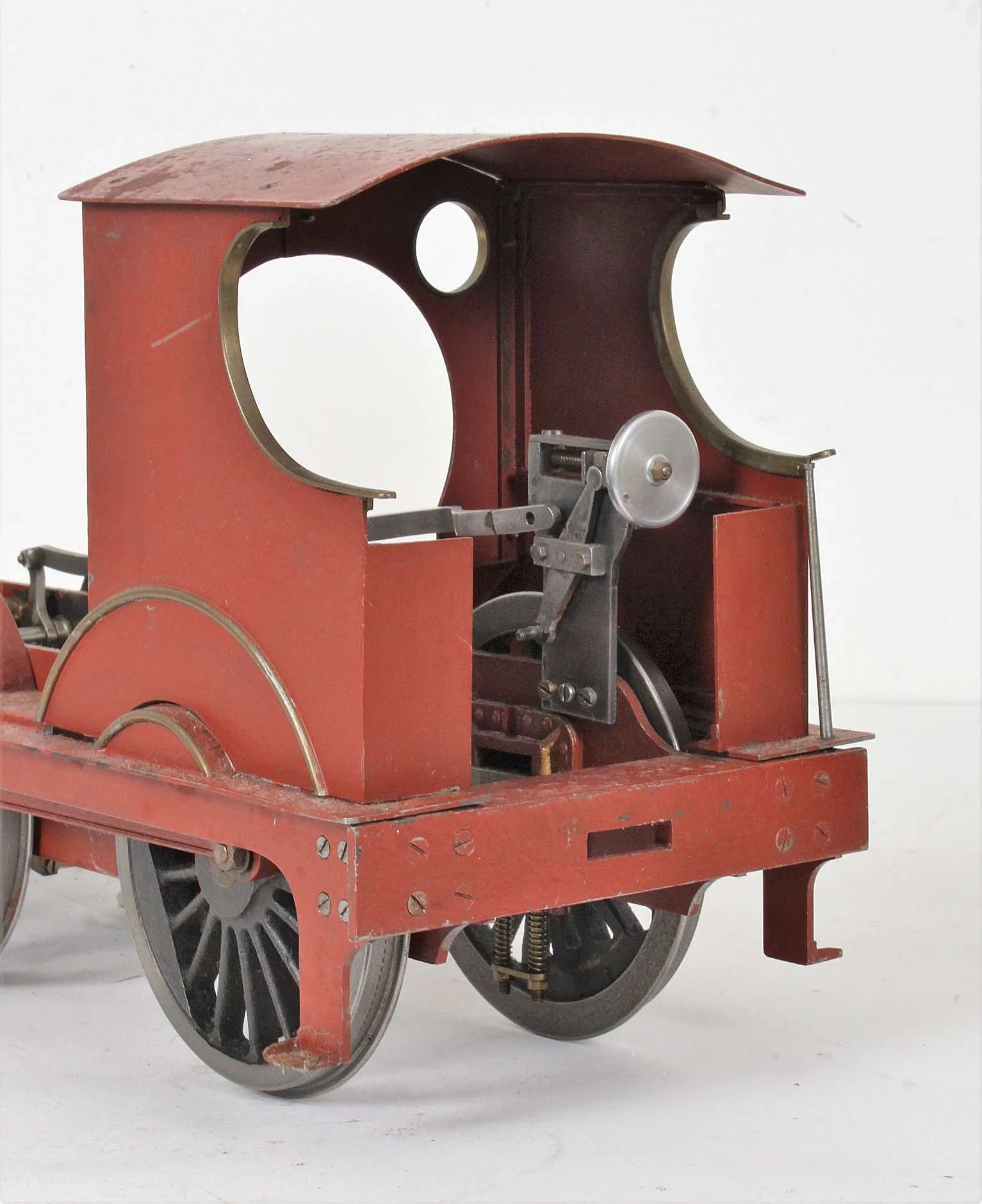

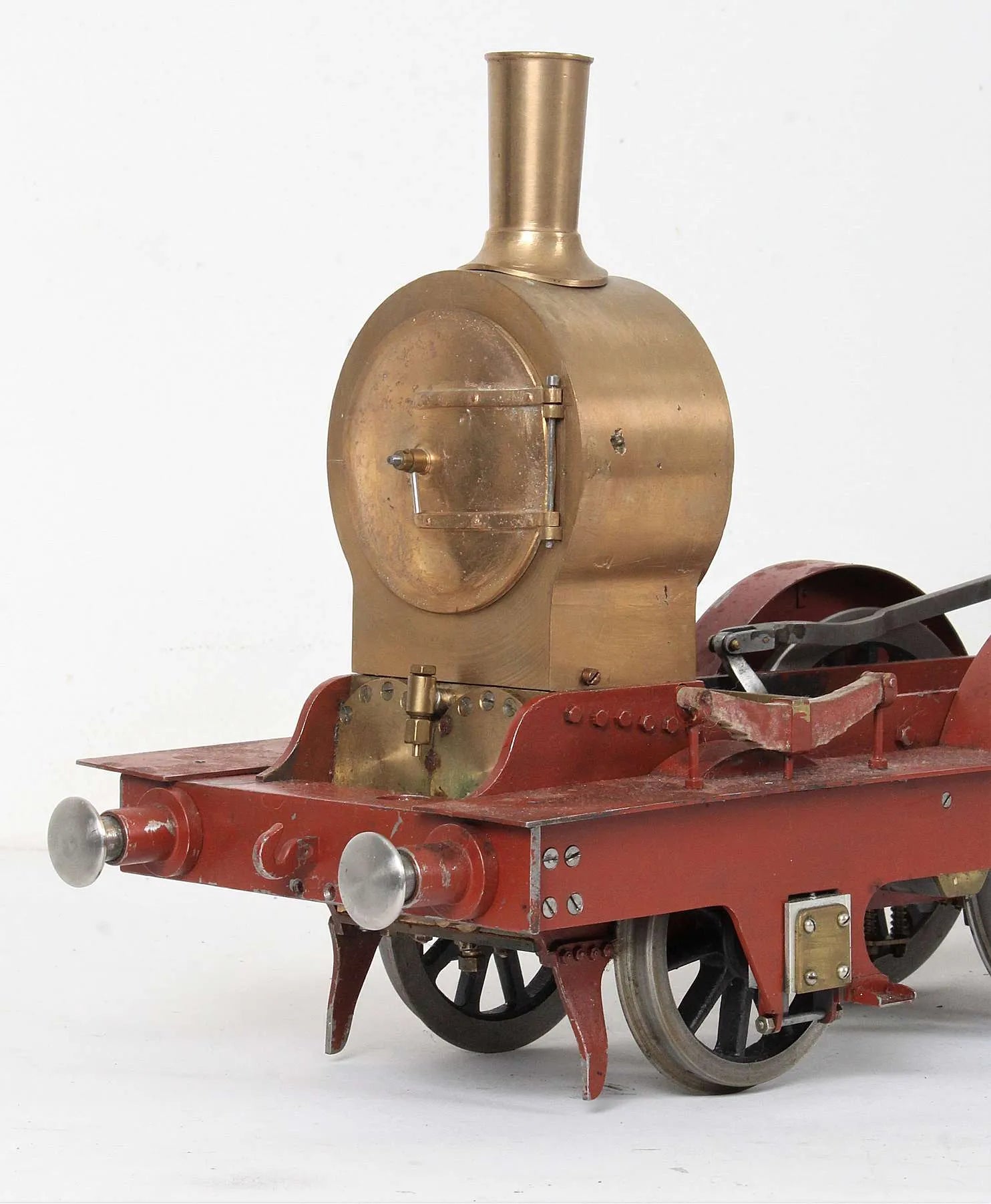

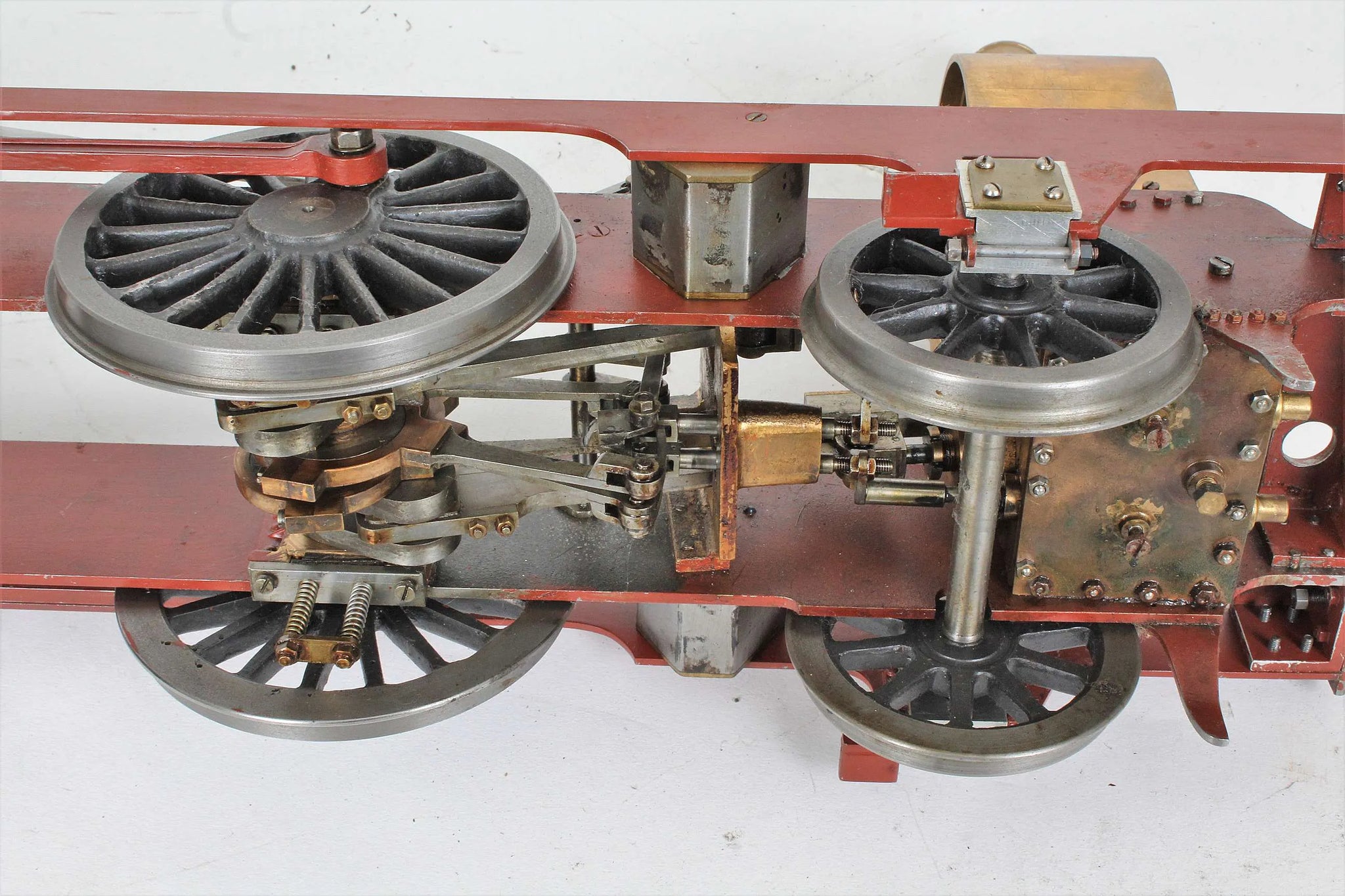

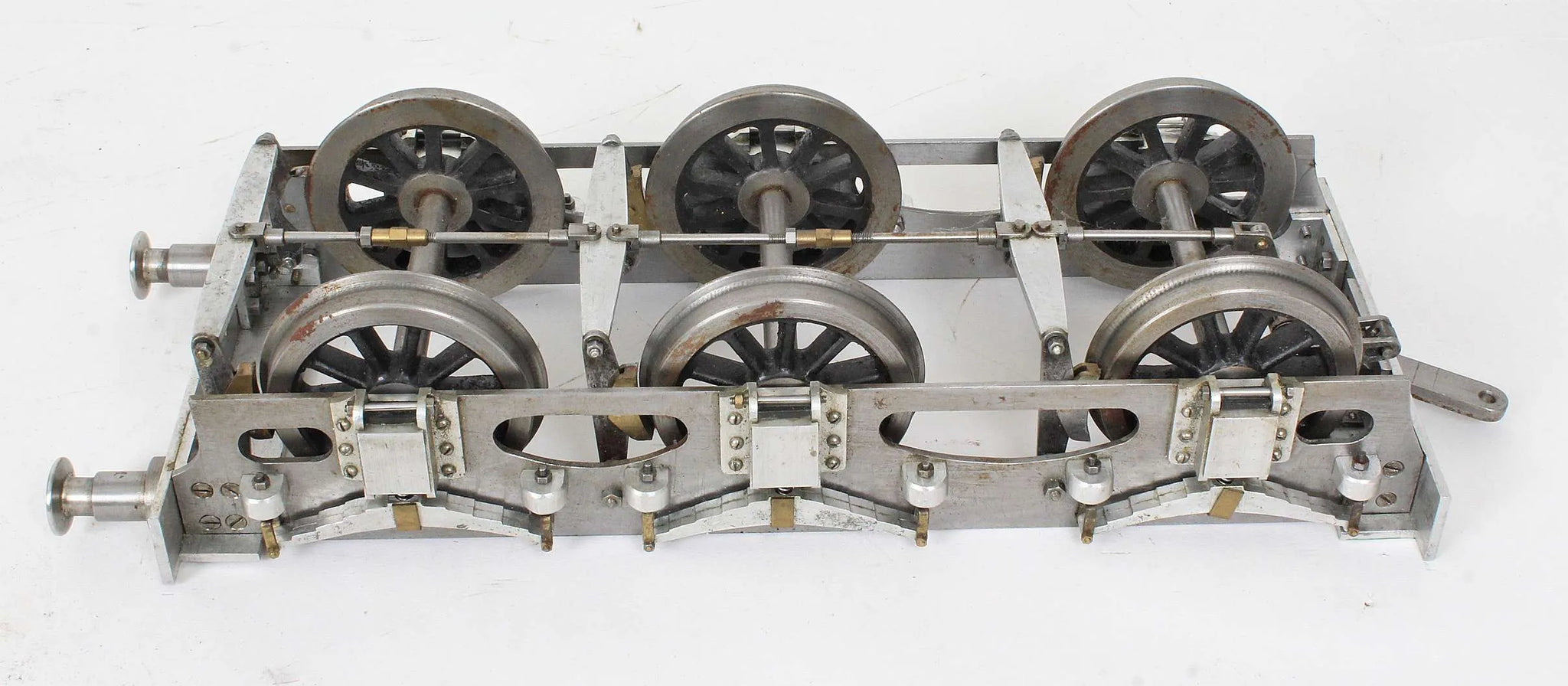

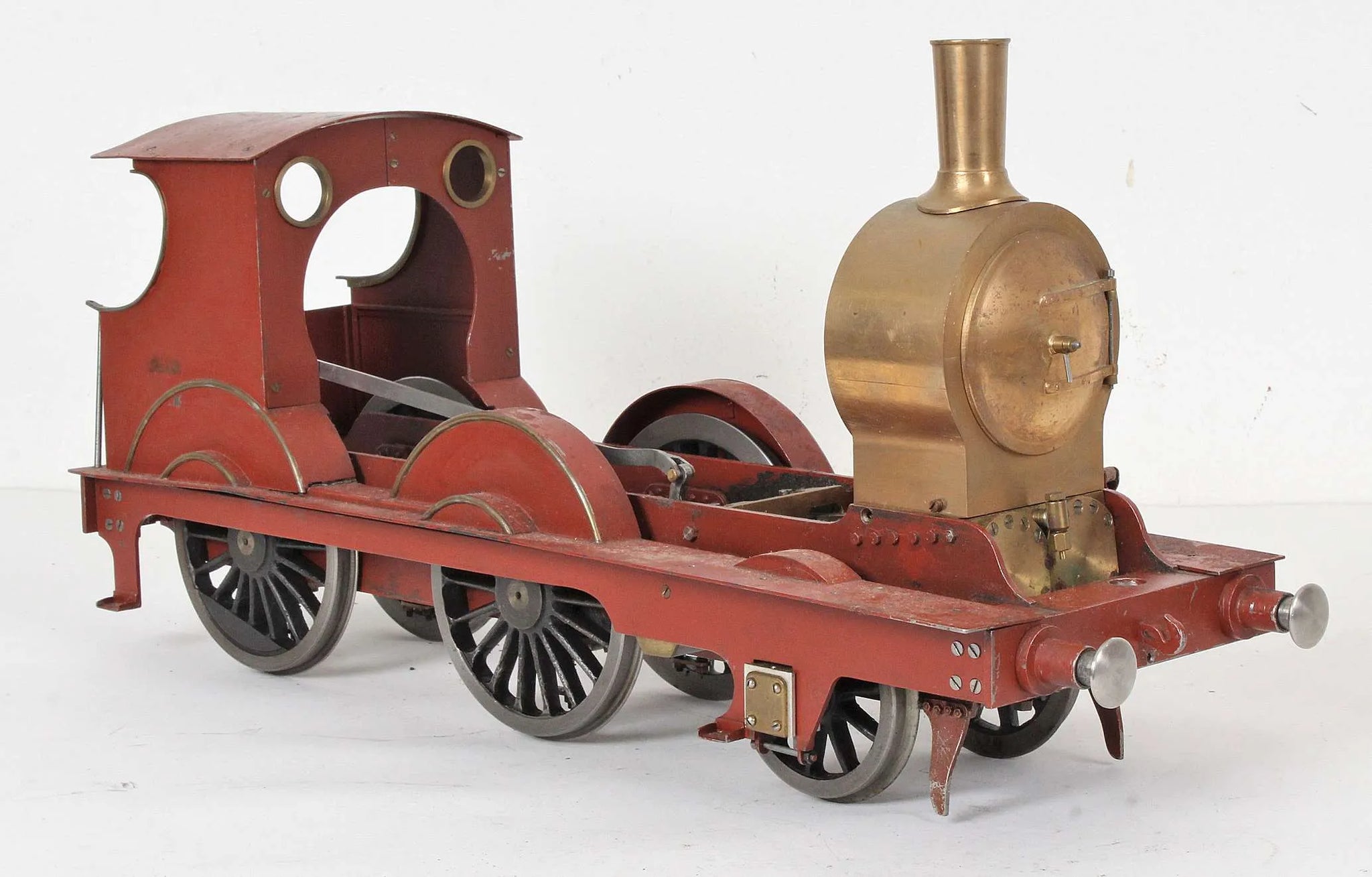

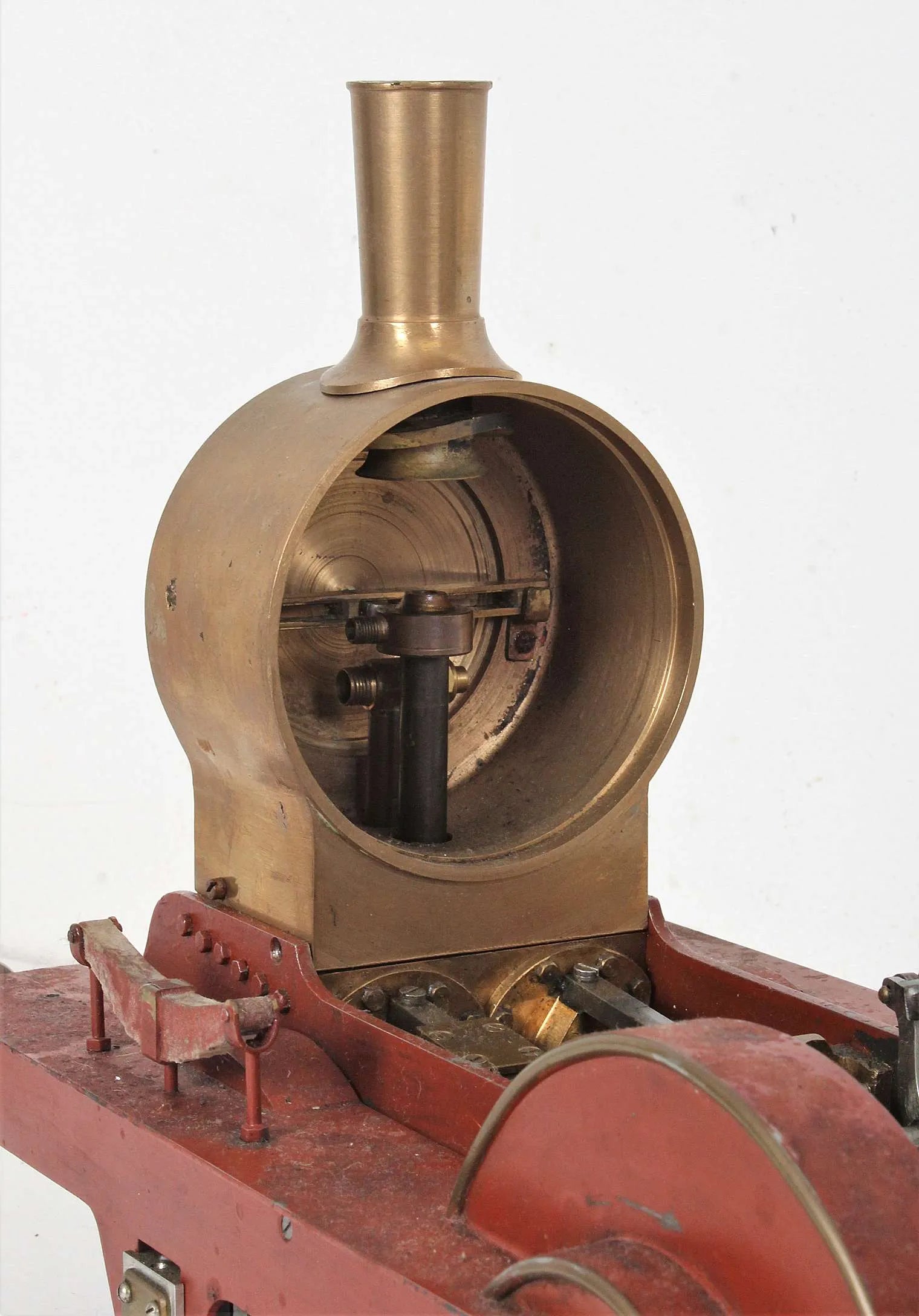

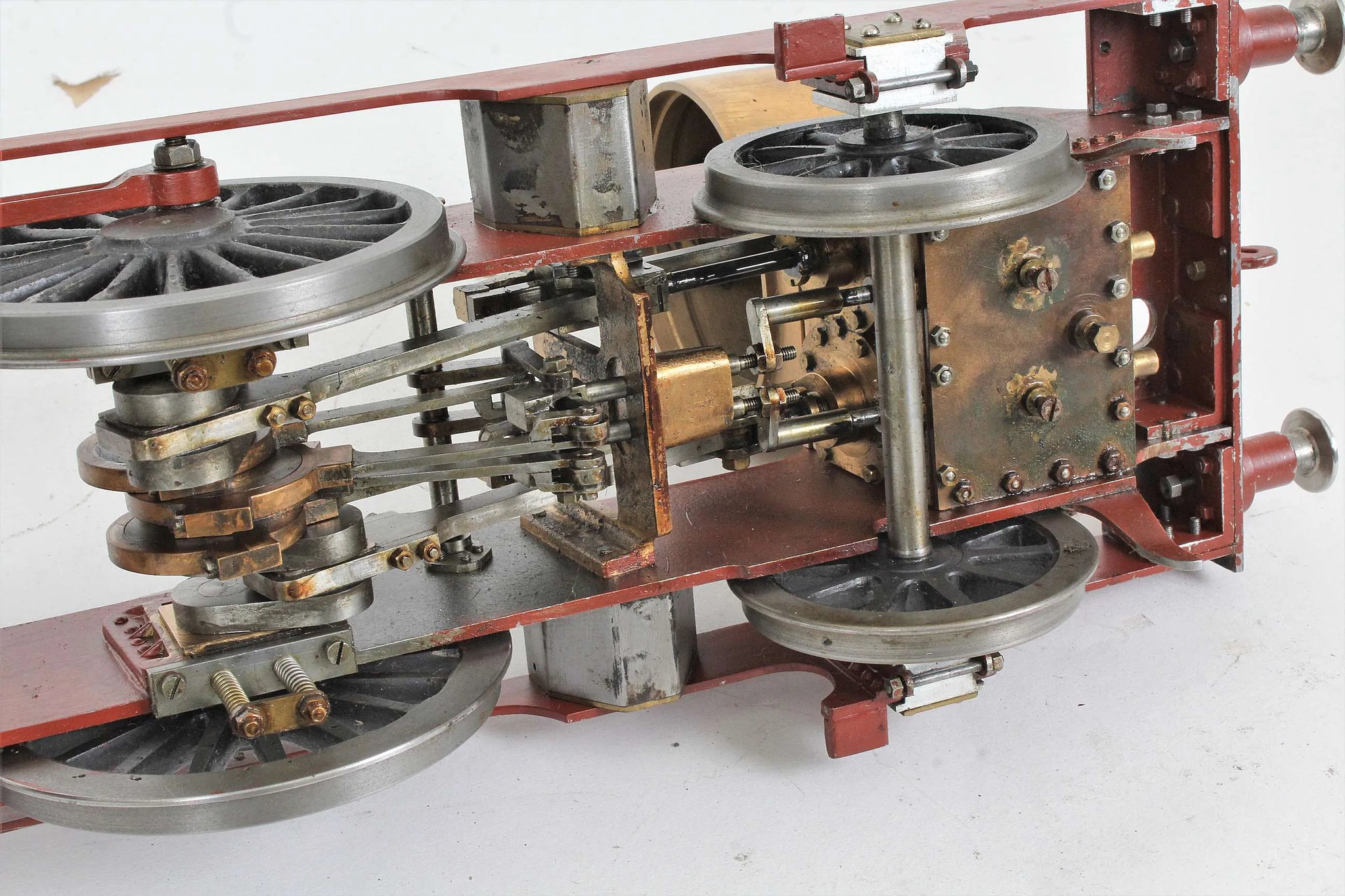

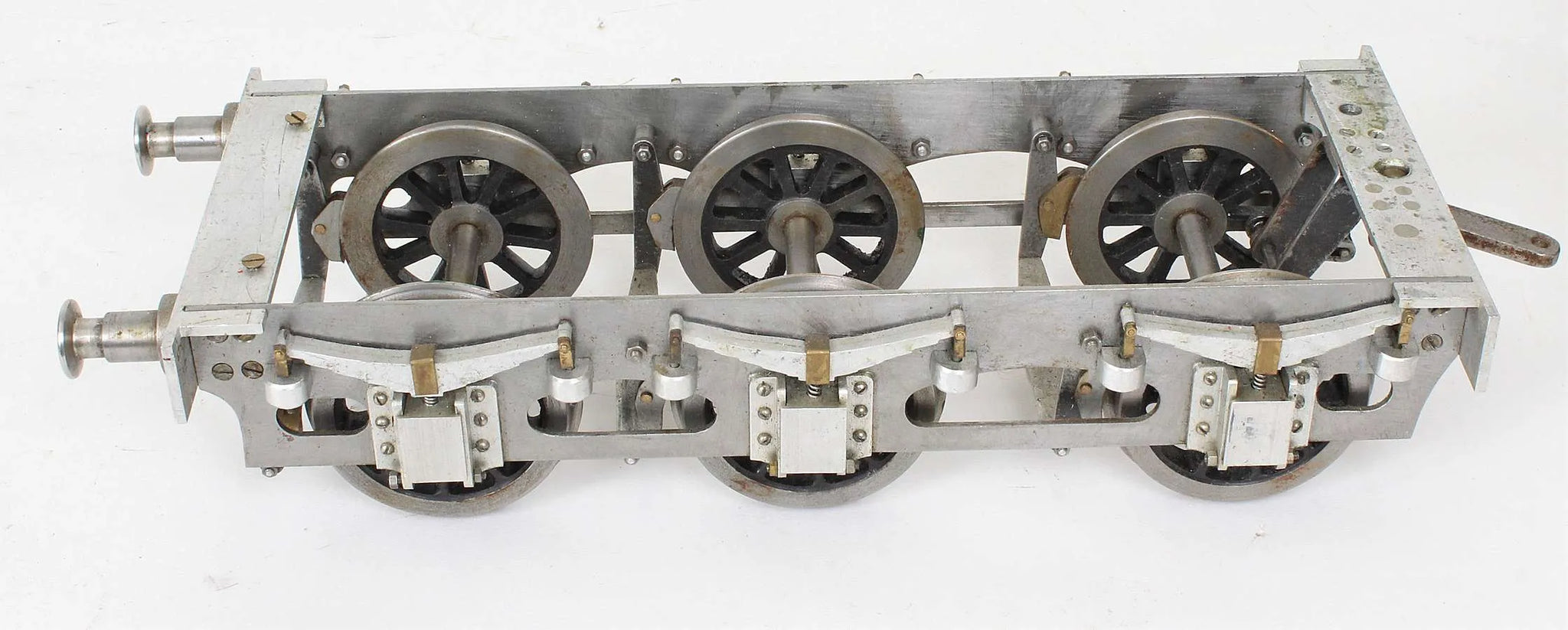

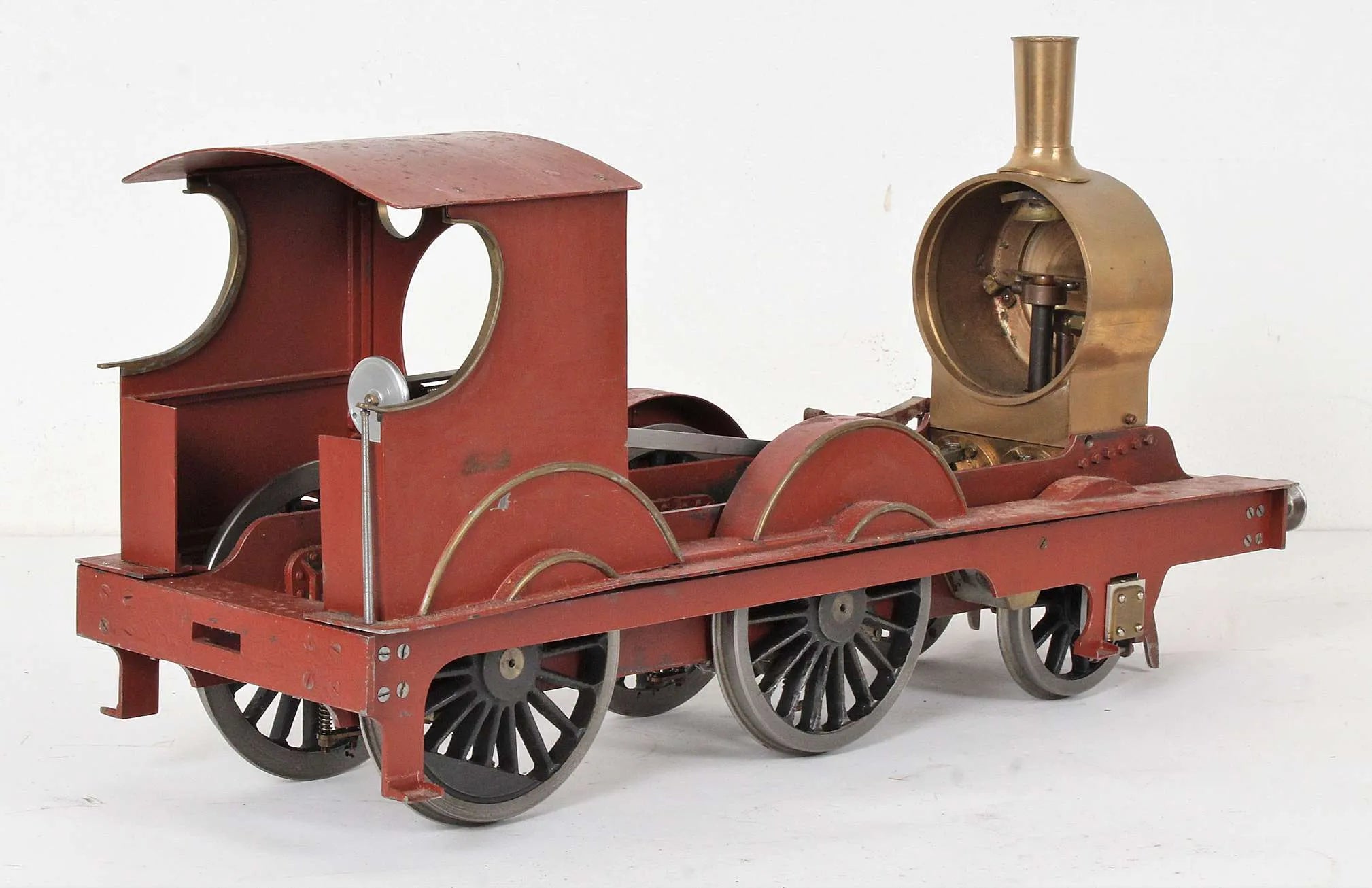

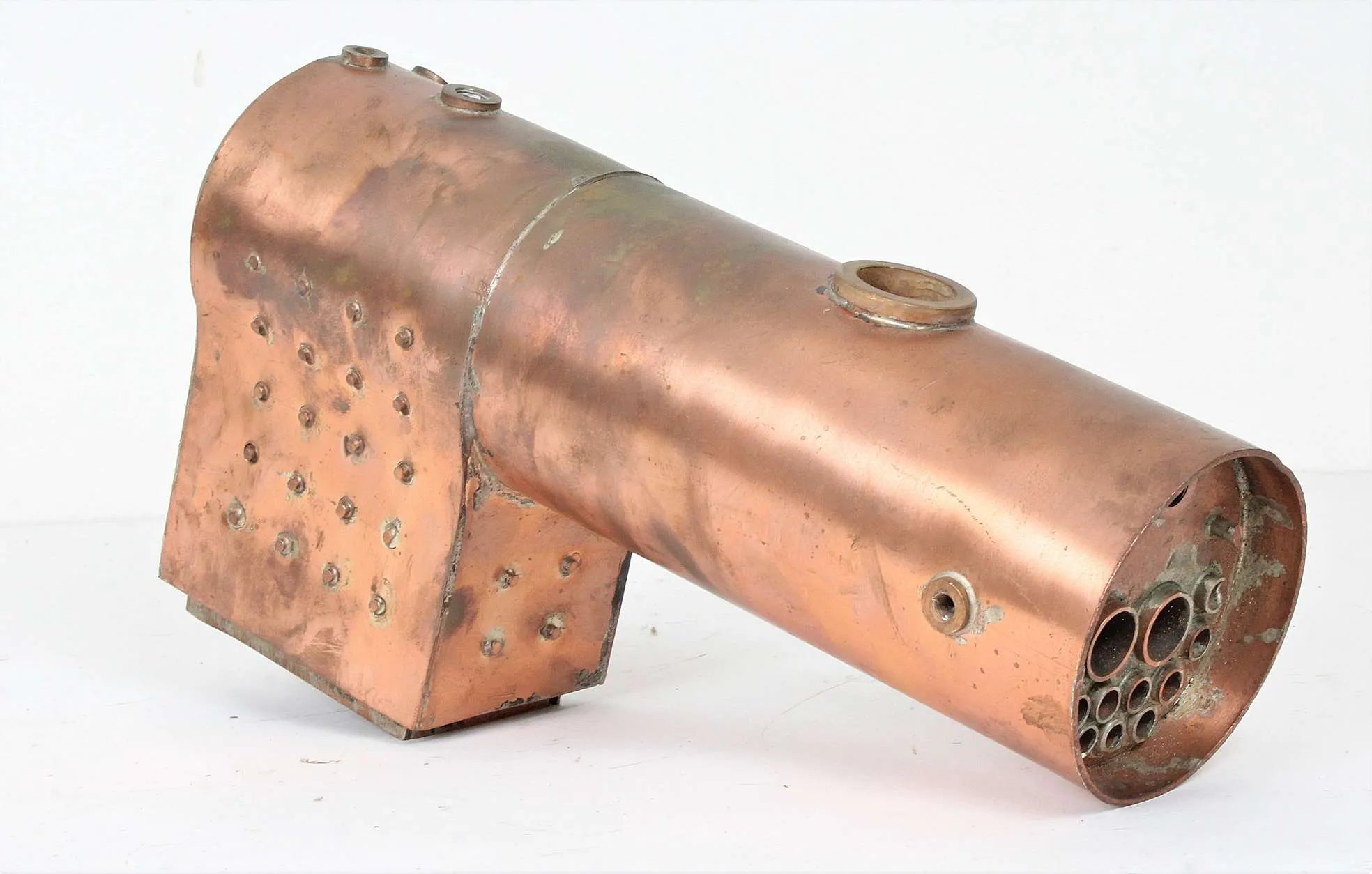

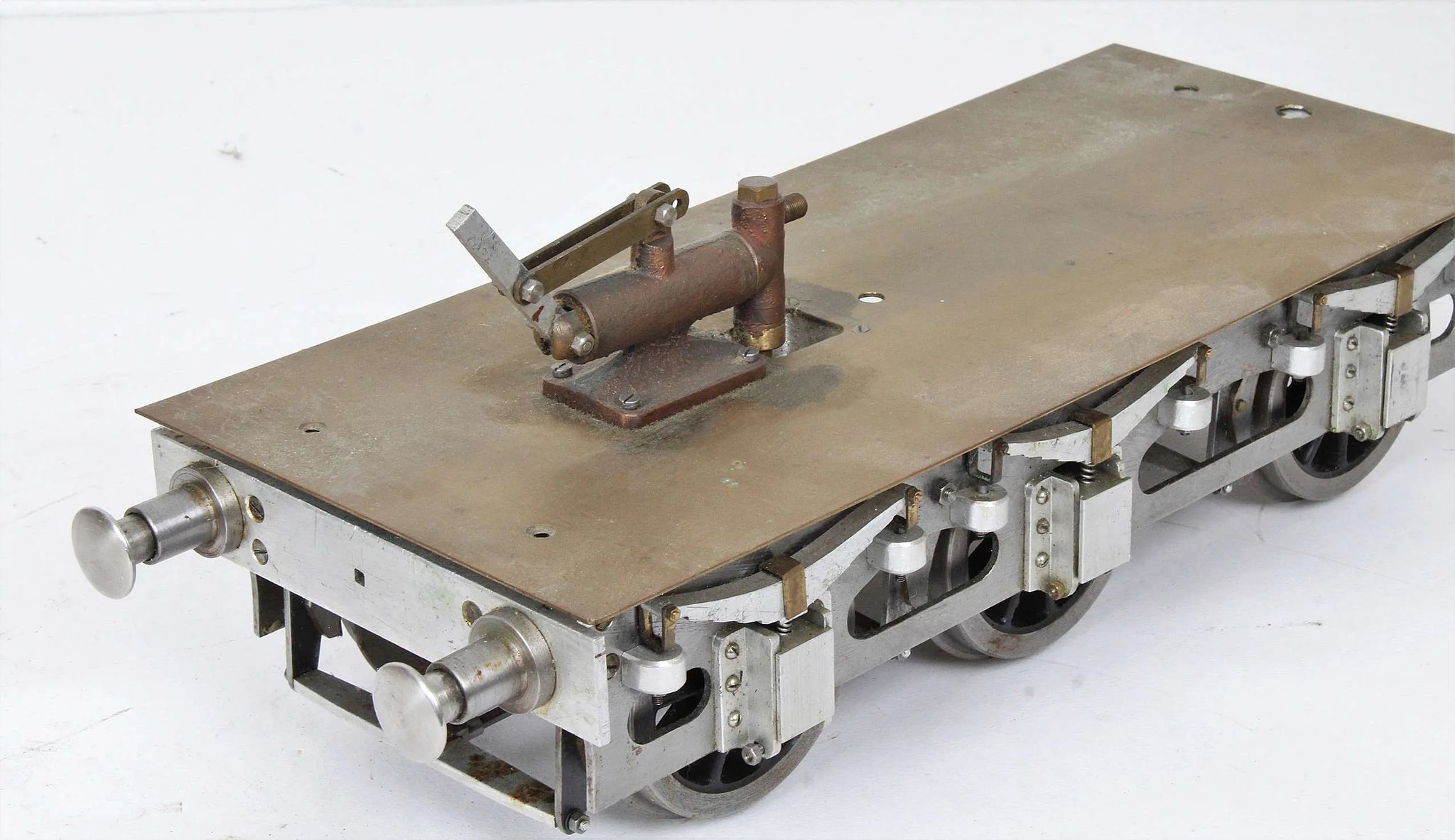

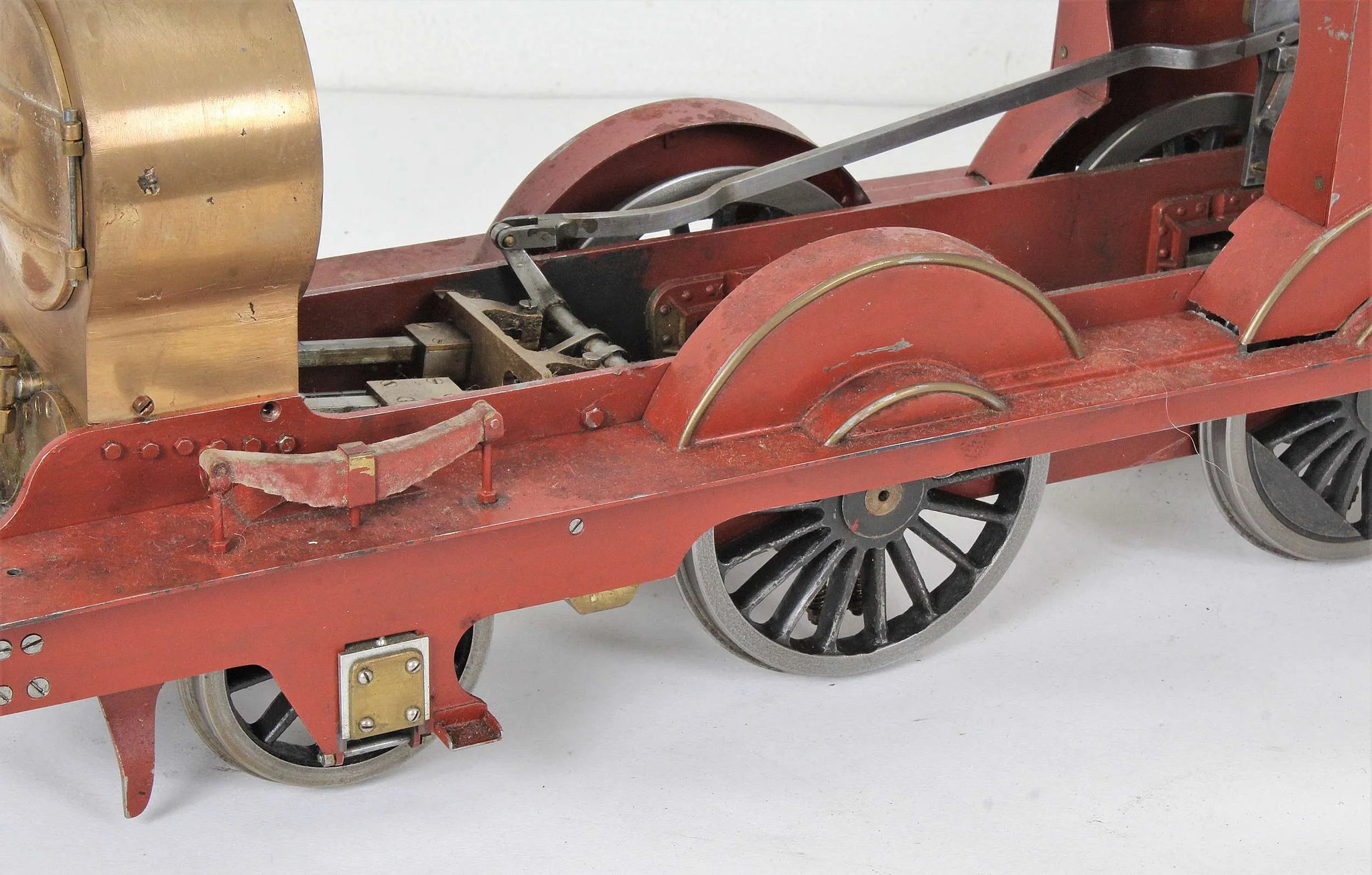

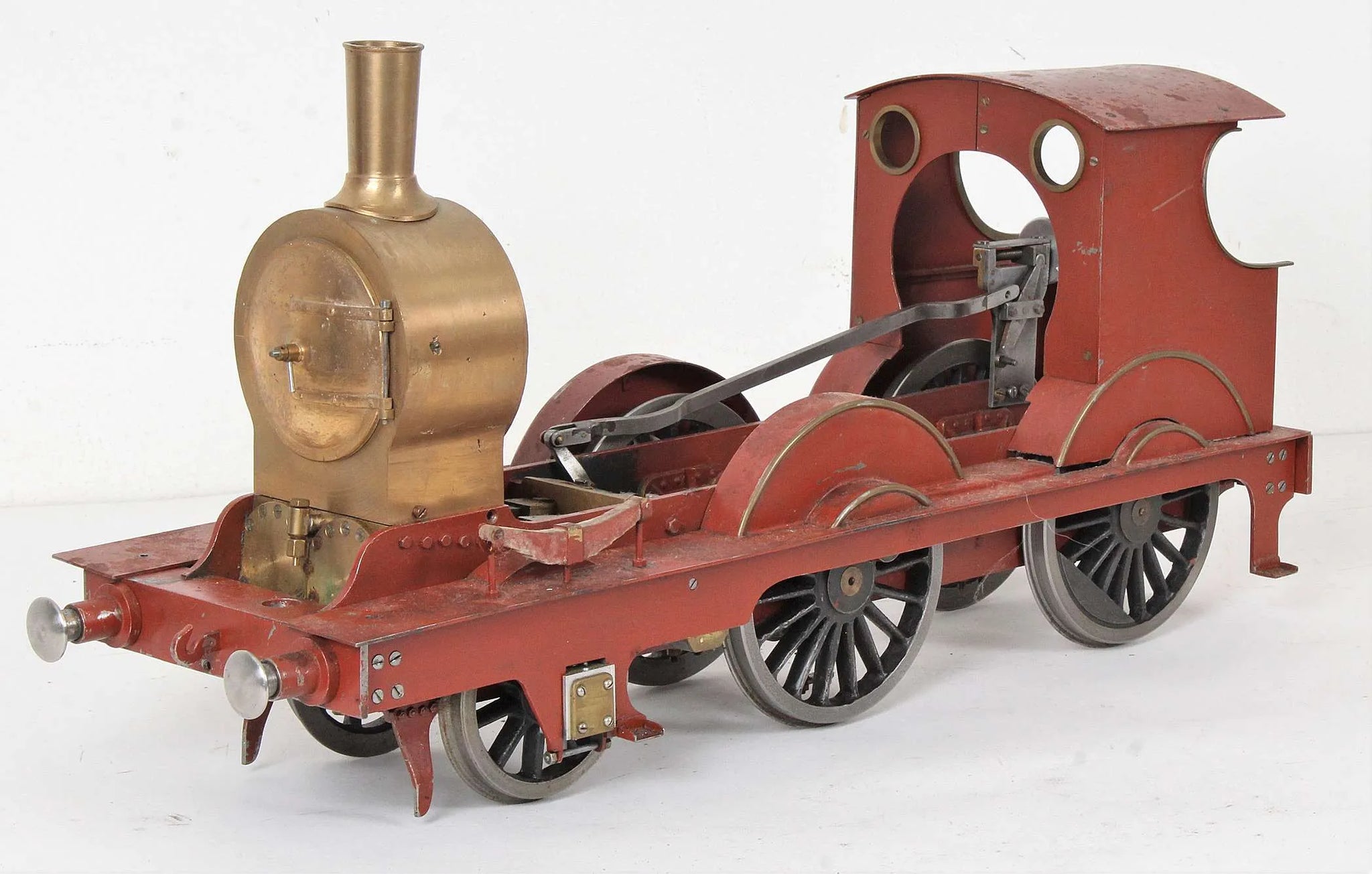

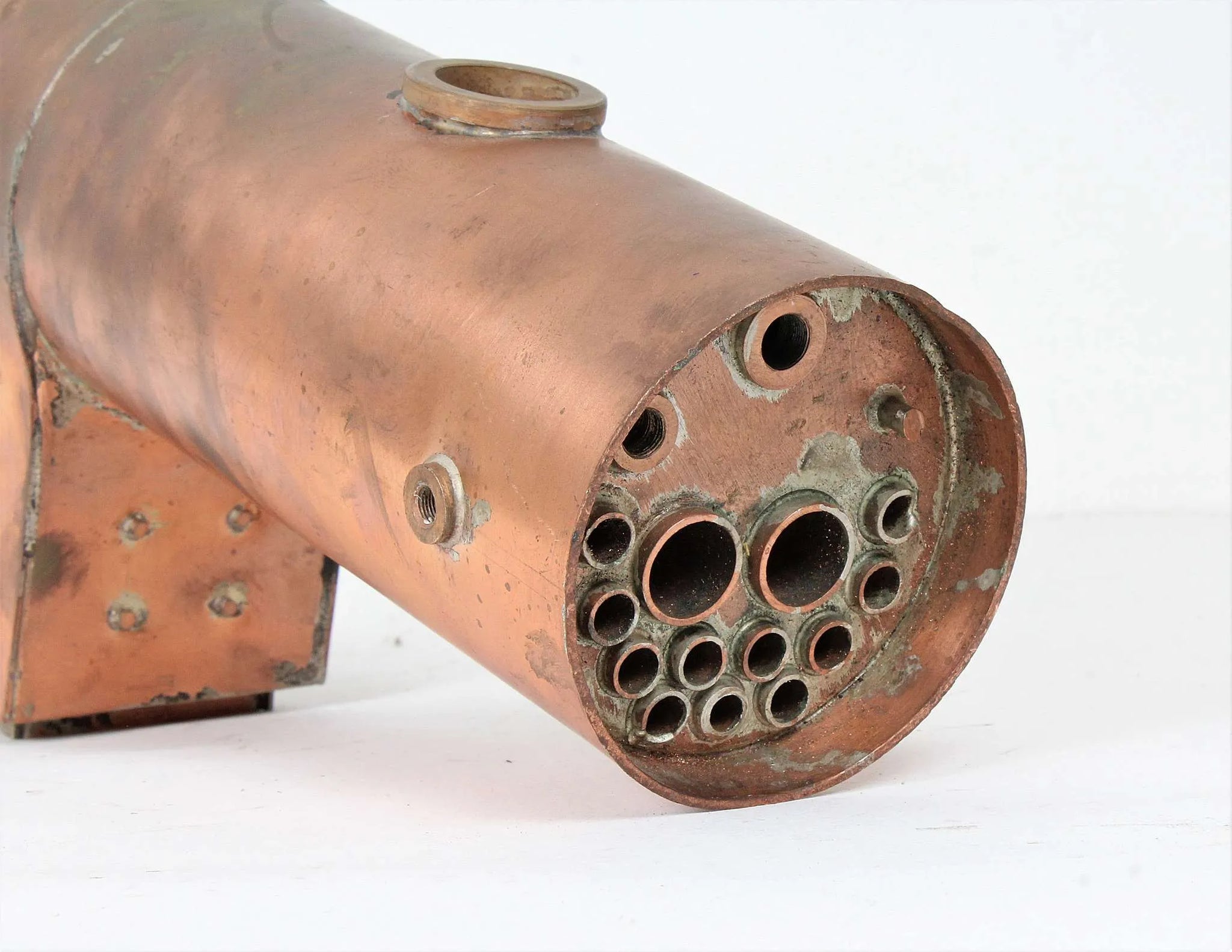

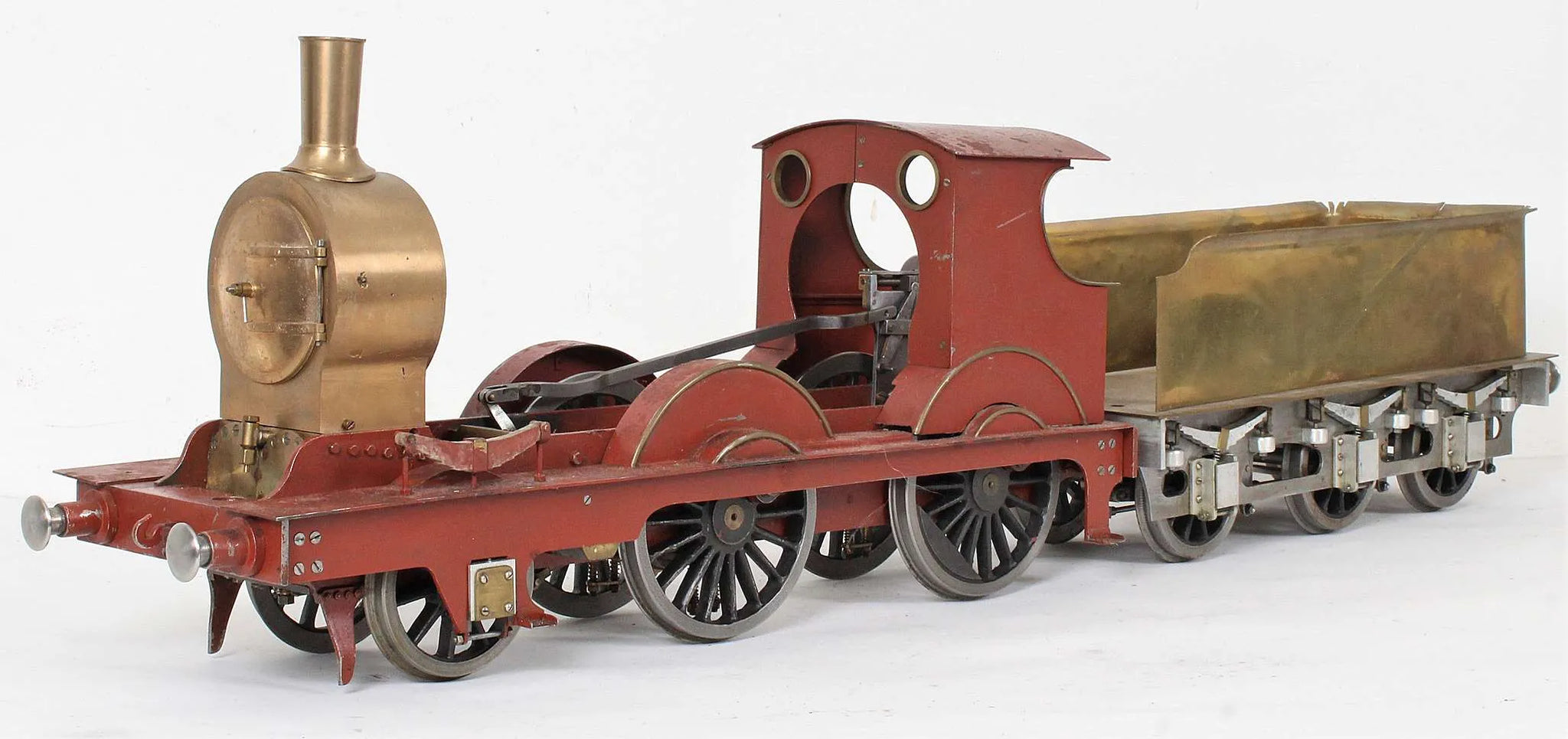

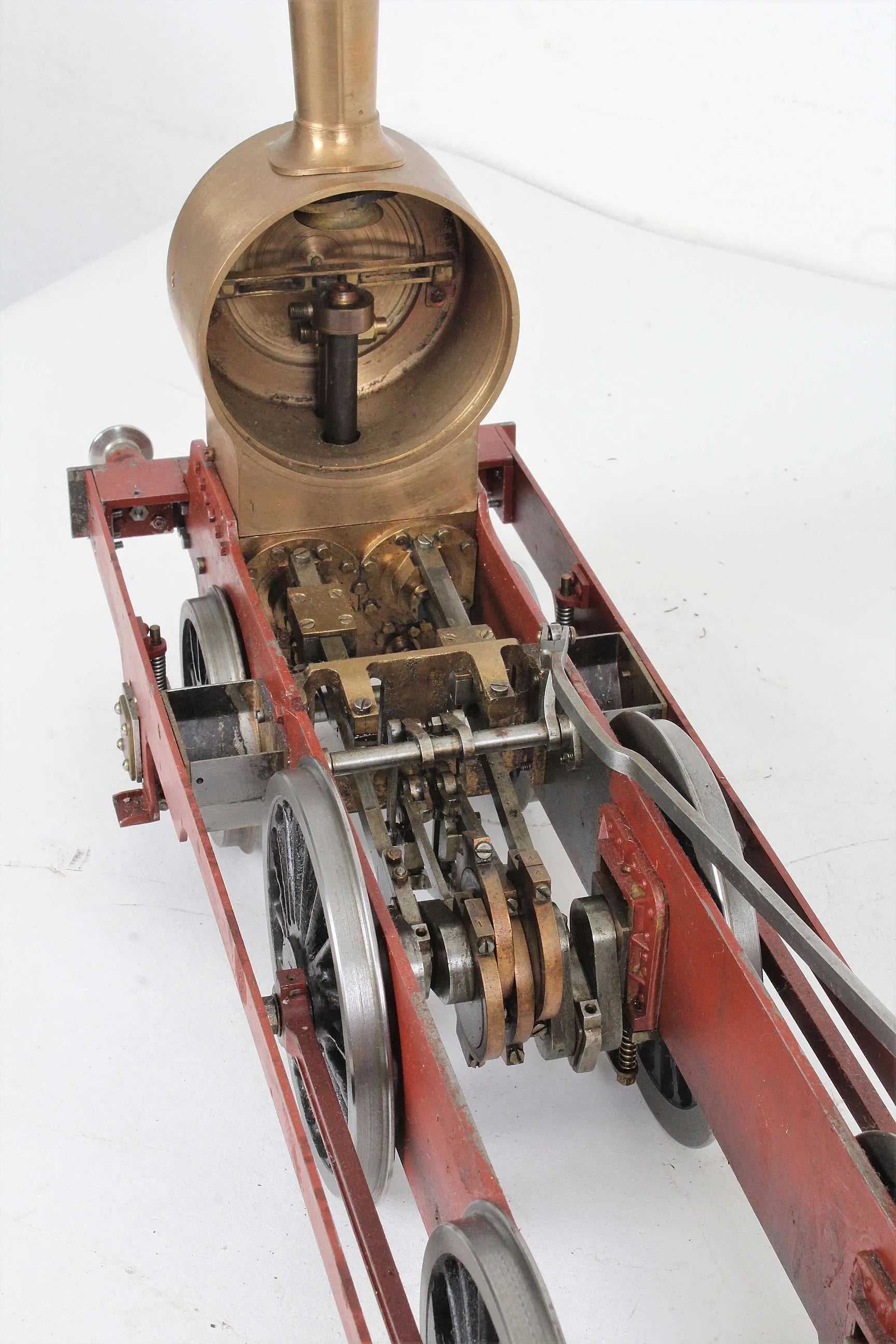

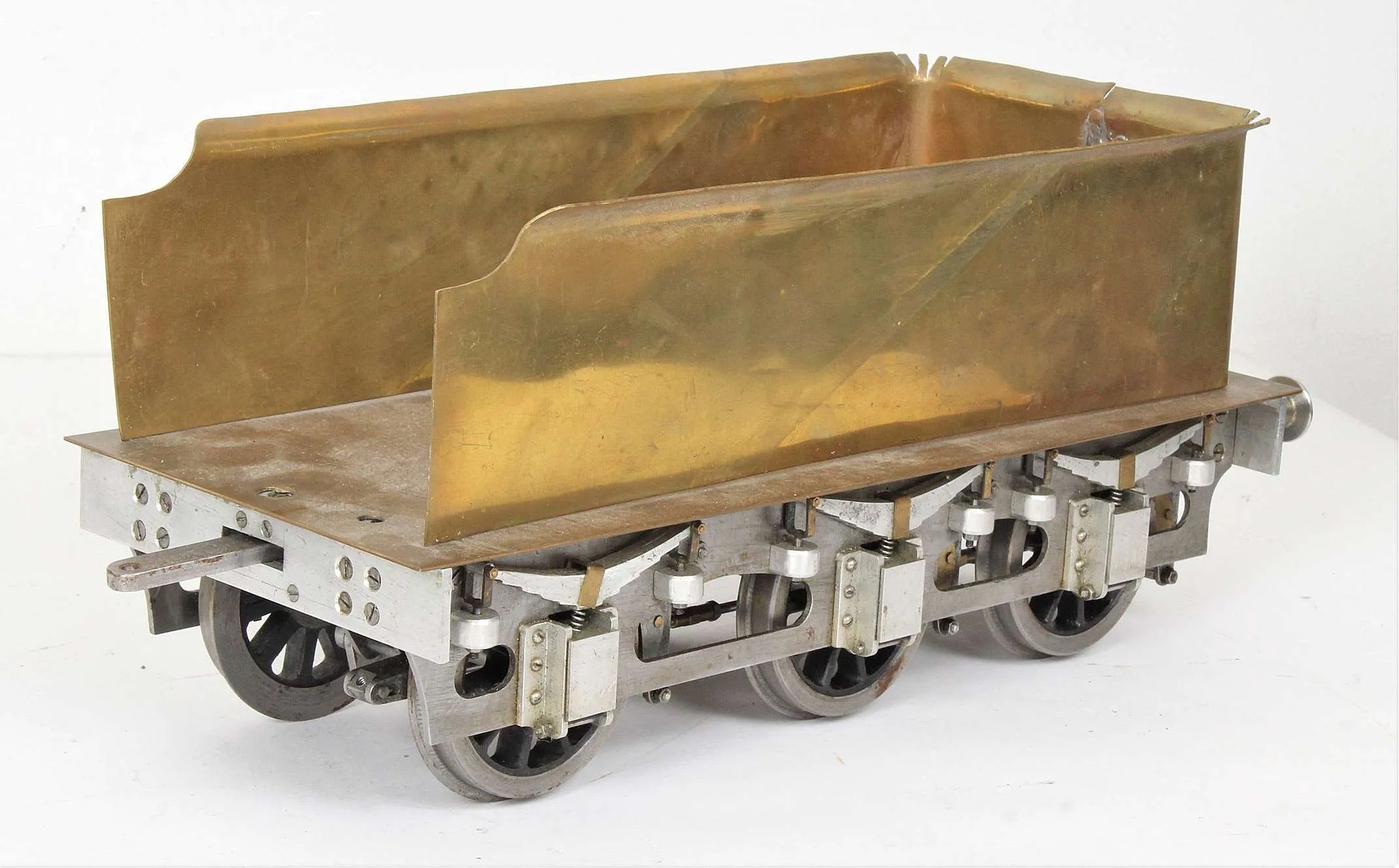

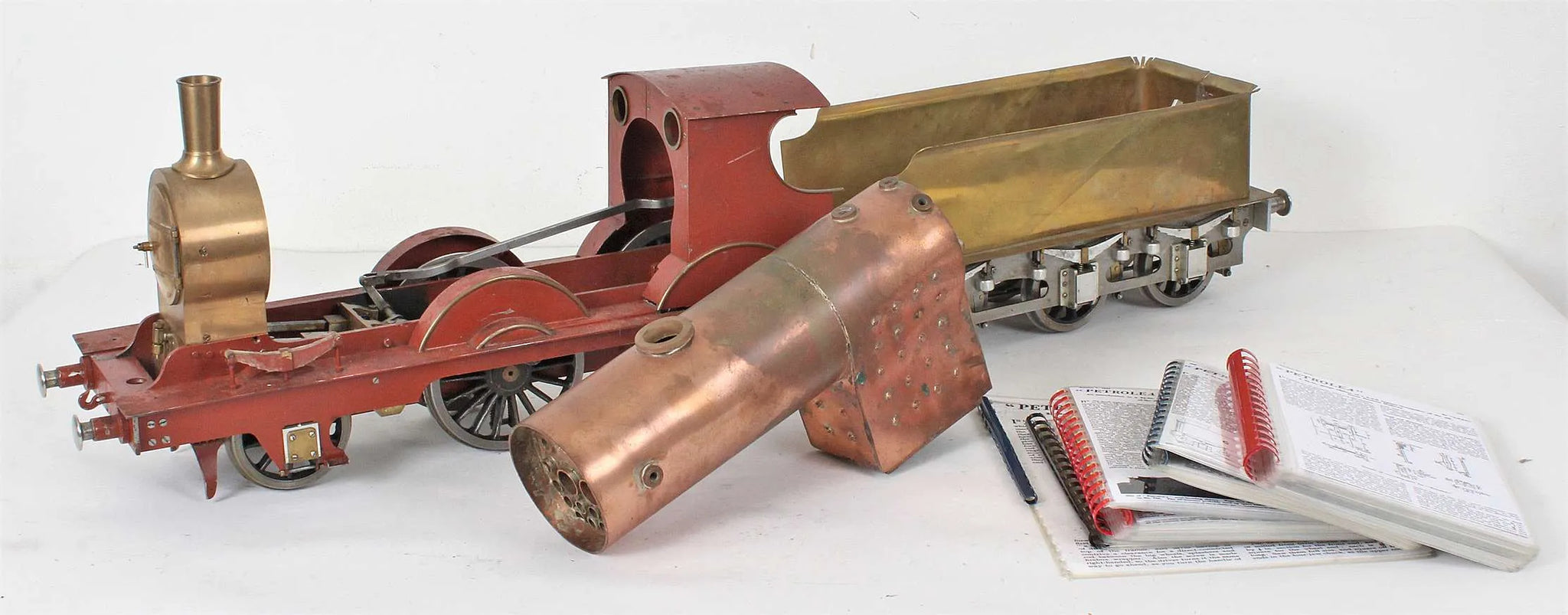

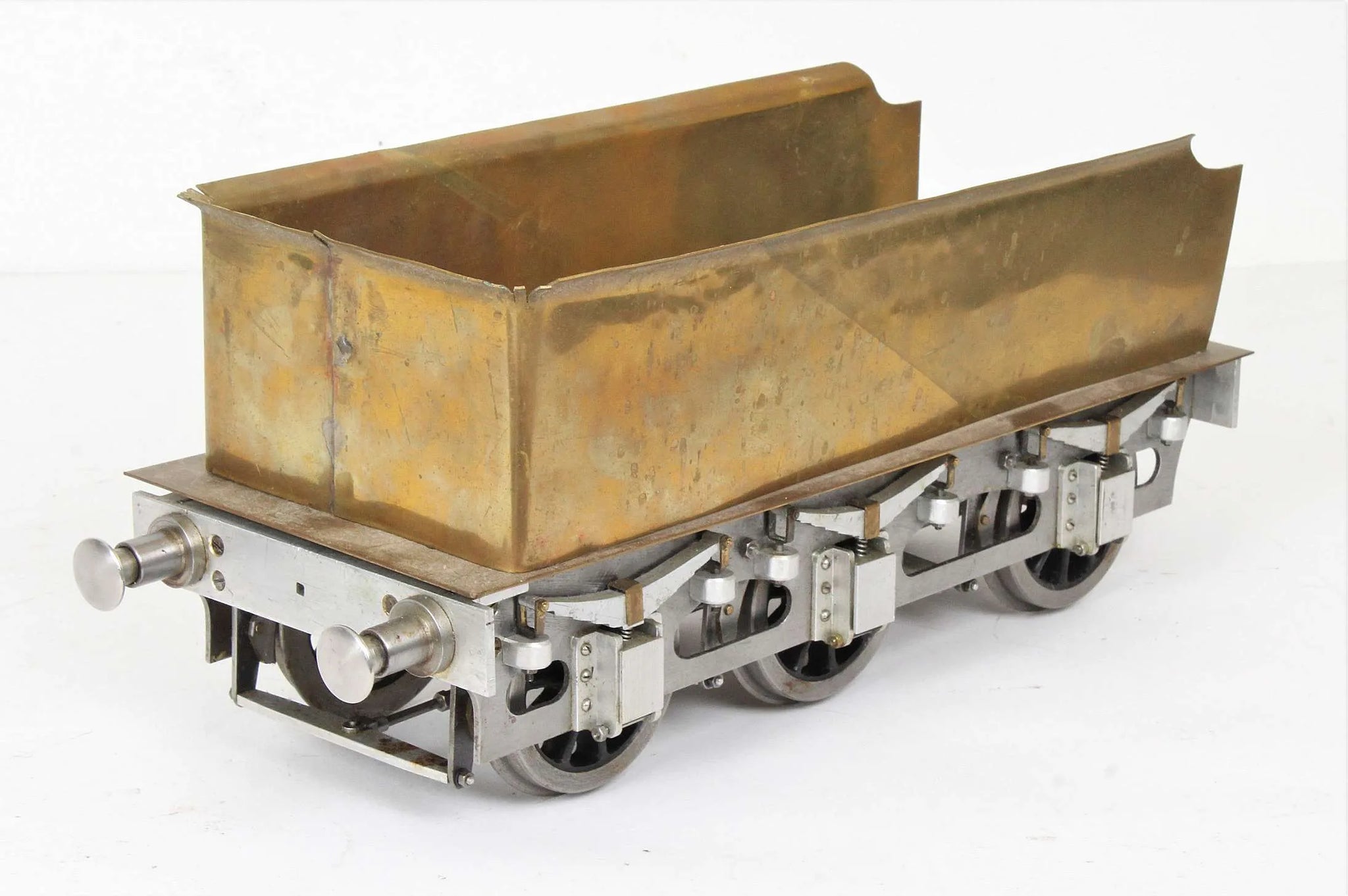

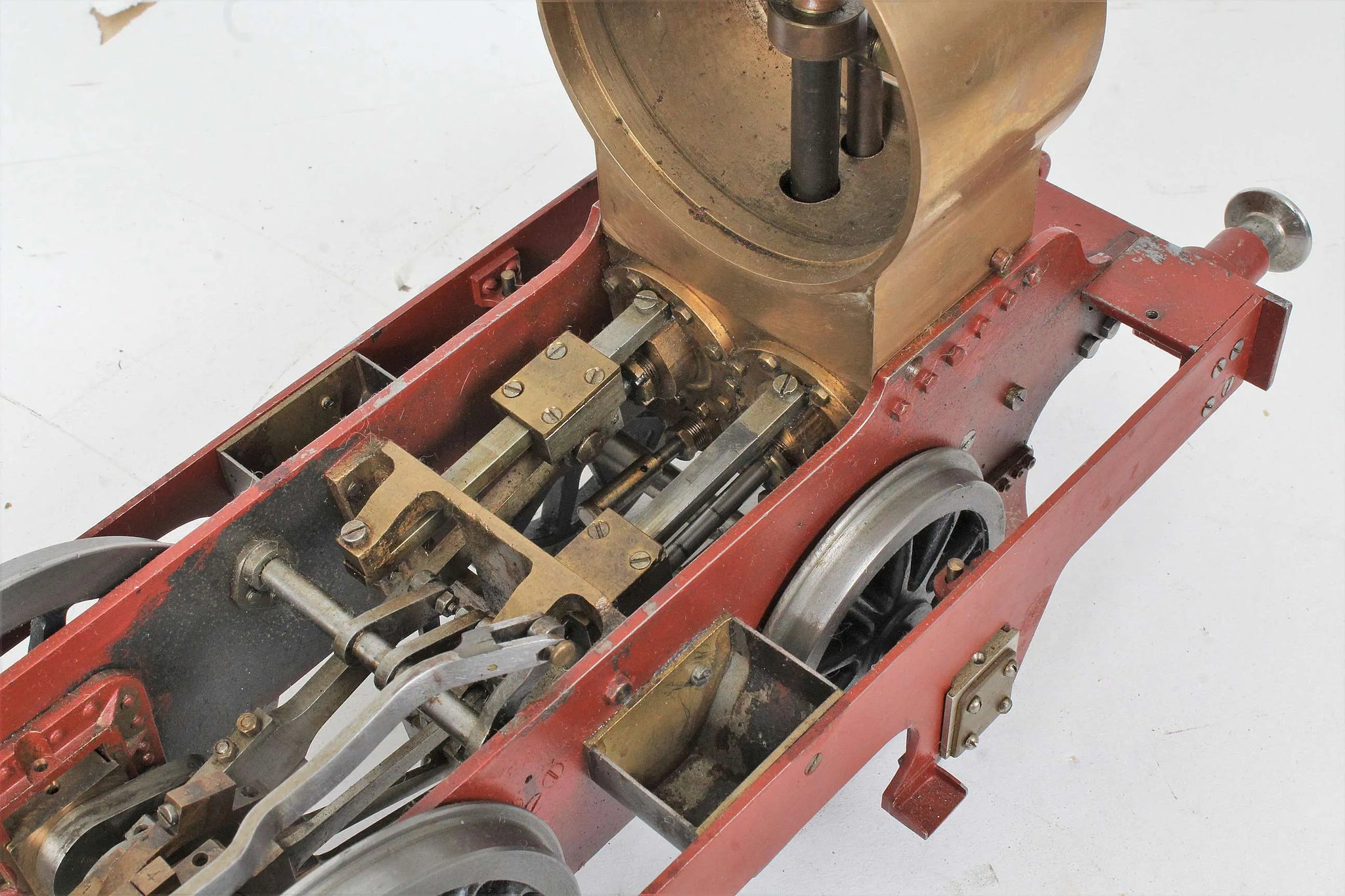

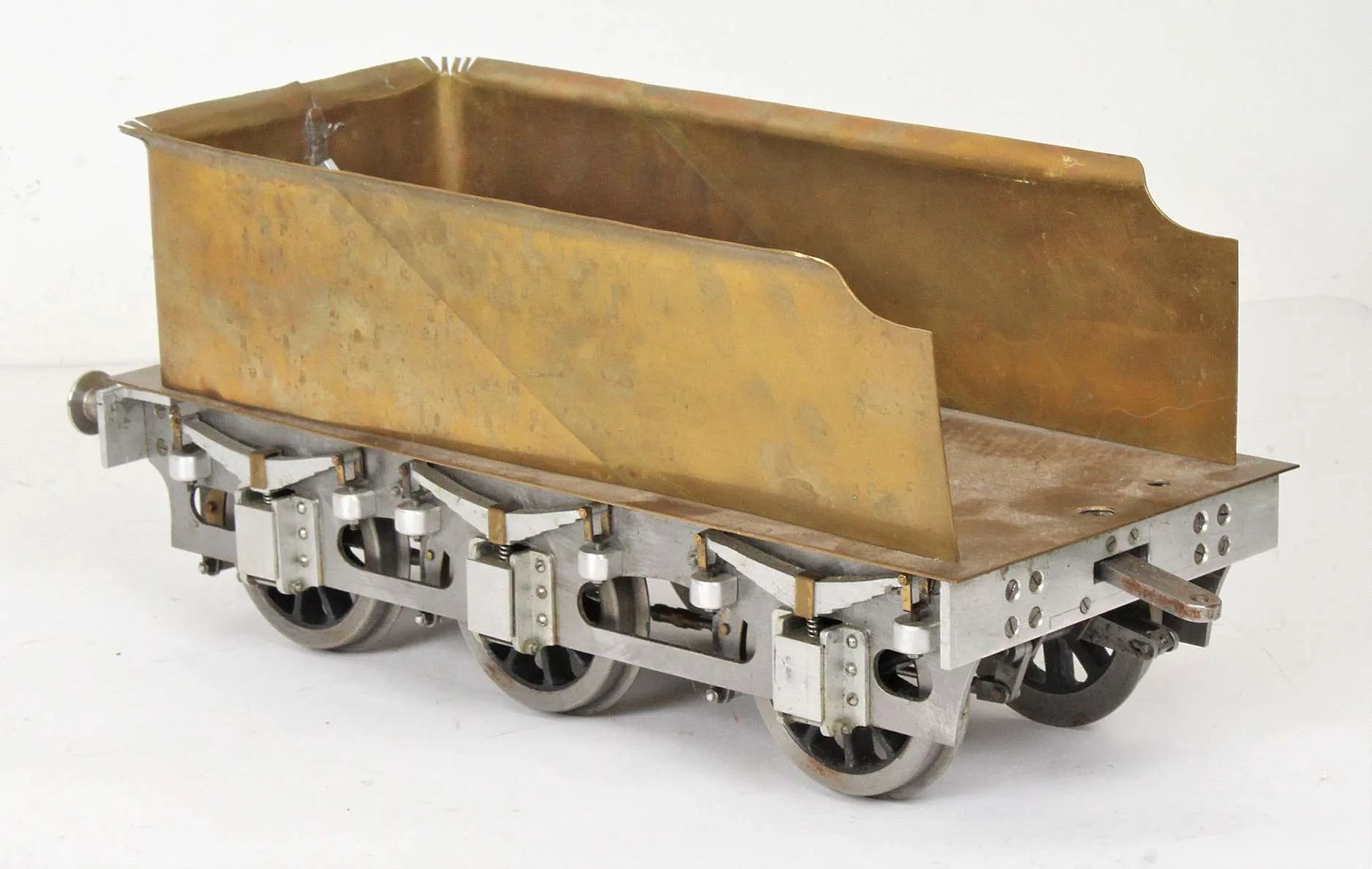

A well-advanced Great Eastern 2-4-0 to LBSC's handsome "Petrolea" design of 1944, comprising rolling chassis with motionwork and valve gear; smokebox assembly with door and chimney; cab, running boards and splashers; commercially built CE-marked copper boiler and a largely complete tender.

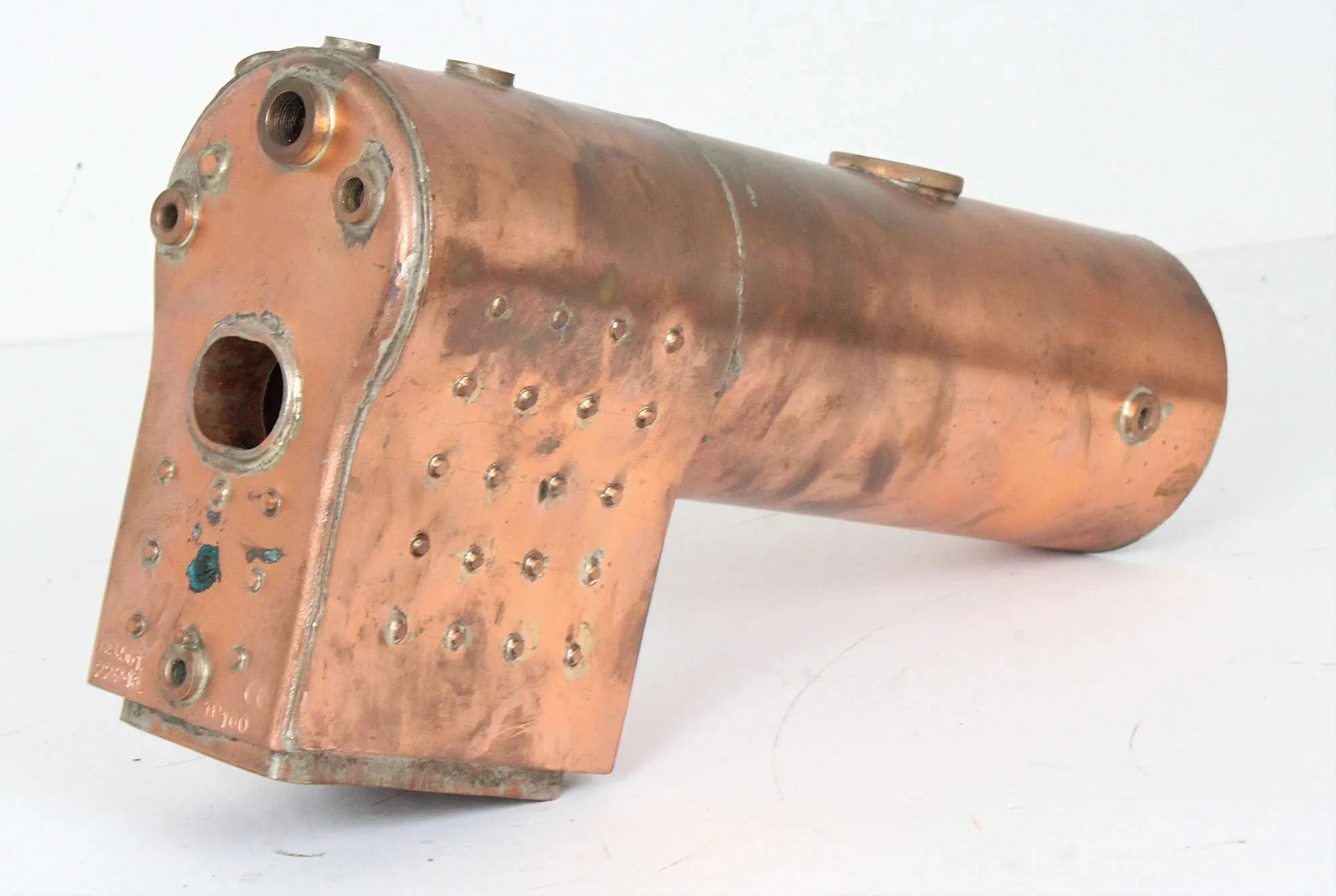

Boiler is very slightly too wide for the frames at the firebox, which will need a light skim taking off them to accommodate.

Complete with spiral-bound copies of the original construction articles.

Technical information

Stock code

10159

Gauge

3 1/2 inch

Length/inches

21 +16

Width/inches

6

Height/inches

11

Wheel material

cast iron

Axlebox type

plain bearing

Cylinder material

gunmetal

Valve type

slide

Valve gear

Stephensons

Reverser type

screw

Boiler maker

GB Boiler Services

Boiler type

locomotive

Boiler construction

silver soldered

Boiler material

copper

Working pressure

80

CE/UKCA mark

yes

Year built

2013

Boiler number

GB561

Superheater

2

Date out

Nov-22
