9987

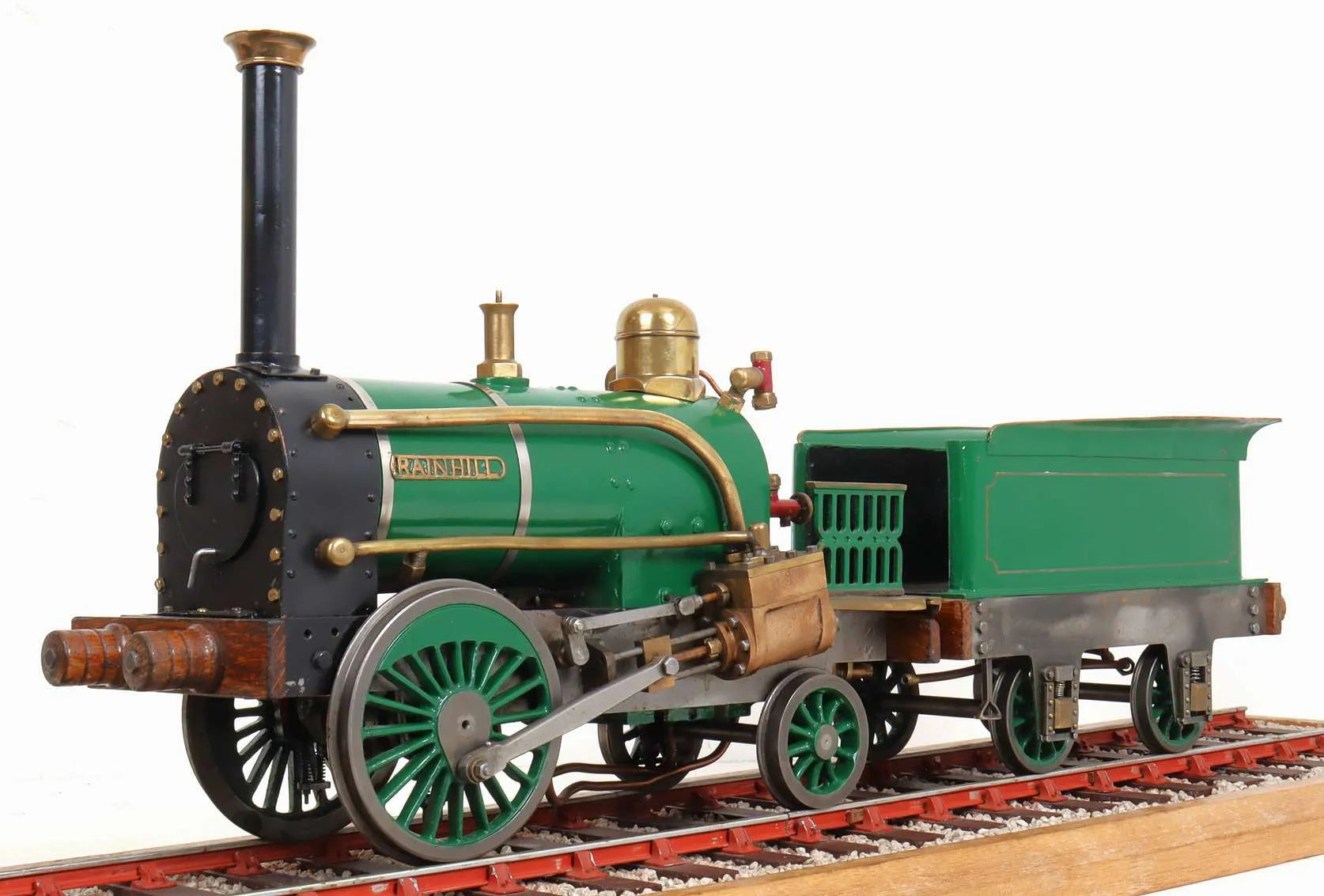

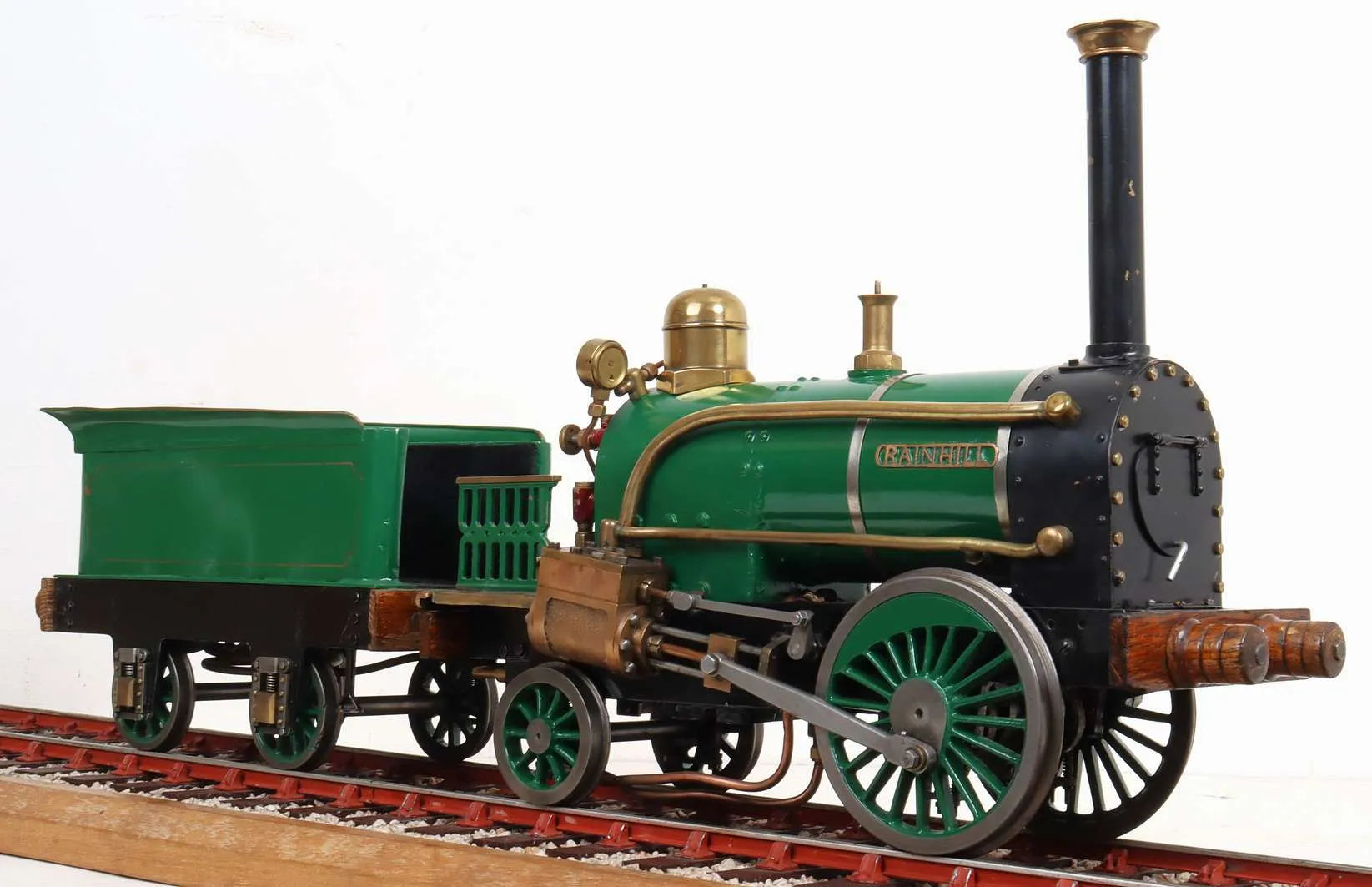

The engine rolls freely and runs well on air. The boiler has had a twice working pressure hydraulic test and proved structurally sound, with two or three minor leaks in the nutted and calked firebox which could be easily re-calked.
Apparently unsteamed in many years, the engine is complete bar a missing grate which could be easily fabricated.
Stock code |
9987 |
Gauge |
3 1/2 inch |
Length/inches |
13.5 + 10.5 |
Width/inches |
5 |
Height/inches |
11.5 |
Weight/Kg |
9.5 |

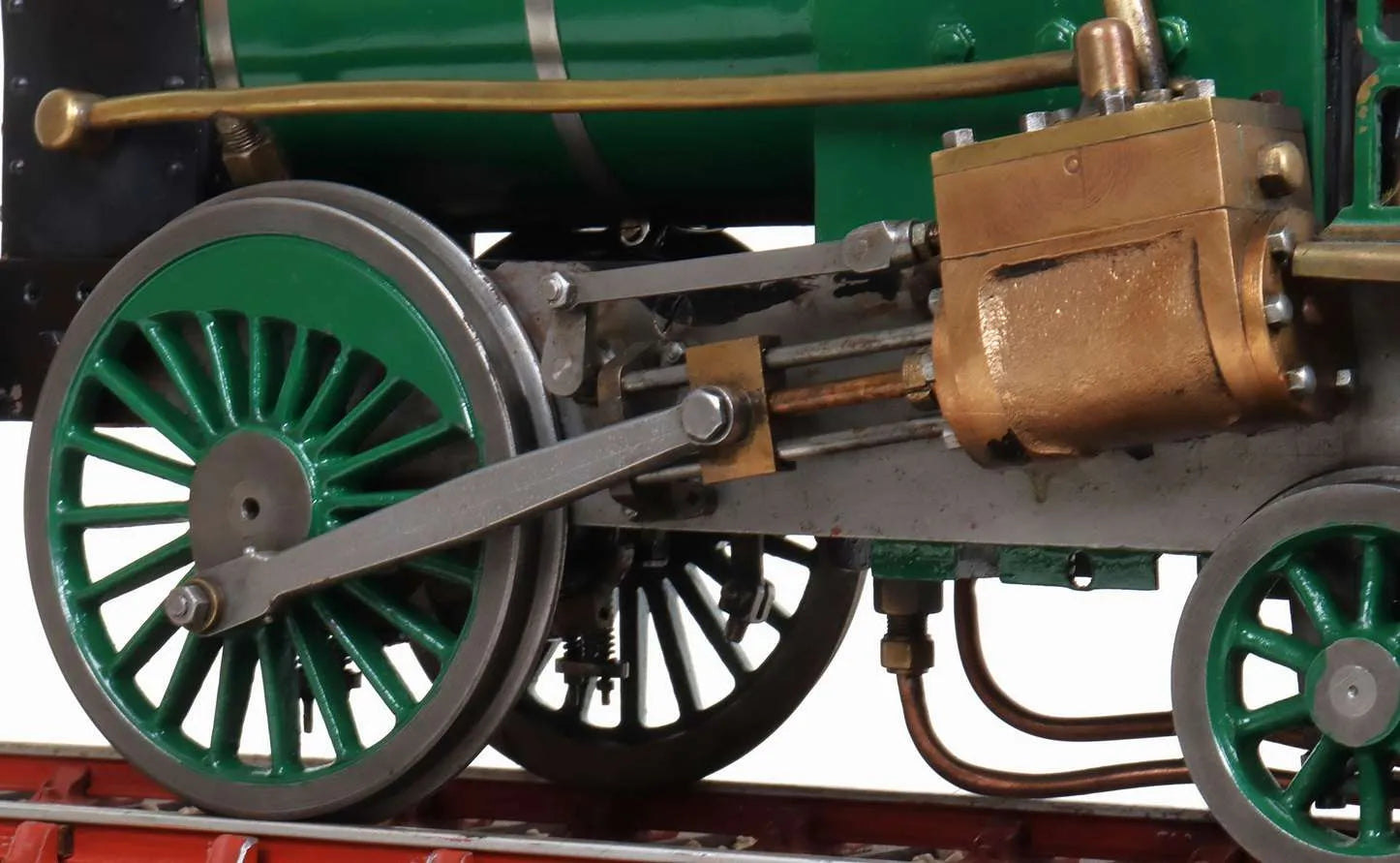

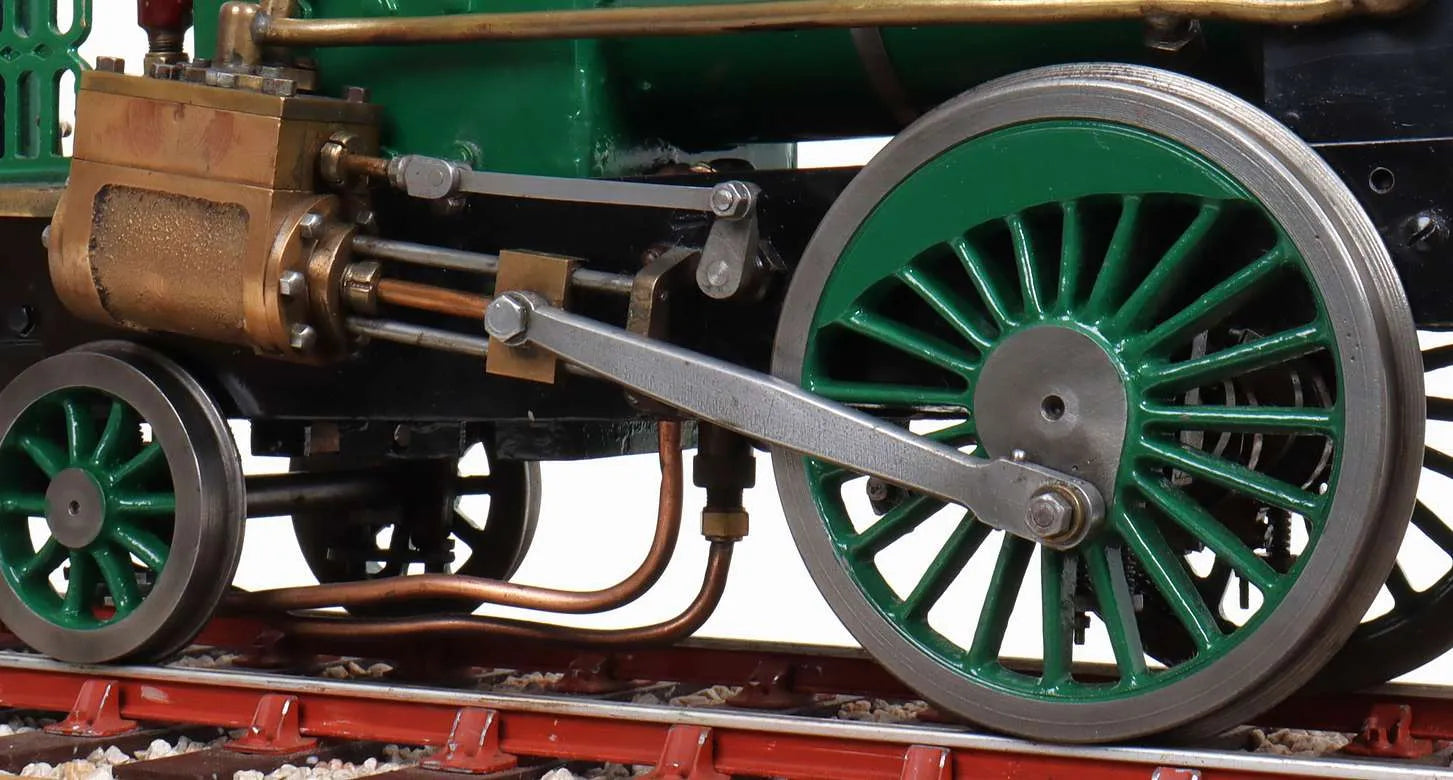

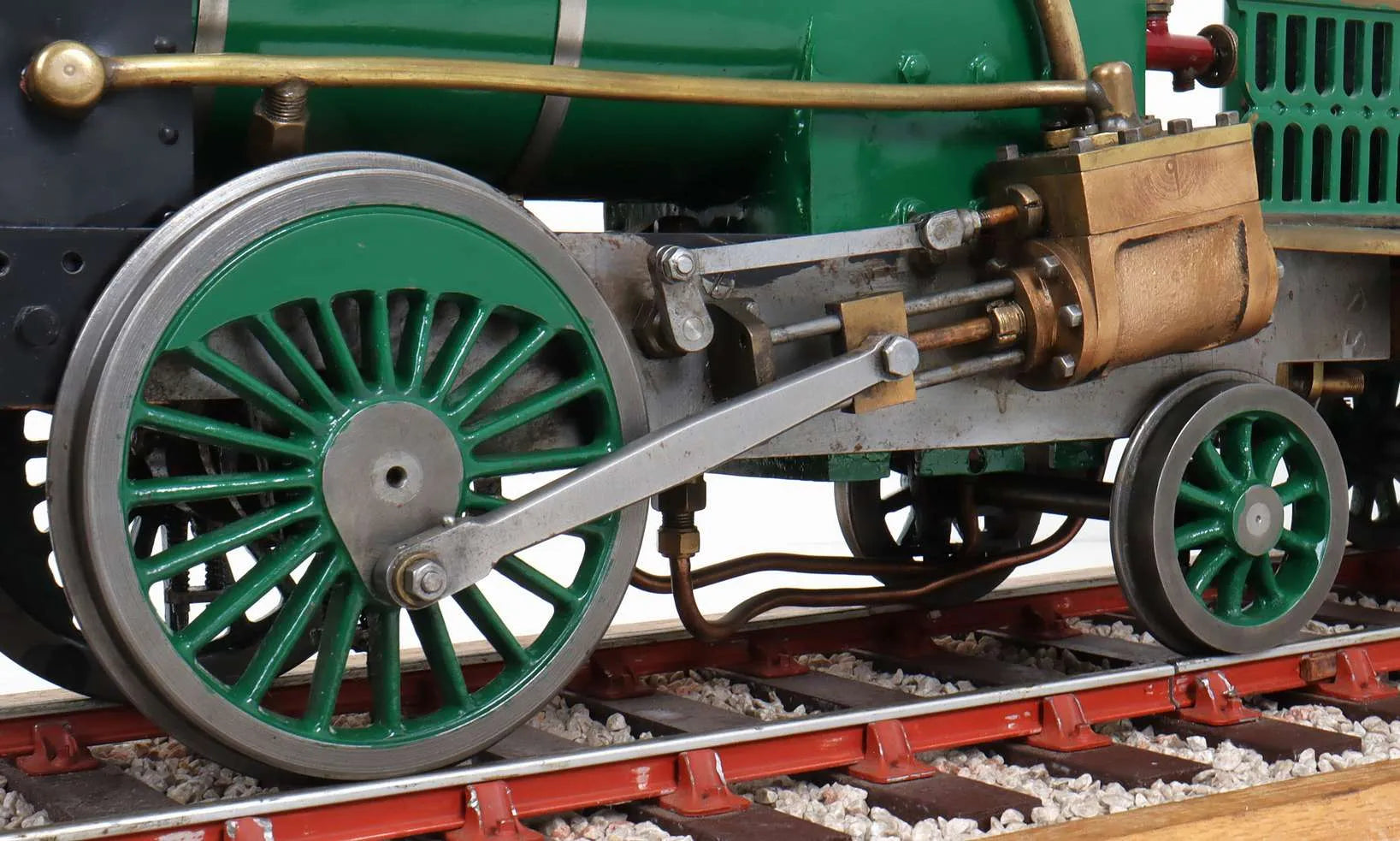

Wheel material |
cast iron |
Axlebox type |
plain bearing |

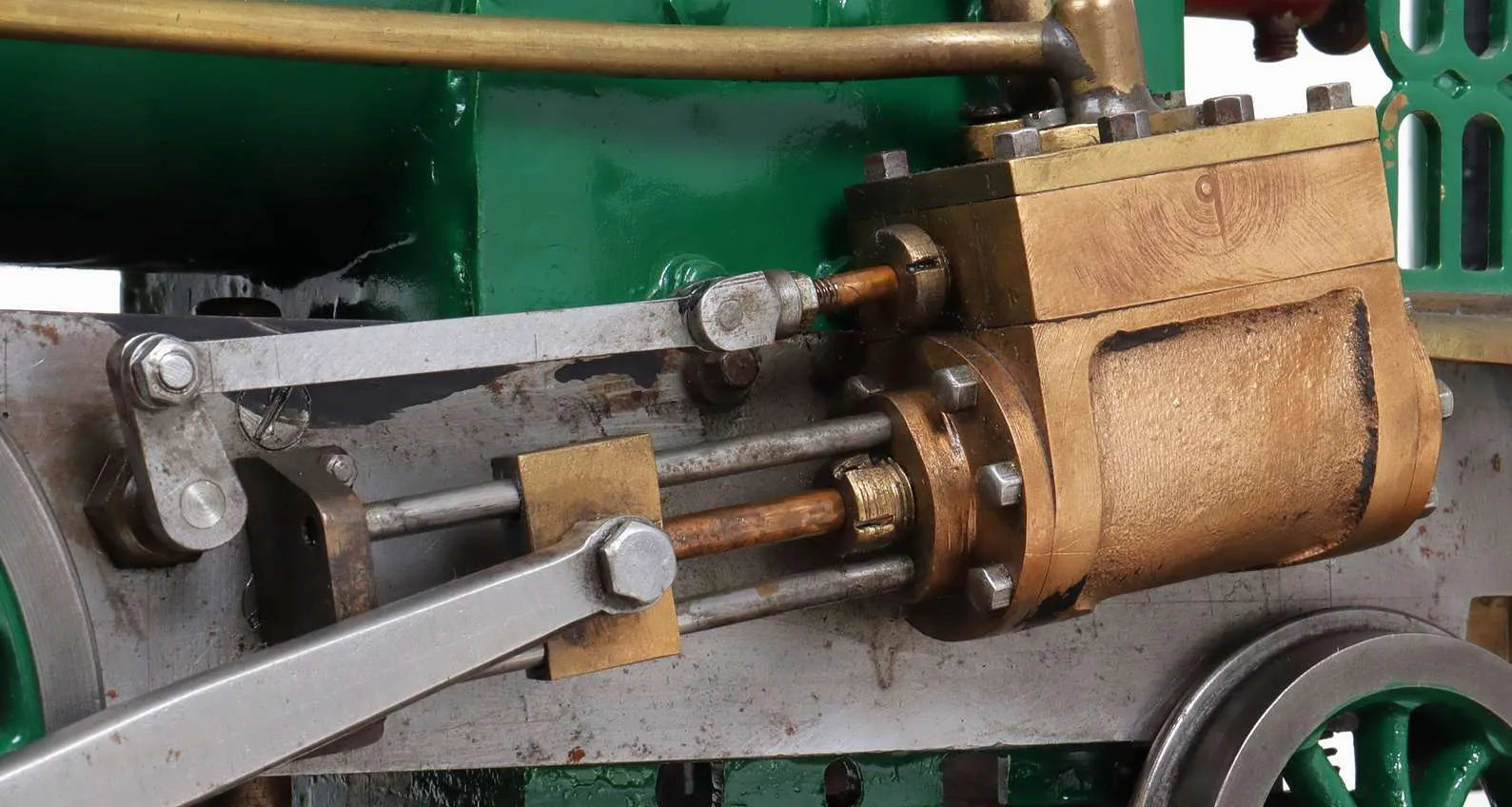

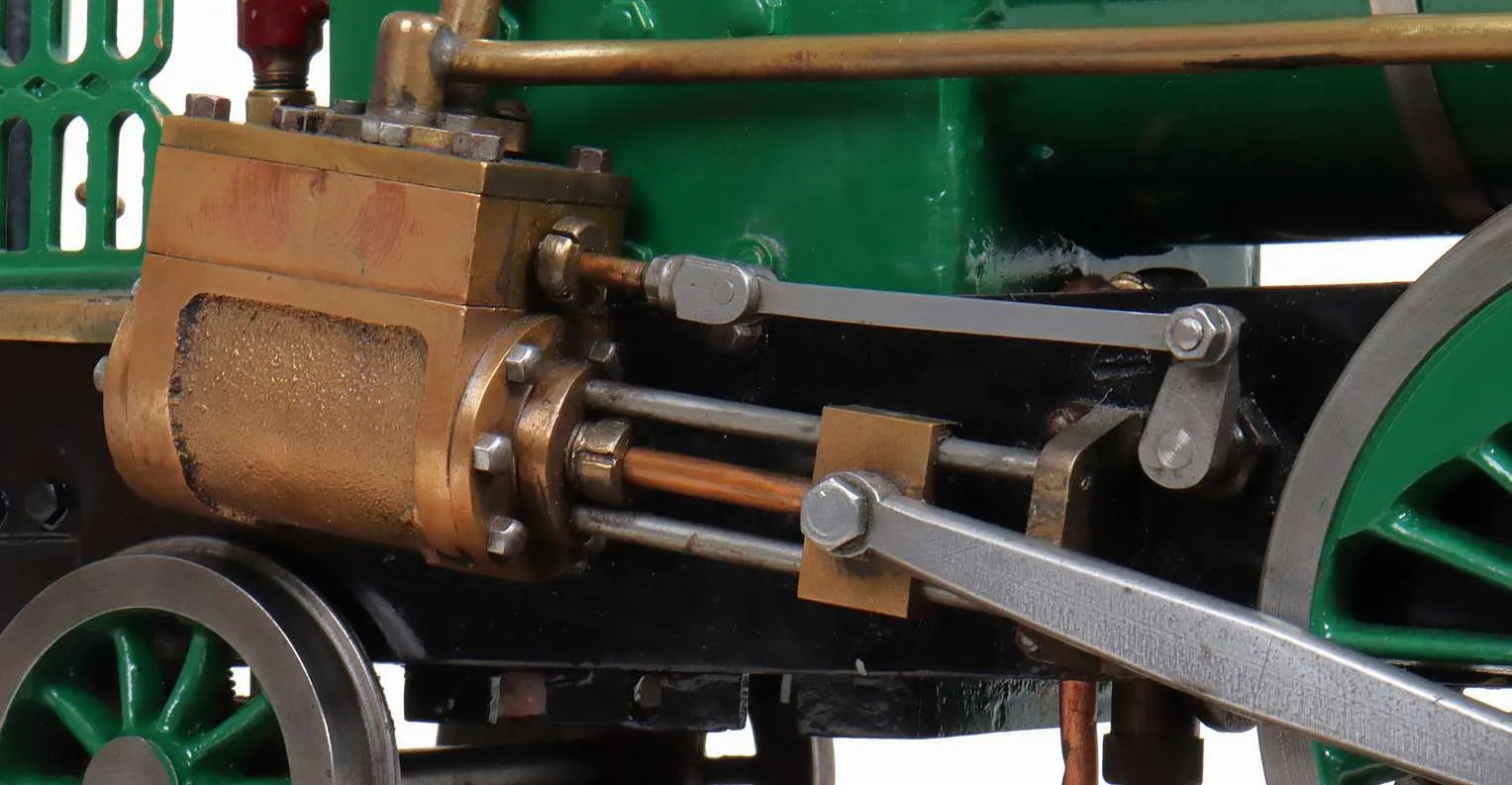

Cylinder material |
gunmetal |
Valve type |
slide |
Valve gear |
slip eccentric |
Boiler type |
locomotive |
Boiler material |
copper |

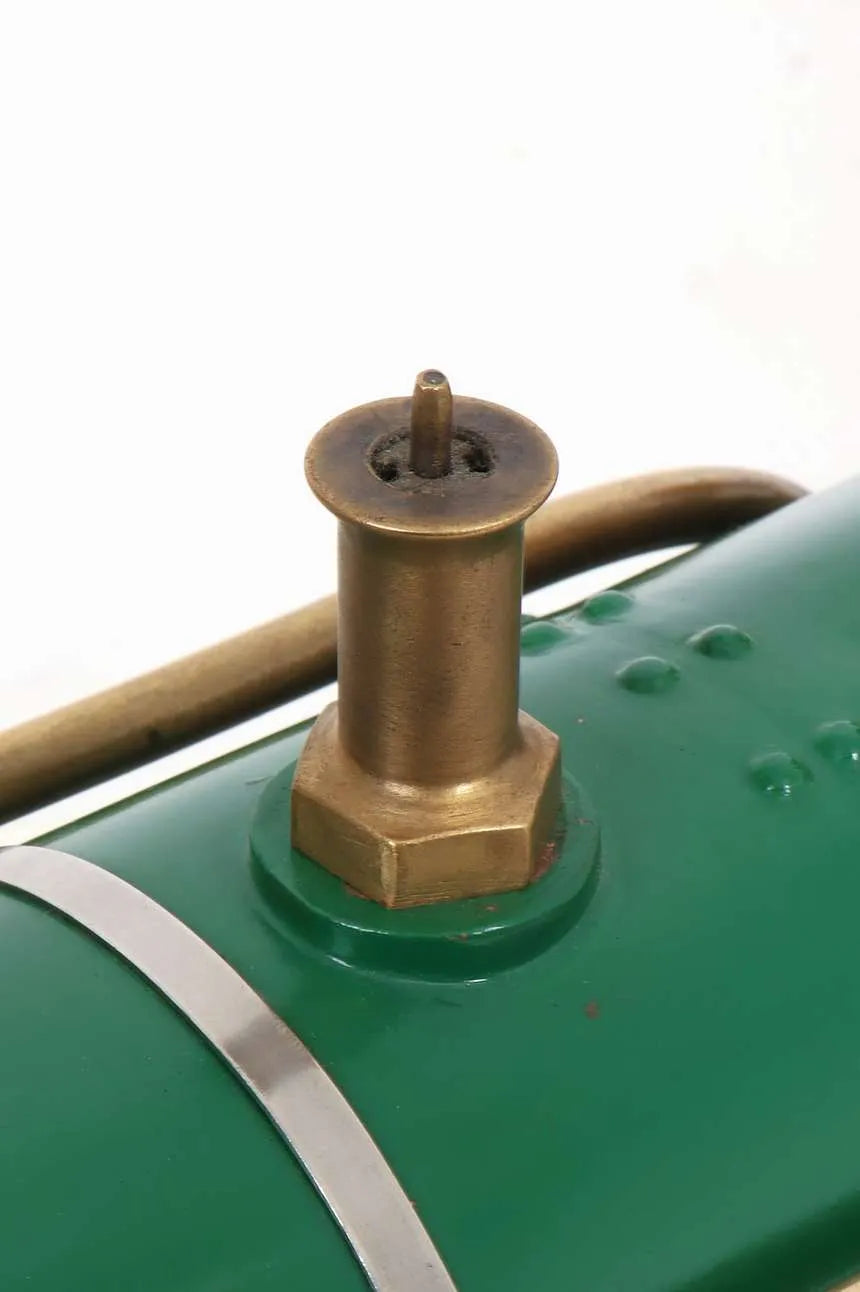

Safety valve type |
spring |
Safety valve |
1 |
Hand pump |
1 |
Mechanical pump |
1 |
Superheater type |
flue tube |
Superheater |
2 |
Date out |
Feb-23 |
